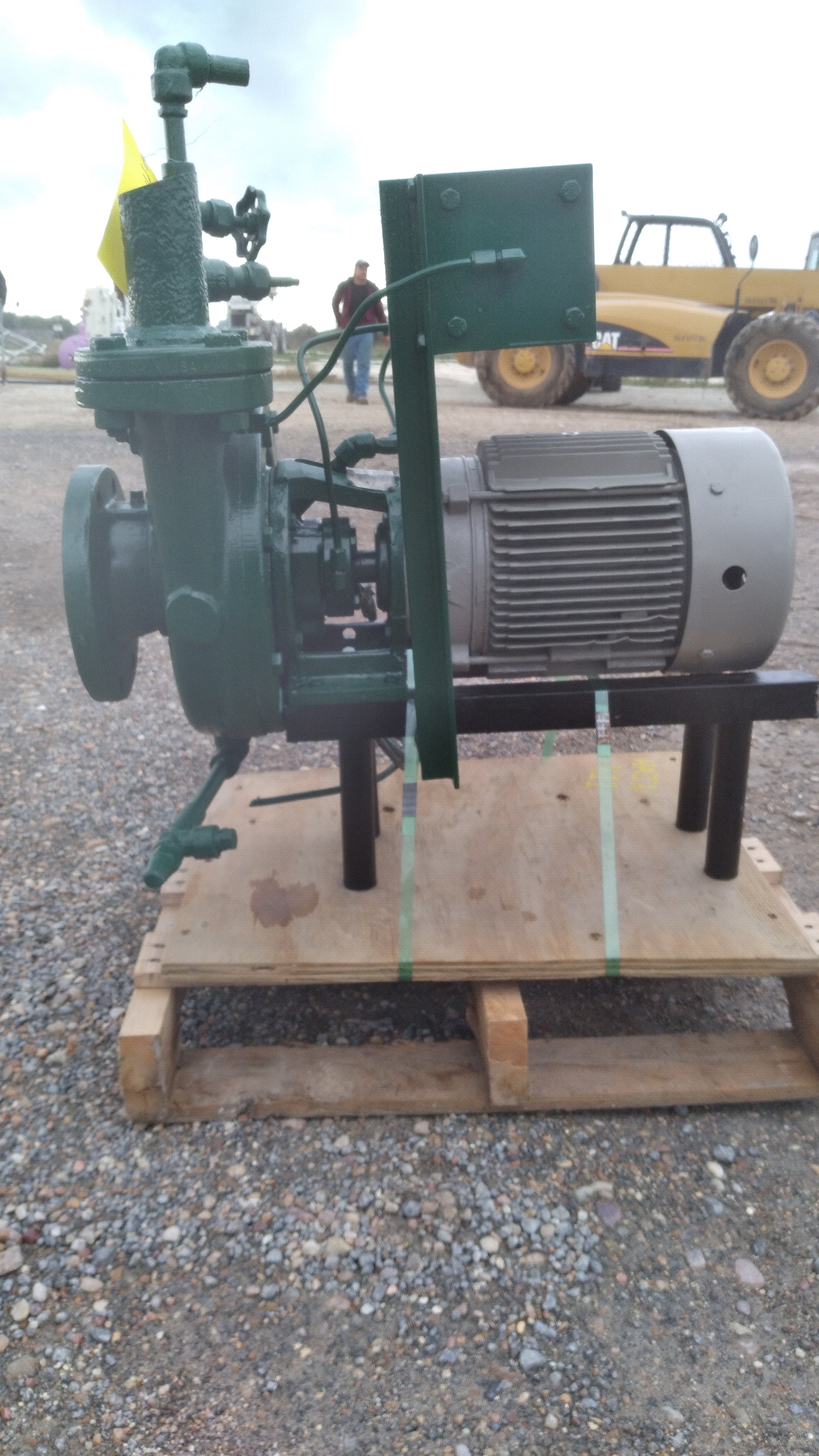

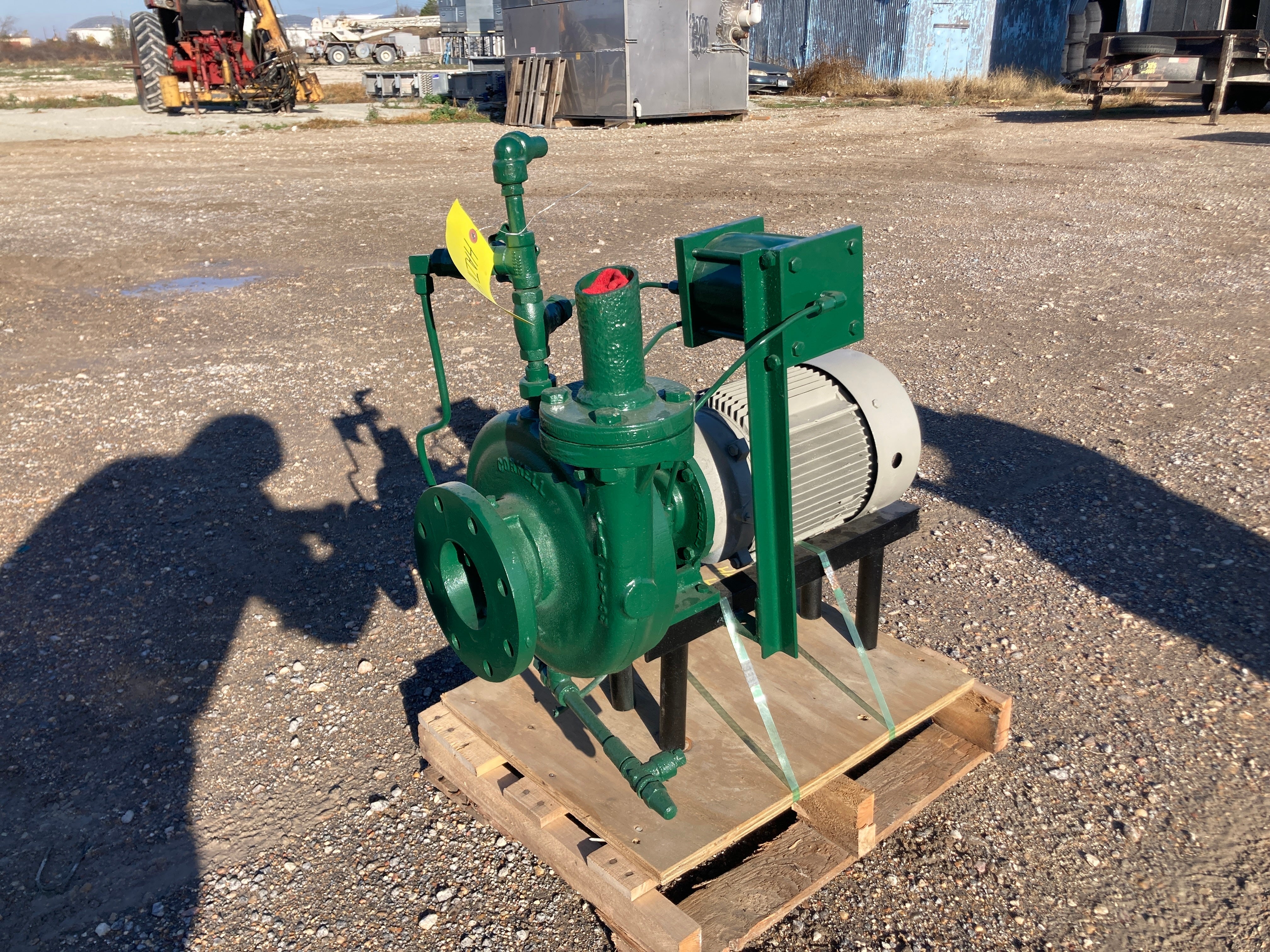

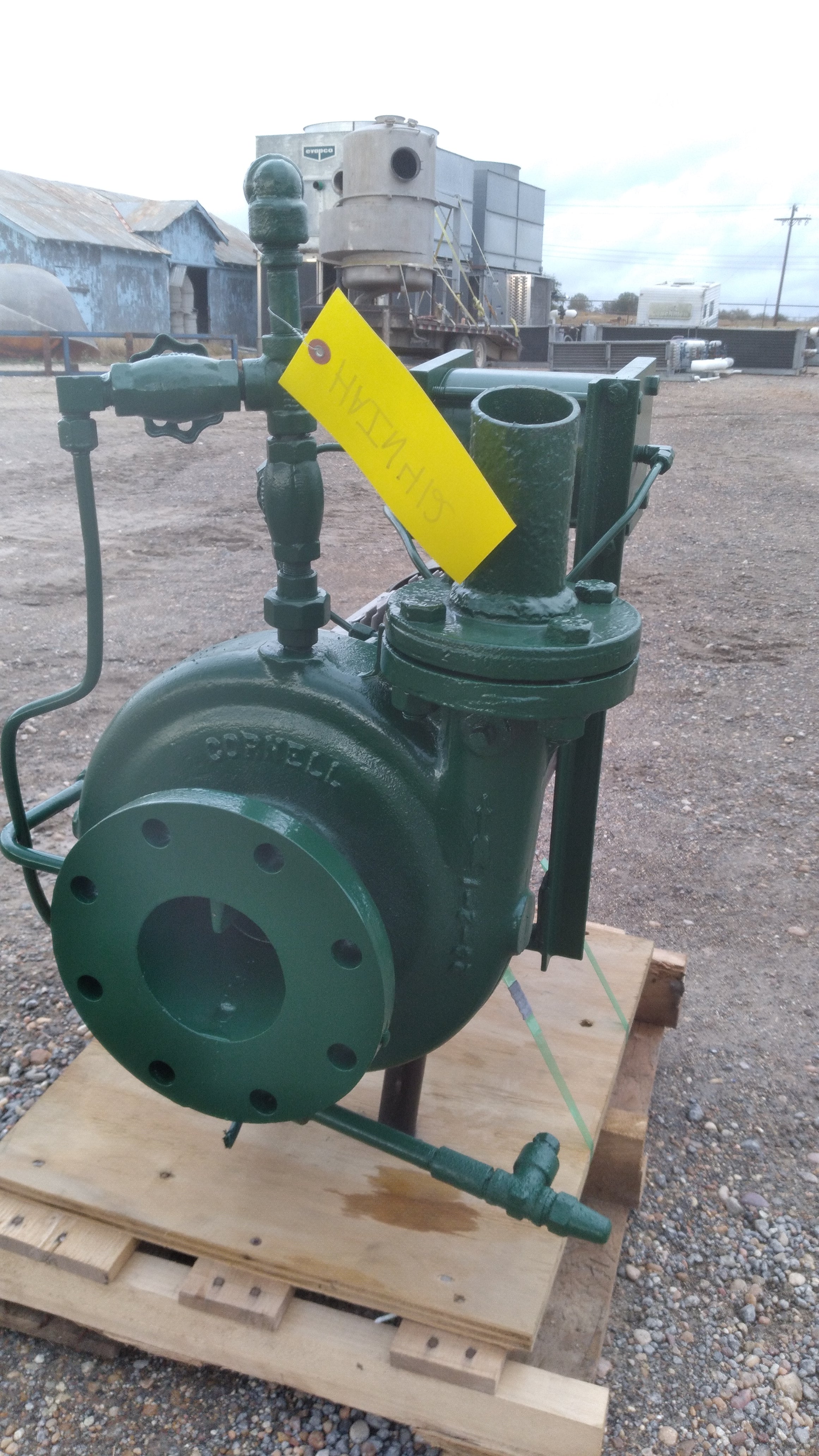

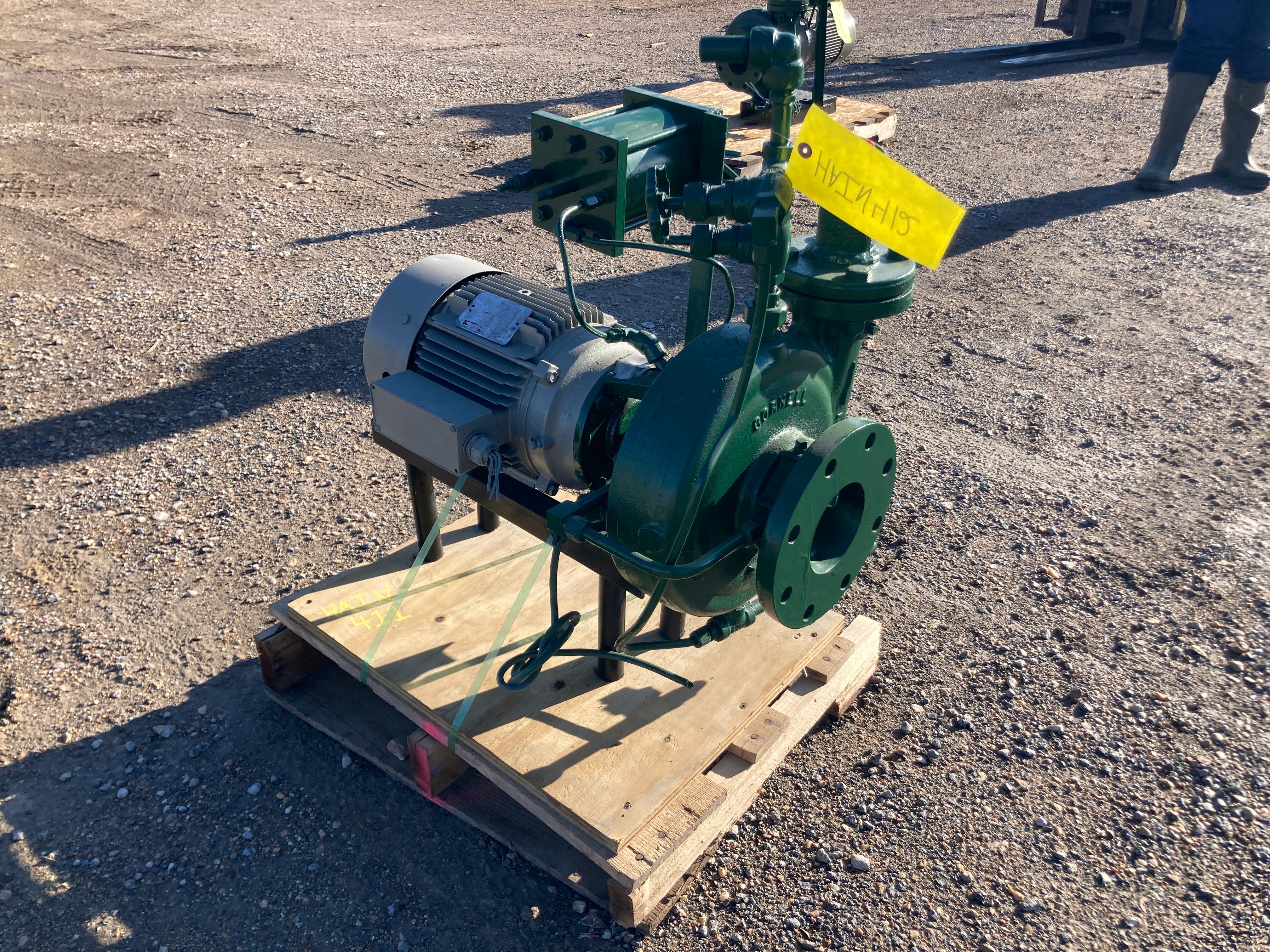

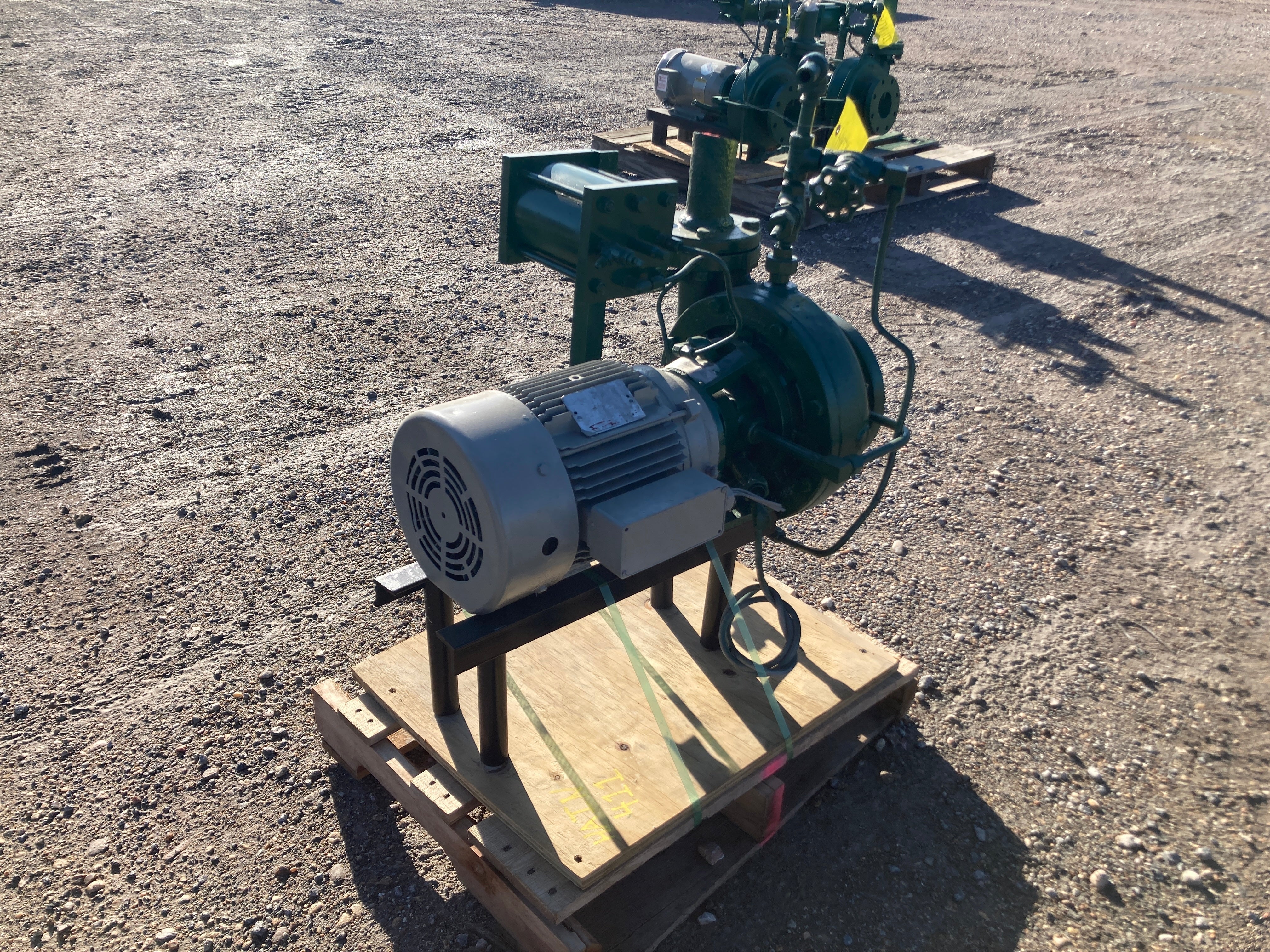

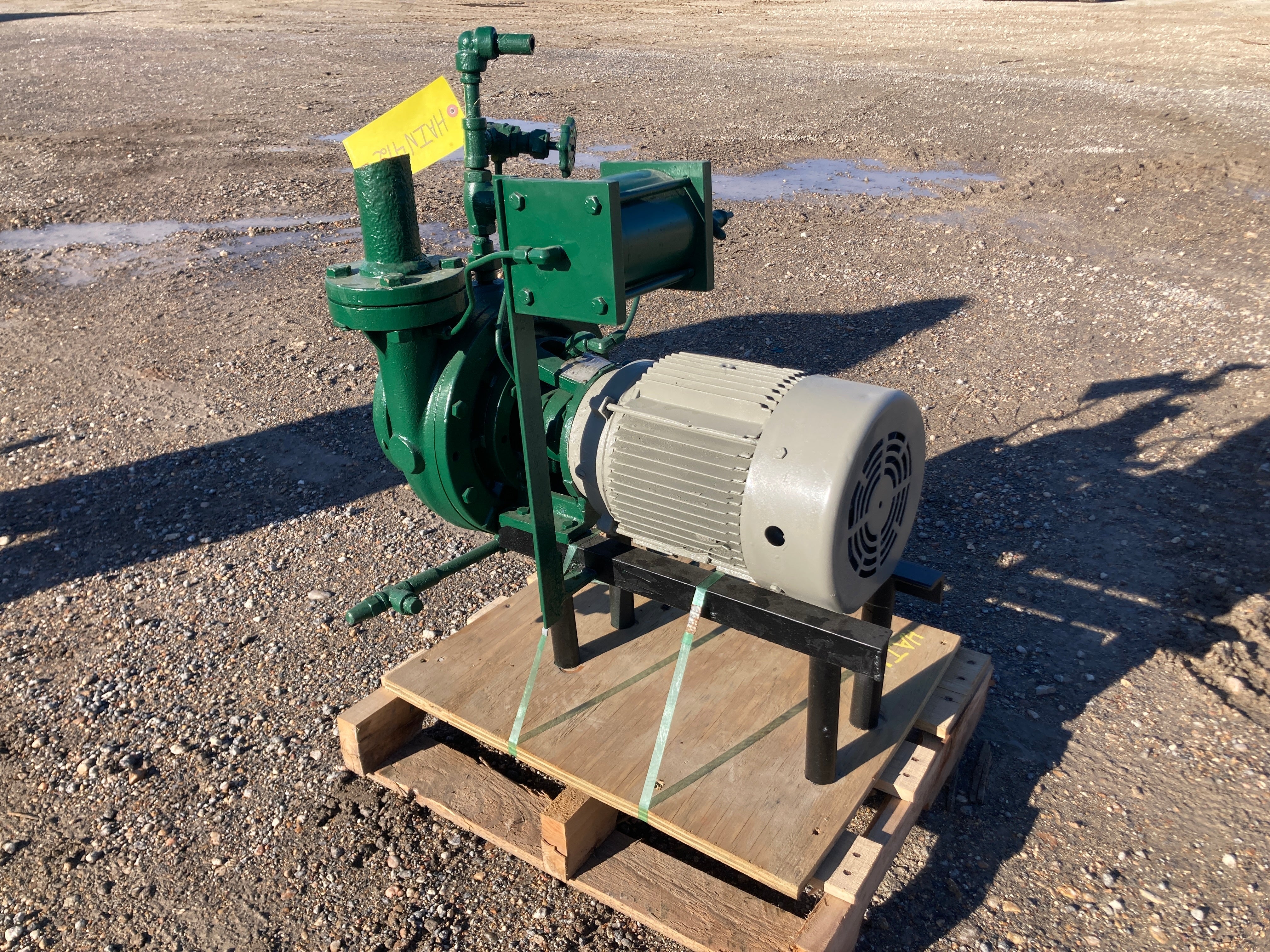

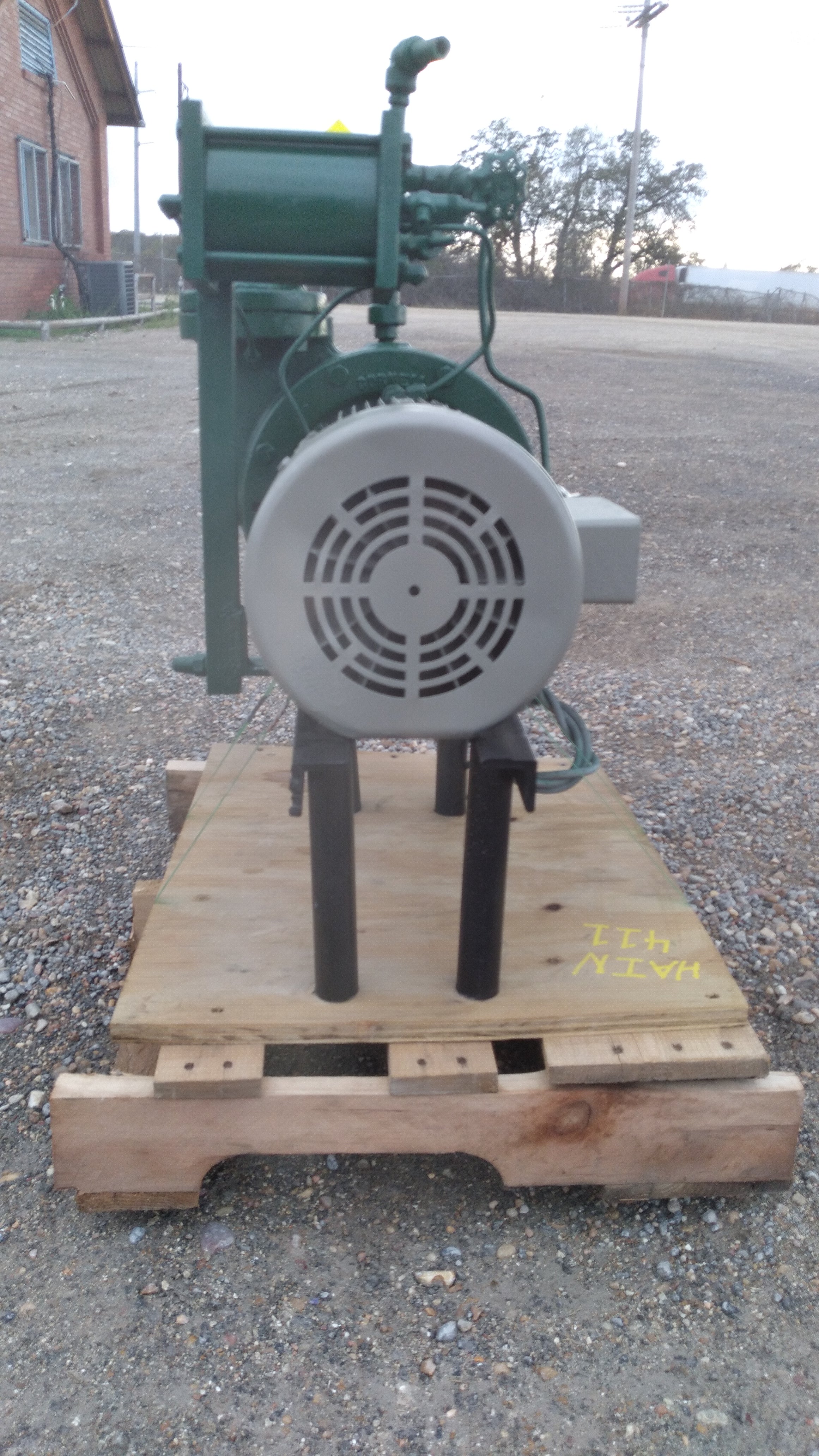

Cornell 2CB5-4 Centrifugal Pump (5 HP, 140 GPM Max)

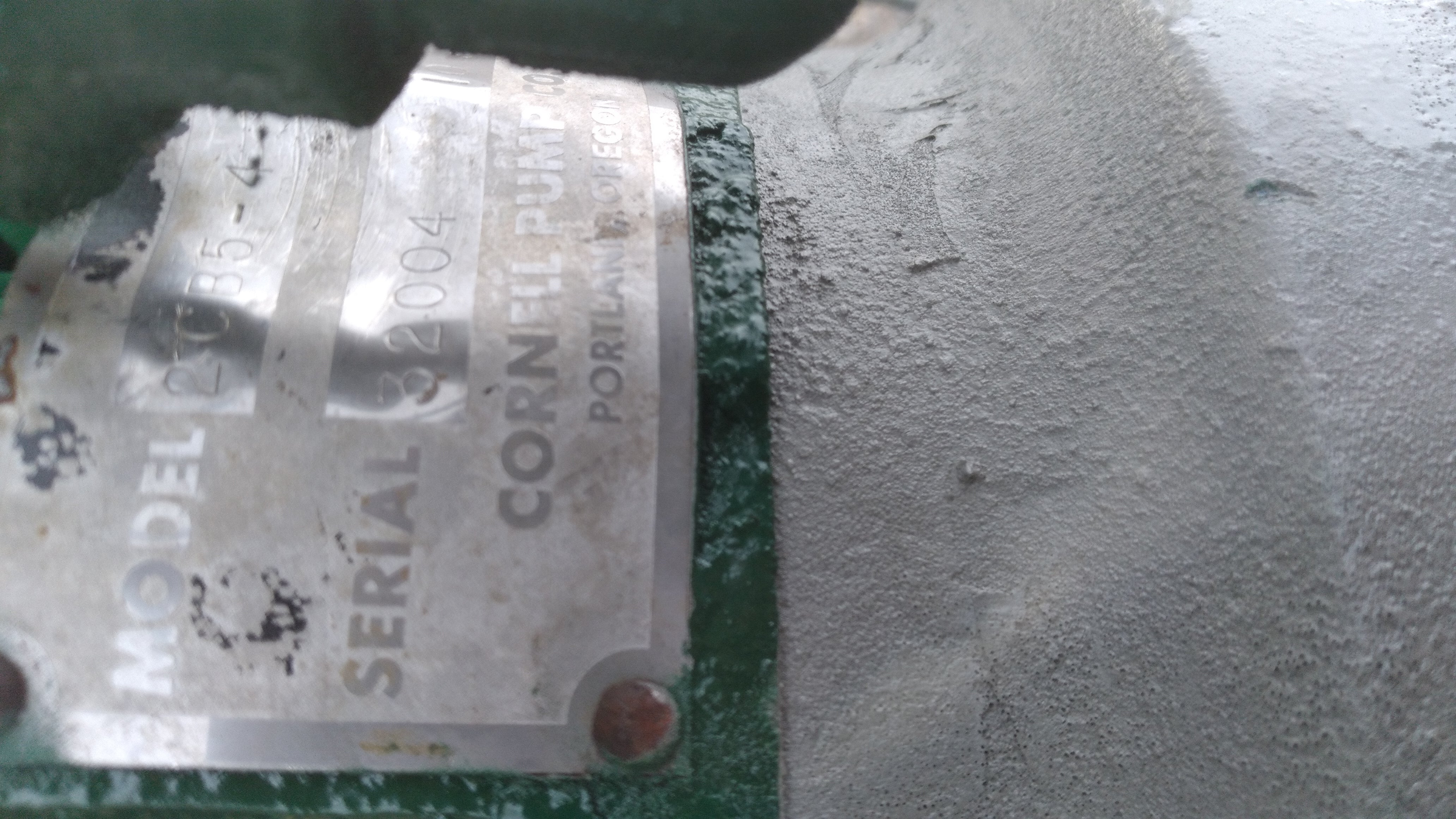

Cornell CB Series Centrifugal Pump - Model: 2CB5-4, Serial No: 32004 10. Min GPM Flow: 40, Max GPM Flow: 200. Discharge Size(in): 2, Suction Size (in): 4. Solids Handling (in): .37. Max RPM: 1800. Max Working Pressure: 250 PSIG. 5 HP Motor, Tag Plate Is Not Visible. Has Been Refurbished with new paint.
Product Details
- Stock No: HAIN412
- Manufacturer: Cornell
- Model: 2CB5-4
- Serial Number: 32004 10
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 140
- Max Speed RPM: 1760
- Maximum Pressure MAWP (PSI): 250
- Impeller Diameter (inches): 10
- # Inlets: 1
- # Outlets: 1
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 4
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet Flange Size (inches) 1: 9
- Inlet/Outlet 1 # Flange Holes: 8
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 2
- Inlet/Outlet Type 2: Flange
- Inlet/Outlet Flange Size (inches) 2: 6.125
- Inlet/Outlet 2 # Flange Holes: 4
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Horsepower(HP): 5
Dimensions:
- Length (Inches): 28
- Width (Inches): 14
- Height (Inches): 30
- Weight (LBS): 296
- # of Pieces for Shipping: 1
Additional Product Details
- Previously Used With: Previously used with a Recirculator
