API Schmidt - Bretten Plate Heat Exchanger - 550 sq. ft.

API Schmidt - Bretten Plate Heat Exchanger - 550 sq. ft.

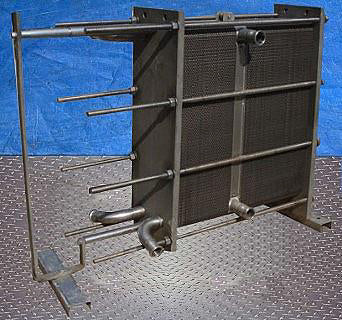

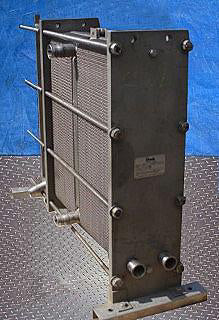

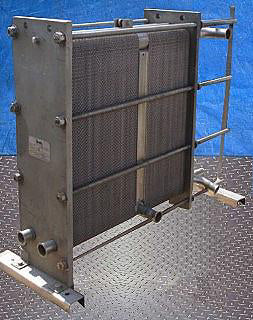

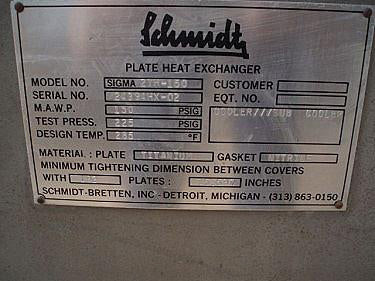

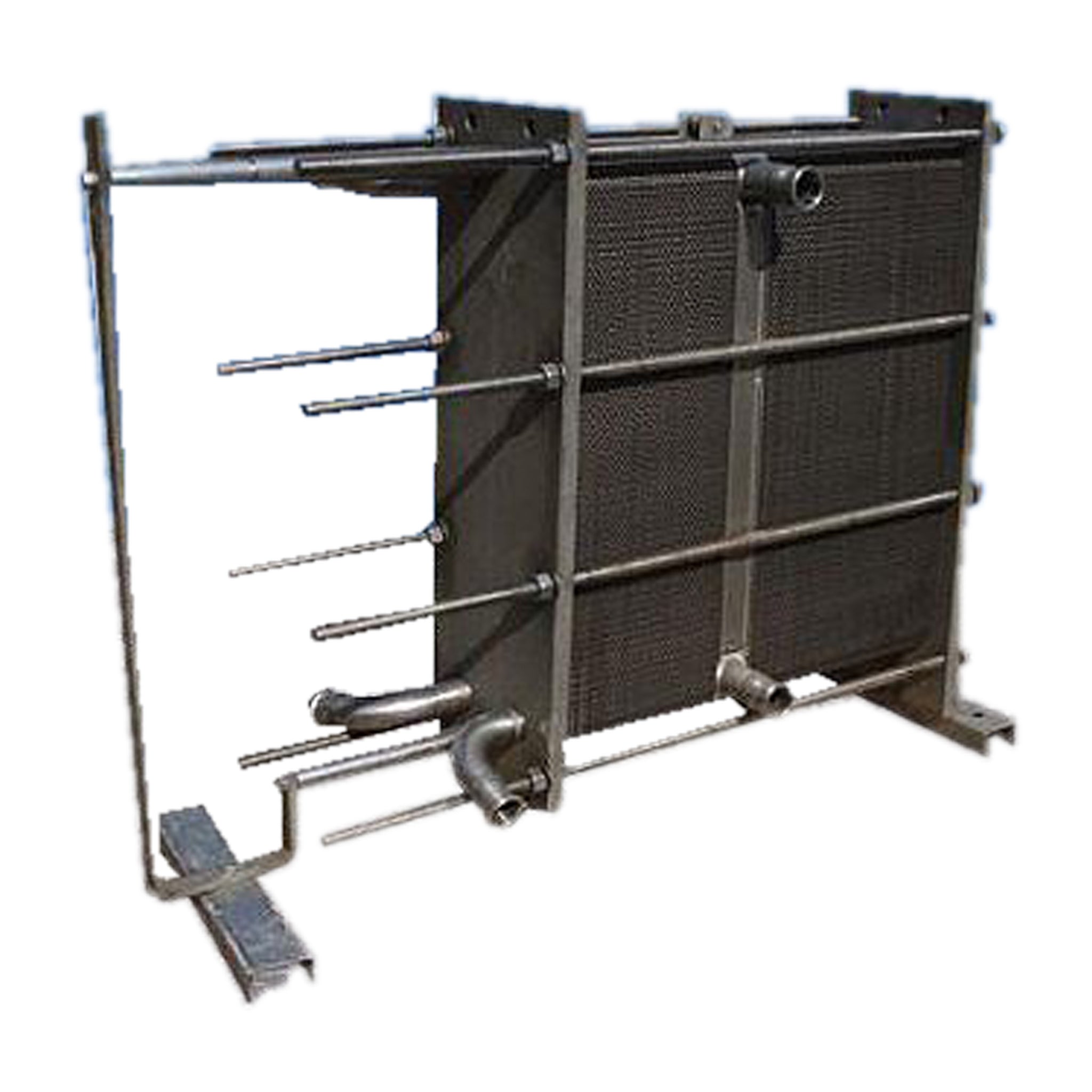

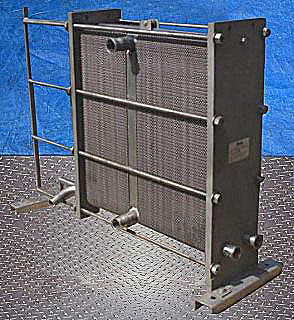

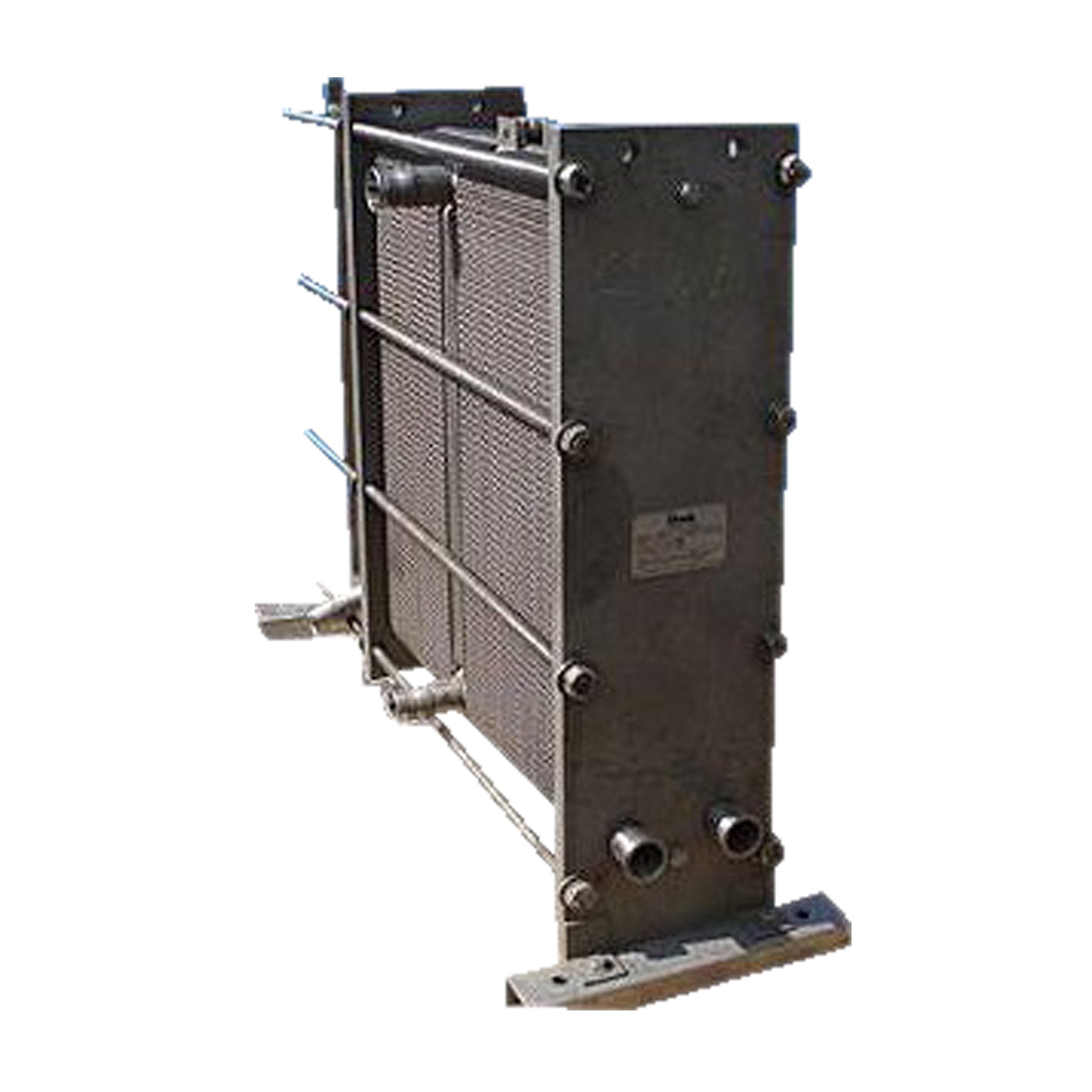

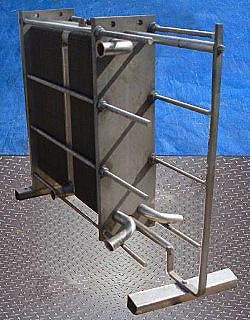

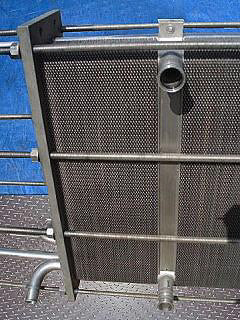

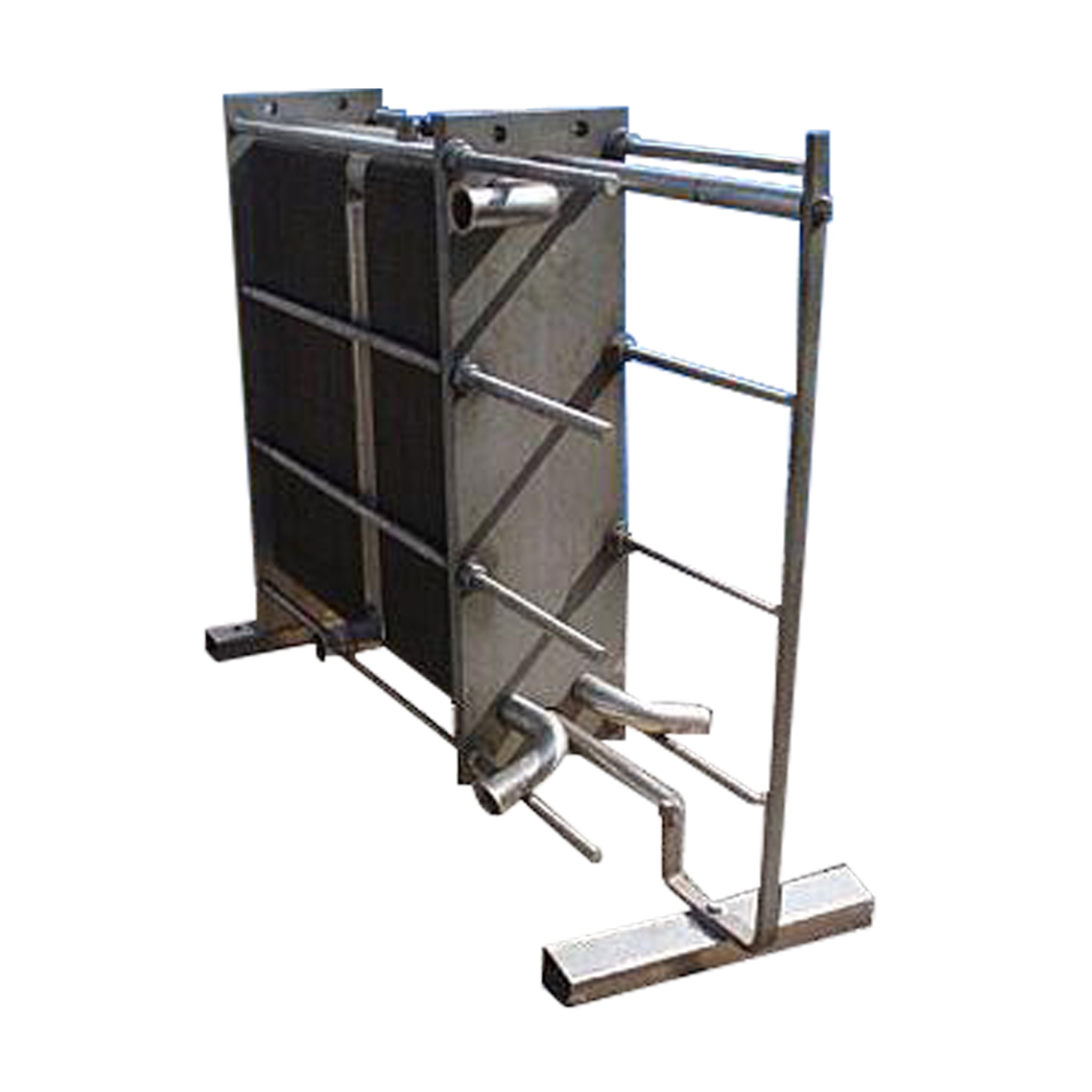

1994 API Schmidt - Bretten Plate Heat Exchanger. Model: SIGMA 27H-150. S/N: 24394HX-02. Plate Material: Titanium. Number of Plates: 192. Gasket material: Nitrile. MAWP: 150 psig @ 285 °F. Test press: 225 psig. Approx. Number of sections: 2. Number of dividers: 1. Total heat transfer surface area: approx. 550 sq. ft. Inlets/outlets: (8) 2 ½ in. dia. S-line fittings. Overall dimensions: 6 ft. 4 in. L x 2 ft. 1 in. W x 4 ft. 6 in. H. (ACN487).

Product Details

  • Stock No: CSWB363.25a
  • Manufacturer: API Schmidt Bretten
  • Model: SIGMA 27H-150
  • Serial Number: 24394HX-02

Heat Exchanger Details

  • Heat Transfer Surface Area (SQ FT): 550

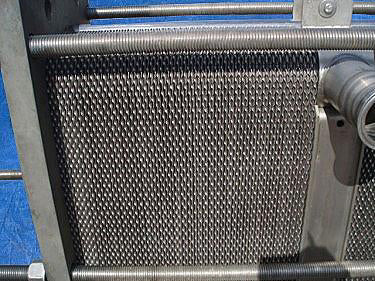

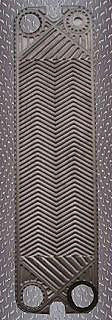

  • Plate Material: Titanium
  • Number of Plates: 192
  • Number of Dividers: 1
  • Number of Sections: 2
  • MAWP (PSI at temp): 150 psig @ 285 °F
  • Inlets & Outlets Description: Inlets/outlets: (8) 2 ½ in. dia. S-line fittings.

Previous Refrigerant

Motor Details

Dimensions:

  • Length (Inches): 76
  • Width (Inches): 25
  • Height (Inches): 54
  • ACN: 487

Additional Product Details

  • Year of Manufacture: 1994

API Schmidt - Bretten Plate Heat Exchanger - 550 sq. ft.

Save 9%

Price:
$5,000 $5,500
