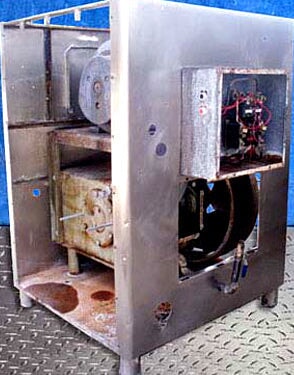

APV Crepaco 5DD Homogenizer - 2000 PSI

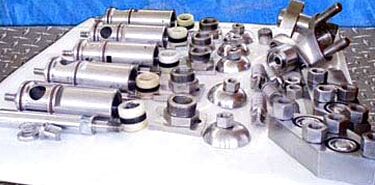

APV Crepaco Homogenizer. Model: 5DD425. Maximum capacity: 2,205 gph at 2,000 psi. Minimum capacity: 800 gph. Pressure and flowrate can be modified/adjusted to suit your needs. 2-Stage manual valve assembly. Plunger Size: 1.437 in. Has tapered seat poppet valve cylinders. Reliance electric motor, 40 hp, 1775 rpm, 208 V, 107 amps, 60 Hz, 3 phase. Pulley ratio: 9.48. Final speed: 200 rpm. Inlets: (1) 2-1/2 in. dia. ACME fitting. Outlets: (1) 1-1/2 in. dia. ACME fitting. Overall dimensions: 5 ft. 6 in. L x 4 ft. W x 5 ft. 7 in. H.
Product Details
- Stock No: HDDP129.14
- Manufacturer: APV
- Model: 5DD425
- Serial Number: 2929
Homogenizer Details
- Rated Capacity (GPH): 2205
- Maximum Operating Pressure (PSI): 2000
- Number of Stages: 1
- Valve Seats Type: Poppet
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Reliance
- Motor Horsepower(HP): 40
- Motor RPM: 1775
- Motor Voltage: 208
- Motor Amps: 107
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 66
- Width (Inches): 48
- Height (Inches): 67
