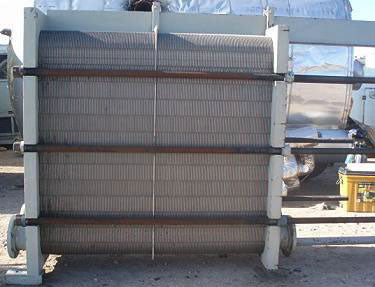

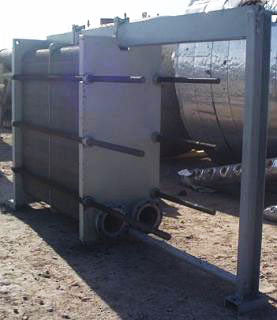

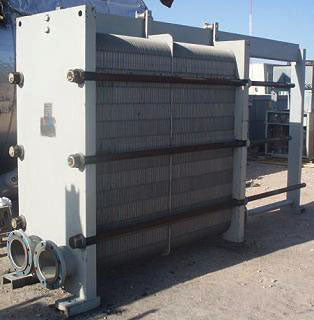

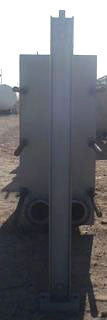

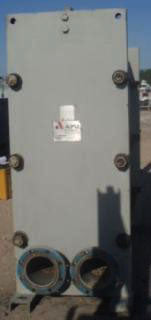

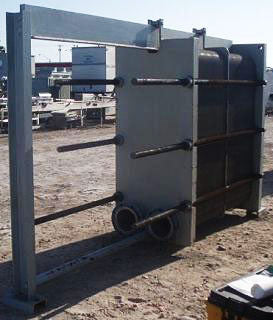

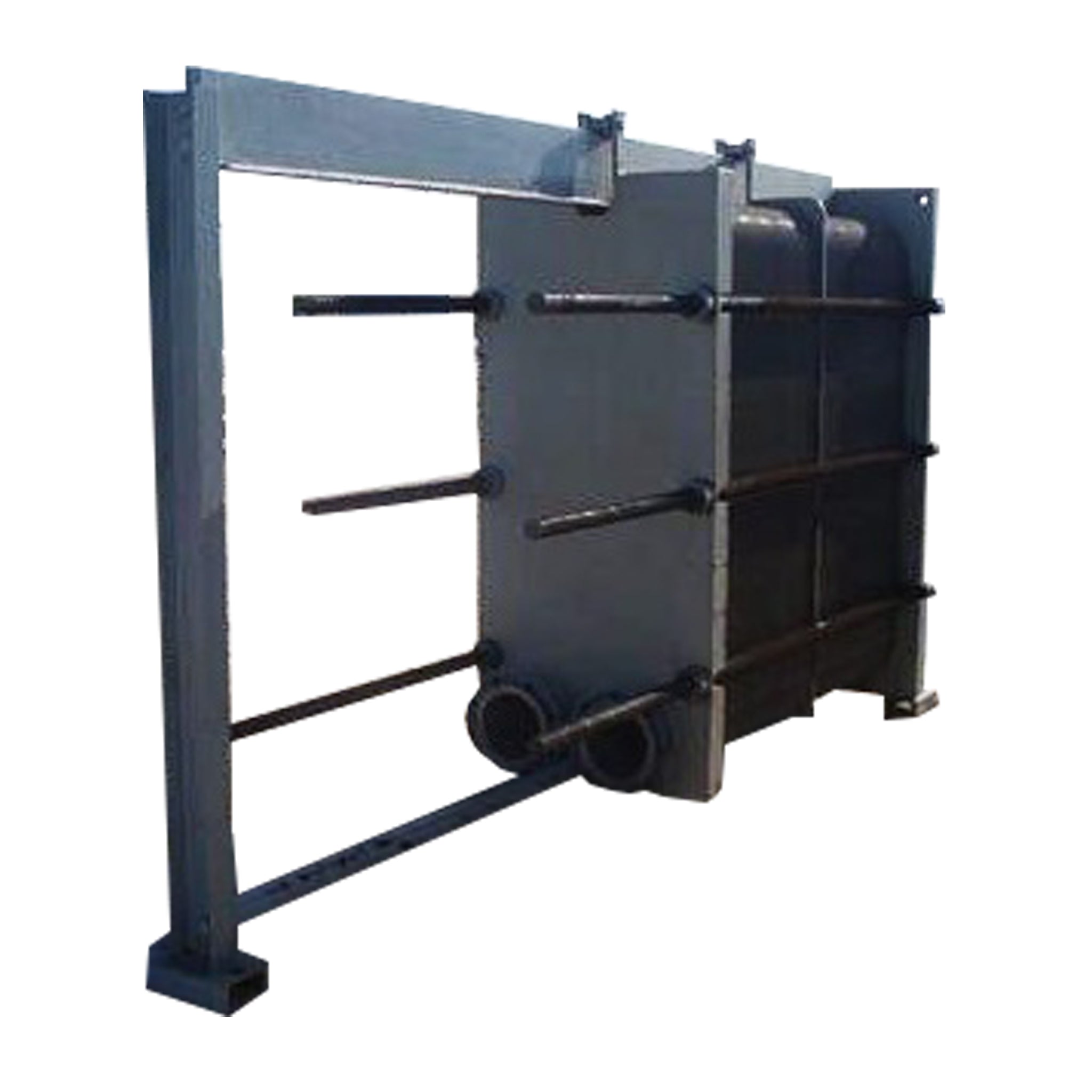

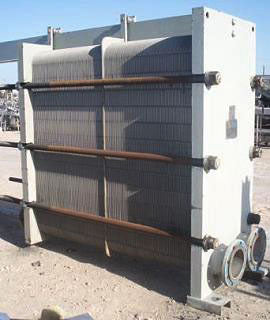

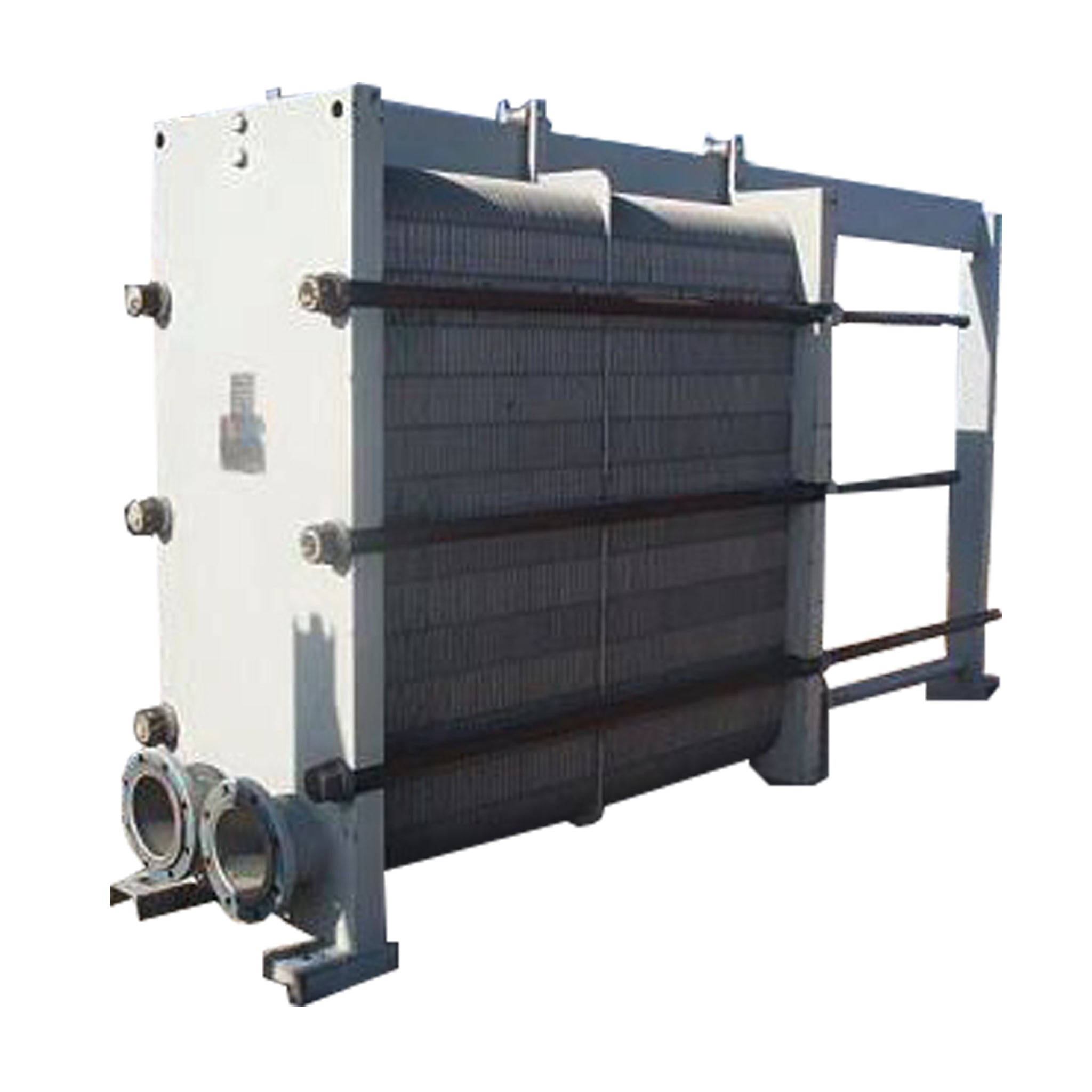

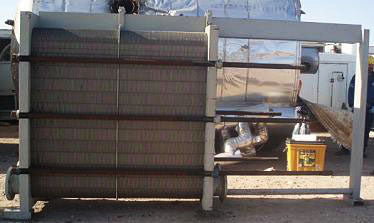

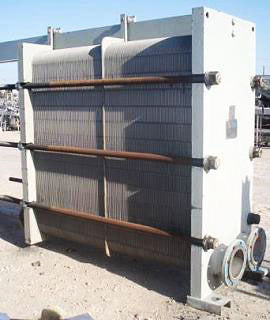

APV Plate Heat Exchanger - 3,034 sq. ft.

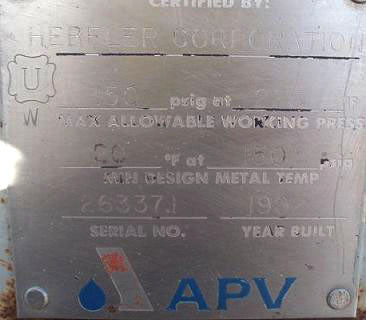

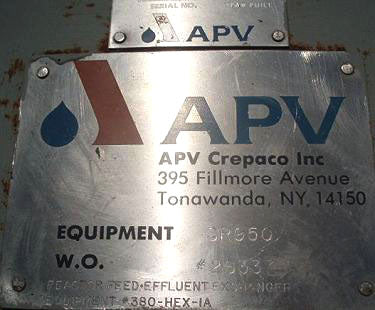

1992 APV Plate Heat Exchanger. Model: SR950. S/N: 26337-1. Nat’l Bd: 4997. Nominal flow capacity: 1400 gpm. Nominal heat transfer capacity: 8,732,500 Btu/hr. Number of plates: 290. Number of dividers: 1. Heat transfer surface area: approx. 3,034 sq. ft. MAWP: 150 psig @ 275 °F. MDMT: 20 °F @ 150 psig. Inlets: (1) 8 in. dia. flanged port (product), (1) 8 in. dia. flanged port (media). Outlets: (1) 8 in. dia. flanged port (product), (1) 8 in. dia. flanged port (media). Overall dimensions: 12 ft. 8-1/2 in. L x 2 ft. 9-1/2 in. W x 7 ft. H. (ACN900).
Product Details
- Stock No: DPPX41803.
- Manufacturer: APV
- Model: SR950
- Serial Number: 26337-1
Heat Exchanger Details
- Heat Transfer Surface Area (SQ FT): 3034
- Nominal Flow Capacity: 1400
- Nominal Heat Transfer Capacity (BTU/HR): 8732500
- Plate Material: Stainless Steel
- Number of Plates: 290
- Number of Dividers: 1
- Tank National Board Number: 4997
- MAWP (PSI at temp): 150 psig @ 275 °F

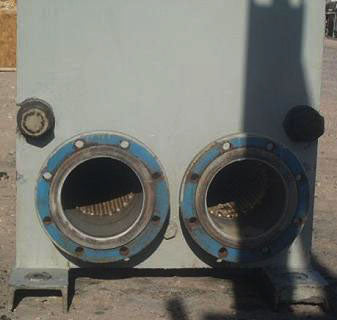

- Inlets & Outlets Description: Inlets: (1) 8 in. dia. flanged port (product), (1) 8 in. dia. flanged port (media). Outlets: (1) 8 in. dia. flanged port (product), (1) 8 in. dia. flanged port (media)
Previous Refrigerant
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 152.5
- Width (Inches): 33.5
- Height (Inches): 84
- ACN: 900
Additional Product Details
- Year of Manufacture: 1992
