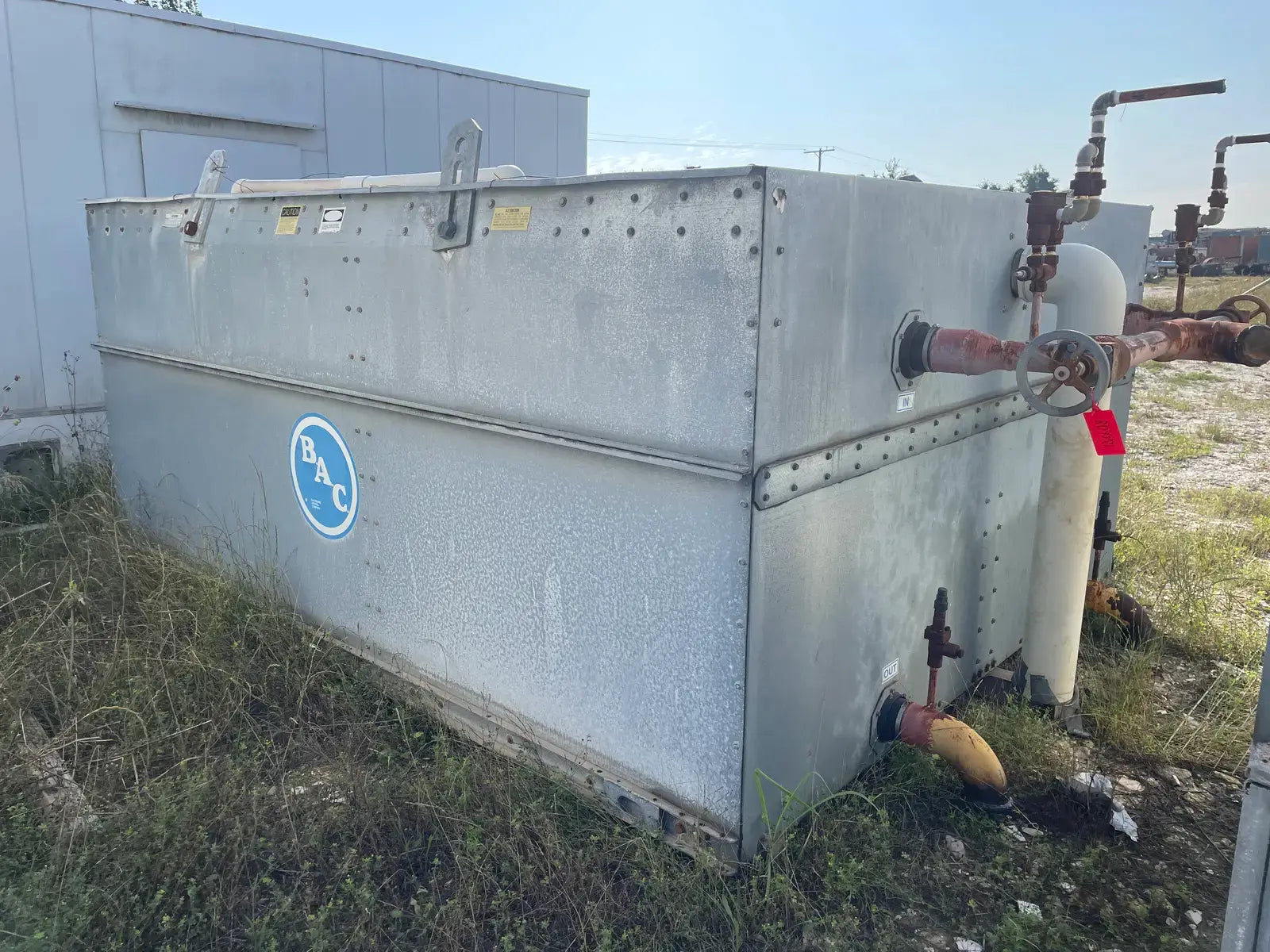

BAC VCA-340A Evaporative Condenser (340 Nominal Tons, 2-5 HP Motors,1 Tower Unit)
BAC VCA-340A One-Tower unit Evaporative Condenser. Model: VCA-340A. Serial No: U106951201. Belt No: 2B148. Nominal Tons: 340. Ammonia(R-717): 241. Airflow(CFM): 55,440. Internal Coil Volume: 49 ft. Base Heat Rejection(MHB): 4,998. Fan Motors (2): 5 HP. Pump Motor(1): 5 HP. NOM Box Size: 10X12.
Product Details
- Stock No: RDY17
- Manufacturer: BAC
- Model: VCA-340A
- Serial Number: U106951201
Condenser Details
- Multiple Units Included in Package? No
- # Units included in Package: 1
- Package Coil Volume (ft3): 49
- Package CFM (CFM): 55,400
- Unit Nominal Tons (TR): 340
- Unit Ammonia Tons (TR): 241
- Unit Coil Volume (ft3): 49
- Unit CFM (CFM): 55,440
- Design Pressure (PSI): 350

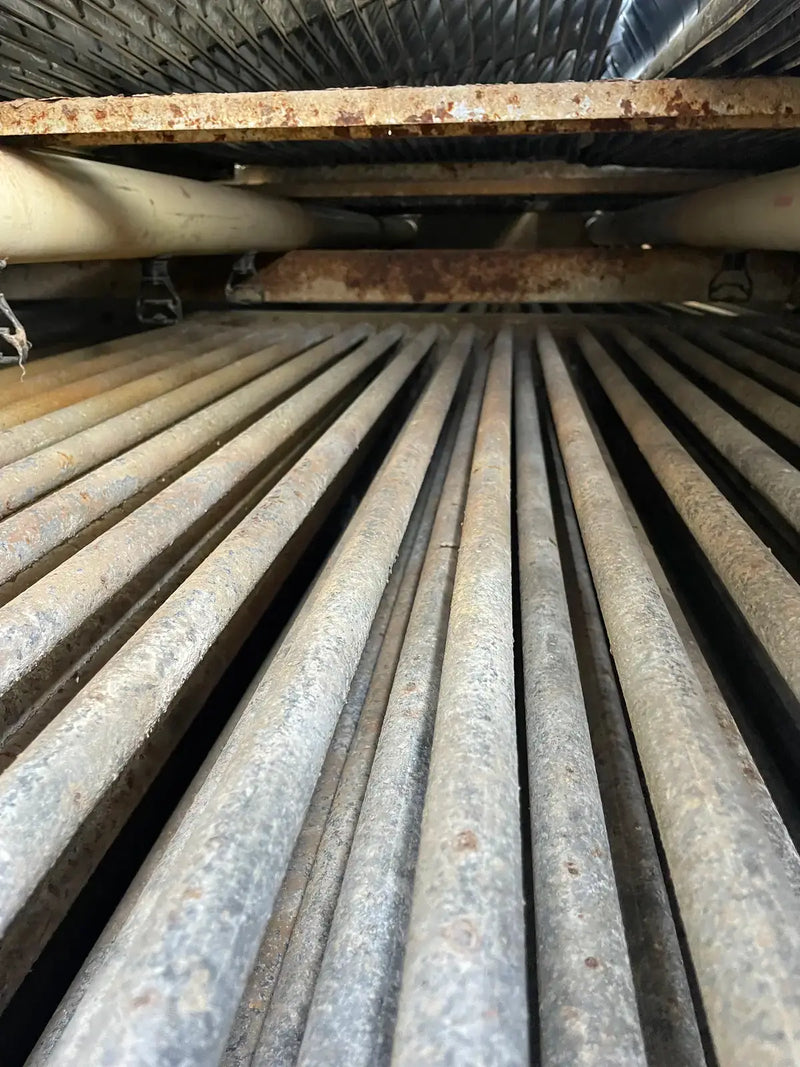

- Top Coil Condition Rating: Gold - Limited Scale- Almost Zero Rust
- Bottom Coil Condition Rating: Gold - Limited Scale- Almost Zero Rust
- Circuit 1 Pressure Rating: Pending Test
- Circuit 2 Pressure Rating: Pending Test
Condenser Dimensions
- Top Length (Inches): 132
- Top Width (Inches): 118
- Top Height (Inches): 65
- Top Weight (LBS): 10,040
- Bottom Length (Inches): 144
- Bottom Width (Inches): 118
- Bottom Height (Inches): 110
- Bottom Weight (LBS): 3,910
Pump Details
- Pump Included? Yes
- Pump Recommended HP: 5
- Pump Recommended Gallons per Minute (GPM): 500
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: No
Motor Details
- Motor Included? Yes
- # Motors: 3
- If Multiple Motors, Motor Descriptions vs specs: Two fan motors. One water pump motor.
Dimensions:
- Length (Inches): 144
- Width (Inches): 118
- Height (Inches): 175
- Weight (LBS): 13,950
- # of Pieces for Shipping: 1
Additional Product Details
- Year Removed from Production: 2023
- Spec Sheet Available: Yes
- Previously Used With: Ice Plant

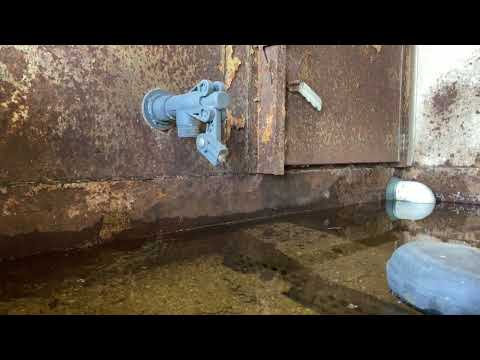

- Known Issues or Problems: The inside walls of the bottom base have visible rust buildup. The pump head has rust built up. The bottom base doors are very hard to open.
