Bi-Level Jar Pebble Mill

Bi-Level Jar Pebble Mill

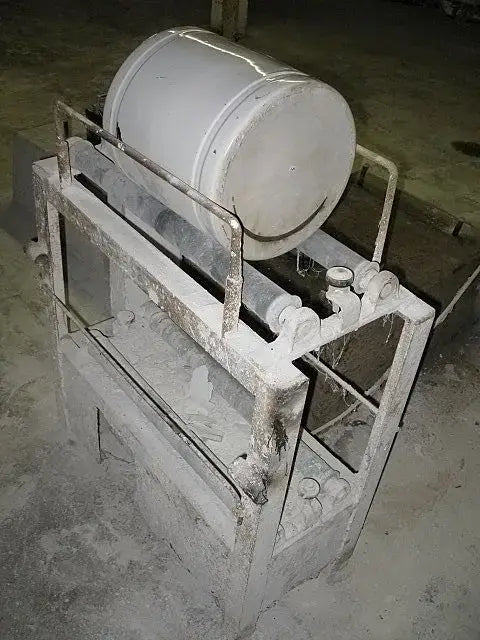

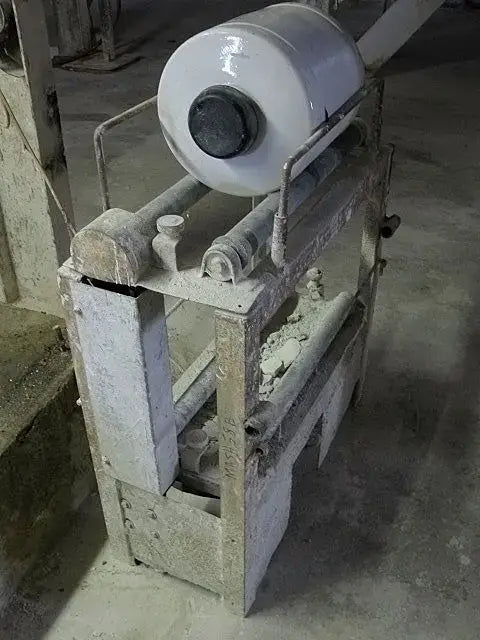

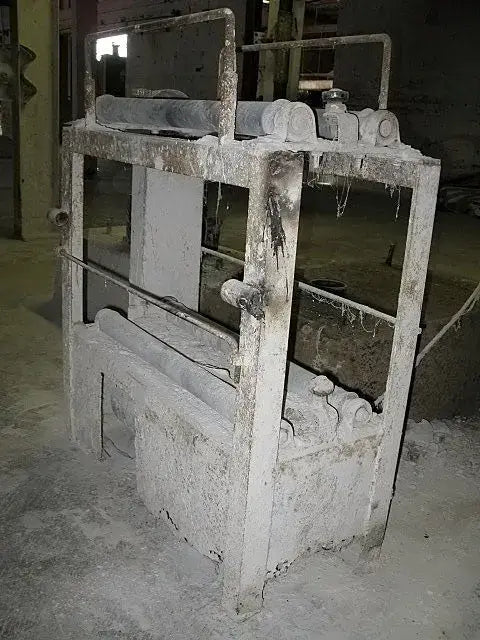

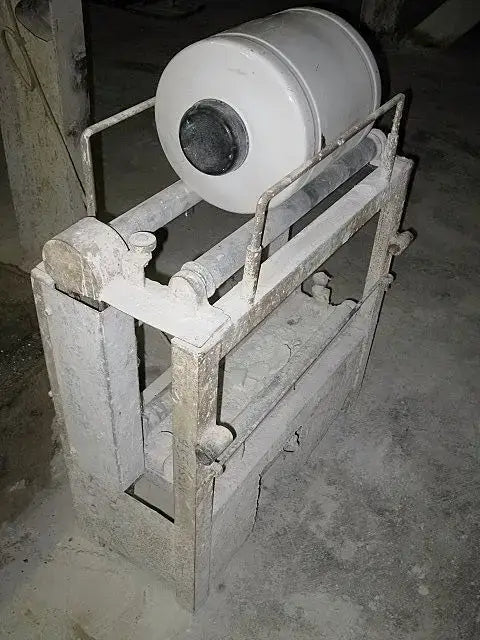

Bi-Level Jar Pebble Mill. (4) 2 in. diameter rollers, one set placed over the other and connected to an electric motor with a belt so that jars on both levels can be rotated simultaneously. Both top and lower rollers are approximately 4-3/4 inches across from each other. This smaller mill is excellent for testing or using on smaller batches of product. It was previously in service with Crane Plumbing and used in their “slip” porcelain production facility. Century Electric Magnatek motor: 1/3 hp, 1725 rpm, 115 / 230V, 4.6 / 2.3 amps, 60 Hz, 1phase. Approximate capacity of each jar is 5 gallons. Jar dimensions are: 11 in. dia. x 12 in. L. Overall jar mill dimensions are: 2 ft. 8-1/3 in. L x 1 ft. 3 in. W x 3 ft. 1 in. H.

Product Details

  • Product ID: 11710
  • Stock No: MASH058B
  • Manufacturer: Not Specified
  • Model:
  • Serial Number:
  • Motor Manufacturer: Century Electric Mafnatek
  • Motor Horsepower(HP): 0.33
  • Motor RPM: 1725
  • Motor Voltage: 115/230
  • Motor Amps: 4.6/2.3
  • Motor Hertz (Hz): 60
  • Motor Phases: 1
  • Motor Frame Size:
  • Year of Manufacture:
  • Known Issues or Problems:
  • Previously Used With: It was previously in service with Crane Plumbing and used in their 'slip' porelain production facility.
  • Year of Installation:
  • Year Removed from Production:
  • Product Purchased From:
  • Length (Inches): 32.3
  • Width (Inches): 15
  • Height (Inches): 37
  • Weight (LBS):
  • ACN:

All fields

  • description: Bi-Level Jar Pebble Mill. (4) 2 in. diameter rollers, one set placed over the other and connected to an electric motor with a belt so that jars on both levels can be rotated simultaneously. Both top and lower rollers are approximately 4-3/4 inches across from each other. This smaller mill is excellent for testing or using on smaller batches of product. It was previously in service with Crane Plumbing and used in their “slip” porcelain production facility. Century Electric Magnatek motor: 1/3 hp, 1725 rpm, 115 / 230V, 4.6 / 2.3 amps, 60 Hz, 1phase. Approximate capacity of each jar is 5 gallons. Jar dimensions are: 11 in. dia. x 12 in. L. Overall jar mill dimensions are: 2 ft. 8-1/3 in. L x 1 ft. 3 in. W x 3 ft. 1 in. H.
  • height_inches: 37
  • length_inches: 32.3
  • manufacturer: Not Specified
  • motors: 1
  • motor_amps: 4.6/2.3
  • motor_hertz_hz: 60
  • motor_horsepower_hp: 0.33
  • motor_included_yesno: yes
  • motor_manufacturer: Century Electric Mafnatek
  • motor_phases: 1
  • motor_rpm: 1725
  • motor_voltage: 115/230
  • name: Bi-Level Jar Pebble Mill
  • previously_used_with: It was previously in service with Crane Plumbing and used in their 'slip' porelain production facility.
  • product_id: 11710
  • stock_no: MASH058B
  • width_inches: 15
