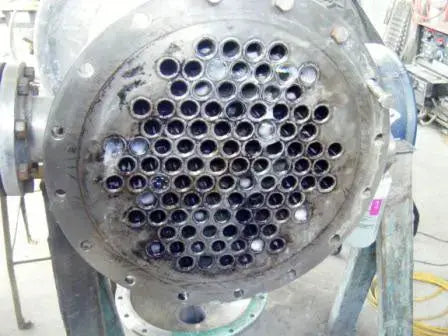

Bingley Shell and Tube Heat Exchanger - 209.4 sq. ft.
Bingley Shell and Tube Heat Exchanger. S/N: 195. Tube material: 304 stainless steel. Number of passes: 1. Number of tubes: 100. Tube dimensions: 1 in. dia. x 8 ft. L. Heat transfer surface area: 209.4 sq. ft. Tube volume: 32.6 gallons. Design pressure: 75 psi @ 100°F. Shell thickness: 1/4 in. Head thickness: 3/16 in. Inlets: (2) 4 in. dia. ports, (1) 2 in. dia. port. Outlets: (2) 4 in. dia. ports, (1) 1-1/2 in. dia. port. Overall dimensions: 9 ft. 10 in. L x 2 ft. 10 in. W x 2 ft. 7 in. H. Note: The tubes were pressure tested and leakage was found in the tube ends and possibly the tubes.
Product Details
- Stock No: SNCC138.4
- Manufacturer: Bingley Steel Works
- Serial Number: 195
Shell & Tube Details
- Heat Transfer Surface Area (SQ FT): 209.4
- Number of Passes: 1
- Tube Material: 304 Stainless Steel
- Number of Tubes: 100
- Tube Diameter (inches): 1
- Tube Length (inches): 96
- Inlets & Outlets Description: Inlets: (2) 4 in. dia. ports, (1) 2 in. dia. port. Outlets: (2) 4 in. dia. ports, (1) 1-1/2 in. dia. port.
Previous Refrigerant
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 118
- Width (Inches): 34
- Height (Inches): 31
Additional Product Details
- Known Issues or Problems: The tubes were pressure tested and leakage was found in the tube ends and possibly the tubes
