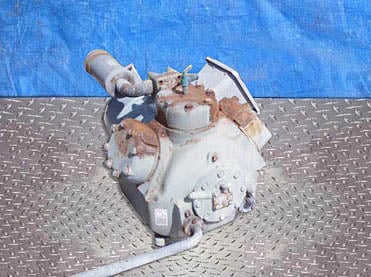

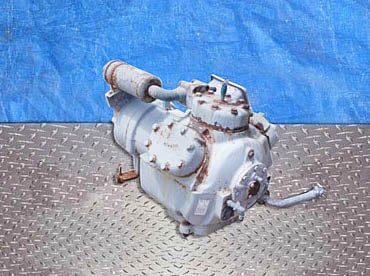

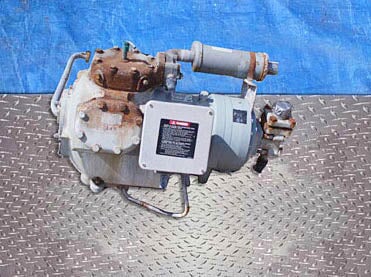

Carlyle 06EF299-310 6-Cylinder Semi-Hermetic Compressor Package (208- 230/460/400 V)
Carlyle 6-Cylinder Heavy Duty Semi-Hermetic Compressors- 33 Ton. Model: 06EF299310. S/N's: 2597J02576. Mfg. No: 6EAFEC3C2H30. Refrigerant: R-22. Nominal horsepower: 40. Displacement @ 1750 rpm: 99 cfm. Suction temperature rating: -10°F to 50°F. Power supply: 208-230/460/400 V, 690/345, LRA, 50/60 Hz, 3 phase. Inlets: (1) 2 in. dia. refrigerant suction port. Outlets: (1) 1-1/2 in. dia. refrigerant discharge port. Overall dimensions: 3 ft. L x 2 ft. W x 2 ft. H.
Product Details
- Stock No: NOI8037
- Manufacturer: Carlyle
- Model: 06EF299-310
- Serial Number: 2597J02576
- Compressor Type: Semi-Hermetic
- Package Included? No
- Stage Type: High Stage
Package Details
Compressor Details
- Compressor Manufacturer: Carlyle
- # Compressors in Package: 1
- Compressor Model: 06EF29931
- Compressor SN: 2597J02576
- Compressor Max Speed (RPM): 1750
Micro Panel Details
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- Motor Voltage: 208- 230/460/400
- Motor Amps: 690/345
- Motor Hertz (Hz): 50/60
- Motor Phases: 3
Dimensions:
- Length (Inches): 36
- Width (Inches): 24
- Height (Inches): 24
Additional Product Details
