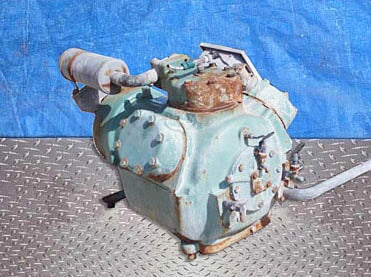

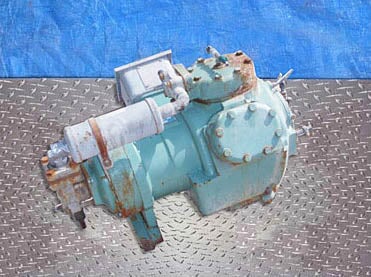

Carlyle 06ET275-360 6-Cylinder Semi-Hermetic Compressor (30 HP 230/460 V)
Carlyle 6-Cylinder Heavy Duty Semi-Hermetic Compressor- 33 Ton. Model: 06ET275360. S/N: 07J48599. Refrigerant: R-22. Nominal horsepower: 30. Displacement @ 1750 rpm: 75 cfm. Suction temperature rating: -10°F to 50°F. Power supply: 230/460 V, 130/65 FLA, 440/220 LRA, 60 Hz, 3 phase. Inlets: (1) 2 in. dia. refrigerant suction port. Outlets: (1) 1-1/2 in. dia. refrigerant discharge port. Overall dimensions: 3 ft. L x 1 ft. 11 in. W x 2 ft. H.
Product Details
- Stock No: NOI8038
- Manufacturer: Carlyle
- Model: 06ET275-360
- Serial Number: 07J48599
- Compressor Type: Semi-Hermetic
- Package Included? No
- Stage Type: High Stage
Package Details
Compressor Details
- Compressor Manufacturer: Carlyle
- # Compressors in Package: 1
- Compressor Model: 06ET275360
- Compressor SN: 07J48599
- Compressor Max Speed (RPM): 1750
Micro Panel Details
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Horsepower(HP): 30
- Motor Voltage: 230/460
- Motor Amps: 130/65/440/220
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 36
- Width (Inches): 23
- Height (Inches): 24
Additional Product Details
