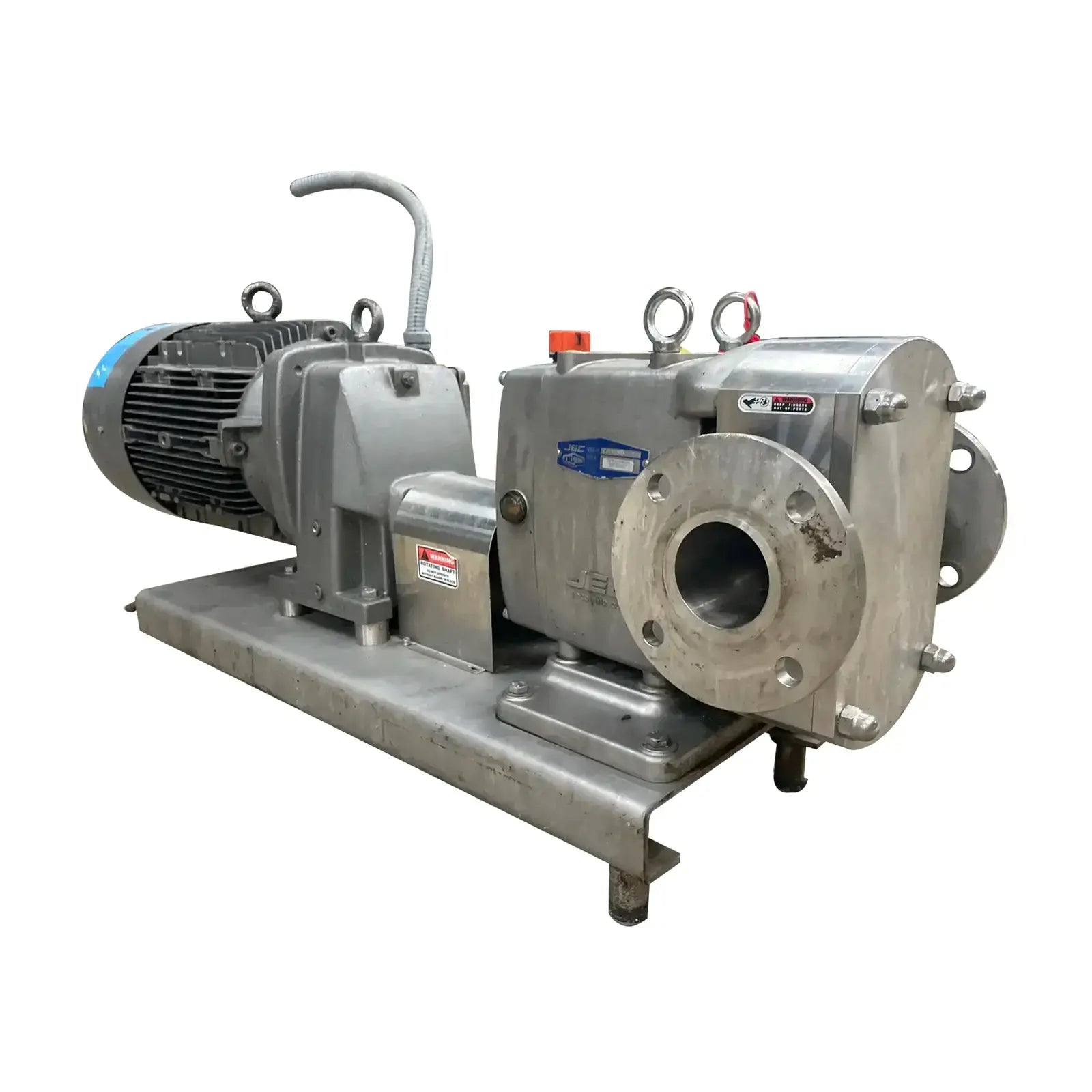

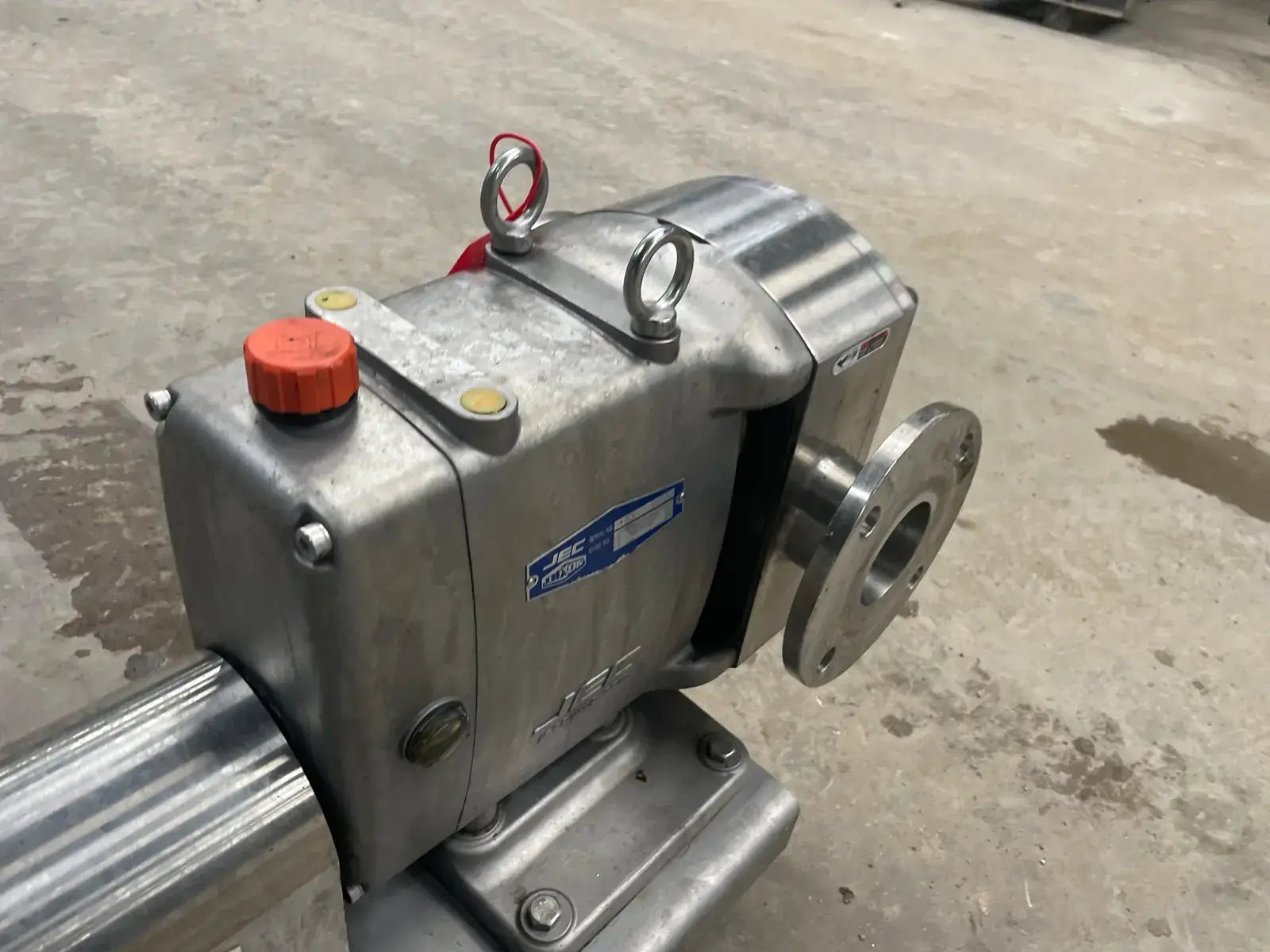

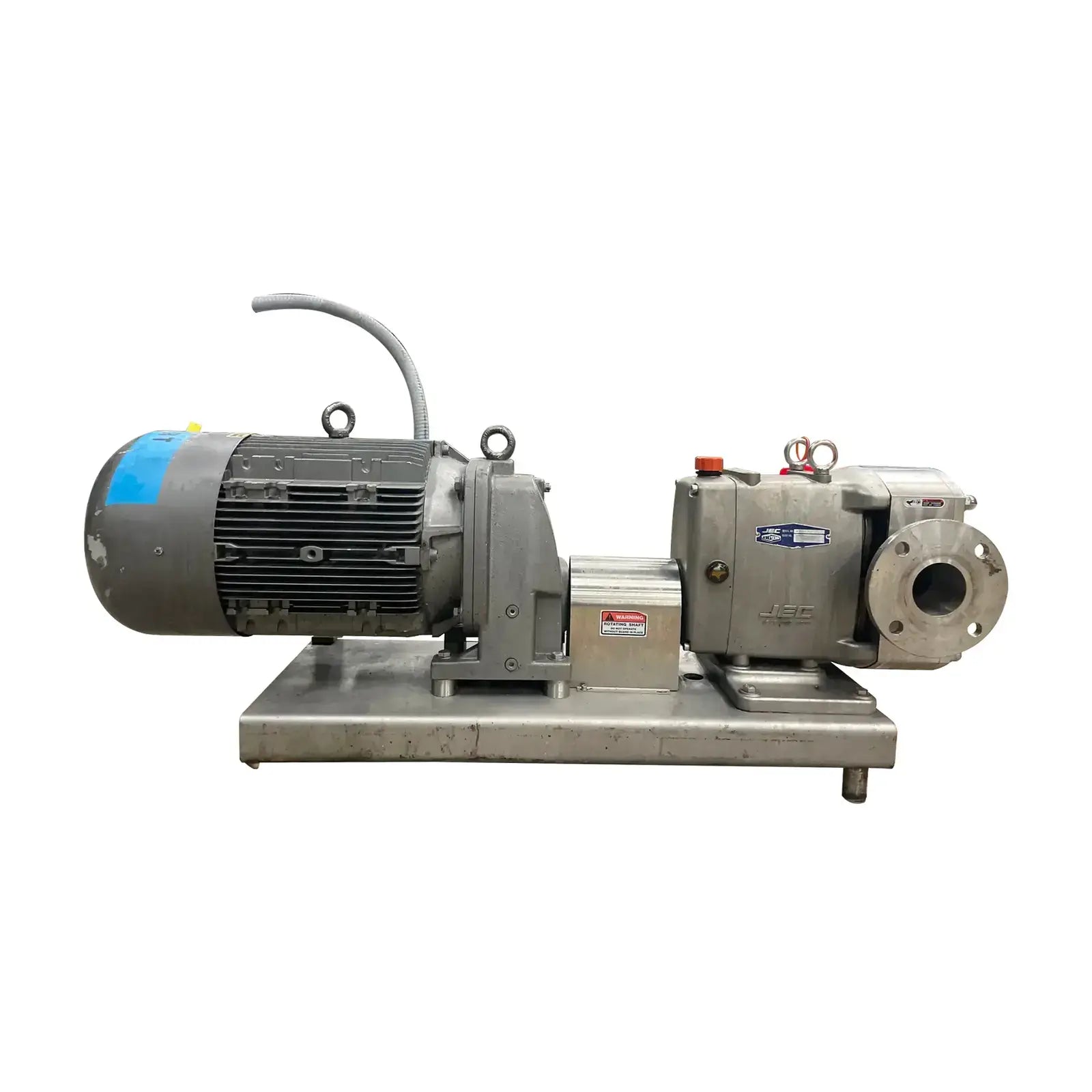

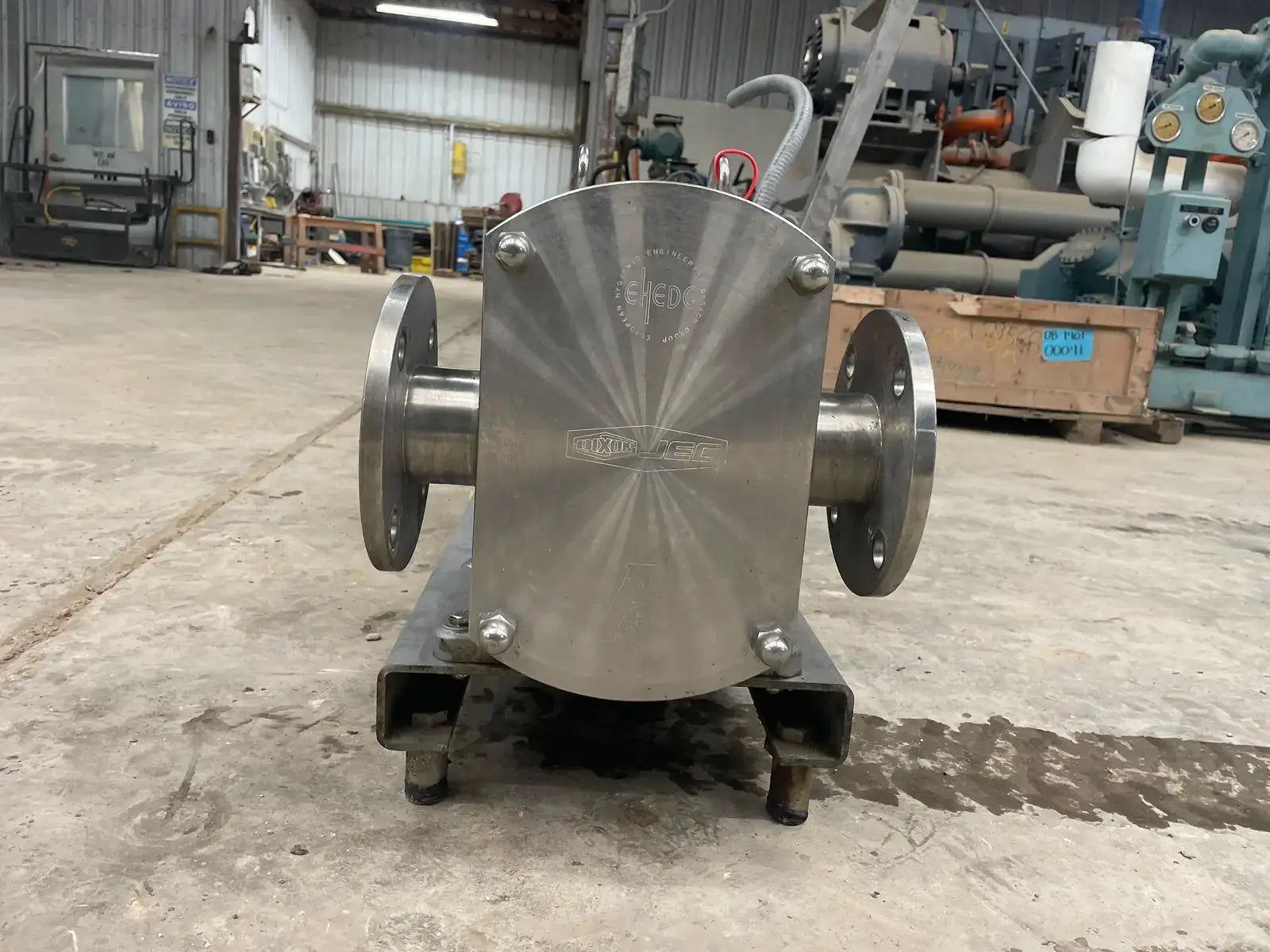

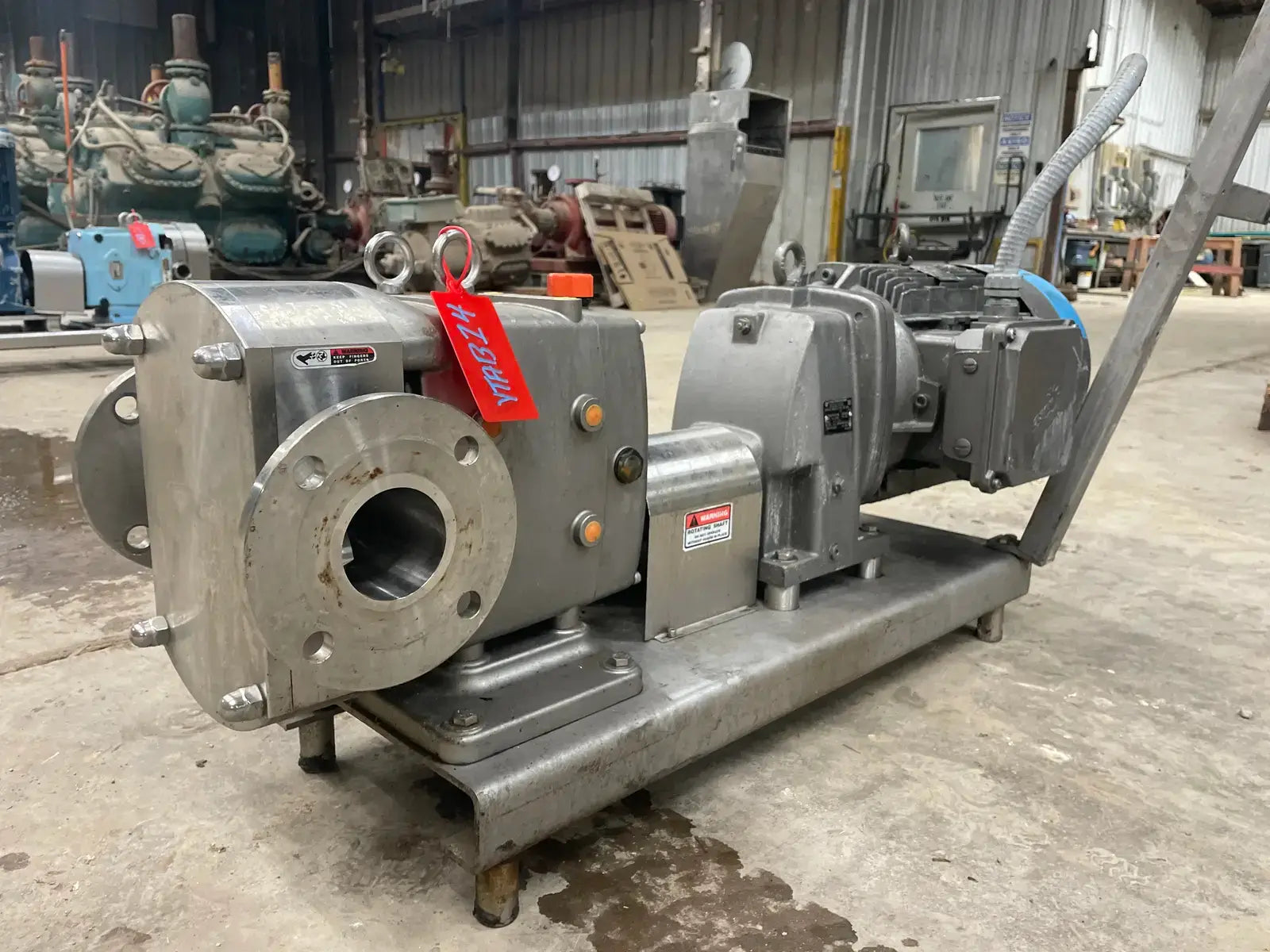

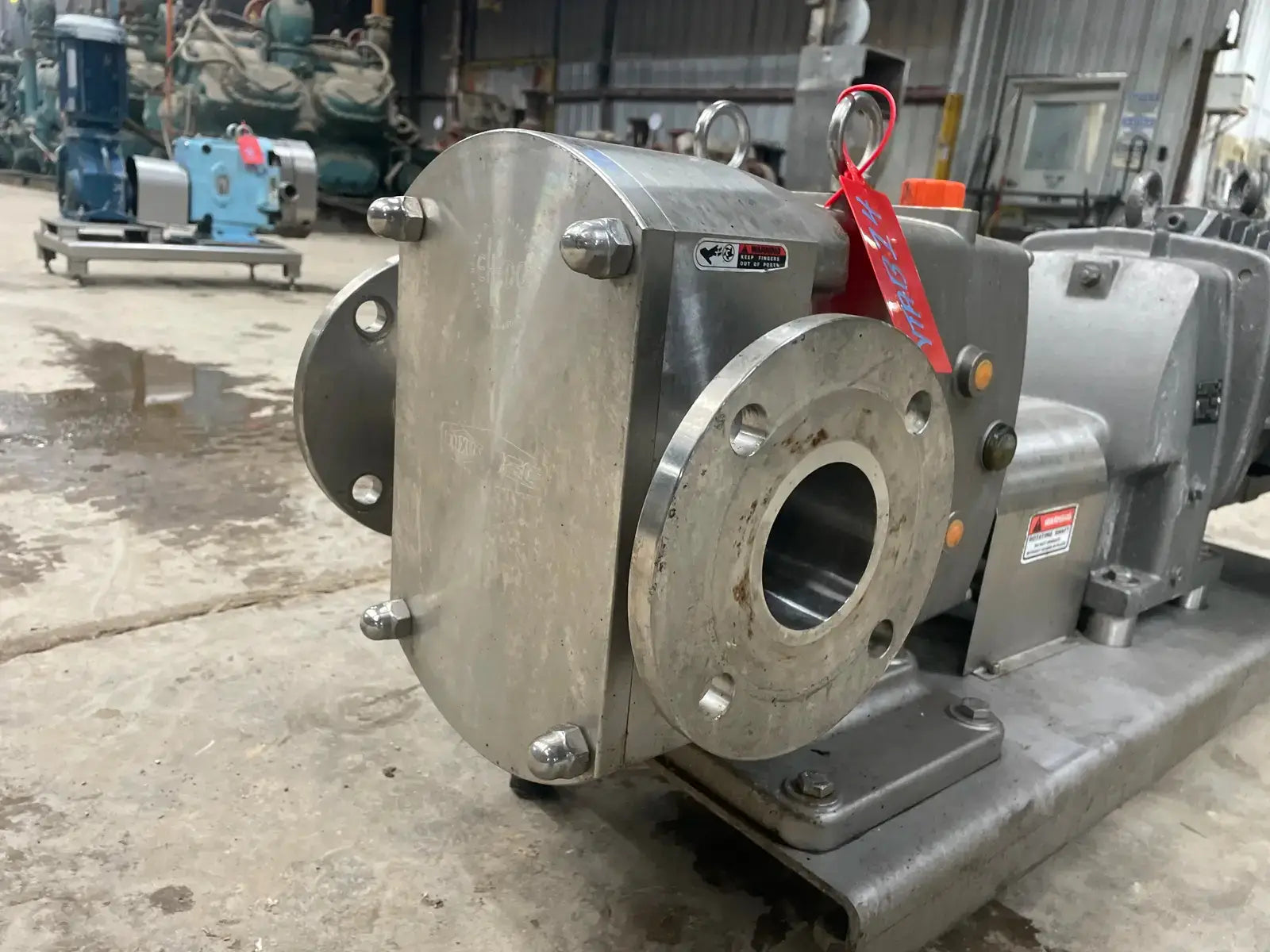

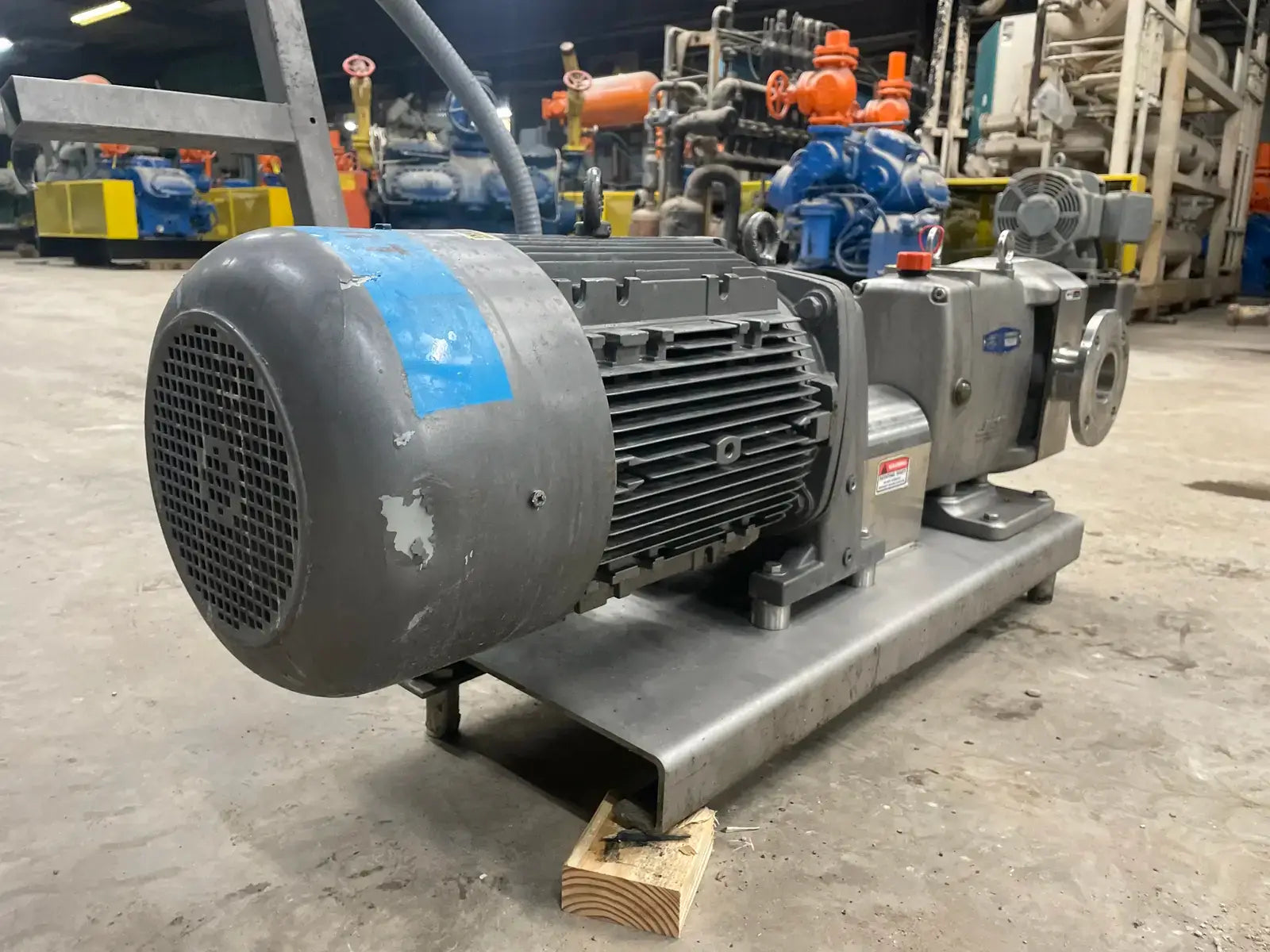

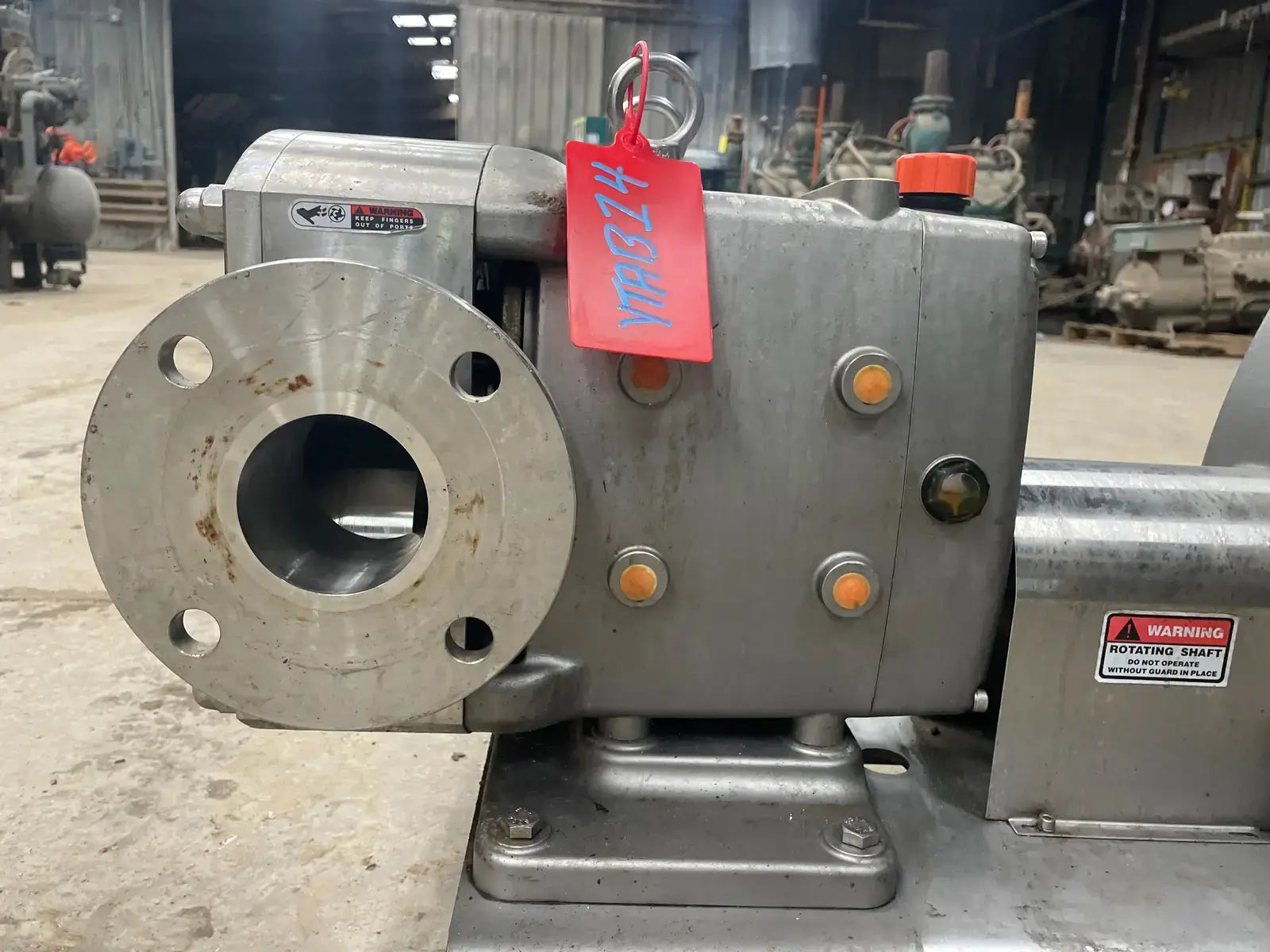

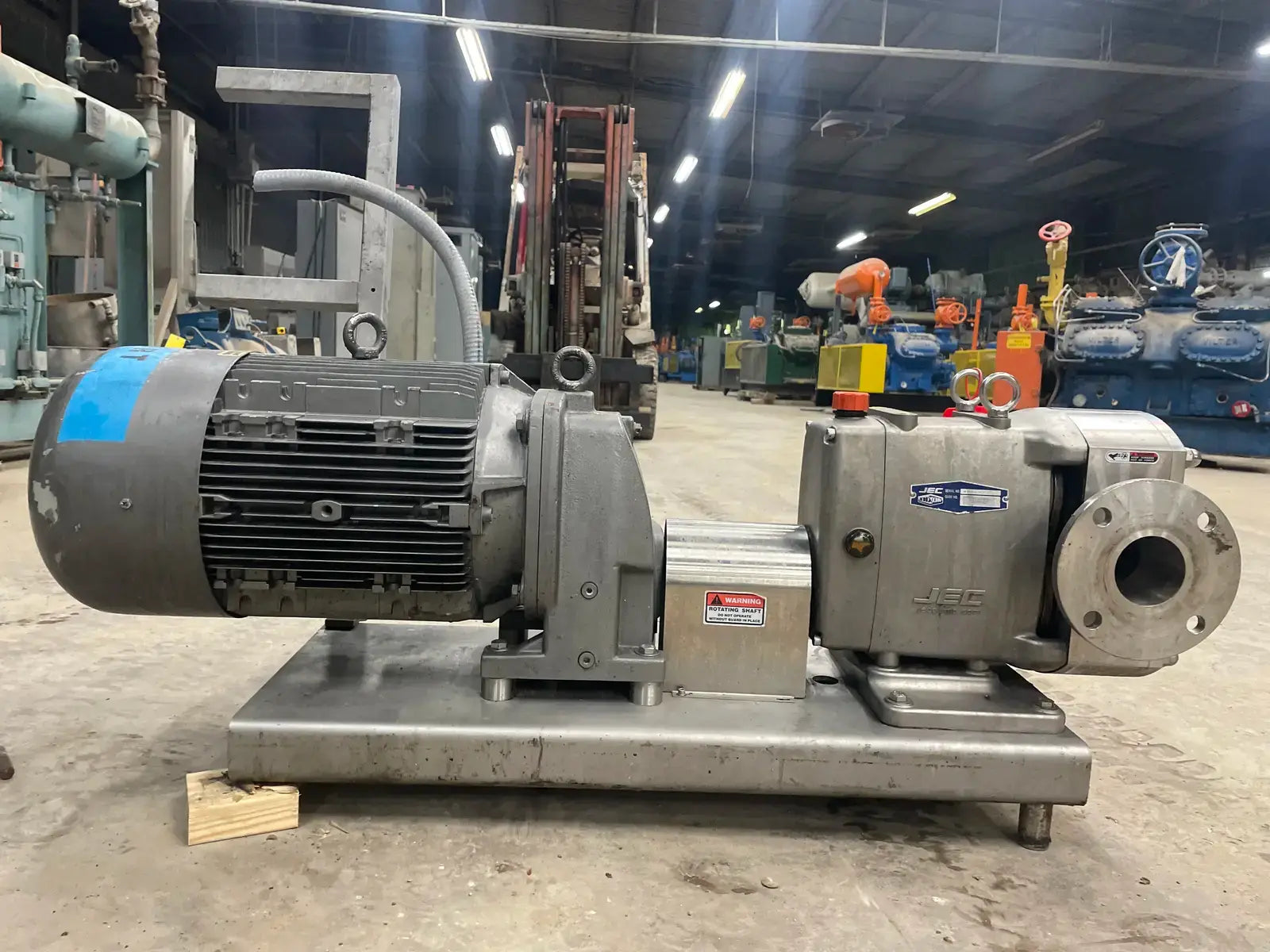

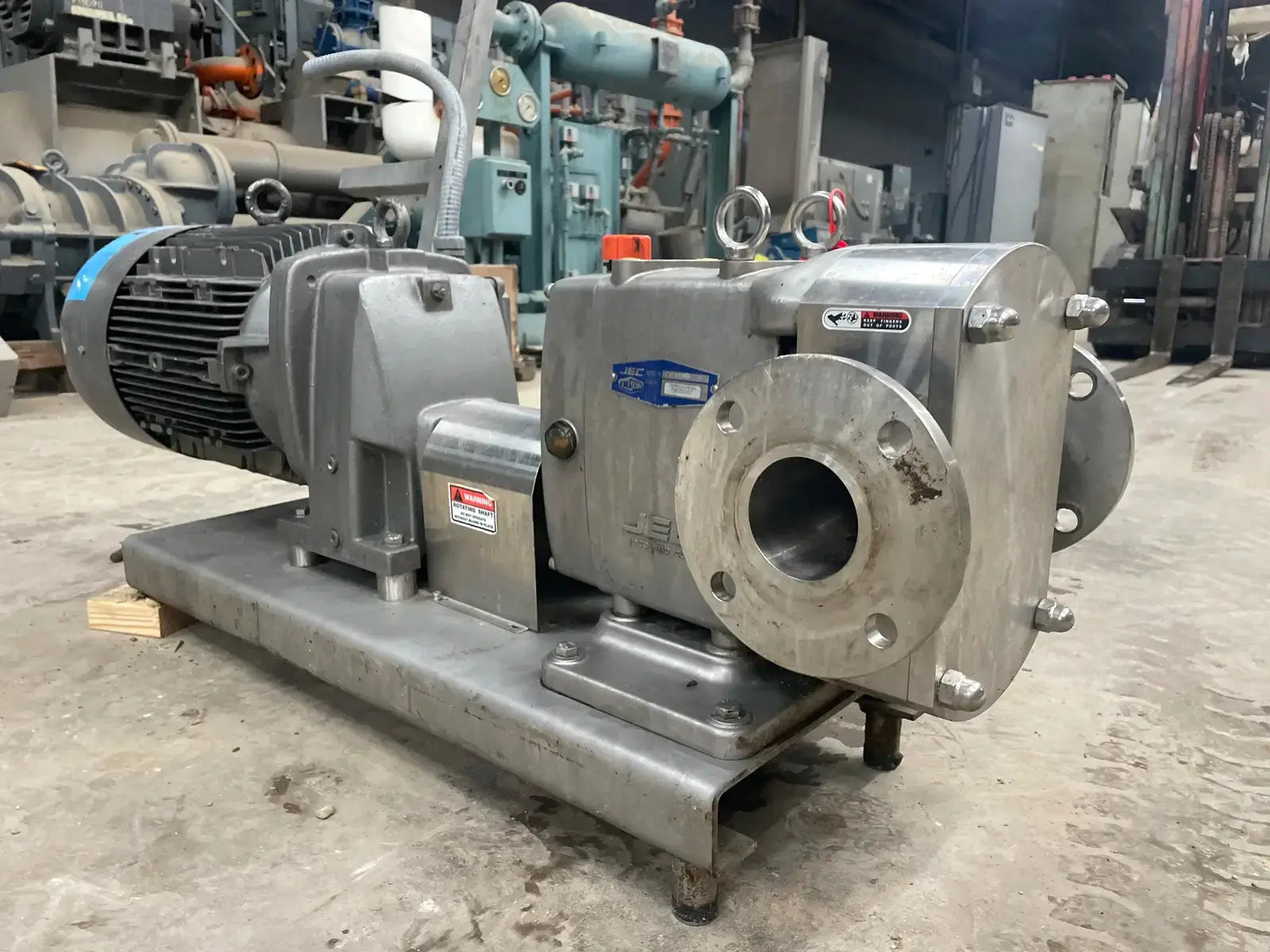

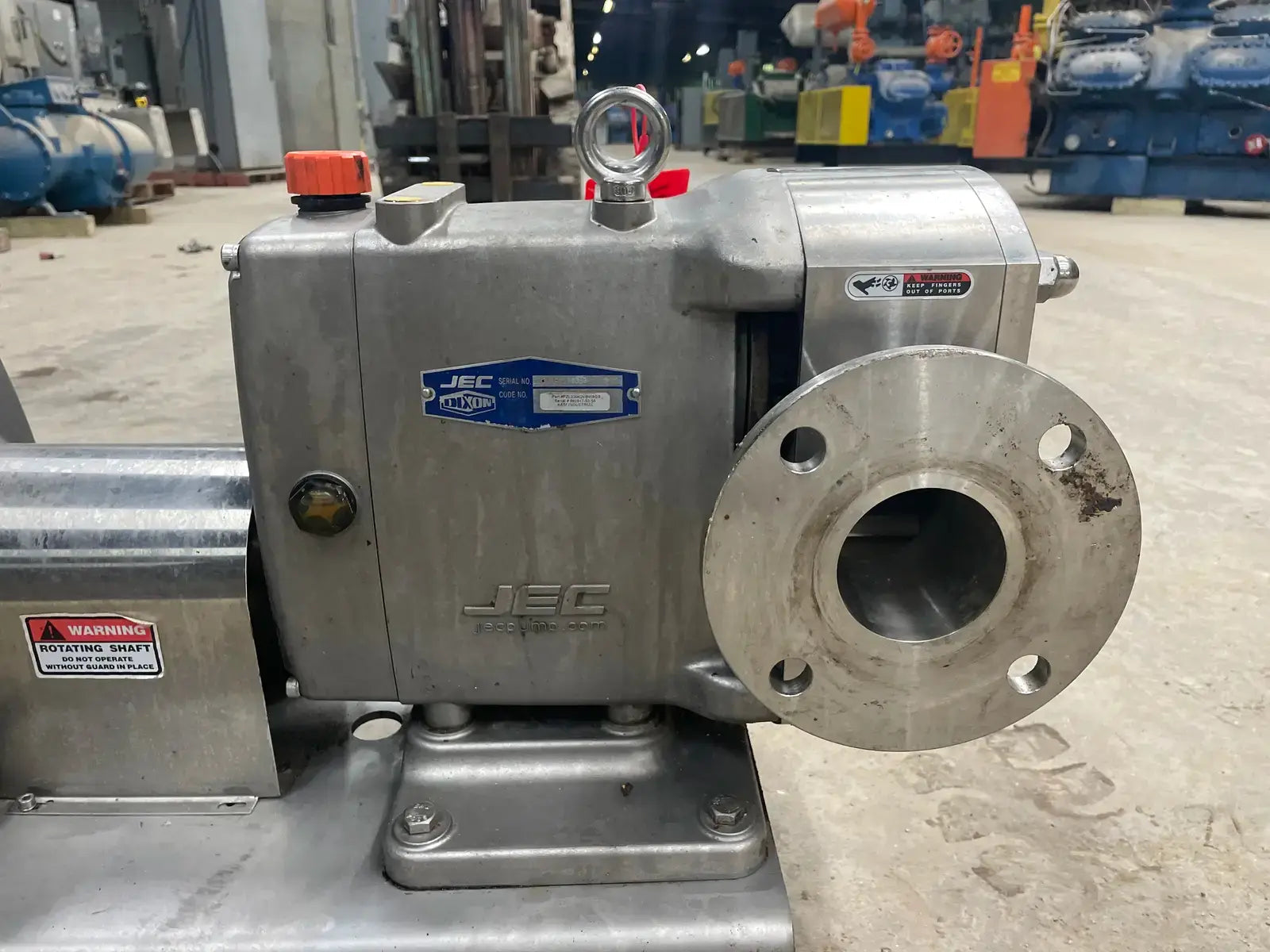

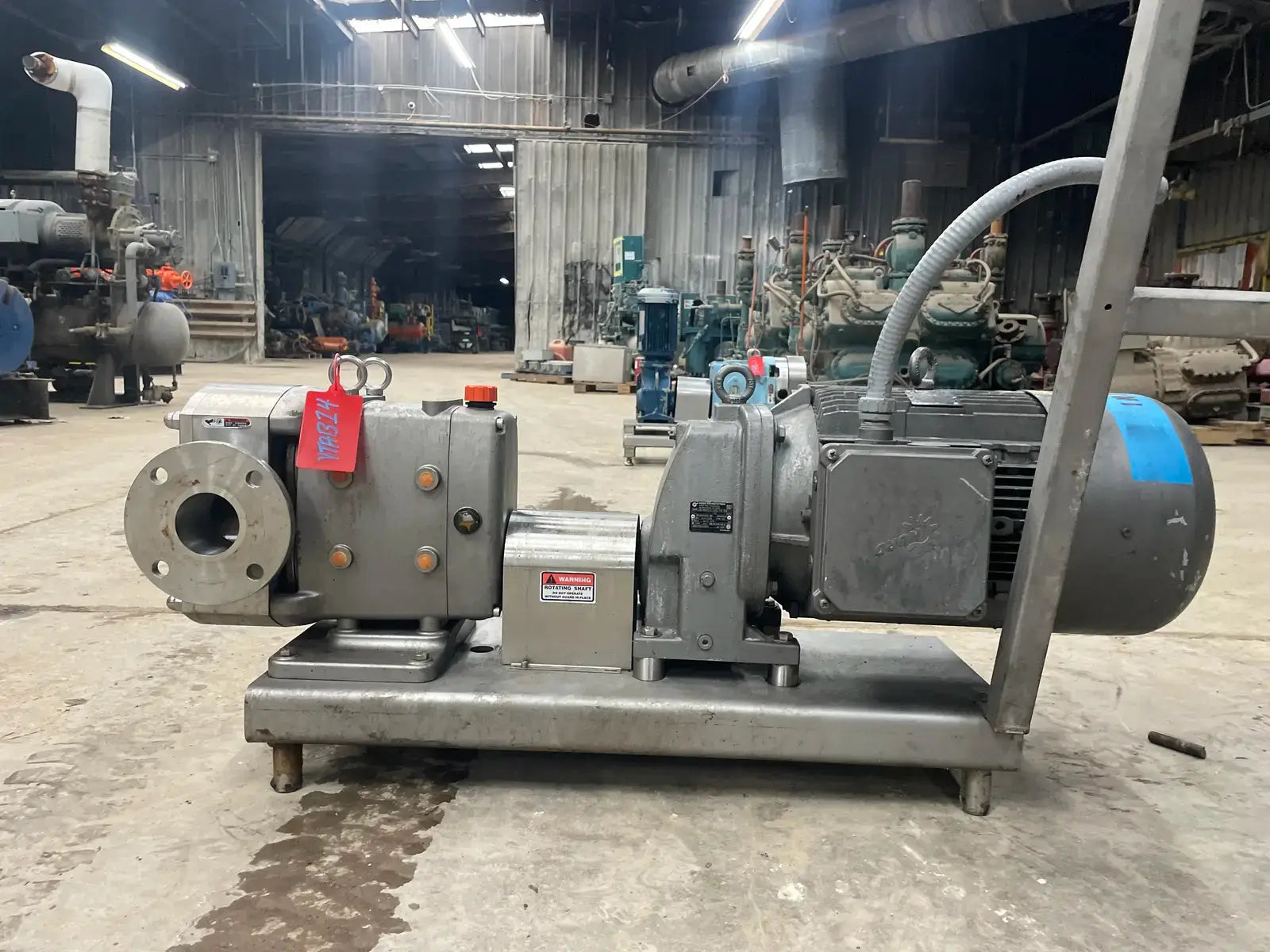

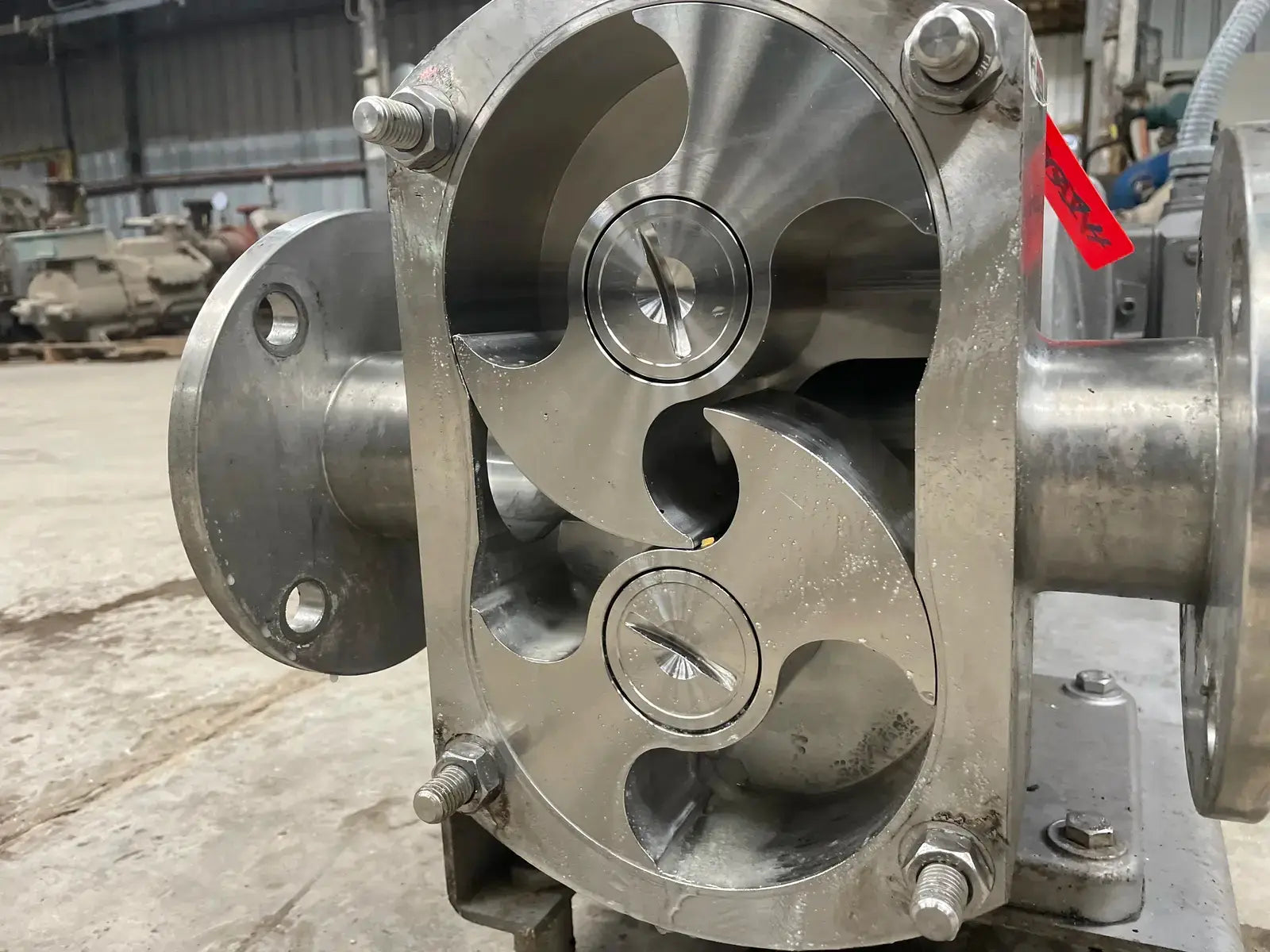

Dixon JRZL-330 Positive Displacement Pump (20 HP, 161 GPM Max)

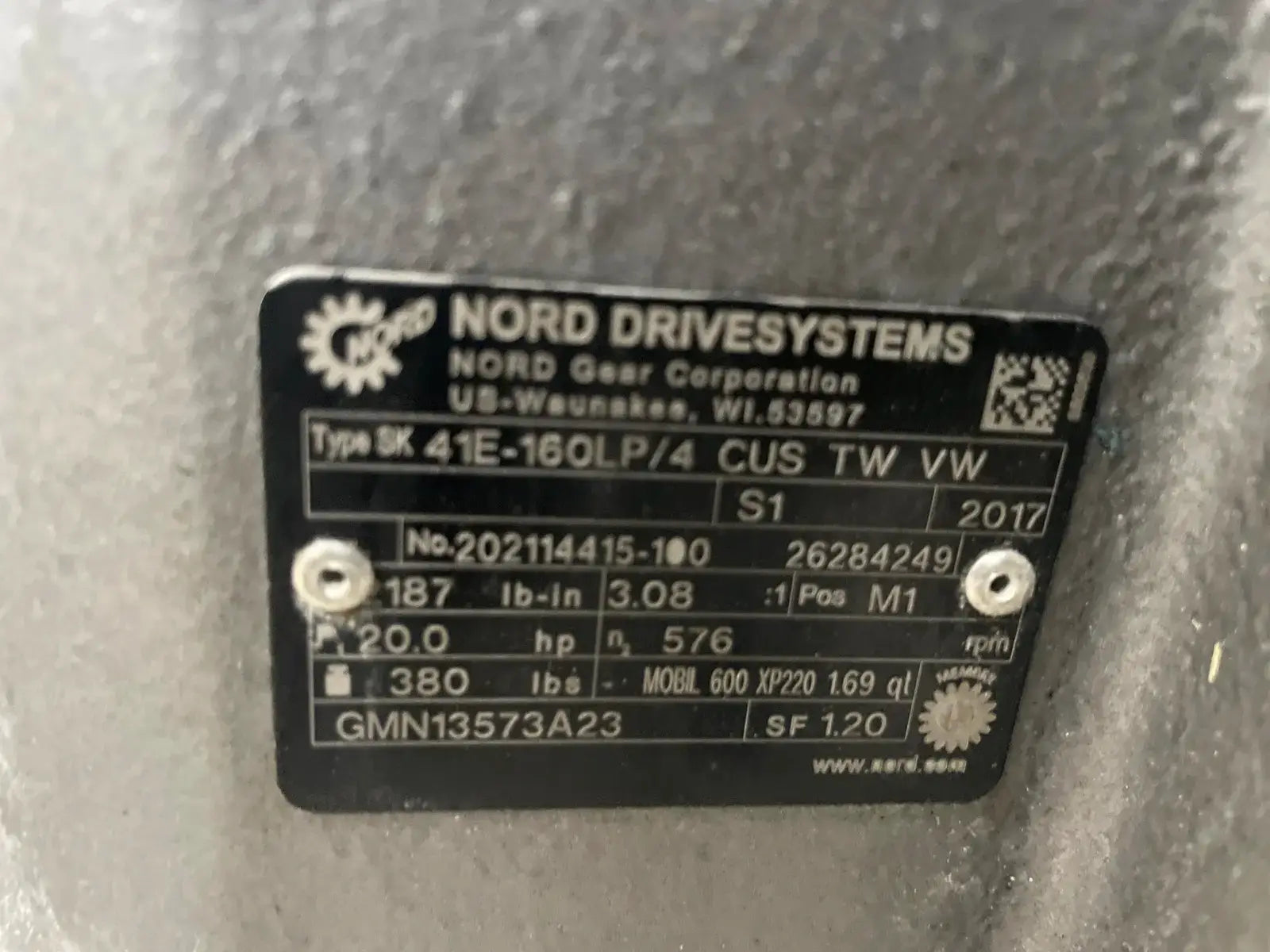

Dixon Positive Displacement Pump. Model: JRZL-330, Serial No: 062817-03-55. Driven by a Nord Drive System Drive: HP: 20, RPM: 2360, Volts: 230/460, Amps: 47.6/23.8. Ratio: 3.08. Flanged Inlet/Outlet: 3 in.
Product Details
- Stock No: YTAB14
- Manufacturer: Dixon
- Model: JRZL-330

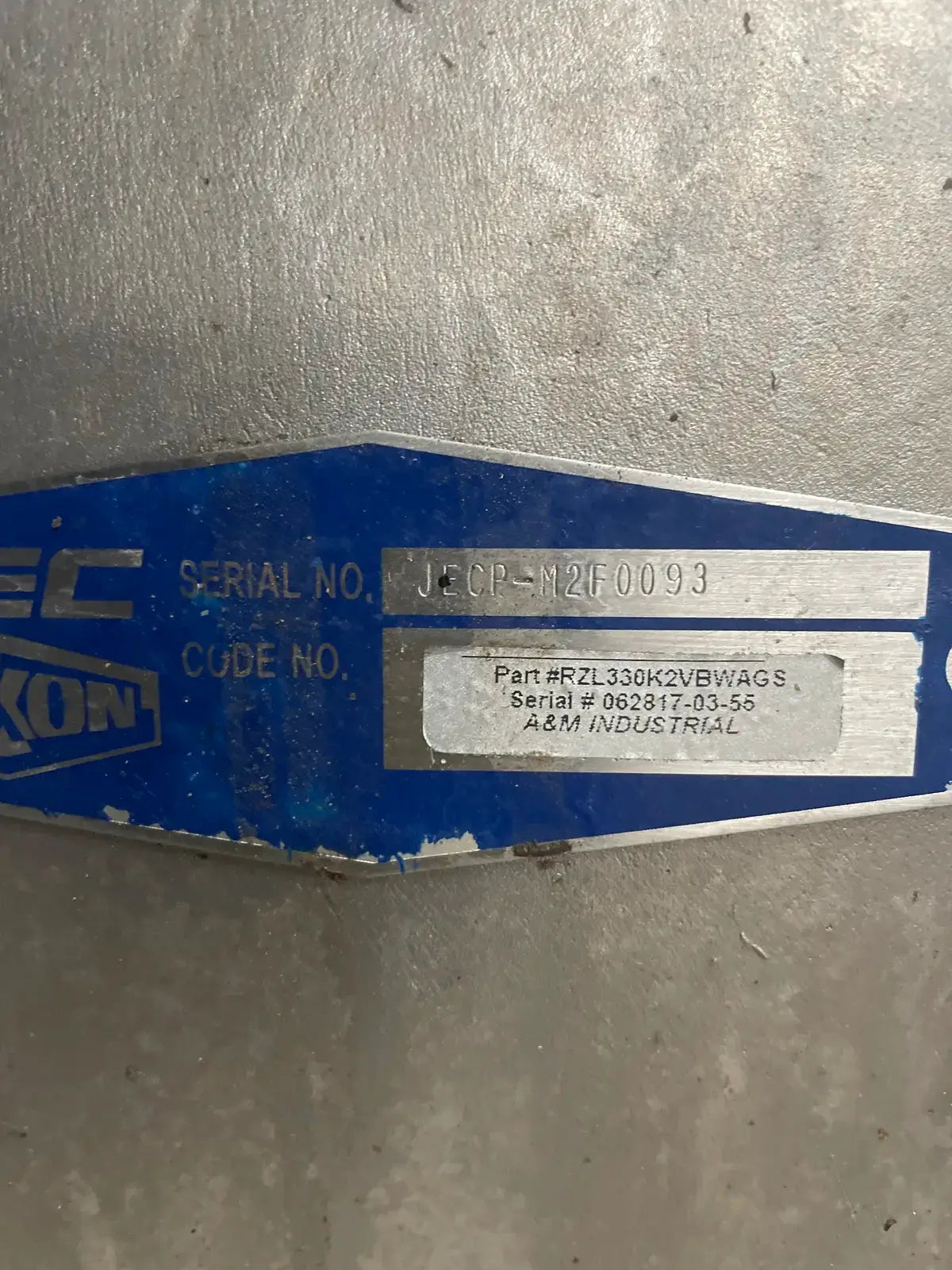

- Serial Number: 062817-03-55
Pump Details
- Pump Type: Positive Displacement
- Max Gallons Per Minute GPM: 161
- Displacement per Revolution (Gallons): 0.269
- Drive Ratio: 3.08
- Est. Actual Gallons Per Minute (GPM): 206.11688311688312
- Max Speed RPM: 576
- Minimum Temperature (F): 12
- Maximum Temperature (F): 356
- Maximum Pressure MAWP (PSI): 174

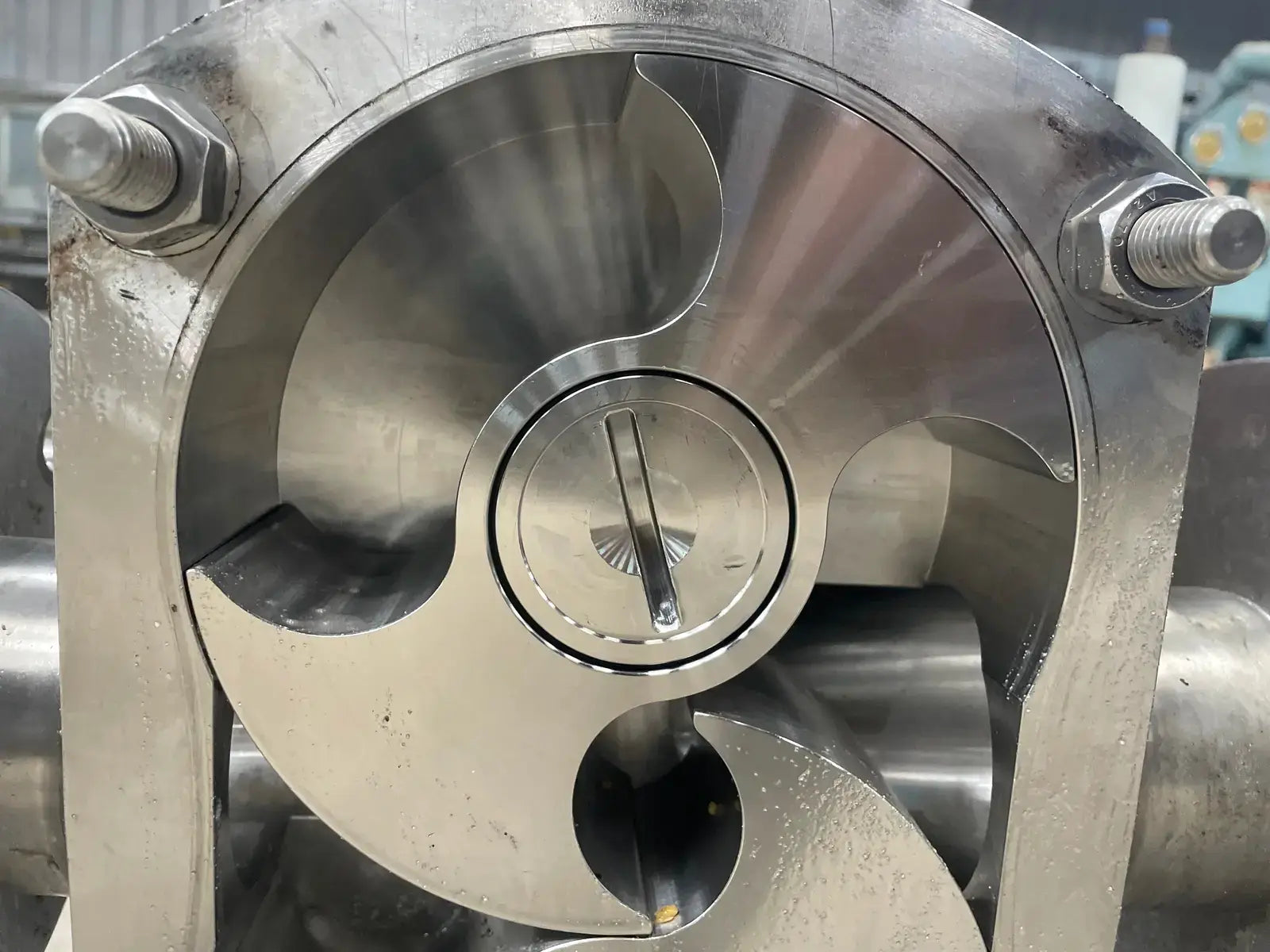

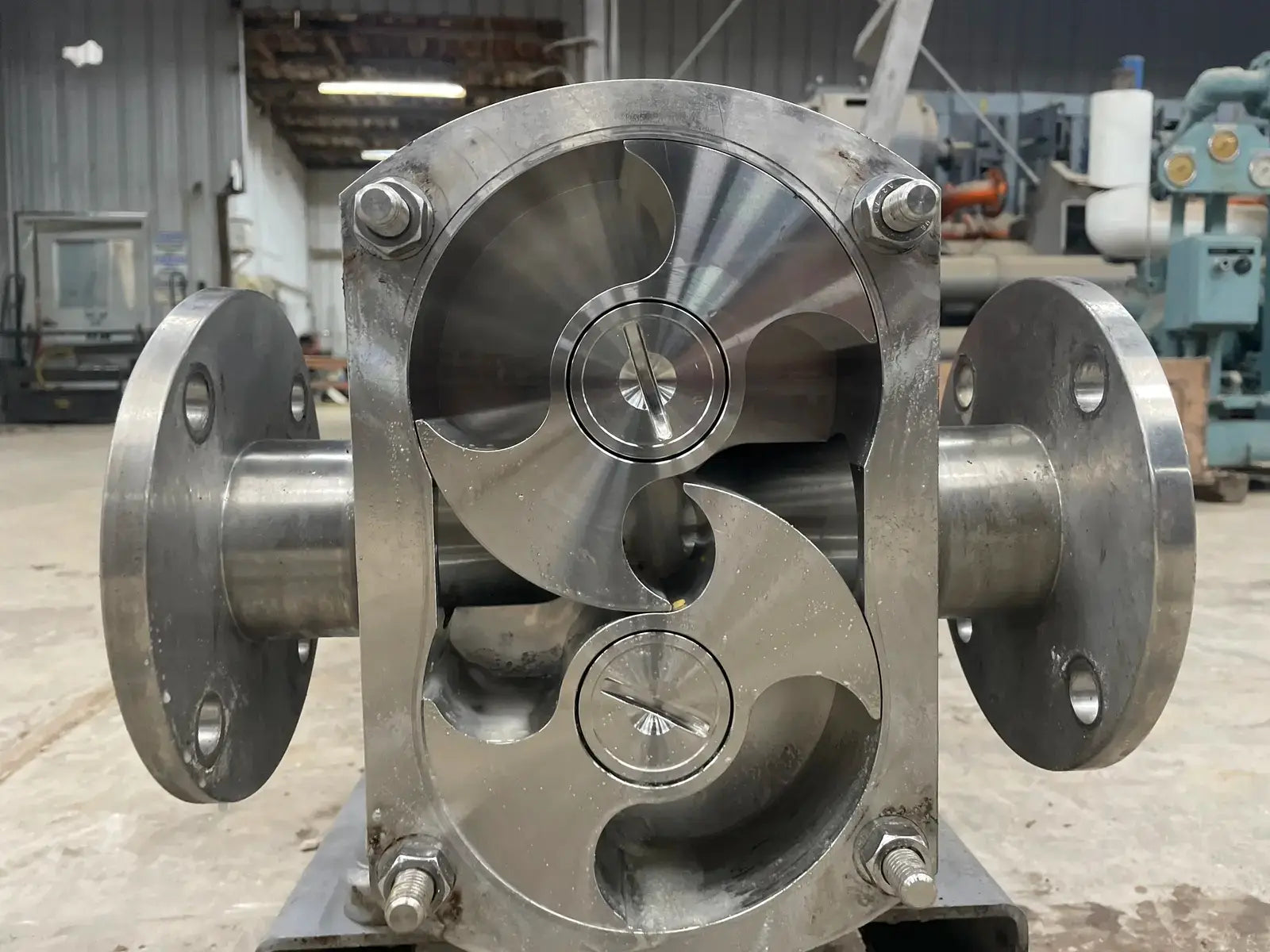

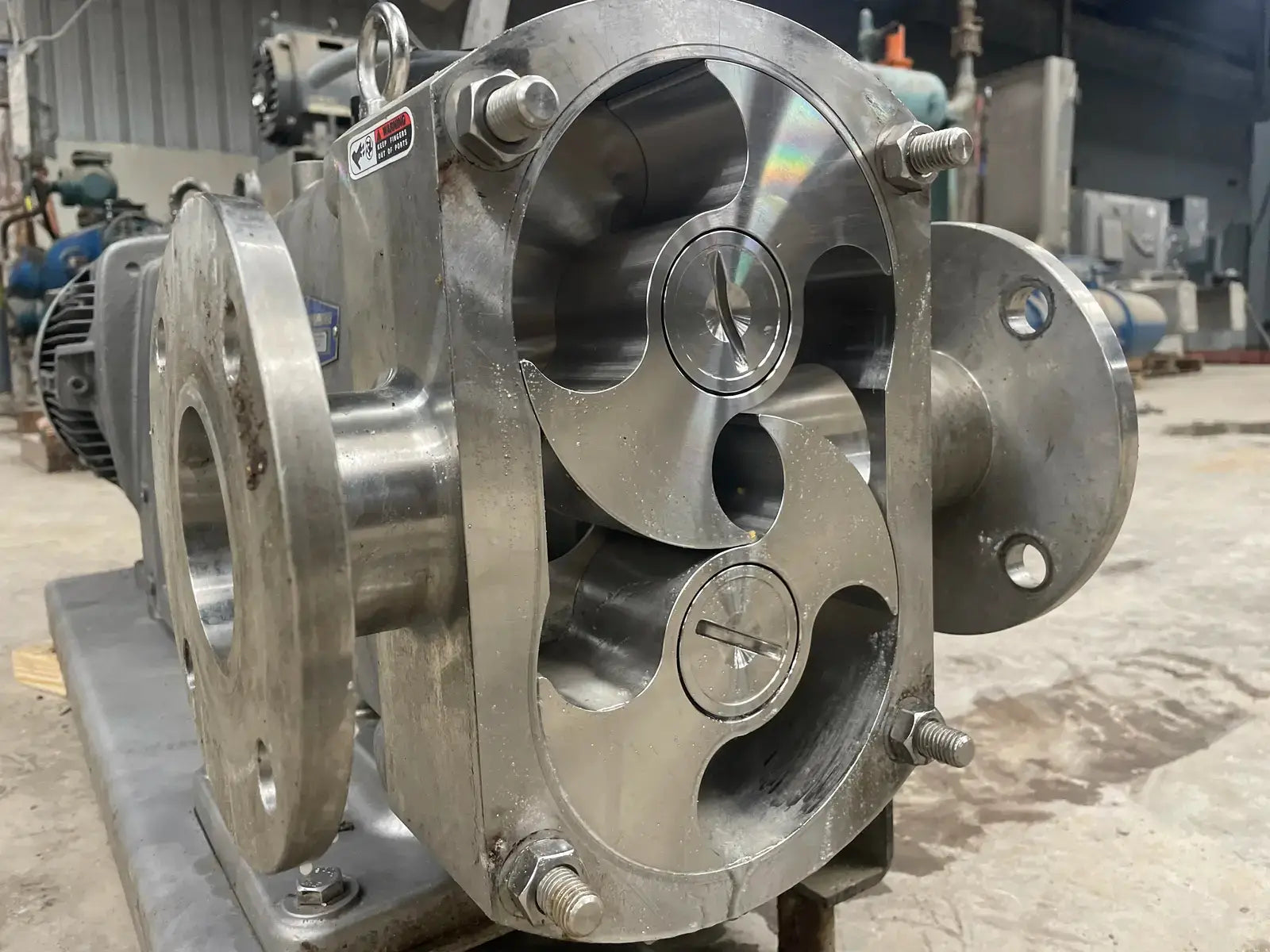

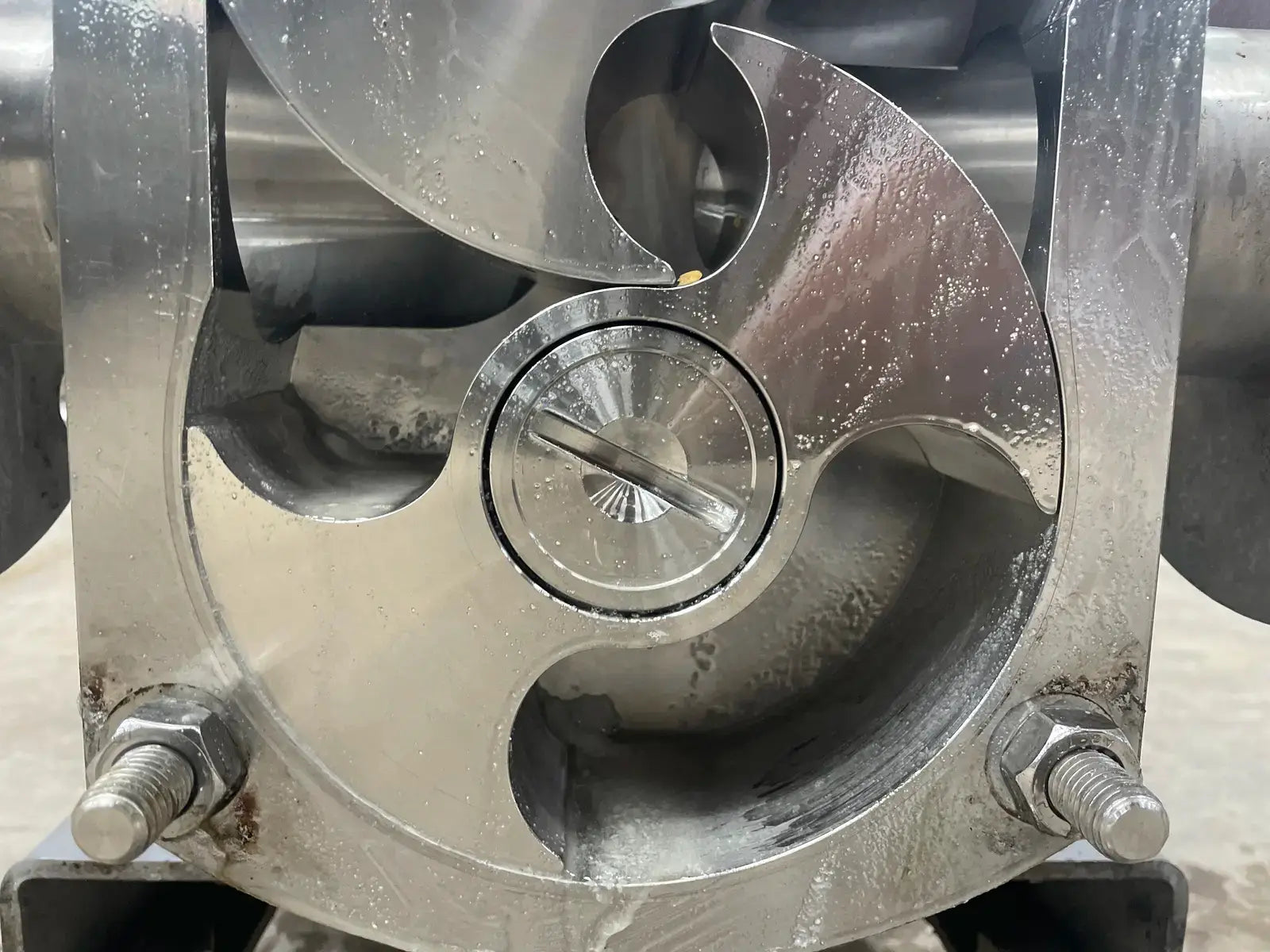

- # Rotors: 2
- # Inlets: 1
- # Outlets: 1
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet

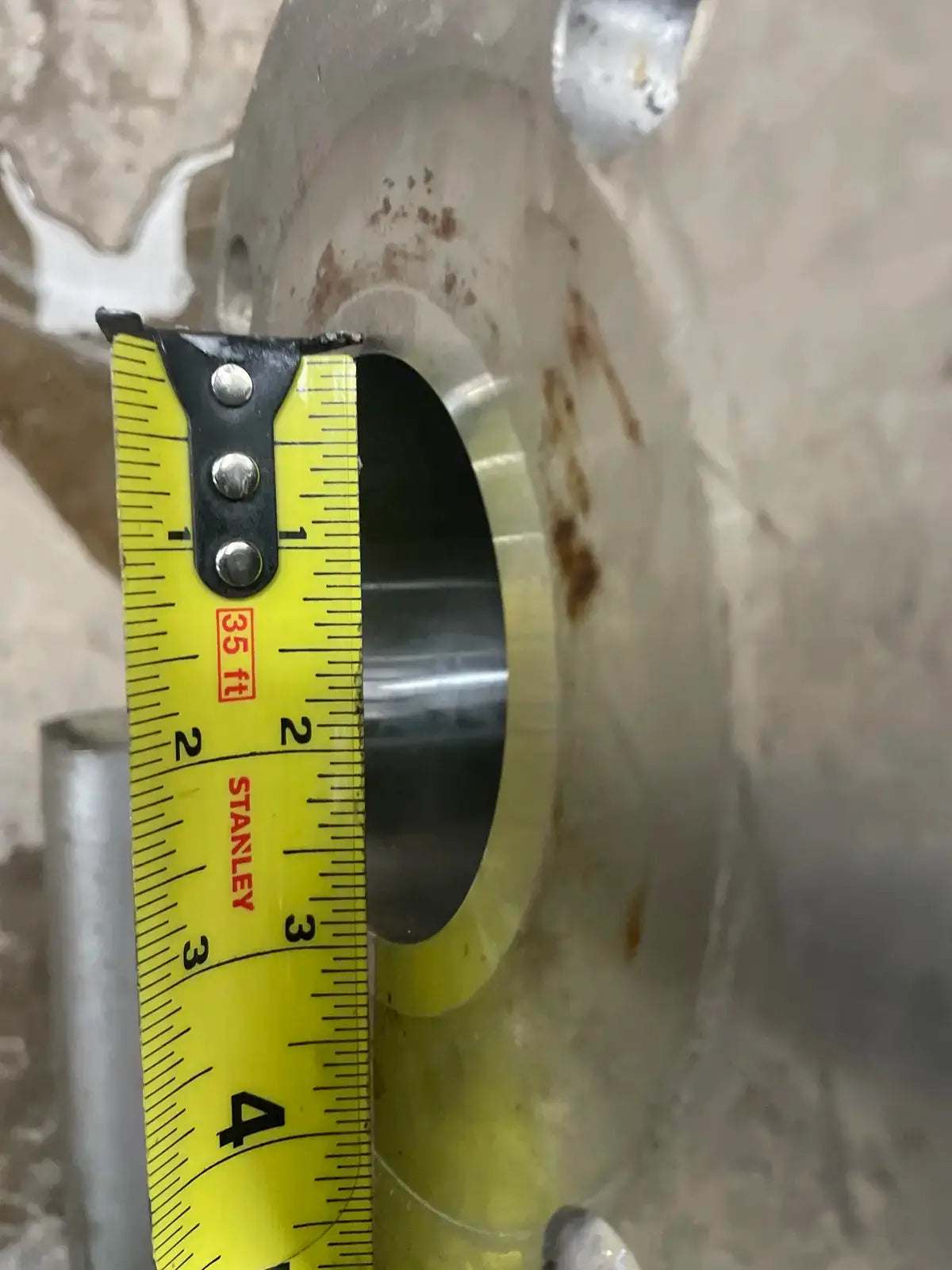

- Inlet/Outlet 1 Size (Inches): 3
- Inlet/Outlet 1 Type: Flange

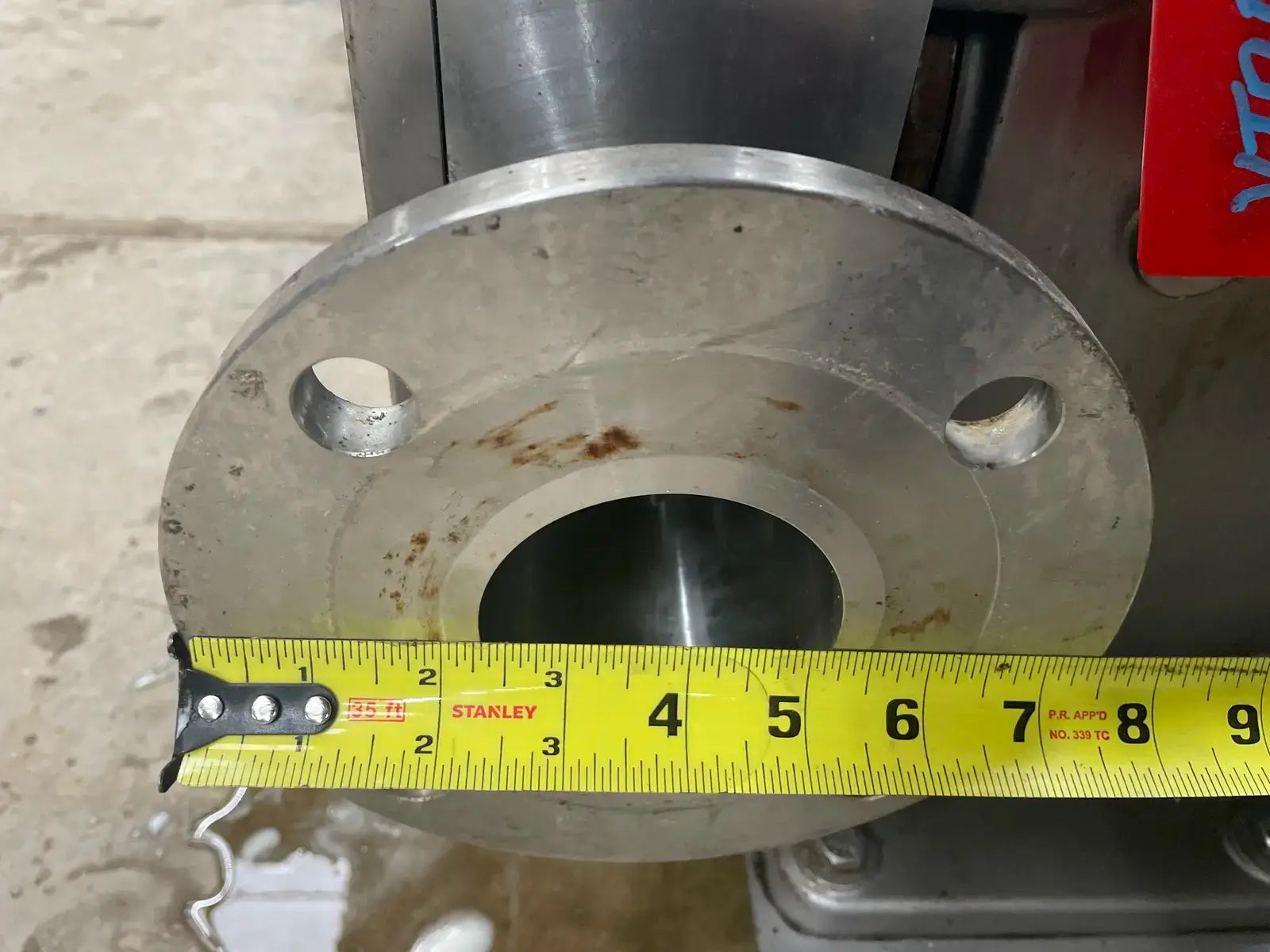

- Inlet/Outlet 1 Flange Size (inches): 7.5
- Inlet/Outlet 2: Outlet
- Inlet/Outlet 2 Size (inches): 3
- Inlet/Outlet 2 Type: Flange
- Inlet/Outlet 2 Flange Size (inches): 7.5
Previous Refrigerant

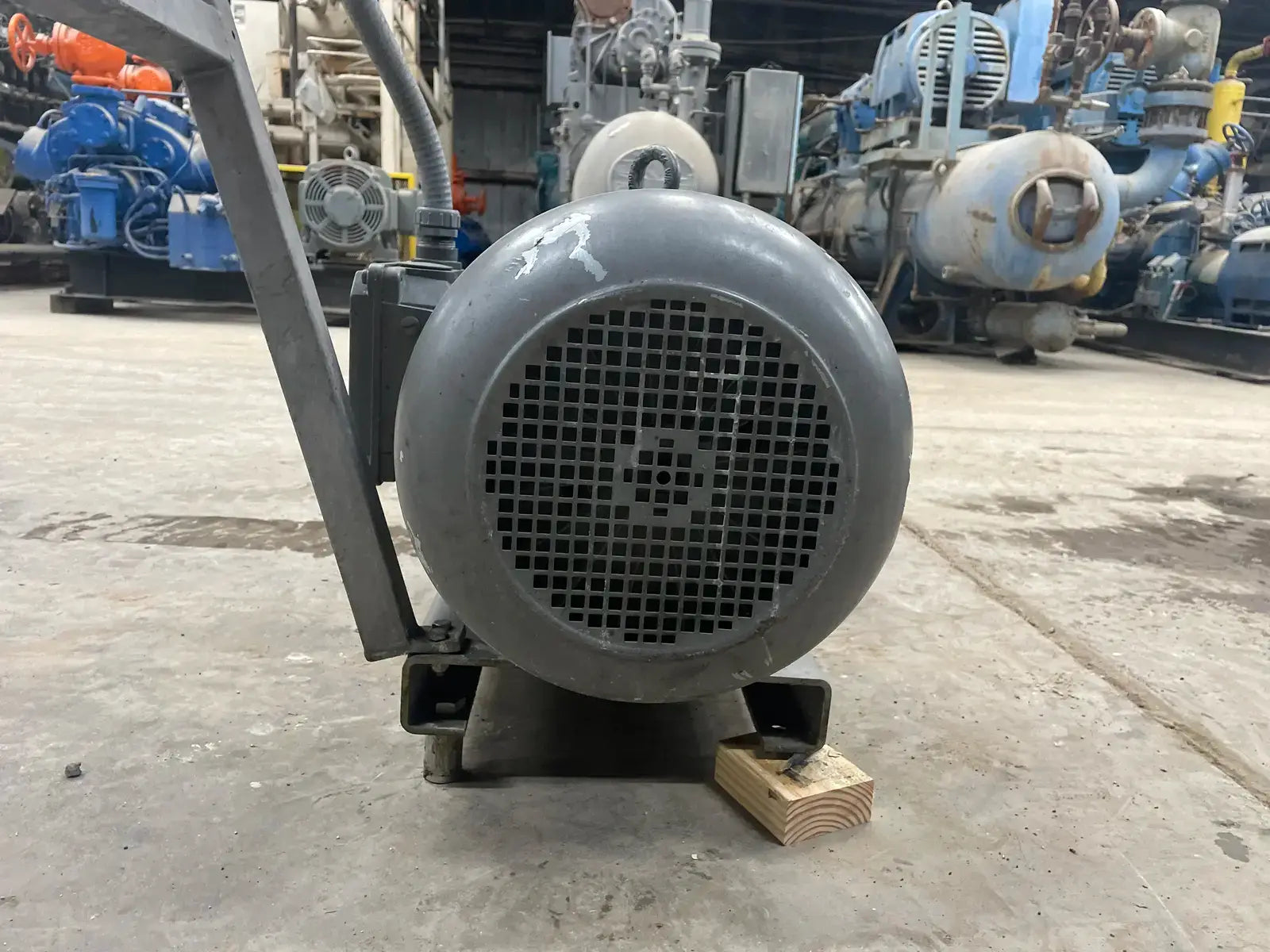

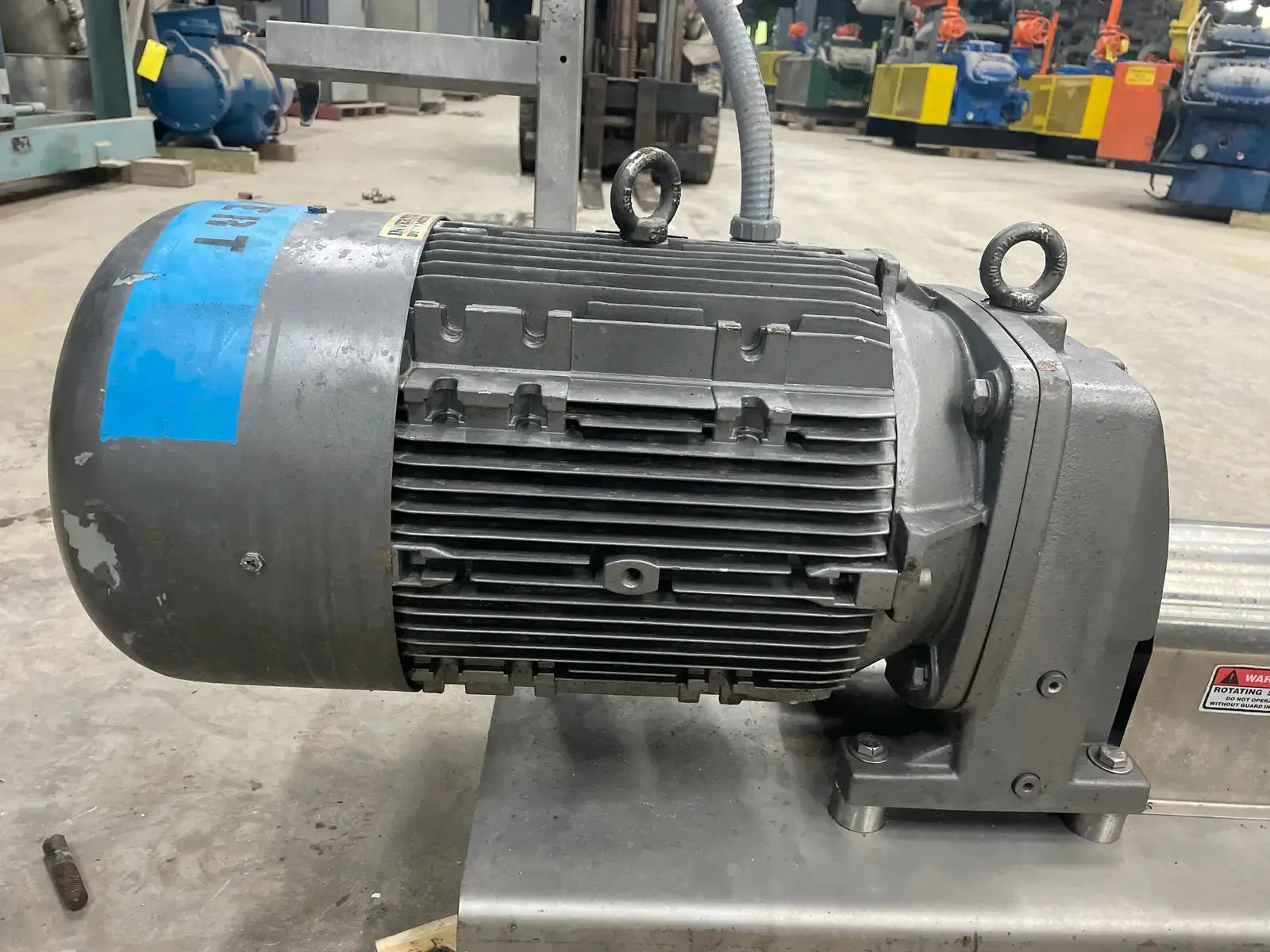

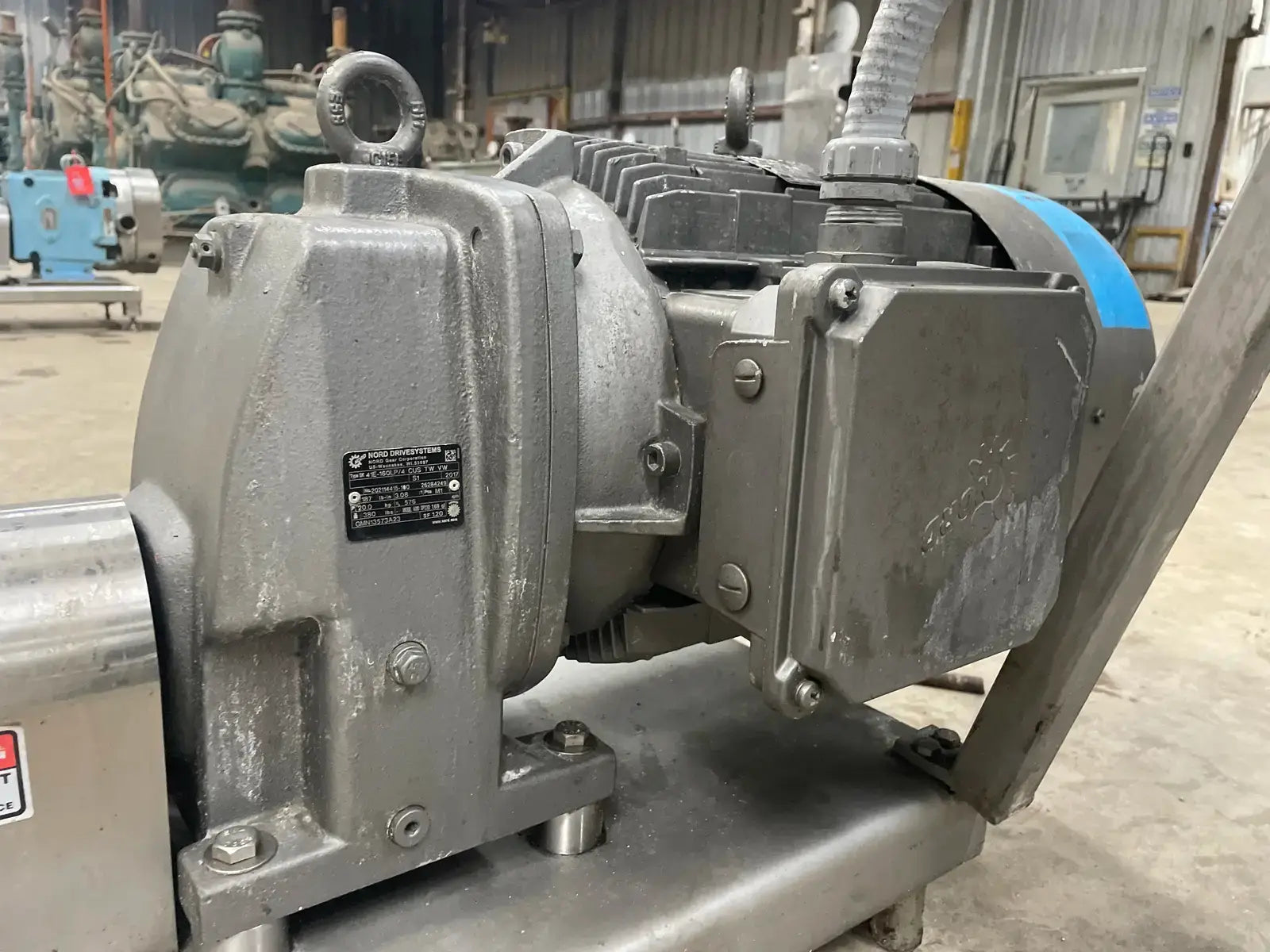

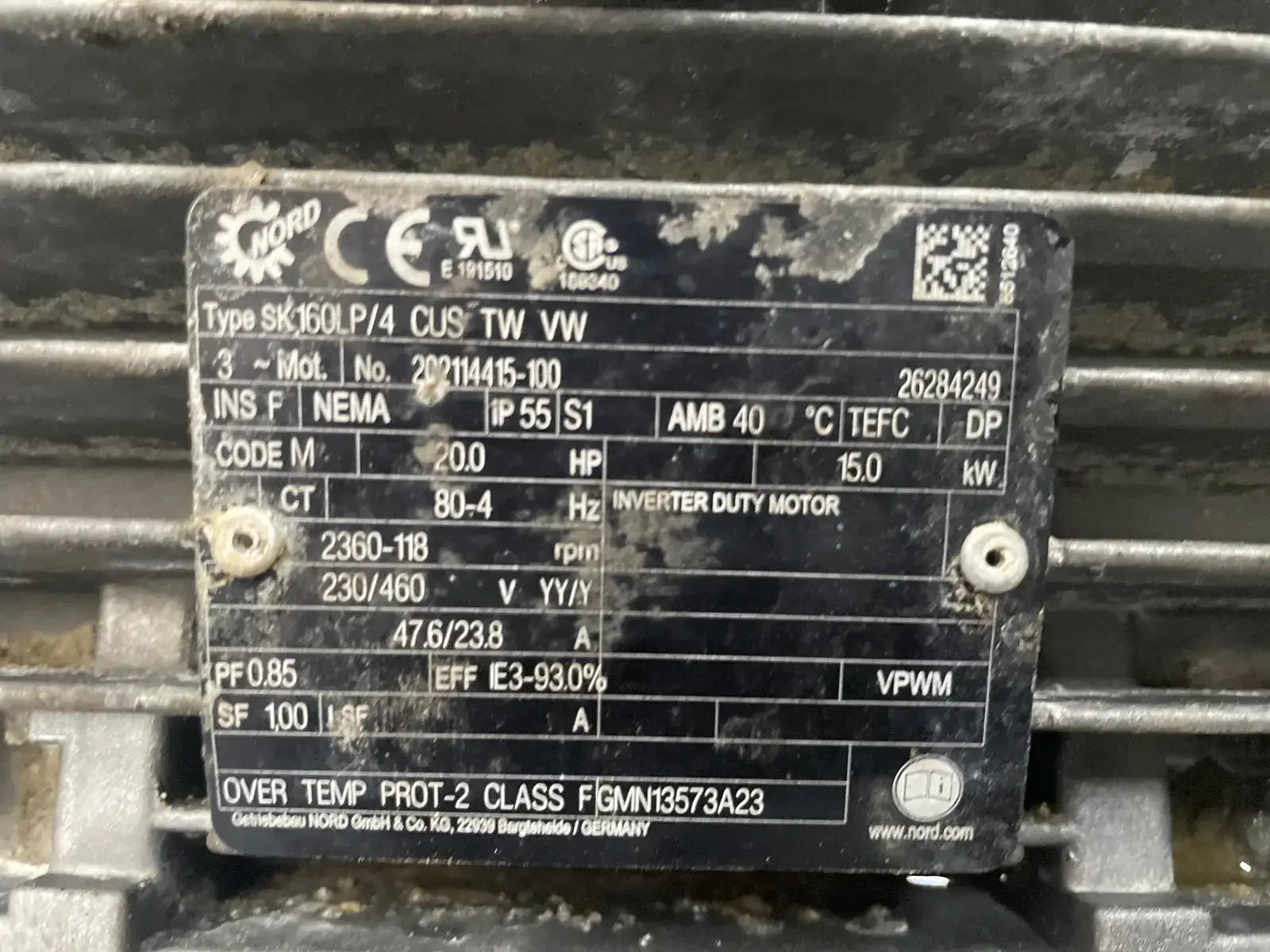

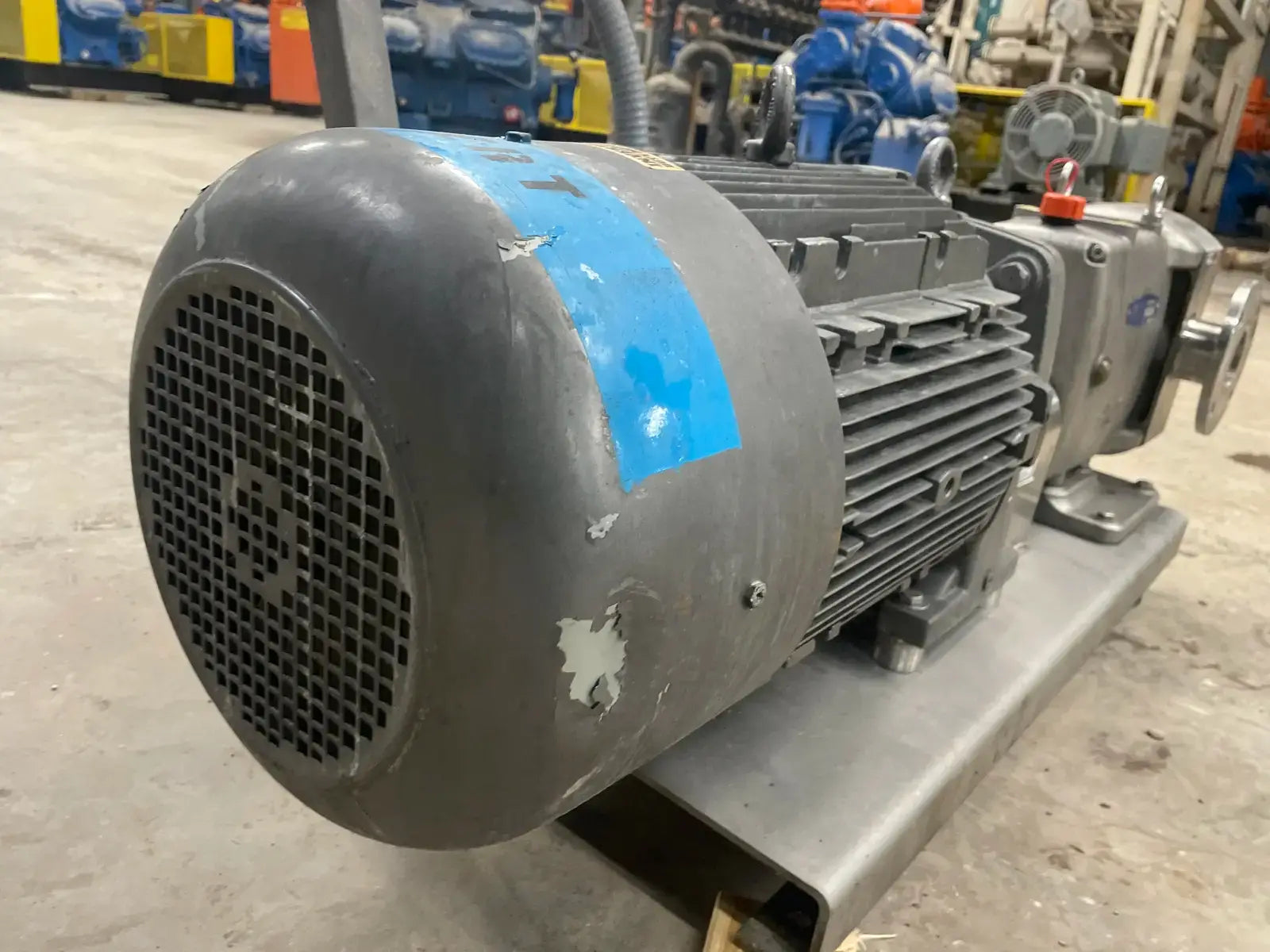

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Nord
- Motor Horsepower(HP): 20
- Motor RPM: 2,360
- Motor Voltage: 230/460
- Motor Amps: 47.6/23.8
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 72
- Width (Inches): 28
- Height (Inches): 24
- Weight (LBS): 550
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
- Known Issues or Problems: Missing Leg
