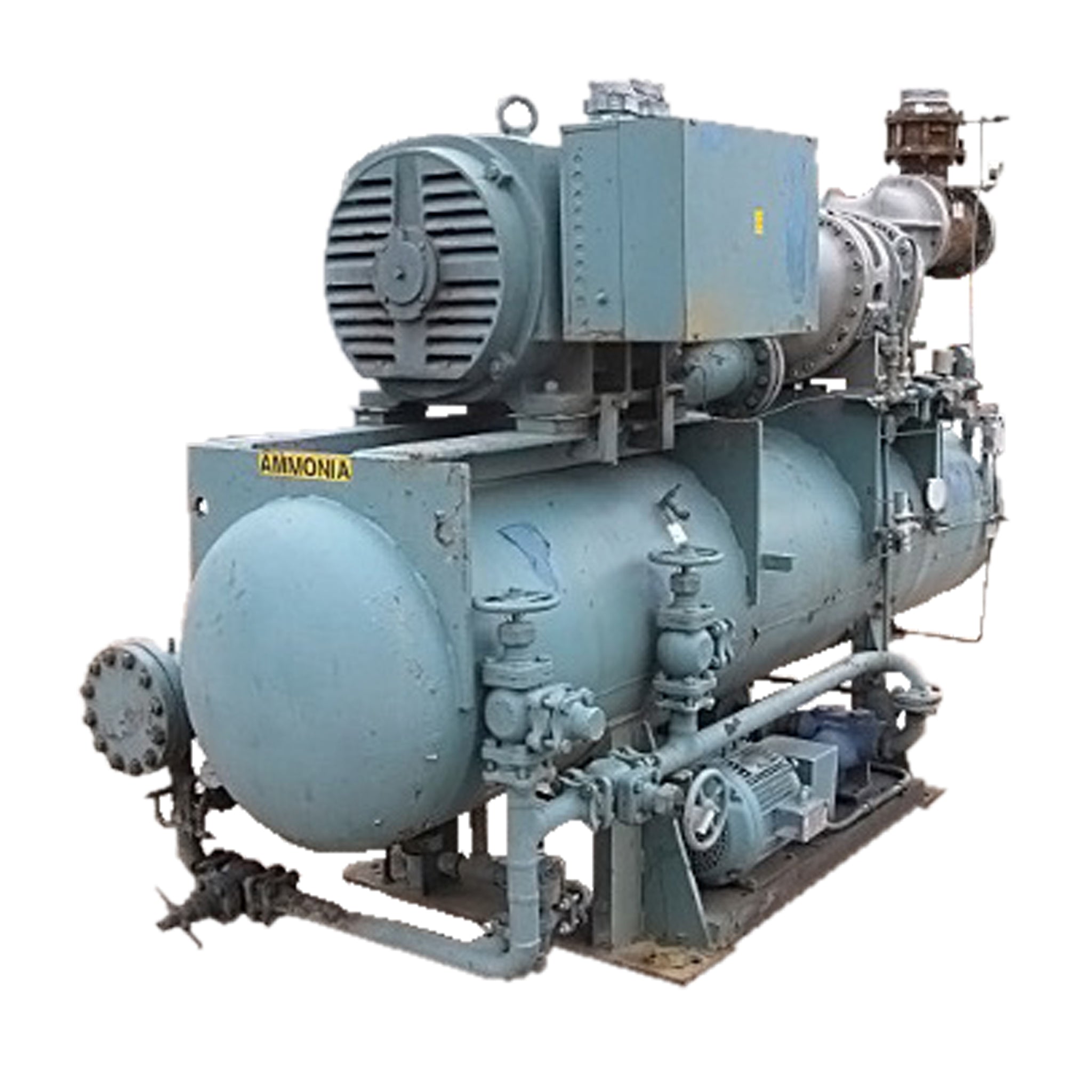

Dunham-Bush 350 Rotary Screw Compressor Package (Dunham-Bush 2510/350, 450 HP 460 V, MISSING CONTROL PANEL)

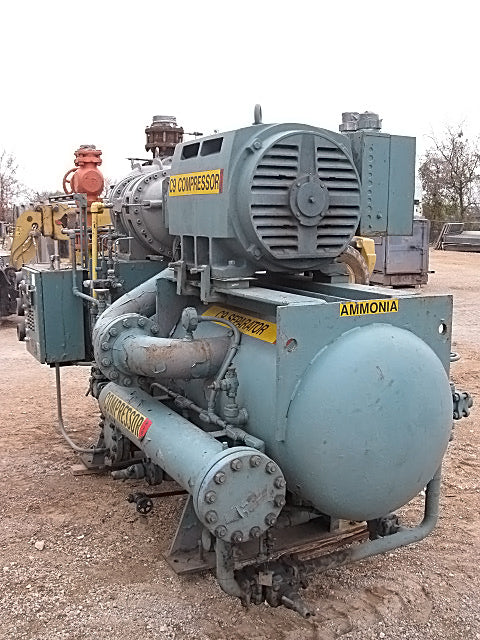

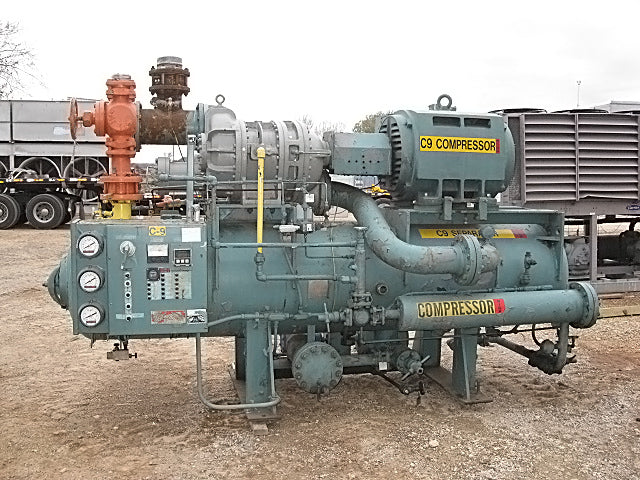

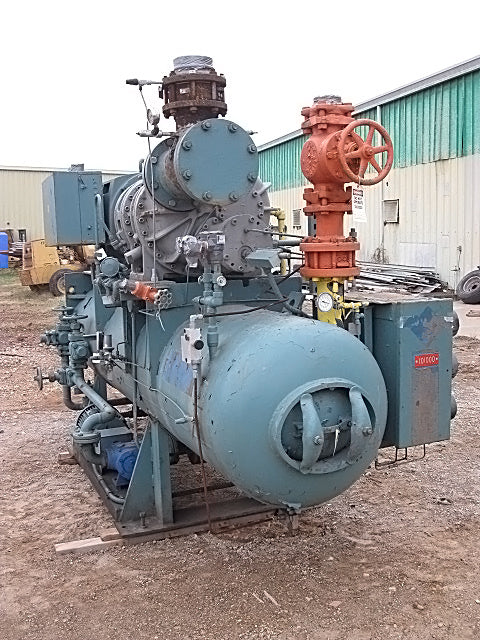

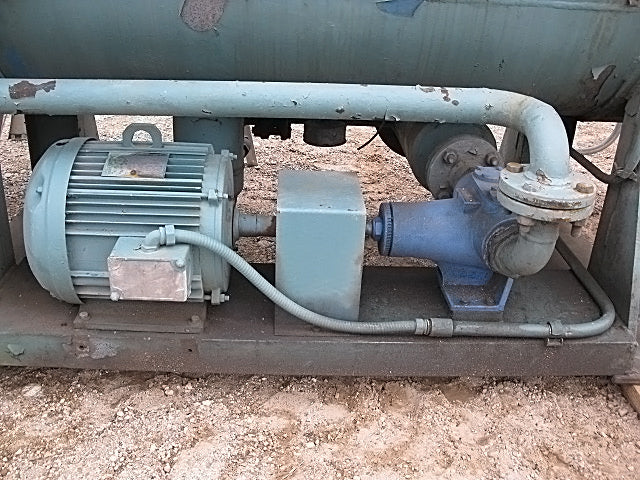

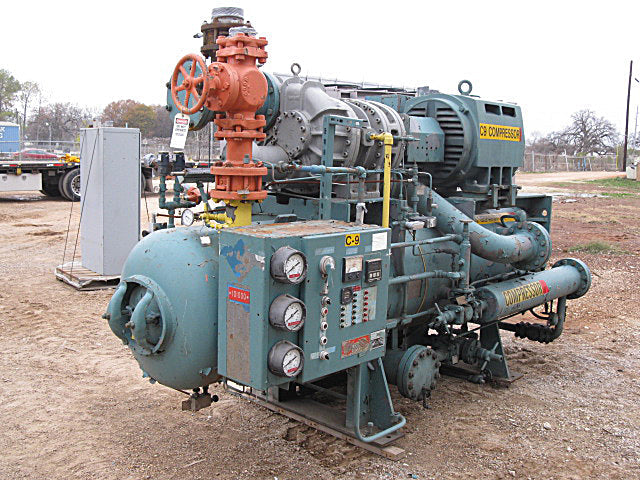

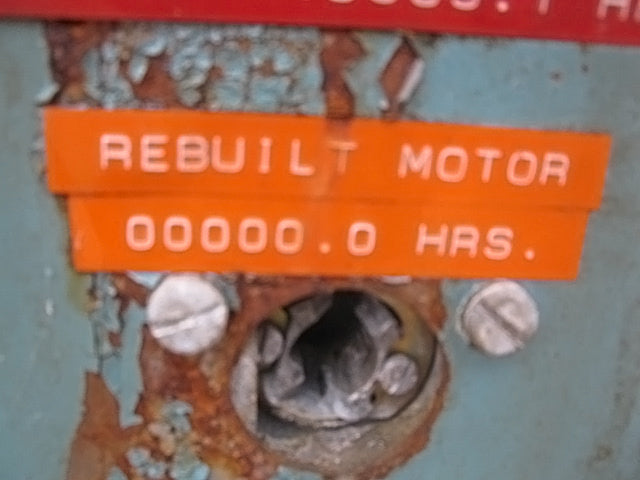

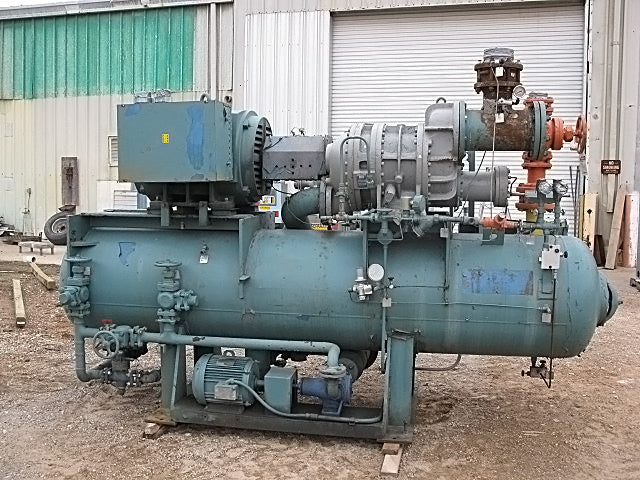

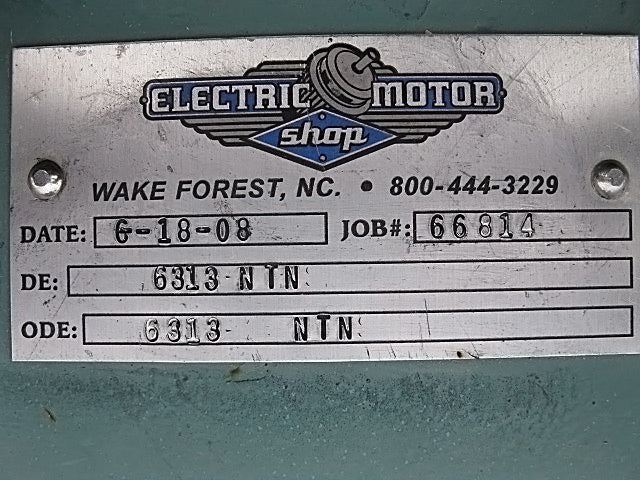

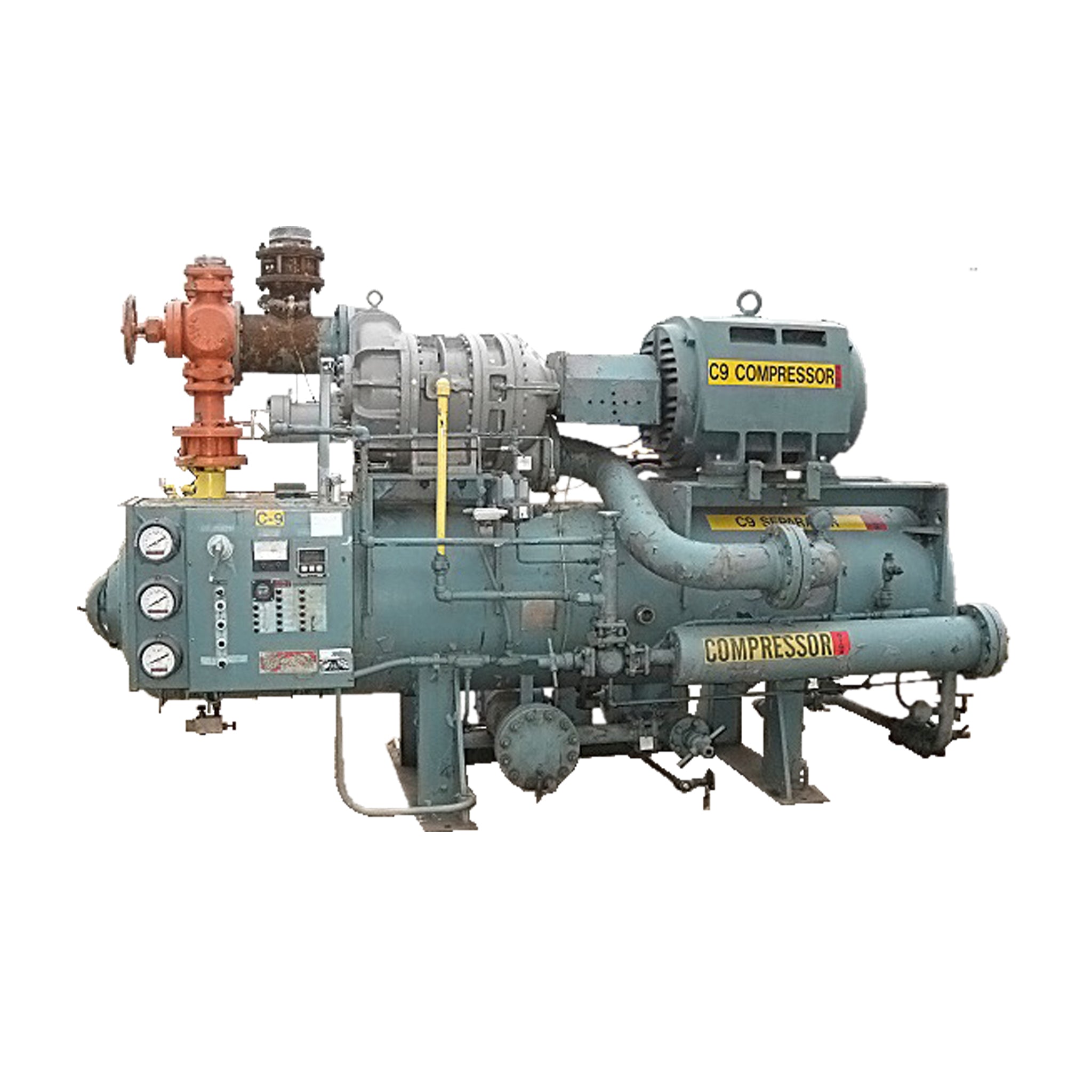

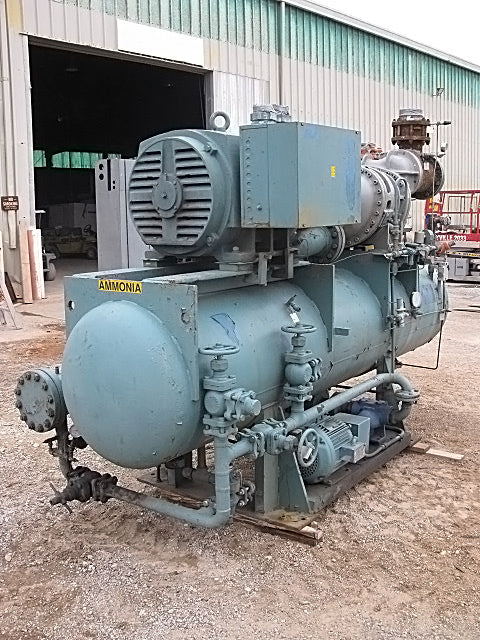

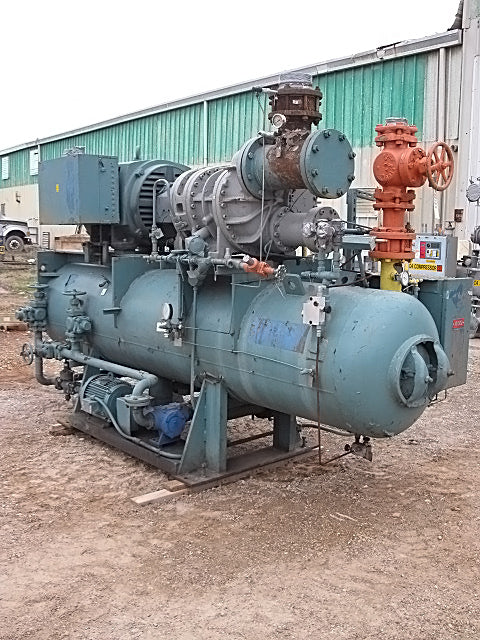

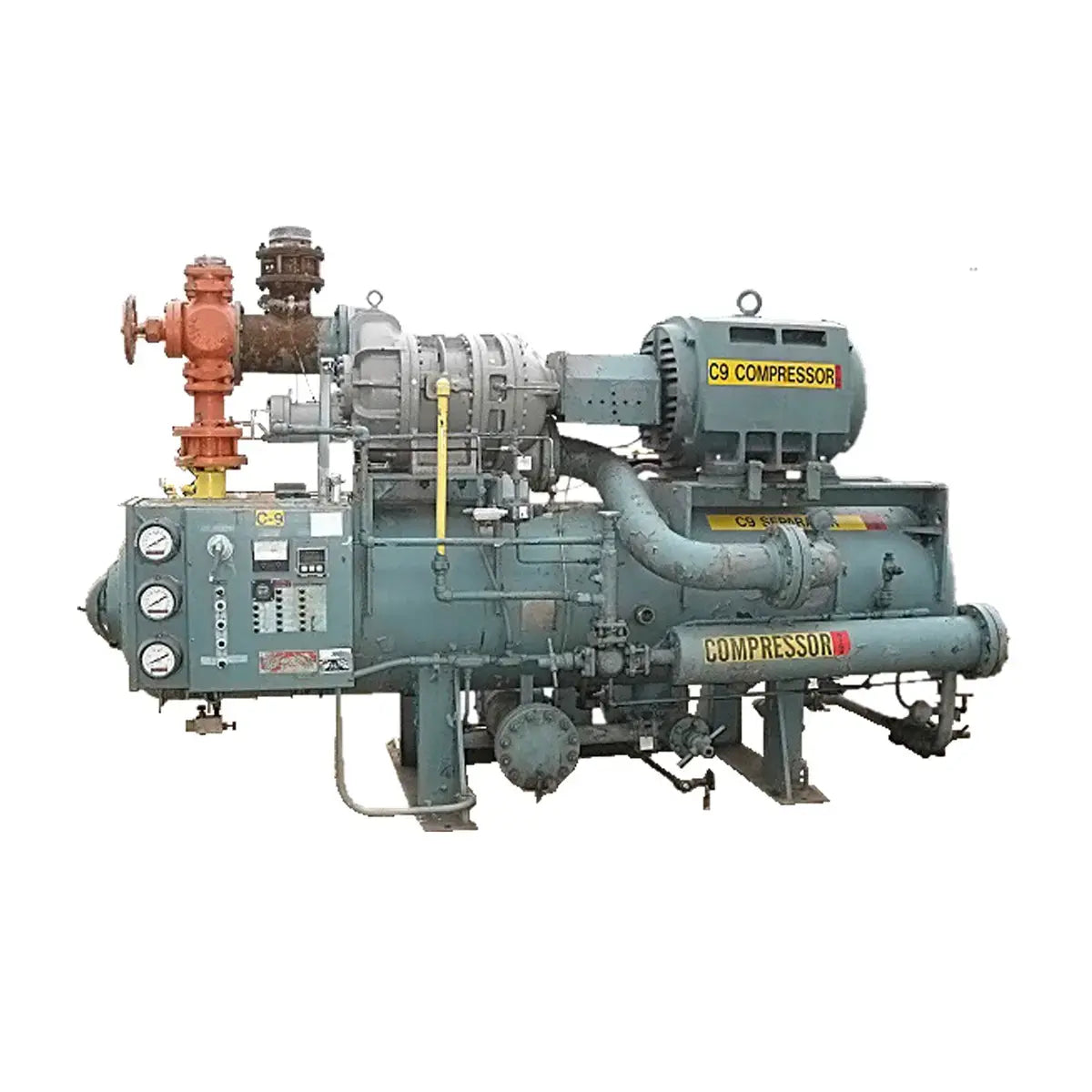

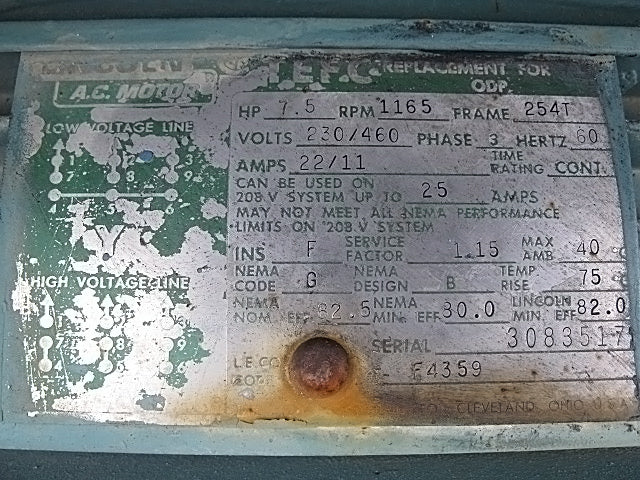

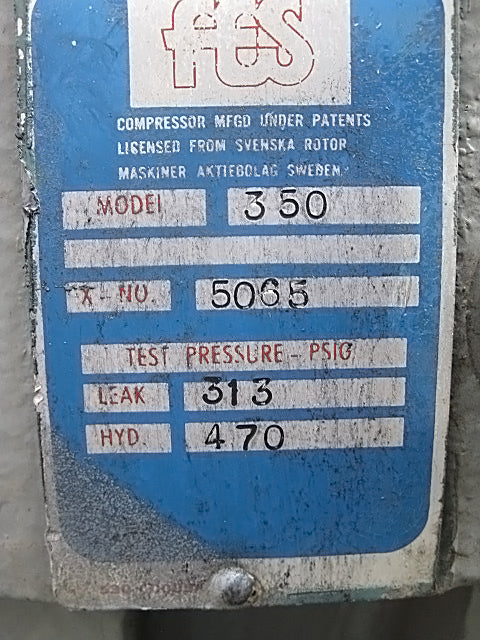

FES / Dunham Bush Screw Ammonia Compressor Package. Model: 350. Approximate capacity rating: 400 tons at 33.5 PSIG suction (20°F) and 181 PSIG discharge (95°F) using ammonia (R-717) with liquid subcooling at 10°F. Dunham Bush compressor: model 2510 / FES no. 350, x-no. 5065. Leak test pressure 313 psig, Hyd. test pressure 470. Displacement: 1061 cfm. Toshiba compressor motor model: B4502VLG3BD ODP, 450 HP, 3540 rpm, 460V, 530 operating amps, 60 Hz, 3 phase. This motor was serviced in 2008 with bearings and leads replaced and rotor balanced. Lincoln oil pump motor: 7-1/2 HP, 1165 rpm, 230/460V, 22/11 amps, 60 Hz, 3 phase. Contract # 76-151-61- (42). FMS 350, 76-151-61. Oil separator: FES no: 76089, National Bd. No: 189. MAWP: 250 PSI at 300°F. Hours on compressor: 37569. . Compressor overall dimensions: 11 ft. 10 in. L x 5 ft. W x 7 ft. 7 in. H.(H4).
Product Details
- Stock No: AACA3212.120
- Manufacturer: FES
- Model: 350 / 2510
- Serial Number: 76089
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details

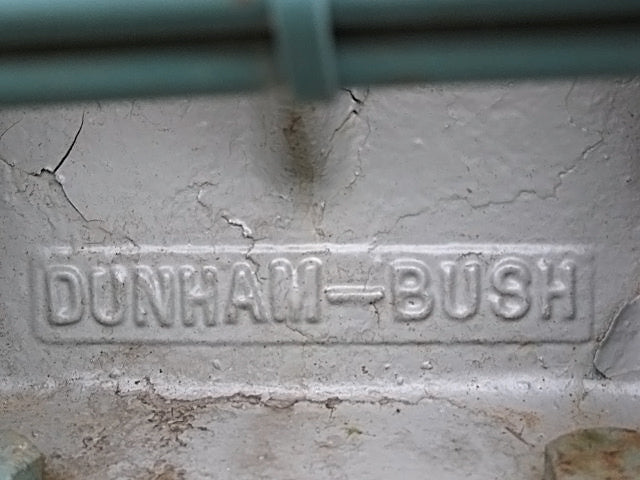

- Package Manufacturer: Dunham-Bush
- Package Model: 350
- Package SN: 76089
Screw Compressor Details
- Compressor Included? Yes

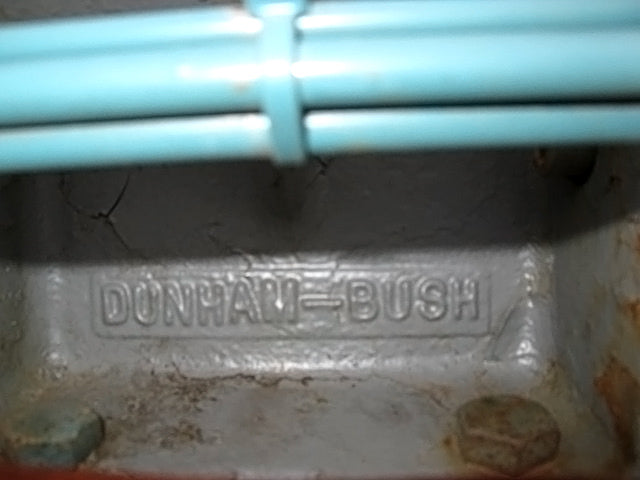

- Compressor Manufacturer: Dunham-Bush
- # Compressors in Package: 2
- Compressor Model: 2510/350
- Compressor SN: 5065
- Compressor Year Manufactured: 1976

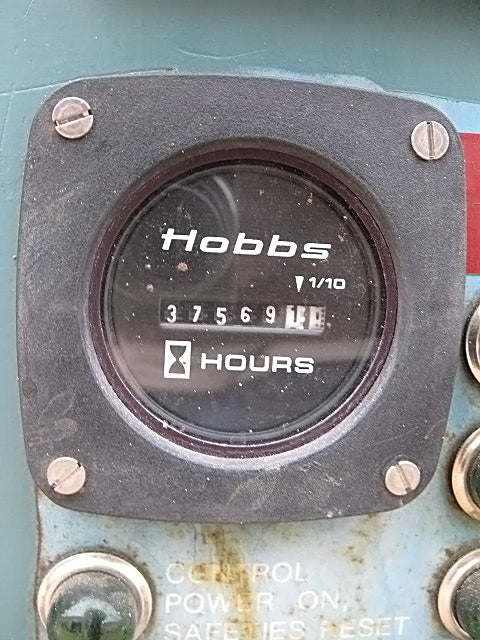

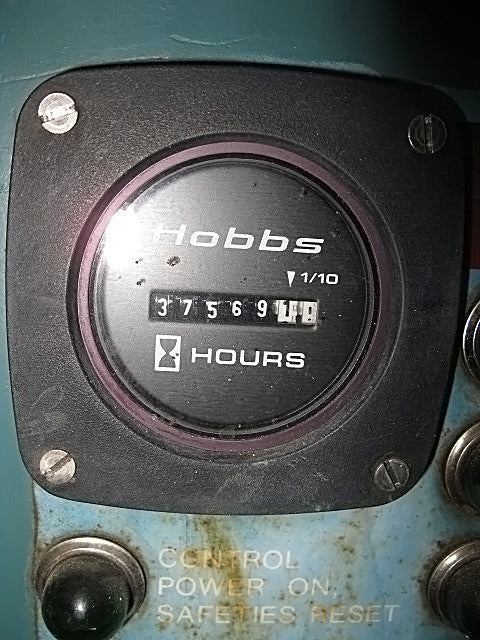

- Compressor Run Time Hours: 37569
- Compressor Volume Ratio: 2:1

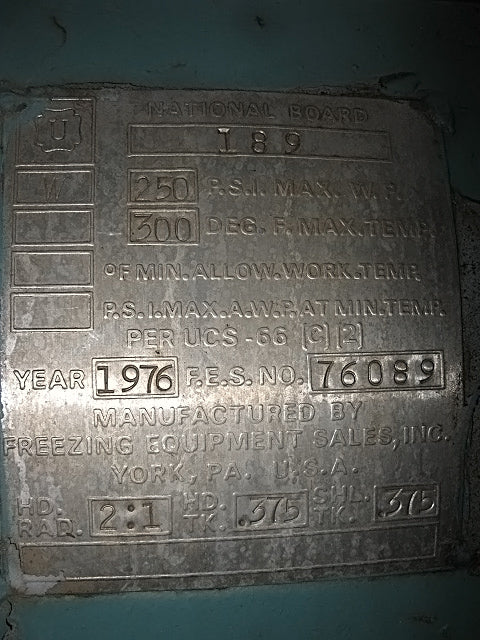

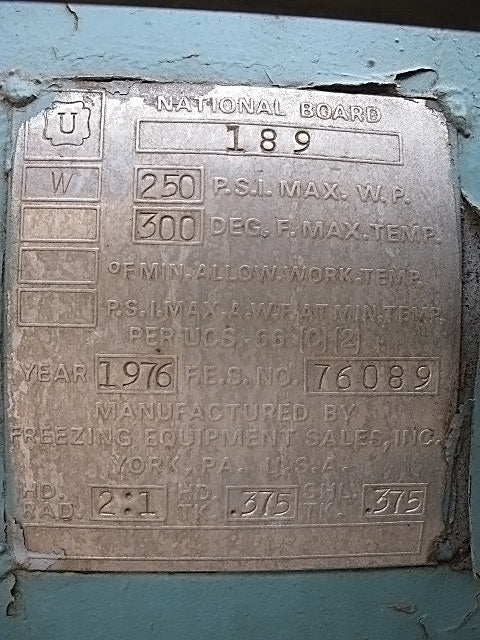

- Oil Separator Included? Yes
- Oil Separator National Board #: 189

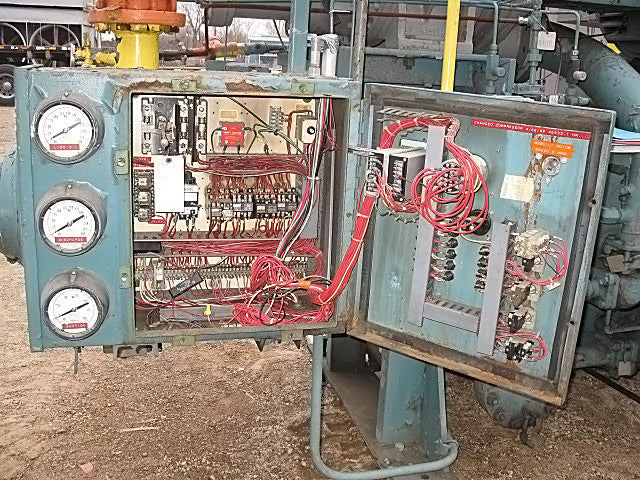

Micro Panel Details
- Micro Control Panel Included? No

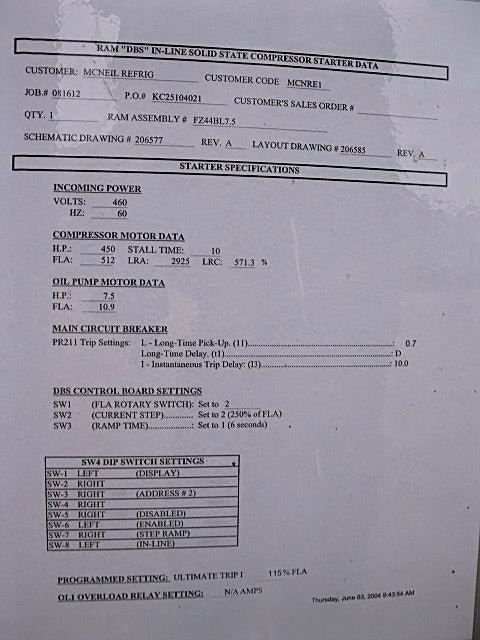

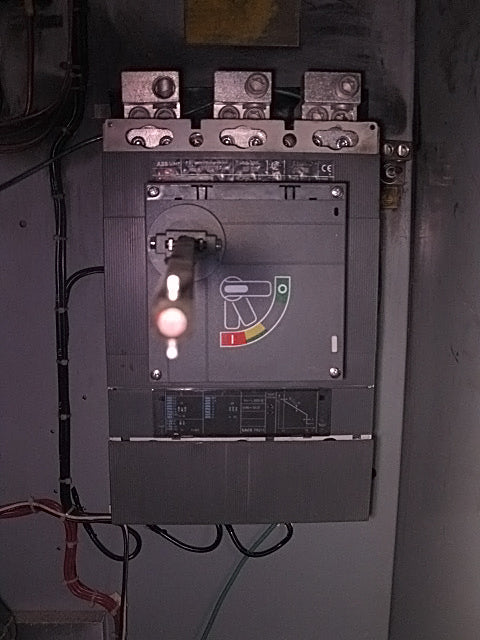

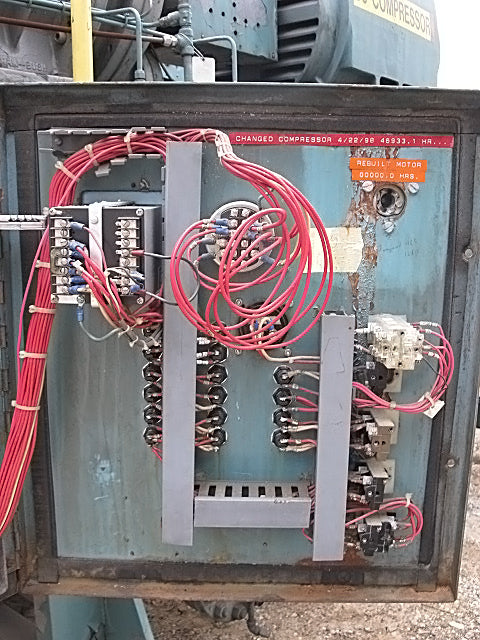

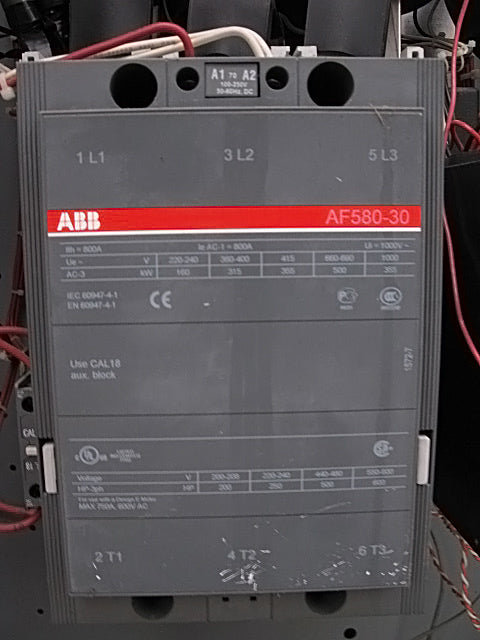

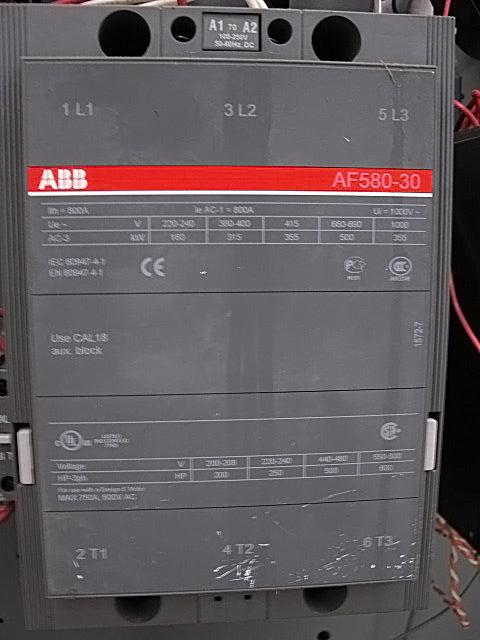

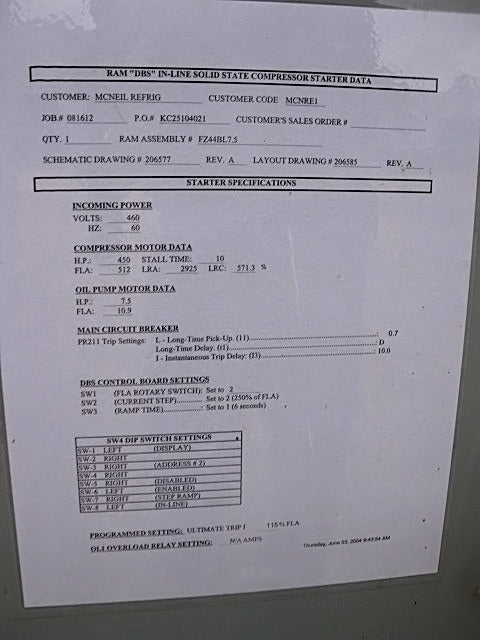

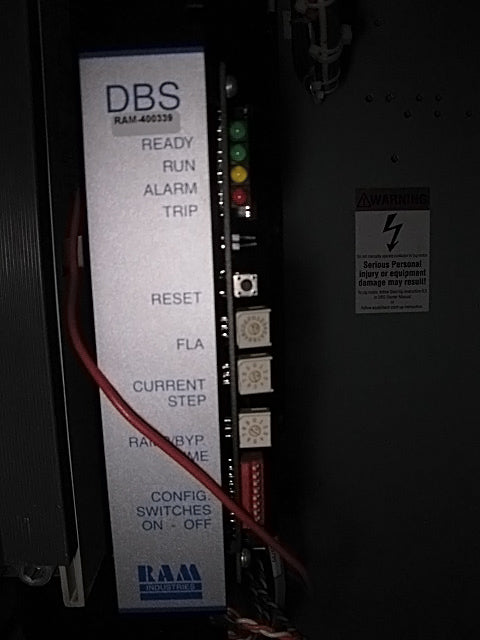

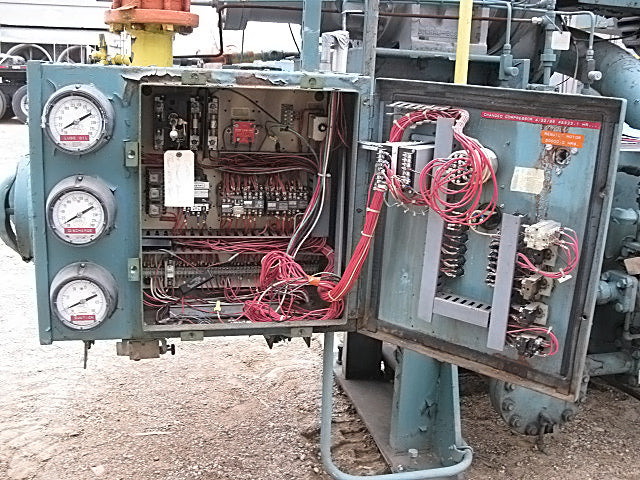

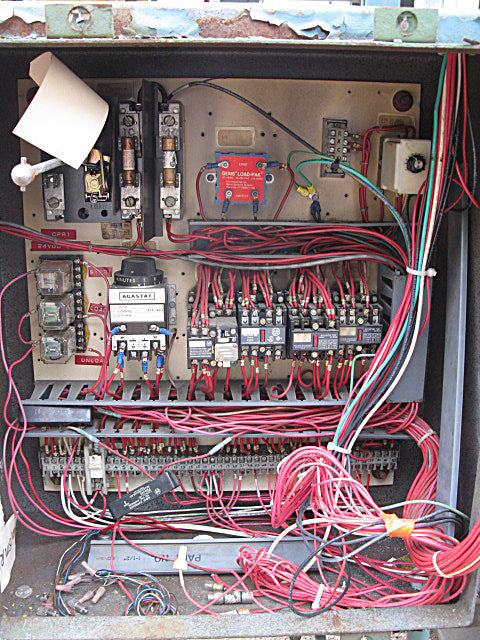

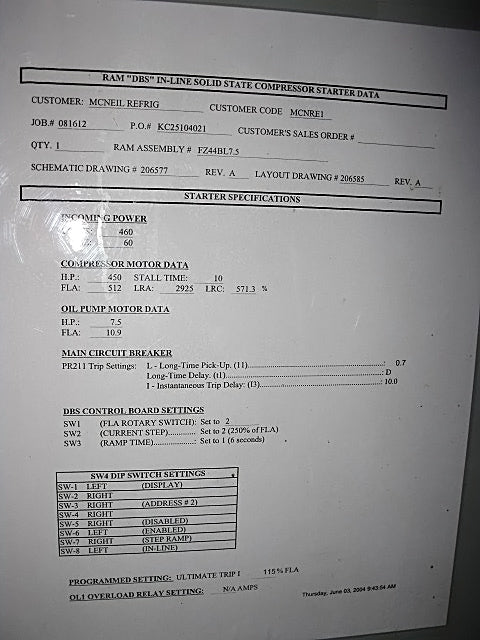

Motor Starter Details

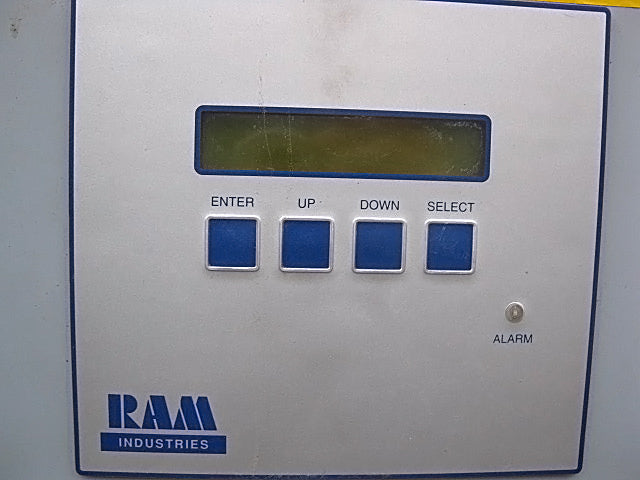

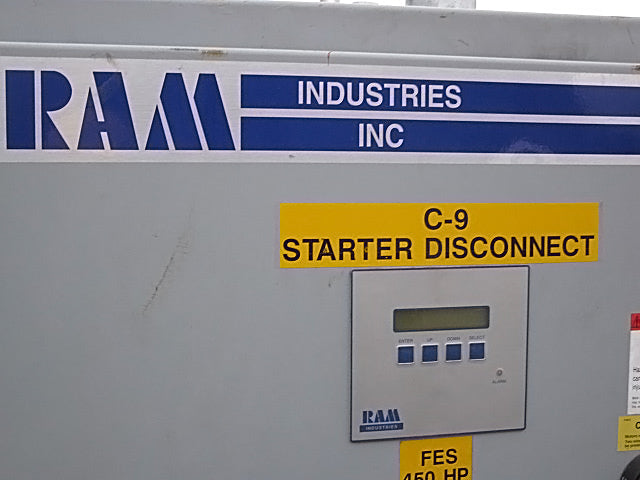

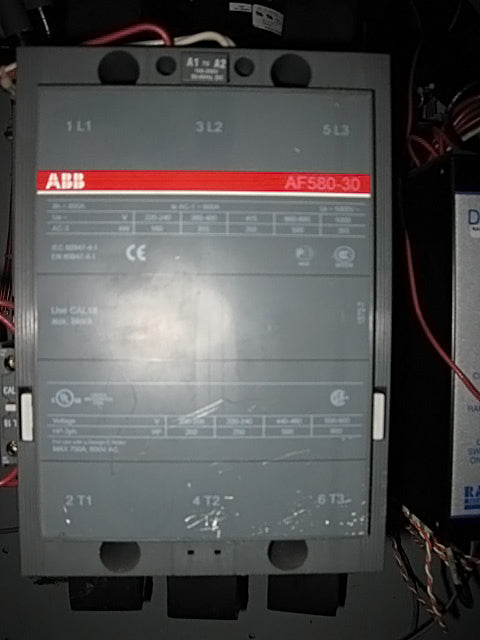

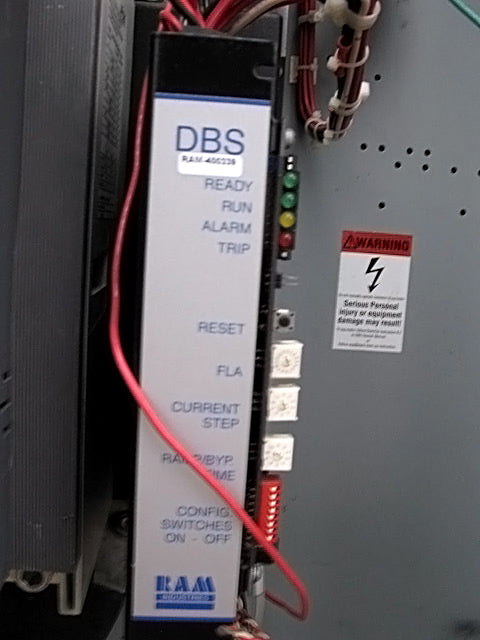

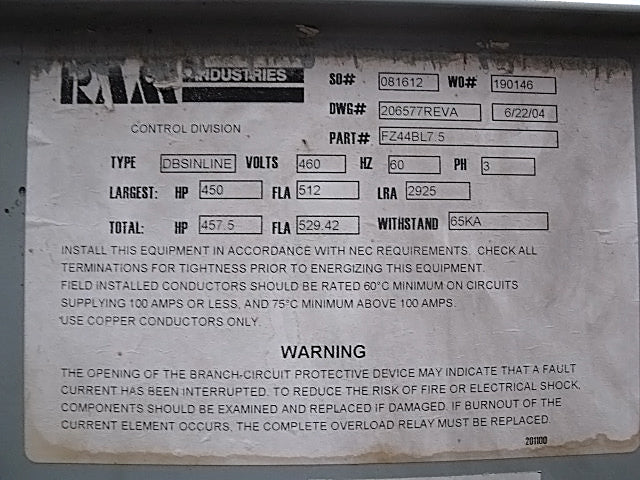

- Motor Starter Included? Yes
- Motor Starter Manufacturer: RAM
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

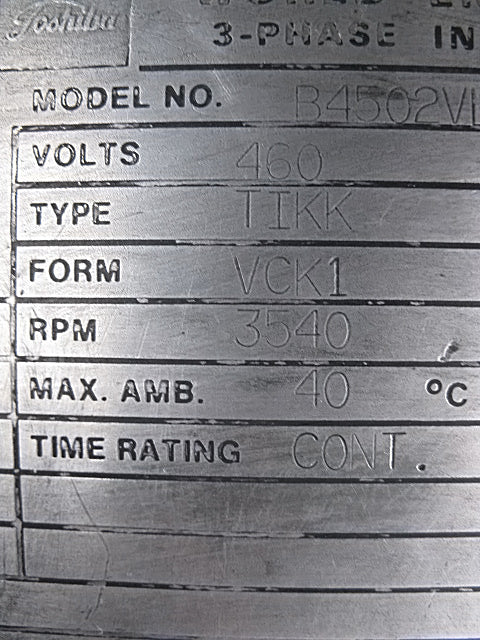

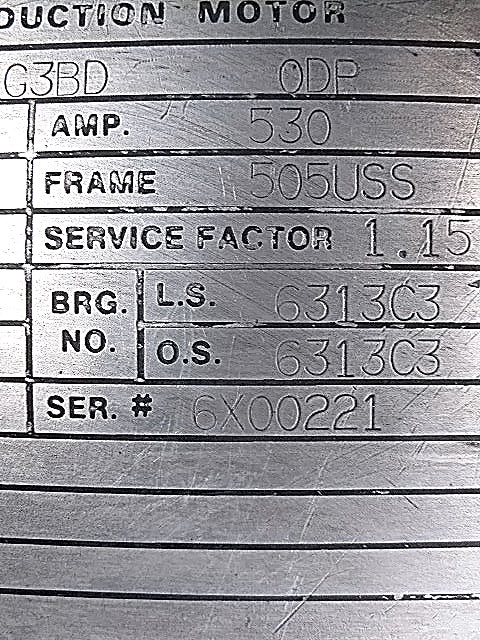

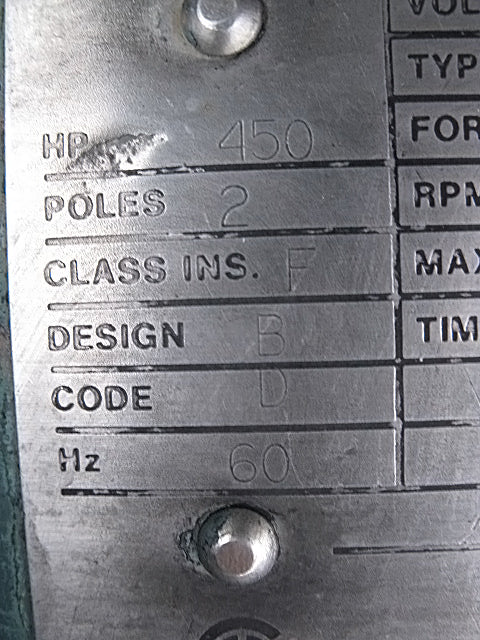

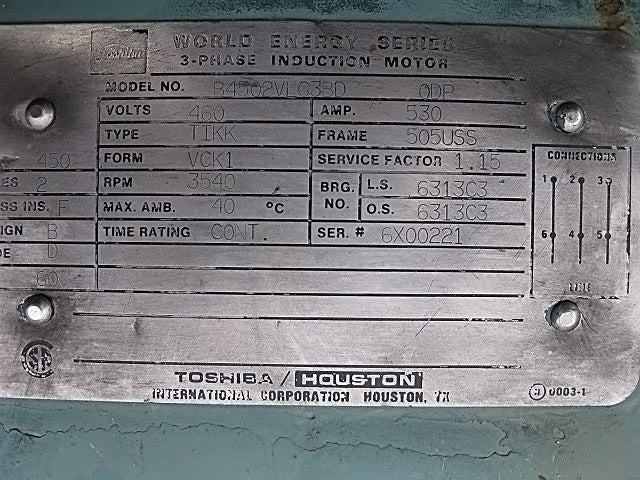

Motor Details
- Motor Included? Yes

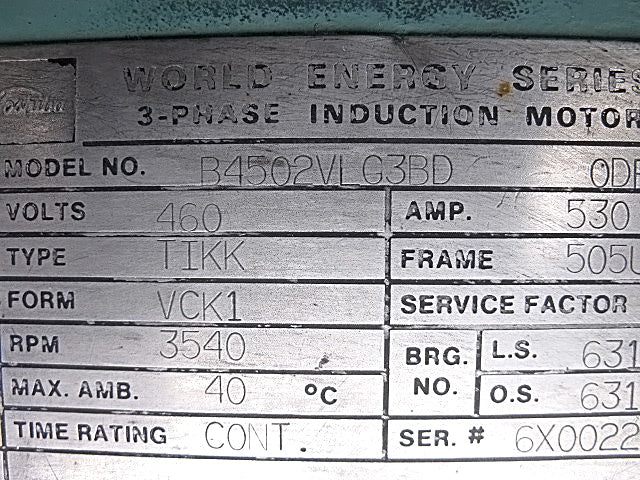

- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 450
- Motor RPM: 3540
- Motor Voltage: 460
- Motor Amps: 530
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 142
- Width (Inches): 60
- Height (Inches): 91
Additional Product Details
- Year of Manufacture: 2008
- Spec Sheet Available: Yes
