Enerquip Twin Shell and Tube Heat Exchanger System - 20 sq. ft.

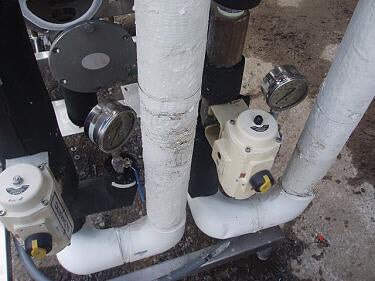

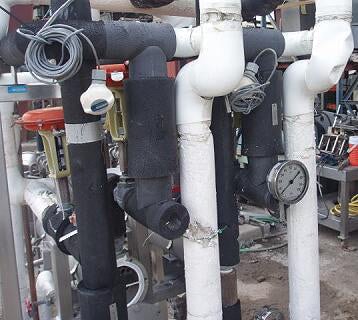

2000 Enerquip Twin Shell and Tube Heat Exchanger System. Model: NEUC. S/N’s: 3128 and 3129. Nat’l Bd: 3327 and 3326. Tube material: 304 stainless steel. Number of passes: 2. Number of tubes: 32. Tube dimensions: 1/2 in. dia. x 2 ft. 7 in. L. Heat transfer surface area: approx. 10 sq. ft. Shell diameter: 6-1/2 in. Shell and tube side MAWP: 150 psi @ 375 °F. Shell and tube side MDMT: 150 psi @ -20 °F. Meters/controls: (4) Worcester Actuators, Series 39, (6) Fischer Pneumatic Actuators, Model 1-1/4 in., (2) El-O-Matic Actuators, Type: ESA-65-4/A. Inlets: (1) 3 in. dia. NPT (jacket), (1) 2 in. dia. NPT. Outlets: (1) 1-1/2 in. dia. NPT (jacket), (1) 2 in. dia. NPT. Overall dimensions: 6 ft. 4 in. L x 3 ft. in. W x 6 ft. 5 in. H. (ACN40)
Product Details
- Stock No: MFBB359a.0
- Manufacturer: Enerquip
- Model: NEUC
- Serial Number: 3128 and 3129
Shell & Tube Details
- Heat Transfer Surface Area (SQ FT): 20
- Number of Passes: 2
- Tube Material: 304 Stainless Steel
- Number of Tubes: 32
- Tube Diameter (inches): 0.5
- Tube Length (inches): 31
- Tank National Board Number: 3327, 3326
- MAWP (PSI at temp): 150 psi @ 375 °F
- MDMT (temp at PSI): 150 psi @ -20 °F
- Inlets & Outlets Description: Inlets: (1) 3 in. dia. NPT (jacket), (1) 2 in. dia. NPT. Outlets: (1) 1-1/2 in. dia. NPT (jacket), (1) 2 in. dia. NPT
Previous Refrigerant
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 76
- Width (Inches): 36
- Height (Inches): 77
- ACN: 40
Additional Product Details
- Year of Manufacture: 2000
