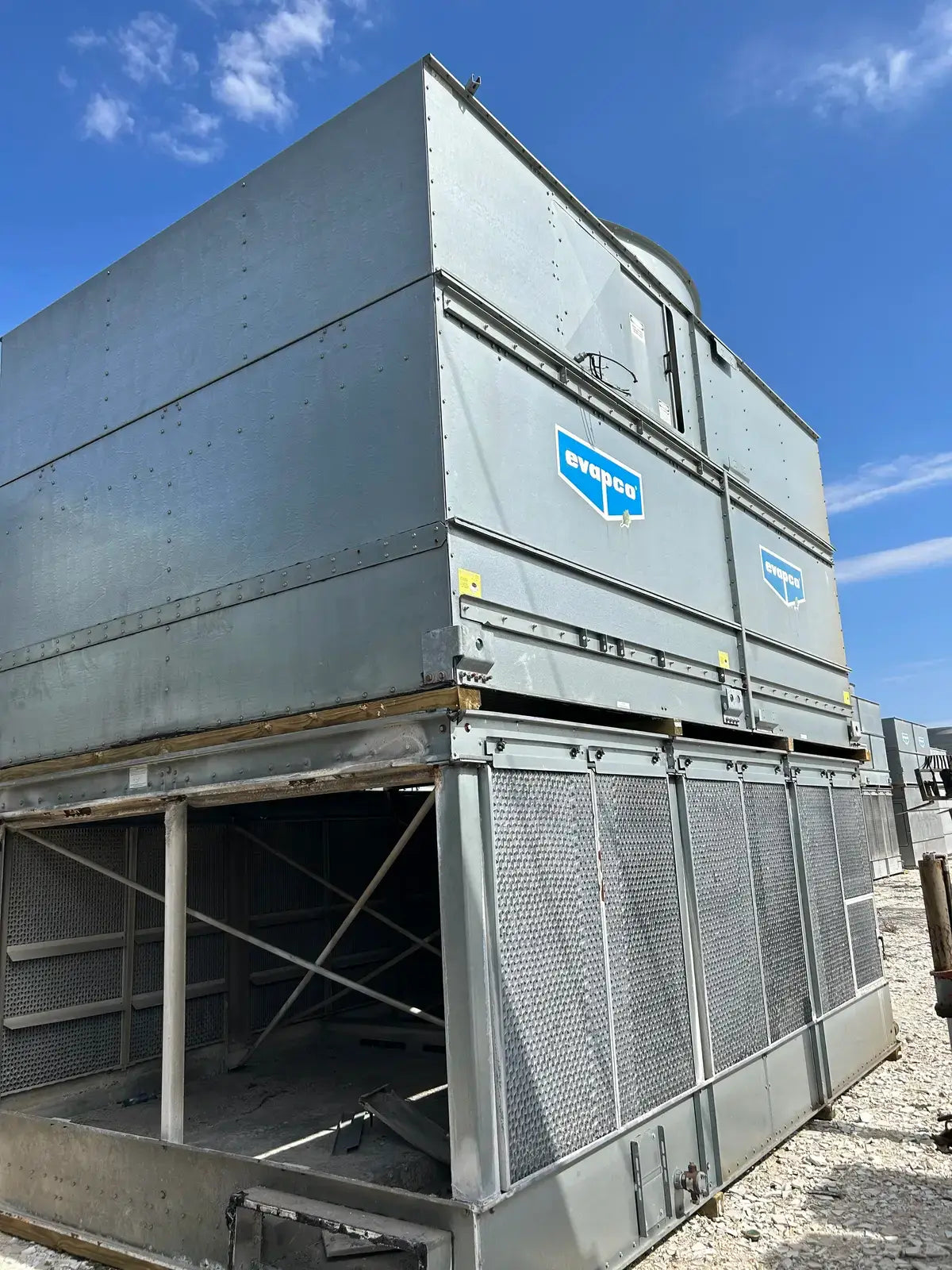

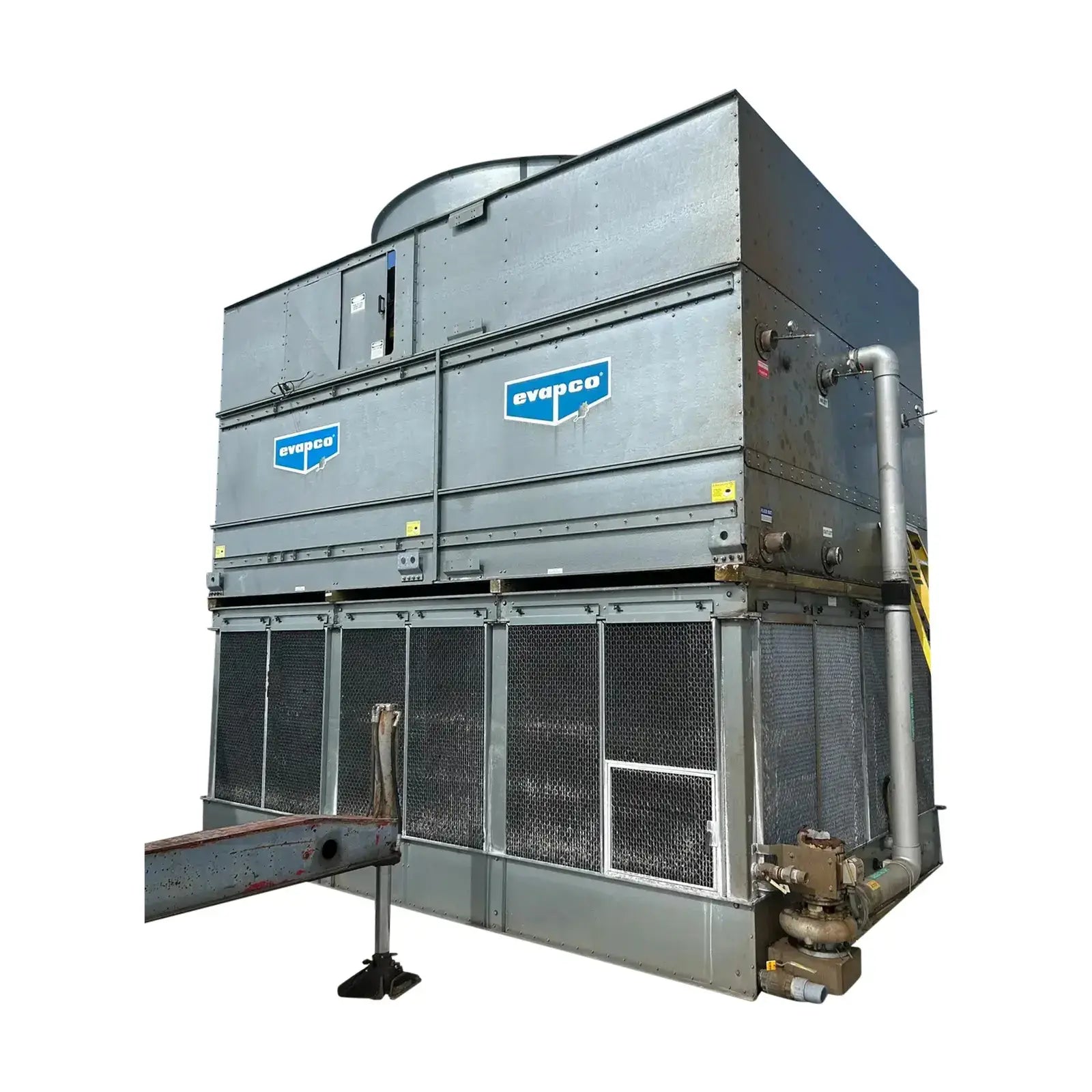

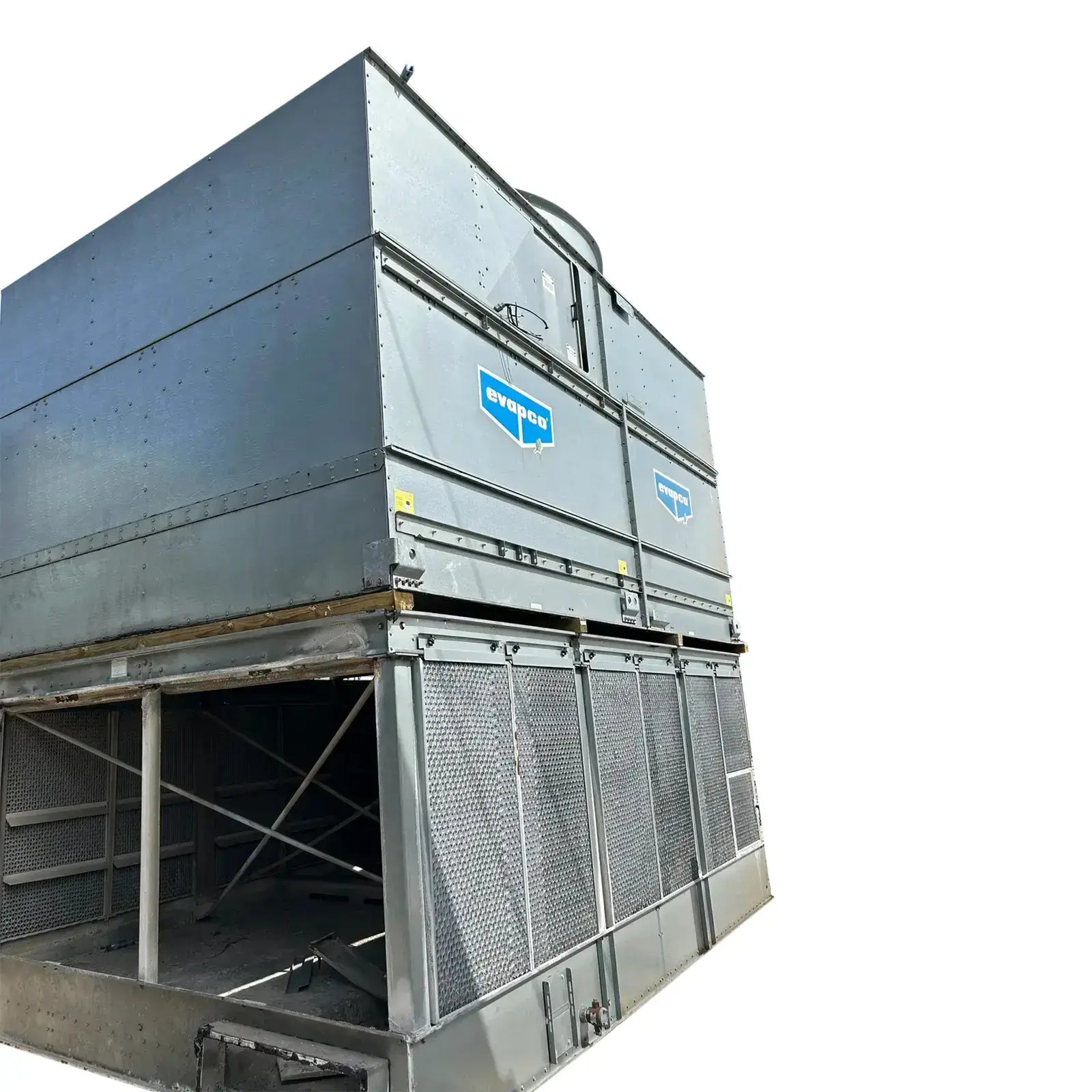

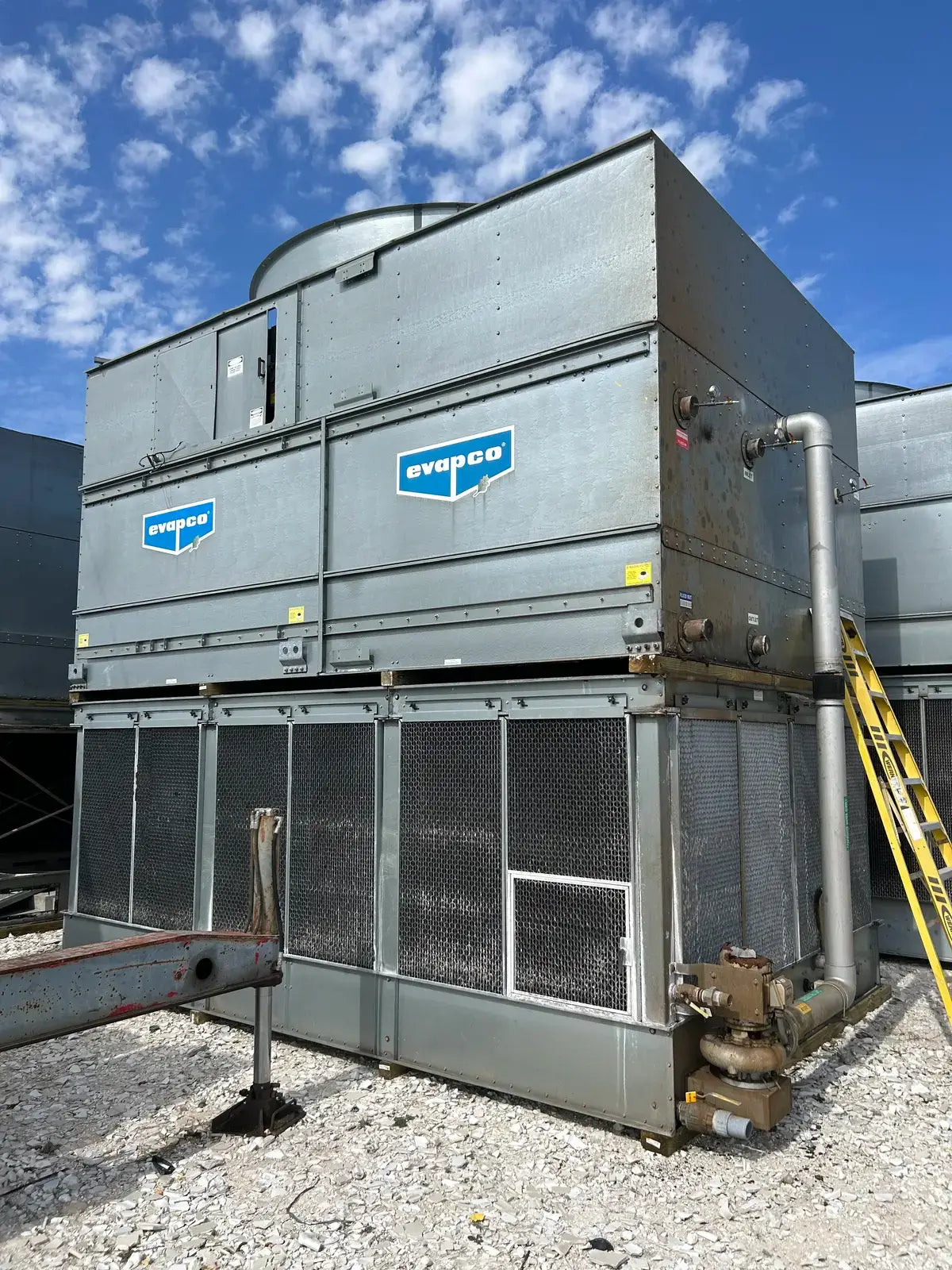

Evapco ATC-1784E-1G Evaporative Condenser (892 Nominal Tons)

Product Details

• Stock No: IRS02
• Manufacturer: Evapco
• Model: ATC-1784E-1G
• Serial Number: 14-713080

Condenser Details

• Multiple Units Included in Package? No
• Unit Nominal Tons (TR): 892
• Unit Ammonia Tons (TR): 633
• Unit Coil Volume (ft3): 120.5
• Unit CFM (CFM): 136,700
• Design Pressure (PSI): 400

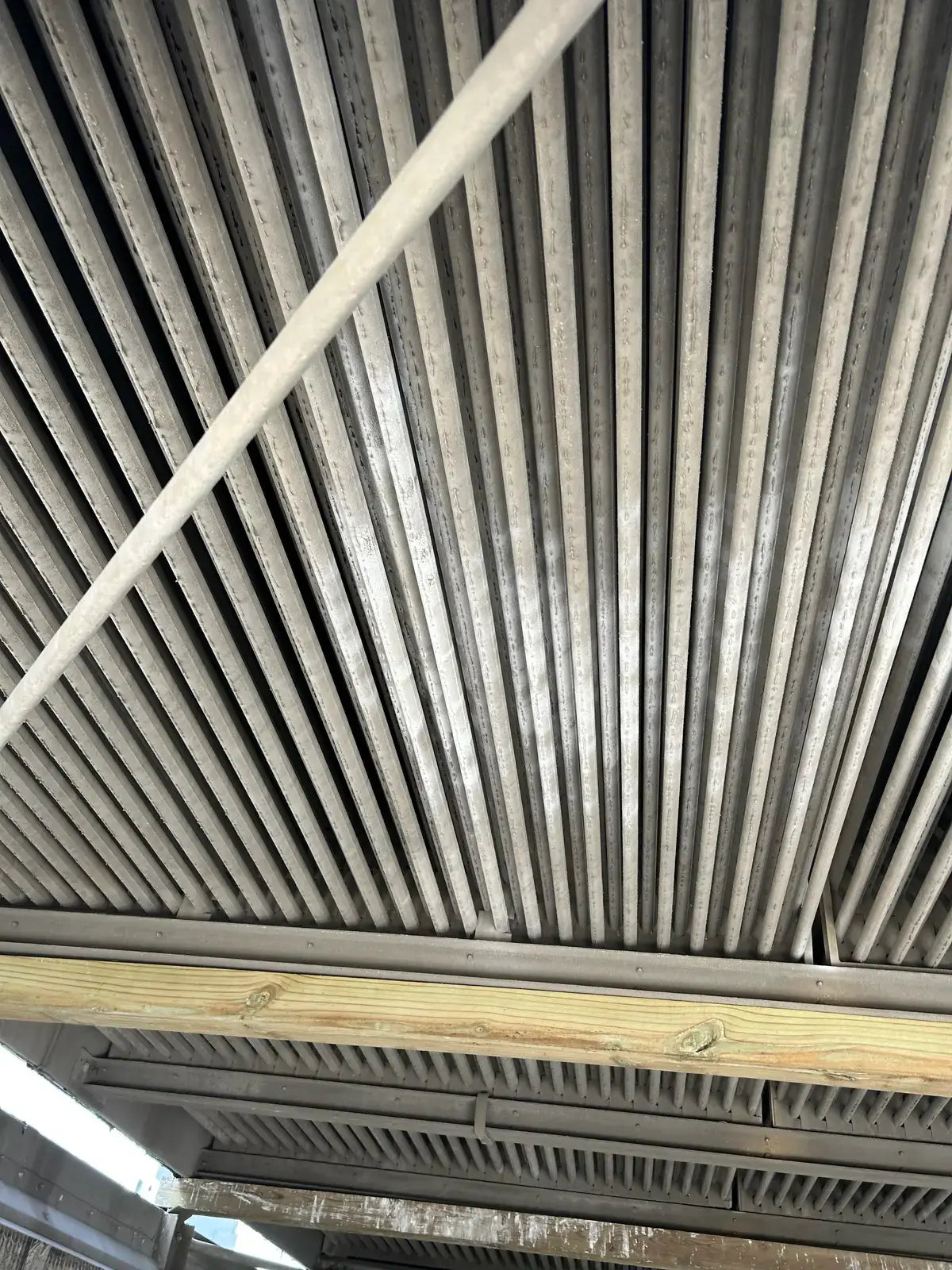

• Top Coil Condition Rating: Gold - Limited Scale- Almost Zero Rust

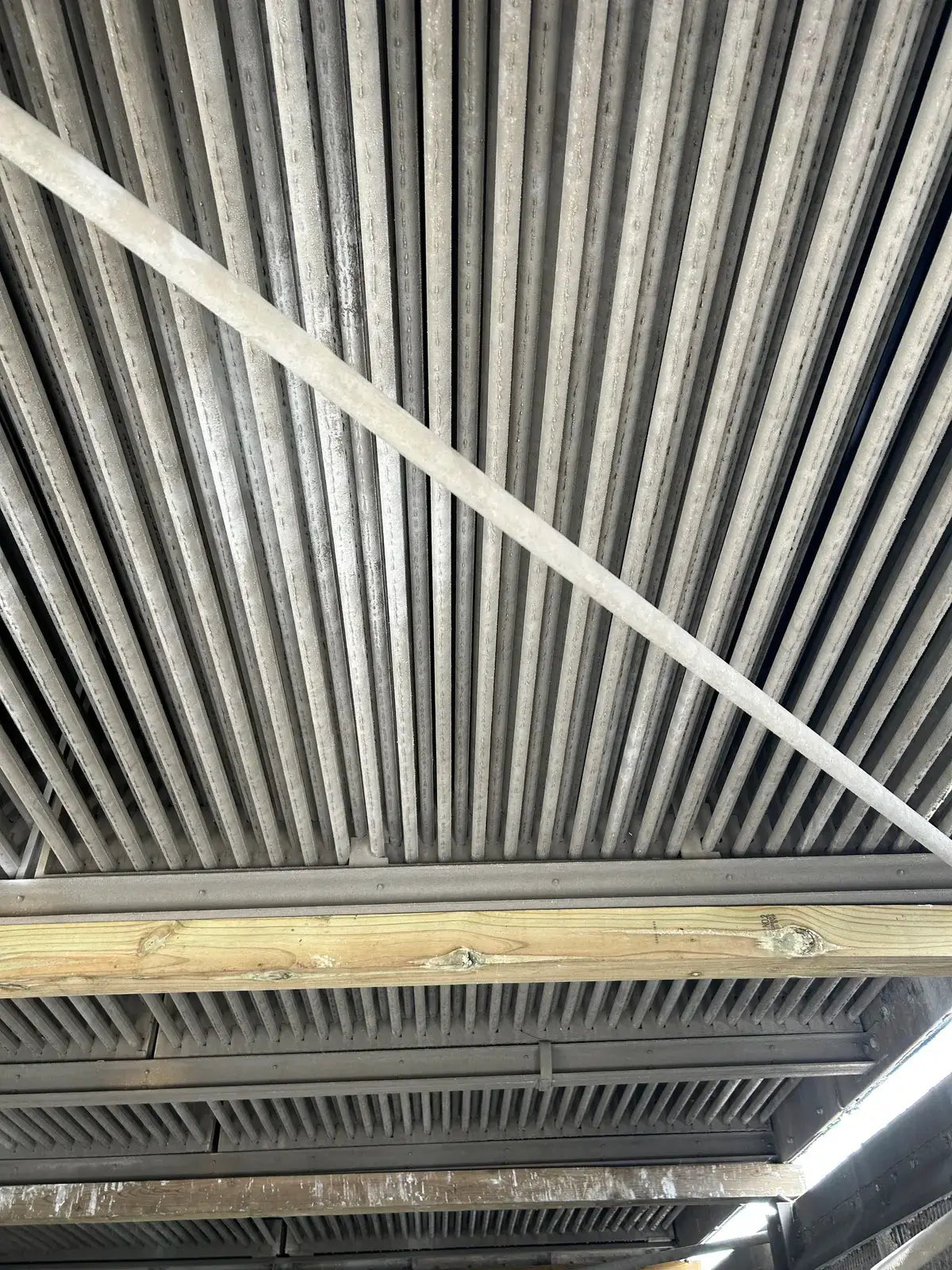

• Bottom Coil Condition Rating: Gold - Limited Scale- Almost Zero Rust
• Circuit 1 Pressure Rating: 100 PSI Air
• Circuit 1 Pressure Check Date: 02/28/2025
• Circuit 2 Pressure Rating: 100 PSI Air
• Circuit 2 Pressure Check Date: 02/28/2025

Condenser Dimensions

• Top Length (Inches): 156
• Top Width (Inches): 132
• Top Height (Inches): 128
• Top Weight (LBS): 26,710
• Bottom Length (Inches): 186
• Bottom Width (Inches): 132
• Bottom Height (Inches): 84
• Bottom Weight (LBS): 4,370

Pump Details

• Pump Included? Yes
• Pump Recommended HP: 7.5
• Pump Recommended Gallons per Minute (GPM): 1,200

Previous Refrigerant

• Previous Refrigerant: Ammonia (R-717)
• Ammonia (R-717) Compatiable: Yes

Motor Details

• Motor Included? Yes
• # Motors: 2
• If Multiple Motors, Motor Descriptions vs specs: (1) Fan Motor - 50 Hp, 460 Volt, 3 Ph, 60 Hz. (1) Spray Pump - 7.5 HP, 230/460, 3 Ph, 60 Hz.

Dimensions:

• Length (Inches): 164
• Width (Inches): 132
• Height (Inches): 224
• Weight (LBS): 30,630
• # of Pieces for Shipping: 1

Additional Product Details

• Year of Manufacture: 2014

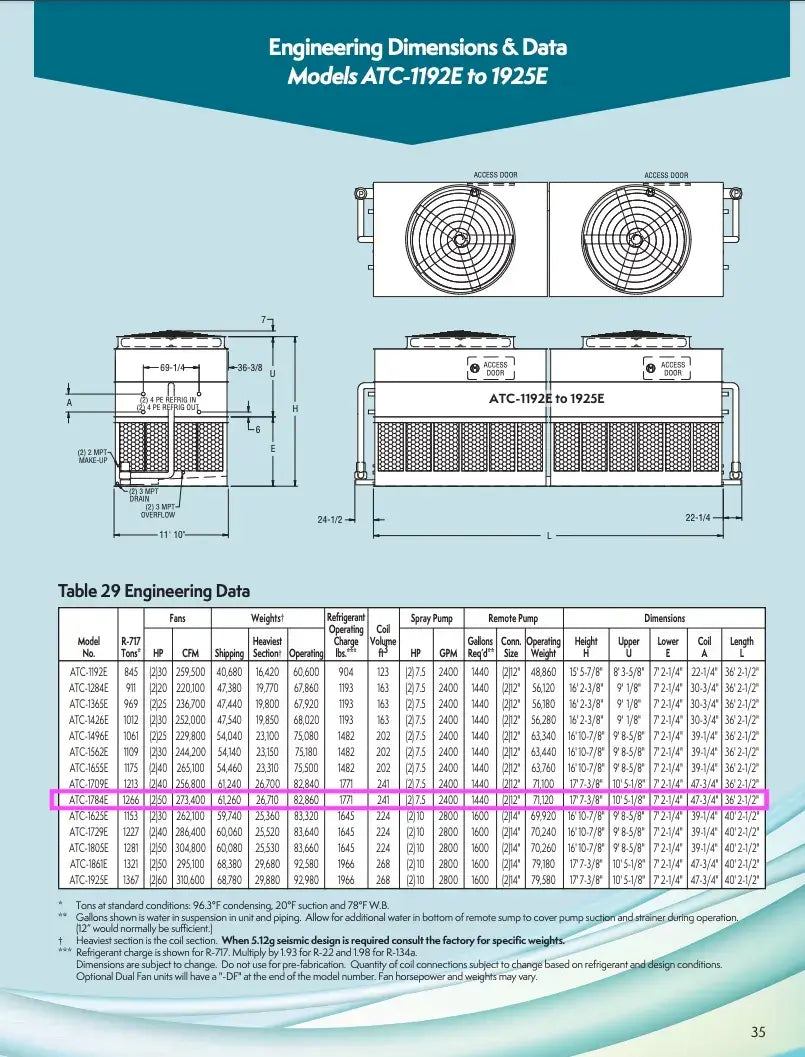

• Spec Sheet Available: Yes
