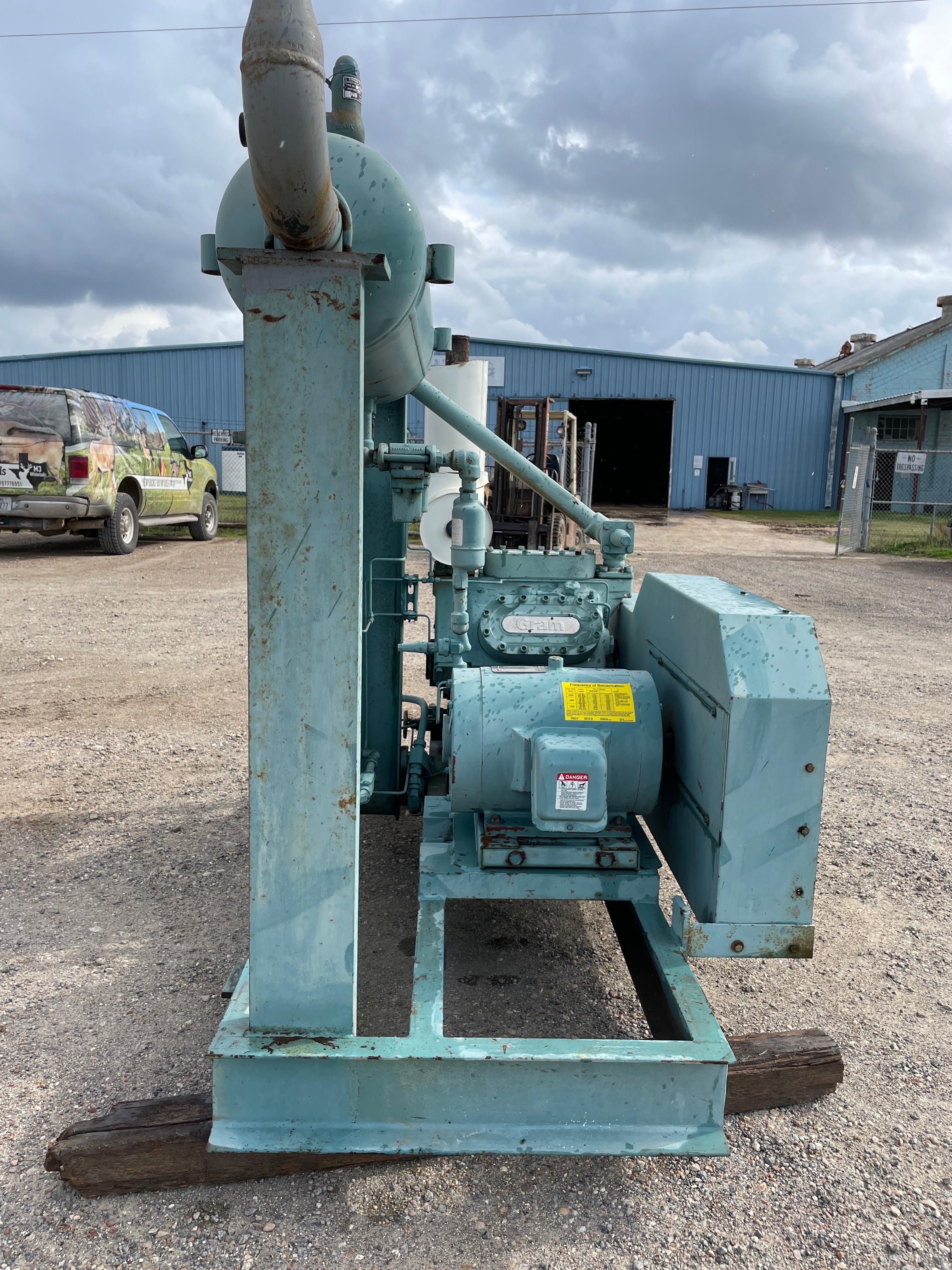

Frick HCL060757UB16 6-Cylinder Reciprocating Compressor Package (20 HP 230/460 V, Belt Driven)

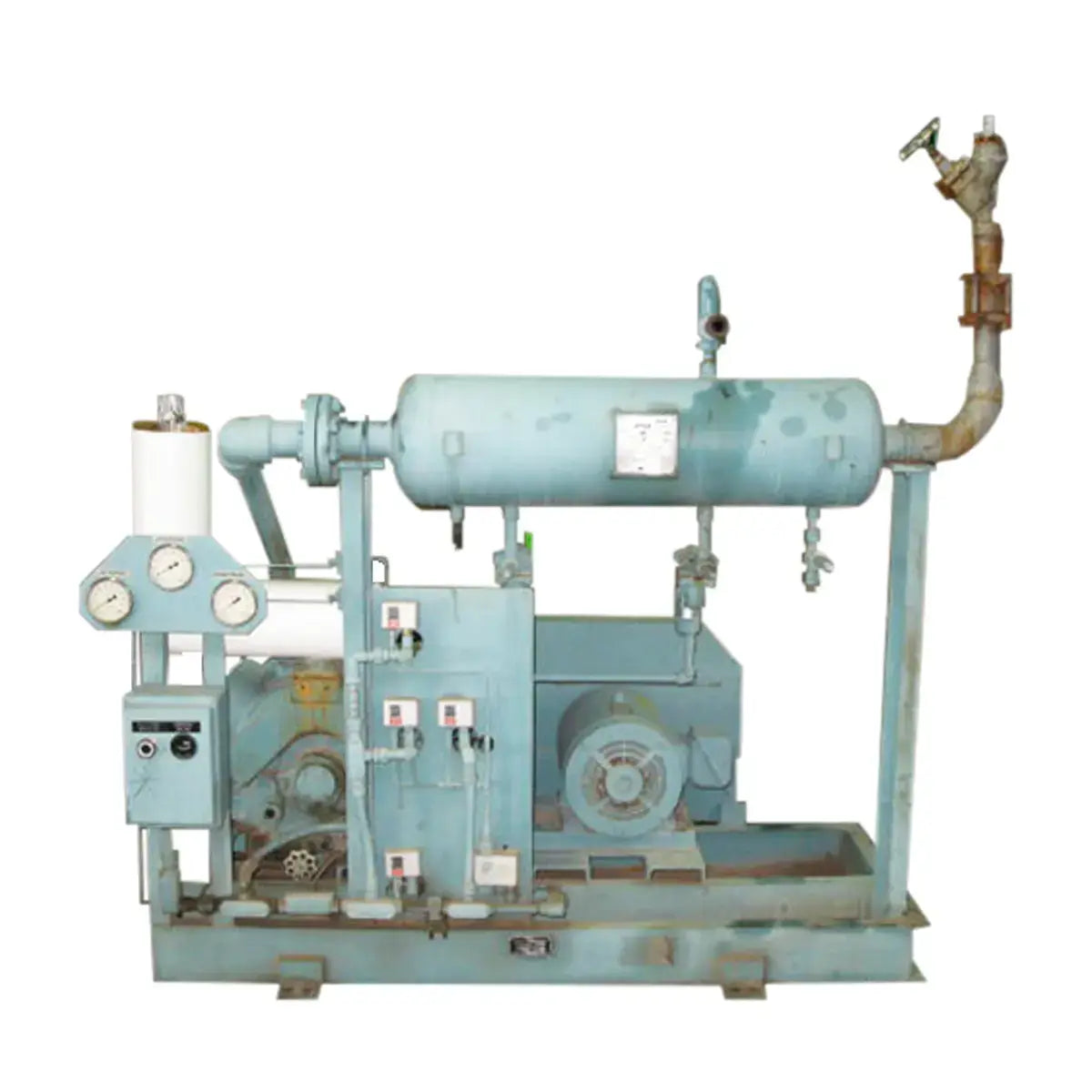

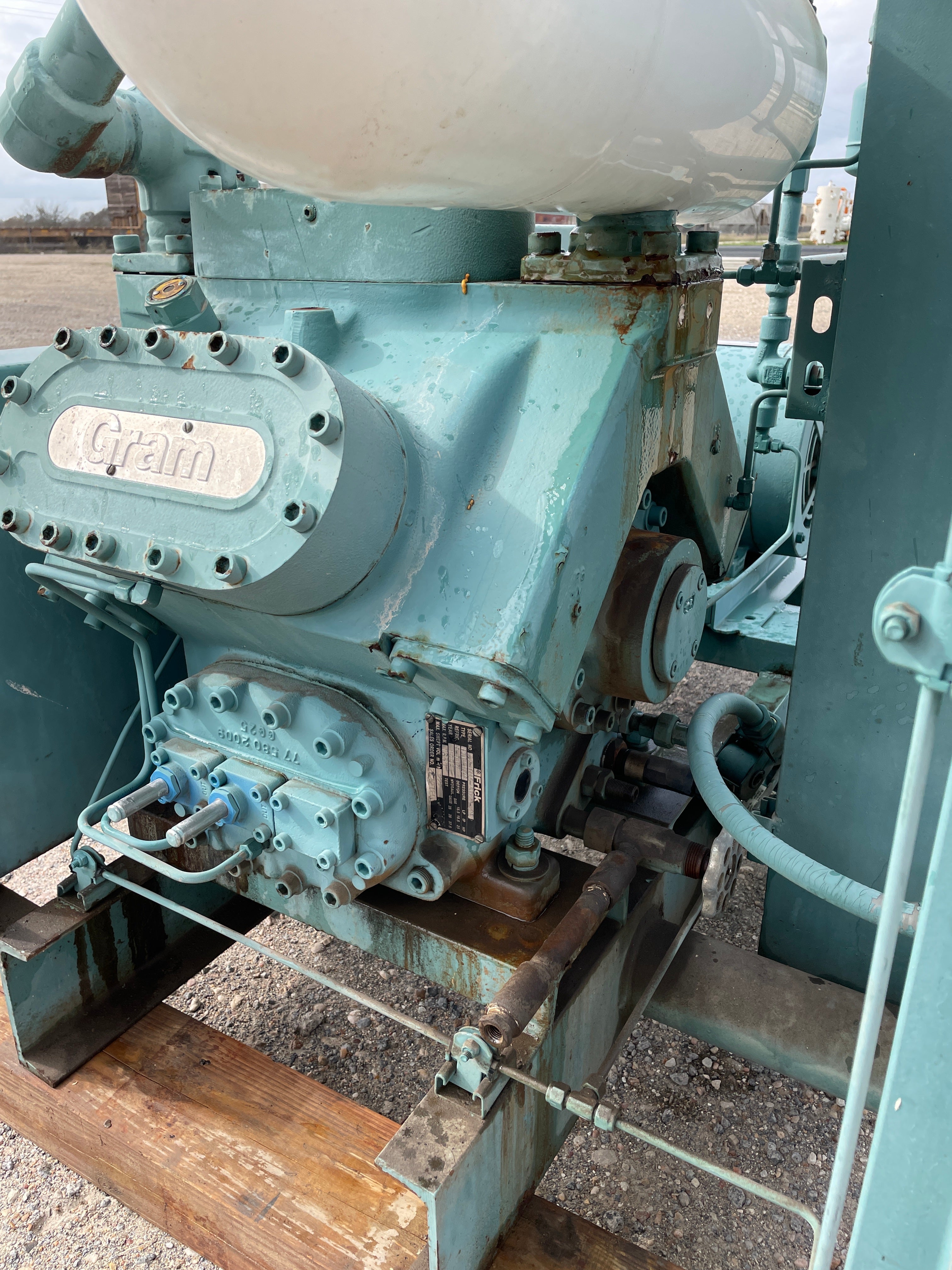

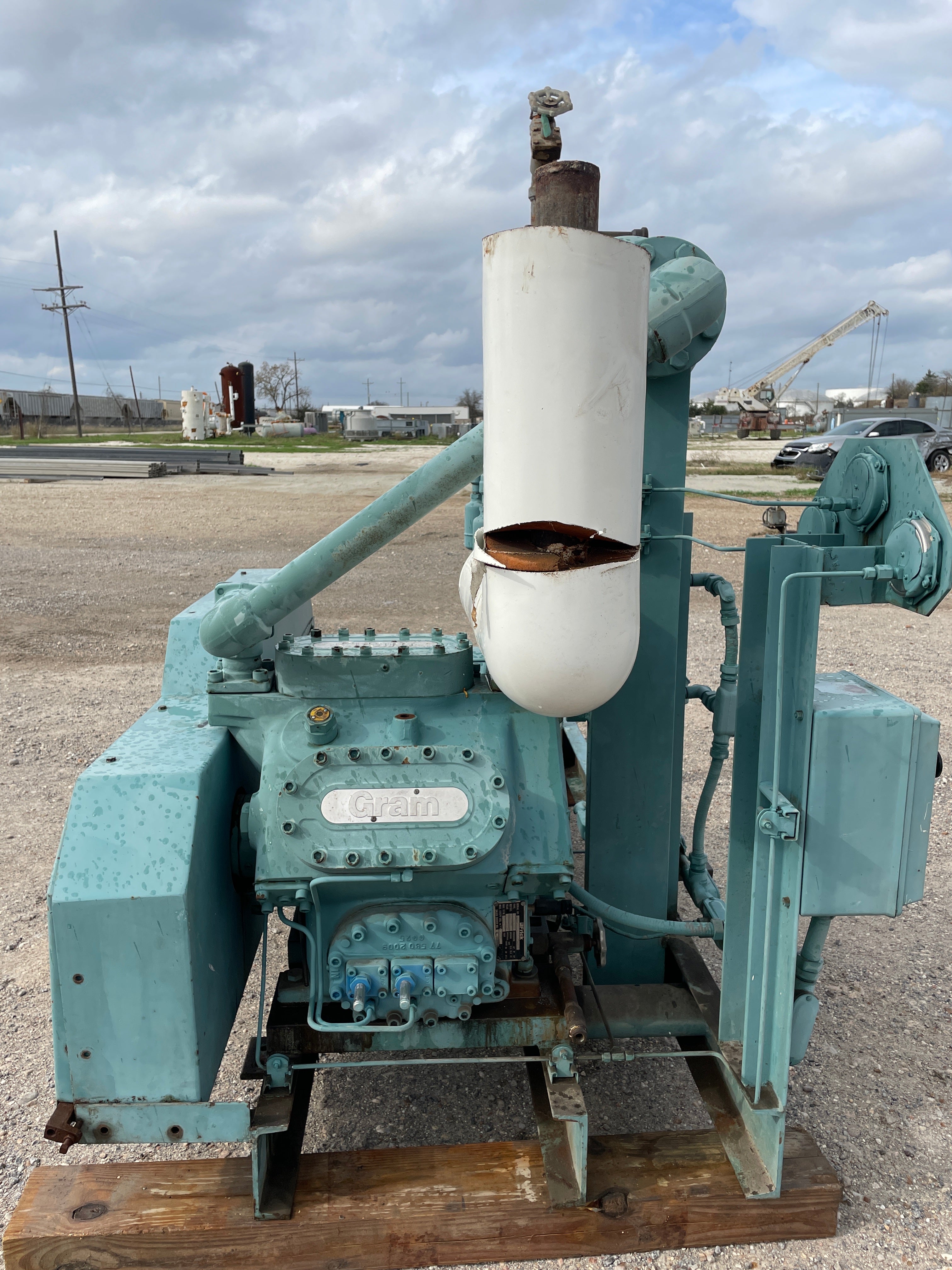

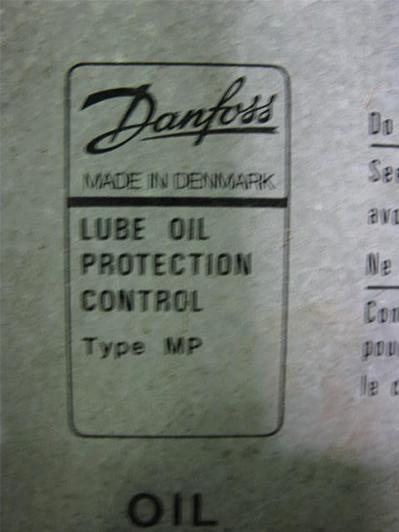

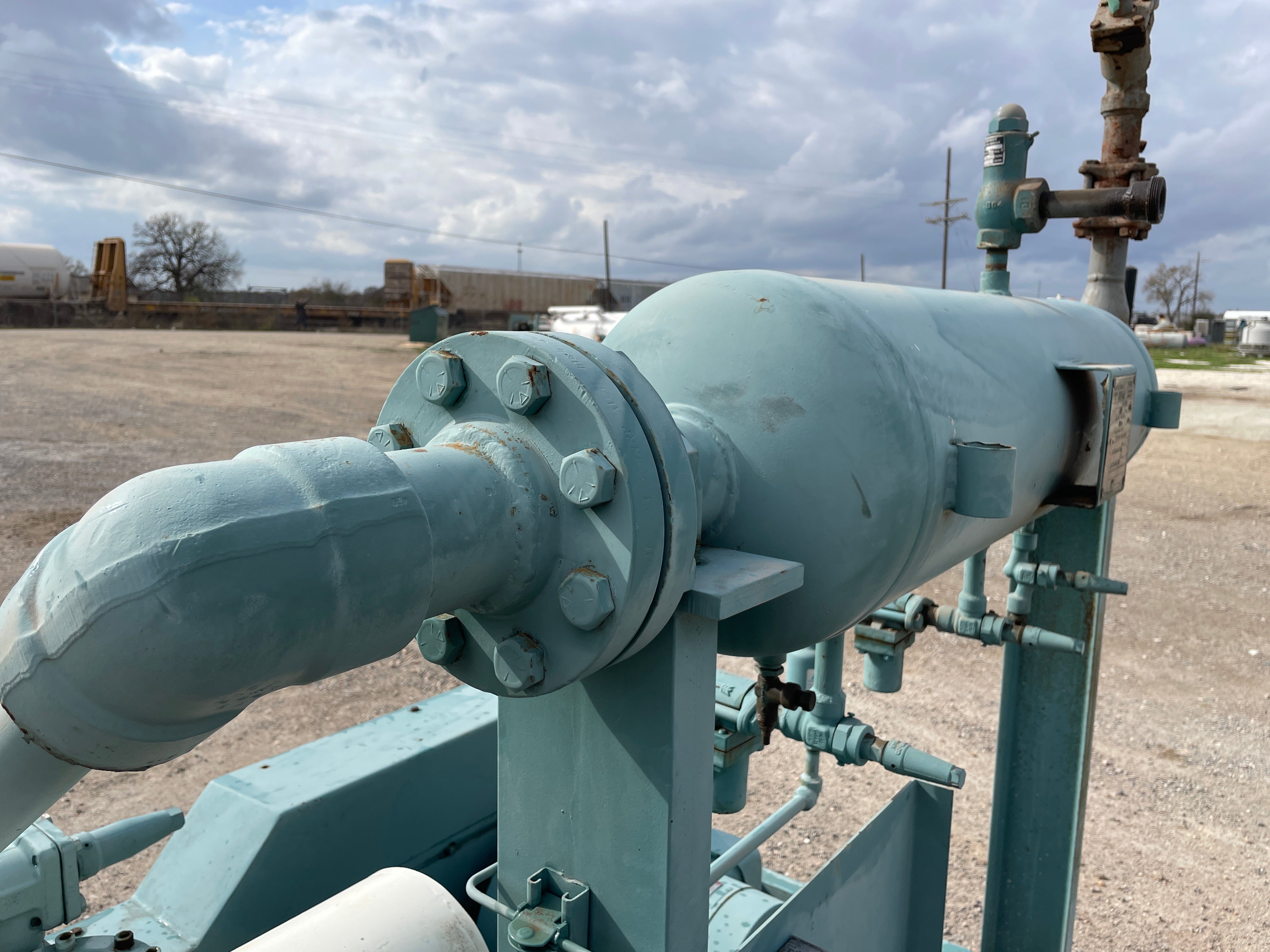

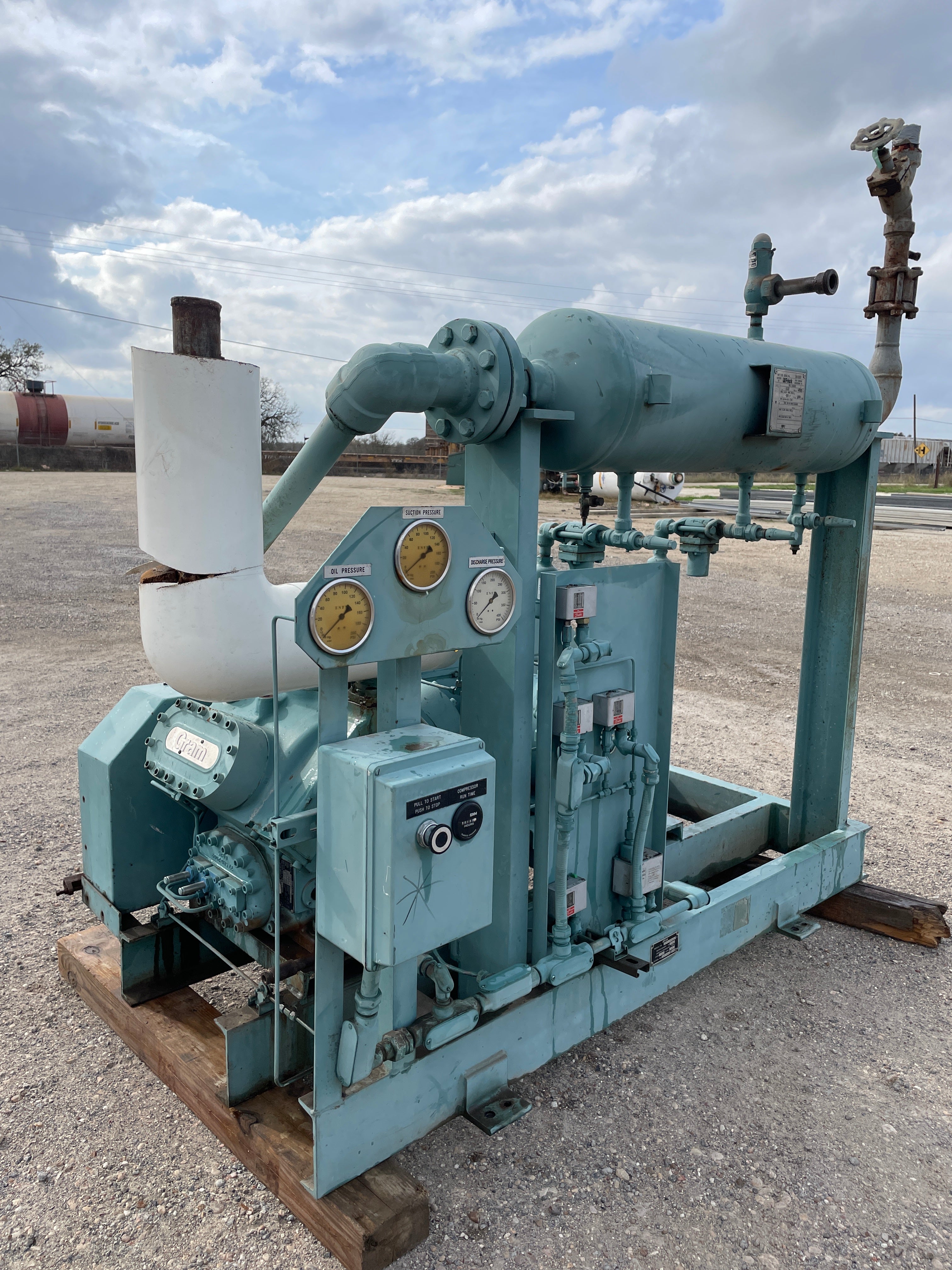

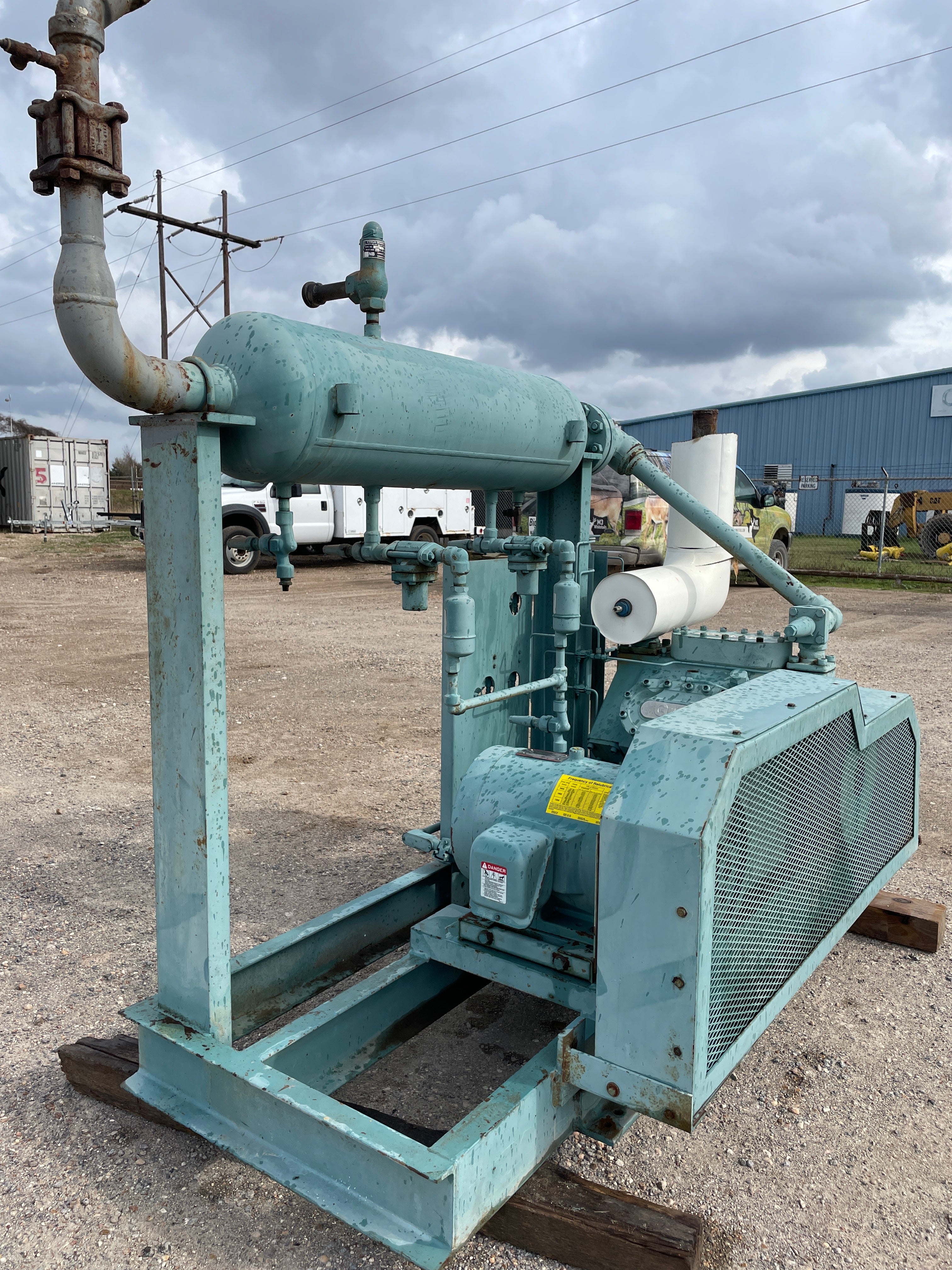

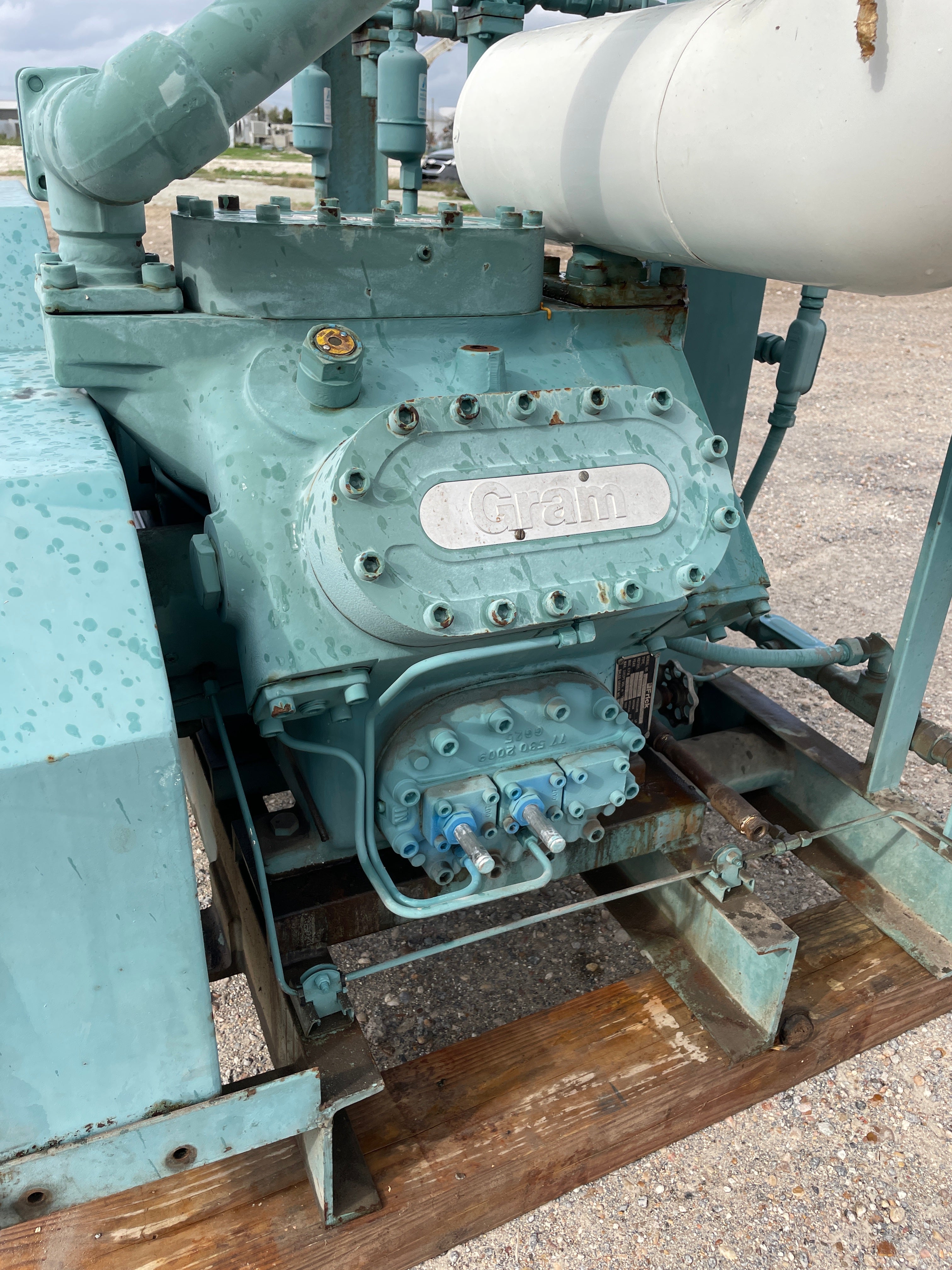

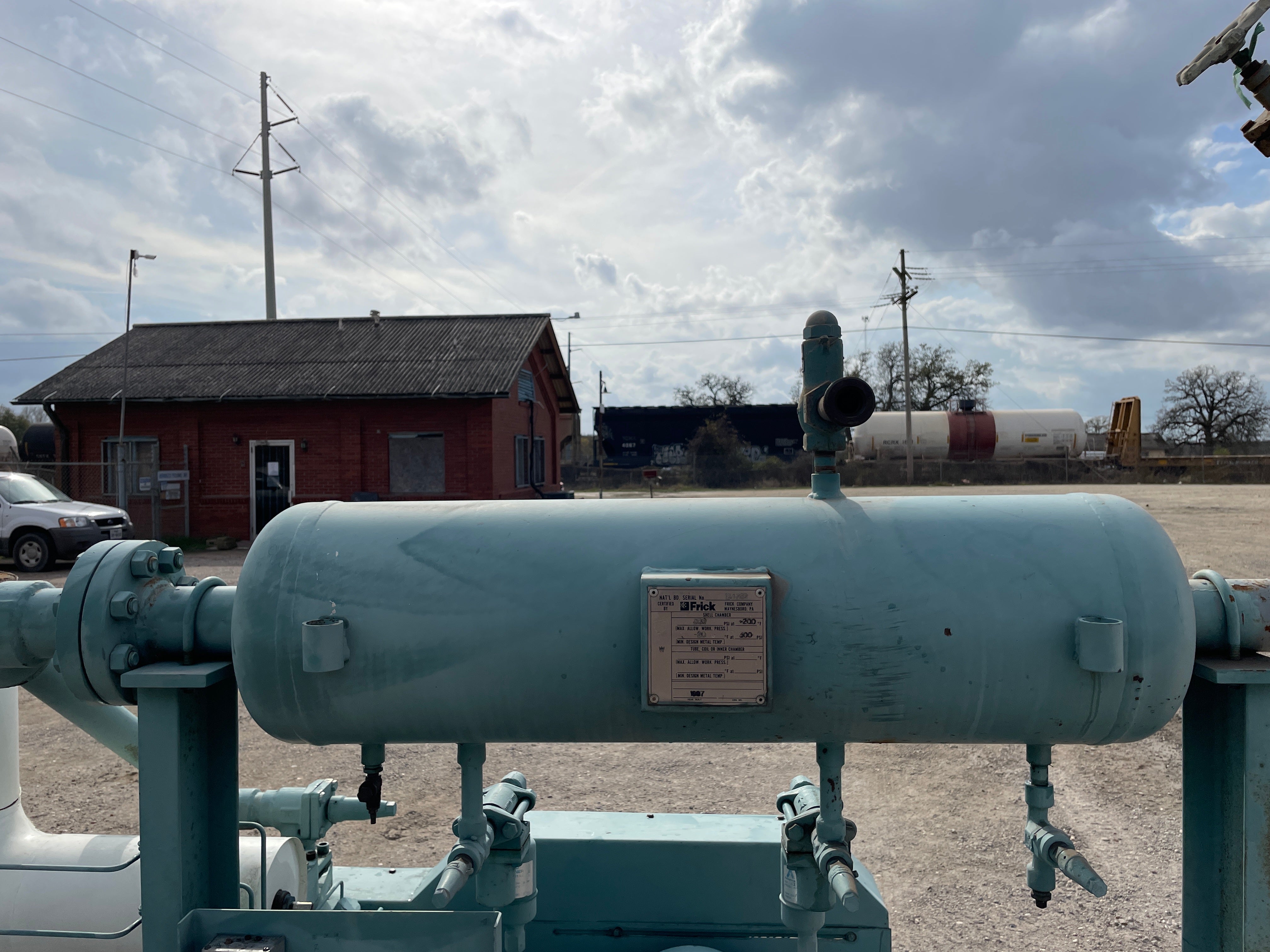

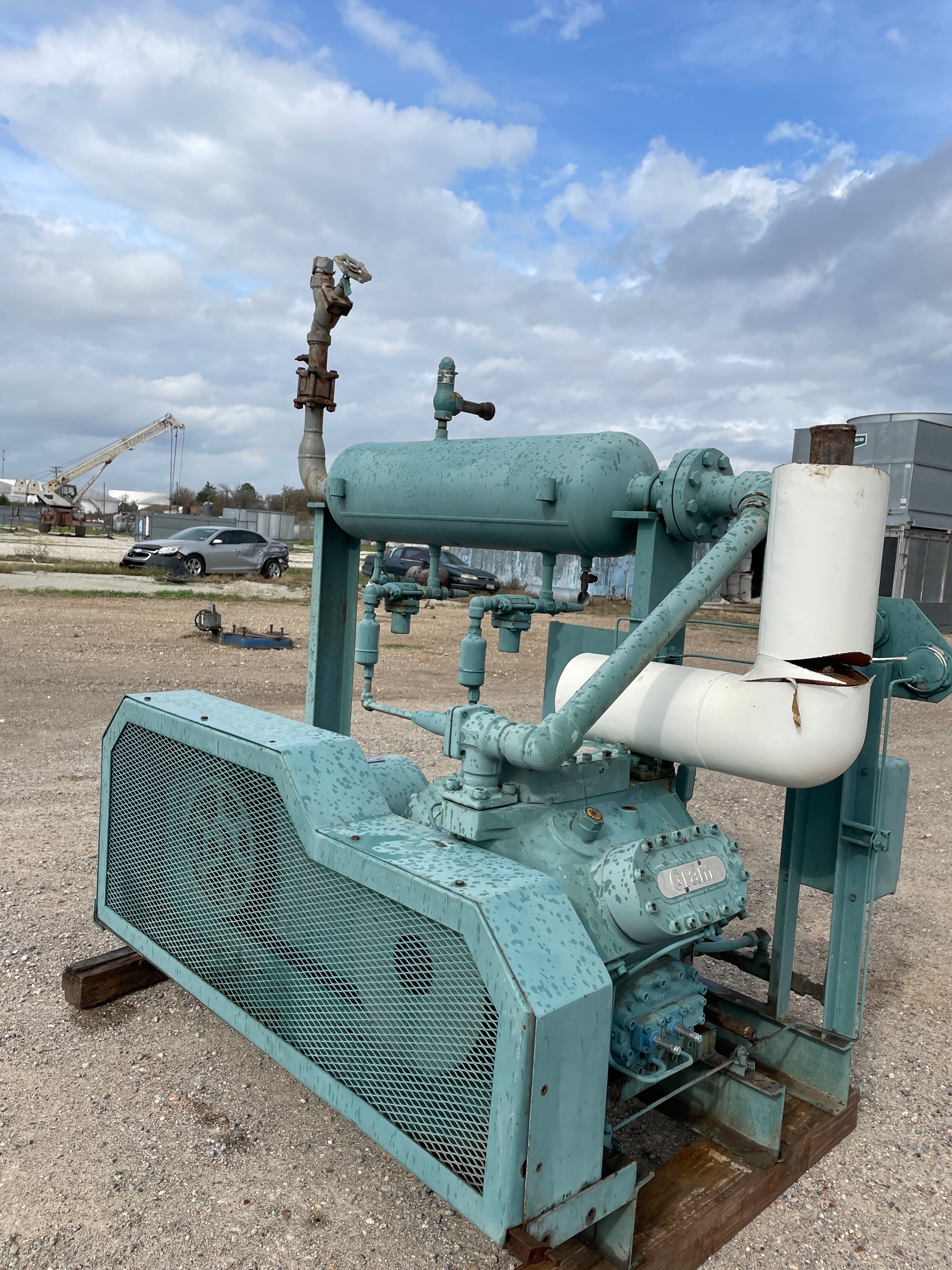

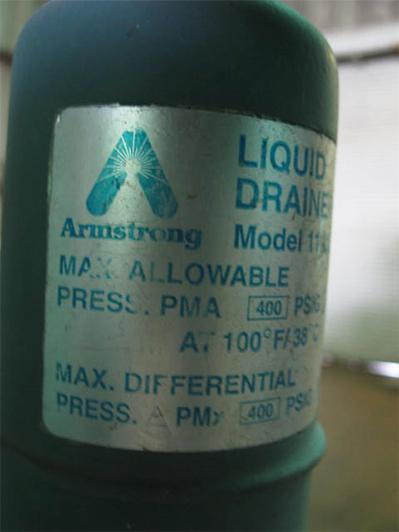

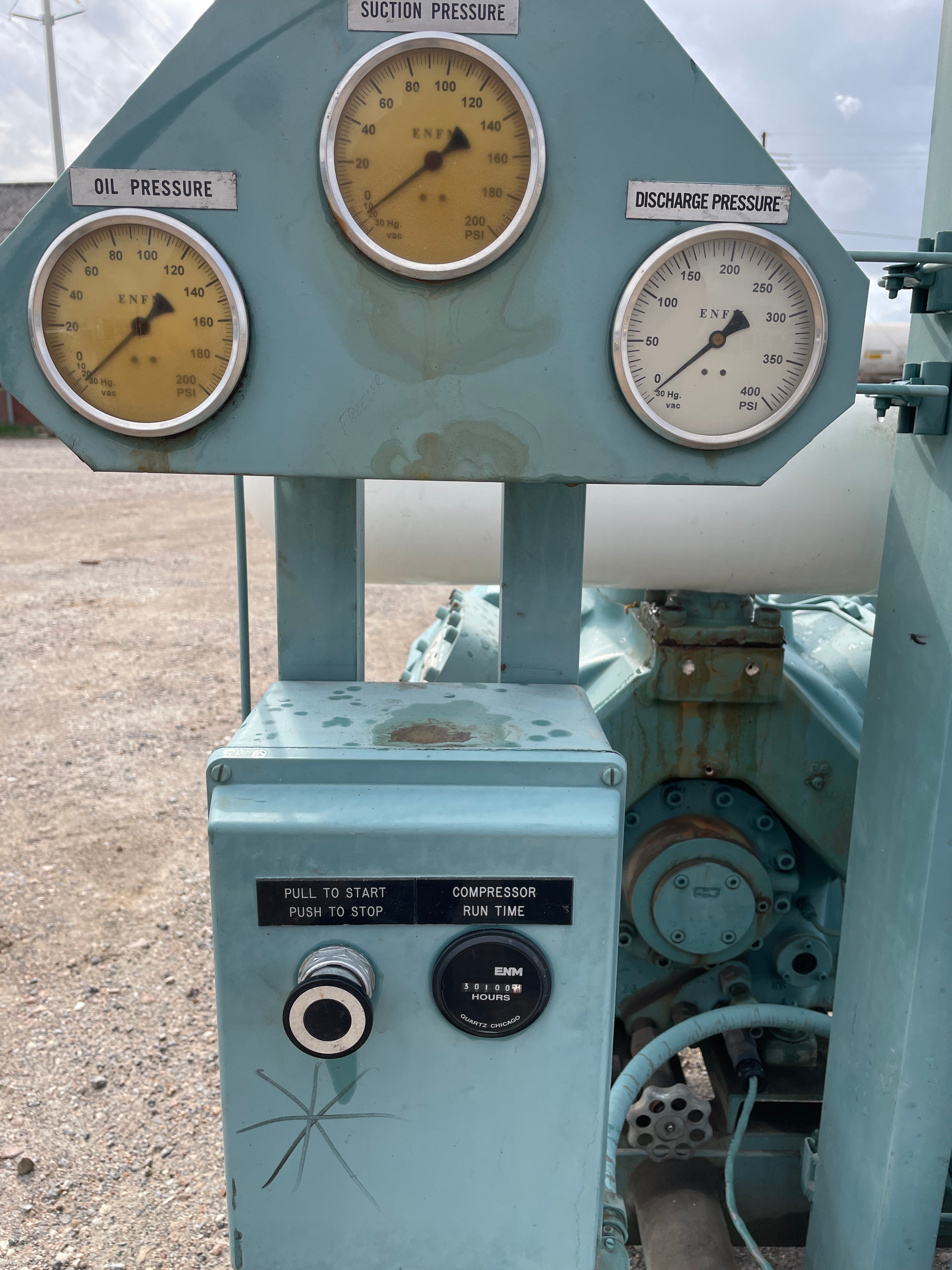

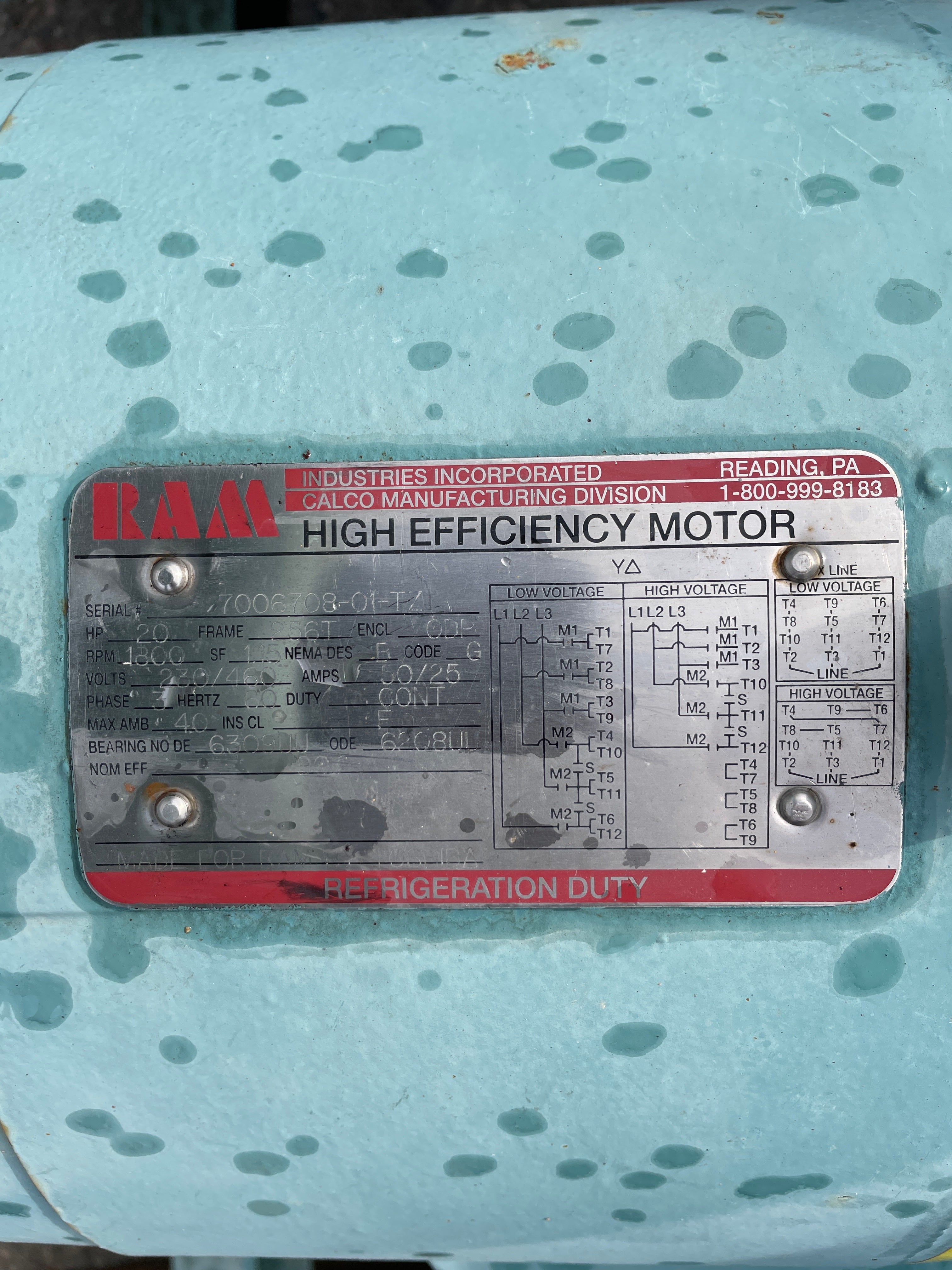

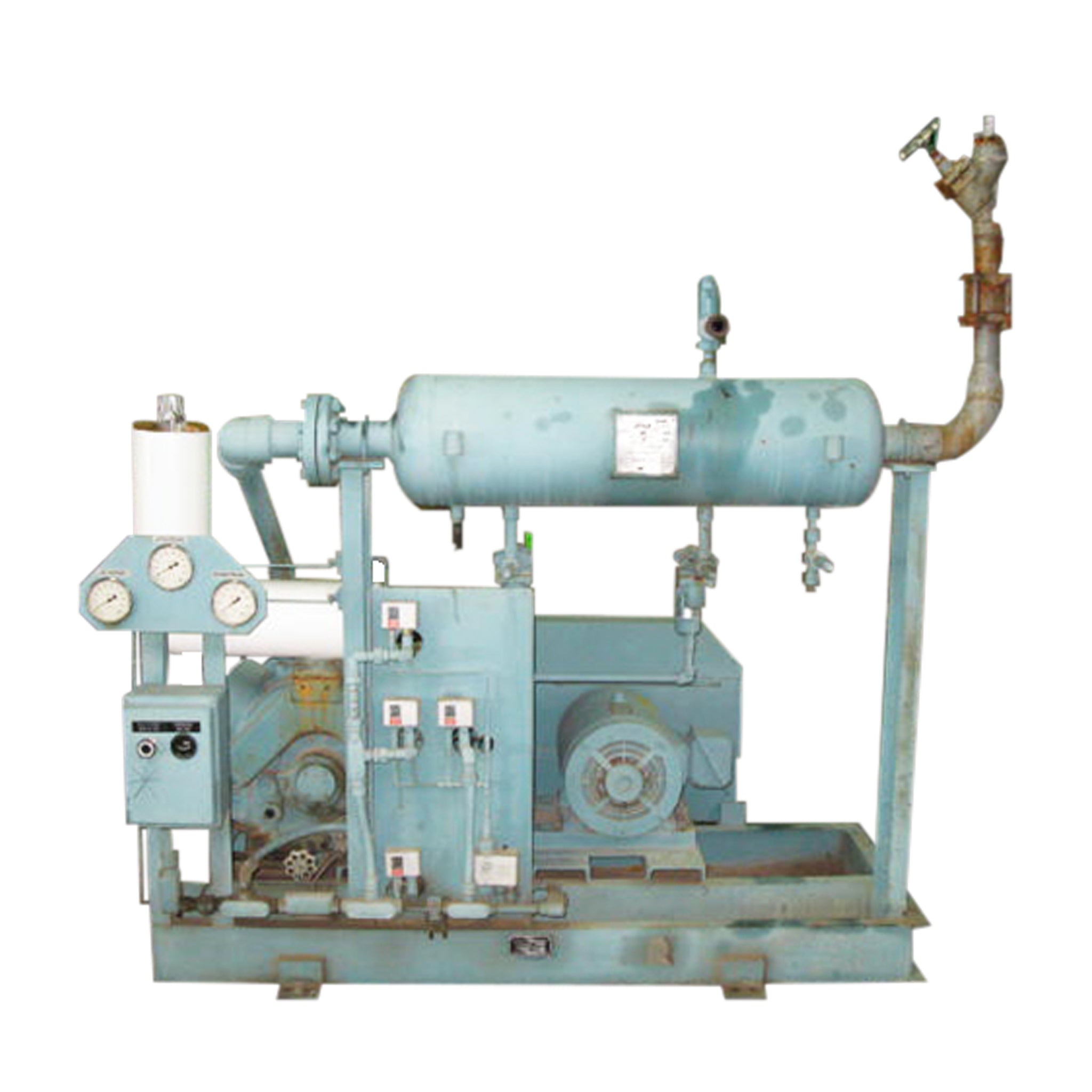

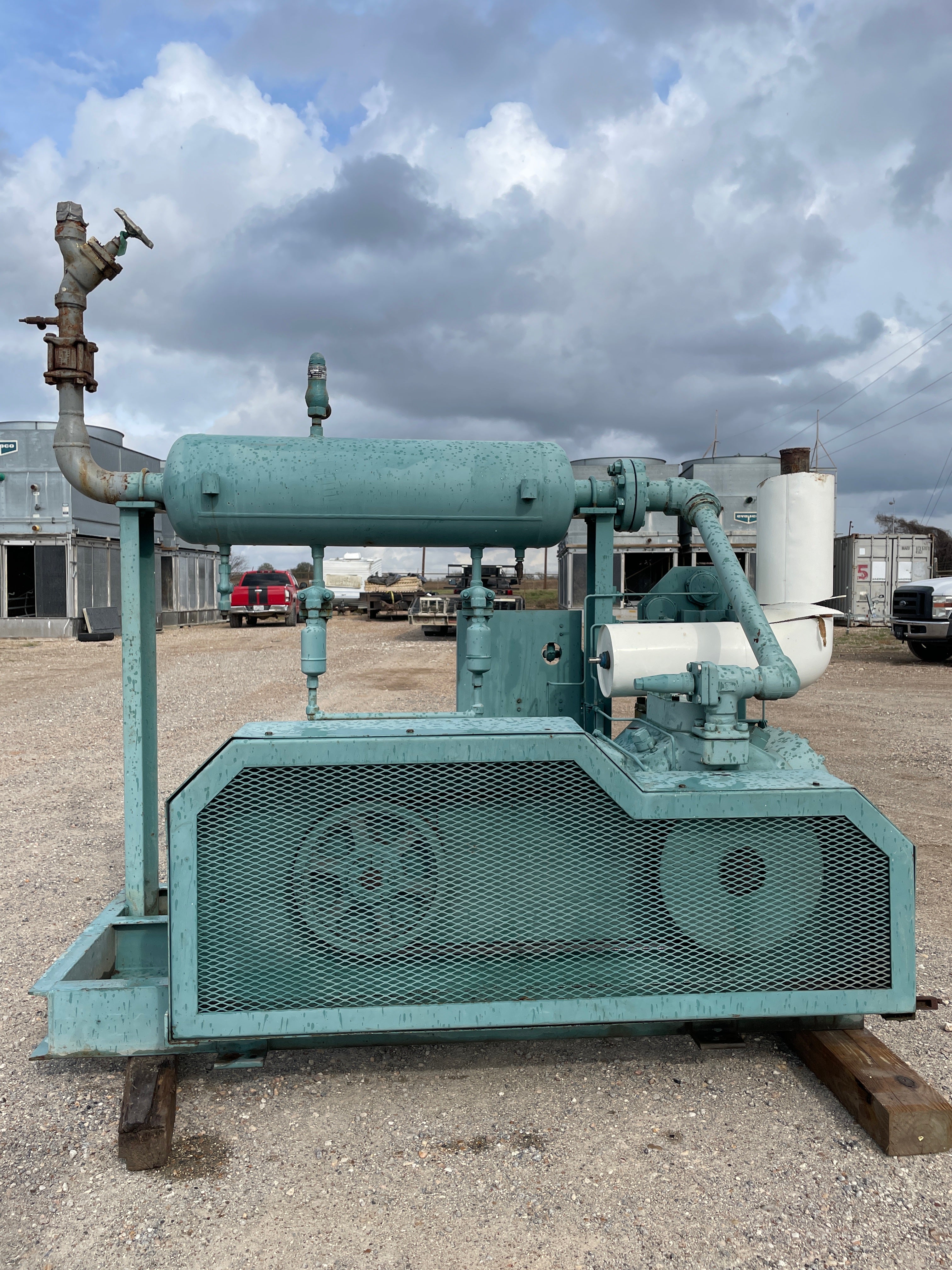

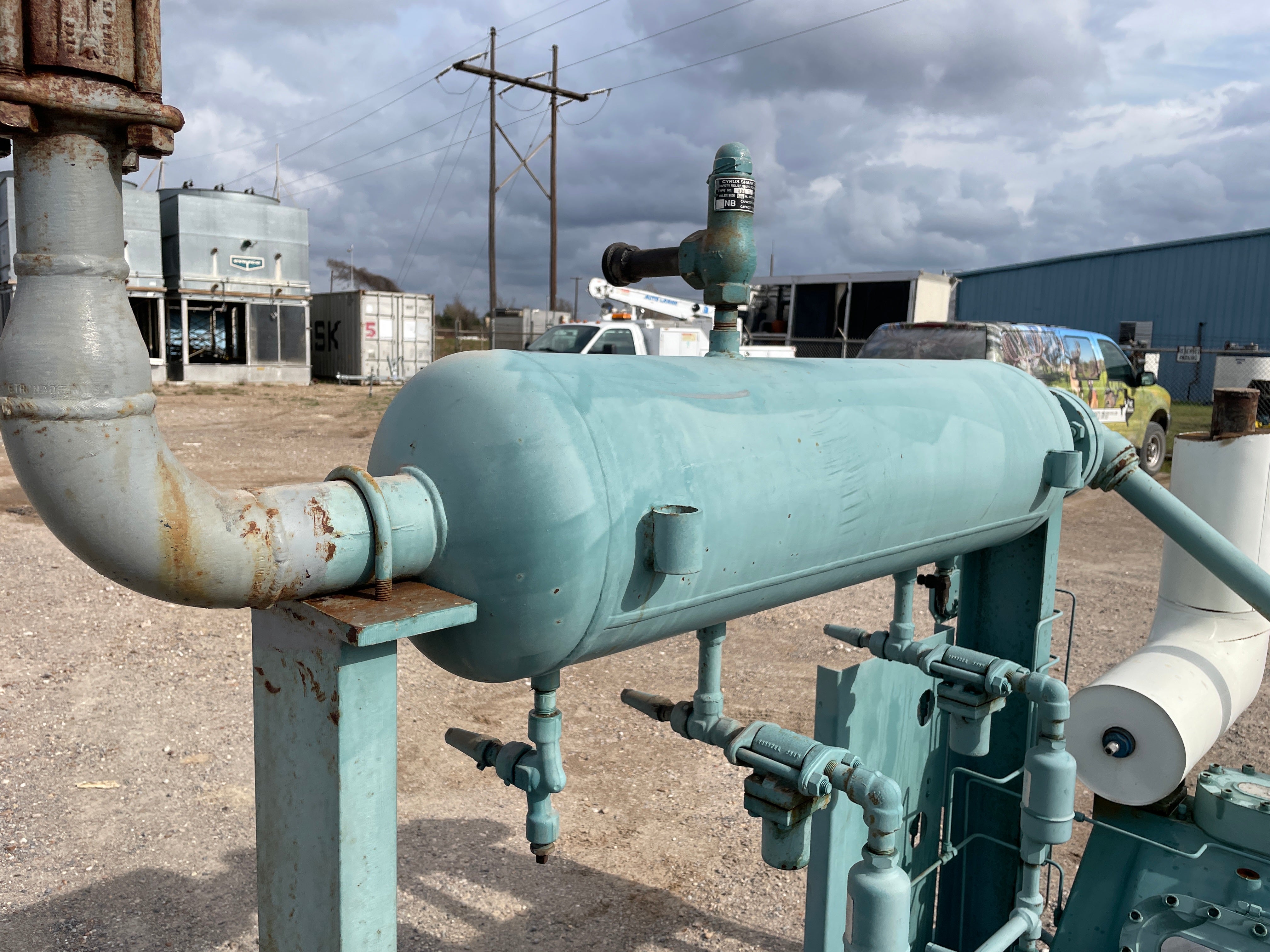

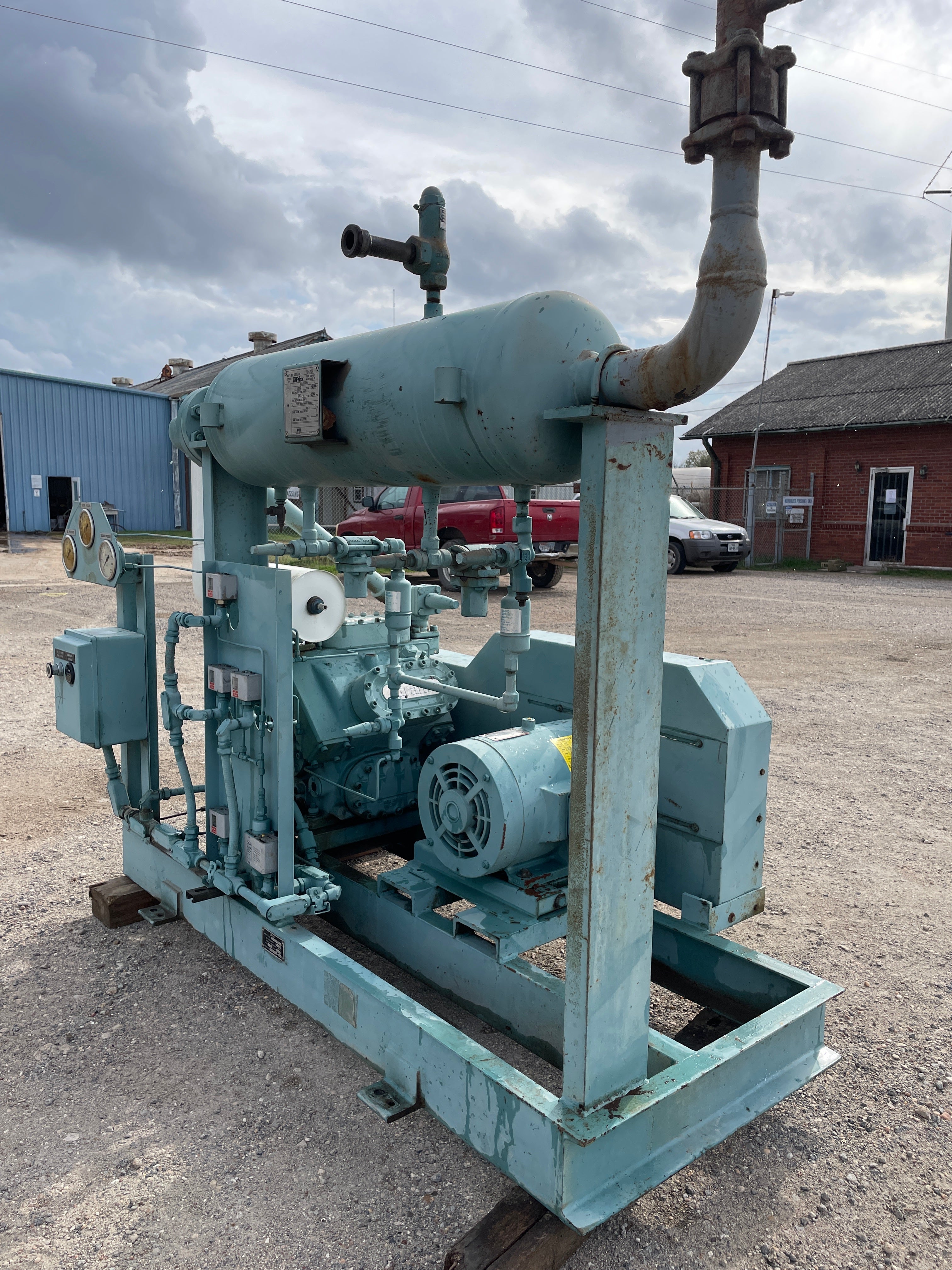

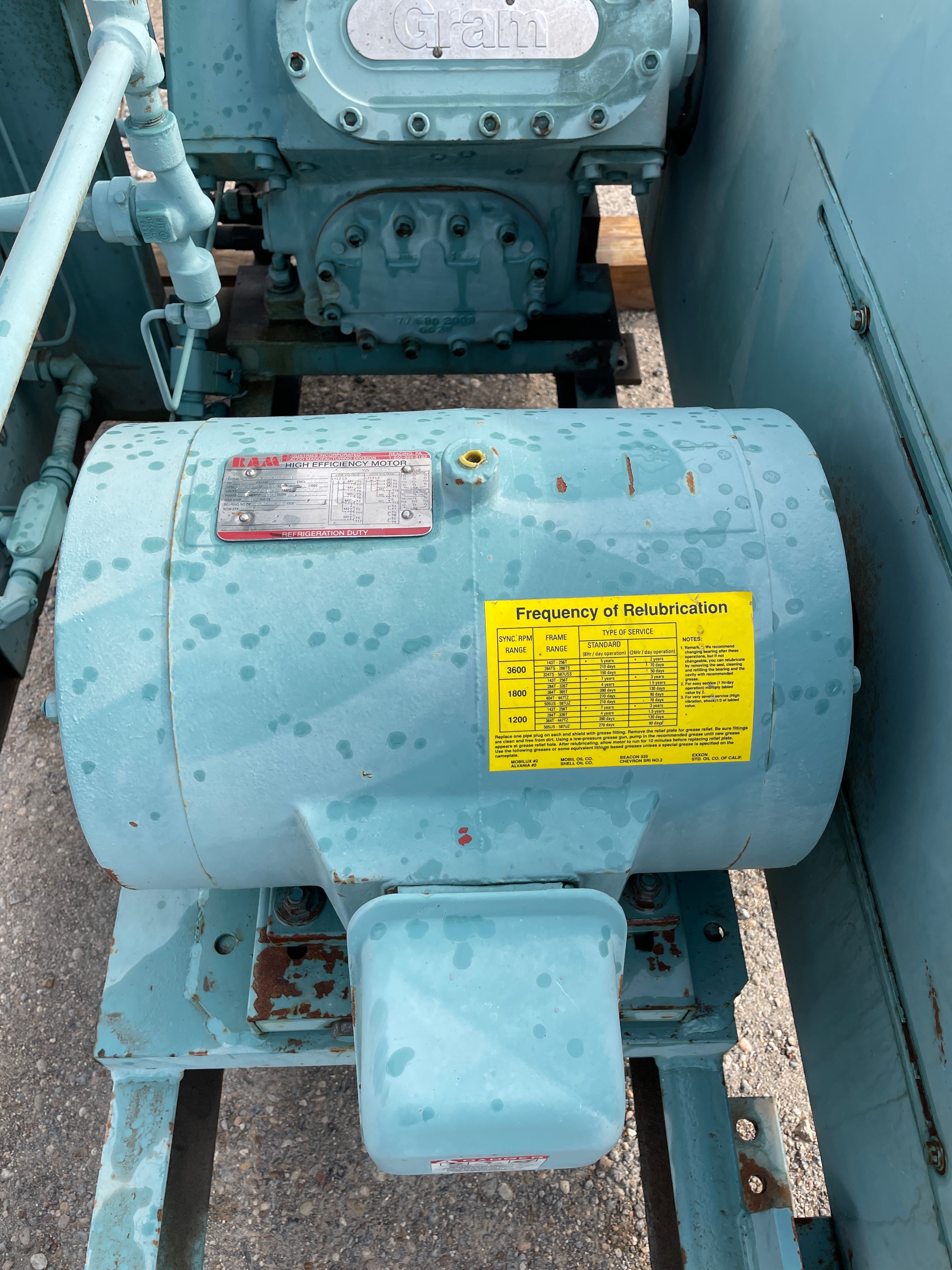

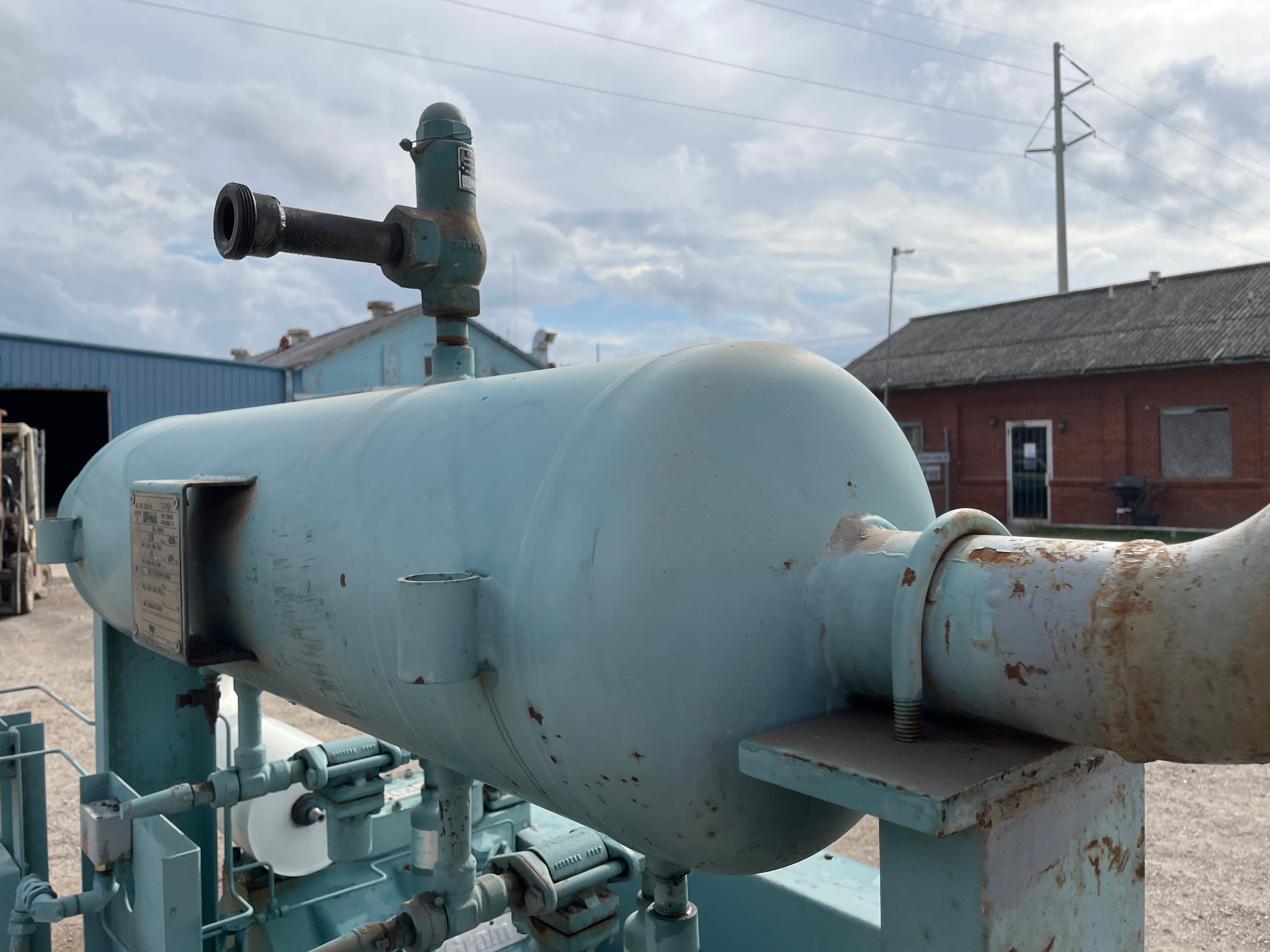

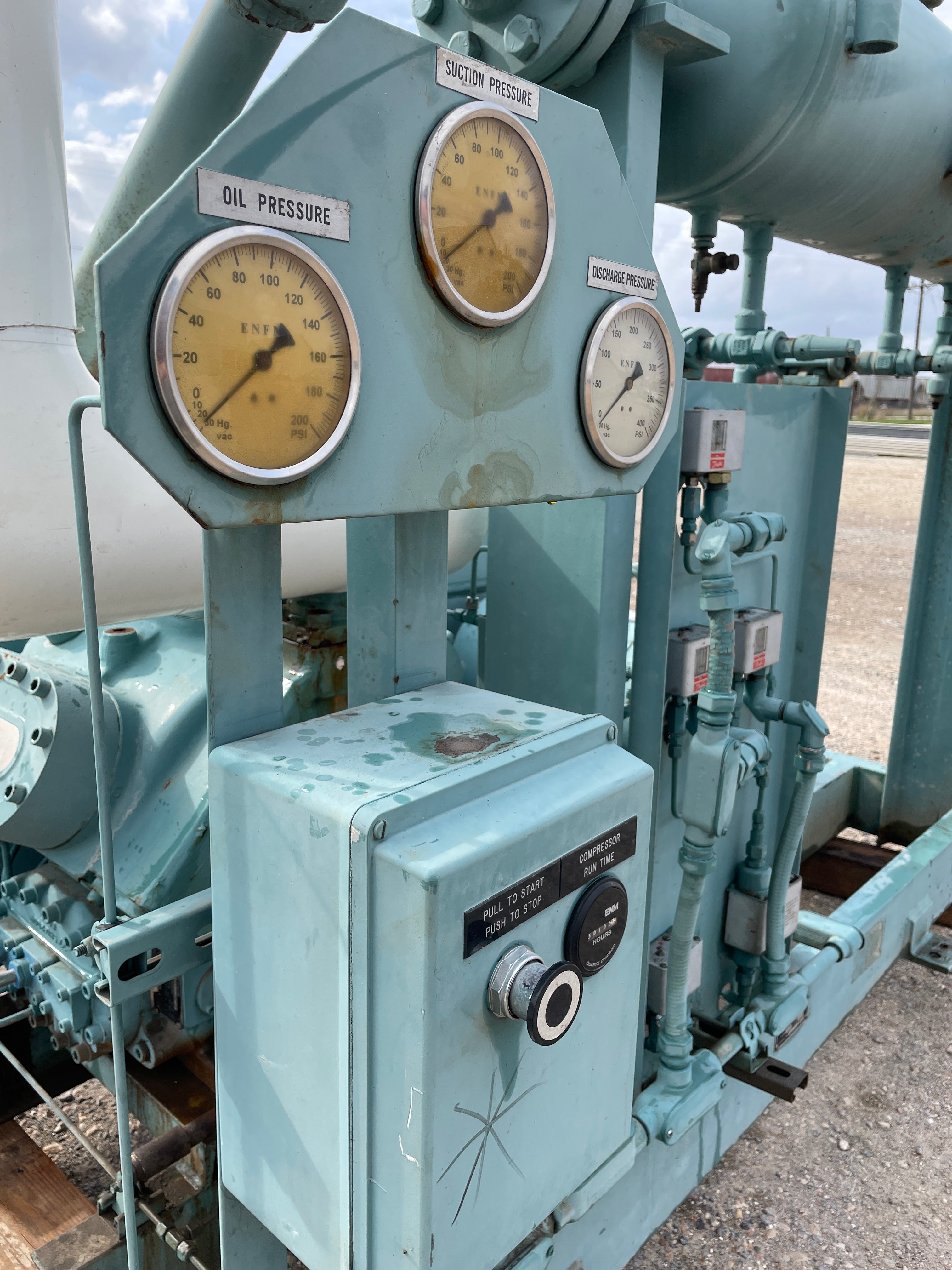

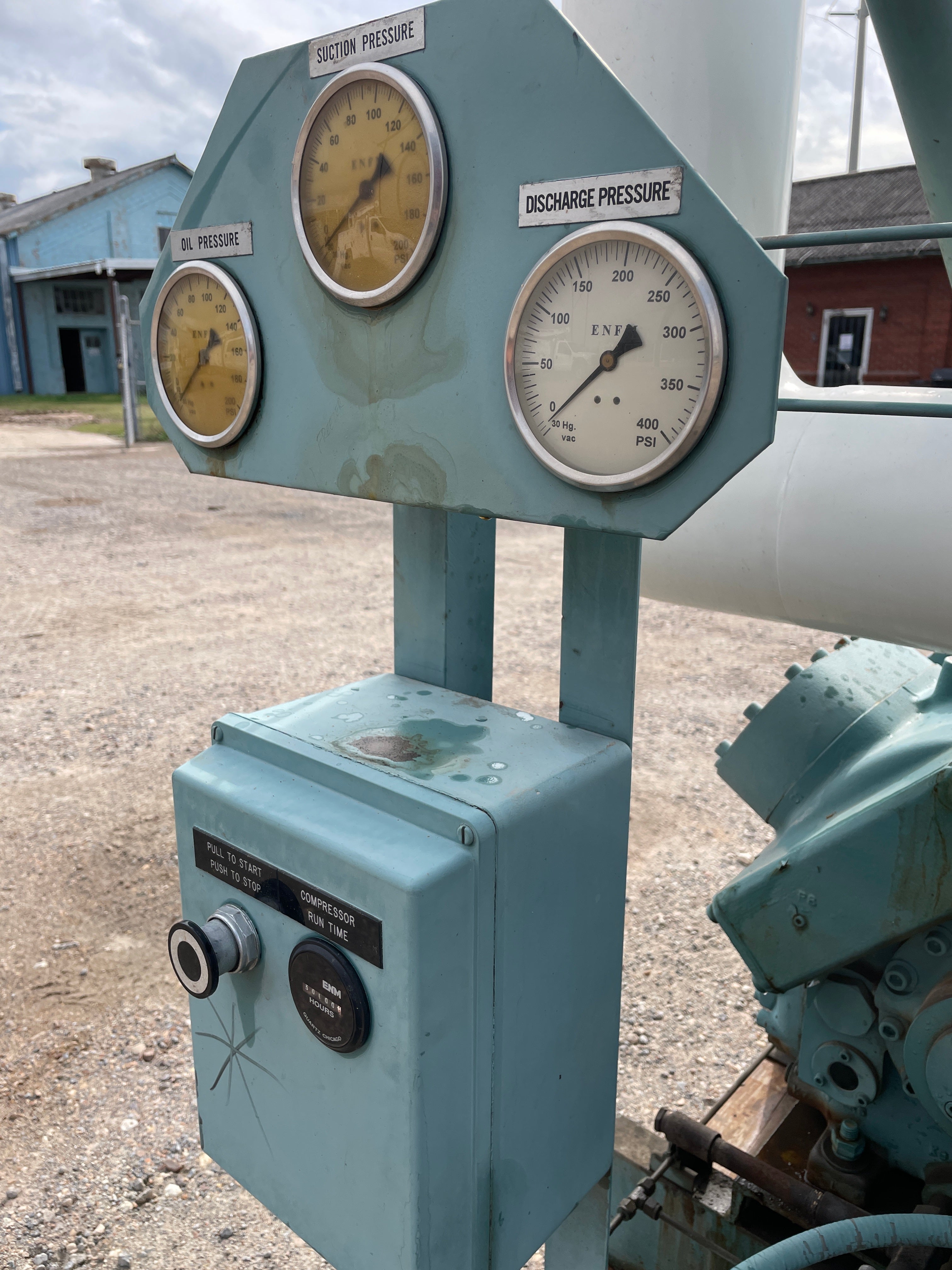

1996 Frick Reciprocating Compressor Package. Type: HCL 6075. Refrigerant: ammonia (R-717). Set up for low temperature application, 6 cylinder compressor, .075 mm bore, belt driven. Toshiba Ram Industries motor: serial no. 7006708-01-TZ. 20 hp, 230/460V, sf: 1.15, 50/25 amps, 60 Hz, 3 phase. Pressure vessel: MAWP: 300 psi at 200°F, MDMT: -20°F @ 300 psi psig. Respective high and low pressures: 360/260 psig. Features separate dial gauges for oil, suction and discharge pressure, Cyrus Shank Company safety relief valves, Danfoss pressure controls, and Armstrong floating lever liquid drainers. Compressor run time: 30100 hours. Overall dimensions: 7 ft. 4 in. L x 4 ft. 2 in. W x 6 ft. 11 in. H.
Product Details
- Stock No: DFMT01
- Manufacturer: Frick
- Model: HCL060757UB16

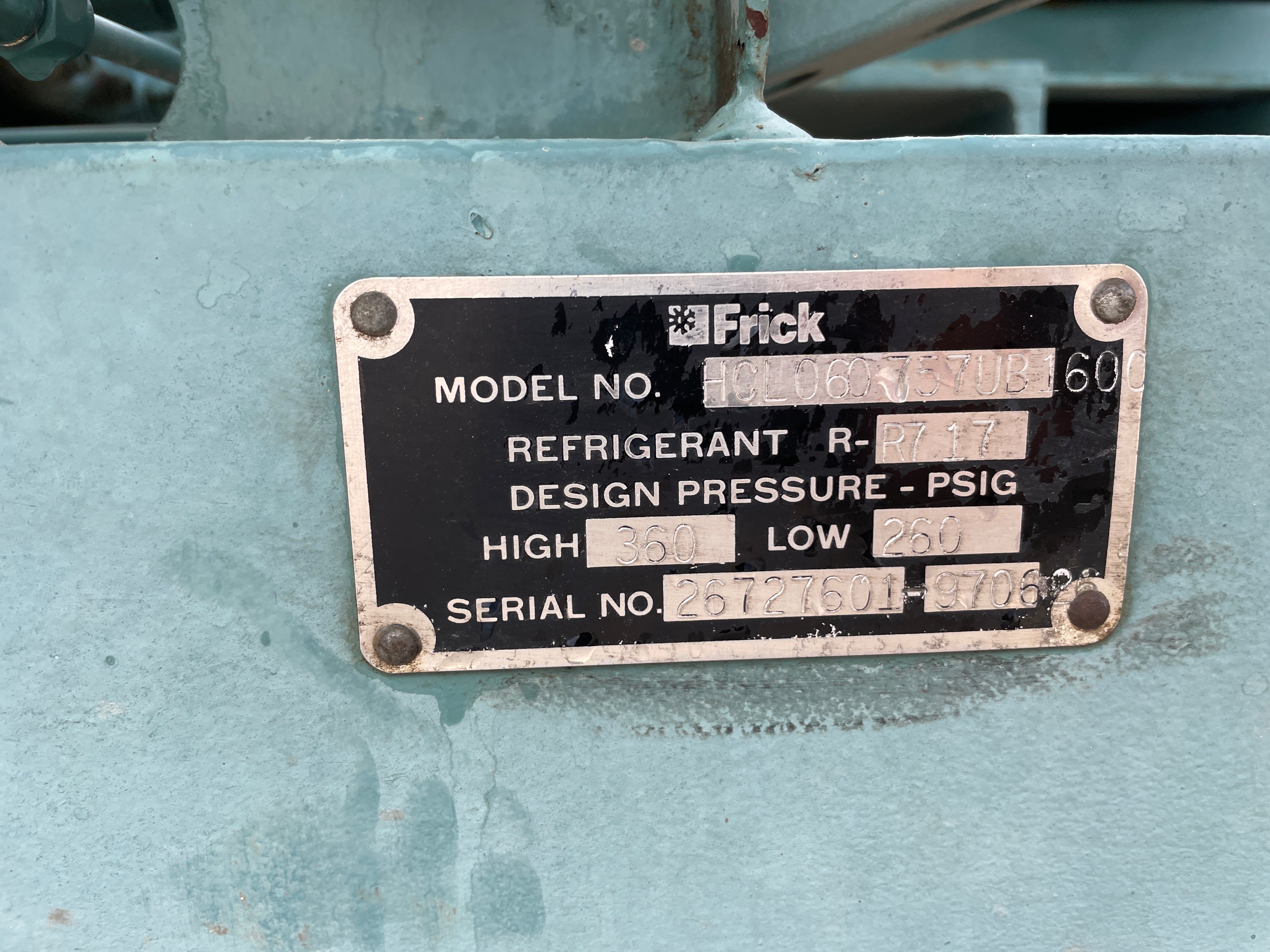

- Serial Number: 26727601-9706-20
- Compressor Type: Reciprocating
- Package Included? Yes
- Stage Type: High Stage

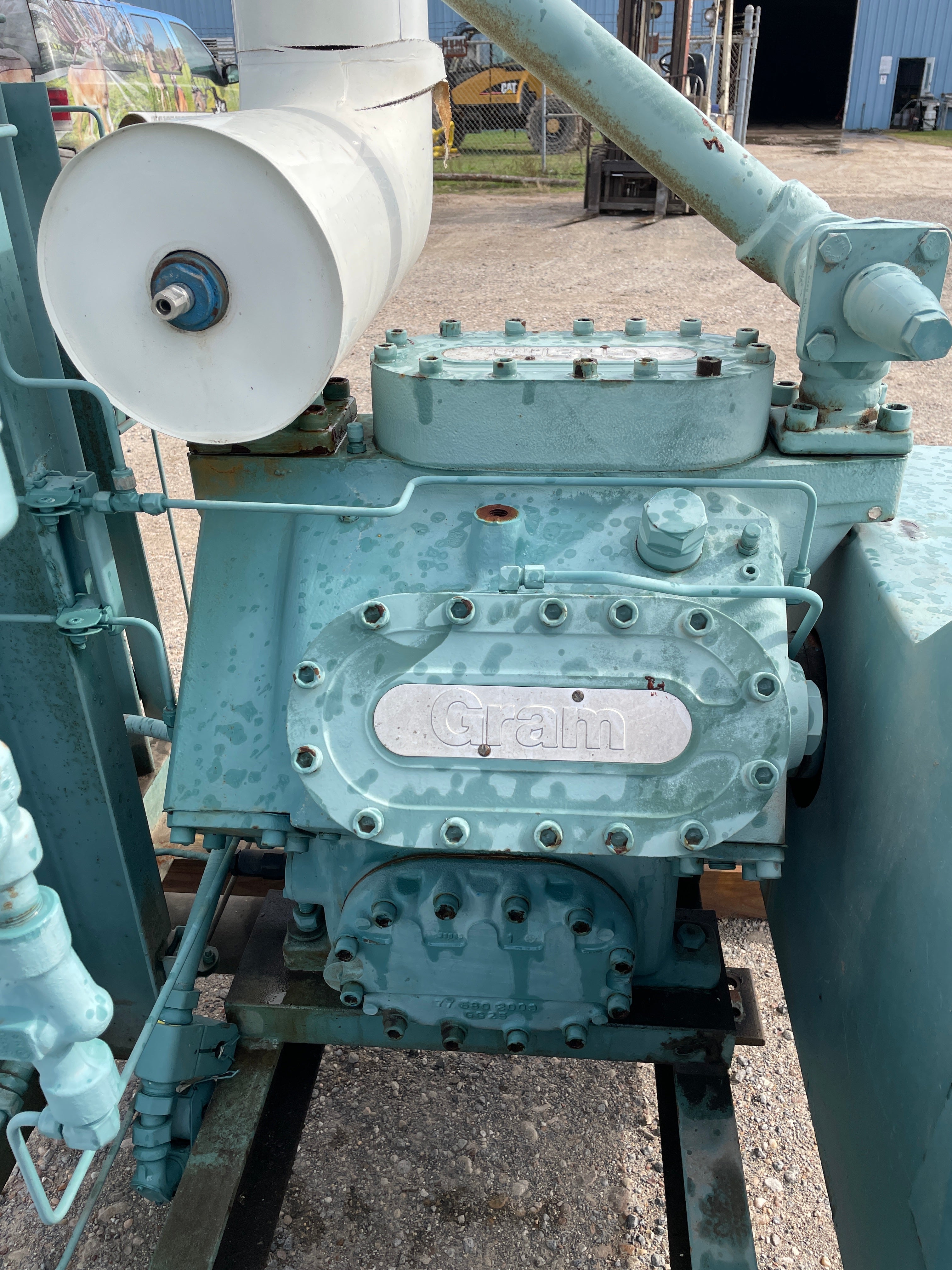

Reciprocating Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Of Reciprocating Cylinders: 6
- Reciprocating Type: Belt
- # Compressors in Package: 1
- Compressor Model: HCL060757UB1

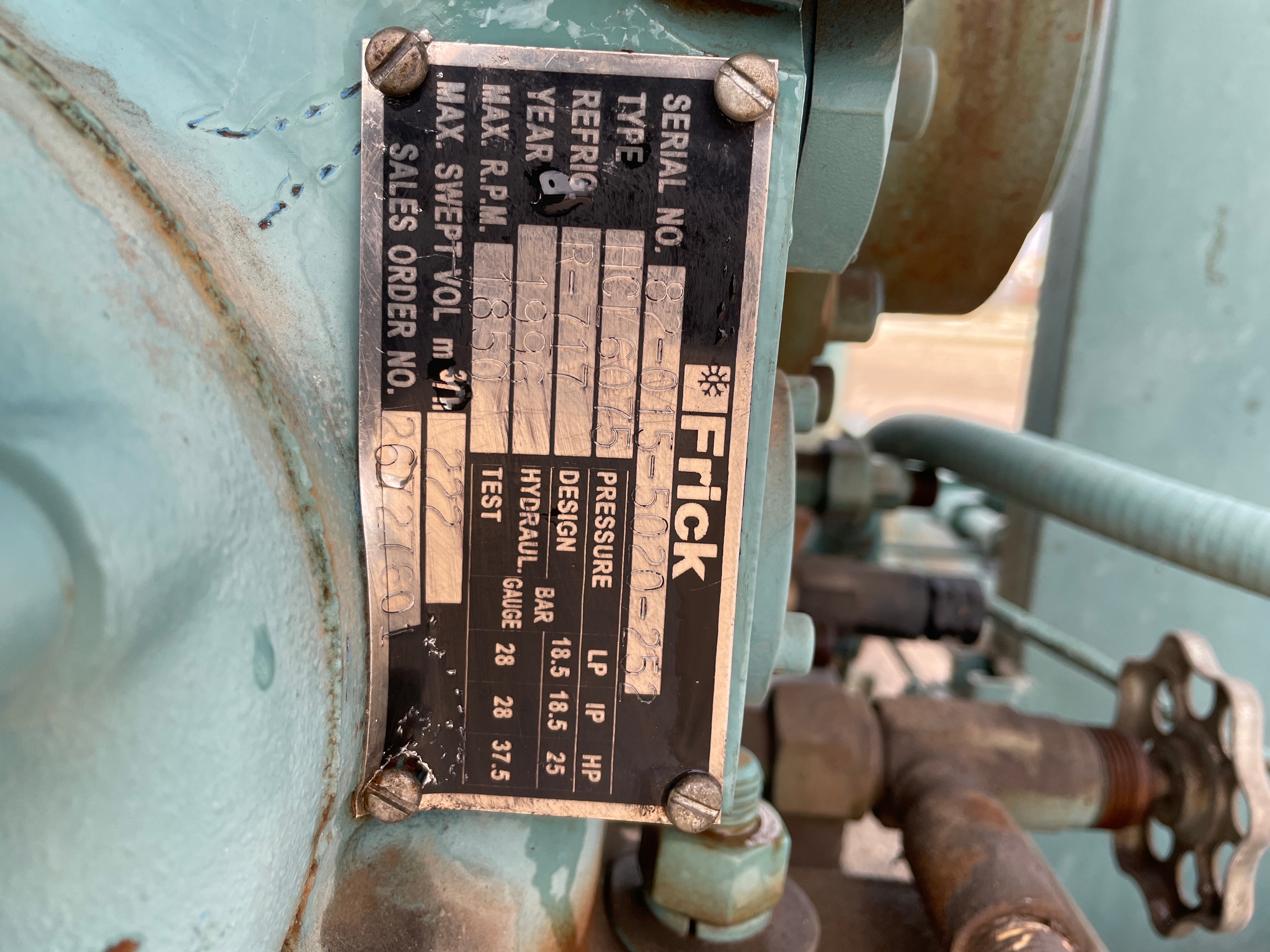

- Compressor SN: 26727601-9706
- Compressor Max Speed (RPM): 1850
- Compressor Design Pressure (PSIG): 360
- Compressor Year Manufactured: 1996
- Compressor Run Time Hours: 30100
- Oil Separator Included? No
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

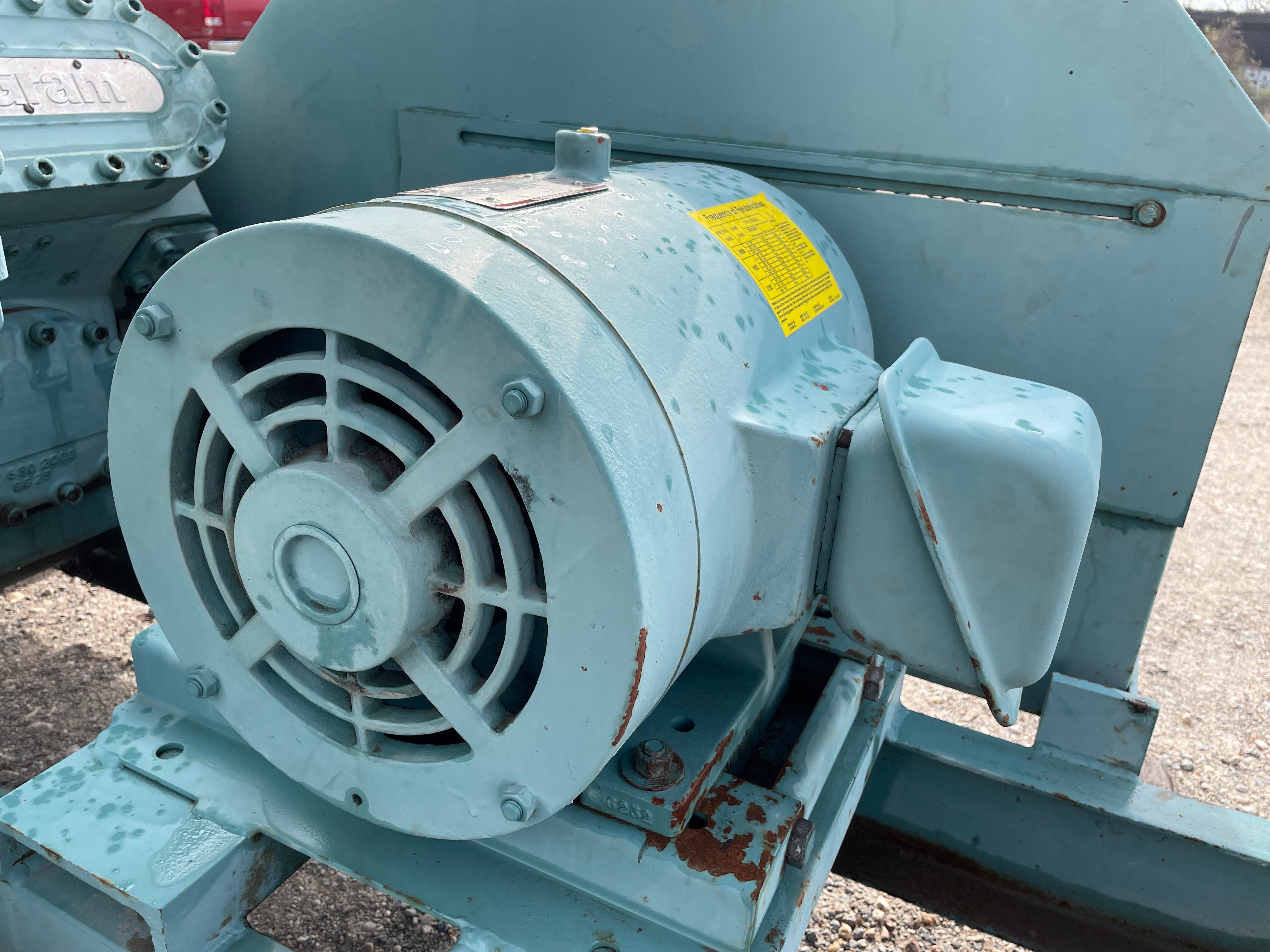

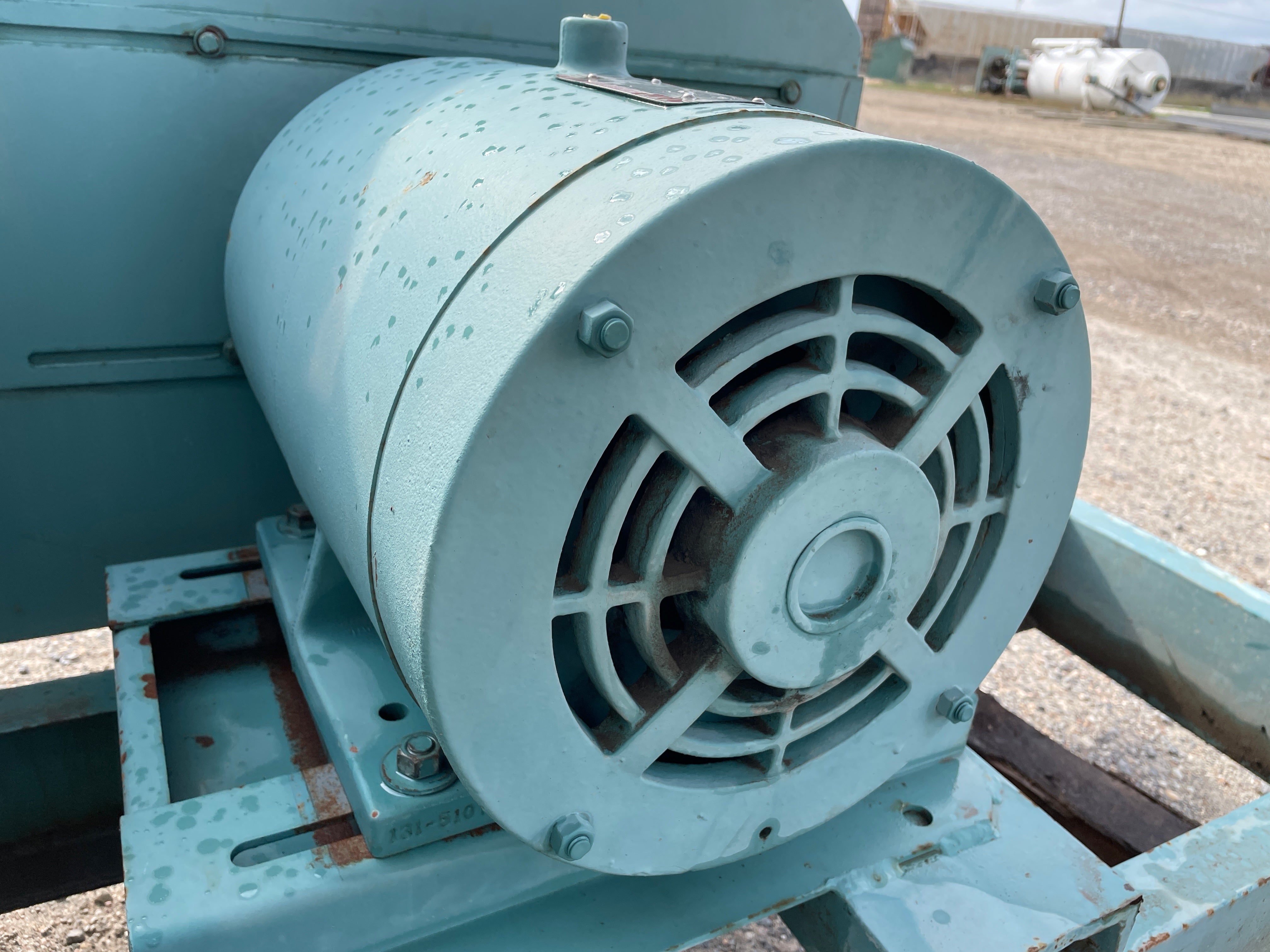

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 20
- Motor Voltage: 230/460
- Motor Amps: 50/25
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 256T
Dimensions:
- Length (Inches): 88
- Width (Inches): 50
- Height (Inches): 83
Additional Product Details
- Year of Manufacture: 1996
