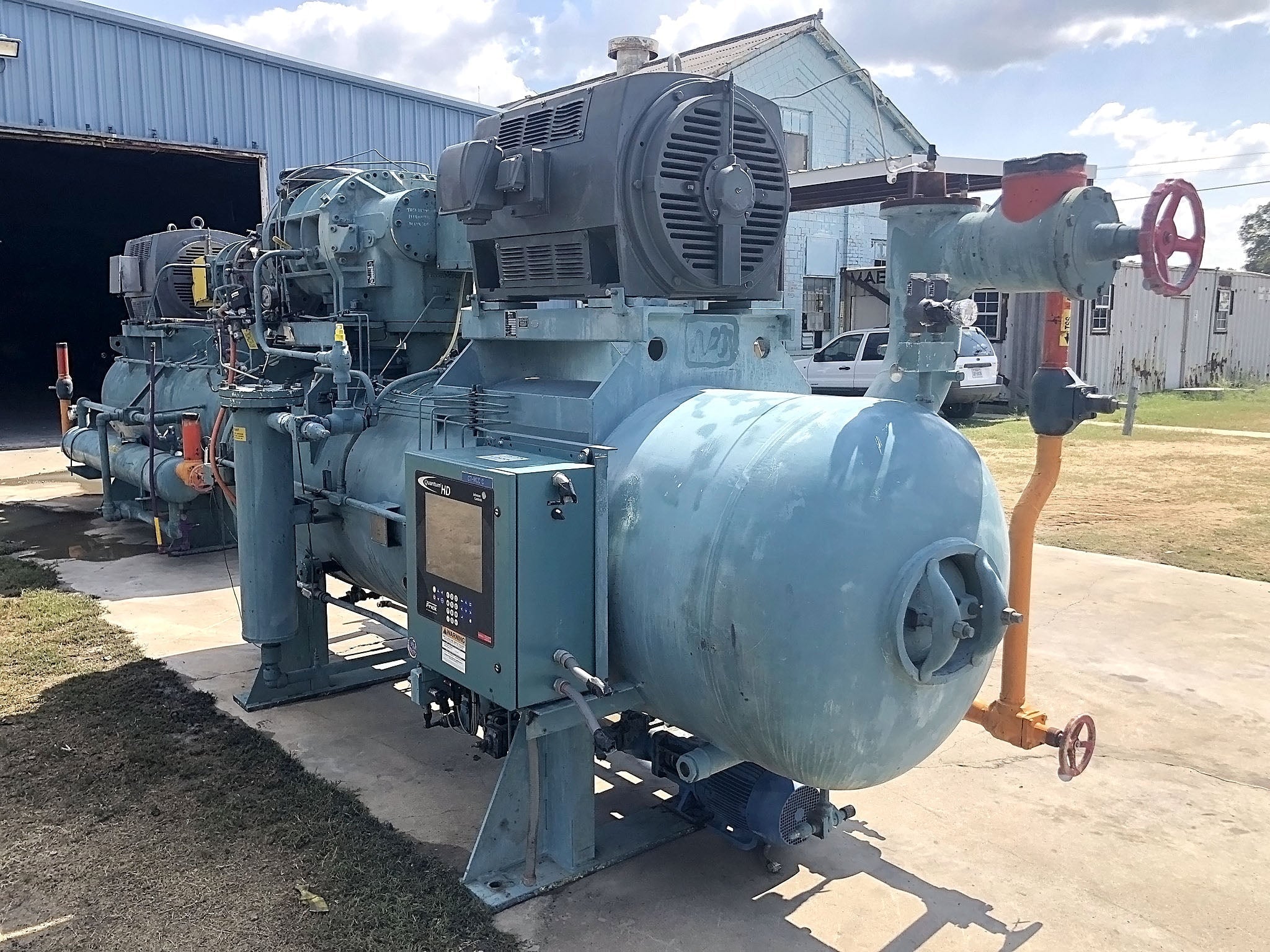

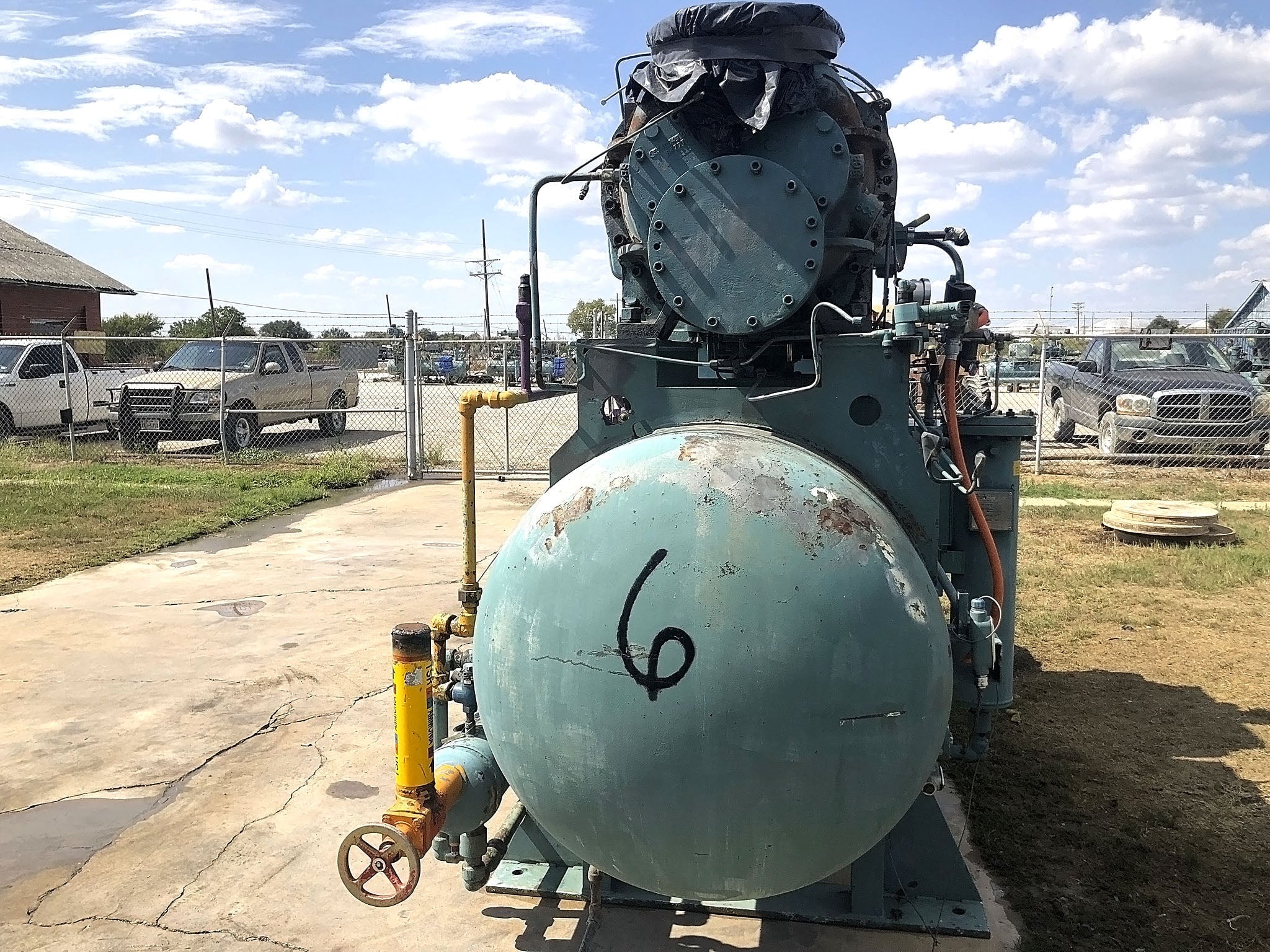

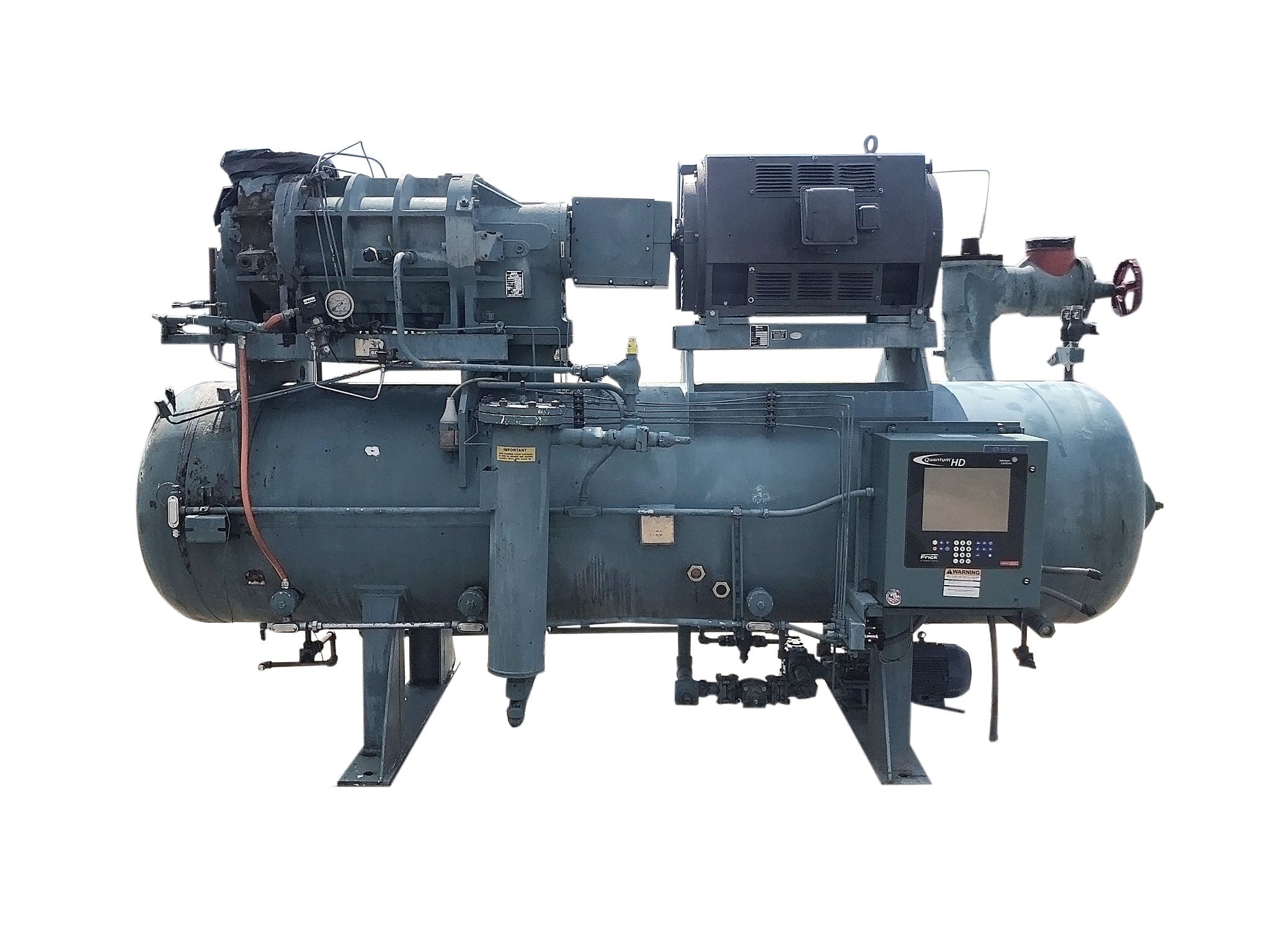

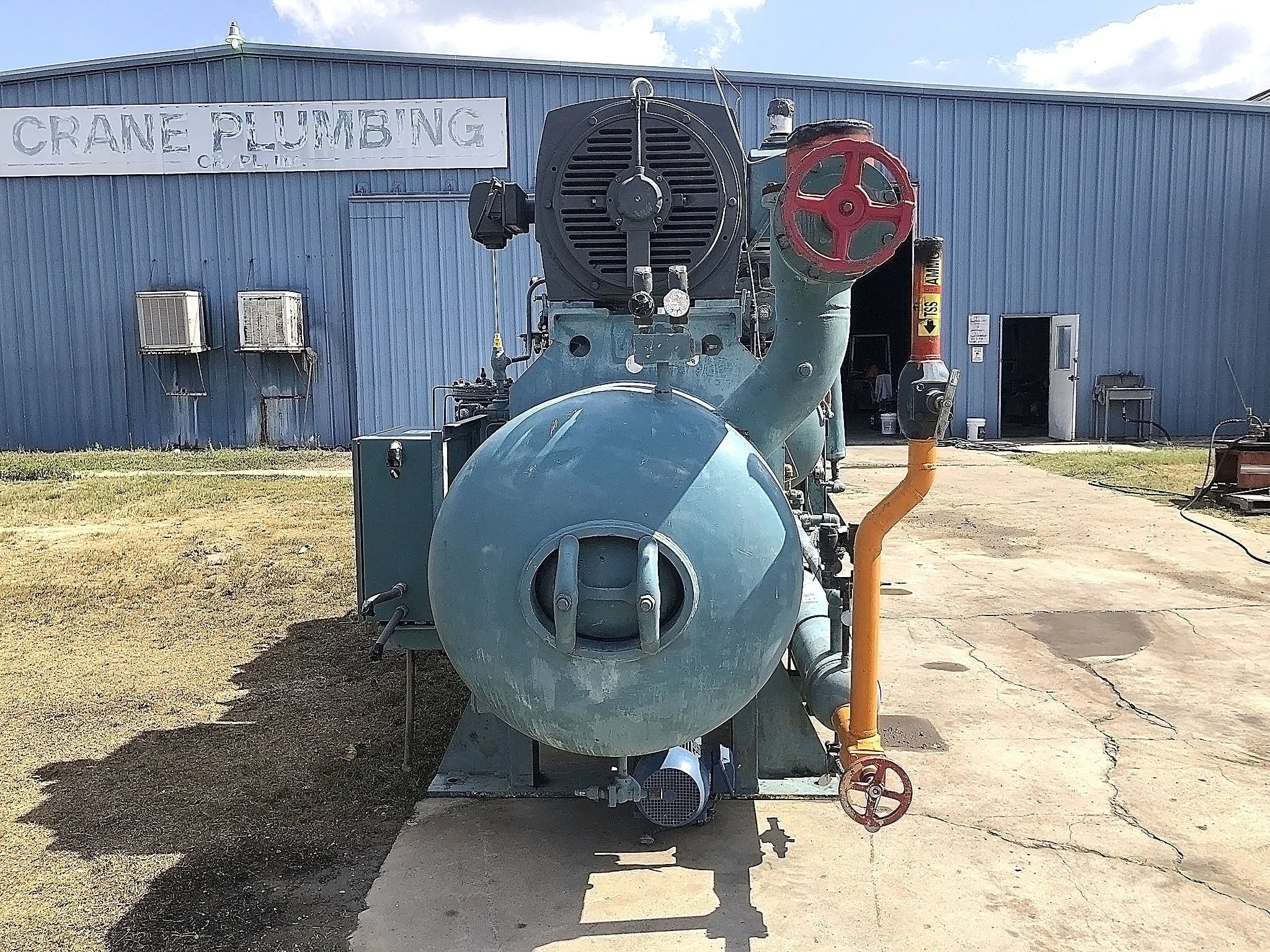

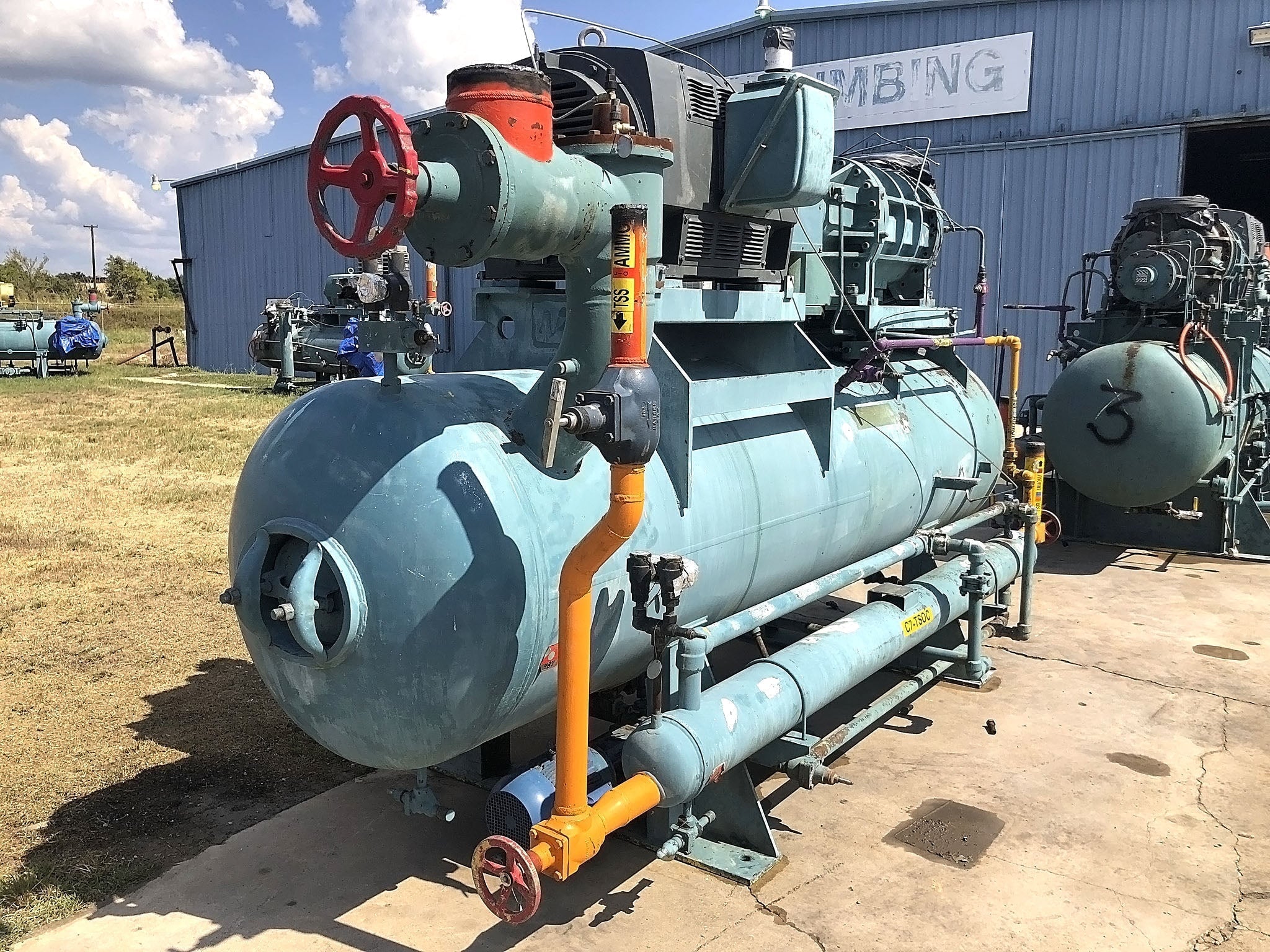

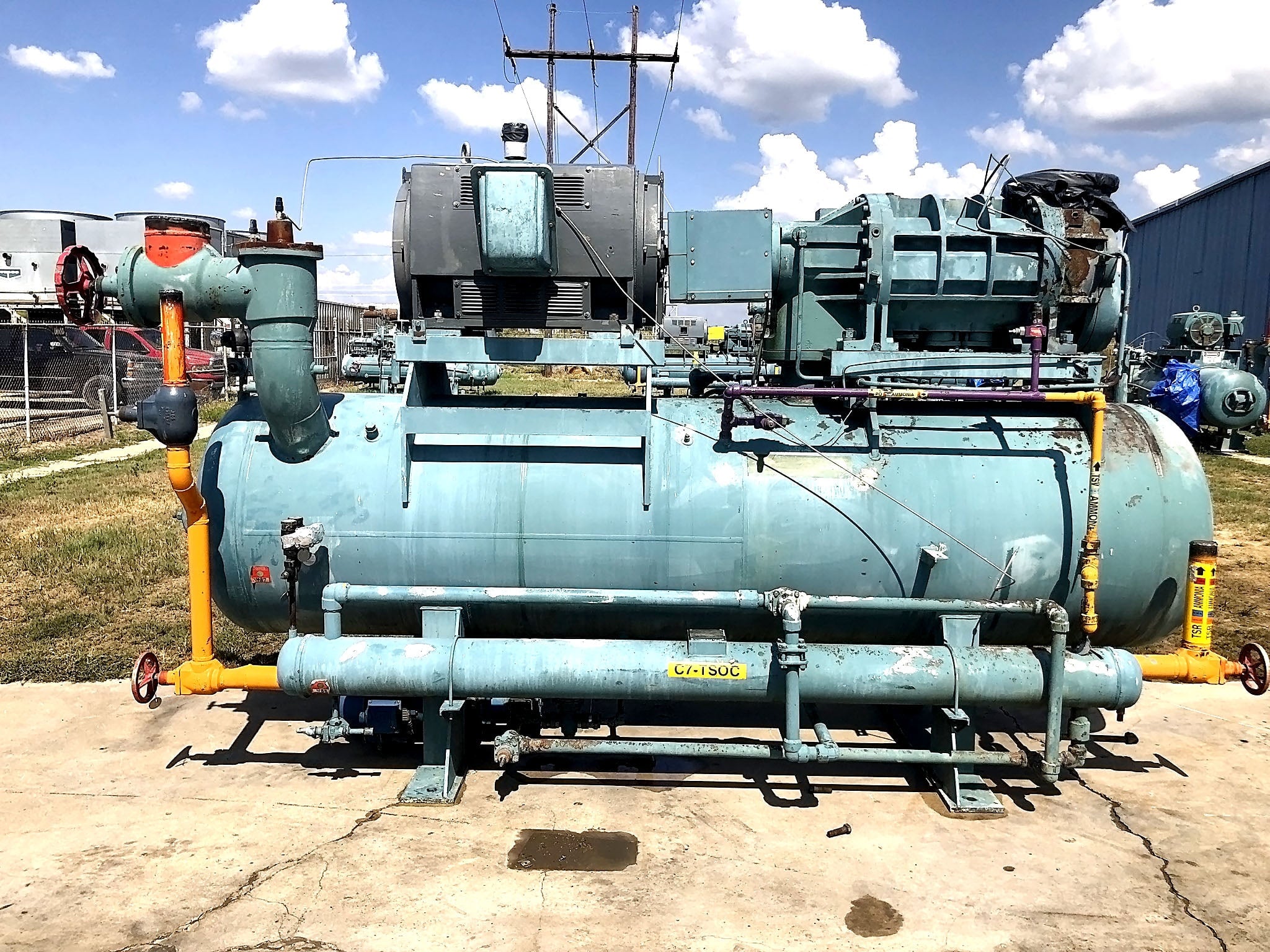

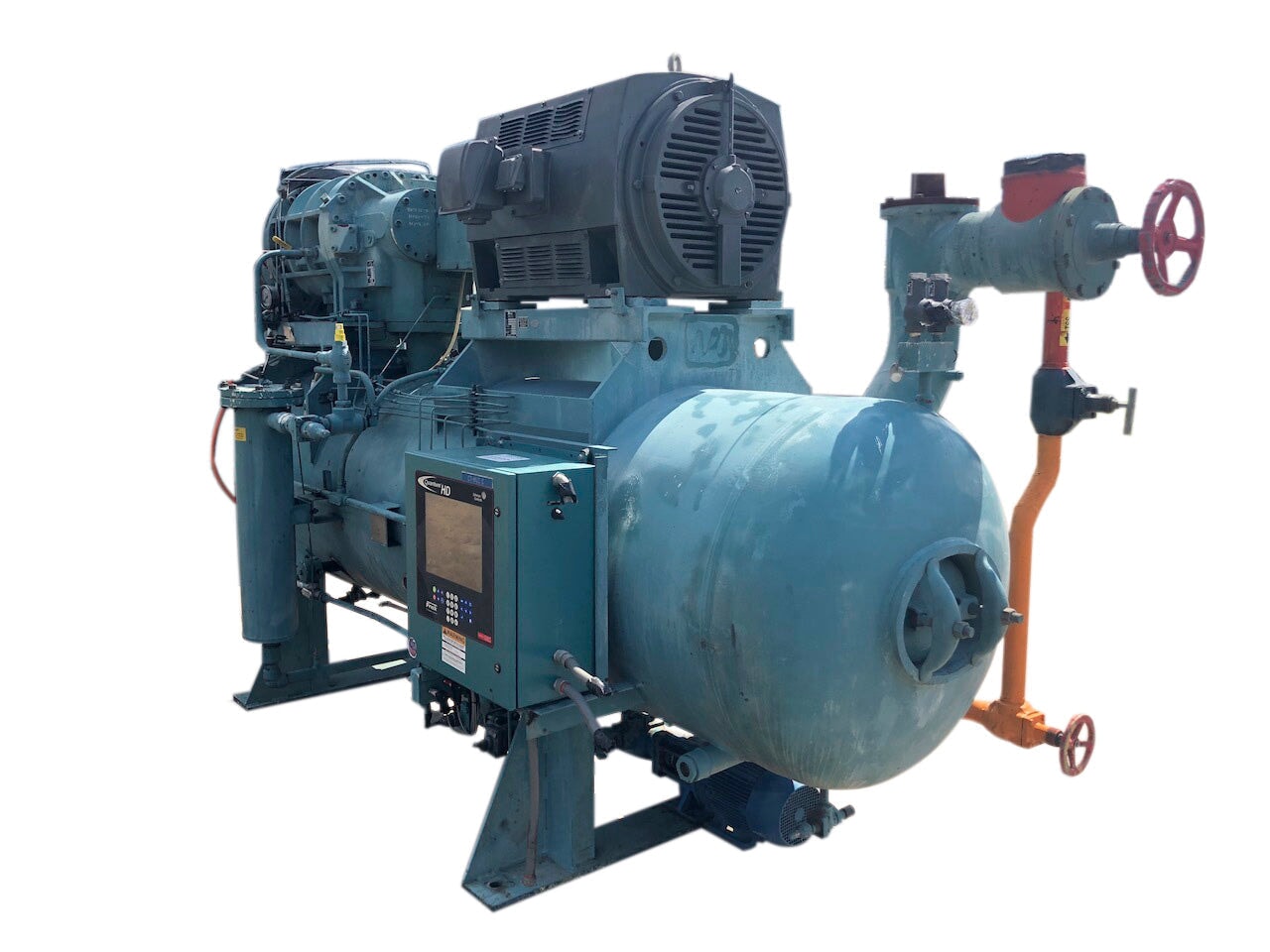

Frick RDB-546 Rotary Screw Compressor Package (Frick TDSL283XL, 400 HP 4160 V, Frick Micro Control Panel)
FRICK Screw Compressor Sales Order: 280802-22 Model: RDB-546 Serial # S0053NFMFTHCA3. Screw Model #: TDSL283XL0108JJR. Separator: N/B #119346 Thermo-siphon: N/B #120117. Volume Ratio: 2.2/5.0, TECO MOTOR 400 HP, BHP 336.9, Frame 5009A, TYPE: ASHA-PA001DP, 4160 VOLT 3 PHASE 60 HZ., AMPS: 87.9 / 48.8, NEMA DESIGN B, BEARINGS: 6314C3/6314C3, RPM: 3565. 36,081 Hours After Seaboard Foods built their new engine room, we purchased their entire original engine room in Oklahoma, USA. Includes an updated HD Micro Panel.
Product Details
- Stock No: SBOD15.30
- Manufacturer: Frick
- Model: RDB-546
- Serial Number: S0053NFMFTHCA3
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: Low Stage (Booster)

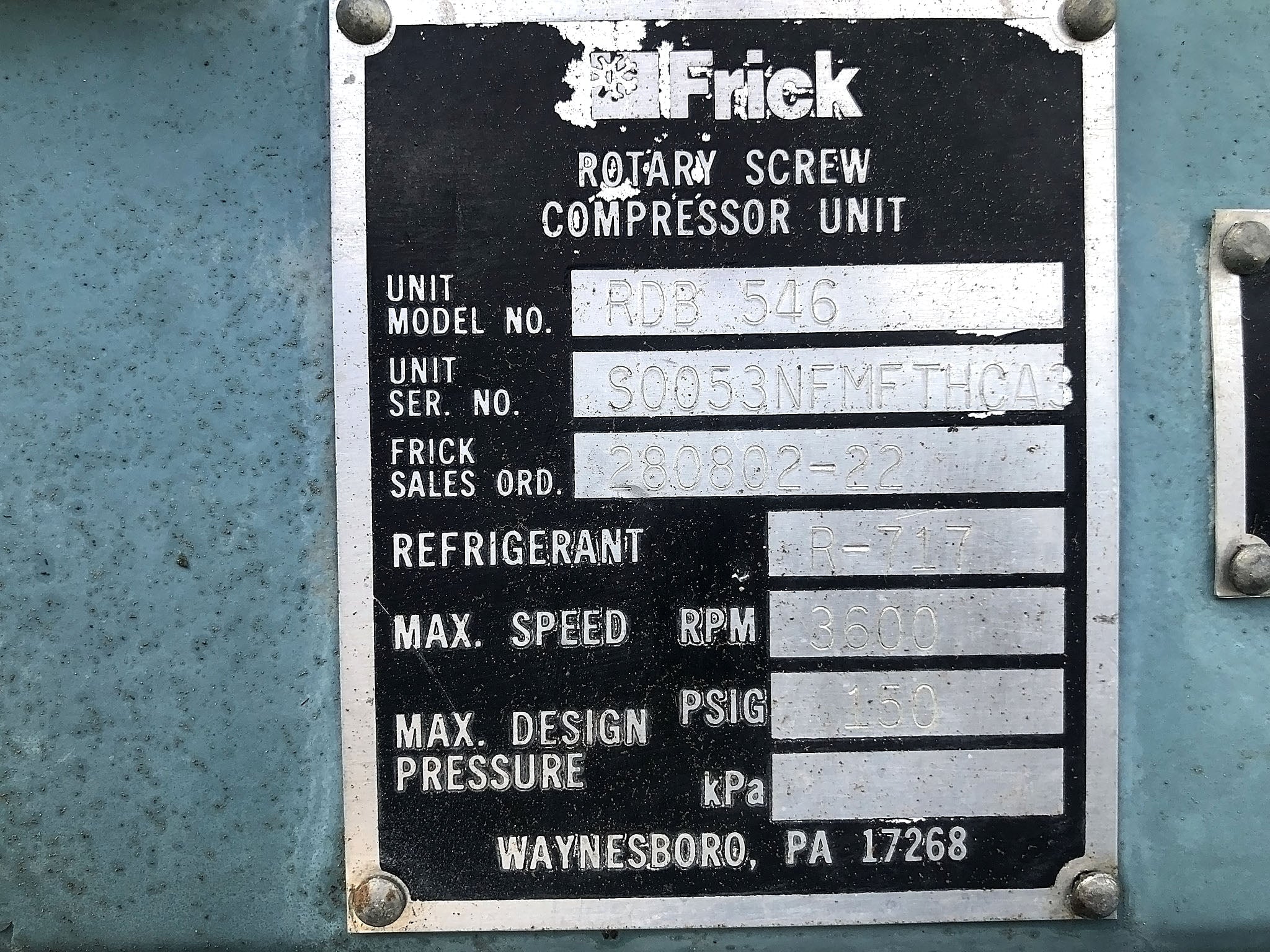

Package Details
- Package Manufacturer: Frick
- Package Model: RDB-546
- Package SN: S0053NFMFTHCA3
- Package Order: 280802-22
- Package Max Speed (RPM): 3600
- Package Max Design Pressure (PSIG): 150

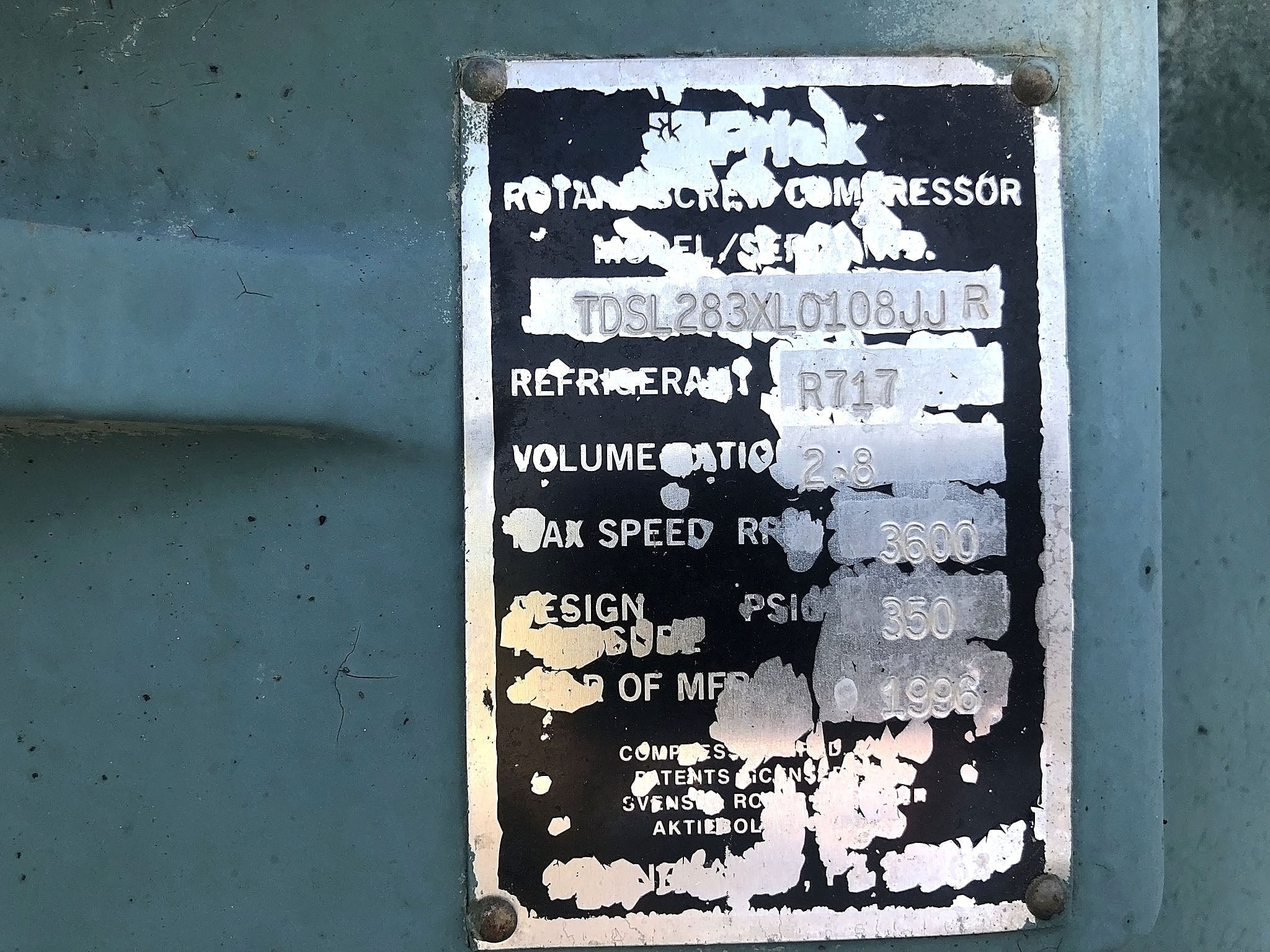

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1
- Compressor Model: TDSL283XL
- Compressor SN: TDSL283XL0108JJR
- Compressor Max Speed (RPM): 3600
- Compressor Design Pressure (PSIG): 350
- Compressor Year Manufactured: 1998
- Compressor Run Time Hours: 36081
- Fixed/Variable VI: 2.8
- Compressor Volume Ratio: 2.2/5.0
- Oil Separator Included? Yes
- Oil Separator National Board #: 119346
- Oil Cooling Type: Thermosiphon
- Oil Cooler National Board #: 120117

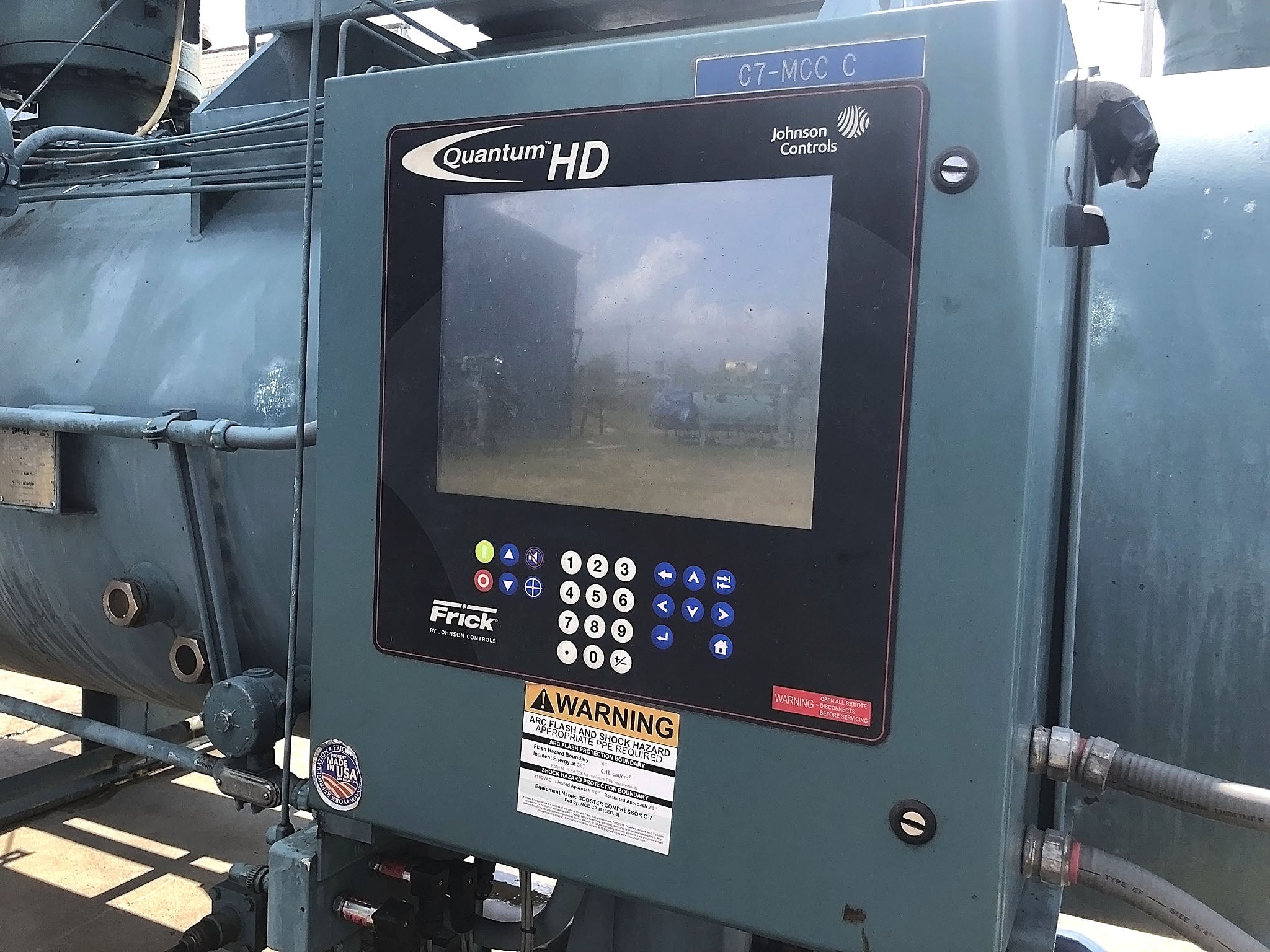

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick
- Micro Control Panel Description: HD Micropanel
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

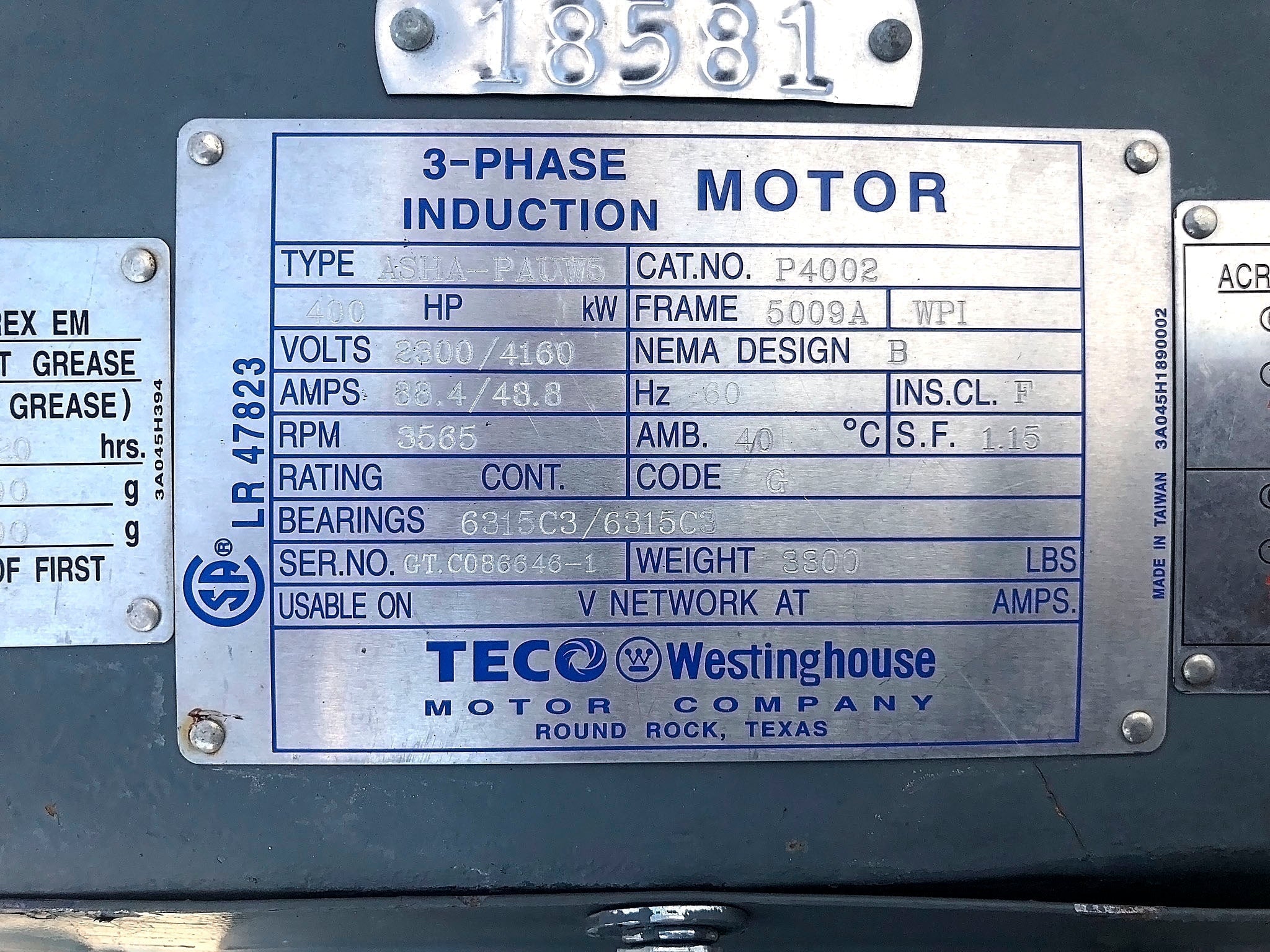

Motor Details
- Motor Included? Yes
- Motor Manufacturer: TECO Electric and Machinery Co.
- Motor Horsepower(HP): 400
- Motor RPM: 3565
- Motor Voltage: 4160
- Motor Amps: 87.9 / 48.8
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 5009A
Dimensions:
Additional Product Details
- Spec Sheet Available: Yes
- Product Purchased From: Pork Processing Plant
