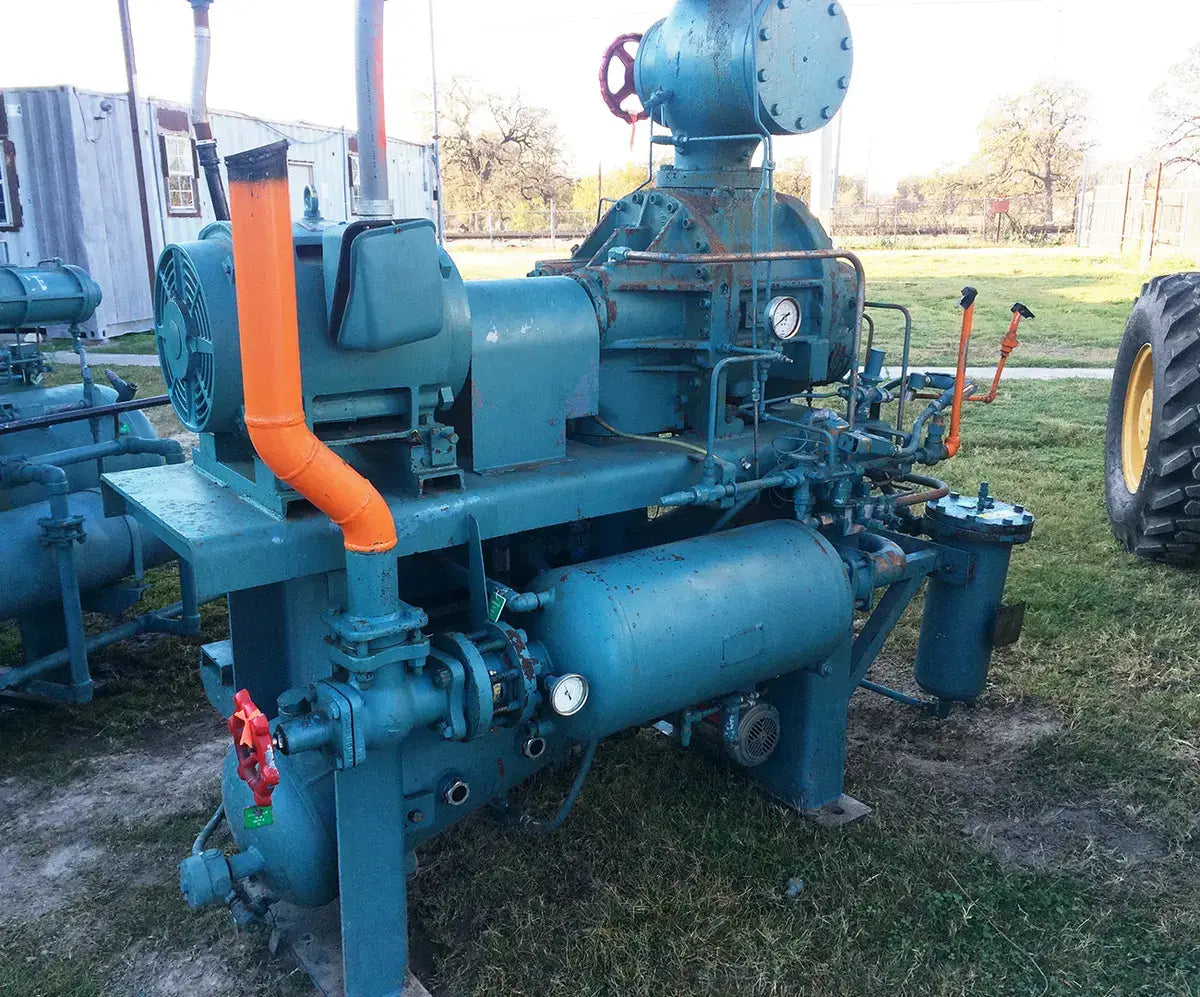

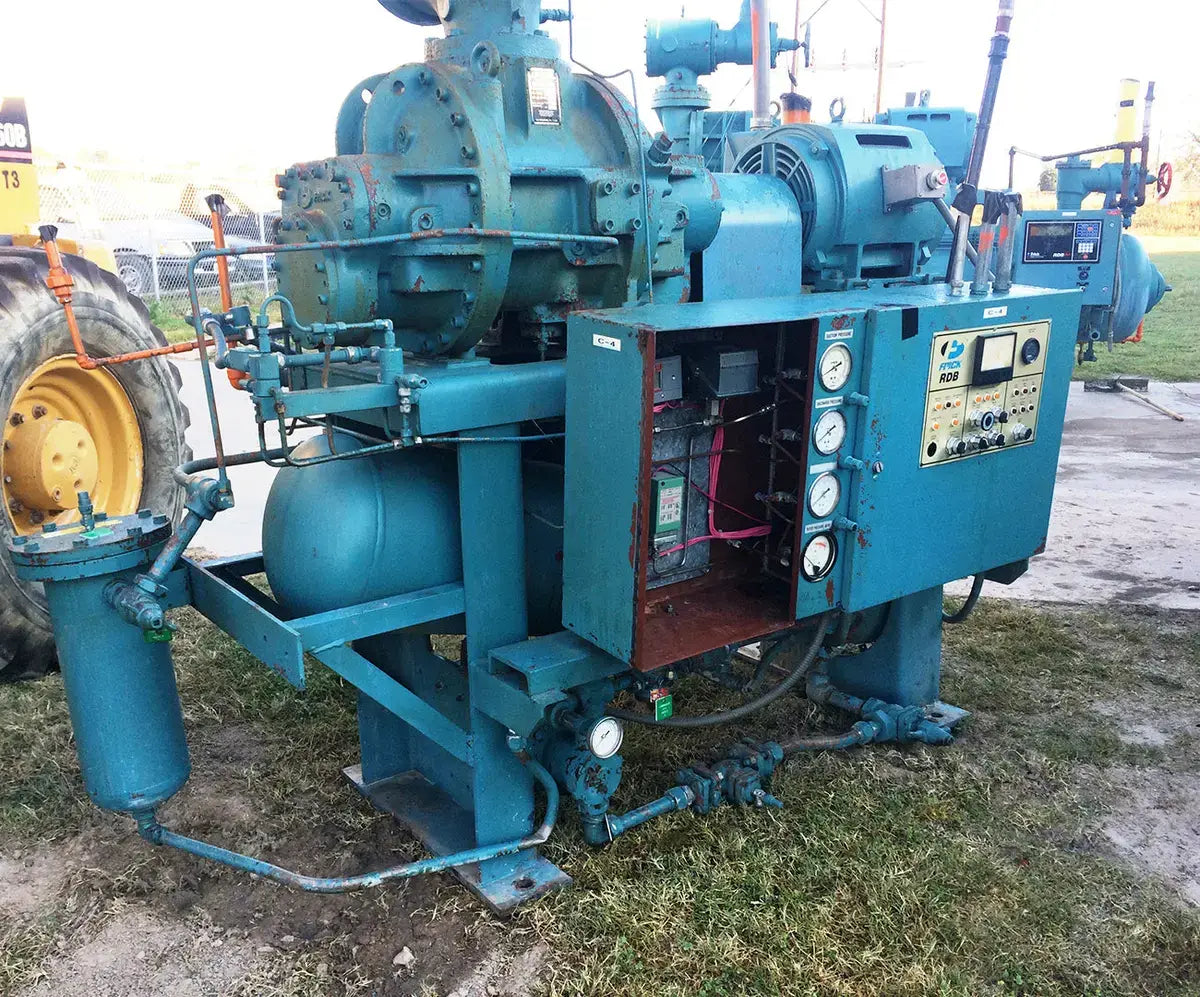

Frick RDB-67 Rotary Screw Compressor Package (Frick TDSL193L, 50 HP 208-230/460 V, MISSING MICRO PANEL)
Frick Rotary Screw Compressor Package. Model: RDB-67. Serial SO025GFEFLHAA3. Sales ord r262425-01. Refrigerant: R-717. Compressor model: TDSL193L0077DD. Volume ratio: 2.8. Toshiba electric motor: 50 HP, 1765 RPM, 208-230/460V,126/63 amps, 60 Hz, 3-phase, 326T Frame, also usable on 575V.
Product Details
- Stock No: ATZB04
- Manufacturer: Frick
- Model: RDB-67
- Serial Number: SO025GFEFLHAA3
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage

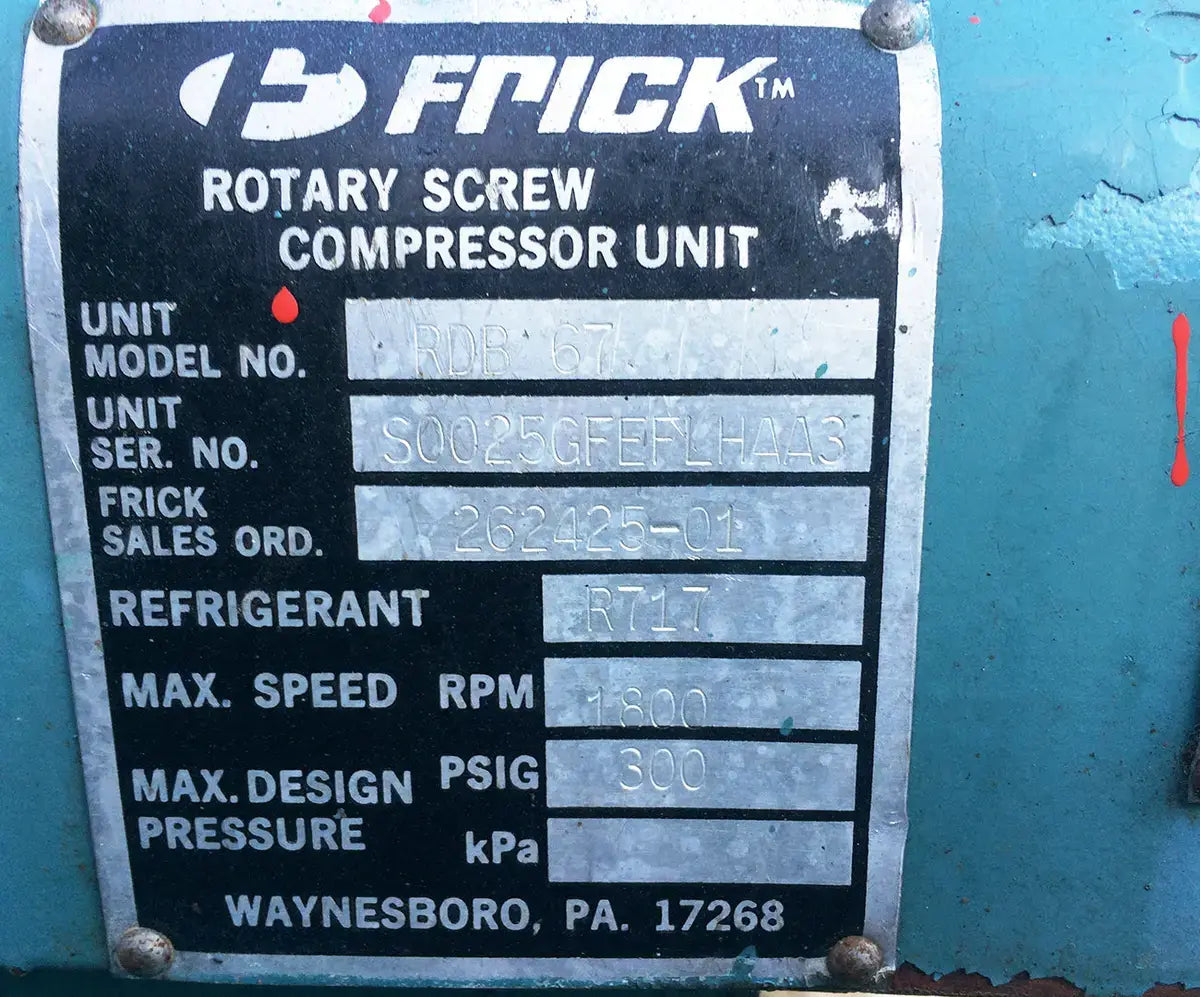

Package Details
- Package Manufacturer: Frick
- Package Model: RDB-67
- Package SN: SO025GFEFLHAA3
- Package Order: r262425-01
- Package Max Speed (RPM): 1800
- Package Max Design Pressure (PSIG): 300

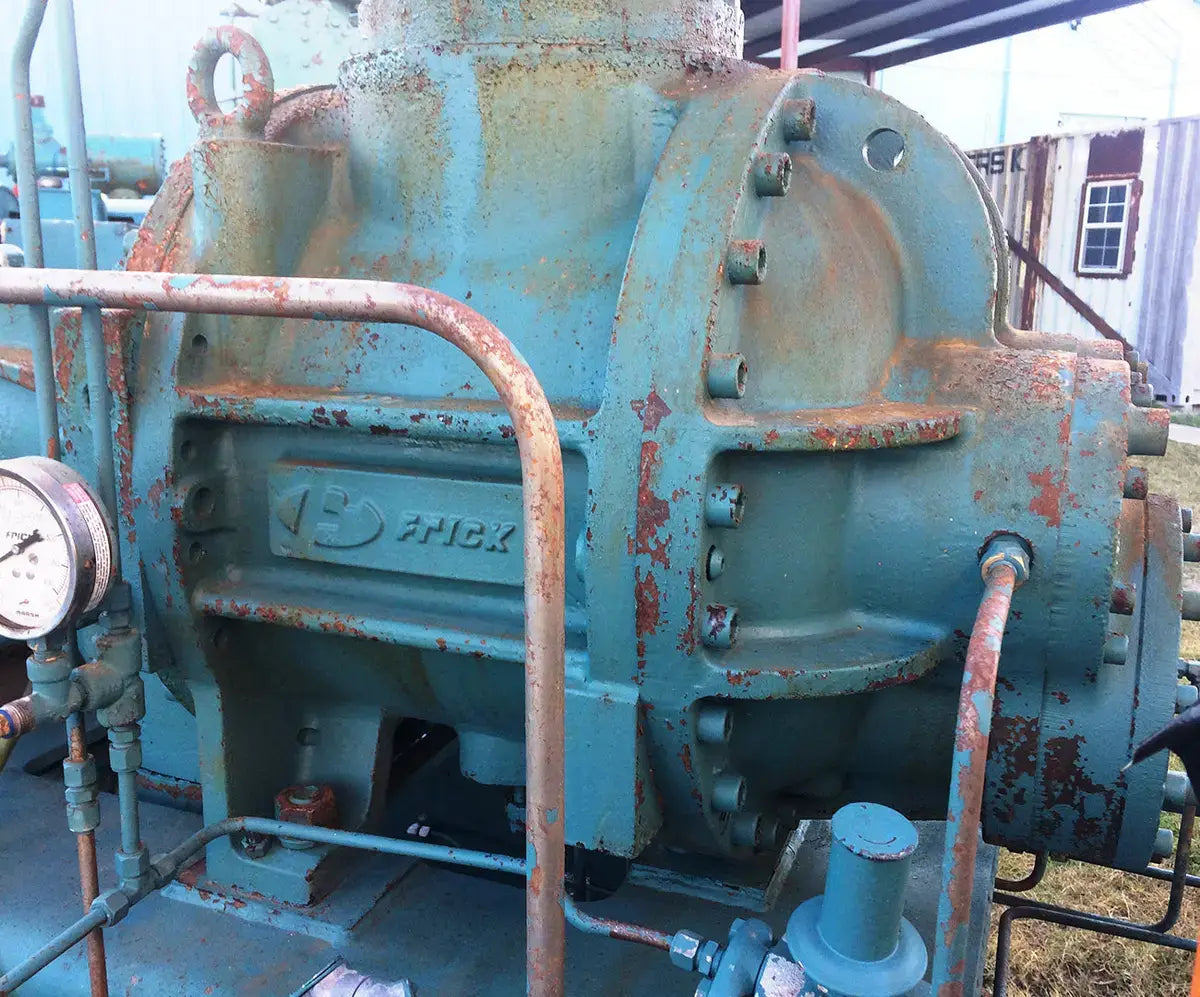

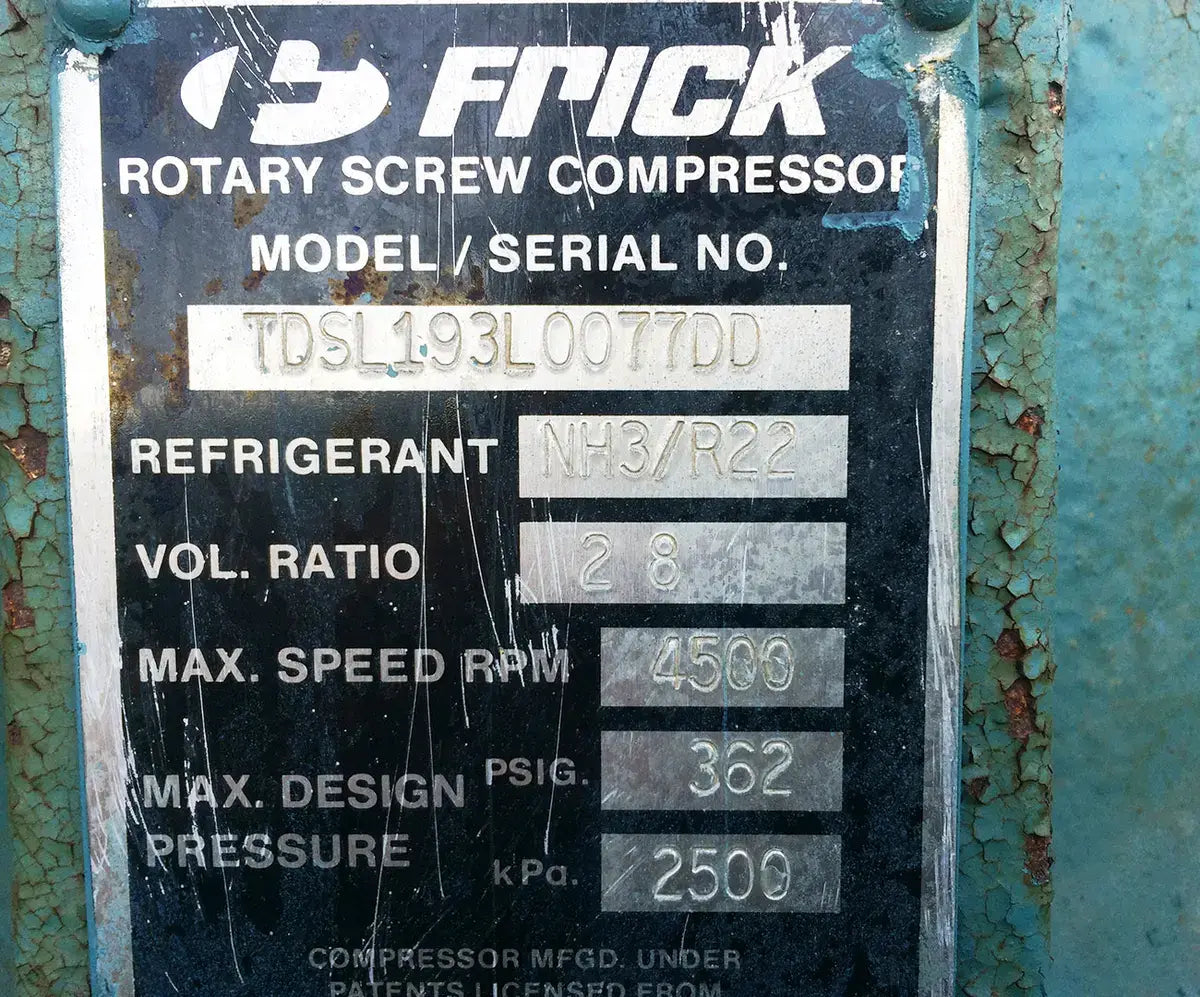

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1
- Compressor Model: TDSL193L
- Compressor SN: TDSL193L0077DD
- Compressor Max Speed (RPM): 4500
- Compressor Design Pressure (PSIG): 362
- Compressor Volume Ratio: 2.8
- Oil Separator Included? No
Micro Panel Details
- Micro Control Panel Included? No
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

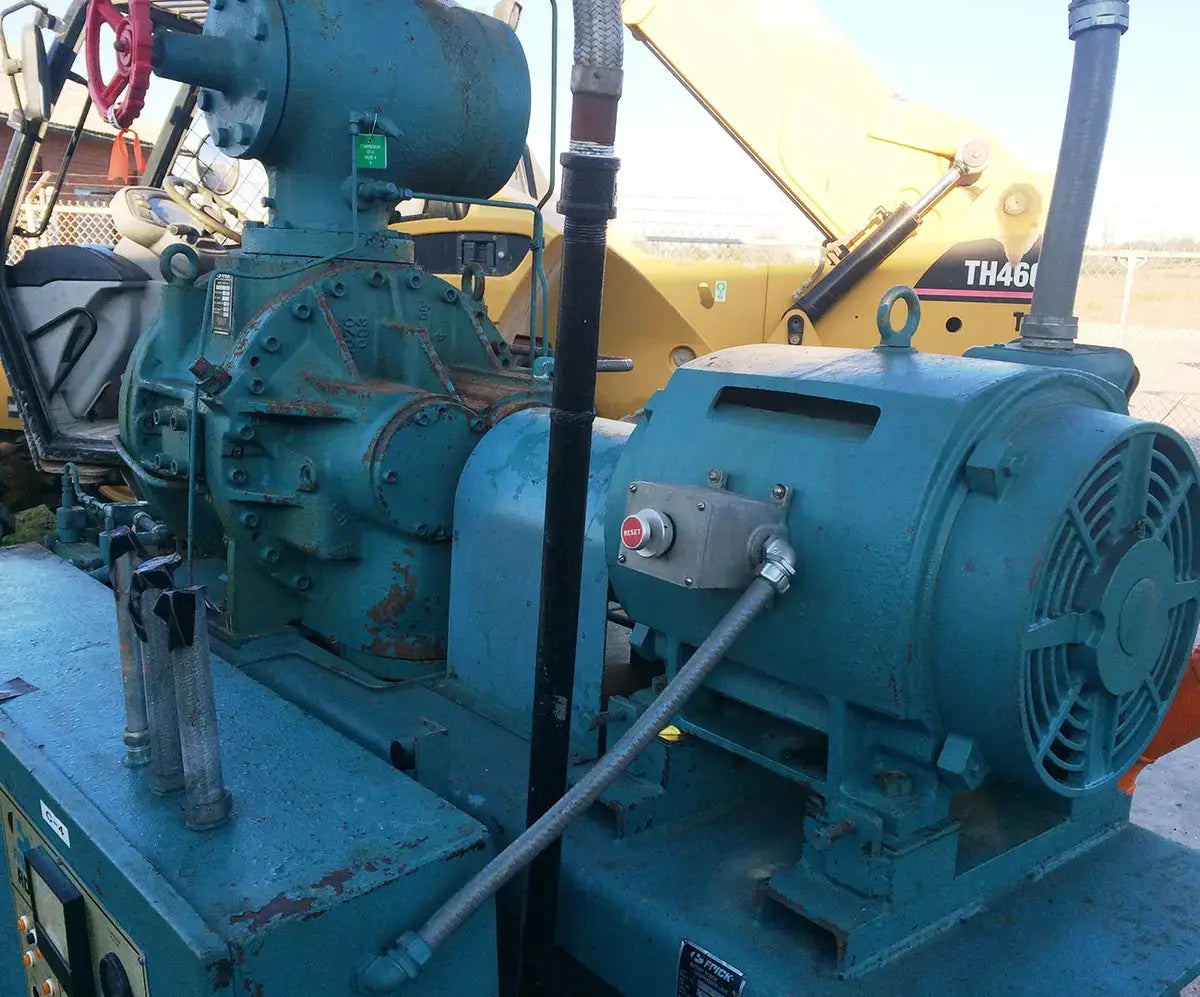

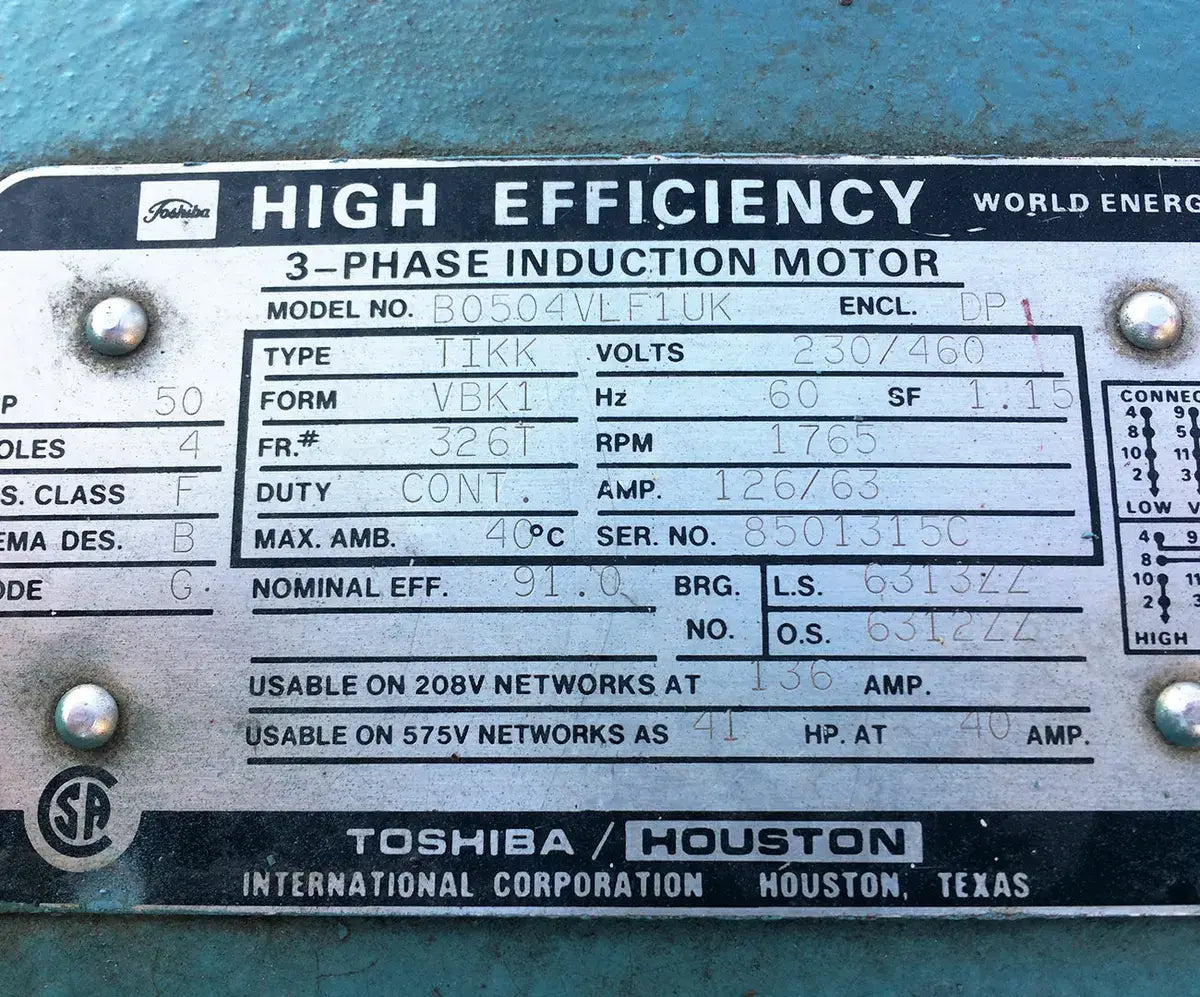

Motor Details
- Motor Included? Yes
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 50
- Motor RPM: 1765
- Motor Voltage: 208-230/460
- Motor Amps: 126/63
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 326T
Dimensions:
Additional Product Details
- Spec Sheet Available: Yes
