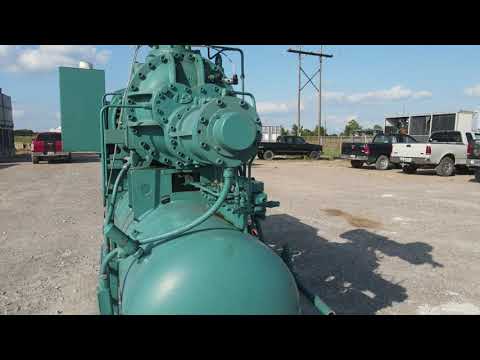

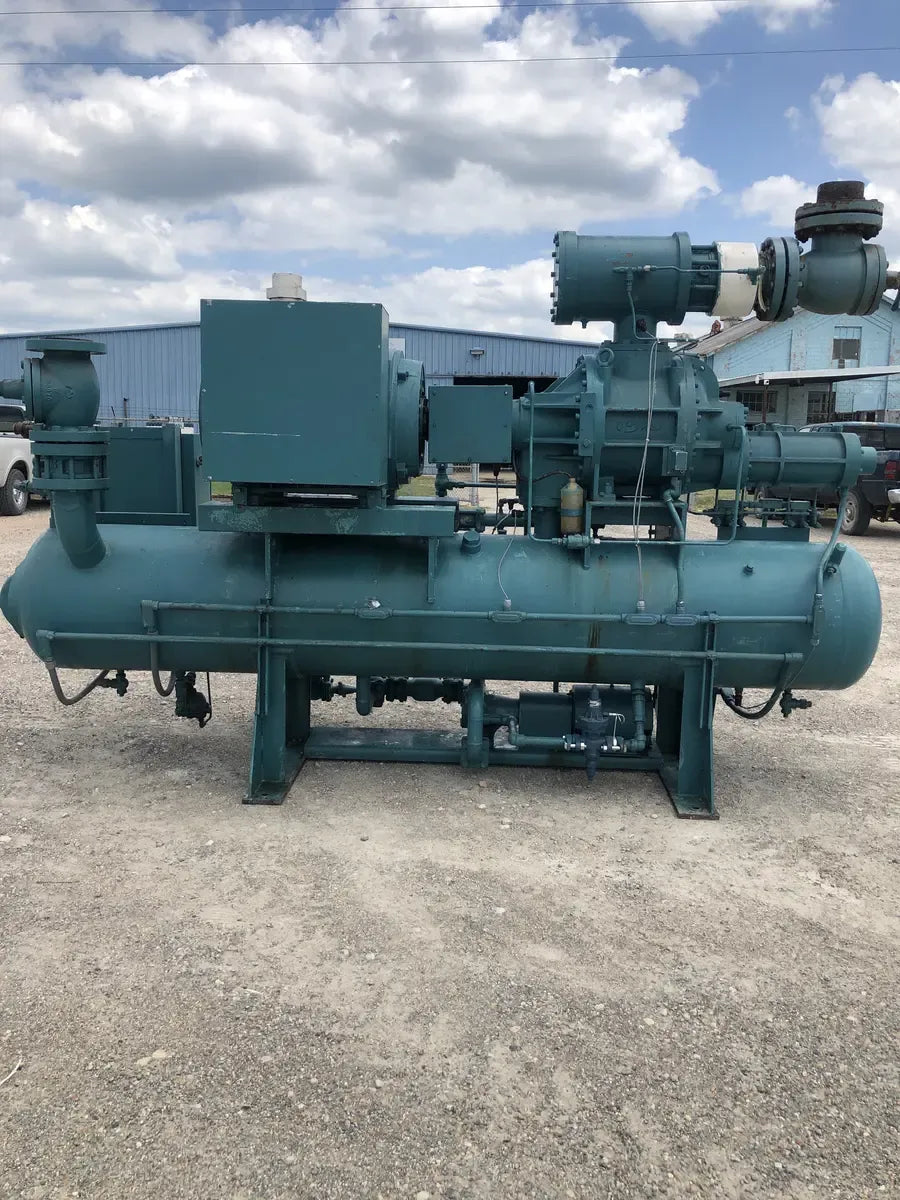

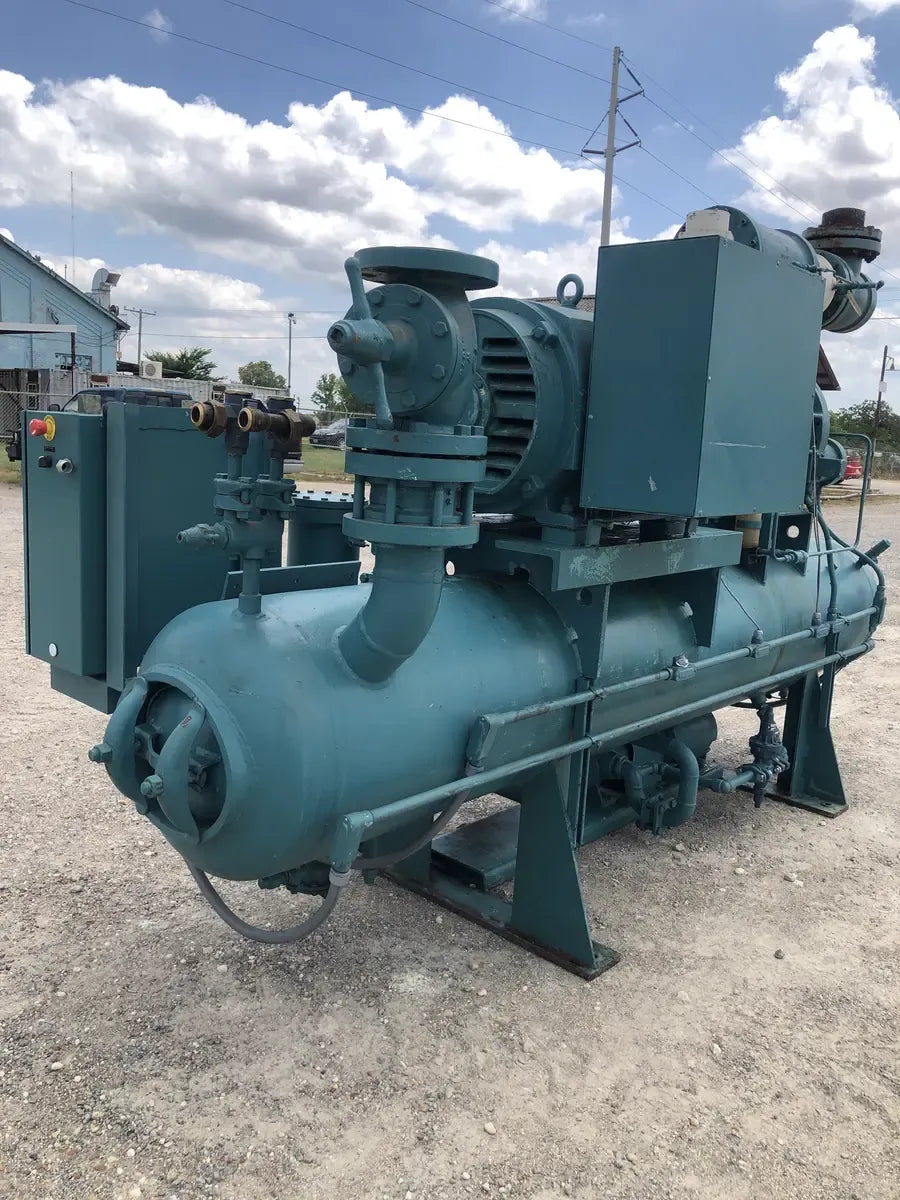

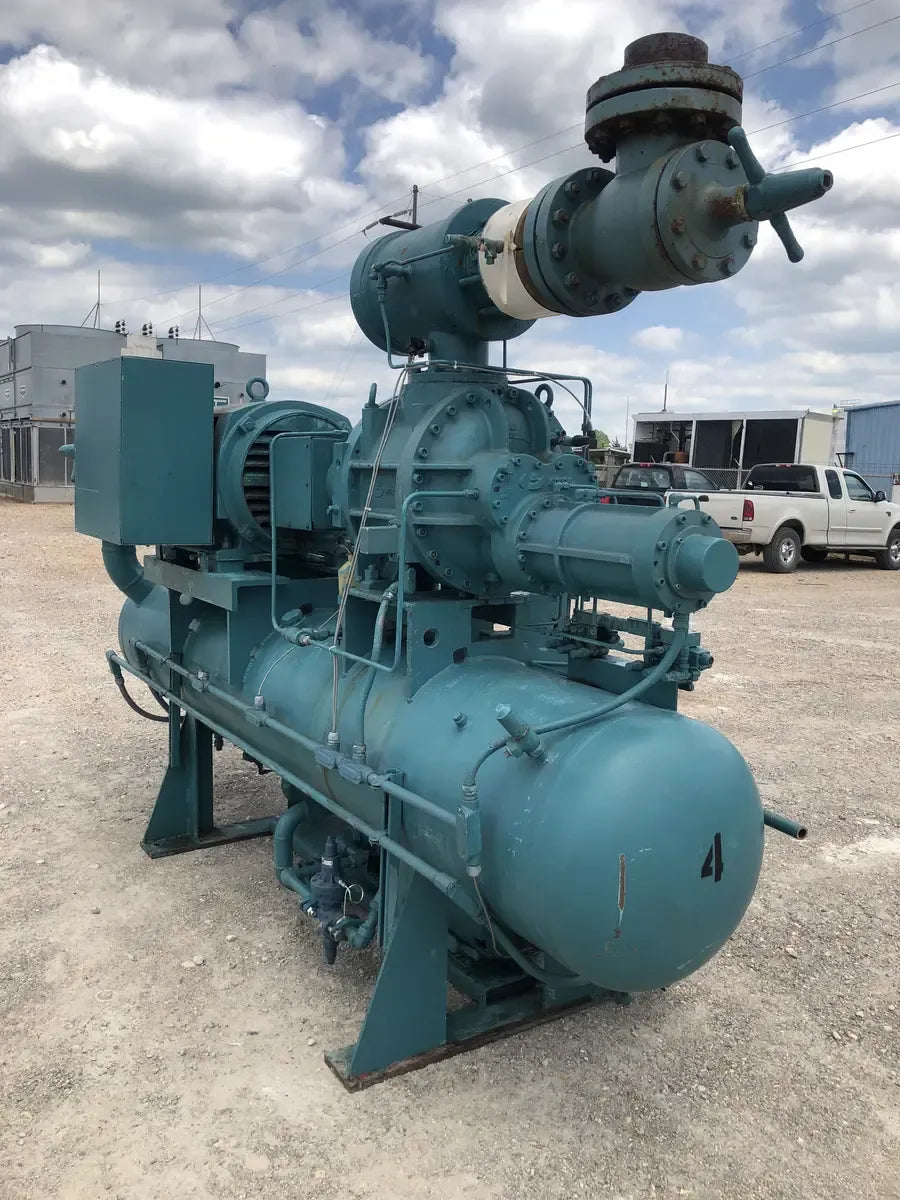

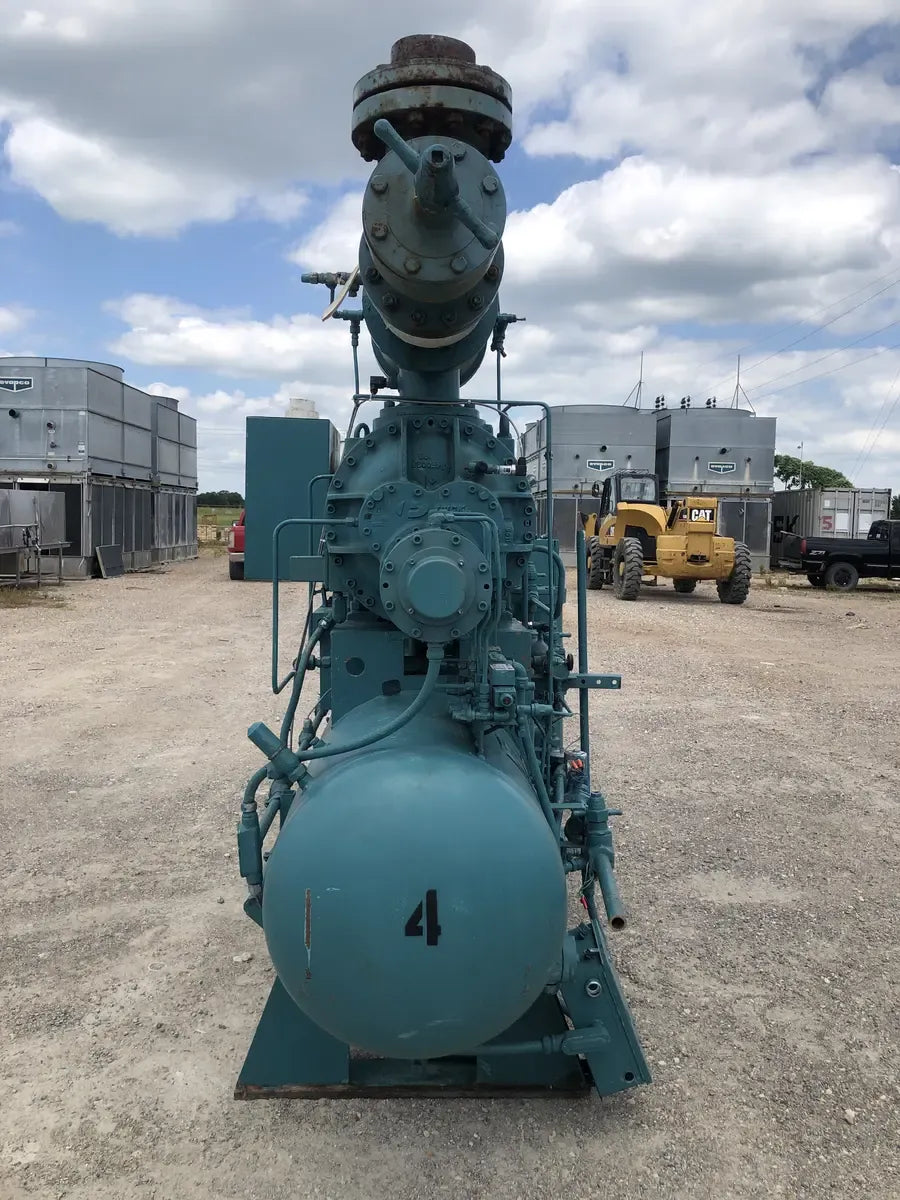

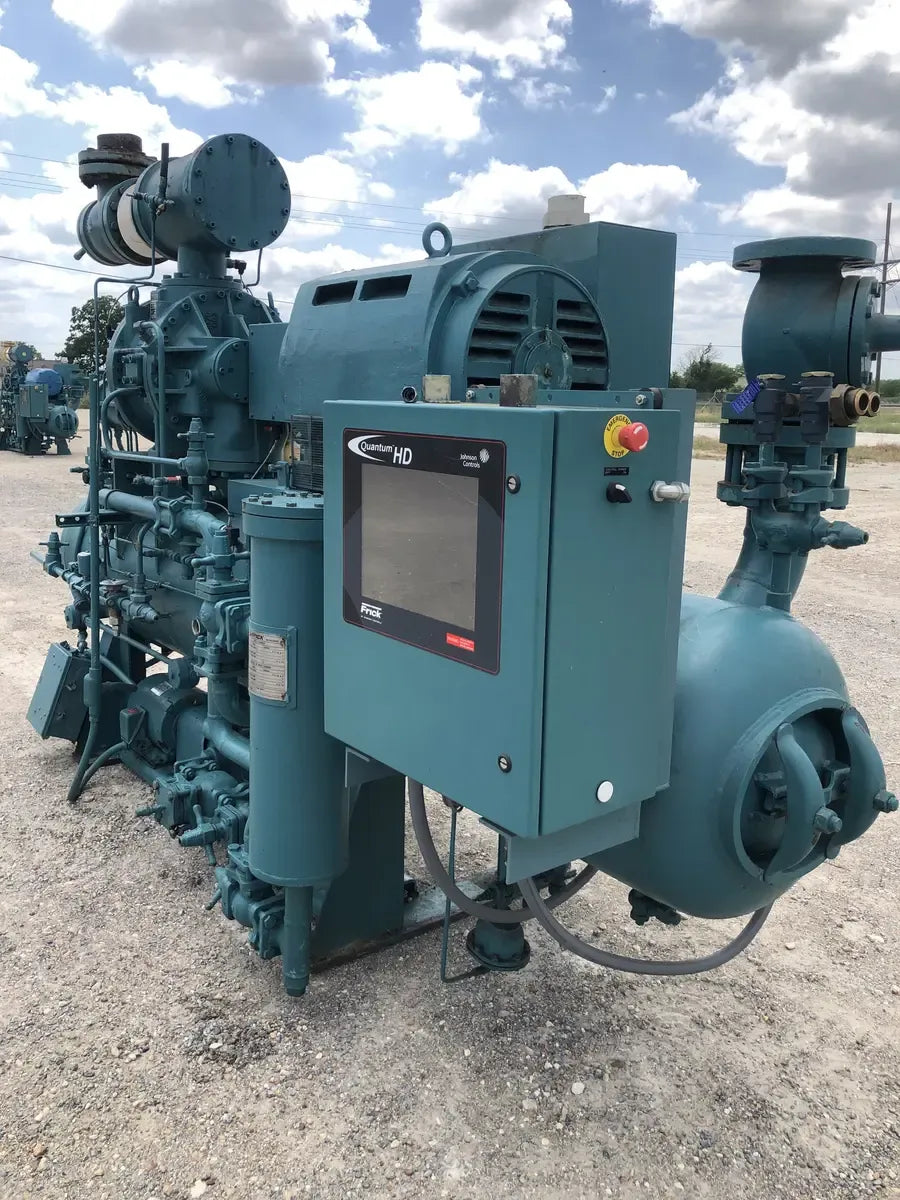

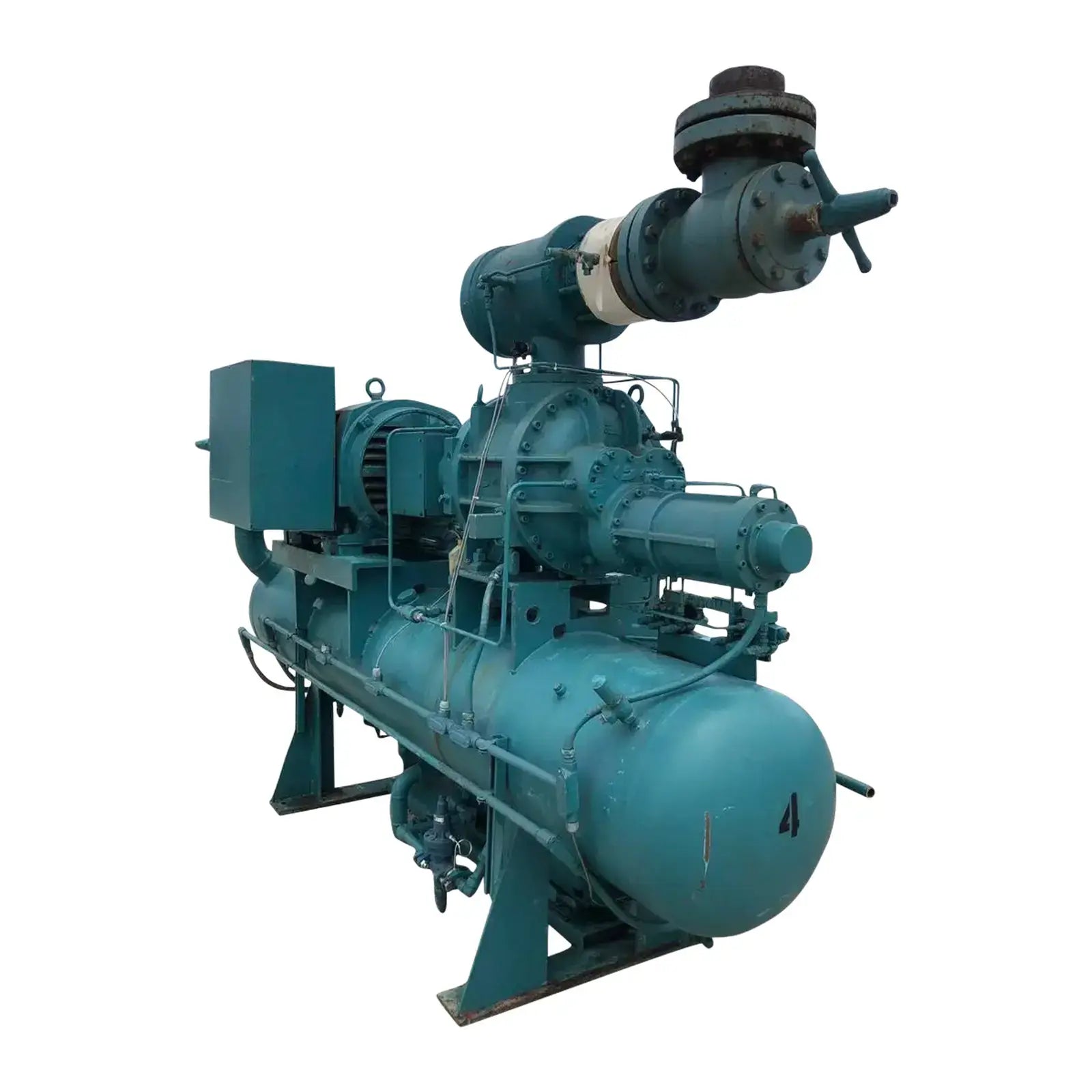

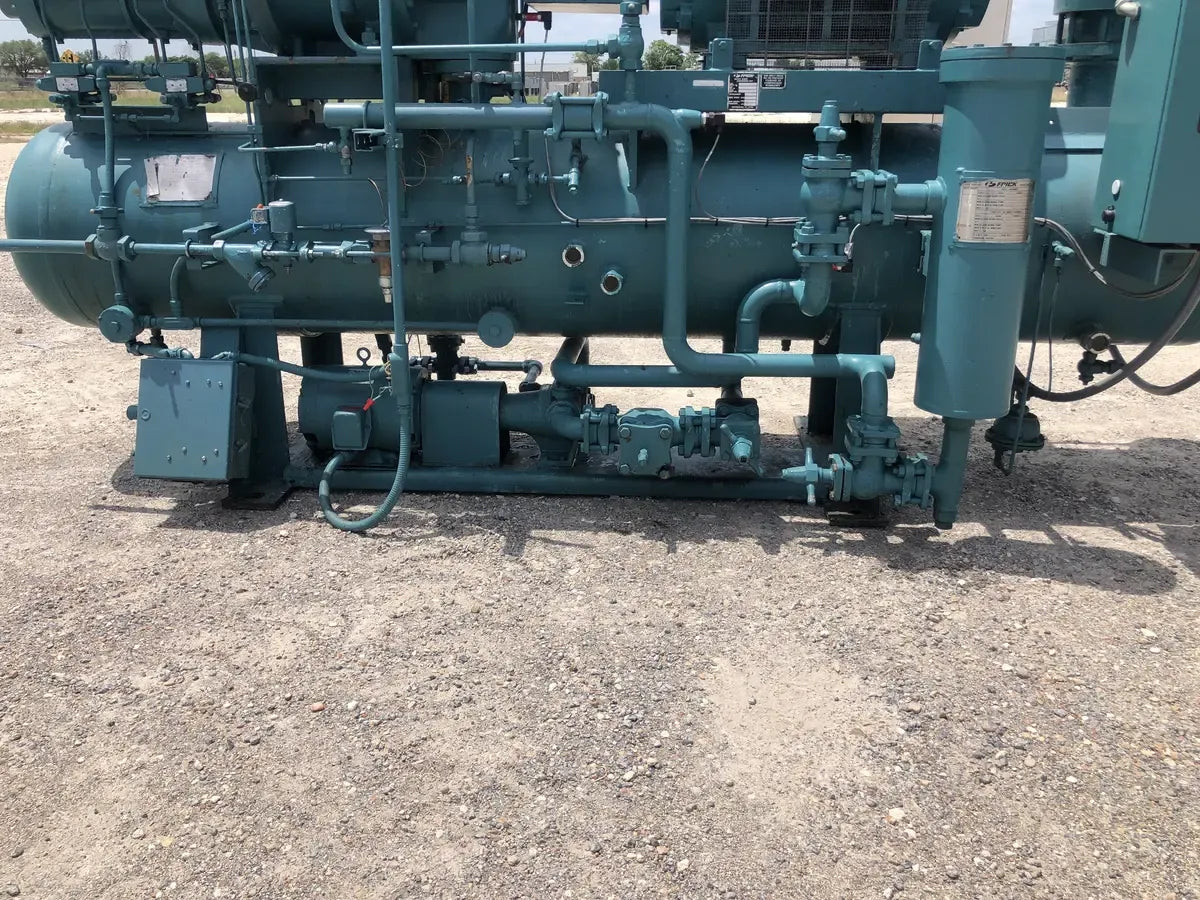

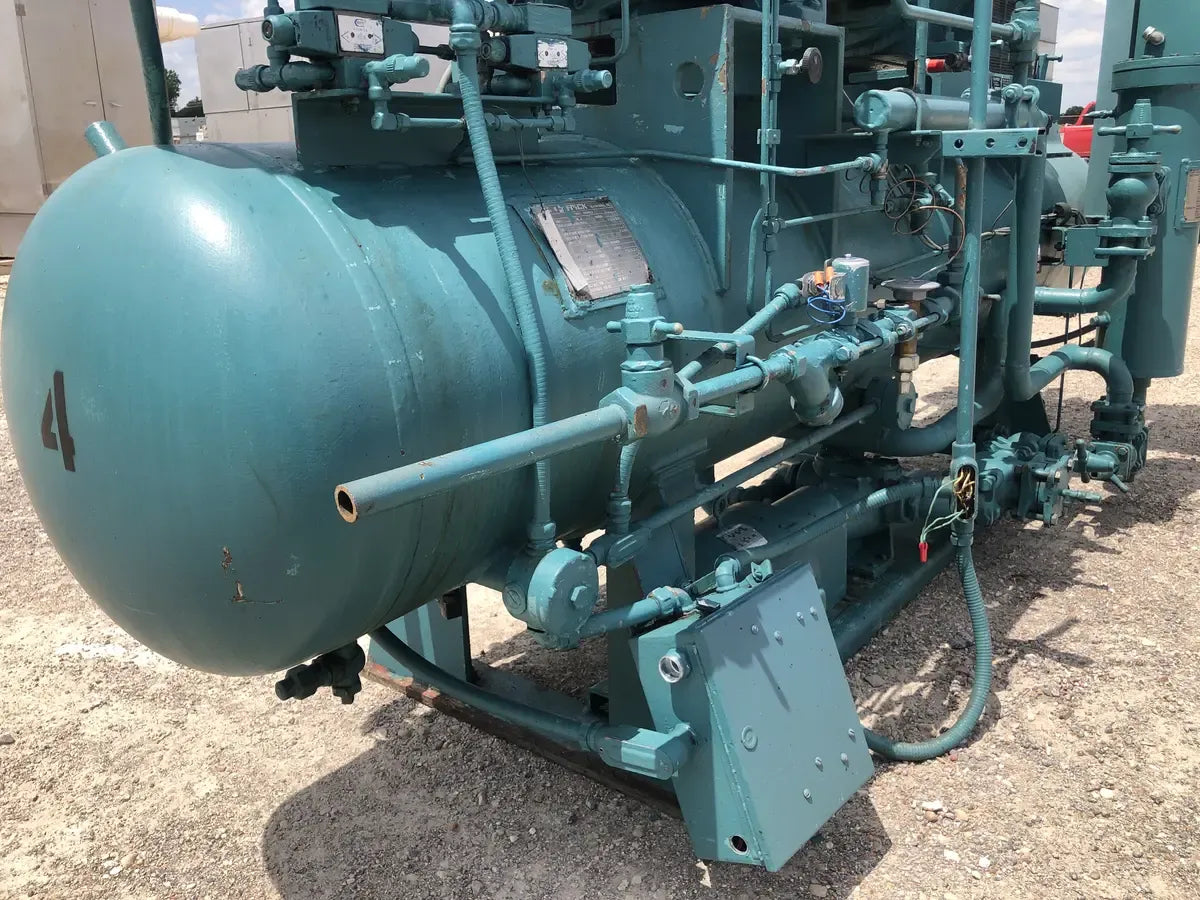

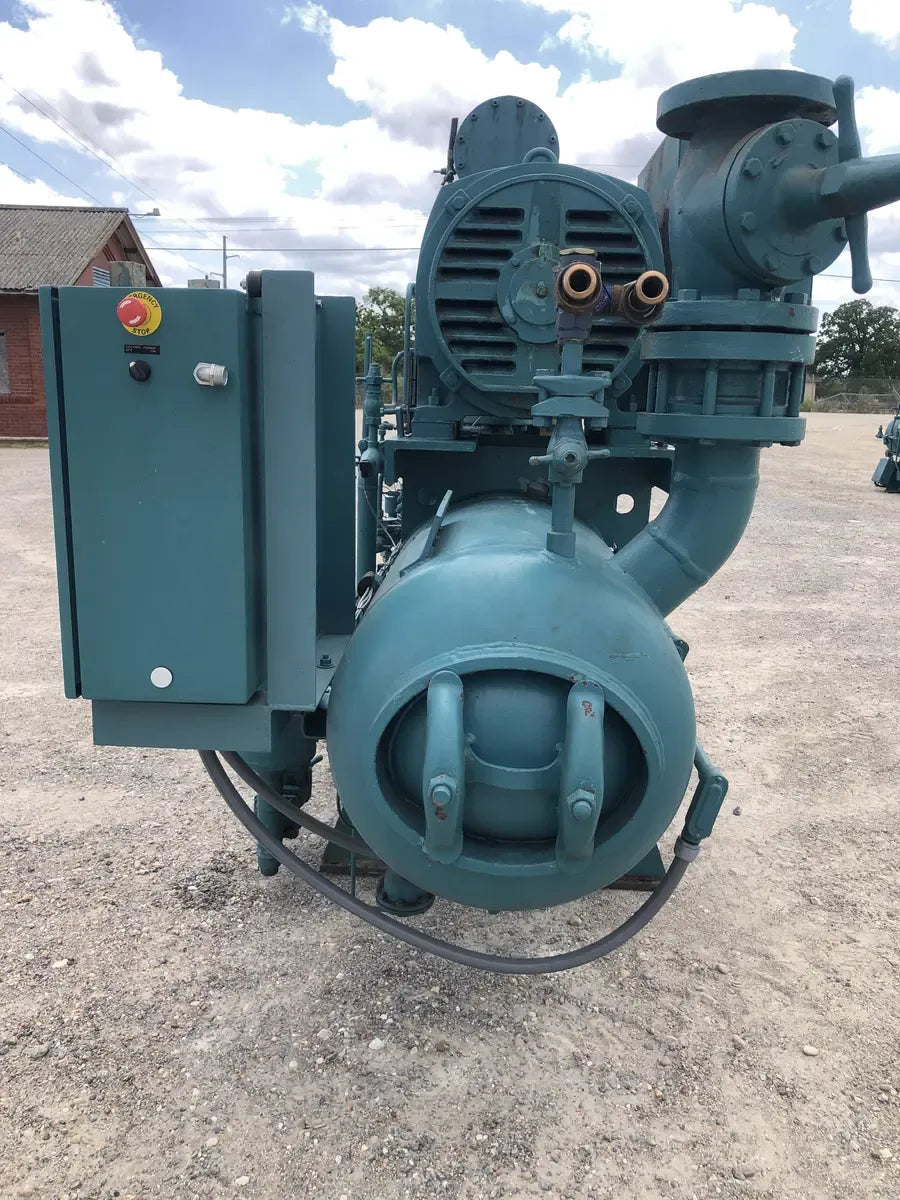

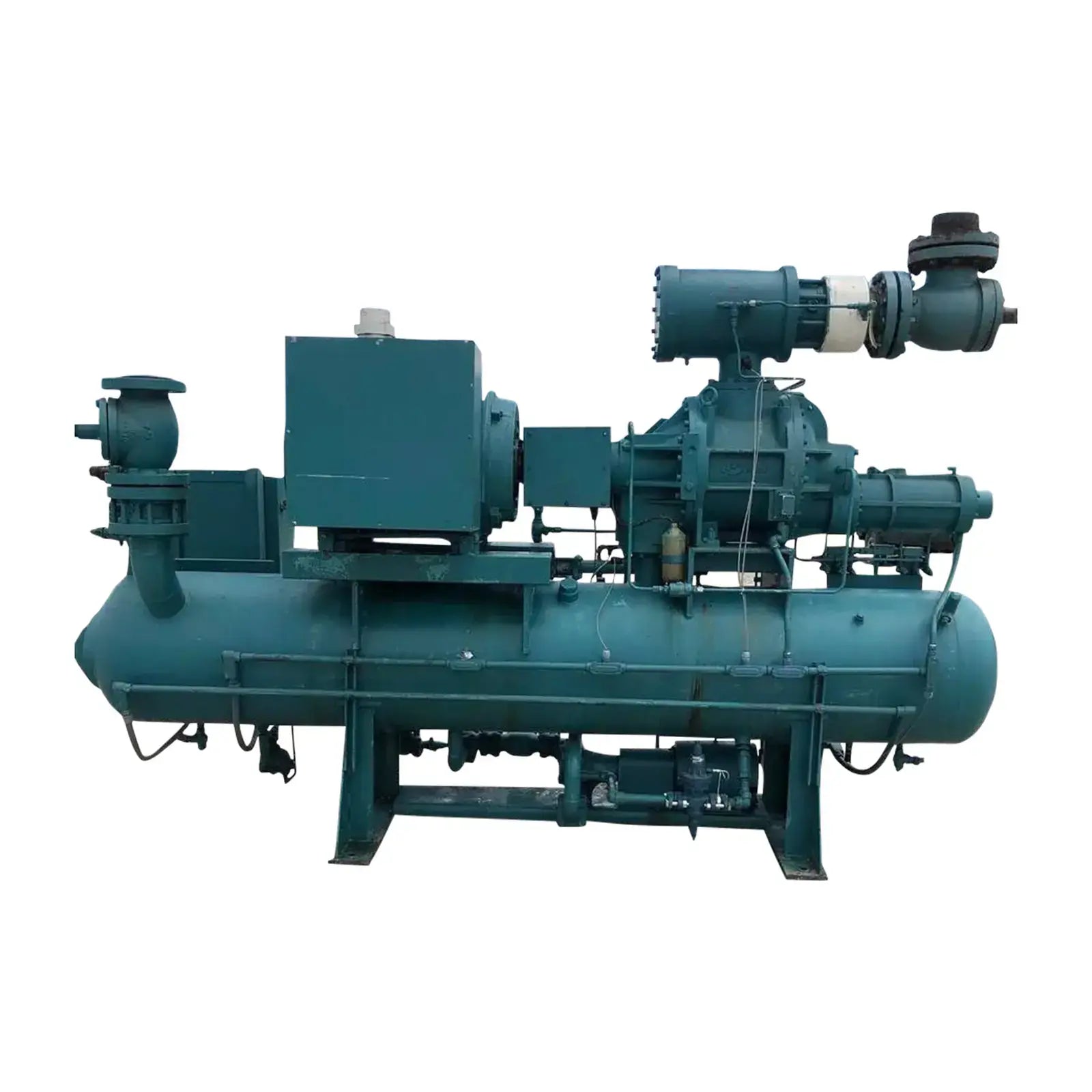

Frick RWB-11-134H Rotary Screw Compressor Package (TDSD193L, 300HP 460V, Frick Quantum HD Retrofit Panel)

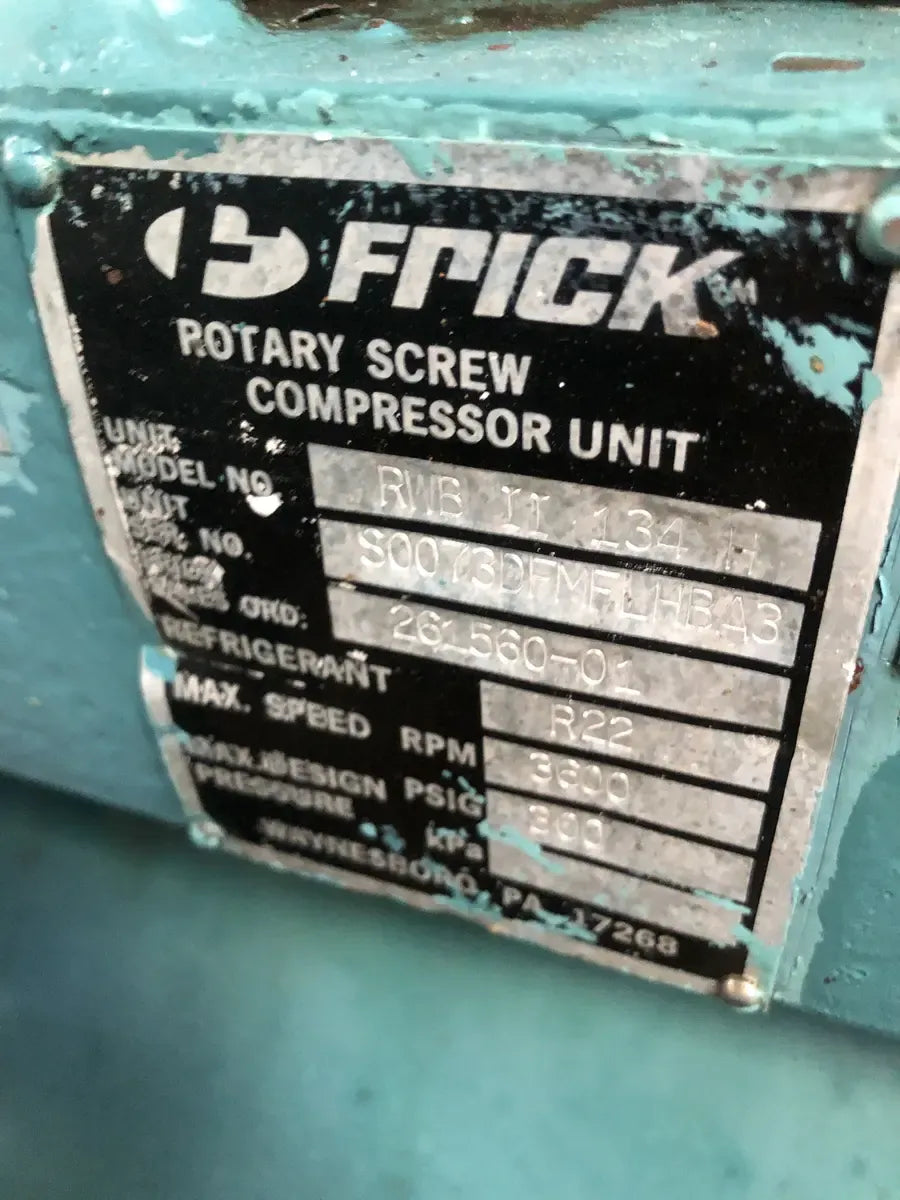

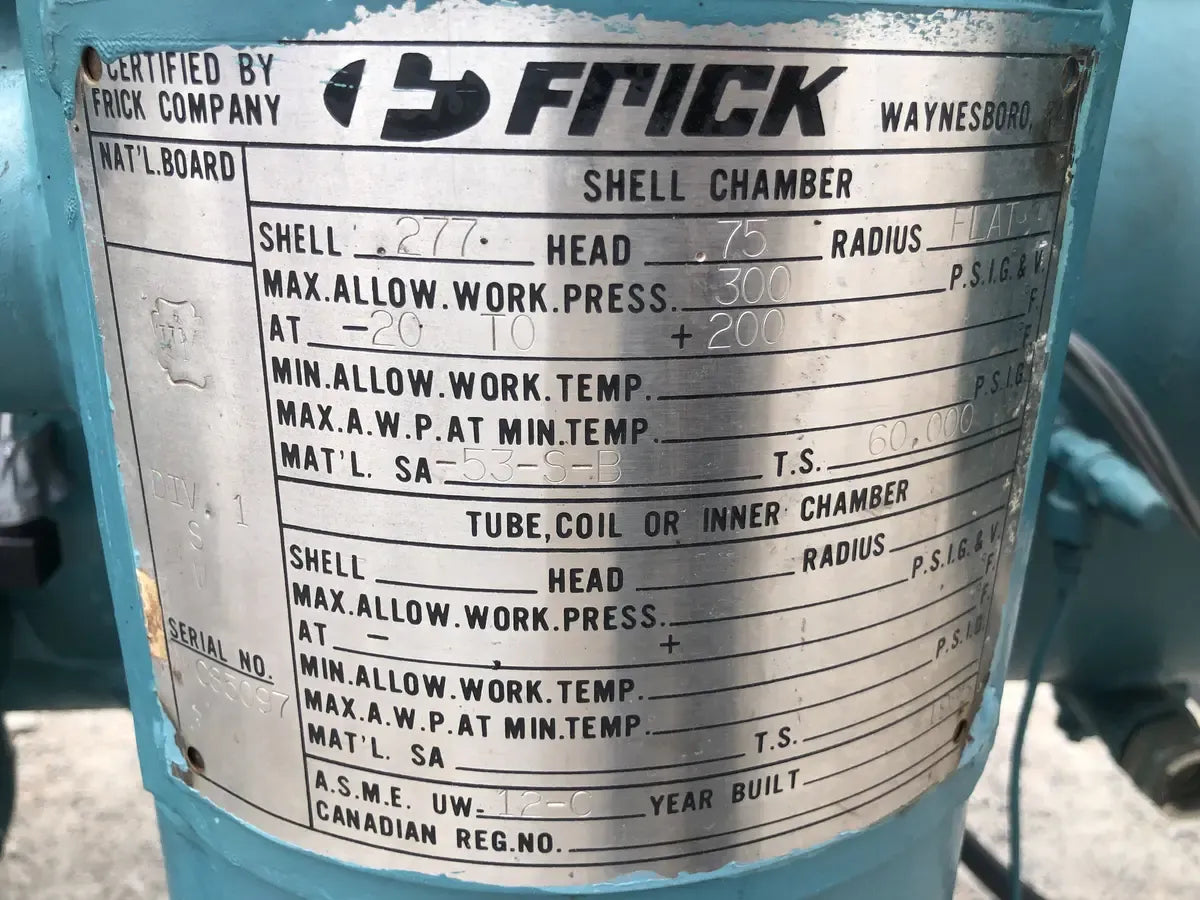

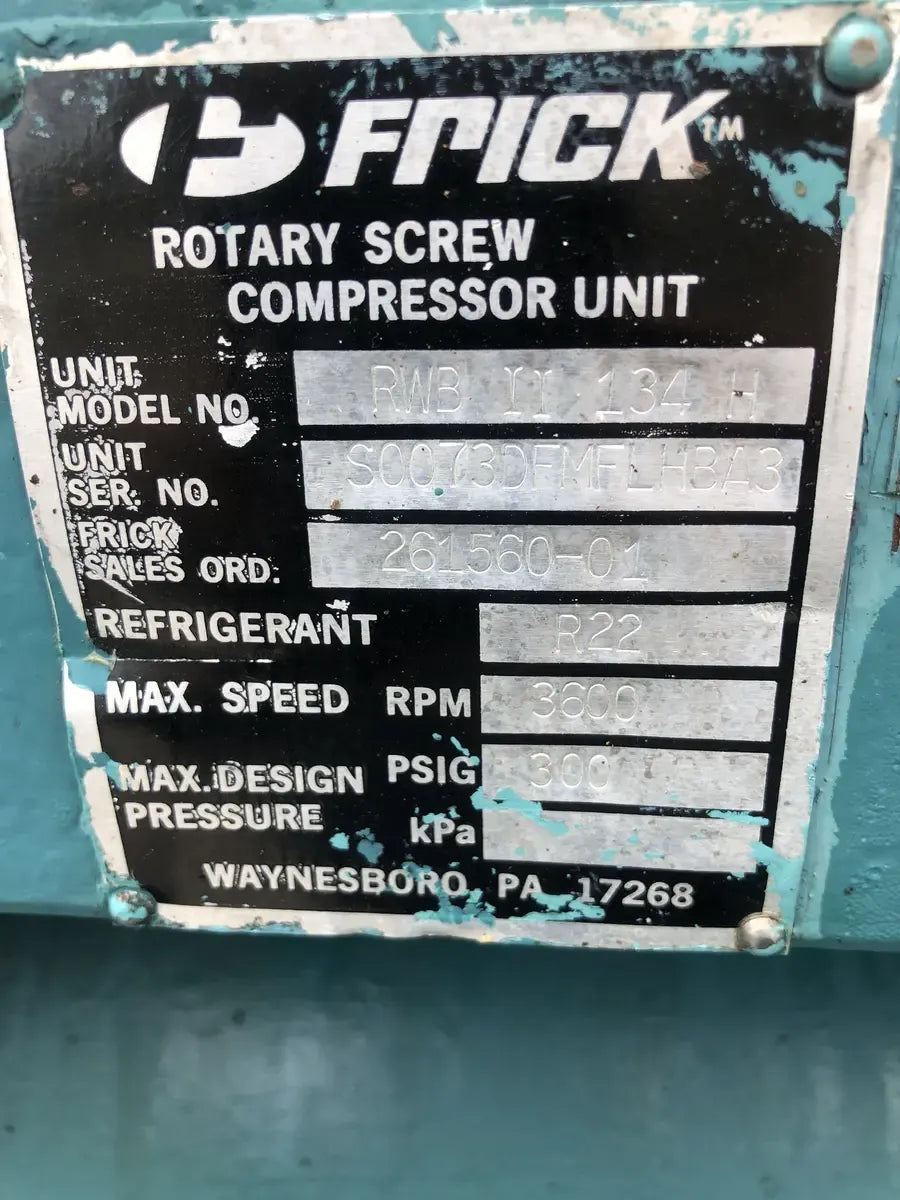

Frick Rotary Screw Compressor Unit: Model: RWB II 134 H, Unit Serial No: S0073DFMFLHBA3, Frick Sales Ord: 261560-01, Refrigerant: R22, Max Speed RPM: 3600, Max Design Pressure: Psig: 300. Toshiba Motor: Model No: B3002VLG3BD, Volts: 460, AMP: 330, Type: TIKK, Frame: 447TSS, Form: VCK1, Service Factor: 1.15, RPM: 3540, Max AMB: 40C, Serial No: 5900114. Frick Oil Separator: Natl Brd: 63693, Shell Chamber: Shell: 375, Head: 375, Radius: 2/1, Max Allow Work Press: 300 Psig @ -20 to 200. Year Built: 1985. Frick Package: Model/Serial: TDSH193L1085D, Refrigeran: R22, Vol Ratio: 2 2-5 0, Max Speed RPM: 4500, Max Design Pressure: Psig: 362, KPA: 2500. Frick Quantum Hd Retrofit Panel: Production Order: 5011117837, Material No: US2430106243200020, Description: Quantum HD Retrofit Panel, Serial: 10241L65613505, Volts: 115AC, Cntl: 6, Short Circuit Current: 5 kA rms, Symmetrical: 120 V Maximum, Panel Grounding Tested: 3074.
Product Details
- Stock No: RJR04
- Manufacturer: Frick
- Model: RWB-II-134H
- Serial Number: S0073DFMFLHBA3
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details
- Package Manufacturer: Frick
- Package Model: RWB II 134 H
- Package SN: S0073DFMFLHBA3
- Package Order: 261560-01
- Package Max Speed (RPM): 3,600
- Package Max Design Pressure (PSIG): 362

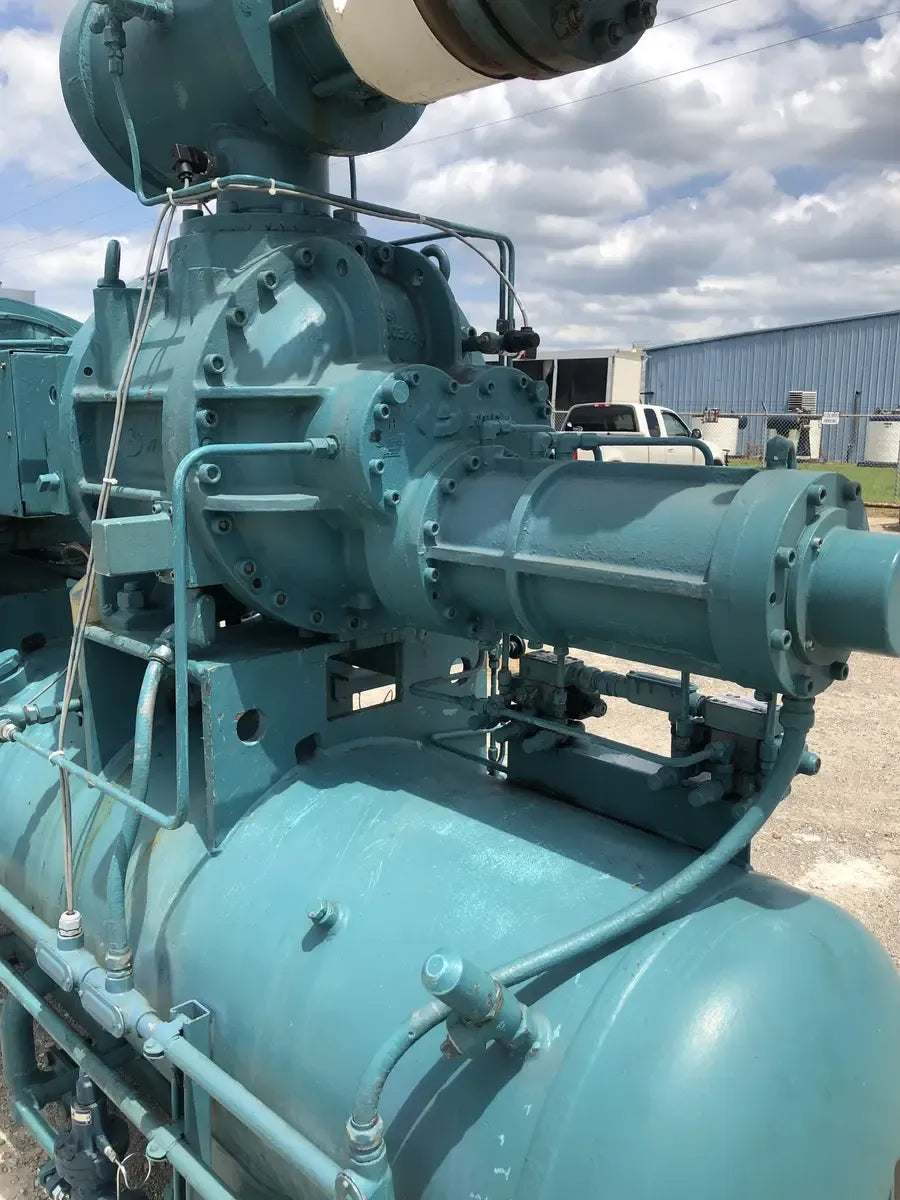

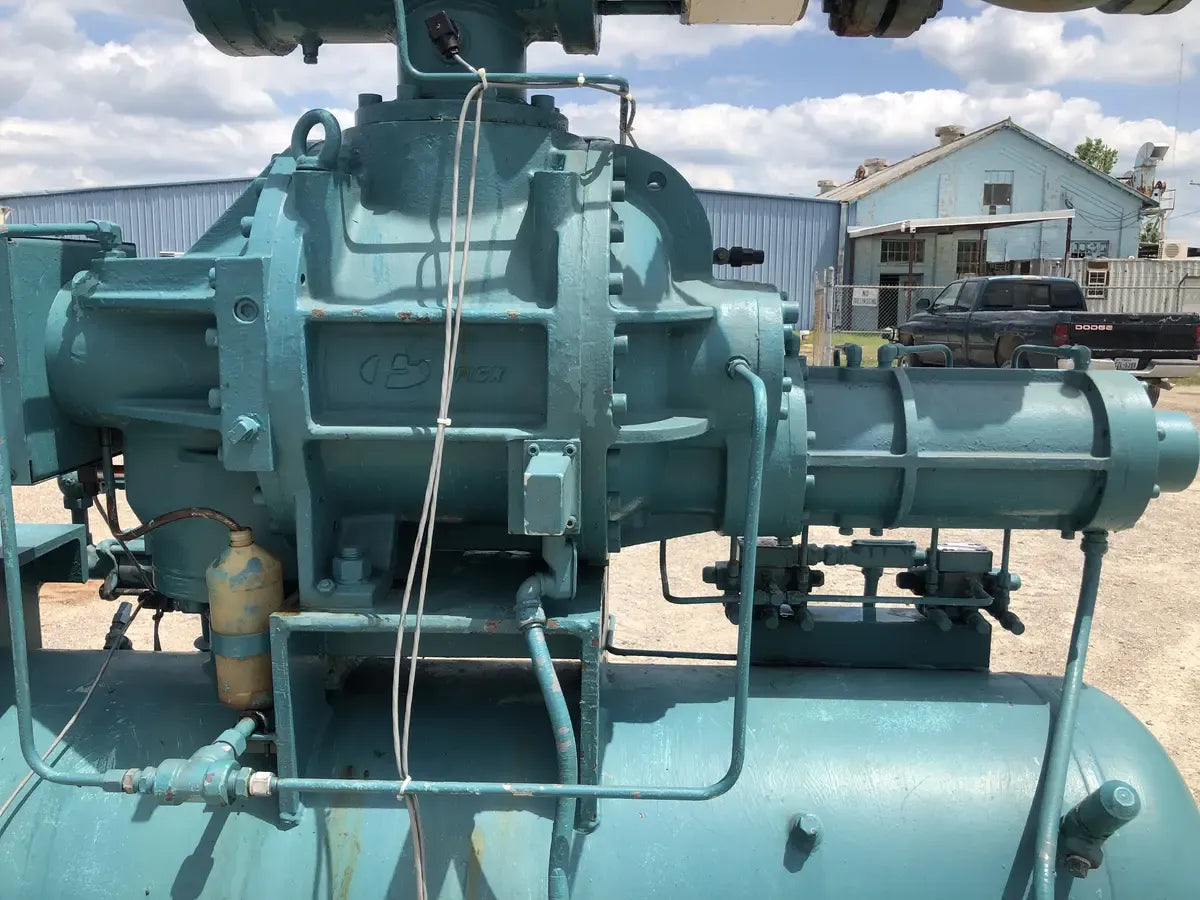

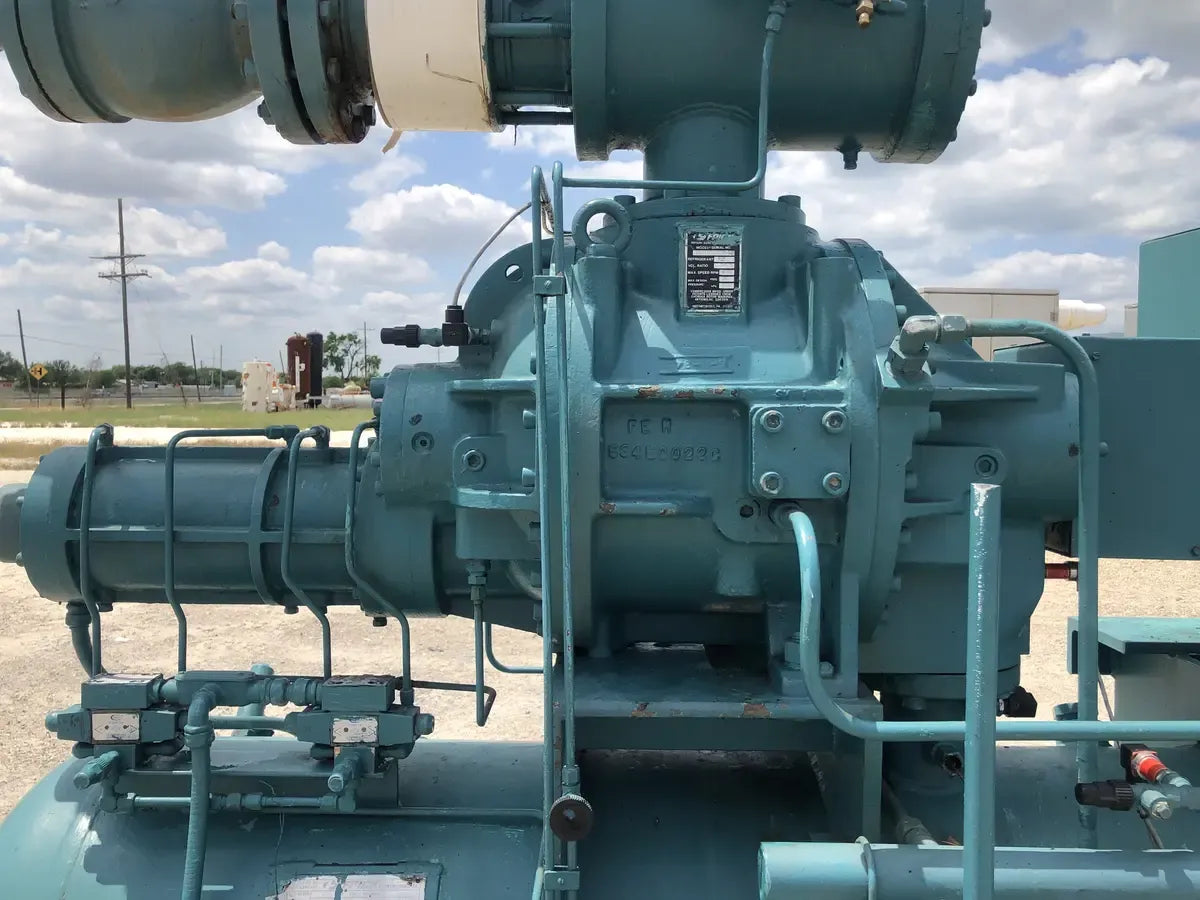

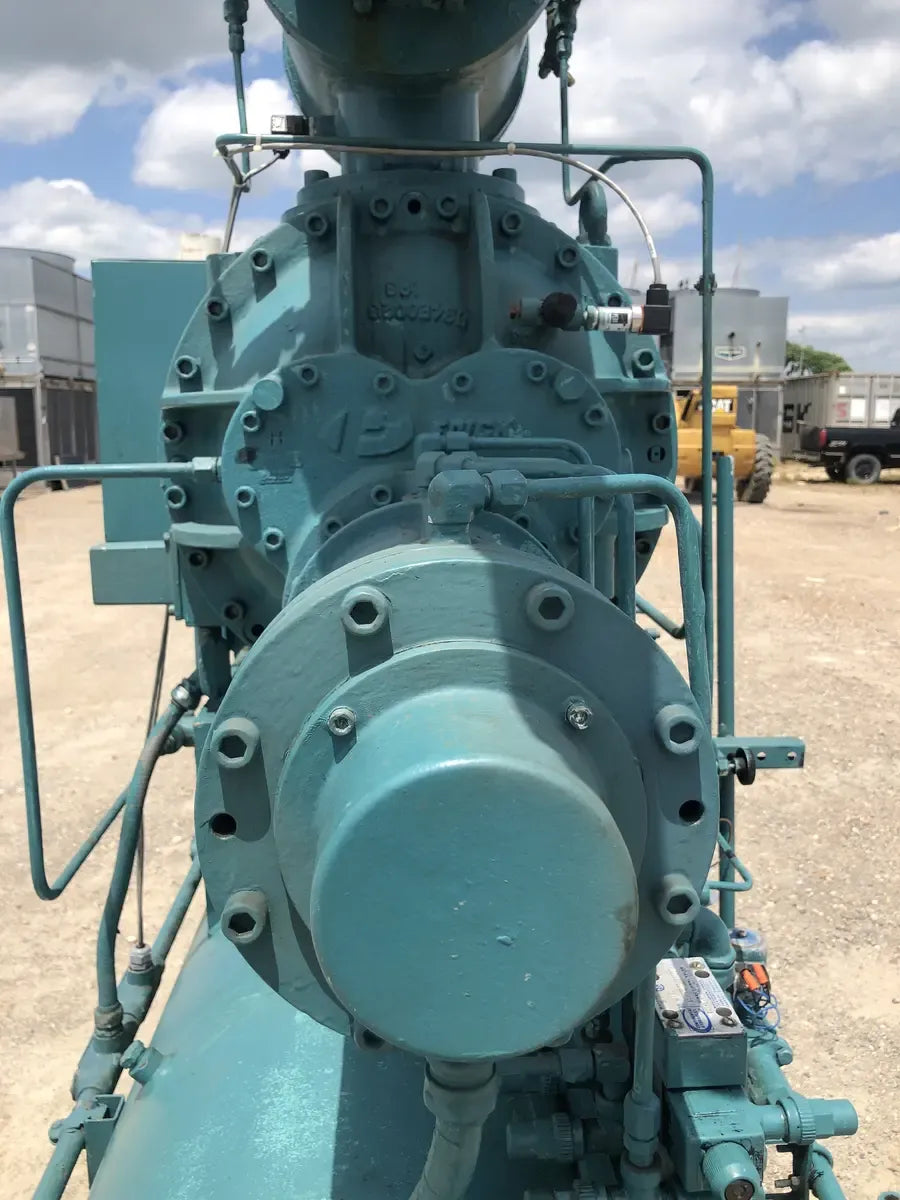

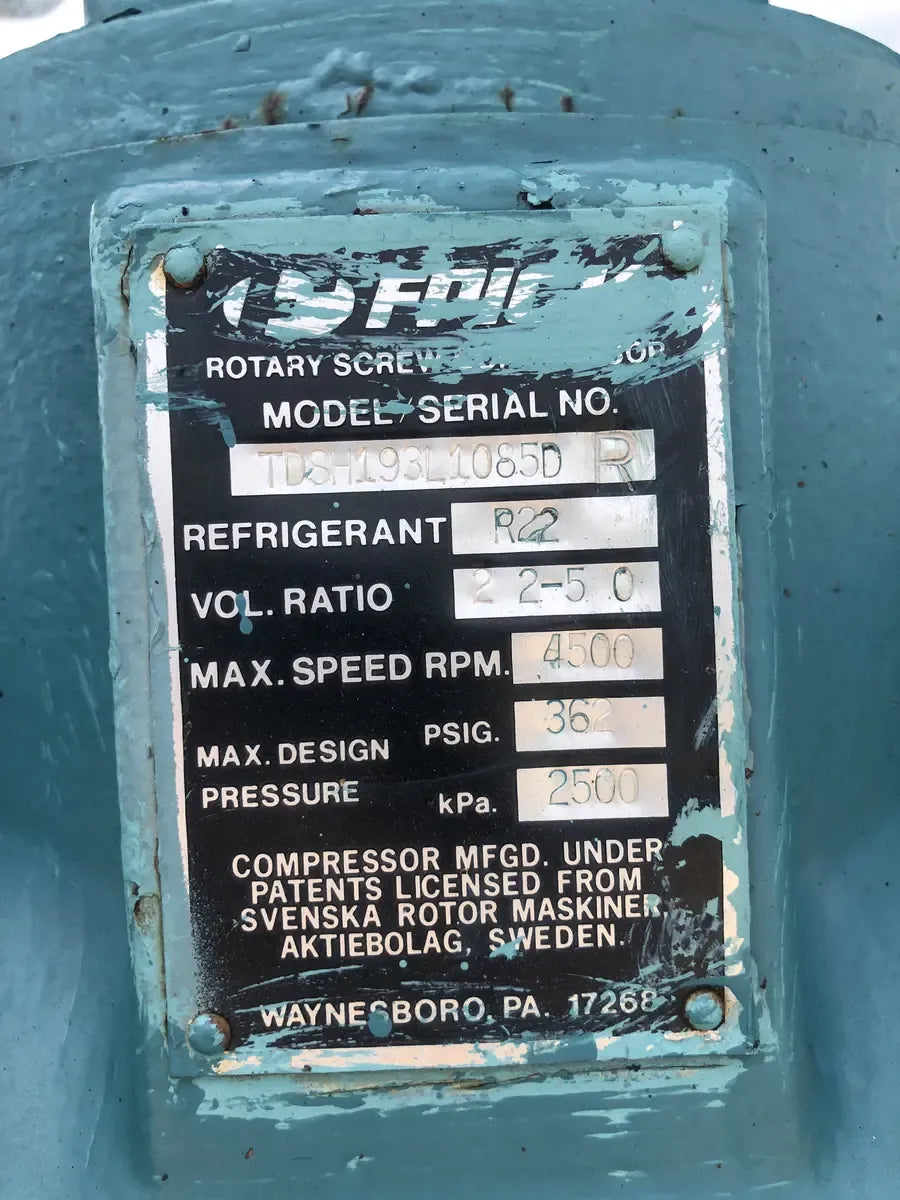

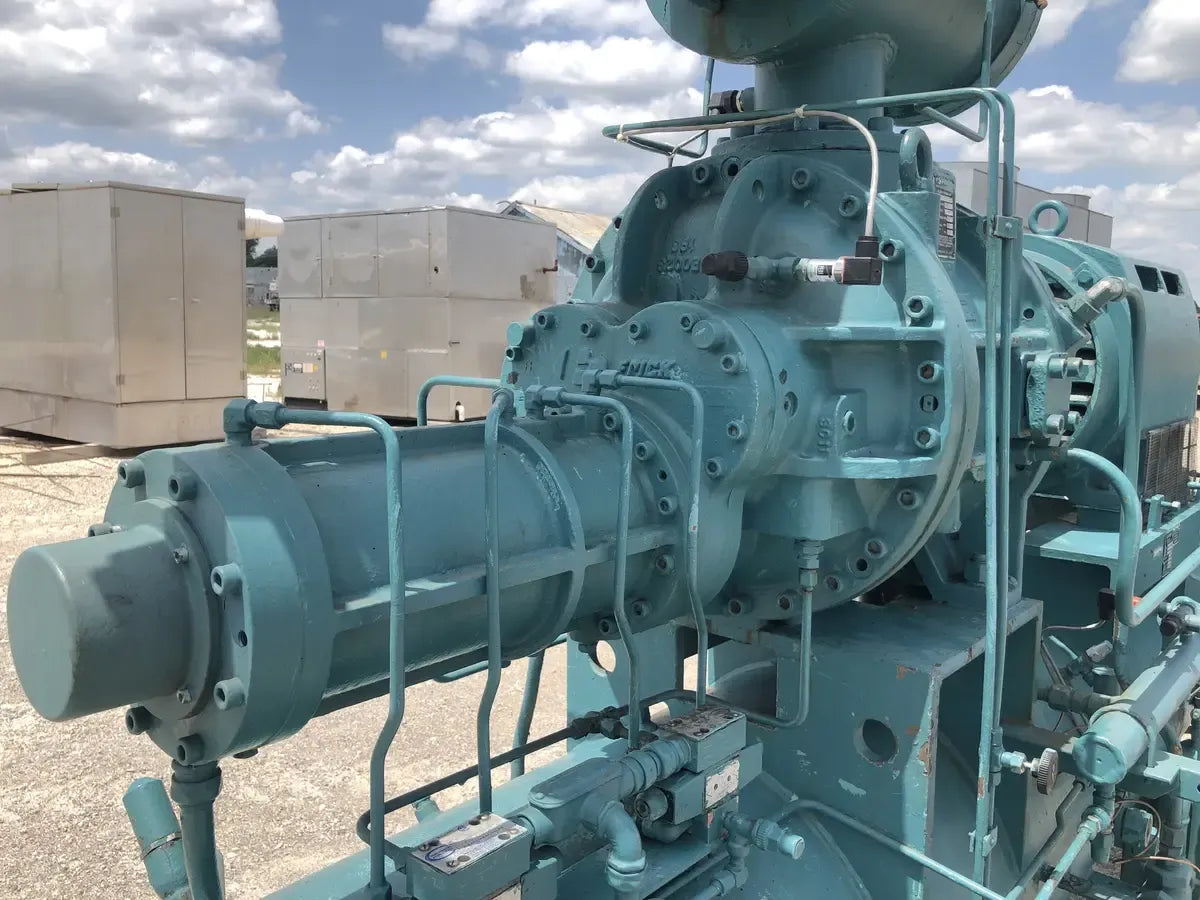

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1

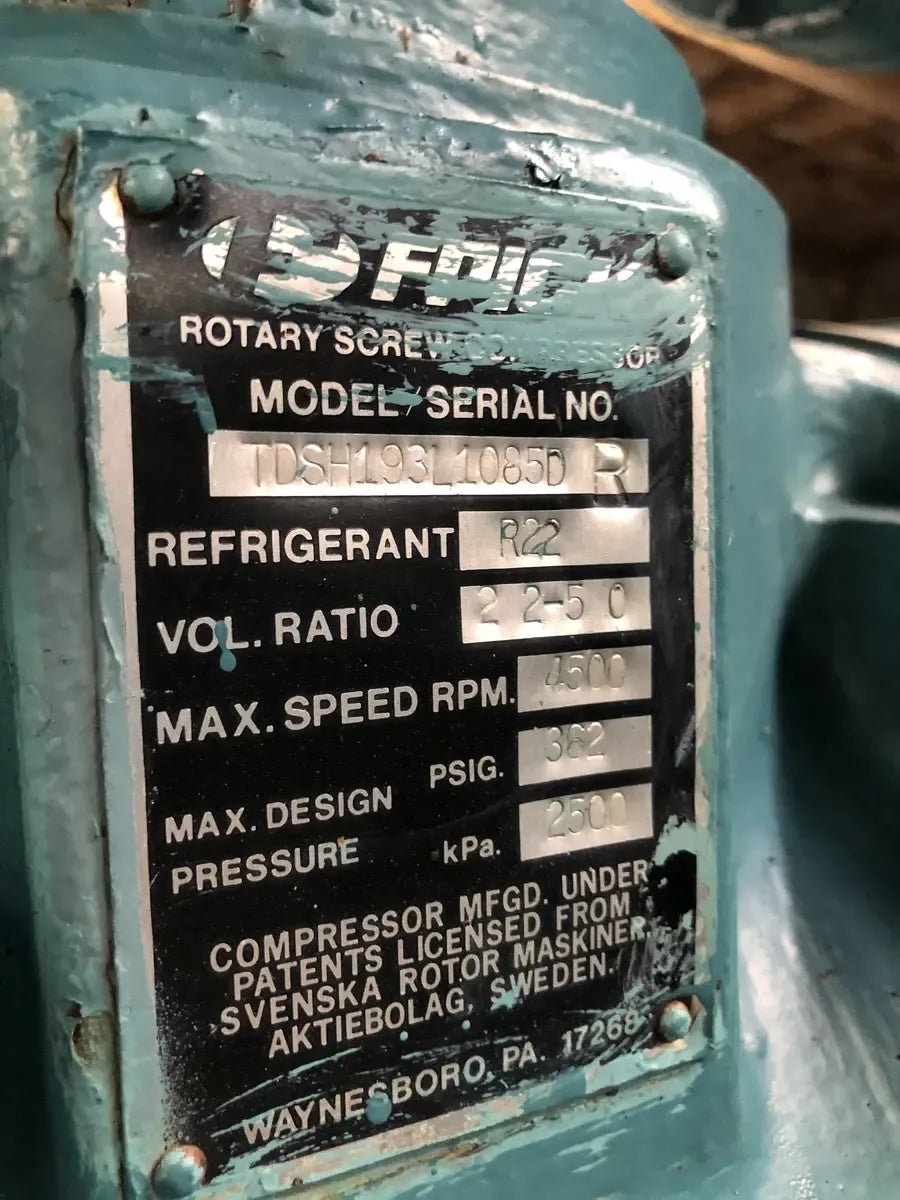

- Compressor Model: TDSH193
- Compressor SN: L1085D
- Compressor Max Speed (RPM): 4,500
- Compressor Design Pressure (PSIG): 362
- Compressor Volume Ratio: 2 2-5 0

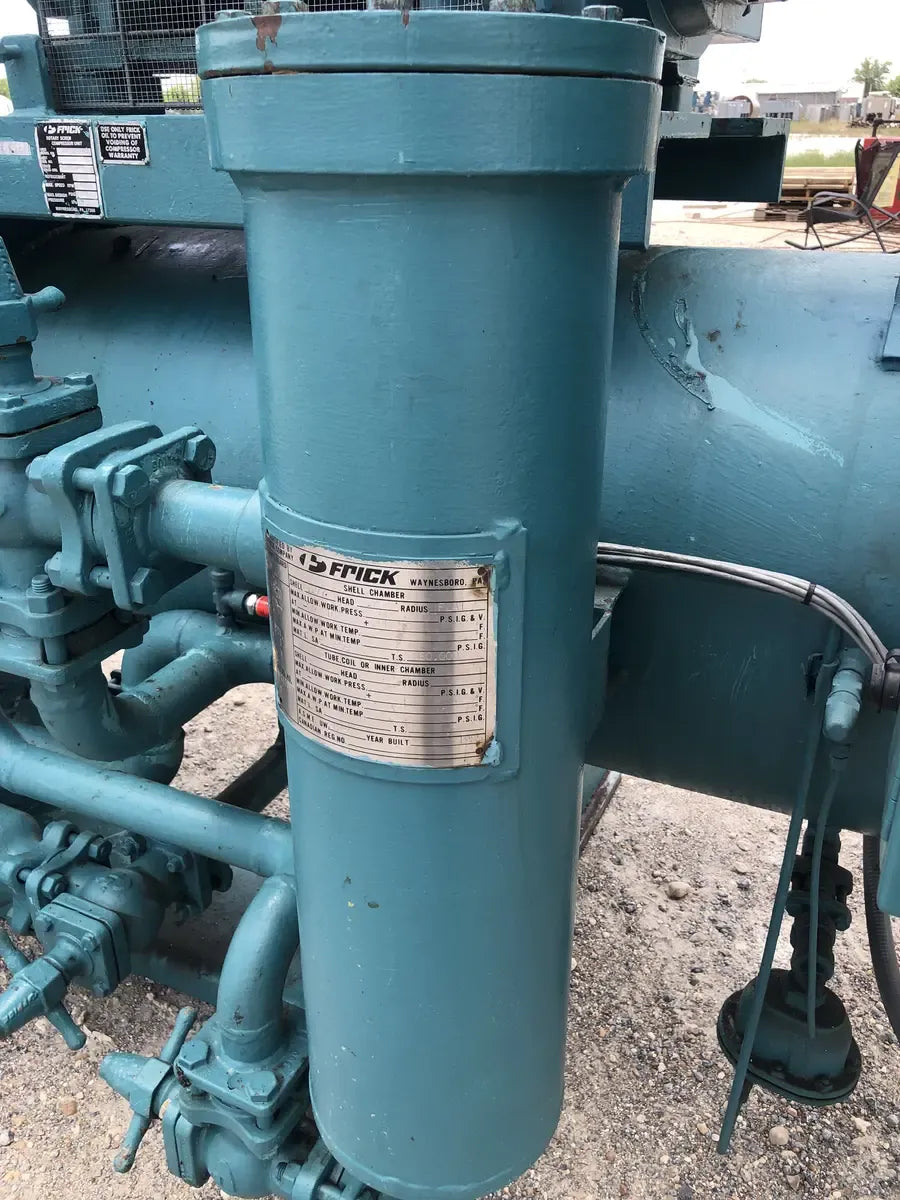

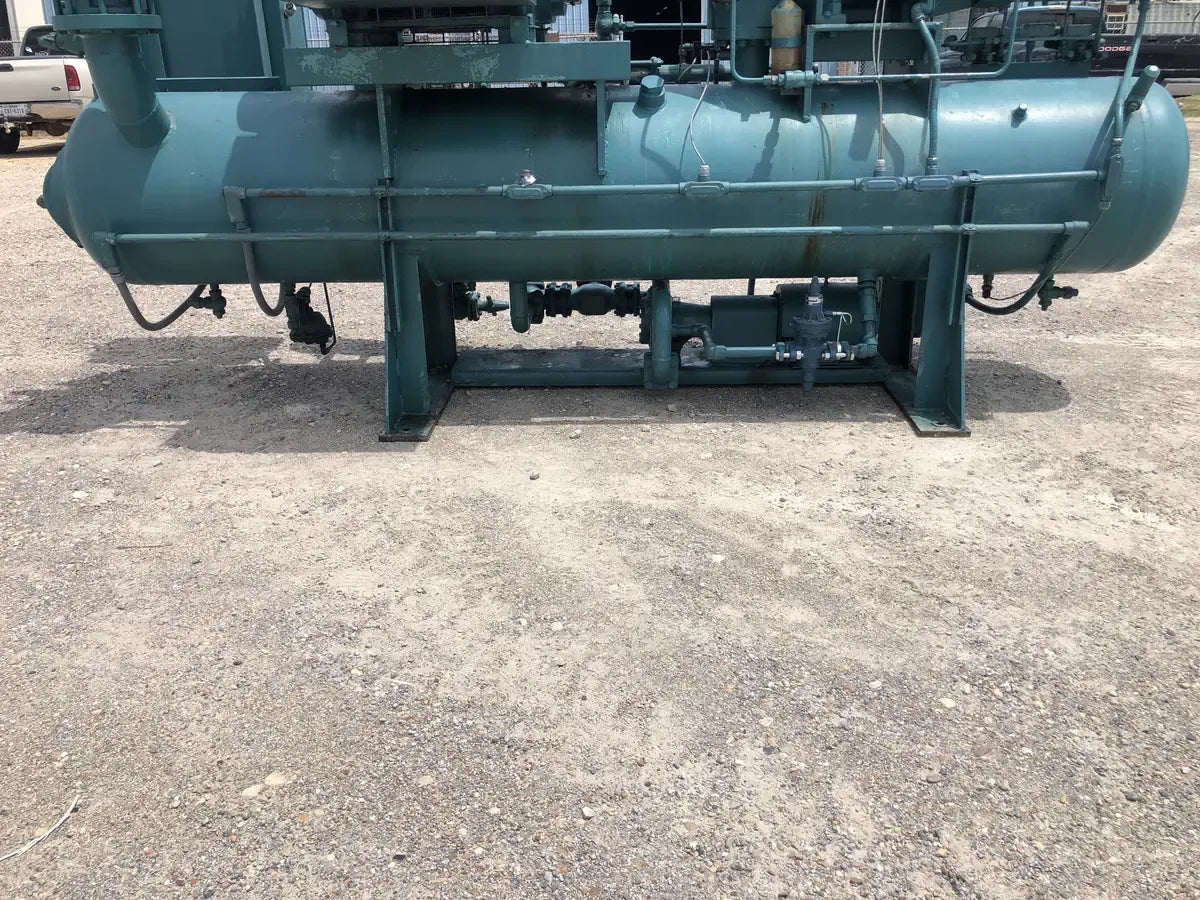

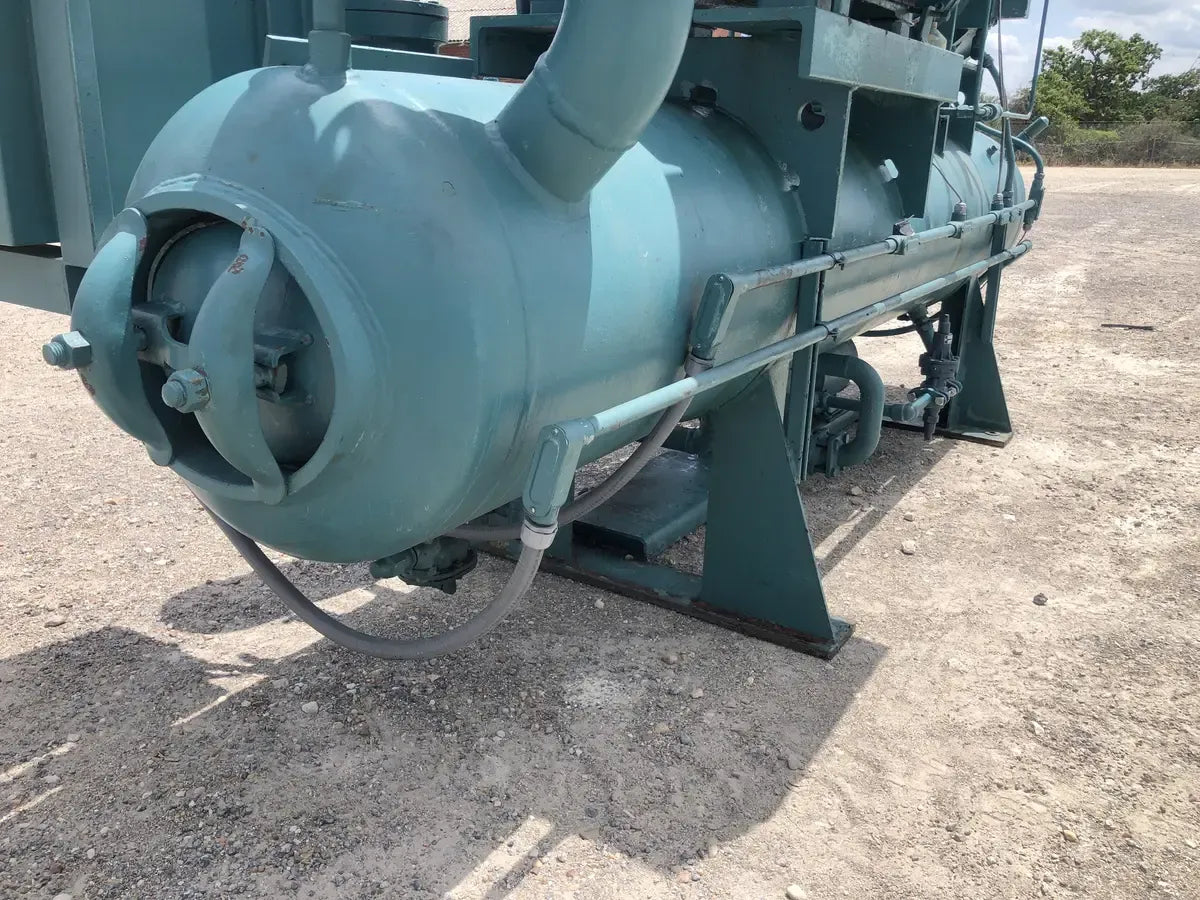

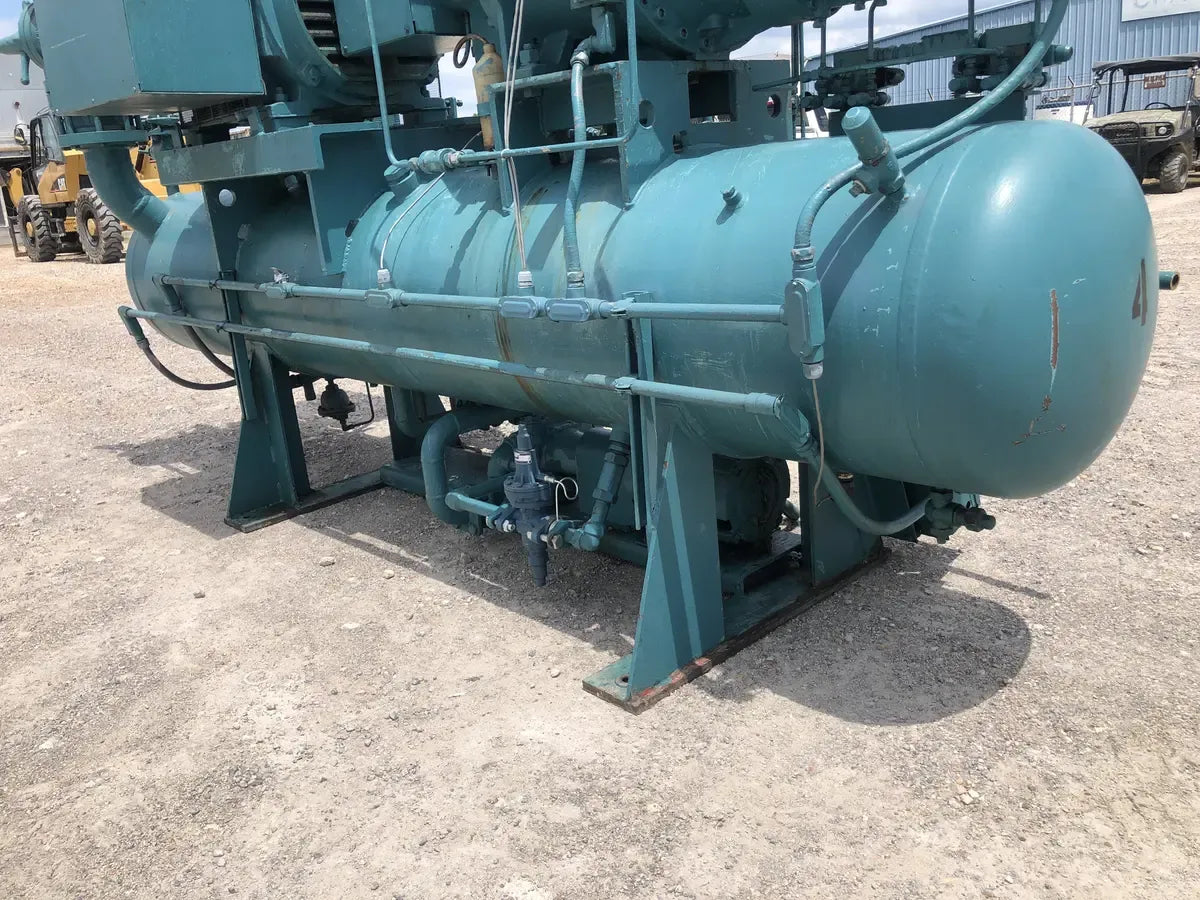

- Oil Separator Included? Yes

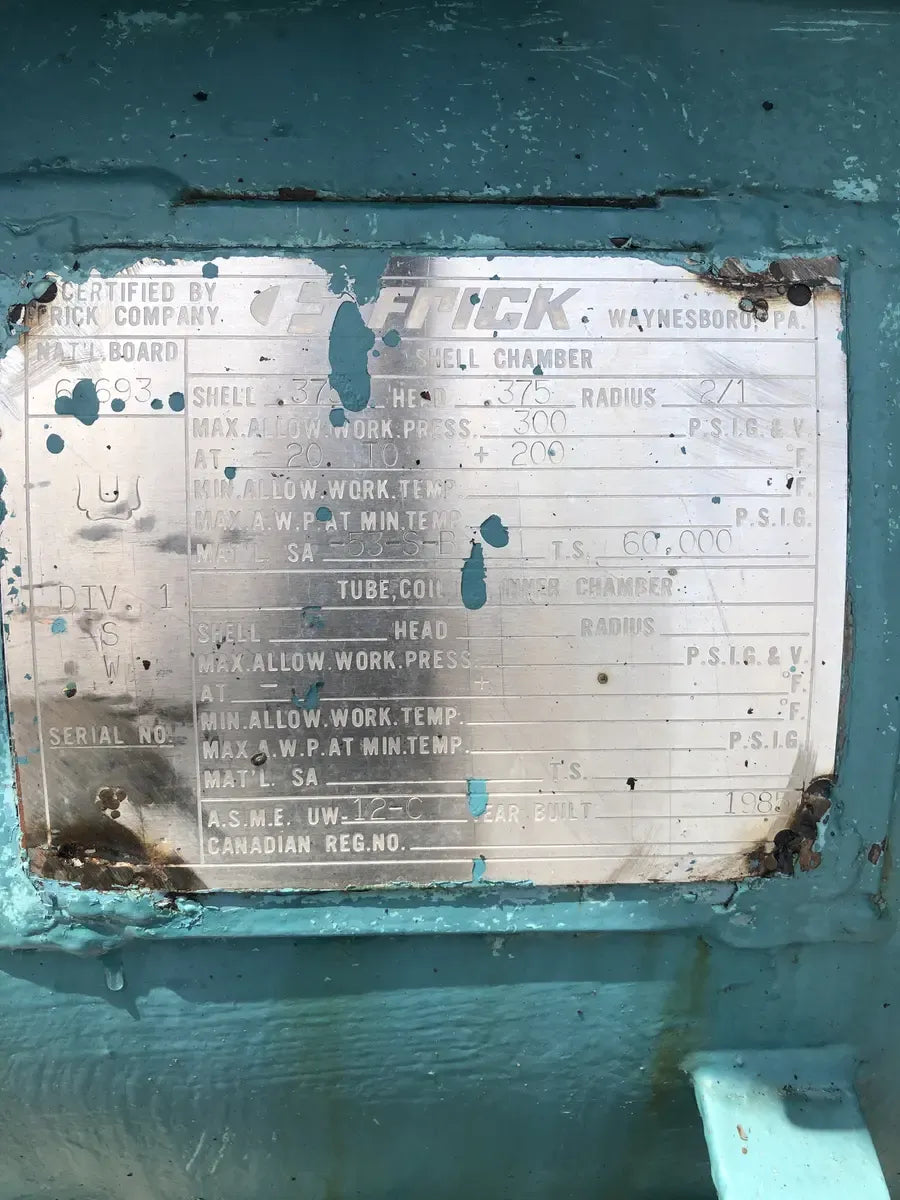

- Oil Separator National Board #: 63693

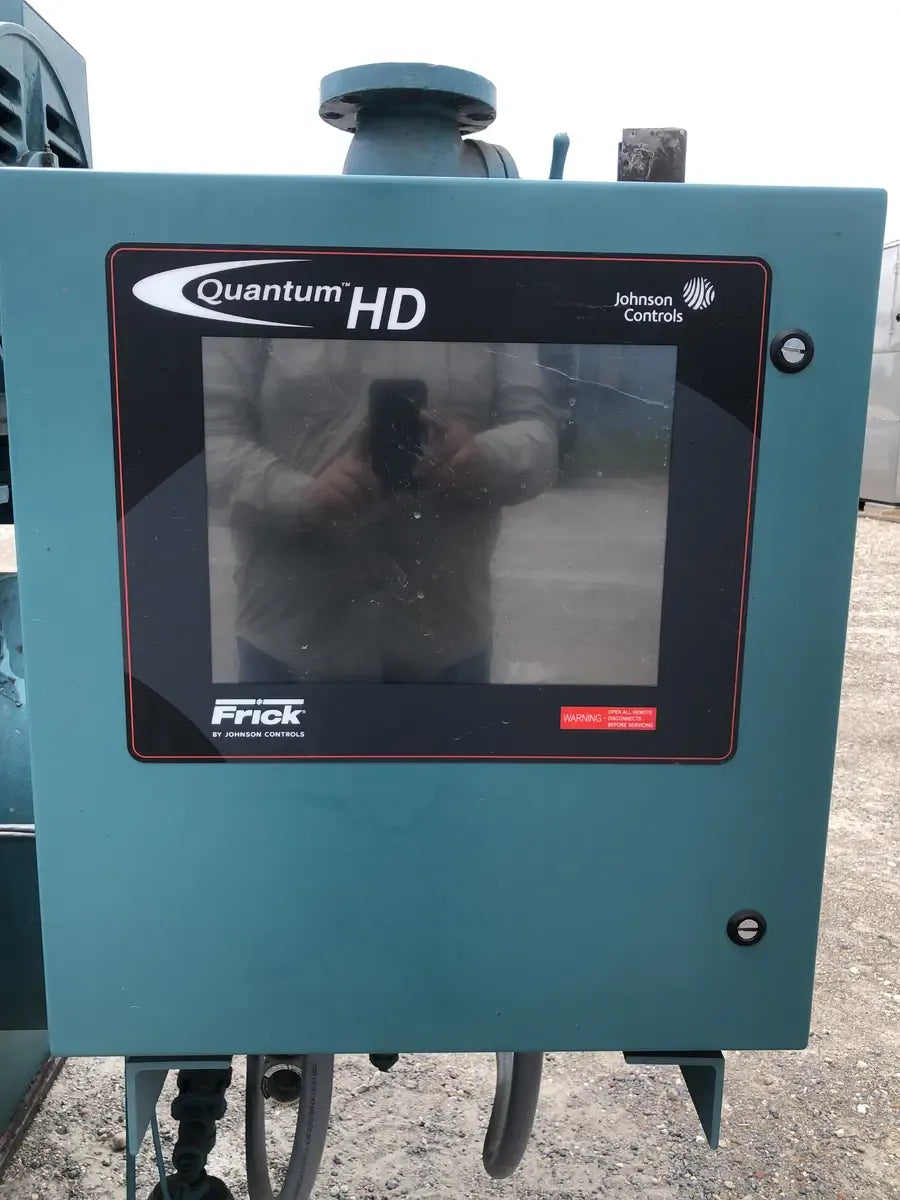

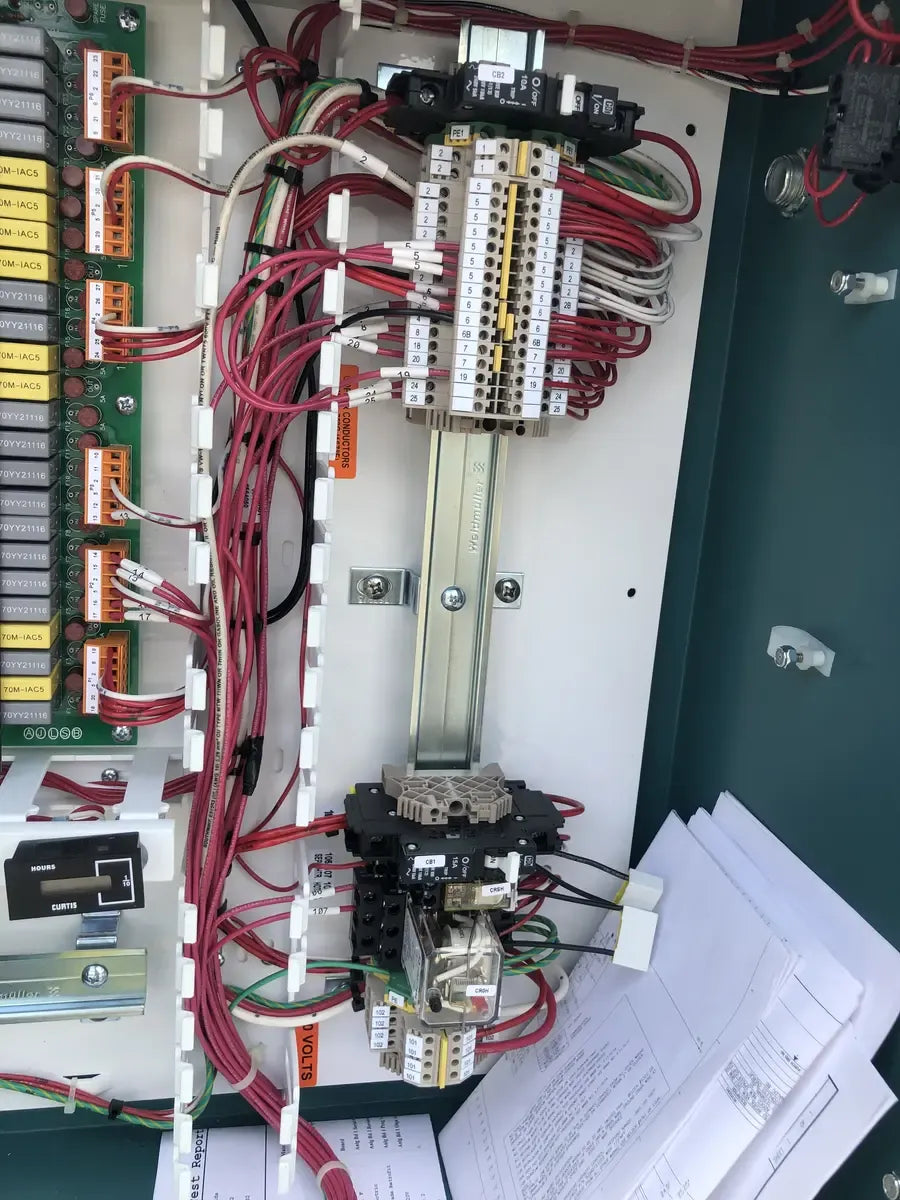

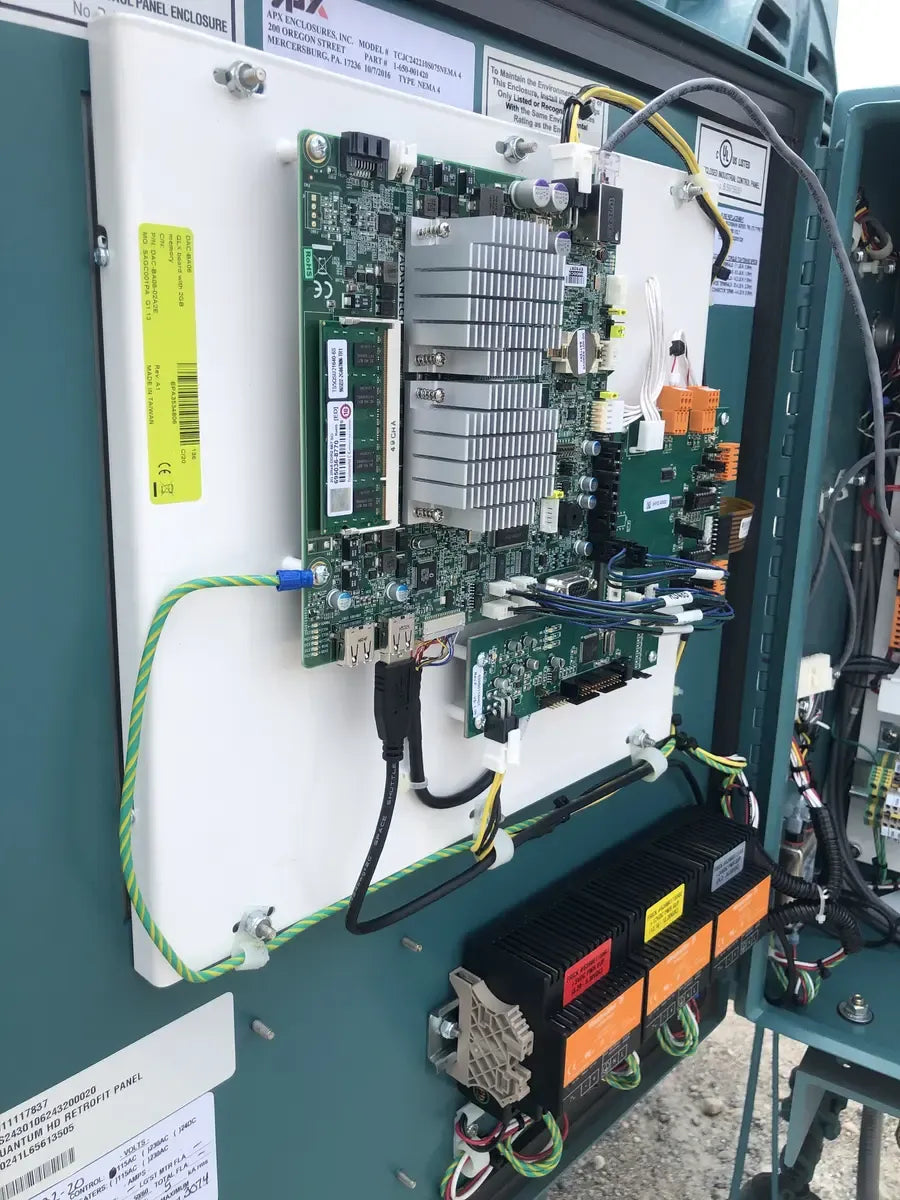

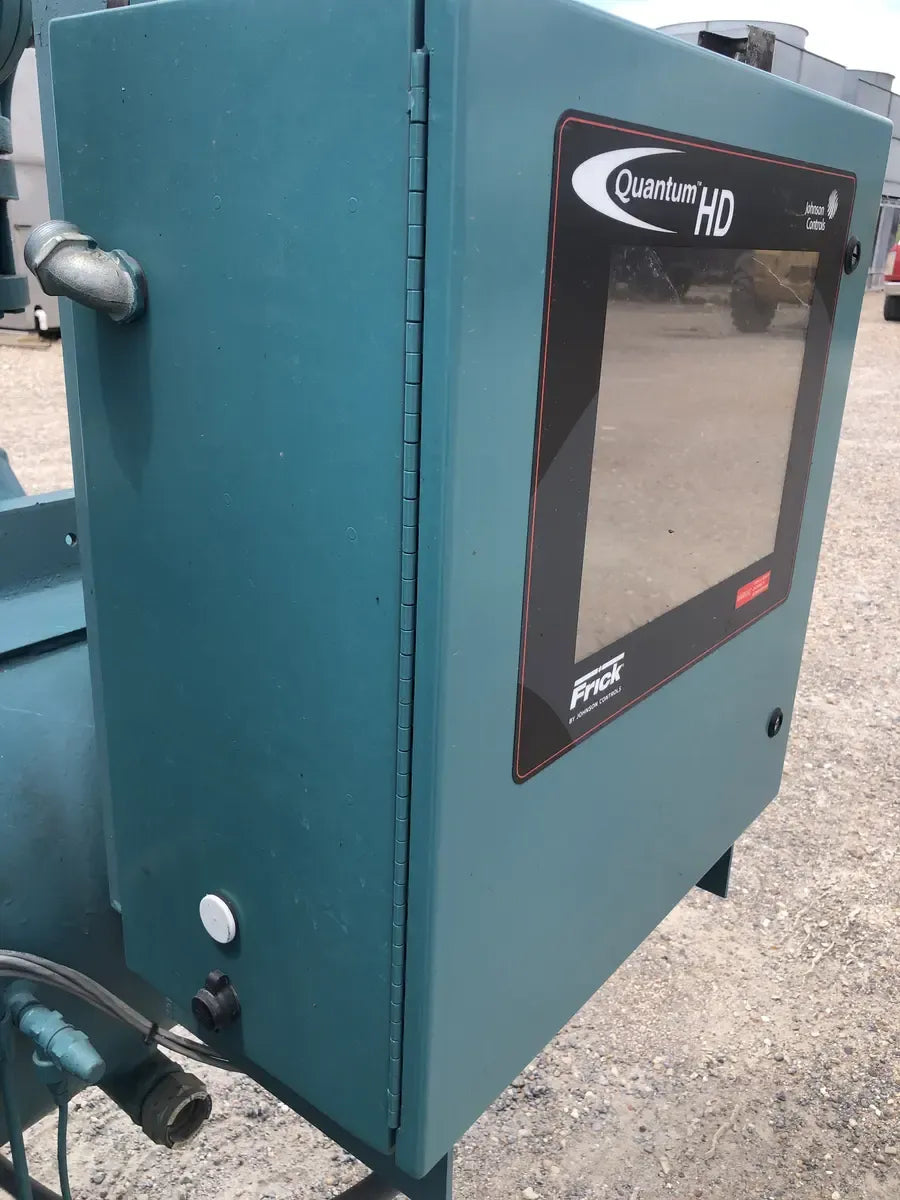

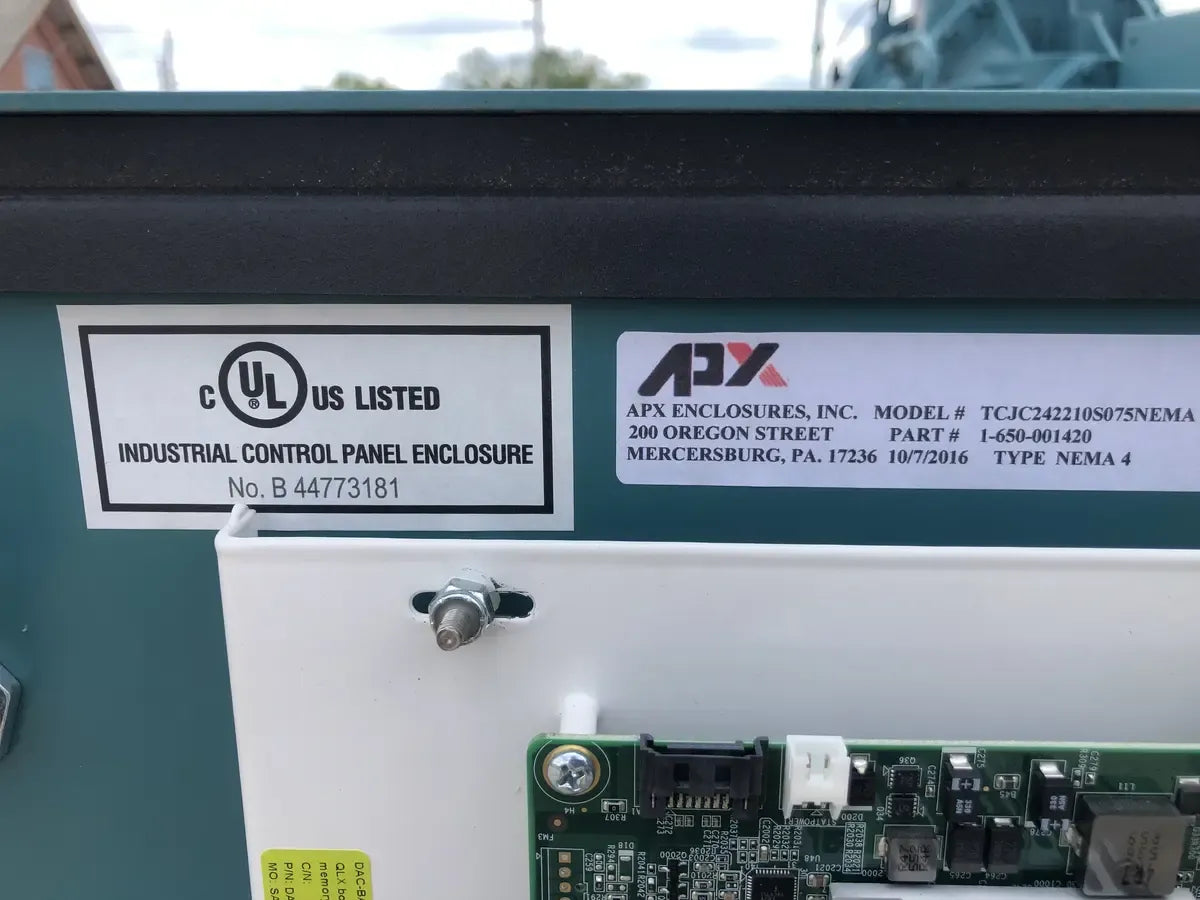

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick

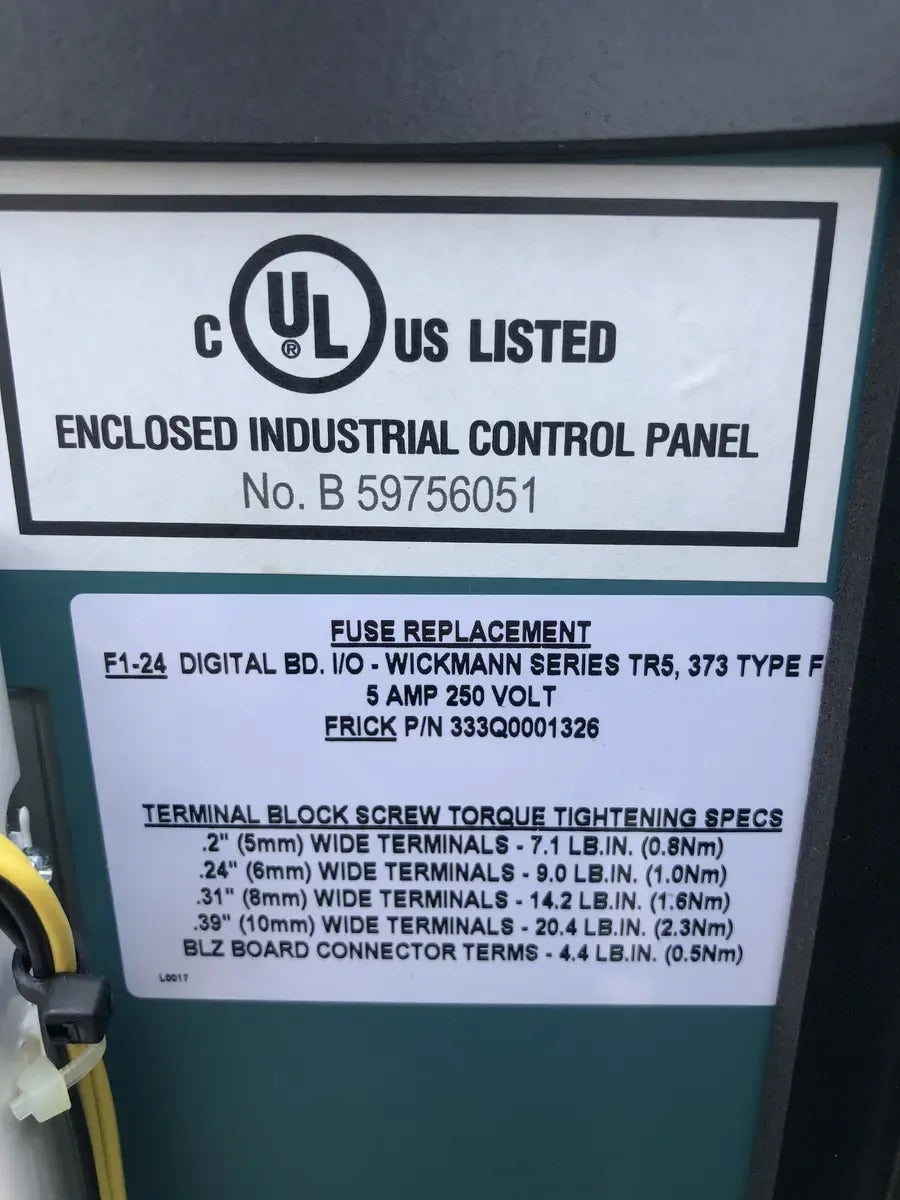

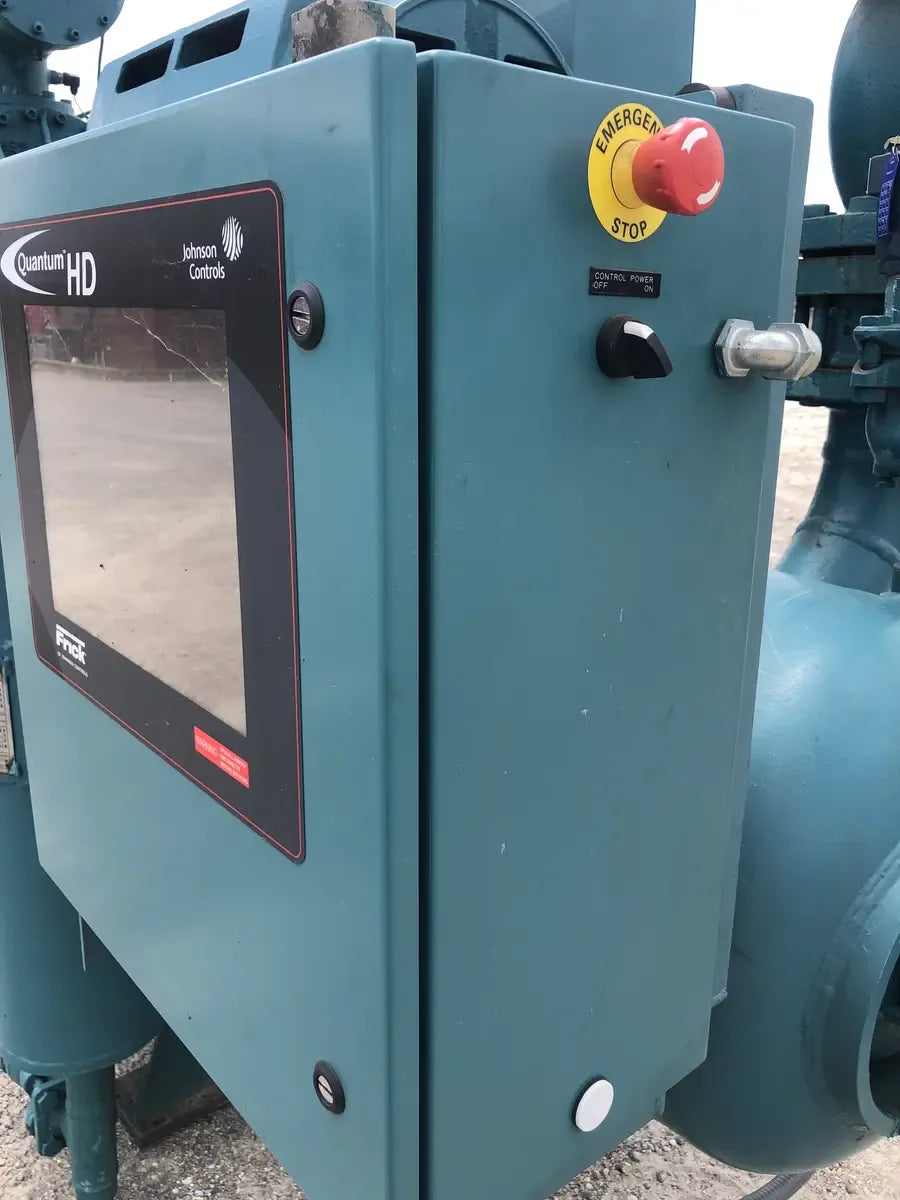

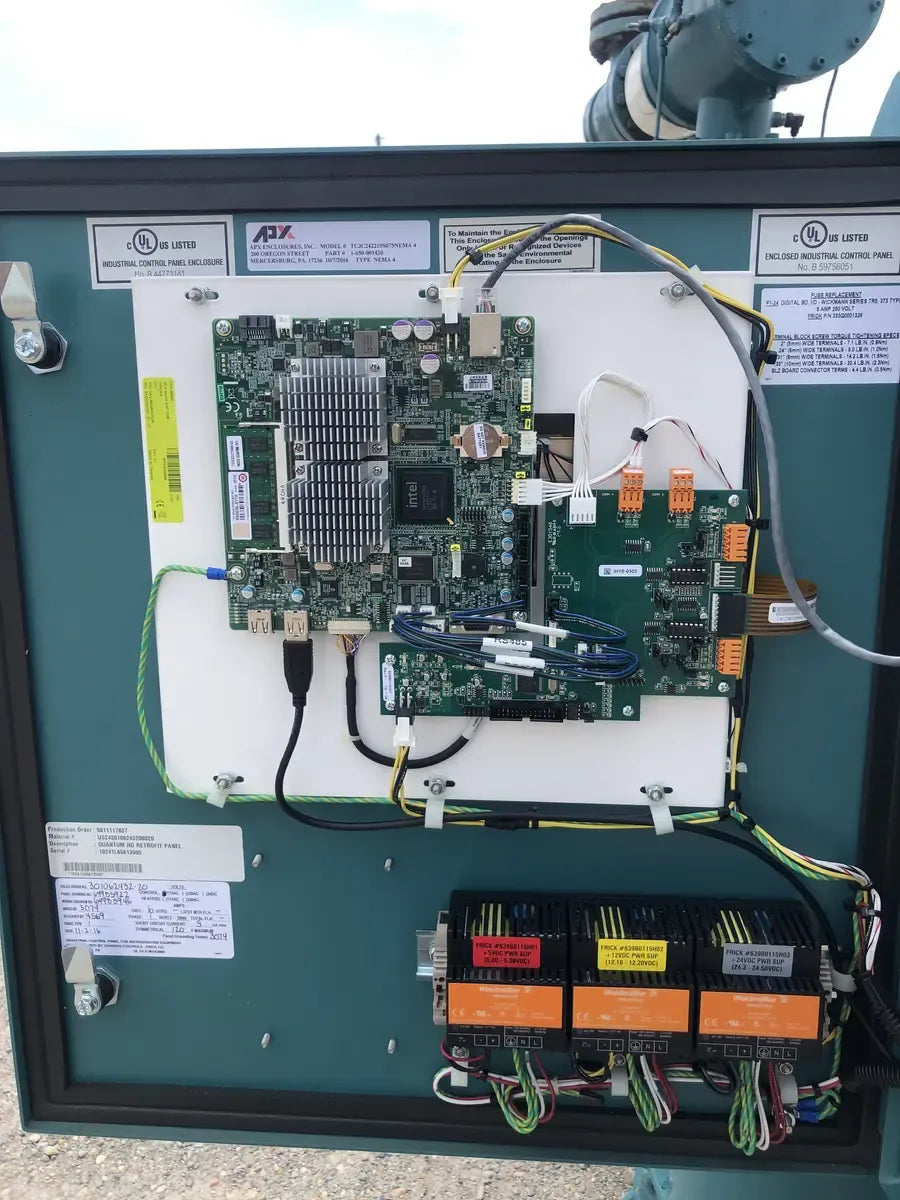

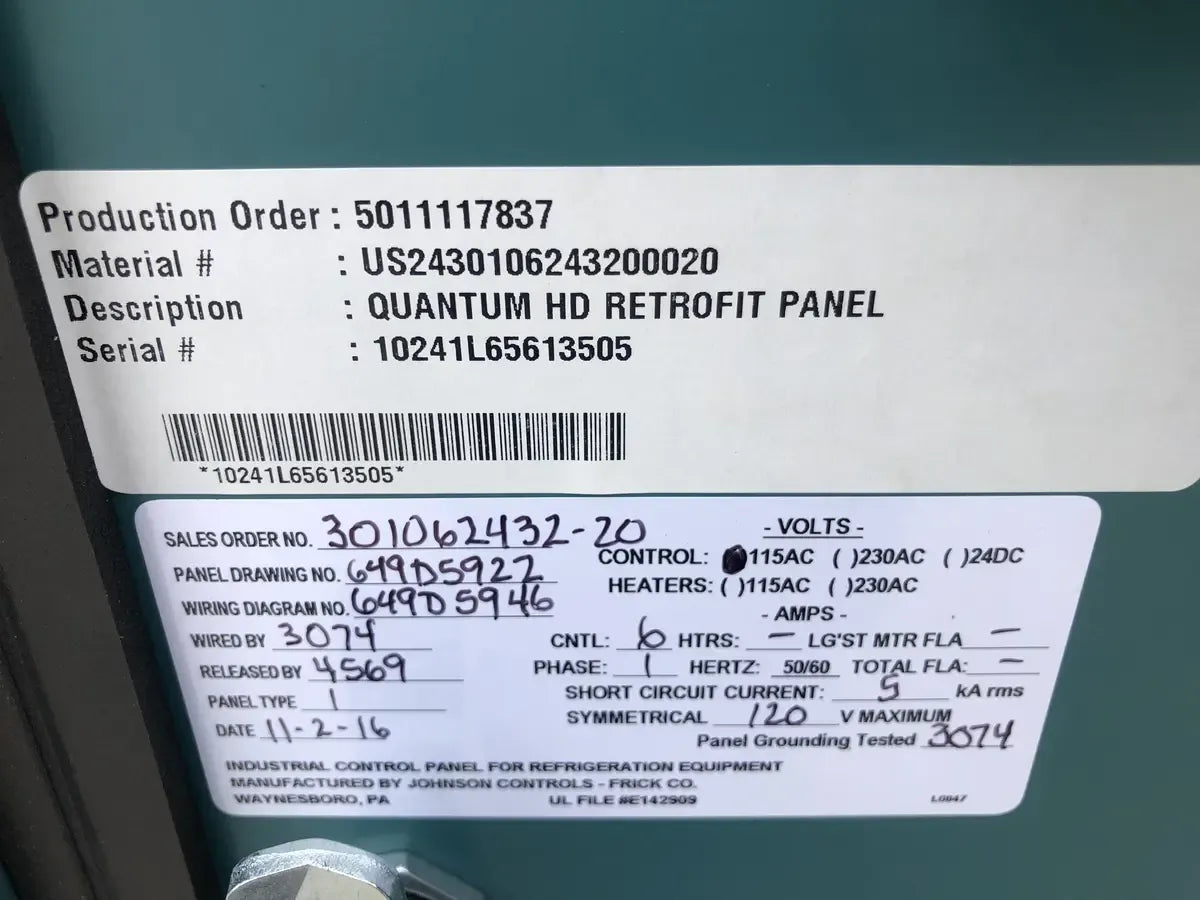

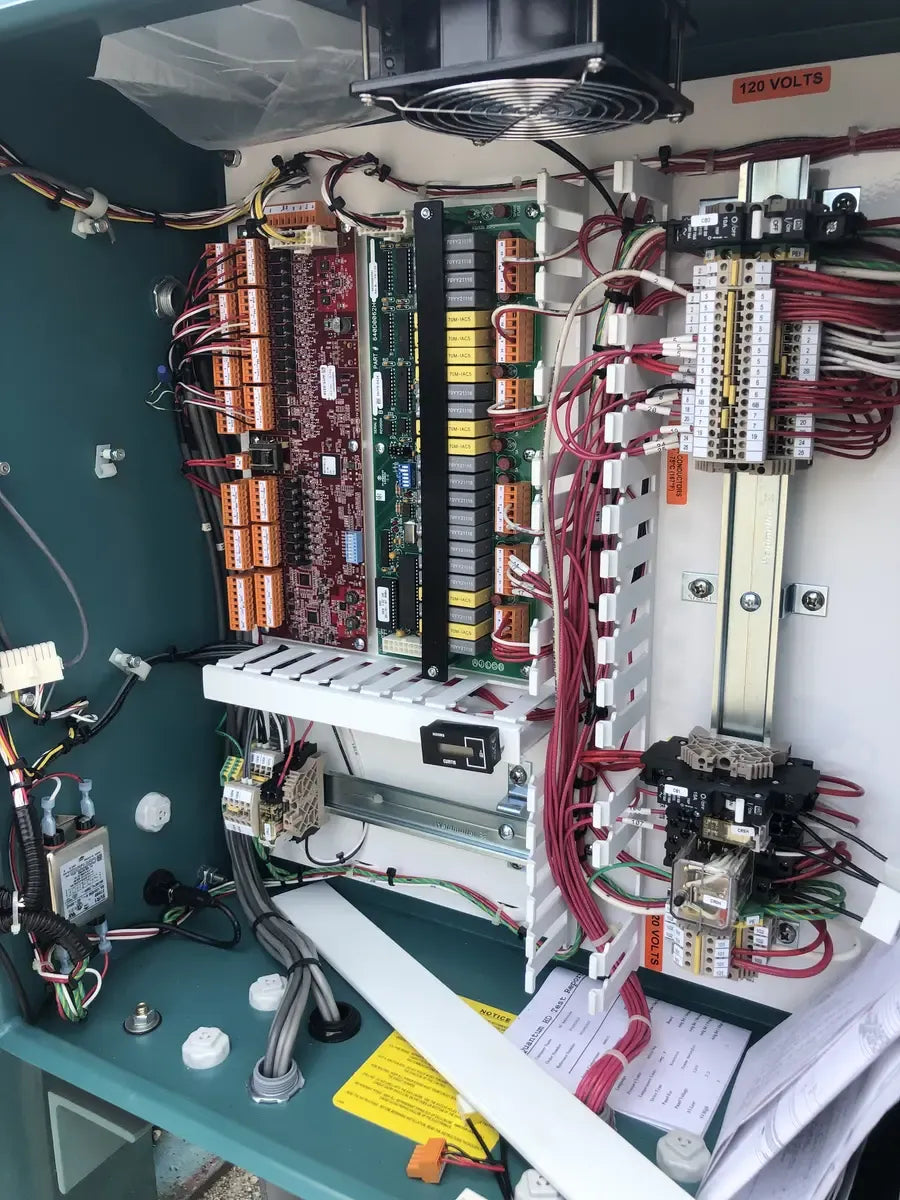

- Micro Control Panel Description: Frick Quantum Hd Refrofit Panel: Production Order: 5011117837, Material #: US2430106243200020, Description: Quantum Hd Retro Fit Panel, Serial: 10241L65613505, Volts: 115AC, Cntl: 6, Short Circuit Current: 5 kA rms, Symmetrical: 120 V Maximum, Panel Grounding Tested: 3074.
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

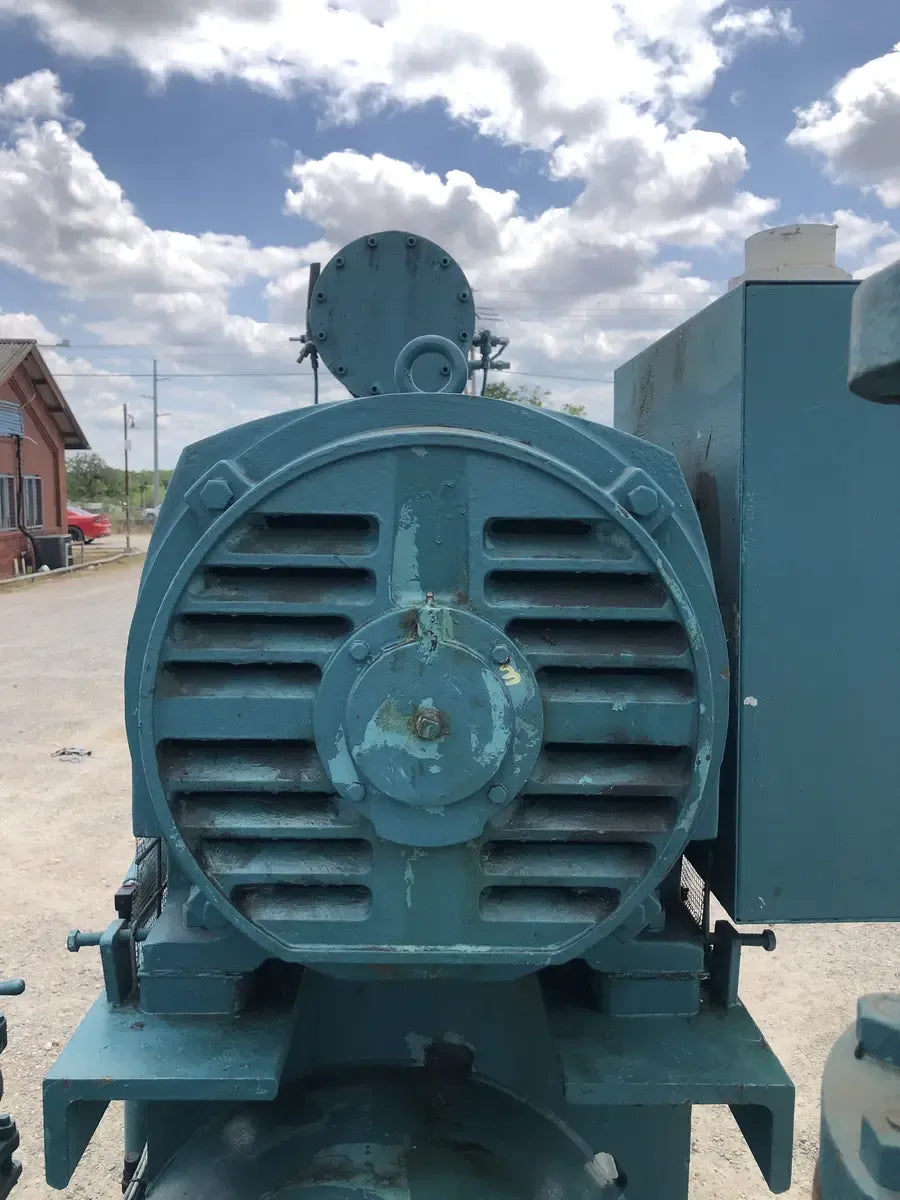

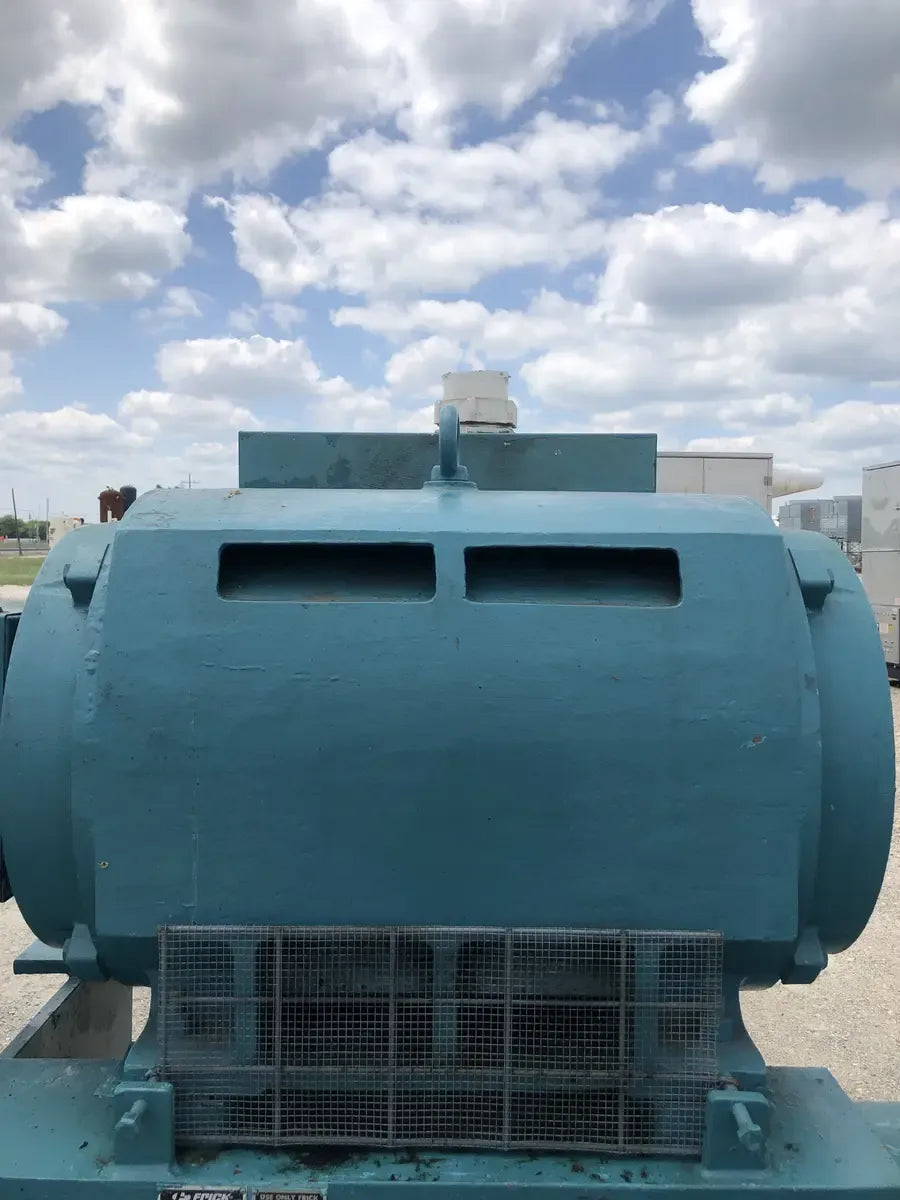

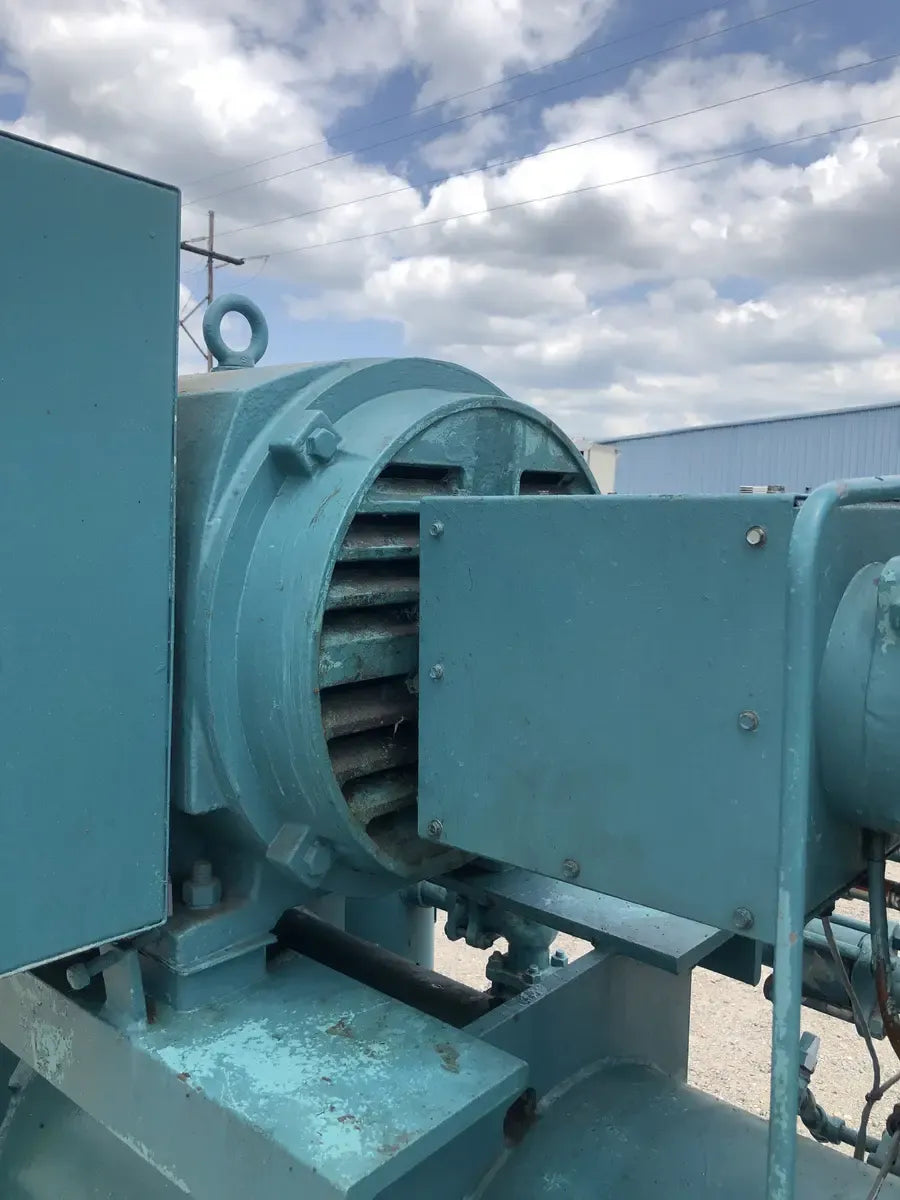

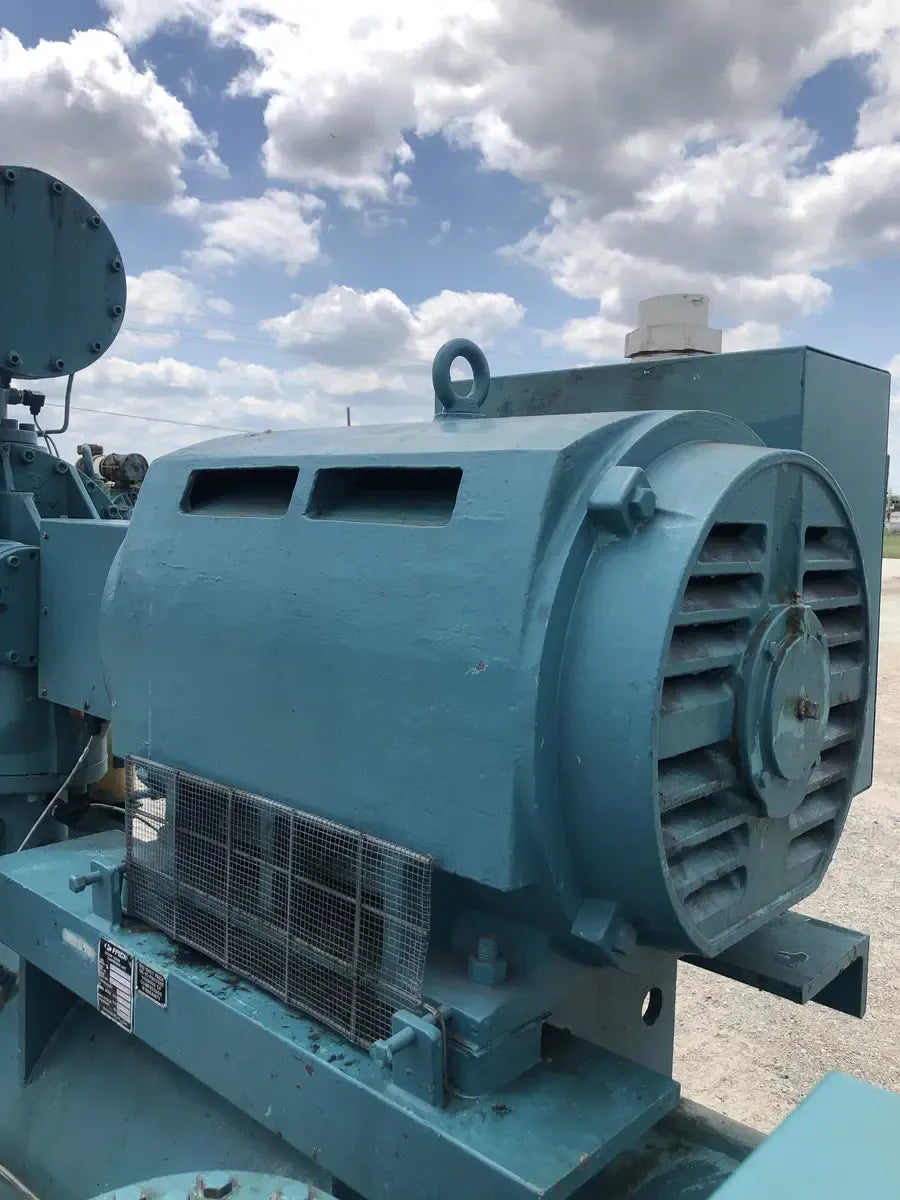

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 300
- Motor RPM: 3,540
- Motor Voltage: 460
- Motor Amps: 330
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 447TSS
Dimensions:
- Length (Inches): 176
- Width (Inches): 69
- Height (Inches): 90
- Weight (LBS): 8,000
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
