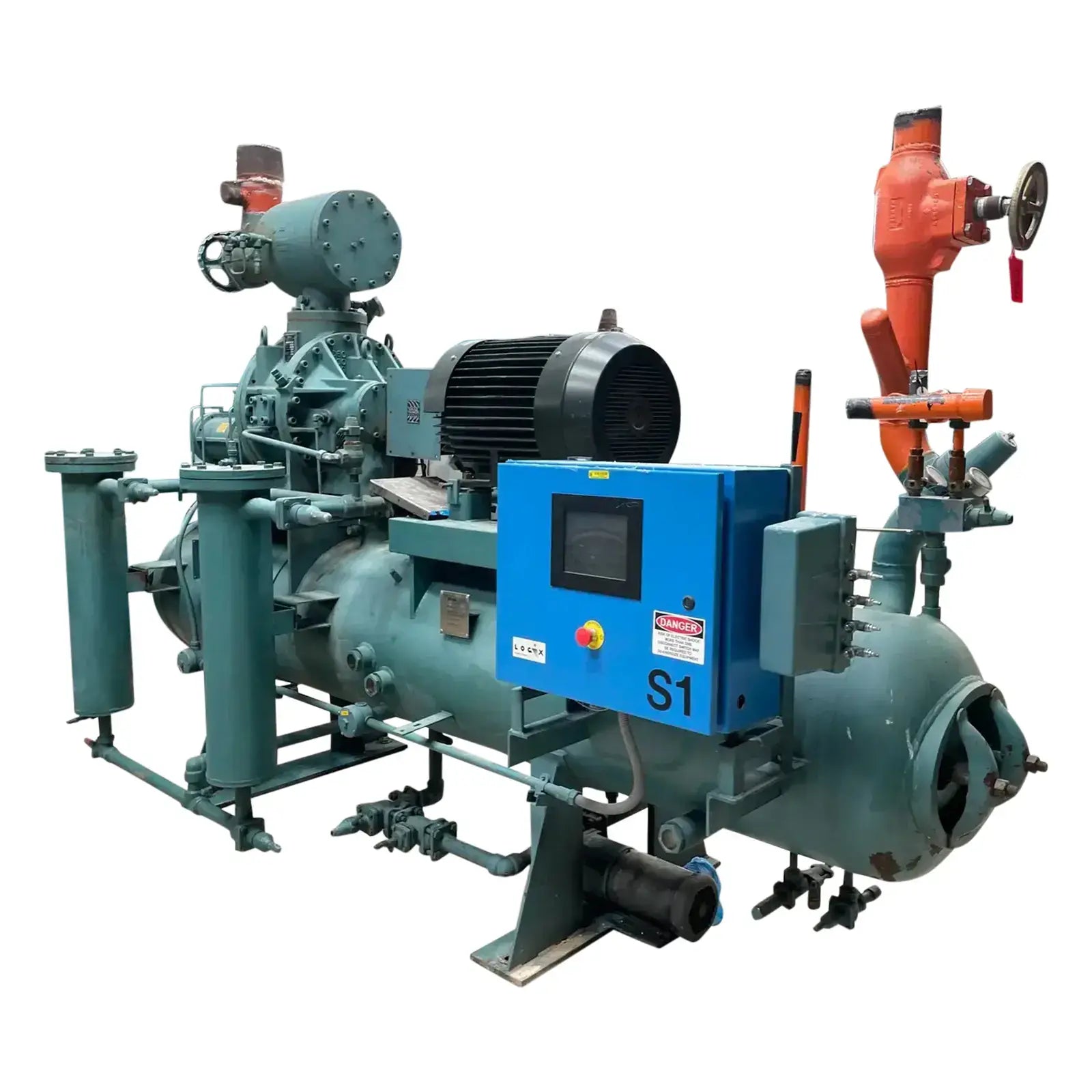

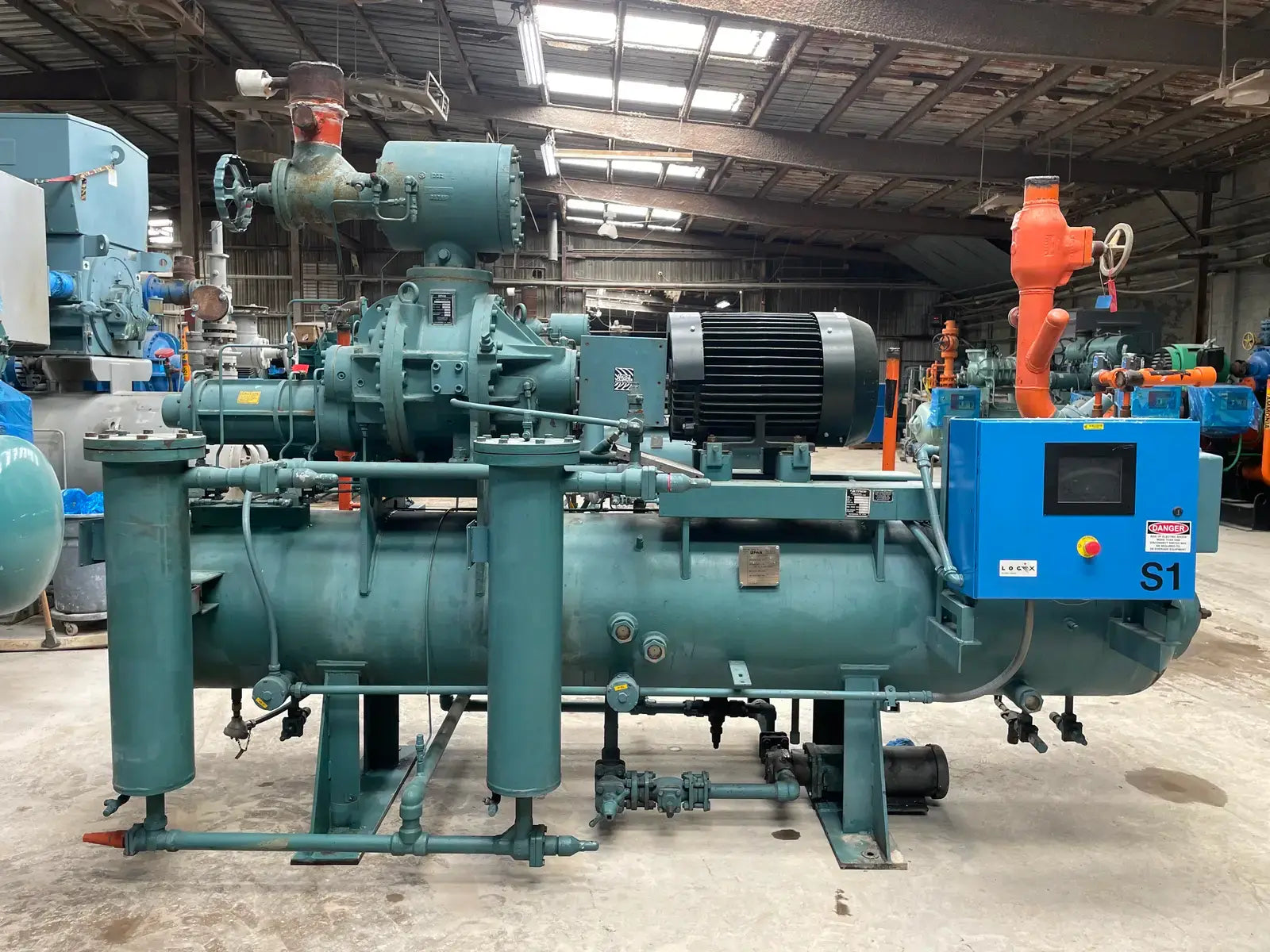

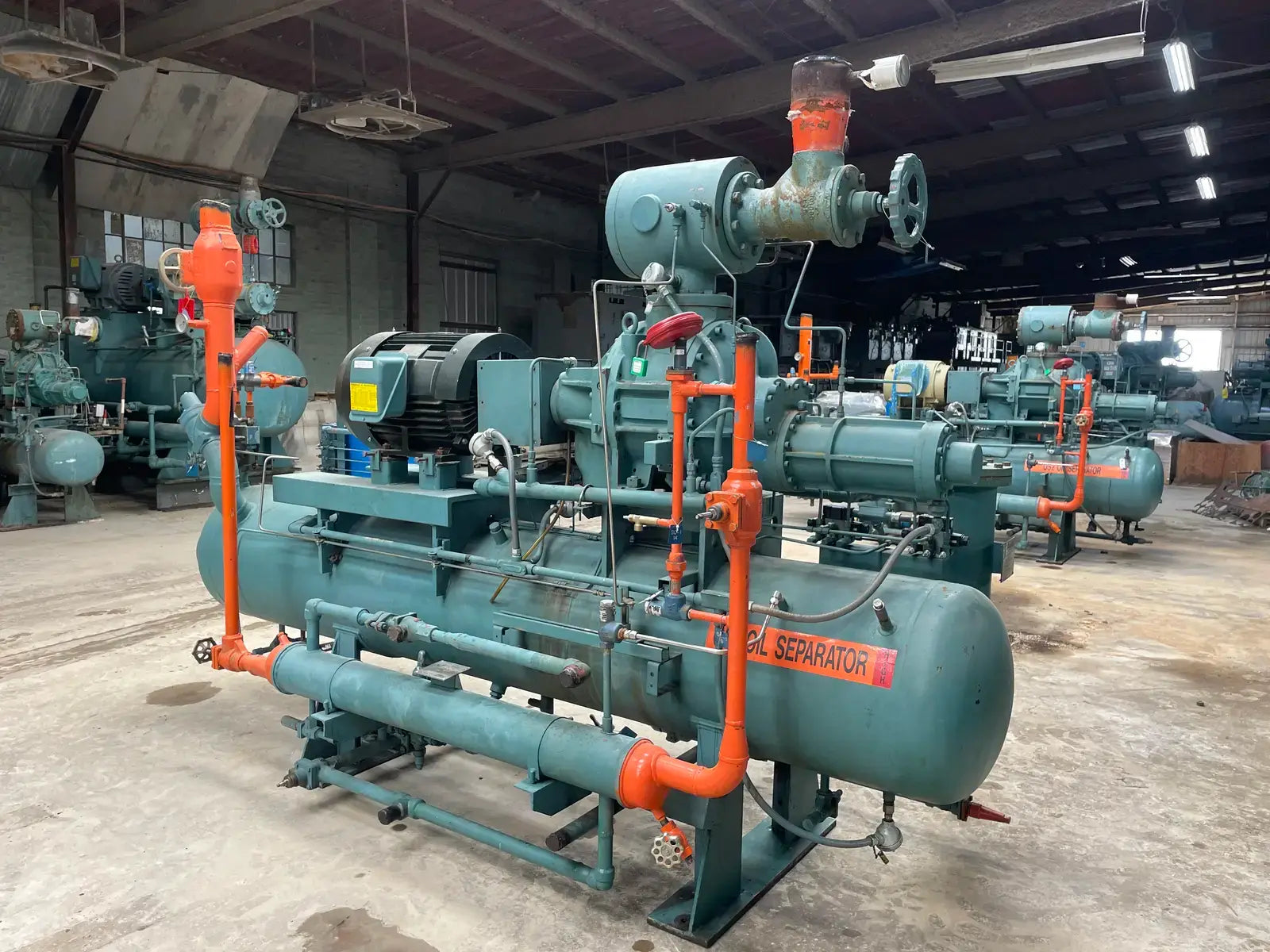

Product Details

• Stock No: PCE02
• Manufacturer: Frick
• Model: RWB-II-100B
• Serial Number: S0513LFMFTHAA3

• Compressor Type: Screw
• Package Included? Yes
• Stage Type: Low Stage (Booster)

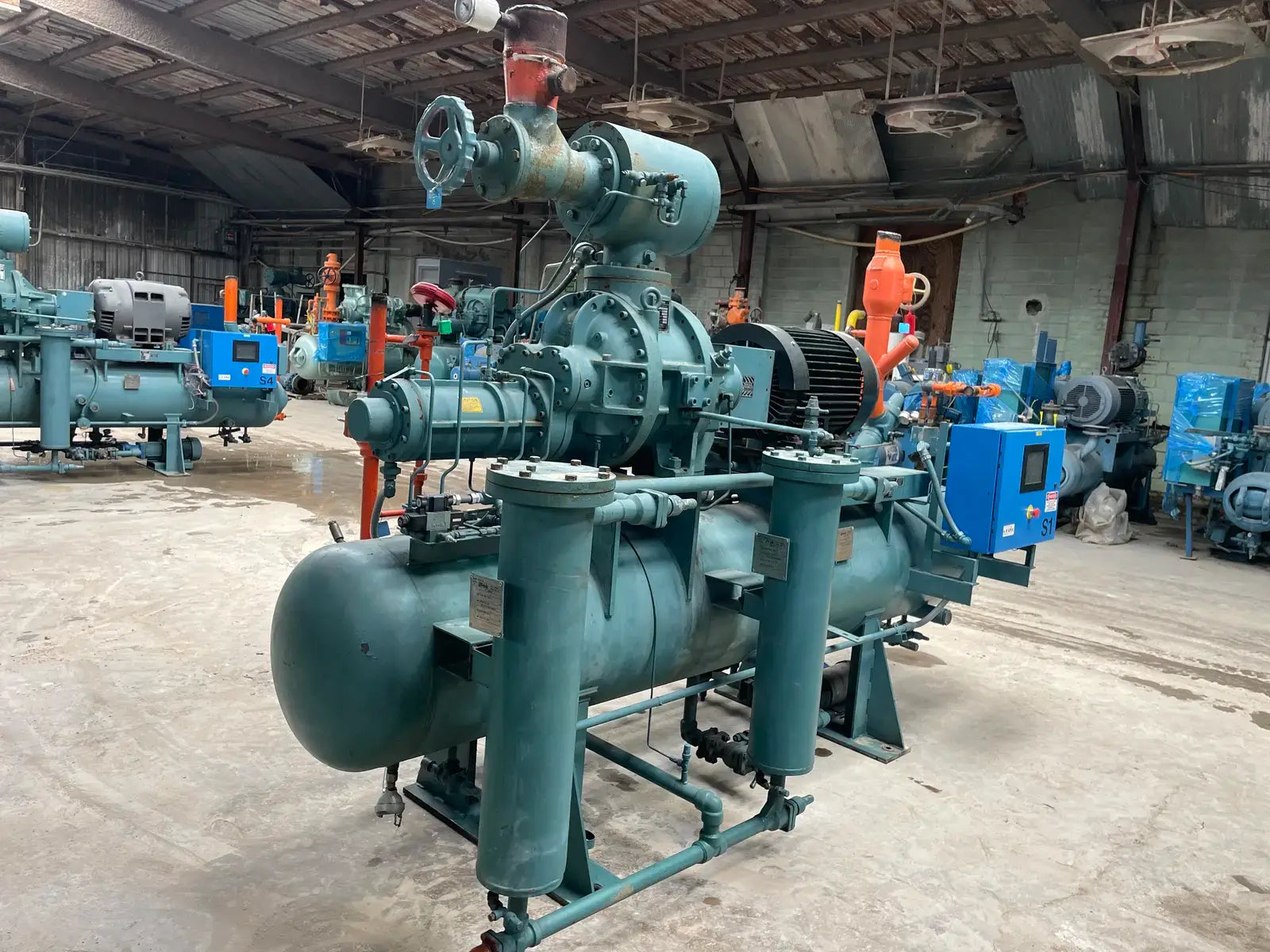

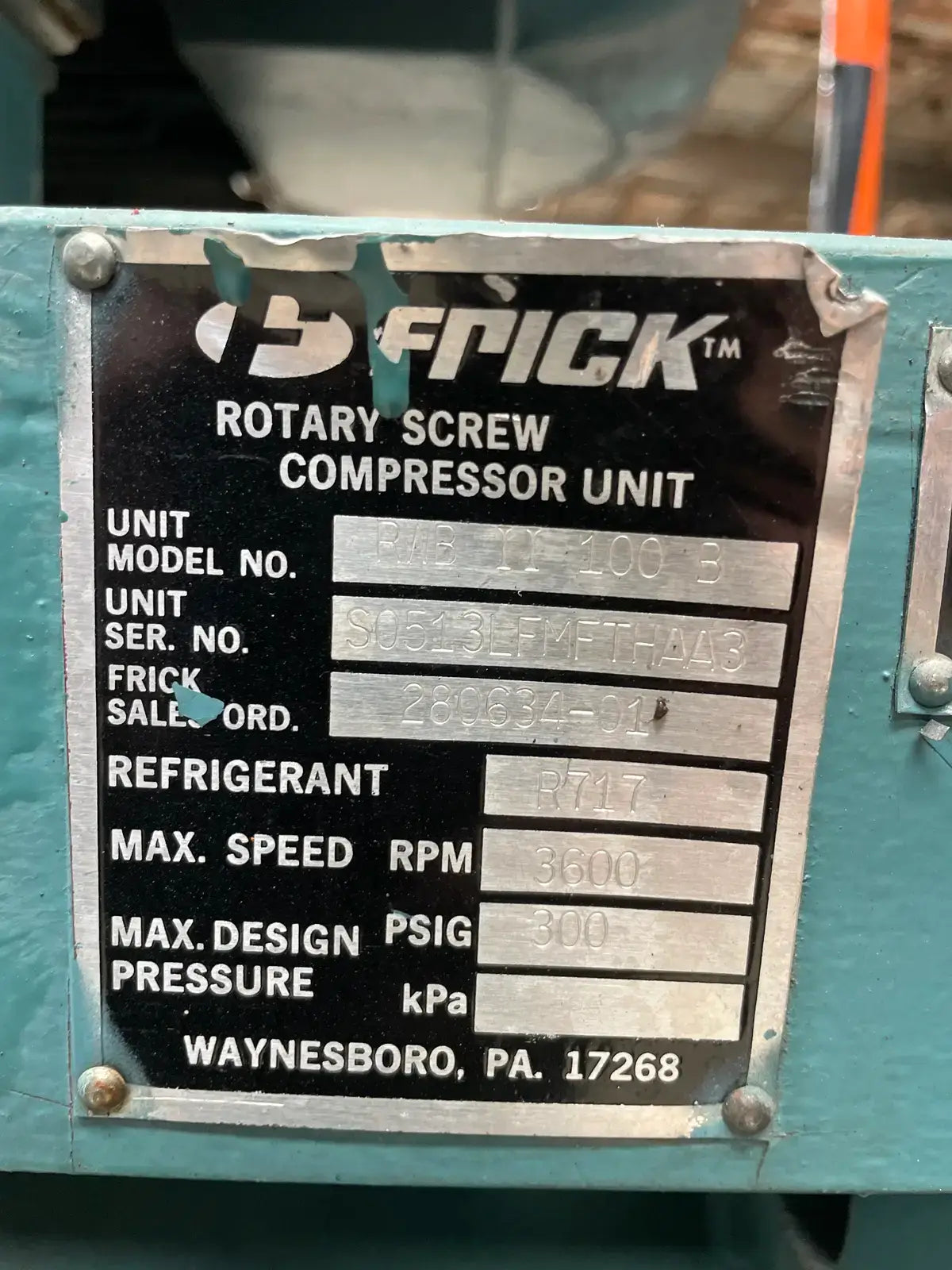

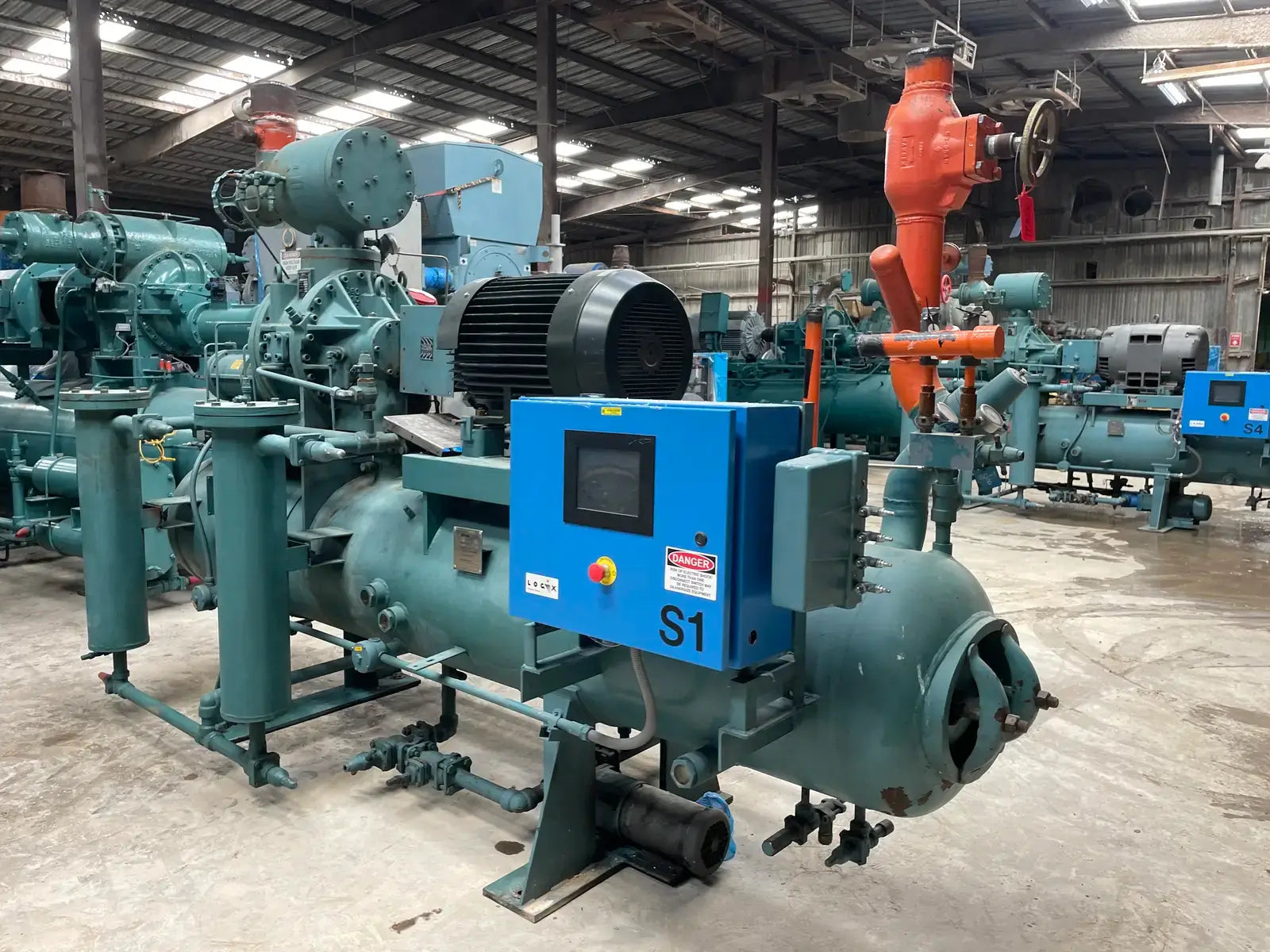

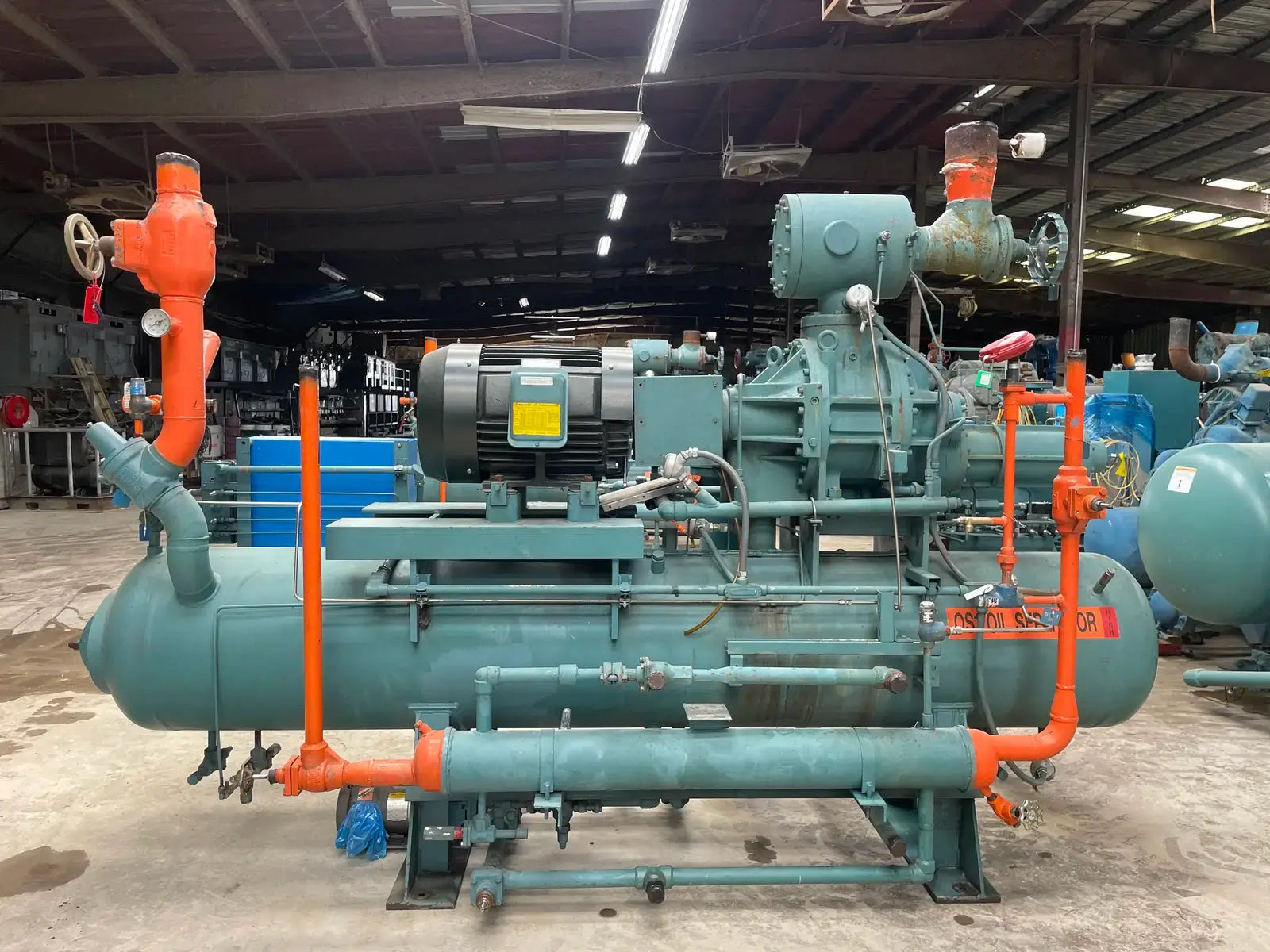

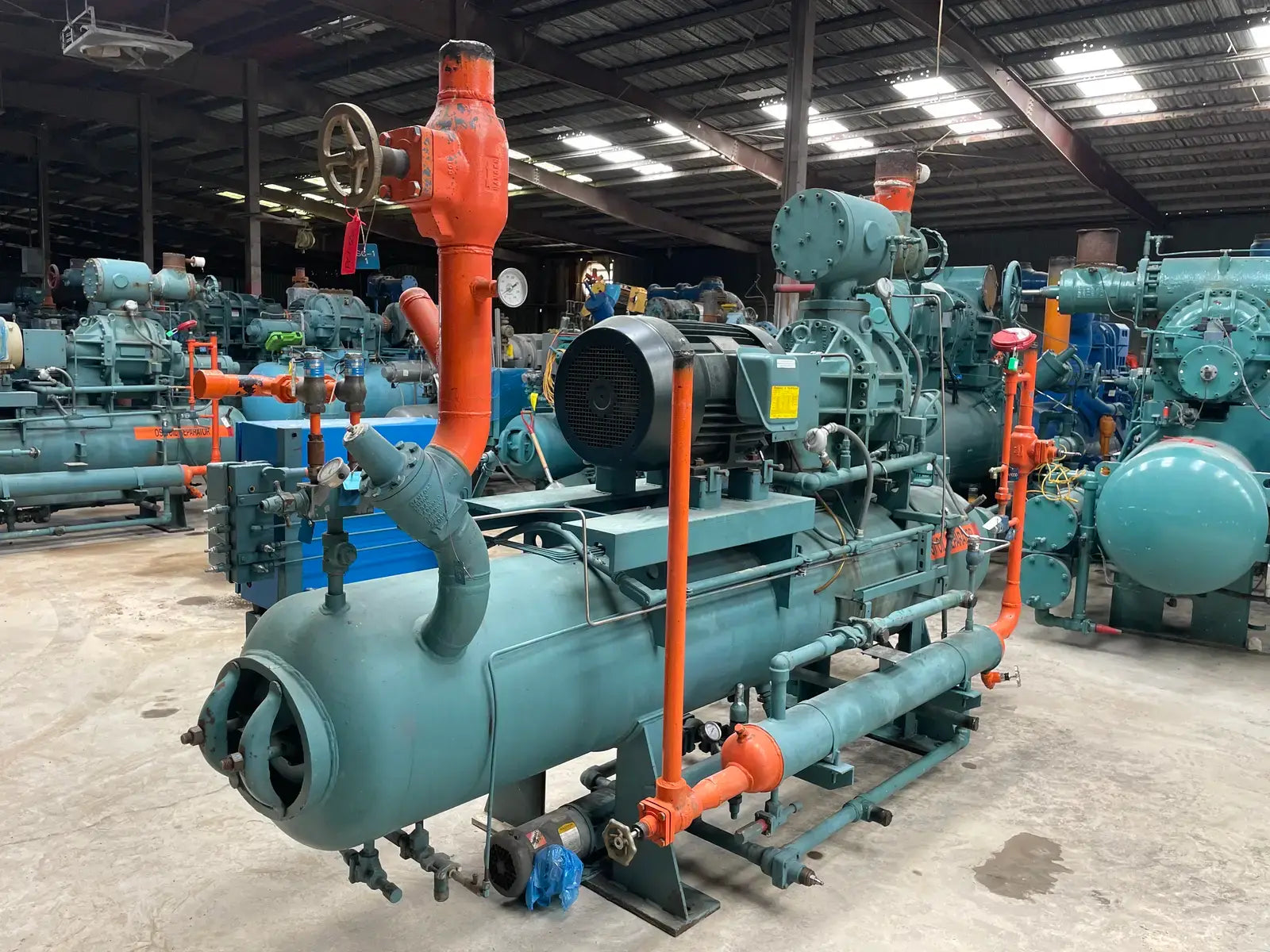

Package Details

• Package Manufacturer: Frick
• Package Model: RWB-II-100B
• Package SN: S0513LFMFTHAA3
• Package Order: 280634-01
• Package Max Speed (RPM): 3,600
• Package Max Design Pressure (PSIG): 300

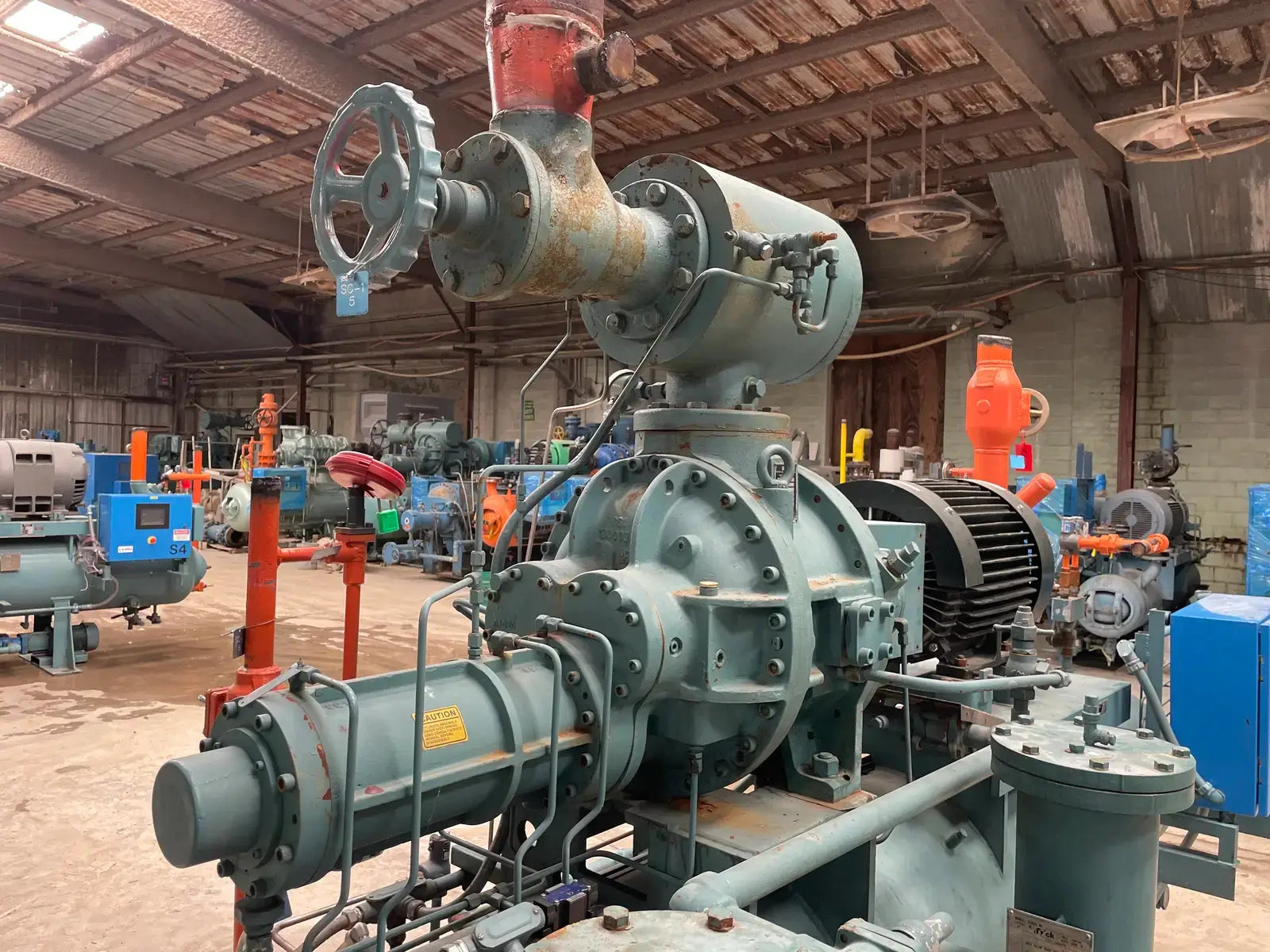

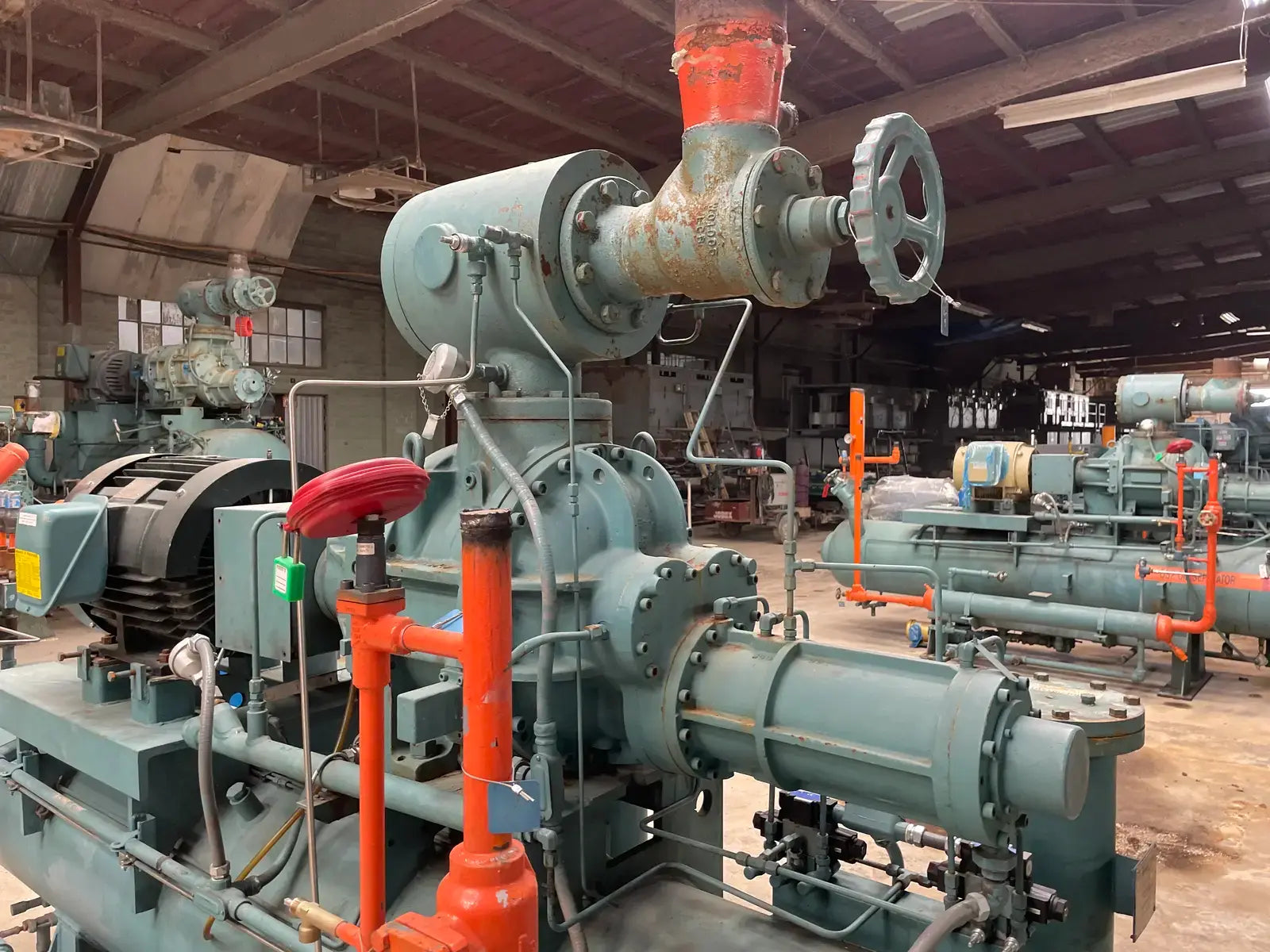

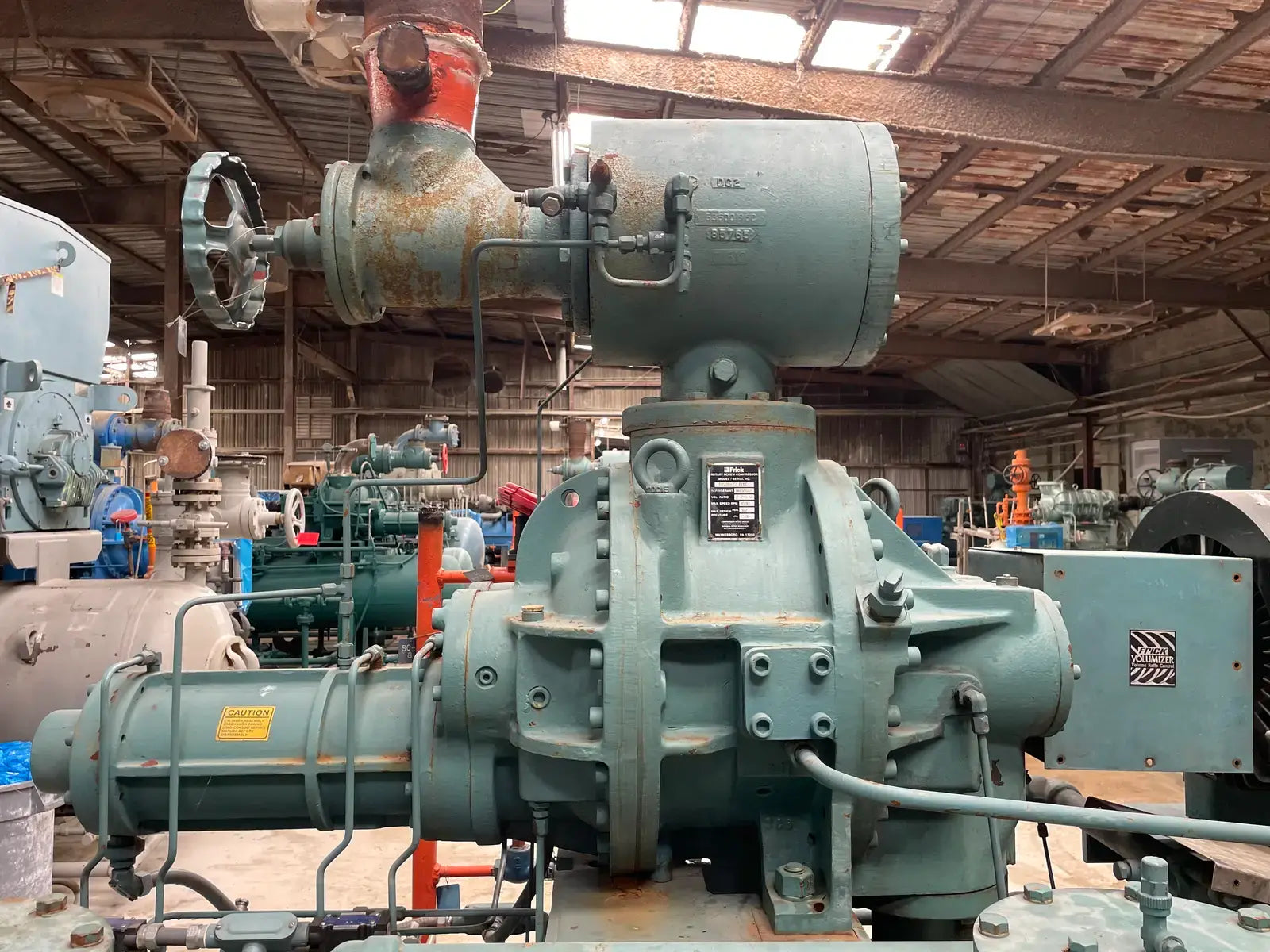

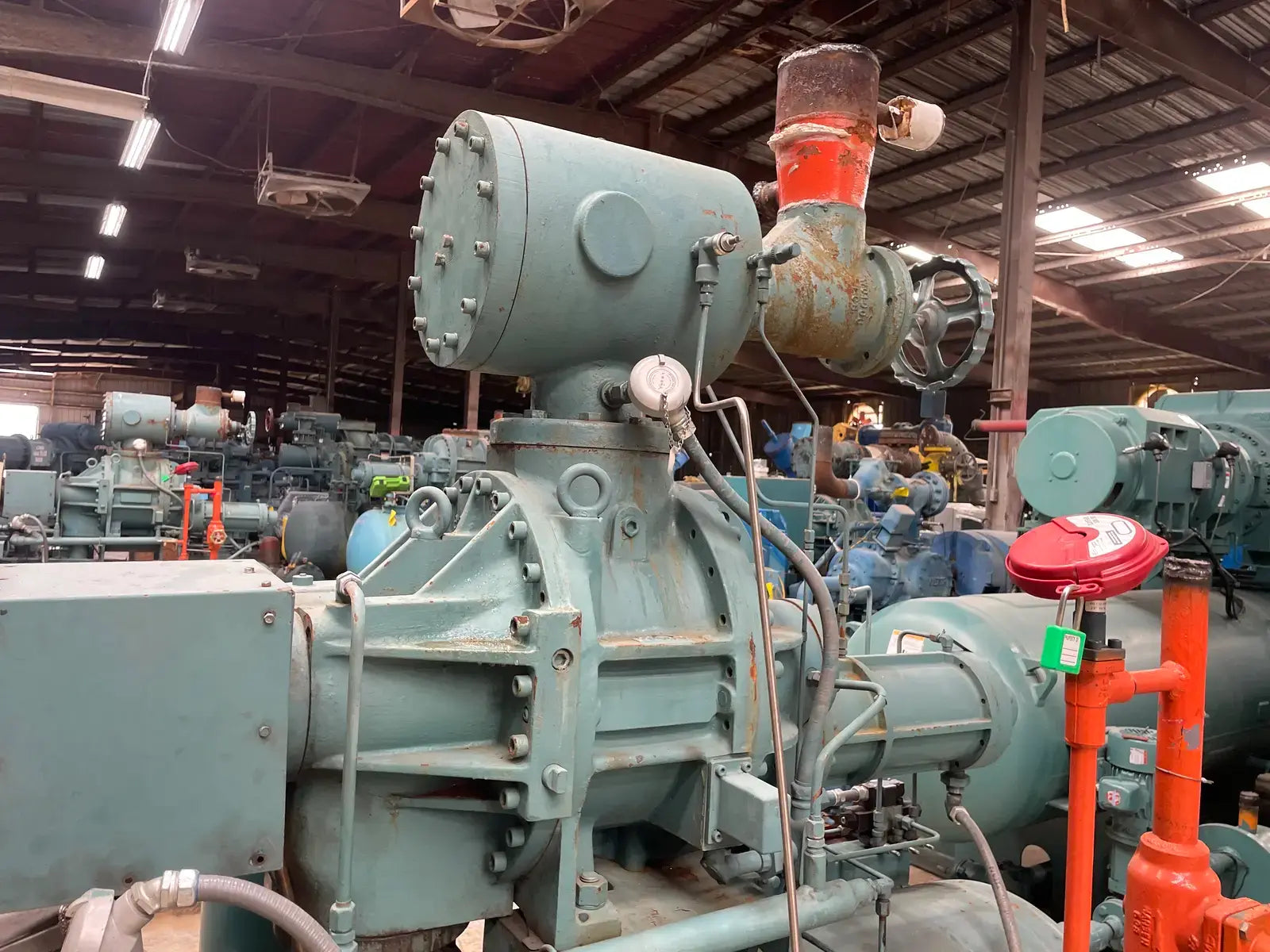

Screw Compressor Details

• Compressor Included? Yes
• Compressor Manufacturer: Frick
• # Compressors in Package: 1

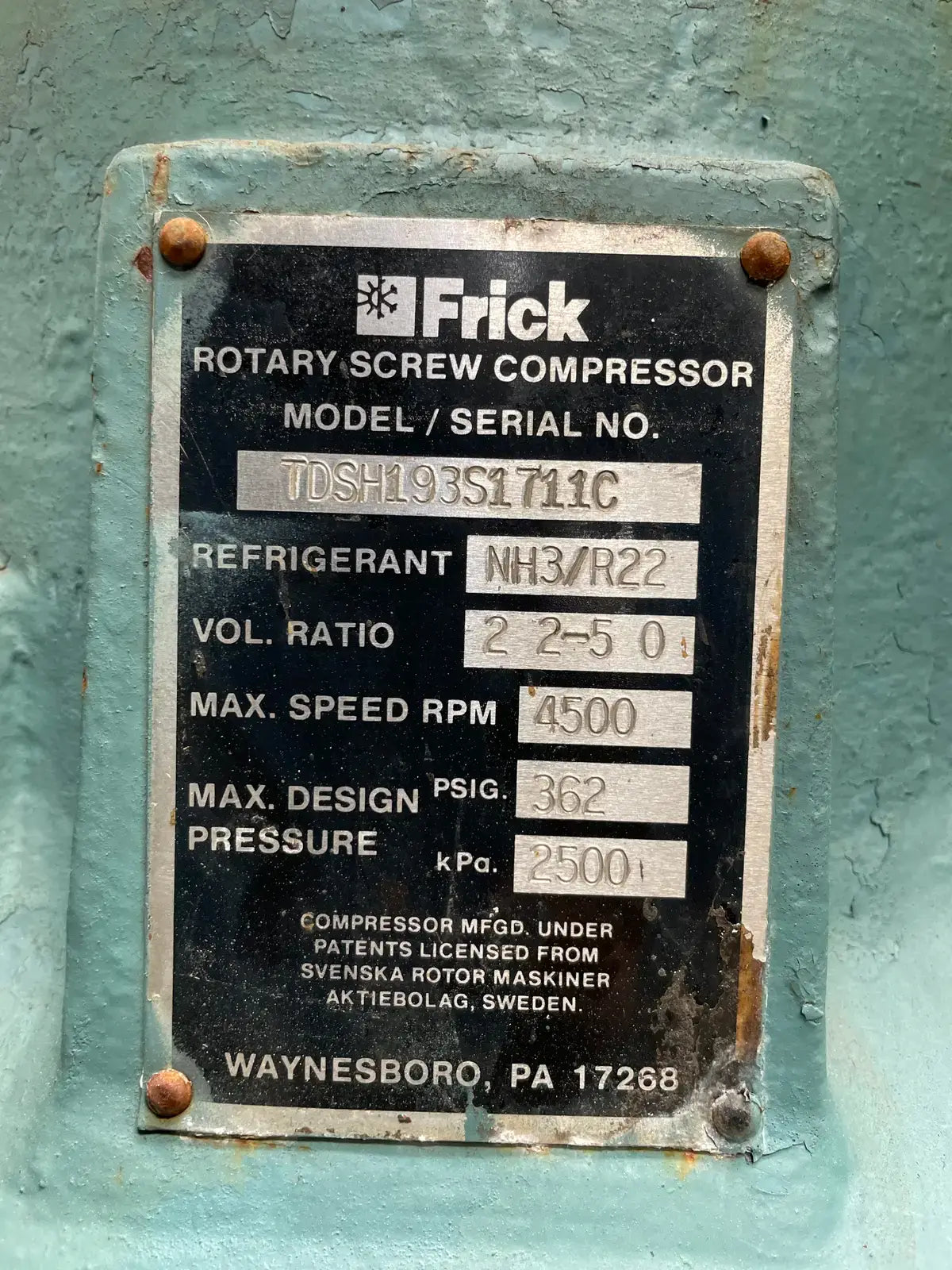

• Compressor Model: TDSH193S
• Compressor SN: 1711C
• Compressor Max Speed (RPM): 4,500
• Compressor Design Pressure (PSIG): 362
• Compressor Volume Ratio: 2.2-5.0

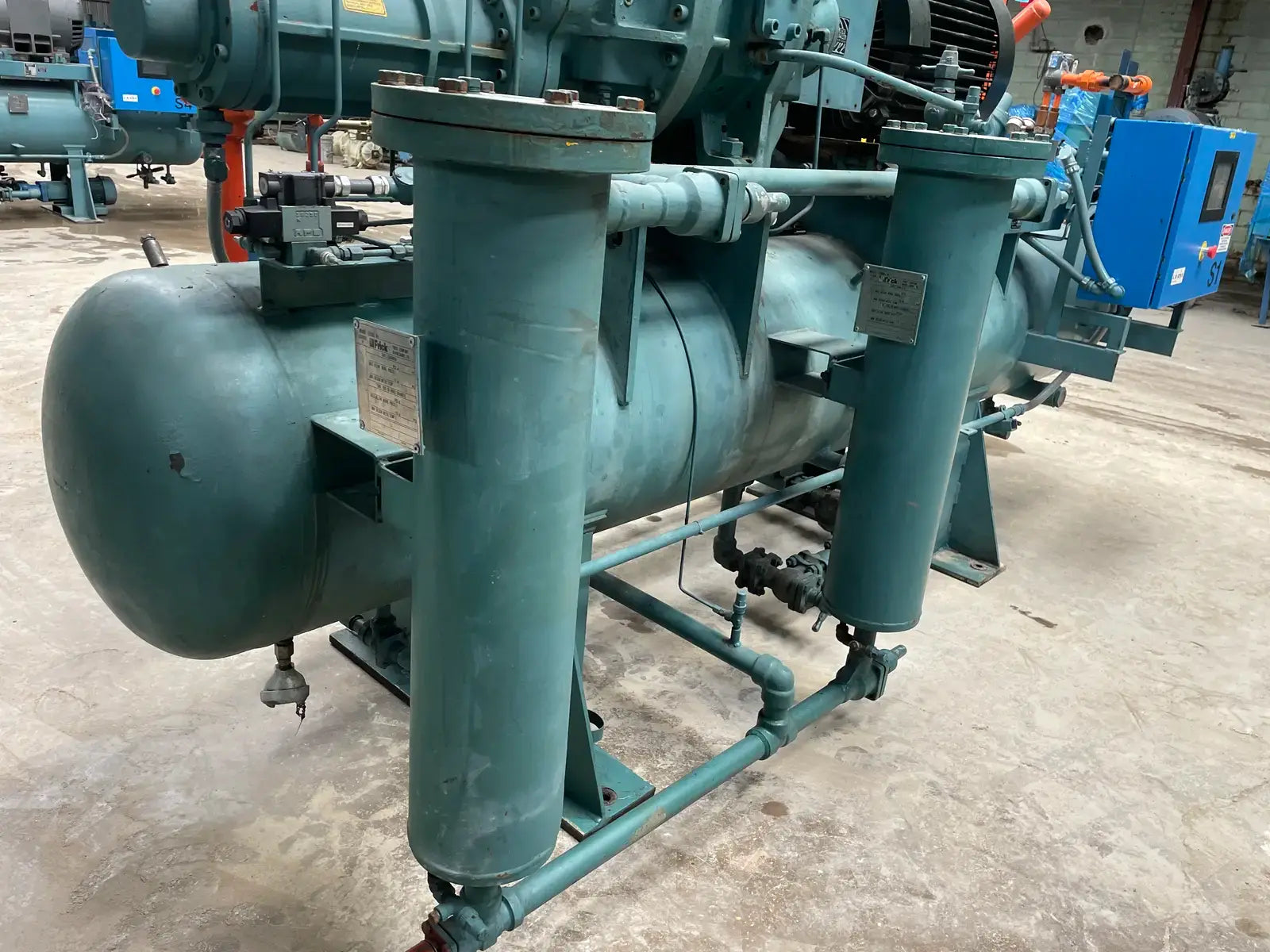

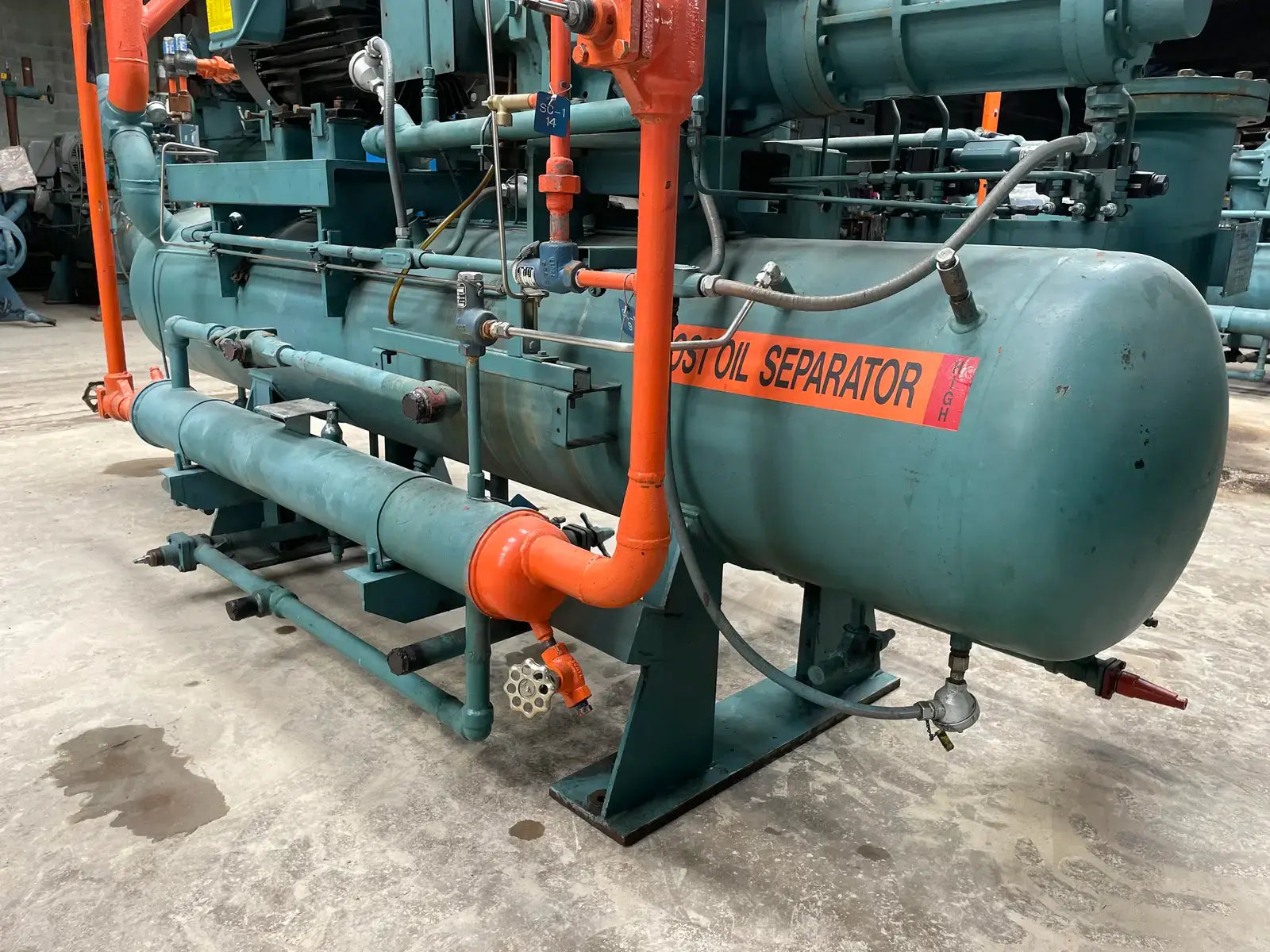

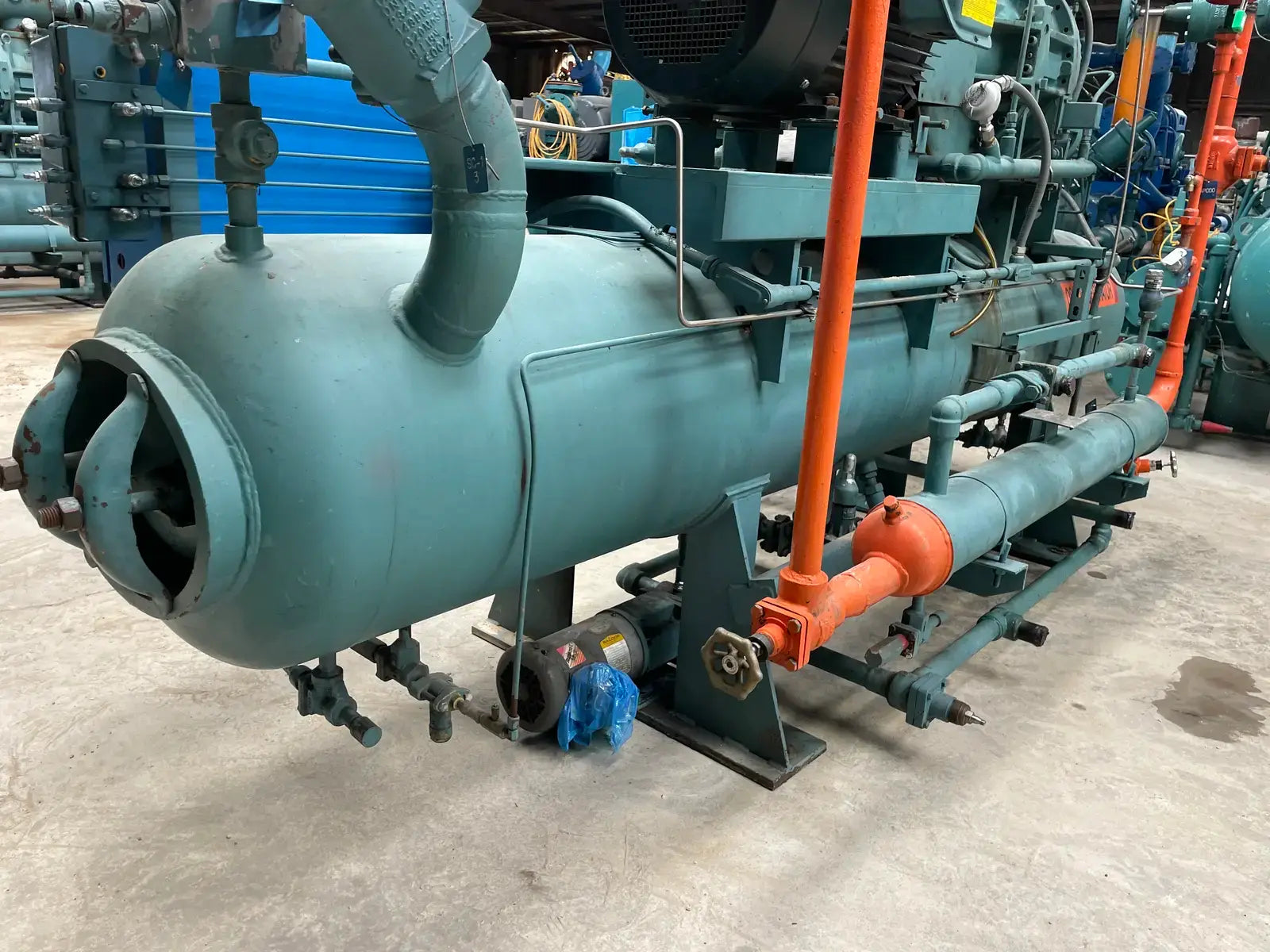

• Oil Separator Included? Yes

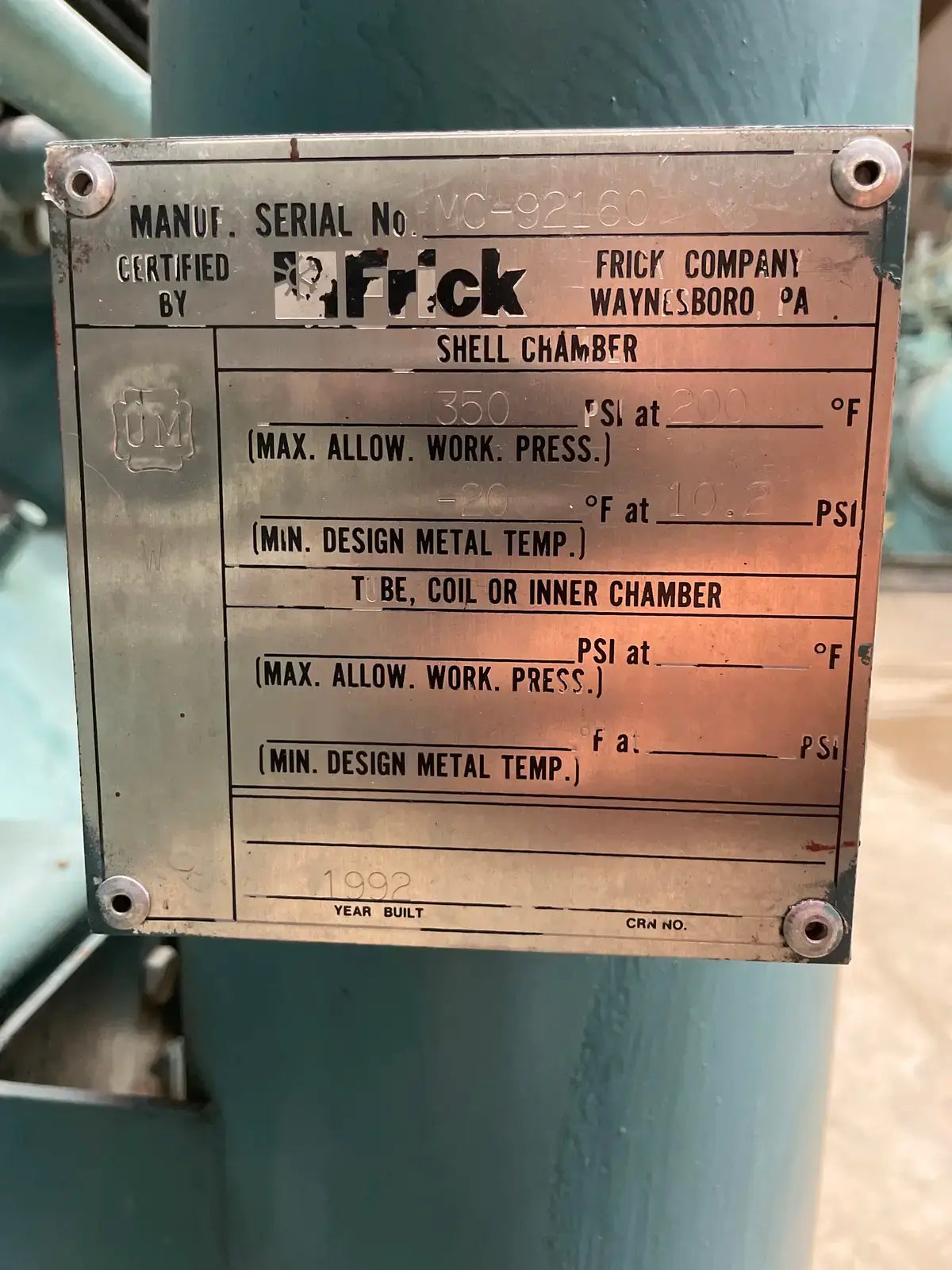

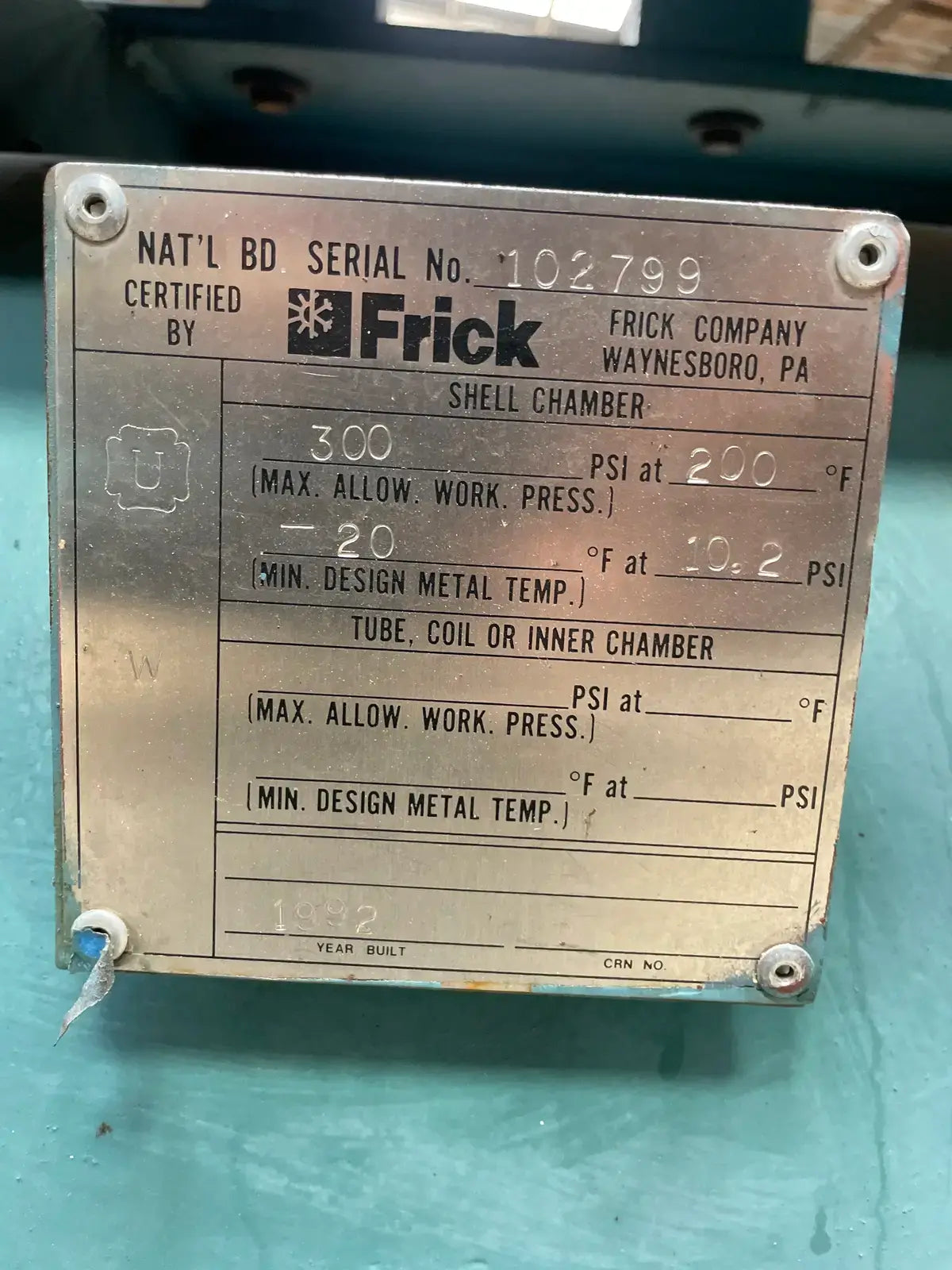

• Oil Separator National Board #: 102799

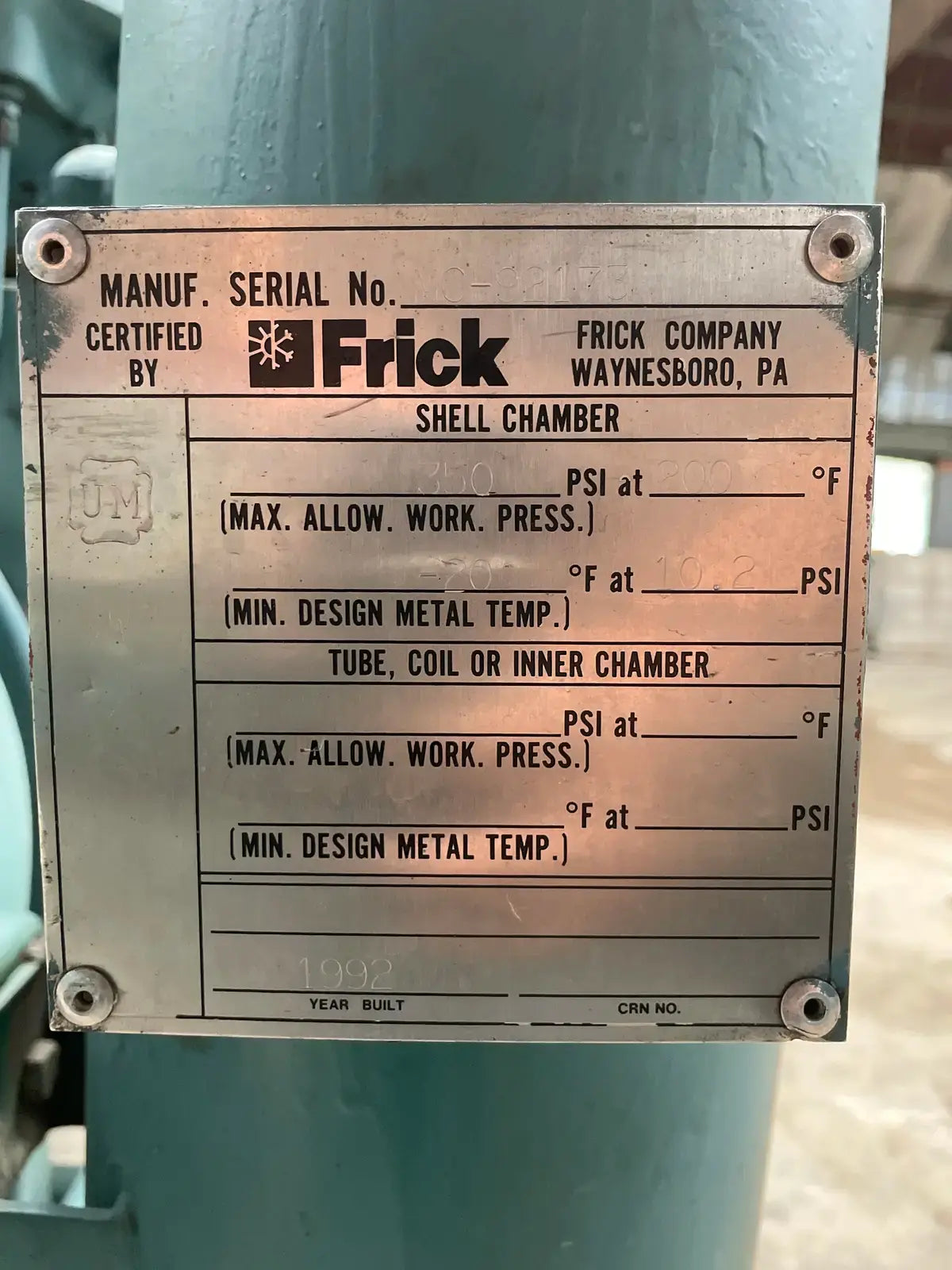

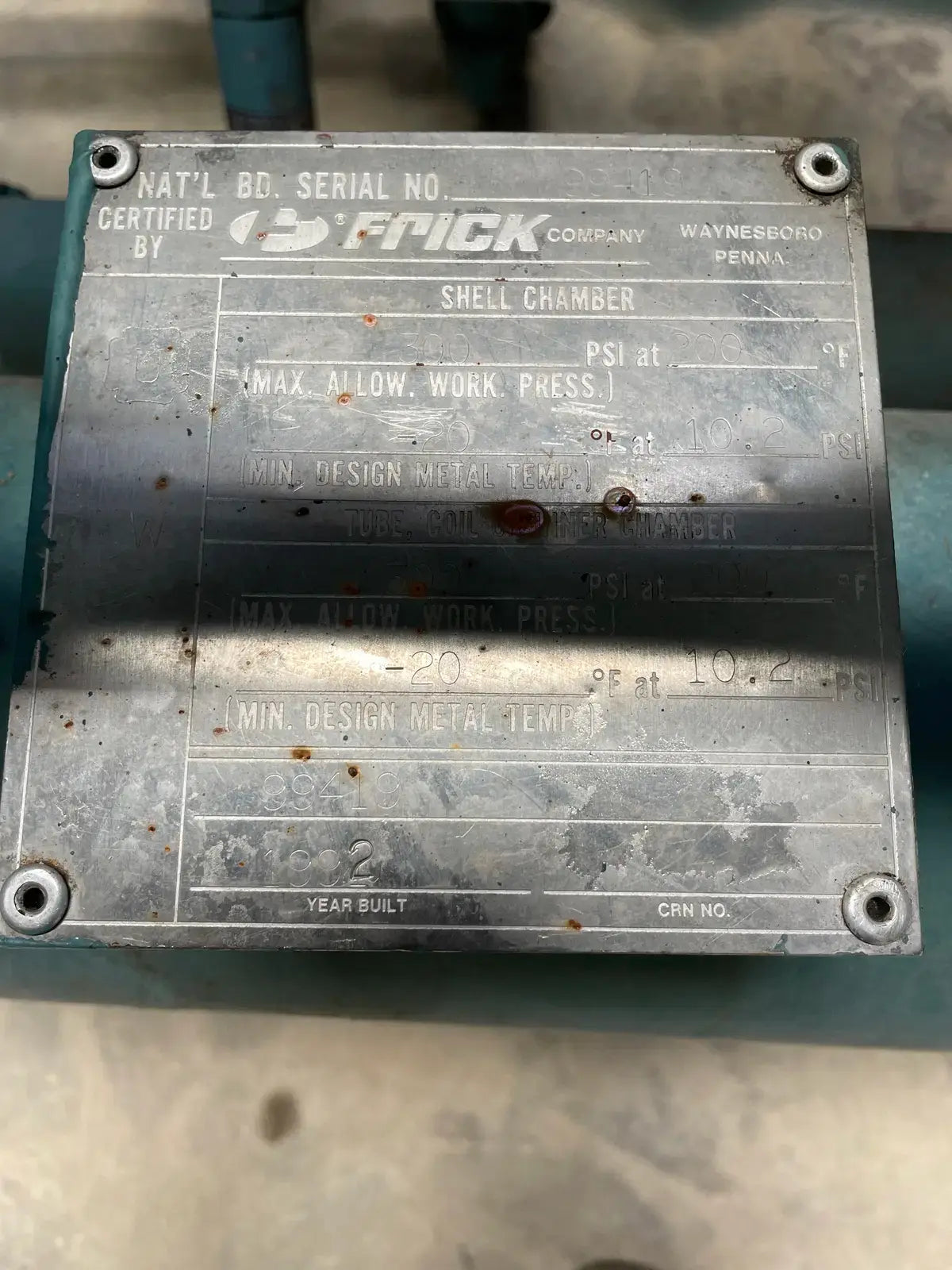

• Oil Cooler National Board #: 99419

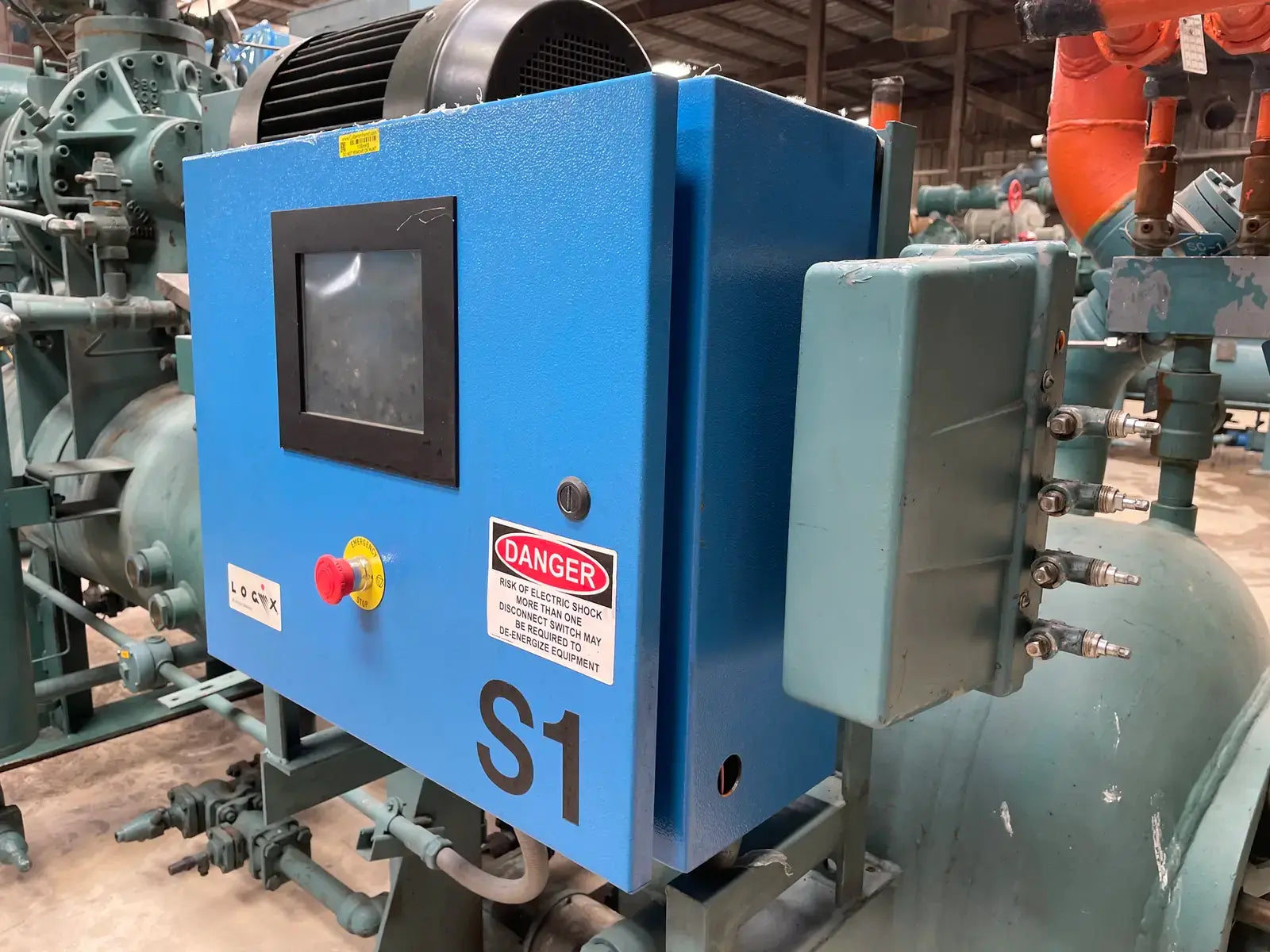

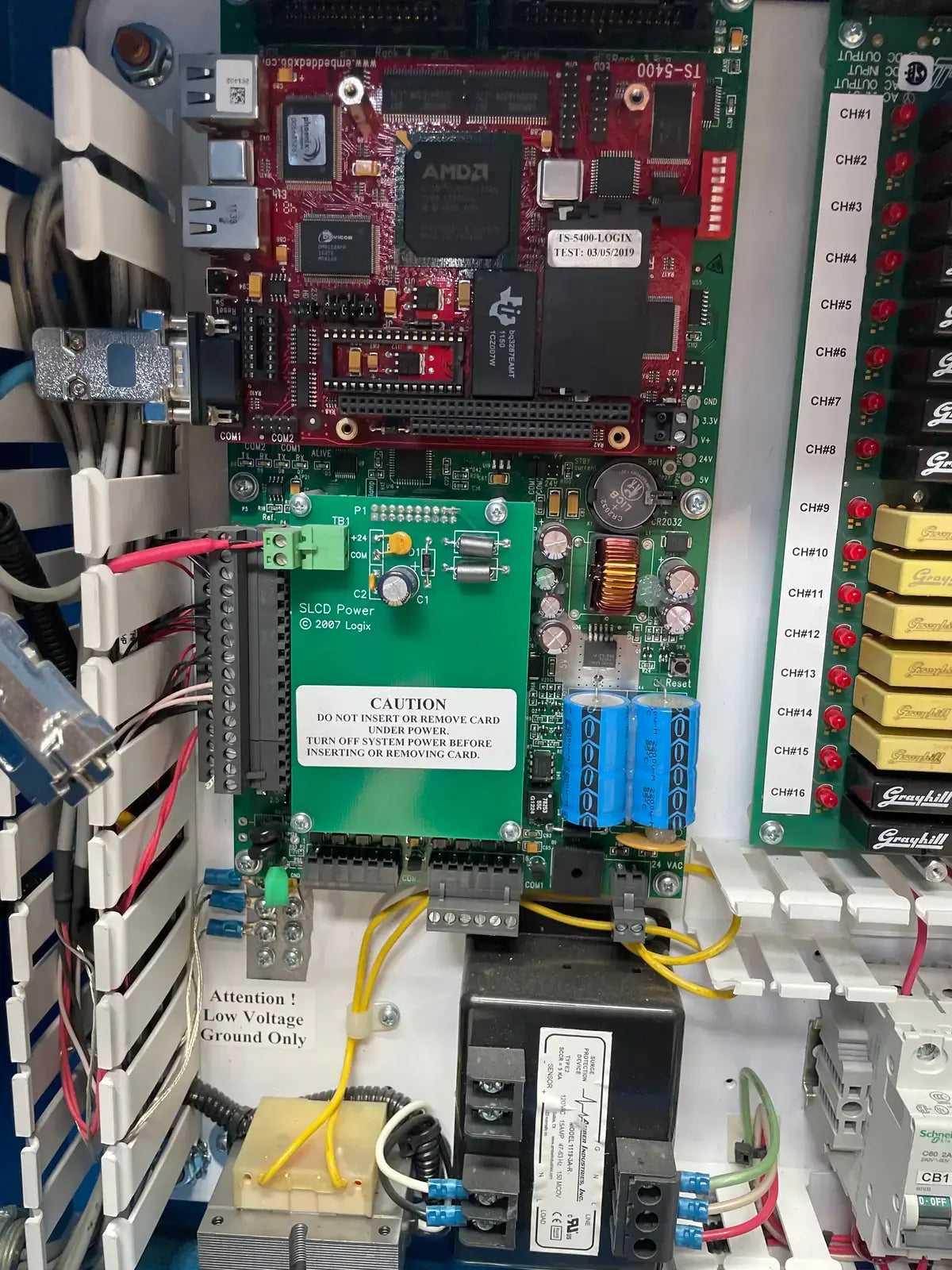

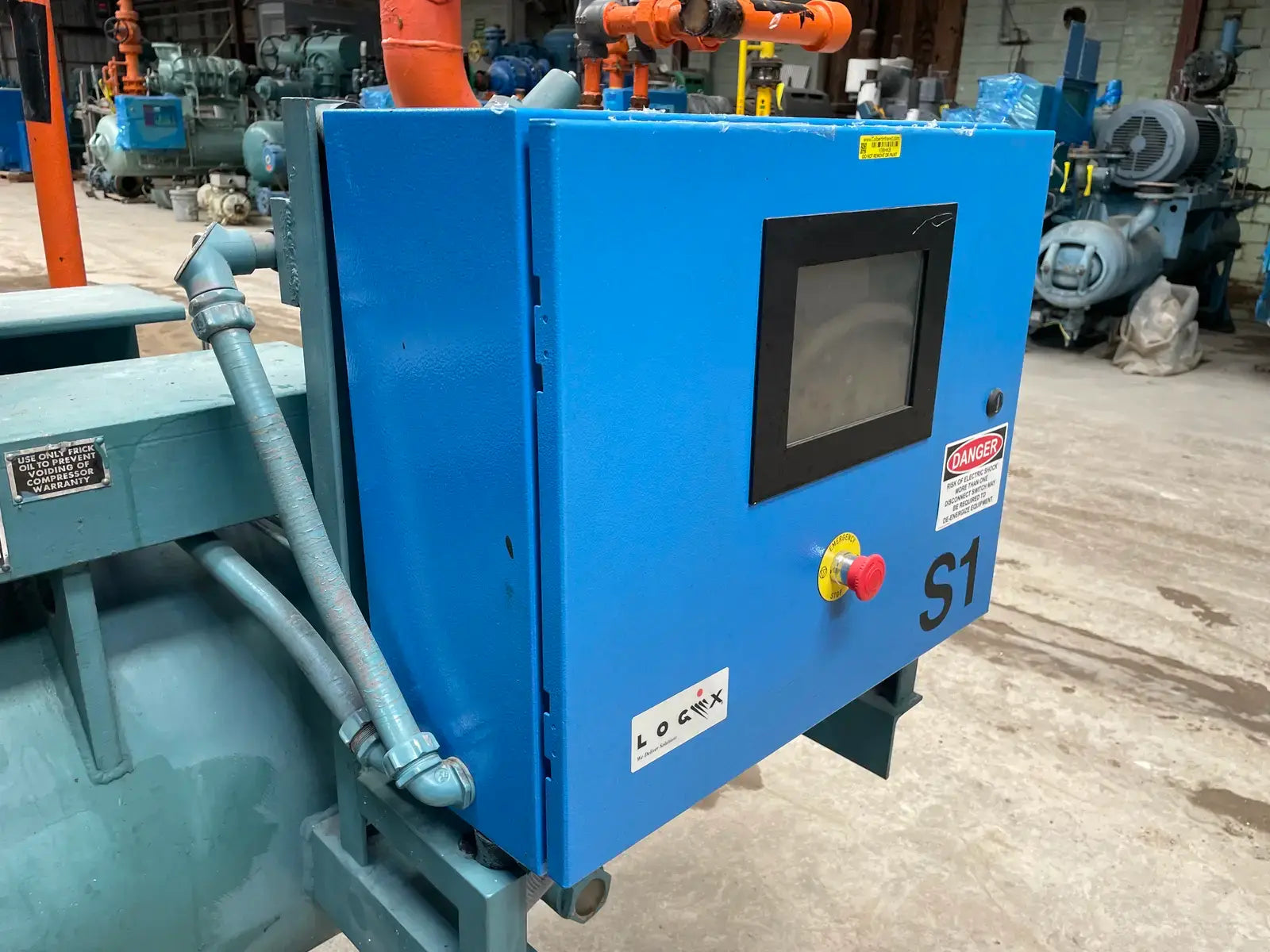

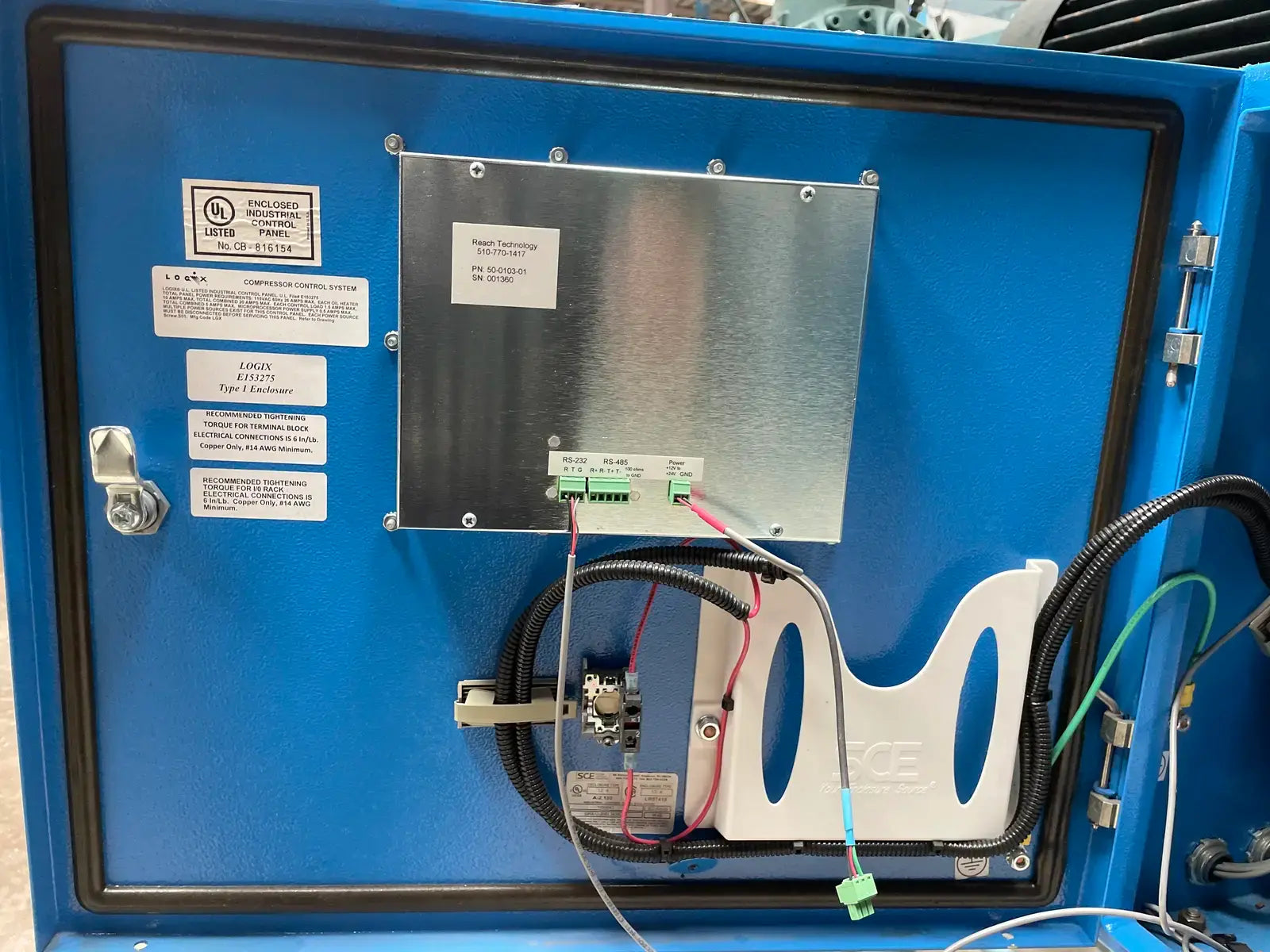

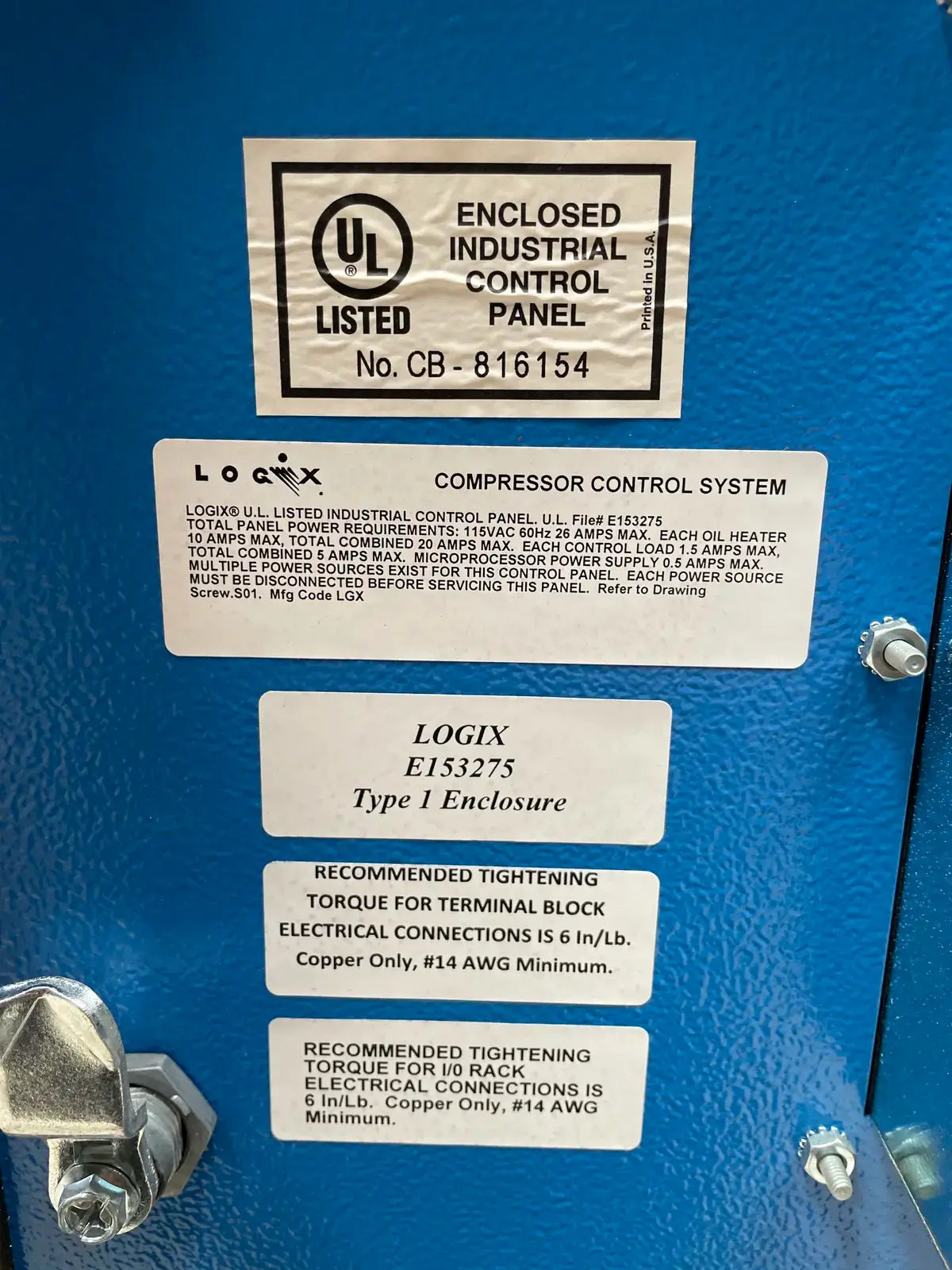

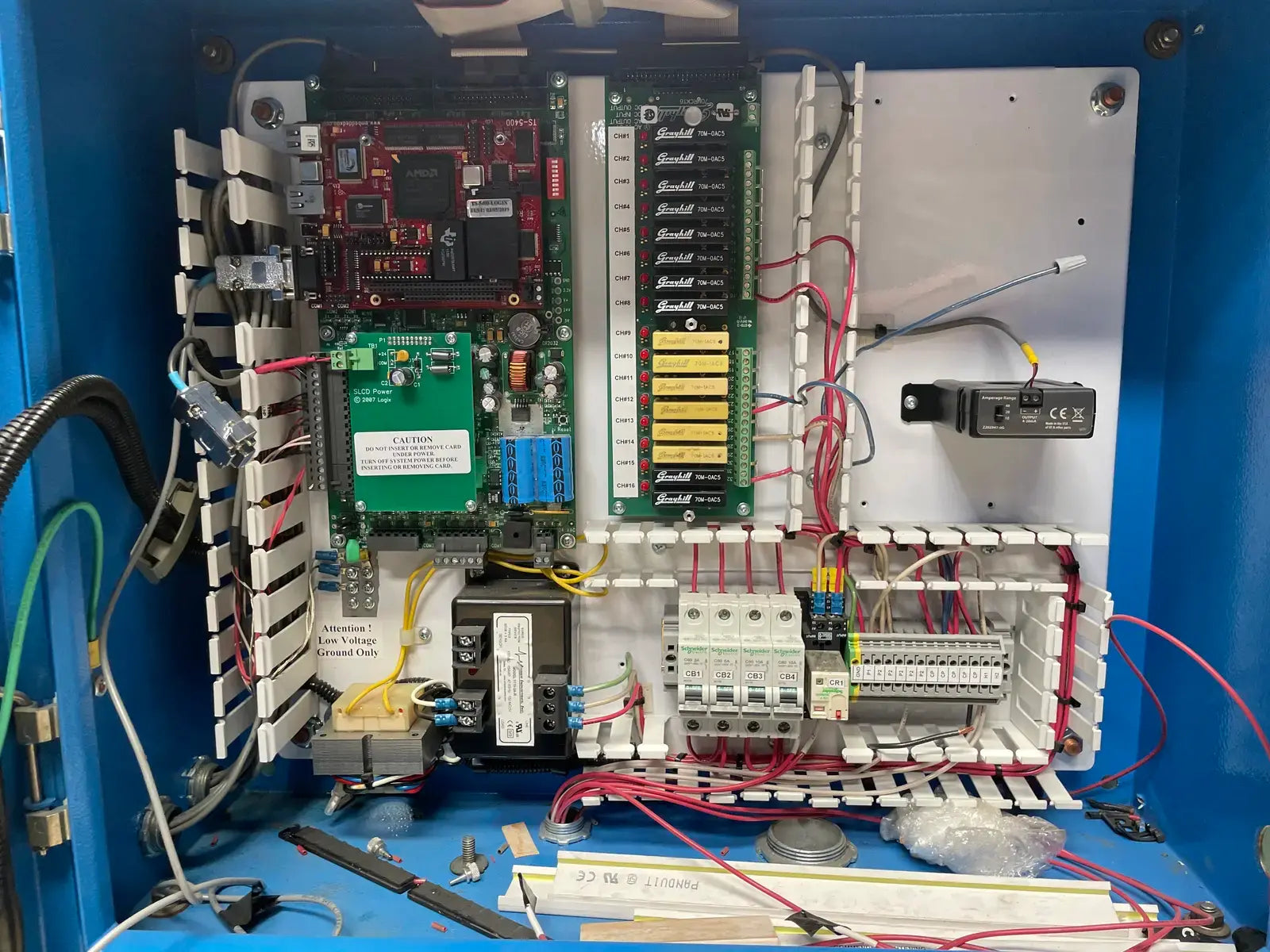

Micro Panel Details

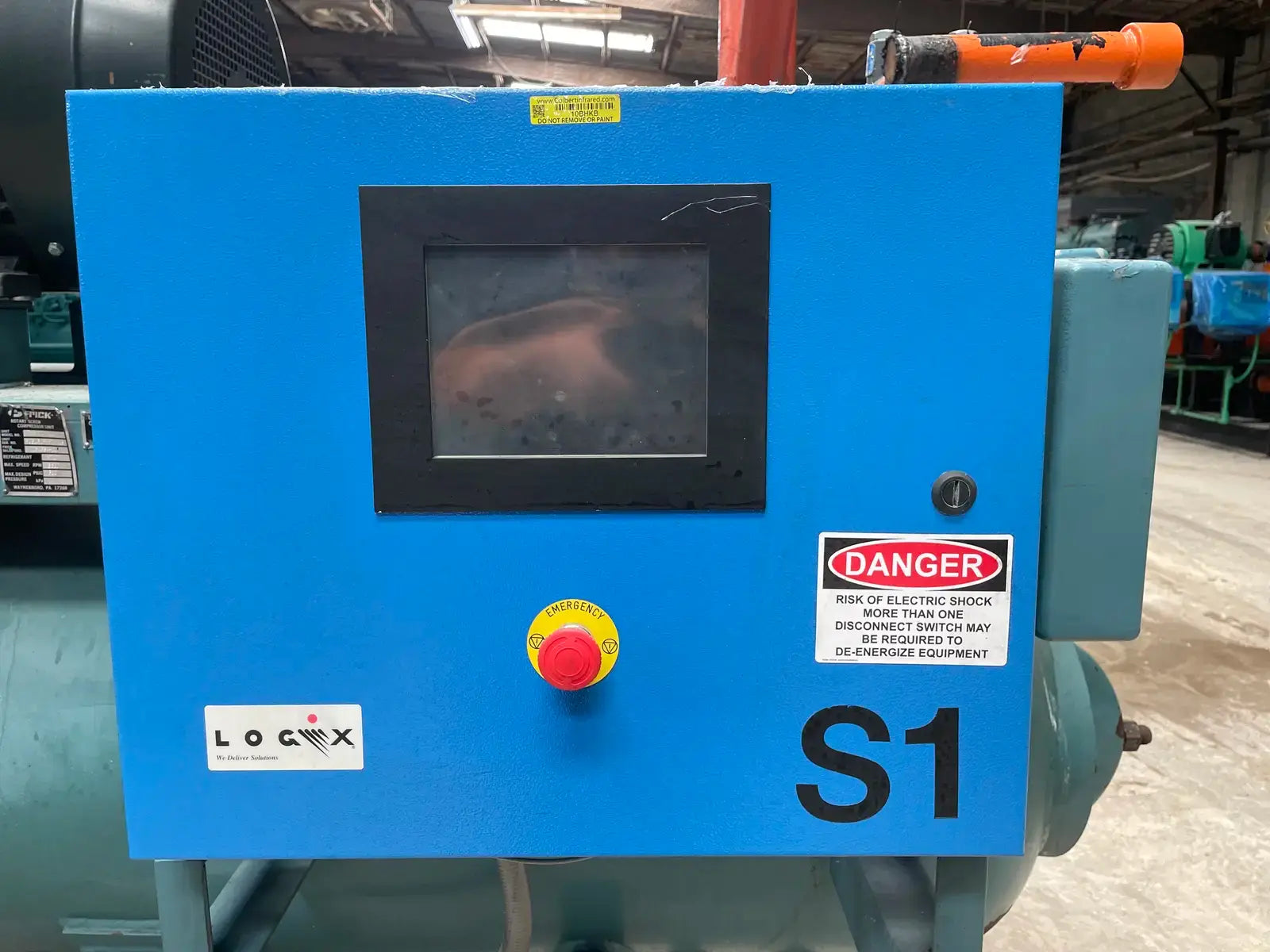

• Micro Control Panel Included? Yes
• Micro Control Panel Description: Logix U.L. Listed Industrial Control Panel: 115 VAC, 60 Hz, 26 Amps Max.

Motor Starter Details

• Motor Starter Included? No

Previous Refrigerant

• Previous Refrigerant: Ammonia (R-717)
• Ammonia (R-717) Compatiable: Yes
• Halocarbon (Freon) Compatible: Yes

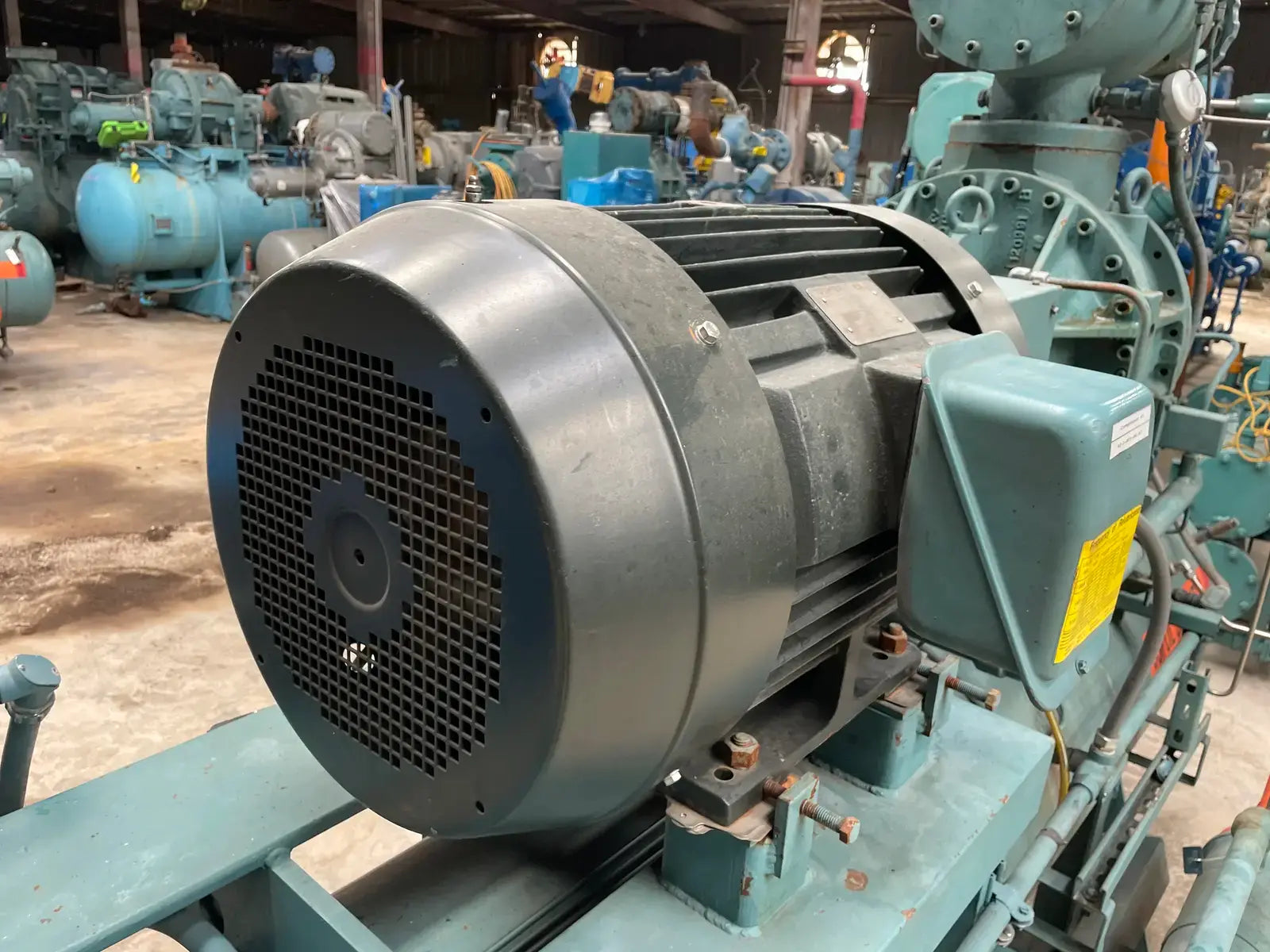

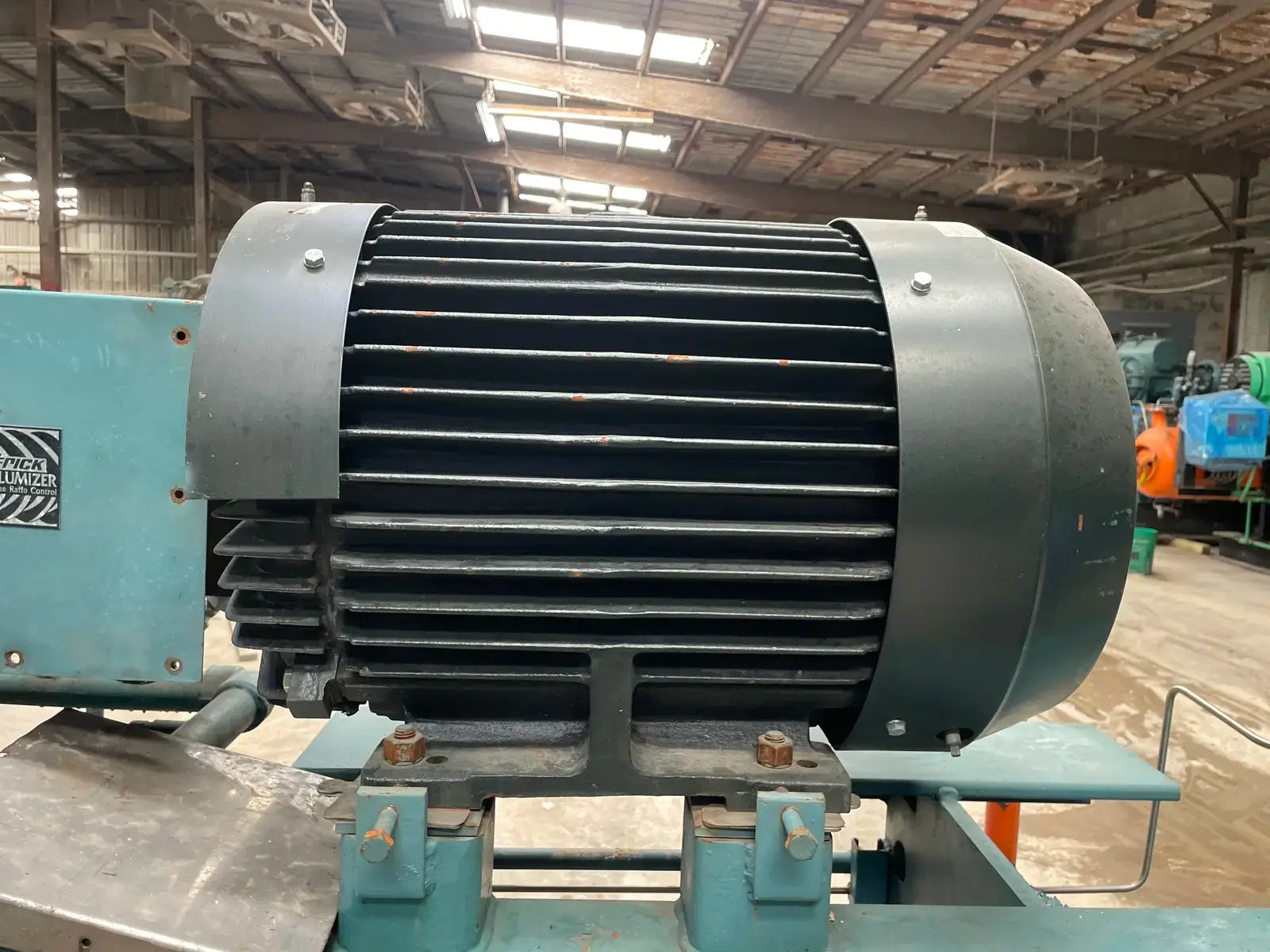

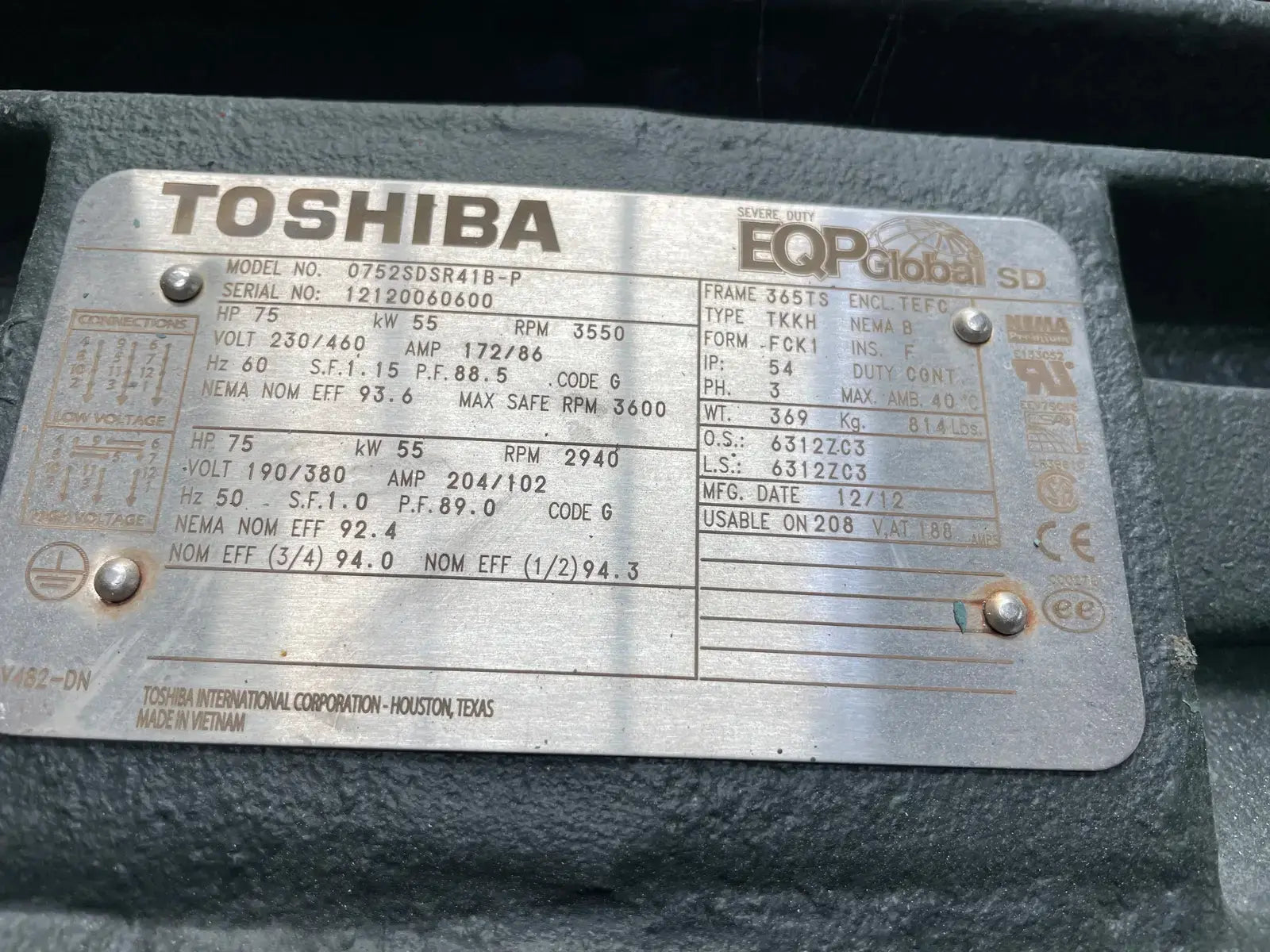

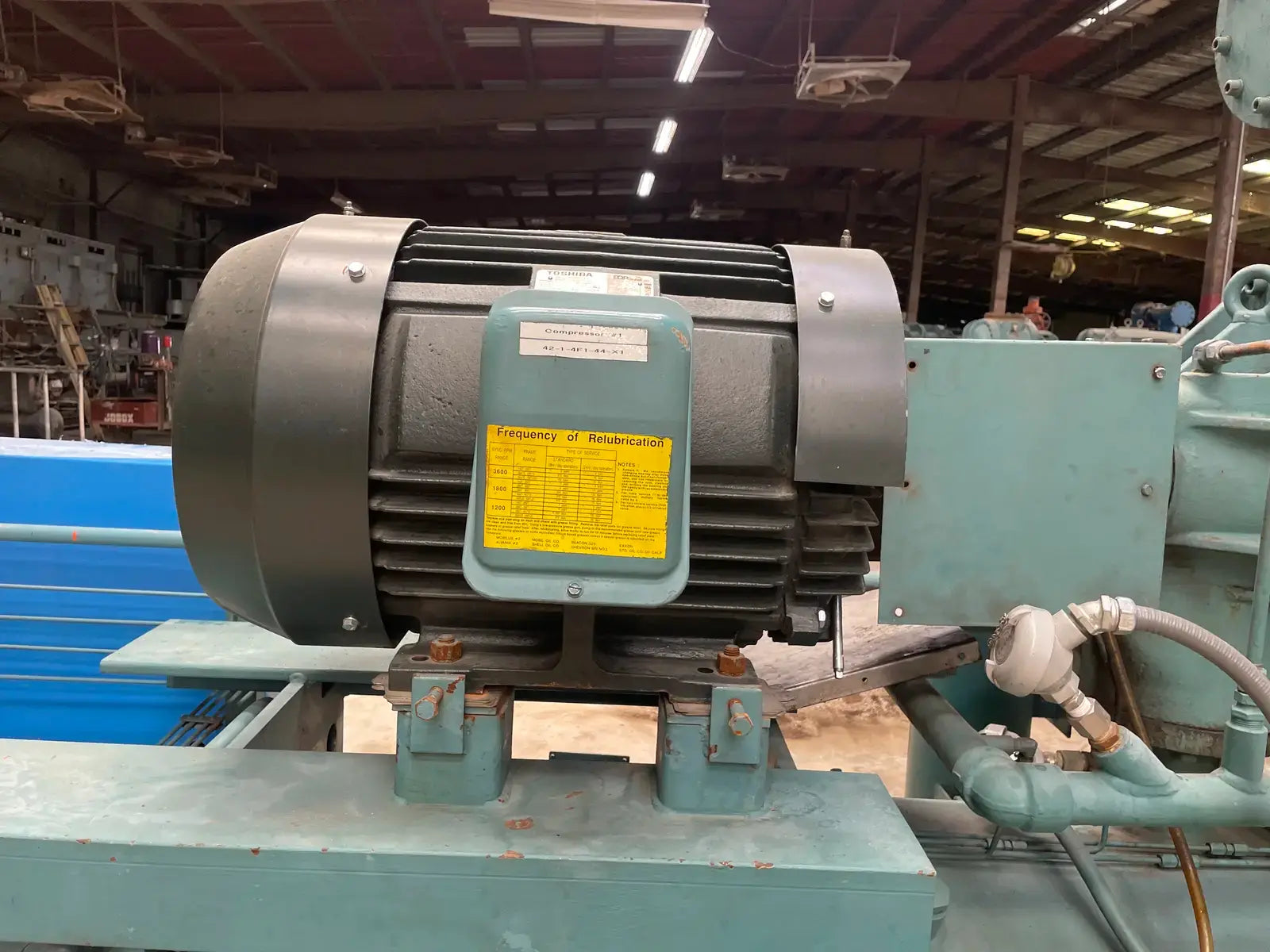

Motor Details

• Motor Included? Yes
• # Motors: 1
• Motor Manufacturer: Toshiba
• Motor Horsepower(HP): 75
• Motor RPM: 3,550
• Motor Voltage: 230/460
• Motor Amps: 172/86
• Motor Hertz (Hz): 60
• Motor Phases: 3
• Motor Frame Size: 365TS

Dimensions:

• Length (Inches): 164
• Width (Inches): 54
• Height (Inches): 91
• Weight (LBS): 9,500
• # of Pieces for Shipping: 1

Additional Product Details

• Year of Manufacture: 2001

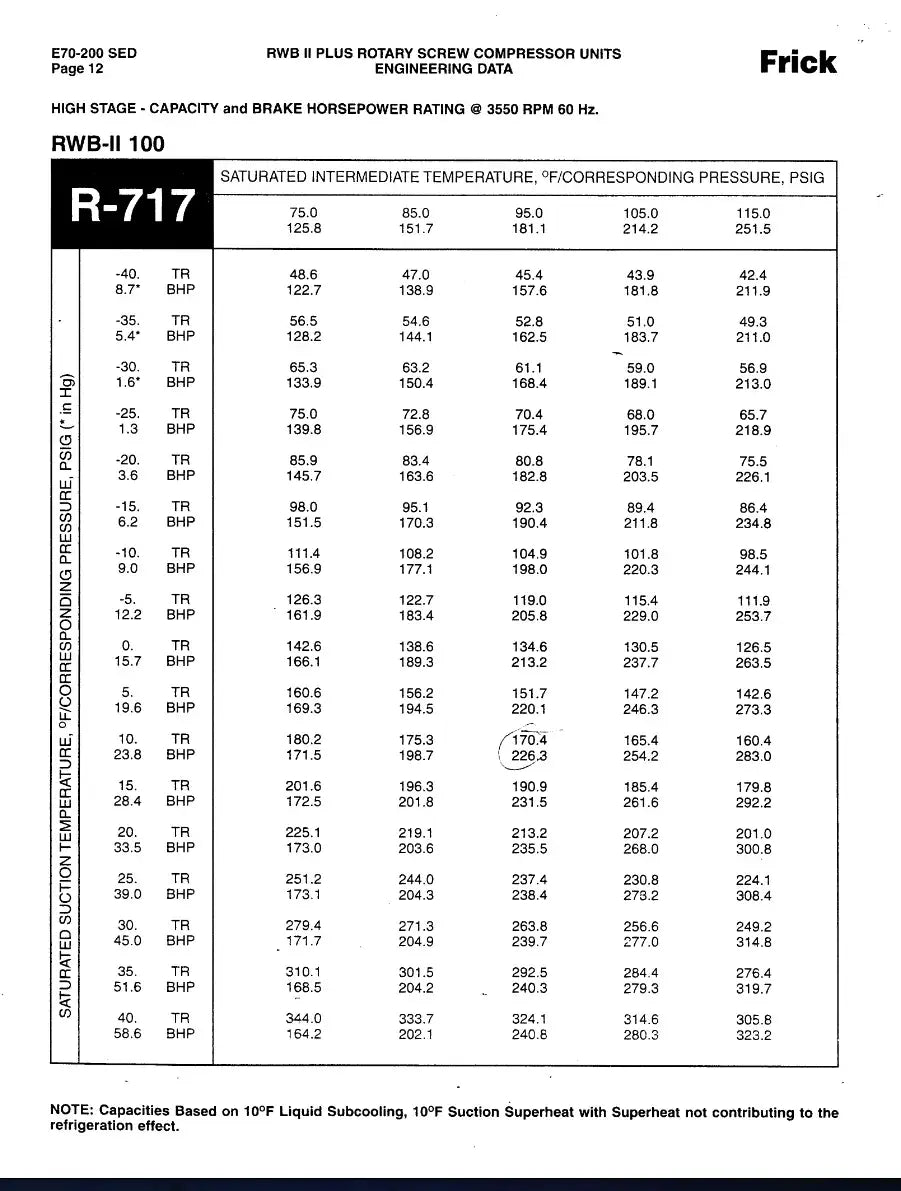

• Spec Sheet Available: Yes
