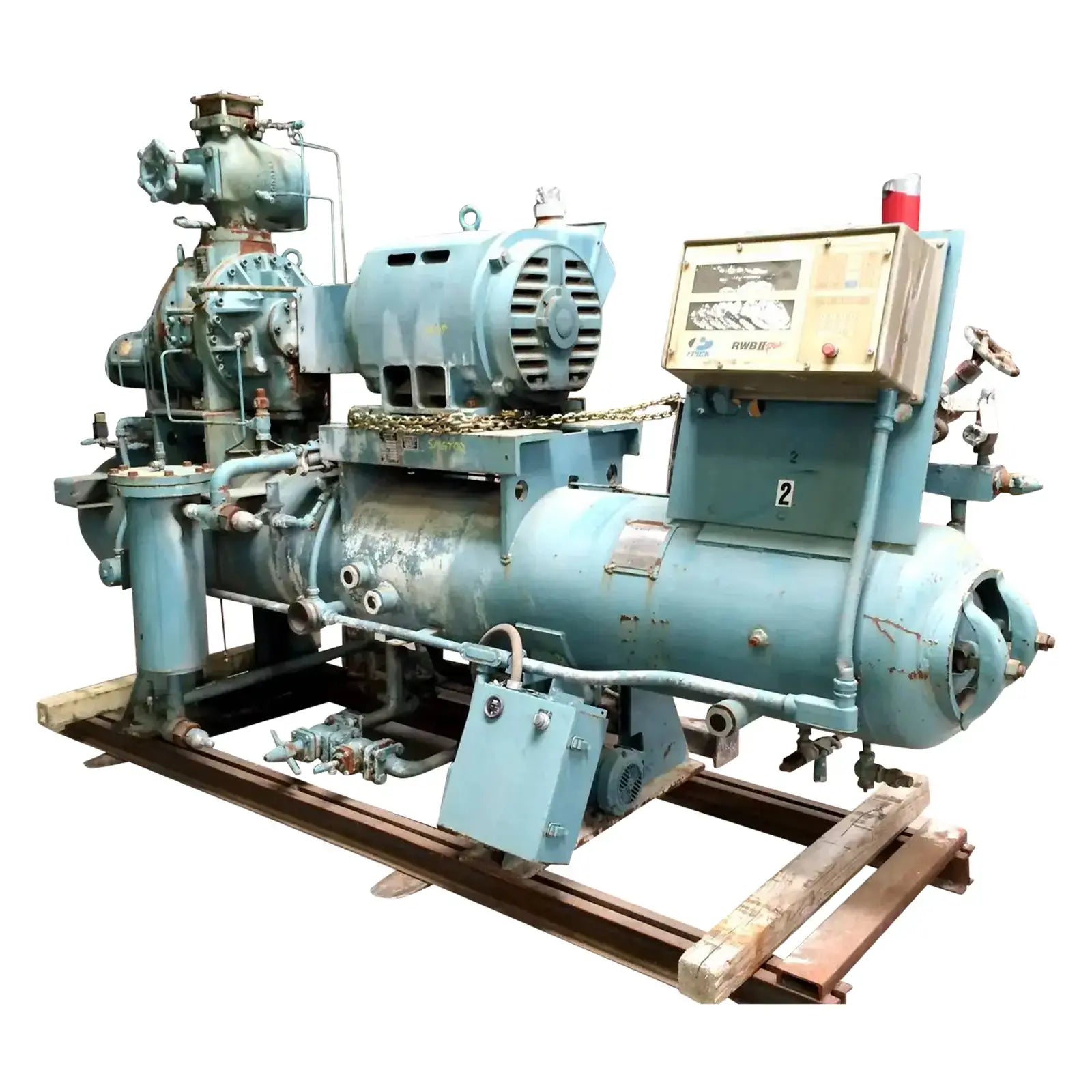

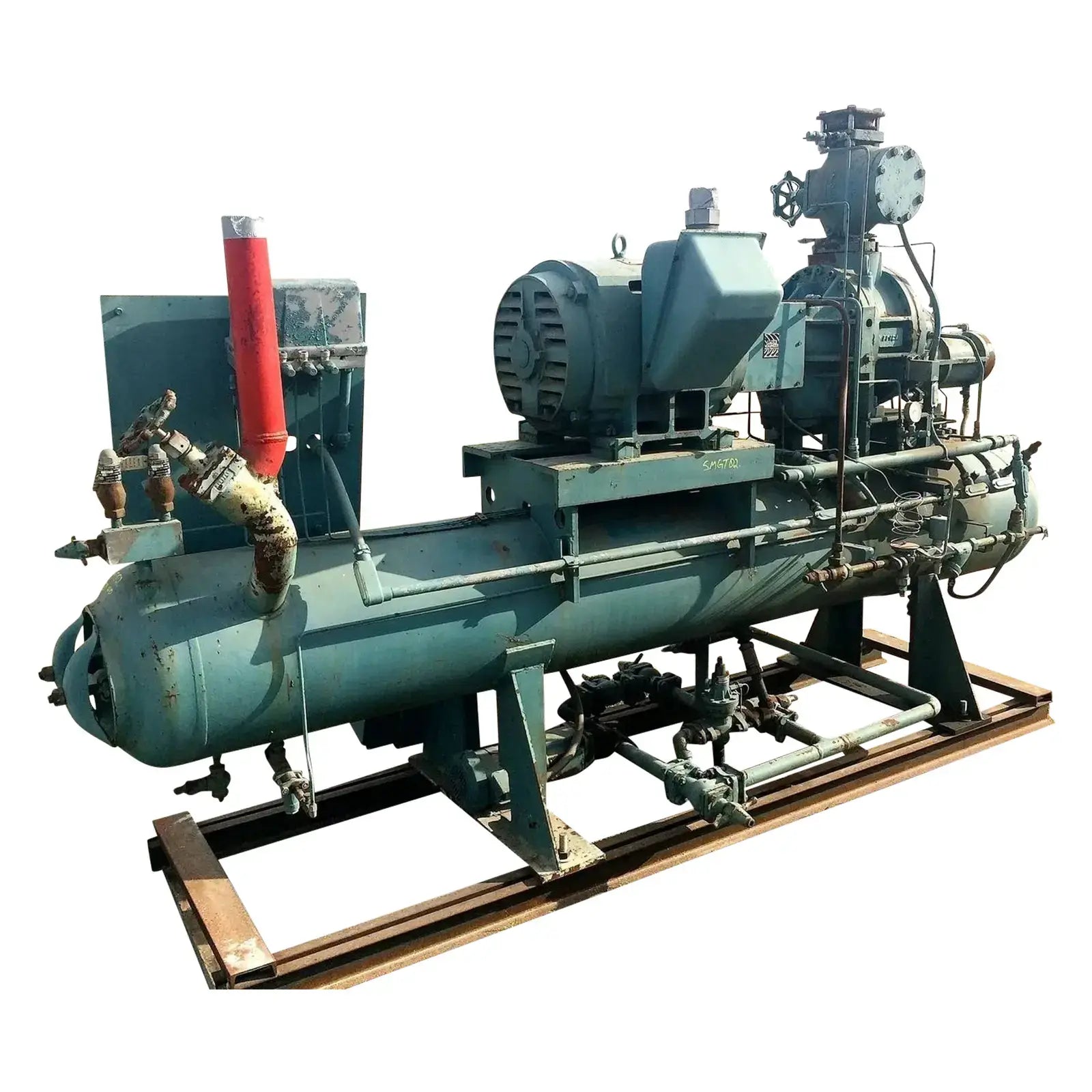

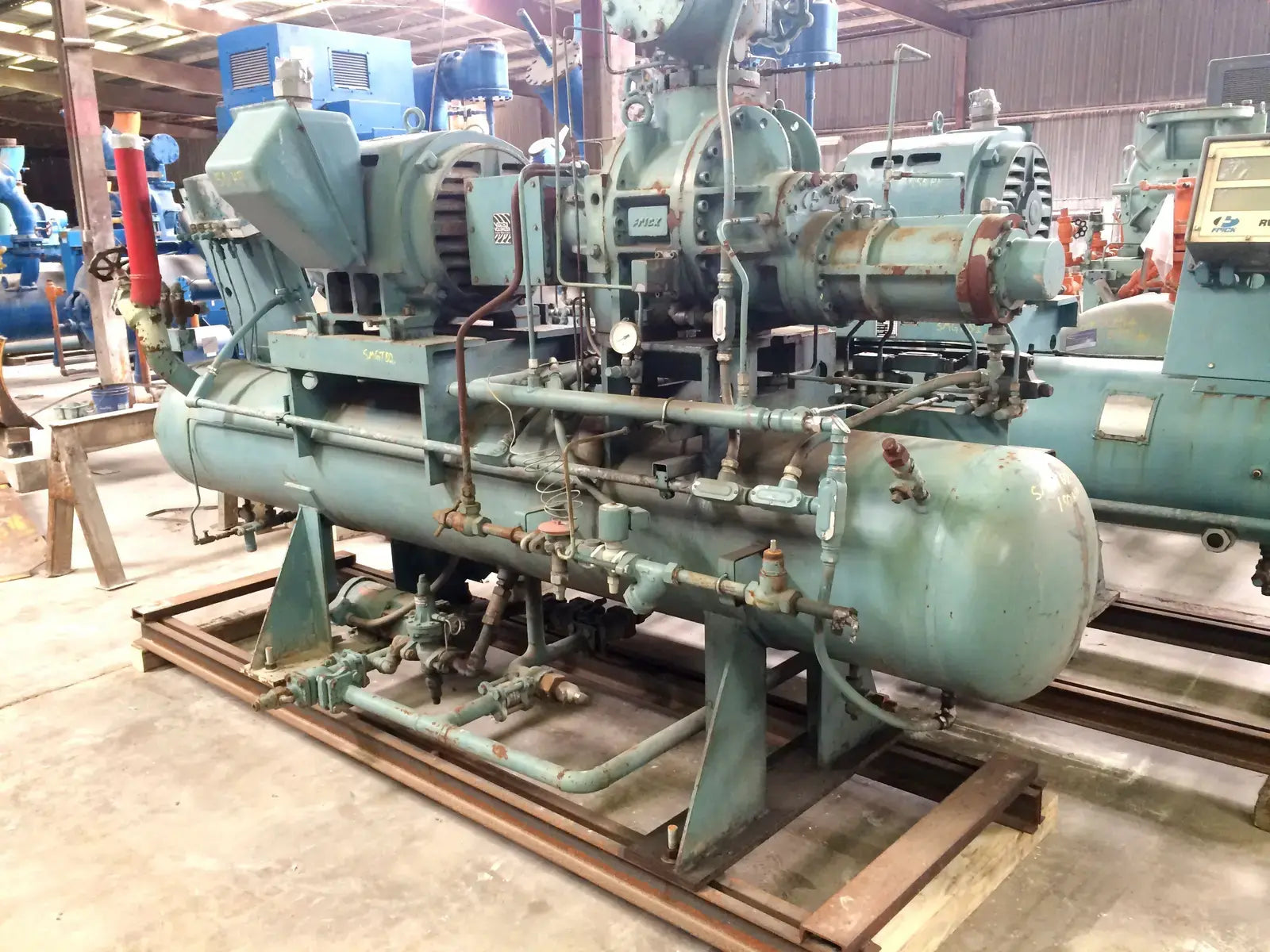

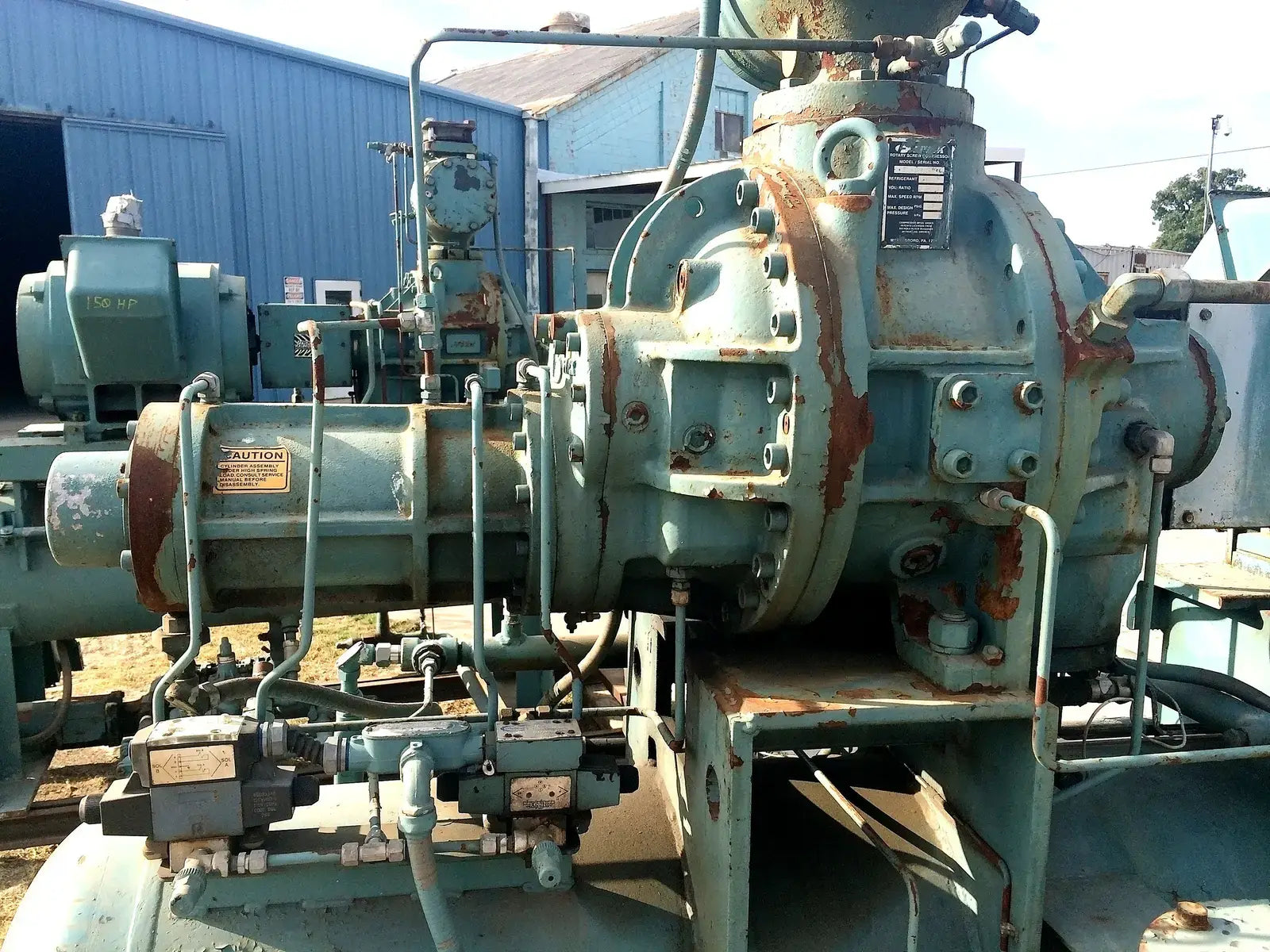

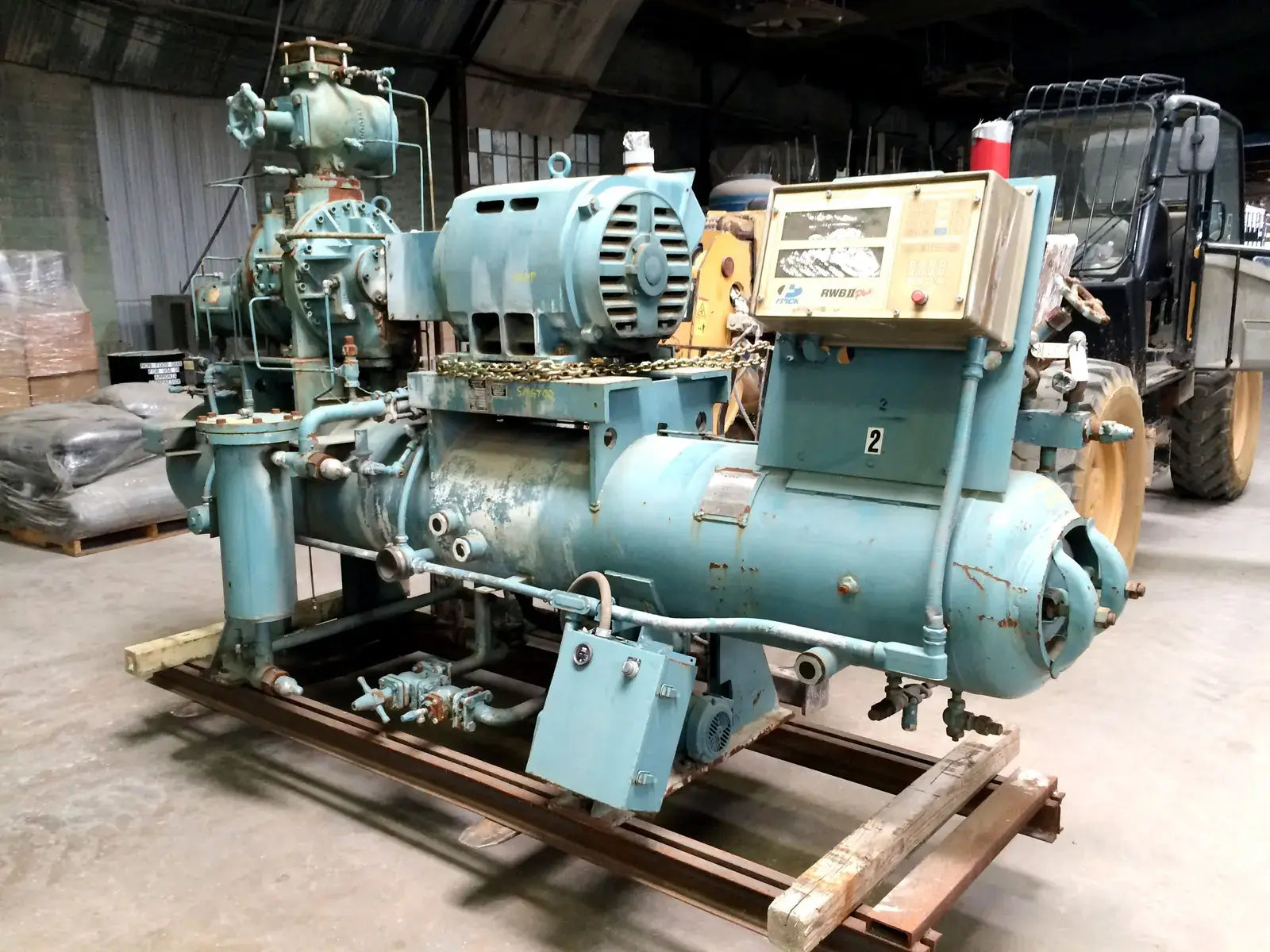

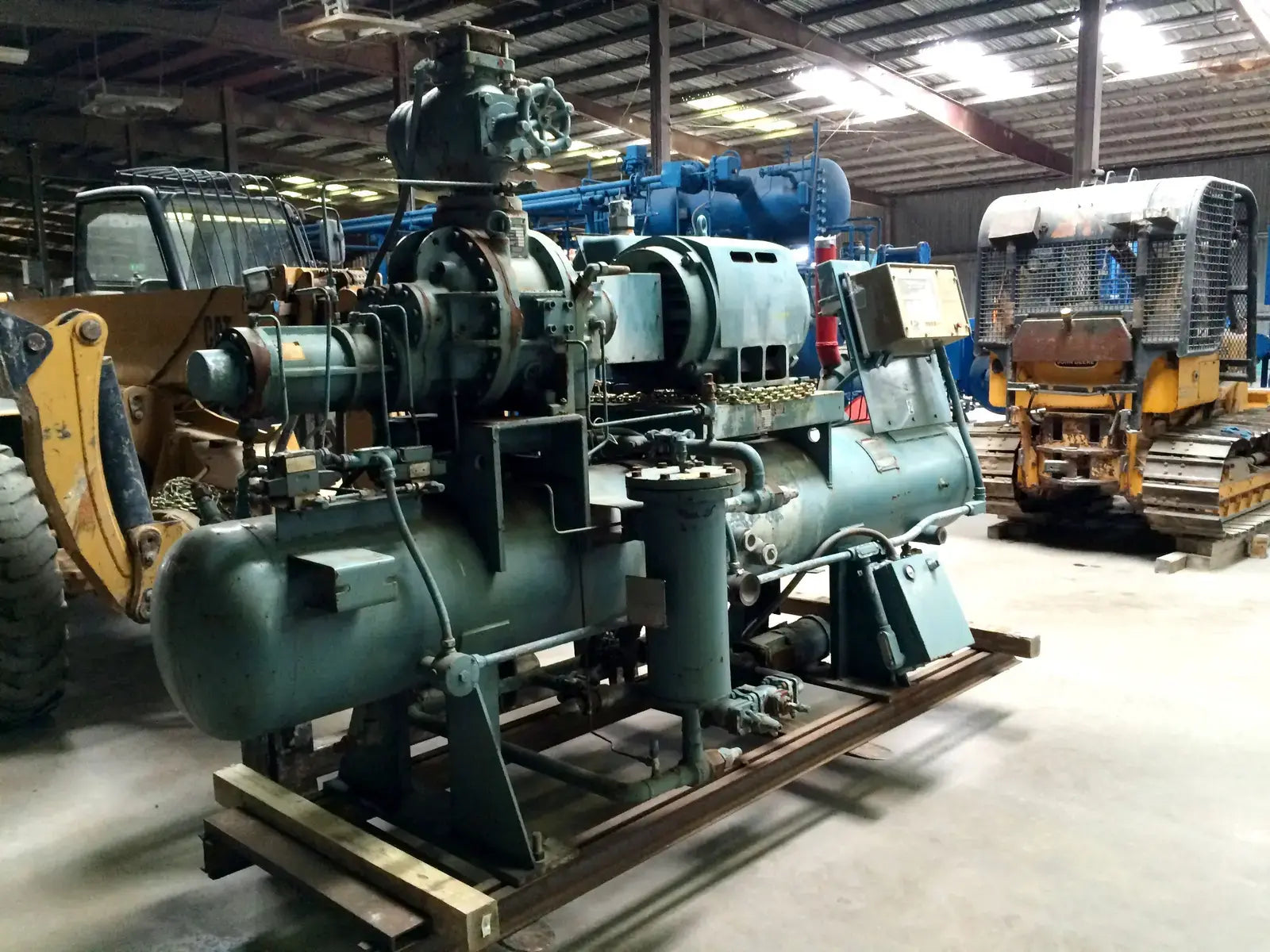

Frick RWB-II-60 Rotary Screw Compressor Package (Frick TDSH163S, 150 HP 230/460 V, Frick Micro Control Panel)

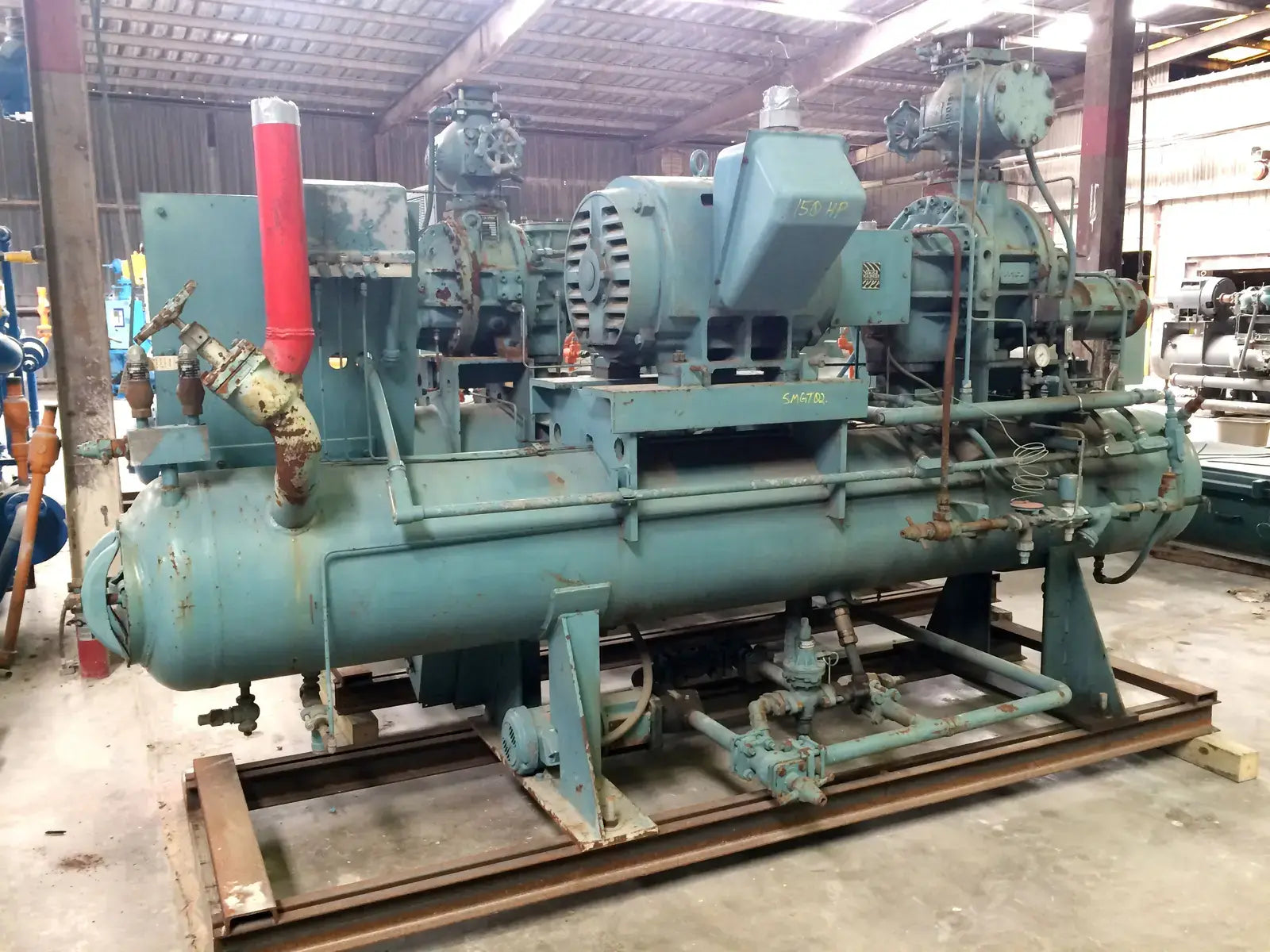

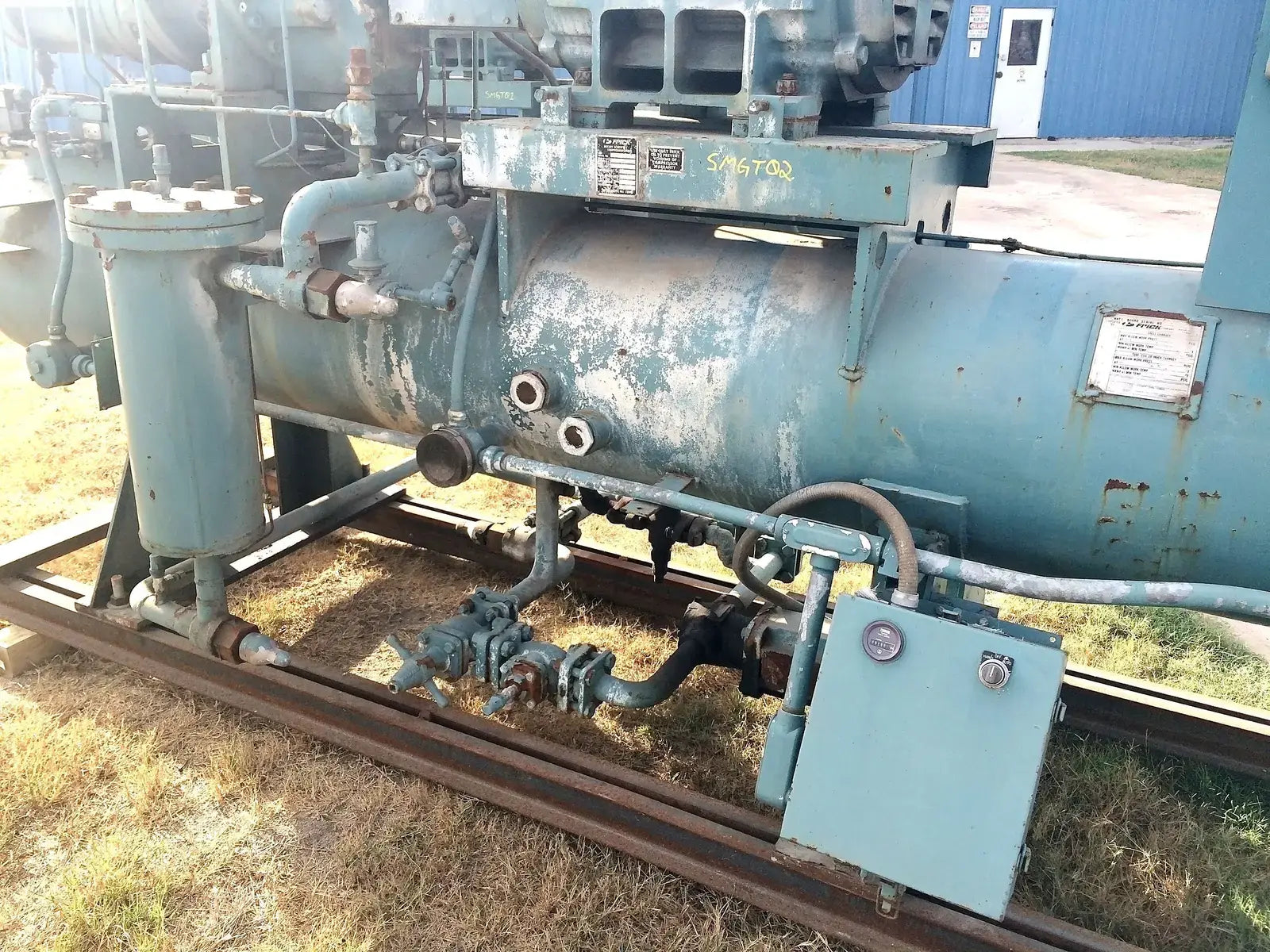

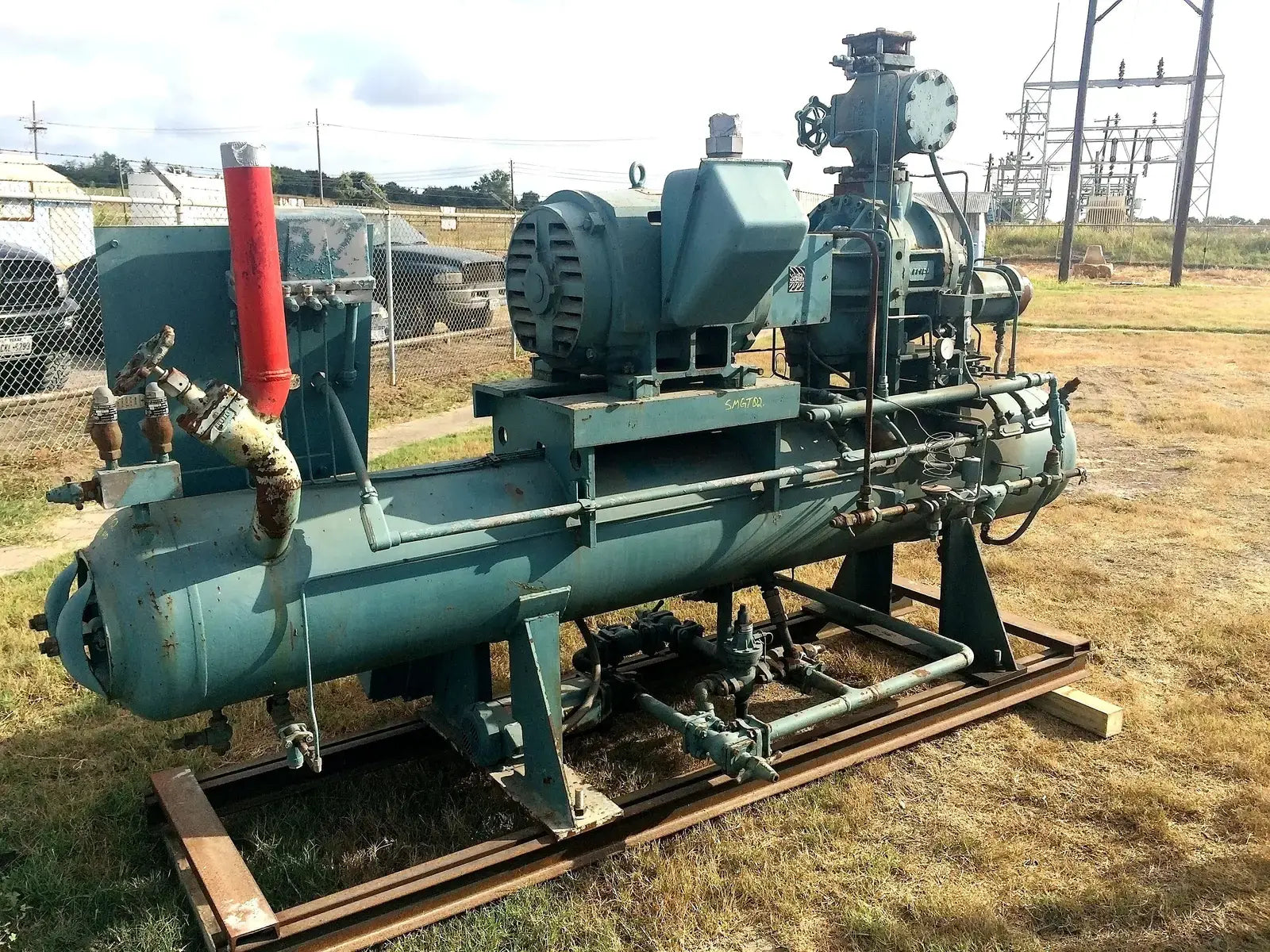

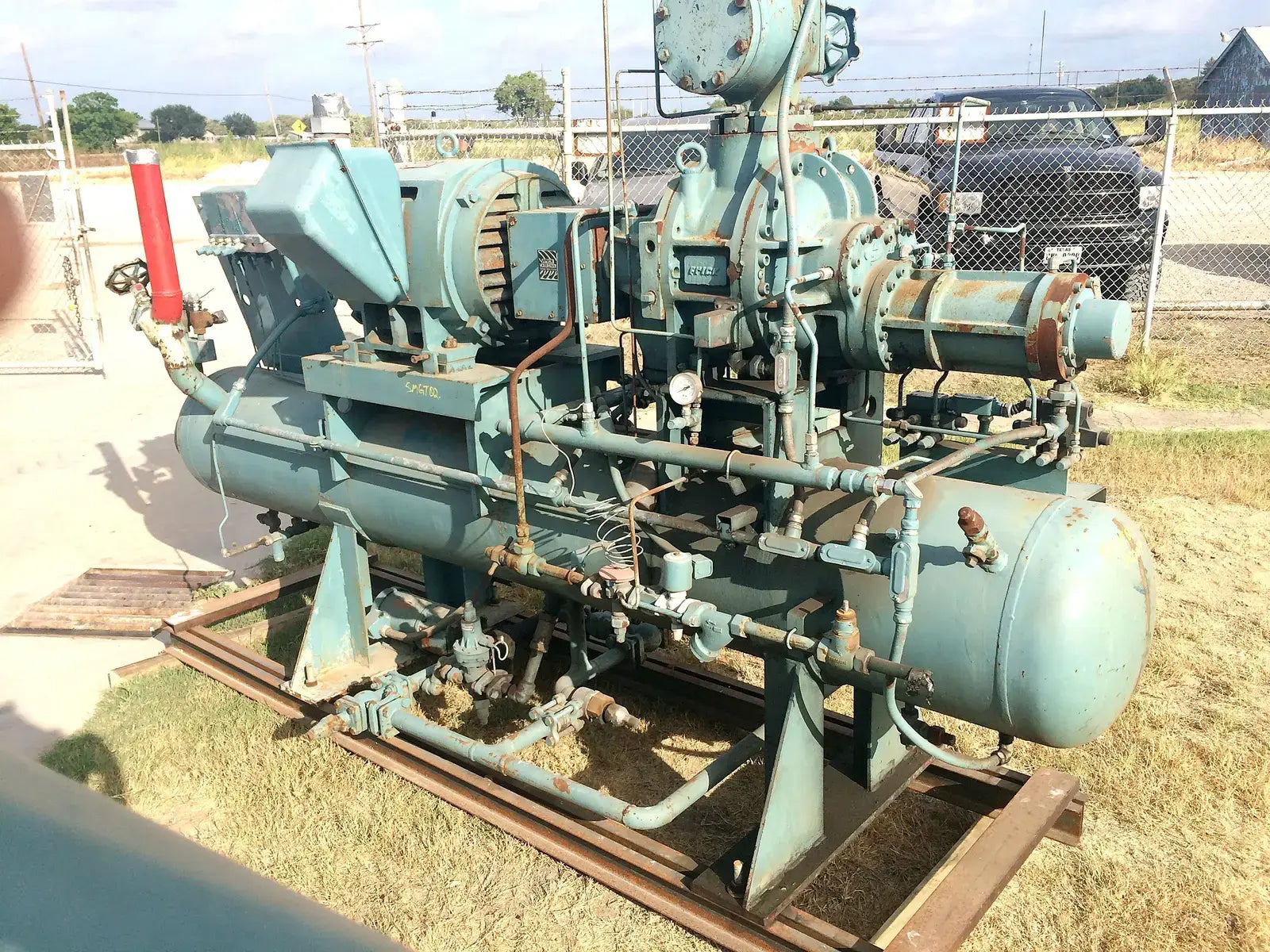

Frick Rotary Screw Compressor Package, model RWB II 60, serial S0184HFMCLHAA3, sales order 262841-01, refrigerant R717 ammonia, max speed 3600 RPM. Compressor model TDSH163S1235A, refrigerant NH3/R22, vol ratio 2.2-5.0, max speed 4500 RPM, max design pressure 362 PSIG. Nominal displacement: 600 cubic meters per hour (353 CFM). Nominal ratings: 126.5 TR at +20F / +95F; 25.9 TR at -40F / +95F. RWBII Plus micro controller. Ram Industries electric motor: 150 HP, 3544 RPM, 230/460V, 348/174 amps, 60 Hz, 3-phase, 405TS Frame. Compressor runtime hours: 9,190. Overall dimensions: 12 ft. L x 4.5 ft. W x 8 ft. High.
Product Details
- Stock No: SMGT02
- Manufacturer: Frick
- Model: RWB-II-60
- Serial Number: S0184HFMCLHAA3
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage

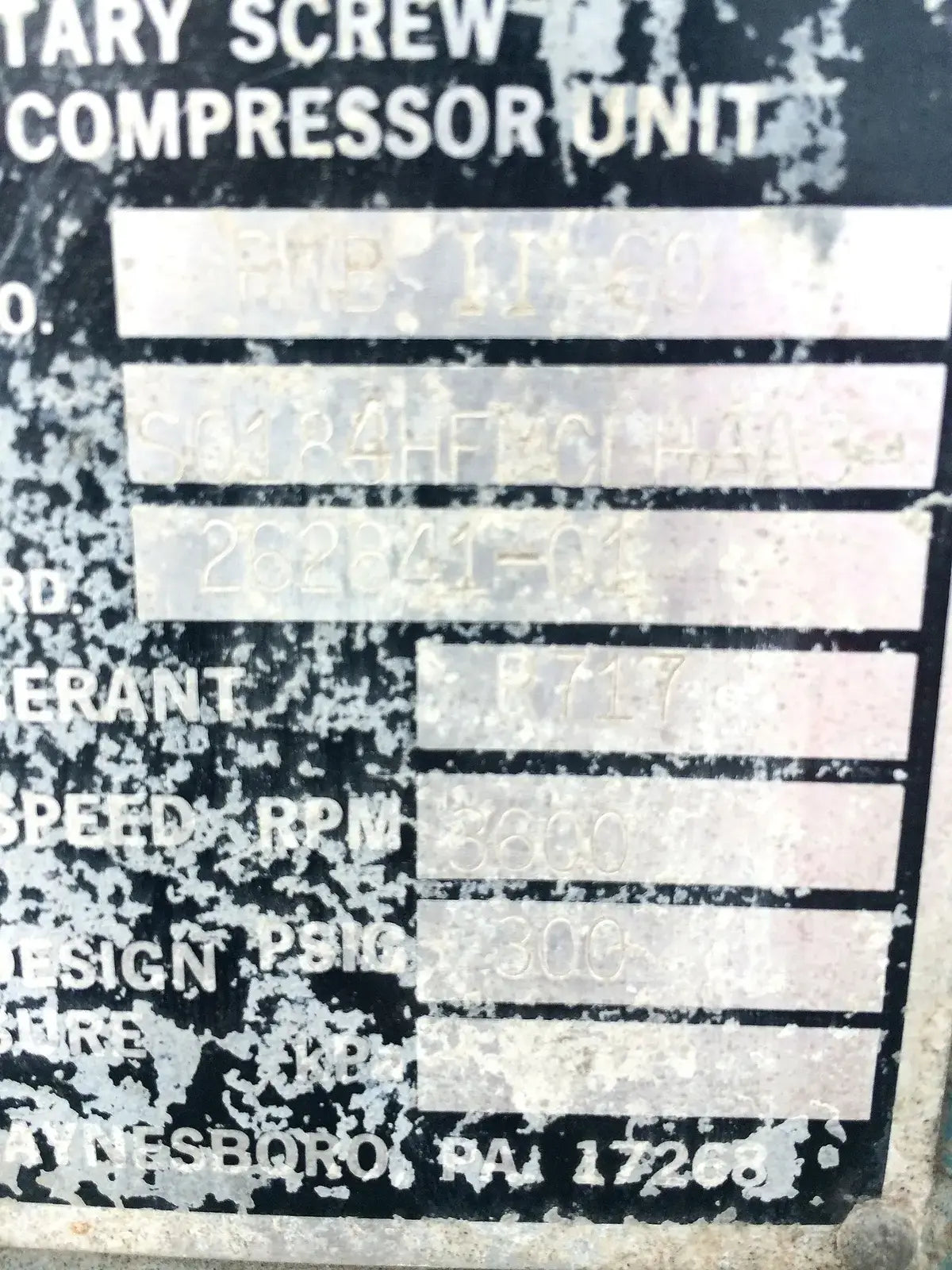

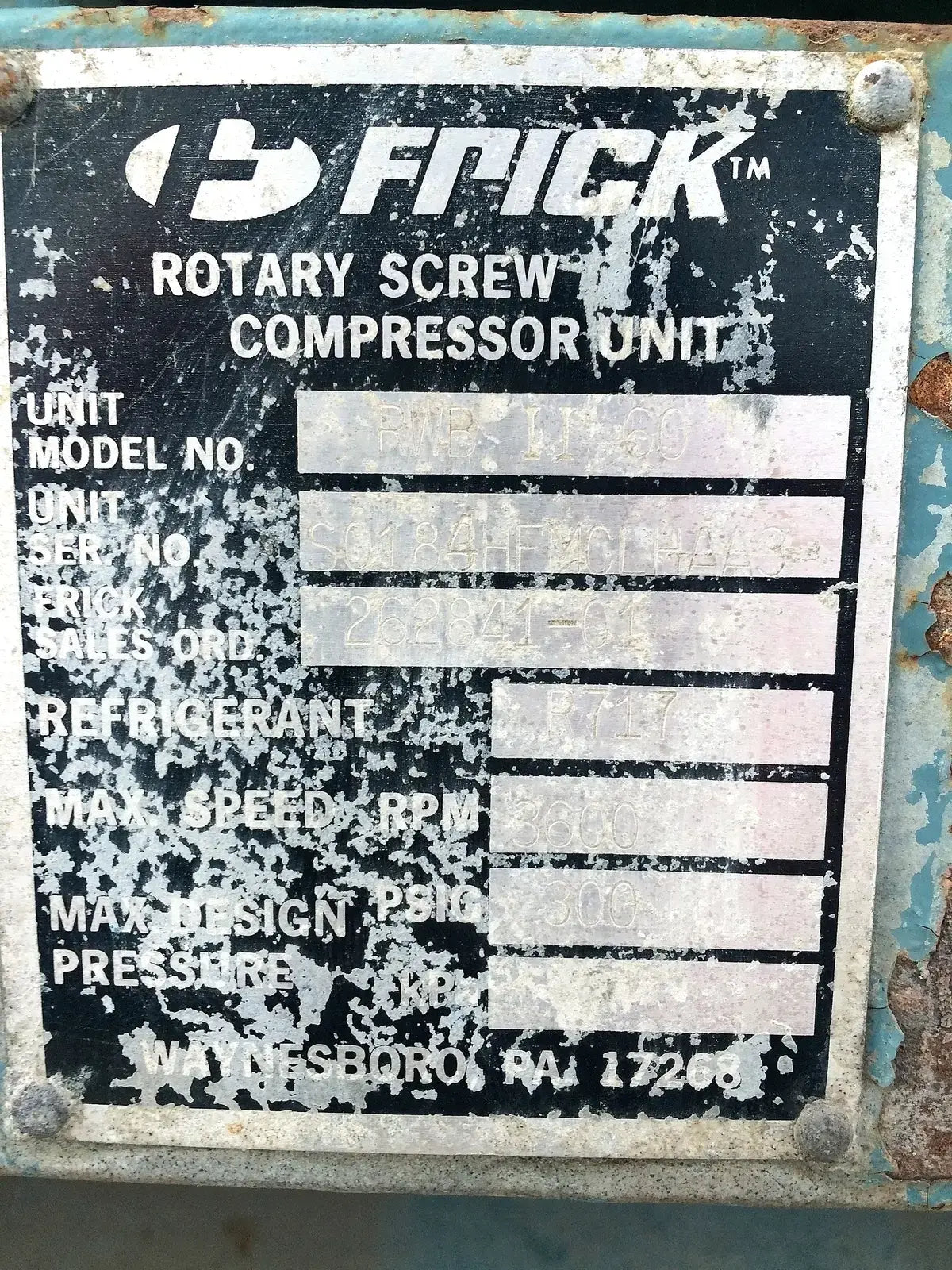

Package Details
- Package Manufacturer: Frick
- Package Model: RWB-II-60
- Package SN: S0184HFMCLHAA3
- Package Order: 262841-01
- Package Max Speed (RPM): 3600

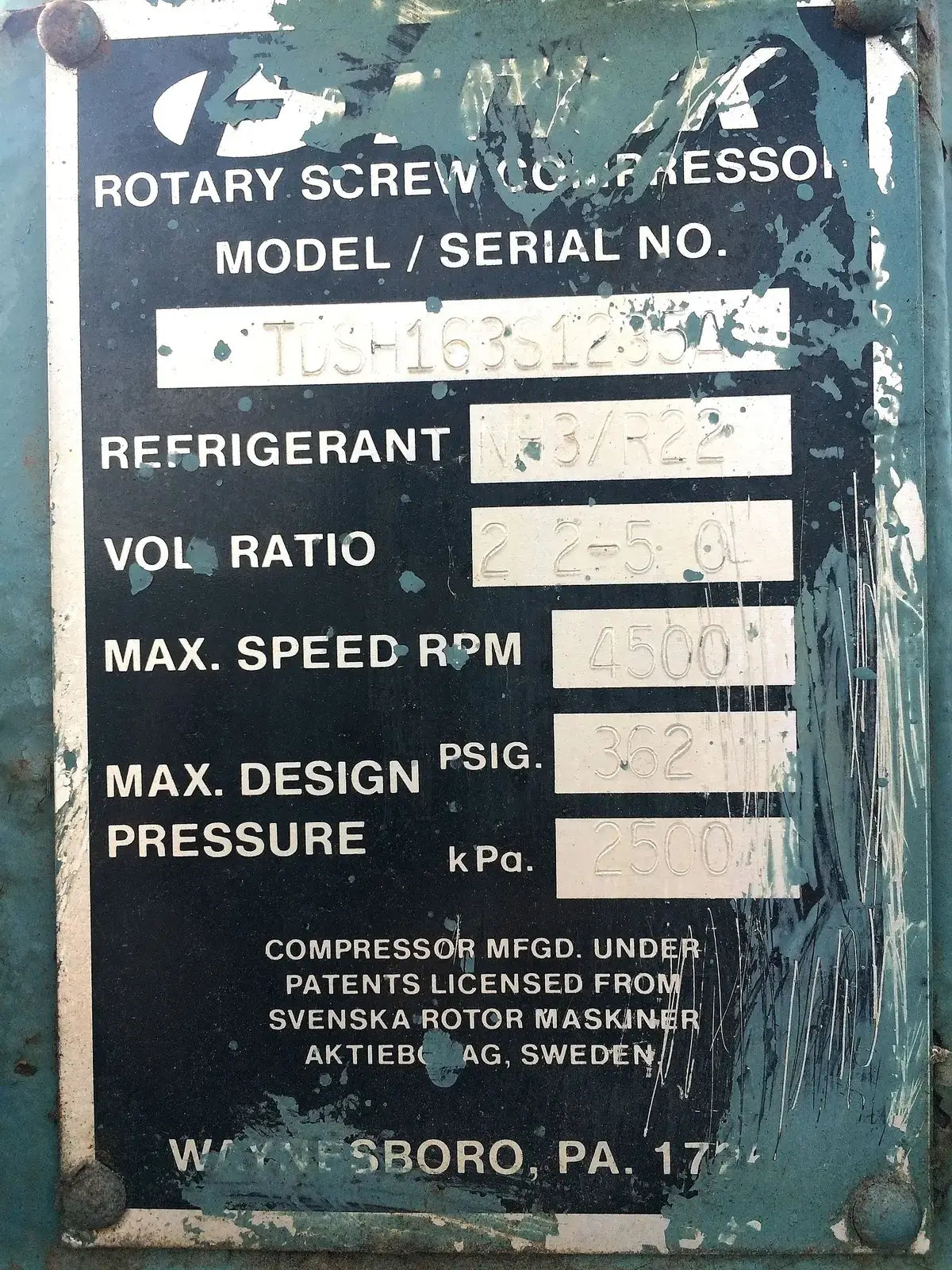

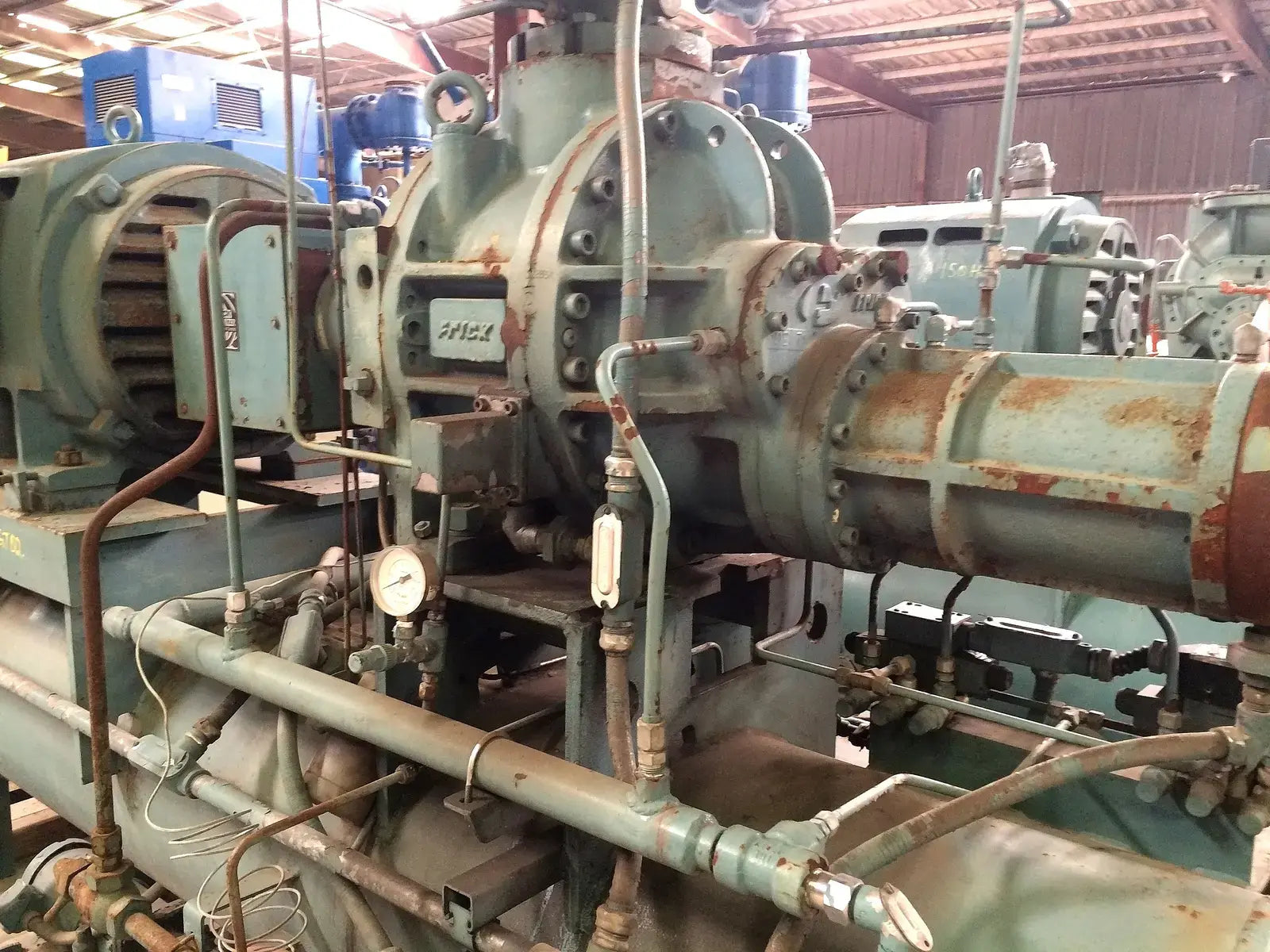

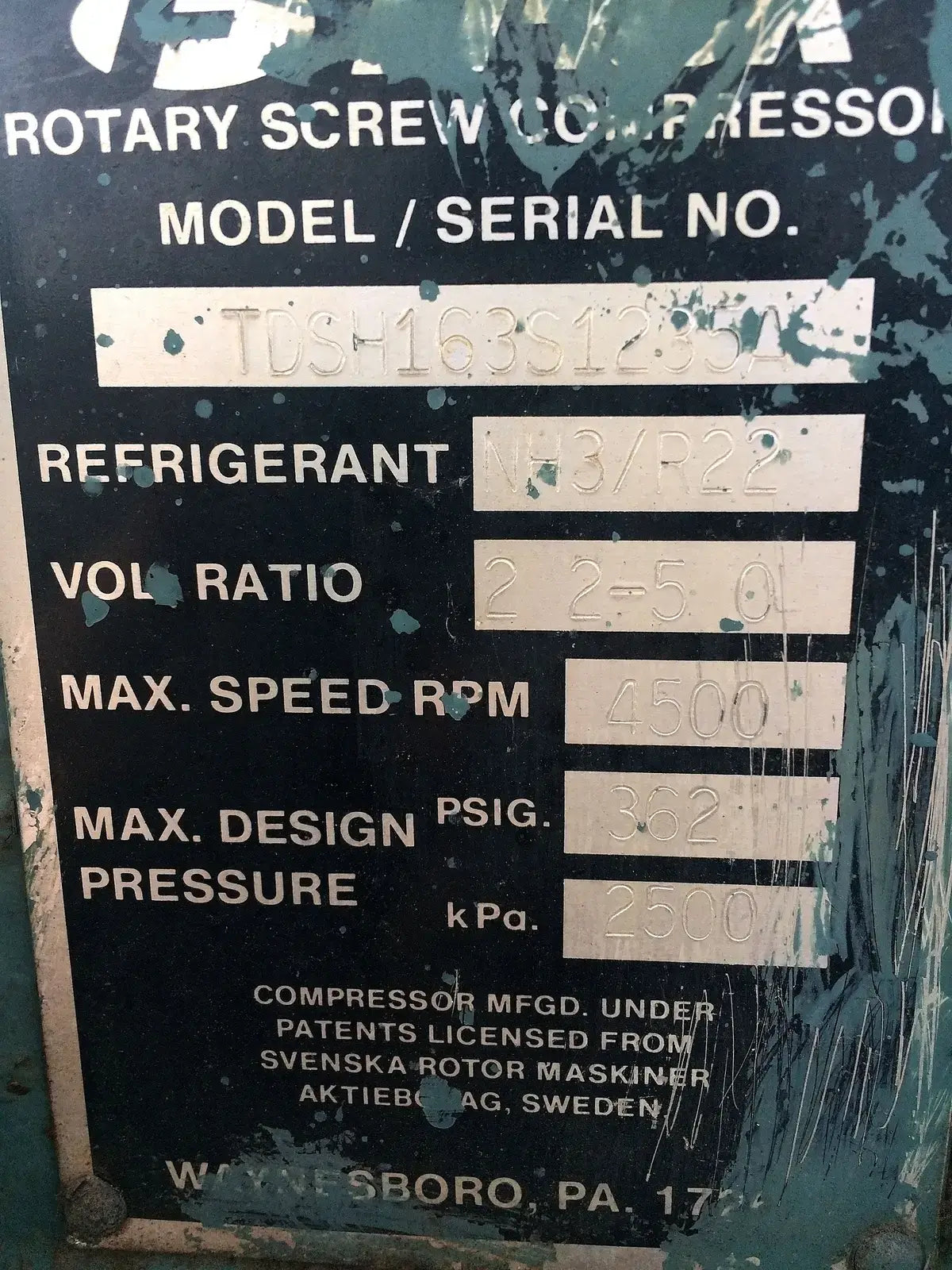

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1
- Compressor Model: TDSH163S
- Compressor SN: 1235A
- Compressor Max Speed (RPM): 4500
- Compressor Design Pressure (PSIG): 362

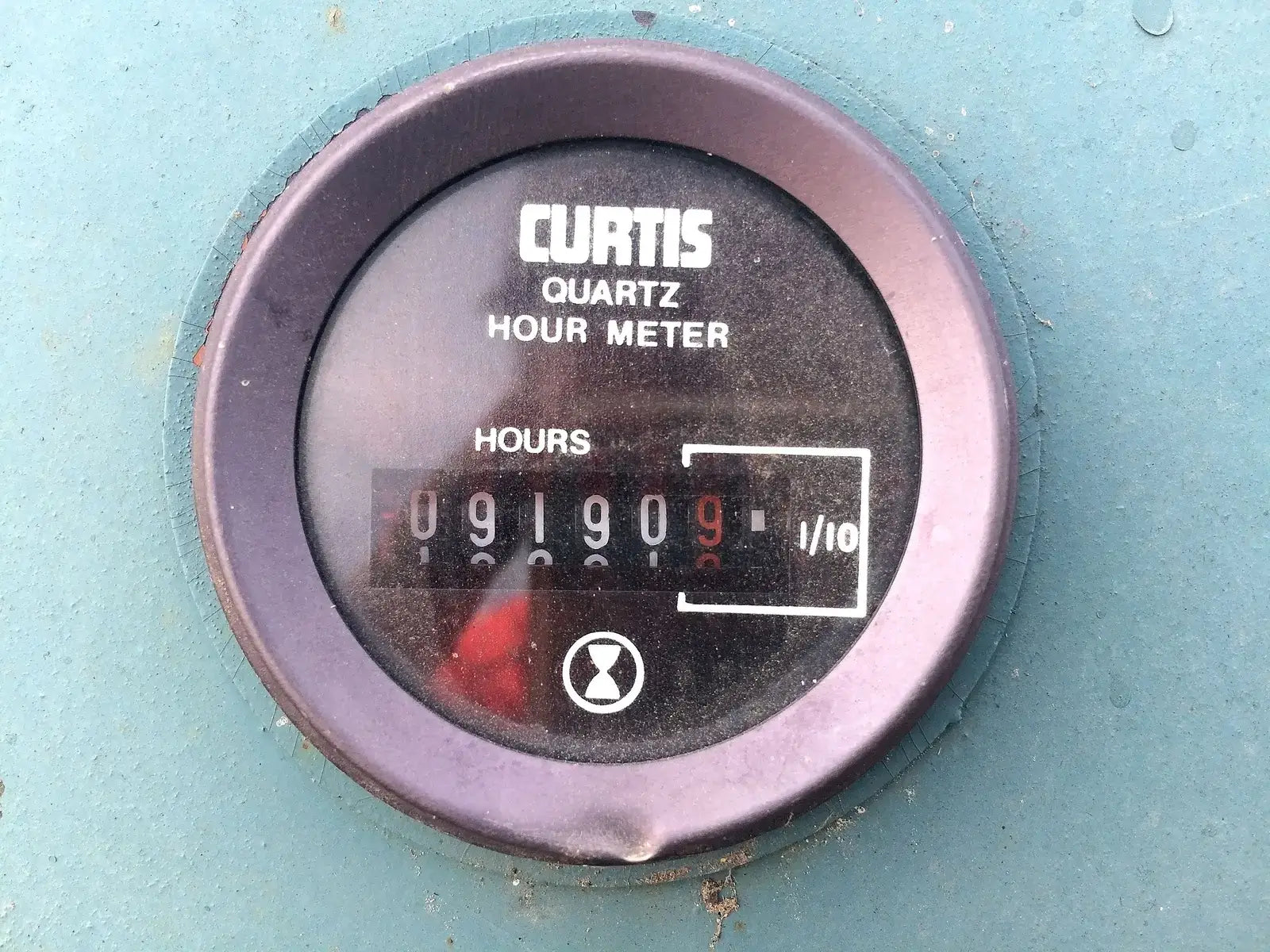

- Compressor Run Time Hours: 9190
- Compressor Volume Ratio: 2.2-5.0
- Oil Separator Included? No

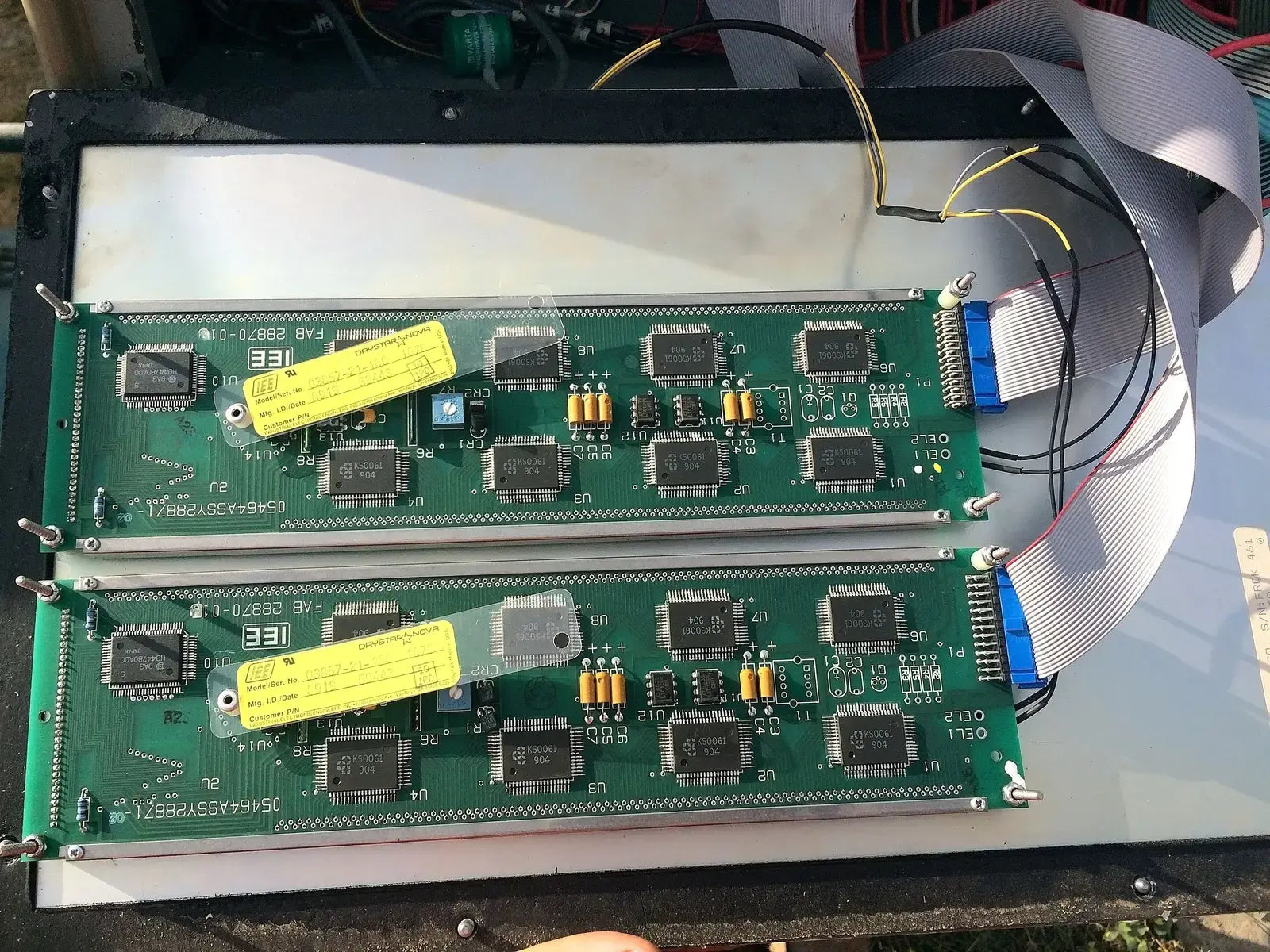

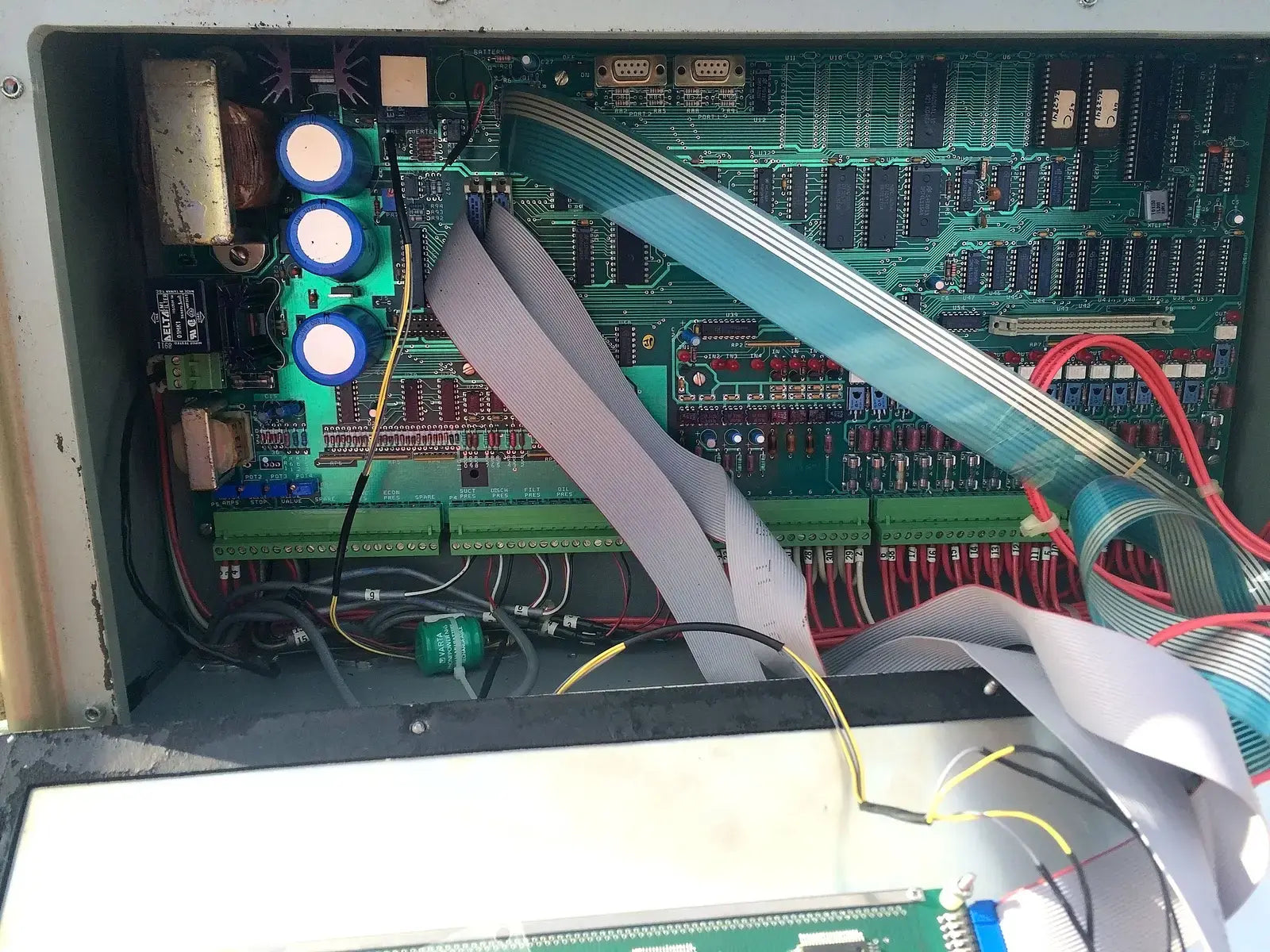

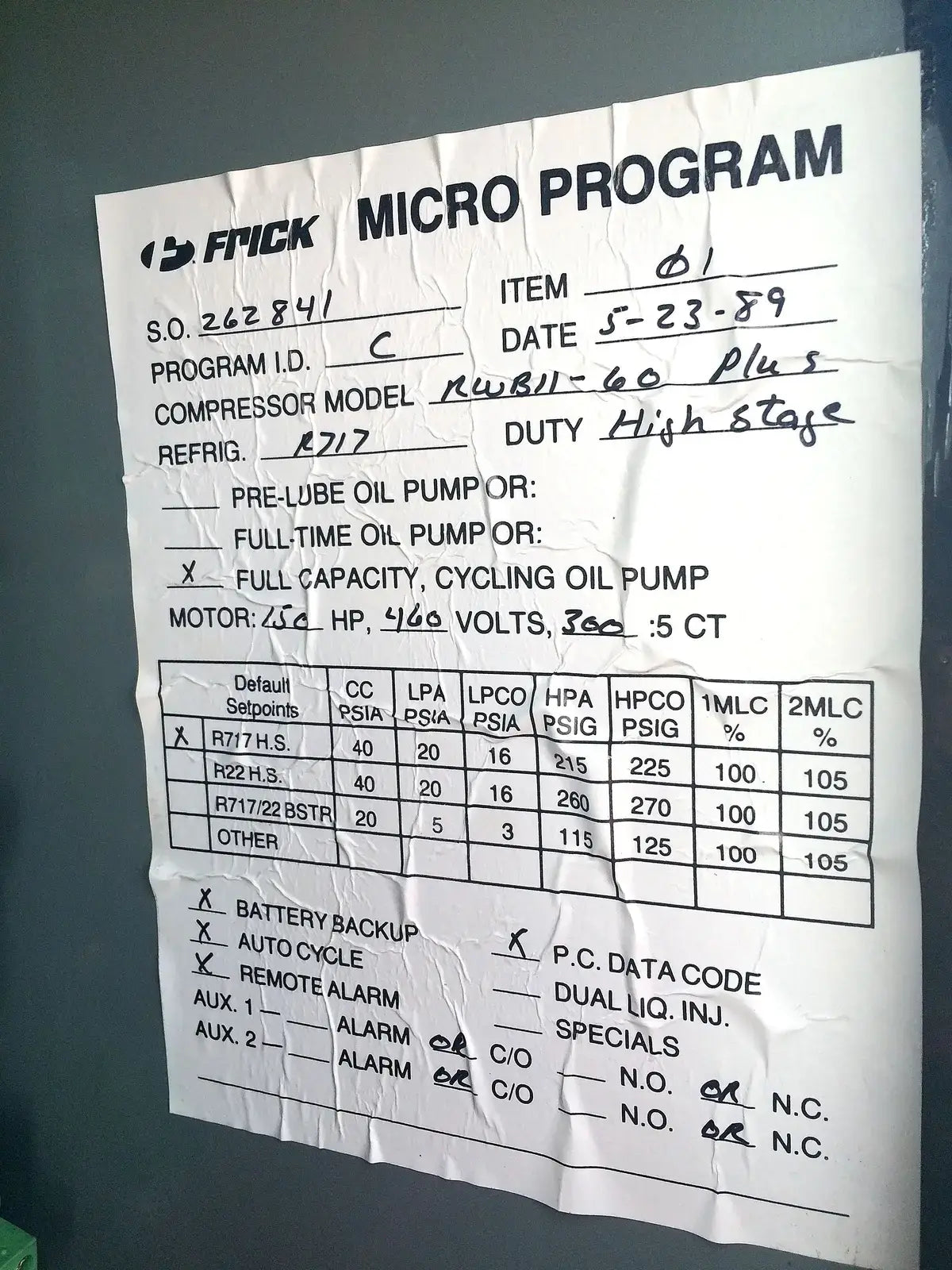

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick

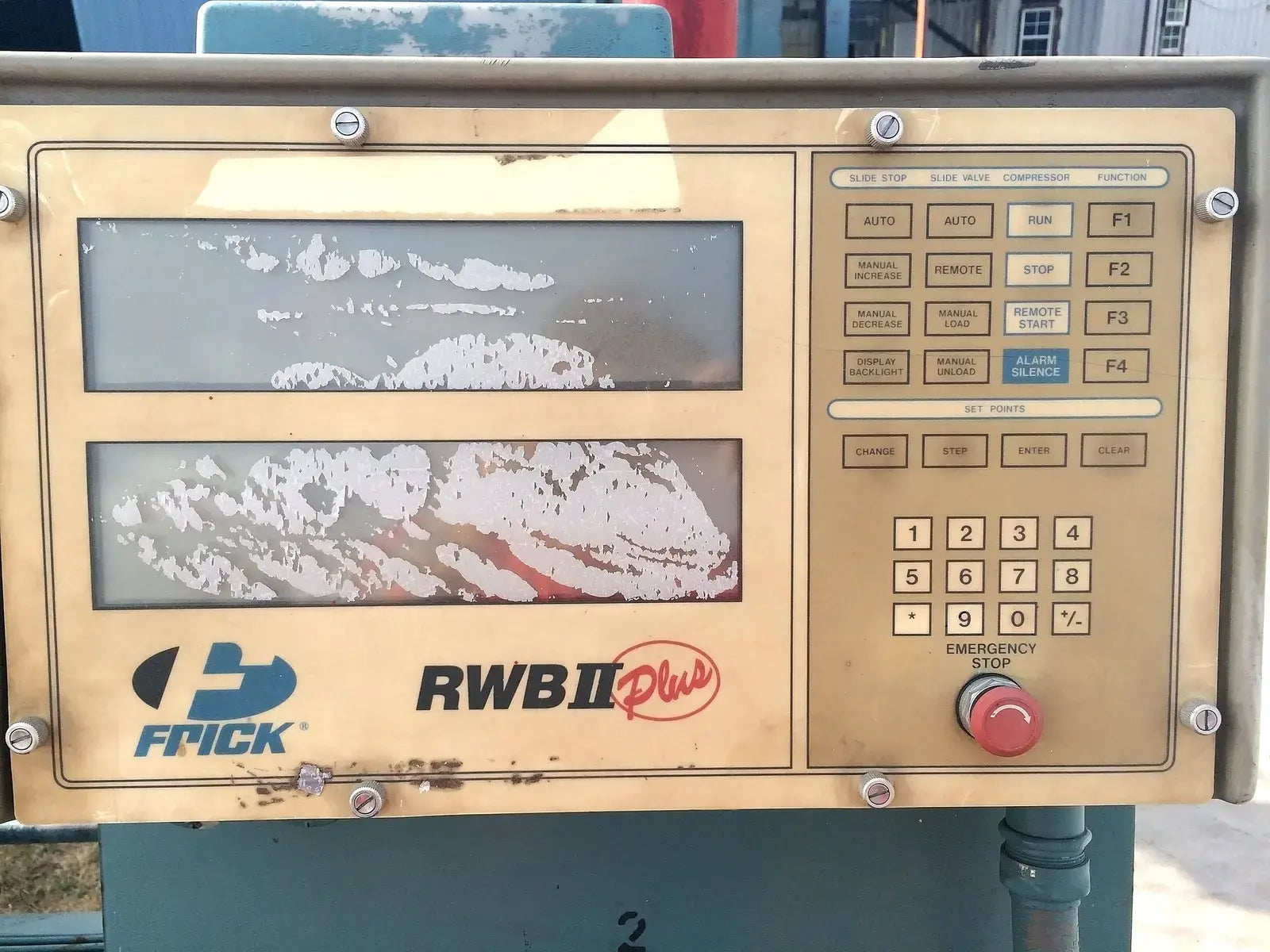

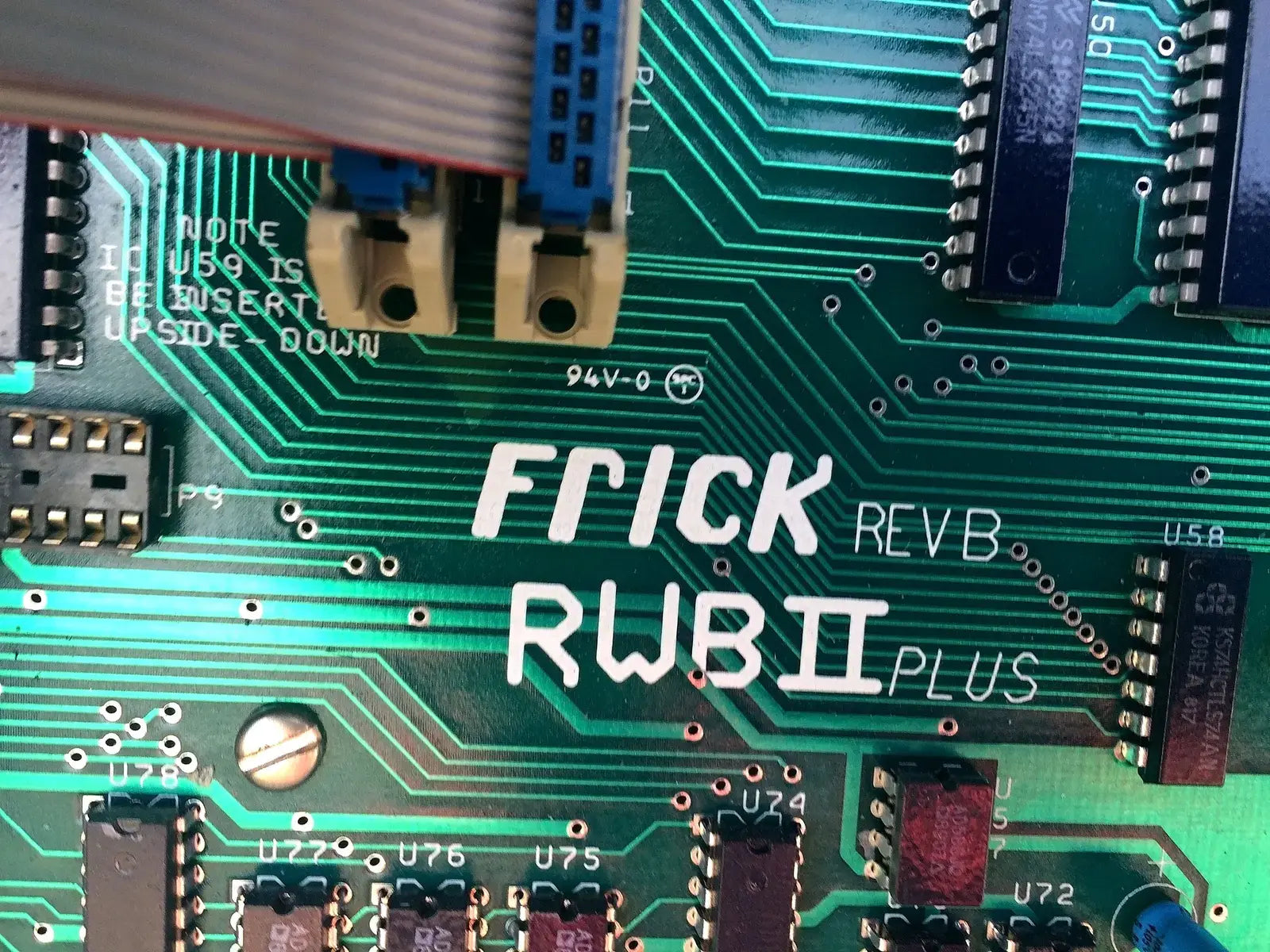

- Micro Control Panel Description: RWBII Plus micro controller
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

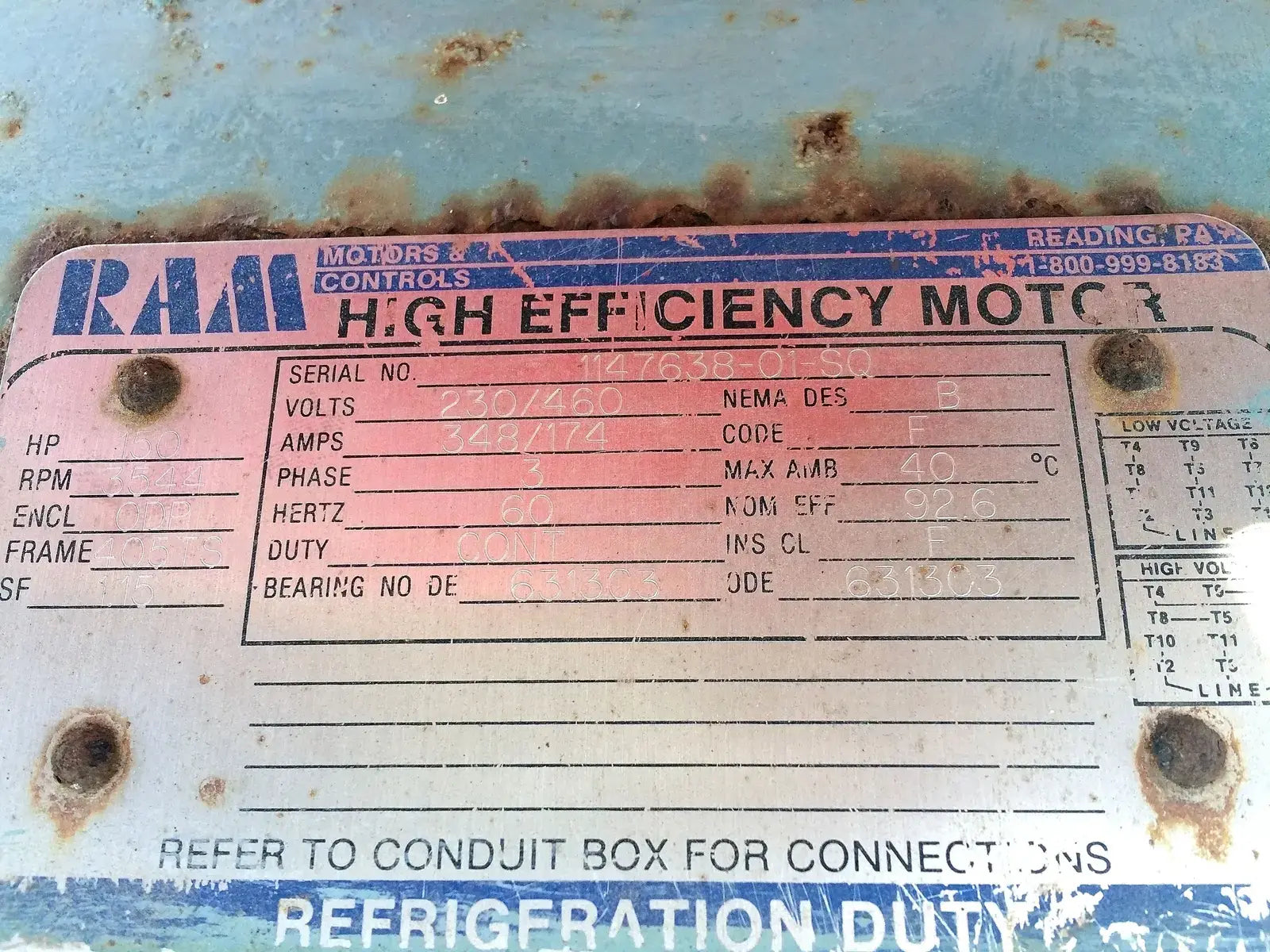

Motor Details
- Motor Included? Yes
- Motor Manufacturer: RAM Industries
- Motor Horsepower(HP): 150
- Motor RPM: 3544
- Motor Voltage: 230/460
- Motor Amps: 348/174
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 405TS
Dimensions:
- Length (Inches): 144
- Width (Inches): 54
- Height (Inches): 96
Additional Product Details

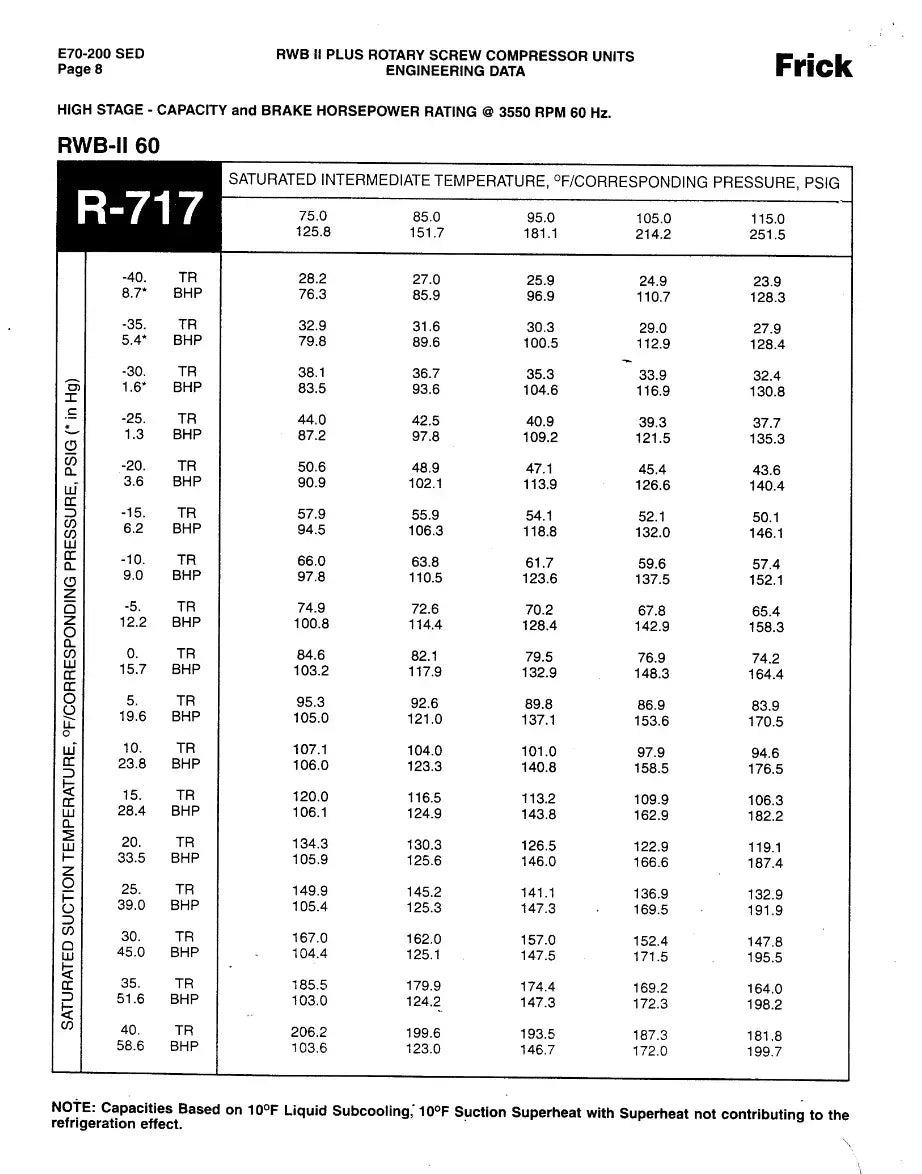

- Spec Sheet Available: Yes
