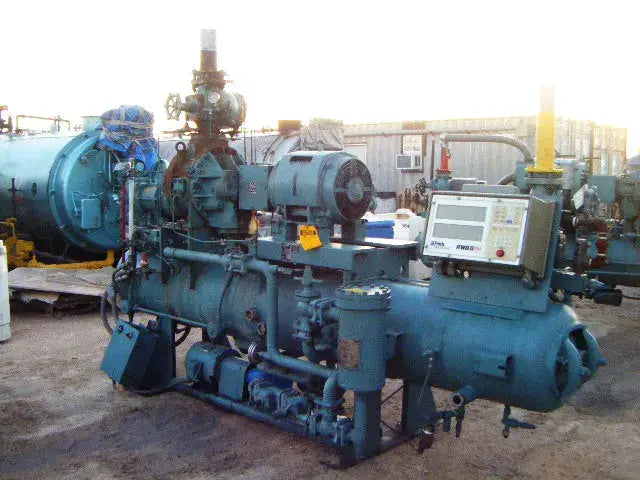

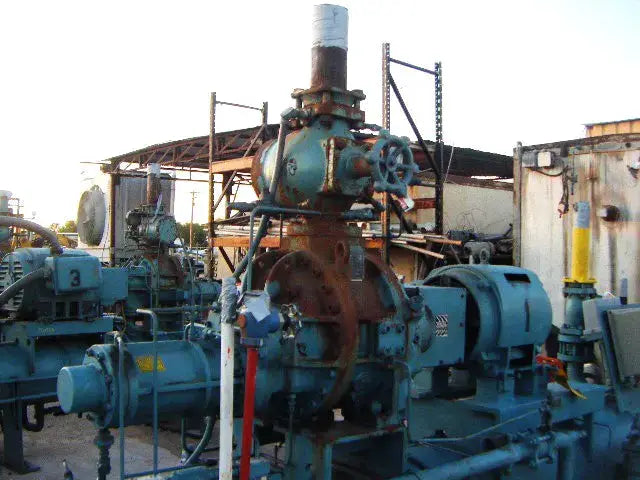

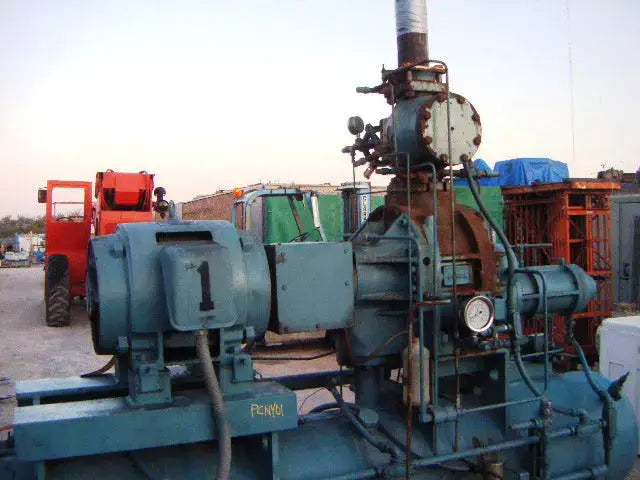

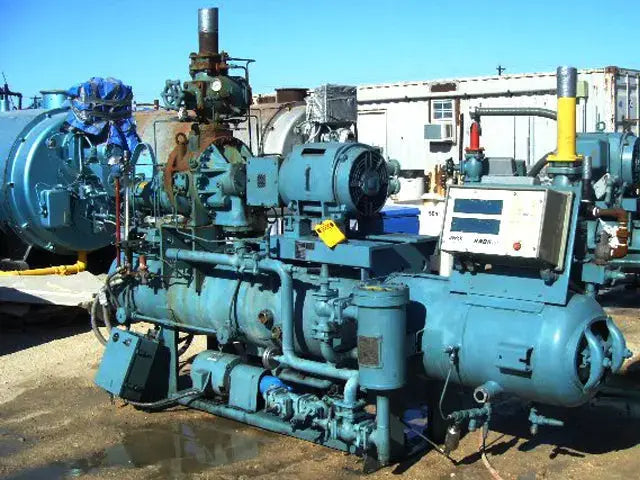

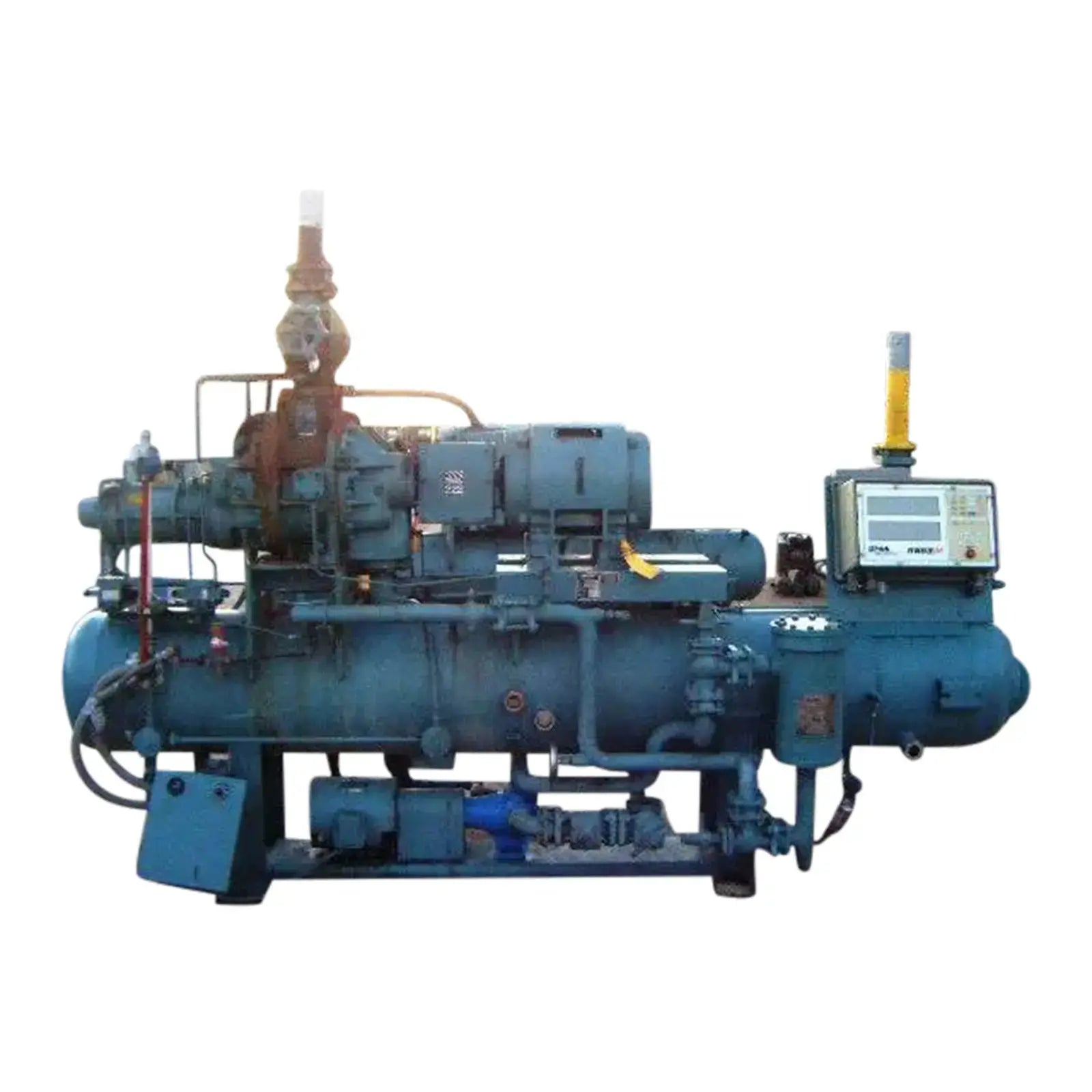

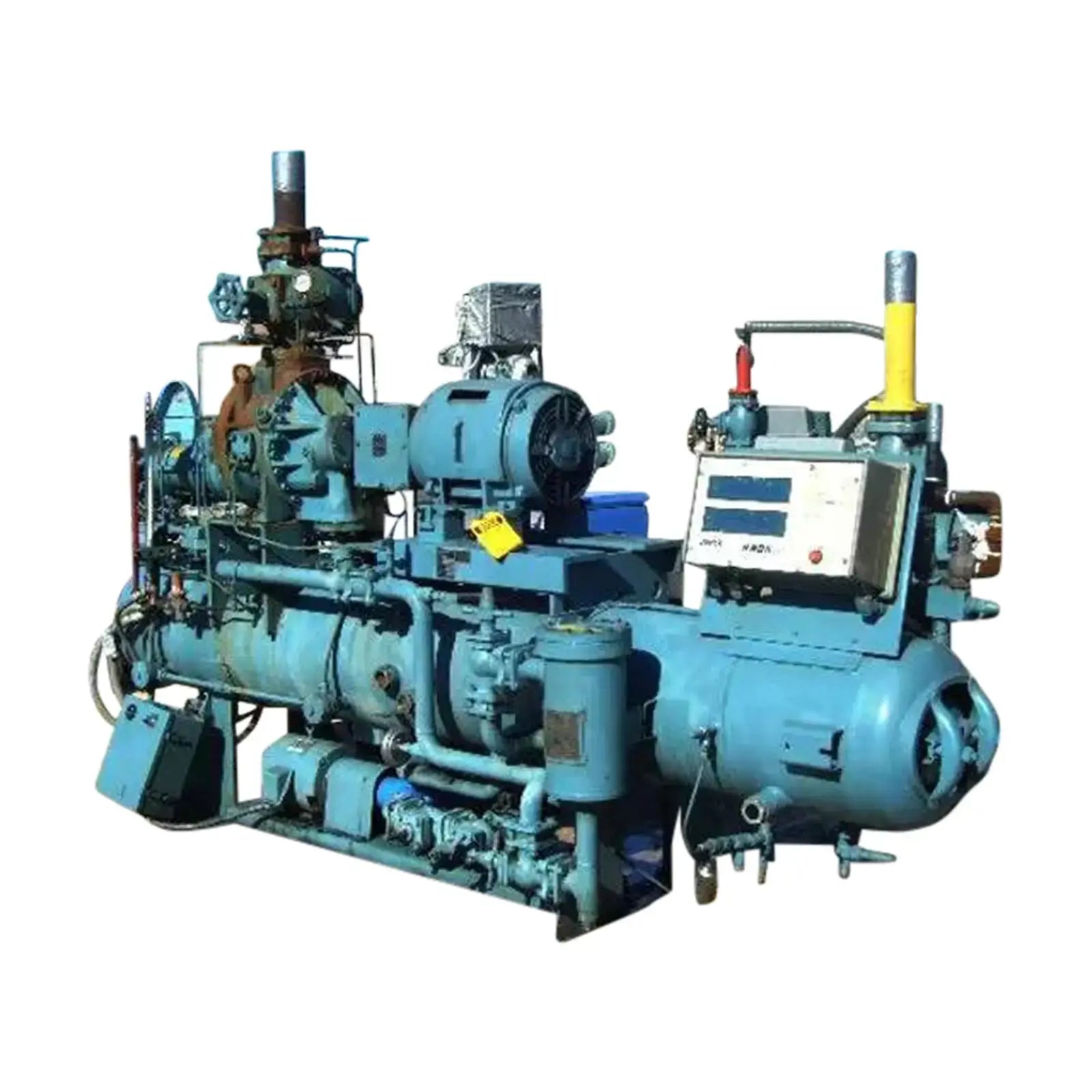

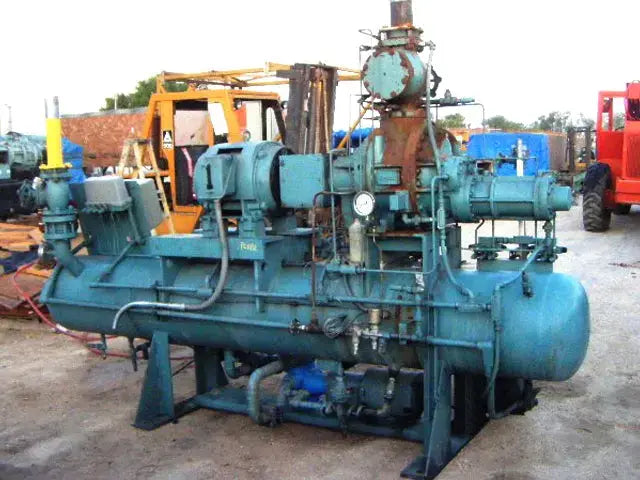

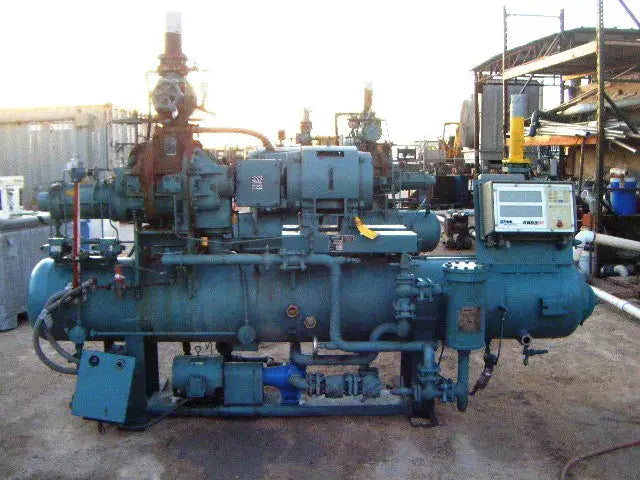

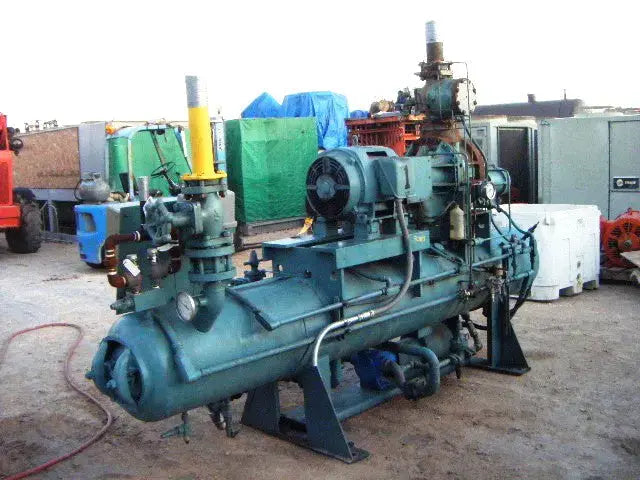

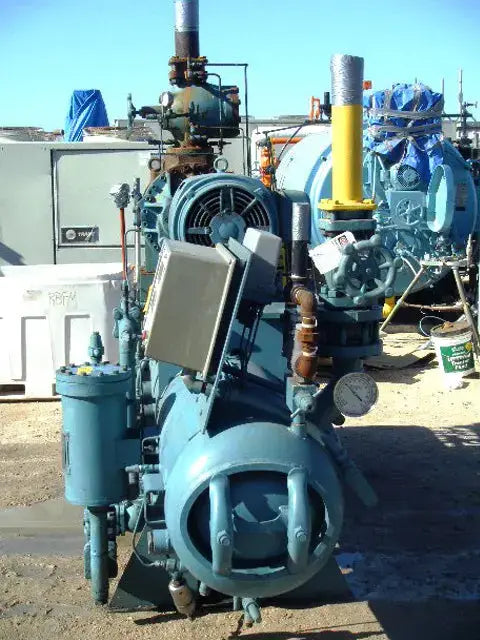

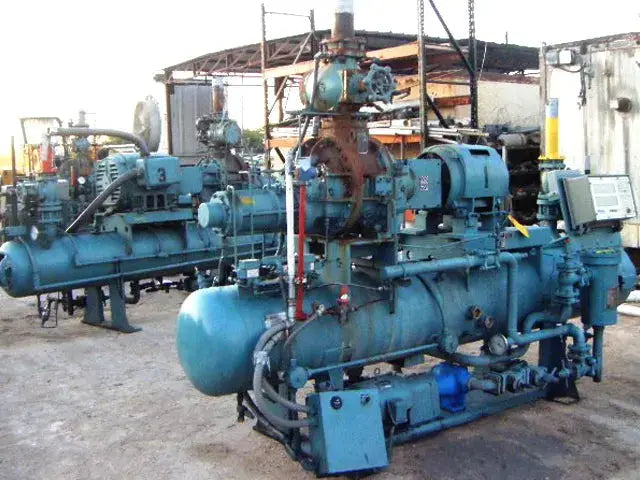

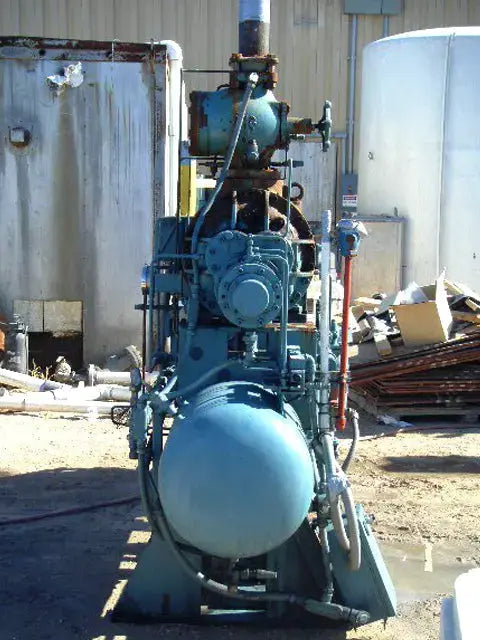

Frick RWB-II-60 Rotary Screw Compressor Package (Frick TDSH163S, 50 HP 230/460 V, Frick Micro Control Panel)

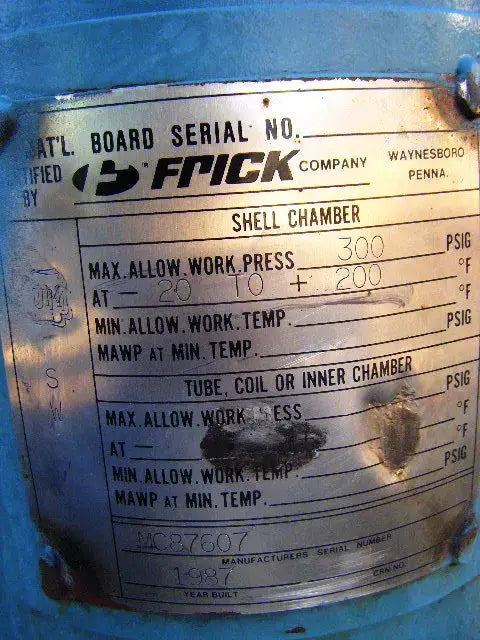

Frick RWB II 60 Screw Compressor Package. Model: RWB II 60. TDSH163S1159A. Refrigerant: Last used with R-717 (Ammonia). Compressor nominal rating (ammonia): 126.5 TR at +20F suction / 95F condensing. Rating at -40F suction: 25.9 TR. Toshiba high efficiency drive motor, Model: B0502 VLG3UD. 50 hp, 3515 rpm, 230/460 V, 122/61 amps, 60 Hz. 3 phase. Oil separator: MAWP: 300 psig @ -20 to + 200º F. Frick RWB II plus control panel. Inlet: (1) 4 in. dia. pipe. Outlet: (1) 3 in. dia. pipe. Inlets/Outlets have been capped. Overall dimensions: 11 ft. 10 in. L x 3 ft. 7 in. W x 8 ft. H. Compressor run time: 40289.1 hours.(H4)(ACN513).
Product Details
- Stock No: PCNY01
- Manufacturer: Frick
- Model: RWB-II-60
- Serial Number: S0141FFMFLHAA3
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage

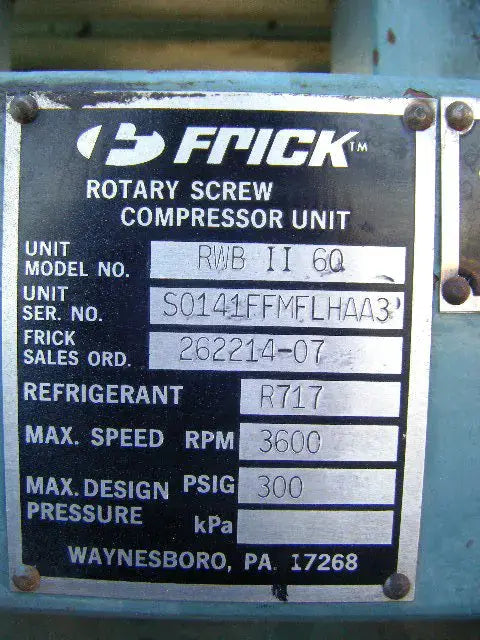

Package Details
- Package Manufacturer: Frick
- Package Model: RWB-II-60
- Package SN: S0141FFMFLHAA3
- Package Max Speed (RPM): 3600
- Package Max Design Pressure (PSIG): 300
Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1

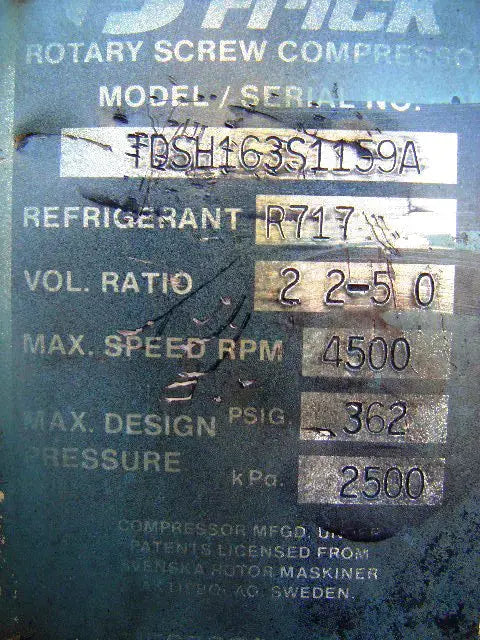

- Compressor Model: TDSH163S
- Compressor SN: TDSH163S1159A
- Compressor Max Speed (RPM): 4500
- Compressor Design Pressure (PSIG): 362

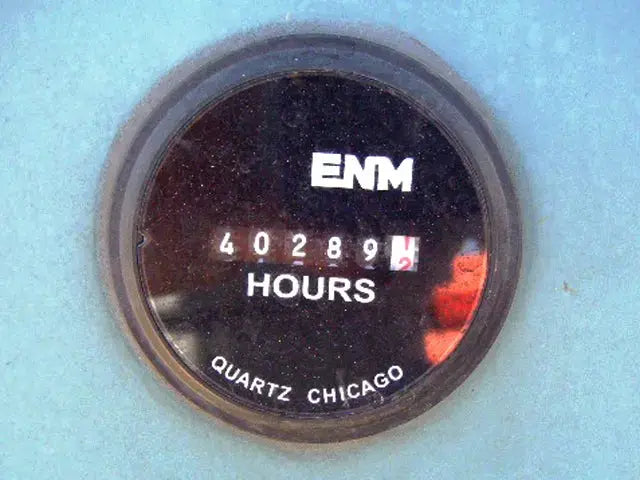

- Compressor Run Time Hours: 40290
- Compressor Volume Ratio: 2.2/5.0

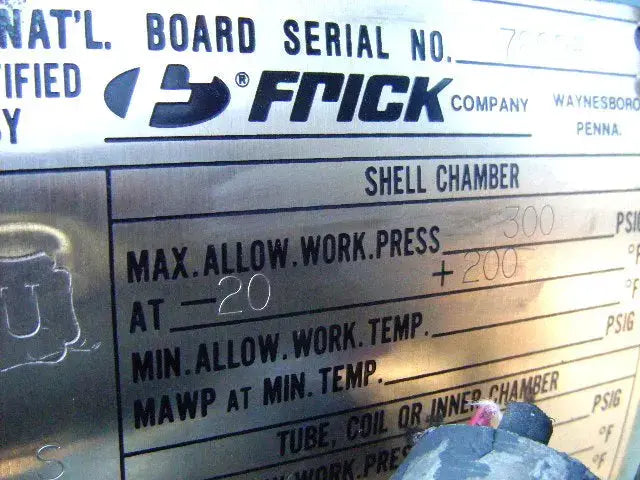

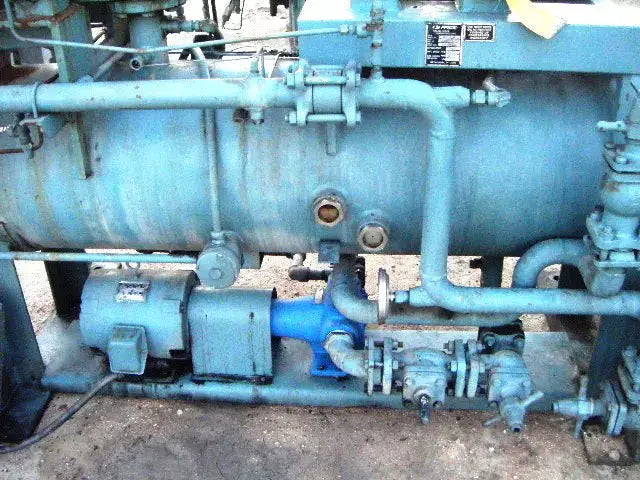

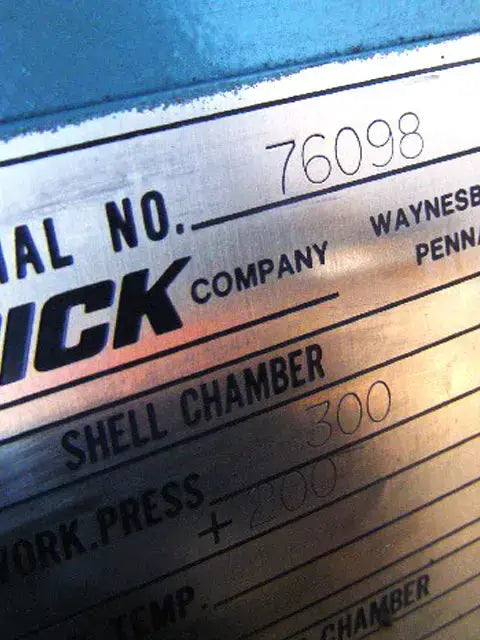

- Oil Separator Included? Yes
- Oil Separator National Board #: 76098

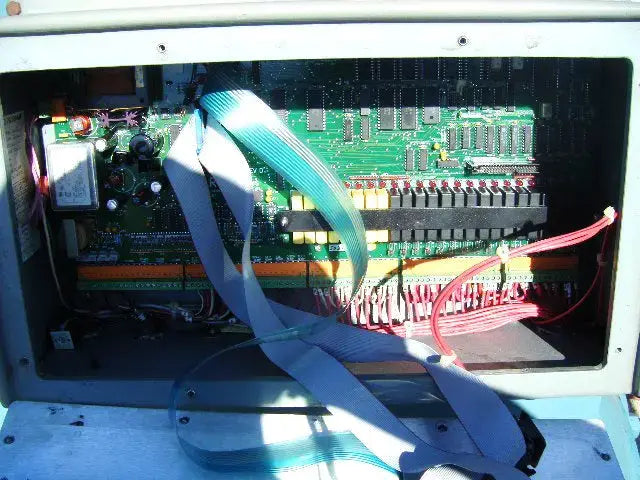

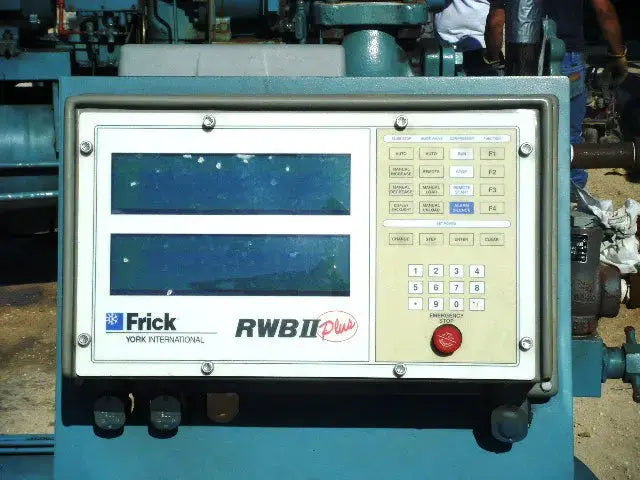

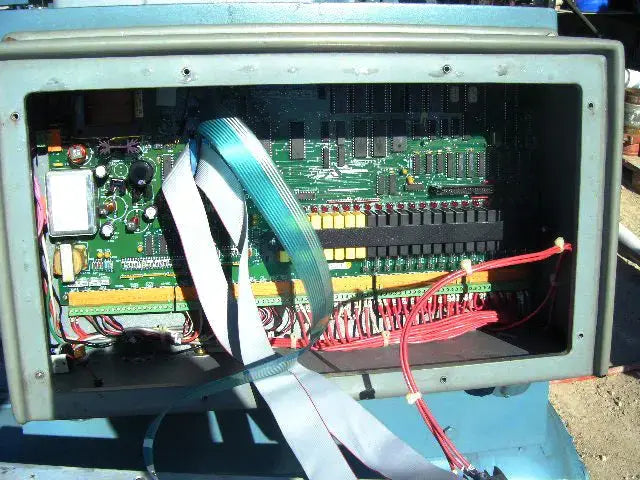

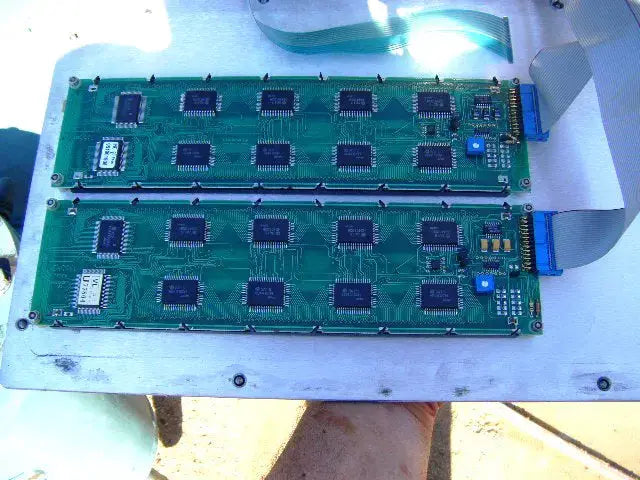

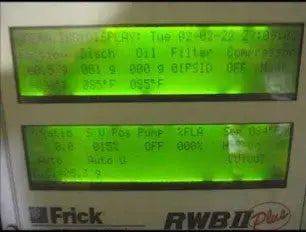

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick
- Micro Control Panel Description: RWB II plus control panel
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

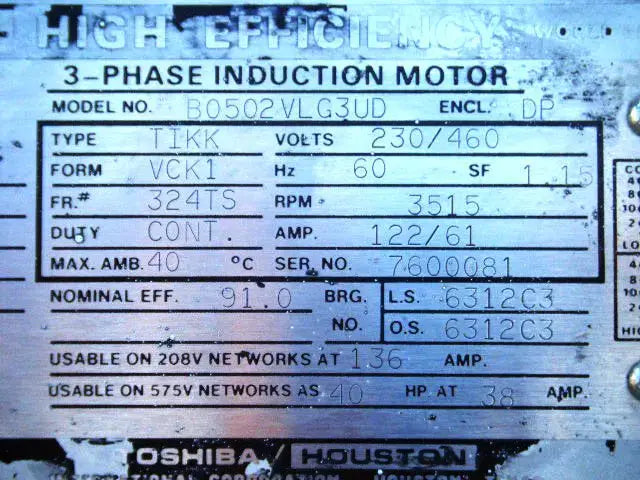

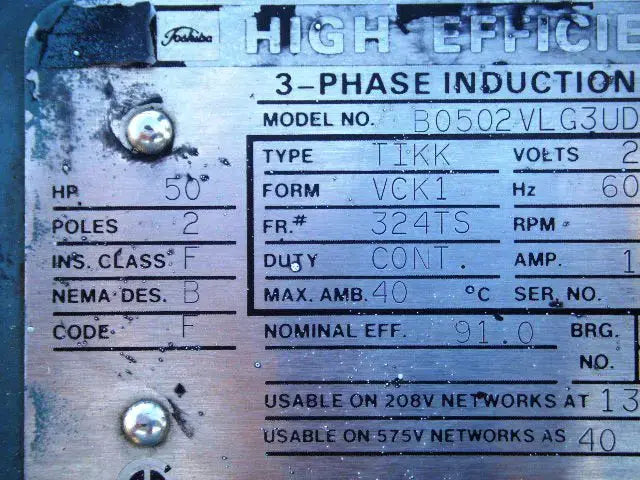

Motor Details
- Motor Included? Yes
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 50
- Motor RPM: 3515
- Motor Voltage: 230/460
- Motor Amps: 122/61
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 213T
Dimensions:
- Length (Inches): 142
- Width (Inches): 43
- Height (Inches): 96
- ACN: 513
Additional Product Details
- Spec Sheet Available: Yes
