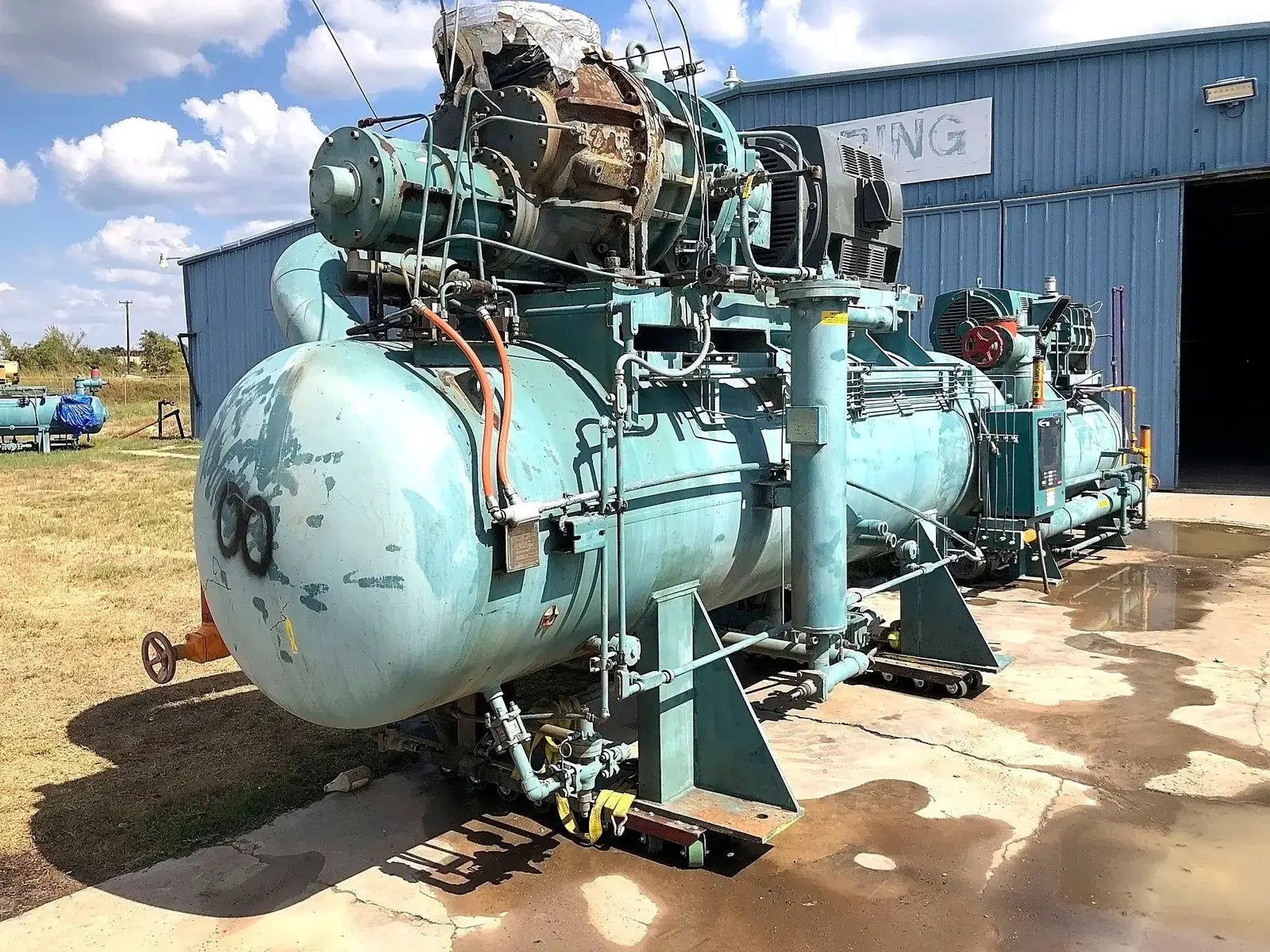

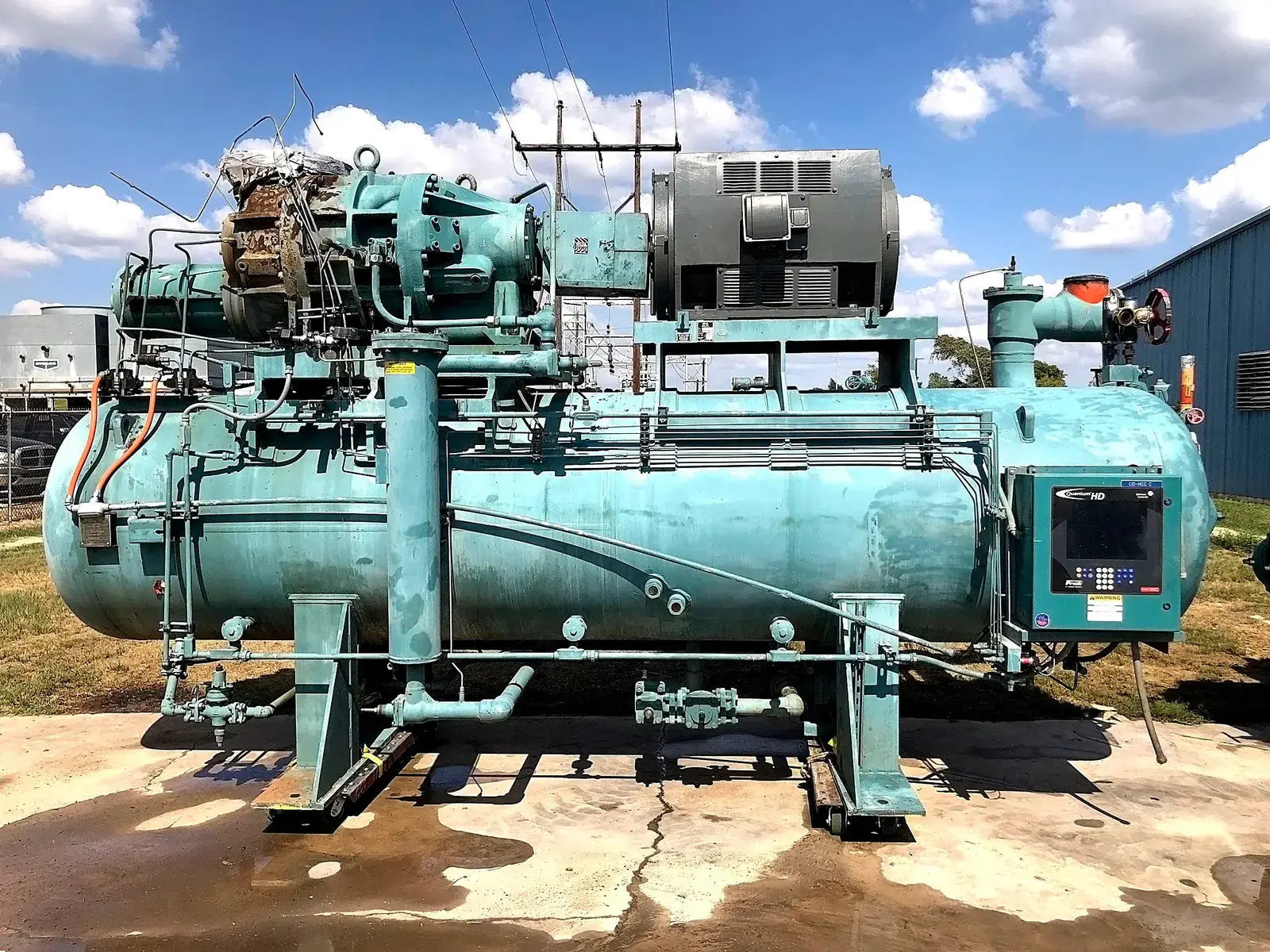

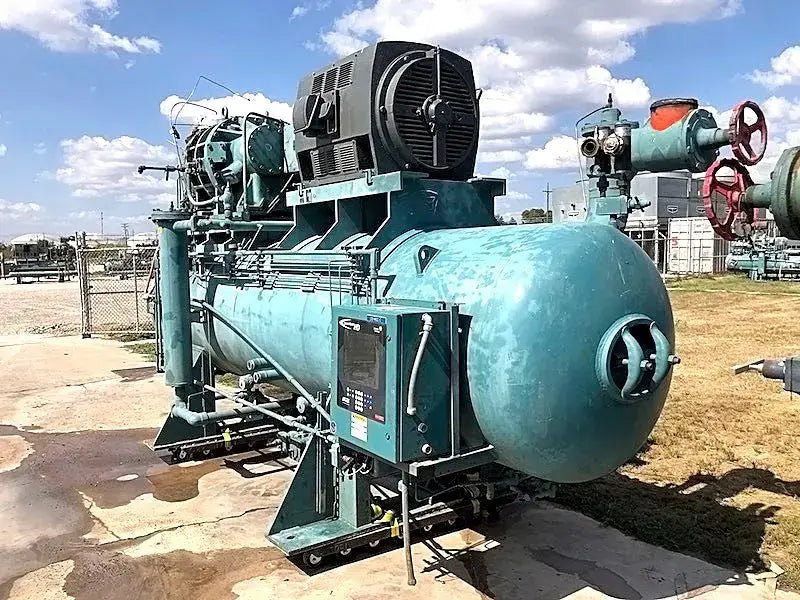

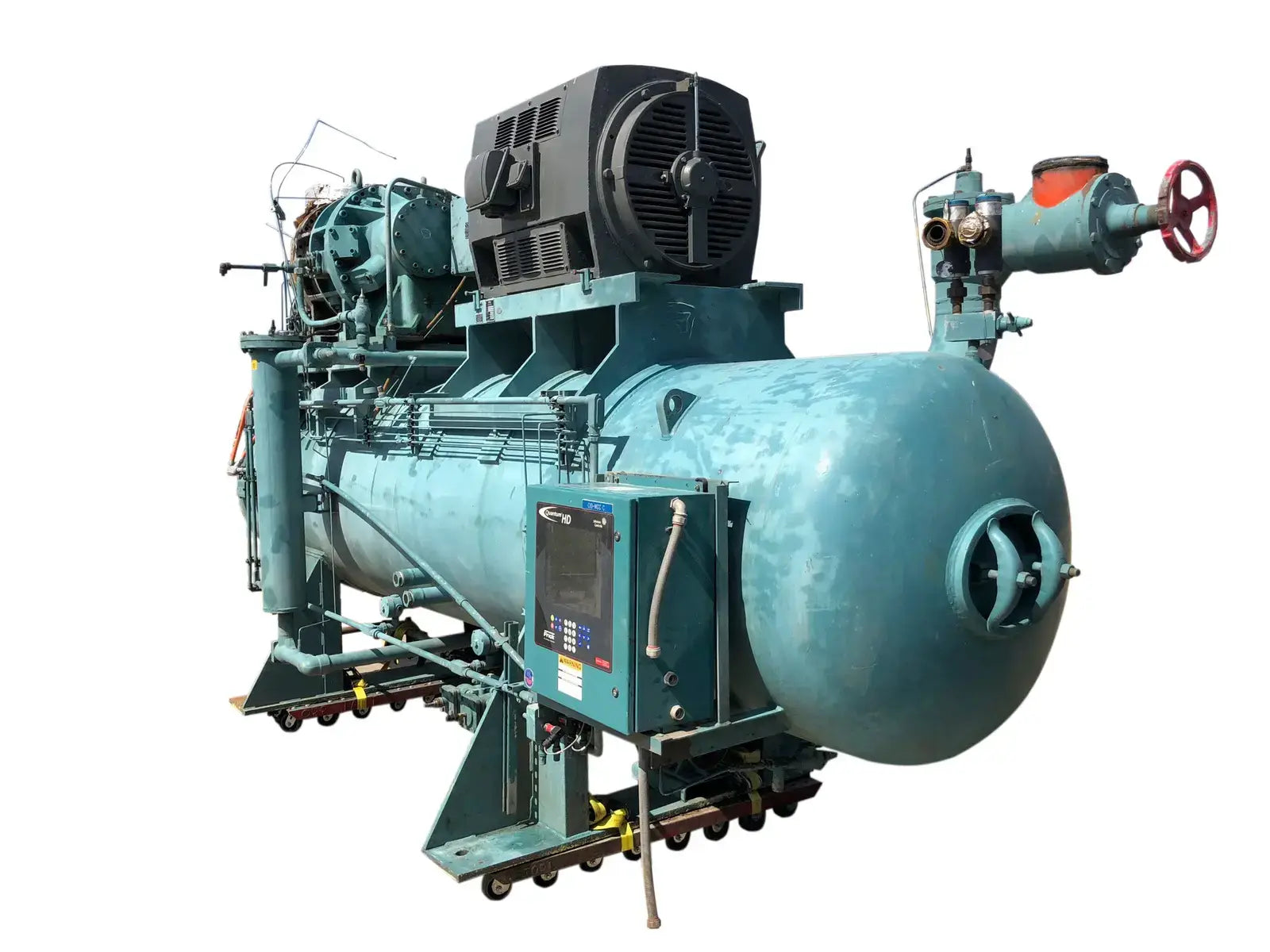

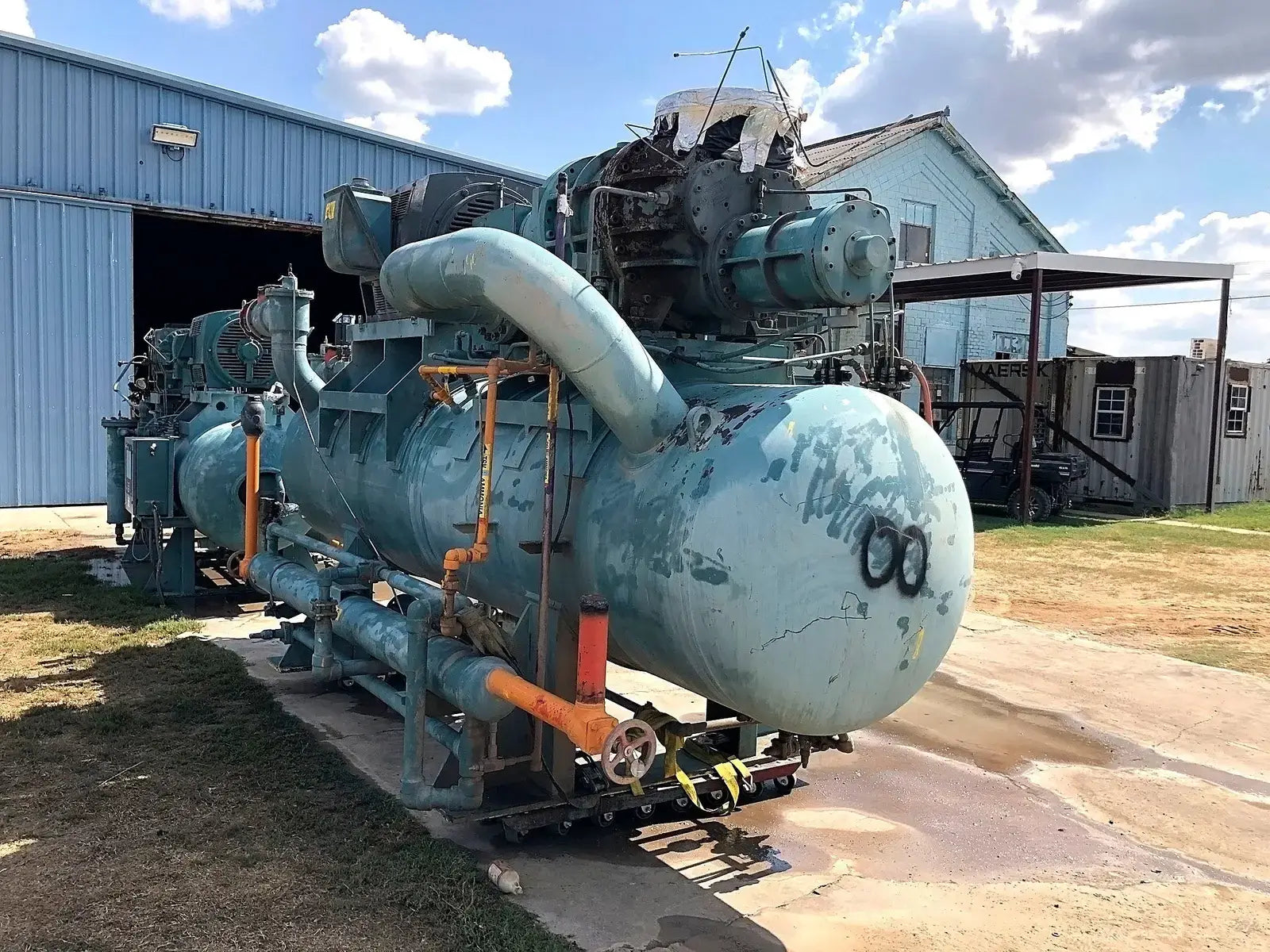

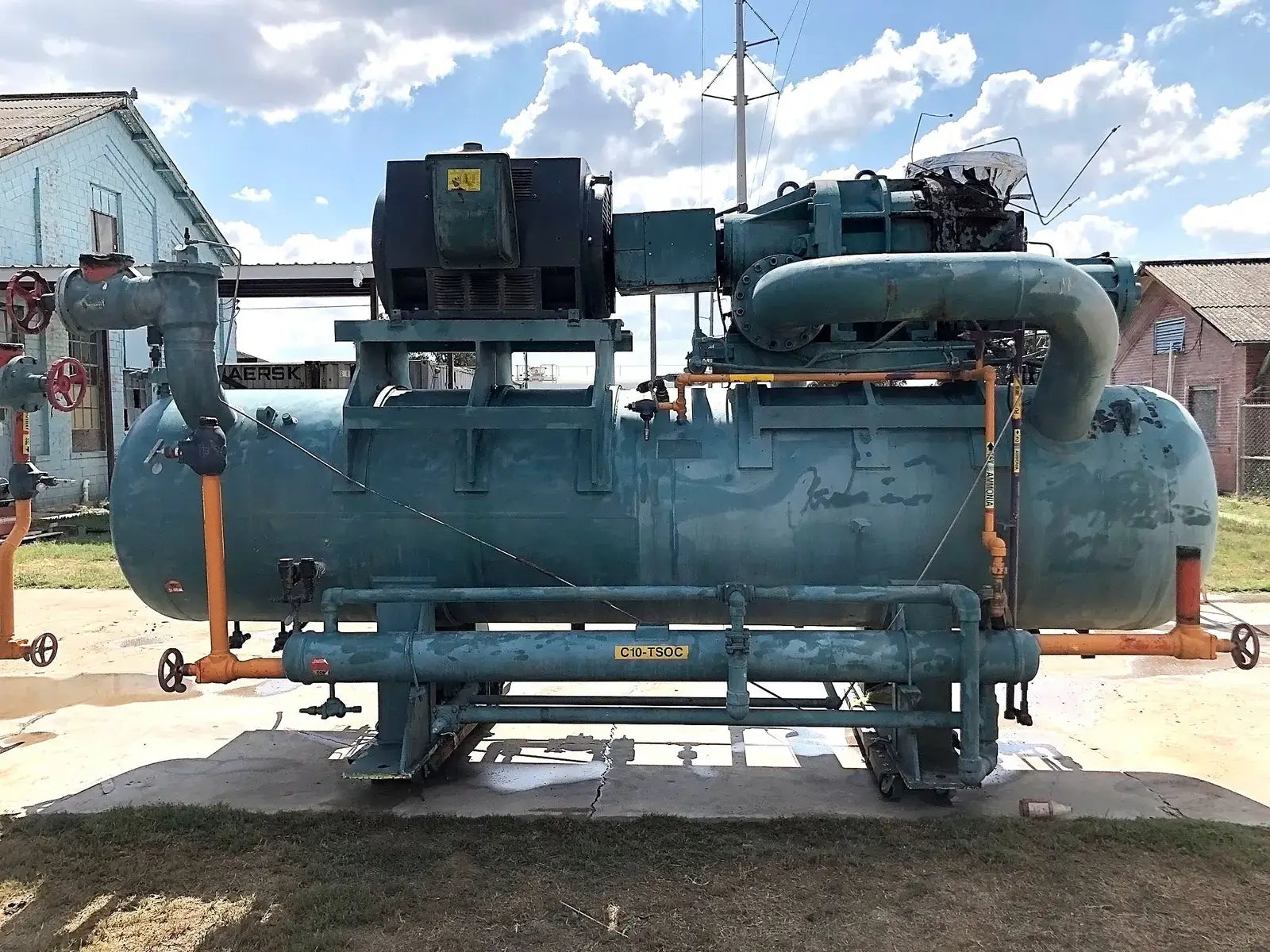

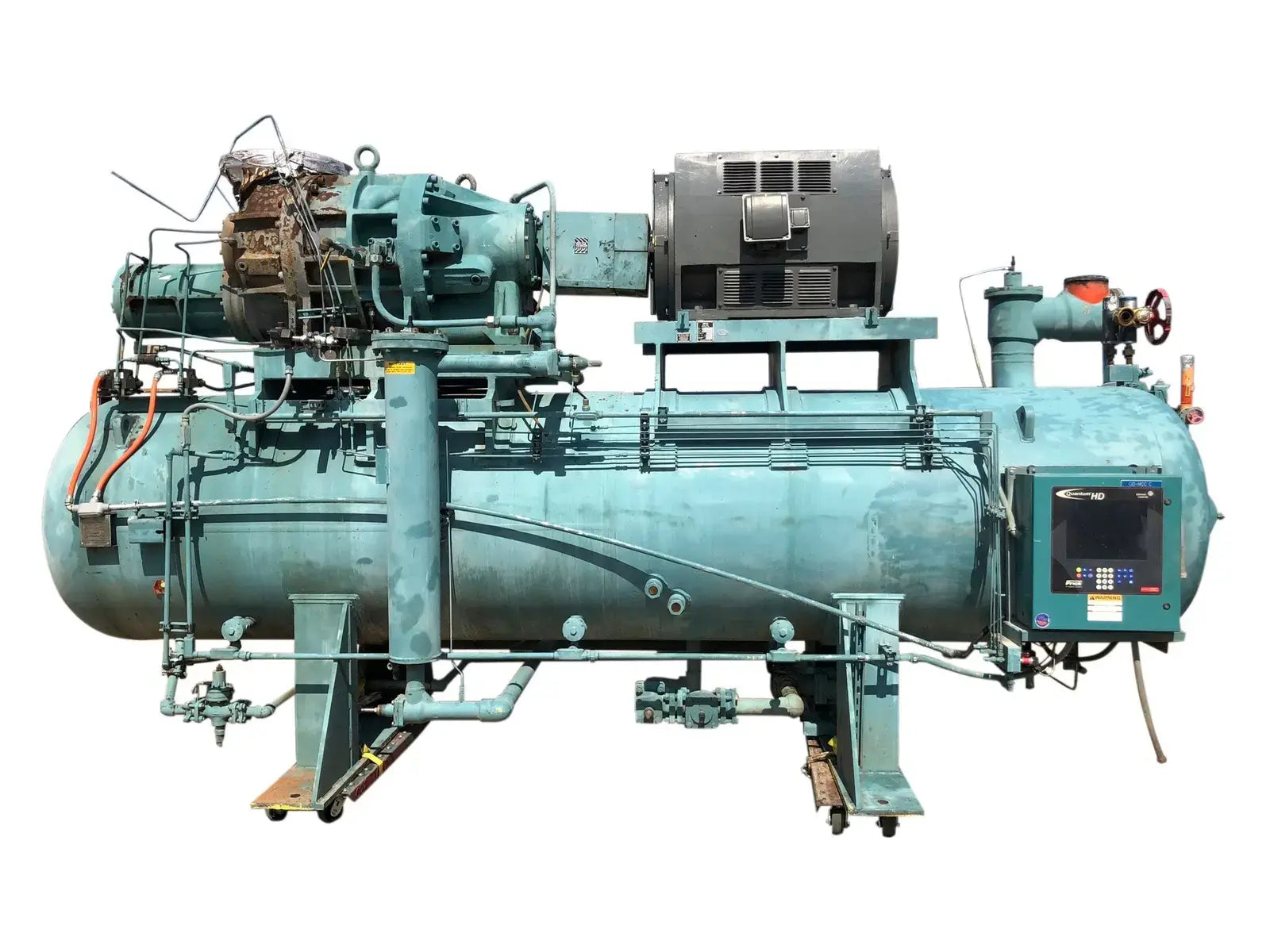

Frick RWB-II-676 Rotary Screw Compressor Package (Frick TDSH355L, 500 HP 4160 V, Frick Micro Control Panel)

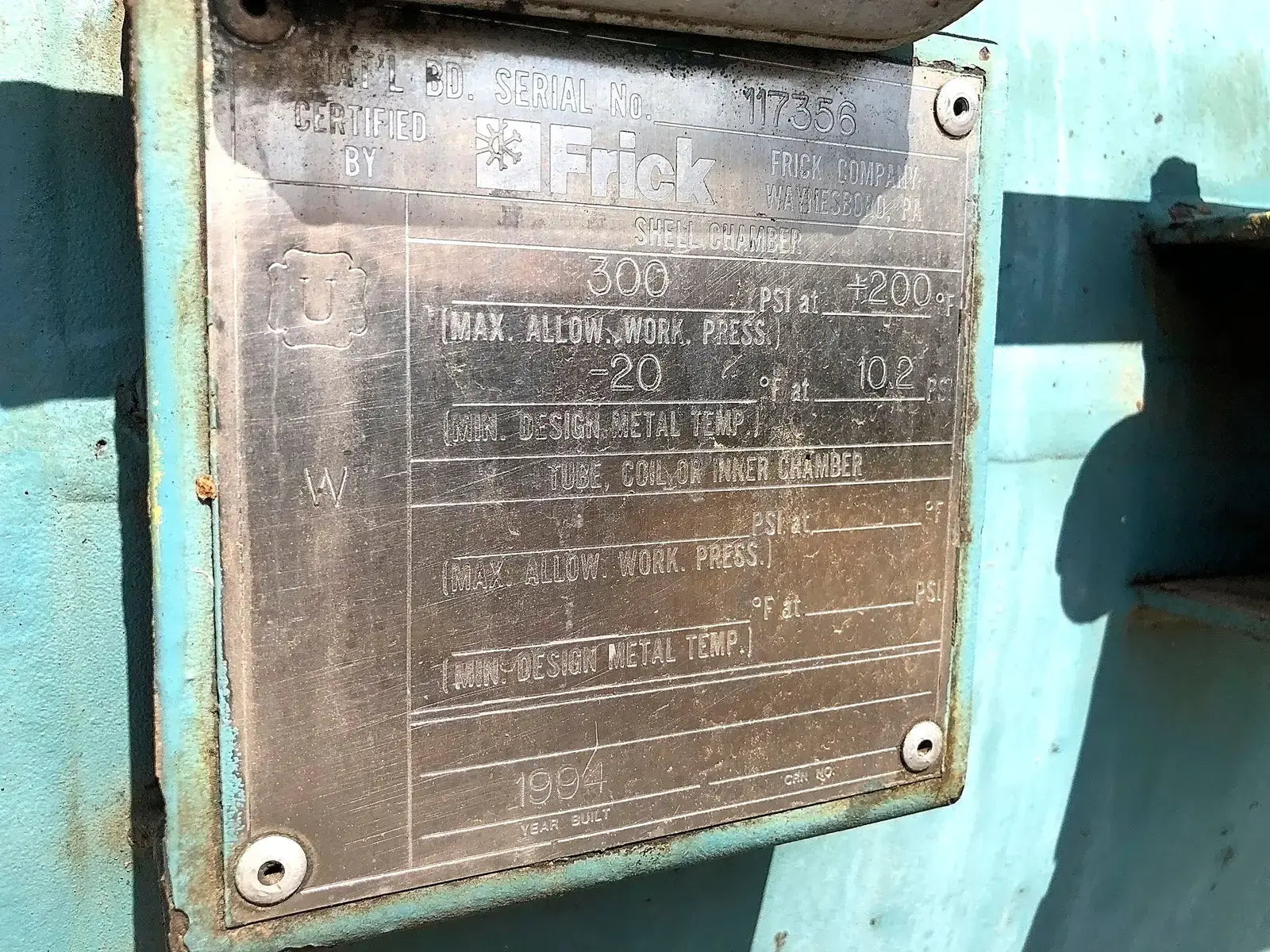

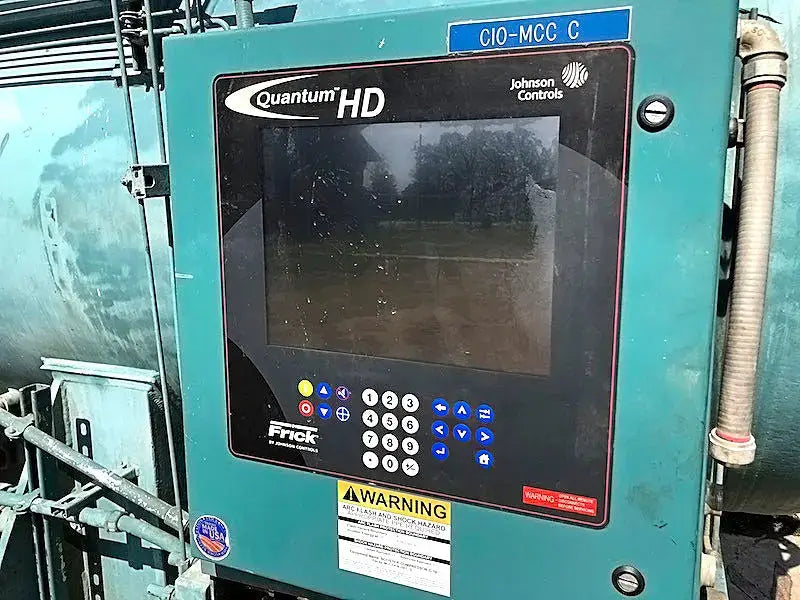

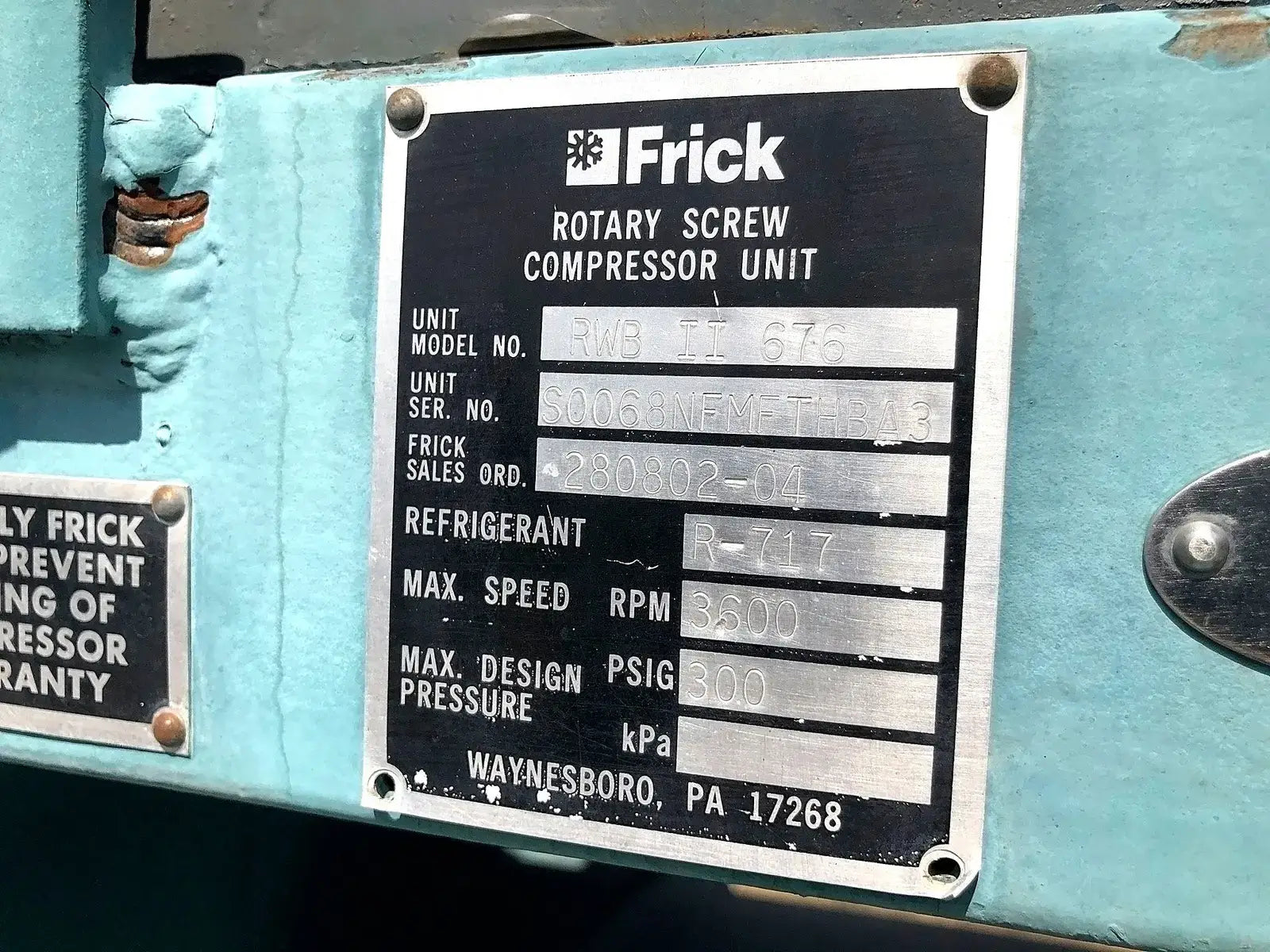

FRICK Screw Compressor Sales Order: 280802-04 Model: RWB-676 Serial # S0068NFMFTHBA3. Screw Model #: TDSH355L0577K. Separator: N/B #117356 Thermo-siphon: N/B #120115. Volume Ratio: 2.2/5.0, TECO MOTOR 500 HP, BHP 449.8, Frame 5808A, TYPE: ASHA-PA001DP, 4160 VOLT 3 PHASE 60 HZ., AMPS: 109 / 60.3, NEMA DESIGN B, BEARINGS: 6314C3/6314C3, RPM: 3570. Hours: 44,227After Seaboard Foods built their new engine room, we purchased their entire original engine room in Oklahoma, USA. Includes an updated HD Micro Panel.
Product Details
- Stock No: SBOD18.30
- Manufacturer: Frick
- Model: RWB-II-676
- Serial Number: S0068NFMFTHBA3
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

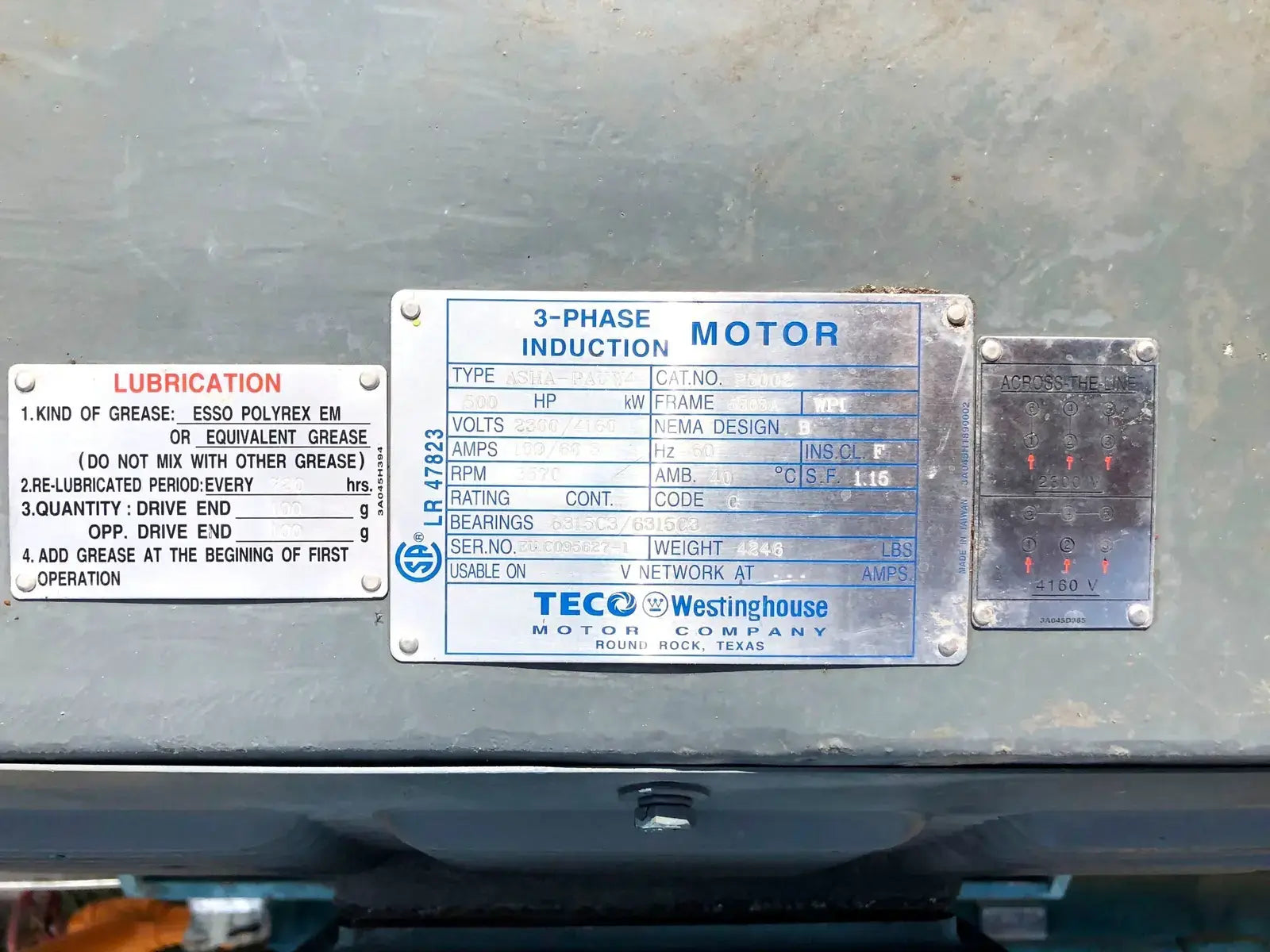

Motor Details
- Motor Included? Yes
- Motor Manufacturer: TECO Electric and Machinery Co.
- Motor Horsepower(HP): 500
- Motor RPM: 3570
- Motor Voltage: 4160
- Motor Amps: 109 / 60.3
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 5808A
Dimensions:
Additional Product Details

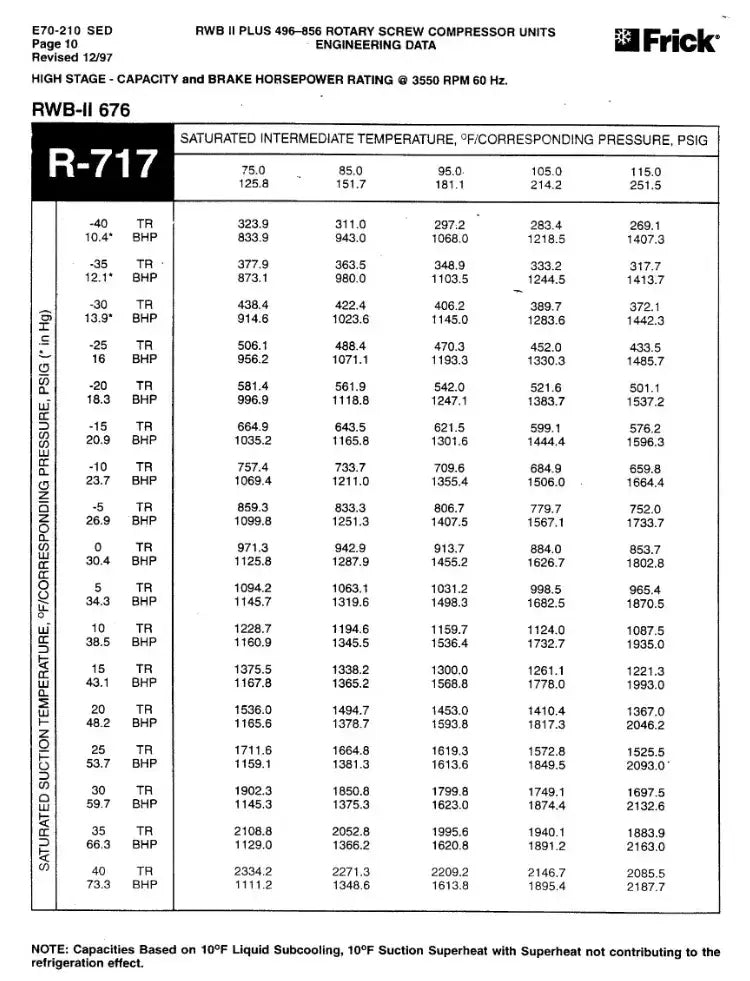

- Spec Sheet Available: Yes
- Product Purchased From: Pork Processing Plant
