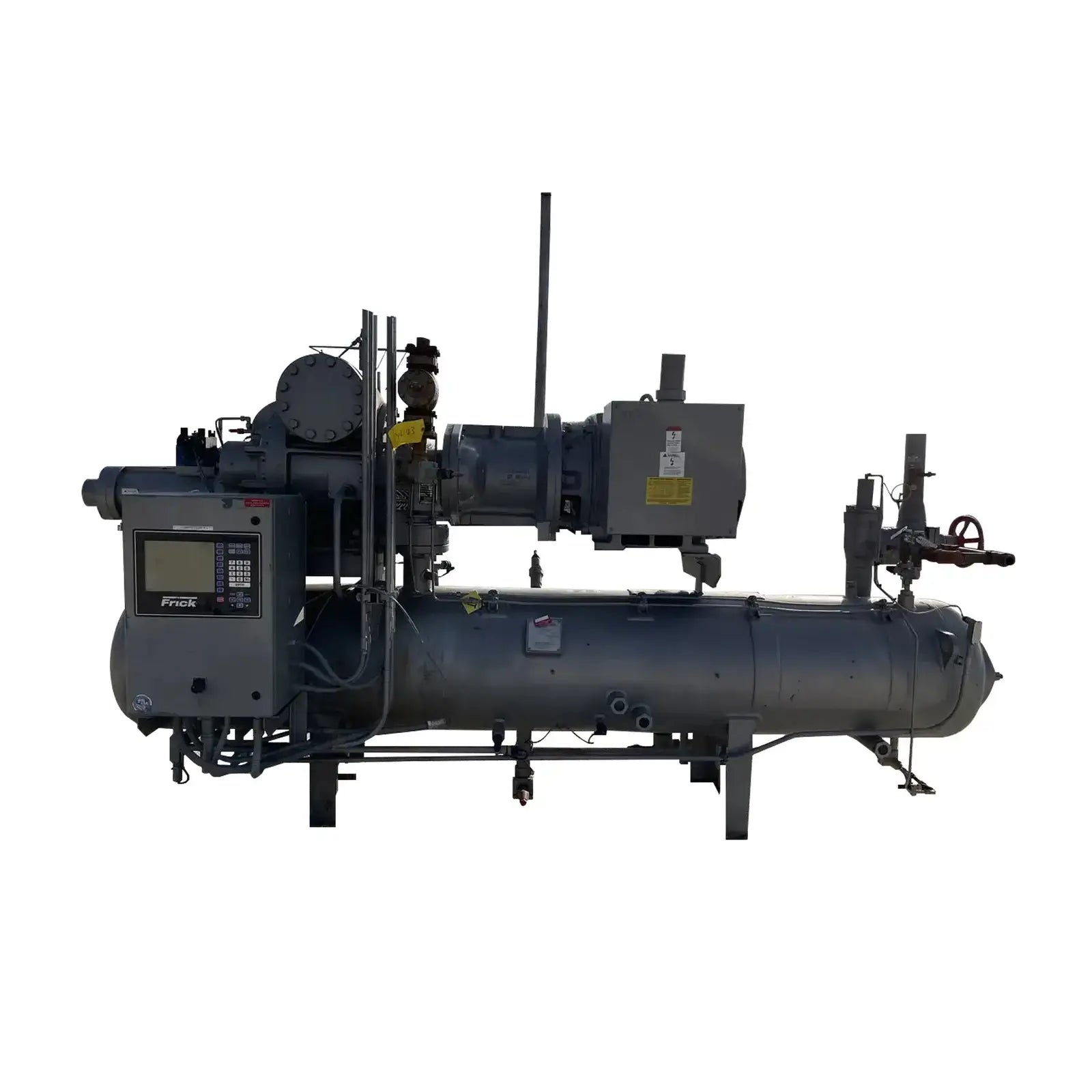

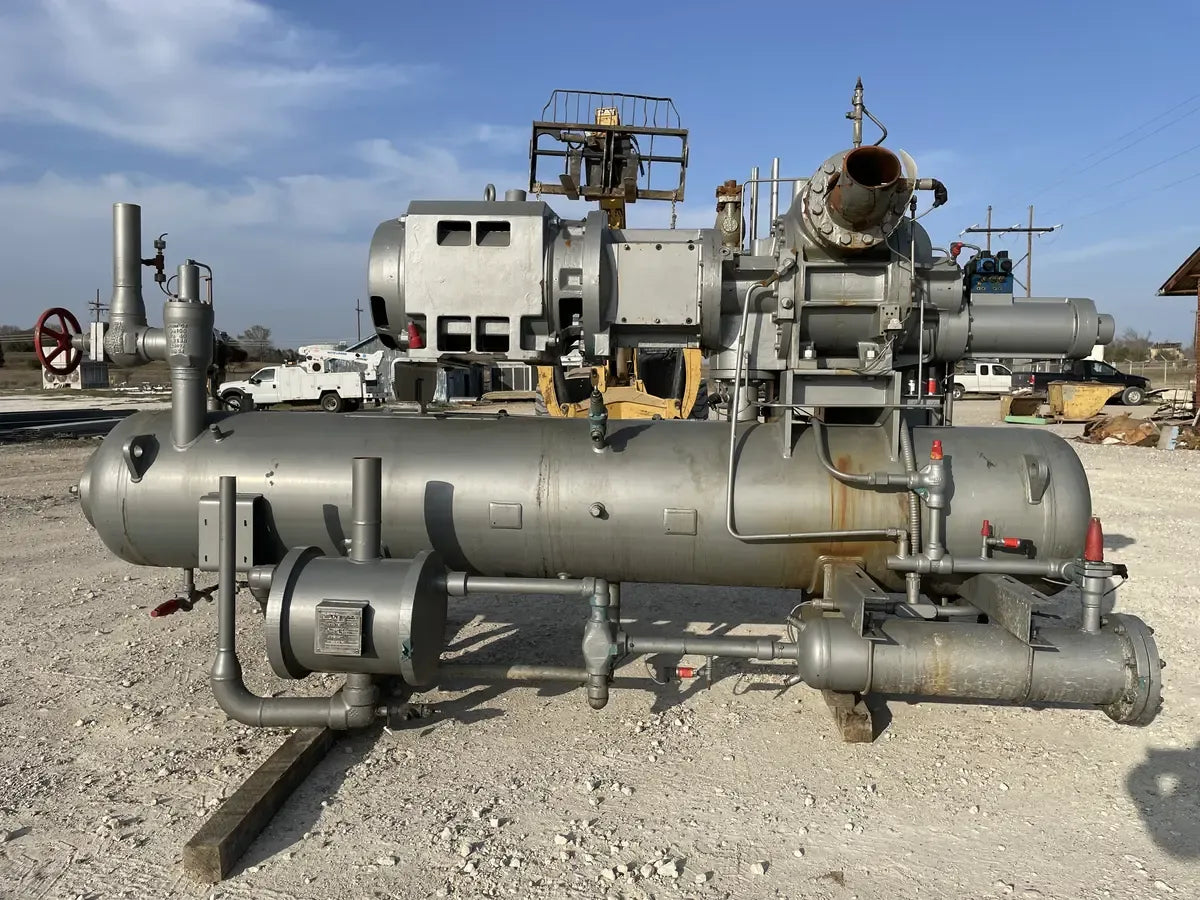

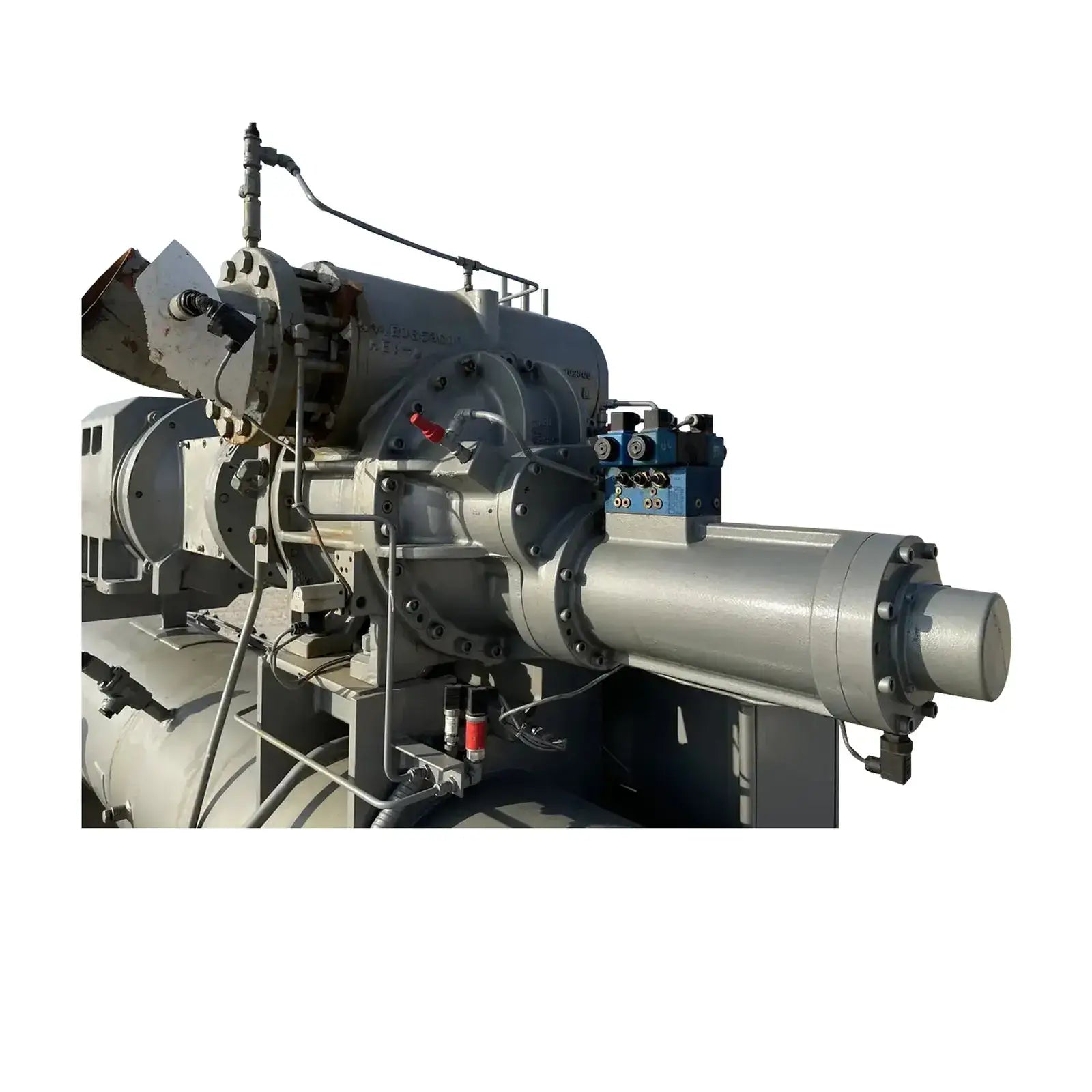

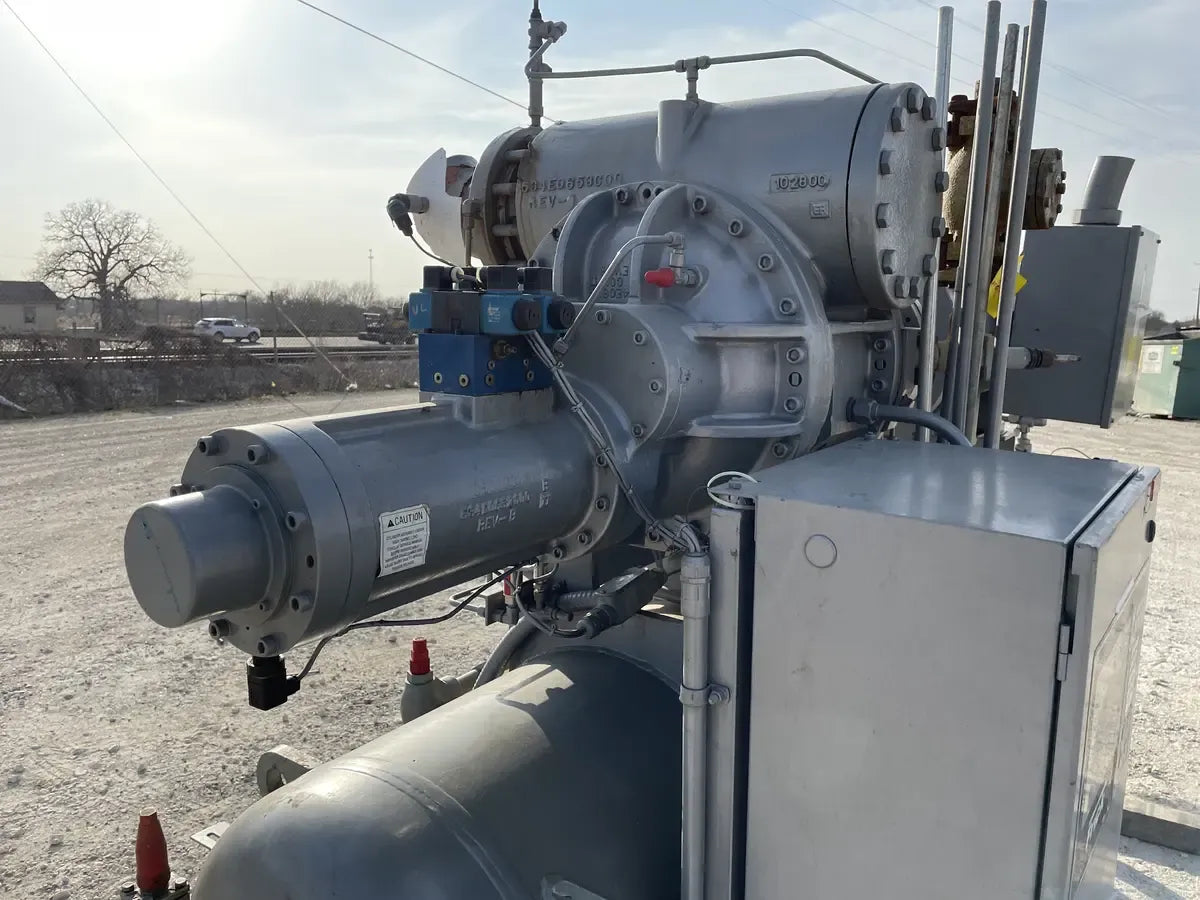

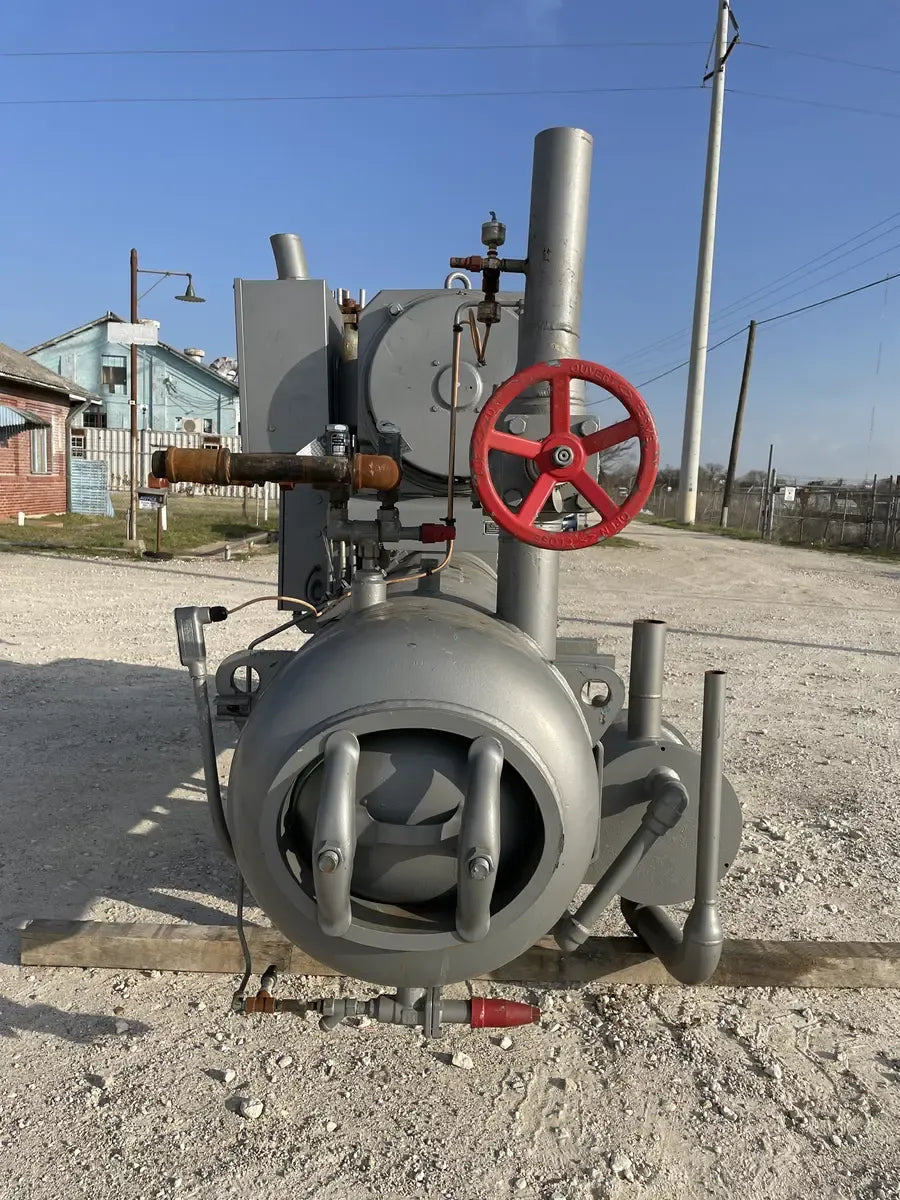

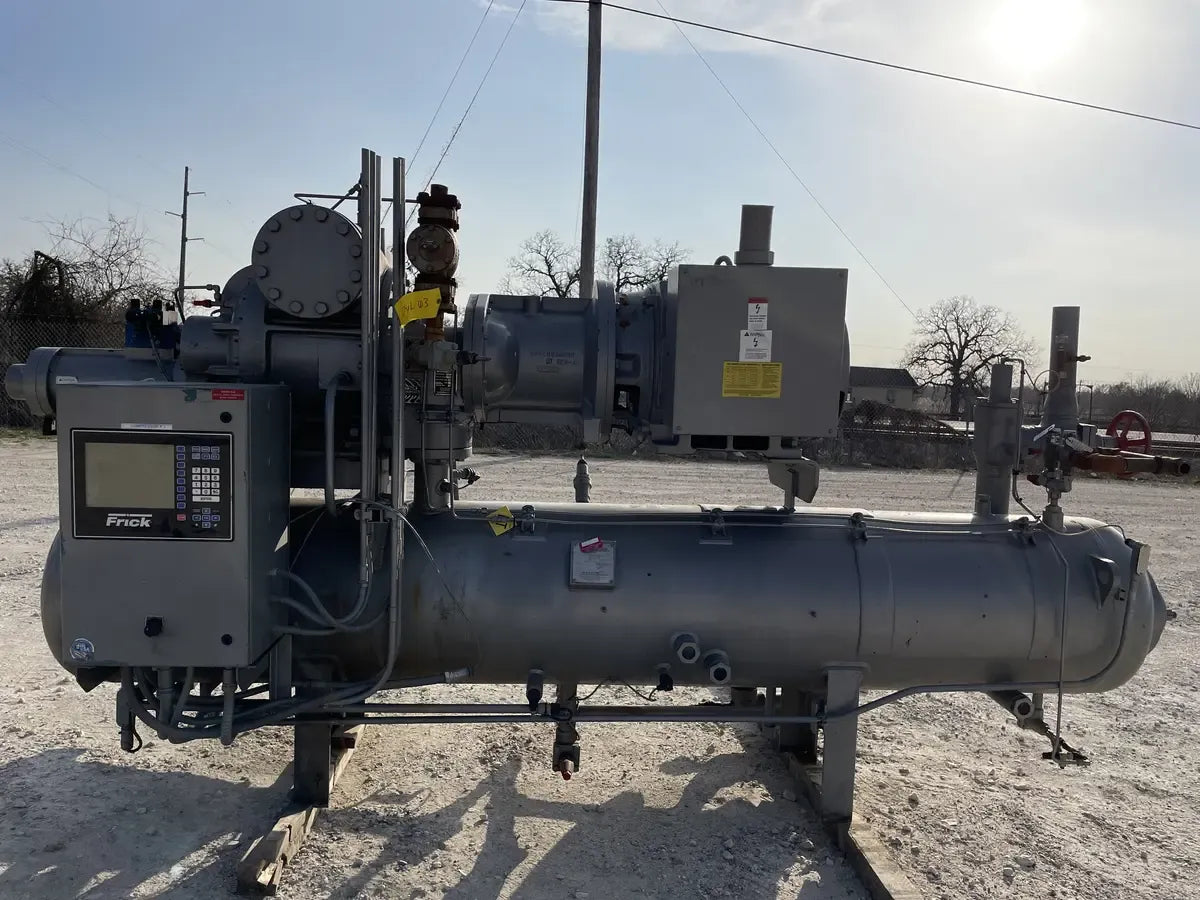

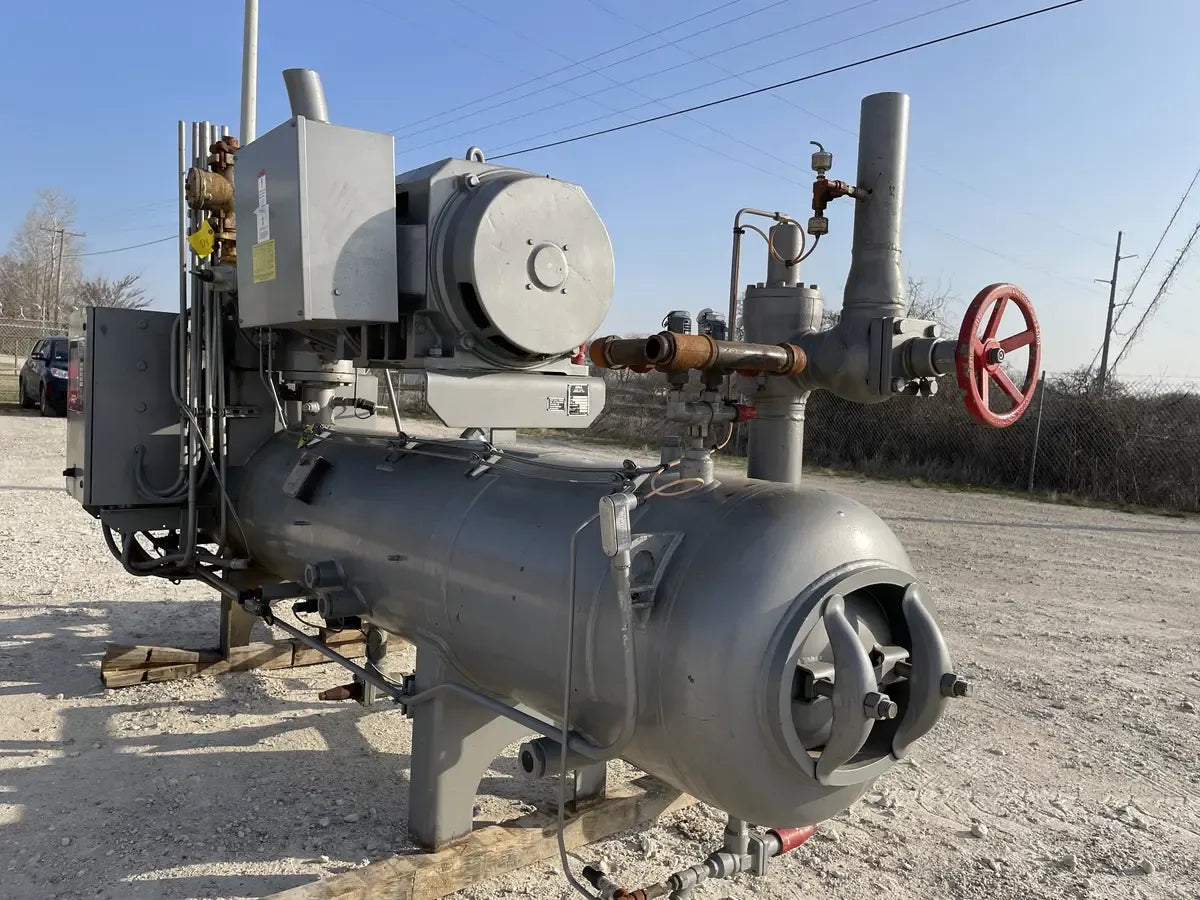

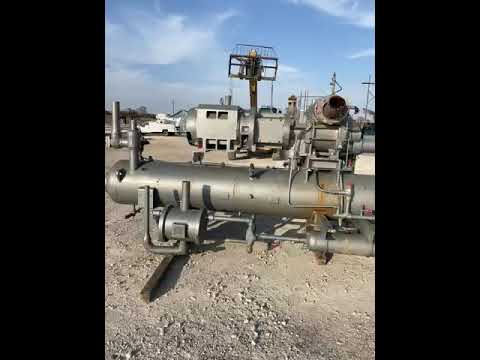

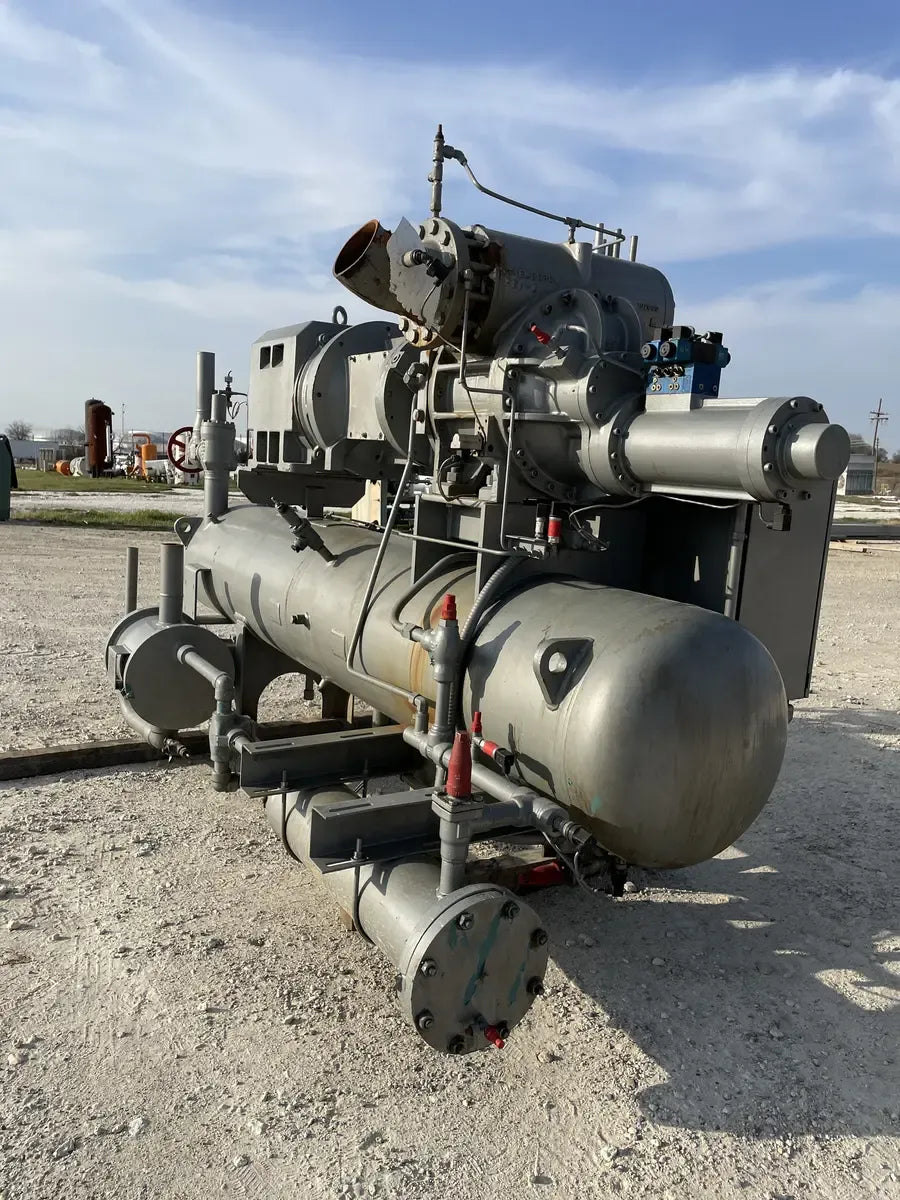

Frick RWF-134-E Rotary Screw Compressor Package (Frick SGC1918, 250 HP 460 V, Frick Micro Control Panel)
Frick RWF-134-E Rotary Screw Compressor Package (Frick SGC1918, 250 HP 460 V, Frick Micro Control Panel)
Frick RWF-134-E Rotary Screw Compressor Package (Frick SGC1918, 250 HP 460 V, Frick Micro Control Panel)
Frick RWF-134-E Rotary Screw Compressor Package (Frick SGC1918, 250 HP 460 V, Frick Micro Control Panel)

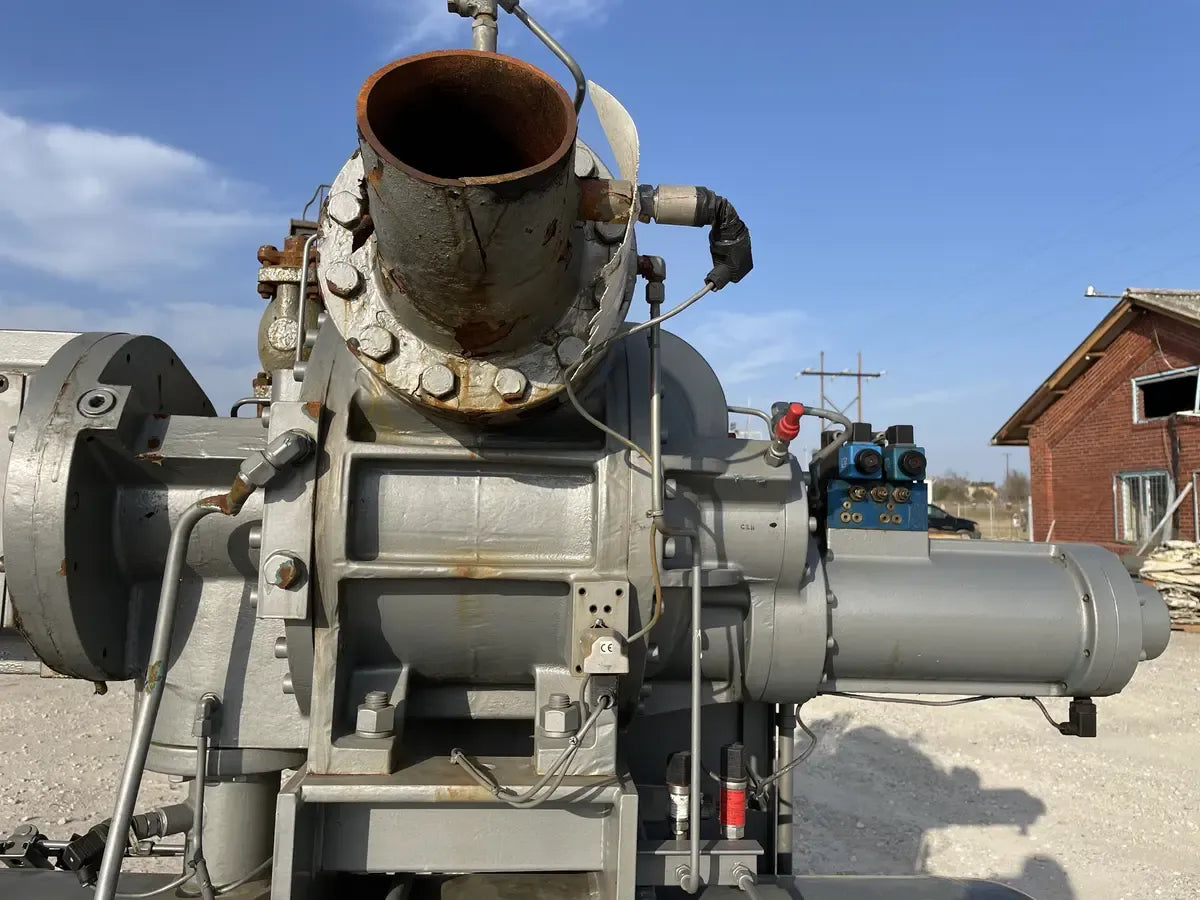

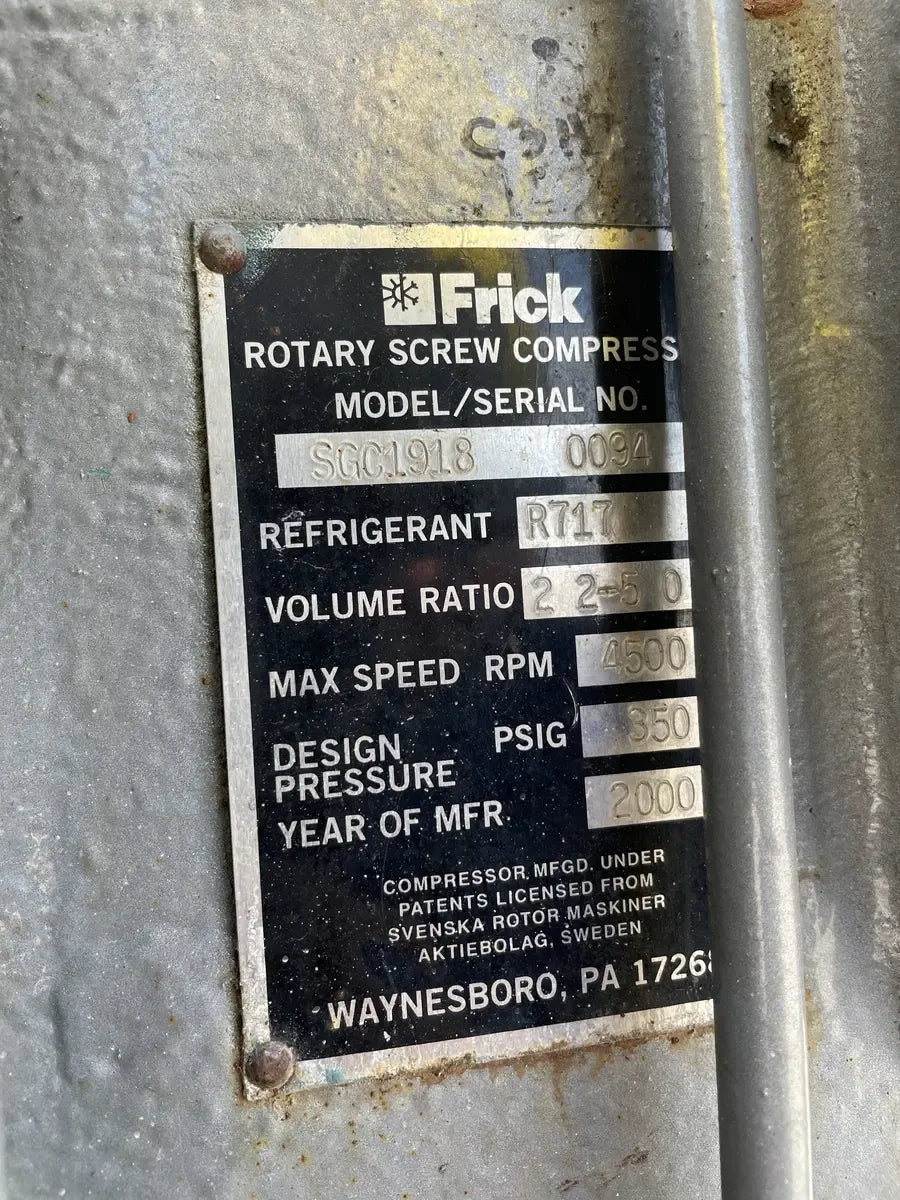

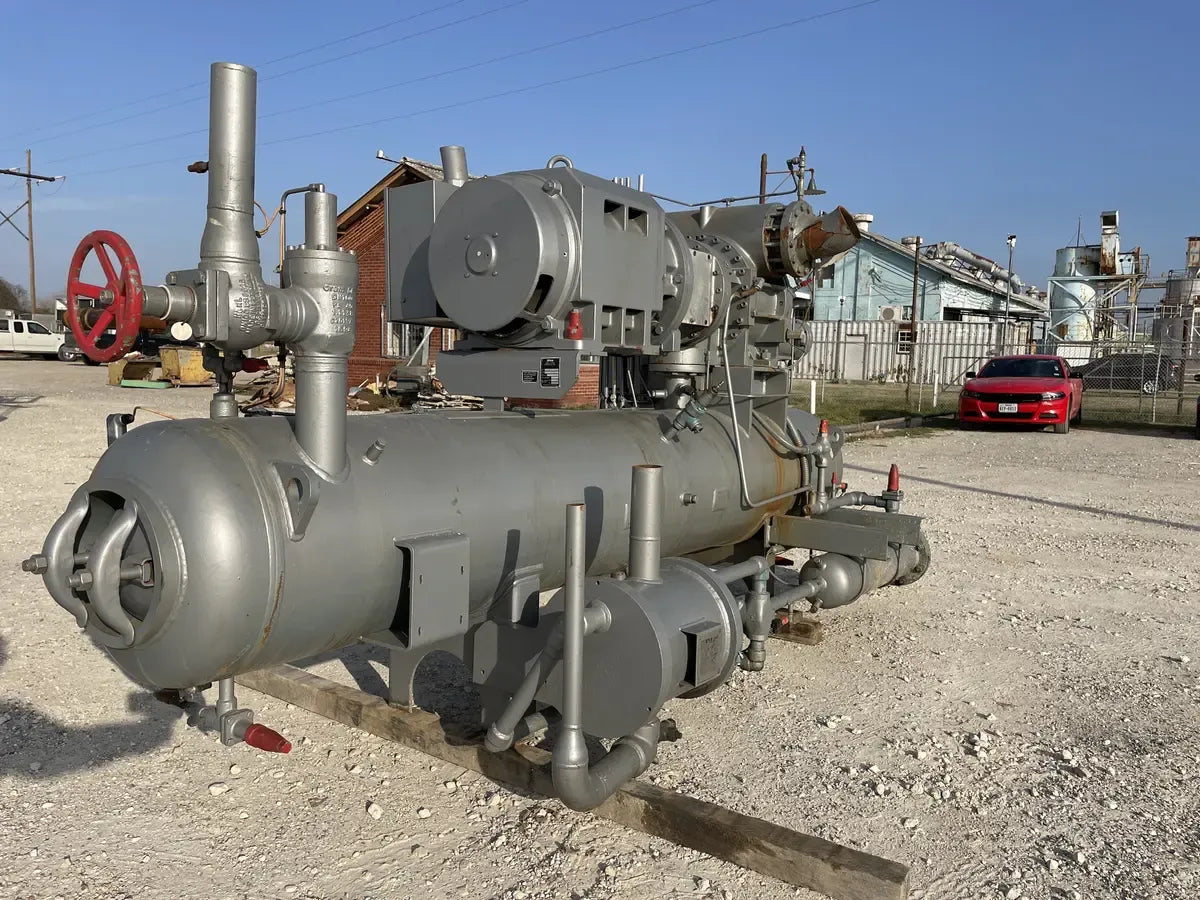

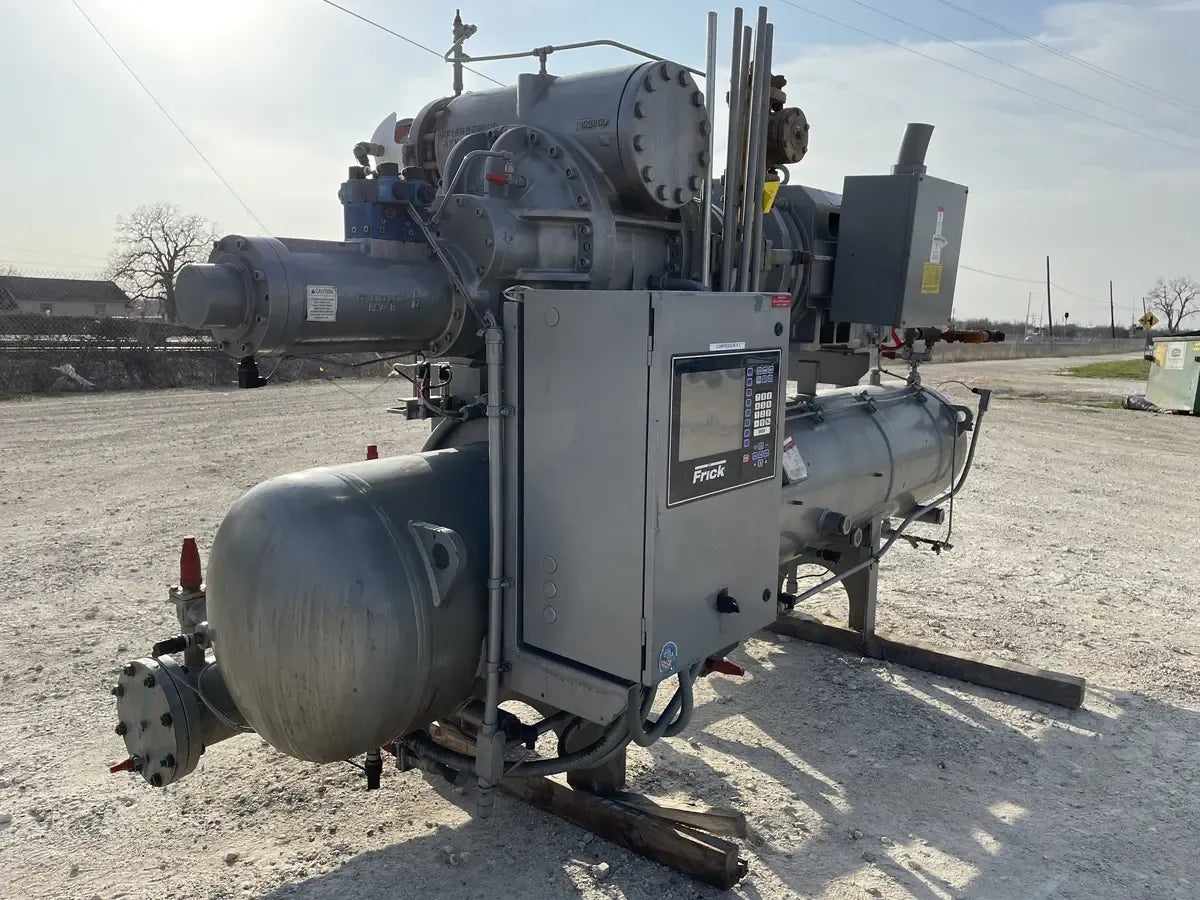

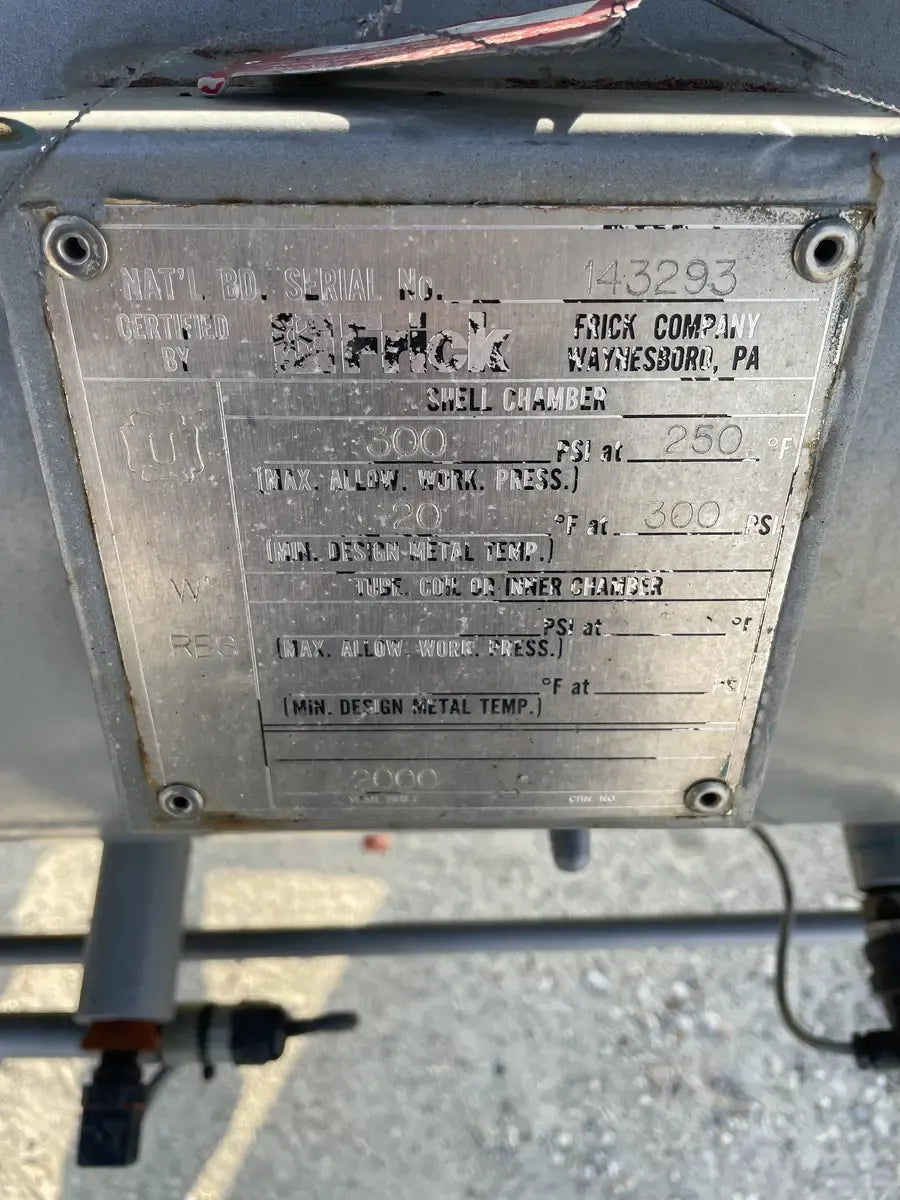

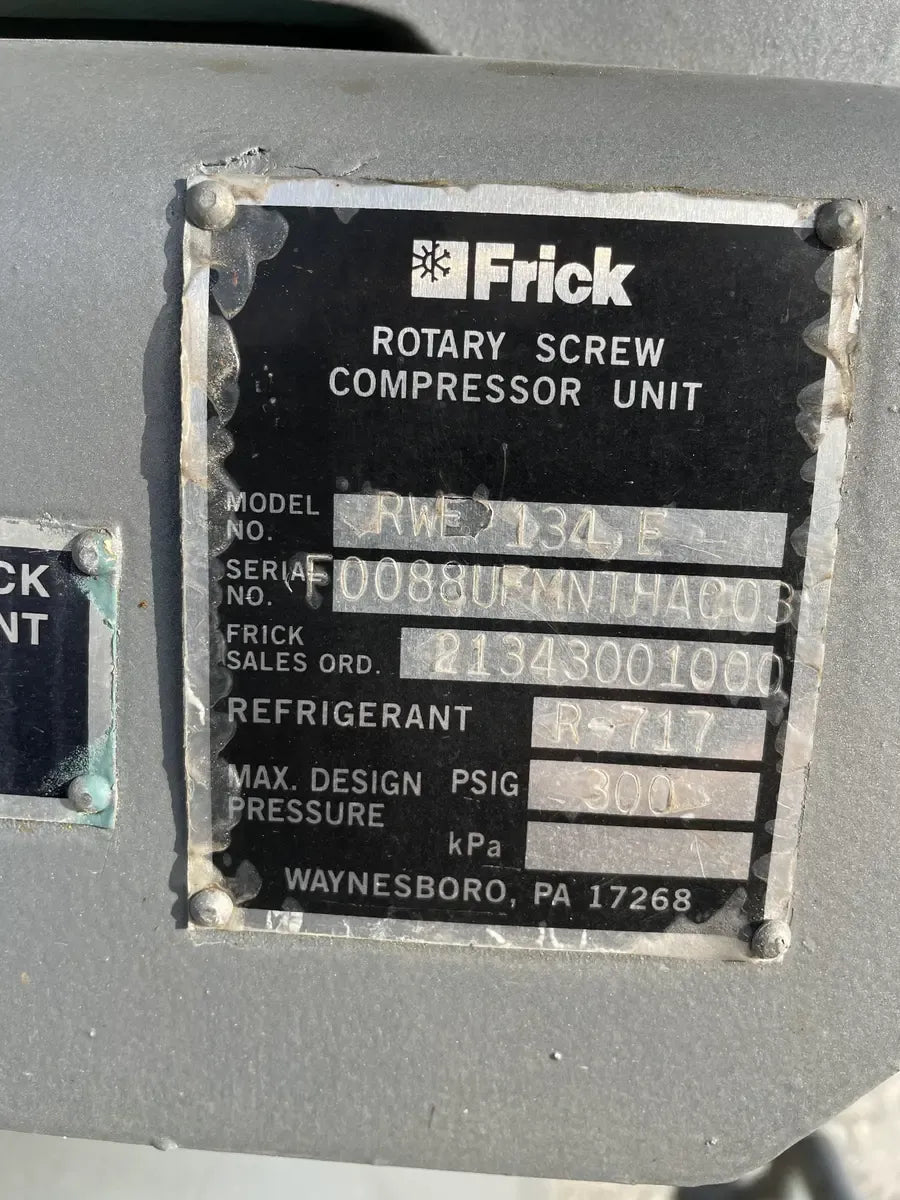

Frick Rotary Screw Compressor Package - Model: RWF-134 E, Serial No: 0088UFMNTHAC03, Frick Sales No: 21343001000, Refrigerant: R-717, Max Design Pressure: 300 PSIG. Total Hours reading on Control Panel: 114032.1 HR. Frick Rotary Bare Screw Compressor - Model: SGC1918, Serial: 0094, Refrigerant: R717, Volume Ratio: 2.2-5.0, Max Speed RPM: 4500, Design Pressure: 350 PSIG, Year of MFR: 2000. Total Hours reading on Control Panel: 114032.1 HR. Ram Industries Industrial High-Efficiency Duty Motor - Serial No: W2007332001-MC, Model No: 3KB262244SVF, HP: 250, RPM: 3565, PH: 3, HZ: 60, Volts: 460, FLA: 279, Frame: 445TSD, ENCL: ODP, NEMA DES: B, NOM EFF: 94.5, Power Factor: 88.8. Frick Separator - National Board No: 143293. Shell Chamber - Max Allow Work Pressure: 300 PSI @ 250 F, Min Design Metal Temperature: 20 F @ 300 PSI, MFR Year: 2000. Frick RWF Quantum Control Panel - DWG No: 640D0132, Cage Code: 23857, Size: D. Volts: Control - 115AC. Amps: Control: 5, Phase: 1, Hertz: 50/60. ID Code: Quantum, UL File No: E142909
Product Details
- Stock No: DYL03
- Manufacturer: Frick
- Model: RWF-134-E
- Serial Number: F0088UFMNTHAC03
- Compressor Type: Screw
- Package Included? Yes
Package Details
- Package Manufacturer: Frick
- Package Model: RWF-134-E
- Package SN: F0088UFMNTHAC03
- Package Order: 21343001000
- Package Max Design Pressure (PSIG): 300

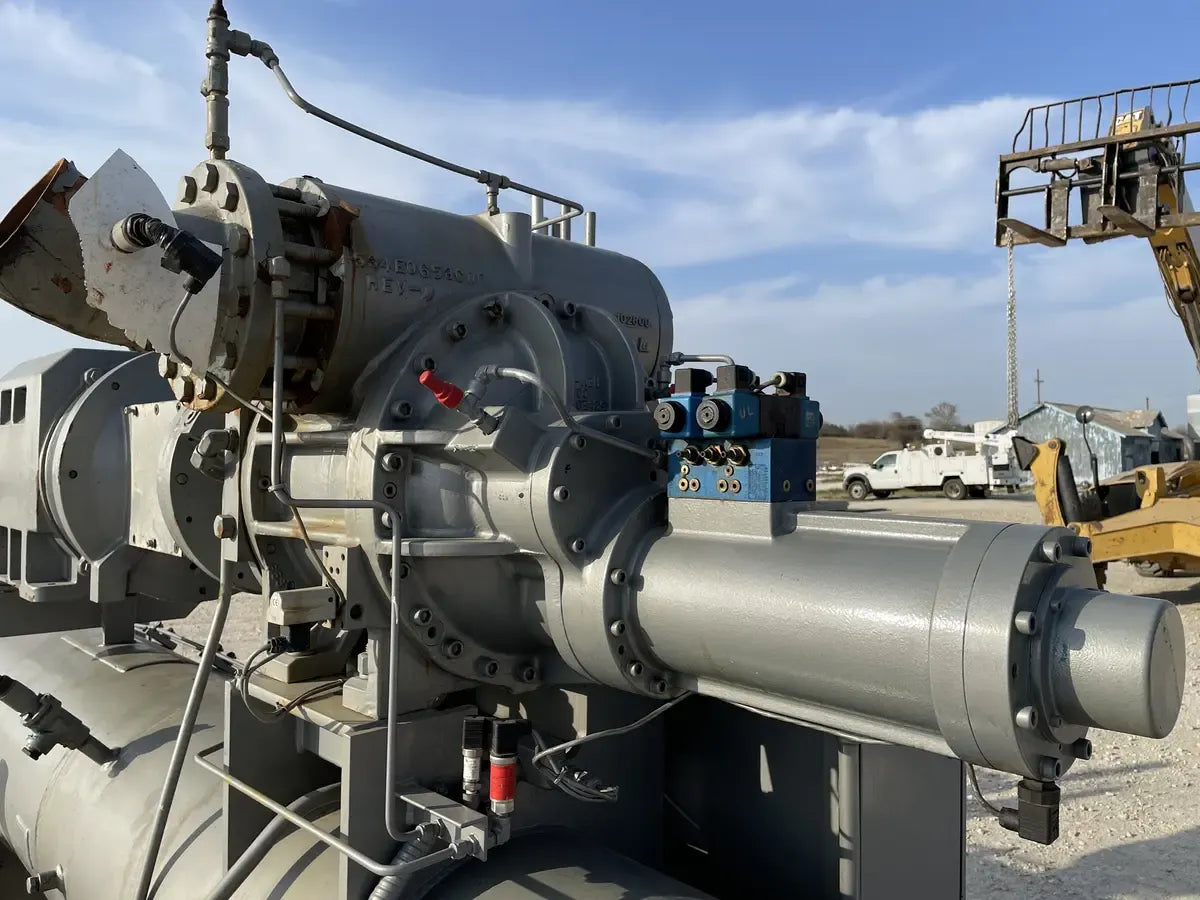

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1

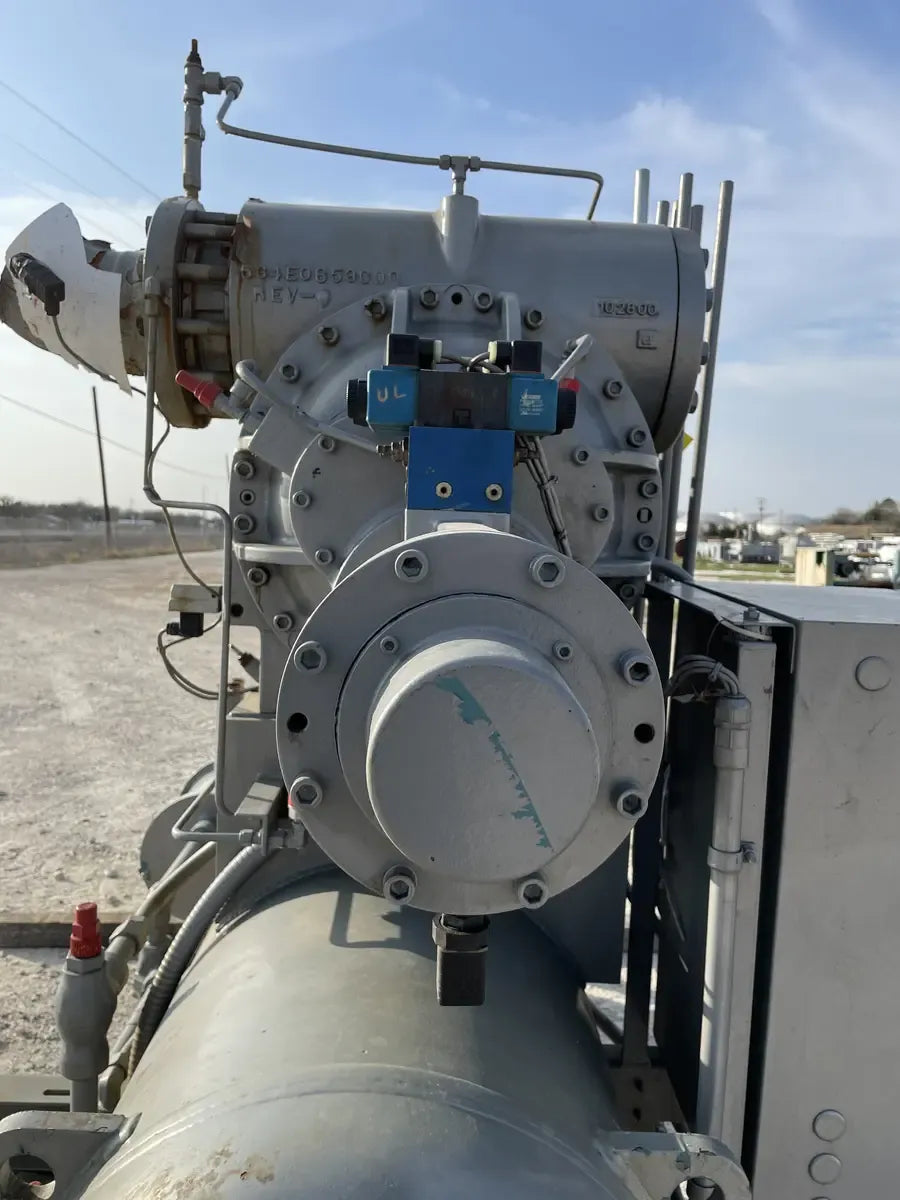

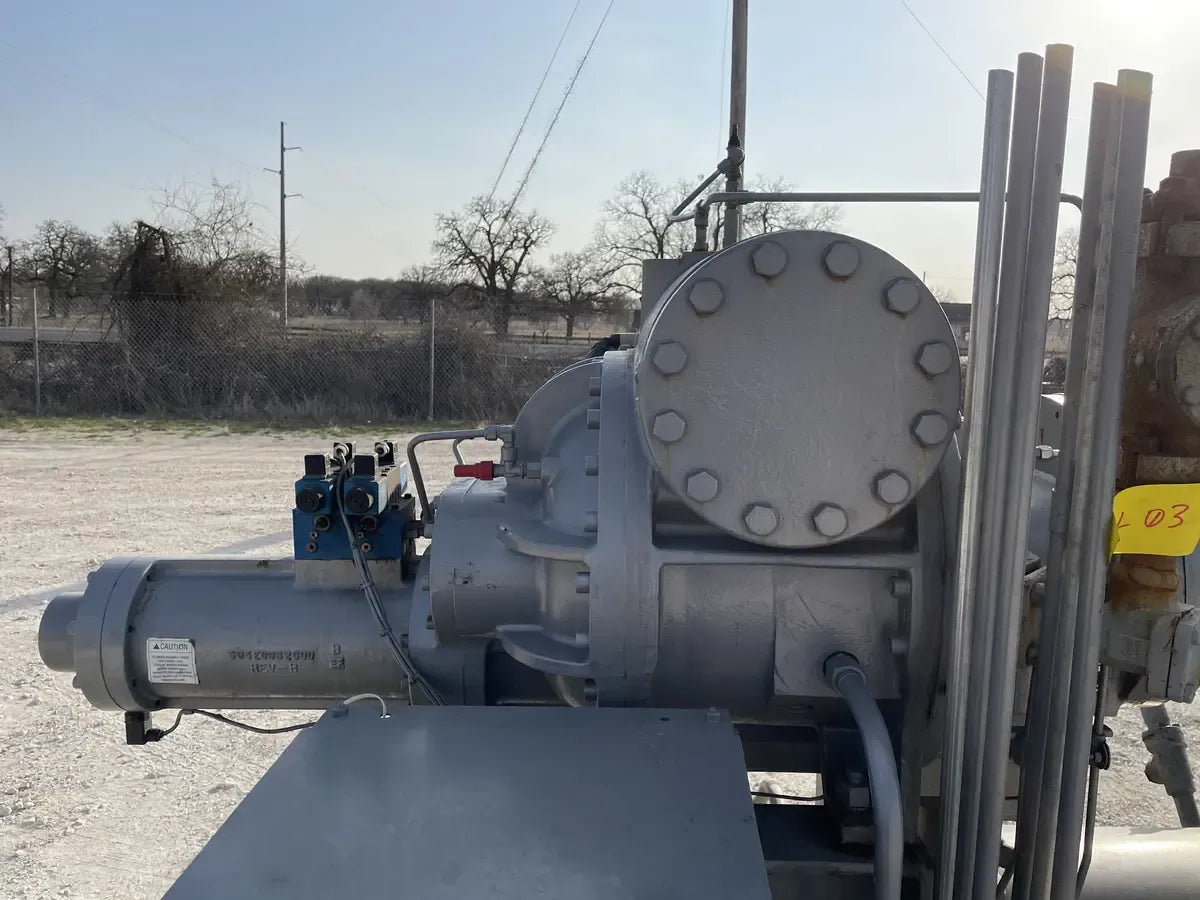

- Compressor Model: SGC1918
- Compressor SN: 94
- Compressor Max Speed (RPM): 4,500
- Compressor Design Pressure (PSIG): 350
- Compressor Year Manufactured: 2000
- Compressor Run Time Hours: 114,032.1

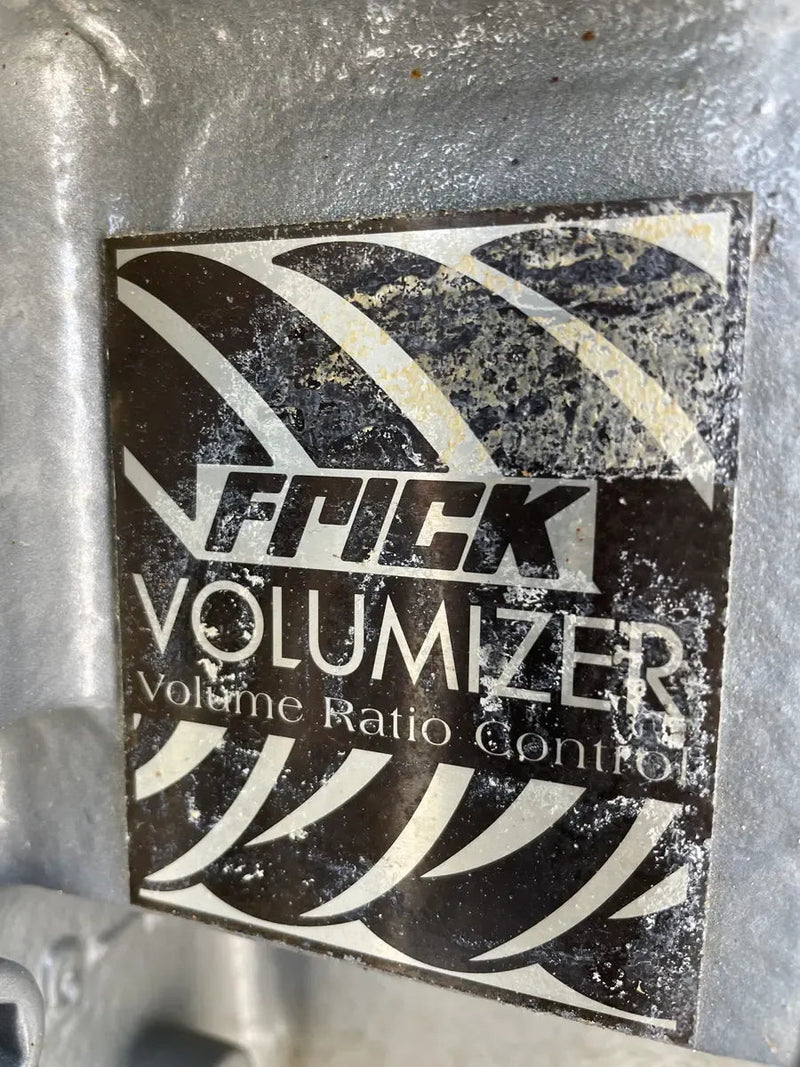

- Fixed/Variable VI: Variable
- Compressor Volume Ratio: 2.2-5.0

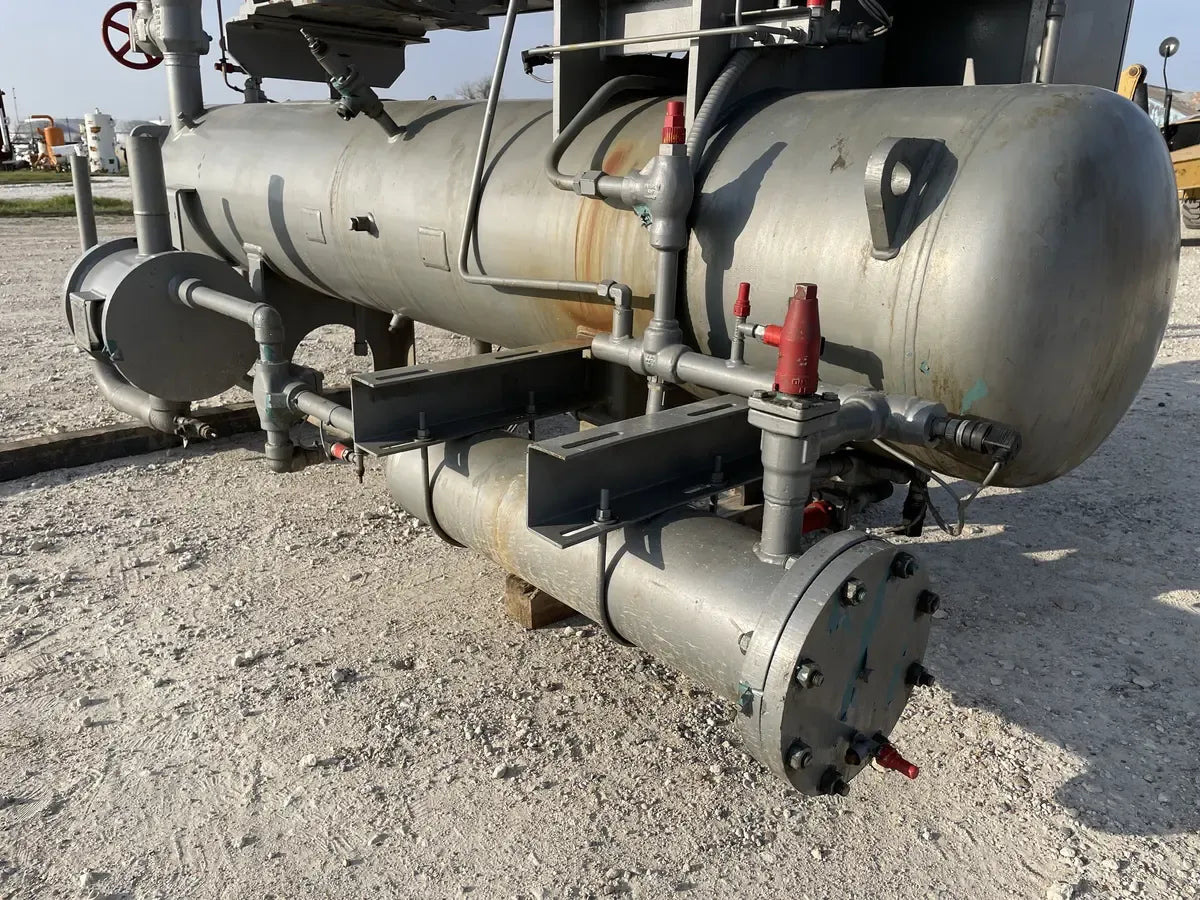

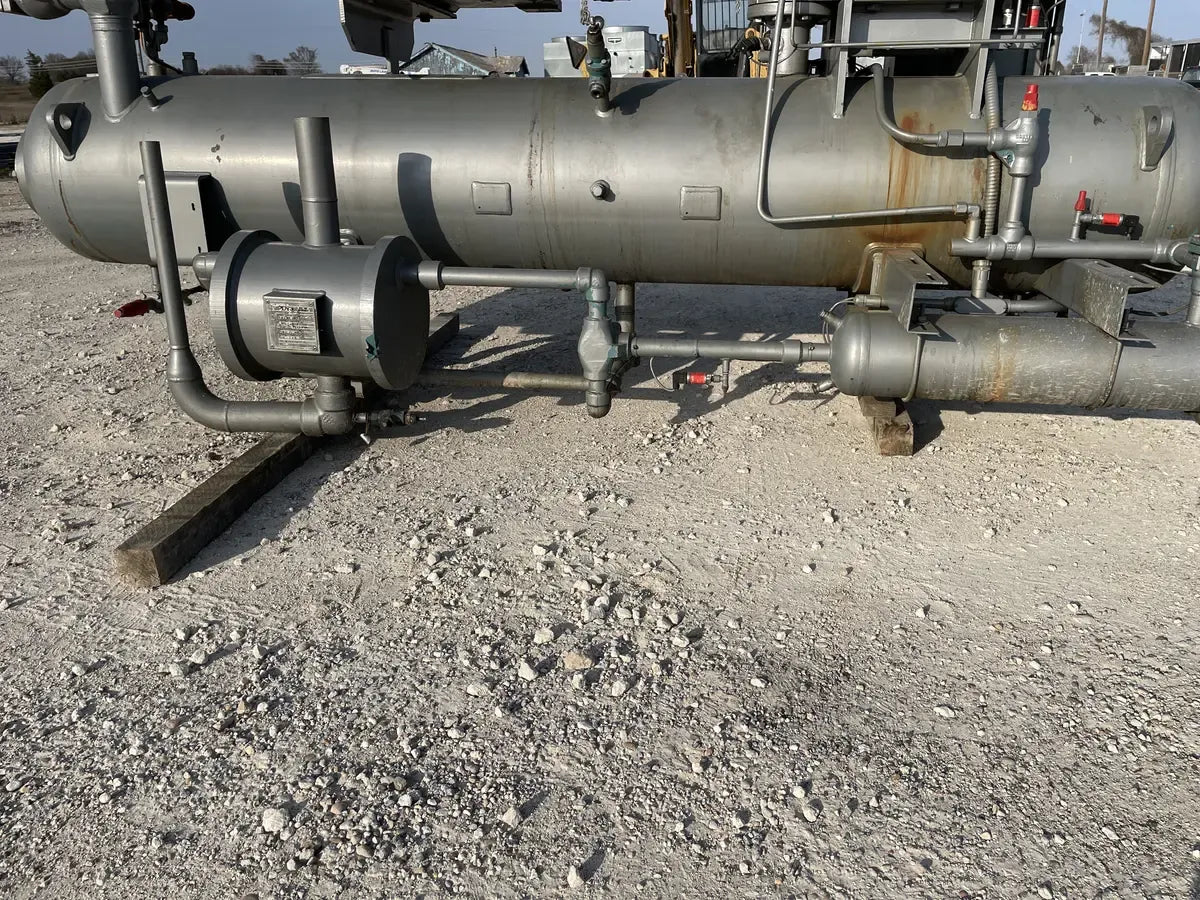

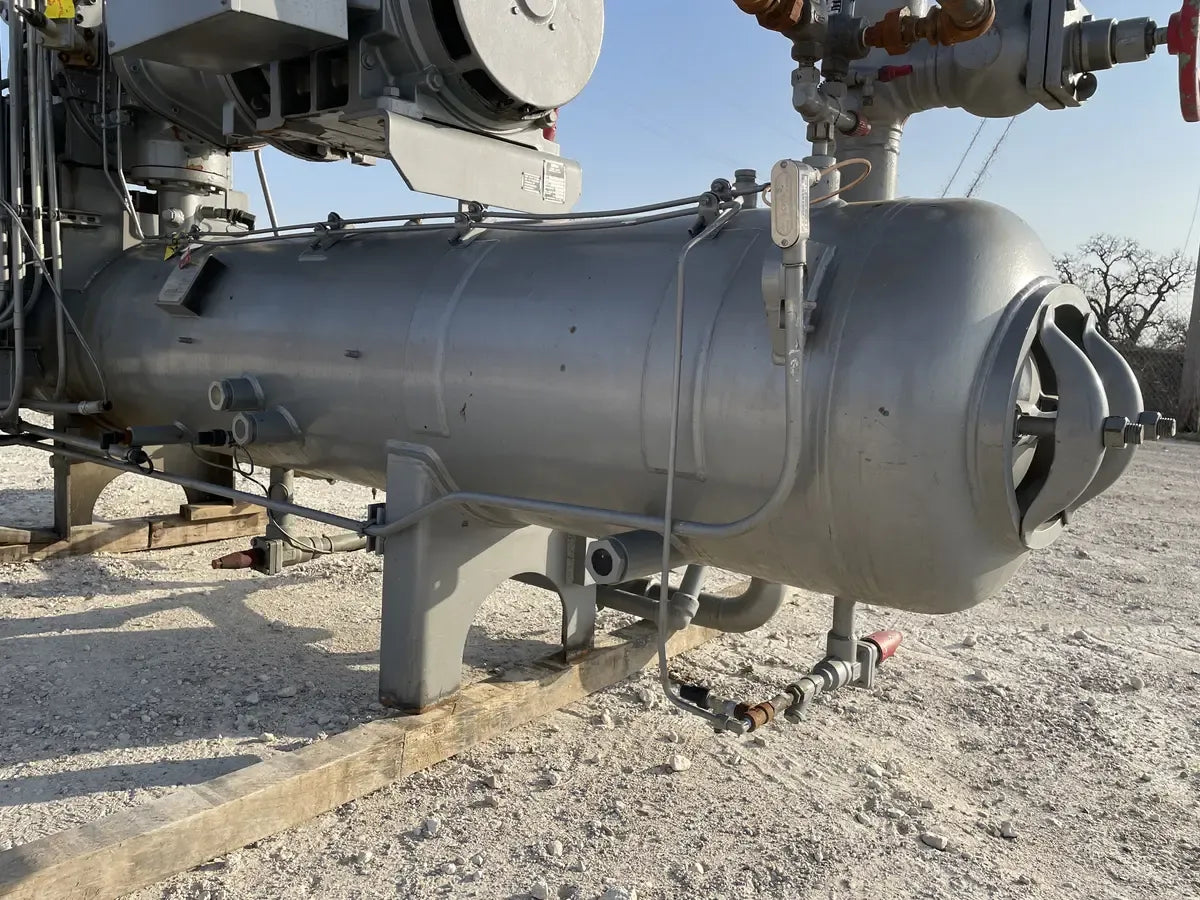

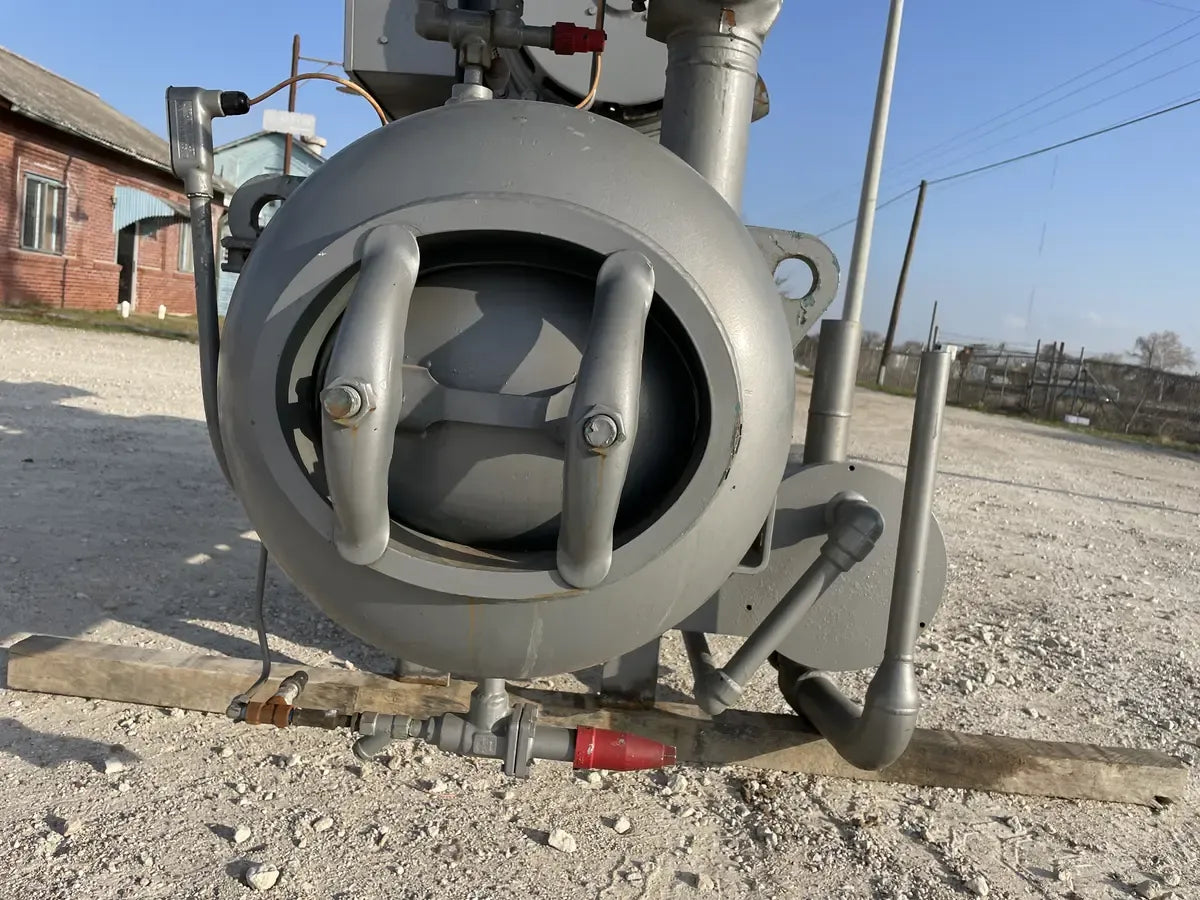

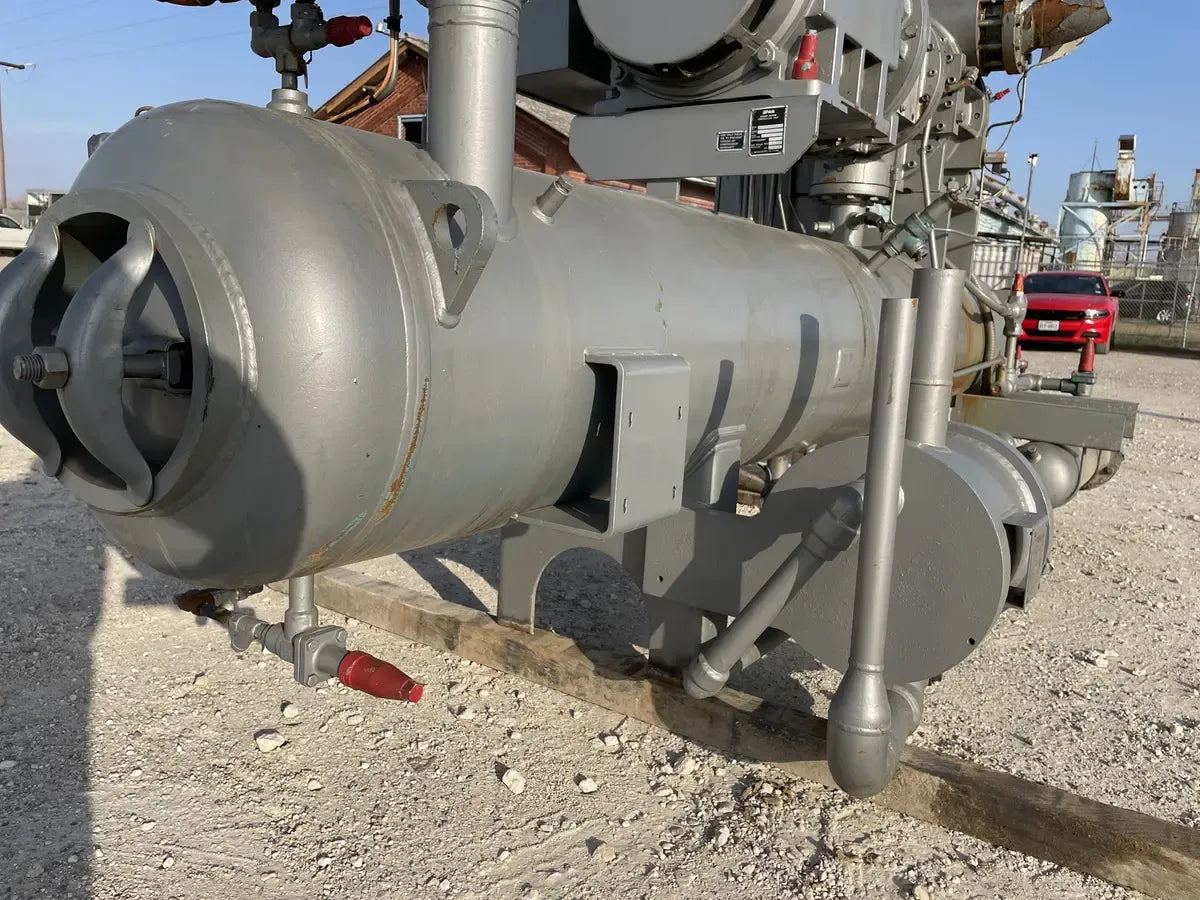

- Oil Separator Included? Yes

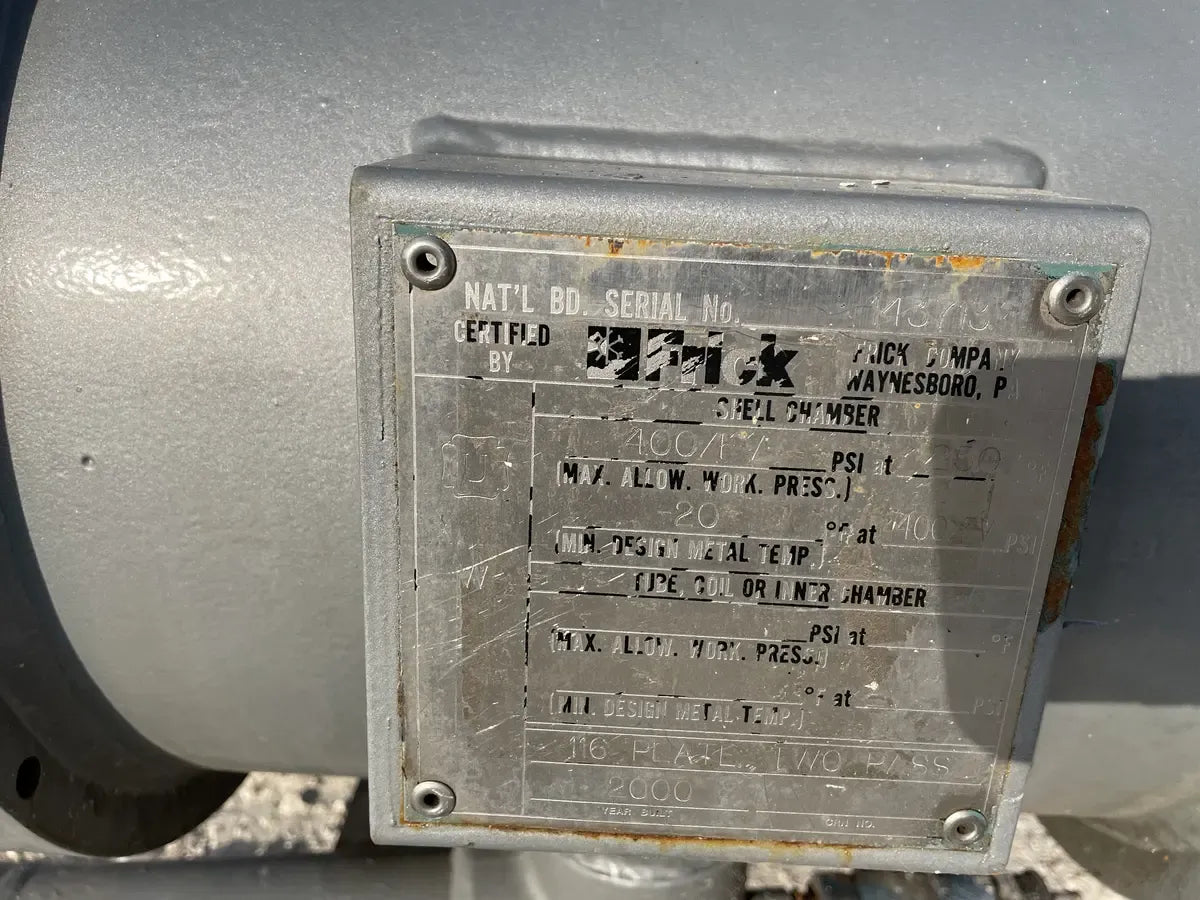

- Oil Separator National Board #: 143293
- Oil Cooling Type: Thermosiphon

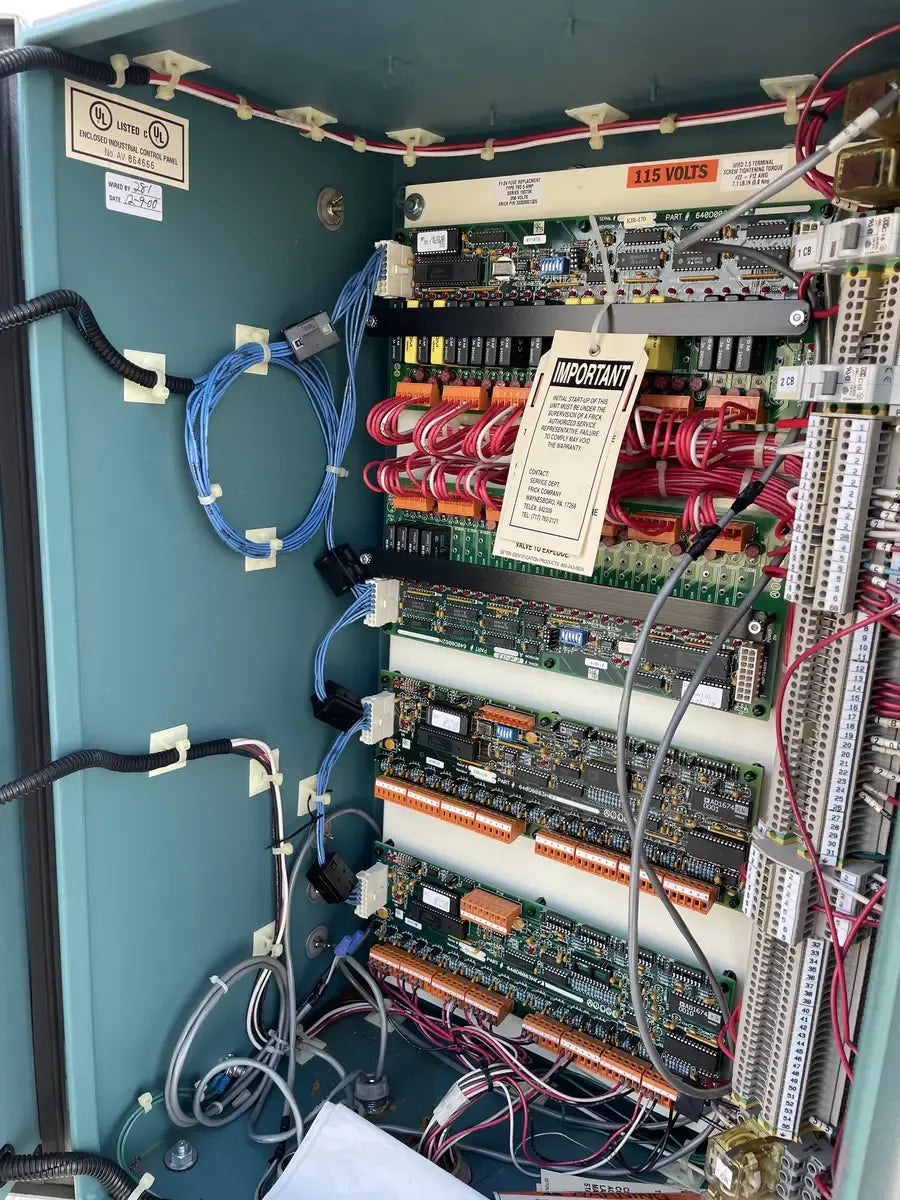

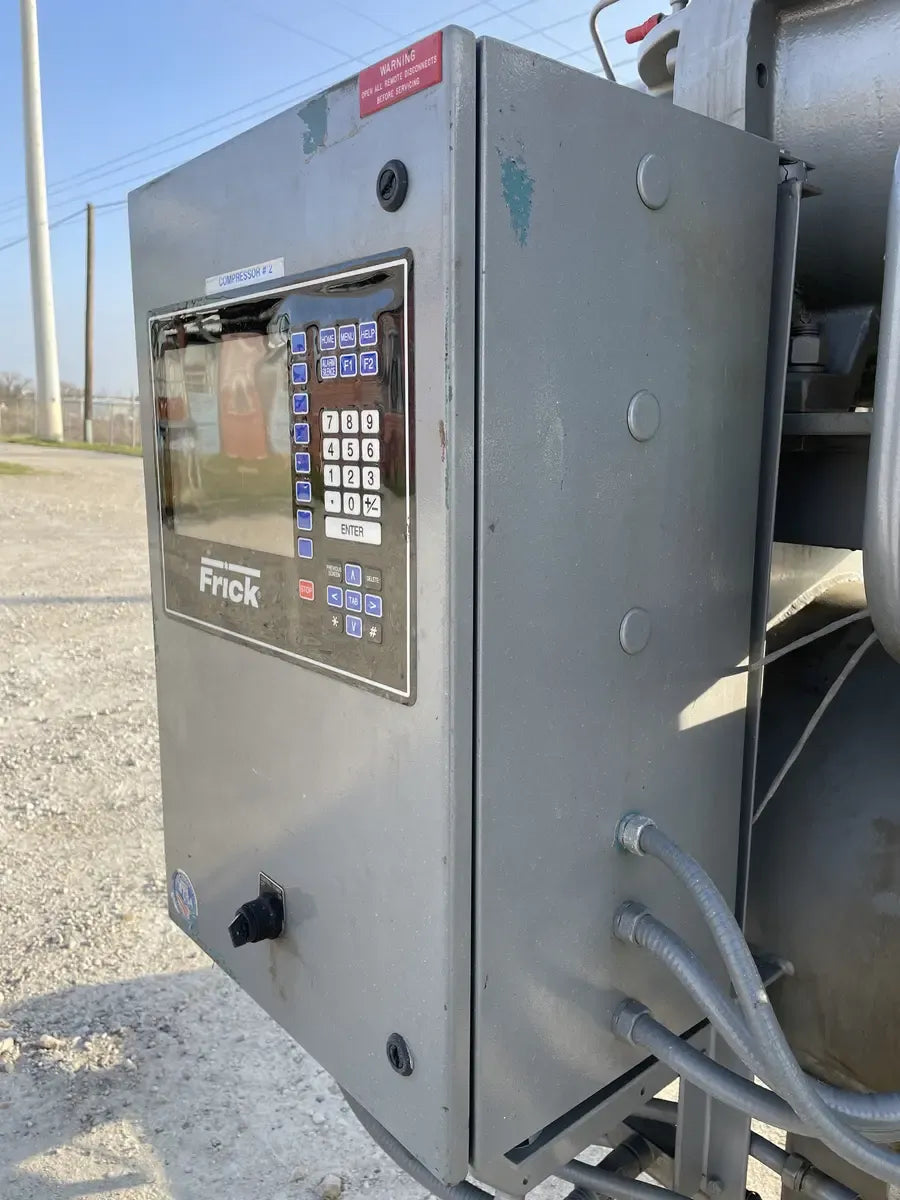

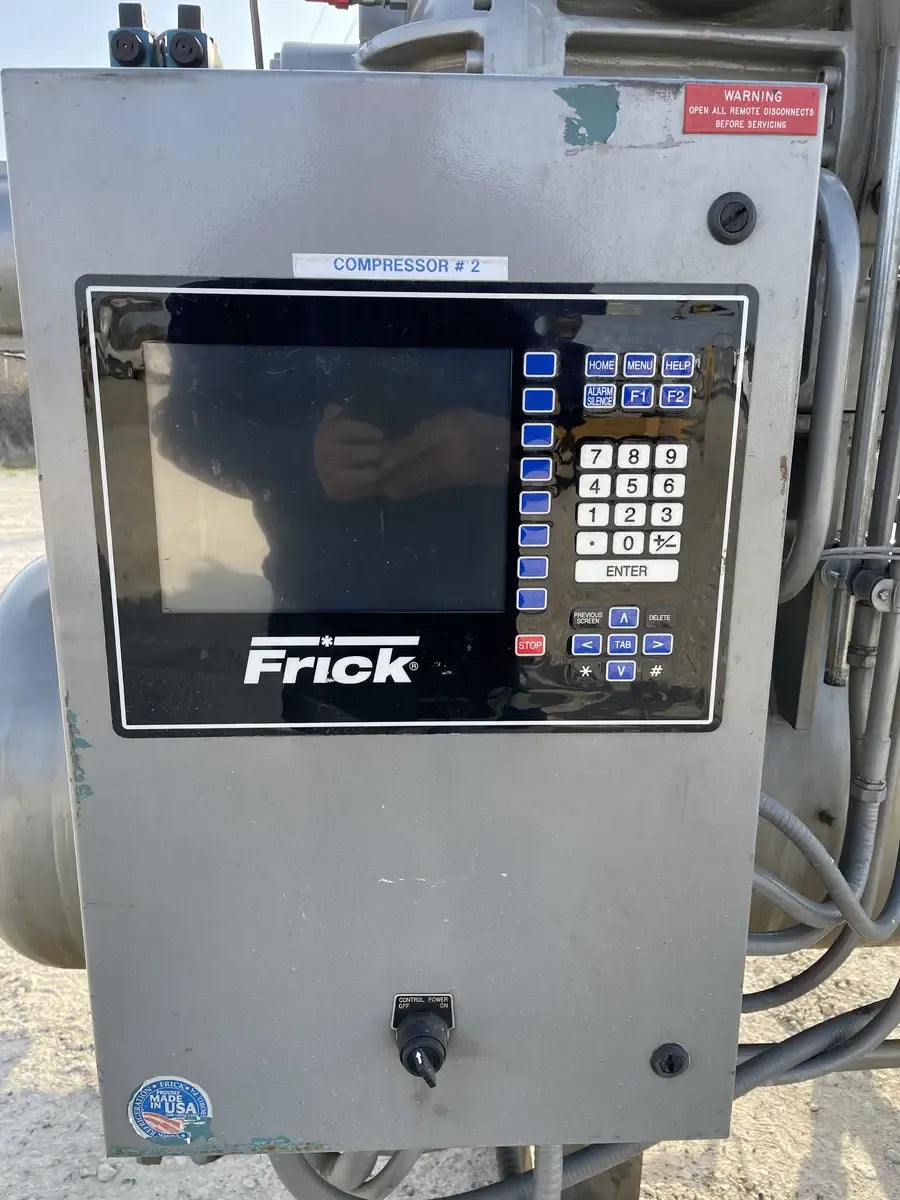

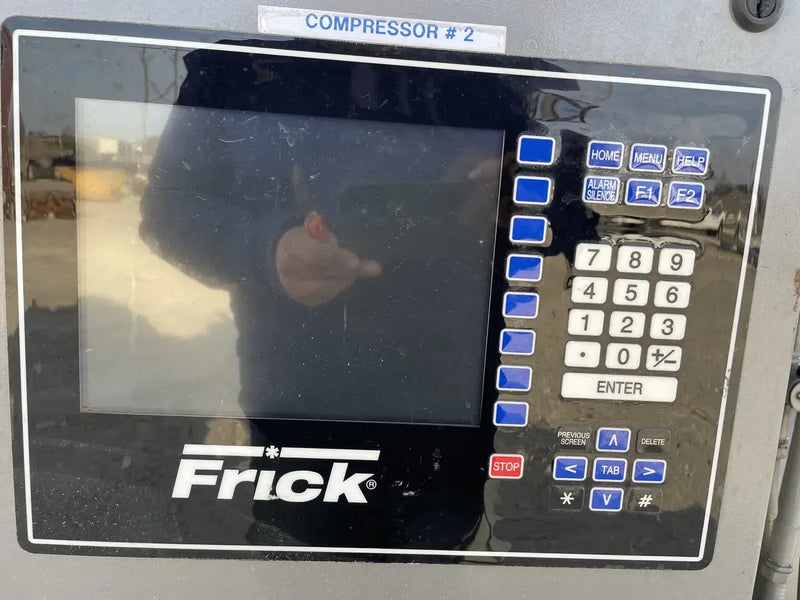

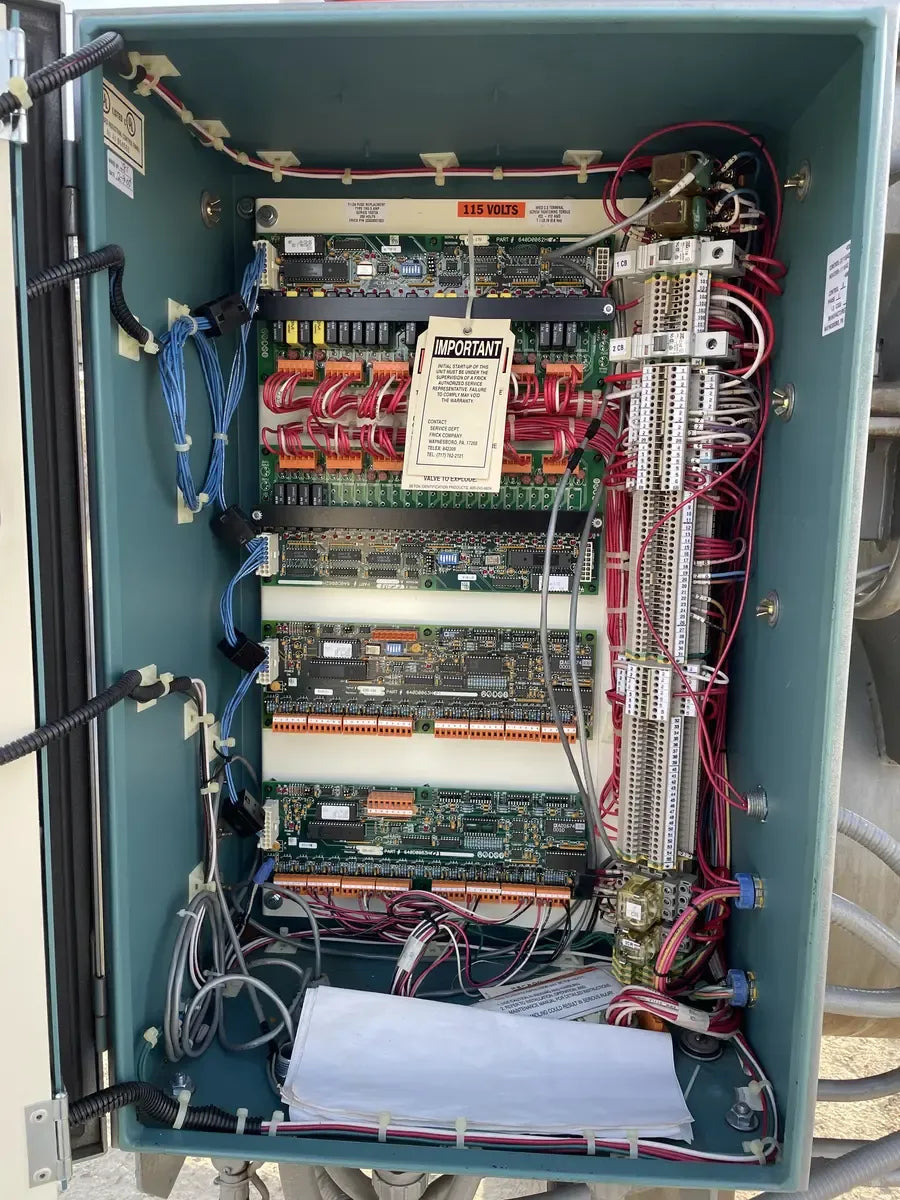

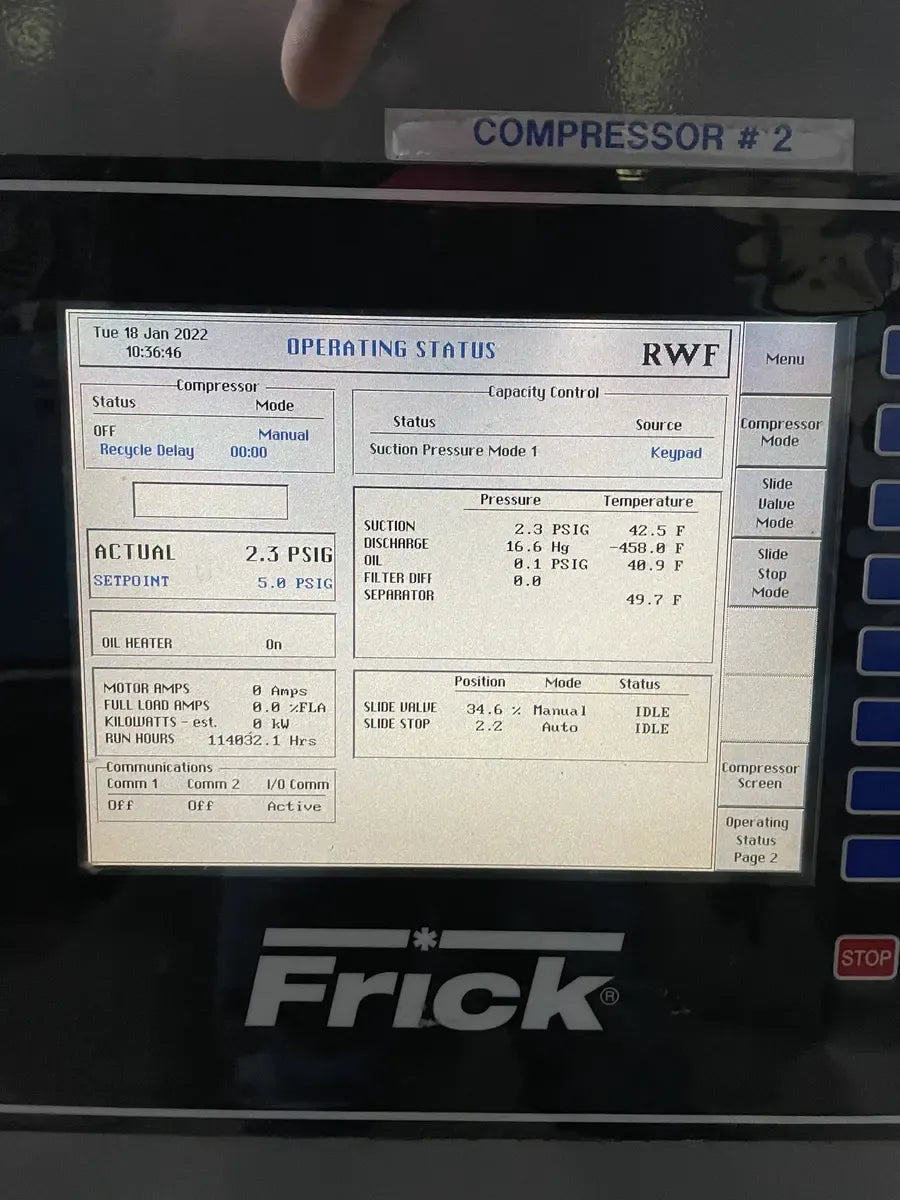

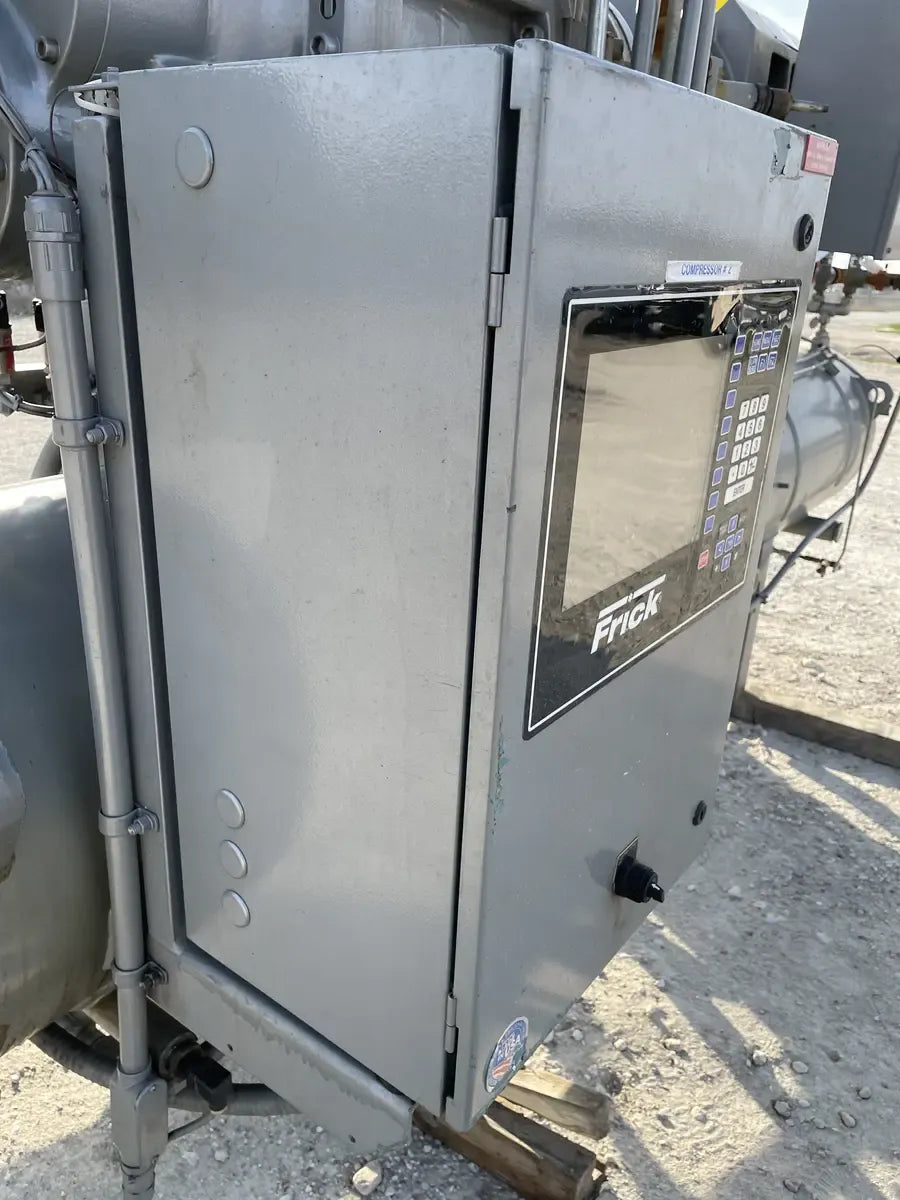

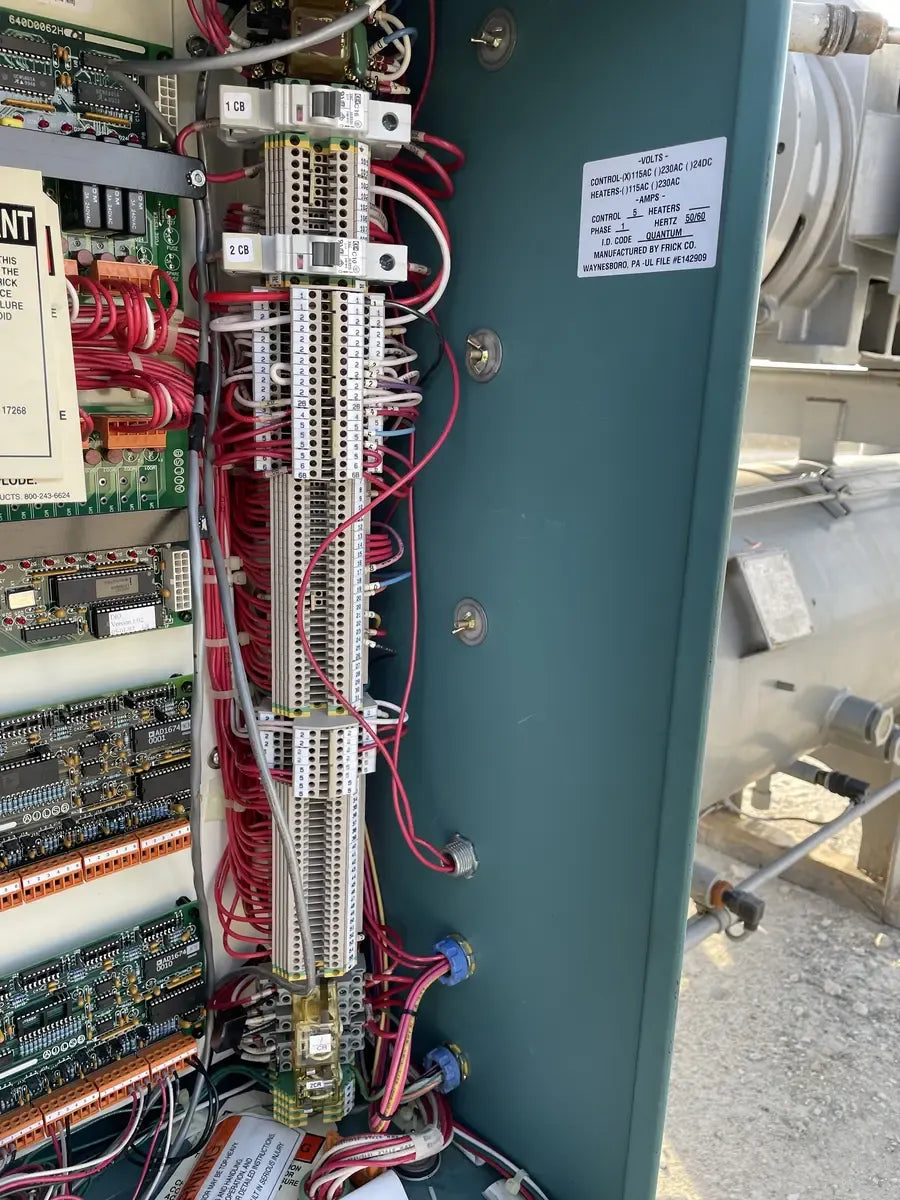

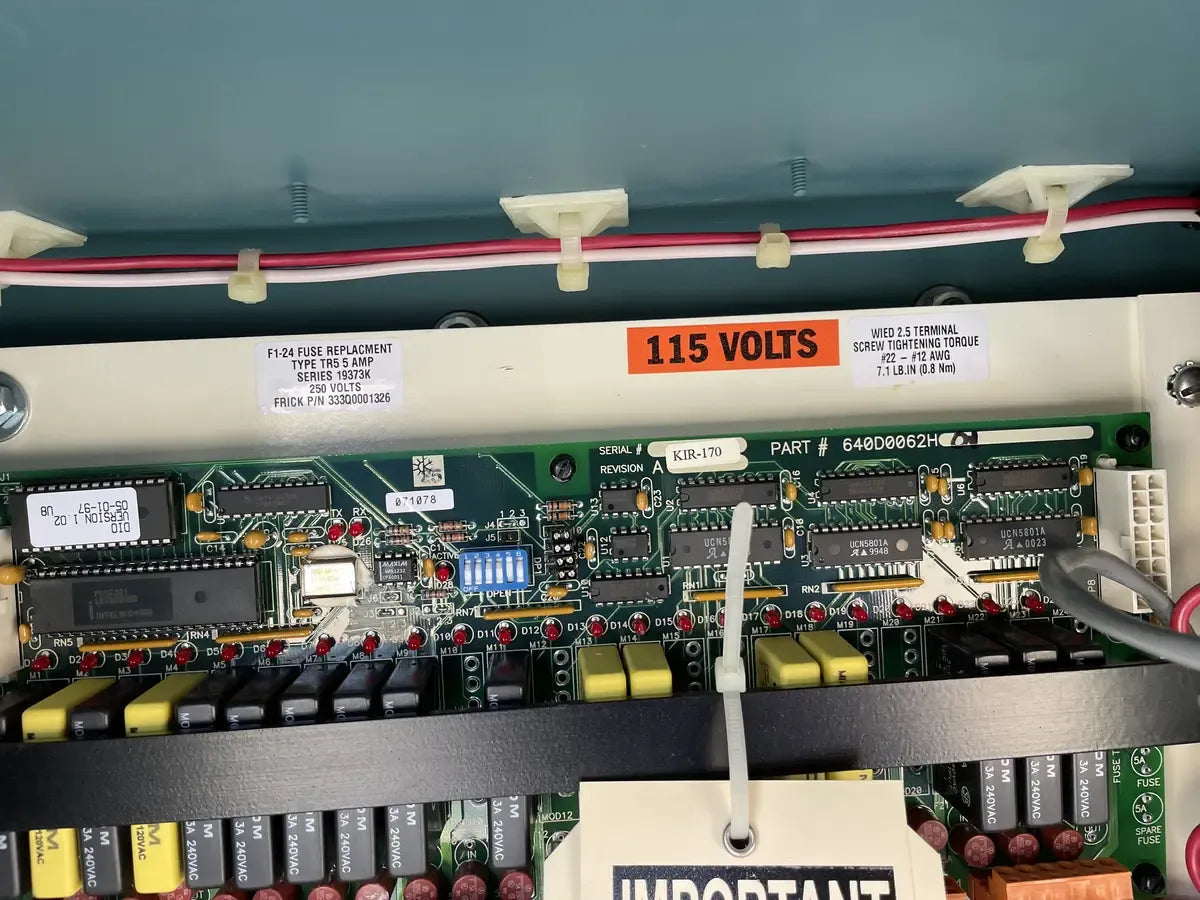

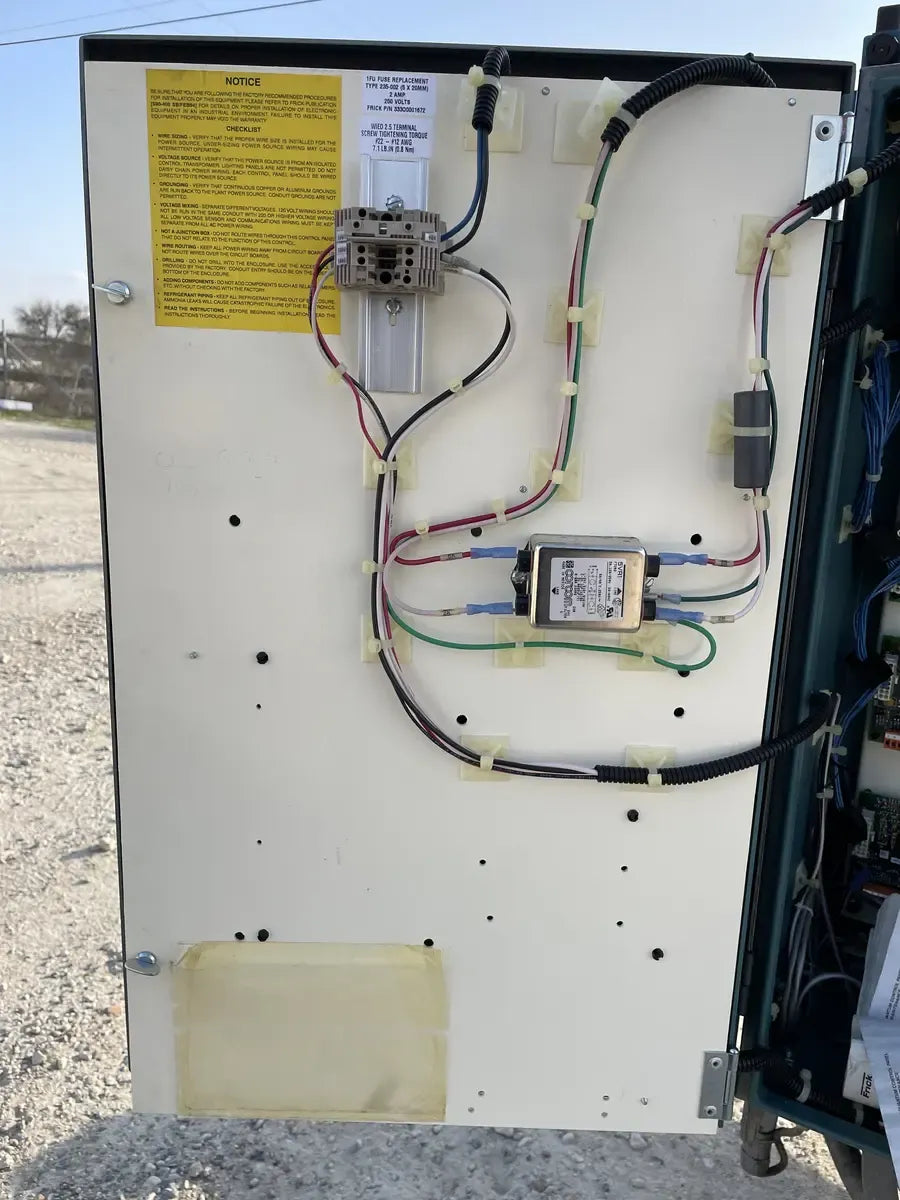

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick

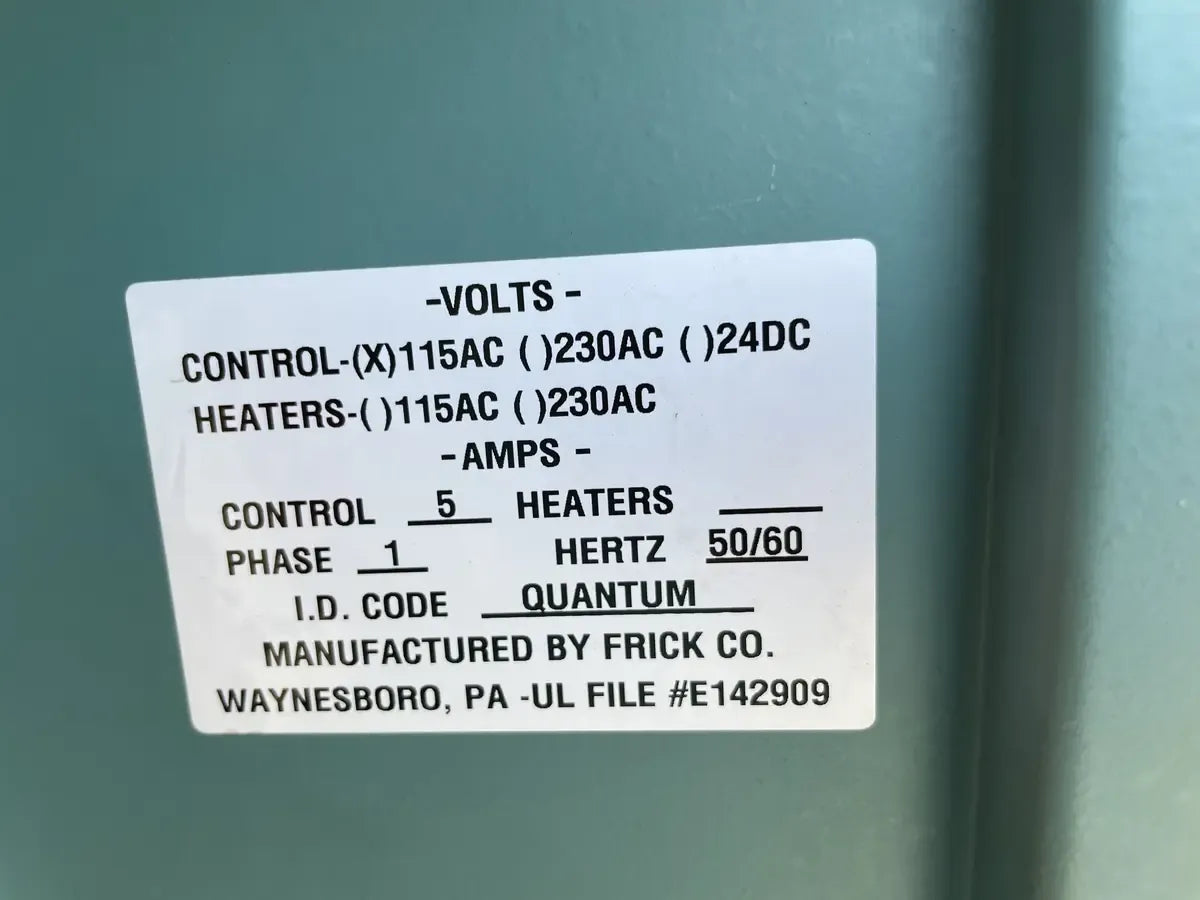

- Micro Control Panel Description: DWG No: 640D0132, Cage Code: 23857, Size: D. Volts: Control - 115AC. Amps: Control: 5, Phase: 1, Hertz: 50/60. ID Code: Quantum, UL File No: E142909.
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

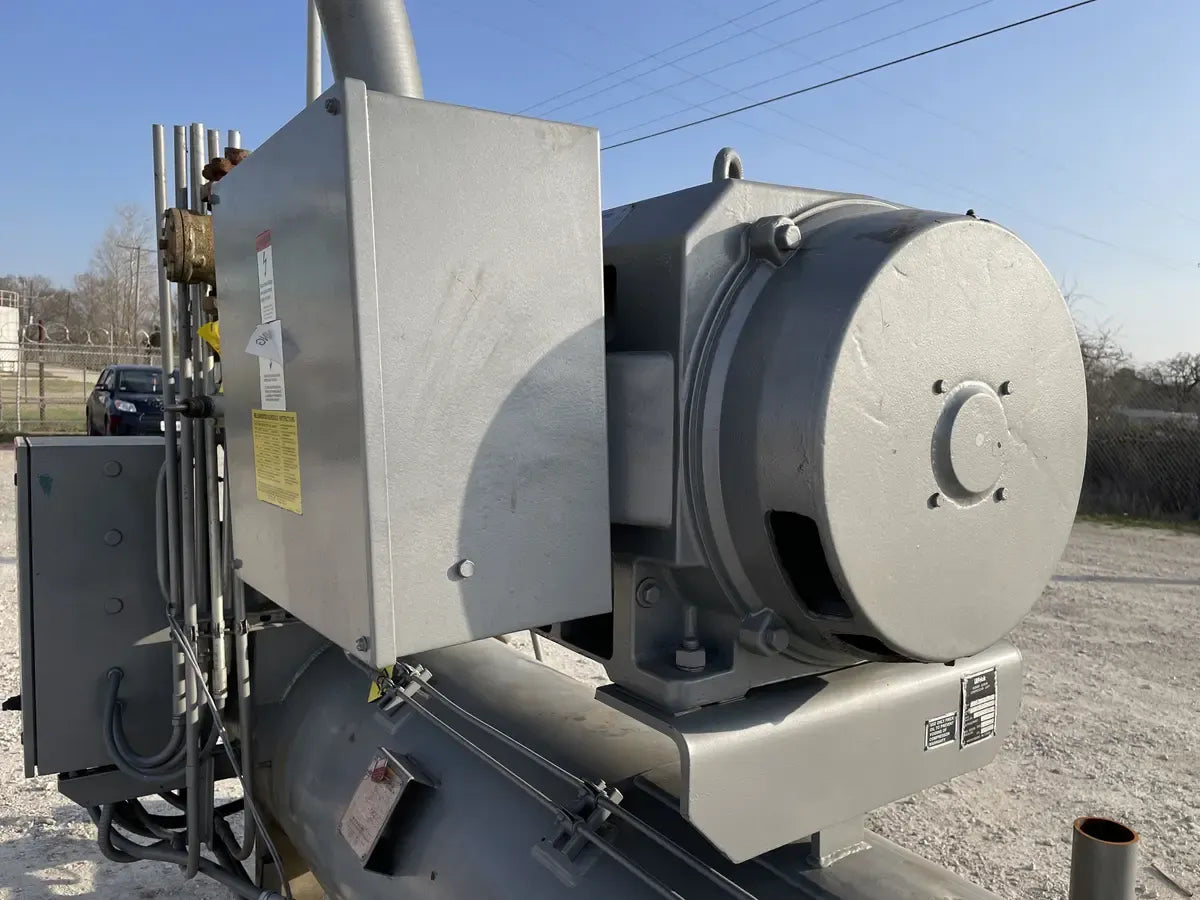

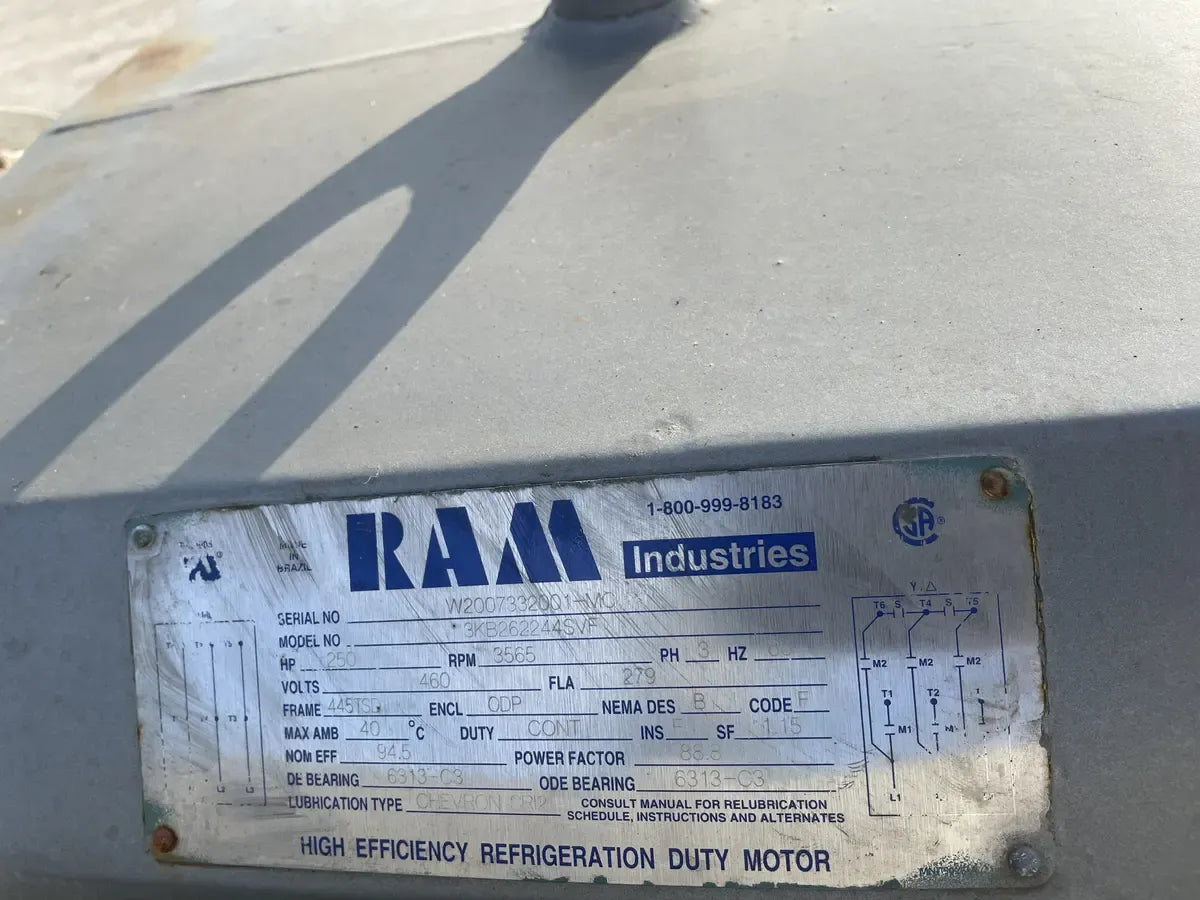

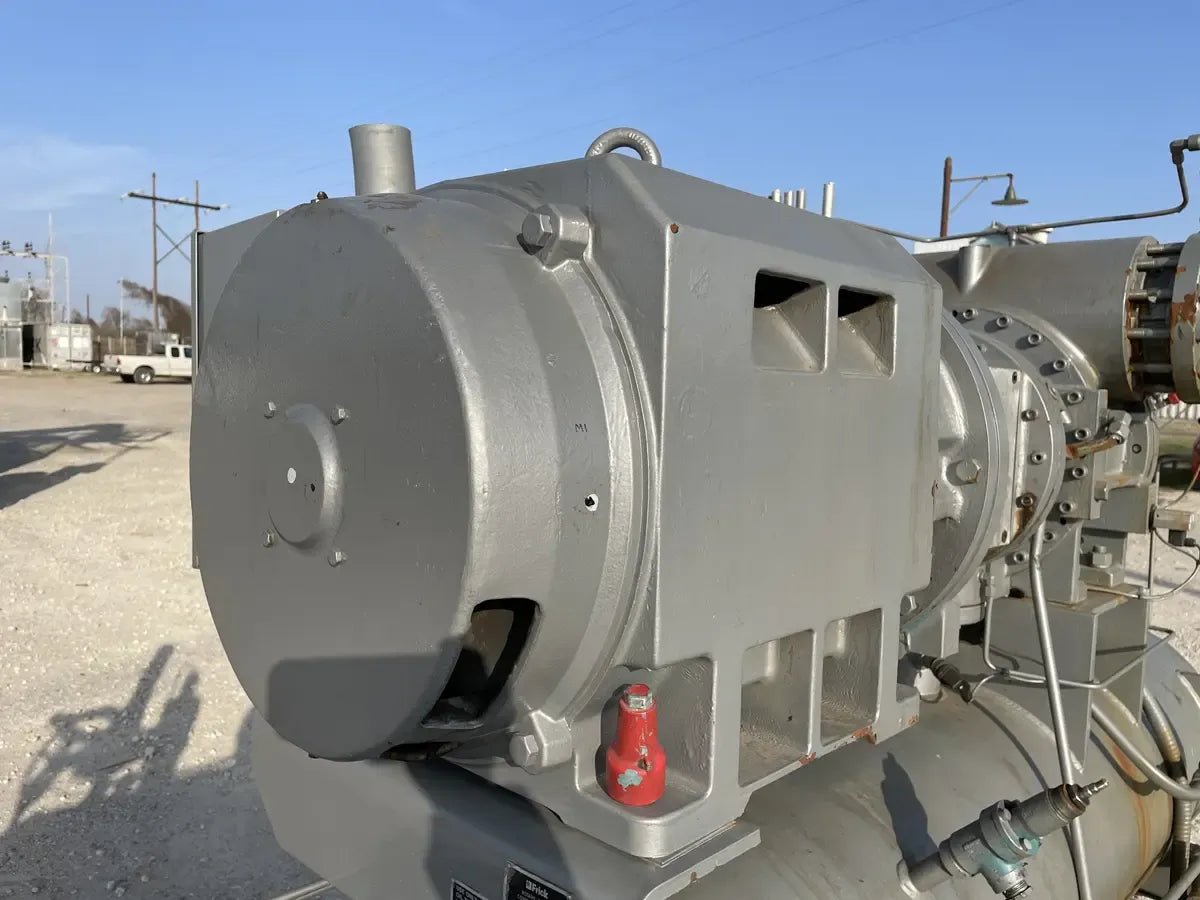

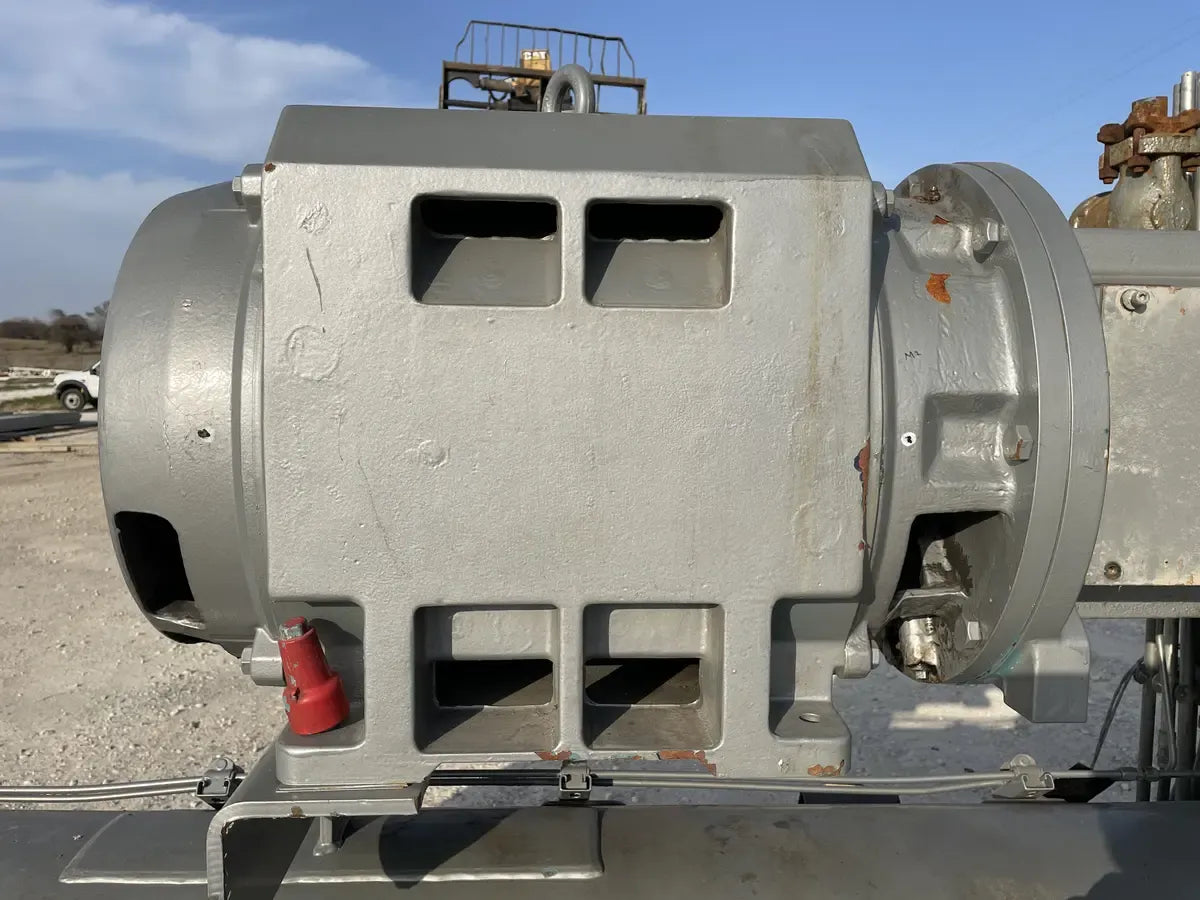

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: RAM Industries
- Motor Horsepower(HP): 250
- Motor RPM: 3,565
- Motor Voltage: 460
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 445TSD
Dimensions:
- Length (Inches): 155
- Width (Inches): 80
- Height (Inches): 82
- Weight (LBS): 6,500
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2000
- Spec Sheet Available: Yes
