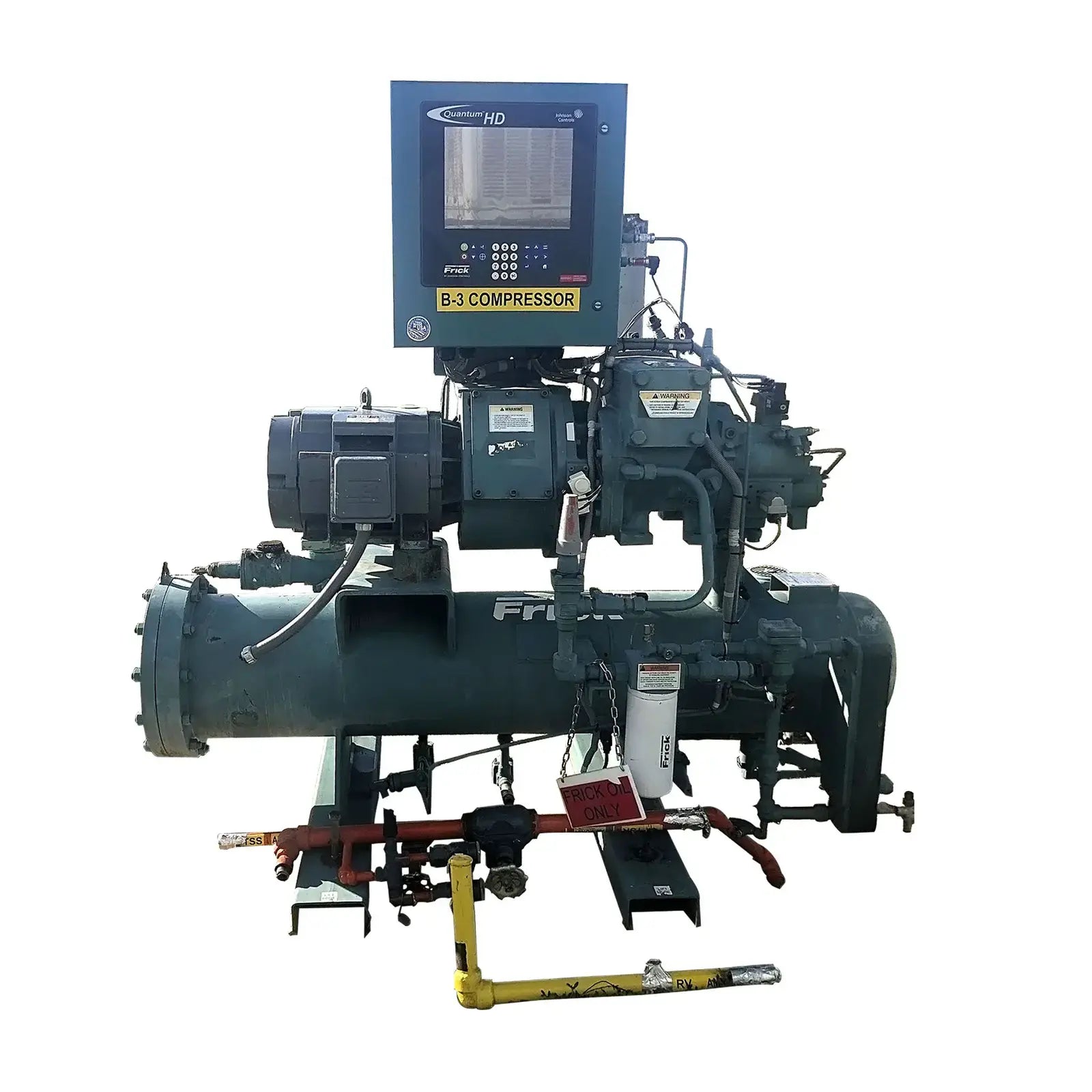

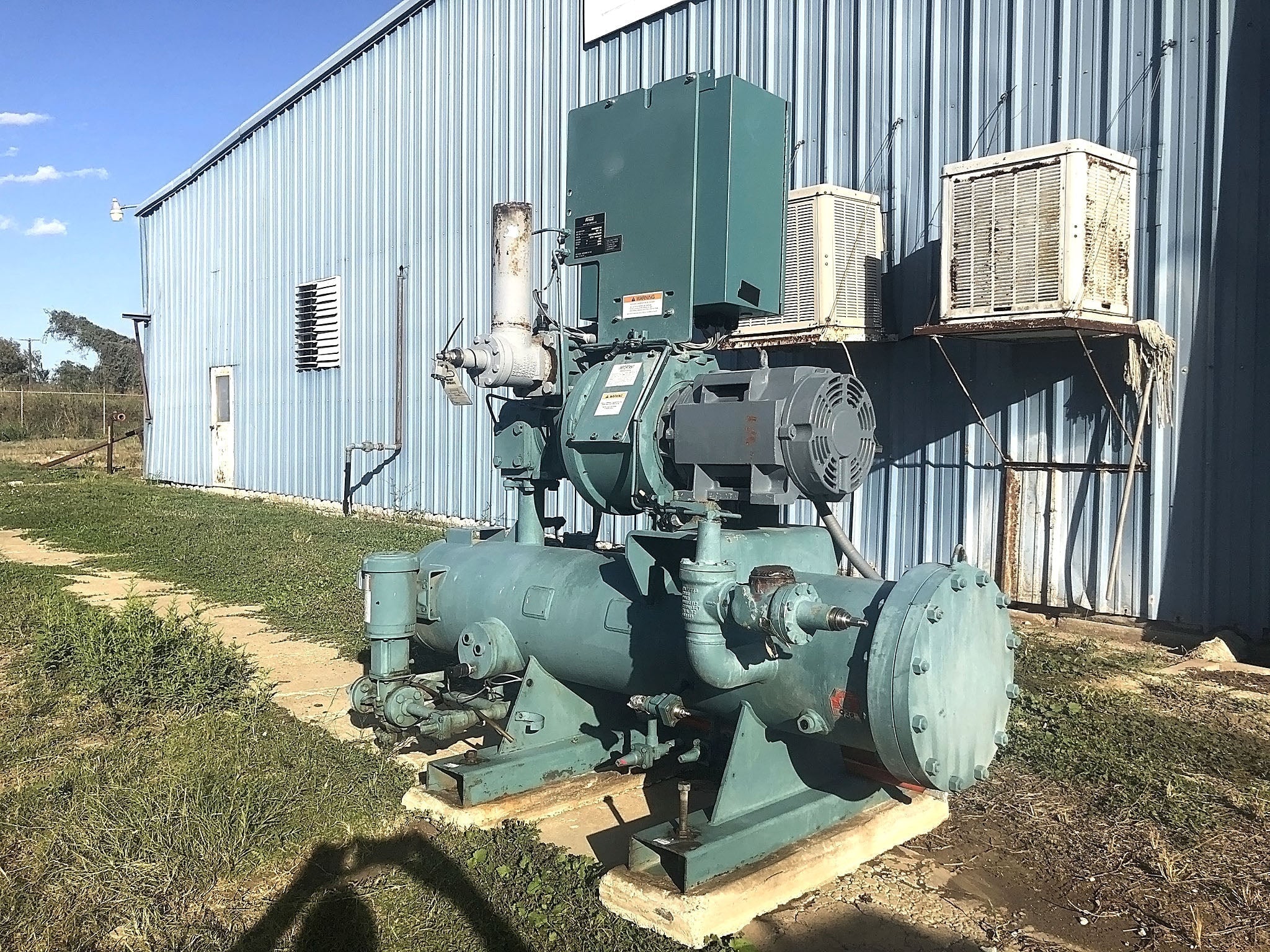

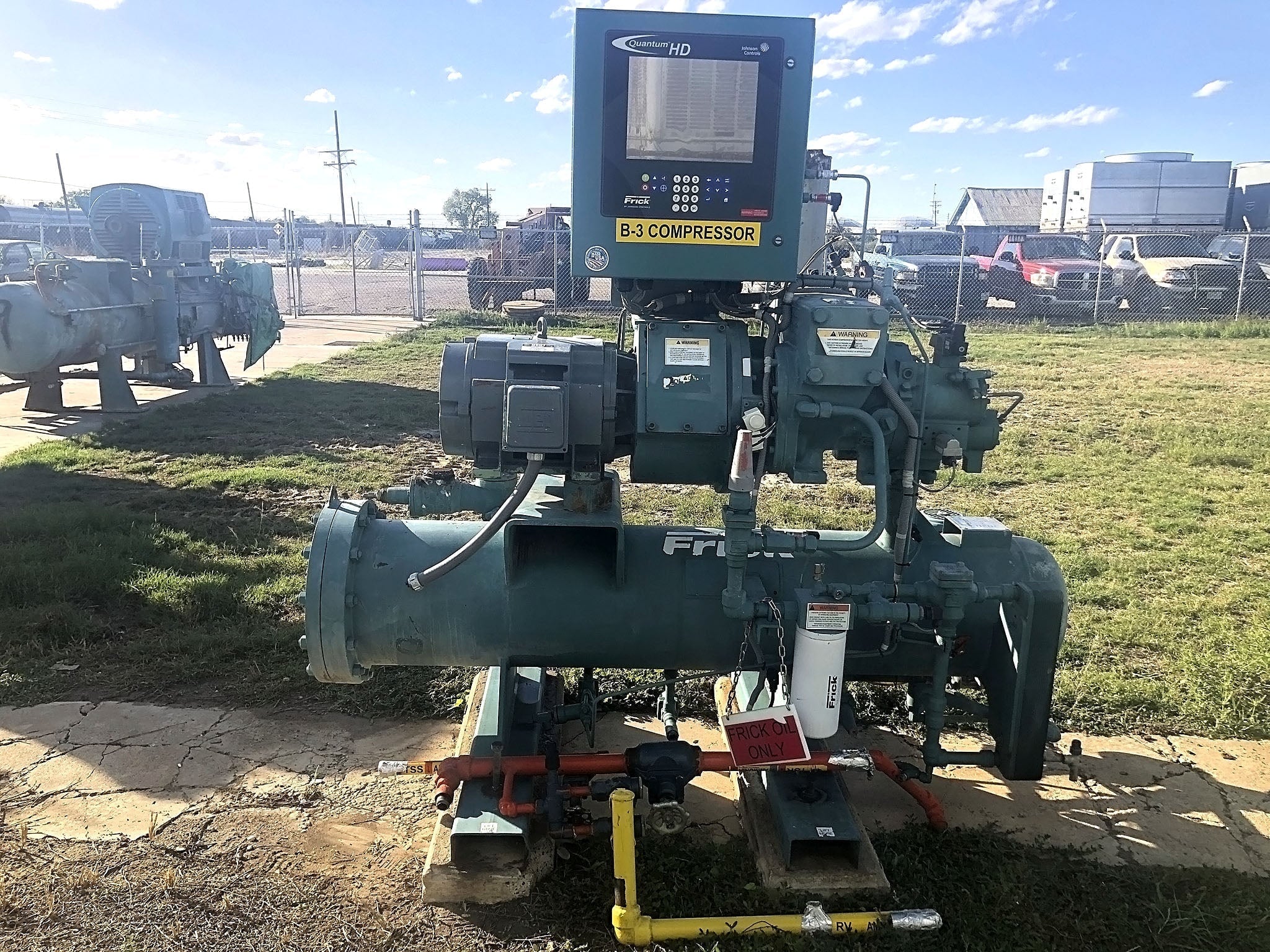

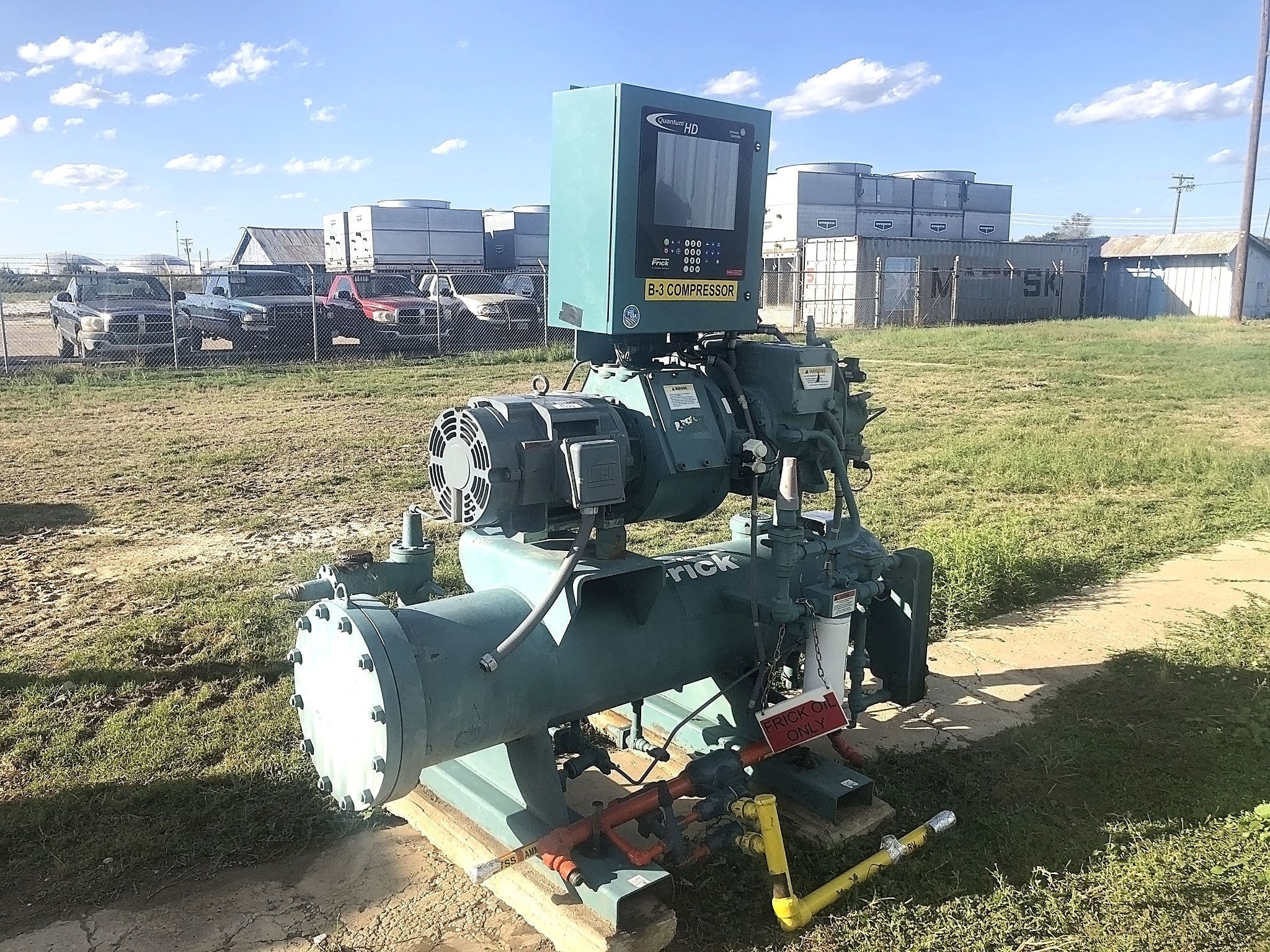

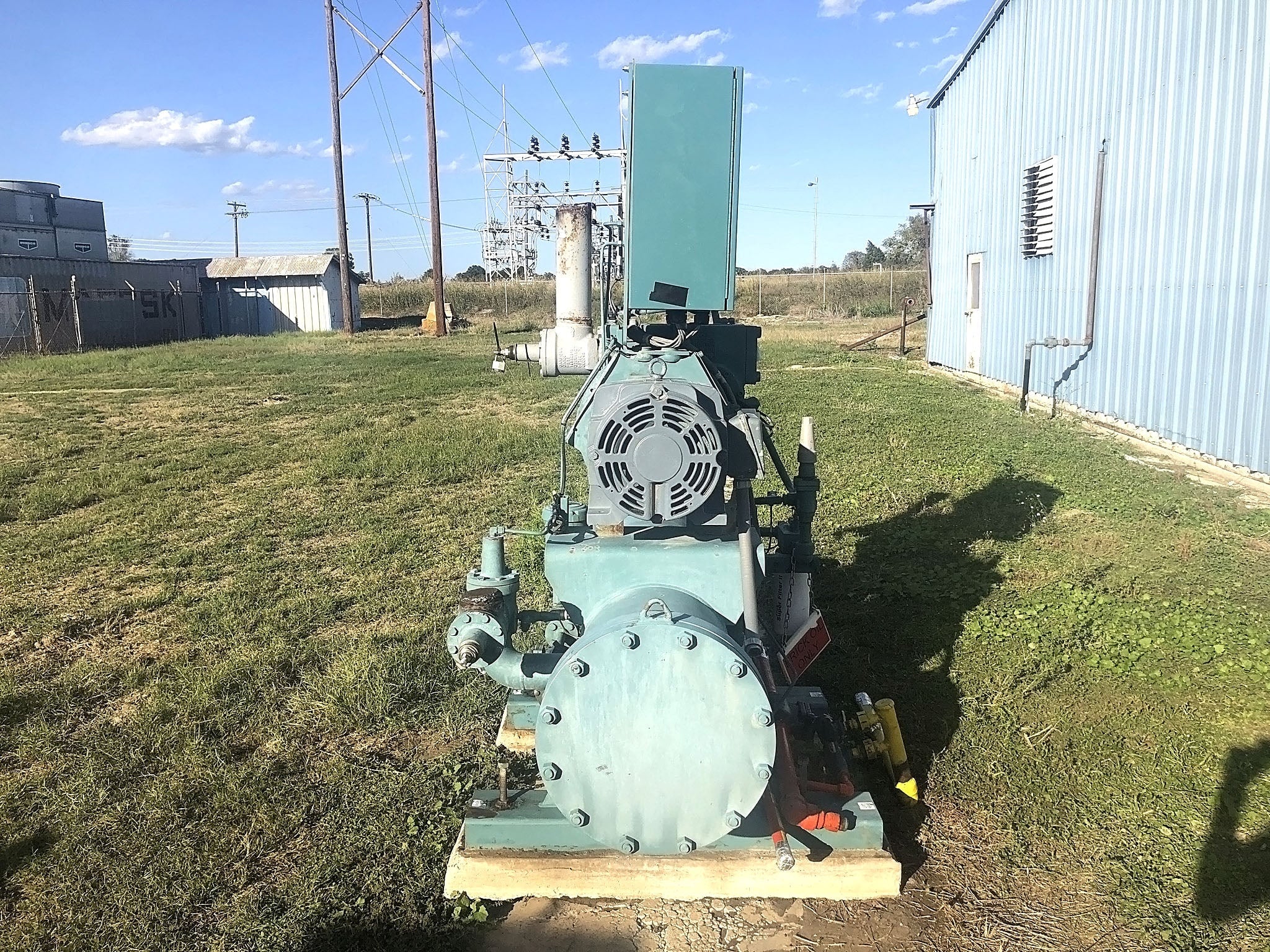

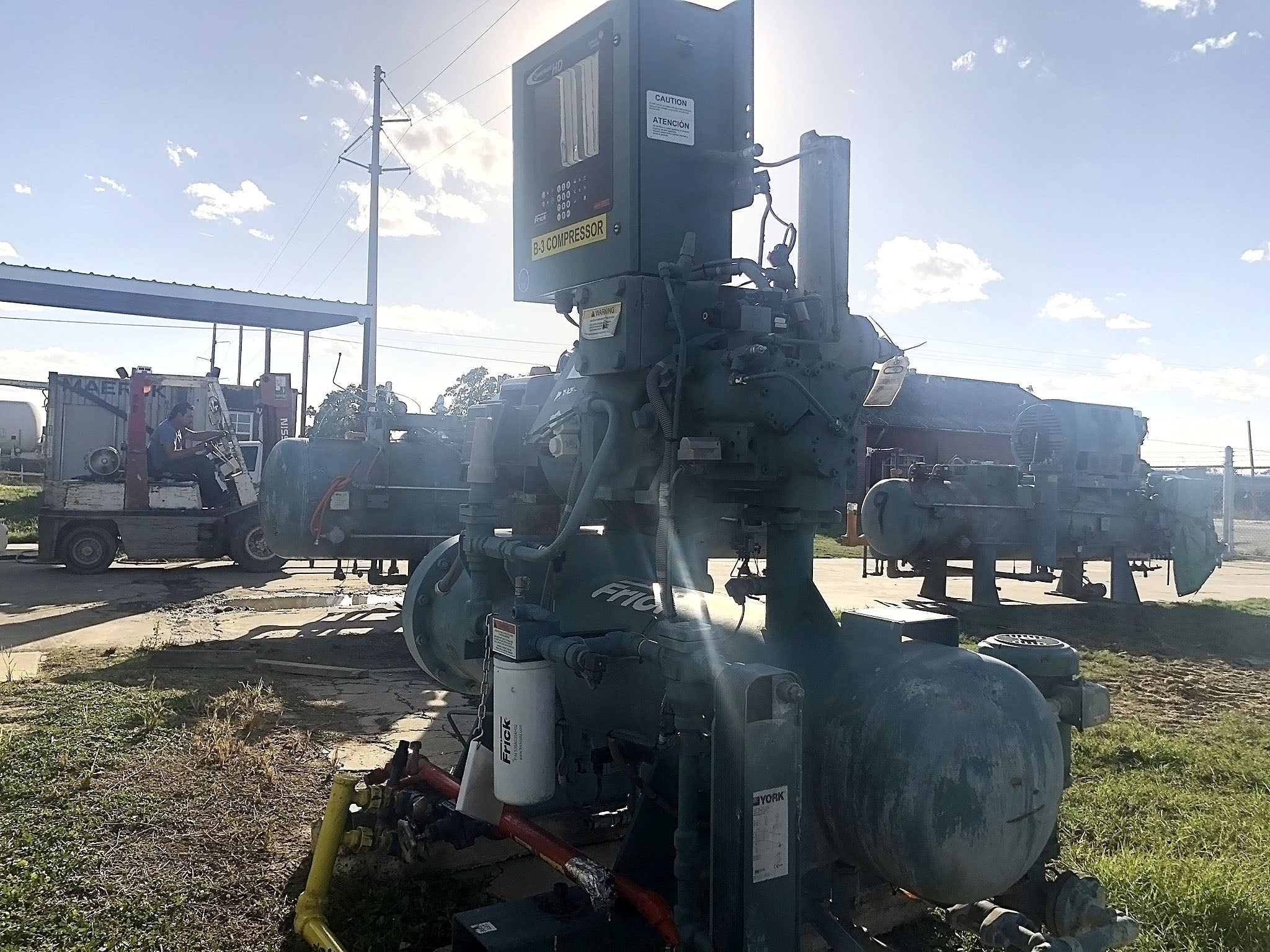

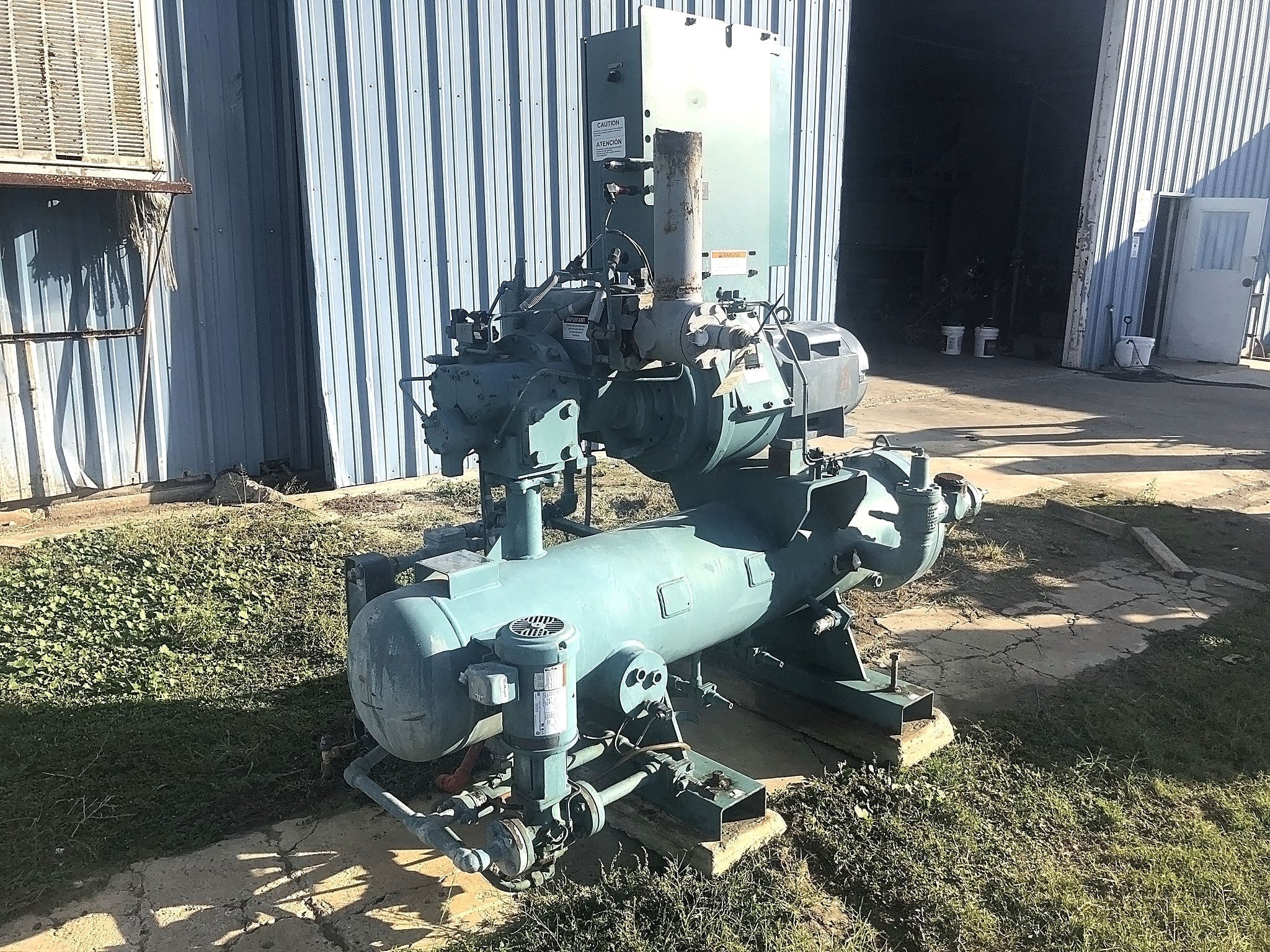

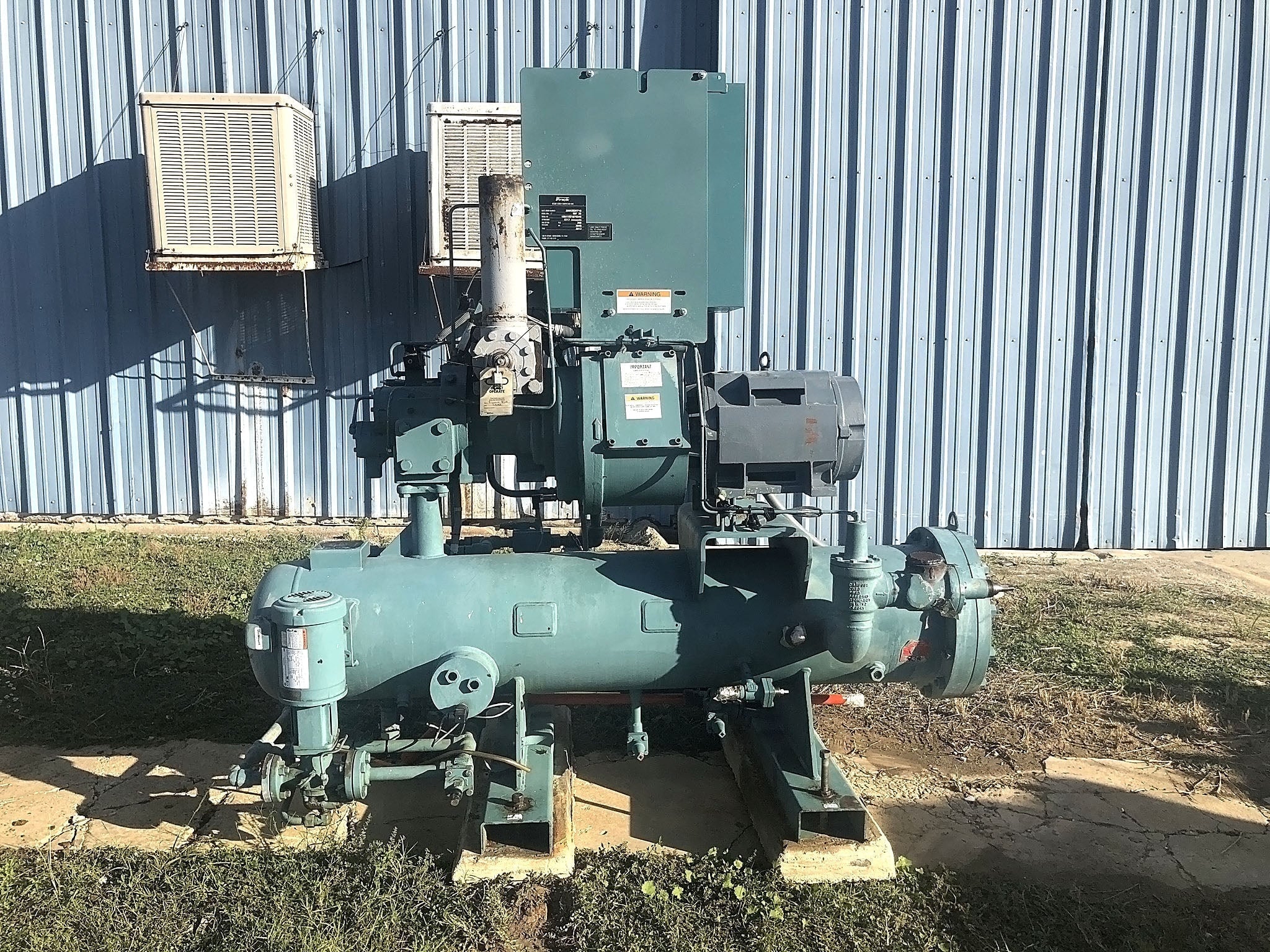

Frick RXF-39 Rotary Screw Compressor Package (Frick XJF120L, 40 HP 460 V, Frick Micro Control Panel)
FRICK Low Stage Booster Screw Compressor Model # RXF 39 Serial # 10241G31879349 Sales Order # 30063836710 Separator National Board # 163119 Thermo-siphon Type: Alfa Nova HP 52-30 H Serial # 42773303. Volume Ratio Control: Variable 2.2, 3.5, 5.0. Oil charge: 15 gal, operates with 12 gal Ram Industries DBS II Compressor Motor, 40 HP Frame 286TSC, Volts 460 3 Phase, 46 Amps 3530 rpm. Purchased from Seaboard Foods Pork Plant in Oklahoma, USA. Includes updated HD Micro. Missing the board and Screen off of HD Quantum Control Panel.
Product Details
- Stock No: SBOD25.30
- Manufacturer: Frick
- Model: RXF-39
- Serial Number: 10241F31737352
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: Low Stage (Booster)
Package Details
- Package Manufacturer: Frick
- Package Model: RXF-39
- Package SN: 10241F31737352
- Package Order: 30063836710
Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1

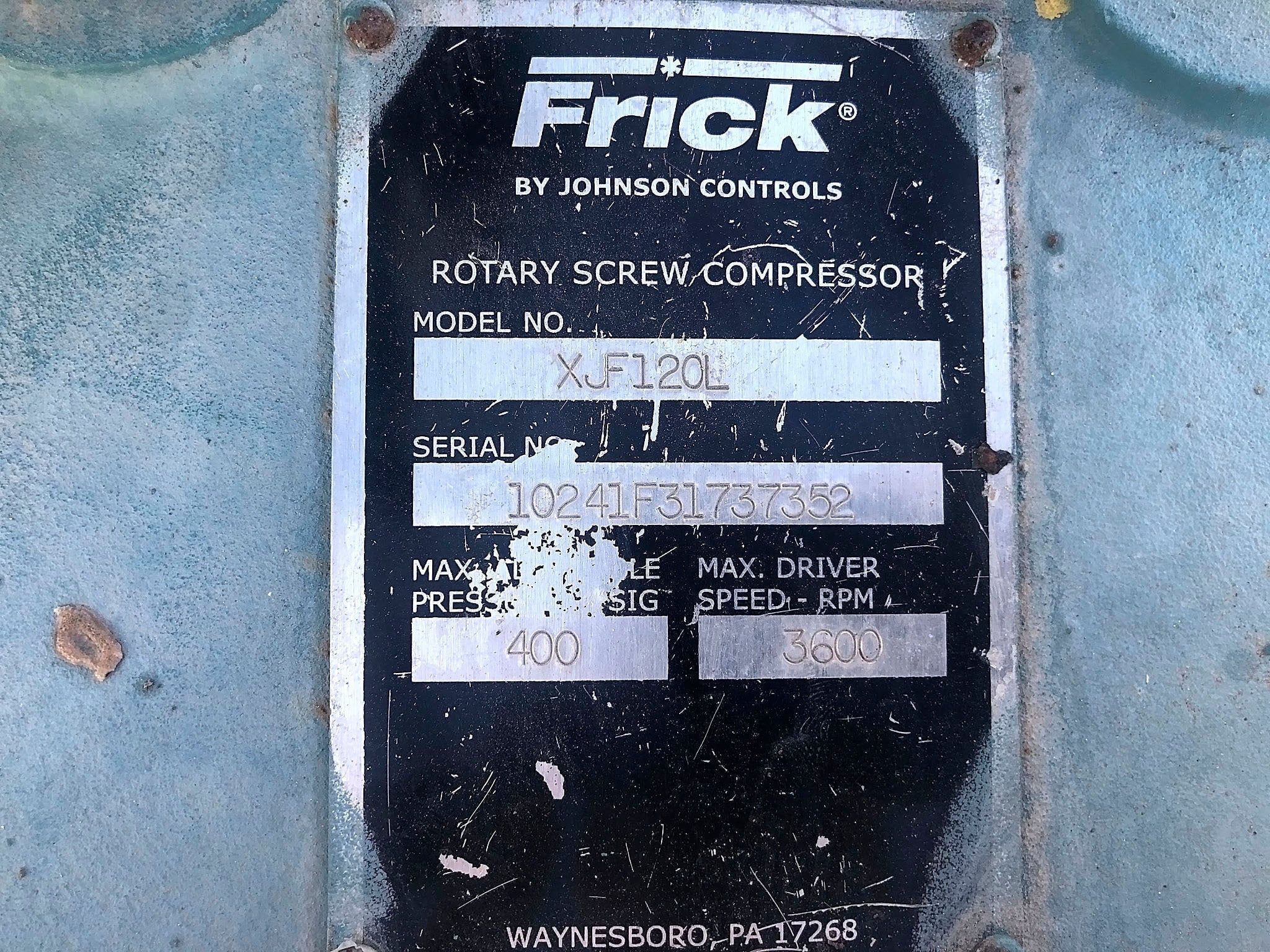

- Compressor Model: XJF120L
- Compressor SN: 10241F31737352
- Compressor Max Speed (RPM): 3600
- Compressor Design Pressure (PSIG): 400
- Compressor Volume Ratio: 2.2, 3.5, 5.0
- Oil Separator Included? Yes

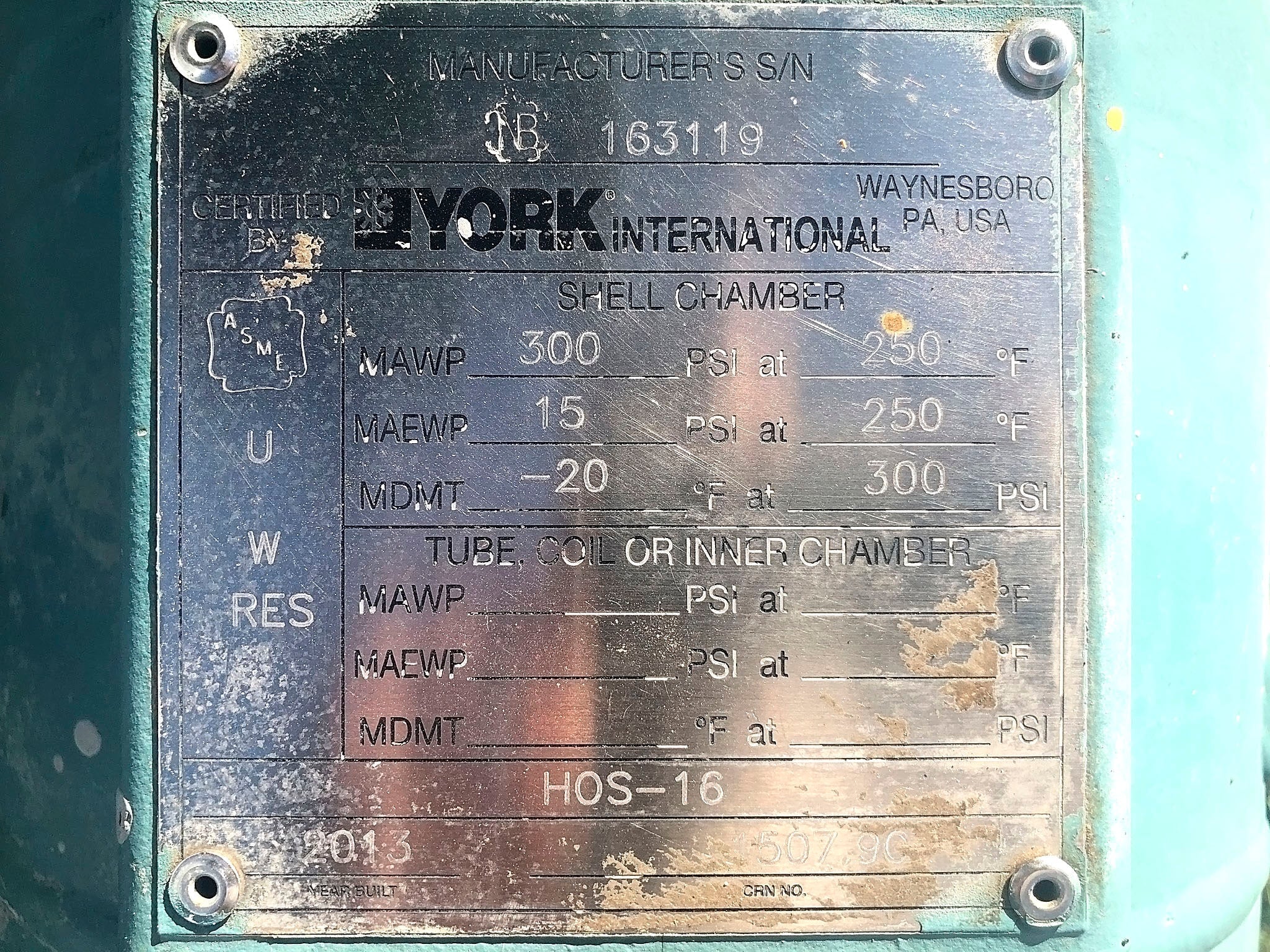

- Oil Separator National Board #: 163119
- Oil Cooling Type: Thermosiphon

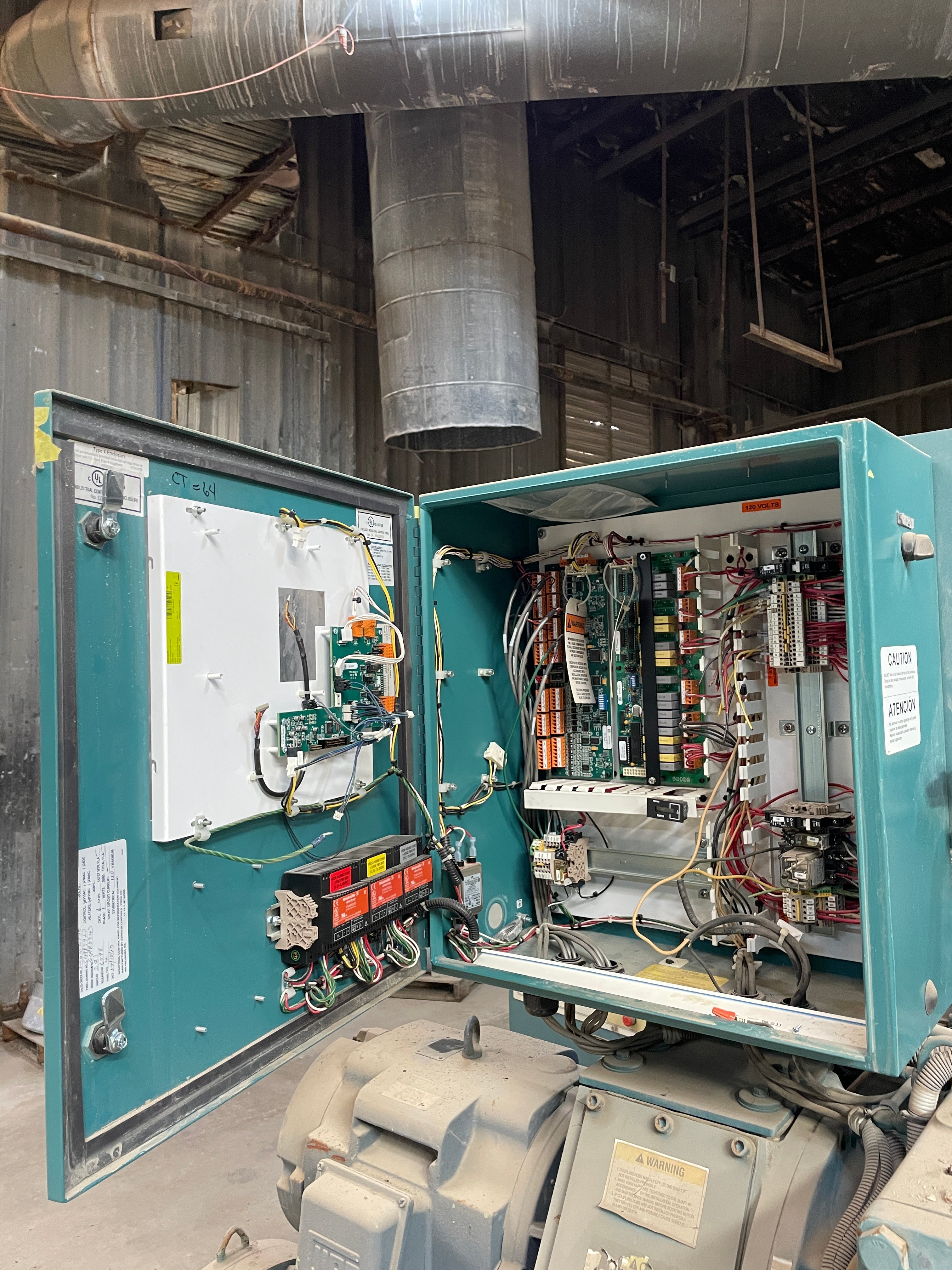

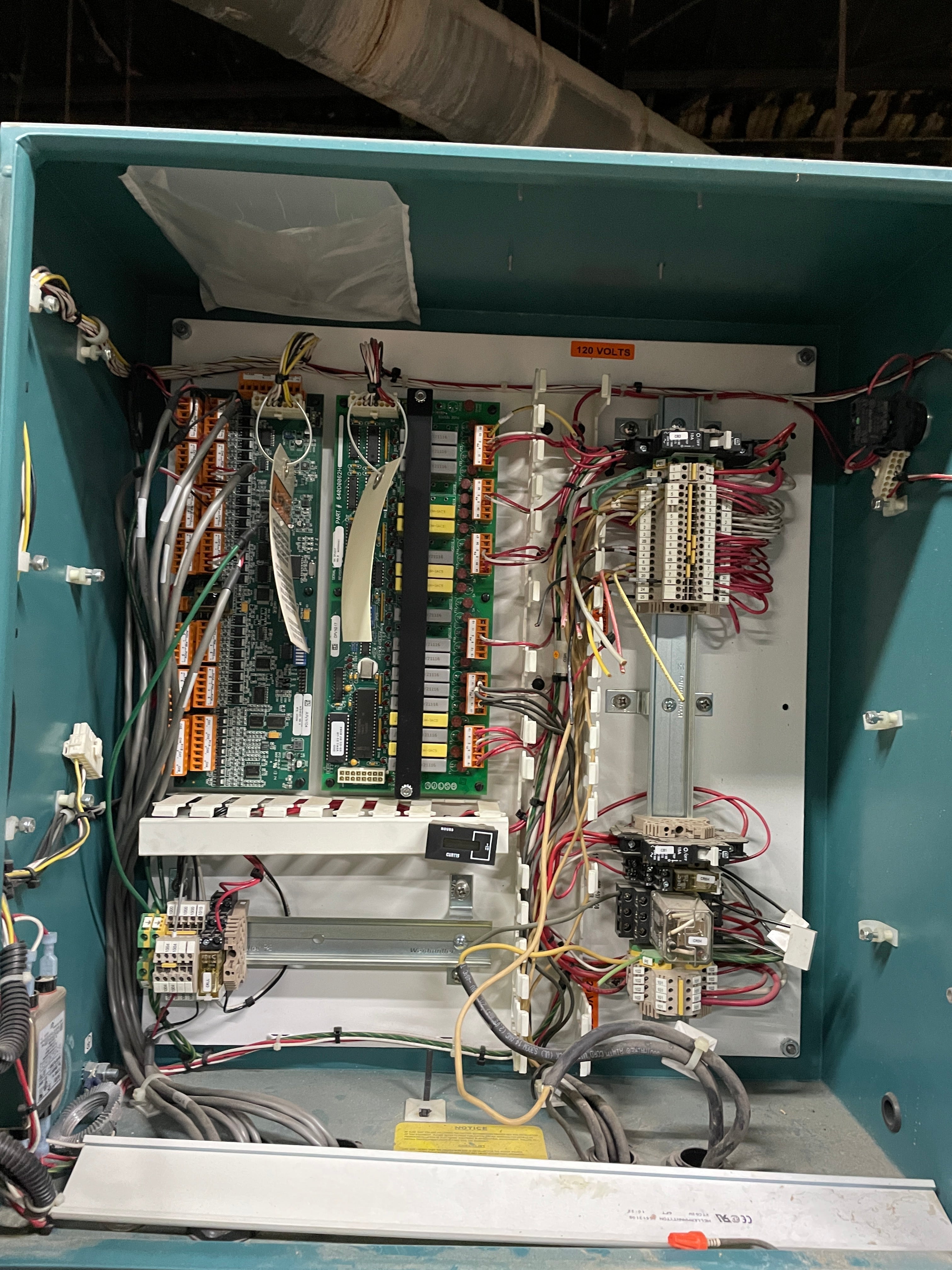

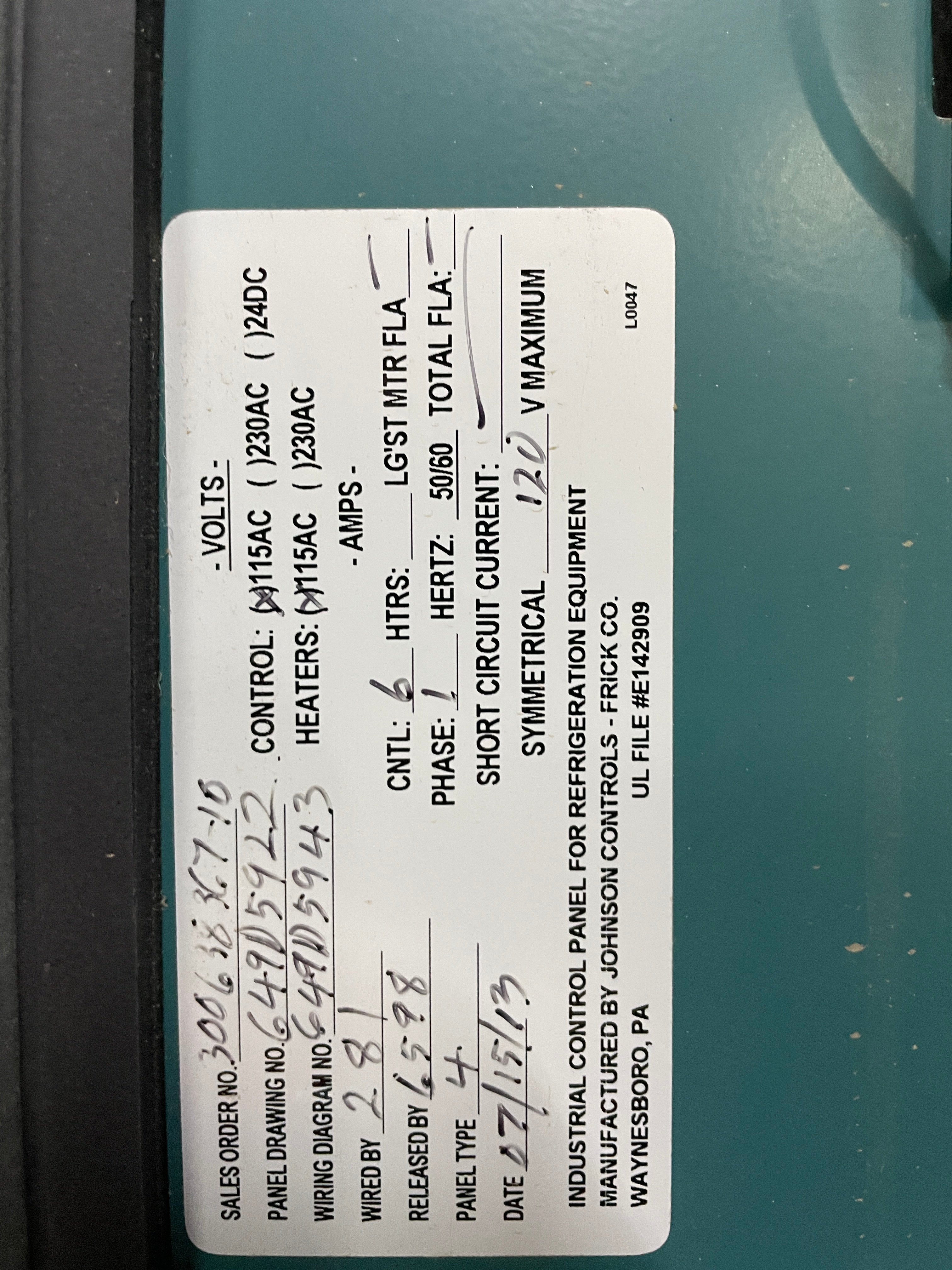

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick

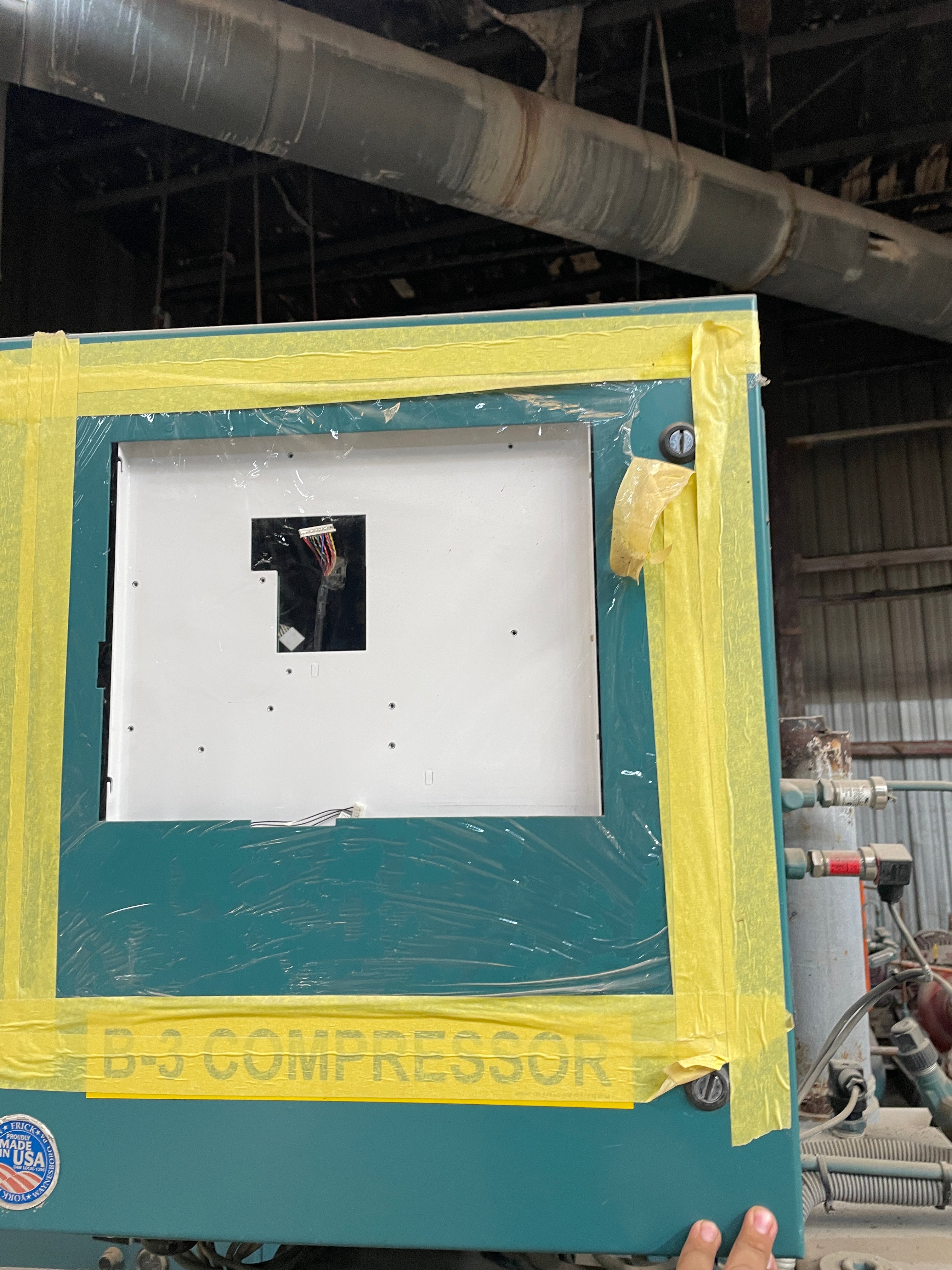

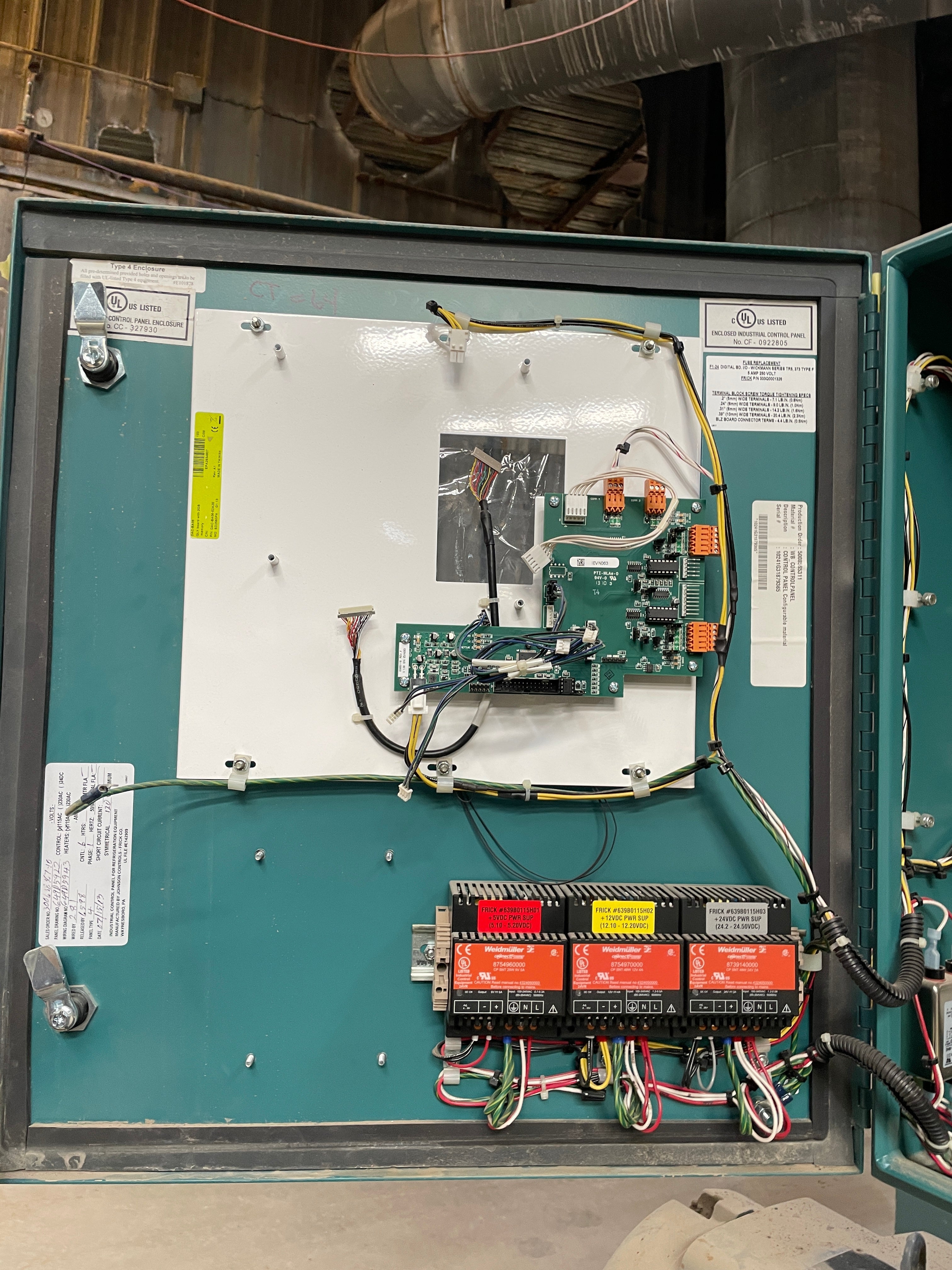

- Micro Control Panel Description: HD Micro panel. Missing the board and screen.
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- Motor Manufacturer: RAM Industries
- Motor Horsepower(HP): 40
- Motor RPM: 3530
- Motor Voltage: 460
- Motor Amps: 46
- Motor Phases: 3
- Motor Frame Size: 286TSC
Dimensions:
Additional Product Details
- Spec Sheet Available: Yes
- Product Purchased From: Pork Processing Plant
- Known Issues or Problems: Board and Screen were removed from HD Control Panel.
