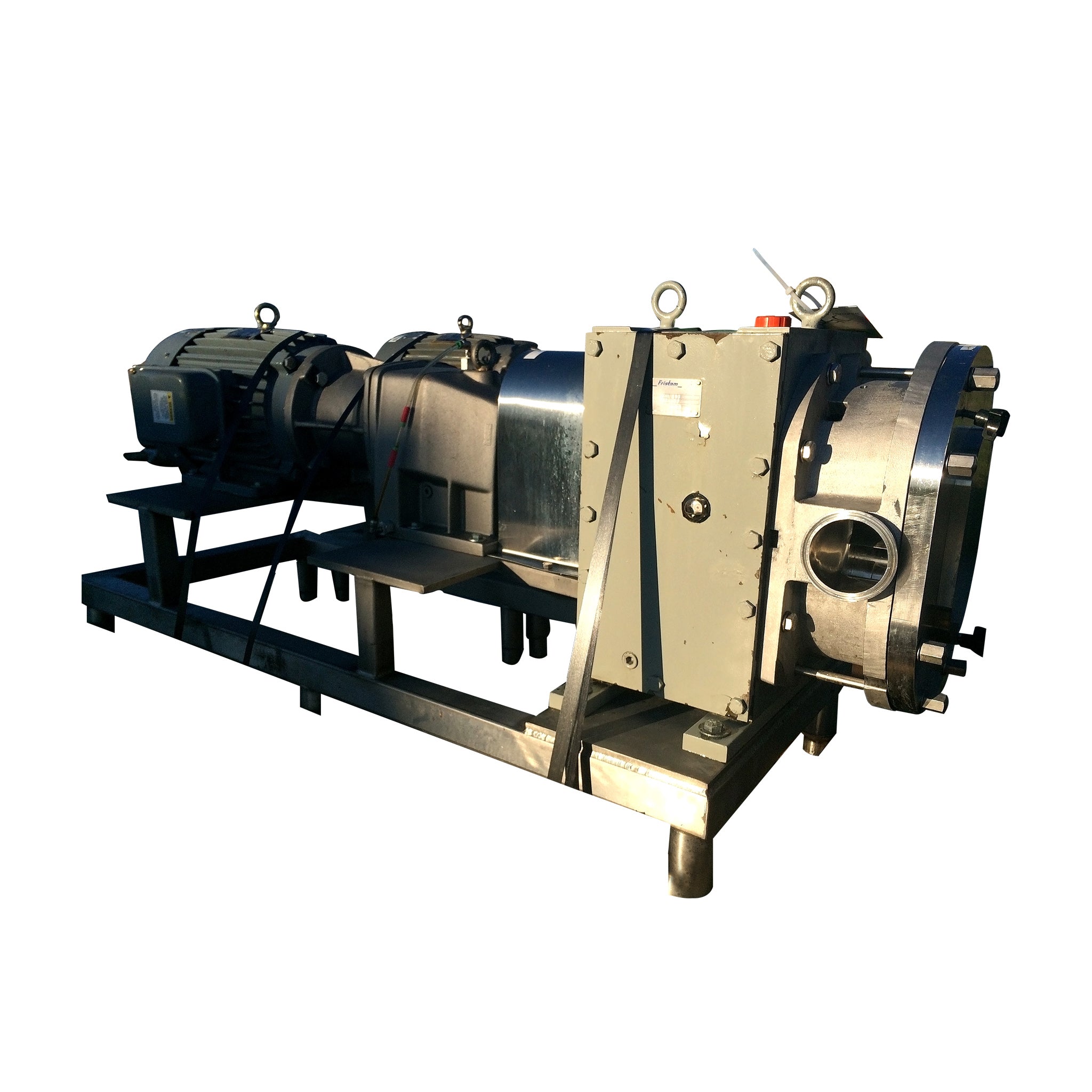

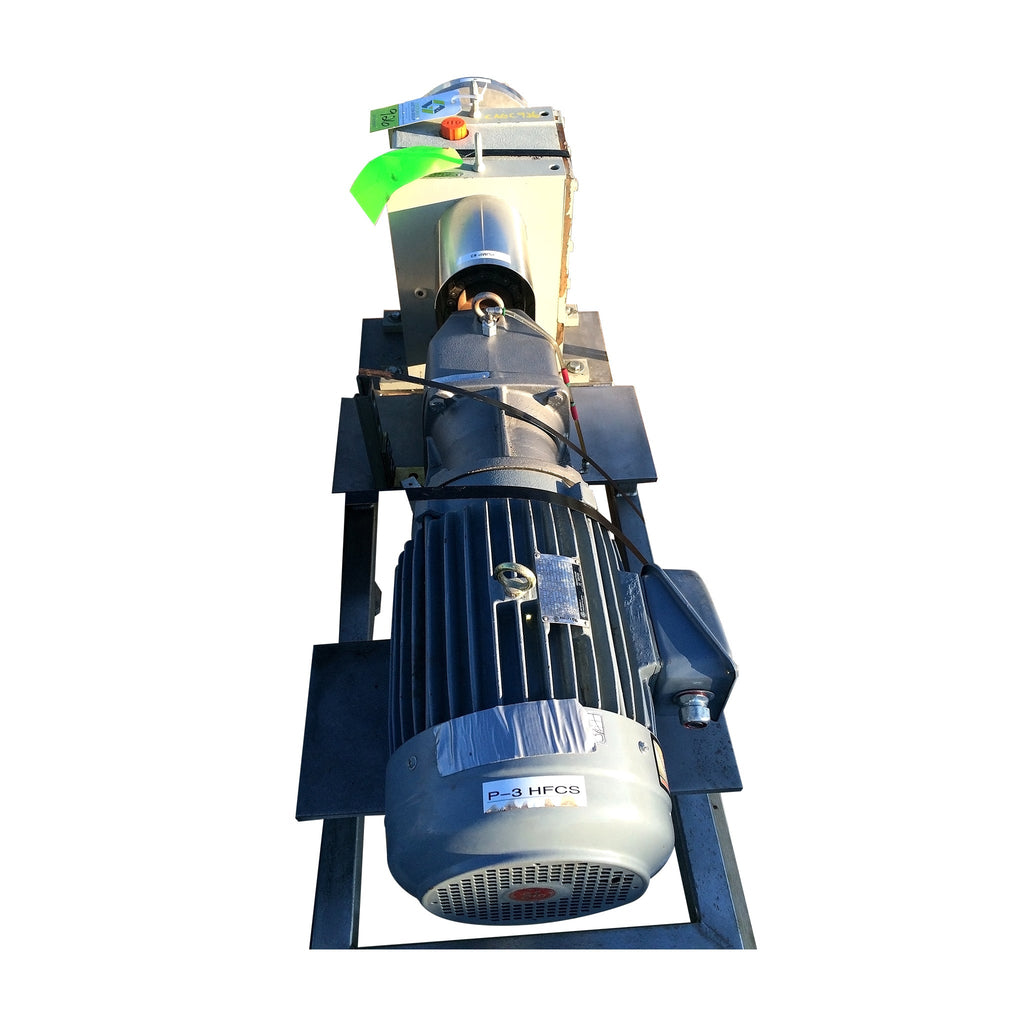

Fristam FKL150 Positive Displacement Pump (10 HP, 155.4 GPM Max)

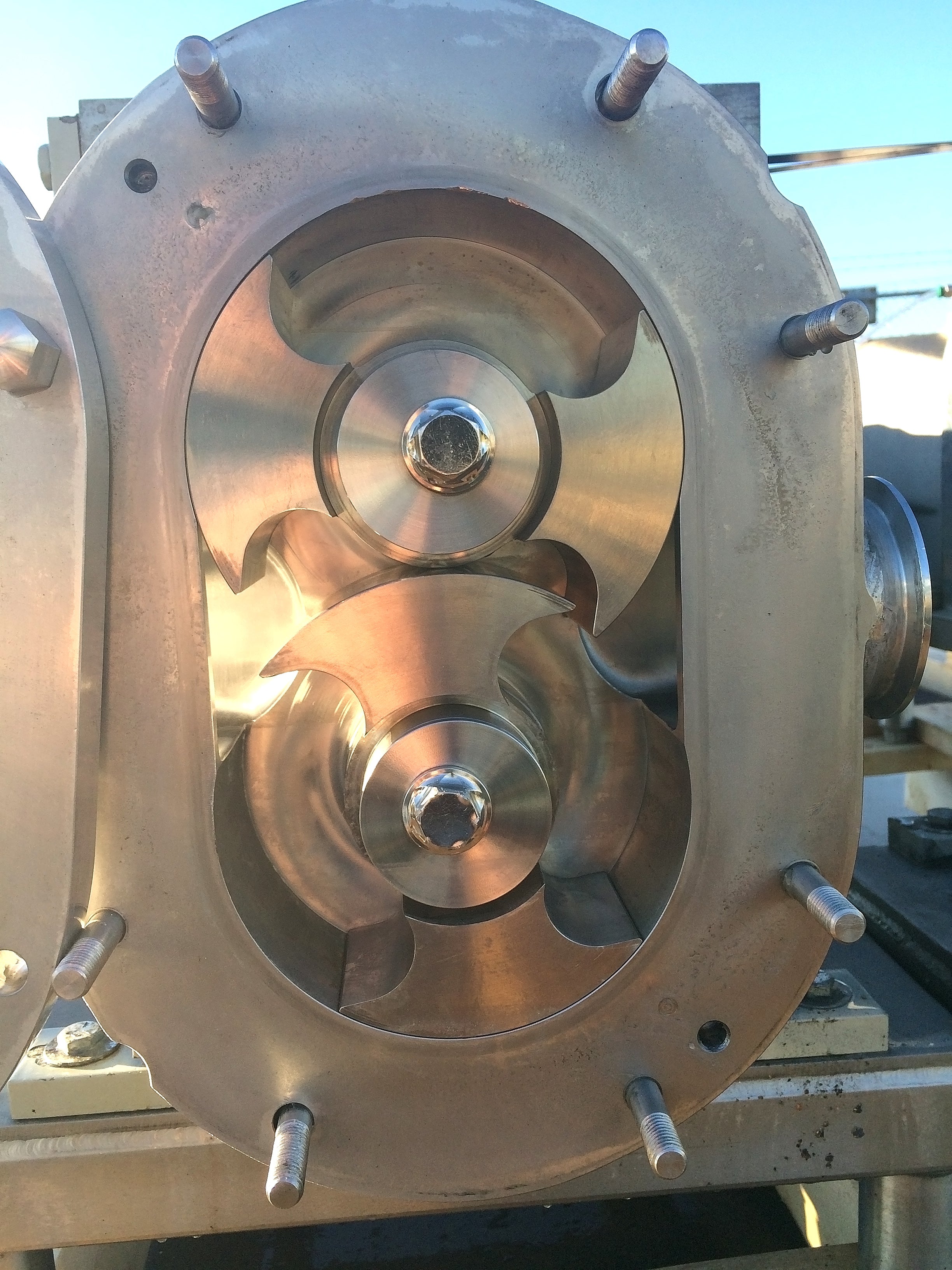

Fristam rotary lobe positive displacement pump. Model FKL-150. Serial 007707. Max pressure: 300 PSI. Displacement per revolution: 0.259 gallons. Max flowrate: 155.4 gallons per minute at 600 RPM. GE motor: 10 HP, 208-230/460V, 26.6-23.8/11.9 amps, 1755 RPM, 215TCY Frame, 60 Hz, 3-phase, TE. Gear reduction drive. Stainless steel base. Ports:3 in. clamp. (ACN115)
Product Details
- Stock No: CAGC926
- Manufacturer: Fristam
- Model: FKL150
- Serial Number: 7707
Pump Details
- Pump Type: Positive Displacement
- Max Gallons Per Minute GPM: 155.4
- Displacement per Revolution (Gallons): 0.259
- Est. Actual Gallons Per Minute (GPM): 38.81682322801024
- Max Speed RPM: 600
- Maximum Pressure MAWP (PSI): 300
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet/Outlet
- Inlet/Outlet Size (Inches) 1: 3
- Inlet/Outlet 2: Inlet/Outlet
- Inlet/Outlet Size (Inches) 2: 3
Previous Refrigerant
Motor Details
- Motor Included? Yes
- Motor Manufacturer: GE
- Motor Horsepower(HP): 10
- Motor RPM: 1755
- Motor Voltage: 208-230/460
- Motor Amps: 26.6-23.8/11.9
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 215TCY
Dimensions:
Additional Product Details
