Gast 2567-V108 Vacuum Pump (1.5 HP)

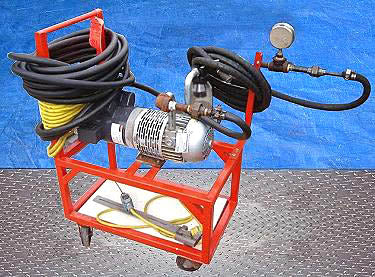

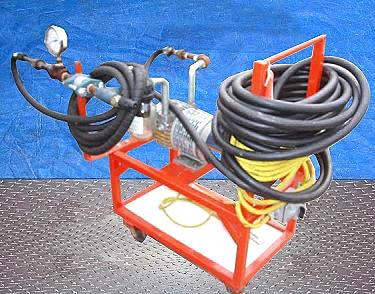

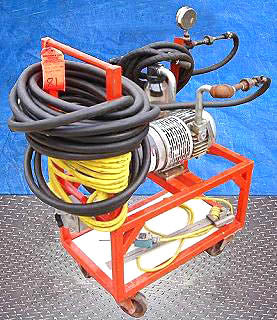

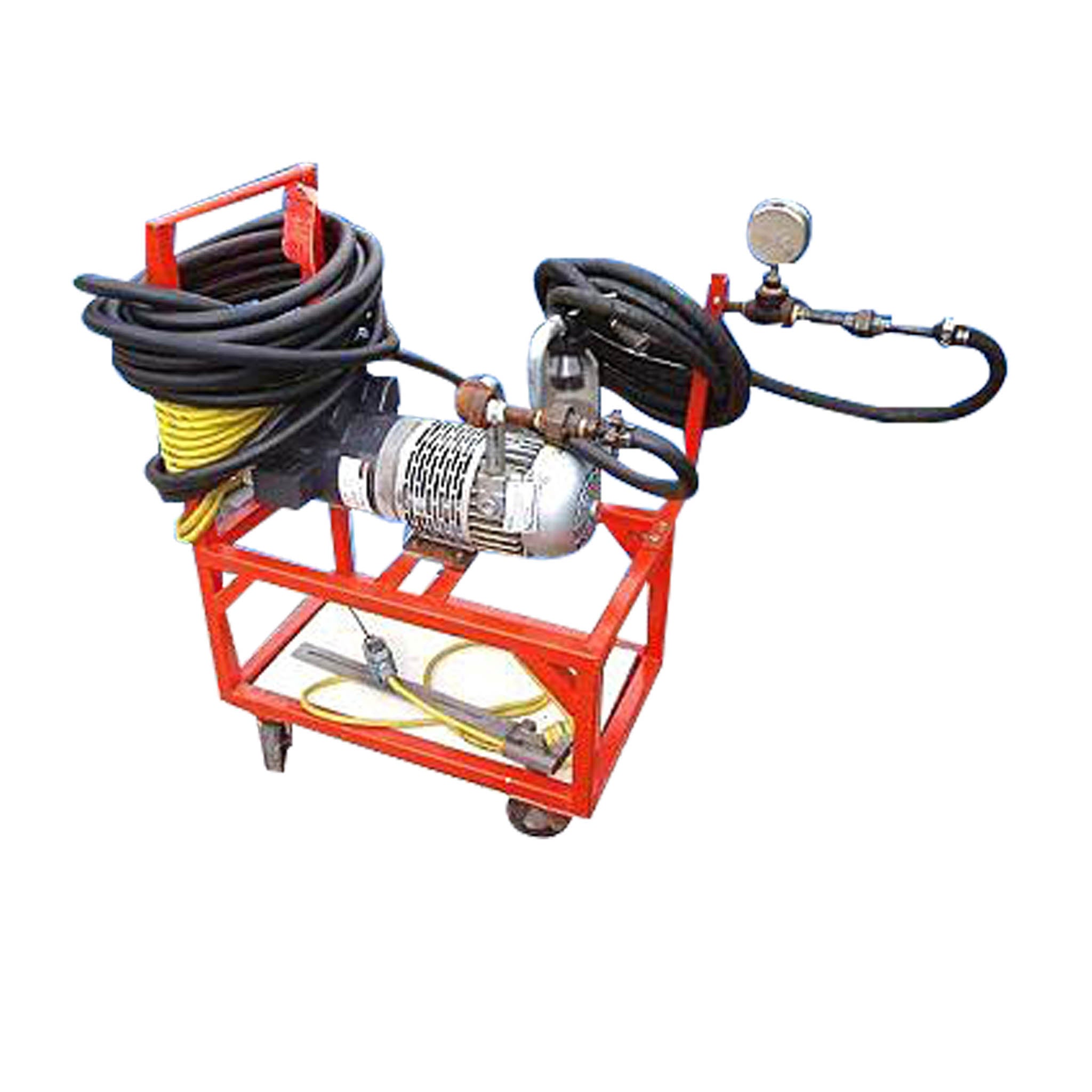

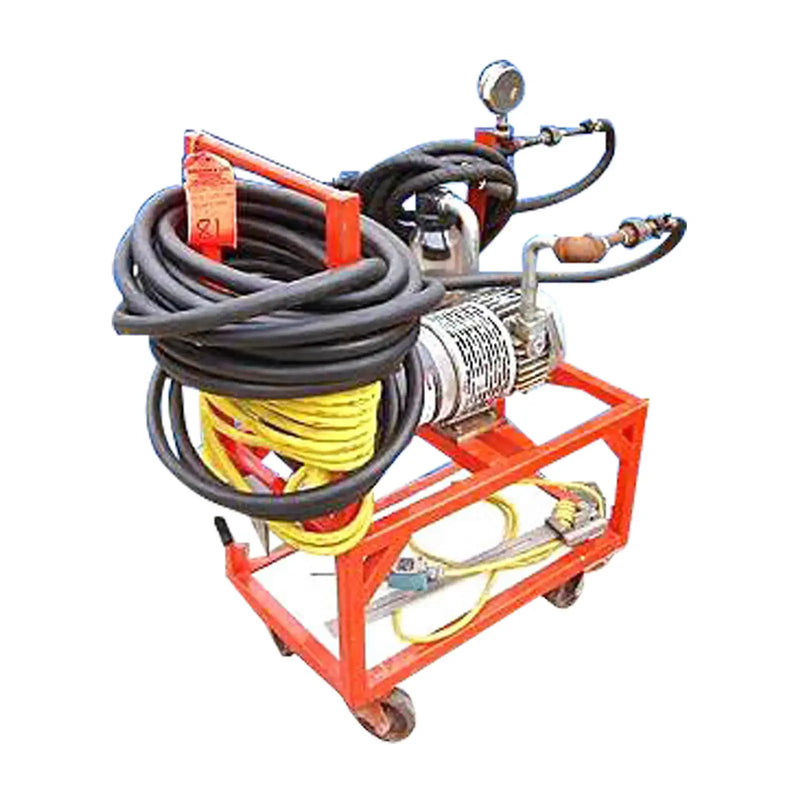

Gast Rotary Vane Vacuum Pump. Model 2567-V108. S/N: 050911602. Maximum vacuum with 5 psi back pressure: 20 in. Hg. Airflow: 15 cfm. Dayton Industrial Motor, 1-1/2 Hp, 1725 rpm, 155/208-230 V, 14.4/8.0-7.2 amps, 60 Hz, 1 Phase. It’s a dual chamber vacuum pump equipped with an intake filter used to protect a pneumatic pump from contamination. Mounted on a steel Frame with (4) wheels for easy maneuverability. Overall dimensions: 47 in. L x 23 in. W x 37-1/2 in. H.
Product Details
- Stock No: DFPC081.1a
- Manufacturer: Gast
- Model: 2567-V108
- Serial Number: 50911602
Pump Details
- Pump Type: Vacuum
- Maximum Pressure MAWP (PSI): 5
Previous Refrigerant
Motor Details
- Motor Included? Yes

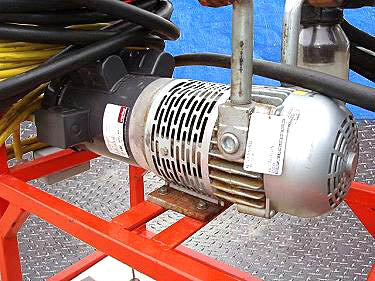

- Motor Manufacturer: Dayton
- Motor Horsepower(HP): 1.5
- Motor RPM: 1725
- Motor Voltage: 155/208-230
- Motor Amps: 14.4/8.0-7.2
- Motor Hertz (Hz): 60
- Motor Phases: 1
Dimensions:
- Length (Inches): 47
- Width (Inches): 23
- Height (Inches): 37.5
