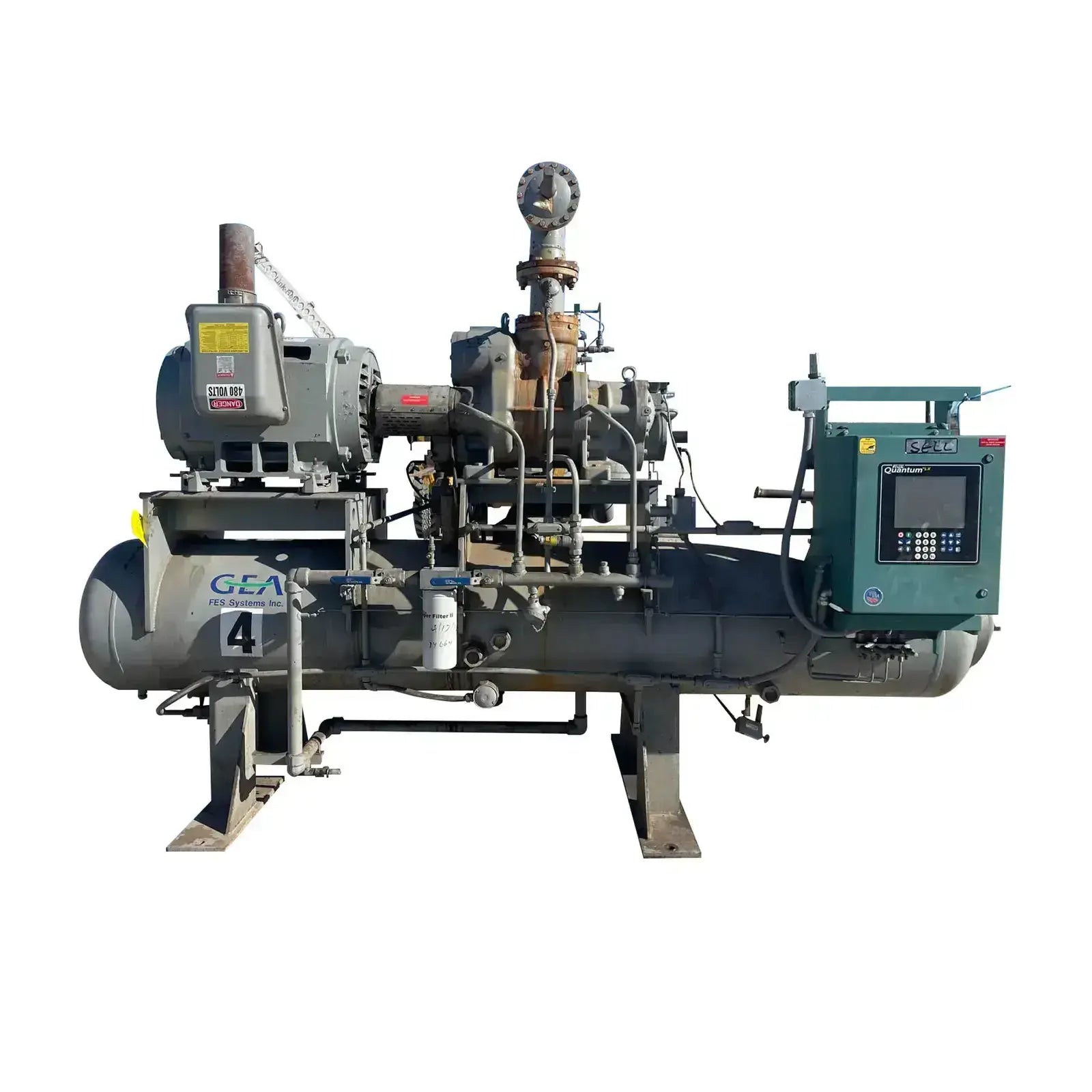

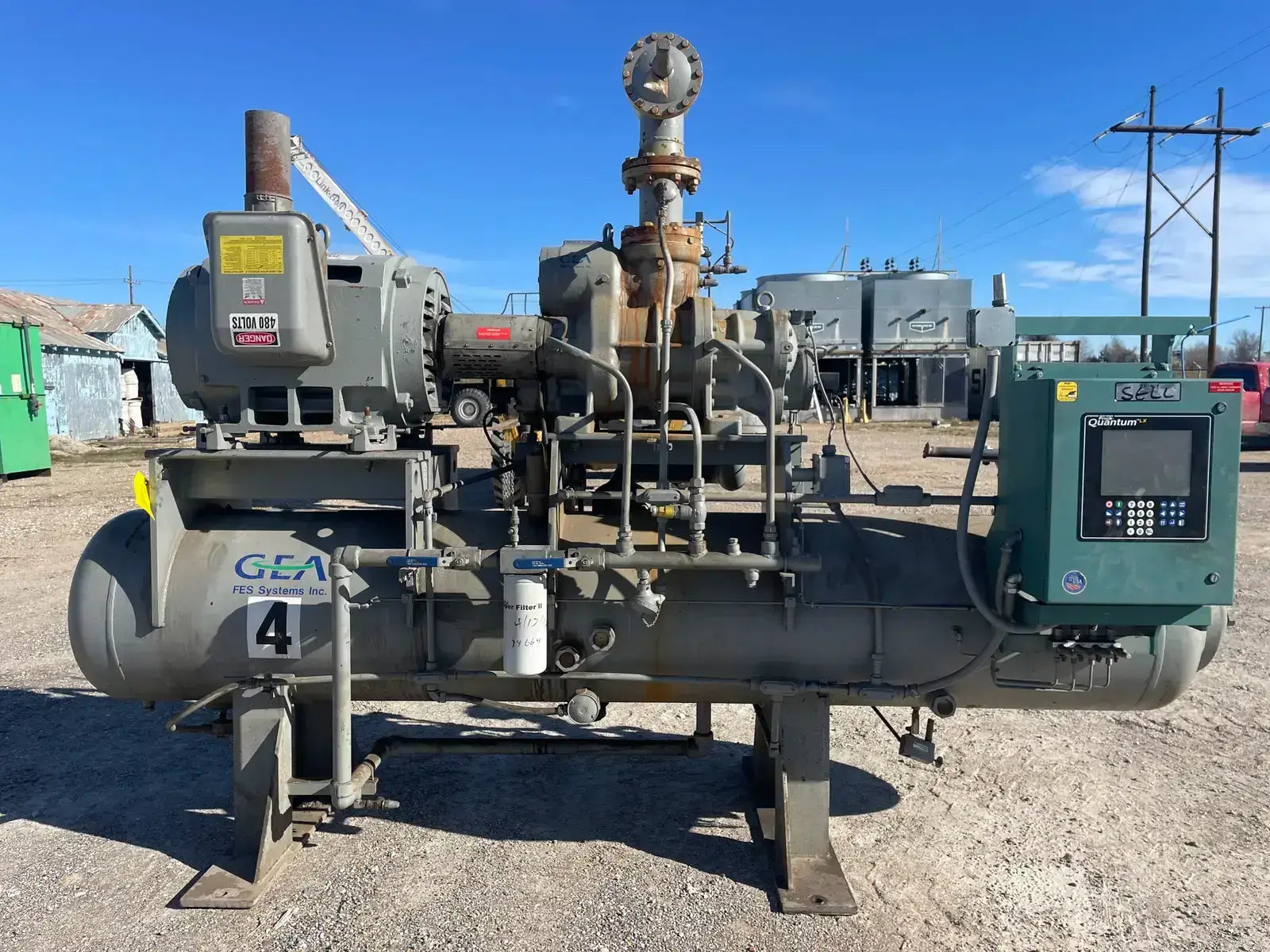

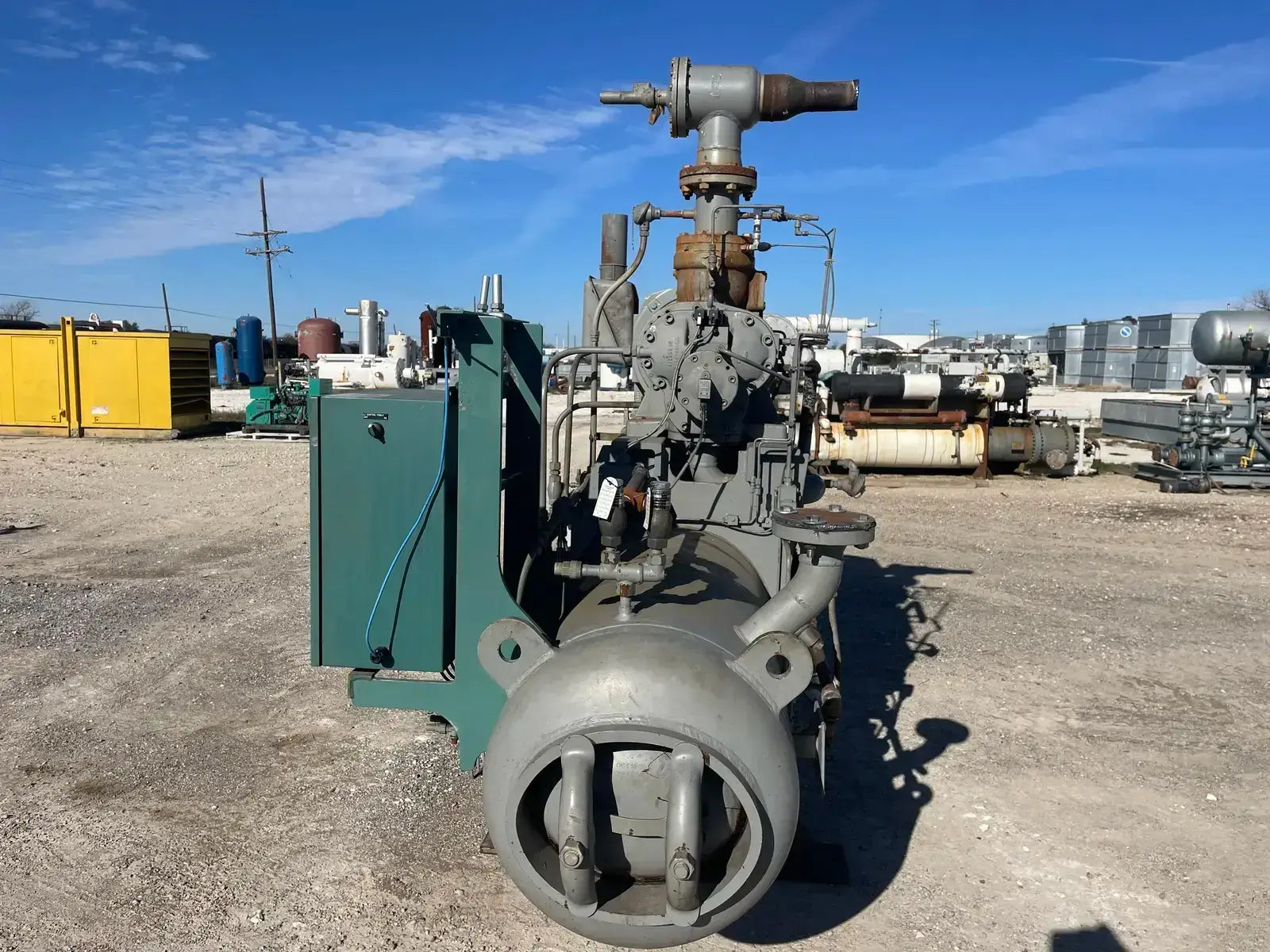

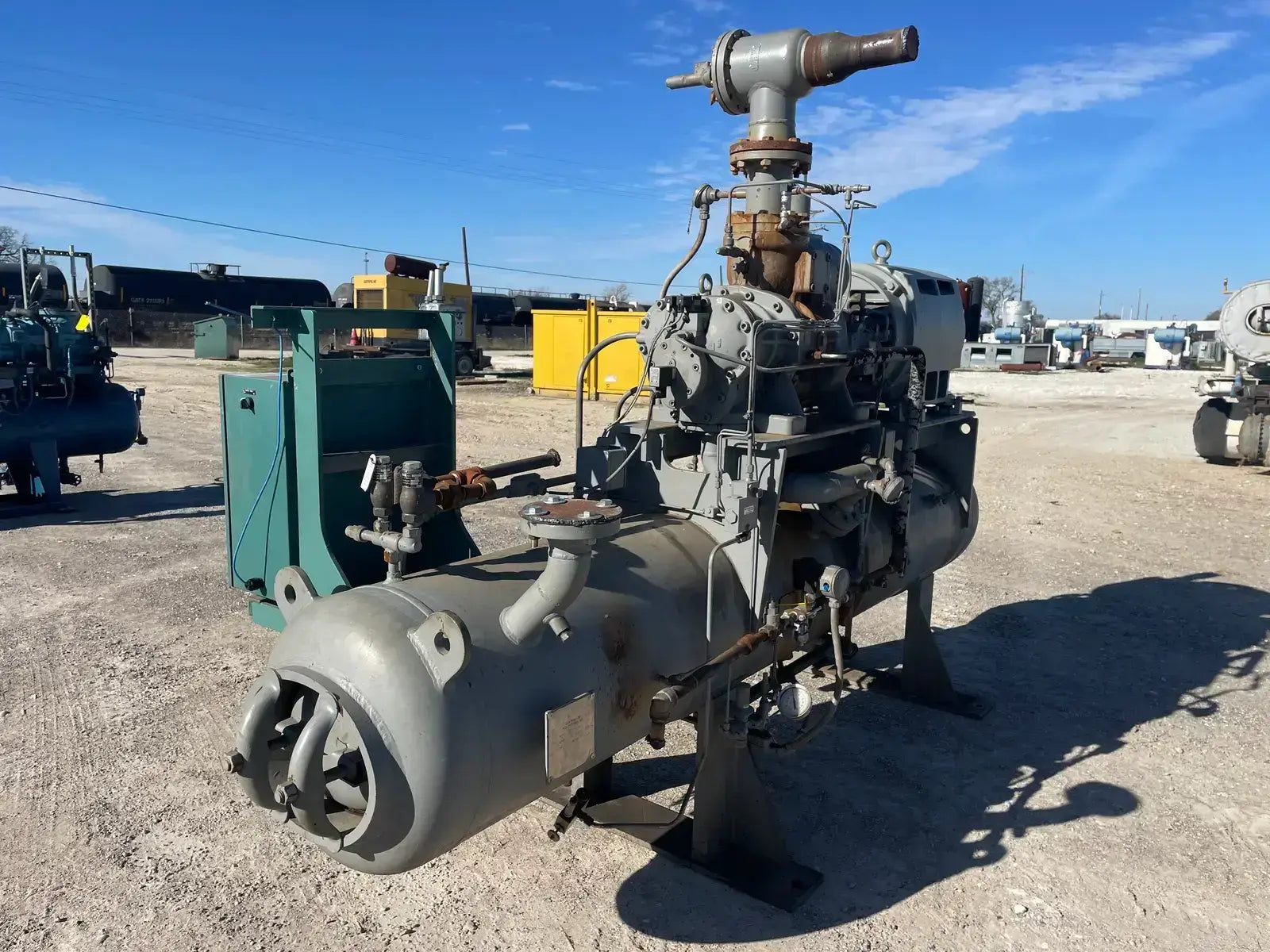

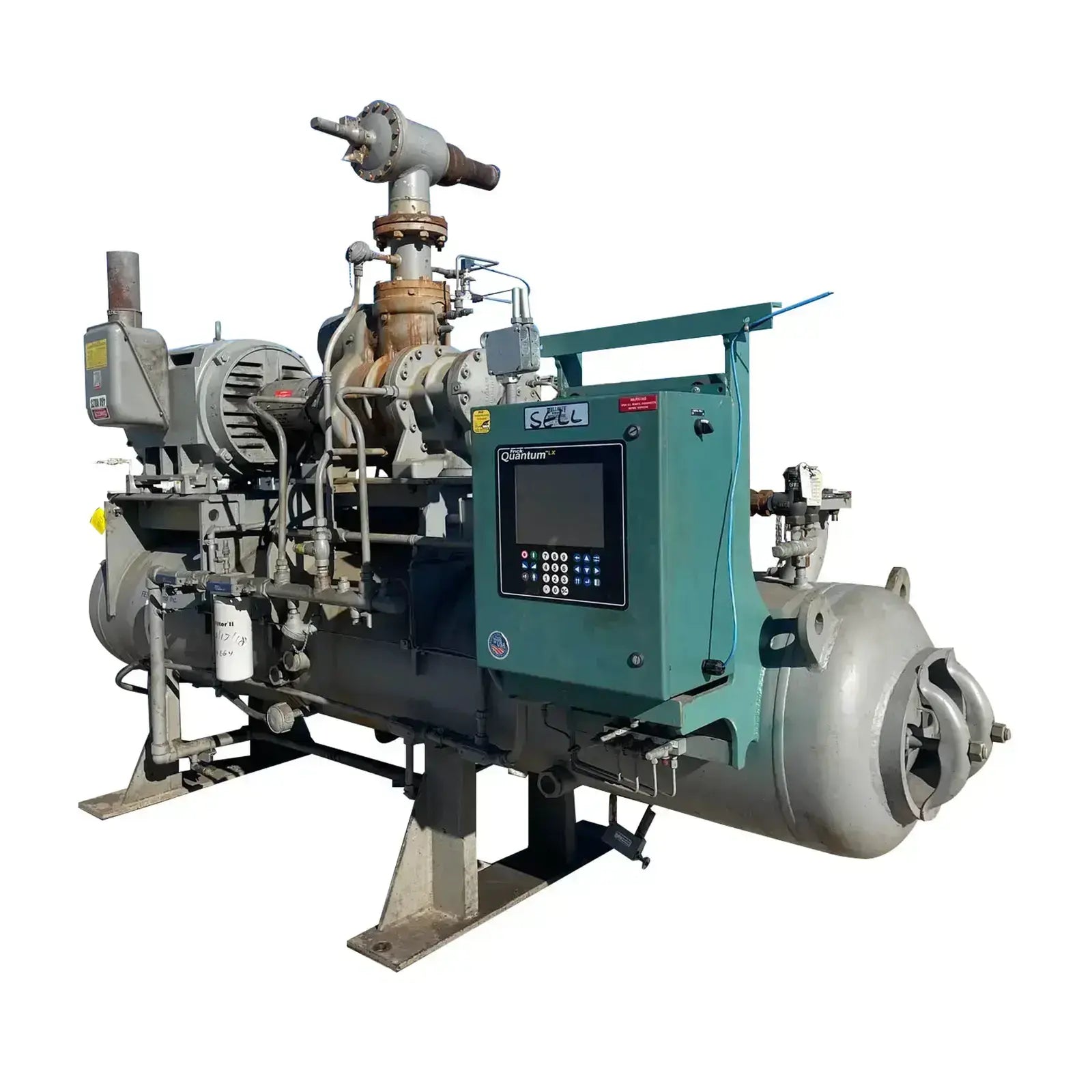

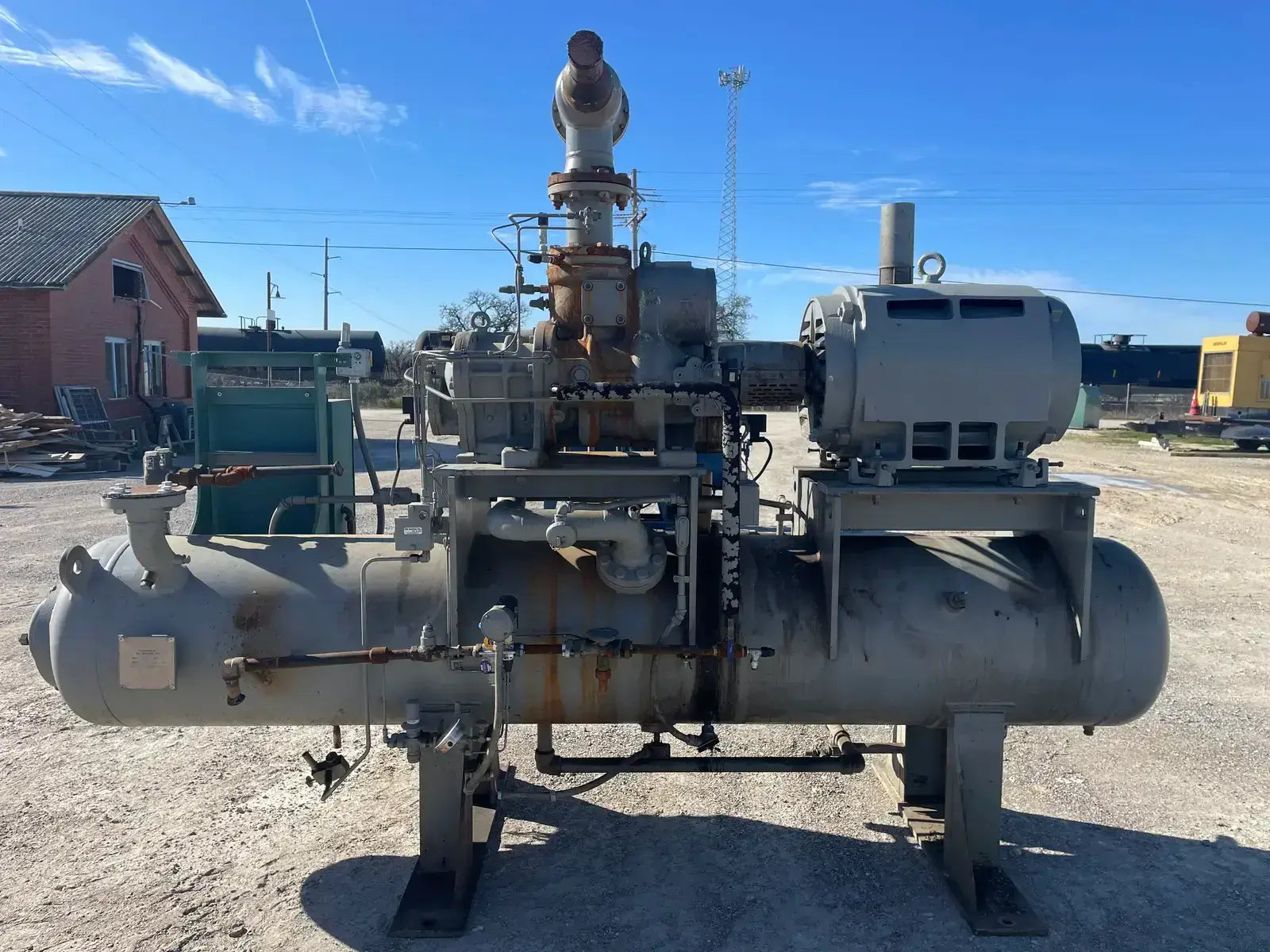

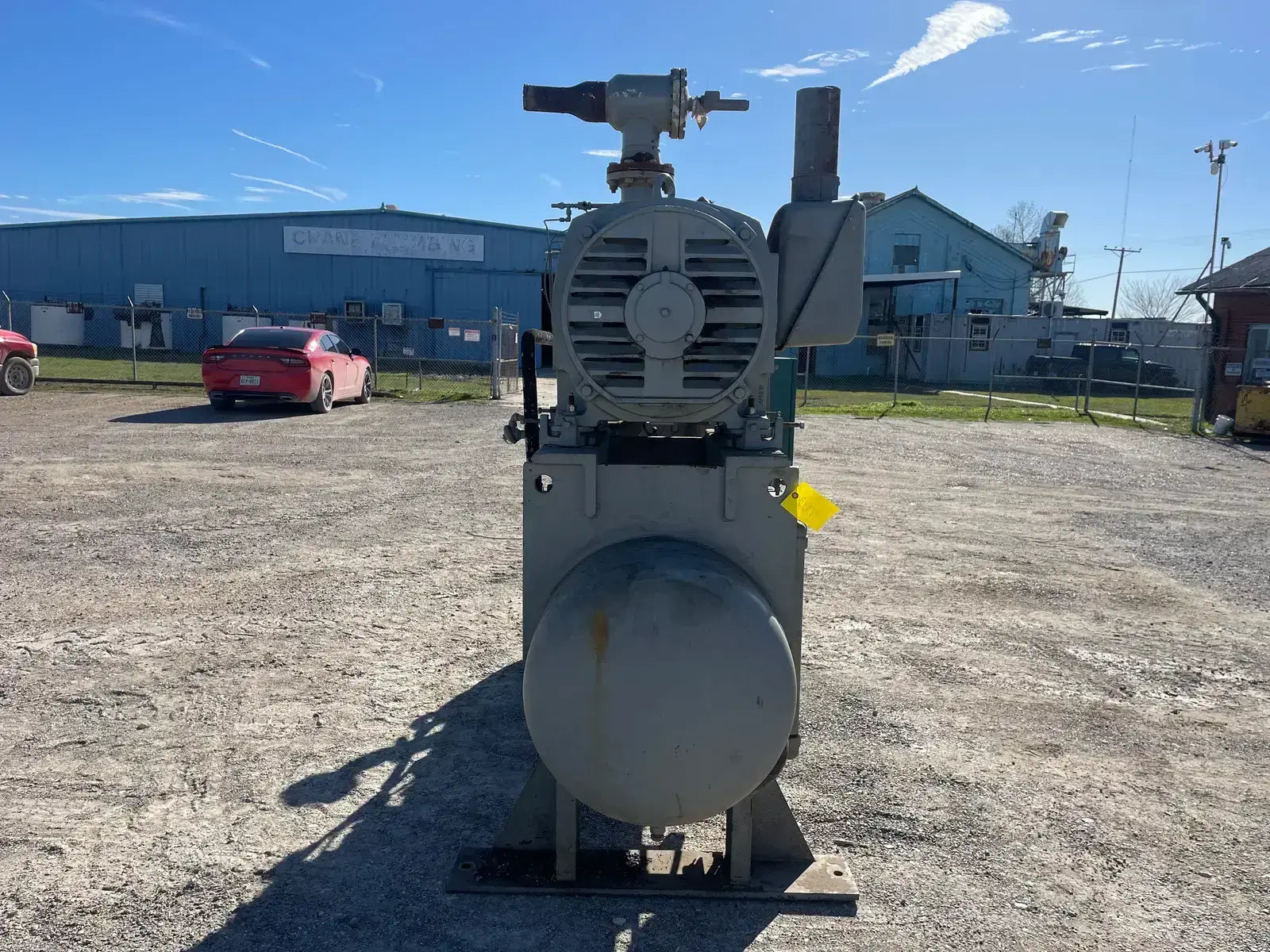

GEA 250-VMD-2.6 Rotary Screw Compressor Package (GEA N-5, 250 HP 230/460 V, Micro Control Panel)

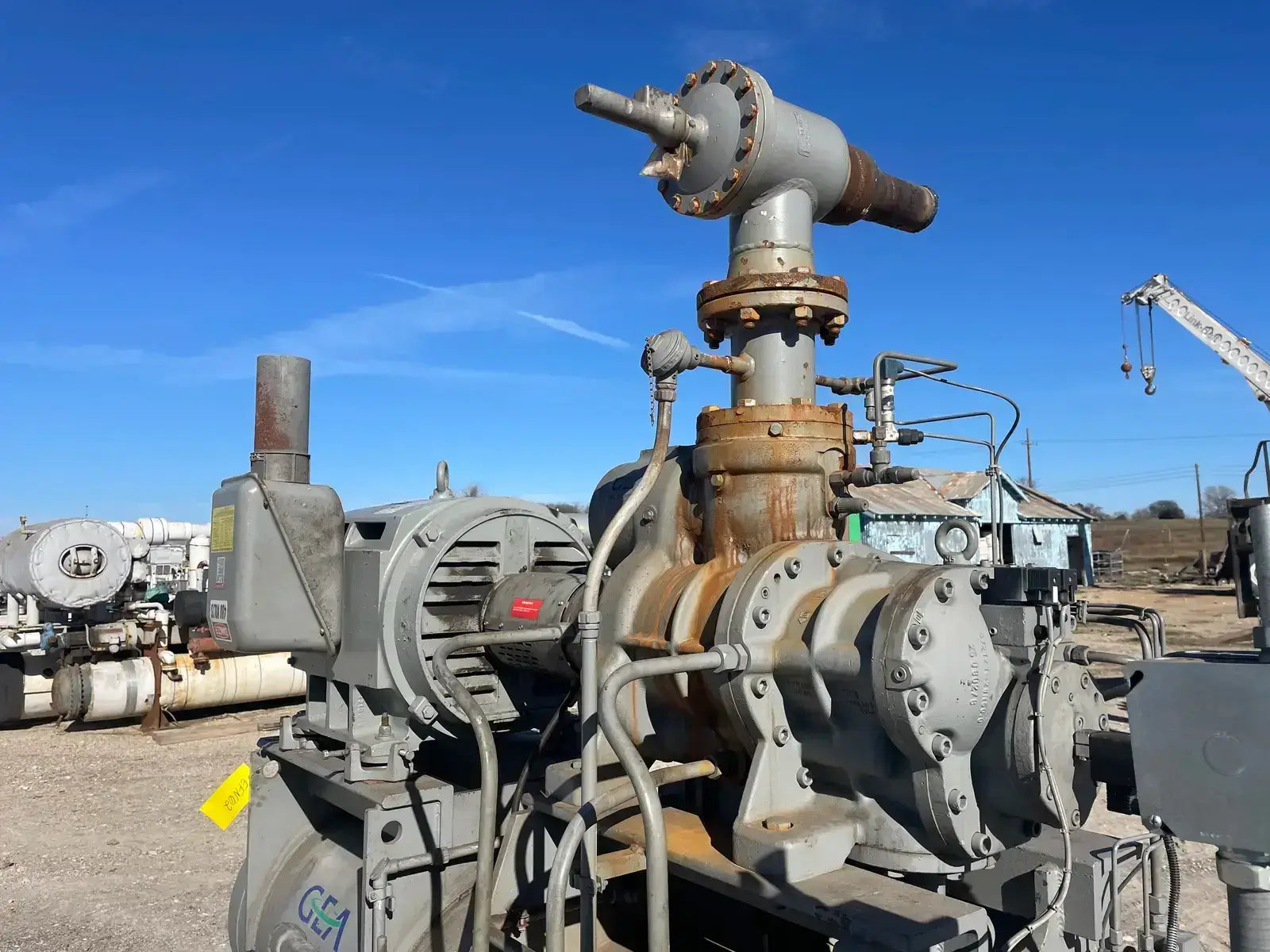

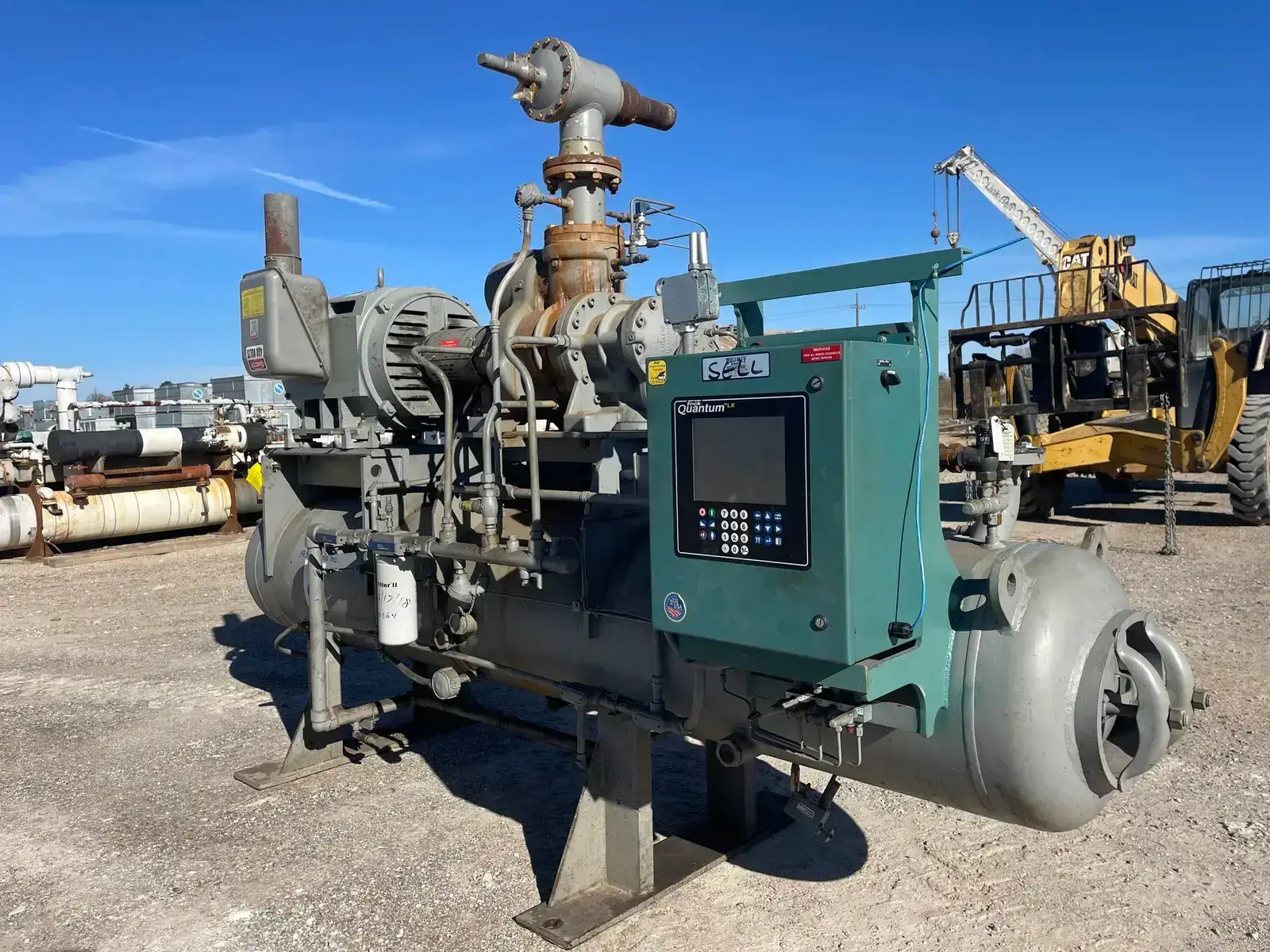

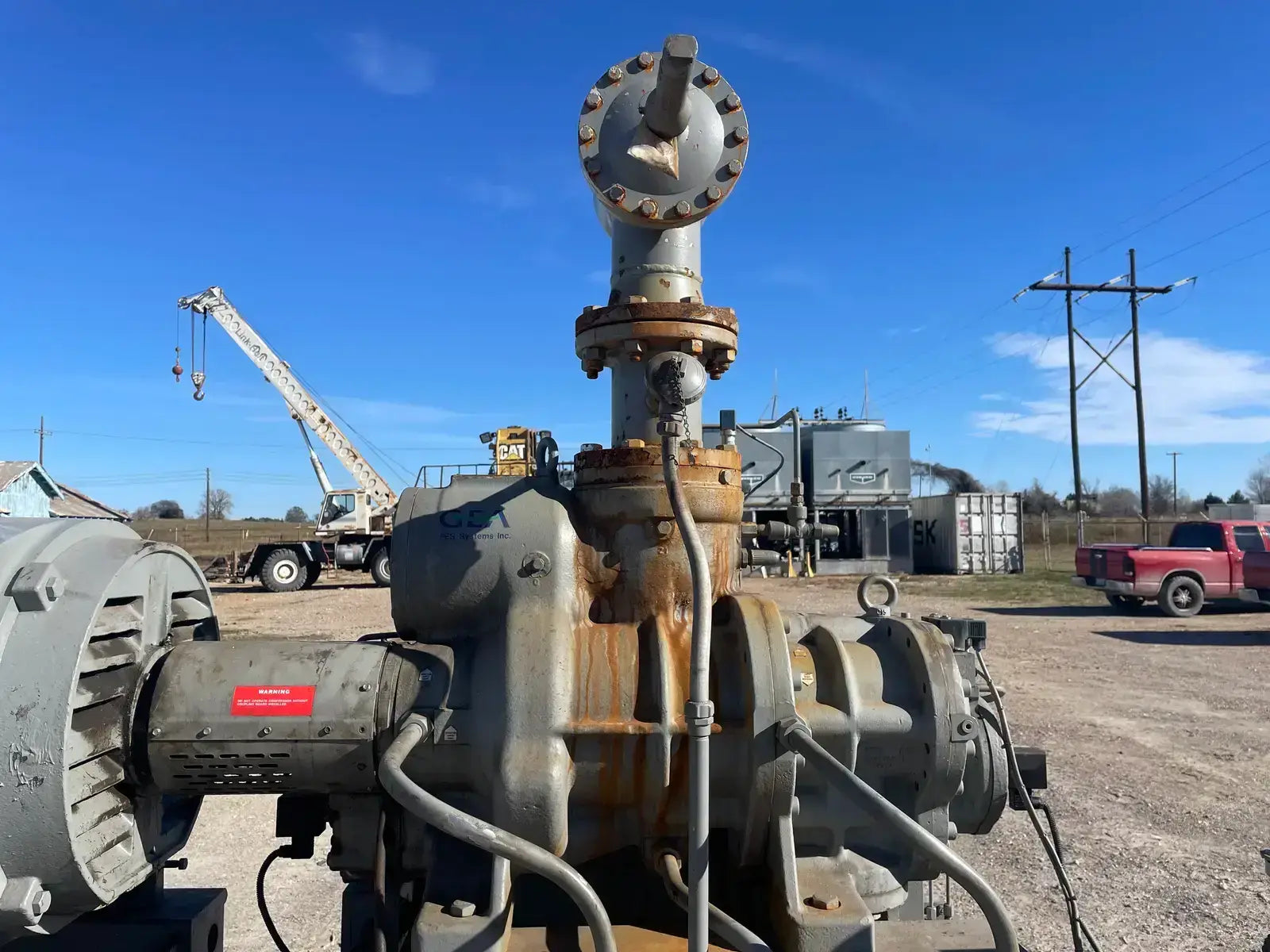

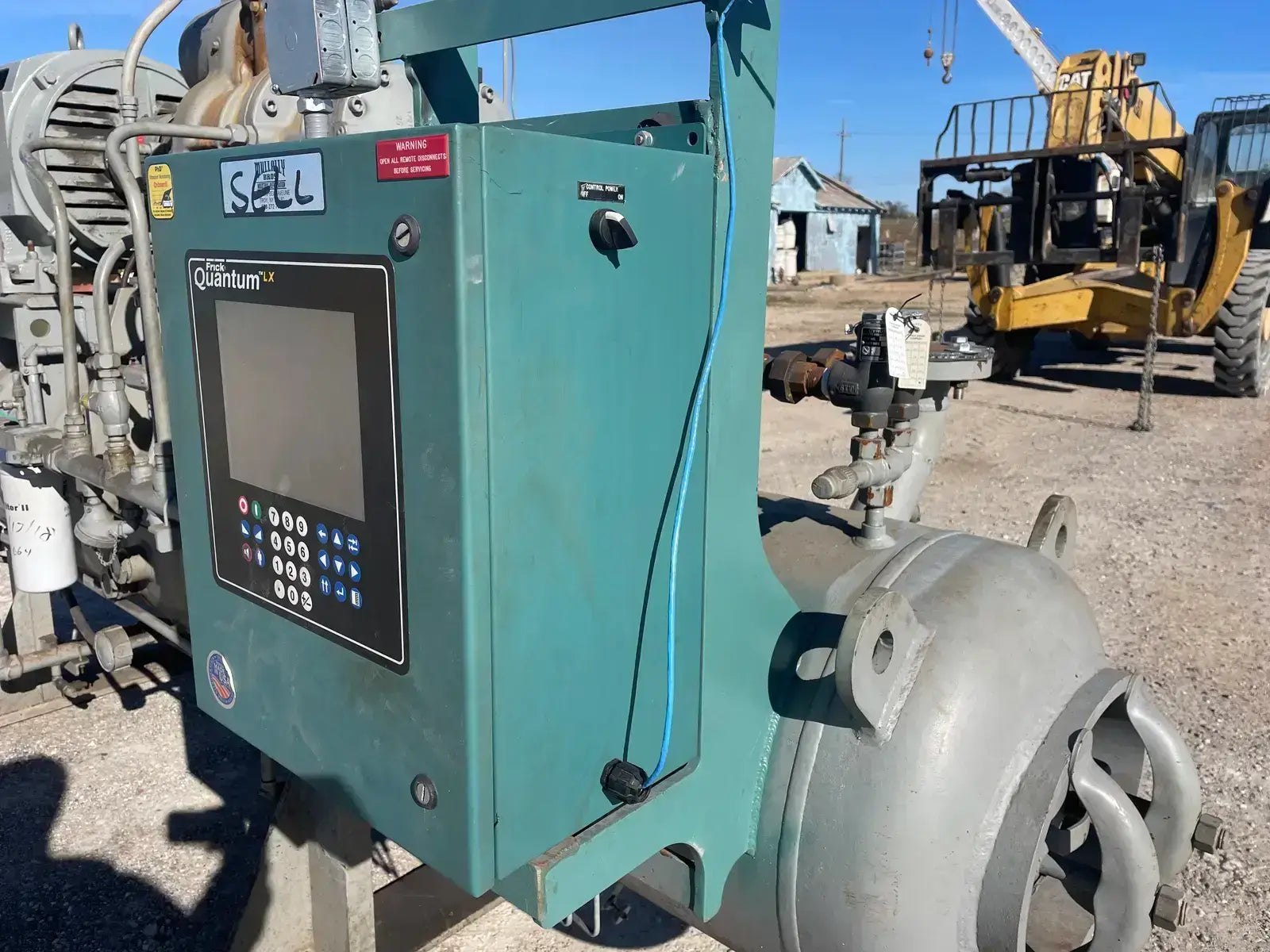

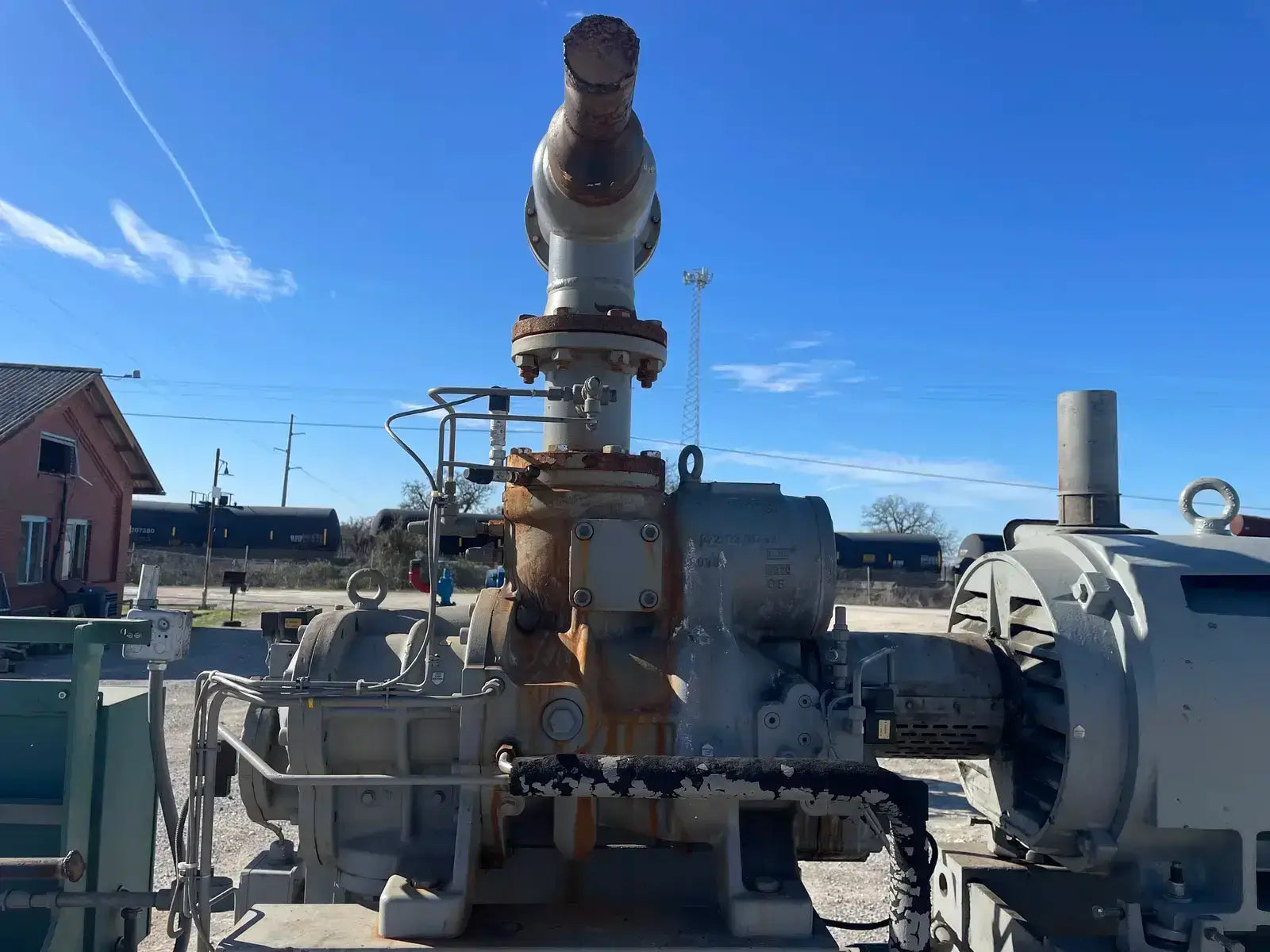

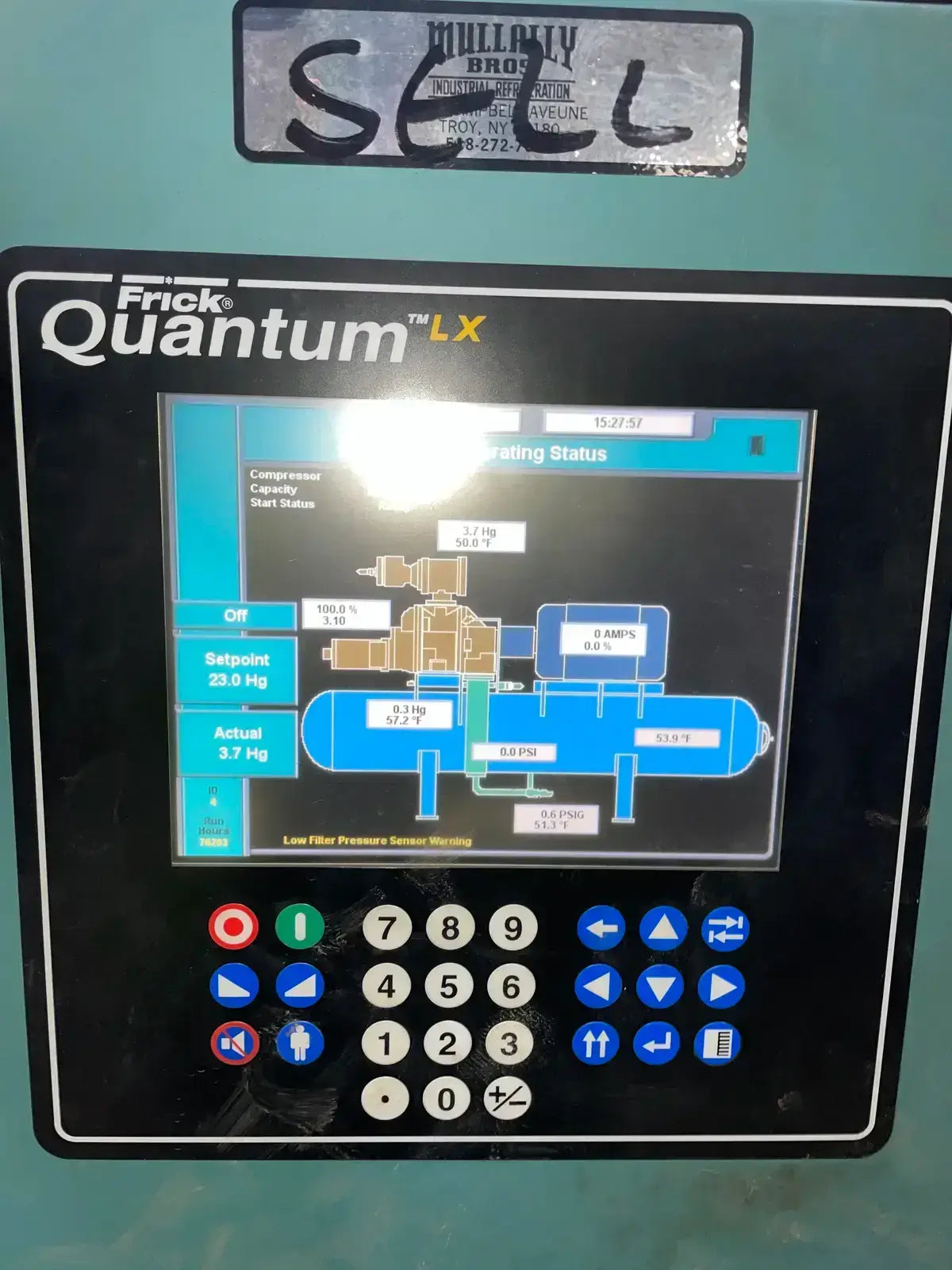

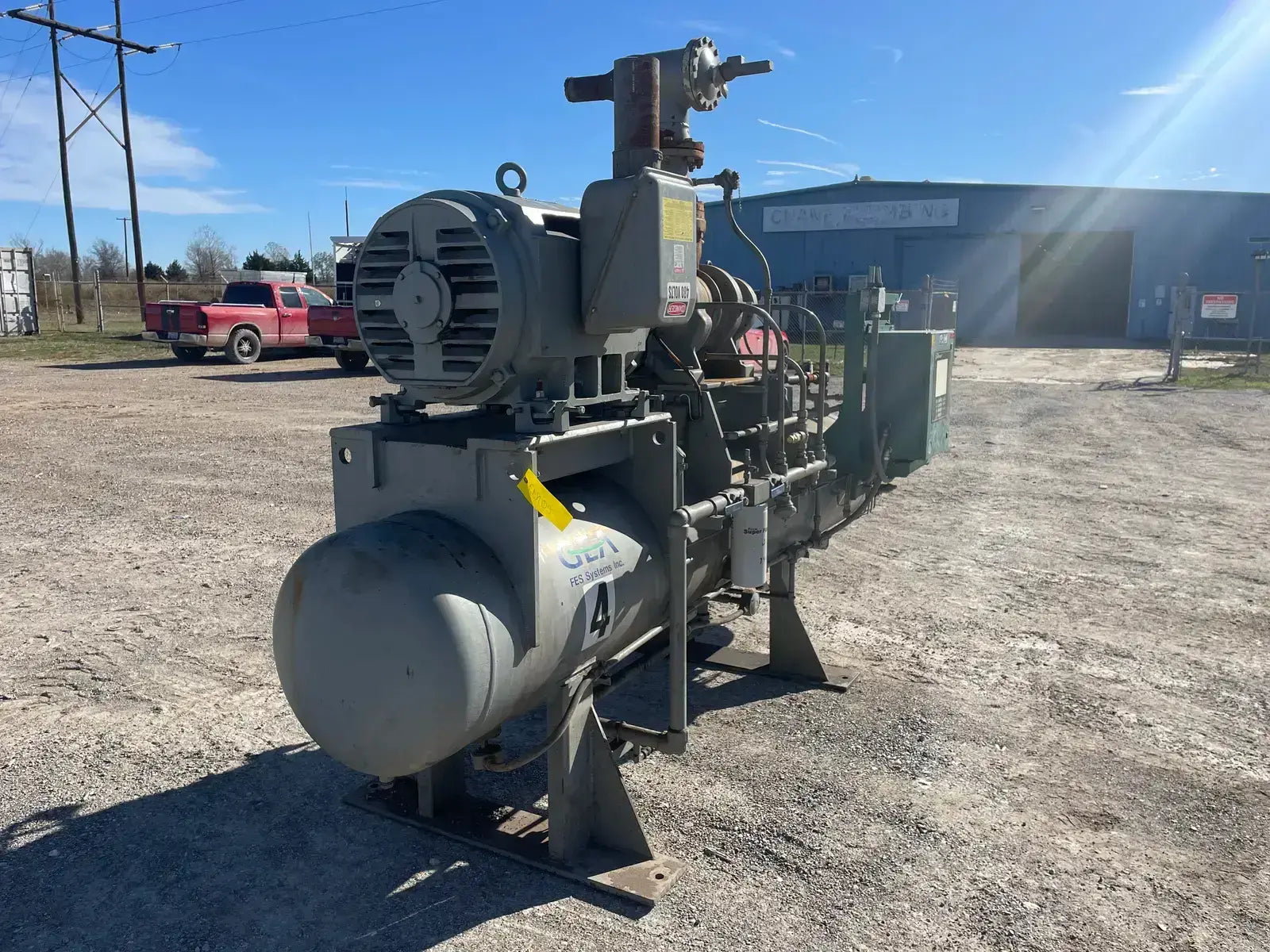

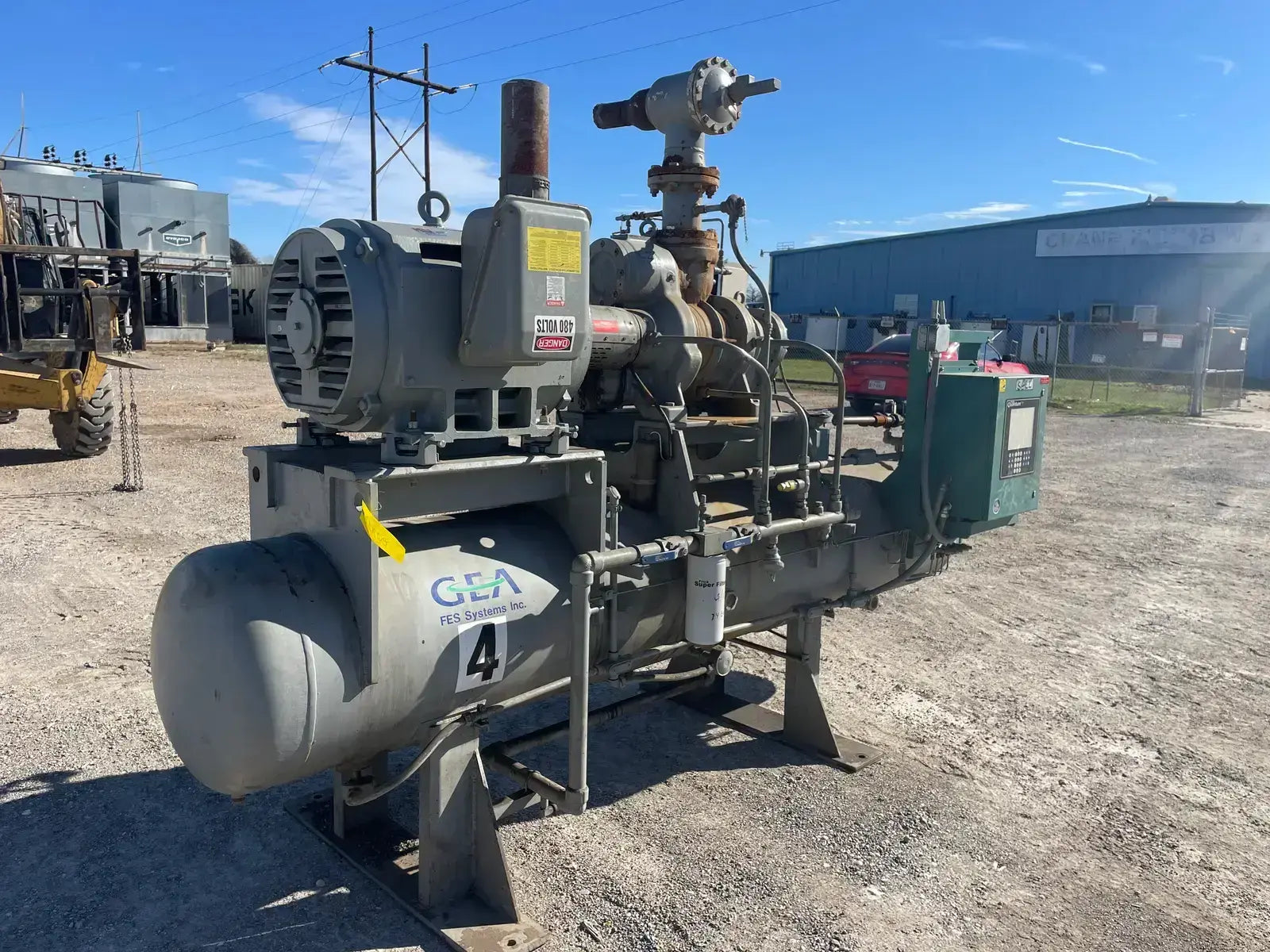

GEA N-5 screw compressor powered by a 250 HP, 460 Volts Toshiba 3-phase induction motor. The package also includes a Frick Quantum LX Series control panel as well an FES Certified oil separator.
Product Details
- Stock No: EFN02
- Manufacturer: GEA
- Model: 250-VMD-2.6
- Serial Number: N0505
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details
- Package Manufacturer: GEA
- Package Model: 250-VMD-2.6
- Package Max Speed (RPM): 4,500
- Package Max Design Pressure (PSIG): 406

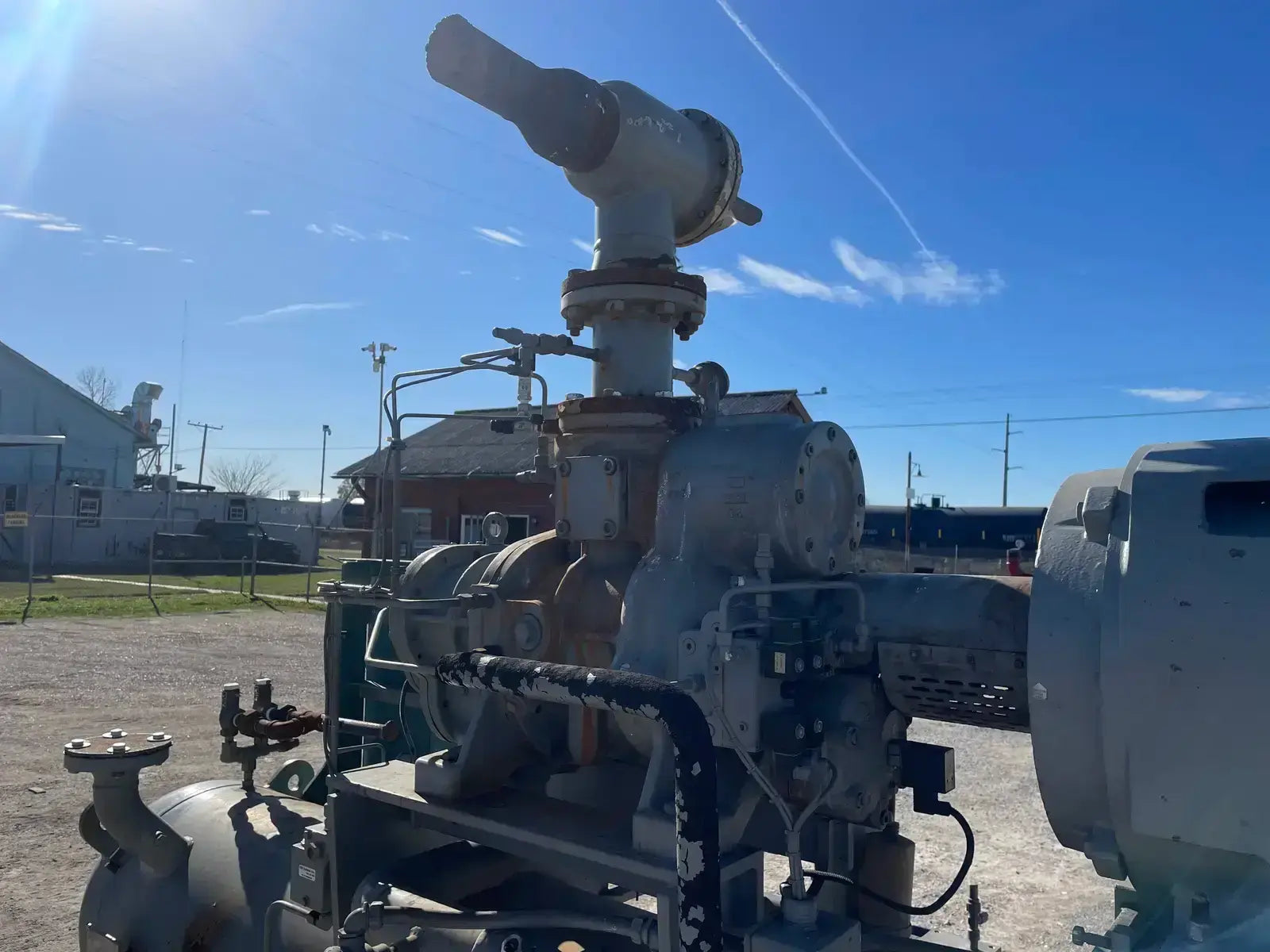

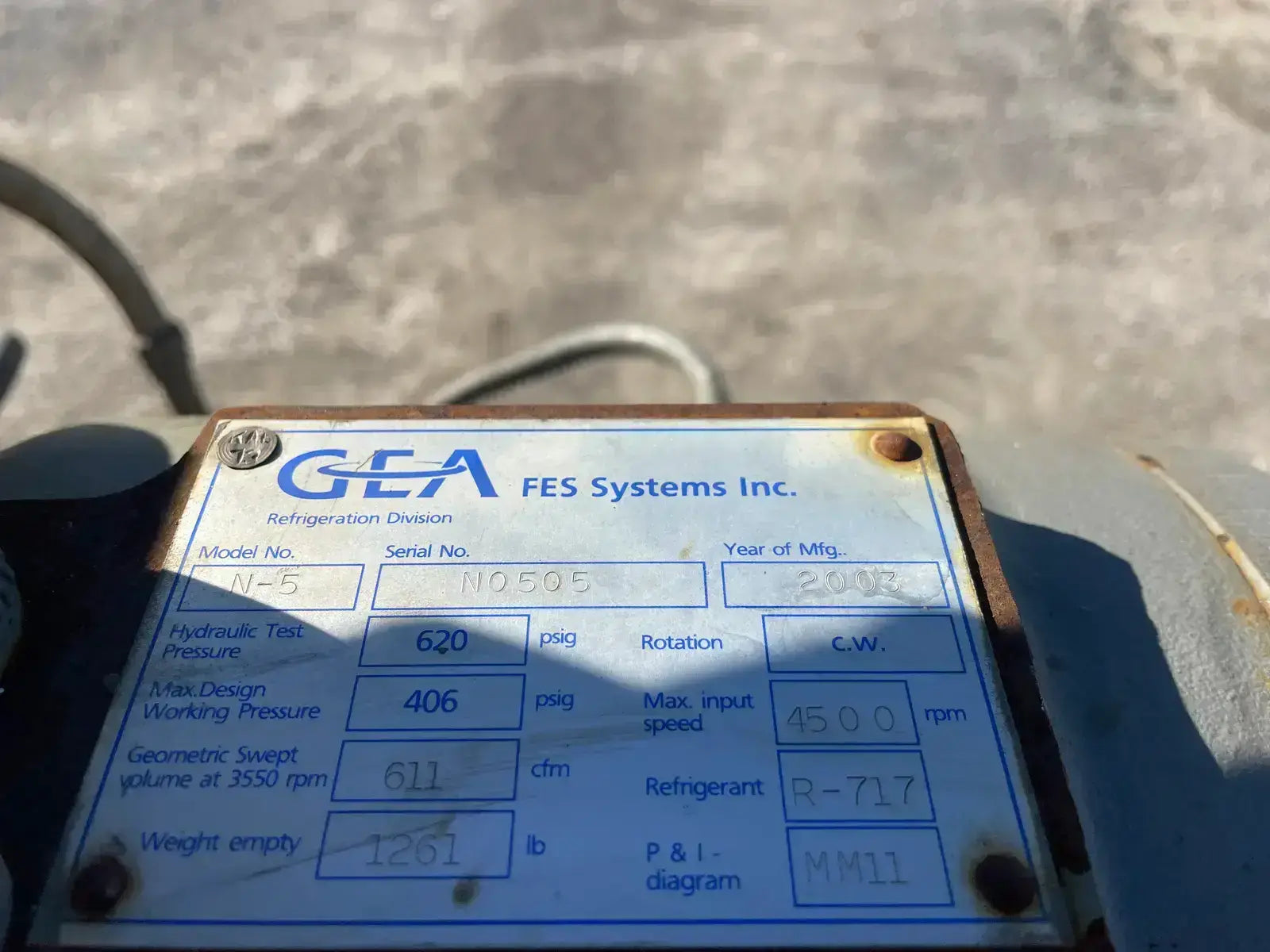

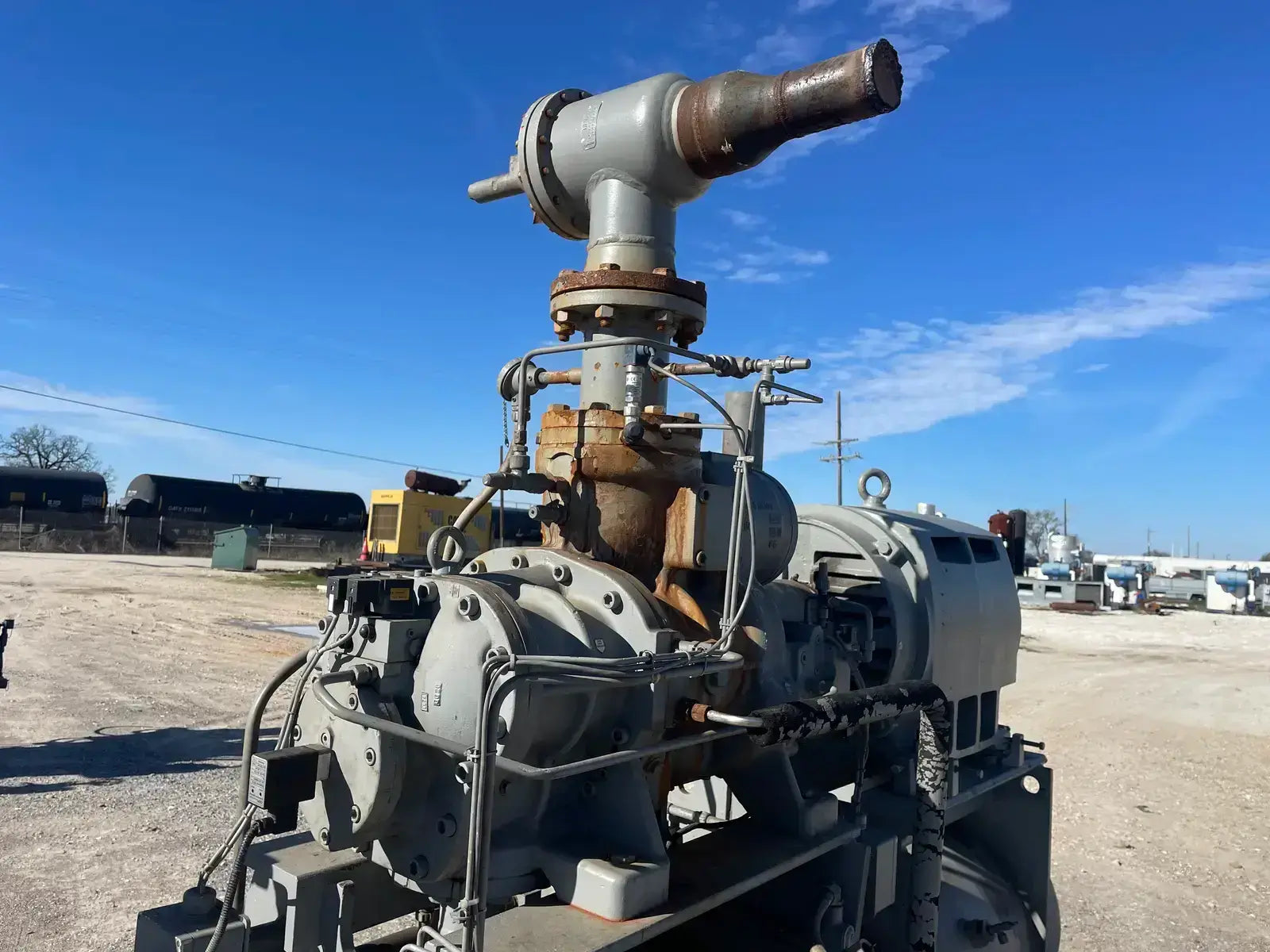

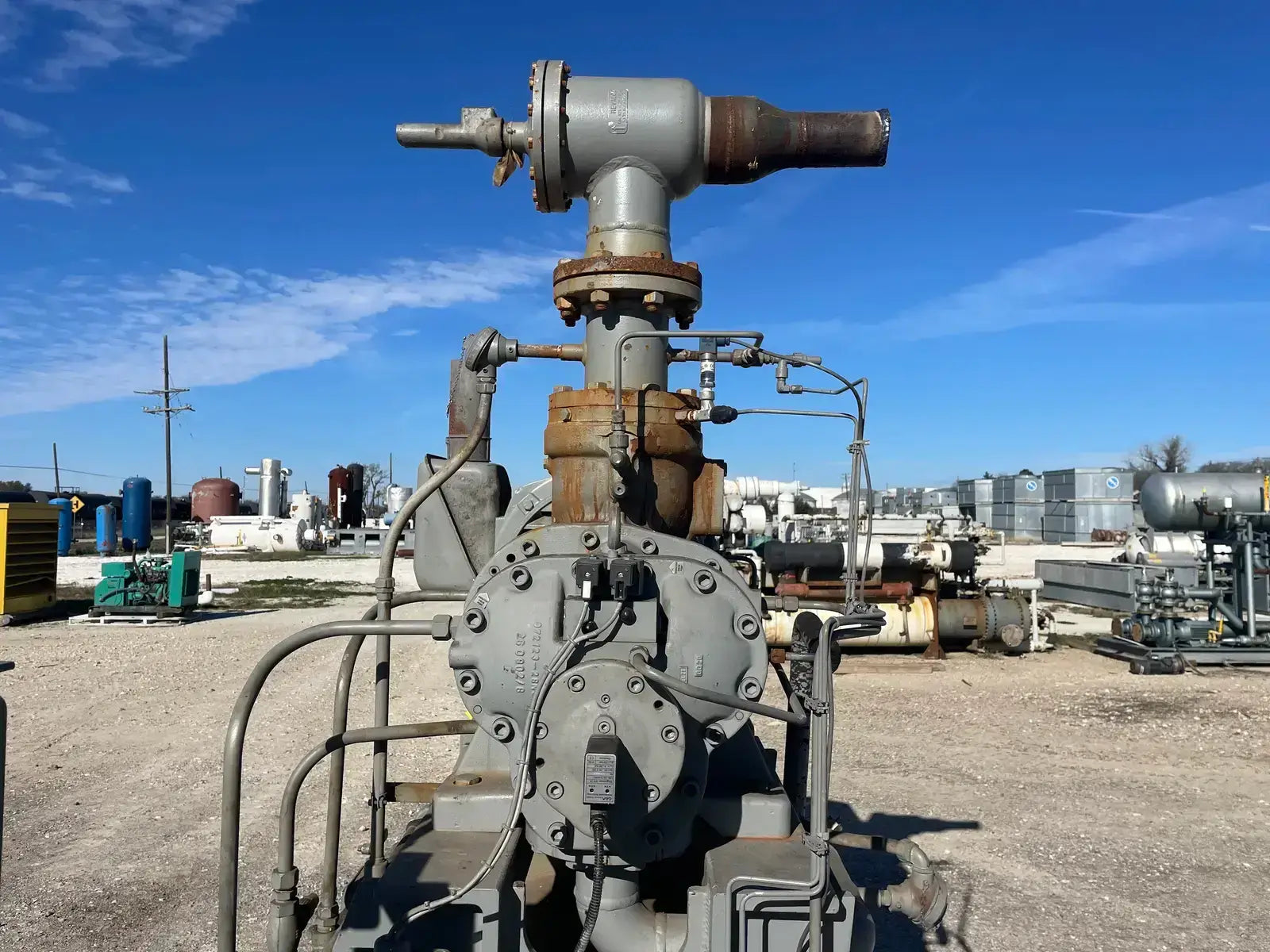

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: GEA
- # Compressors in Package: 1
- Compressor Model: N-5
- Compressor SN: N0505
- Compressor Max Speed (RPM): 4,500
- Compressor Design Pressure (PSIG): 406
- Compressor Year Manufactured: 2003

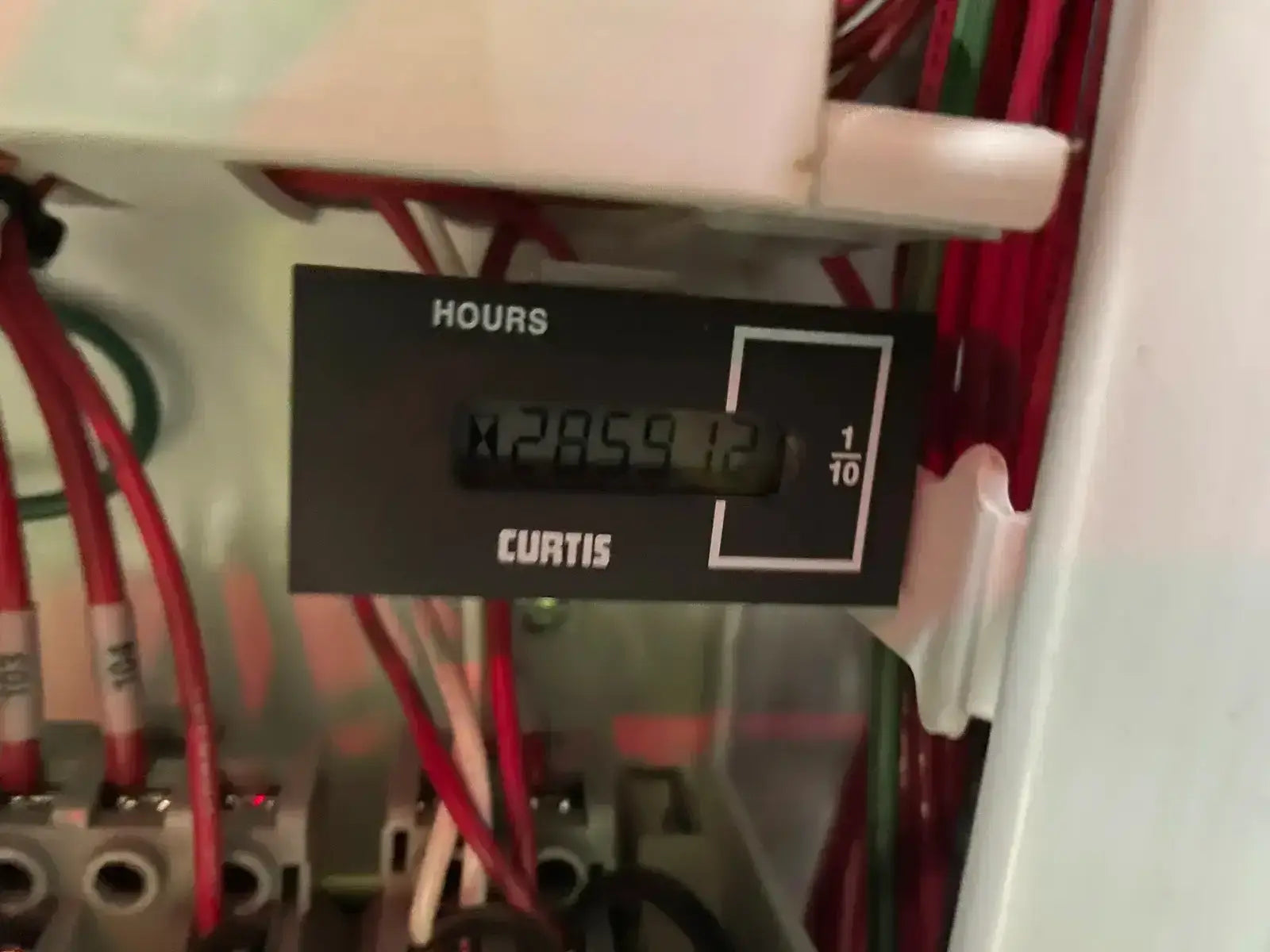

- Compressor Run Time Hours: 28,591.2

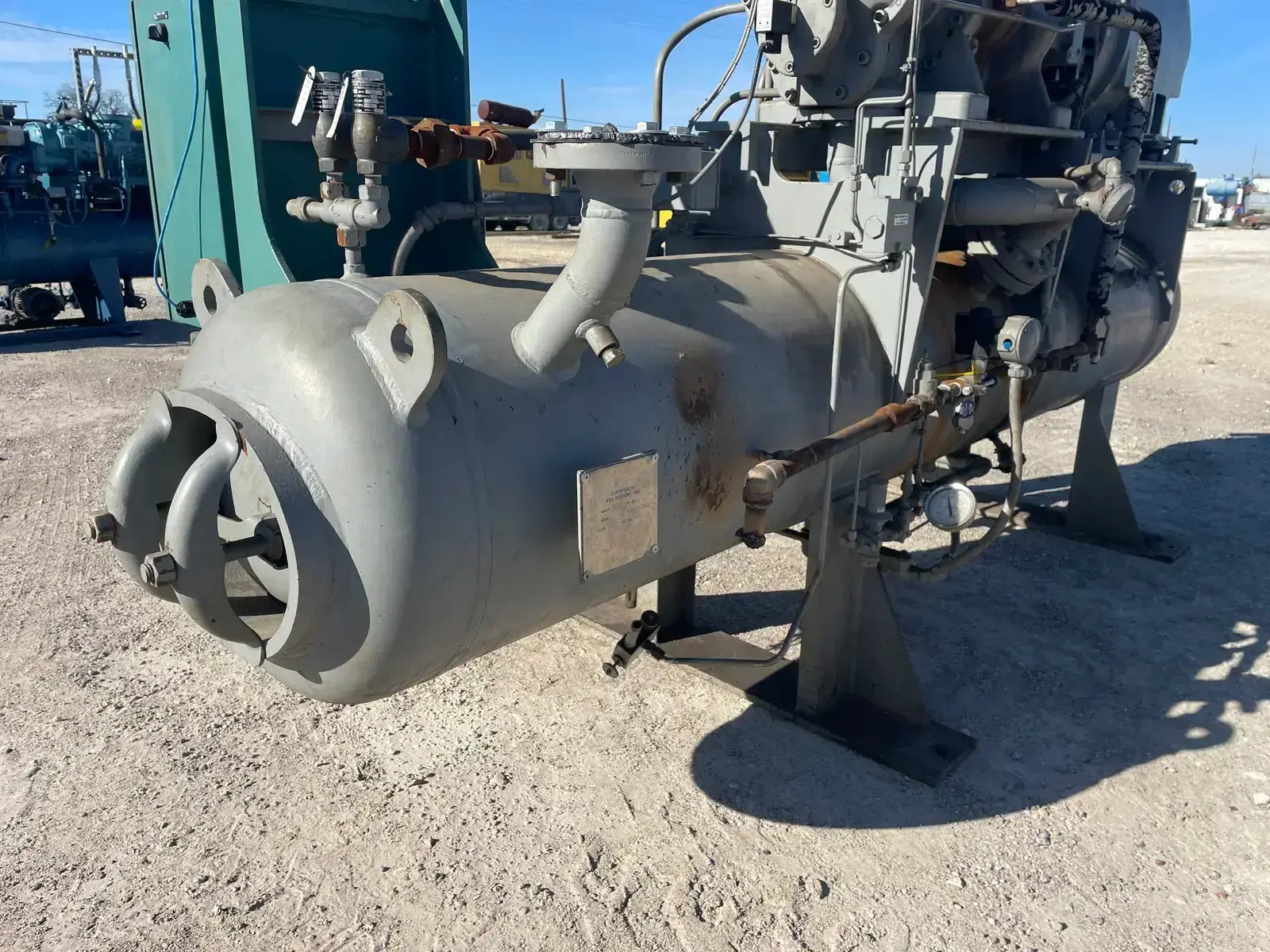

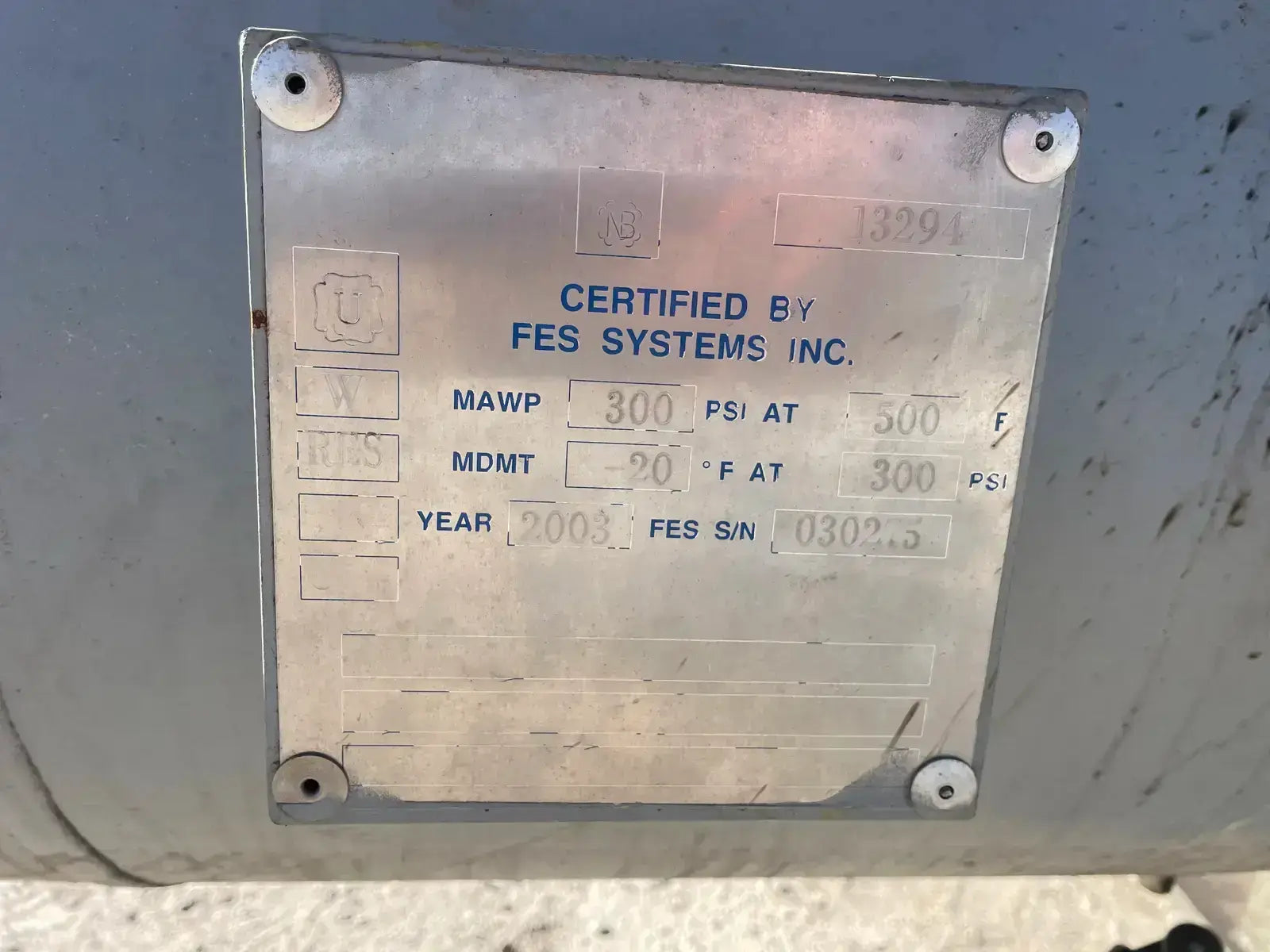

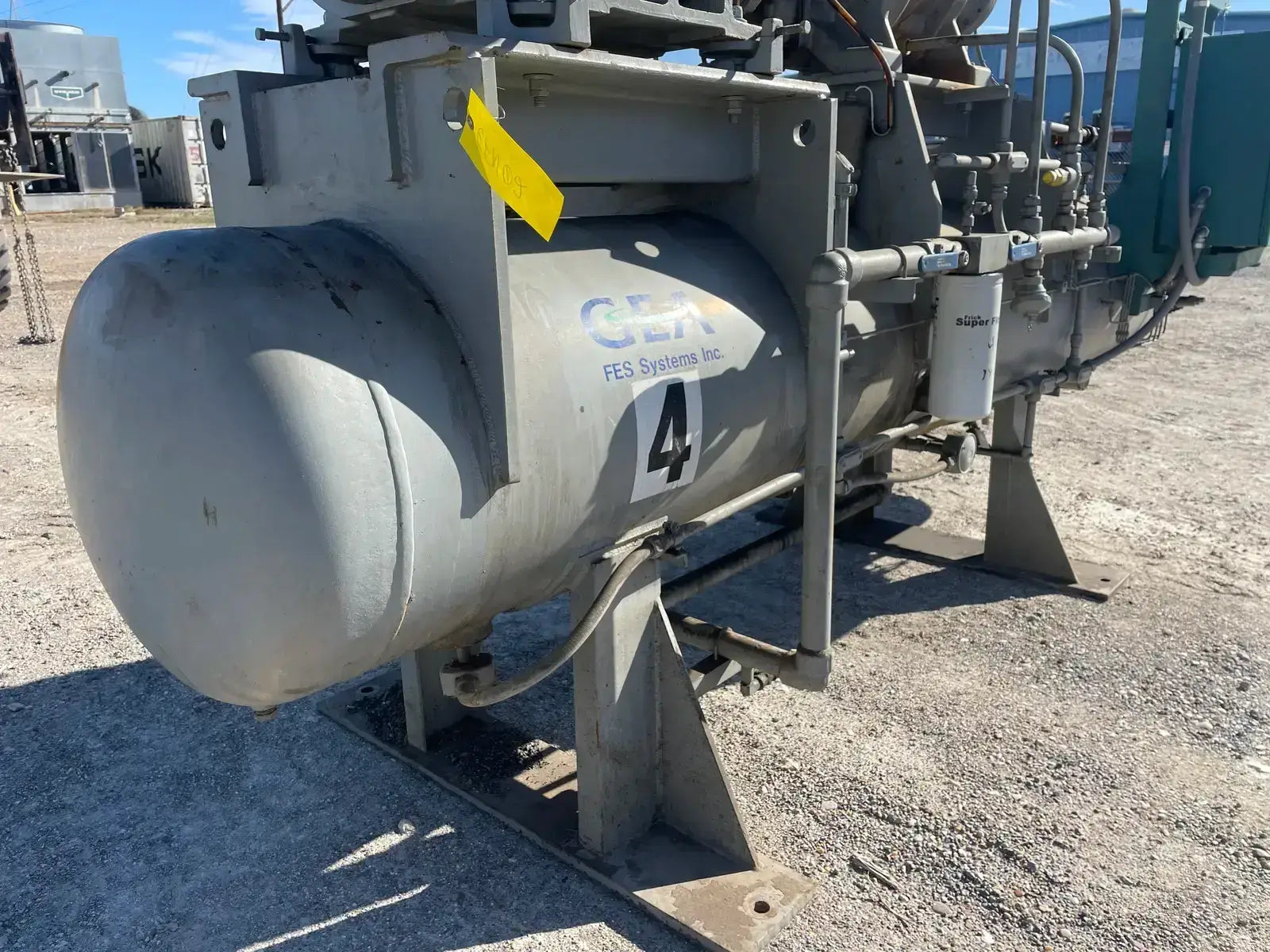

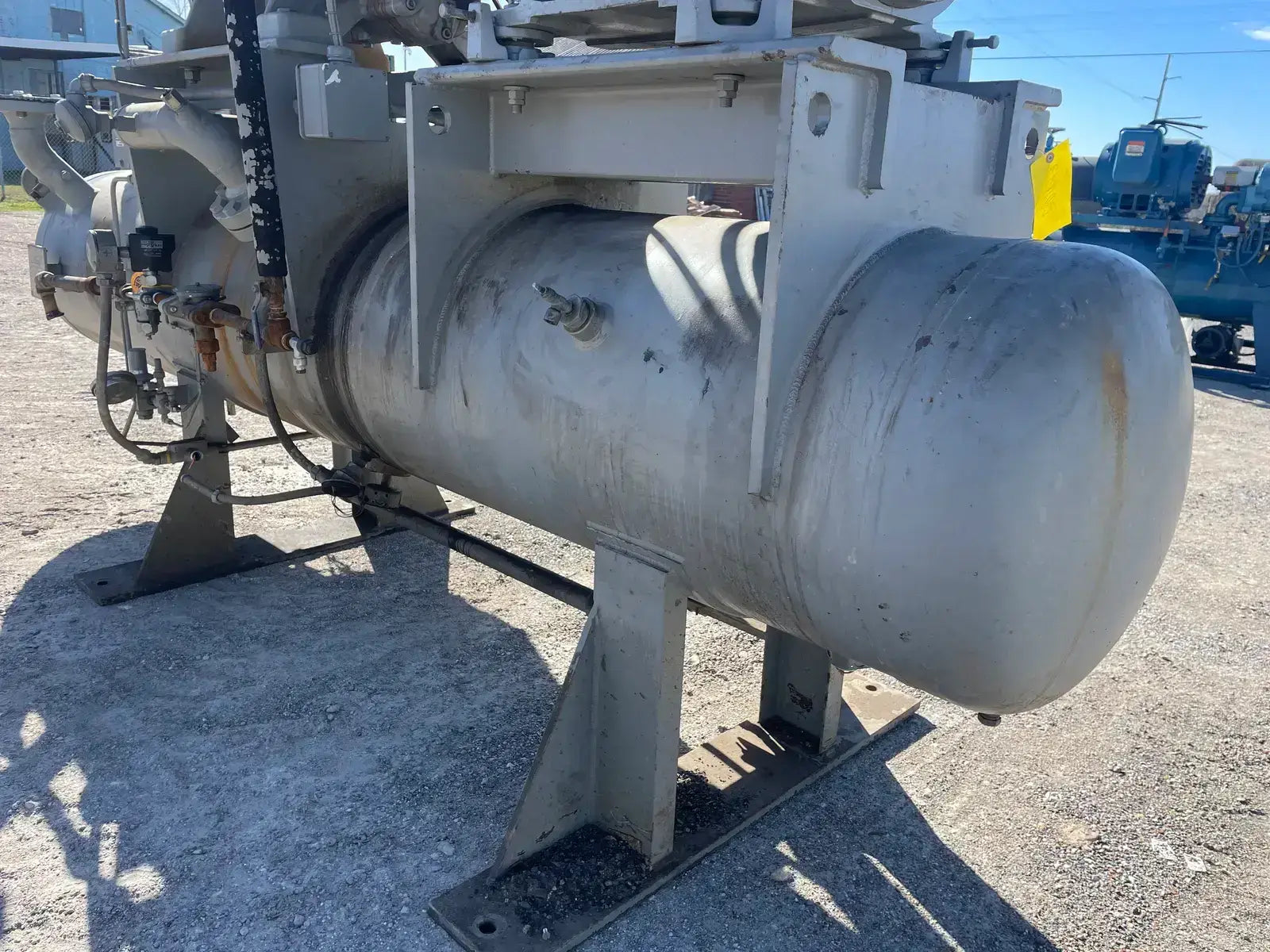

- Oil Separator Included? Yes
- Oil Separator National Board #: 1329
- Oil Cooling Type: Thermosiphon

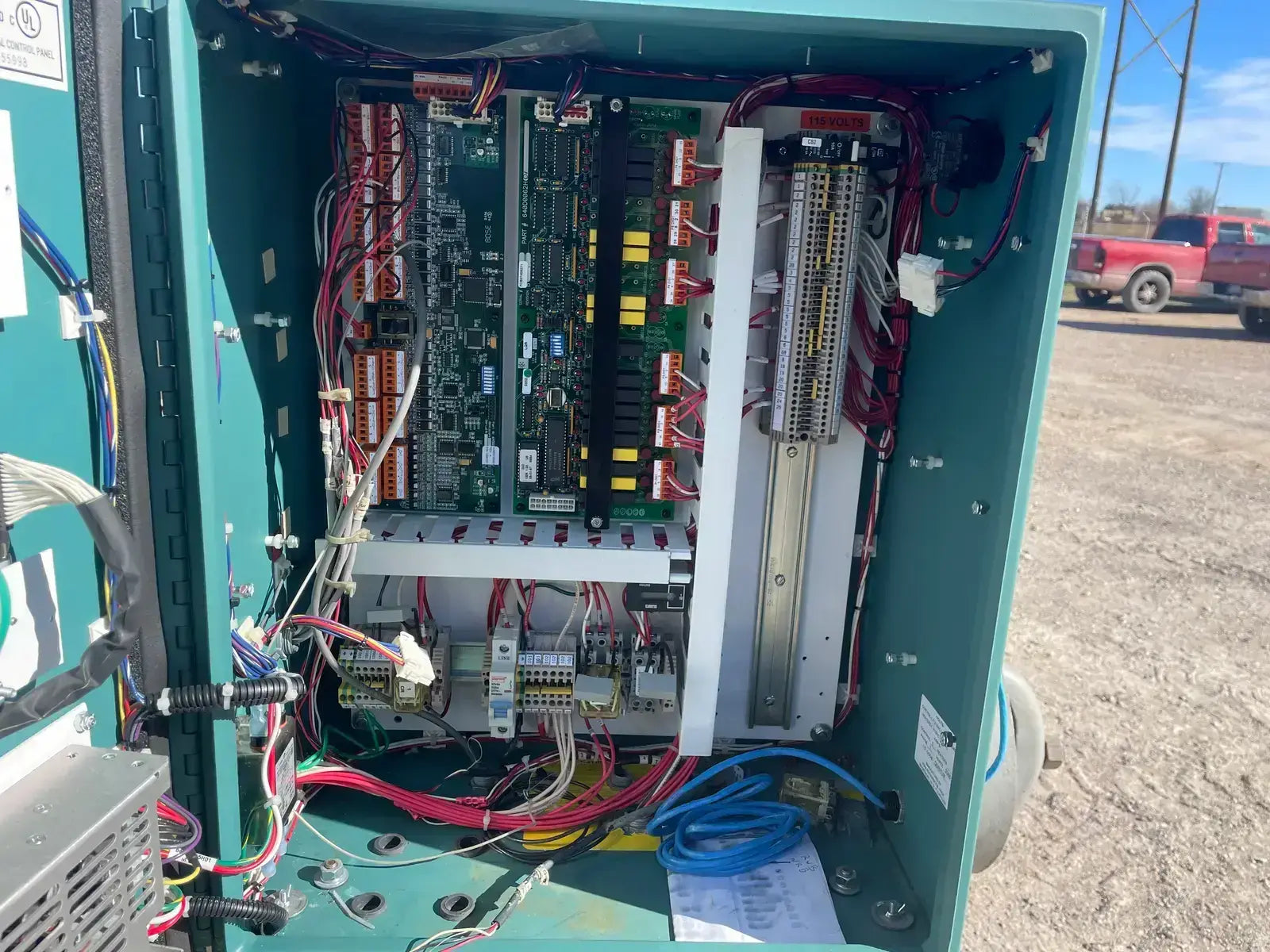

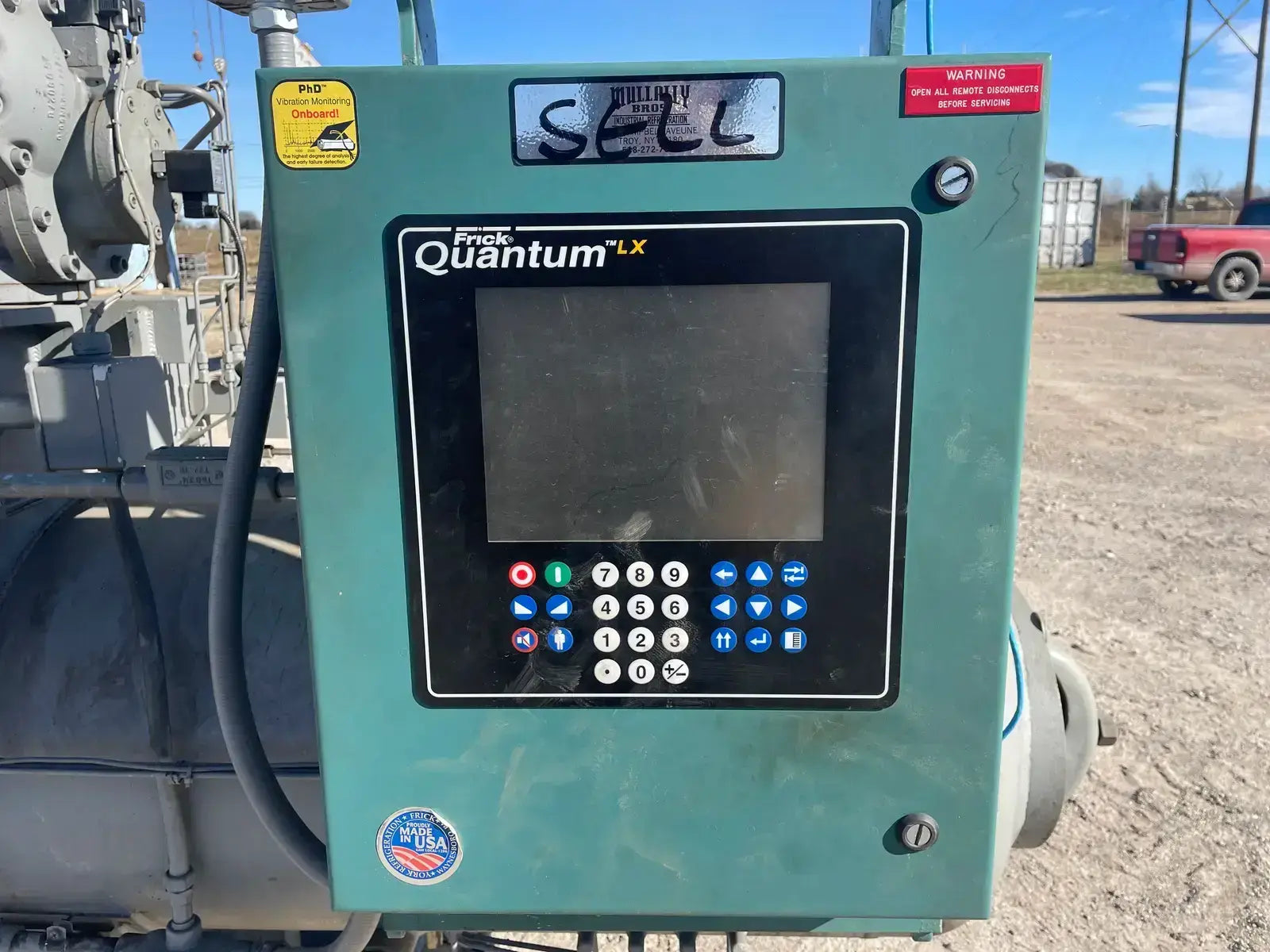

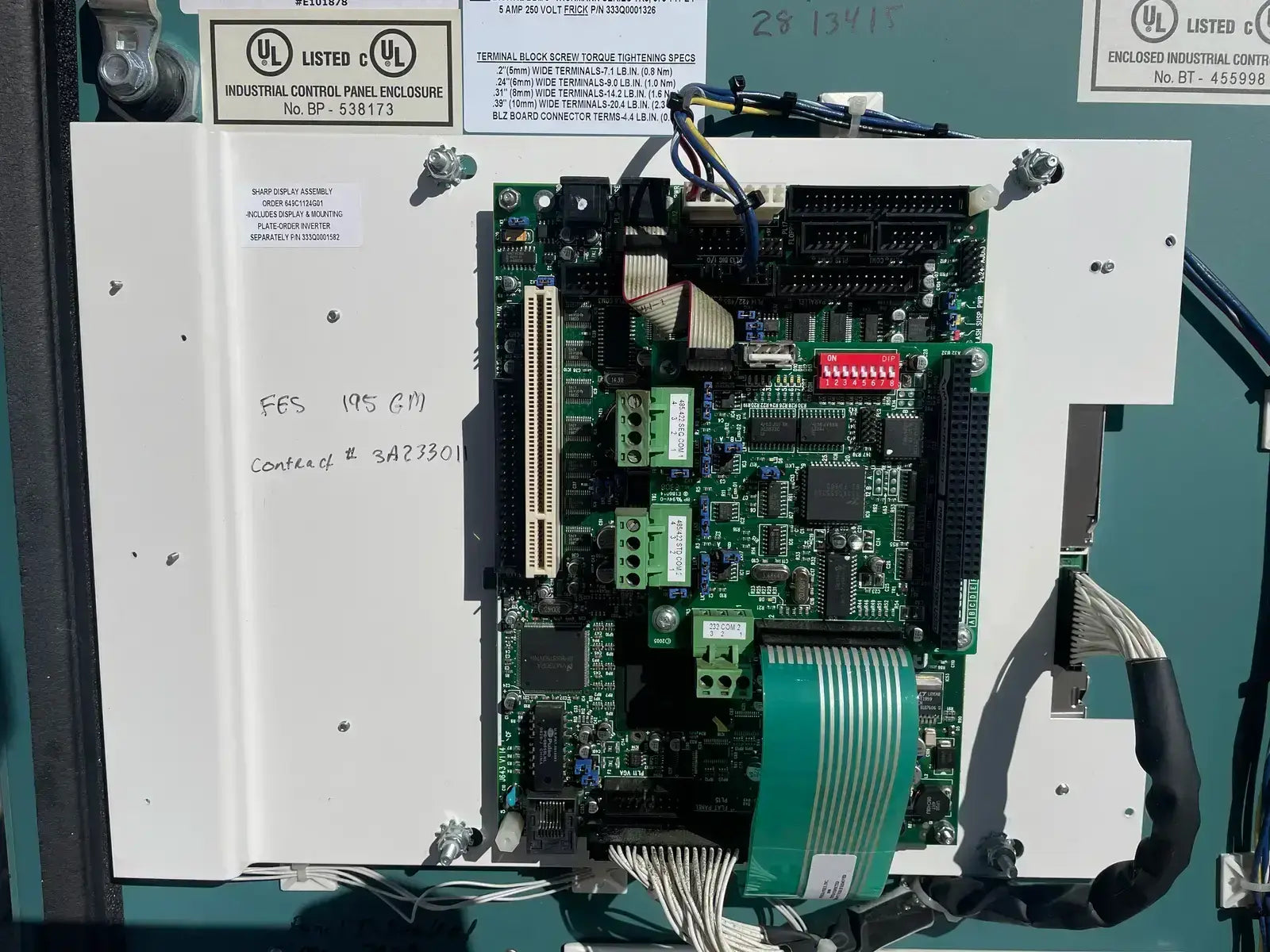

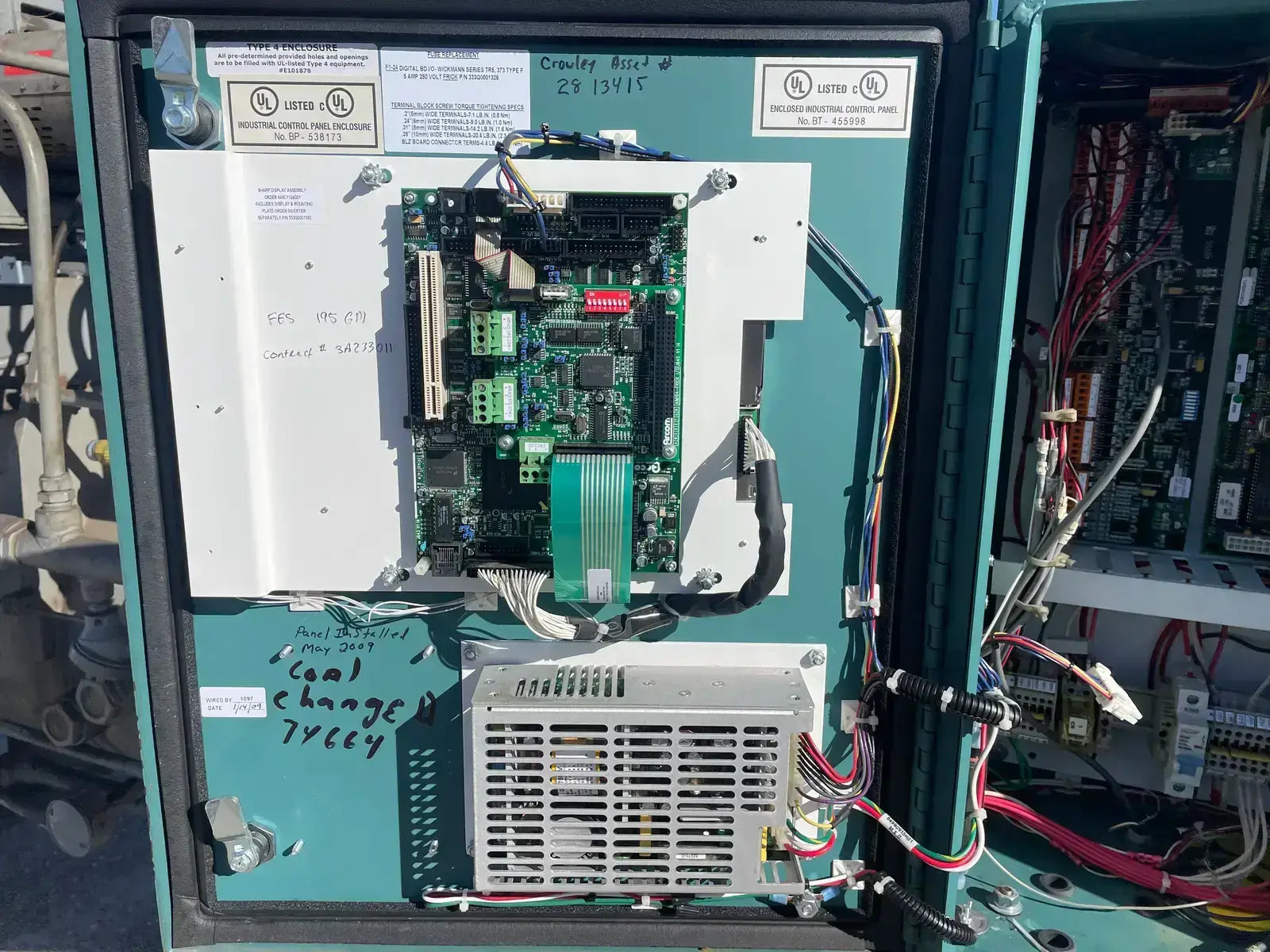

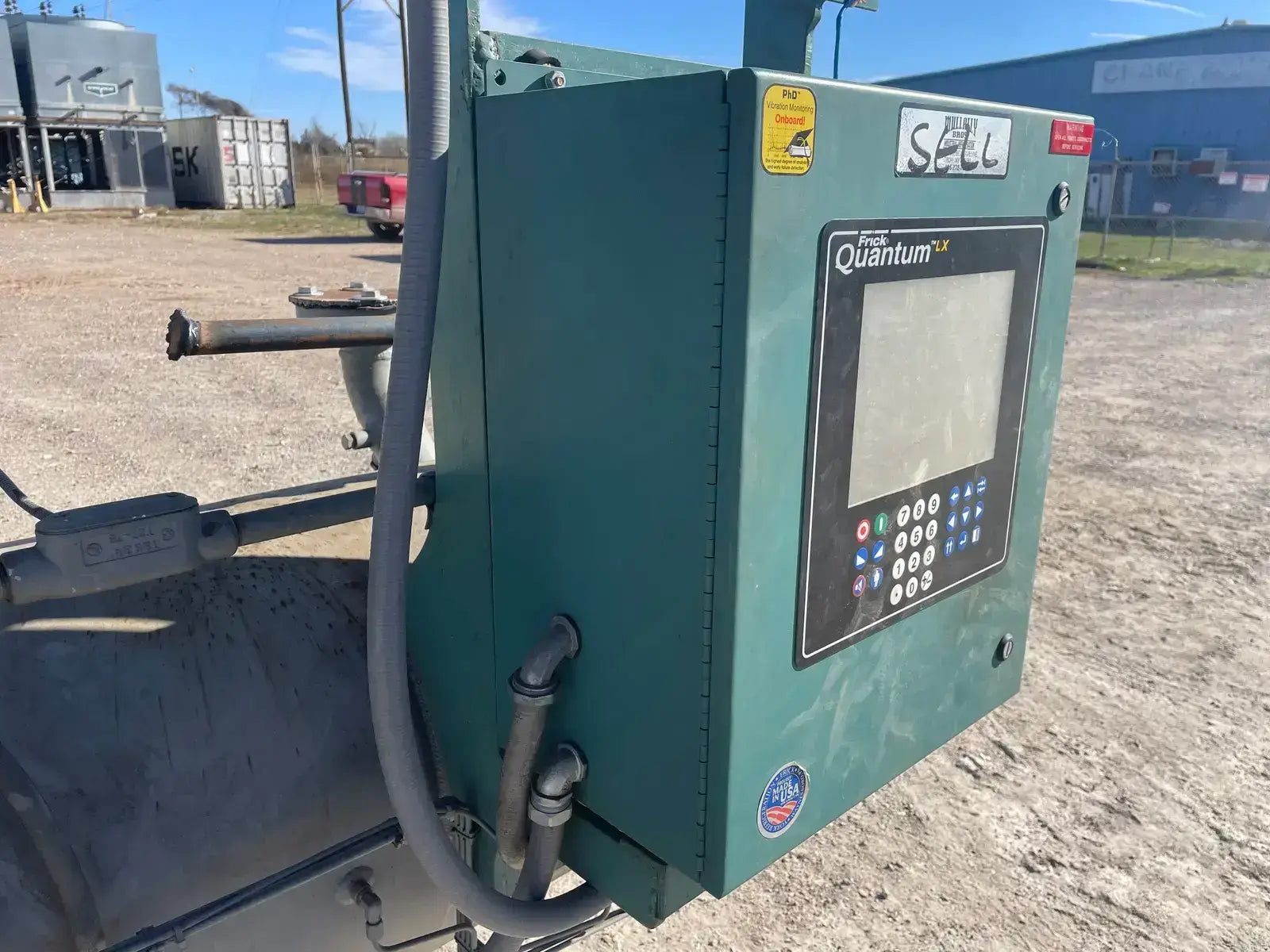

Micro Panel Details
- Micro Control Panel Included? Yes
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

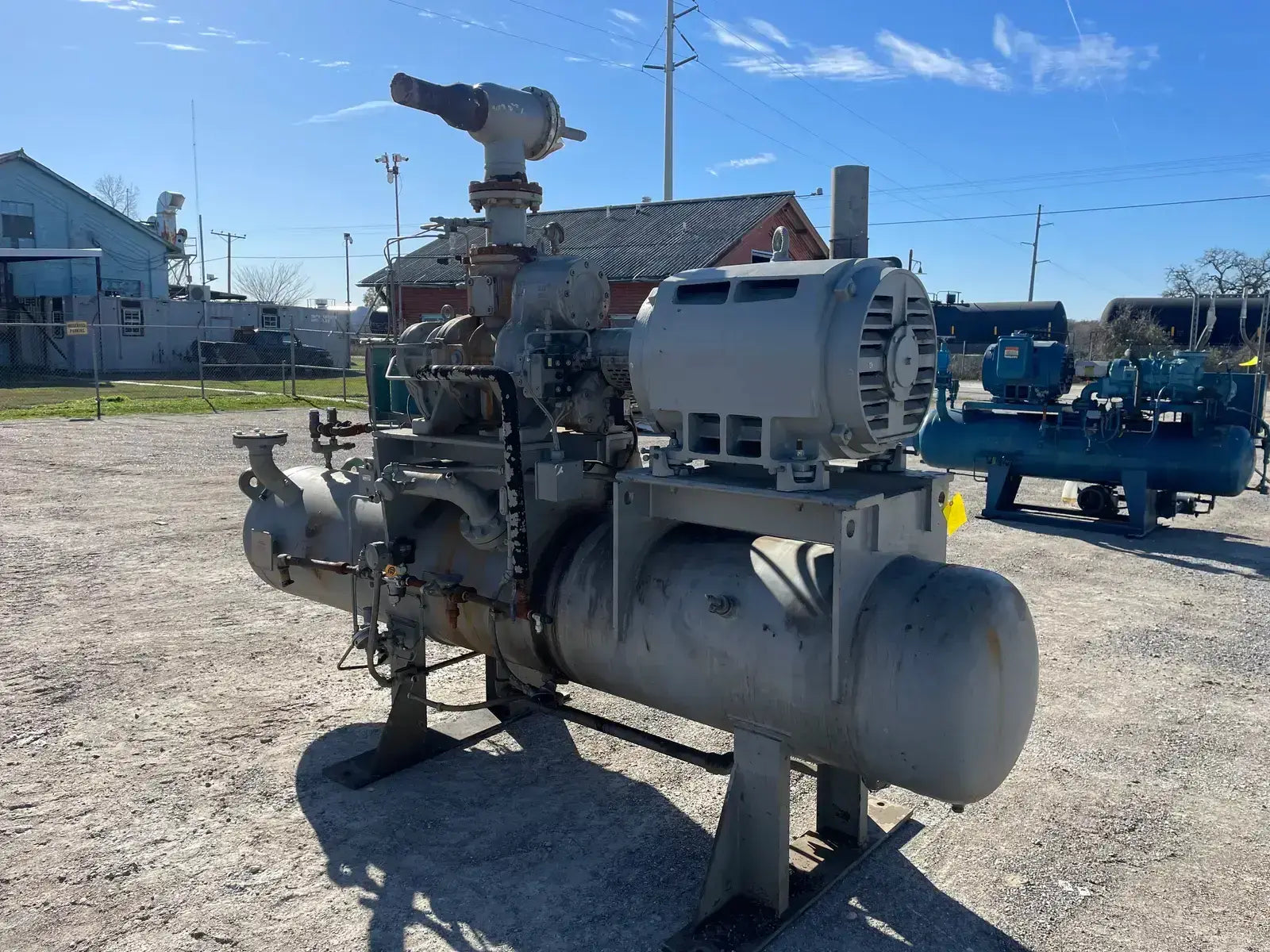

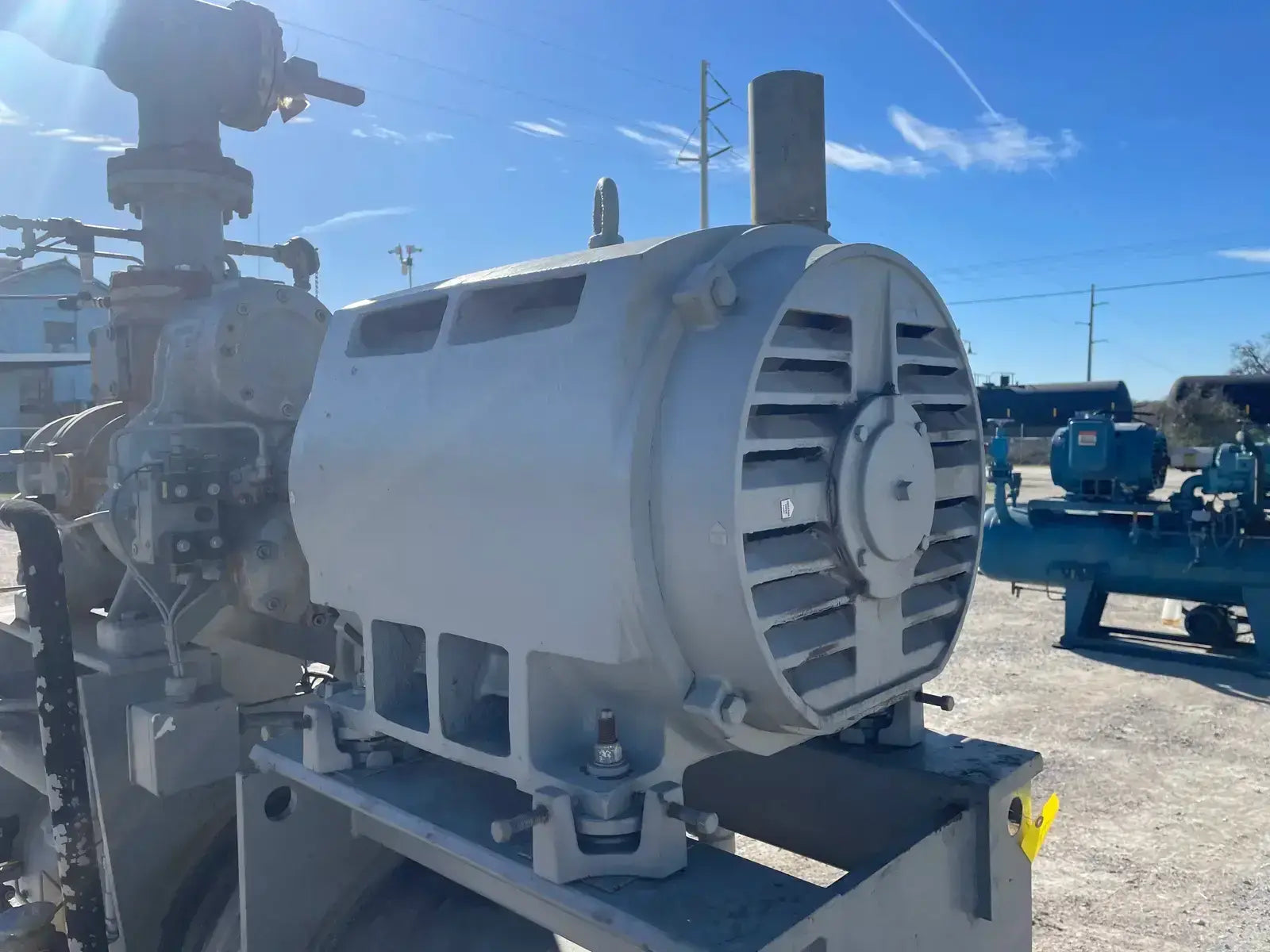

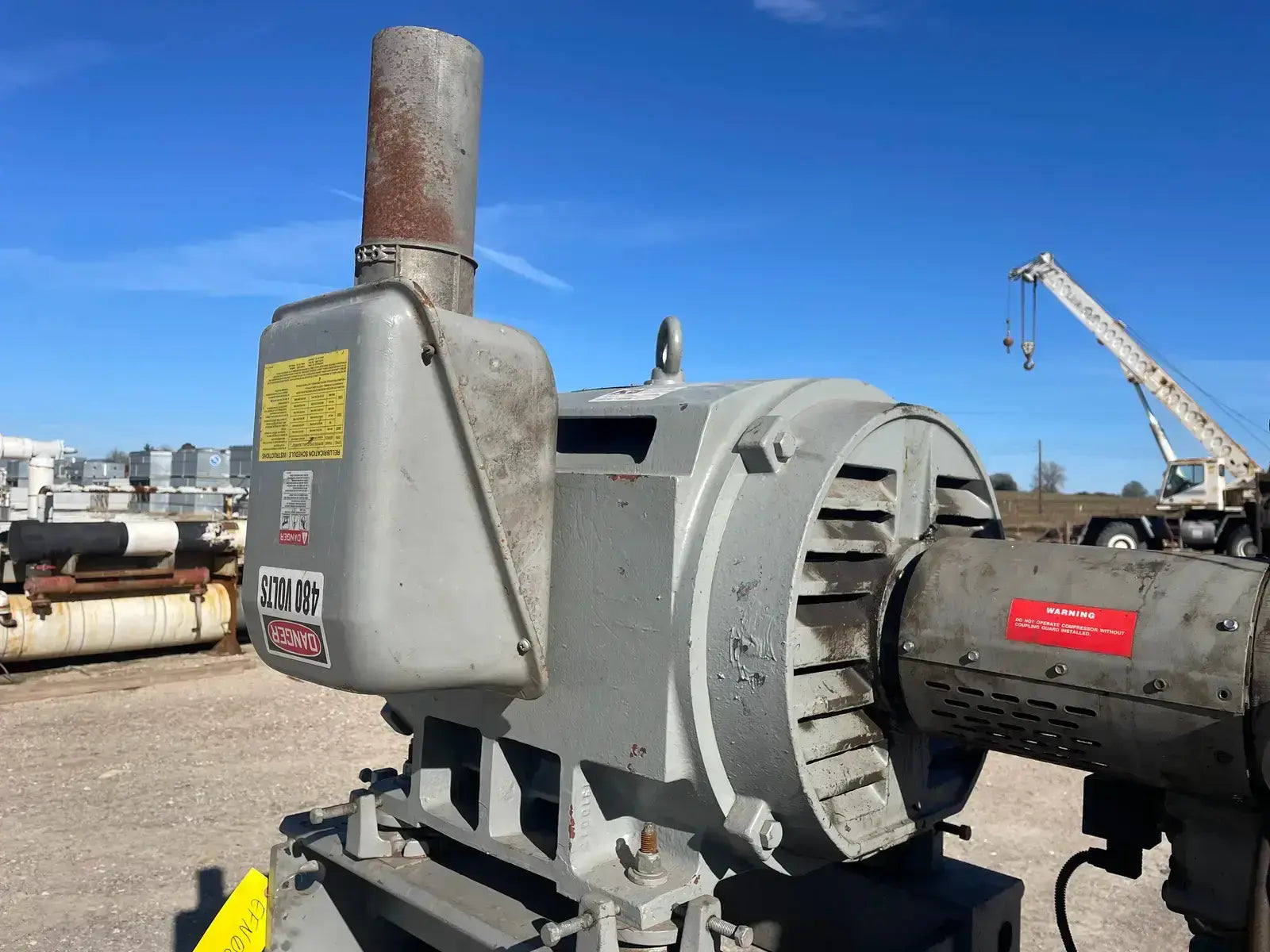

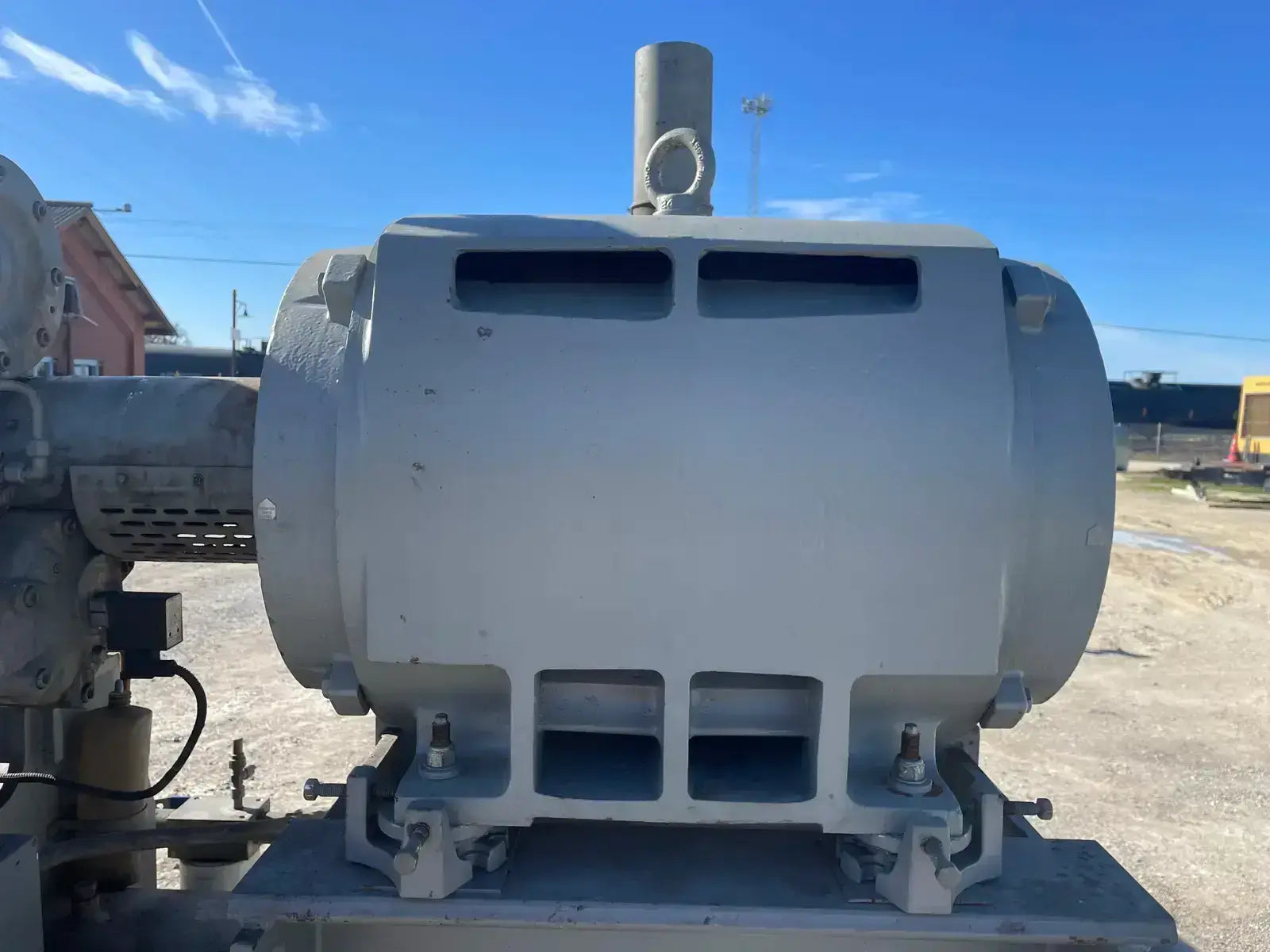

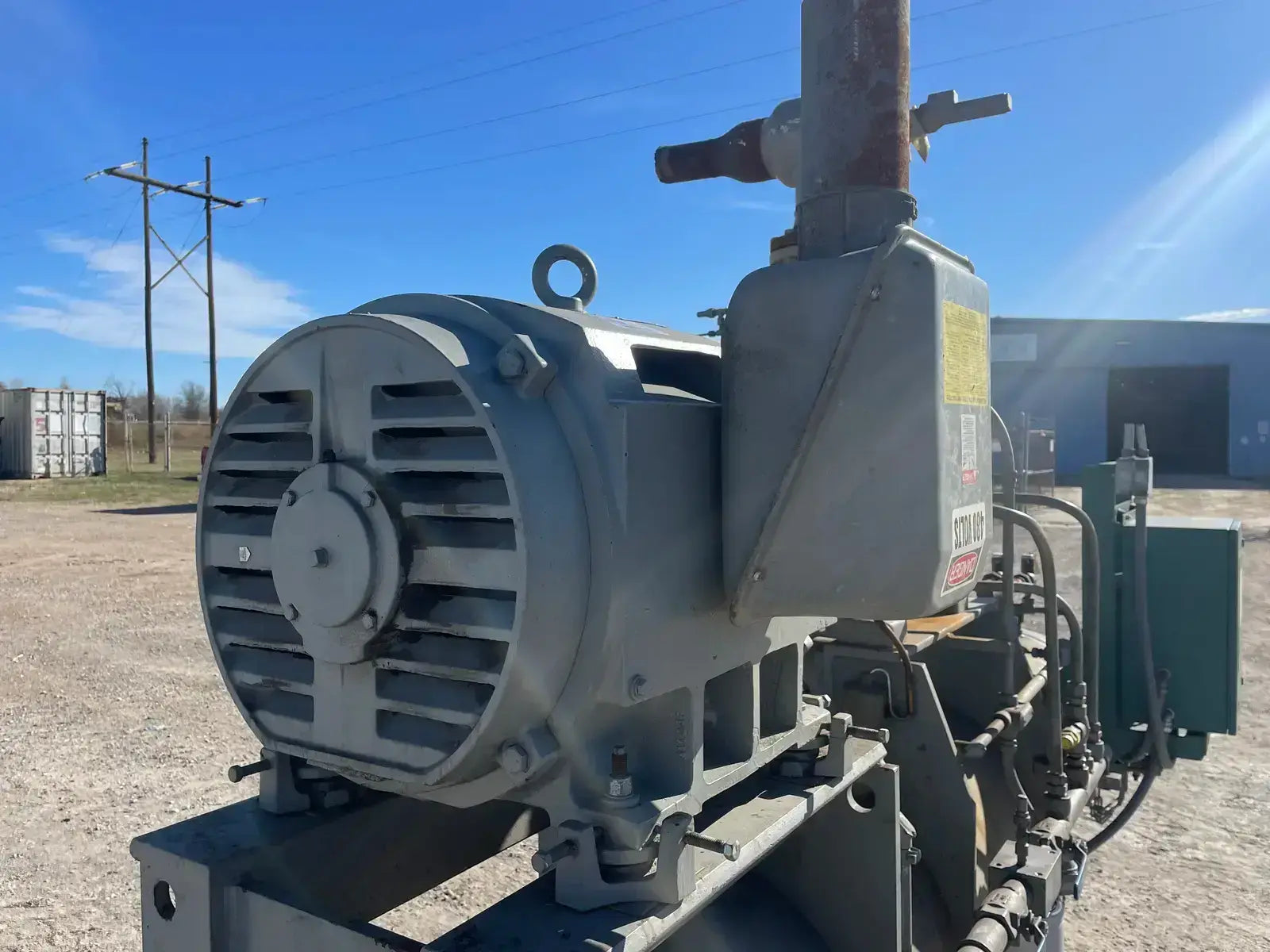

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 250
- Motor RPM: 3,575
- Motor Voltage: 230/460
- Motor Amps: 560/280
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 445TS
Dimensions:
- Length (Inches): 140
- Width (Inches): 49
- Height (Inches): 98
- Weight (LBS): 6,500
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2003
- Known Issues or Problems: The package data plate is not available.
