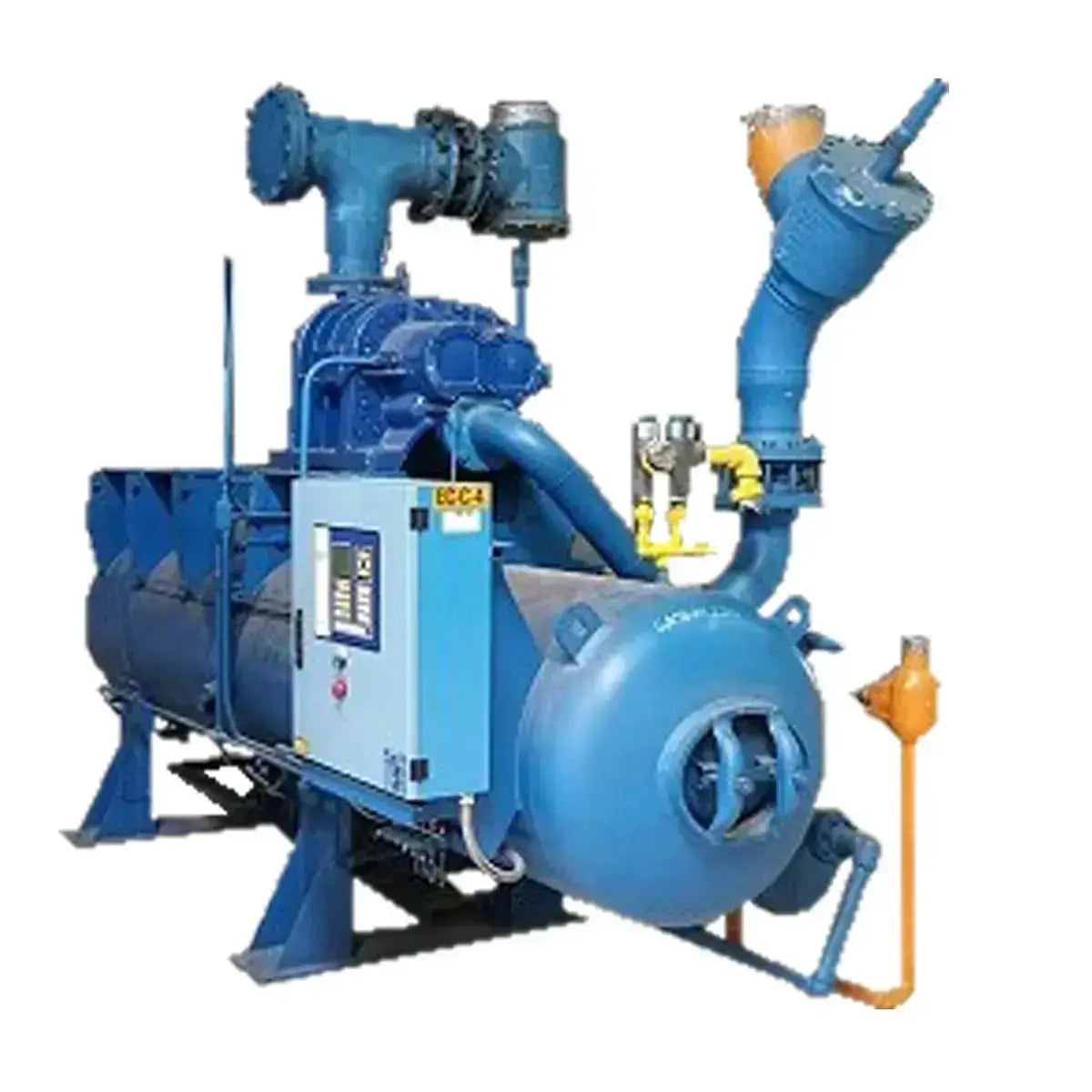

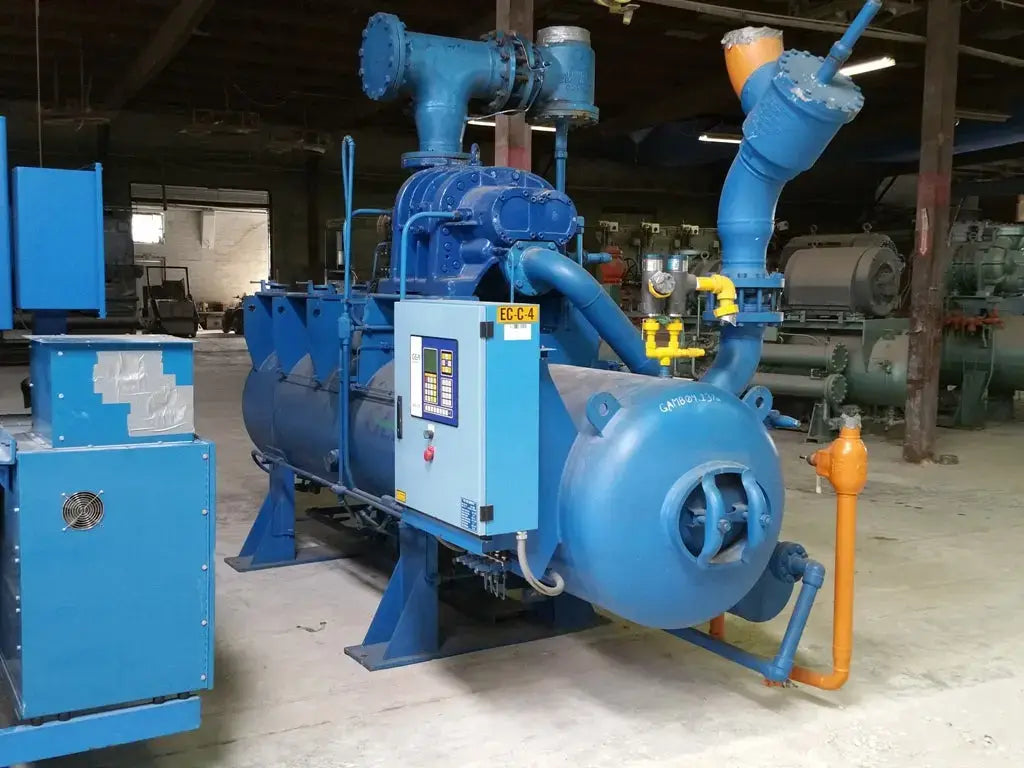

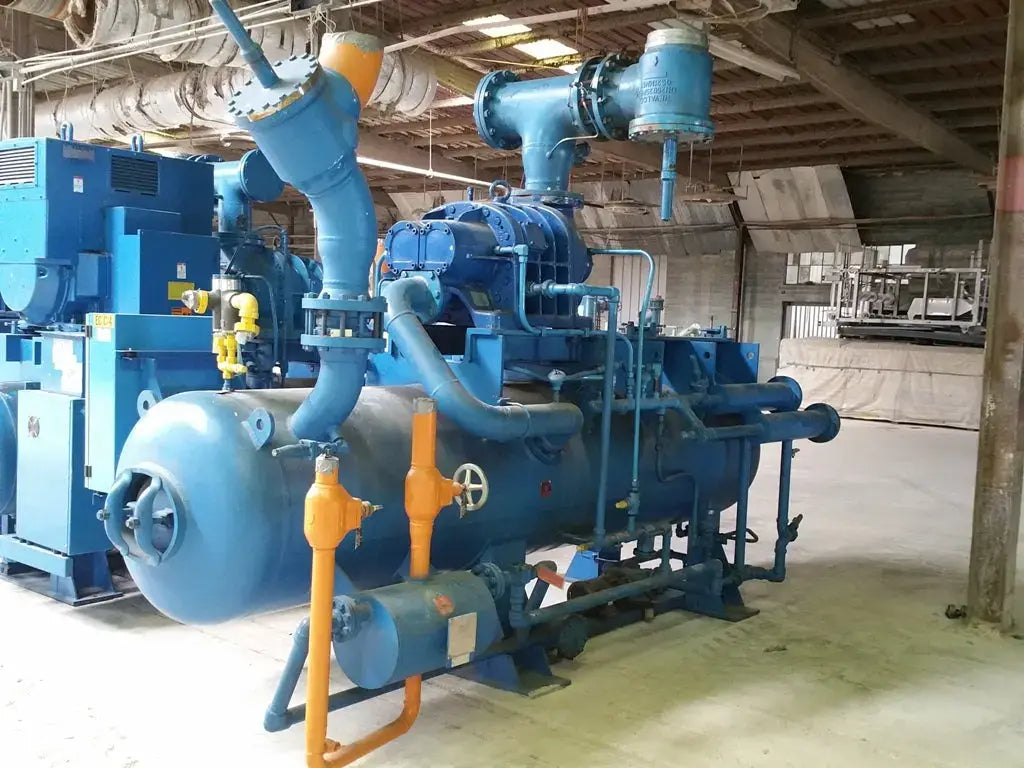

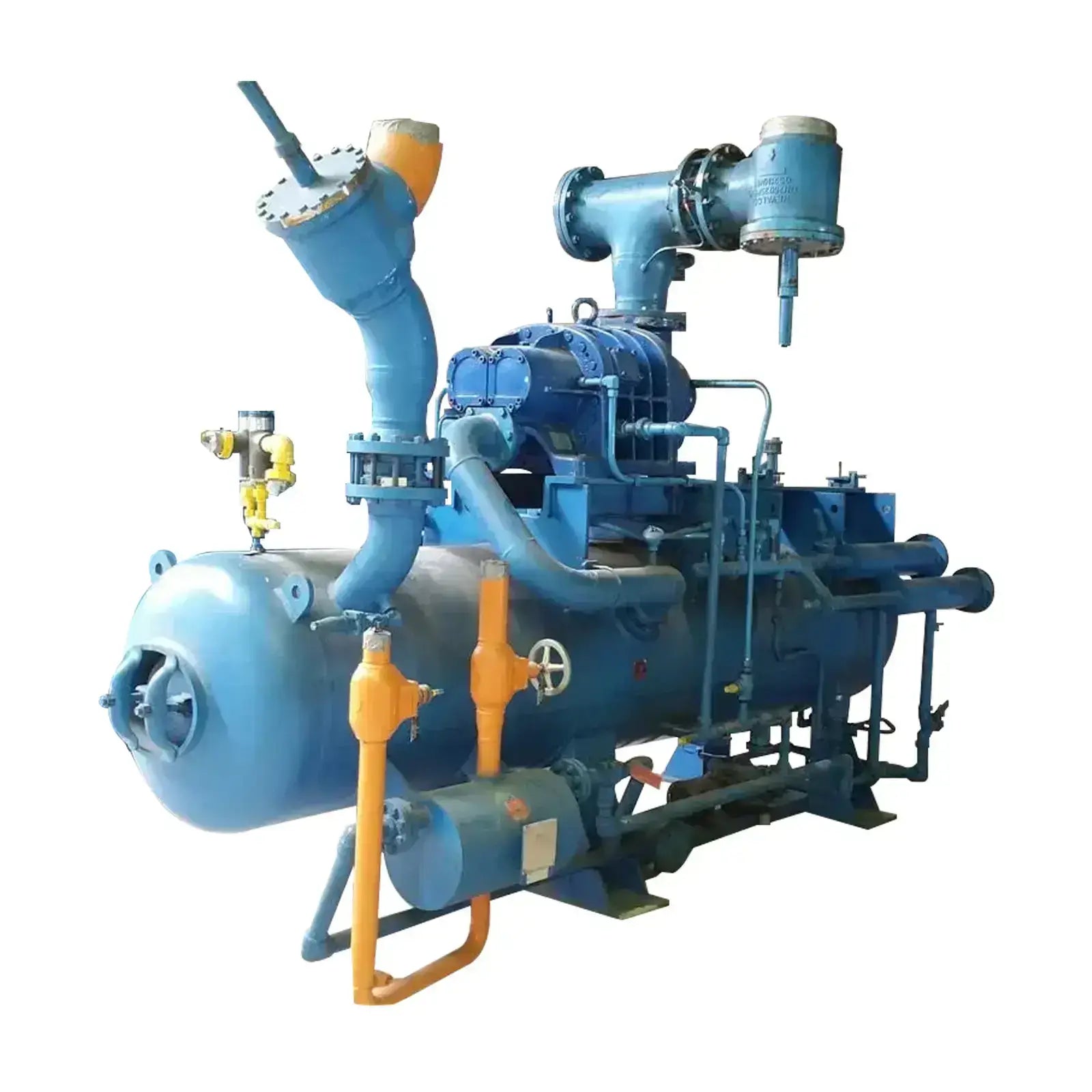

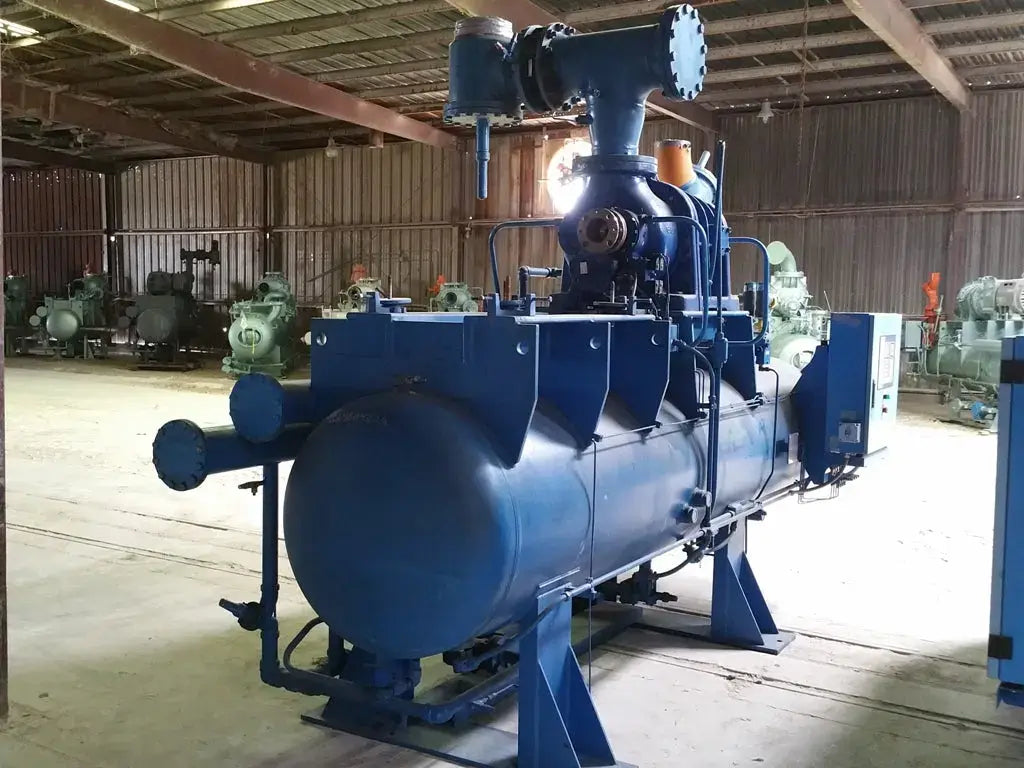

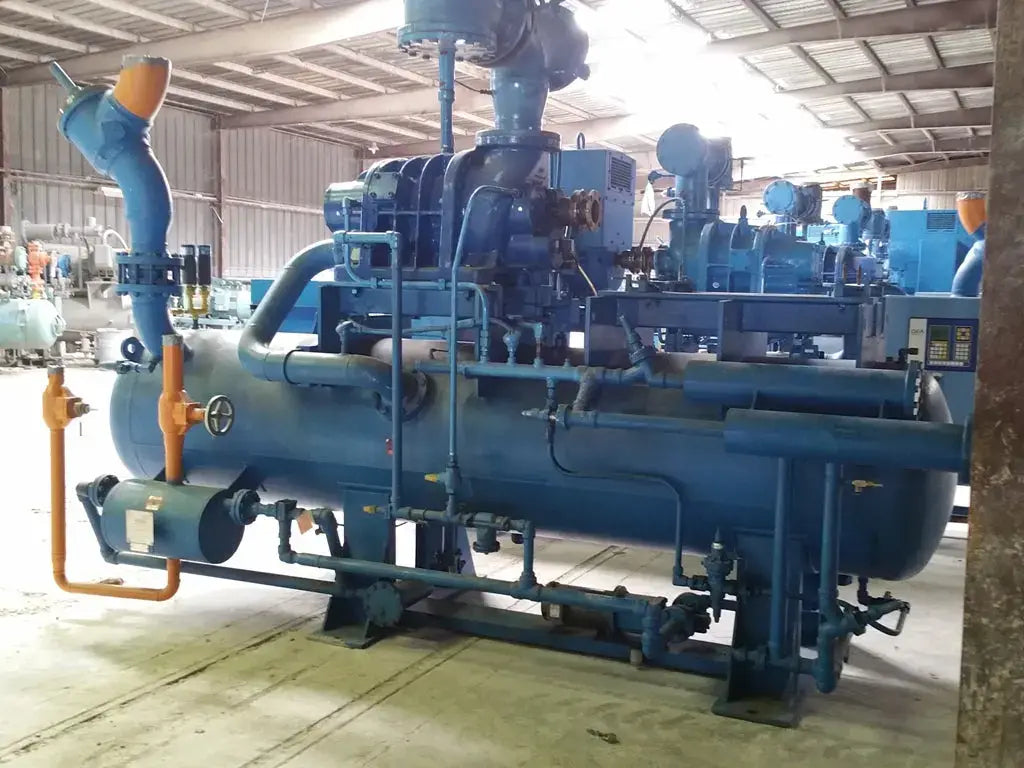

GEA 565GL Rotary Screw Compressor Package (GEA Y-52, MISSING MOTOR, GEA Micro Control Panel)

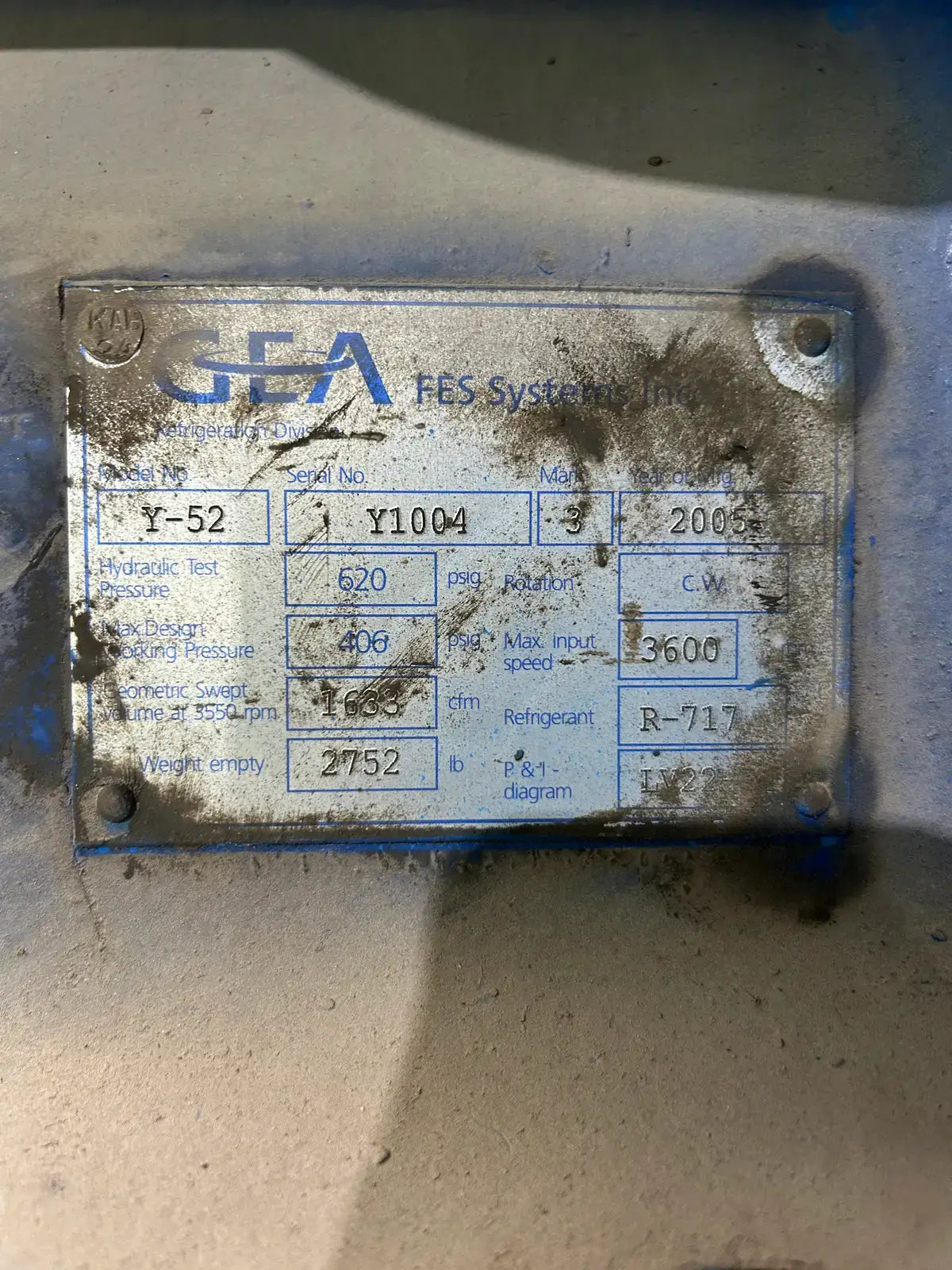

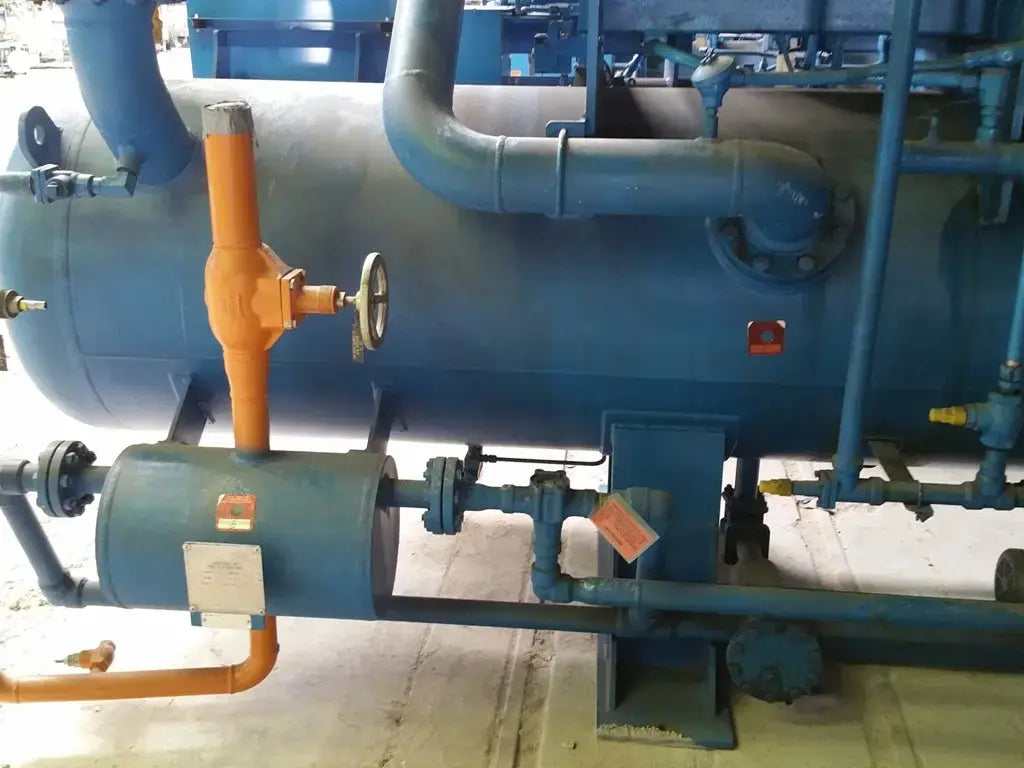

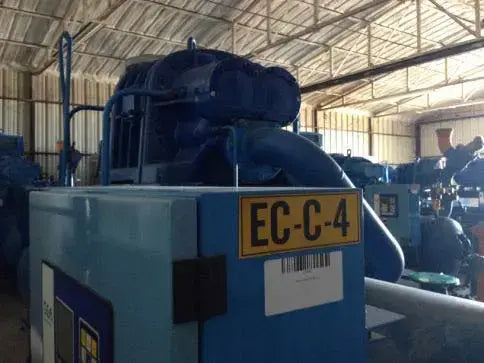

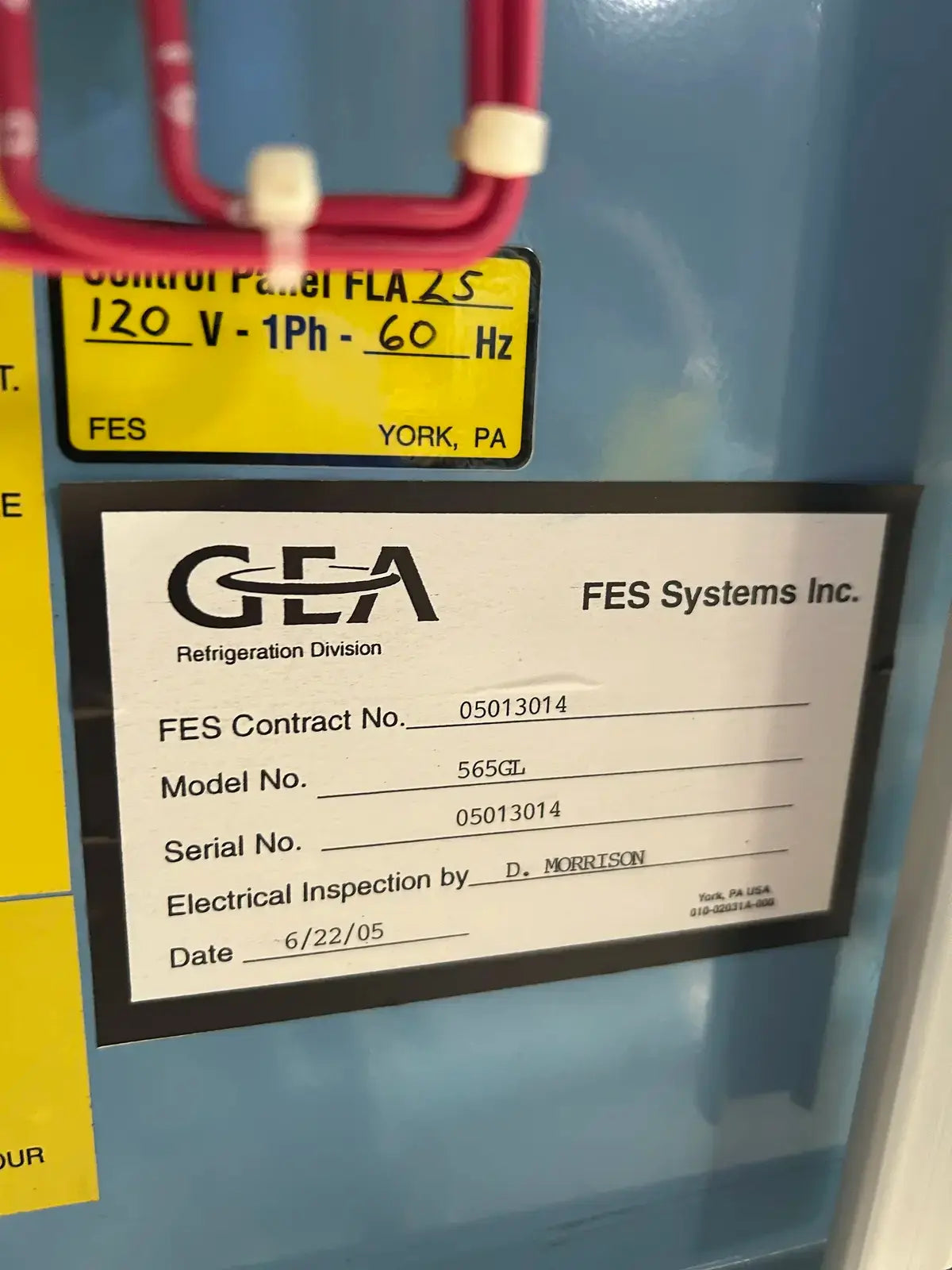

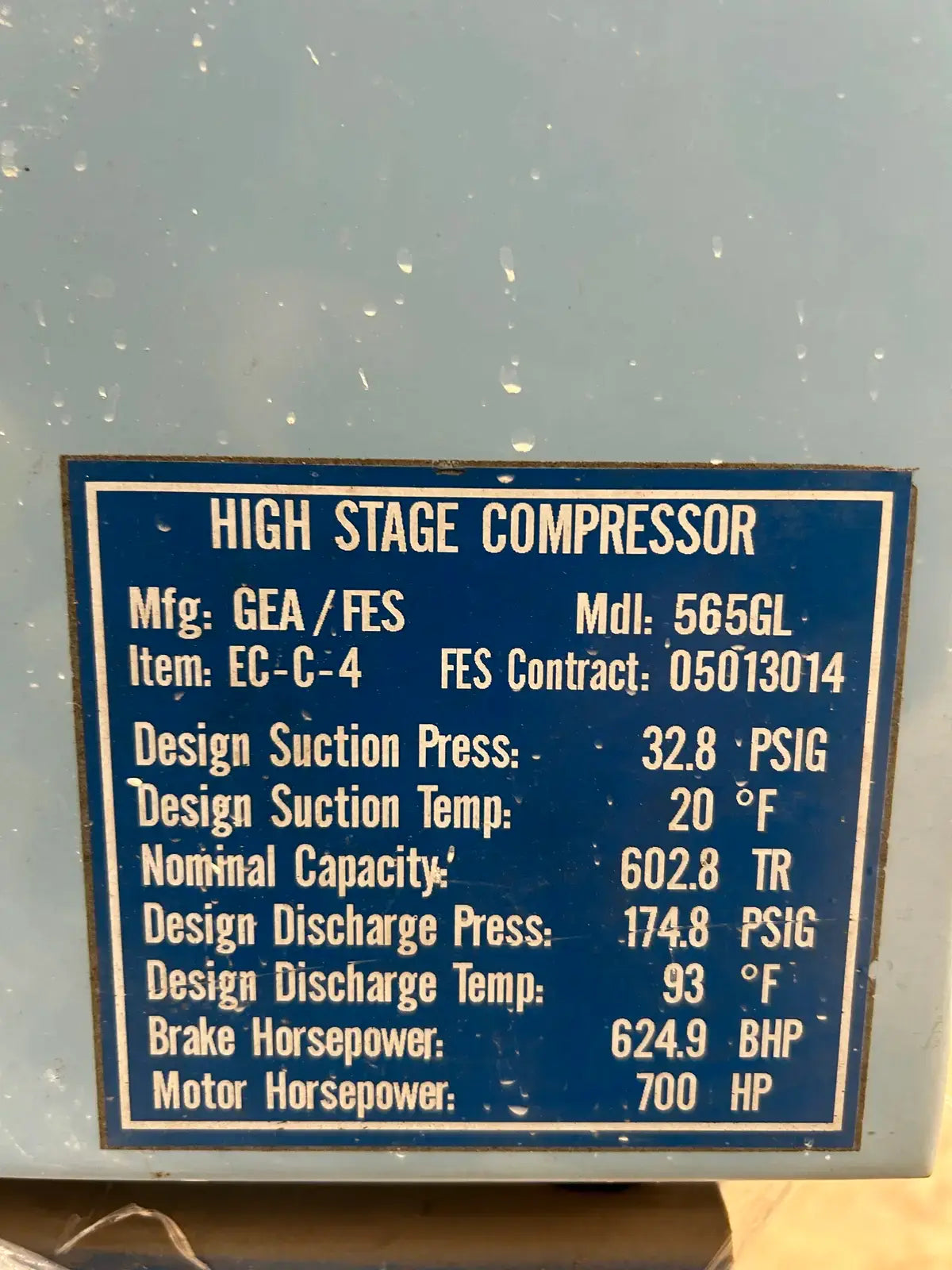

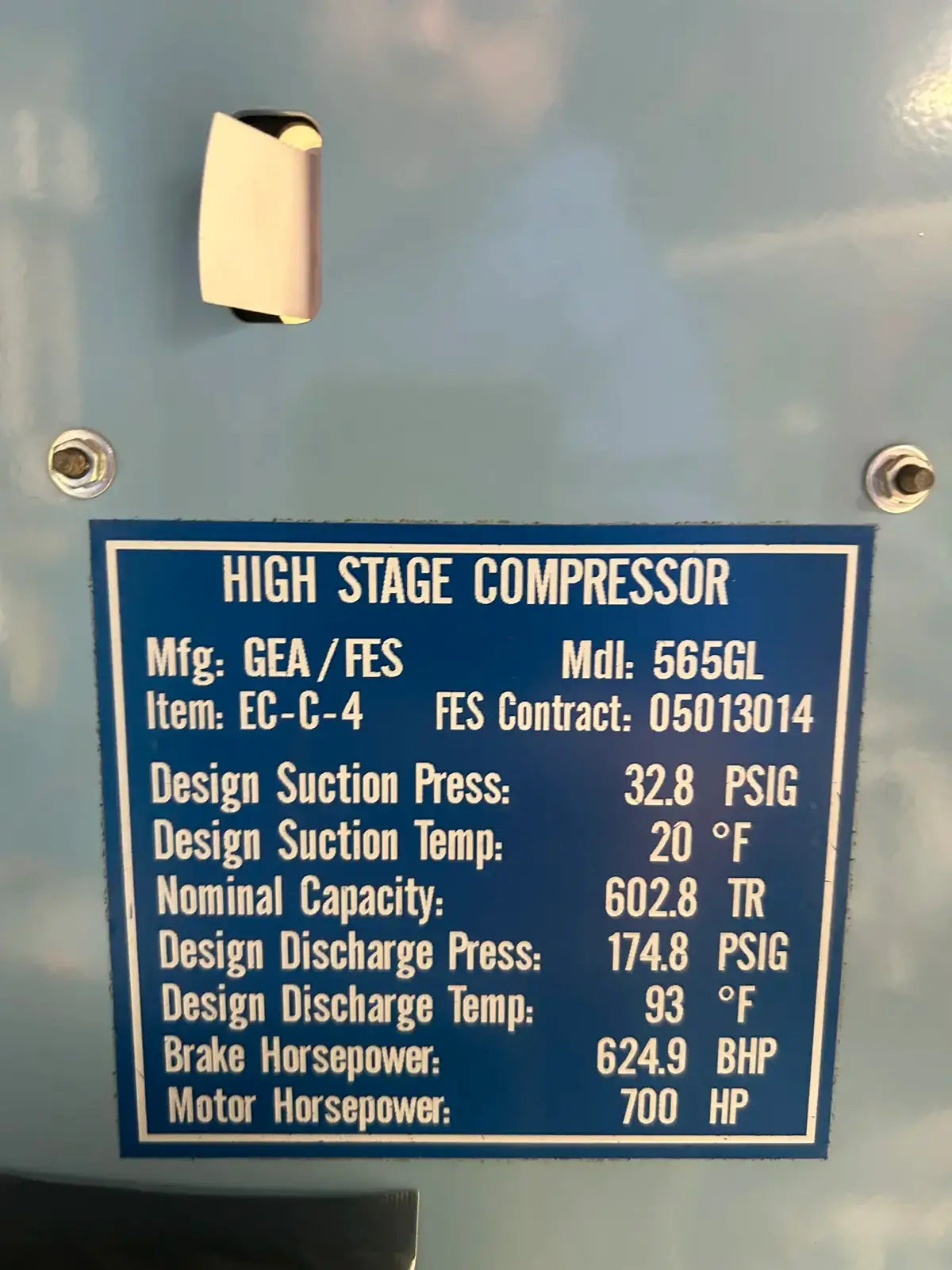

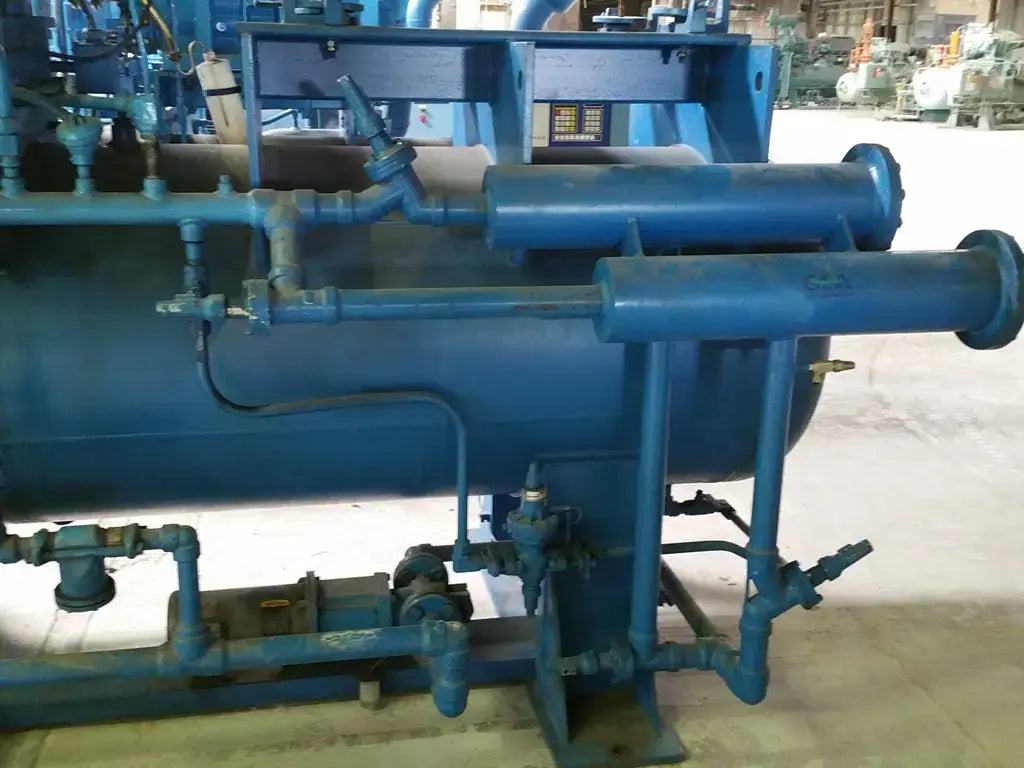

GEA / FES Rotary Screw Compressor Package. Model 565GL. Year: 2005. Item EC-C-4. FES Contract 05013014. Design suction: 32.8 PSIG / 20F. Nominal capacity: 602.8 TR. Design Discharge: 174.8 PSIG / 93F. Brake HP: 624.9. Includes GEA micro. Refrigerant: ammonia. Removed from operation in January/February 2014. Unit has been stored indoors. Package is equipped with: Grasso brand compressor, Thermosyphon Oil Coolers, Shell and Plate style, Oversized Oil Separators, Dual Oil Filters, Motor Temperature and Vibration Sensors, Benshaw motor starter, and Ram Industries motor. Compressor specs: model Y-52, serial Y10C4, Mark 3, year 2005, 406 PSIG MDWP, 1633 CFM, R-717. The Grasso Y has a throughput of 1703 CFM. Cooling capacity (NH3 ammonia): 608 KW at -35C/+35F and 2321 KW at 0C/+35C (172.88 TR at -31F/+95F and 660 TR at +32F/+95F). Motor not included. Hours runtime: 18,296. Weight: 17,000 lbs. Overall dimensions: 92 in. x 207 in. x 139 in. high.
Product Details
- Stock No: GAMB04.137a
- Manufacturer: GEA
- Model: 565GL
- Serial Number: 5013014
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage

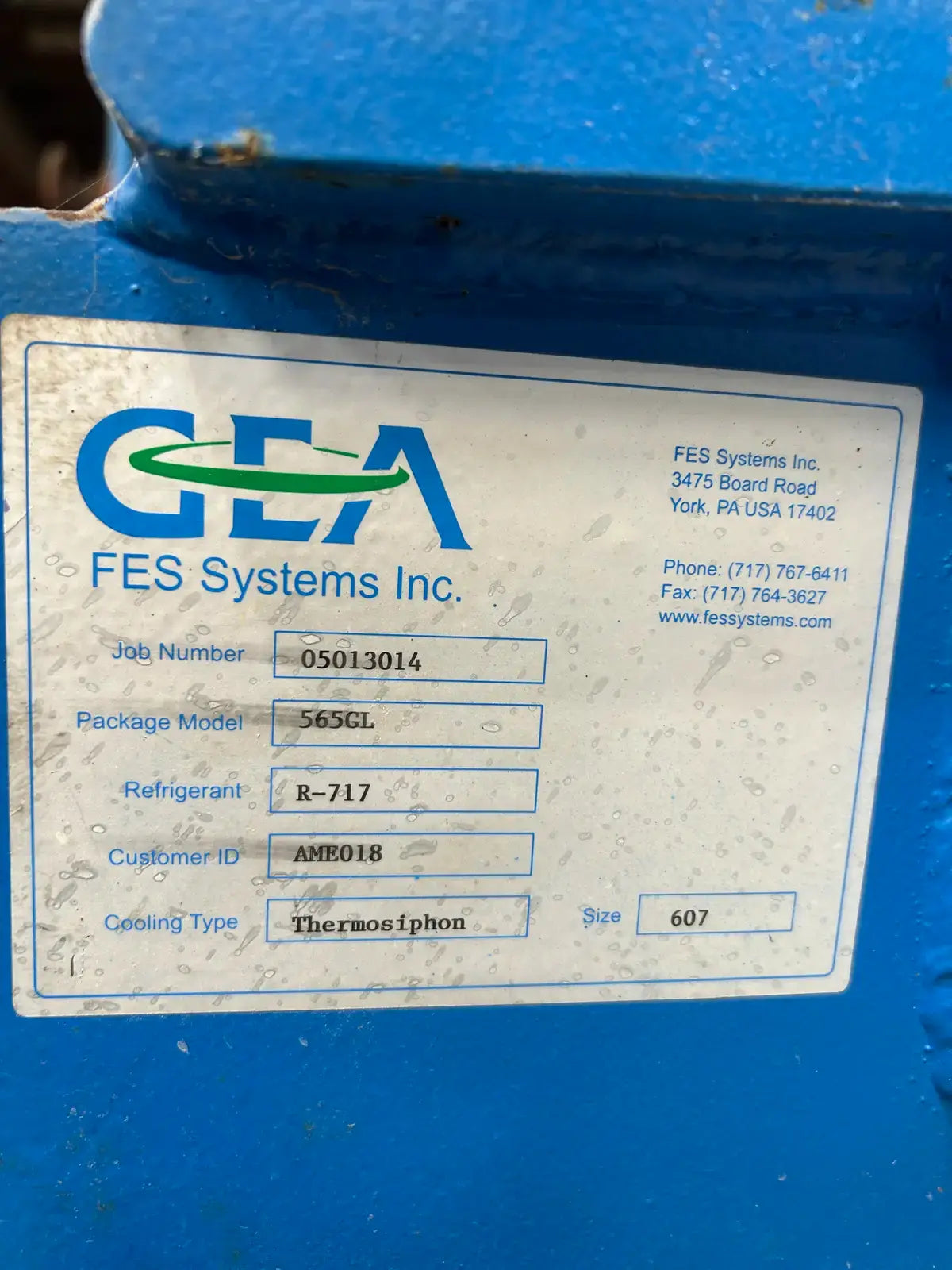

Package Details
- Package Manufacturer: GEA
- Package Model: 565GL
- Package SN: 5013014
- Package Order: 5013014

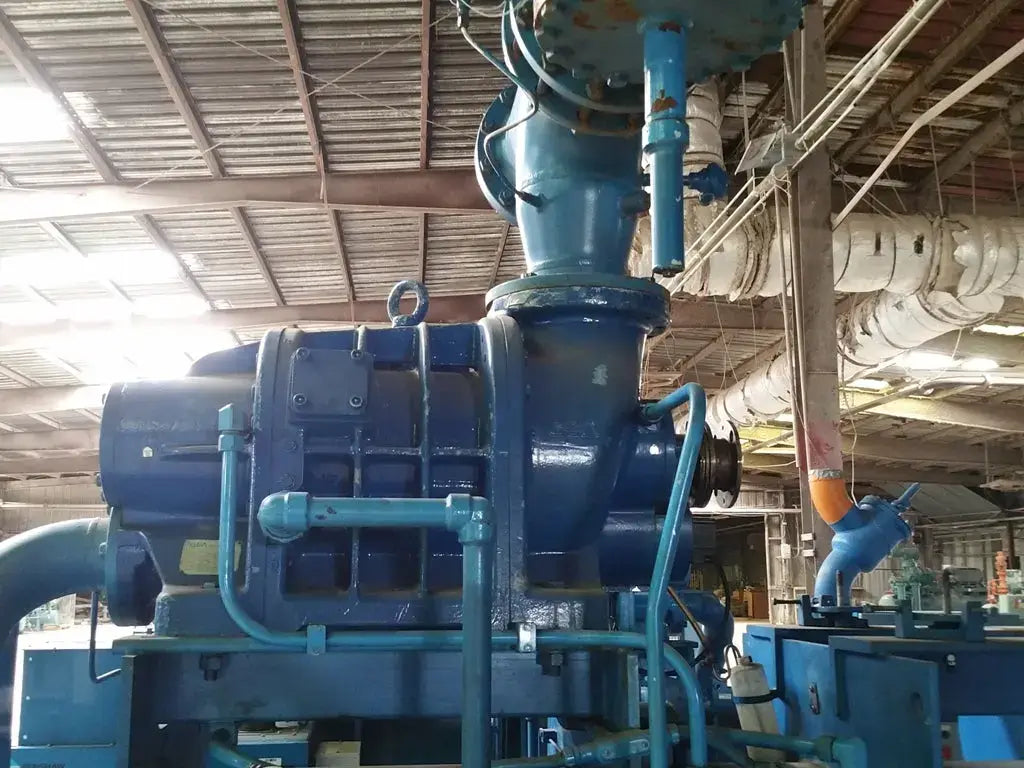

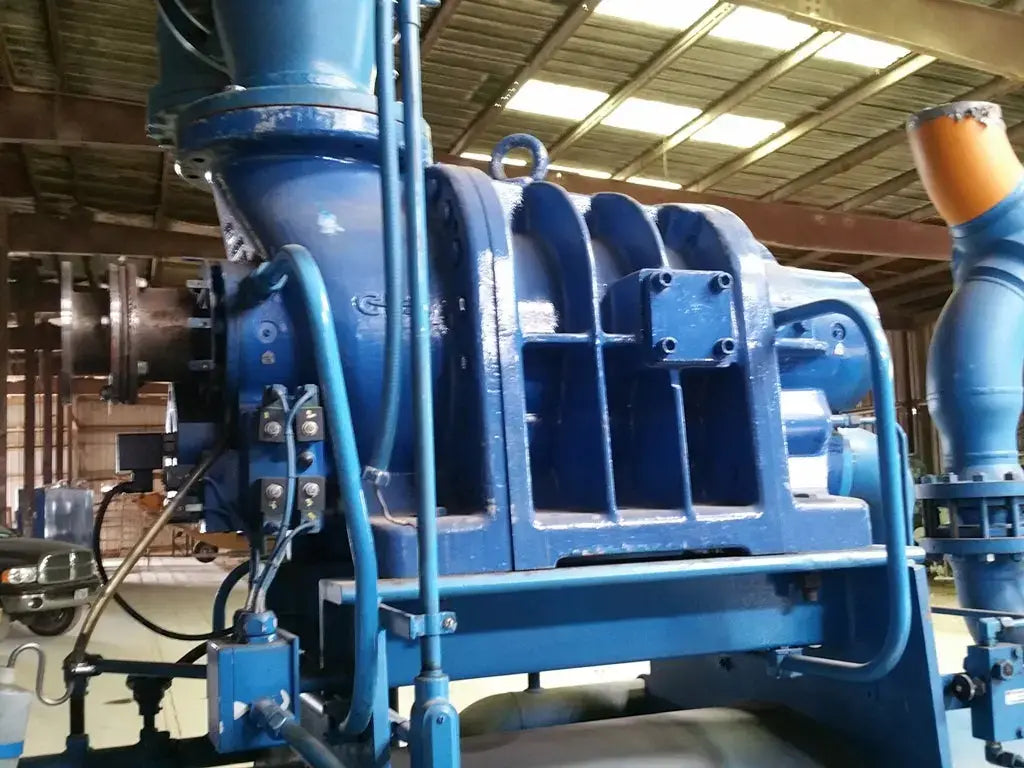

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: GEA
- # Compressors in Package: 1
- Compressor Model: Y-52
- Compressor SN: Y10C4
- Compressor Max Speed (RPM): 3600
- Compressor Design Pressure (PSIG): 406
- Compressor Year Manufactured: 2005
- Compressor Run Time Hours: 18296
- Oil Separator Included? Yes
- Oil Cooling Type: Thermosiphon

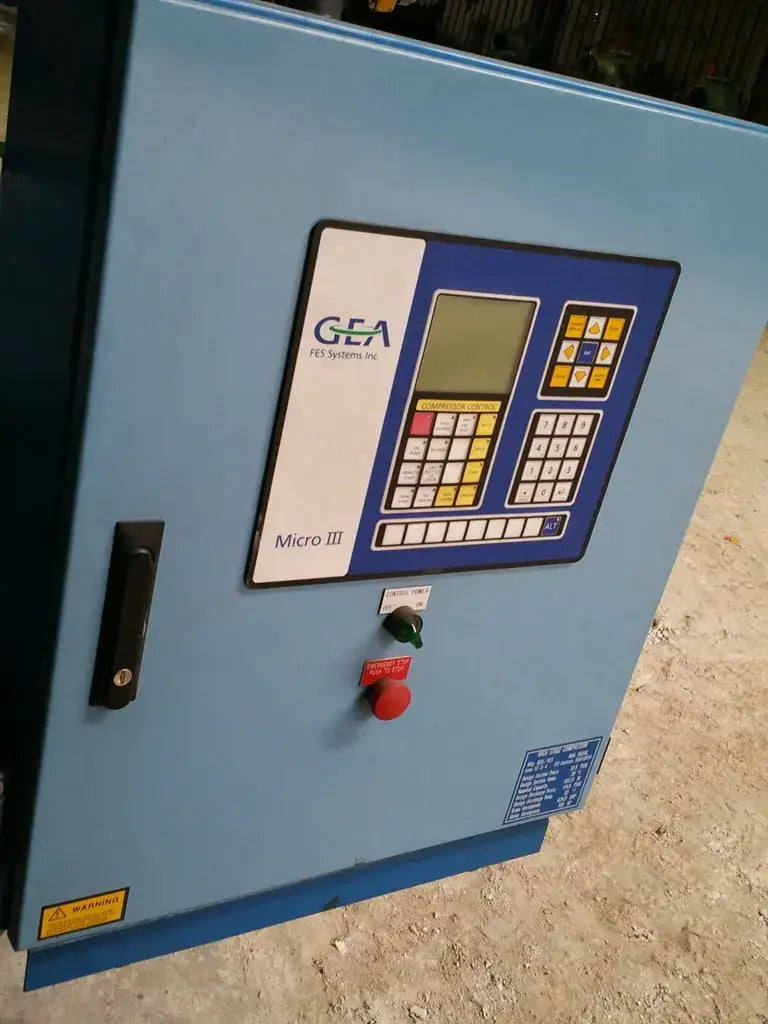

Micro Panel Details

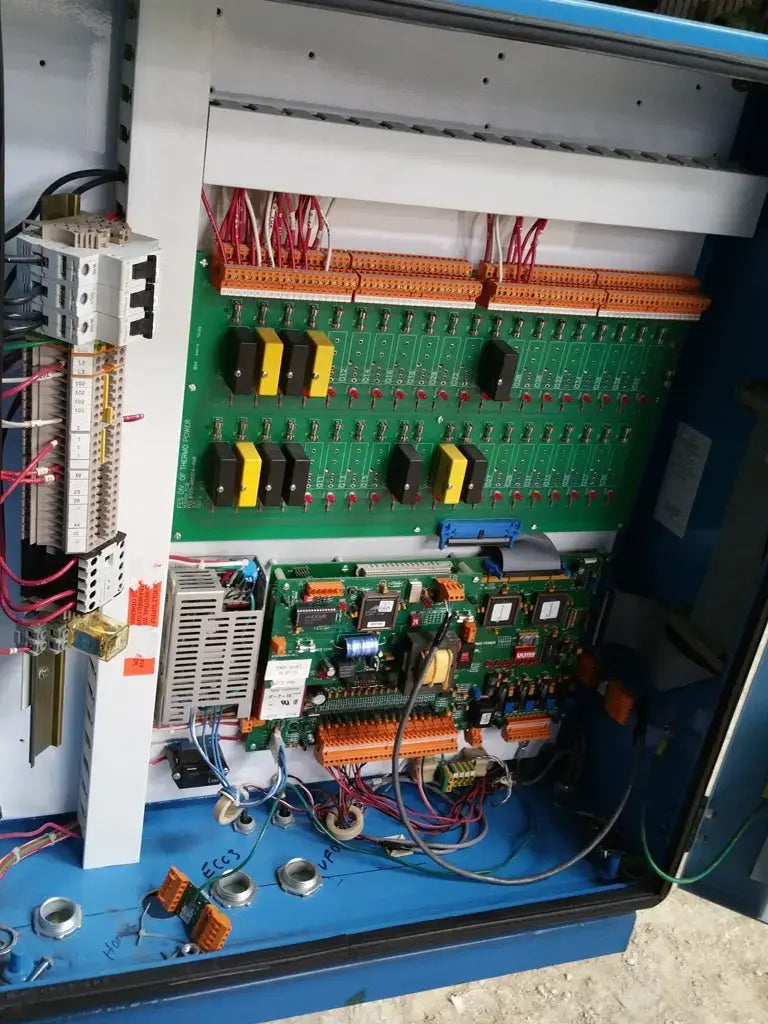

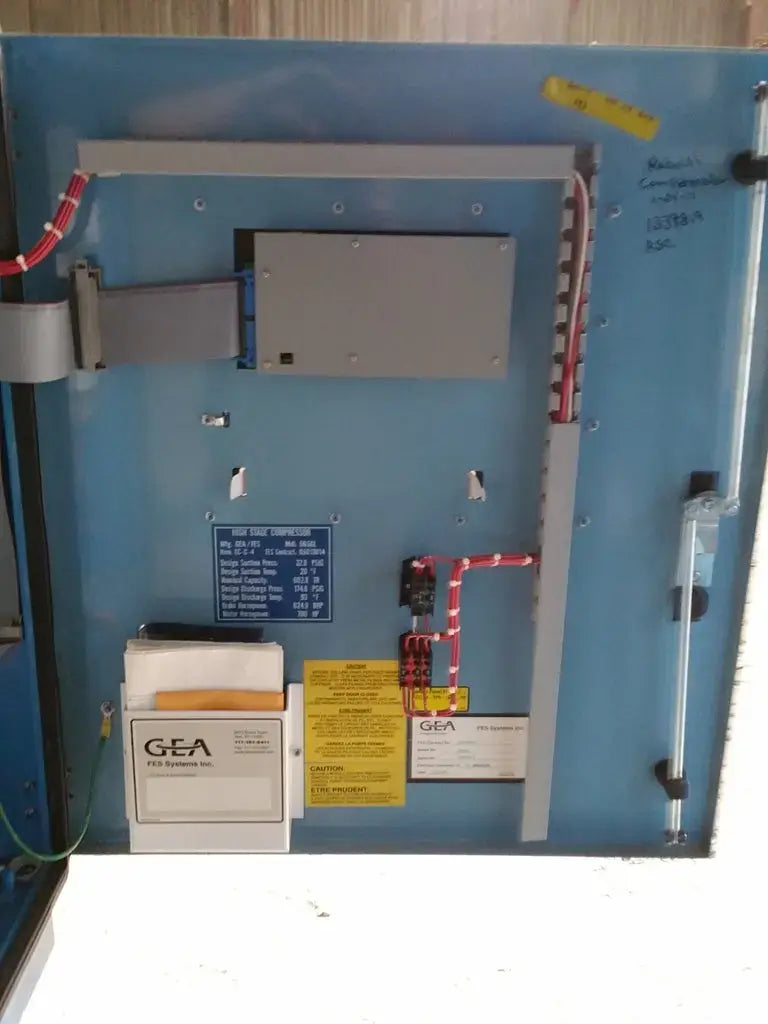

- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: GEA
Motor Starter Details
- Motor Starter Included? Yes
- Motor Starter Manufacturer: Benshaw
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 2017
- Width (Inches): 92
- Height (Inches): 139
- Weight (LBS): 17000
Additional Product Details
- Year of Manufacture: 2005
- Year Removed from Production: 2014
- Spec Sheet Available: Yes
