GEA 85GS Rotary Screw Compressor Package (GEA G-61, 40 HP 206 V)

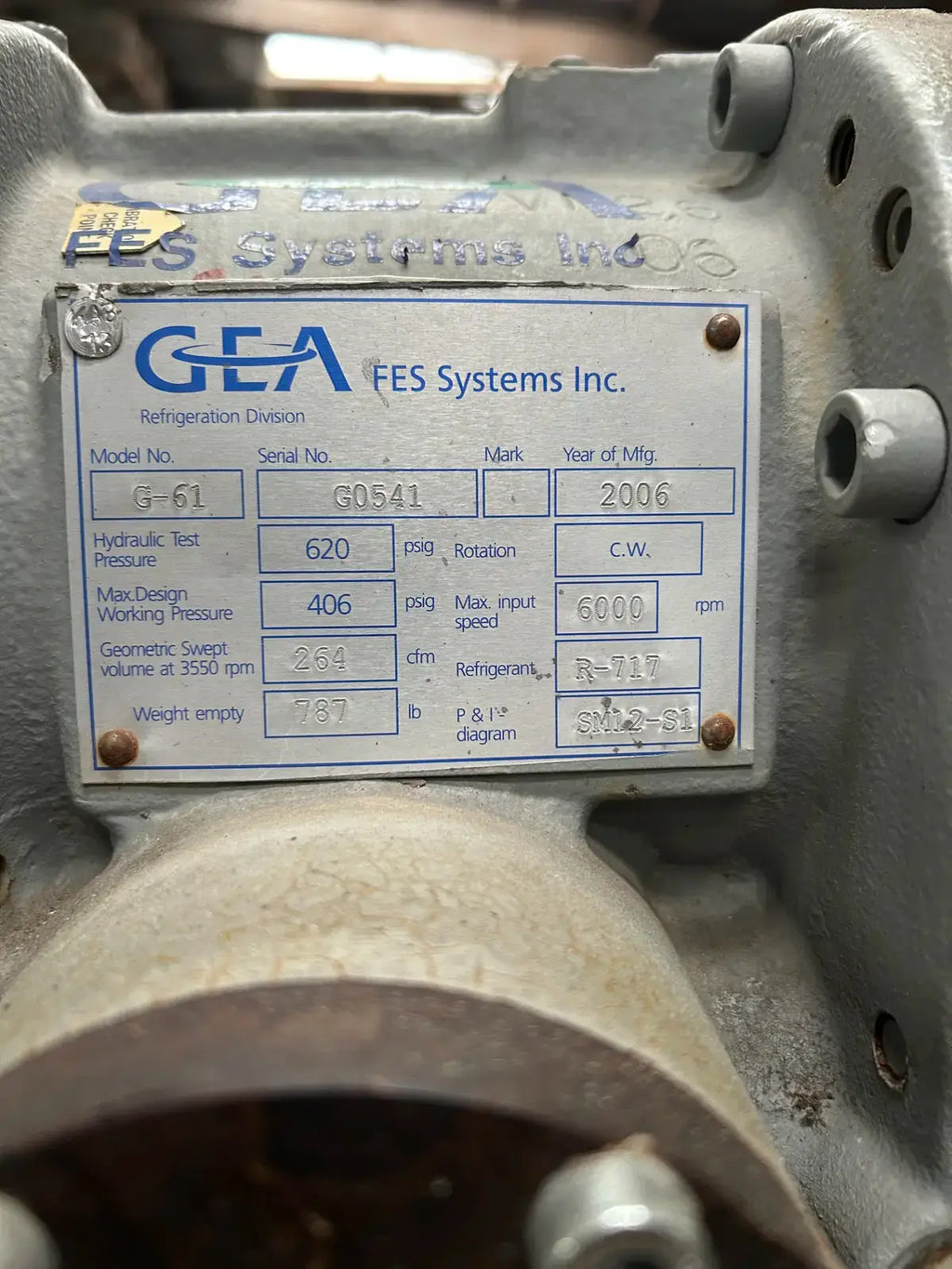

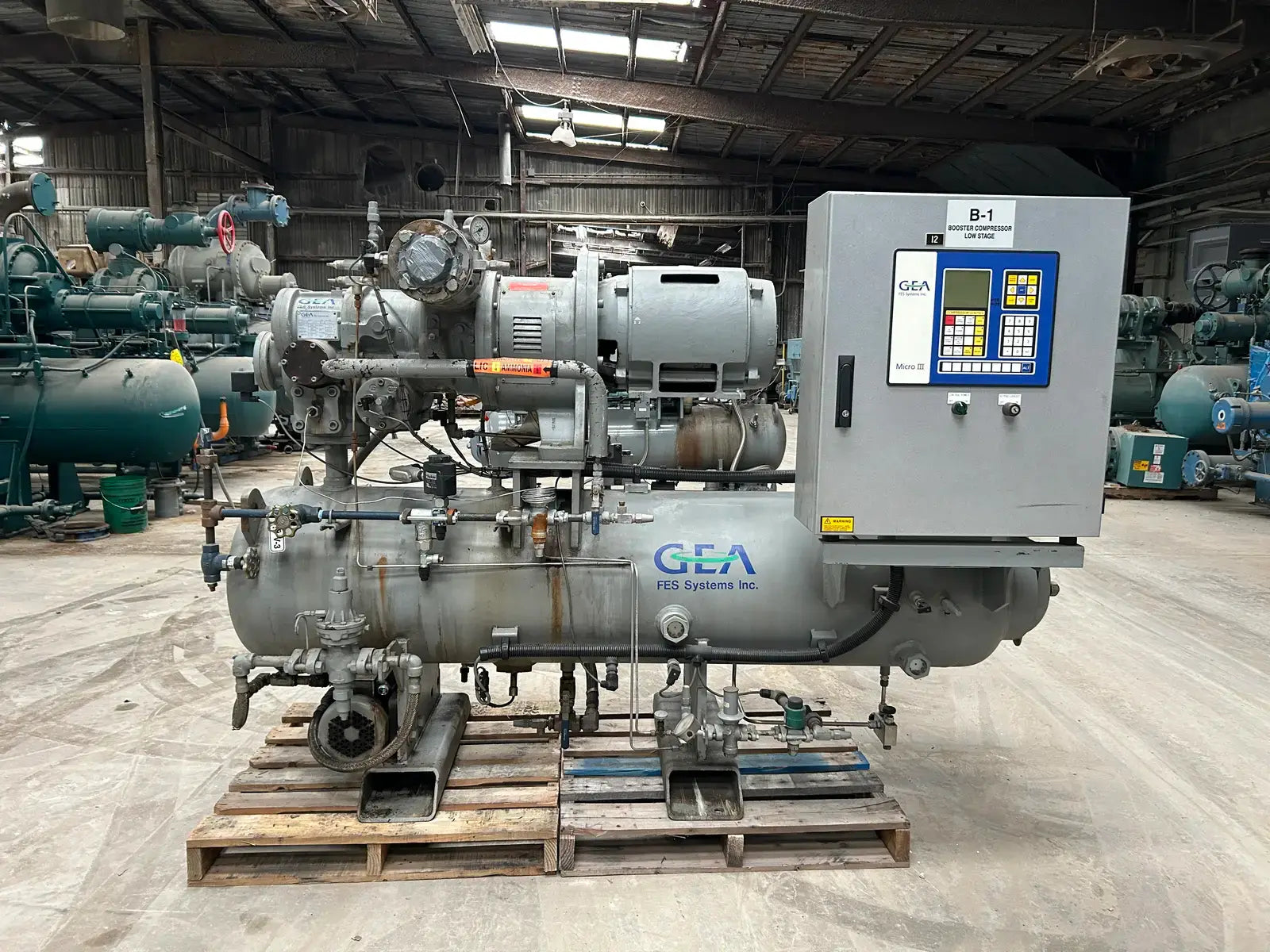

GEA/FES Rotary Screw Compressor Package - FES Contract No: 06319011, Model: 85GS, Serial No: 06319011, Mfg Date: 9-25-06. GEA Rotary Screw Compressor - Model: G-61, Serial No: G0541, Hydraulic Test Pressure: 620 PSIG, Max Design Working Pressure: 406 PSIG, Geometric Swept Volume @ 3550 RPM: 264 CFM, Max Input Speed: 6000 RPM, Refrigerant: R-717, P&I Diagram: SM12-S1 Year of Mfg: 2006. Certified by FES Systems Oil Separator - National Board: 14908, Serial No: 060393, MAWP: 300 PSI @ 500 F, MDMT: -20 F @ 300 PSI, Year: 2006.

Product Details

  • Stock No: AMSI02
  • Manufacturer: GEA
  • Model: 85GS
  • Serial Number: 06319011
  • Compressor Type: Screw
  • Package Included? Yes
  • Stage Type: Low Stage (Booster)

Package Details

  • Package Manufacturer: GEA
  • Package Model: 85GS
  • Package SN: 06319011
  • Package Order: 06319011
  • Package Max Speed (RPM): 3,500
  • Package Max Design Pressure (PSIG): 406

Screw Compressor Details

  • Compressor Included? Yes
  • Compressor Manufacturer: GEA
  • # Compressors in Package: 1
  • Compressor Model: G-61
  • Compressor SN: G0541
  • Compressor Max Speed (RPM): 6,000
  • Compressor Design Pressure (PSIG): 406
  • Compressor Year Manufactured: 2006
  • Compressor Run Time Hours: 34,623
  • Fixed/Variable VI: Fixed
  • Oil Separator Included? Yes
  • Oil Separator National Board #: 14908
  • Oil Cooling Type: Liquid Injection

Micro Panel Details

  • Micro Control Panel Included? Yes
  • Micro Control Panel Manufacturer: GEA

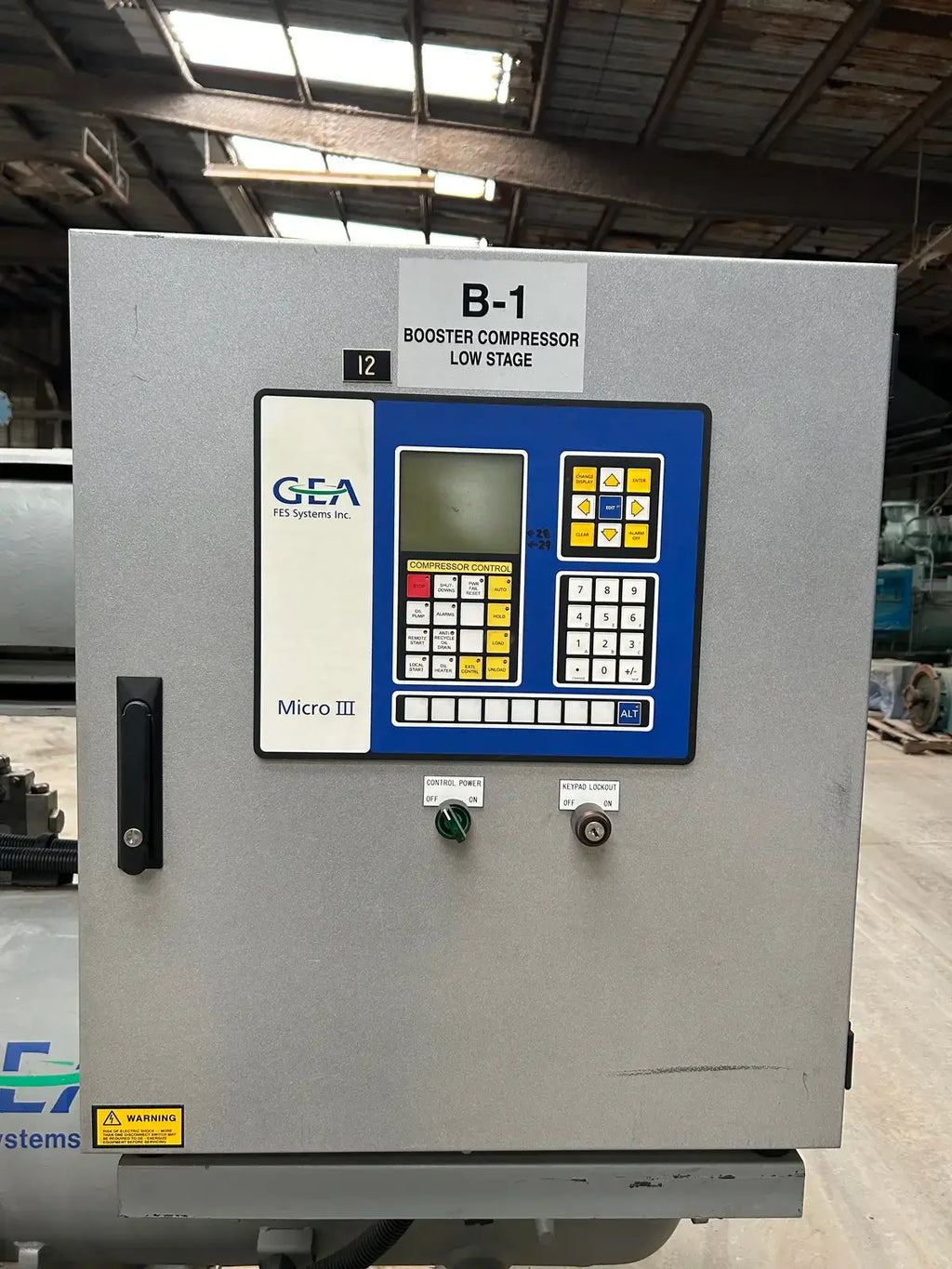

  • Micro Control Panel Description: GEA/FES Micro III Control Panel.

Motor Starter Details

  • Motor Starter Included? No

Previous Refrigerant

  • Previous Refrigerant: Ammonia (R-717)
  • Ammonia (R-717) Compatiable: Yes

Motor Details

  • Motor Included? Yes
  • # Motors: 1
  • Motor Manufacturer: Toshiba
  • Motor Horsepower(HP): 40
  • Motor RPM: 3,505
  • Motor Voltage: 206
  • Motor Amps: 100
  • Motor Hertz (Hz): 60
  • Motor Phases: 3
  • Motor Frame Size: 286TSC

Dimensions:

  • Length (Inches): 82
  • Width (Inches): 52
  • Height (Inches): 68
  • Weight (LBS): 6,200
  • # of Pieces for Shipping: 1

Additional Product Details

  • Year of Manufacture: 2006
  • Year Removed from Production: 2025
  • Spec Sheet Available: Yes
