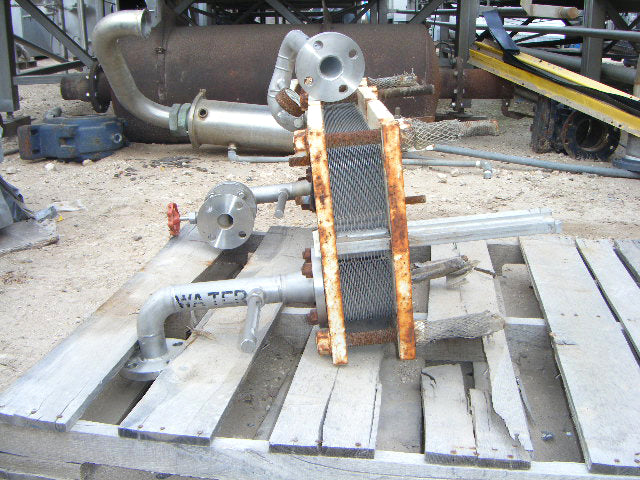

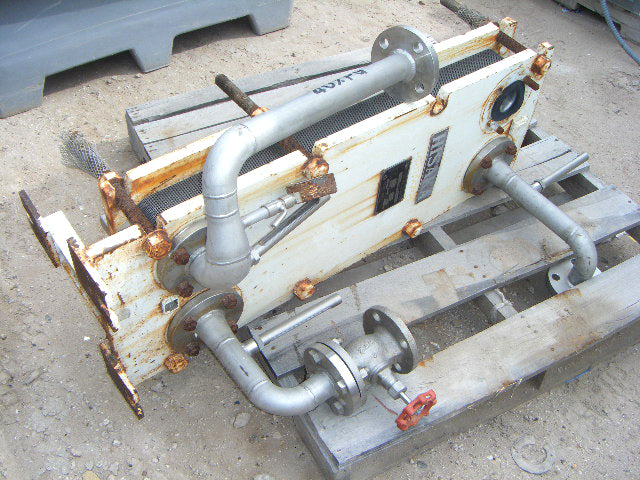

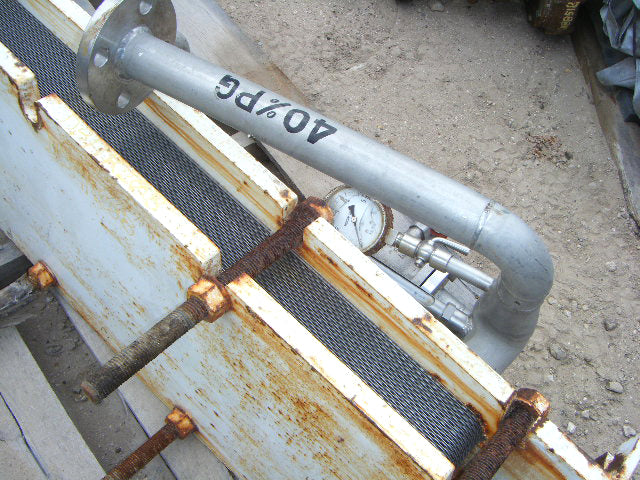

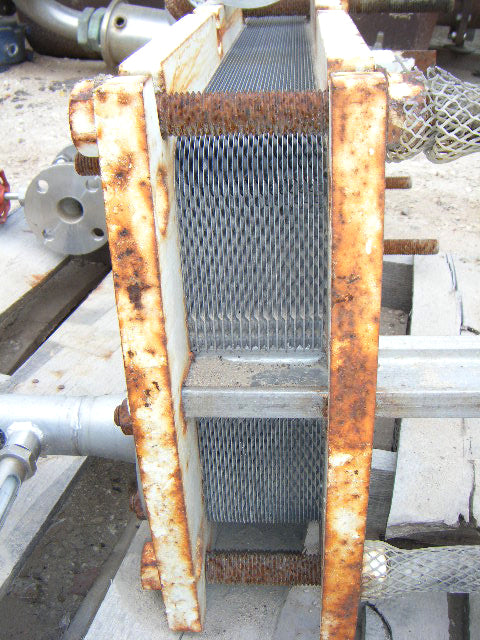

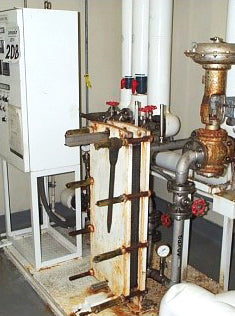

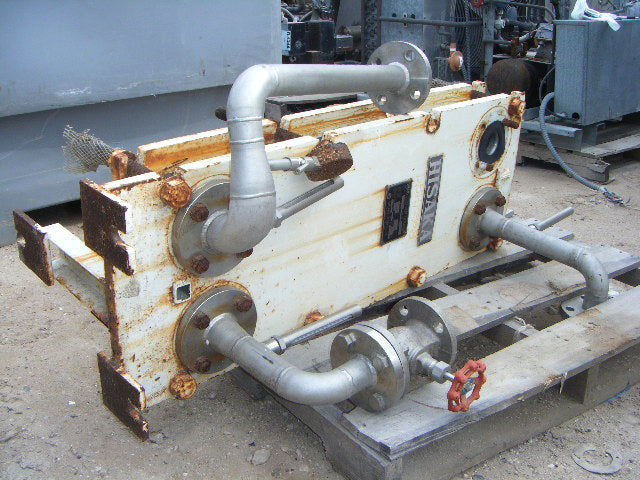

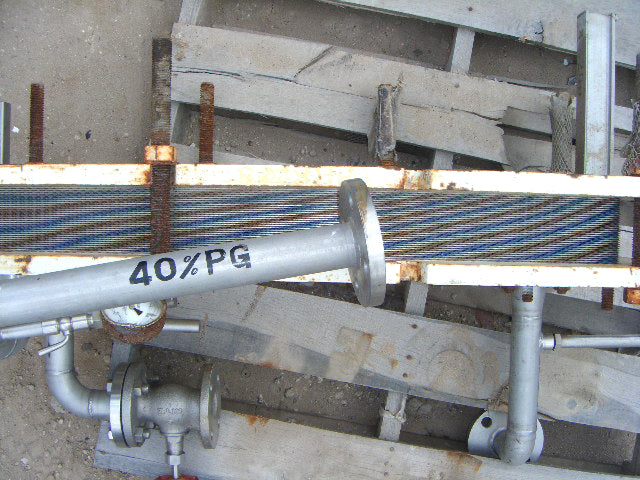

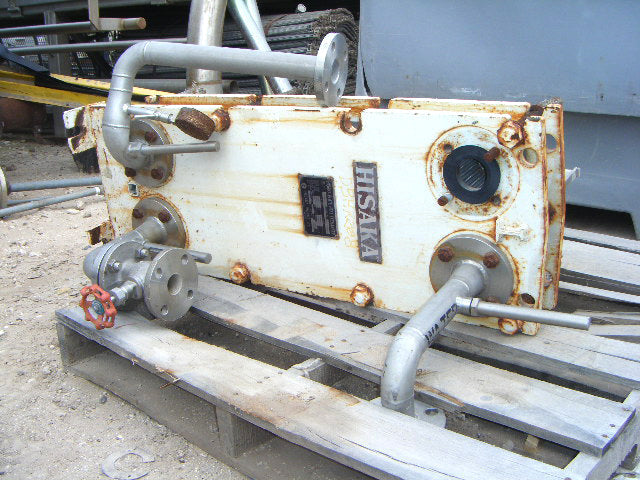

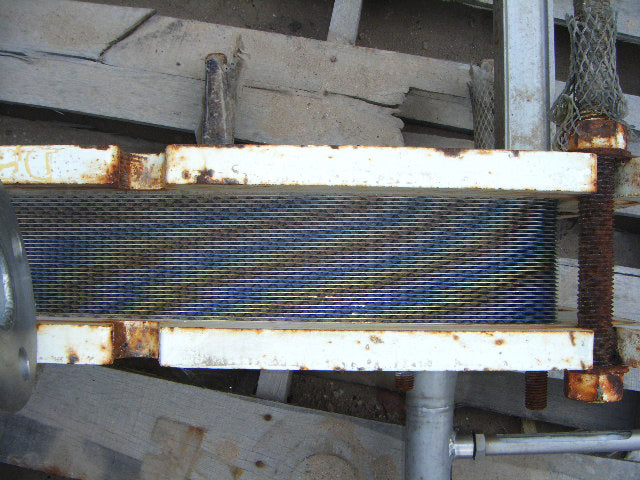

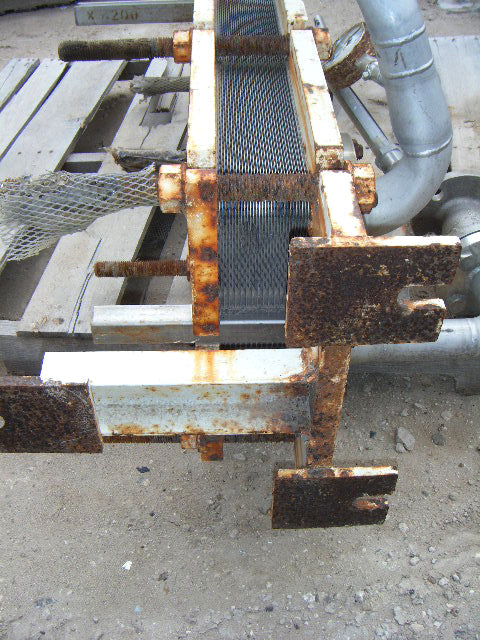

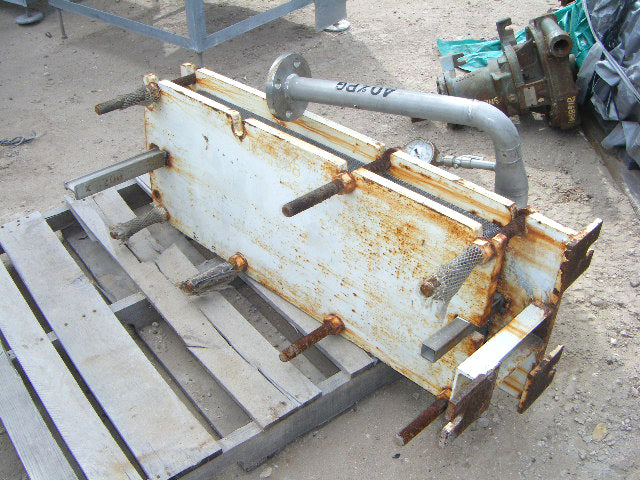

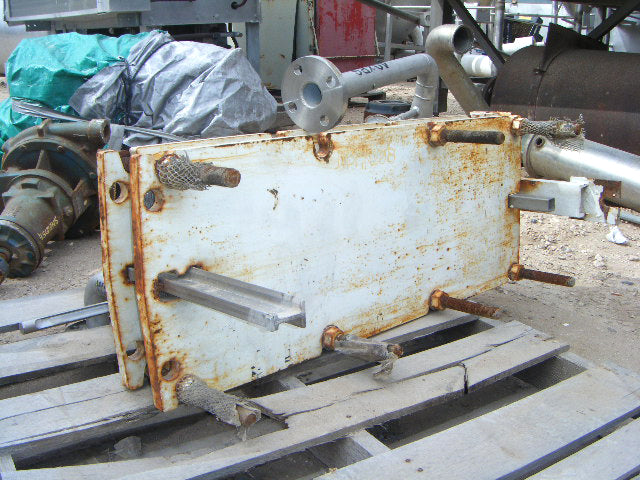

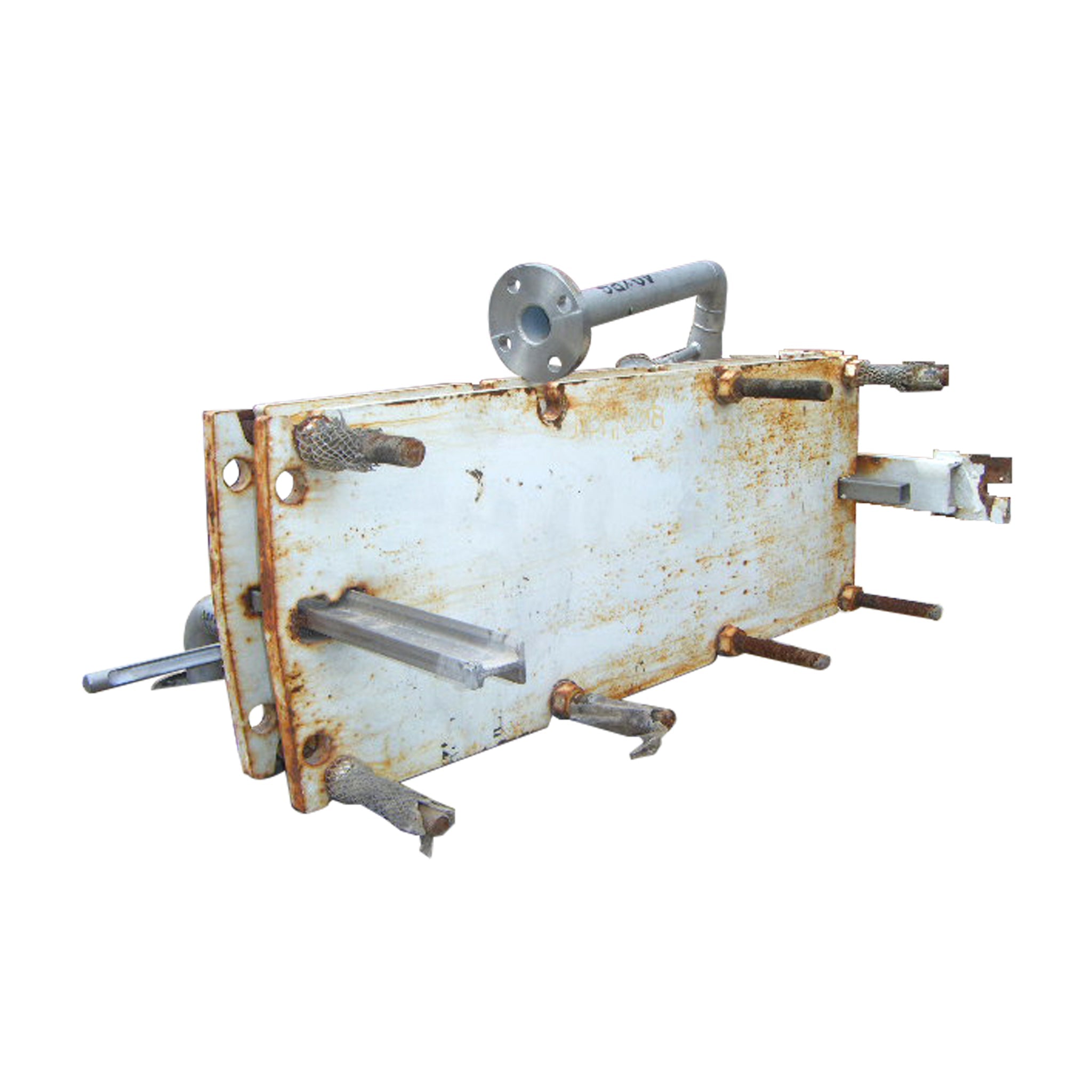

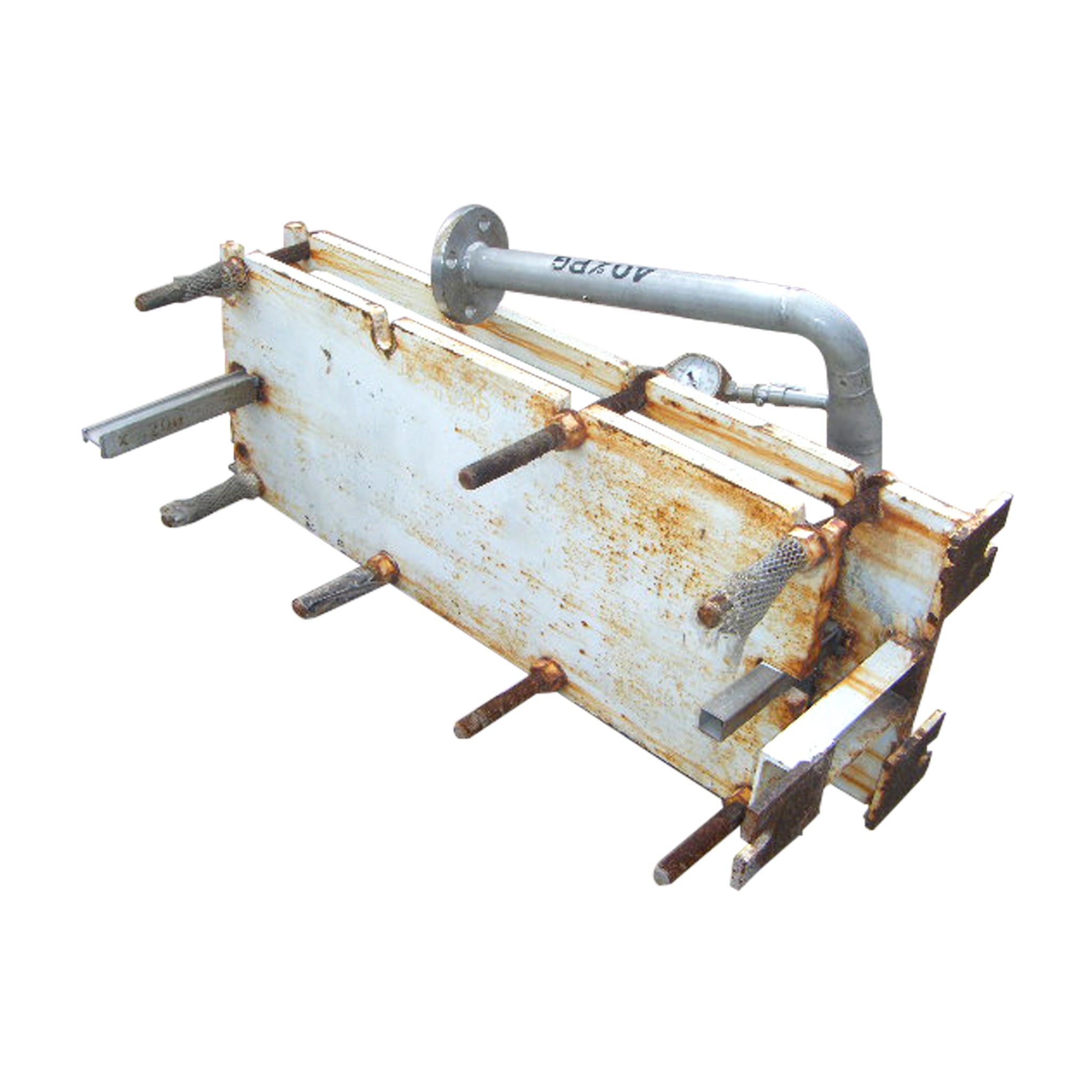

Hisaka Works, Ltd. Plate Heat Exchanger - 55 sq. ft.

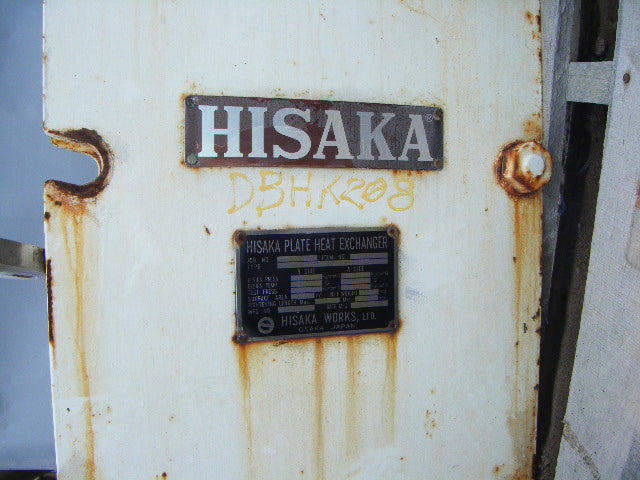

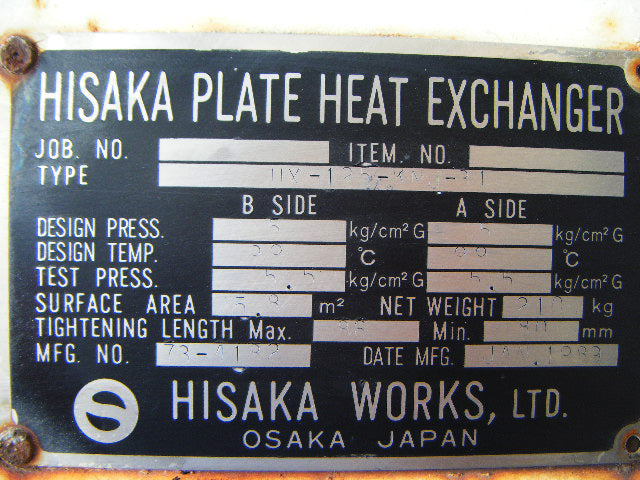

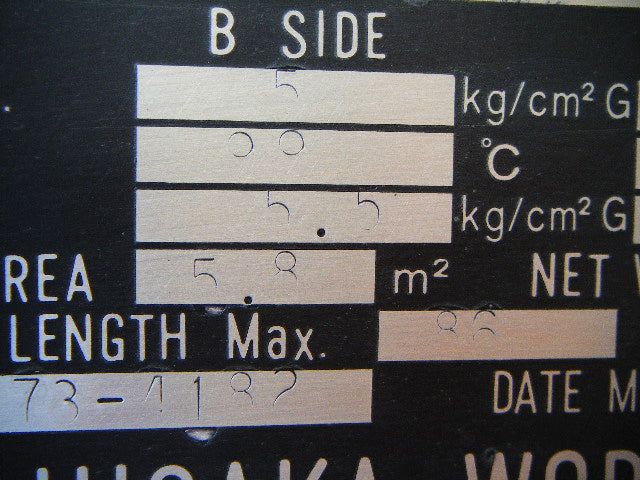

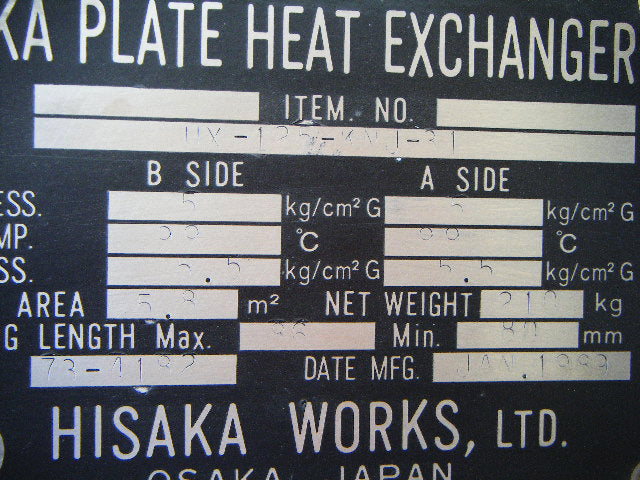

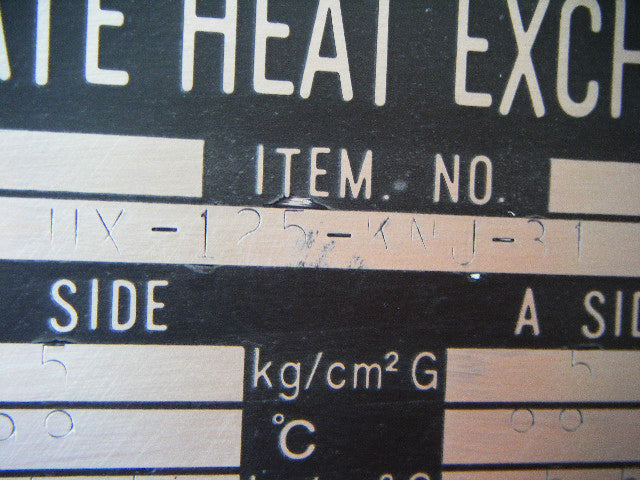

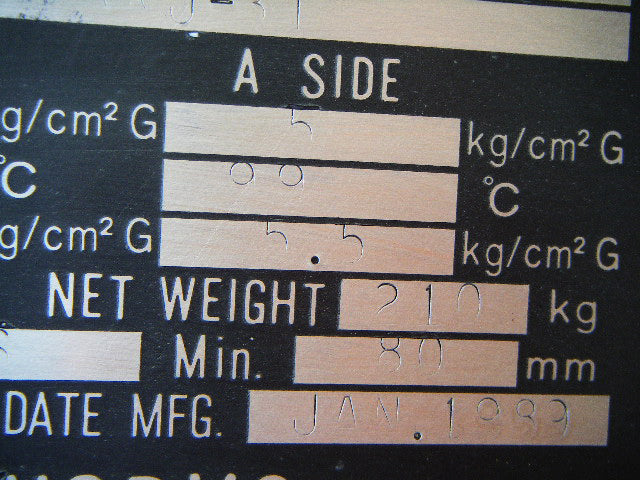

Hisaka Works, Ltd. Plate Heat Exchanger. Design press: B-side: 5 kg/cm²G A-side: 5 kg/cm²G. Design temp: B-side: 99ºc A-side: 99ºc. Test press: B-side: 5.5 kg/cm²G A-side: 5.5 kg/cm²G. Surface area: 5.8 m². Net Weight 210 kg. Tightening length max: 86 min. 80mm. Inlets/Outlets: (4) 2 in. dia. Overall dimensions: 1 ft. 9 in. L x 2 ft. 6 in. W x 3 ft. 10-1/2 in. H.
Product Details
- Stock No: DBHK208.2a
- Manufacturer: Hisaka Works, Ltd.
- Model: UX-125-KNJ-31
- Serial Number: 73-4182
Heat Exchanger Details
- Heat Transfer Surface Area (SQ FT): 55
- Number of Plates: 31

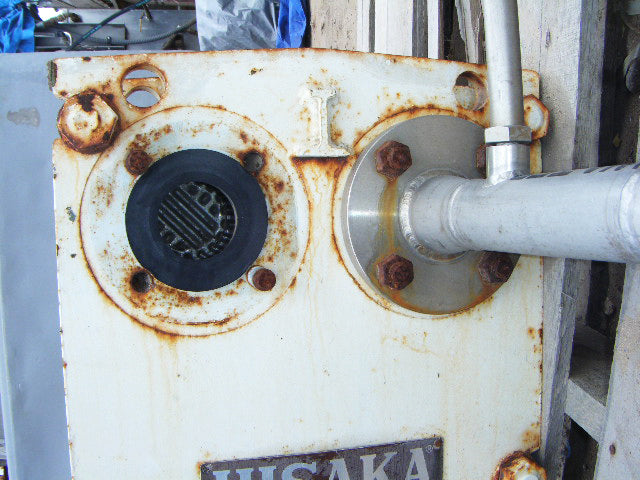

- Inlets & Outlets Description: Inlets/Outlets: (4) 2 in. dia.
Previous Refrigerant
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 21
- Width (Inches): 30
- Height (Inches): 46.5
- Weight (LBS): 462.971
