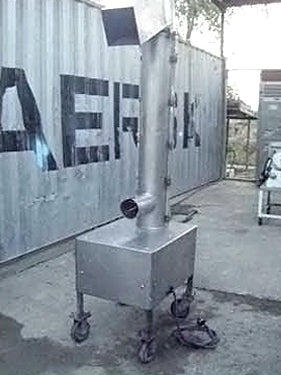

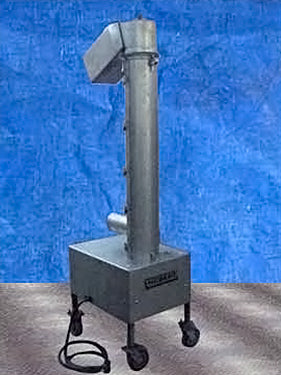

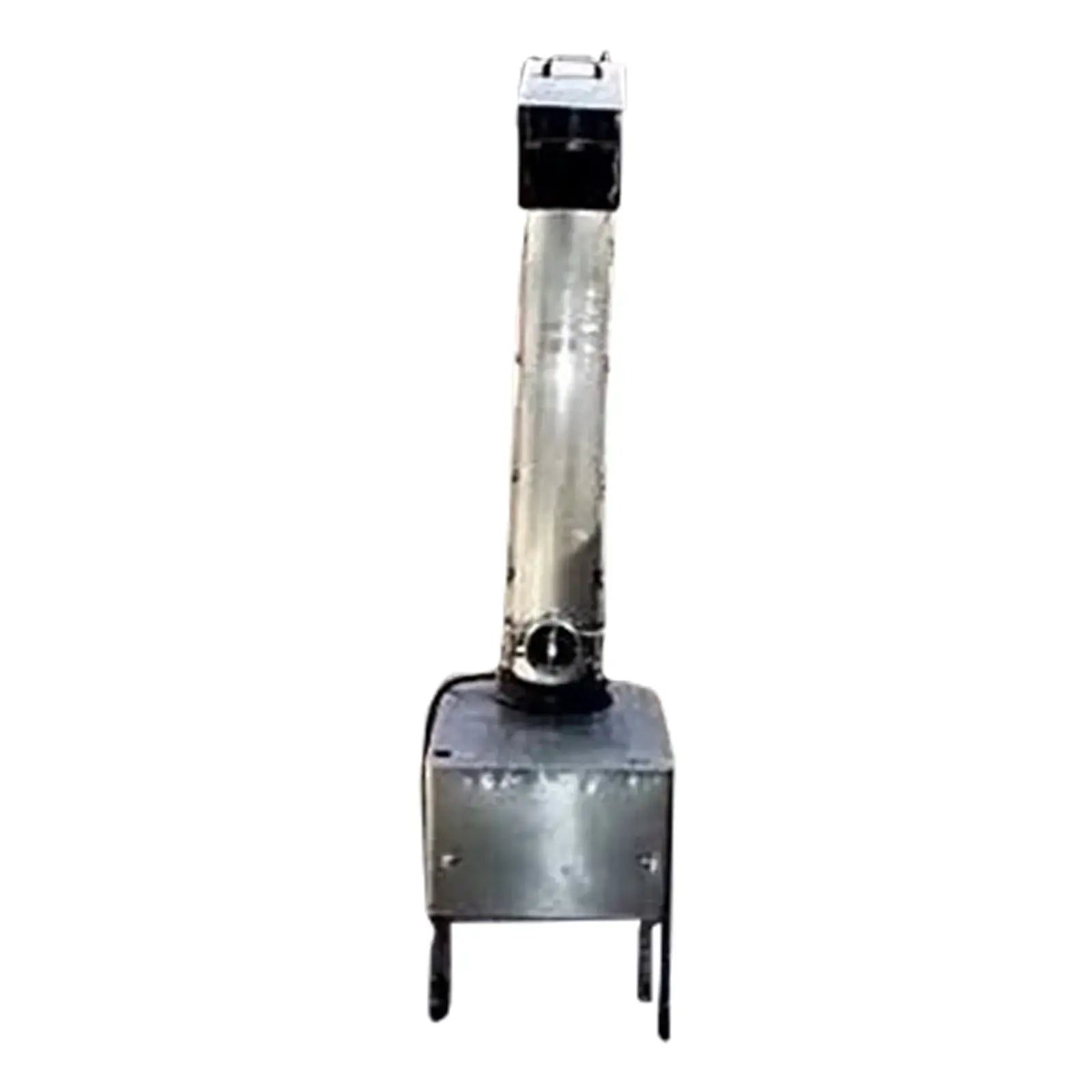

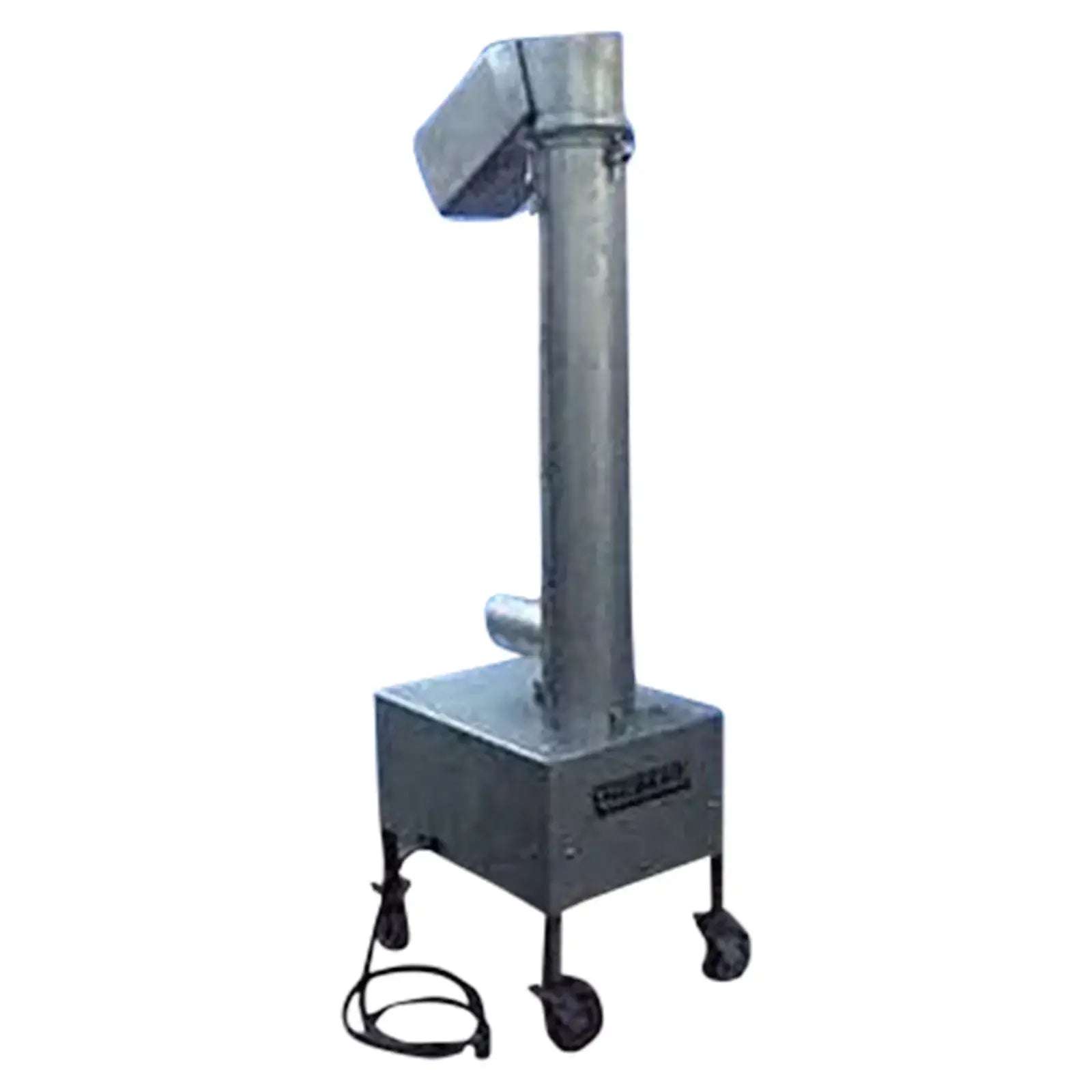

Hobart SC90 Portable Vertical Screw Conveyor
Hobart SC90 Portable Vertical Screw Conveyor. Model: SC90. Screw conveyor dimensions: 9 in. diameter x 5 ft. 4 in. H. Pitch: 6 in. Baldor electric motor, 2 hp, 1750 rpm, 208-230/460 V, 6.3-5.8/2.9 amps, 60 HZ, 3 phase. Inlet: (1) 5 in. Outlet: 1 ft. 7 in. L x 8-7/8 in. W x 6-1/2 in. H. Overall dimensions: 2 ft. 9 in. L x 2 ft. W x 7 ft. 8 in H.
Product Details
- Stock No: BABR120
- Manufacturer: Hobart
- Model: SC90
Conveyor Details
- Conveyor Type: Screw Conveyor
- Conveyor Width (inches): 9
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Baldor
- Motor Horsepower(HP): 2
- Motor RPM: 1750
- Motor Voltage: 208-230/460
- Motor Amps: 6.3-5.8/2.9
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 145T
Dimensions:
- Length (Inches): 33
- Width (Inches): 24
- Height (Inches): 92
