Imeco SC 10-44 Ammonia Evaporator Coil (Low Temperature)

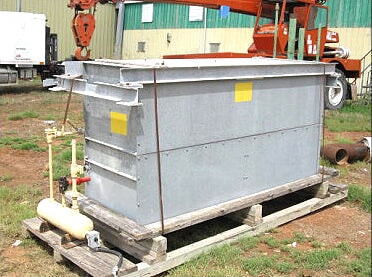

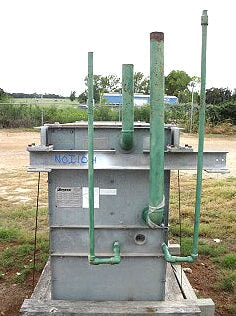

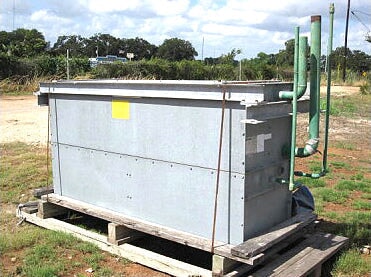

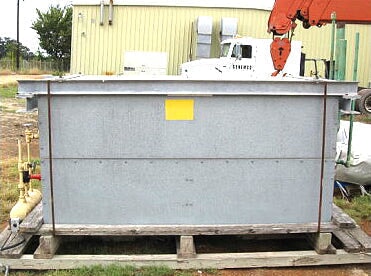

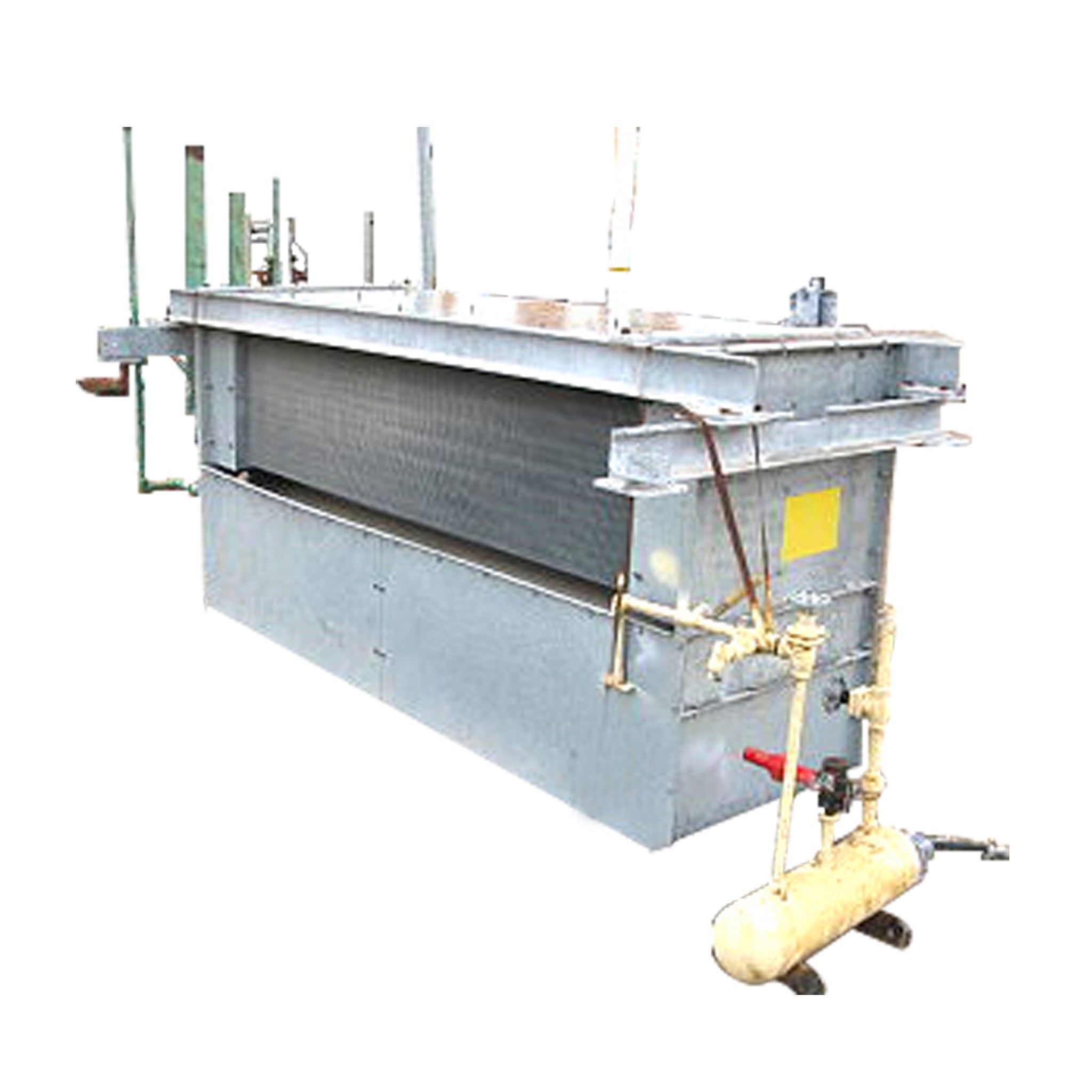

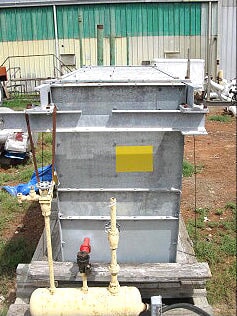

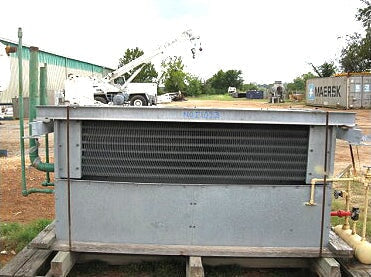

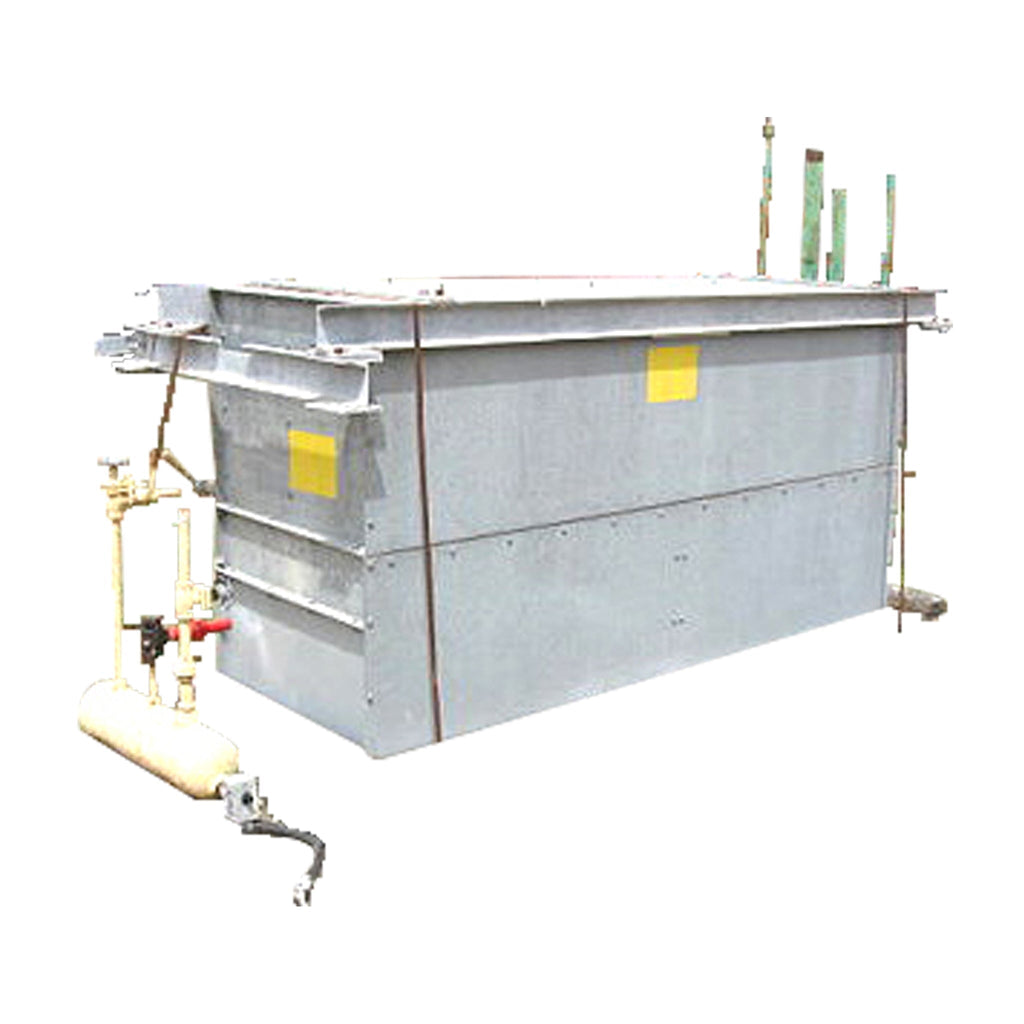

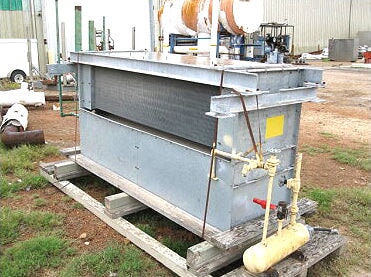

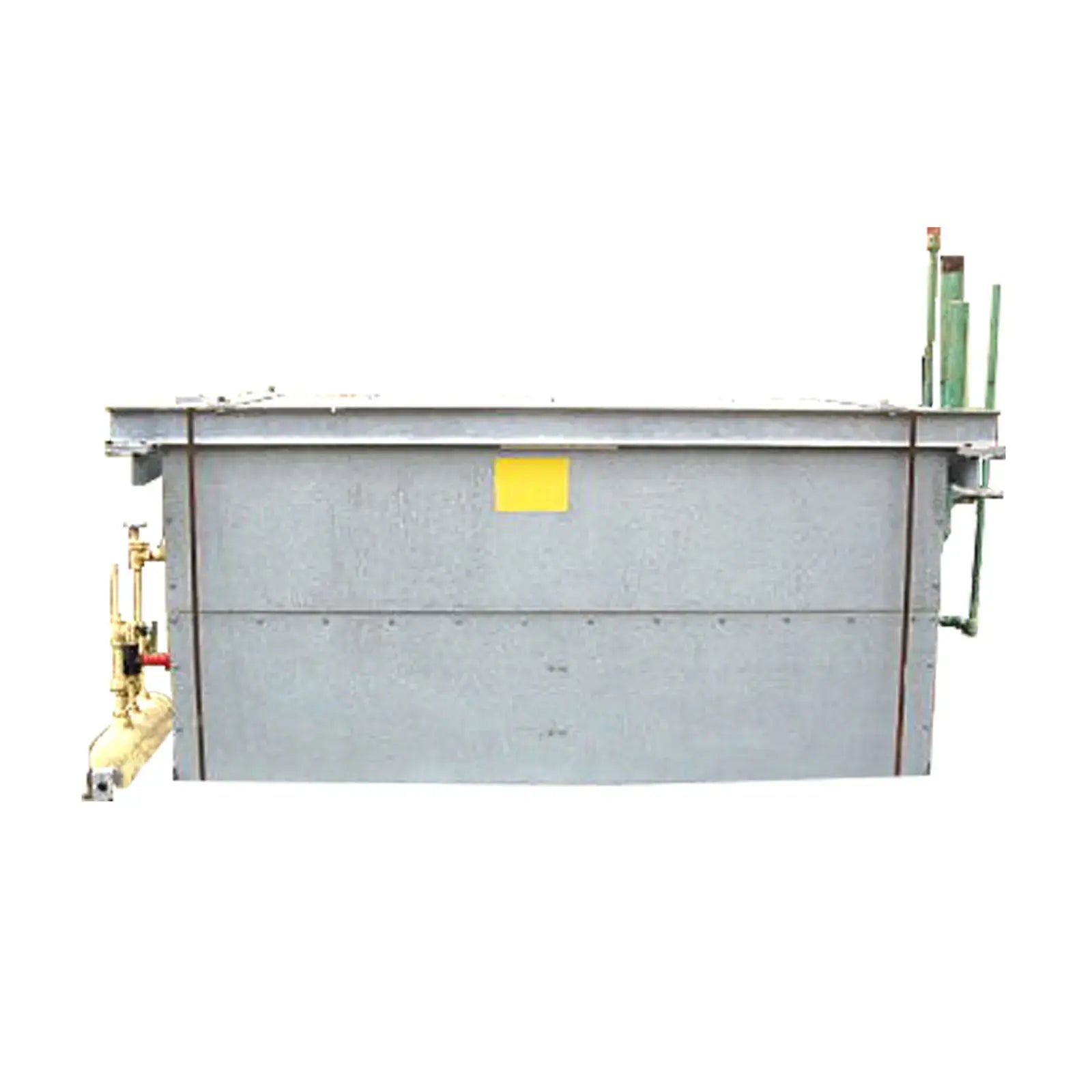

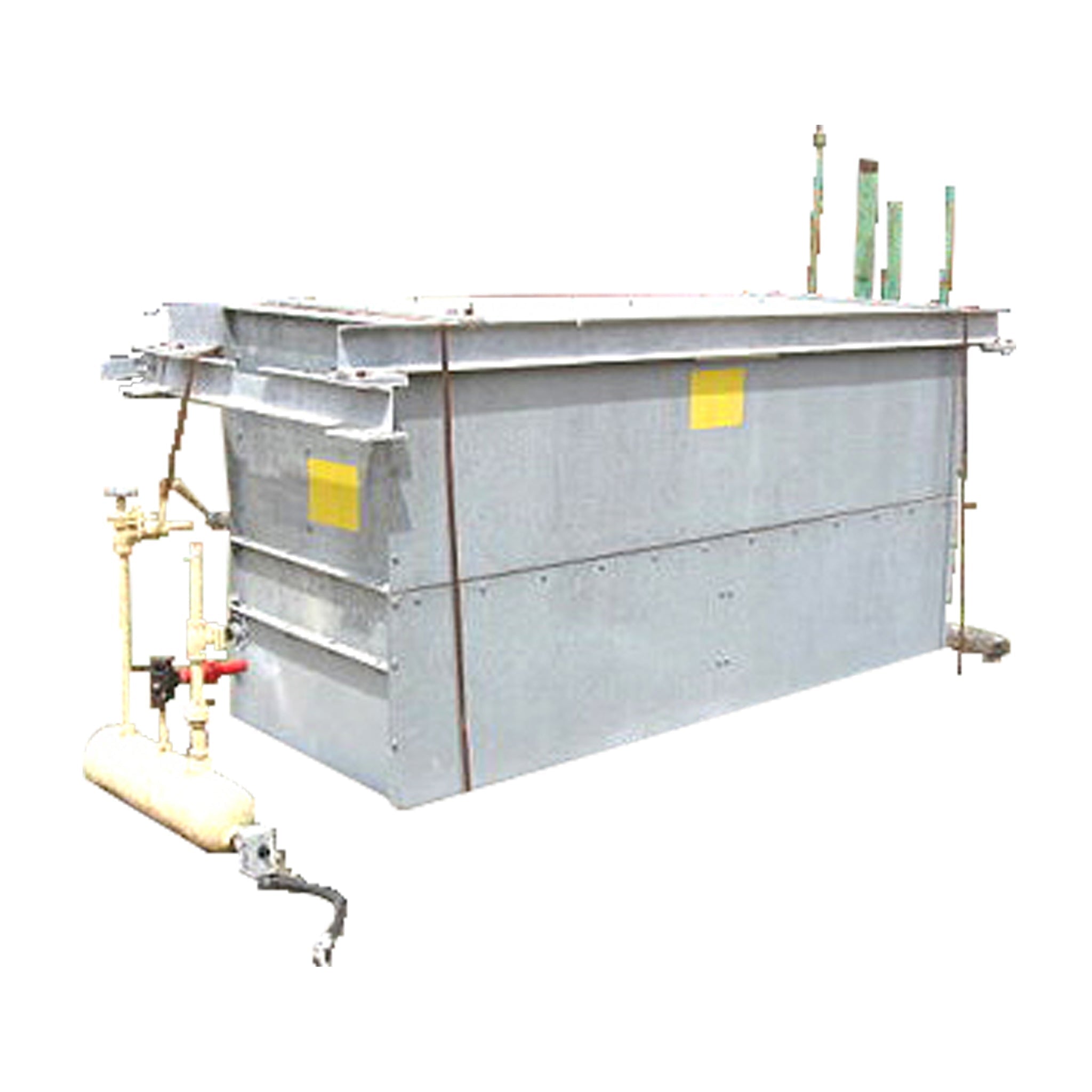

1996 Imeco Side Chamber Ammonia Evaporator. Model: SC 10-44. (2) ¾ hp motors: 575V, 60 Hz, 3 phase. Maximum pressure: 150 PSI. 4 fins per inch. Inlets/outlets: (2) 1 in., (2) 3 in., (1) 2 in. threaded. Apollo ball valve. Overall dimensions: 9 ft. 8 in. L x 3 ft. 7-1/2 in. W x 5 ft. 9 in. H.
Product Details

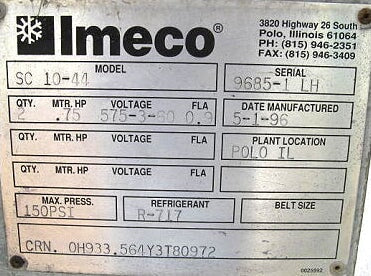

- Stock No: NOI1014
- Manufacturer: Imeco
- Model: SC 10-44
- Serial Number: 9685-1 LH
Evaporator Coil Details
- Frosted or Wet Coil: Frosted

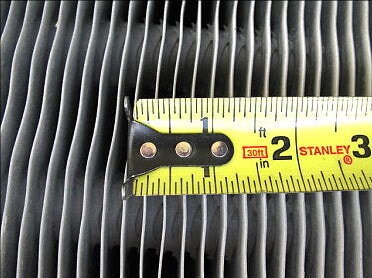

- Fins Per Inch: 4
- Left or Right Handed: Left
- Spec Sheet Available: No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- # Motors: 2
- Motor Manufacturer: Imeco
- Motor Horsepower(HP): 0.75
- Motor Voltage: 575
- Motor Amps: 0.9
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 116
- Width (Inches): 43.5
- Height (Inches): 69
Additional Product Details
- Year of Manufacture: 1996
- Spec Sheet Available: No
