Imeco XLP-M-430 Evaporative Condenser (430 Nominal Tons,1-10 HP Motor)

Imeco XLP-M-430 Evaporative Condenser (430 Nominal Tons,1-10 HP Motor)

Year of Manufacture: 1994
Number Units in Package: 1
Nominal Tons (total): 430 TR*
Ammonia Tons (total): 305 TR*

R-717 (ammonia) or R22 (freon). Last run with Ammonia.
Pump Requirements (per unit): 5 HP  350 GPM
Pump Included? No, can purchase separately

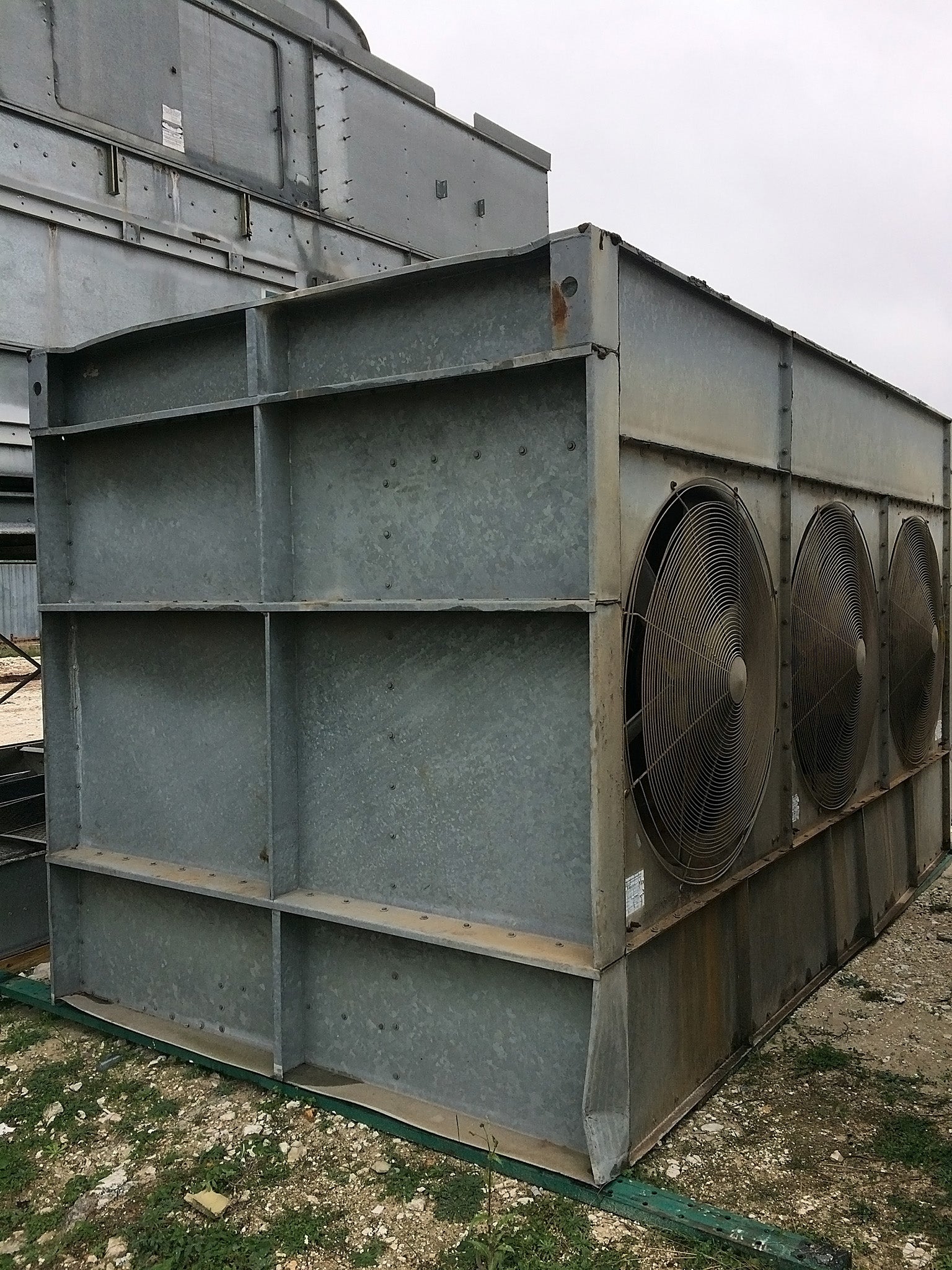

Fan Details (per unit): 10 HP and 5 HP Fan Motors. 460V, 60 Hz, 3-phase

Top Dimensions (per unit): 16' L x 8' W x 6'8" H
Top Weight (per unit): 15,090 LBS

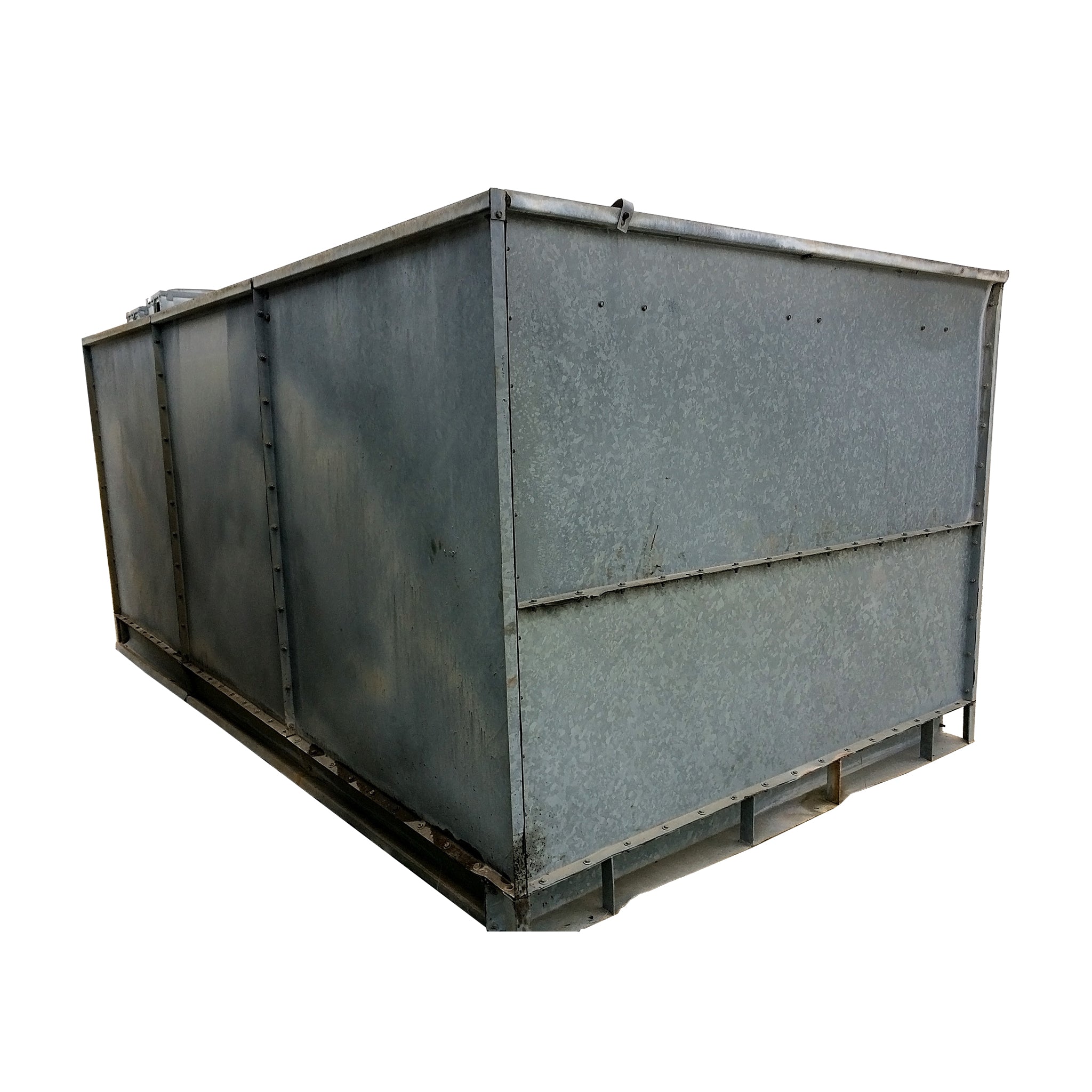

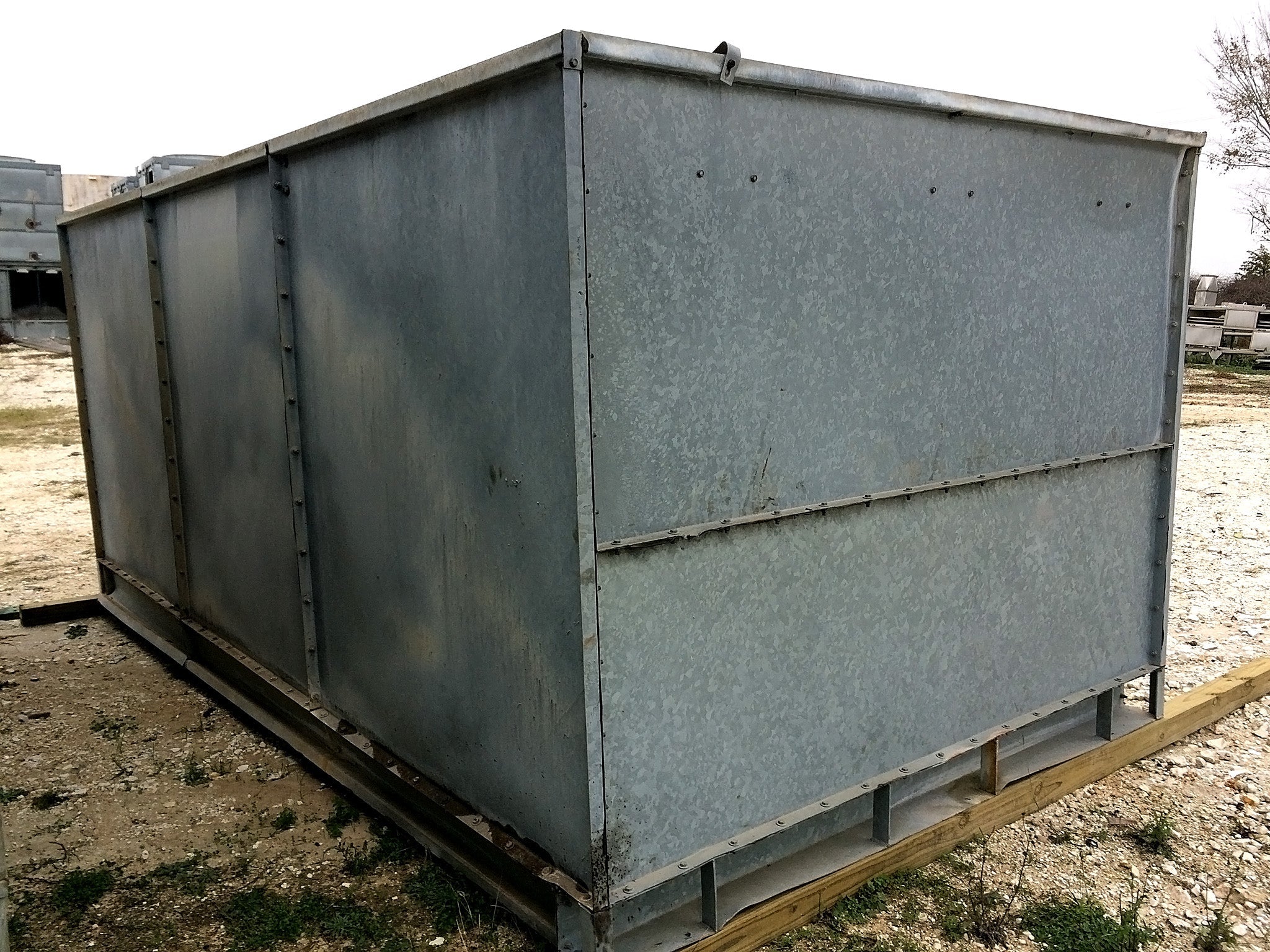

Bottom Dimensions (per unit): 16' L x 8' W x 8'4" H
Bottom Weight (per unit): 4,800 LBS

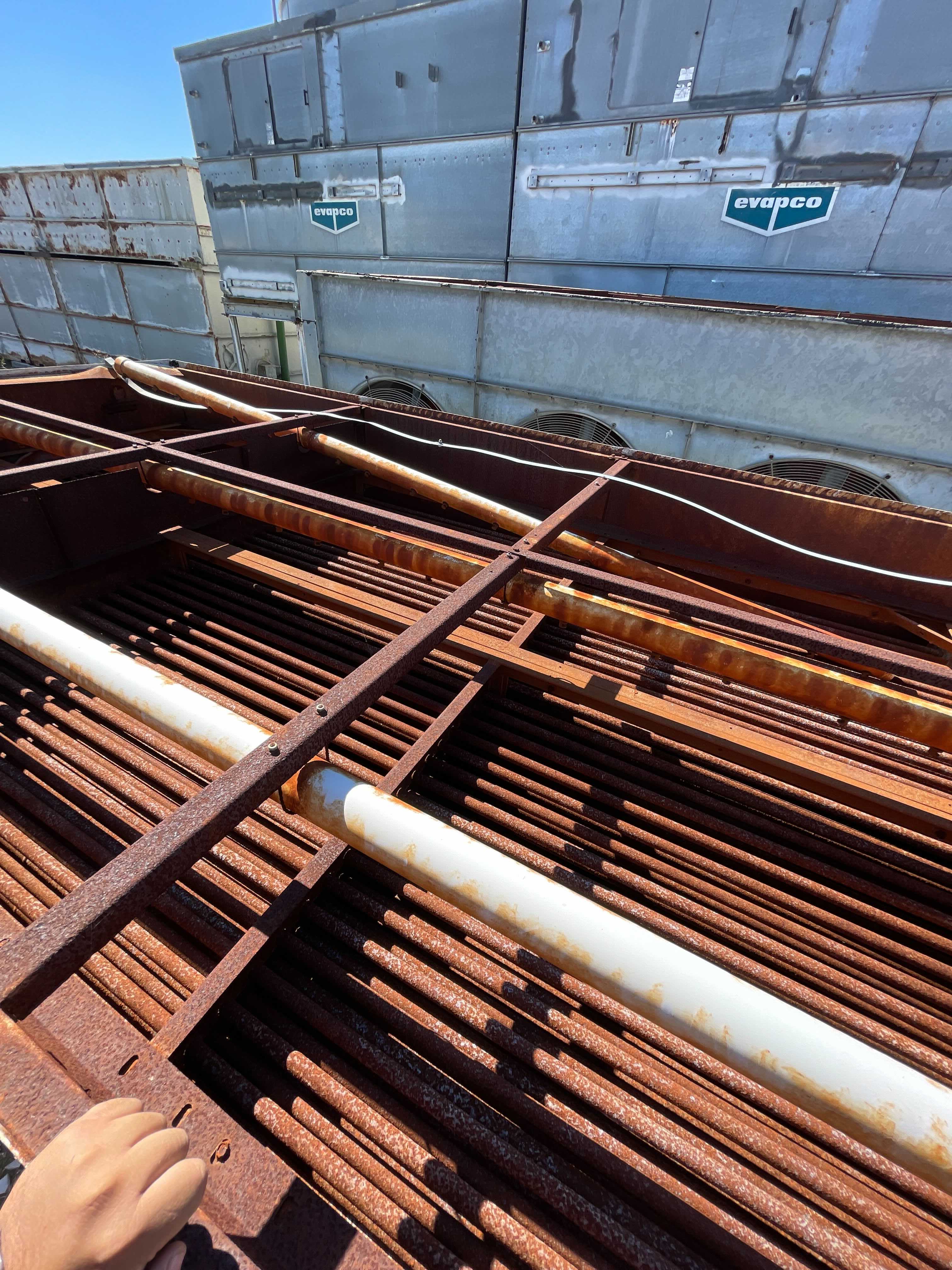

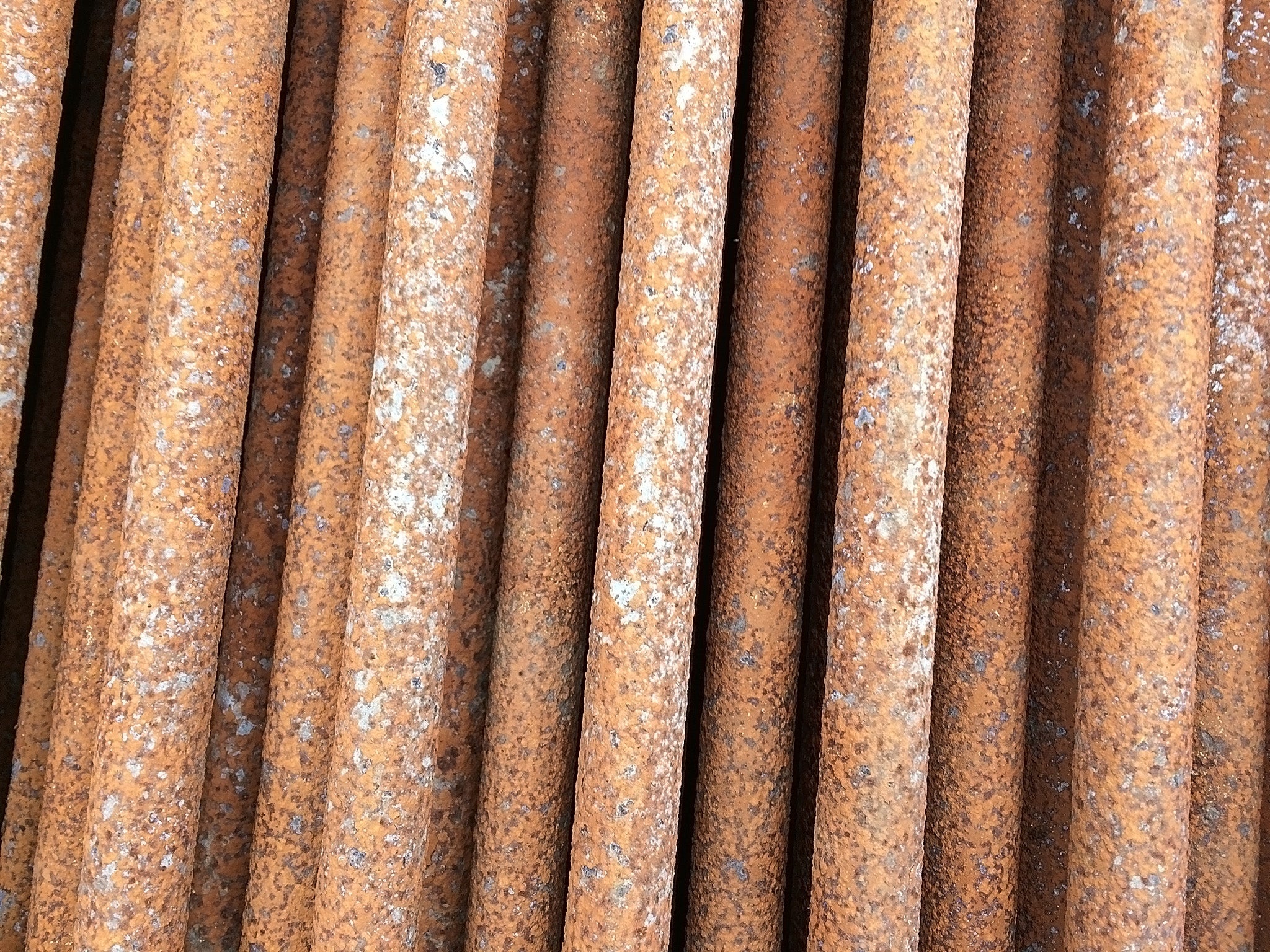

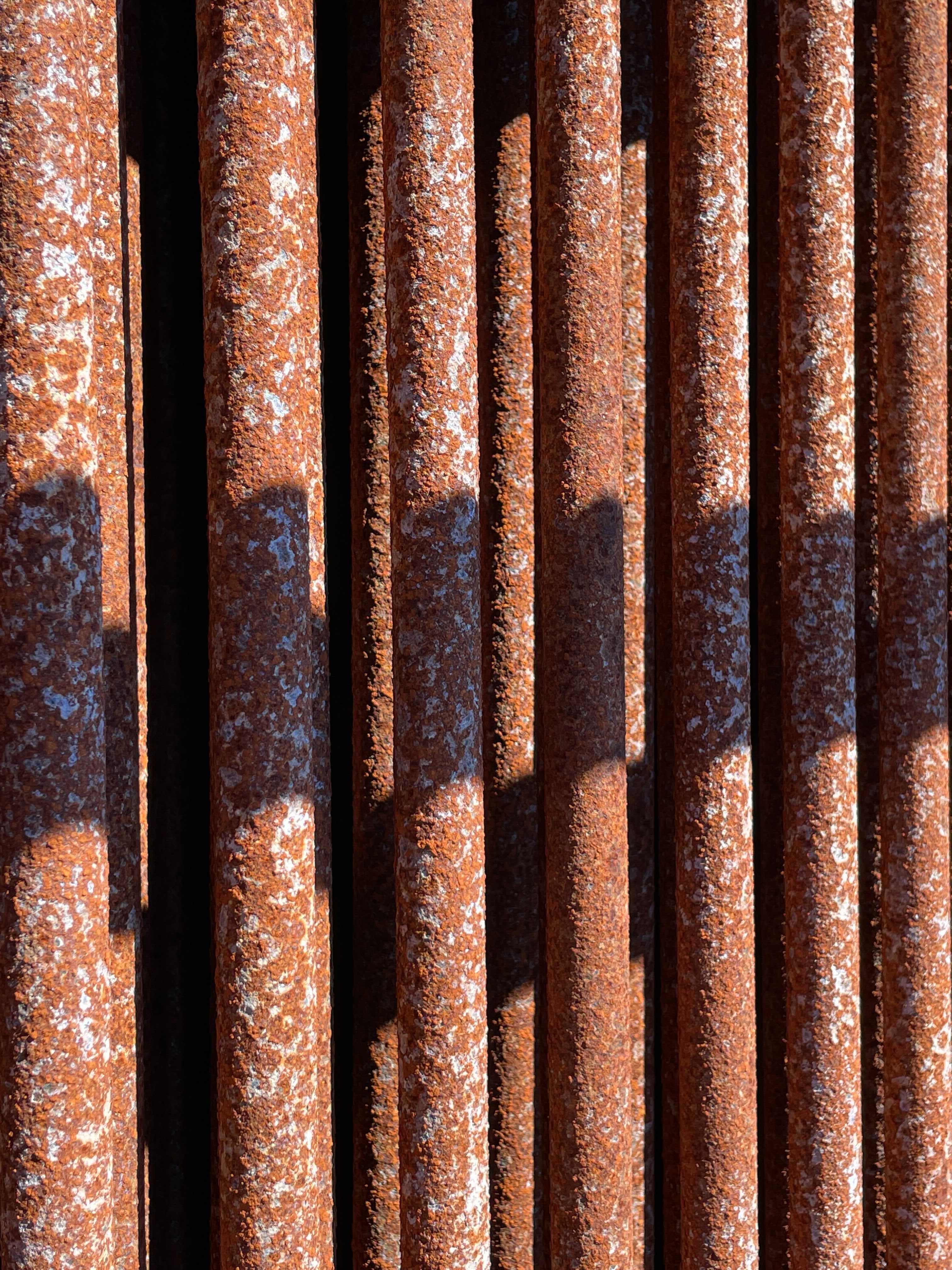

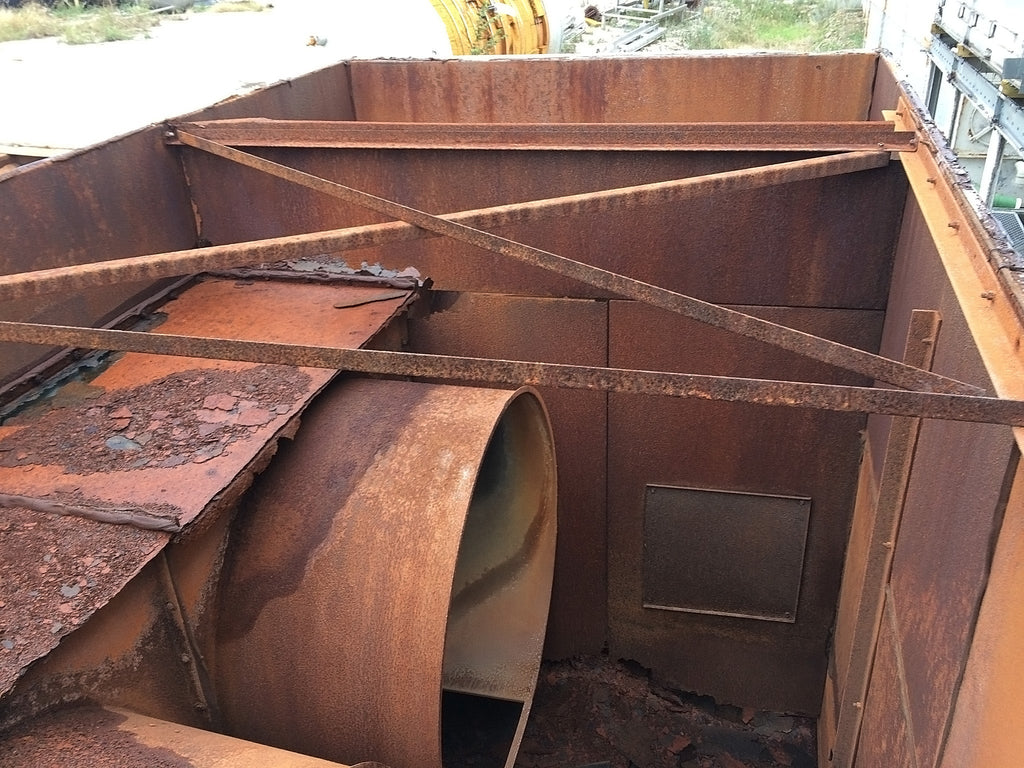

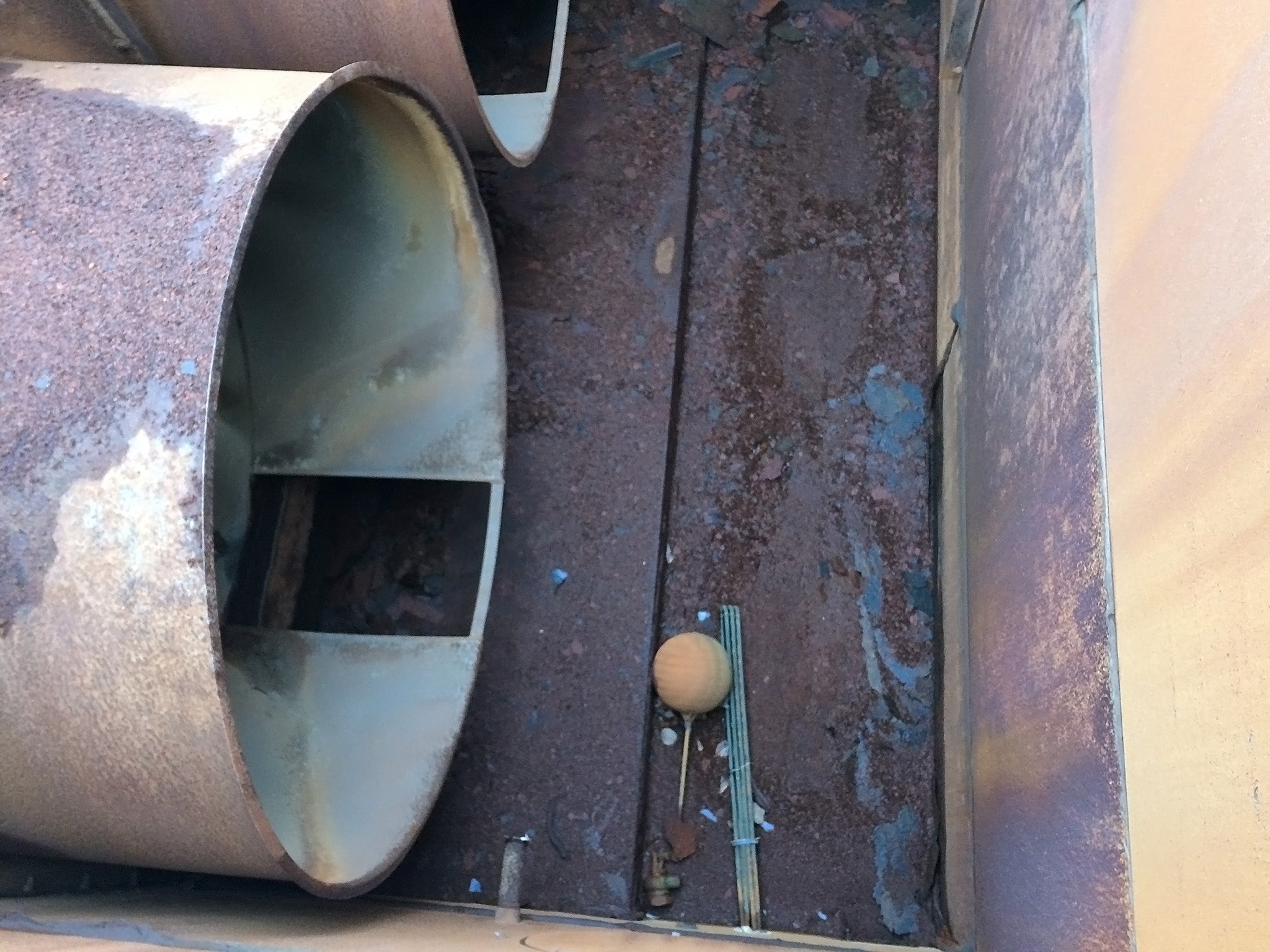

Other Notes about machine: The coils are rusty.

*Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb

Can sell one tower unit from a group upon request for a fee. Please request as needed.

Product Details

  • Product ID: 13452
  • Stock No: ATZB11
  • Manufacturer: Imeco
  • Model: XLP-M-430

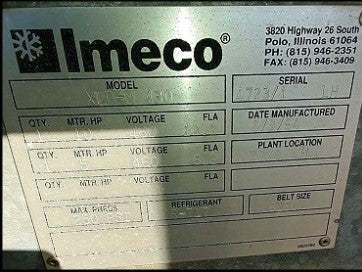

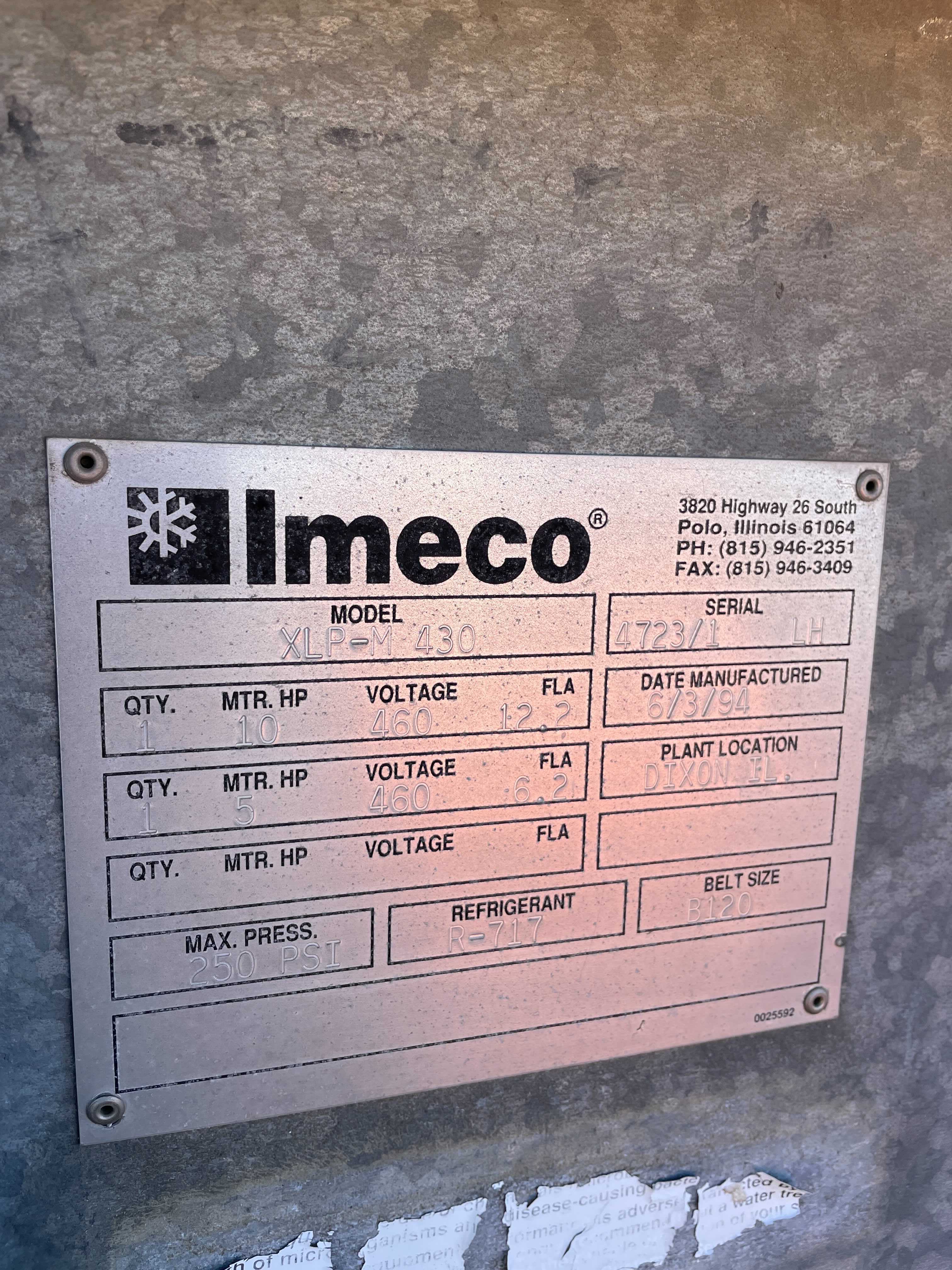

  • Serial Number: 4723/1-LH, R-717

Condenser Package Details

  • Multiple Units Included in Package? No
  • # Units included in Package: 1
  • Package Nominal Tons (TR): 430
  • Package Ammonia Tons (TR): 305
  • Unit Nominal Tons (TR): 430
  • Unit Ammonia Tons (TR): 305

Condenser Dimensions

  • Top Length (Inches): 192
  • Top Width (Inches): 96
  • Top Height (Inches): 80
  • Top Weigh (LBS): 15090
  • Bottom Length (Inches): 192
  • Bottom Width (Inches): 96
  • Bottom Height (Inches): 100
  • Bottom Weight (Inches): 4800

Pump Details

  • Pump Included? No
  • Pump Recommended HP: 5
  • Pump Recommended Gallons per Minute (GPM): 350

Previous Refrigerant

  • Previous Refrigerant: Ammonia (R717 | NH3)
  • Ammonia (R717 | NH3) Compatible: Yes
  • Halocarbon (Freon | R22) Compatible: Yes

Motor Details

  • Motor Included? Yes
  • Motor Horsepower(HP): 10
  • Motor Voltage: 460
  • Motor Hertz (Hz): 60
  • Motor Phases: 3

Dimensions:

Additional Product Details

  • Year of Manufacture: 1994
  • Spec Sheet Available: Yes
  • Known Issues or Problems: Coils are rusty

Imeco XLP-M-430 Evaporative Condenser (430 Nominal Tons,1-10 HP Motor)

Save 9%

Price:
$5,000 $5,500
