ITT Bell & Gossett Centrifugal Pump (20 HP, 624 GPM Max)

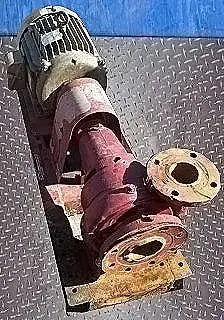

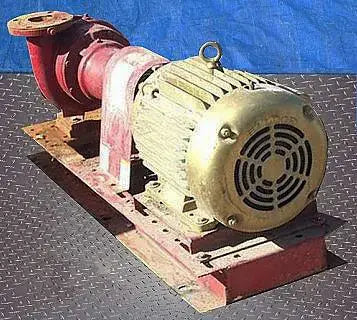

Bell & Gossett Centrifugal Pump. S/N: 2113757. Capacity: 624 gpm @ 100 tdh. Maximum speed: 3500 rpm. Impeller diameter: 3 in. Pump construction code: AB. Baldor Super-E Motor, 20 hp, 3525 rpm, 200 V, 52.9 amps, 60 Hz, 3 Phase. Inlets: (1) 3-1/2 in. dia. suction port with an 8-bolt, 9 in. dia. flange. Outlets: (1) 3 in. dia. discharge port with a 4-bolt, 7-1/2 in. dia. flange. Overall Dimension. 46-1/2 in. L x 17 in. W x 22-1/2 in. H.(H9).
Product Details
- Stock No: THHS010.
- Manufacturer: ITT Bell & Gossett
- Serial Number: 2113757
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 624
- Max Speed RPM: 3500
- Impeller Diameter (inches): 3
- # Inlets: 1
- # Outlets: 1
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 3.5
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet Flange Size (inches) 1: 9
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 3
- Inlet/Outlet Type 2: Flange
- Inlet/Outlet Flange Size (inches) 2: 7.5
Previous Refrigerant

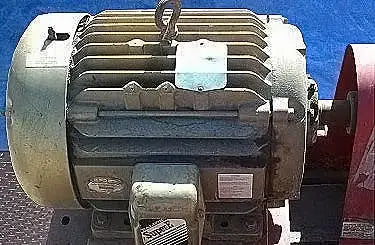

Motor Details
- Motor Included? Yes
- Motor Manufacturer: ABB
- Motor Horsepower(HP): 20
- Motor RPM: 3525
- Motor Voltage: 200
- Motor Amps: 52.9
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 46.5
- Width (Inches): 17
- Height (Inches): 22.5
