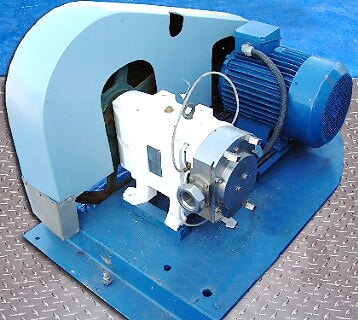

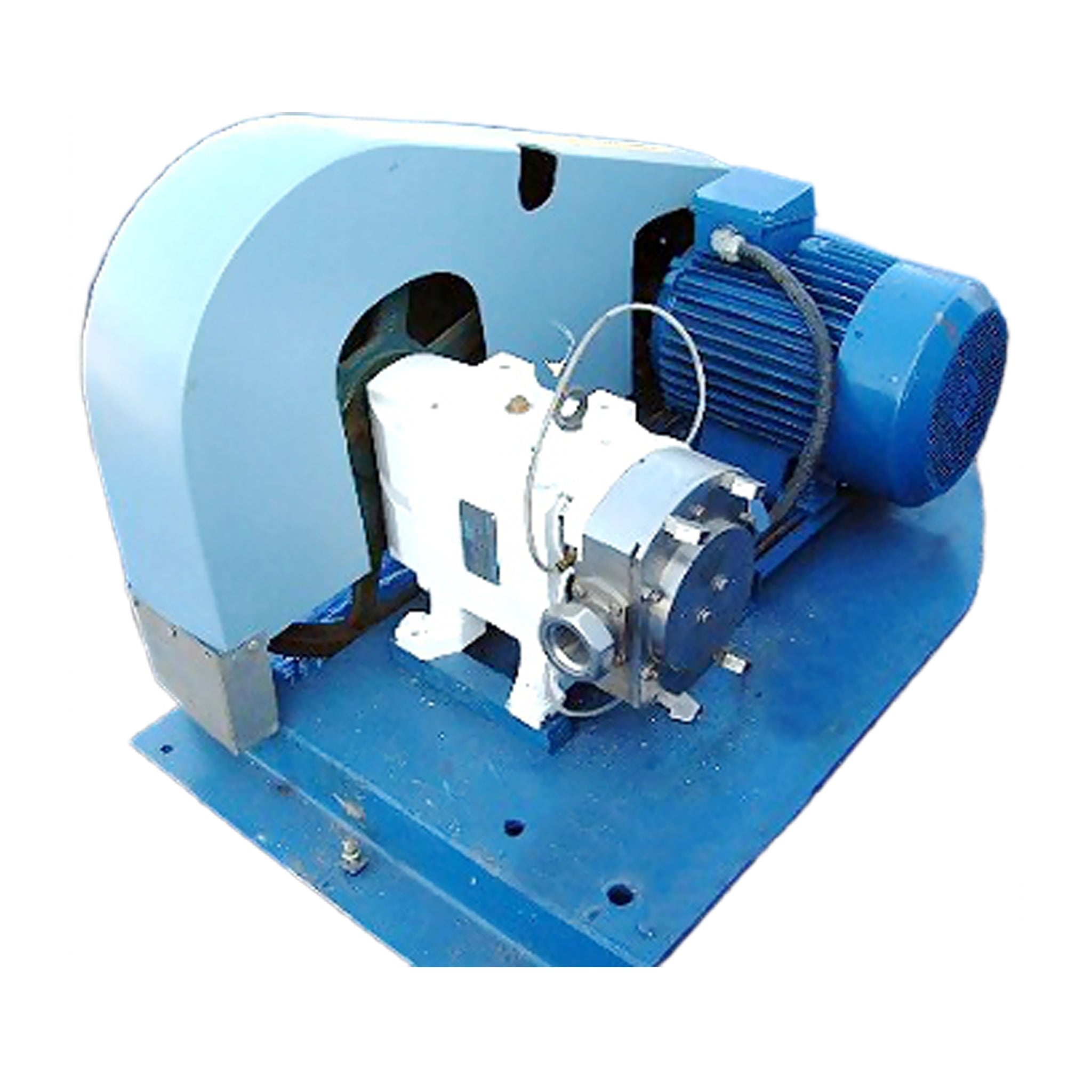

Jabsco 25200 5590 Positive Displacement Pump (5 HP)
Jabsco Positive Displacement Pump. Model: 25200 5590. S/N: 11092. Double mechanical seals. Elektrim motor, Model: SF, S/N: 56059B, 5 hp, 865 rpm, 575 V, 6 amps, 60 hz, 3 phase, 254 Frame. Inlet/Outlet Size: 2 in. Bevel Seat. Overall dimensions 50 in. L x30 in. W x 31 in. H.
Product Details
- Stock No: HDPH640.1
- Manufacturer: Jabsco
- Model: 25200 5590
- Serial Number: 11092
Pump Details
- Pump Type: Positive Displacement
- Displacement per Revolution (Gallons): 0.035
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet/Outlet
- Inlet/Outlet Size (Inches) 1: 2
- Inlet/Outlet Type 1: Bevel Seat
- Inlet/Outlet 2: Inlet/Outlet
- Inlet/Outlet Size (Inches) 2: 2
- Inlet/Outlet Type 2: Bevel Seat
- Inlet/Outlet Size (Inches) 4: 0.625
Previous Refrigerant
Motor Details
- Motor Included? Yes
- Motor Manufacturer: Elektrim
- Motor Horsepower(HP): 5
- Motor RPM: 865
- Motor Voltage: 575
- Motor Amps: 6
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 254
Dimensions:
- Length (Inches): 50
- Width (Inches): 30
- Height (Inches): 31
