Lagrange Products Stainless Steel Shell & Tube Heat Exchanger
Lagrange Products Stainless Steel Shell & Tube Heat Exchanger. Model: 0564-2043. S/N: 226466. Customer No.6235225. MAWP: 150 psi @ 400ºF. MDMT: -20ºF @ 150 psi. Number of tubes: 17. Tube dimensions: 1/2 in. dia. x 5 ft. 2-1/2 in. L. Heat transfer surface area: approx. 11 sq. ft. Capacity: 0.90 gallons. Inlets: (1) 1-1/2 in. dia. ACME fittings, (1) 1-1/2 in. dia. ACME fittings (steam).Outlets: (1) 1-1/2 in. dia. ACME fittings, (1) 1 in. dia. NPT fittings (steam).
Product Details
- Stock No: DLEC017B
- Manufacturer: Lagrange Products
- Model: 0564-2043
- Serial Number: 226466
Shell & Tube Details
- Heat Transfer Surface Area (SQ FT): 11
- Tube Material: Stainless Steel

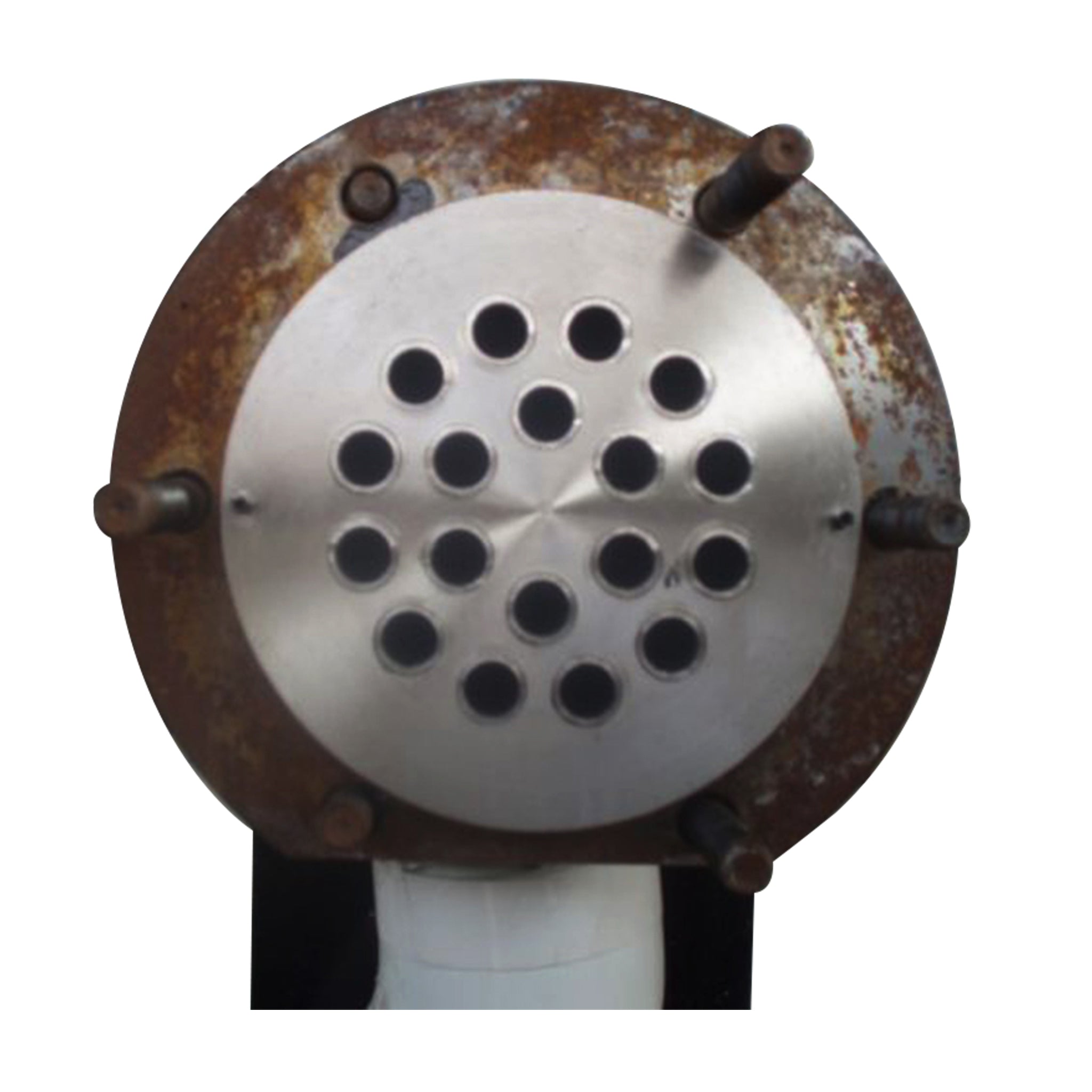

- Number of Tubes: 17
- Tube Diameter (inches): 0.5
- Tube Length (inches): 62.5
- MAWP (PSI at temp): 150 psi @ 400ºF
- MDMT (temp at PSI): -20ºF @ 150

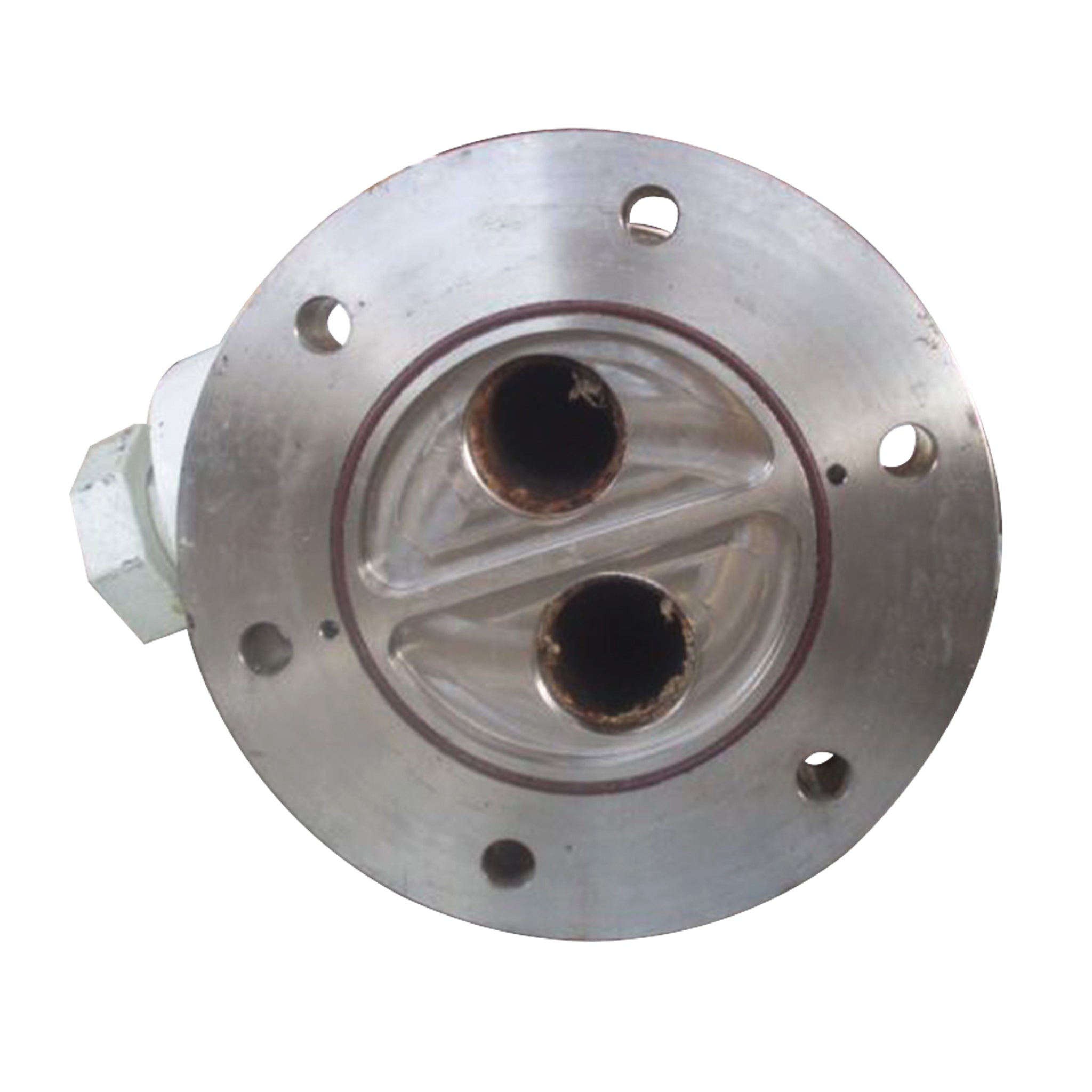

- Inlets & Outlets Description: Inlets: (1) 1-1/2 in. dia. ACME fittings, (1) 1-1/2 in. dia. ACME fittings (steam).Outlets: (1) 1-1/2 in. dia. ACME fittings, (1) 1 in. dia. NPT fittings (steam).
Previous Refrigerant
Motor Details
- Motor Included? No
Dimensions:
Additional Product Details
