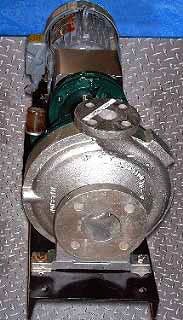

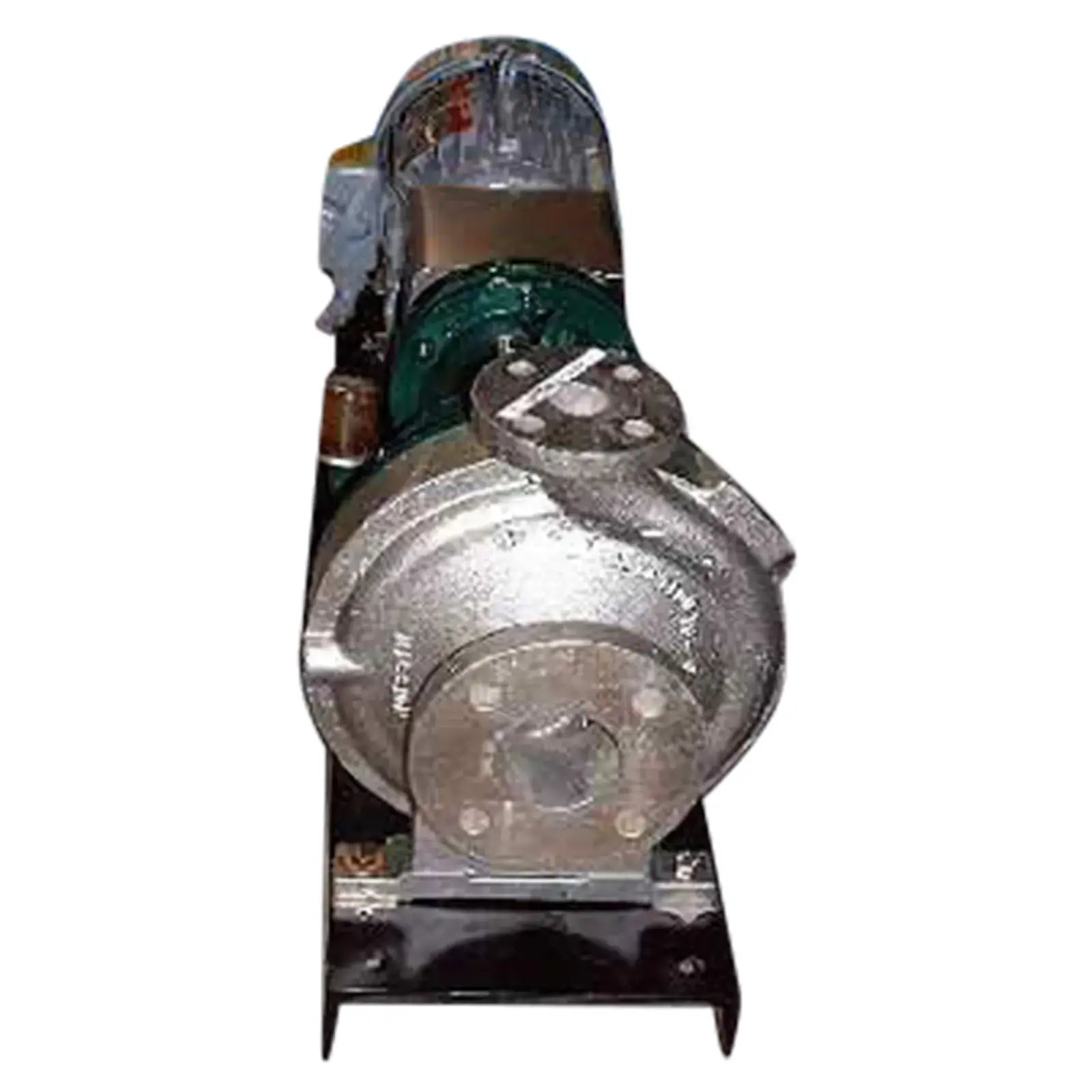

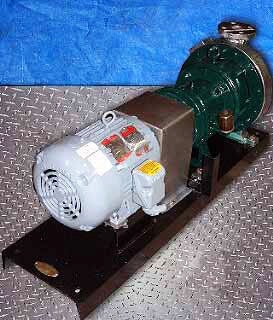

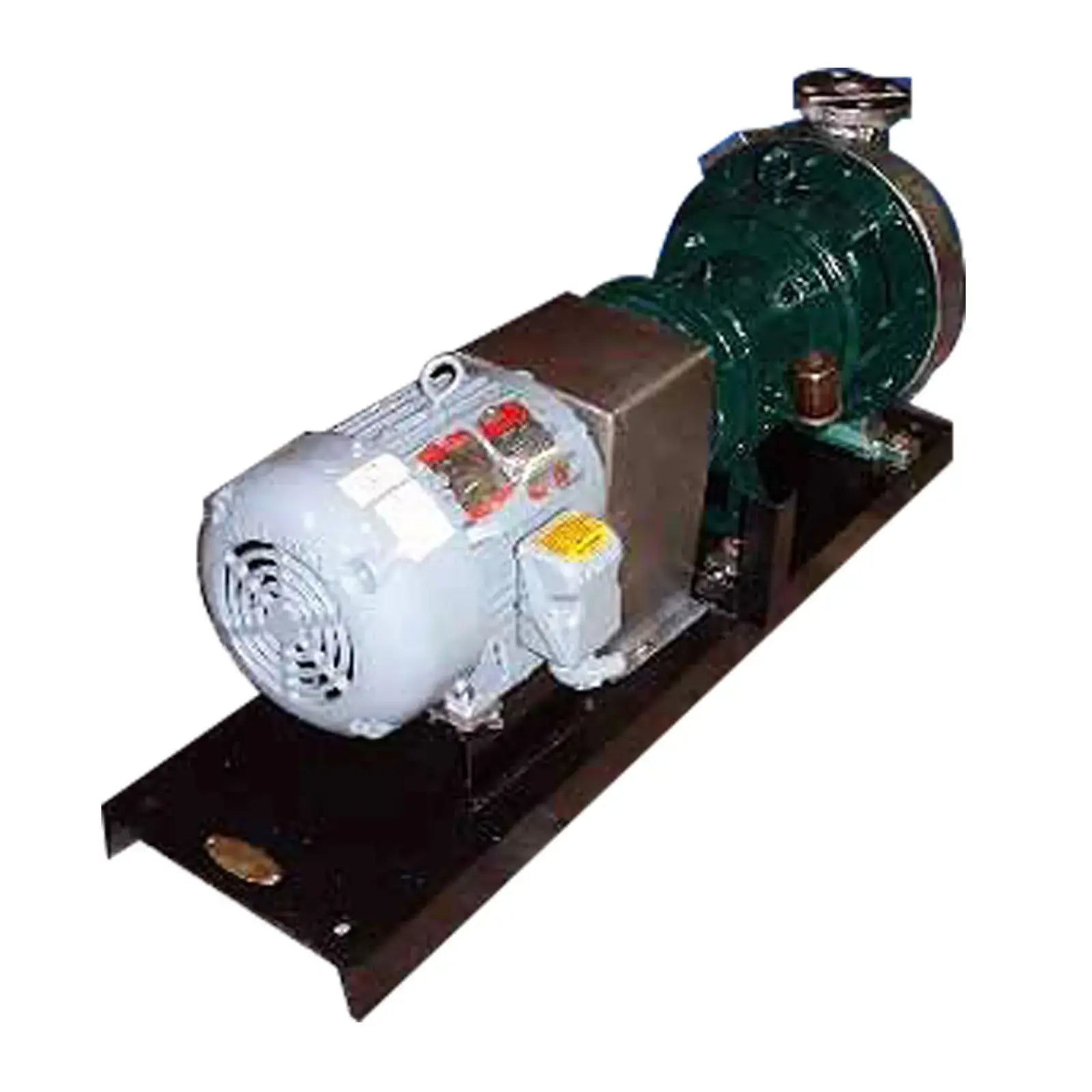

Mission 3 x 2.5 x 10 Centrifugal Pump (3 HP, 180 GPM Max)
Mission Centrifugal Pump. Flow rate for new pump is 180 gpm with required horsepower and pressure. Impeller 10 in. Baldor motor: 3 hp, 208-230/460 volt, 9.0-8.6/4.3 amps, 60 Hz, 3 phase, 1,725 rpm. Inlet (1) 3 in. Outlet (1) 2-1/2 in. Overall dimensions: 3ft. 9 in. L x 13 in. W x 1ft. 8 in. H.(ACN58)
Product Details
- Stock No: NPPC145.
- Manufacturer: Mission
- Model: 3 x 2.5 x 10
- Serial Number: 61343-80
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 180

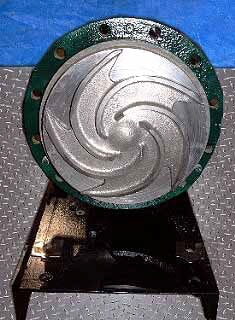

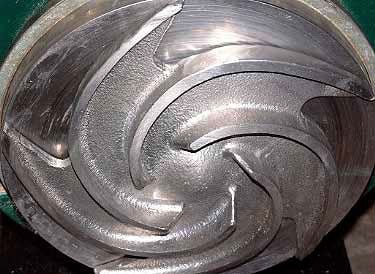

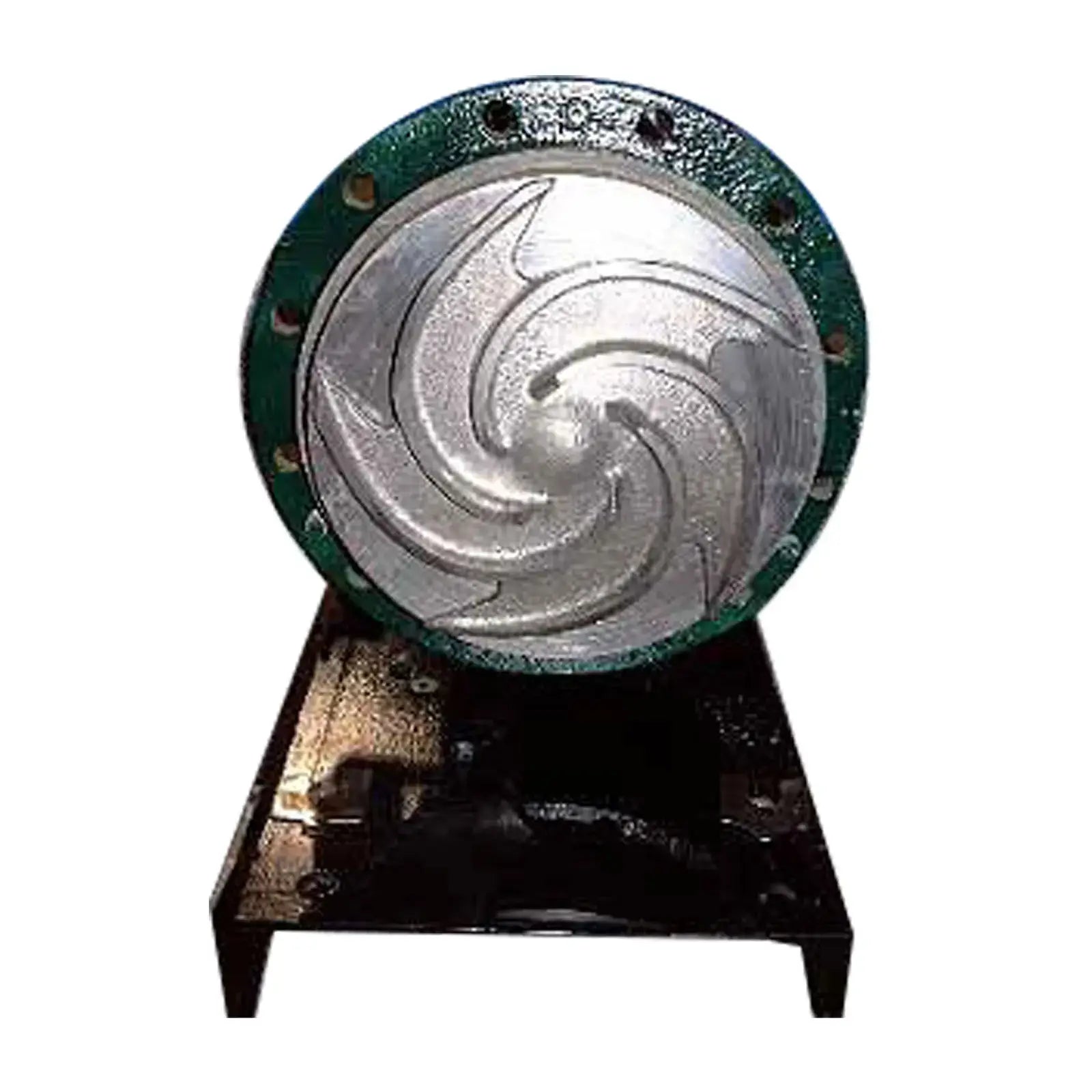

- Impeller Diameter (inches): 10
- # Inlets: 1
- # Outlets: 1
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 3
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 2.5
- Inlet/Outlet Type 2: Flange
Previous Refrigerant

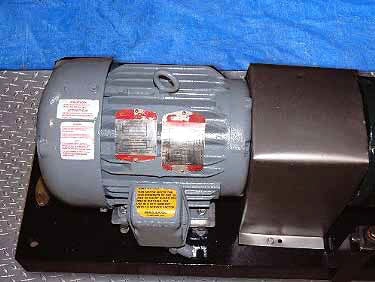

Motor Details
- Motor Included? Yes
- Motor Manufacturer: Baldor
- Motor Horsepower(HP): 3
- Motor RPM: 1725
- Motor Voltage: 208-230/460
- Motor Amps: 9.0-8.6/4.3
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 45
- Width (Inches): 13
- Height (Inches): 20
- ACN: 58
