Morris and Associates Remote Water Chiller - 60 Ton - 190.75 sq. ft.

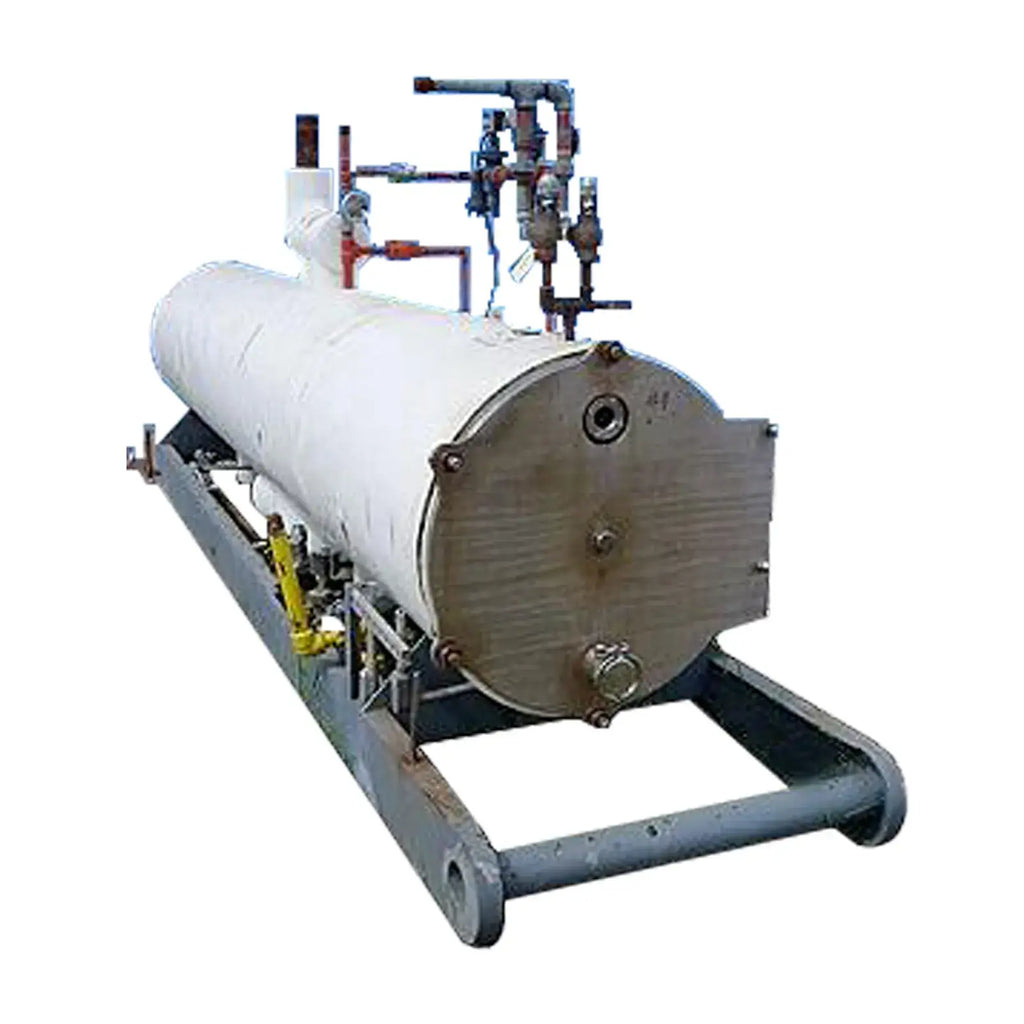

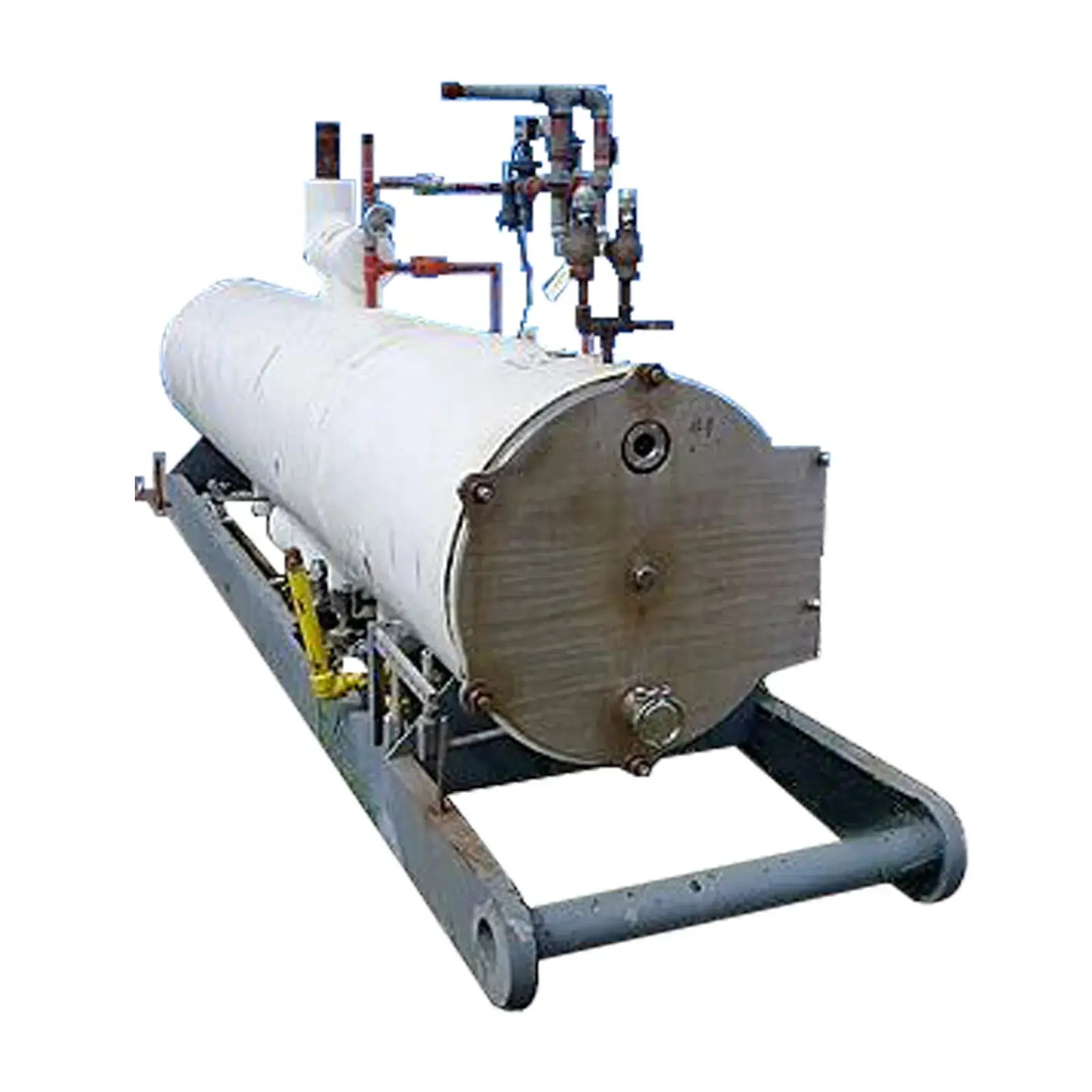

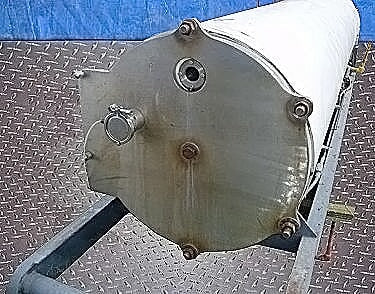

Morris and Associates Remote Water Chiller – 60 Tons. Refrigerant: ammonia. Tube material: 316 stainless steel. Number of passes: 5. Number of tubes: 18. Tube dimensions: 3 in. dia. x 13 ft. 6 in. L. Heat transfer surface area: approx. 190.75 sq. ft. Tube volume: 89 gal. Morris water chillers and rechillers are designed for high refrigeration efficiency. Inlets: (1) 1-1/2 in. dia. supply port (refrigerant), (1) 3 in. dia. S-line fitting (water). Outlets: (1) 3 in. dia. S-line fitting (water), (1) 3 in. dia. suction port (refrigerant). Previously owned and operated by Wampler Foods. Overall dimensions: 16 ft. 11 in. L x 3 ft. 9 in. W x 5 ft. 9 in. H.
- Stock No: JJWV004.
- Manufacturer: Morris and Associates
Shell & Tube Details
- Heat Transfer Surface Area (SQ FT): 190.75
- Number of Passes: 5
- Tube Material: 316 stainless steel
- Number of Tubes: 18
- Tube Diameter (inches): 3
- Tube Length (inches): 162
- Inlets & Outlets Description: Inlets: (1) 1-1/2 in. dia. supply port (refrigerant), (1) 3 in. dia. S-line fitting (water). Outlets: (1) 3 in. dia. S-line fitting (water), (1) 3 in. dia. suction port (refrigerant)
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
- Motor Included? No
- Length (Inches): 203
- Width (Inches): 54
- Height (Inches): 69
Additional Product Details
- Product Purchased From: Food Processing Company
