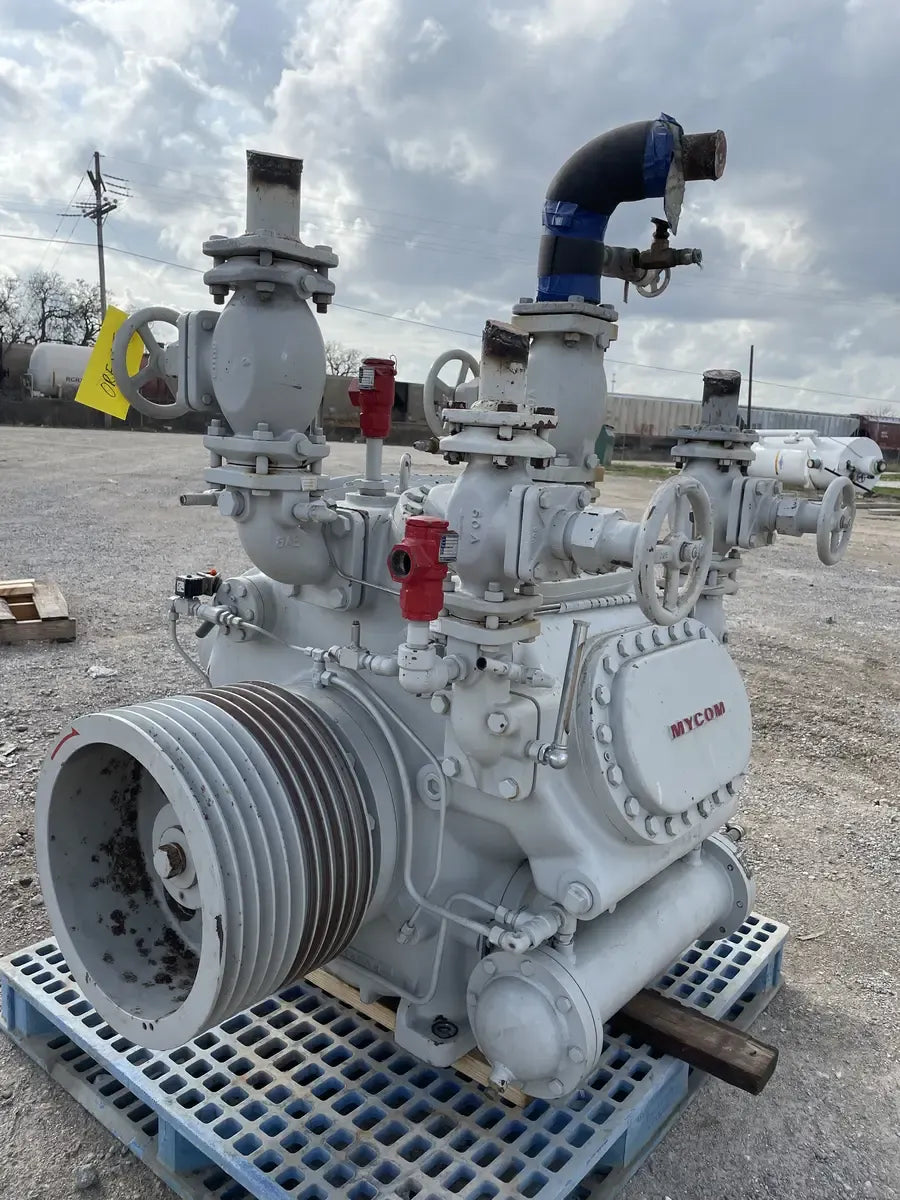

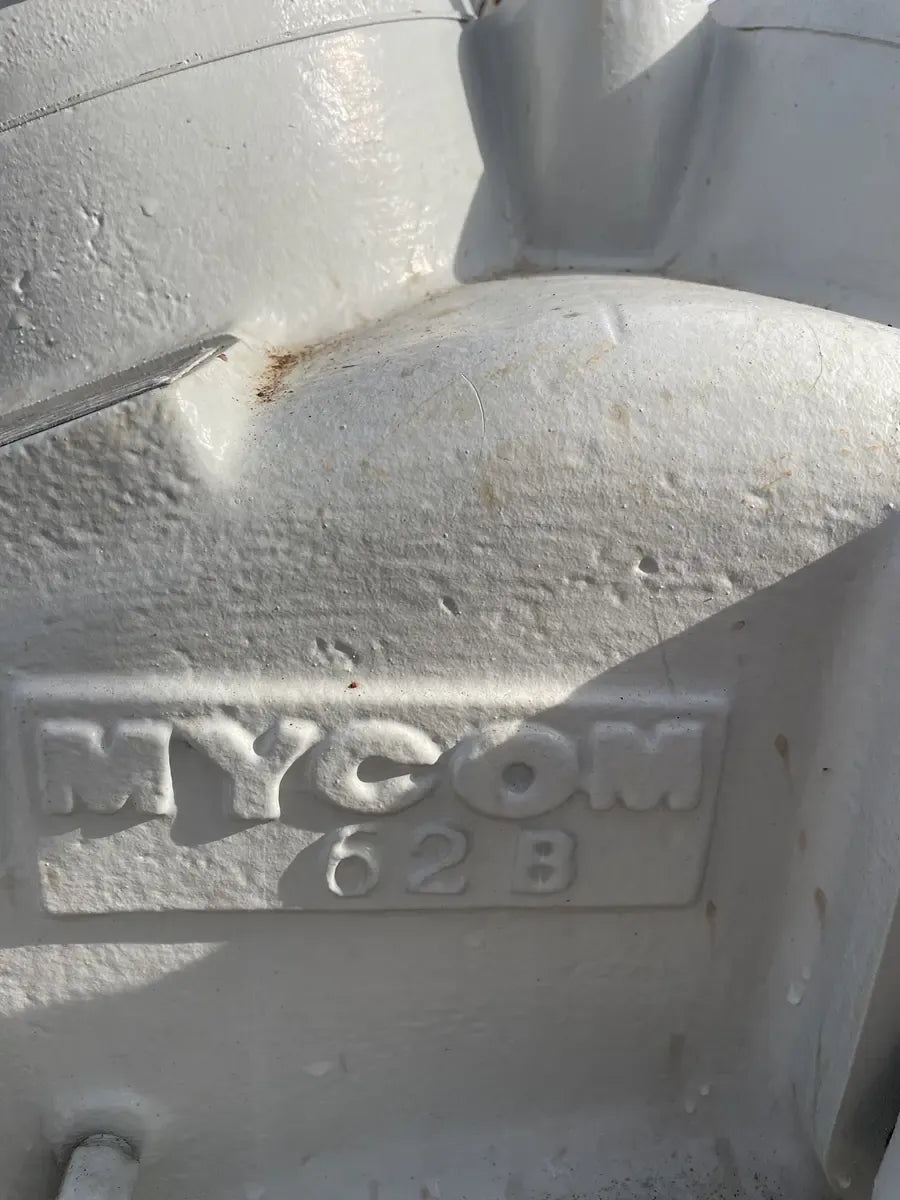

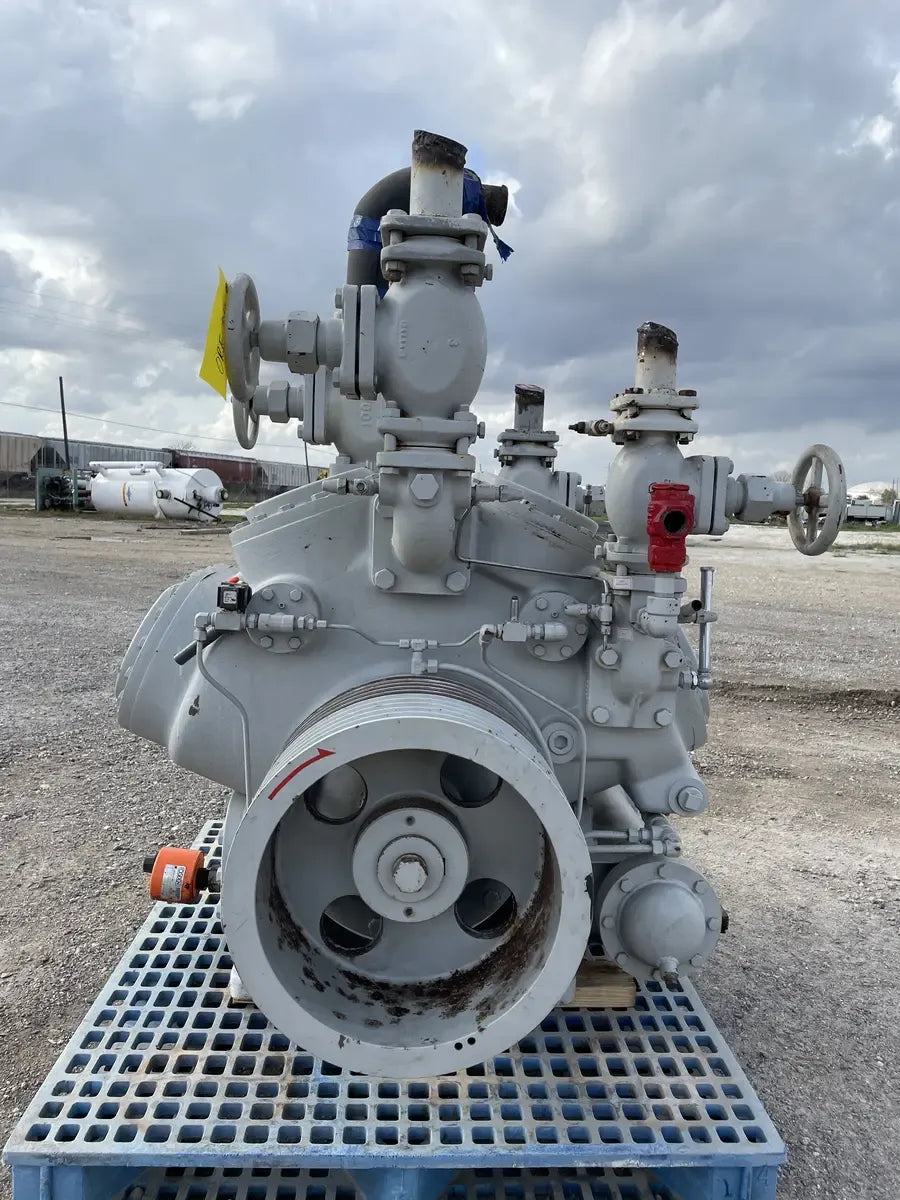

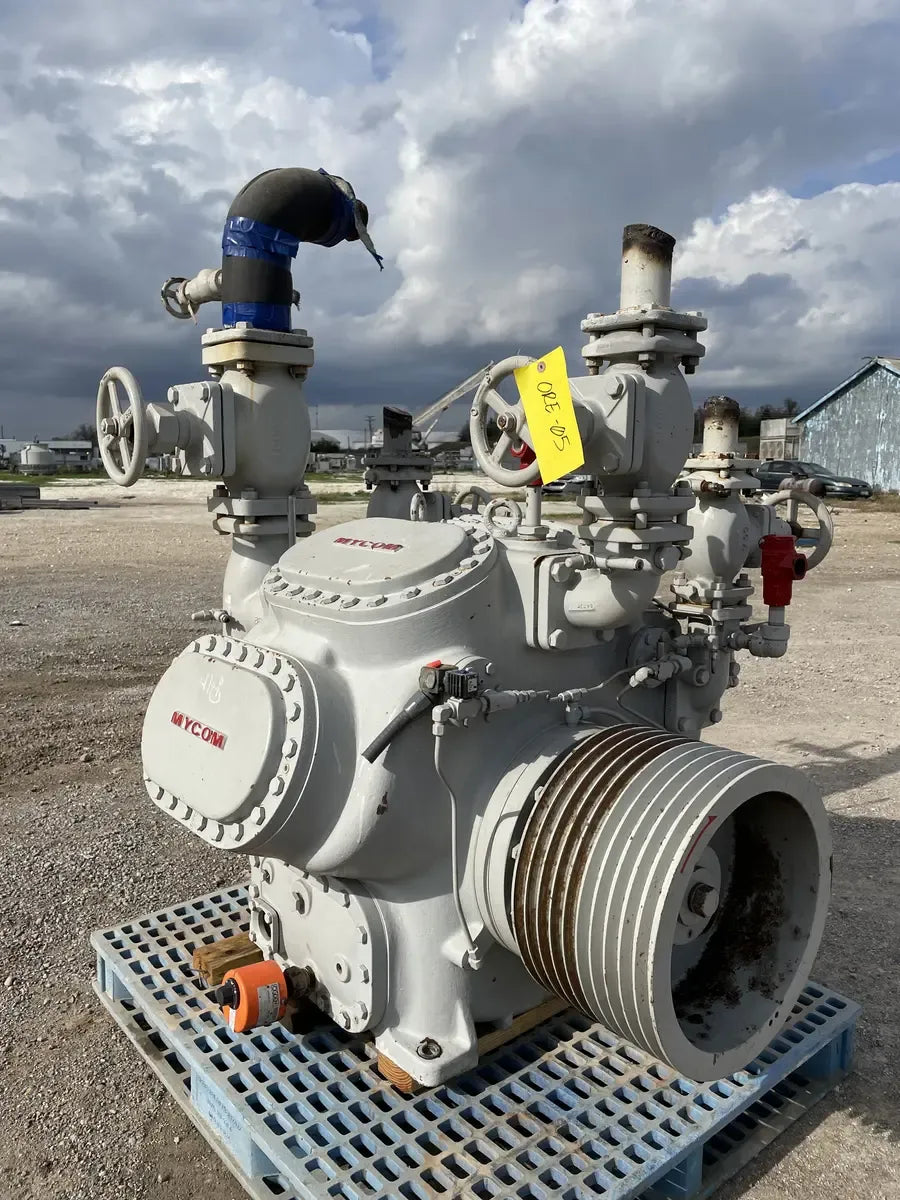

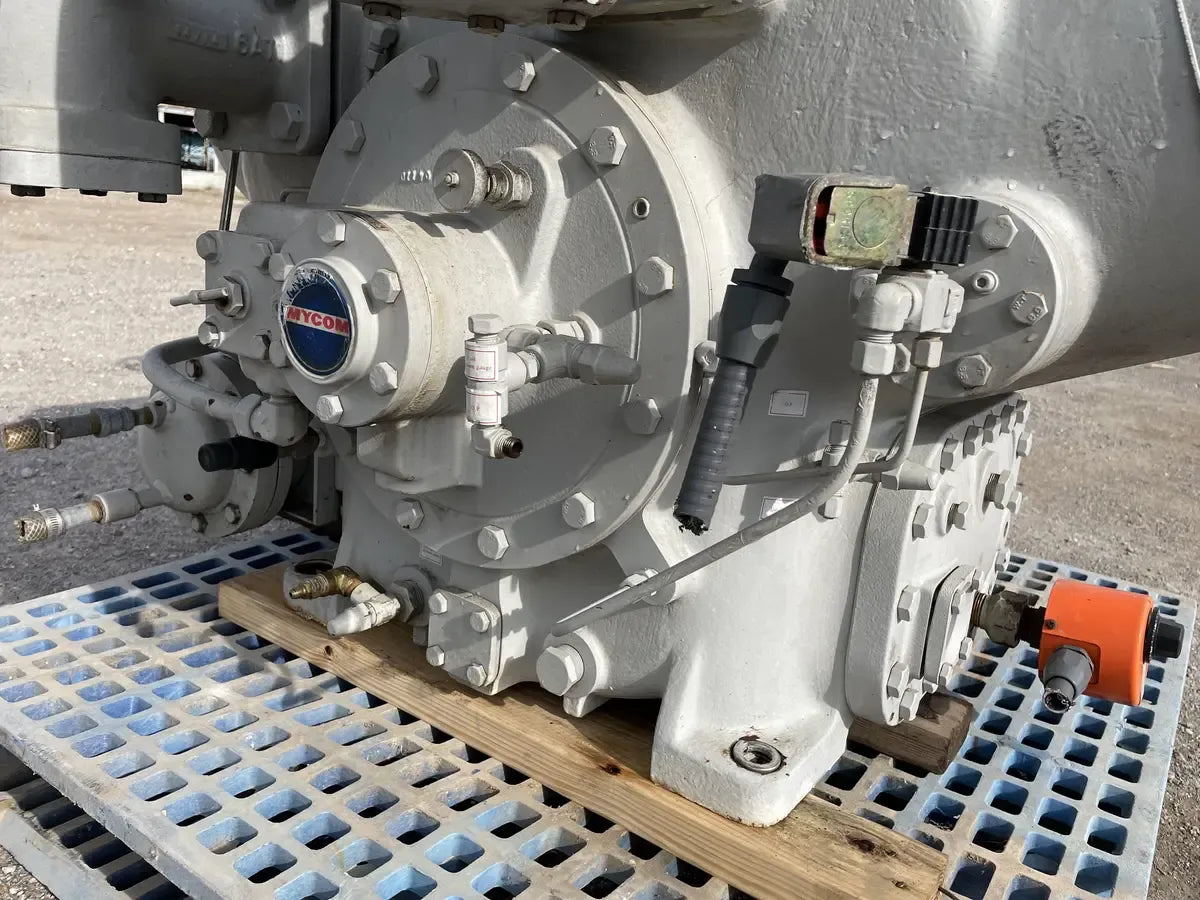

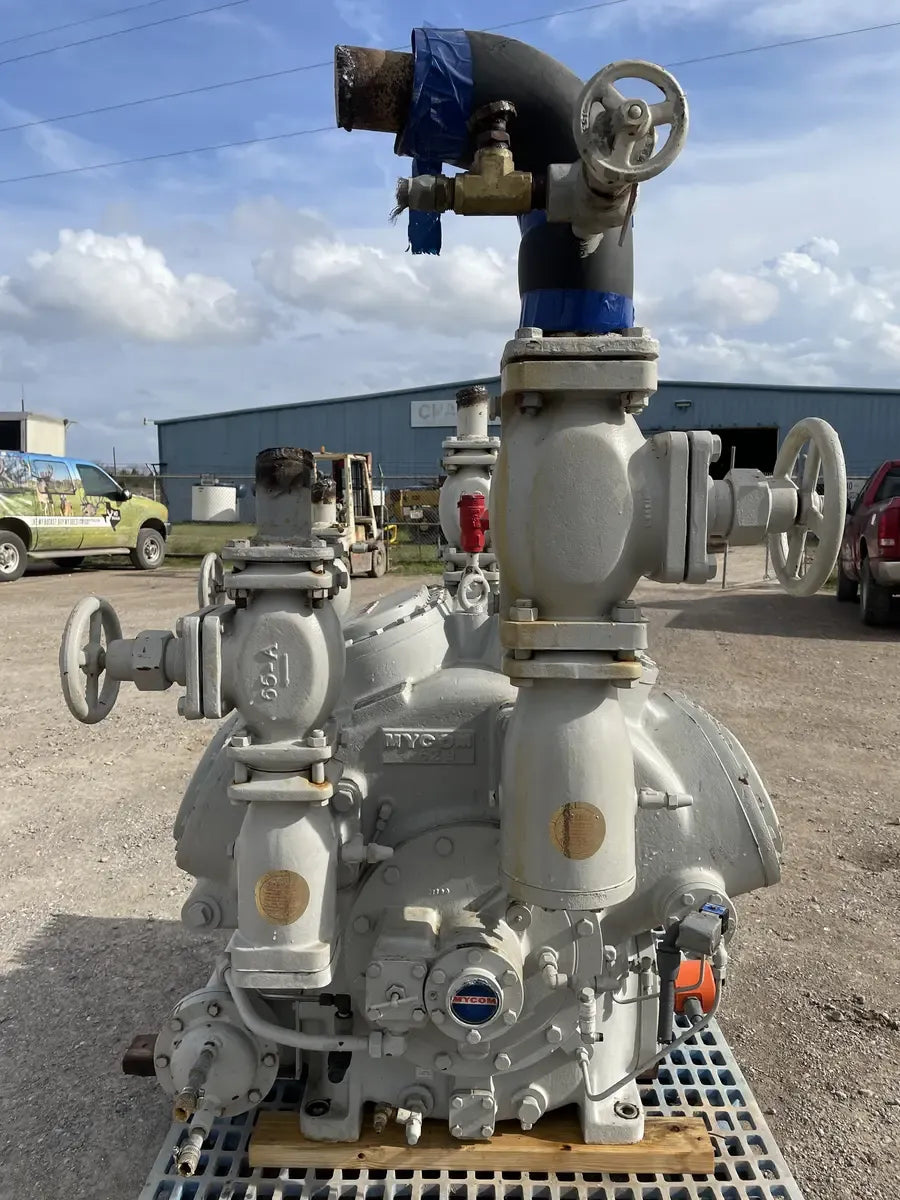

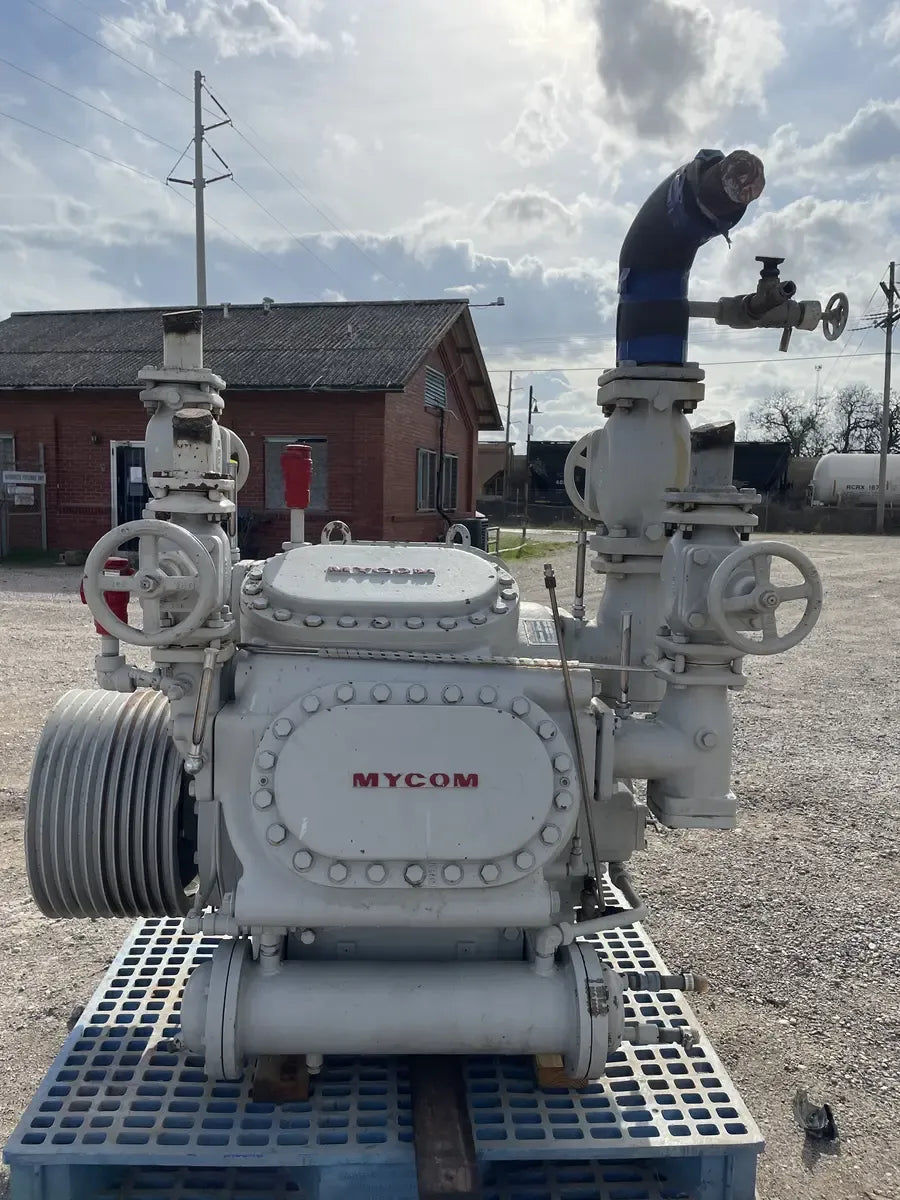

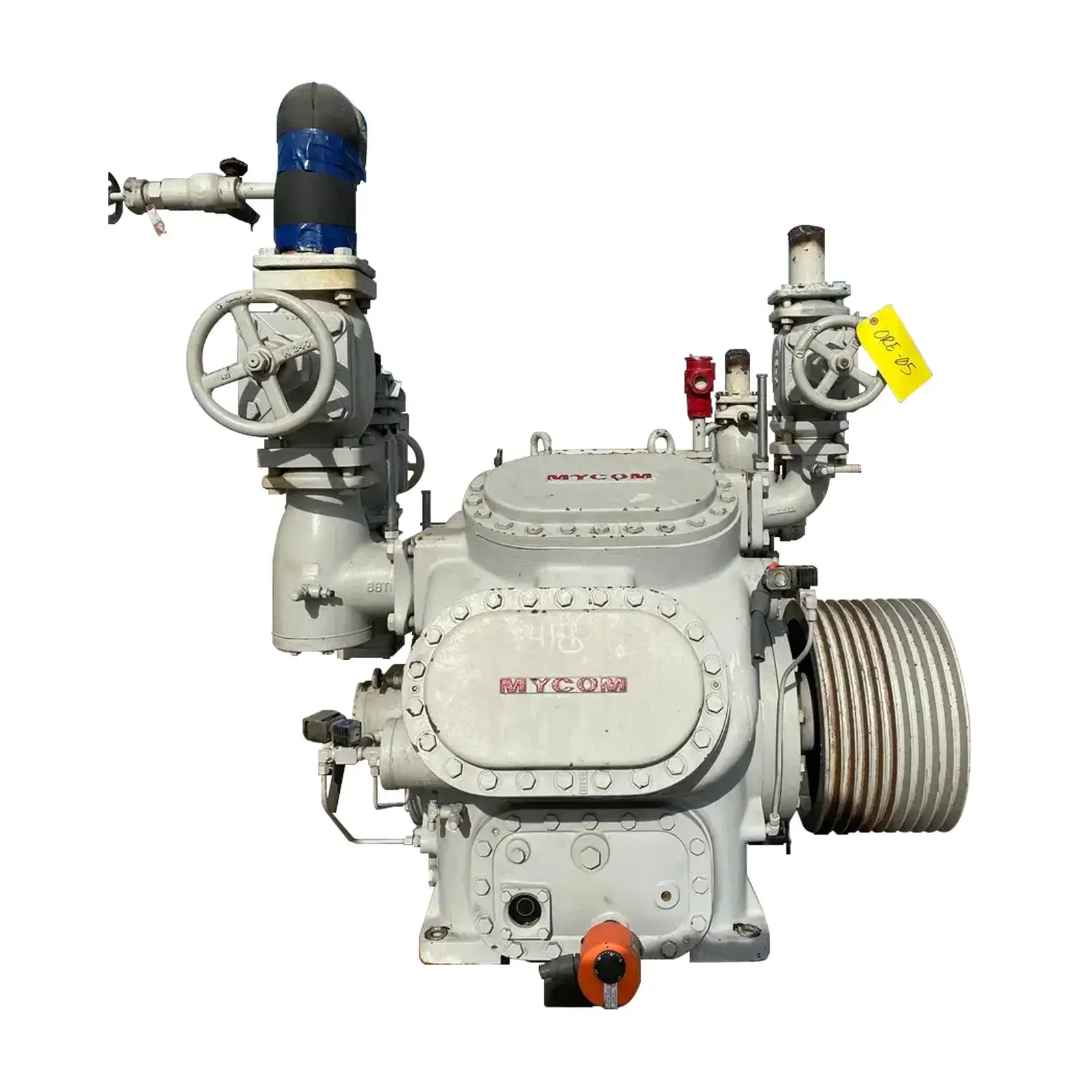

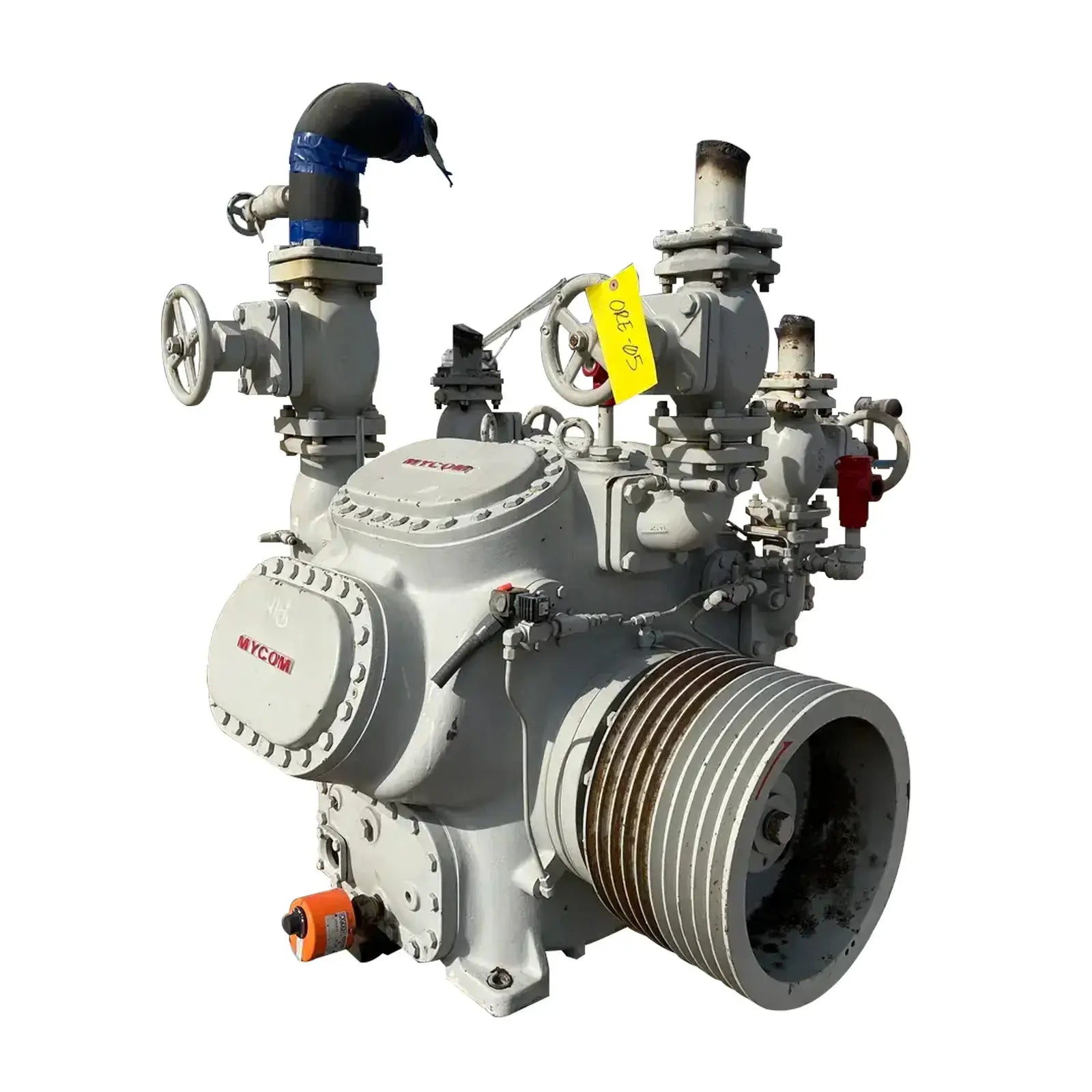

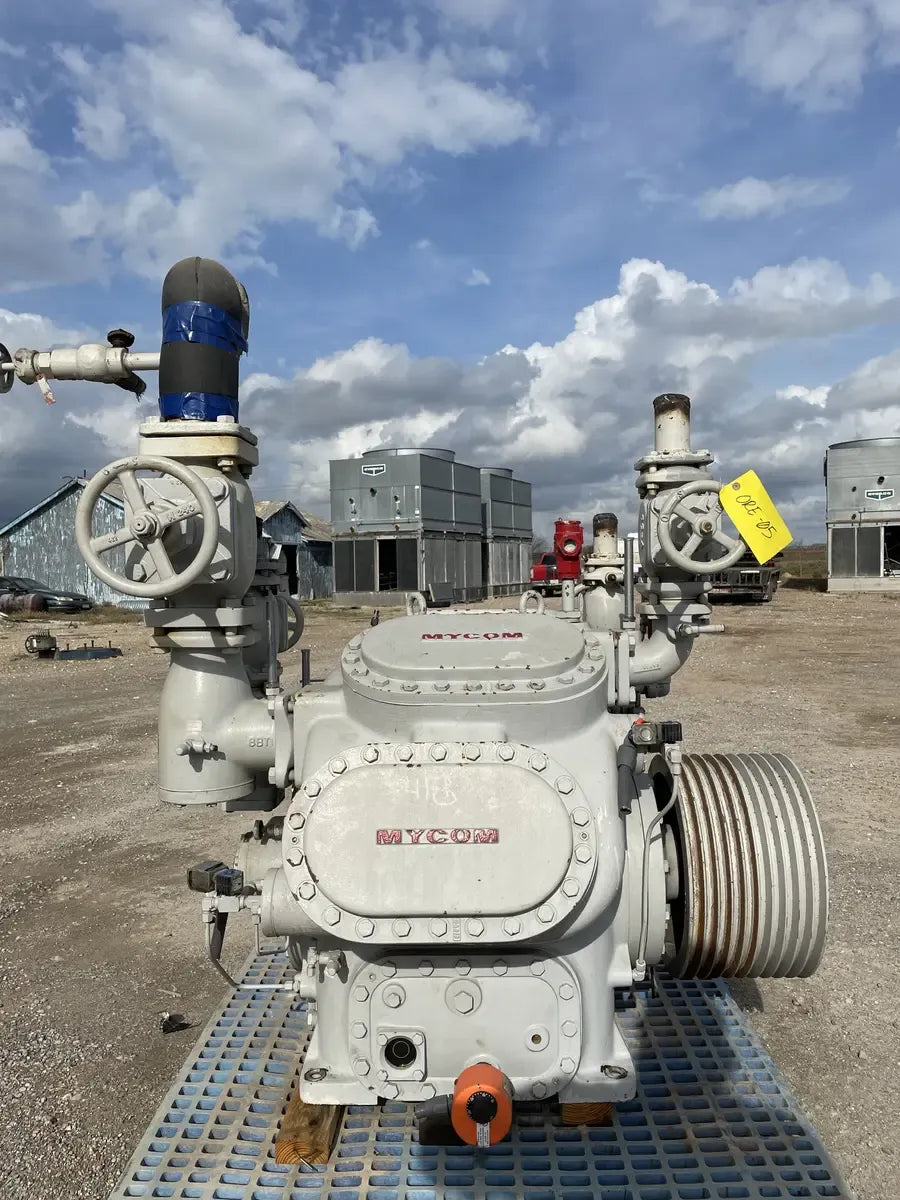

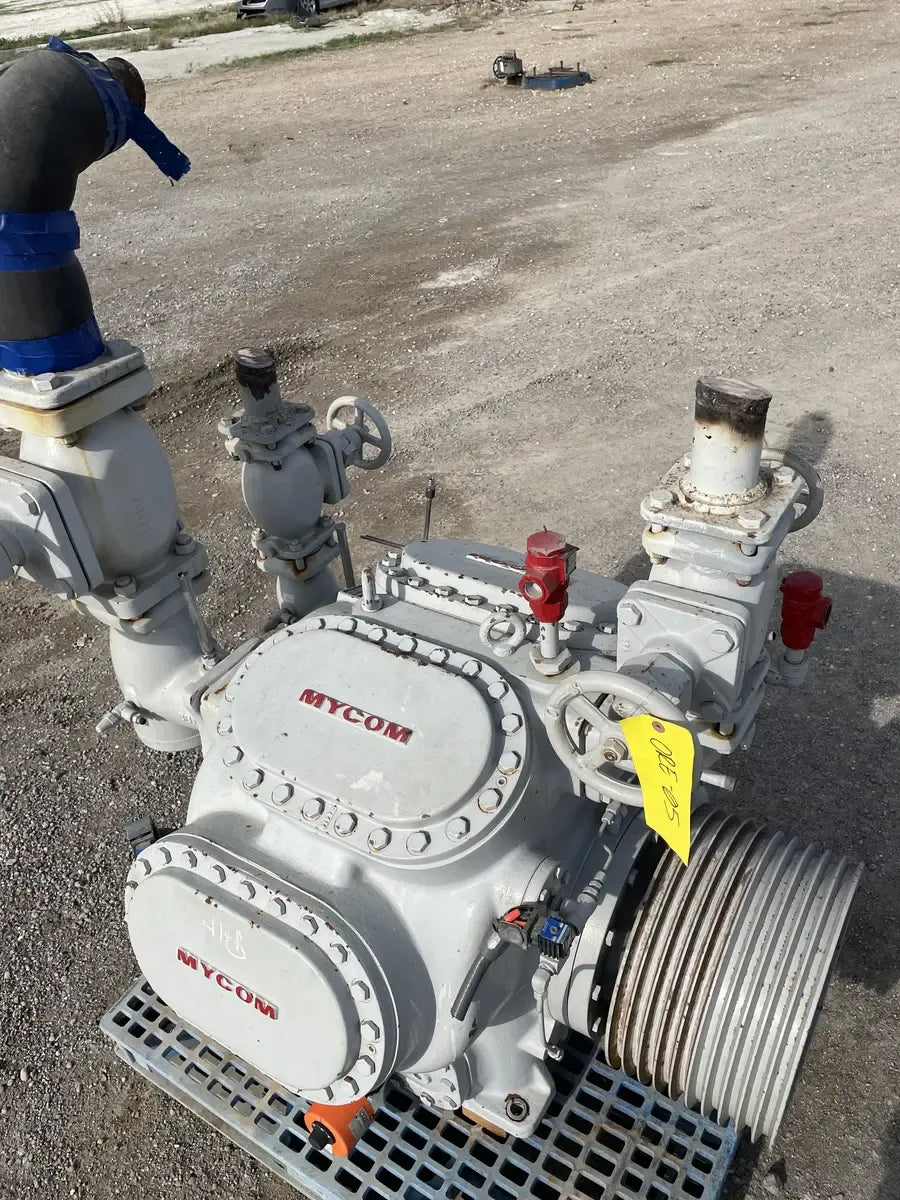

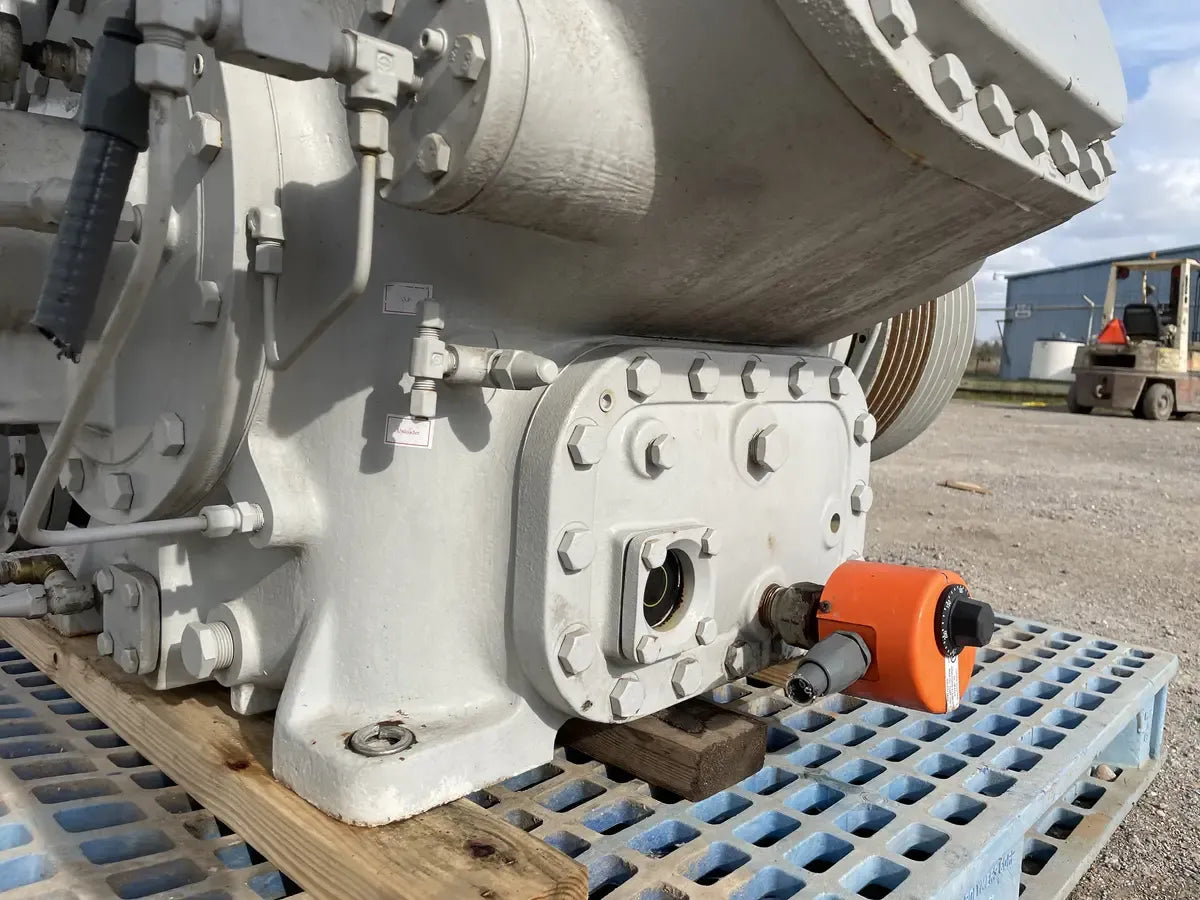

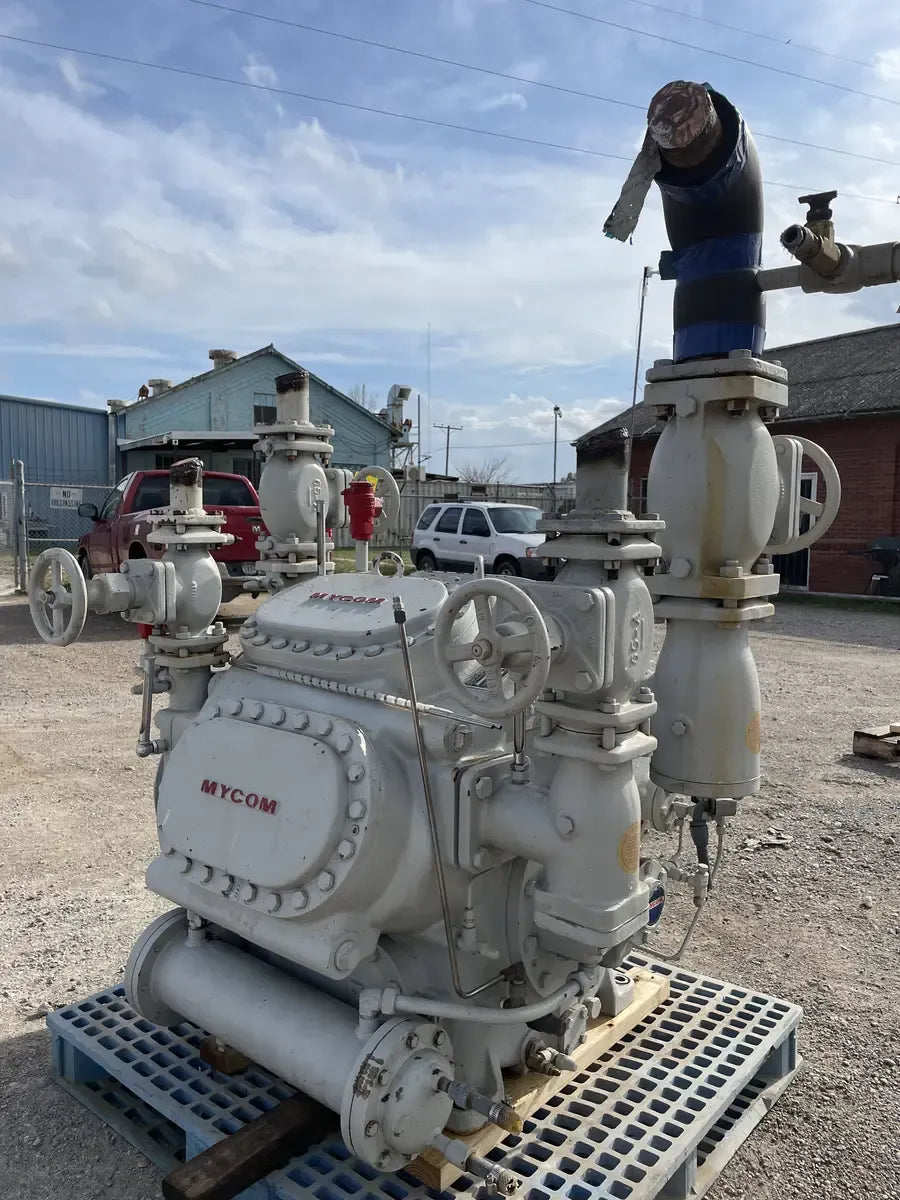

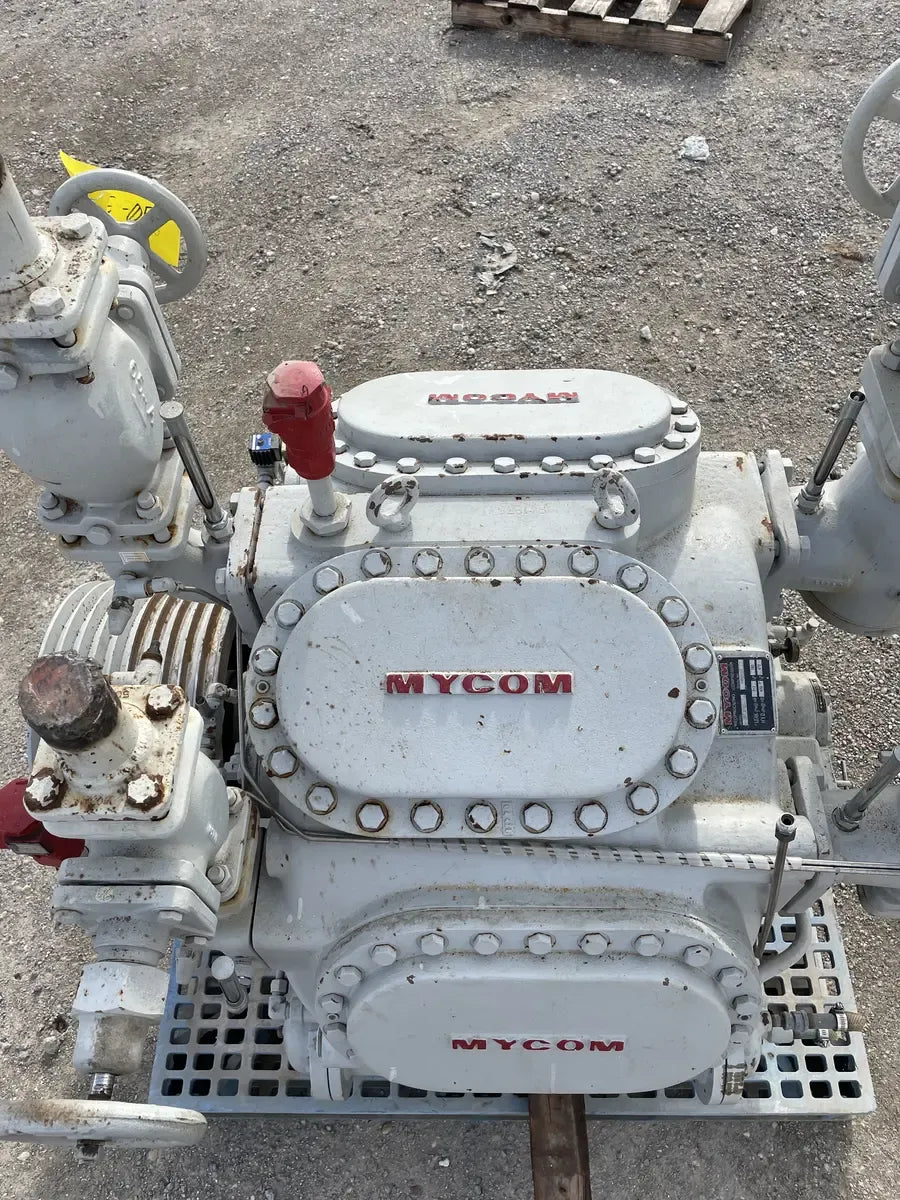

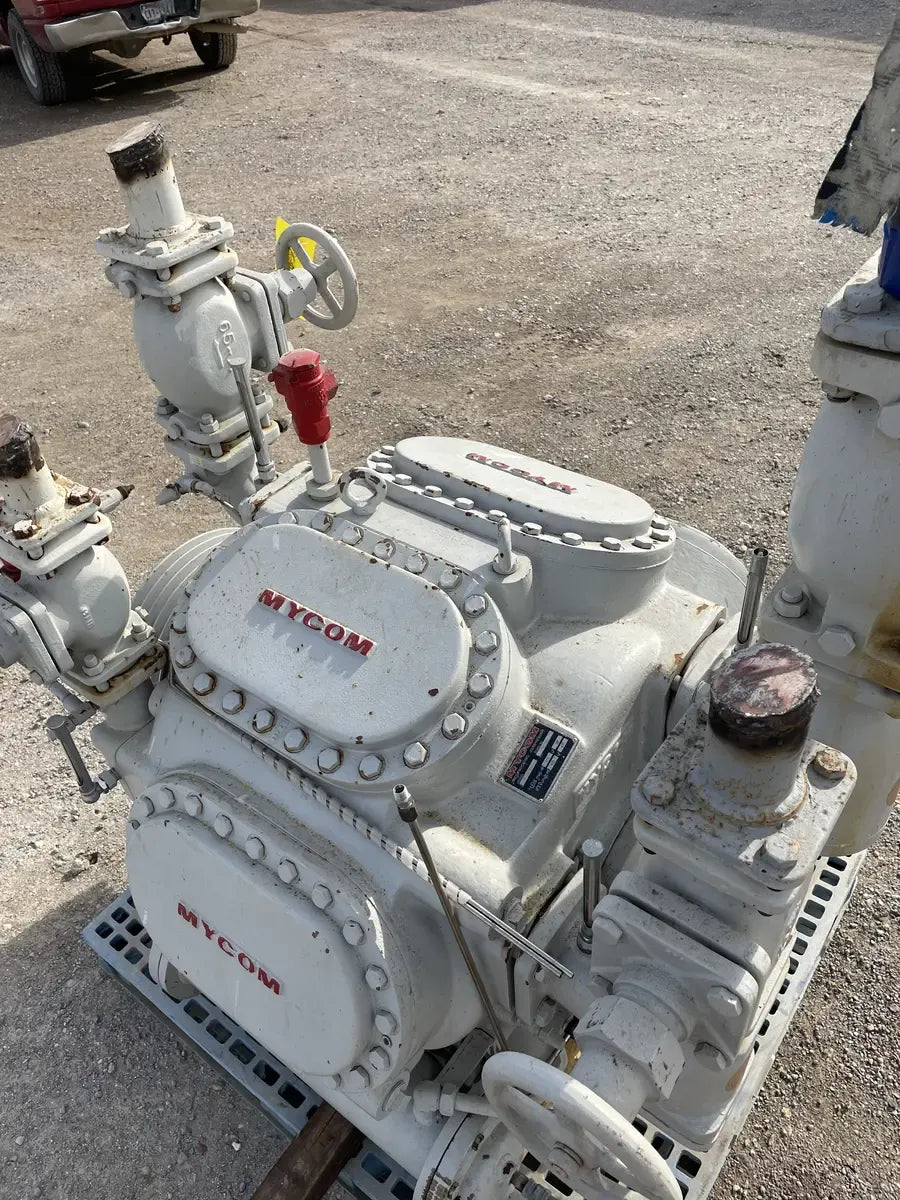

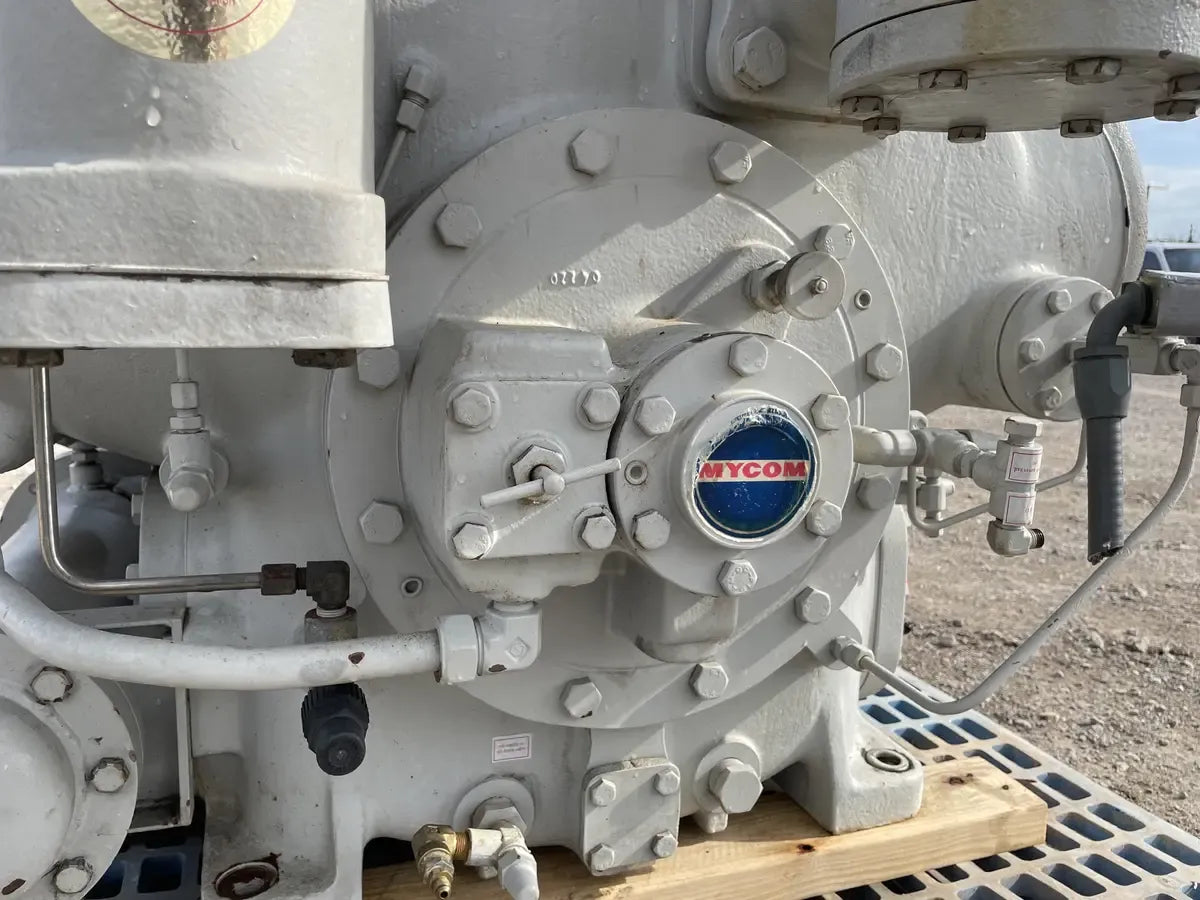

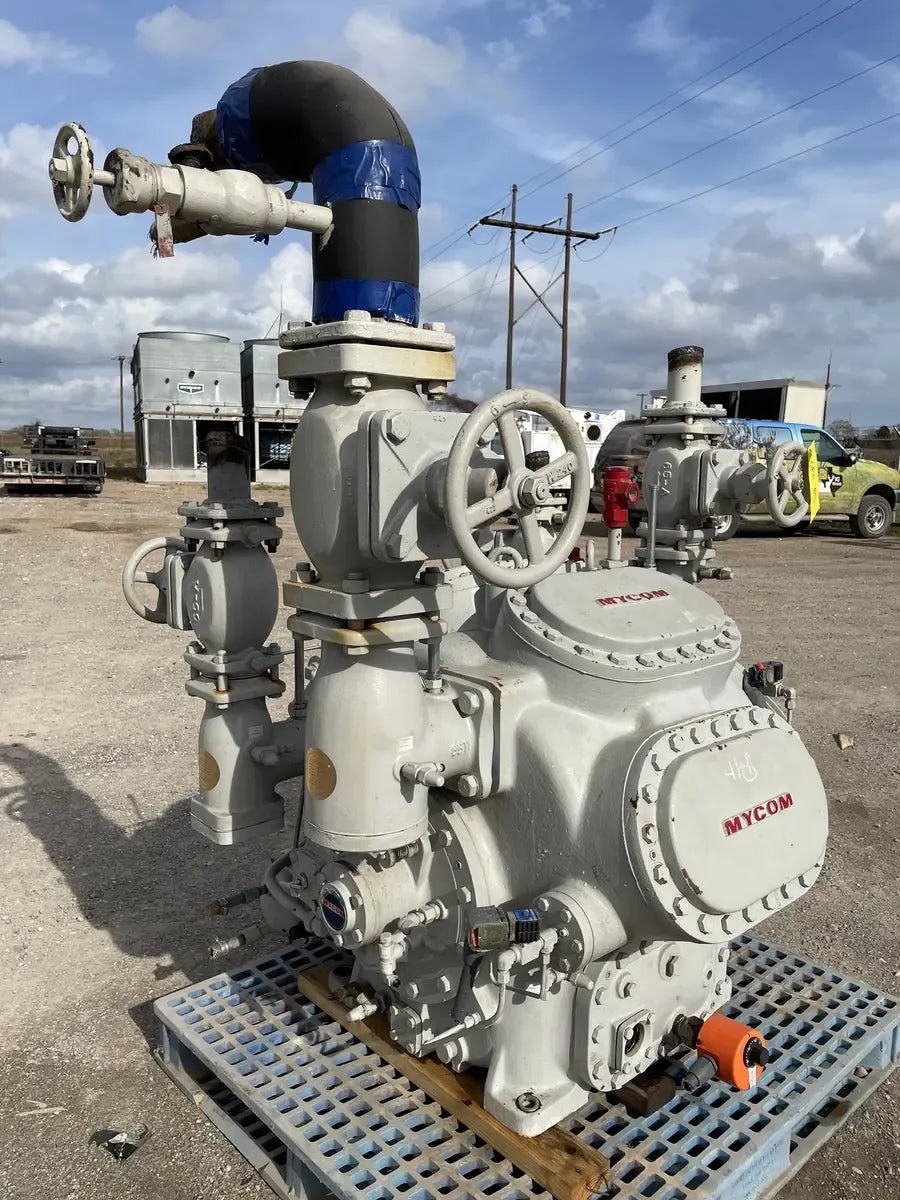

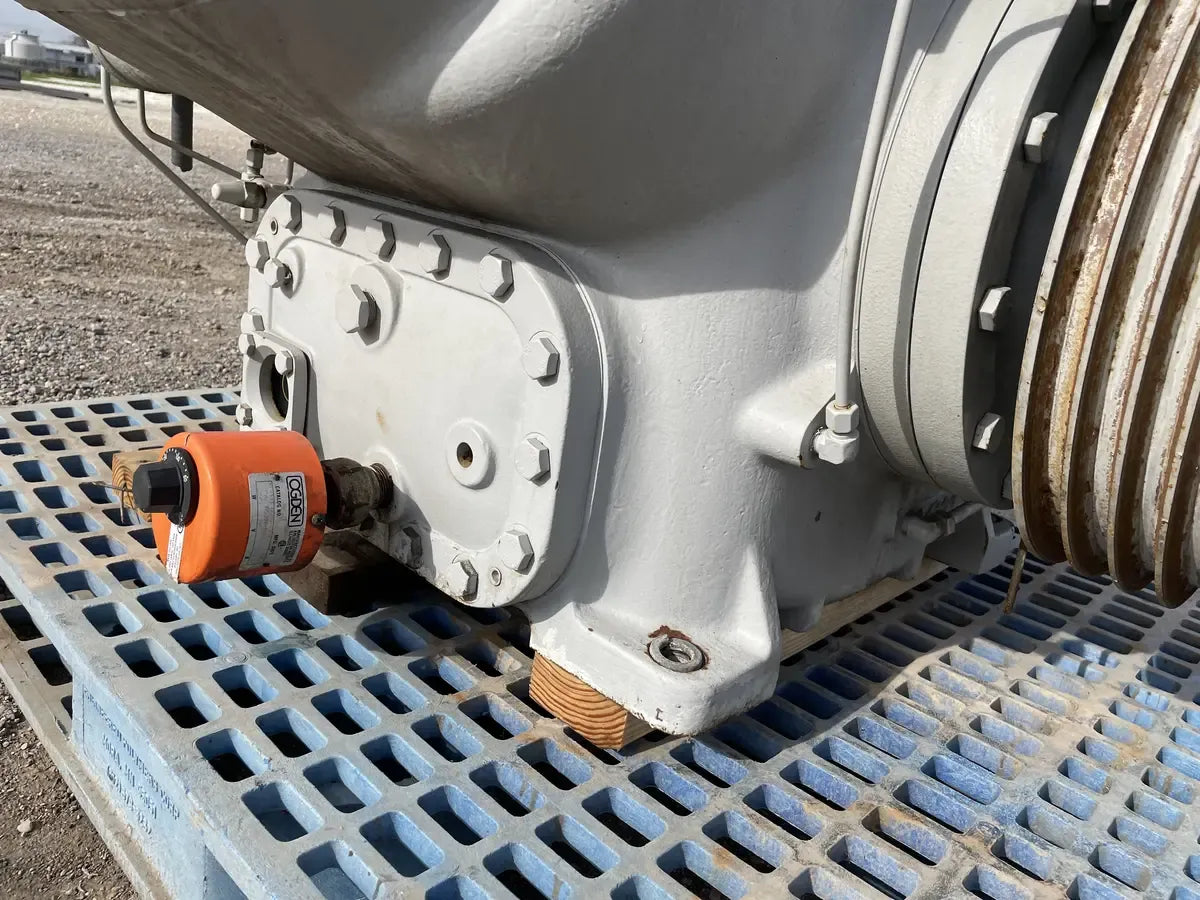

Mycom F62WB 8-Cylinder Bare Reciprocating Compressor (100 HP 230/460 V, Belt Driven)

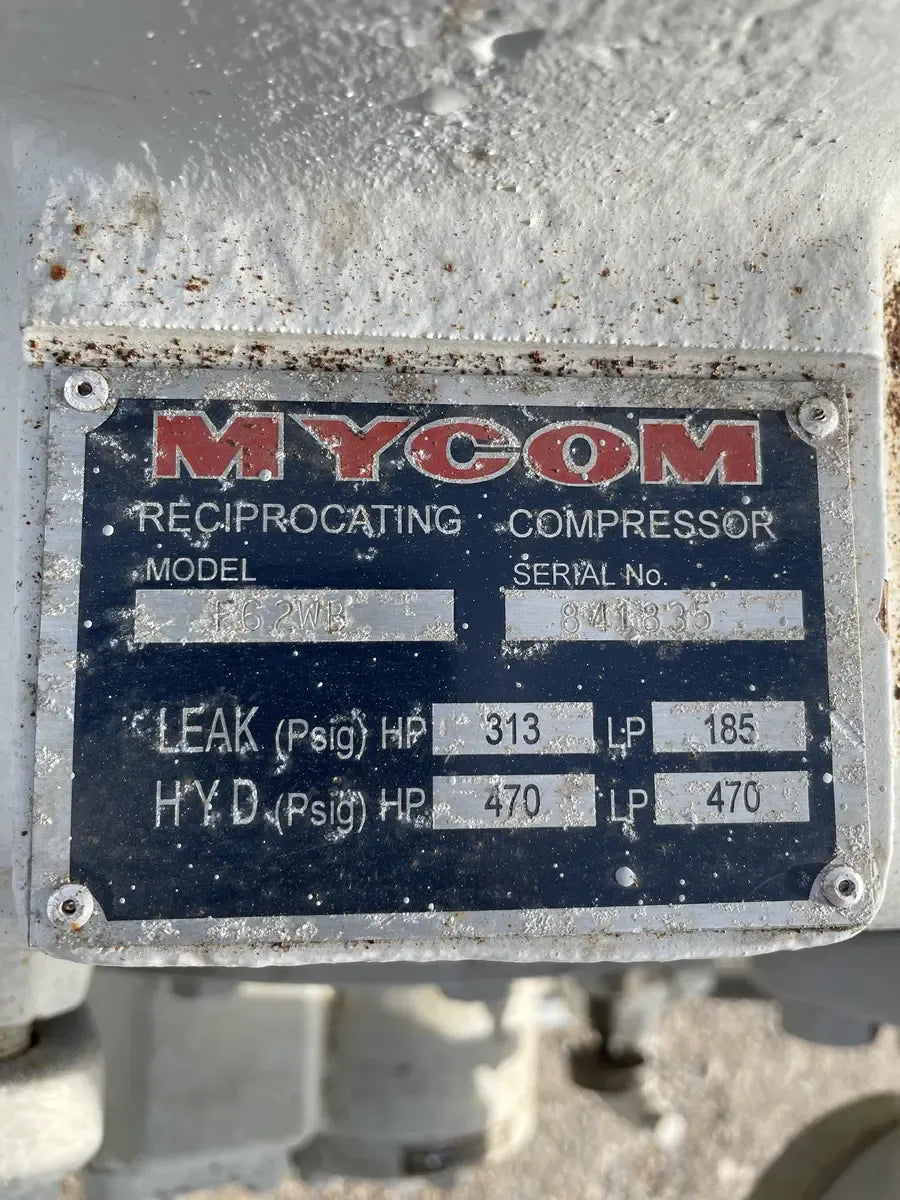

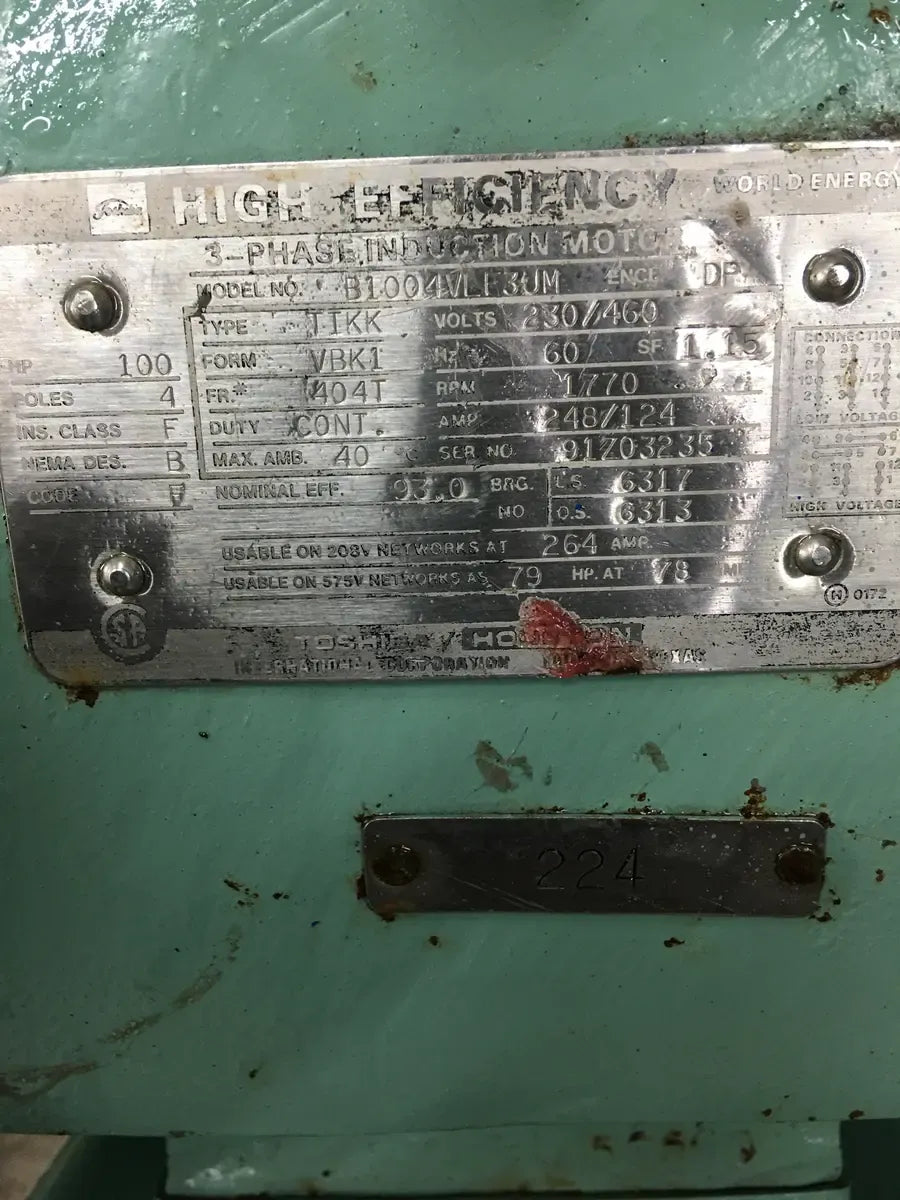

Mycom F62WB 8-Cylinder Bare Reciprocating Compressor - Model: F62WB, Serial No: 841835, Leak Test Pressure (psig): HP 312 LP 185, Hydrostatic Test Pressure (psig): HP 470 LP 470. Numbers of Cylinders - Low Stage: 6, High-Stage: 2. Bore x Stroke(mm) - 130x 100, Number of Revolutions - 800 to 1200. Total of Cylinders: 8. Toshiba High Efficiency Motor - Hp: 100, Model No: B1004VLF3UM, Encl: DP, Type: TIKK, Form: VBK1, Fr: 404T, Duty: CONT, Max AMB: 40, Volts: 230/240, Hz: 60, RPM: 1770, AMP: 248/124, Serial No: 91703235.
Product Details
- Stock No: ORE05
- Manufacturer: Mycom
- Model: F62WB
- Serial Number: 841835
- Compressor Type: Reciprocating
- Package Included? No
- Stage Type: Compound
Reciprocating Compressor Details
- Compressor Manufacturer: Mycom
- # Of Reciprocating Cylinders: 8
- Reciprocating Type: Belt
- # Compressors in Package: 1
- Compressor Model: F62WB
- Compressor SN: 841835
- Compressor Max Speed (RPM): 1,200
- Compressor Design Pressure (PSIG): 312,470
- Oil Separator Included? No
- Oil Cooling Type: Liquid Injection

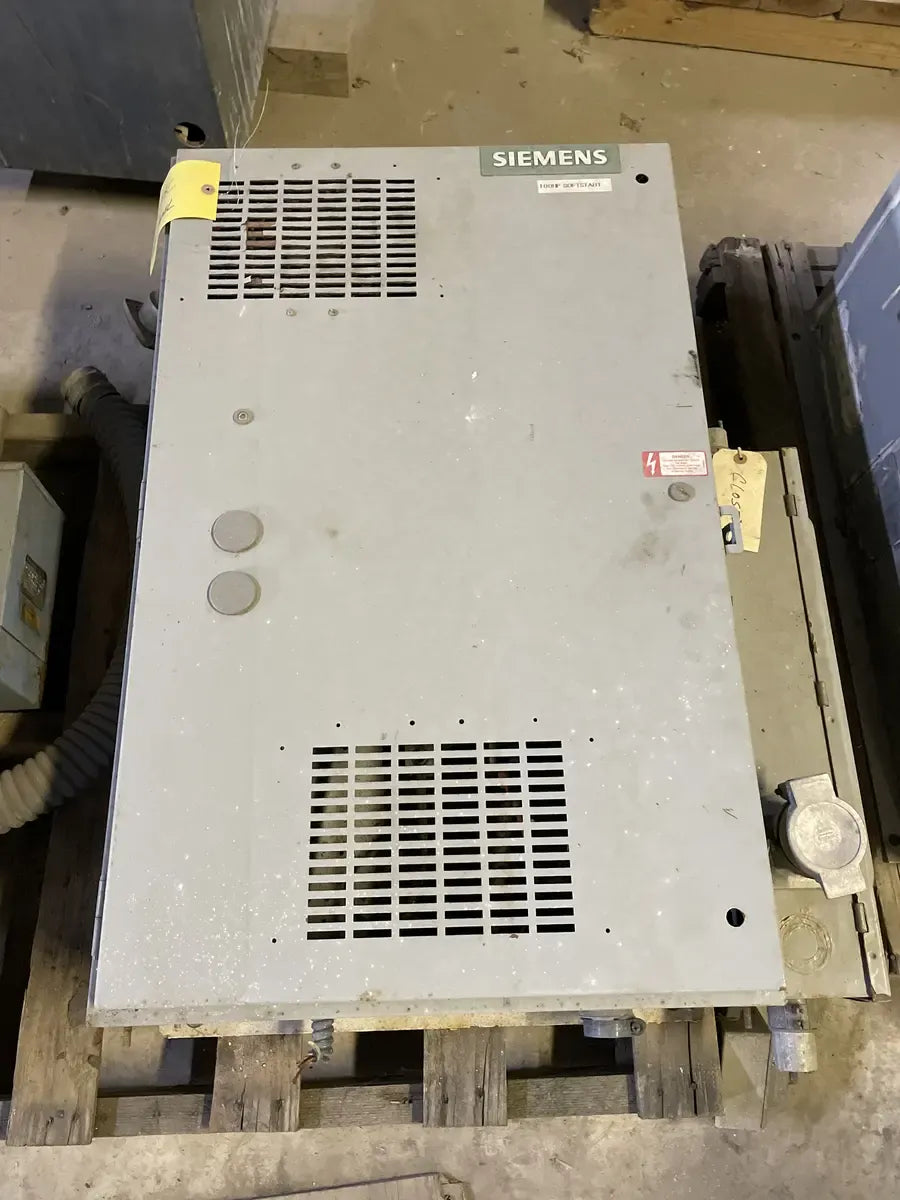

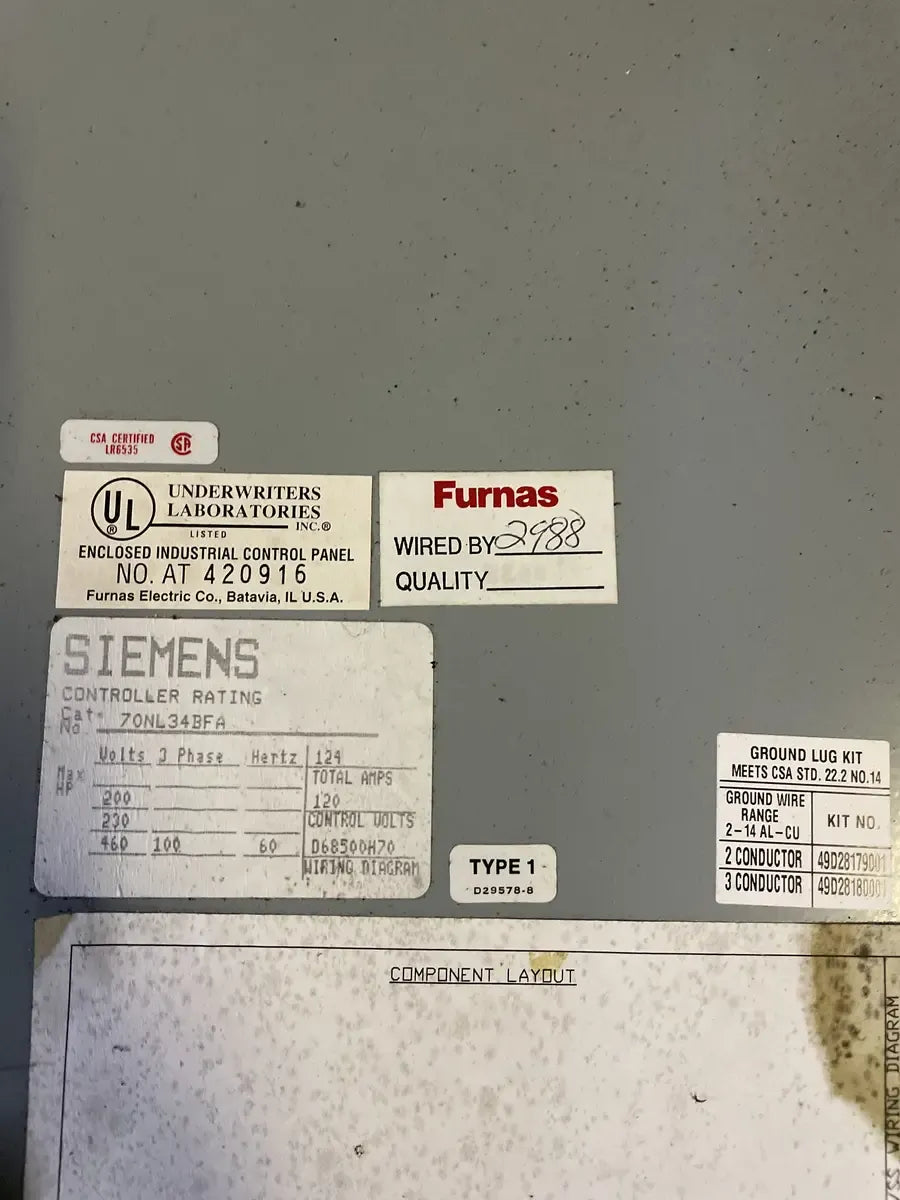

Motor Starter Details
- Motor Starter Included? Yes
- Motor Starter Manufacturer: Siemens
- Motor Starter Type: Hard Starter
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

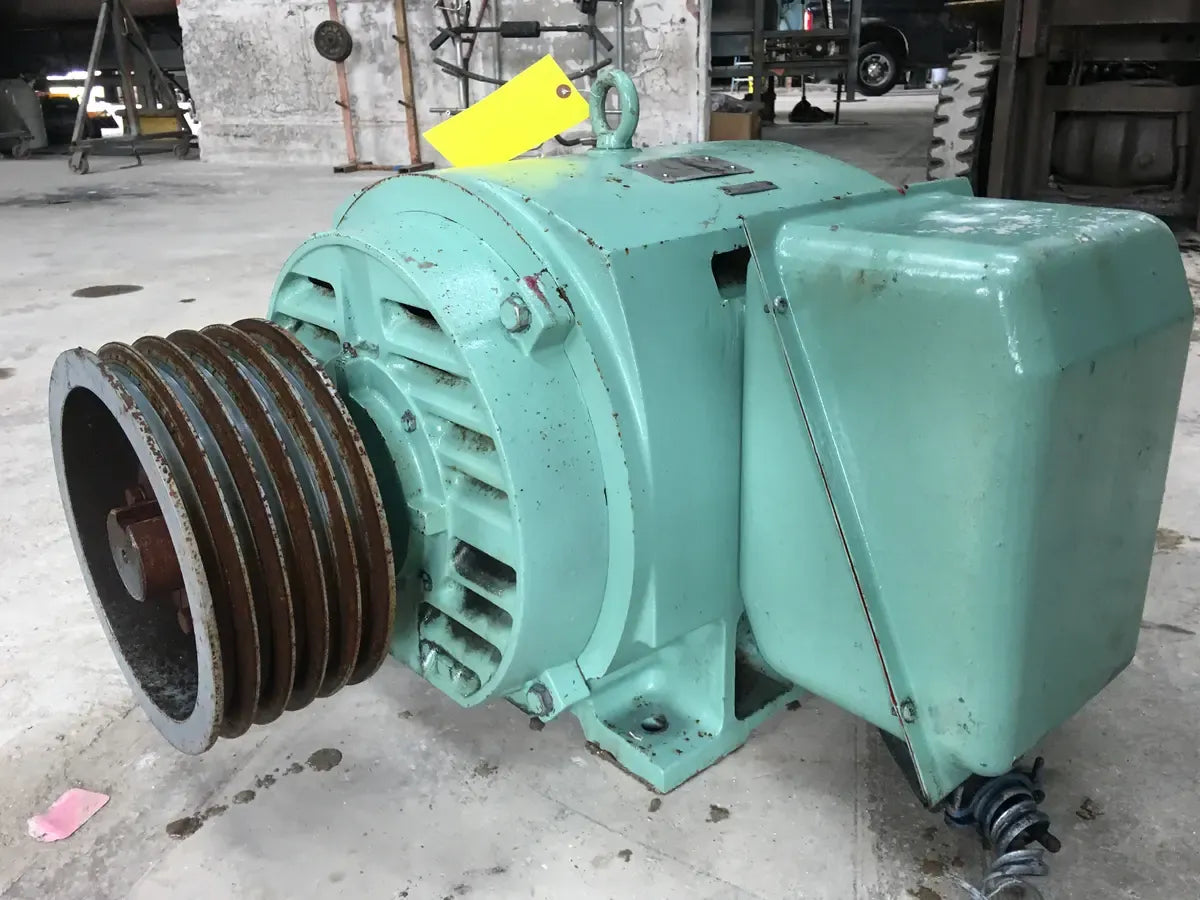

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 100
- Motor RPM: 1,770
- Motor Voltage: 230/460
- Motor Amps: 248/124
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 64
- Width (Inches): 44
- Height (Inches): 68
- Weight (LBS): 4,200
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
