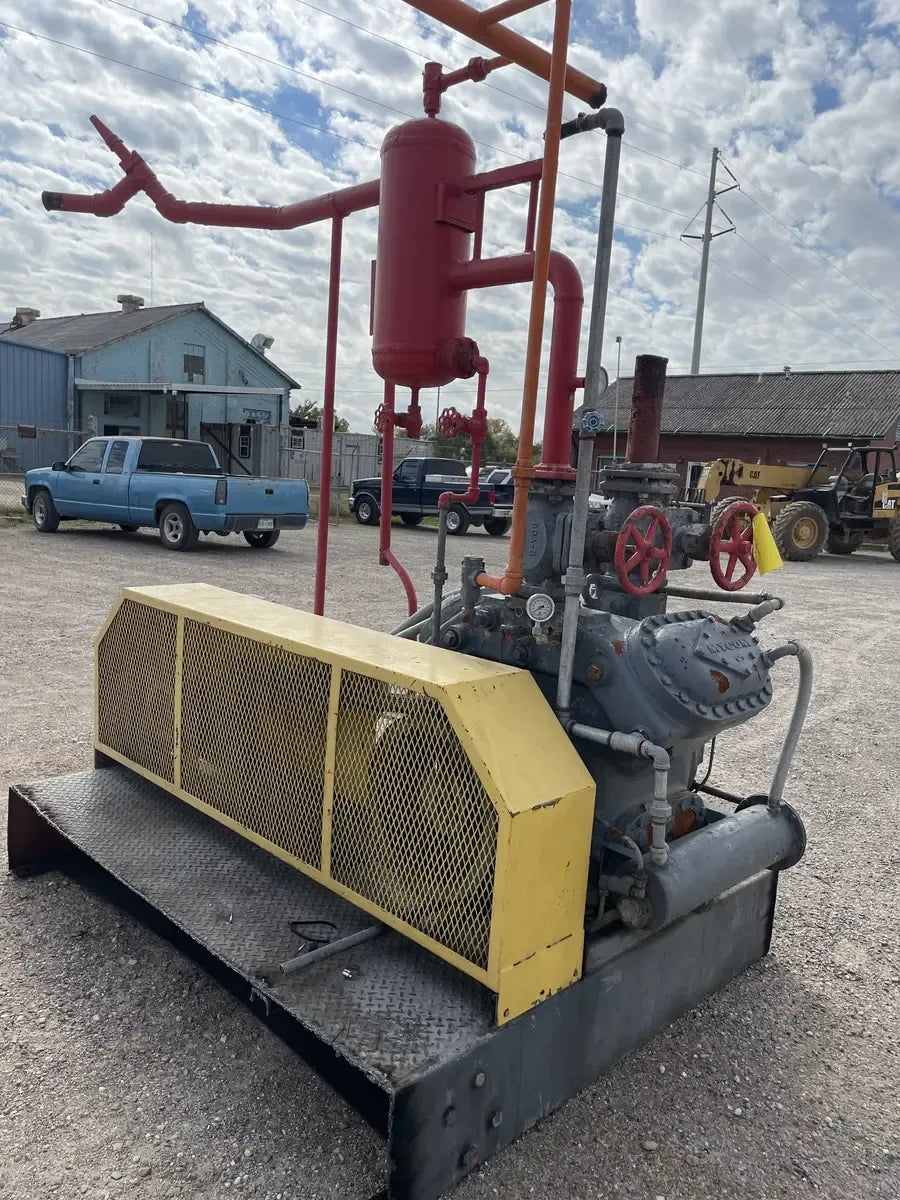

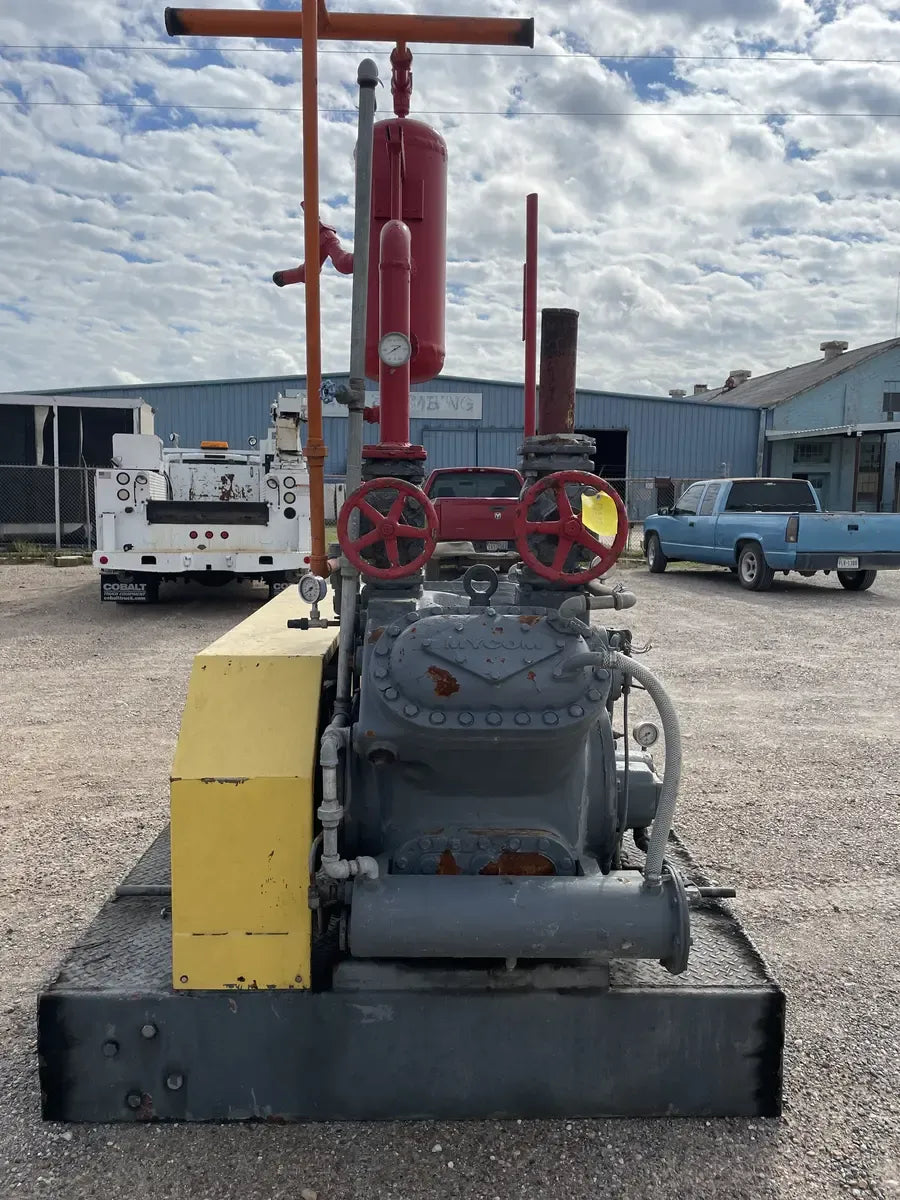

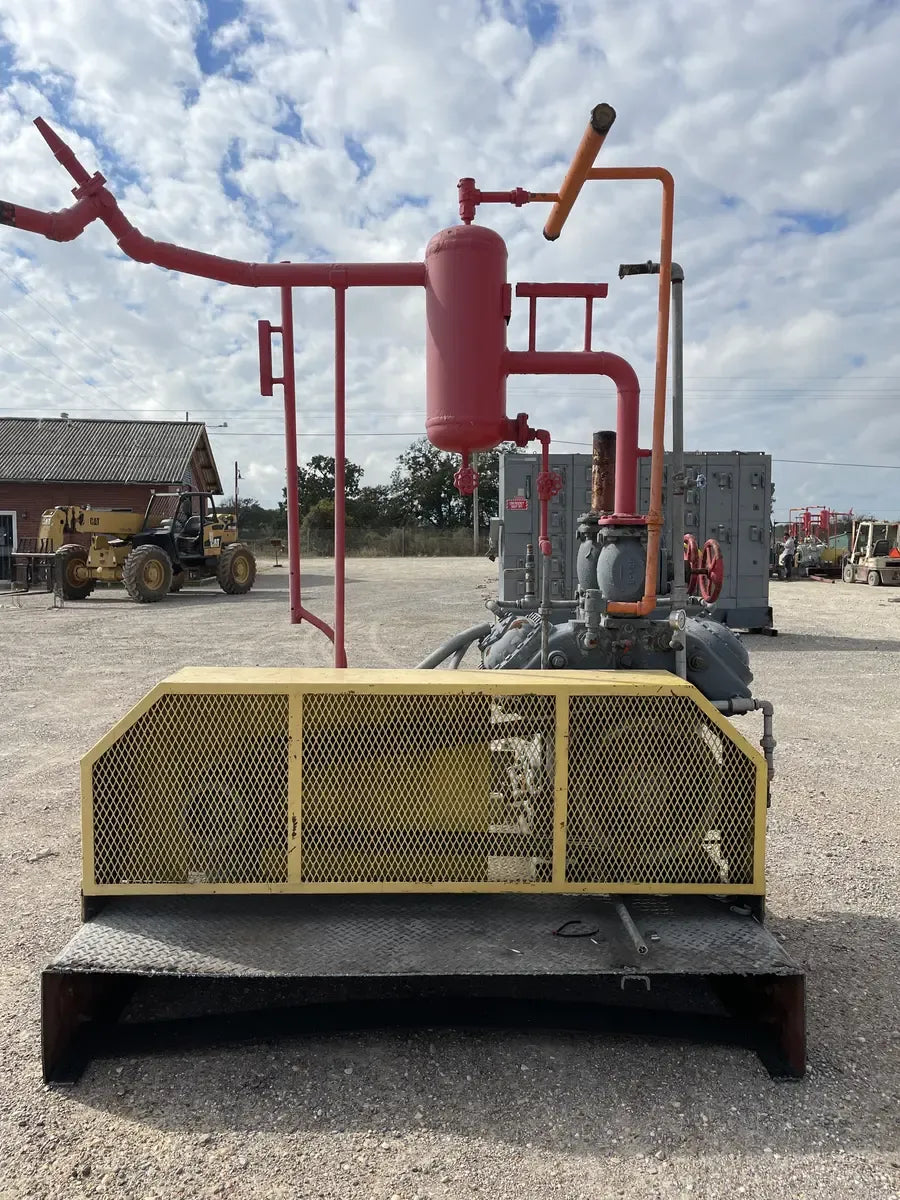

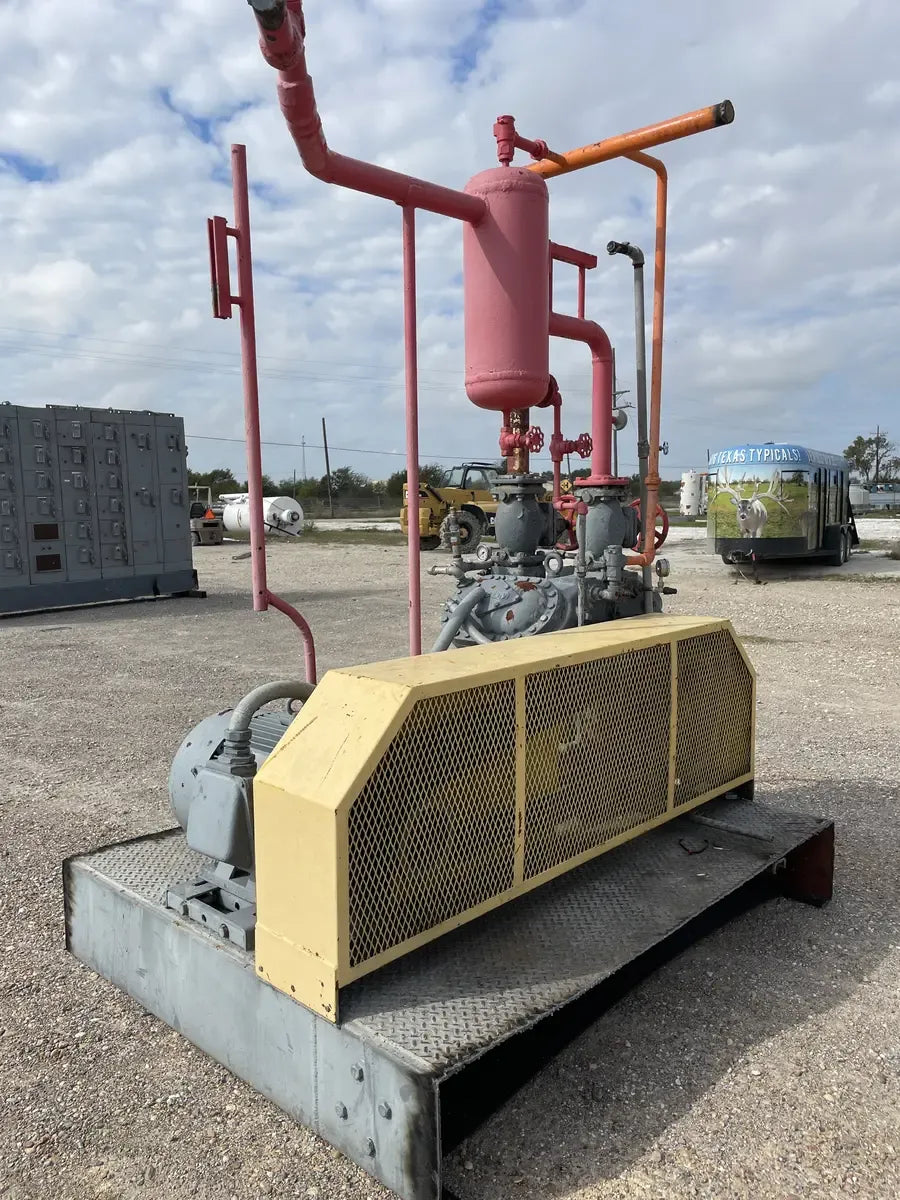

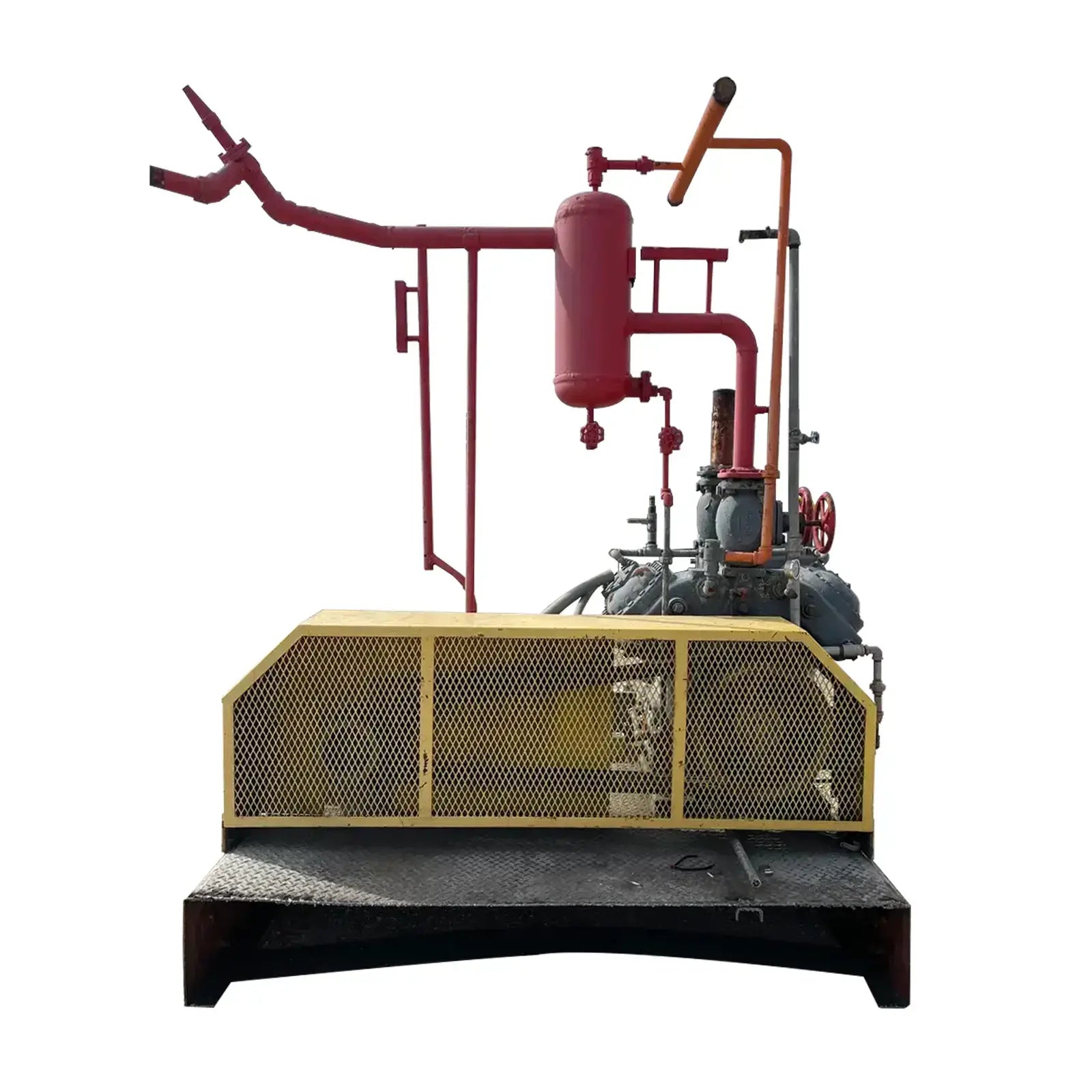

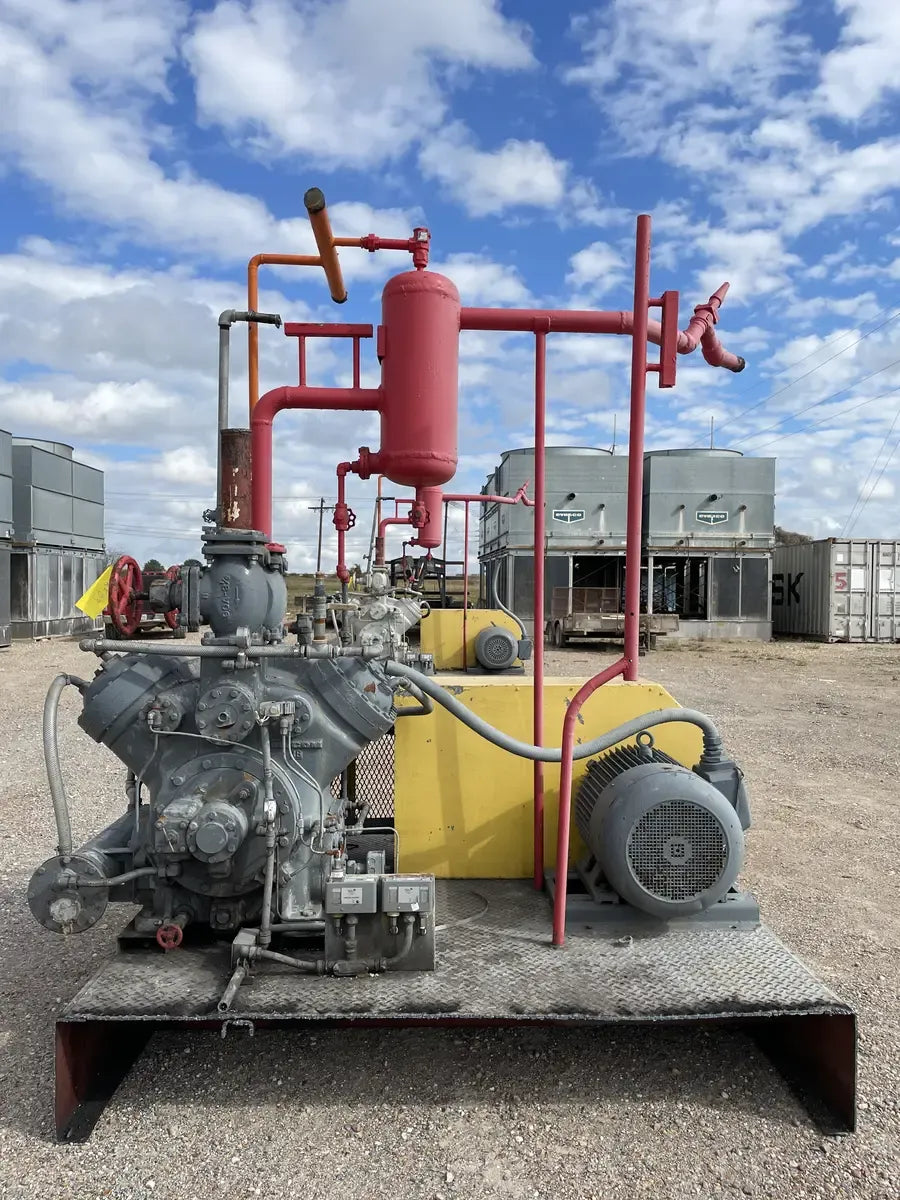

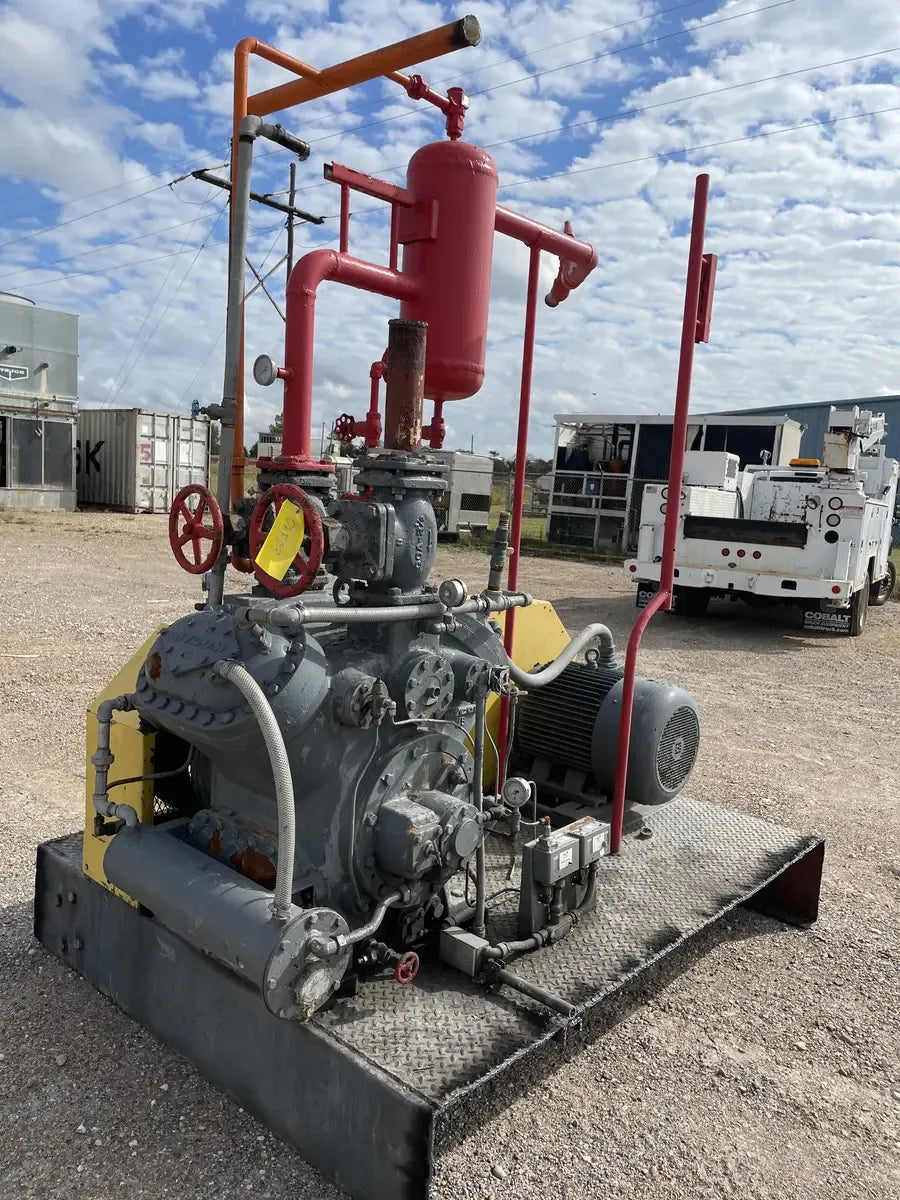

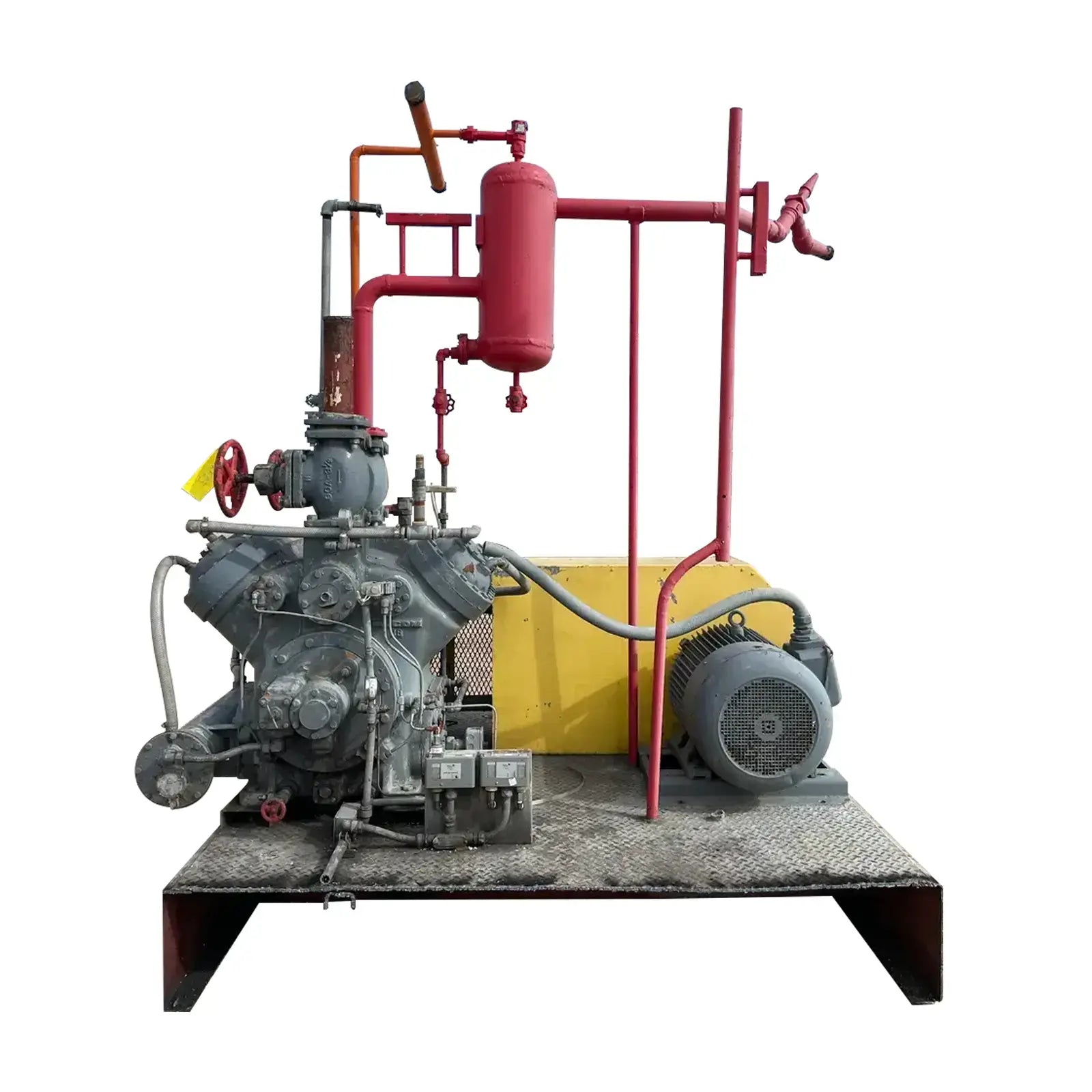

Mycom N4WB 4-Cylinder Reciprocating Compressor Package (60 HP 230/460 V, Belt Driven)

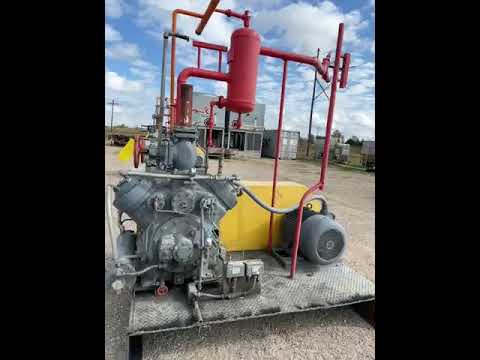

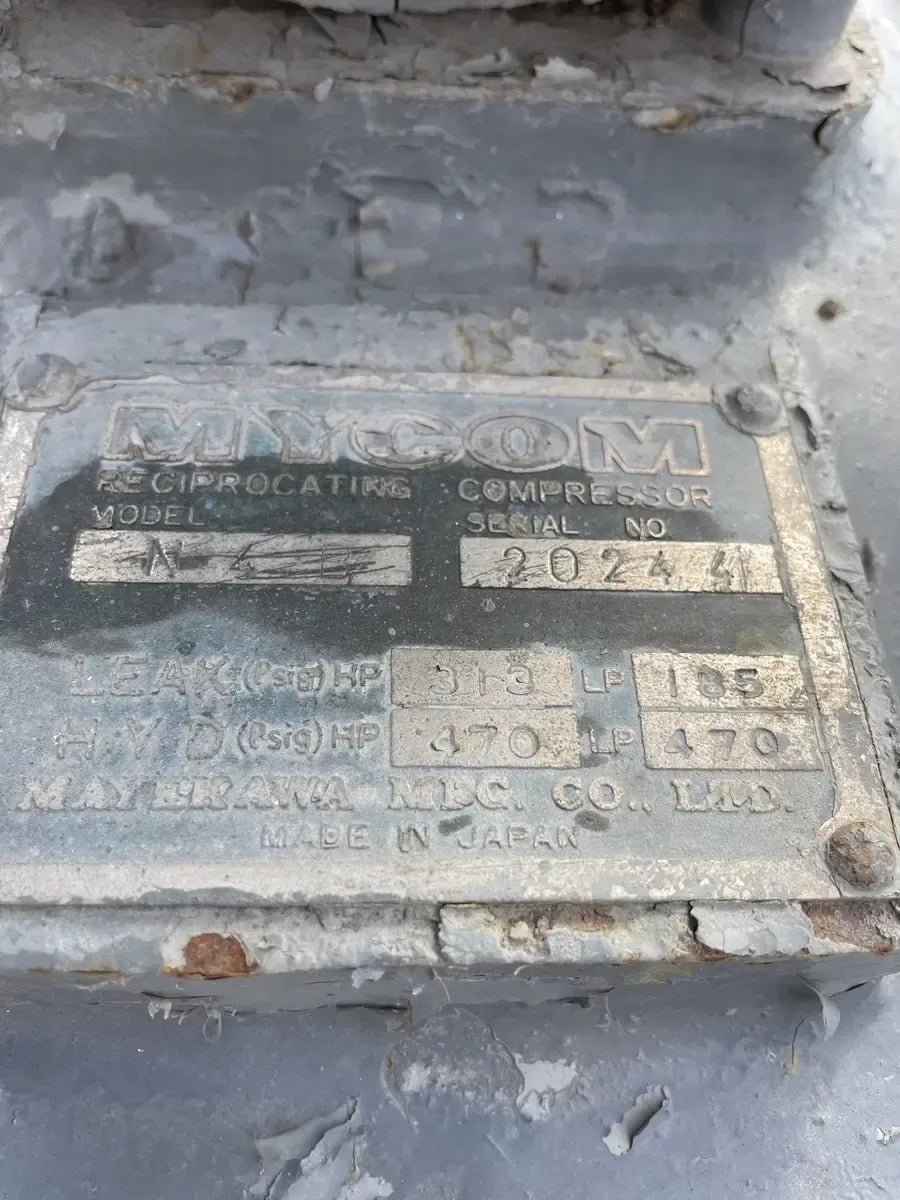

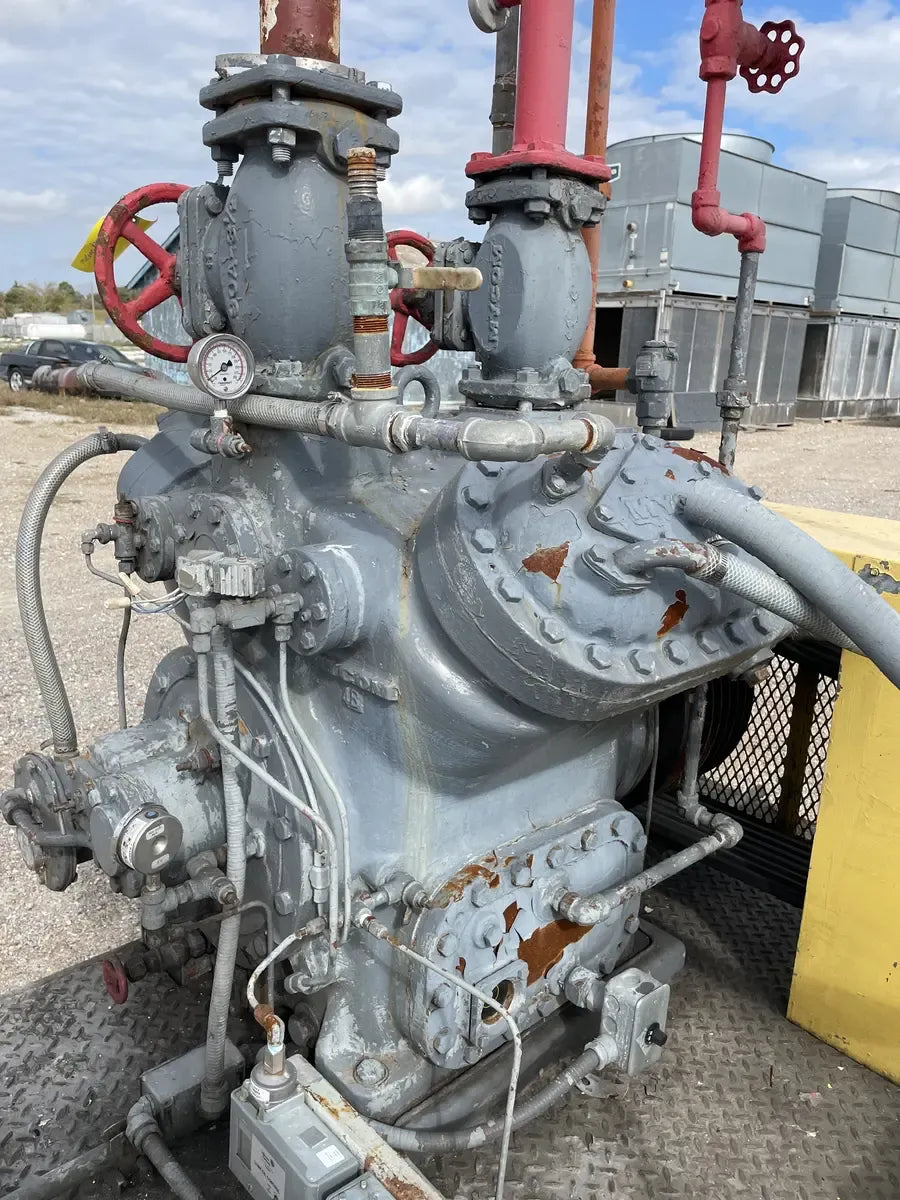

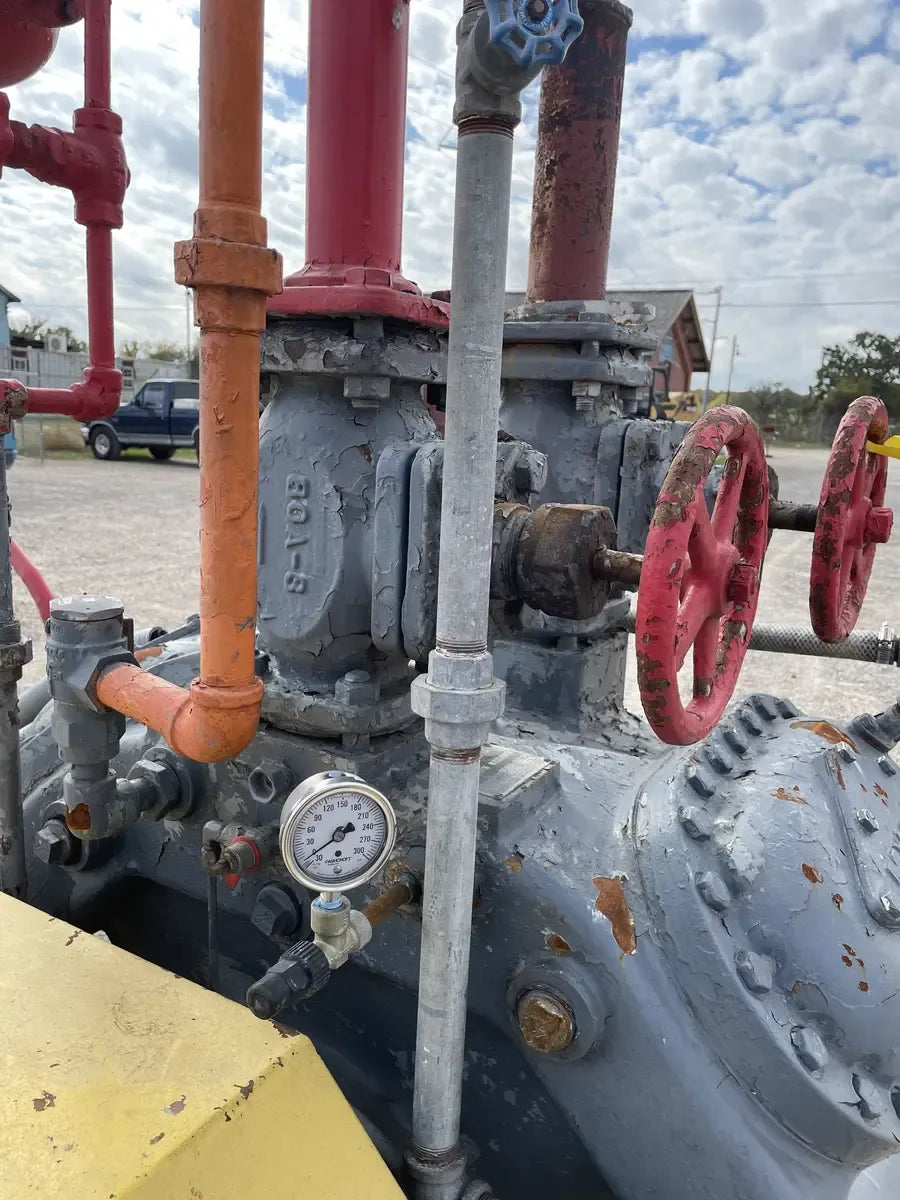

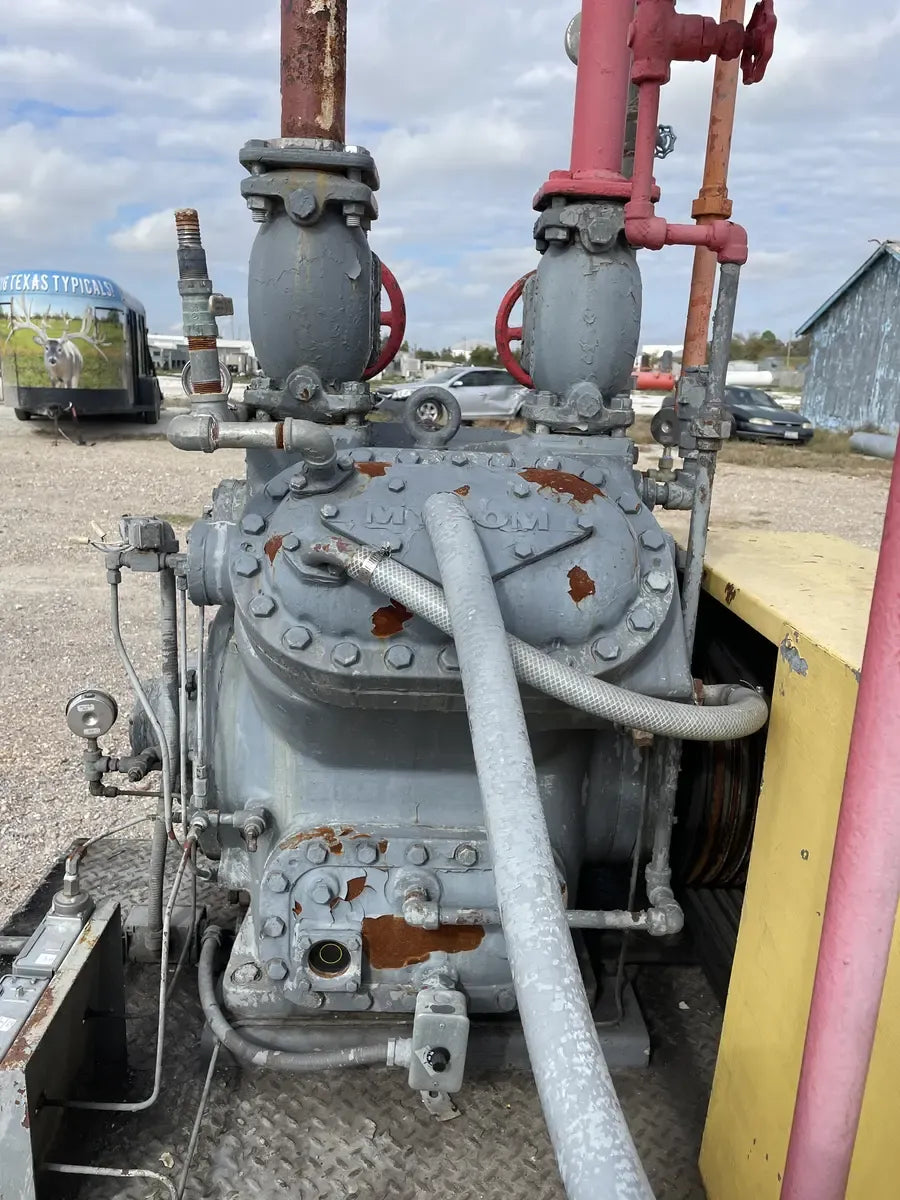

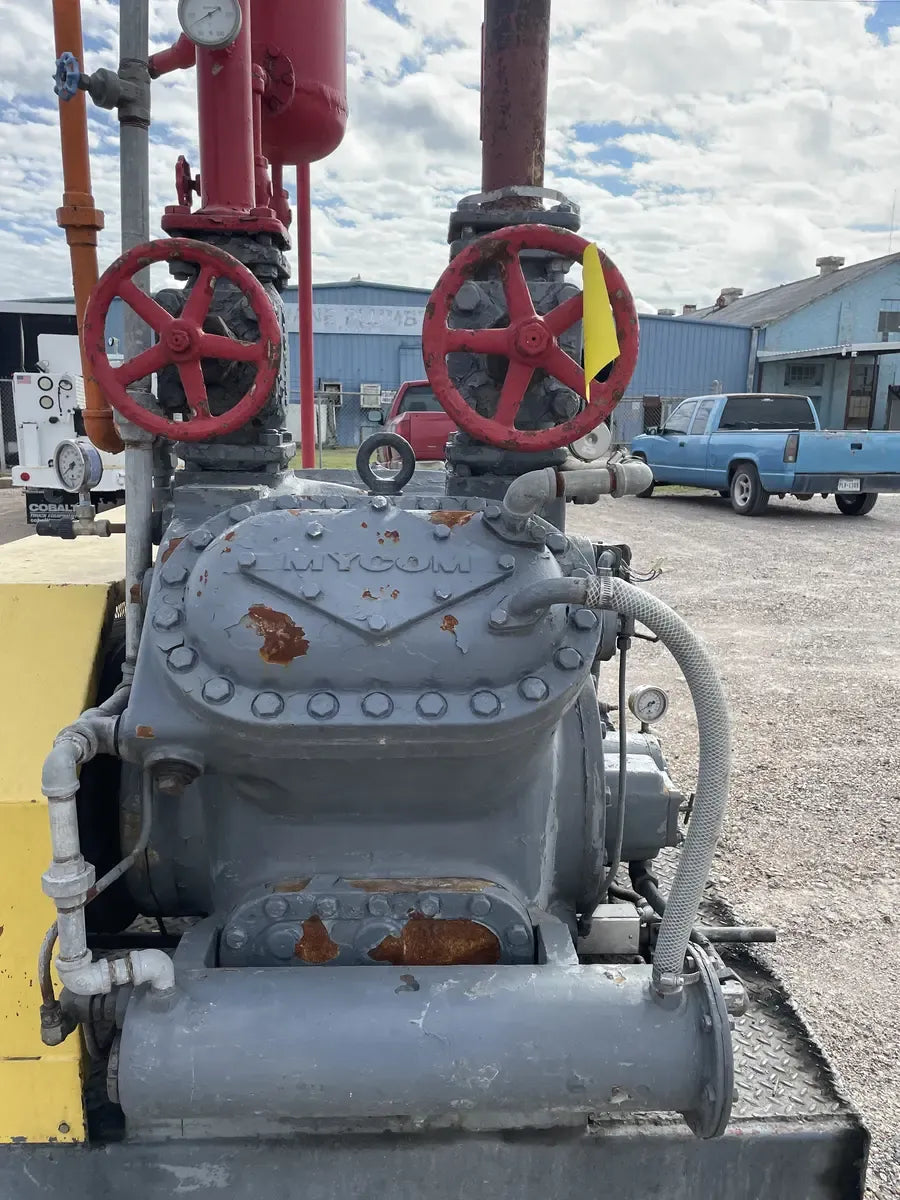

Mycom 4-Cylinder Reciprocating Compressor. Model: N4WB, Serial No: 20244. Leak Test Pressure (PSIG): 313 HP/185 LP, Hydrostatic Test Pressure (psig): 470 HP/470 LP. Number of Cylinders: 4, Bore x Stroke(mm): 130x100, Number of Revolutions: 800 to 1200 min. Previously on a 4 Reciprocating Compressor Skid until a-parted apart. Viking Motor: HP: 60, RPM: 1705, Frame: 364T, Volts: 230/460.
Product Details
- Stock No: OKF03
- Manufacturer: Mycom
- Model: N4WB
- Serial Number: 20244
- Compressor Type: Reciprocating
- Package Included? Yes
- Stage Type: High Stage

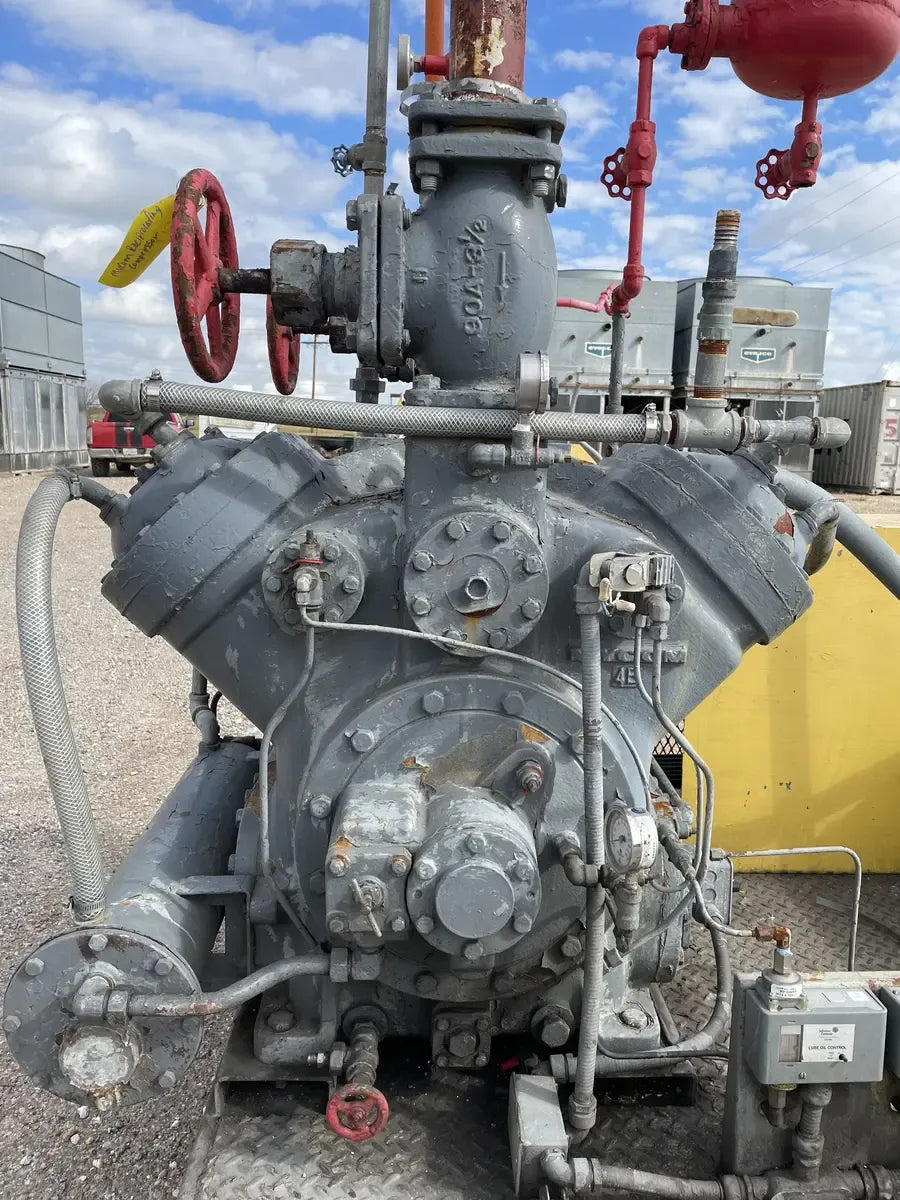

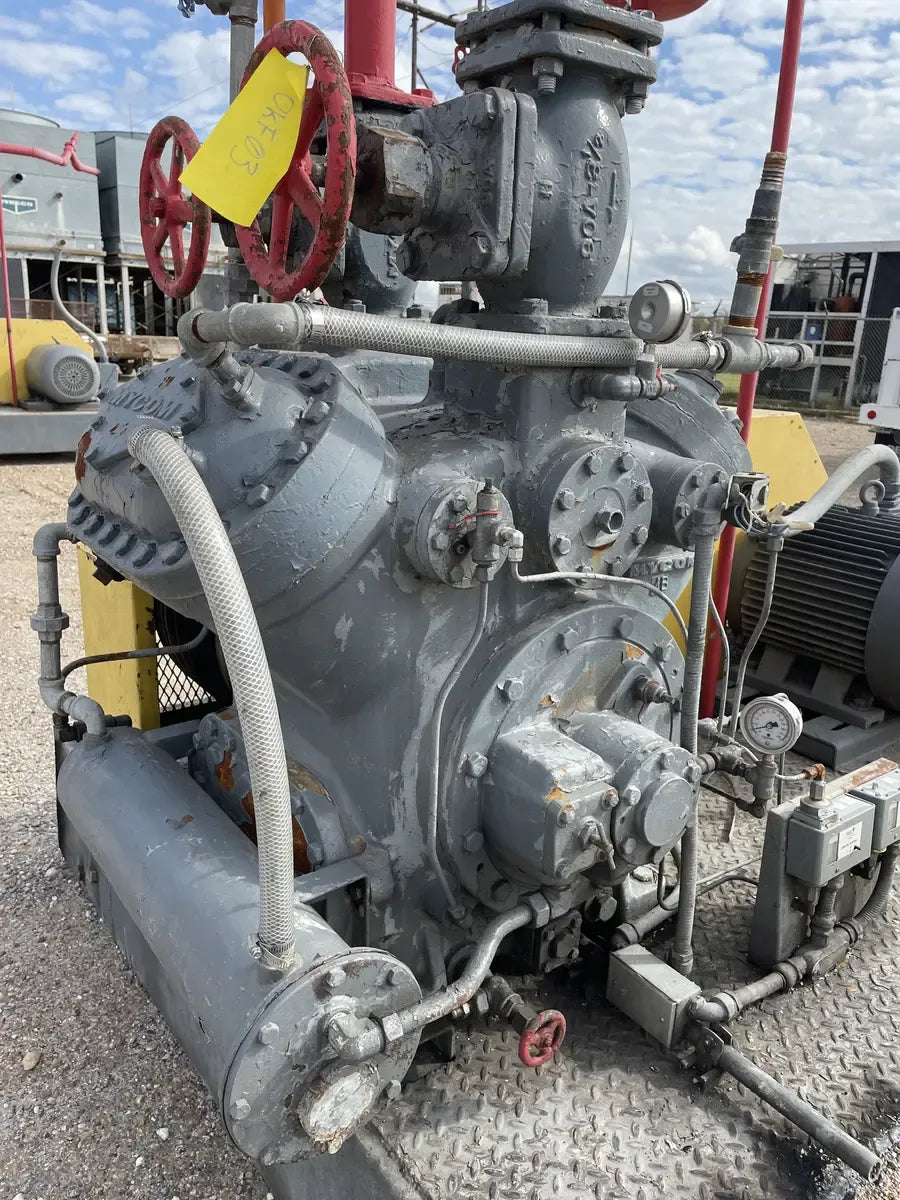

Reciprocating Compressor Details
- Compressor Manufacturer: Mycom
- # Of Reciprocating Cylinders: 4

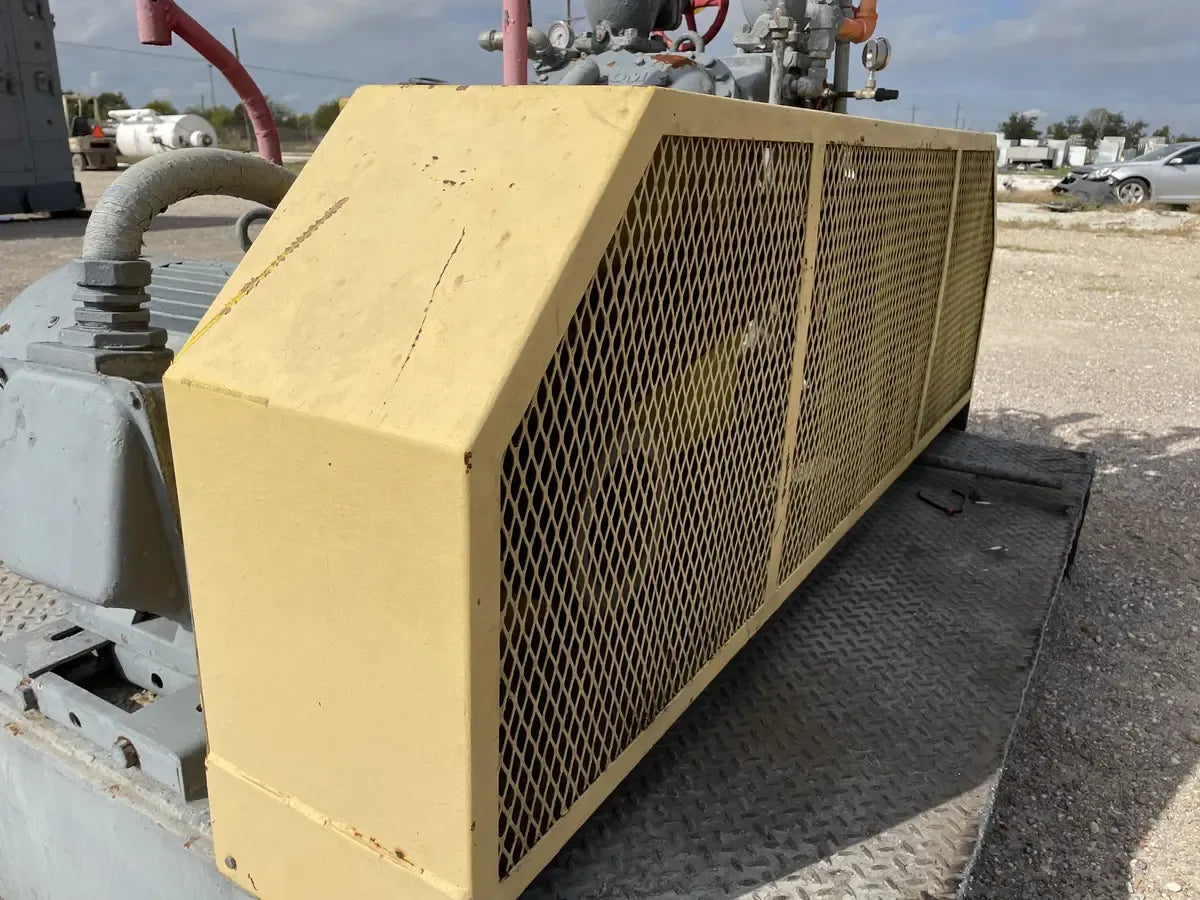

- Reciprocating Type: Belt
- # Compressors in Package: 1
- Compressor Model: N4WB
- Compressor SN: 20244
- Compressor Max Speed (RPM): 1,200
- Compressor Design Pressure (PSIG): 470

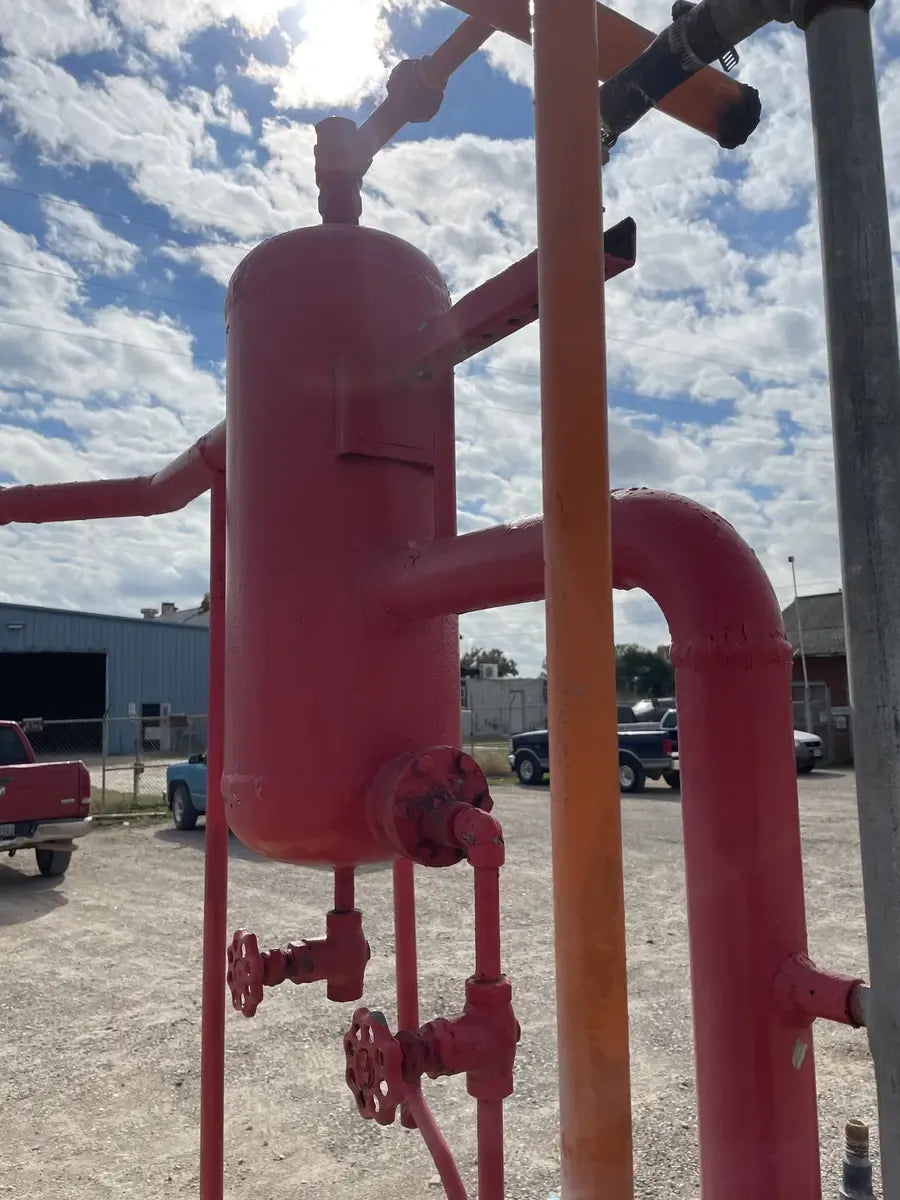

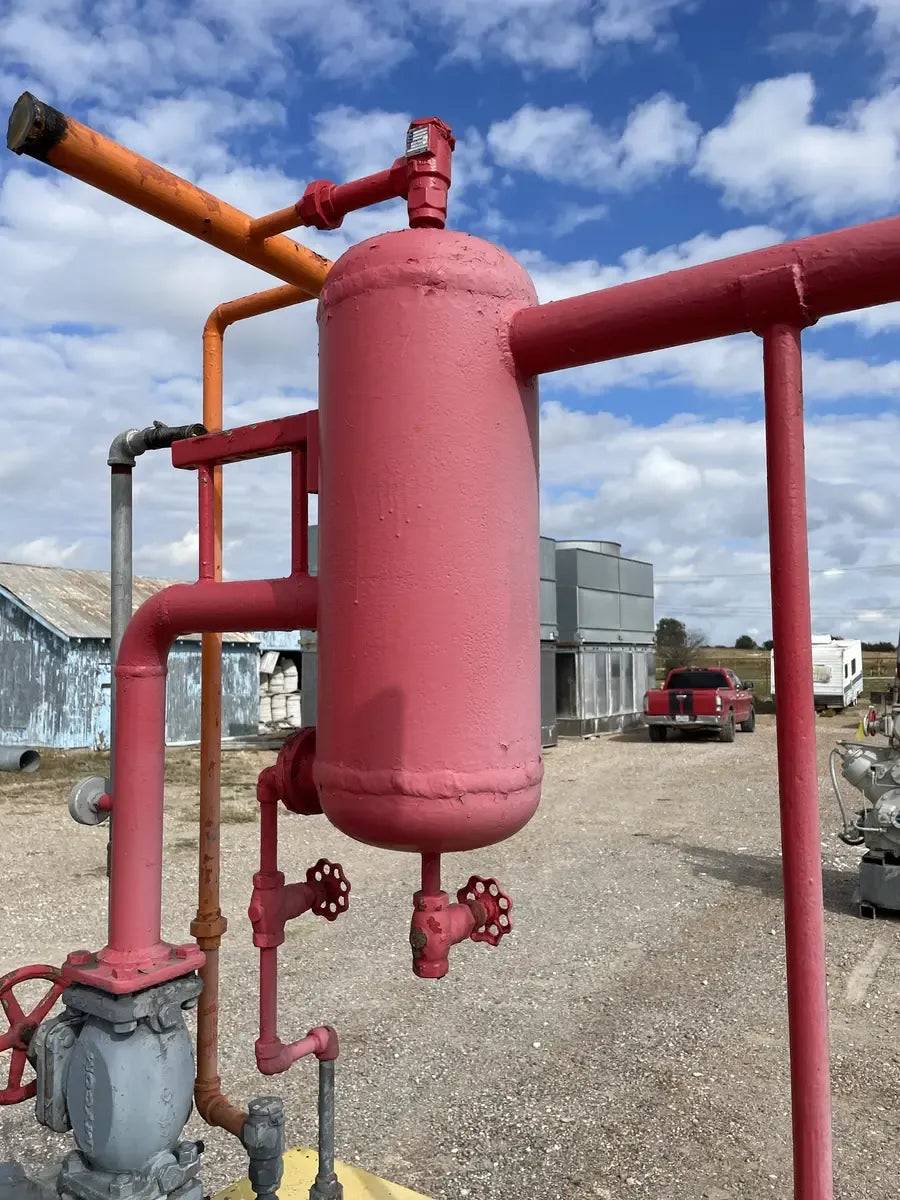

- Oil Separator Included? Yes
- Oil Cooling Type: Liquid Injection
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

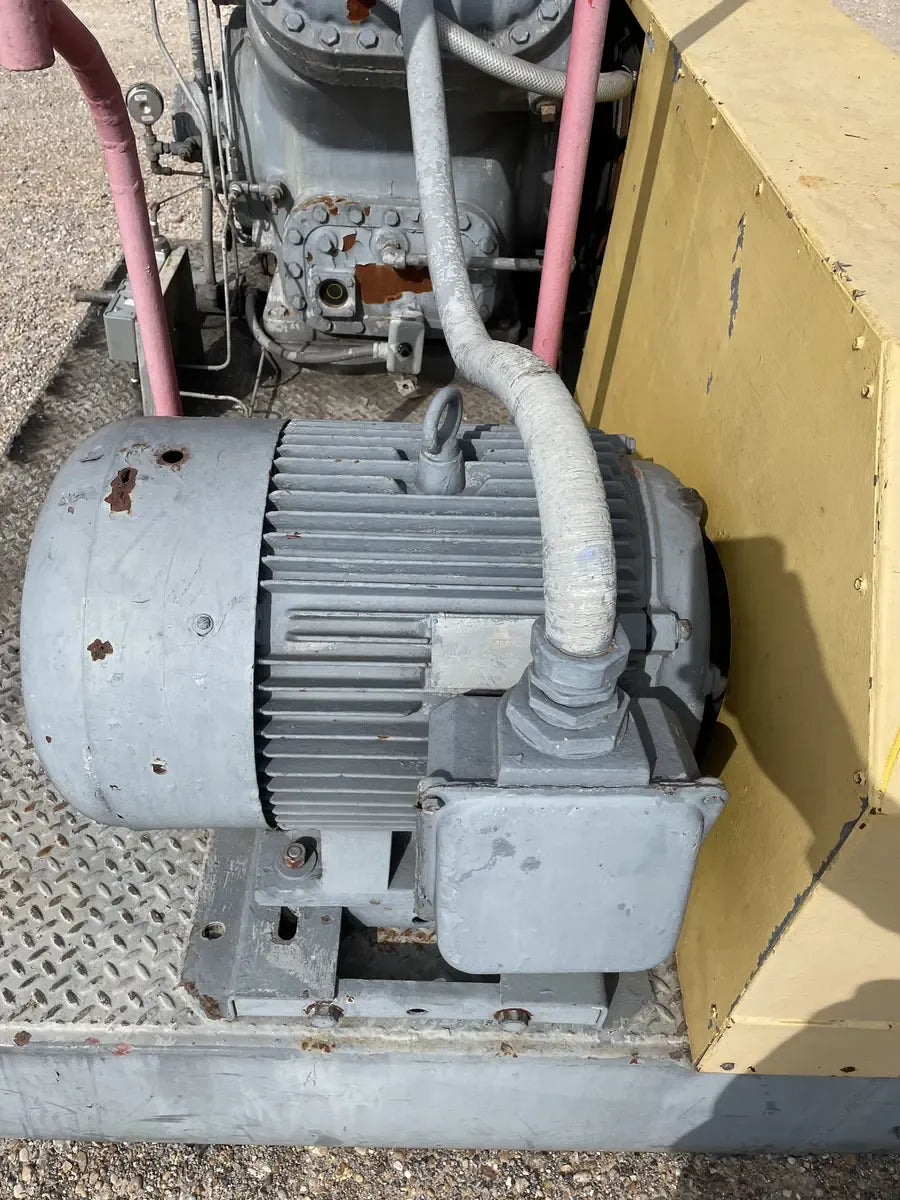

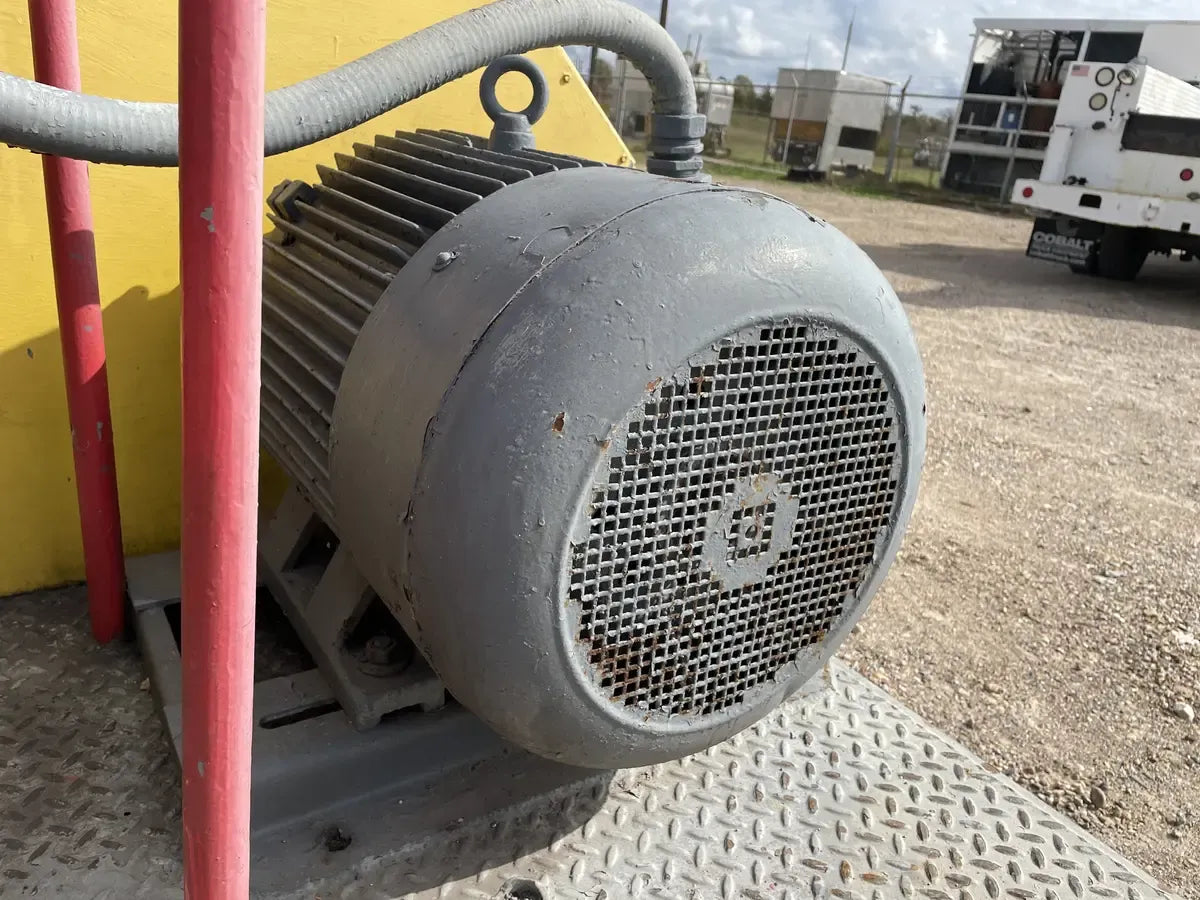

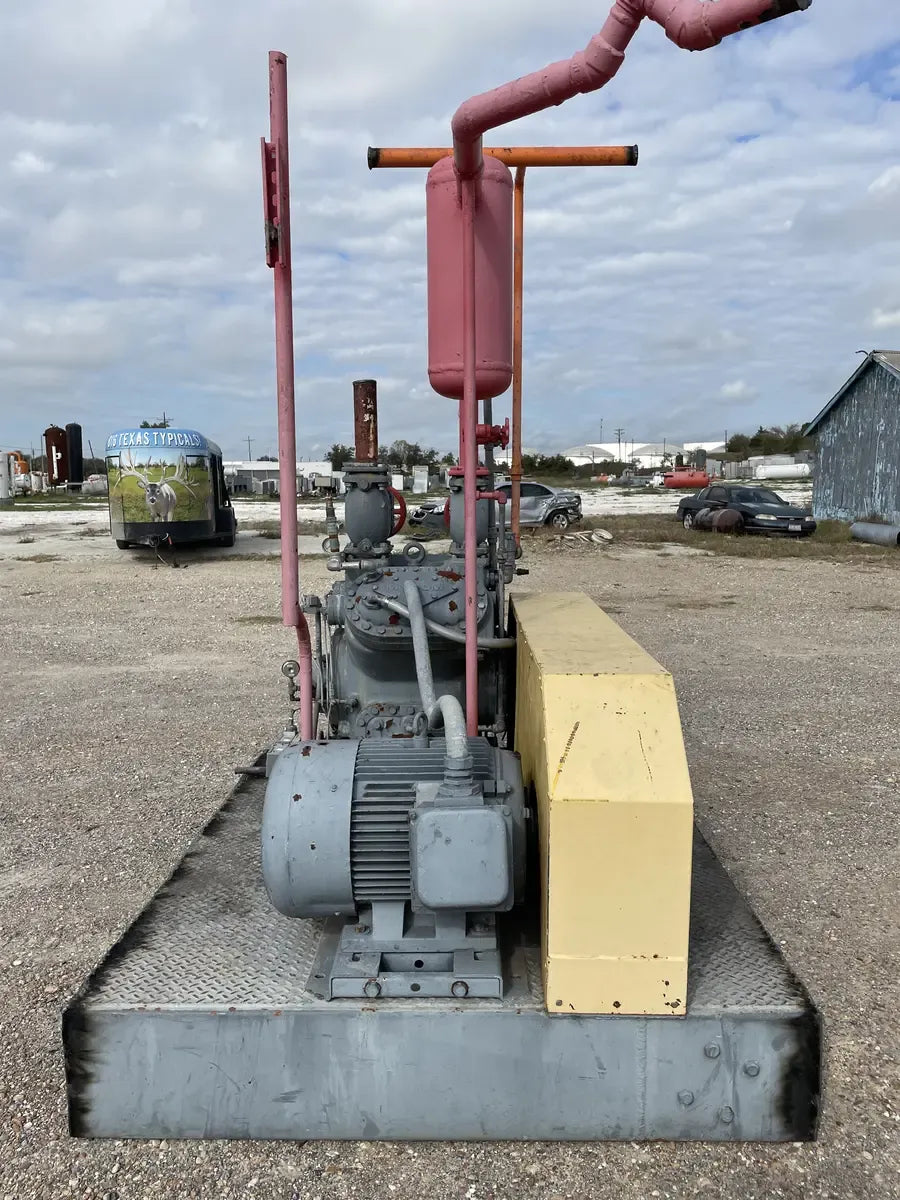

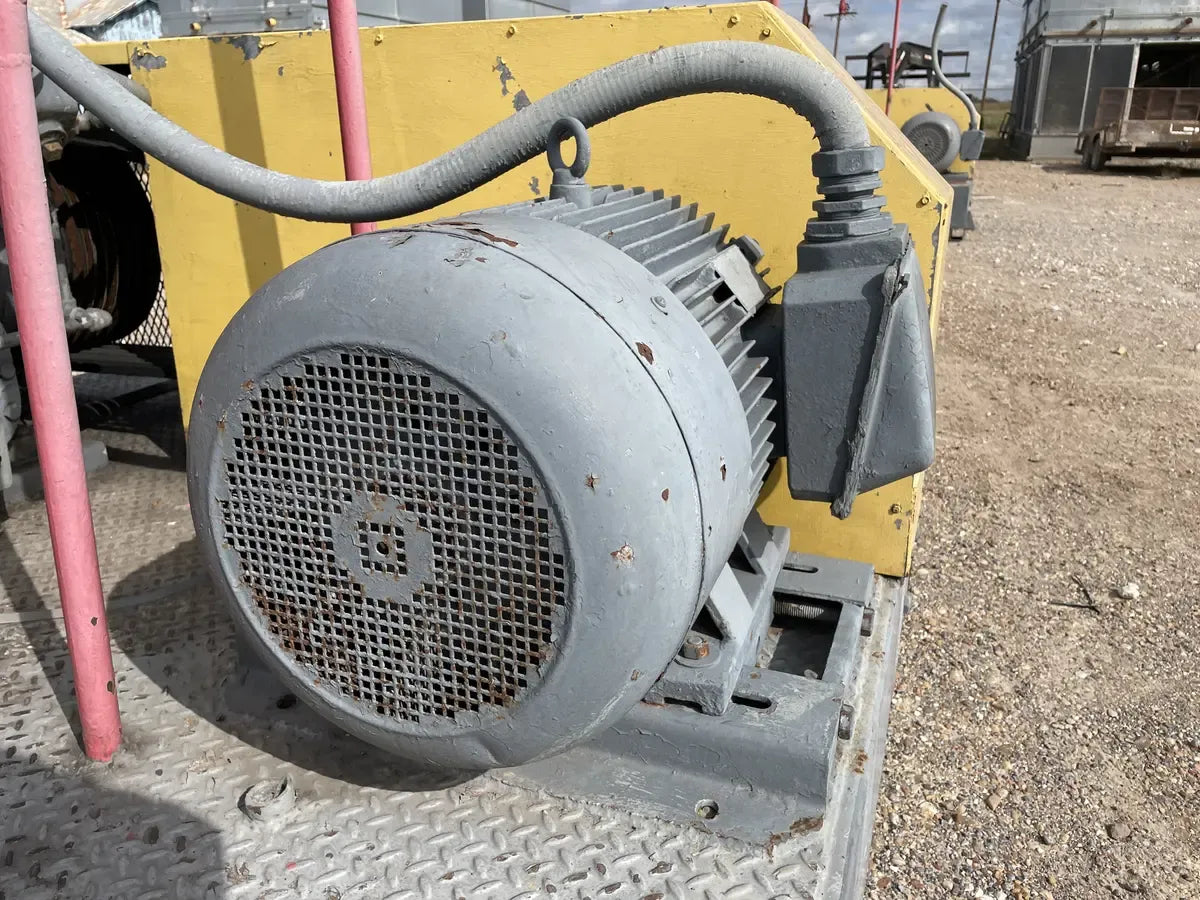

Motor Details
- Motor Included? Yes
- # Motors: 1

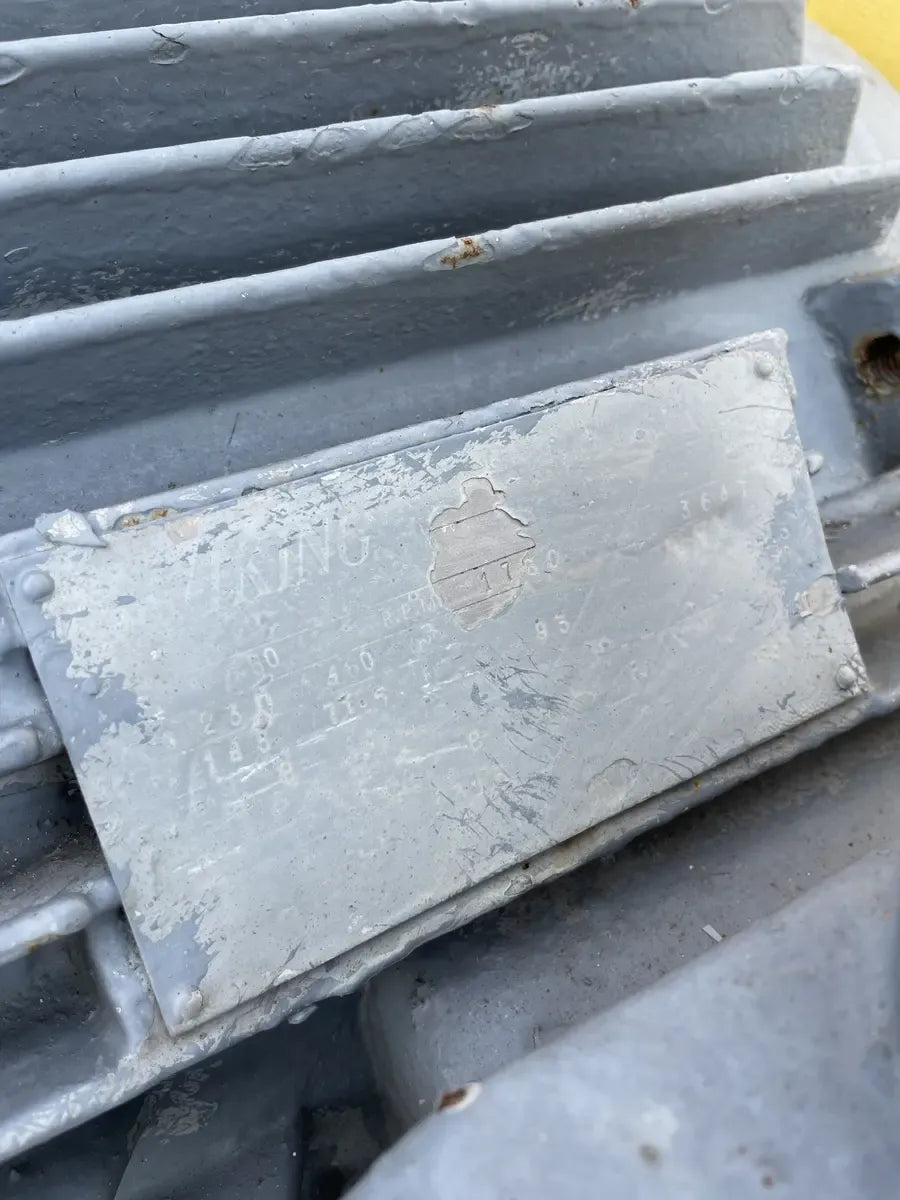

- Motor Manufacturer: Viking
- Motor Horsepower(HP): 60
- Motor RPM: 1,705
- Motor Voltage: 230/460
- Motor Amps: 146/73
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 364T
Dimensions:
- Length (Inches): 95
- Width (Inches): 75
- Height (Inches): 118
- Weight (LBS): 4,500
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
- Product Purchased From: Dairy Farm
