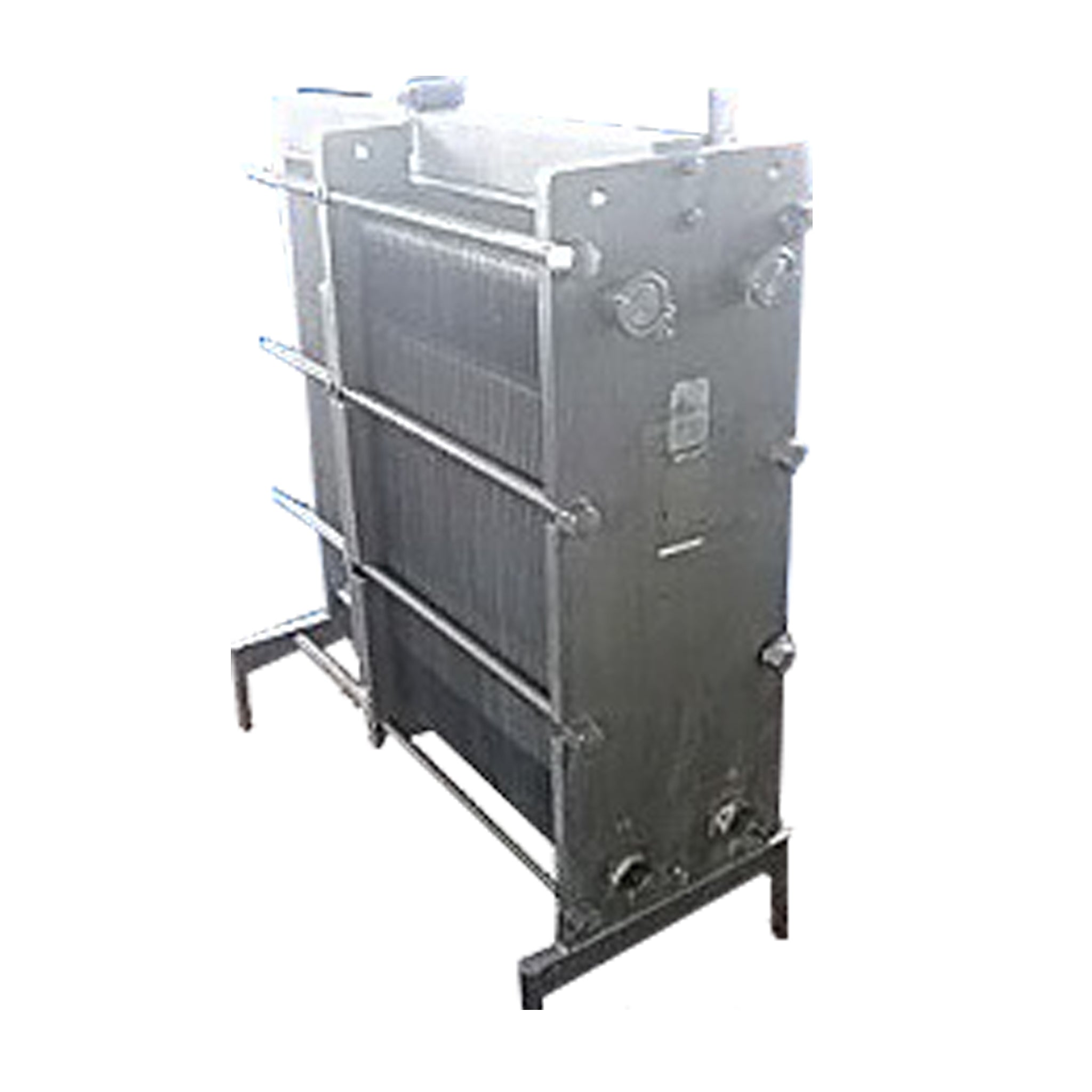

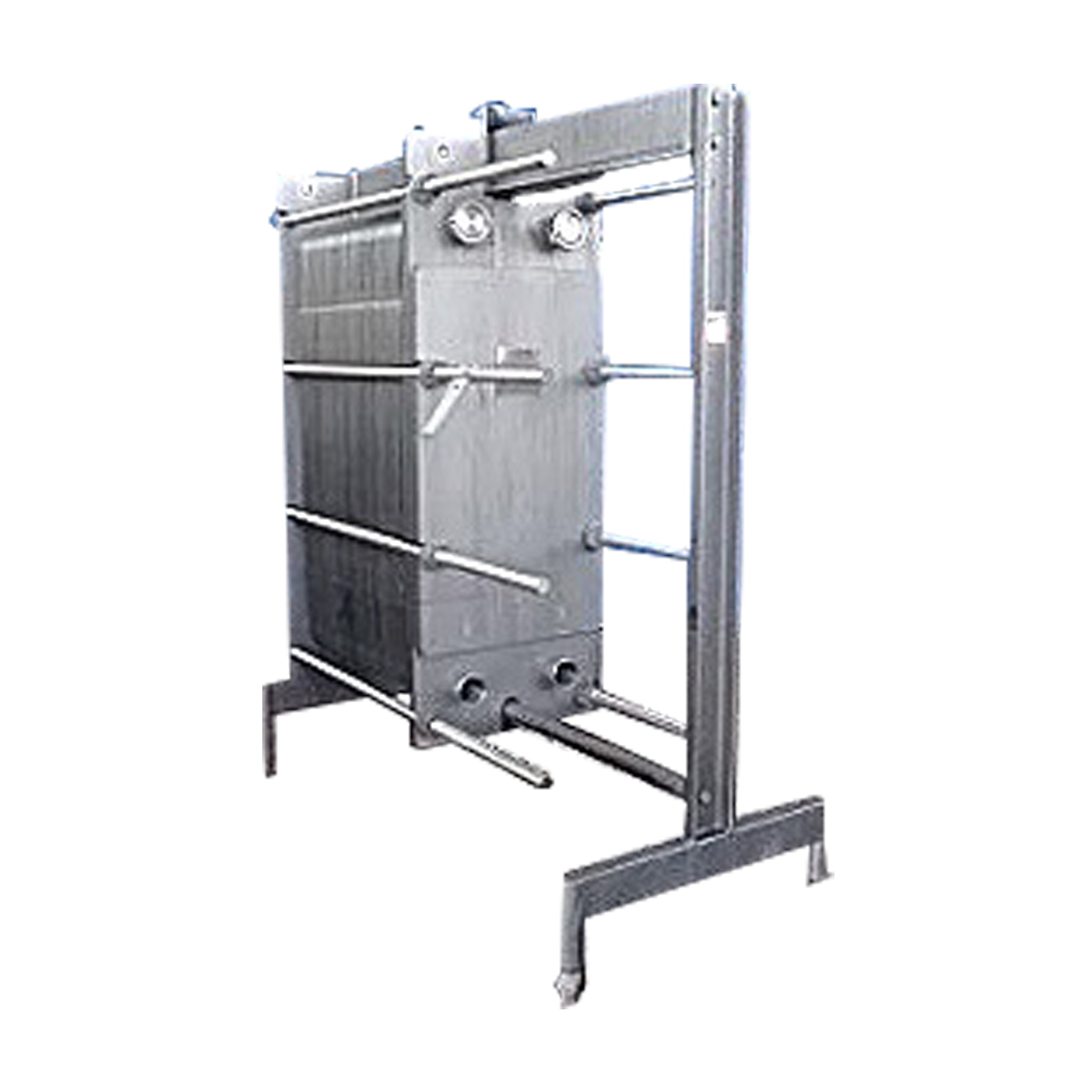

1992 Paul Mueller Accu-Therm Plate Heat Exchanger. Model: AT161B-10 S/S, S/N: 101176-1. 316 Stainless steel plates: (104). Heat transfer surface area: Approx. 500 sq. ft. Design pressure: 75 psi. Design temperature: 200 °F. Typical max water flow: Approx. 650 gpm. Fixed end ports: (4) 3 in. Movable end ports: (4) 3 in. Overall dimensions: 72 in. L x 33-1/2 in. W x 84 in. H.
- Stock No: 75.JMB246.25
- Manufacturer: Paul Mueller Co.
- Model: AT161B-10 S/S
- Serial Number: 101176-1
Heat Exchanger Details
- Heat Transfer Surface Area (SQ FT): 500
- Nominal Flow Capacity: 650
- Plate Material: Stainless Steel
- Number of Plates: 104
- MAWP (PSI at temp): 75 PSI @ 200 °F
- Inlets & Outlets Description: Fixed end porst: (4) 3 in. Moveable end ports: (4) 3 in.
- Length (Inches): 72
- Width (Inches): 33.5
- Height (Inches): 84
Additional Product Details
- Year of Manufacture: 1992
