Paul Mueller Dedert Dimpled Jacketed Vacuum Tank - 4,000 Gallons

Paul Mueller Dedert Dimpled Jacketed Vacuum Tank - 4,000 Gallons

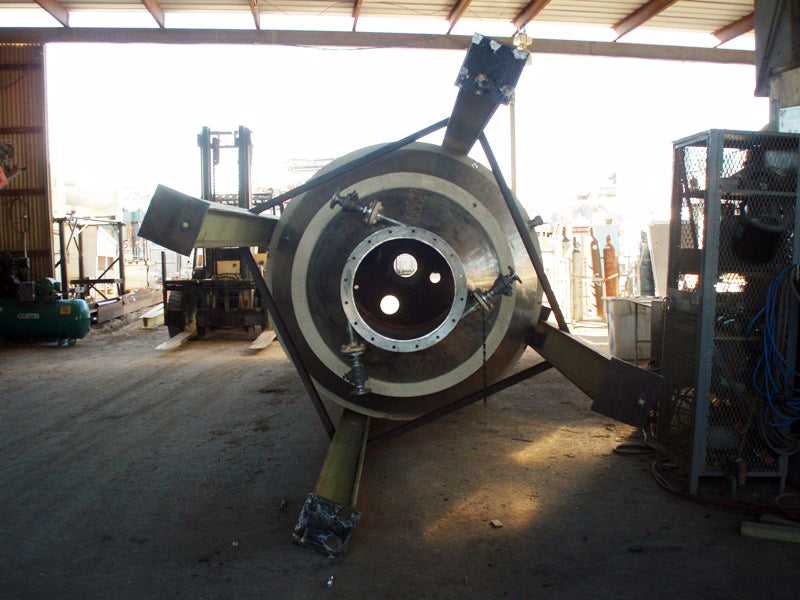

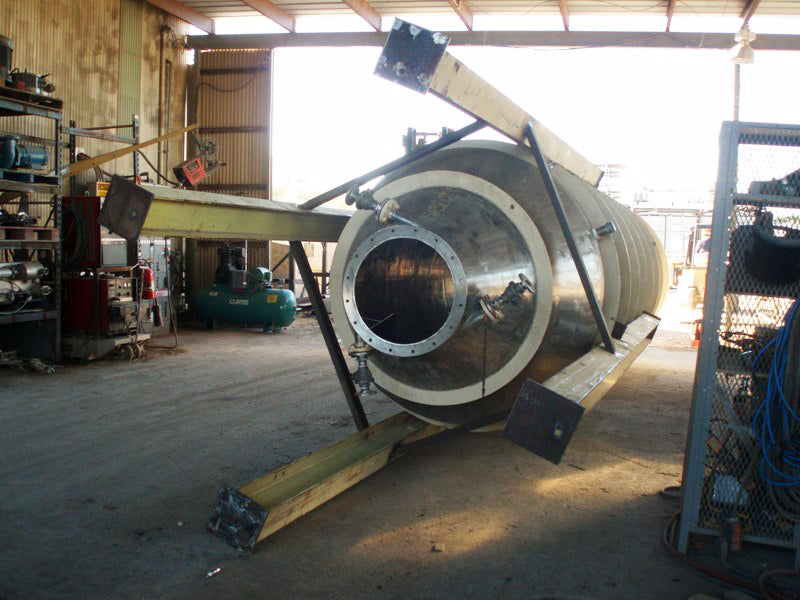

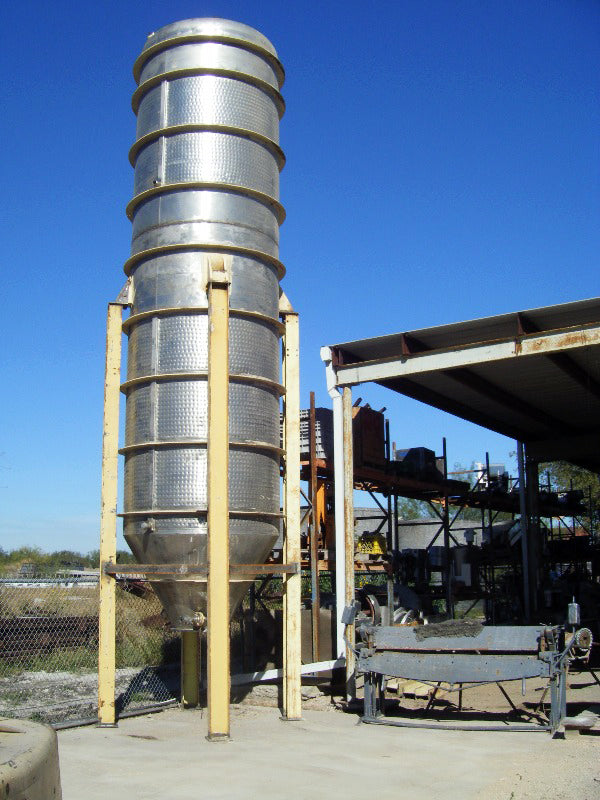

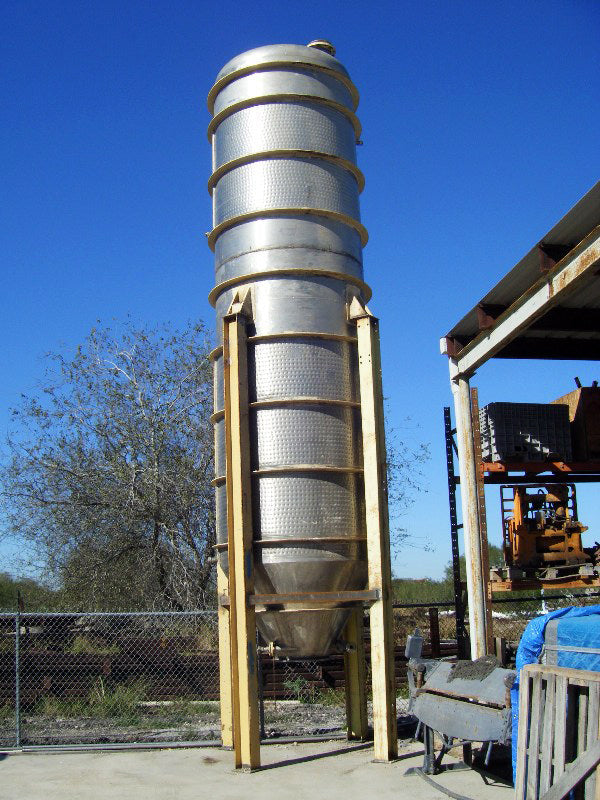

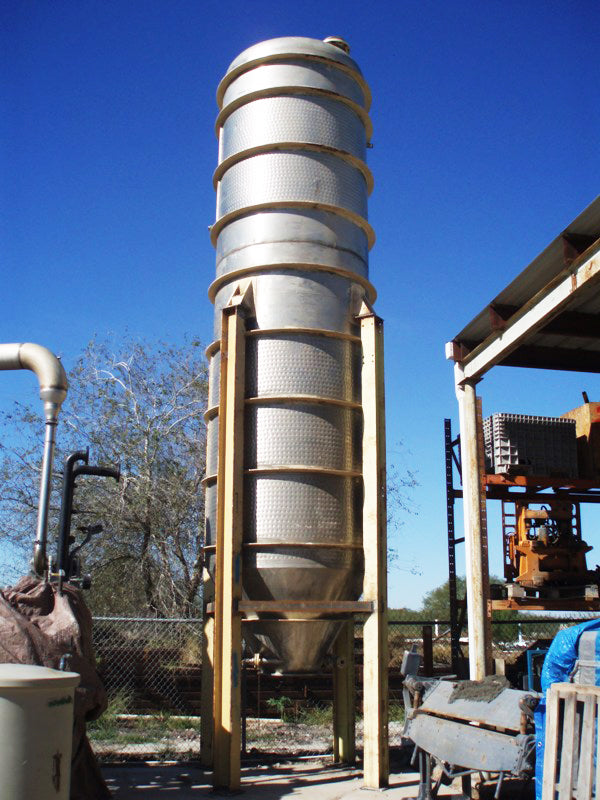

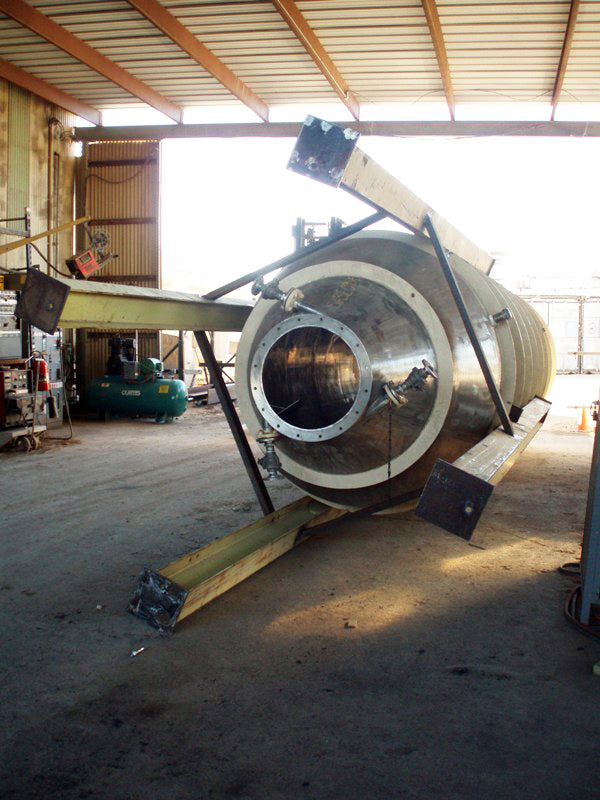

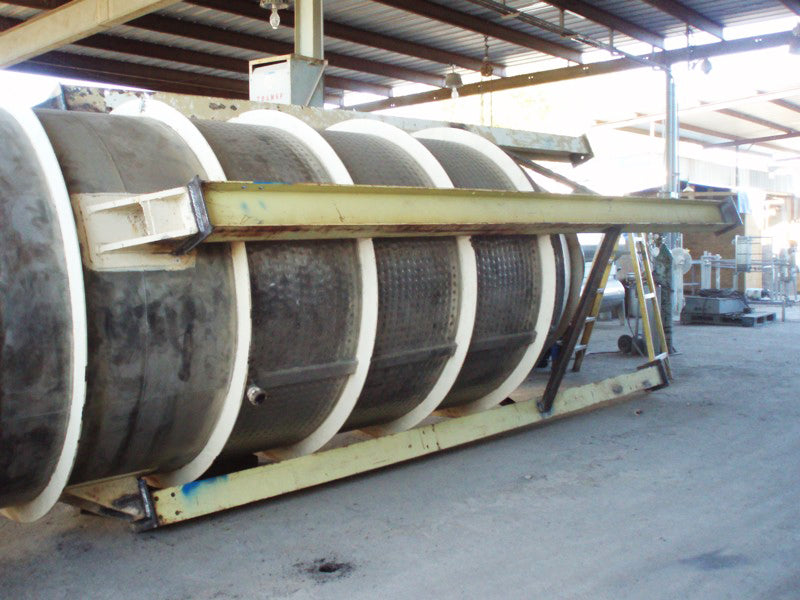

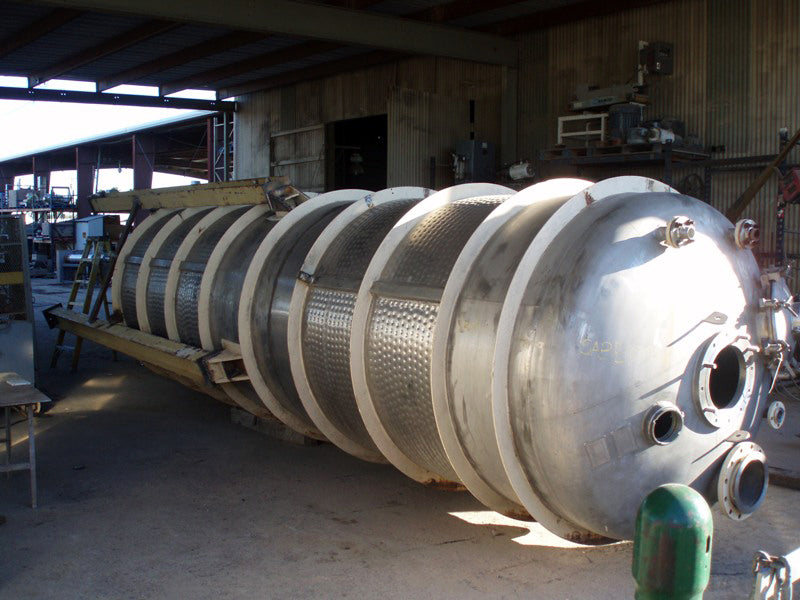

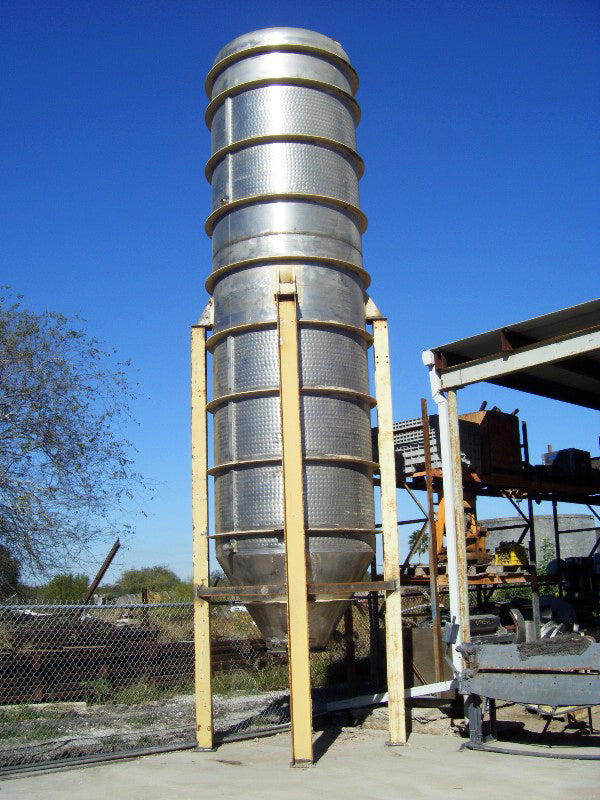

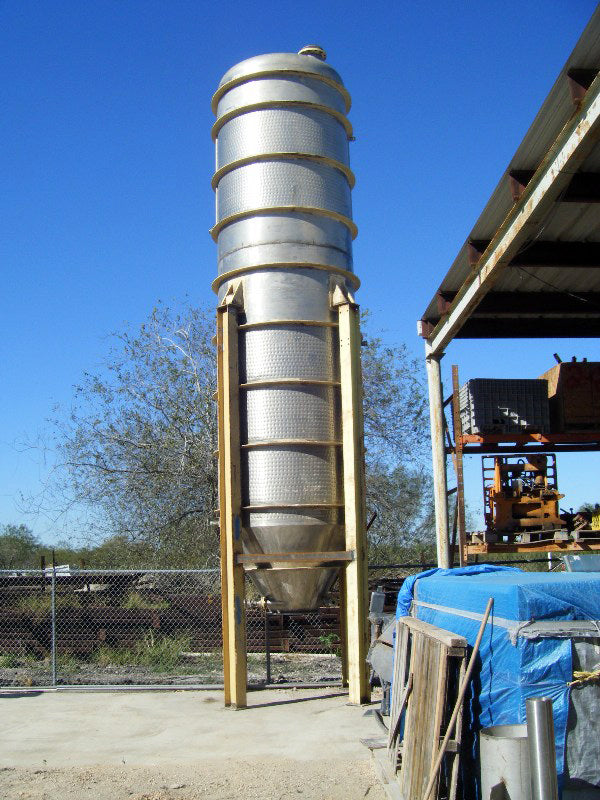

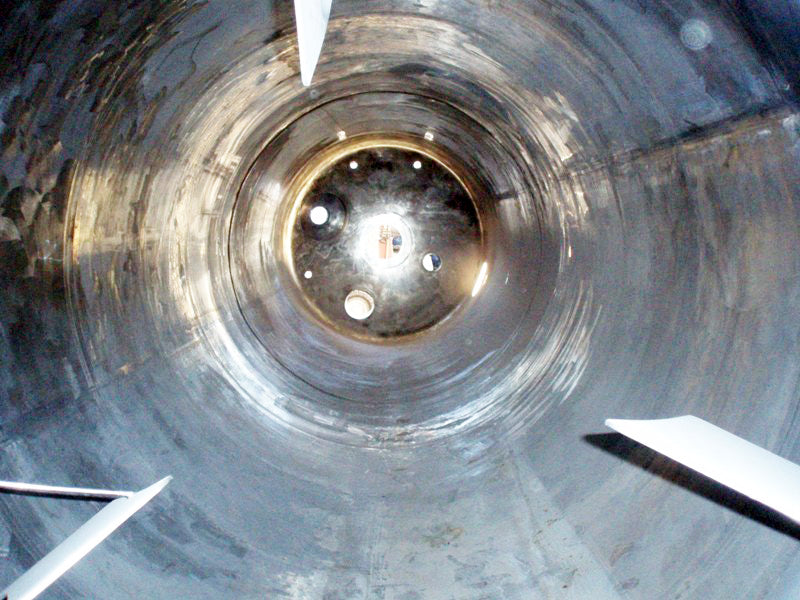

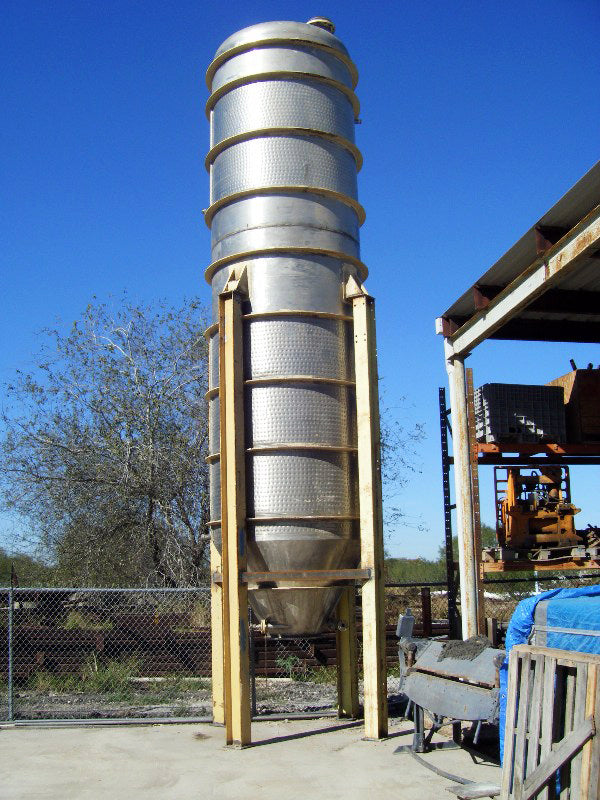

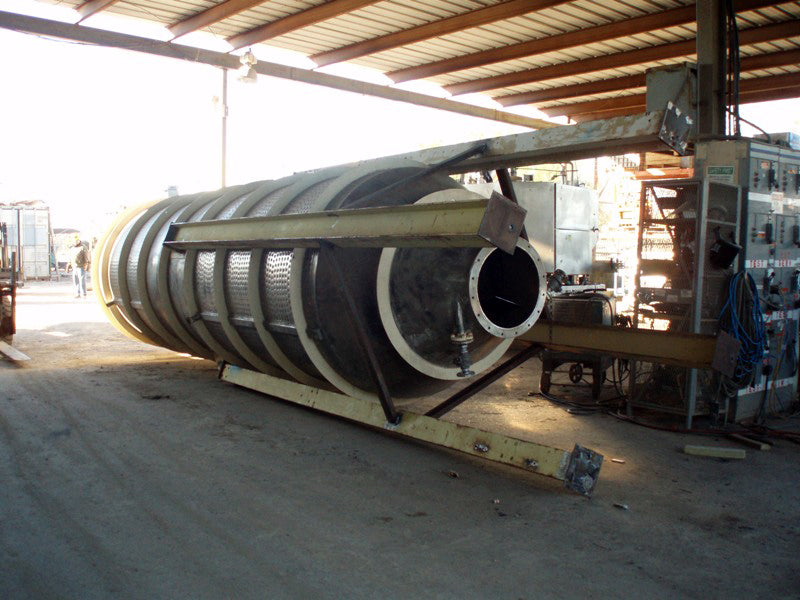

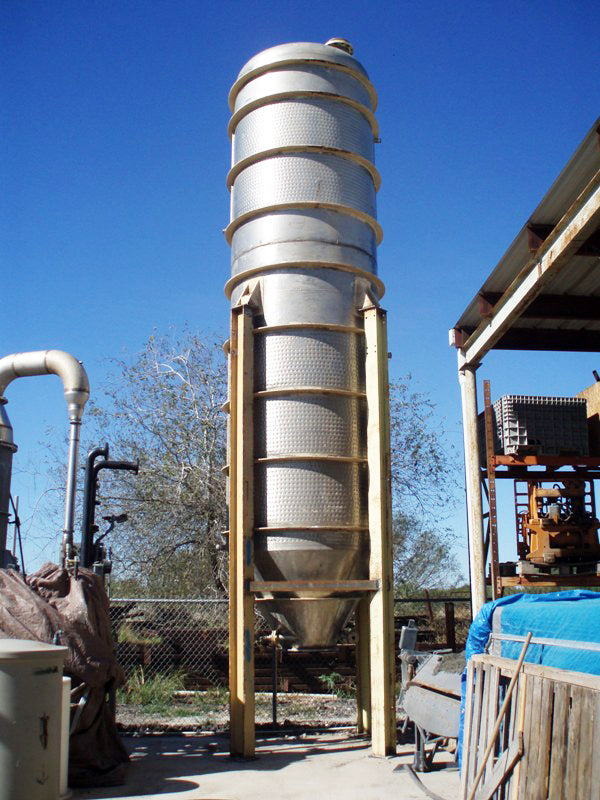

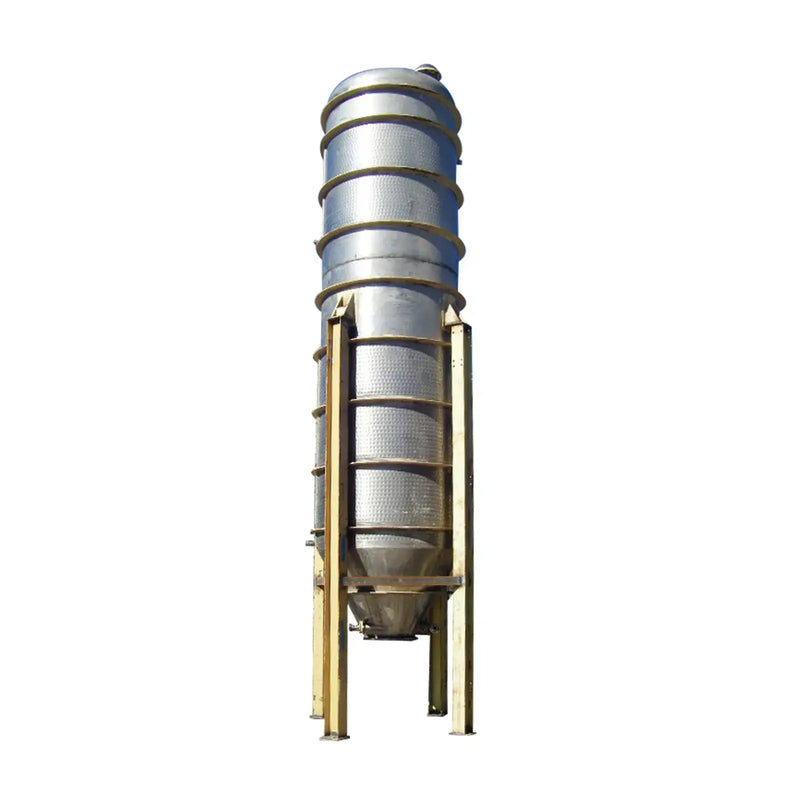

Paul Mueller Dedert Dimpled Jacketed Tank. Approximate capacity: 4000 gallons. Constructed of 316 stainless steel. Inside dimensions: 72 in. dia x 20 ft. Long. Vessel MAWP @ 275°F: 0 psi. / Vacuum 29.92 HG. Heat transfer surface MAWP @ 275°F: 30 psi. Tank features an 18 in. dia. manway and a 6 in. dia. sight glass. Overall dimensions: 6 ft. 4 in. L x 6 ft. 4 in W x 28 ft. 6 in. H.

Product Details

  • Stock No: SABE095.15
  • Manufacturer: Paul Mueller Co.
  • Serial Number: 120908

Tank Details

  • Stainless Tank Type: Miscellaneous Tanks
  • Tank Orientation: Vertical
  • Jacketed (Insulated)? Yes
  • Dimpled? Yes
  • Agitation? No
  • Tank National Board Number: 1958
  • Tank MAWP (PSI at temp): 0 PSI @ 275 F

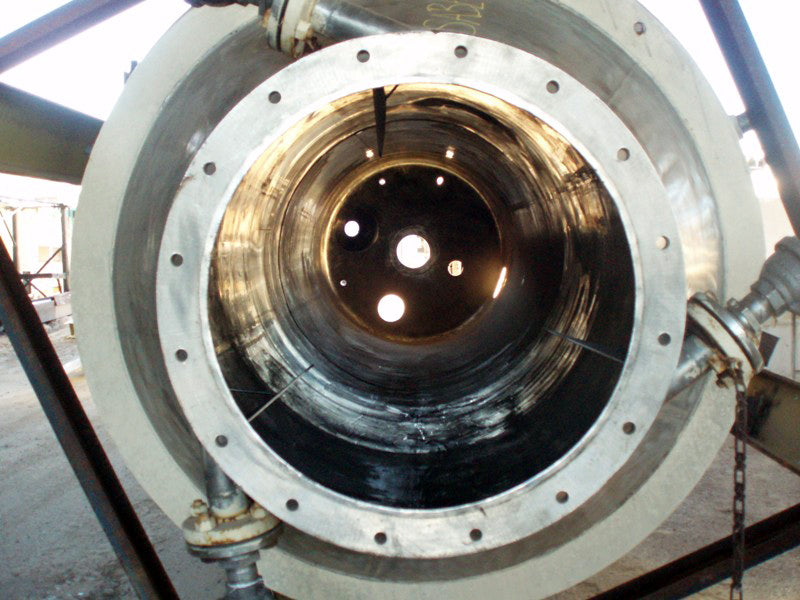

  • Tank Inlets & Outlets Description: Inlets: (2) 2 in. dia. female ferrules for jacket, (3) 2 in. dia. with 6 in. dia. flanges and (4) 3/4 in. dia. attachment holes at a center-to-center distance of 5 in., (1) 6 in. NPT with a 1/4 in. dia. injector tube, (1) 10 in. dia. with a 16 in. dia. flange and (12) 3/4 in. dia. attachment holes at a center-to-center distance of 14 in., (1) 13 in. dia. with a 19 in. dia. flange and (12) 3/4 in. dia. attachment holes at a center-to-center distance of 17 in. Outlets: (2) 3/4 in. dia. NPT, (2) 2 in. dia. female ferrule for jacket, (3) 2 in. dia. with 6 in. dia. flanges and (4) 3/4 in. dia. attachment holes at a center-to- center distance of 5 in., (1) 22 in. dia. tank outlet with a 28 in. dia. flange and (16) 3/4 in. dia. holes at a center-to-center distance of 26 in.

Previous Refrigerant

Motor Details

  • Motor Included? No

Dimensions:

  • Length (Inches): 76
  • Width (Inches): 76
  • Height (Inches): 342

Additional Product Details

  • Year of Manufacture: 1972
