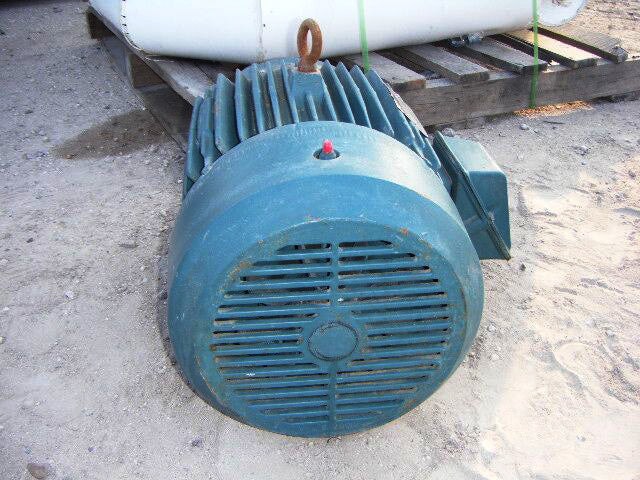

Reliance Electric Motor - 15 HP
Reliance Electric Motor. Model: P25G4554C. Motor specifications: 15 hp, 1765 rpm, 230/460V, 39.0/19.5 amps, 60 Hz, 3 phase. Frame: 254T. Insulation class: F. Nema design: B. Code: C. Type: P. Shaft diameter: 1-1/2 in. Overall dimensions: 2 ft. 1 in. L x 1 ft. 4 in. W x 1 ft. 3 in. H.
Product Details
- Stock No: KWBF750C
- Manufacturer: Reliance
- Model: P25G4554C
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Reliance
- Motor Horsepower(HP): 15
- Motor RPM: 1765
- Motor Voltage: 230/460
- Motor Amps: 39.0/19.5
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 254T
Dimensions:
- Length (Inches): 25
- Width (Inches): 16
- Height (Inches): 15
