S.A. Armstrong LTD. H67BF Centrifugal Pump (1 HP)

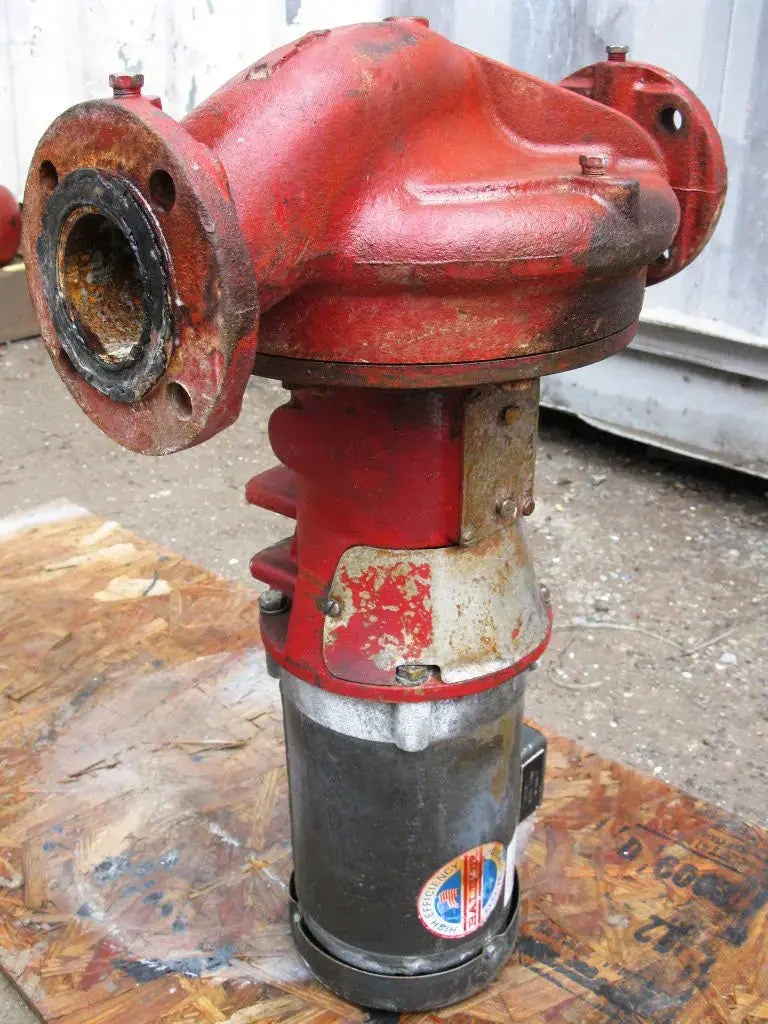

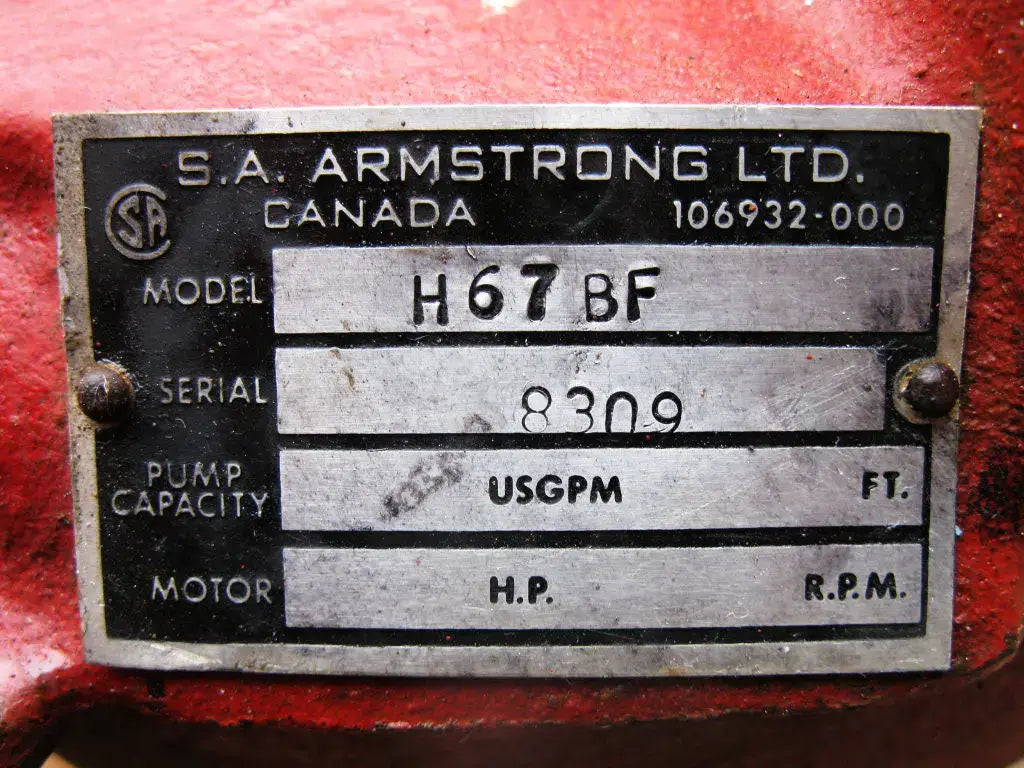

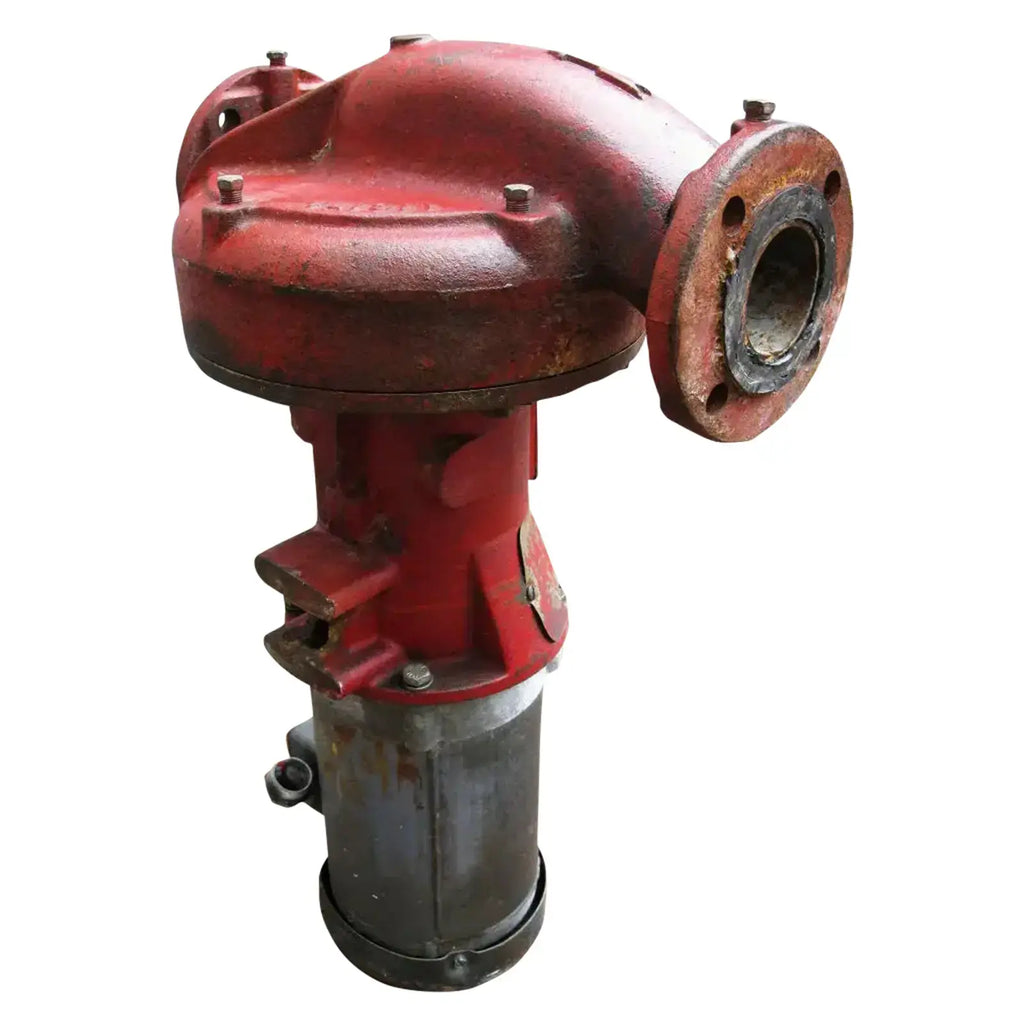

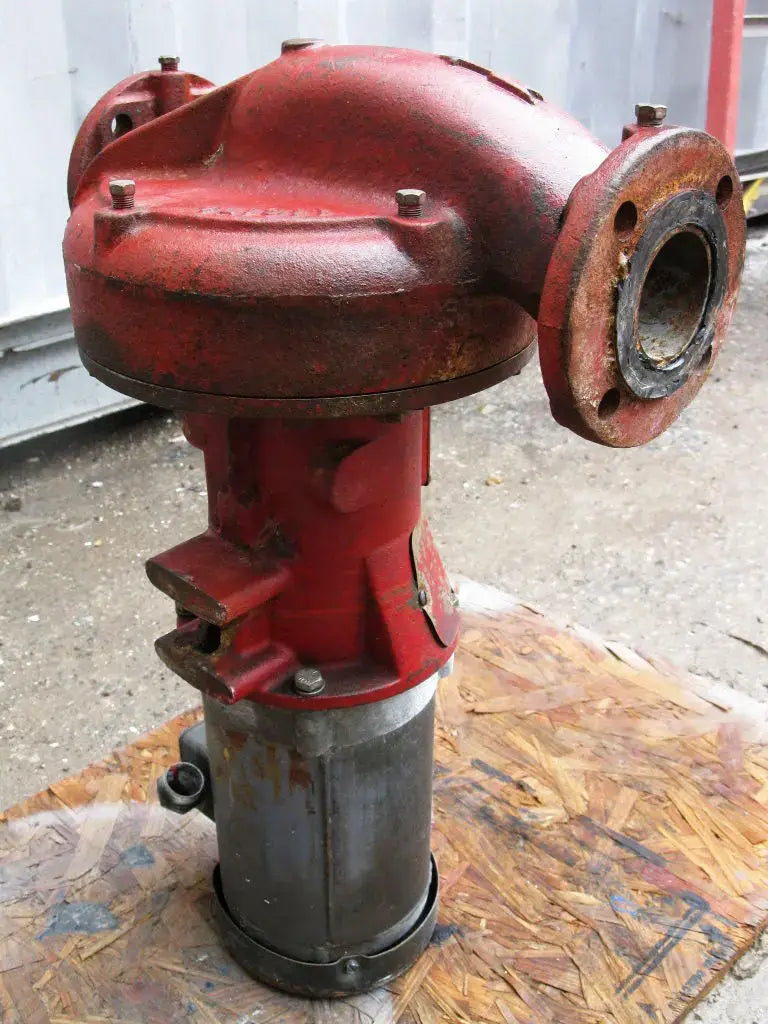

Armstrong Centrifugal Pump. Model: H67BF. S/N: 8309. Baldor Electric motor: 1 Hp, 1725 Rpm, 208-230/460 V, 3.7-3.4/1.7 A, 60 Hz, 3 Phase. Inlet/outlet: (2) 2 in. dia. inner flanges, with (4) 1/2 in. dia. mounting holes, 3 in. adjacent, 4 in. opposite. Overall dimensions: 1 ft. 10 in. L x 1 ft. 3 in. W x 1 ft. H.
Product Details
- Stock No: TMCB279B
- Manufacturer: S.A. Armstrong LTD.
- Model: H67BF
- Serial Number: 8309
Pump Details
- Pump Type: Centrifugal
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet/Outlet
- Inlet/Outlet Size (Inches) 1: 2
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet Flange Size (inches) 1: 0.5
- Inlet/Outlet 1 # Flange Holes: 4
- Inlet/Outlet 2: Inlet/Outlet
- Inlet/Outlet Size (Inches) 2: 2
- Inlet/Outlet Type 2: Flange
- Inlet/Outlet Flange Size (inches) 2: 0.5
- Inlet/Outlet 2 # Flange Holes: 4
Previous Refrigerant
Motor Details
- Motor Included? Yes
- Motor Manufacturer: Baldor
- Motor Horsepower(HP): 1
- Motor RPM: 1725
- Motor Voltage: 230/460
- Motor Amps: 3.7-3.4/1.7
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 22
- Width (Inches): 15
- Height (Inches): 12
Additional Product Details
