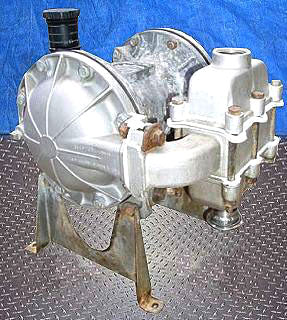

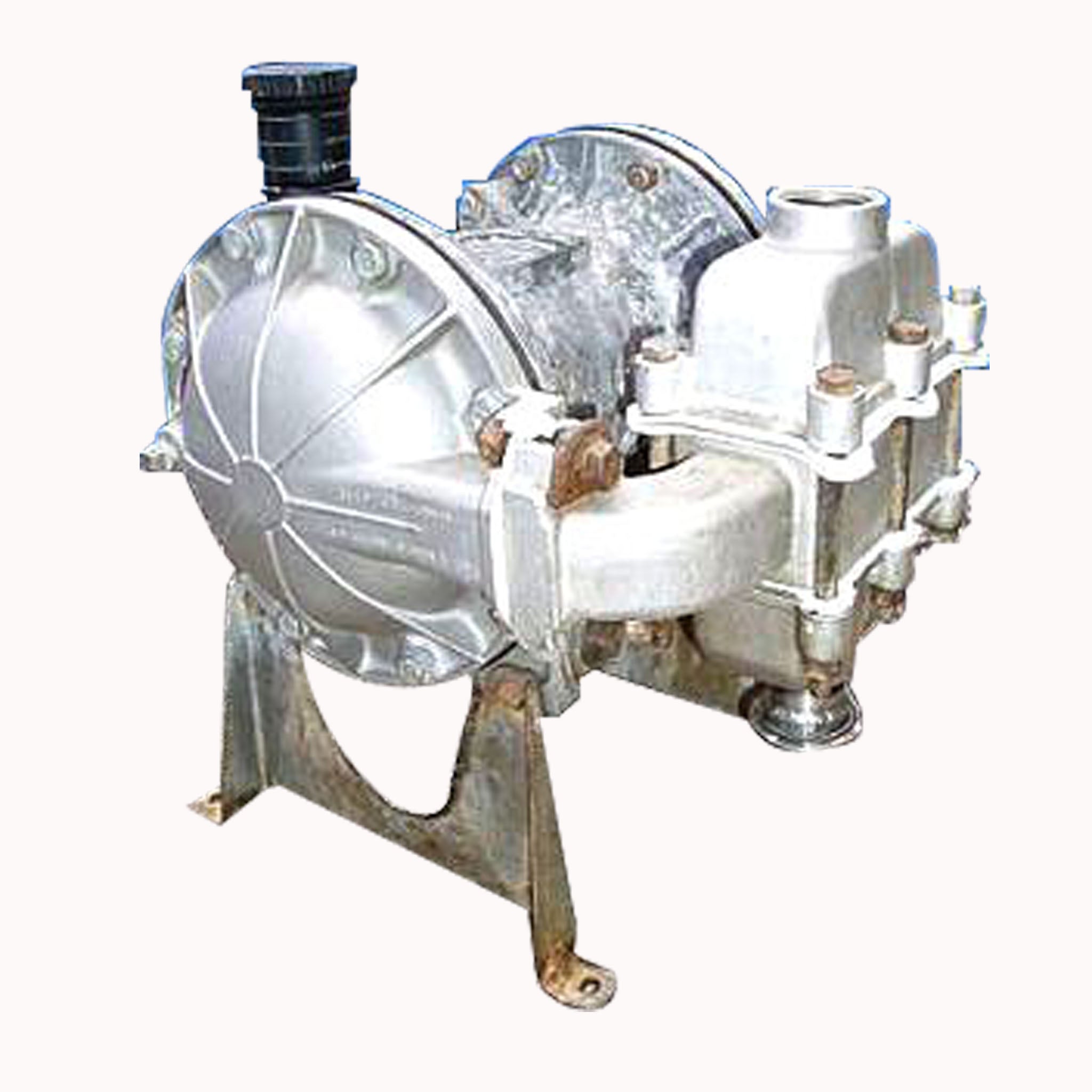

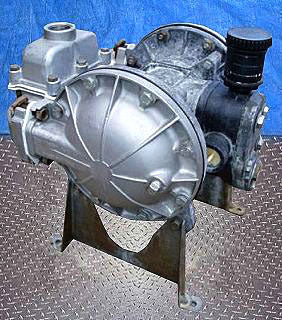

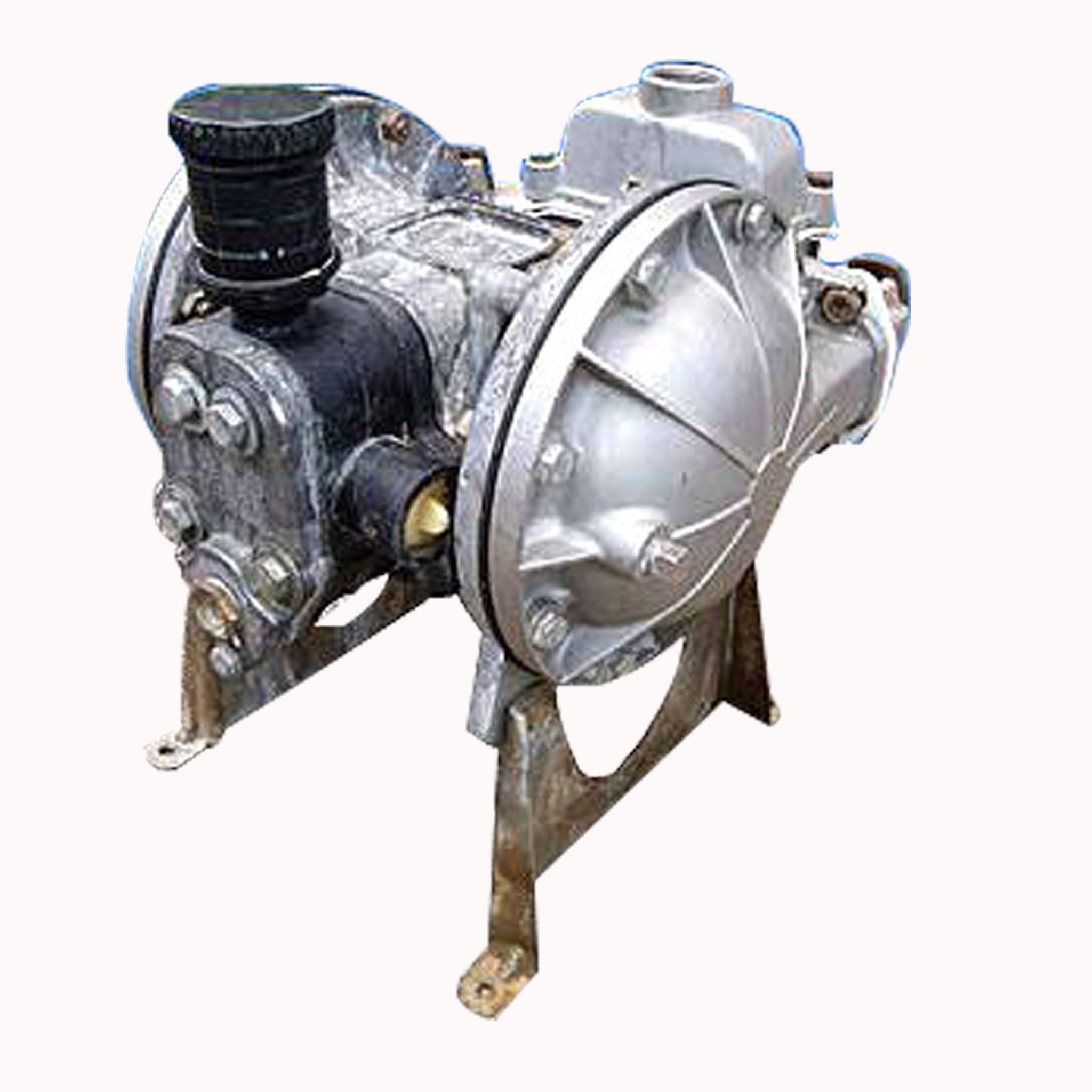

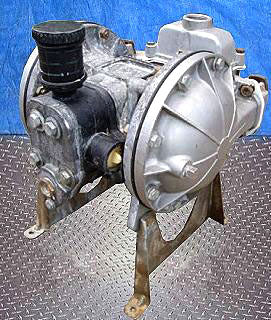

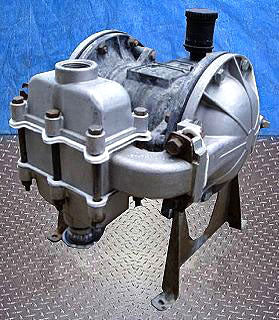

Sandpiper ST1 Diaphragm Pump (42 GPM Max)
Sandpiper Containment Duty Diaphragm Pump. Model: ST1. Maximum capacity: 42 gpm. Displacement per stroke: 0.09 gal. Maximum solids handled: 1/4 in. Maximum discharge pressure: 125 psi. Containment duty pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All CD duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. CD pumps are constructed of aluminum, cast iron, stainless steel alloy 'C', polypropylene, and kynar with TPE. Inlets: (1) 1/4 in. dia. NPT (female, for quick connect air fitting), (1) 1 in. dia. NPT (female). Overall dimensions: 14 in. L x 11-1/2 in. W x 14 in. H.(ACN26).
Product Details
- Stock No: DCBJ205B.6
- Manufacturer: Sandpiper
- Model: ST1
Pump Details
- Pump Type: Diaphragm
- Max Gallons Per Minute GPM: 42
- Minimum Temperature (F): -35
- Maximum Temperature (F): 212
- Maximum Pressure MAWP (PSI): 125
- # Inlets: 2
- # Outlets: 1
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 0.25
- Inlet/Outlet Type 1: NPT
- Inlet/Outlet 2: Inlet
- Inlet/Outlet Size (Inches) 2: 1
- Inlet/Outlet Type 2: NPT
- Inlet/Outlet 3: Outlet
- Inlet/Outlet Size (Inches) 3: 1
- Inlet/Outlet Type 3: NPT
Previous Refrigerant
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 14
- Width (Inches): 11.5
- Height (Inches): 14
Additional Product Details
