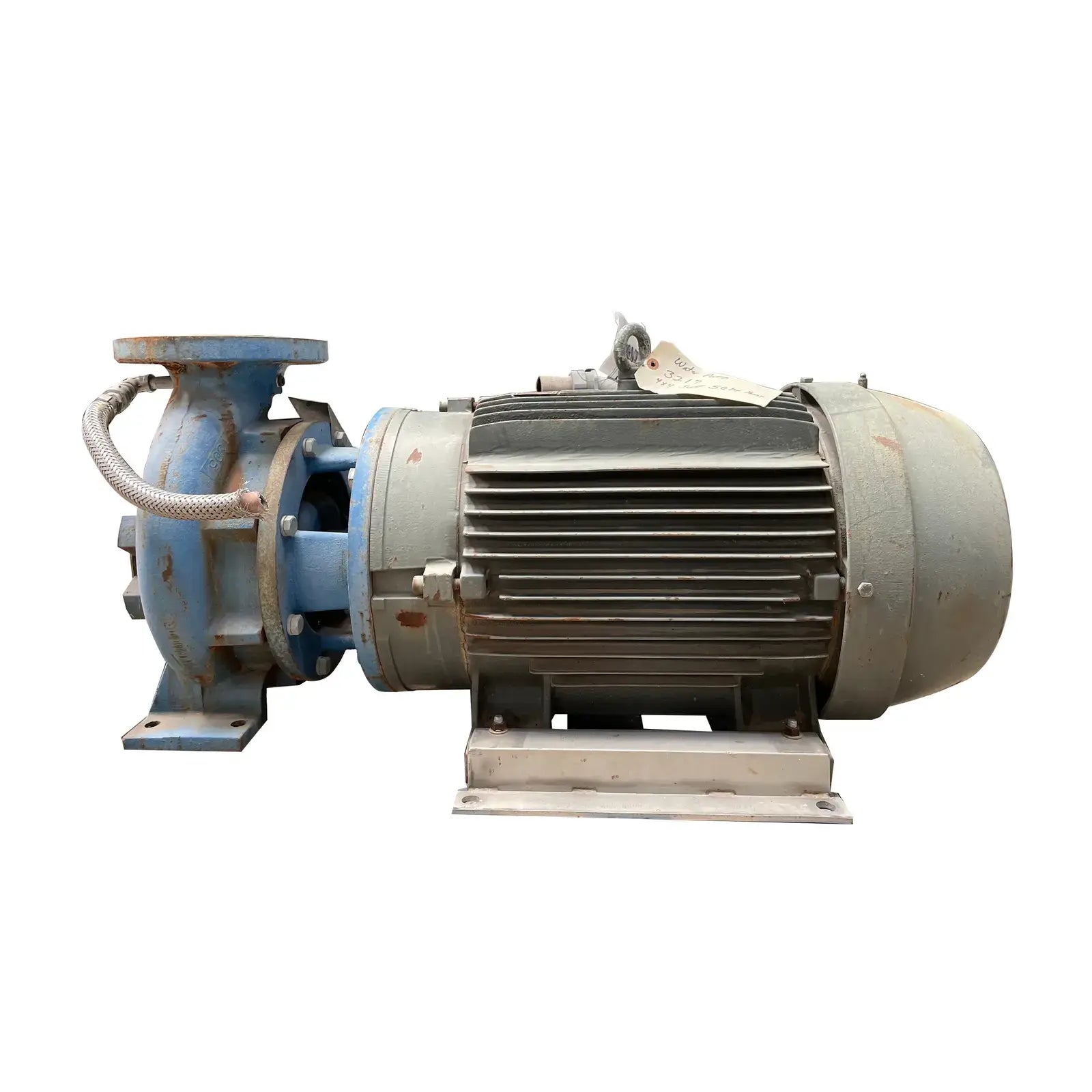

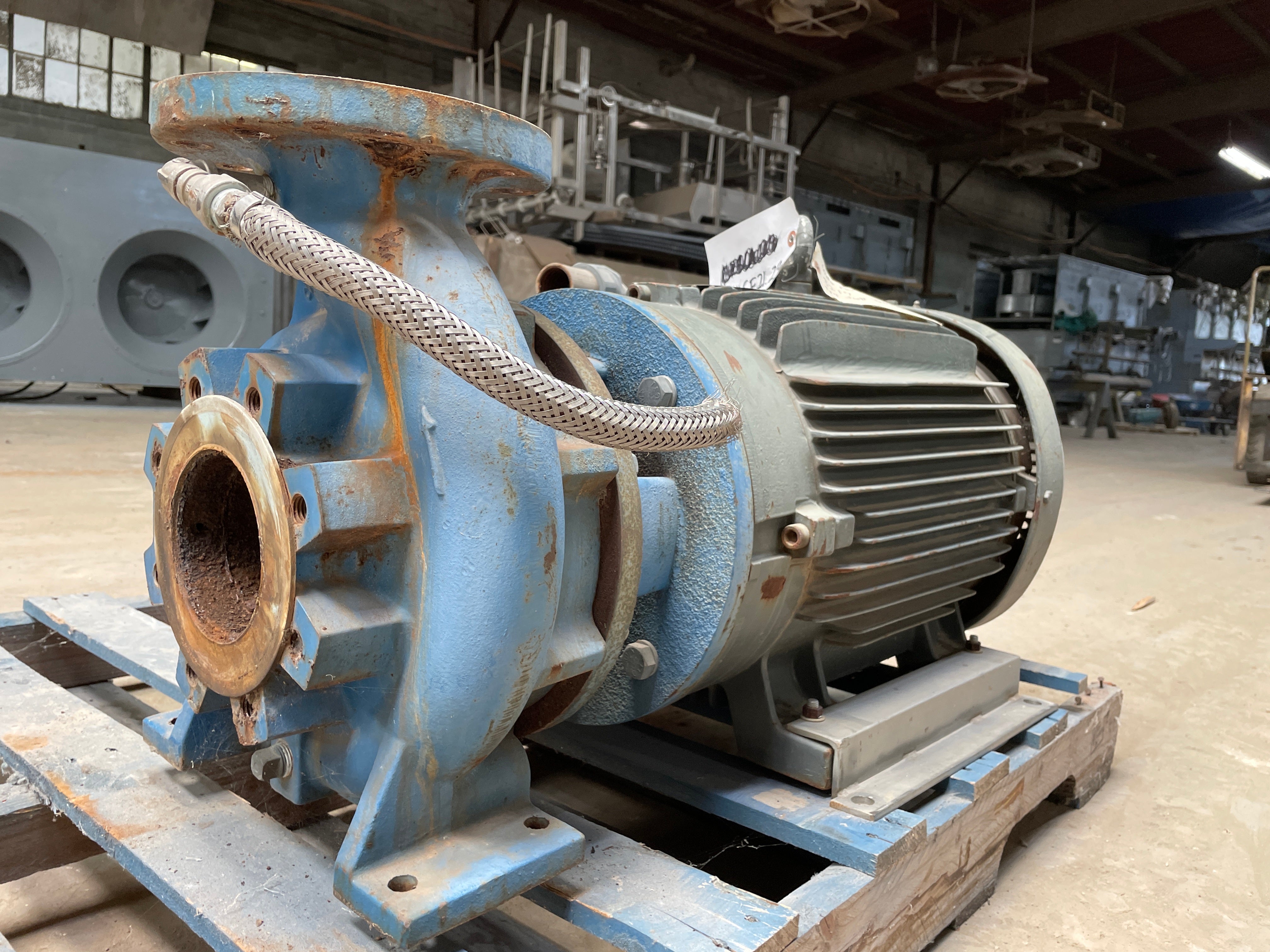

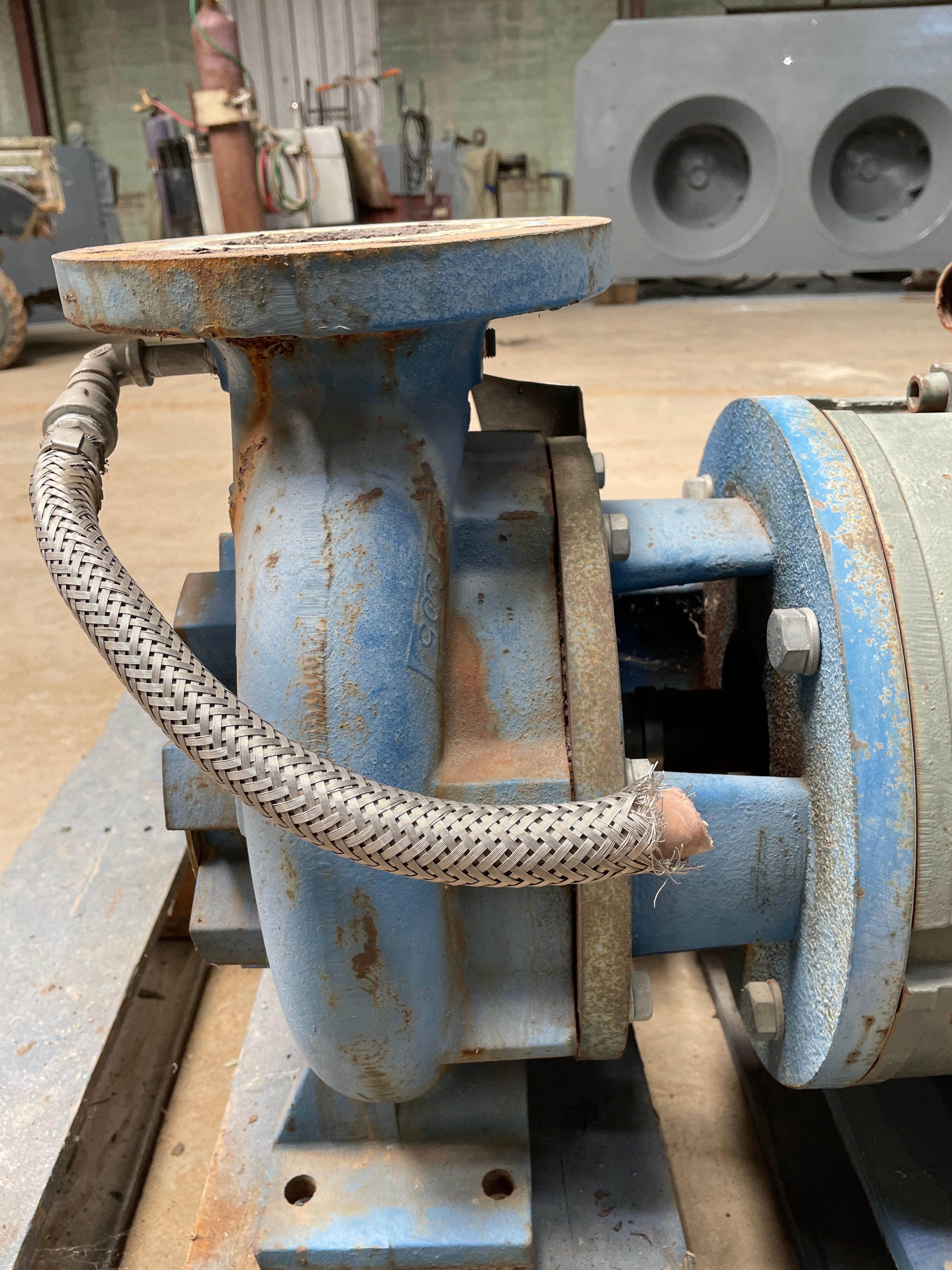

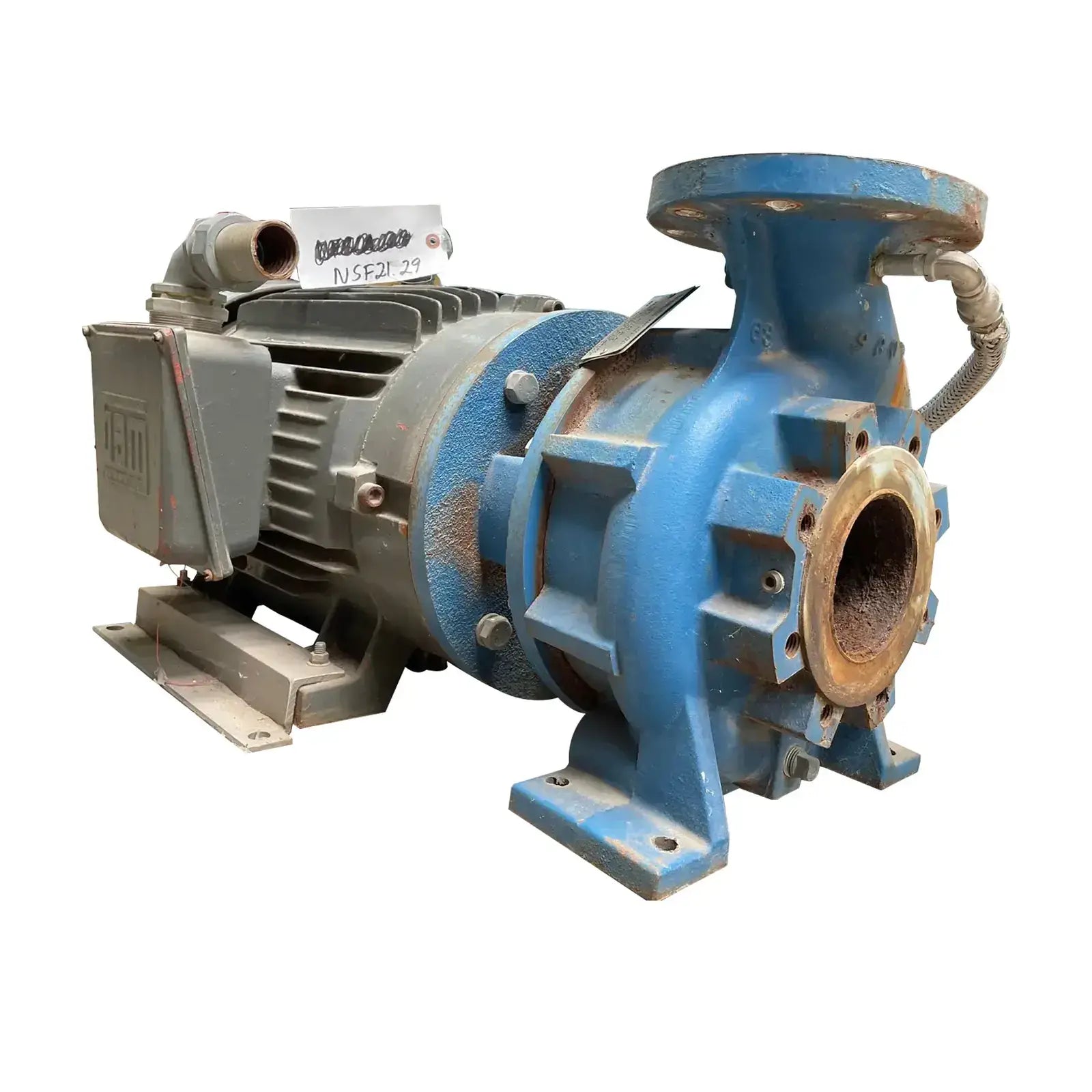

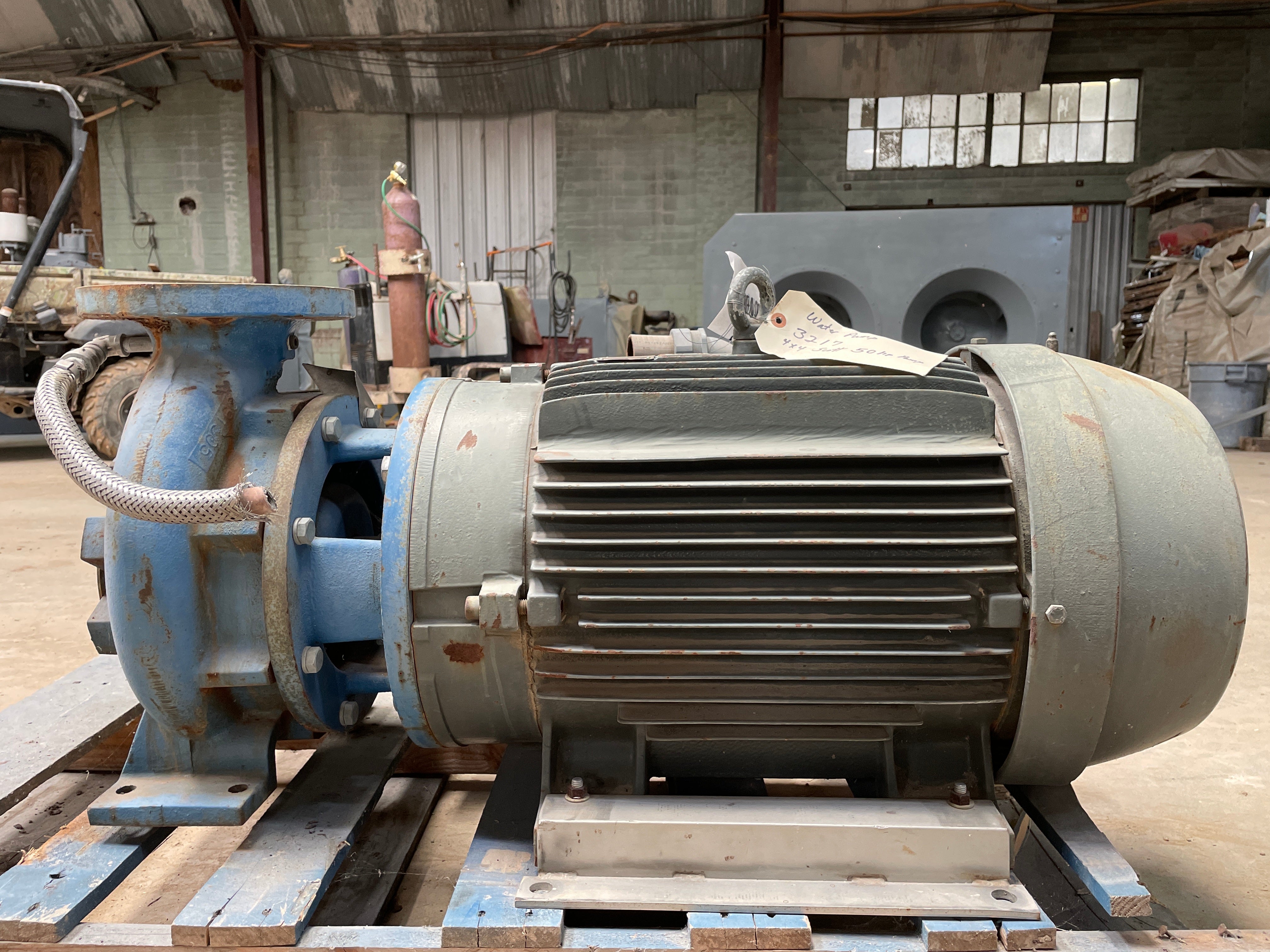

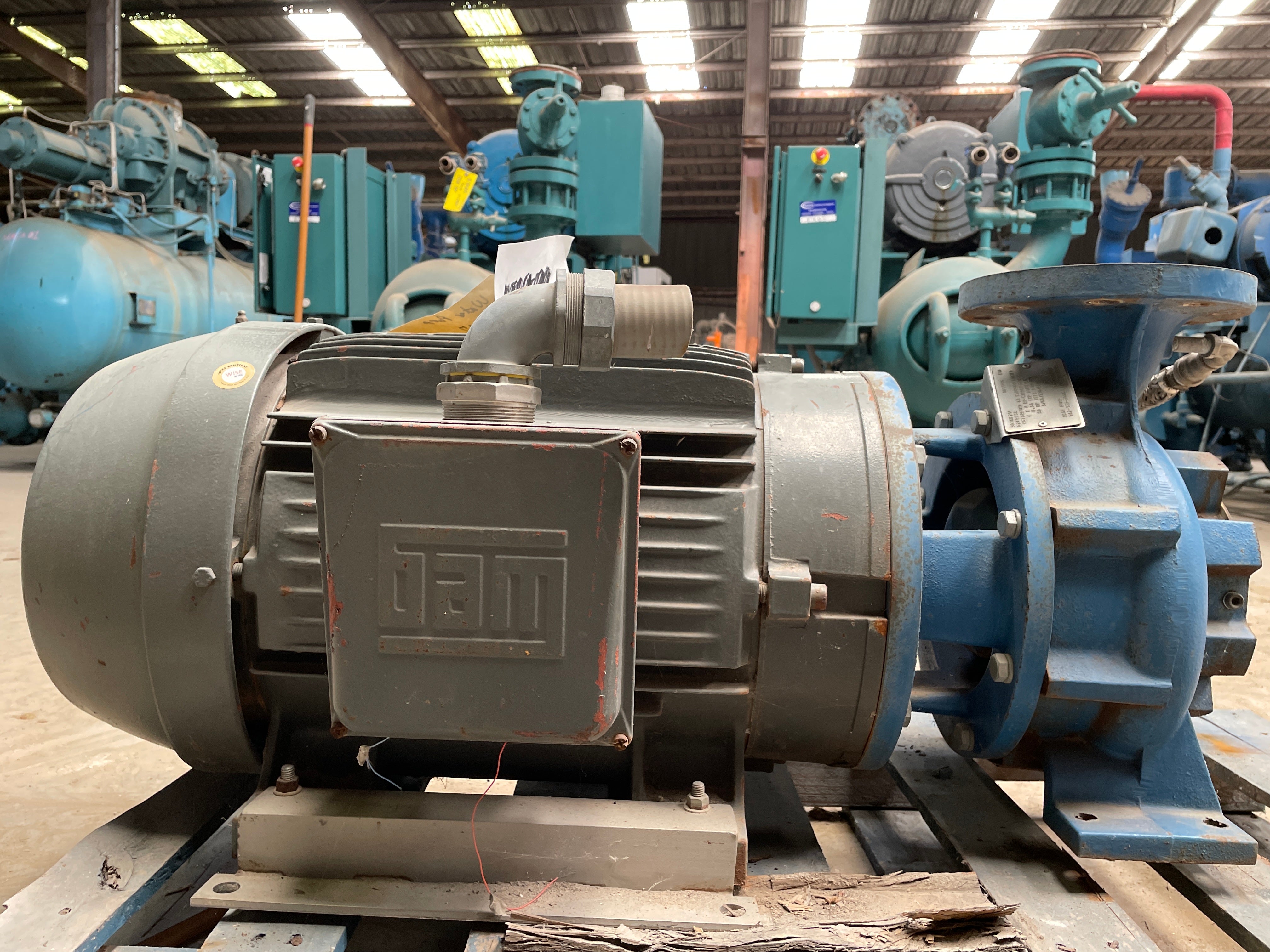

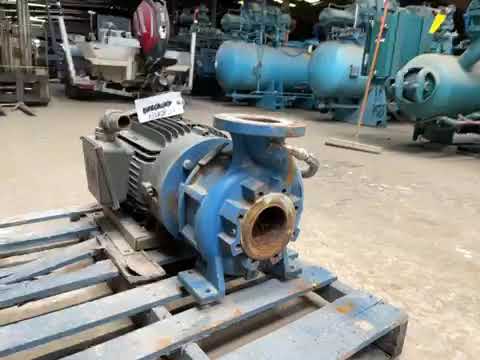

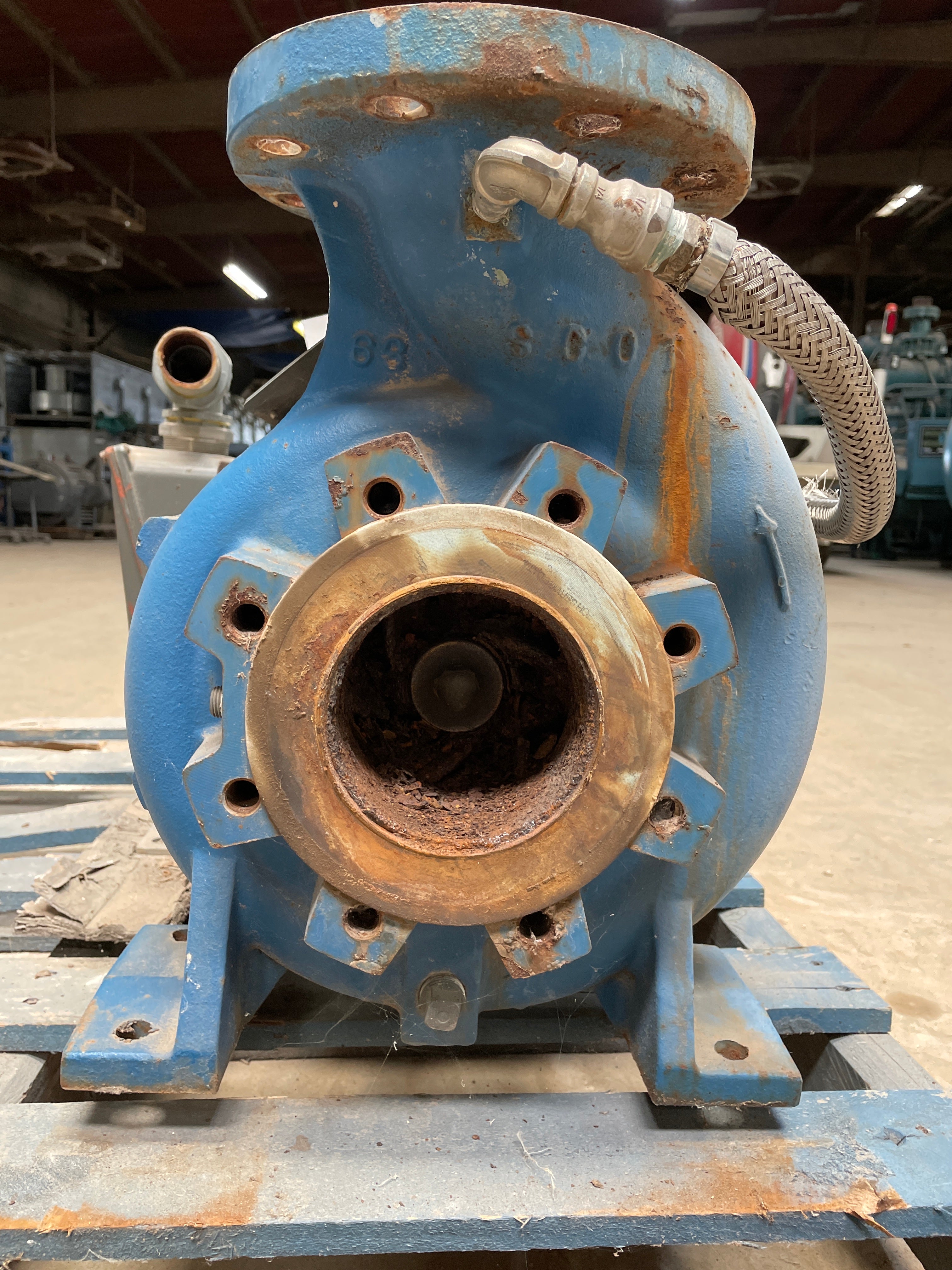

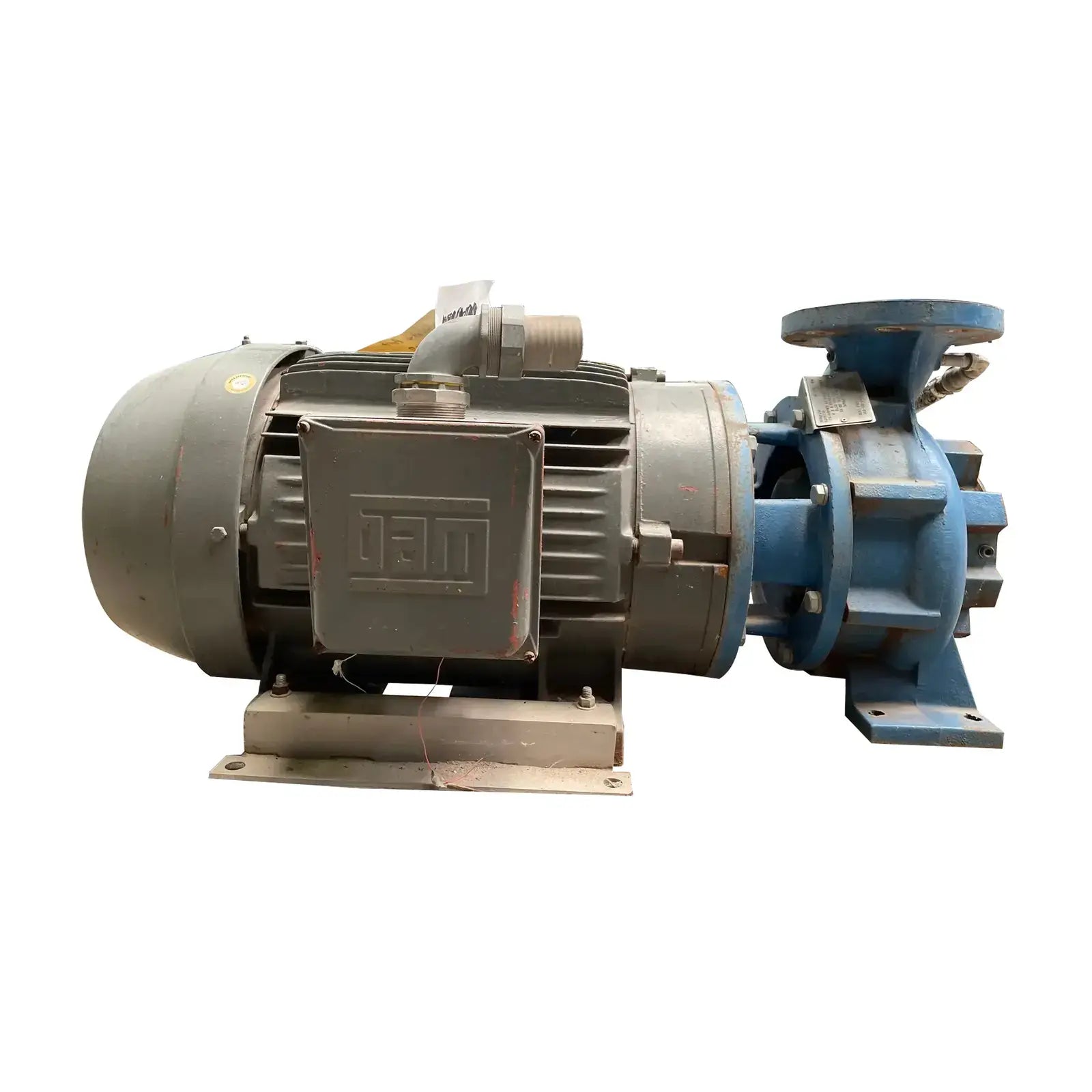

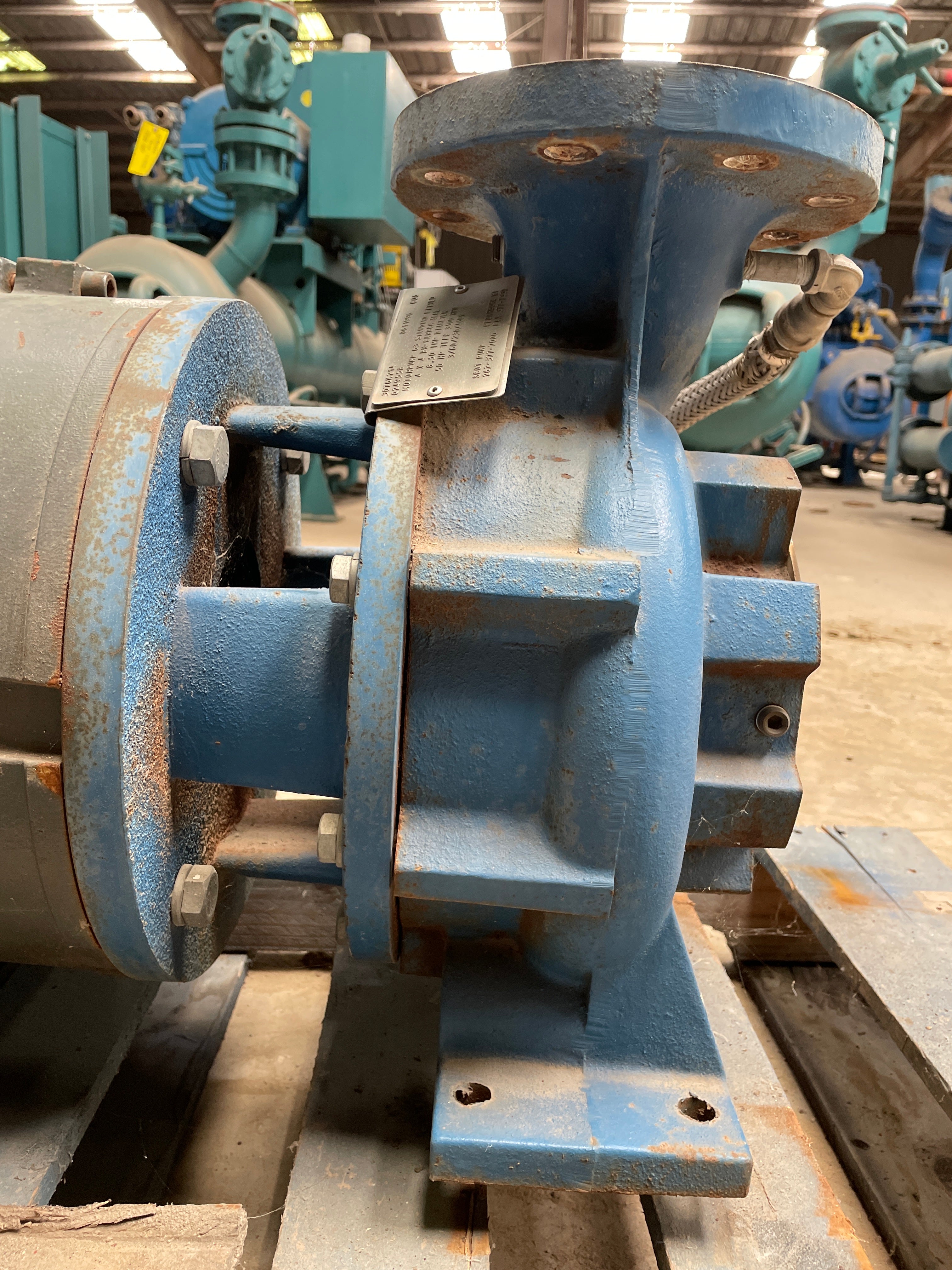

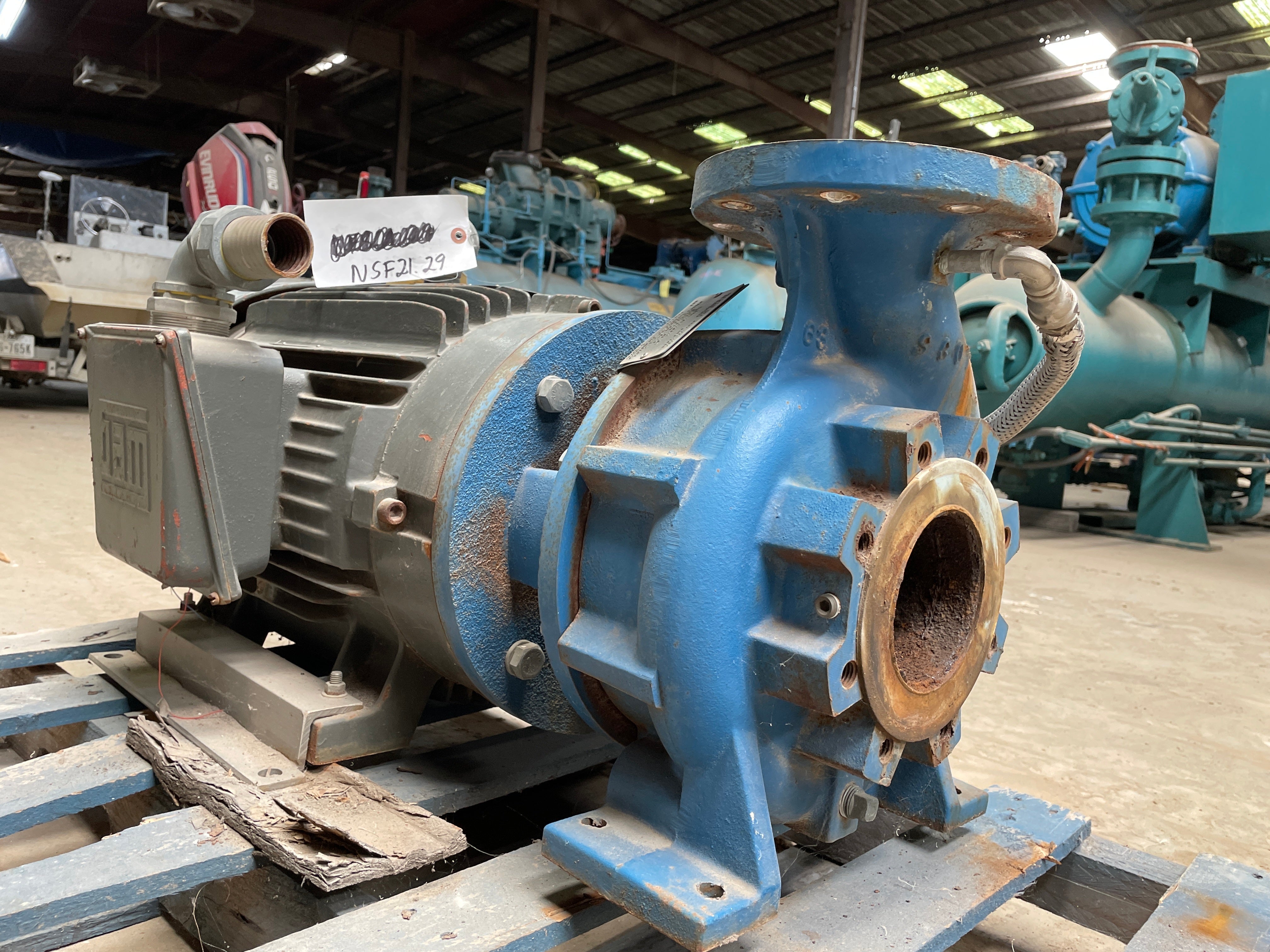

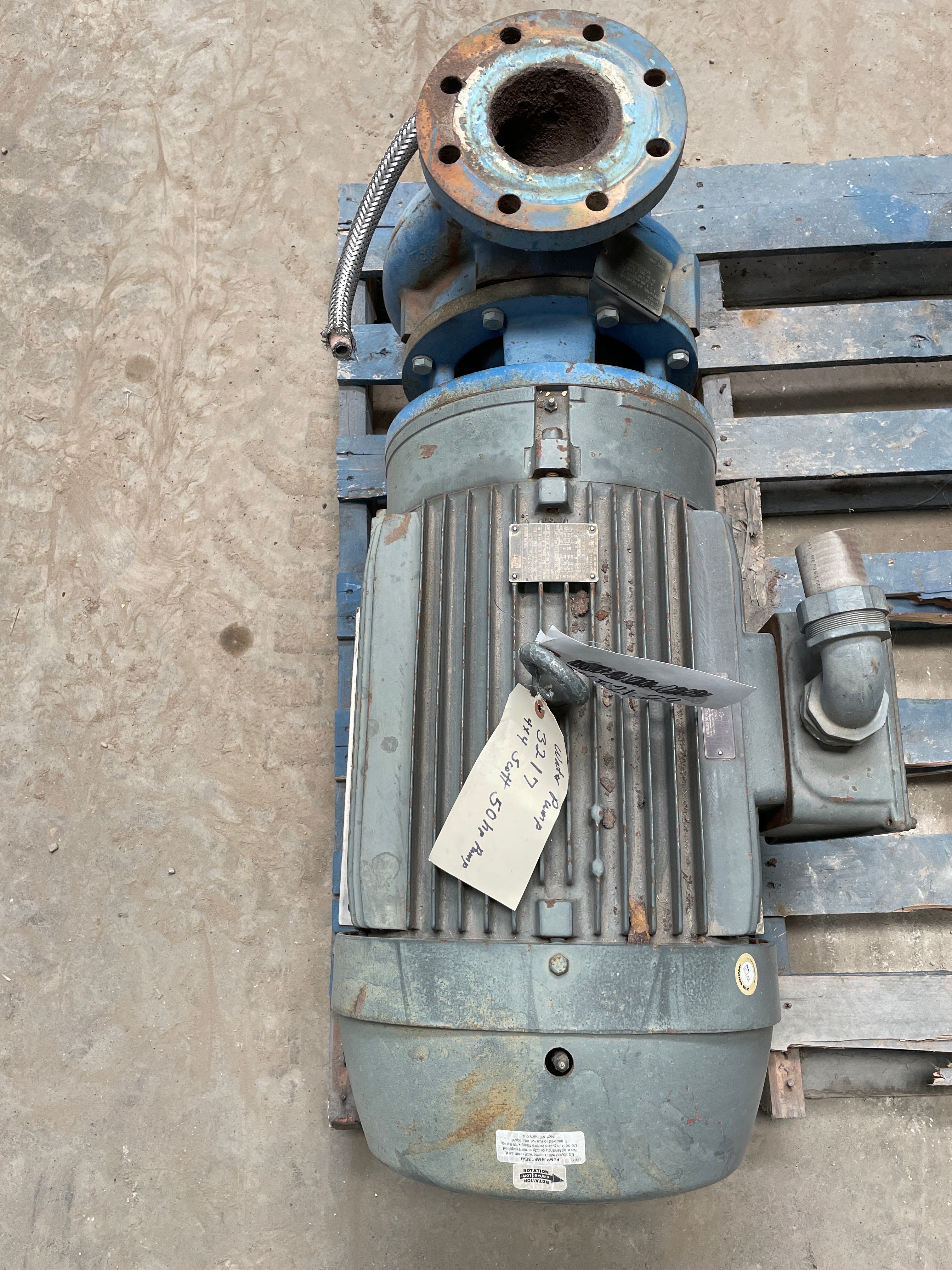

Scot Pump 63JM Centrifugal Pump (50 HP, 1,000 GPM Max)

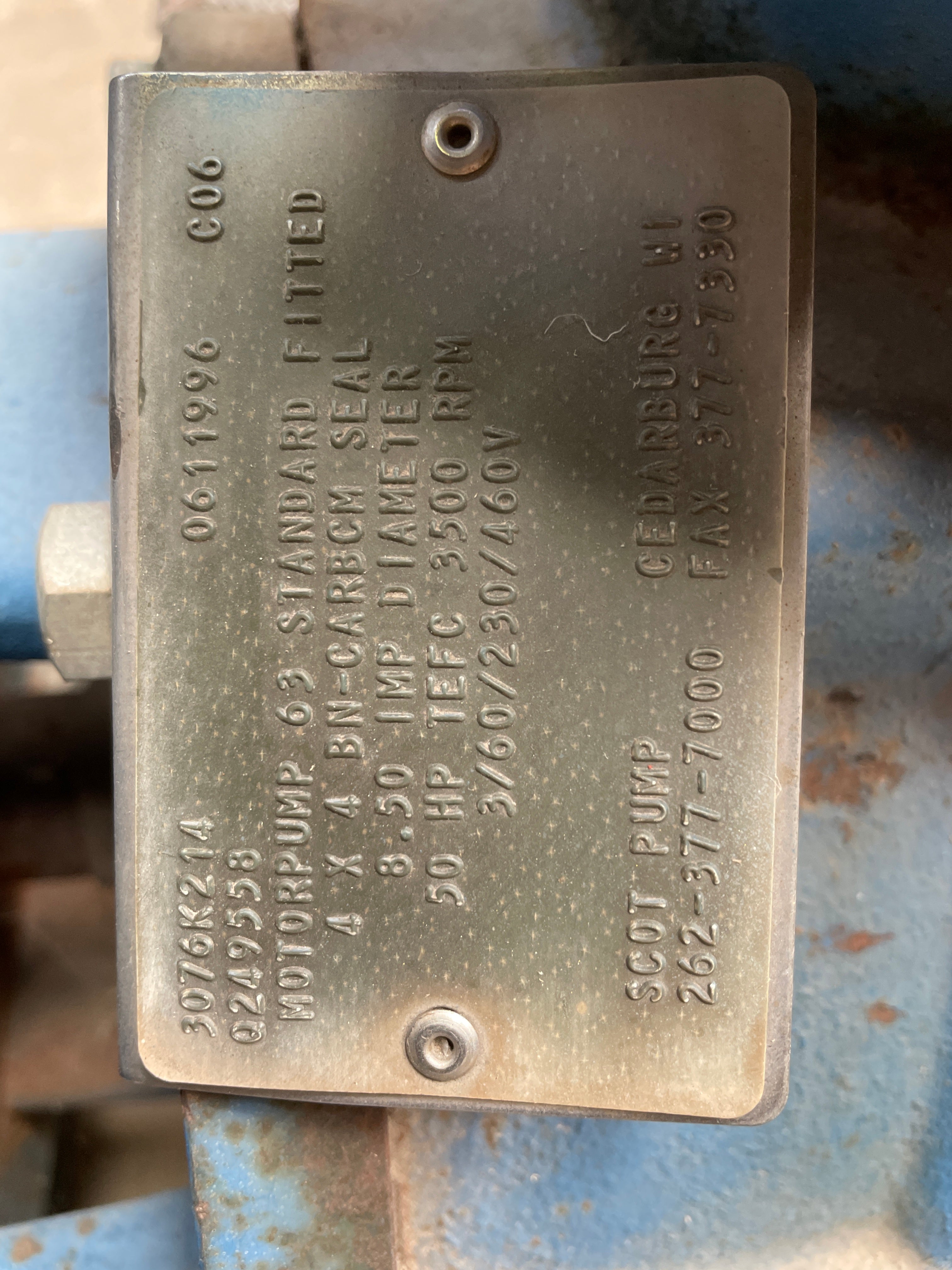

Scot Motorpump 63 Circulating Pump - Motorpump 63 Standard Fitted 4x4 BN-Carbon Seal. 8.5 Impeller Diameter. 50 HP, TEFC, 3500 RPM, 3 PH, 60 HZ, 230/460V. Impeller Type: Enclosed. Maximum Pressure: 195 PSI. Max GPM: 1000. WEG Motor - PH: 3, Frame: 326JP., HP: 50(, RPM: 3555, Encl: TEFC, Type: ET, PF: 0.88, IP55,Volts 208/-230/460, AMPS: 127-115/57.4, Max Amp: 40c, Duty: Cont, Model: 05036ES3E326JP.
Product Details
- Stock No: NSF21.29
- Manufacturer: Scot Pump
- Model: 63JM
- Serial Number: 249558
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 1000
- Max Speed RPM: 3500
- Maximum Pressure MAWP (PSI): 195
- # Inlets: 1
- # Outlets: 1
- # Inlets/Outlets: 2

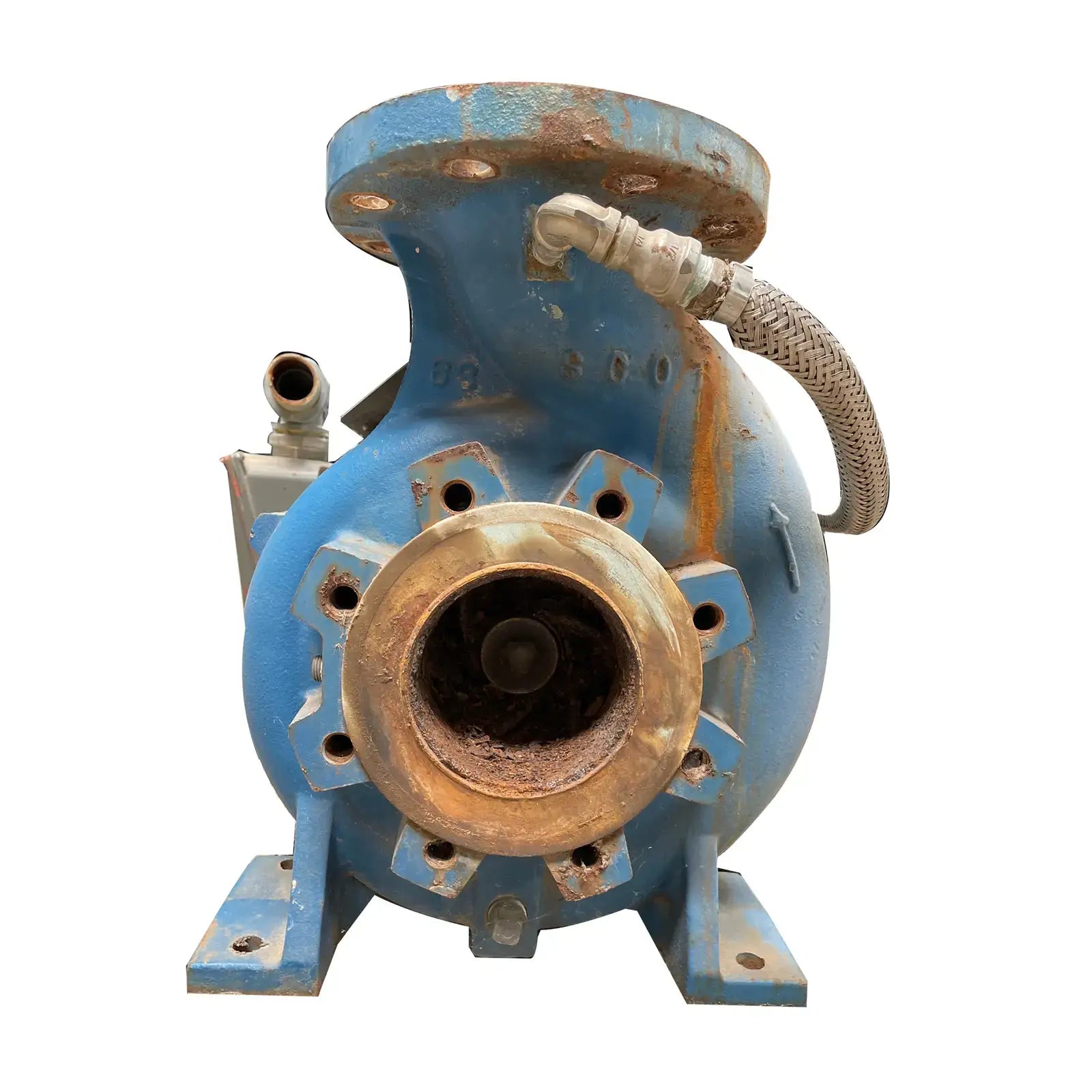

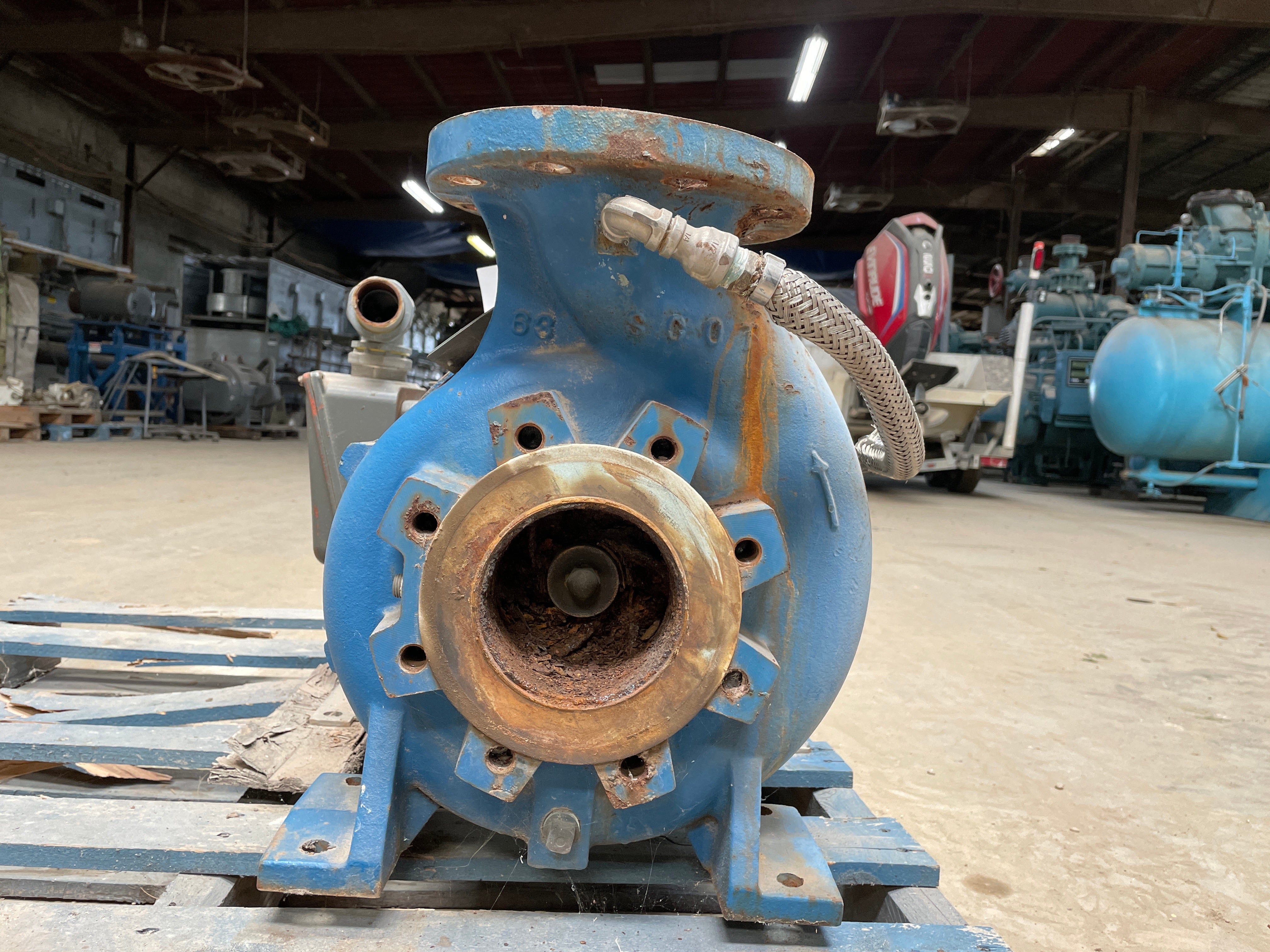

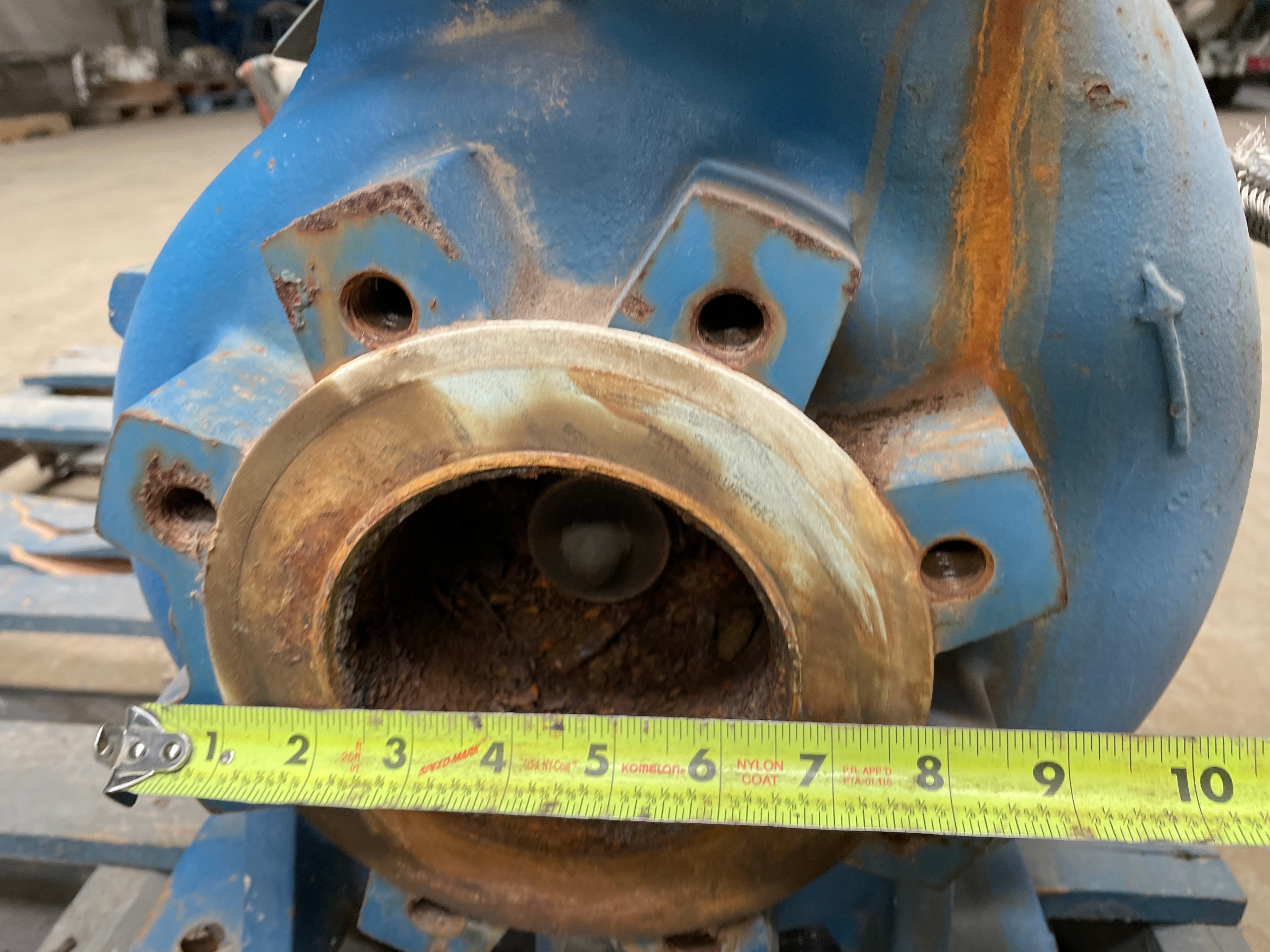

- Inlet/Outlet 1: Inlet

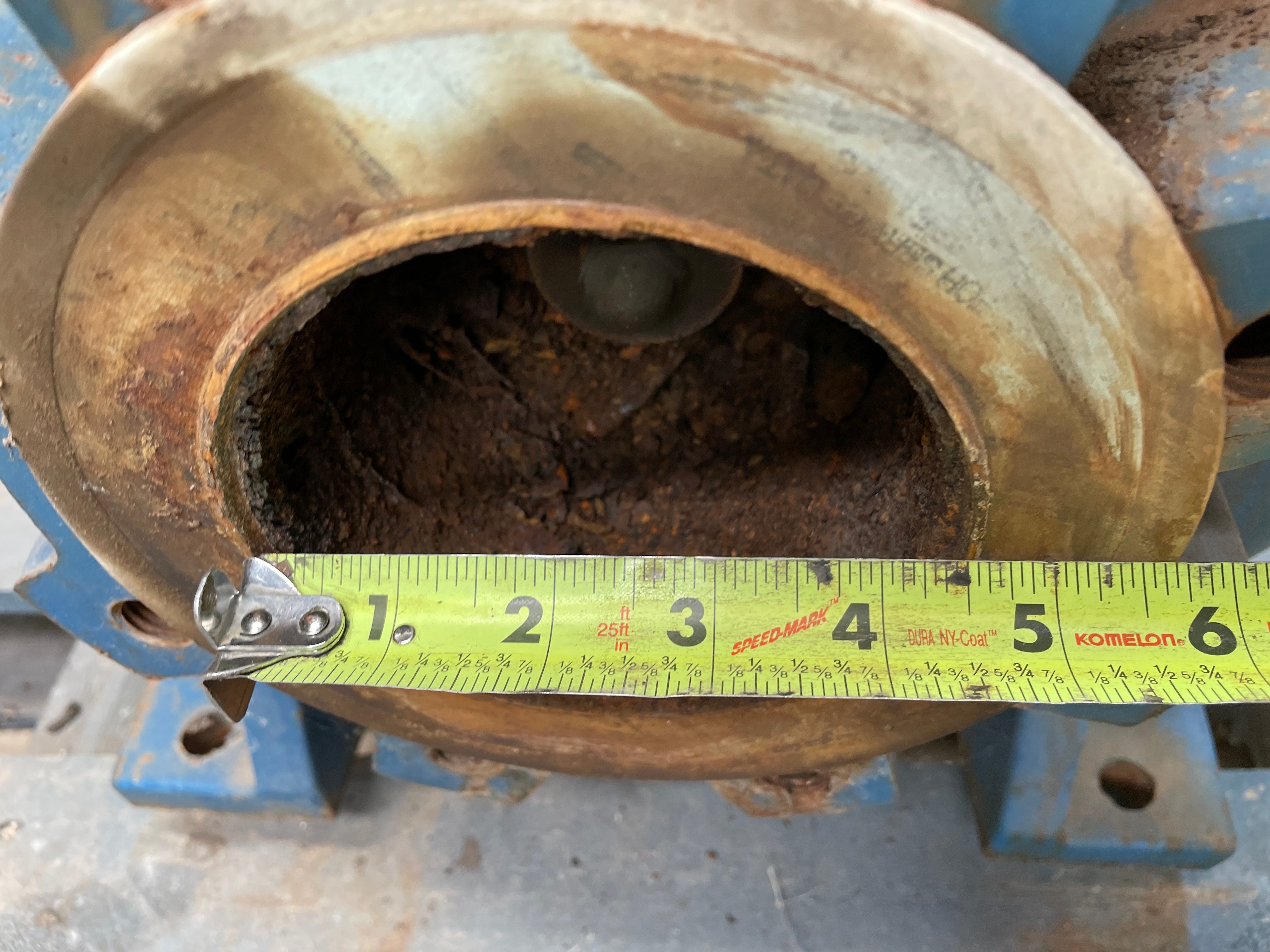

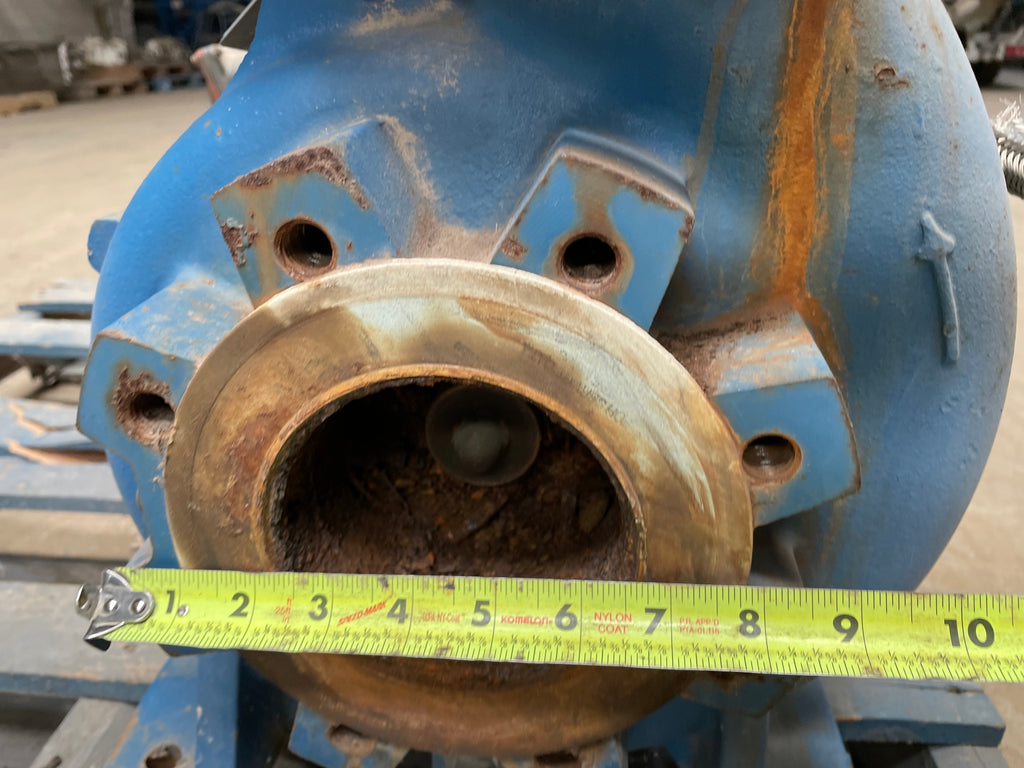

- Inlet/Outlet Size (Inches) 1: 4.375
- Inlet/Outlet Type 1: ANSI Flange
- Inlet/Outlet Flange Size (inches) 1: 9.1875
- Inlet/Outlet 1 # Flange Holes: 8

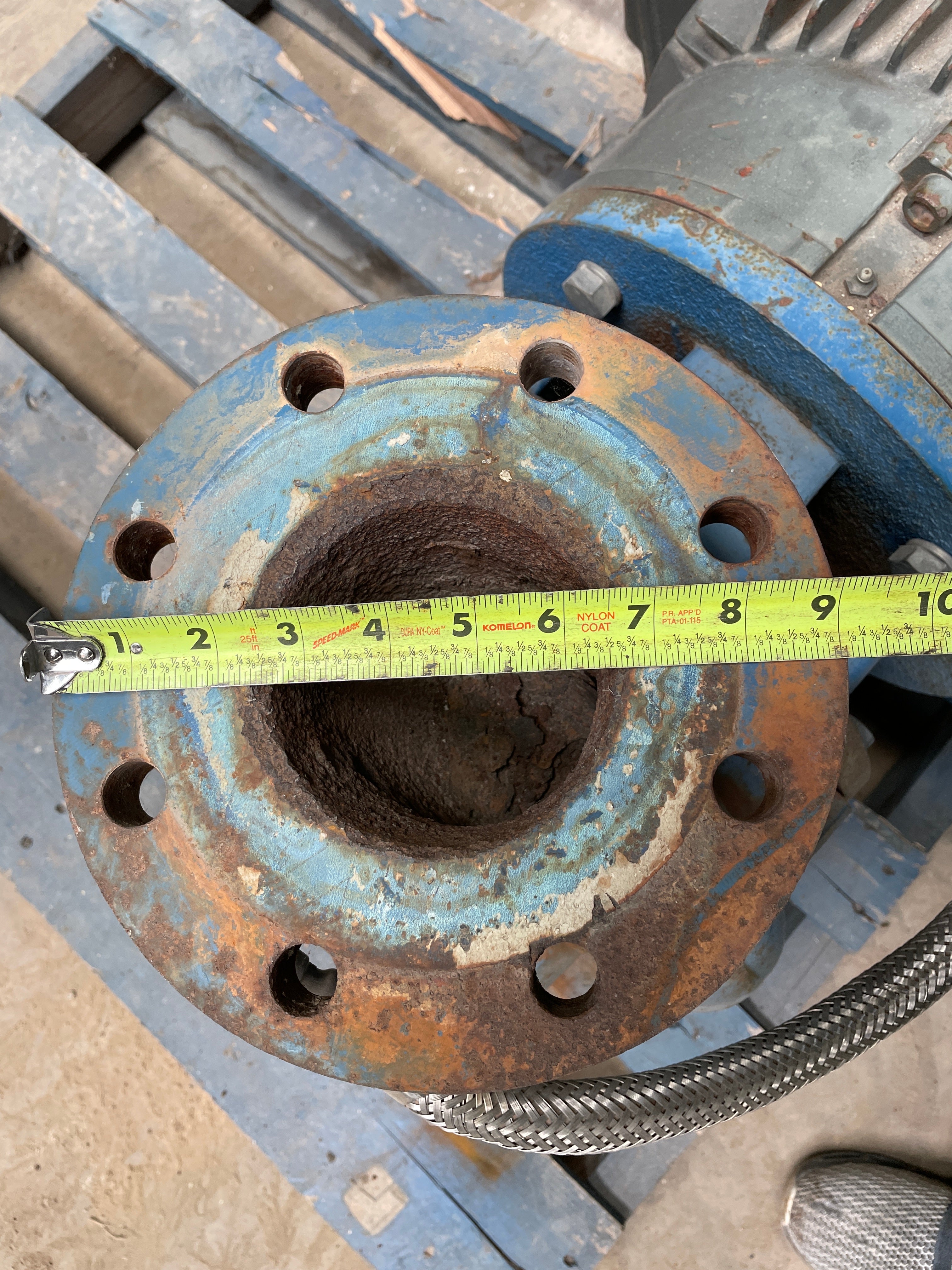

- Inlet/Outlet 2: Outlet

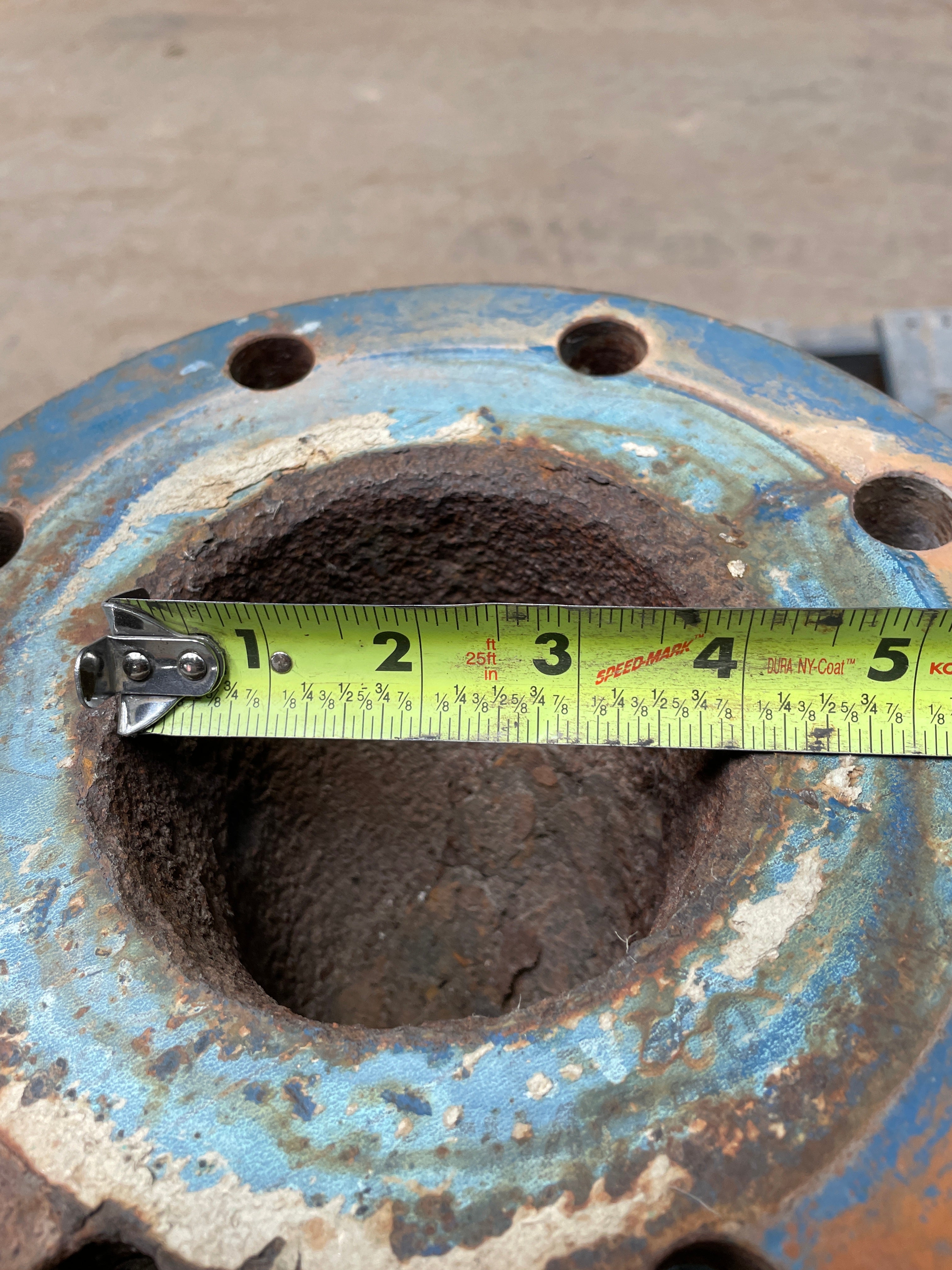

- Inlet/Outlet Size (Inches) 2: 4
- Inlet/Outlet Type 2: Flange
- Inlet/Outlet Flange Size (inches) 2: 9
- Inlet/Outlet 2 # Flange Holes: 8
Previous Refrigerant

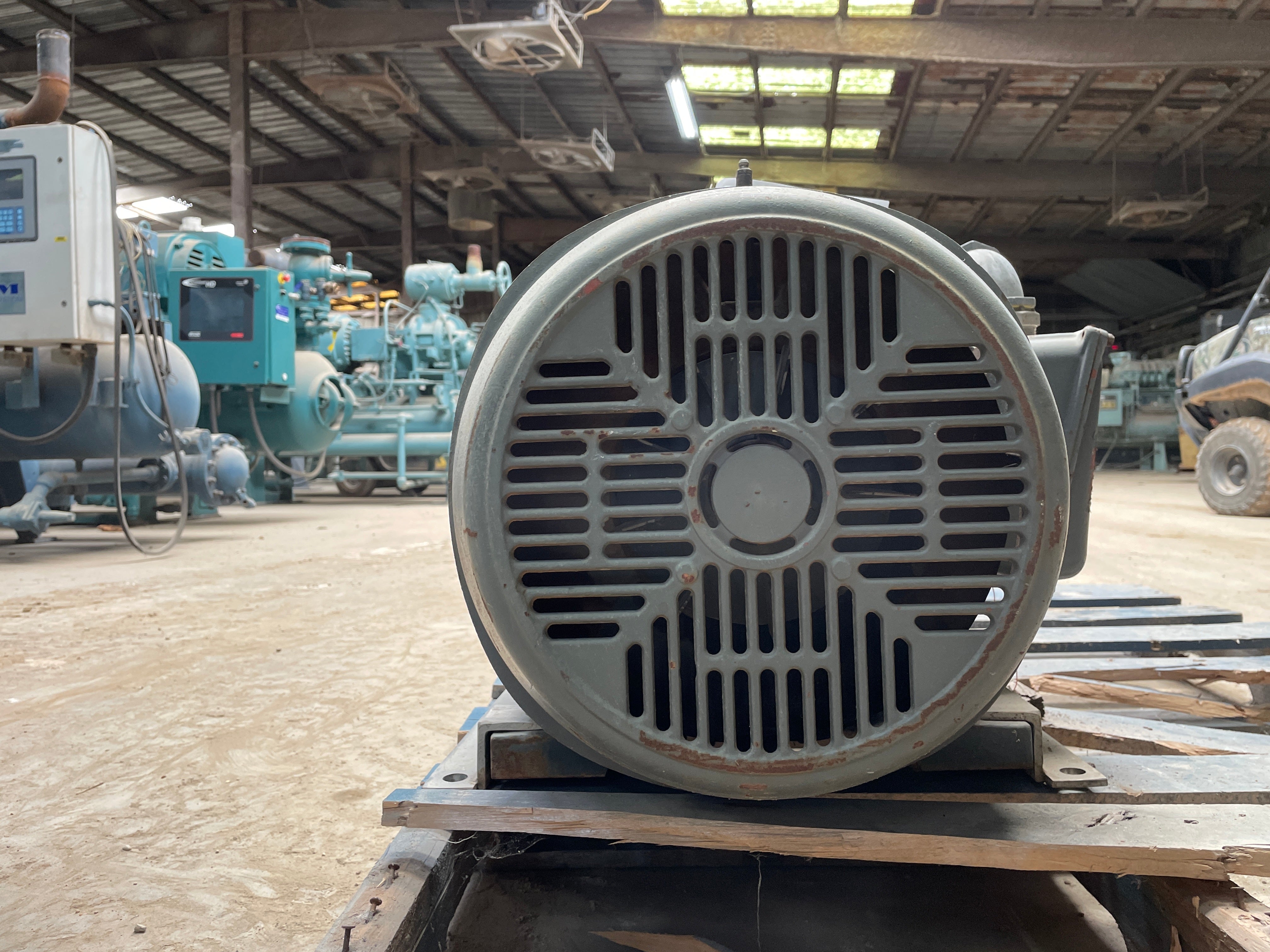

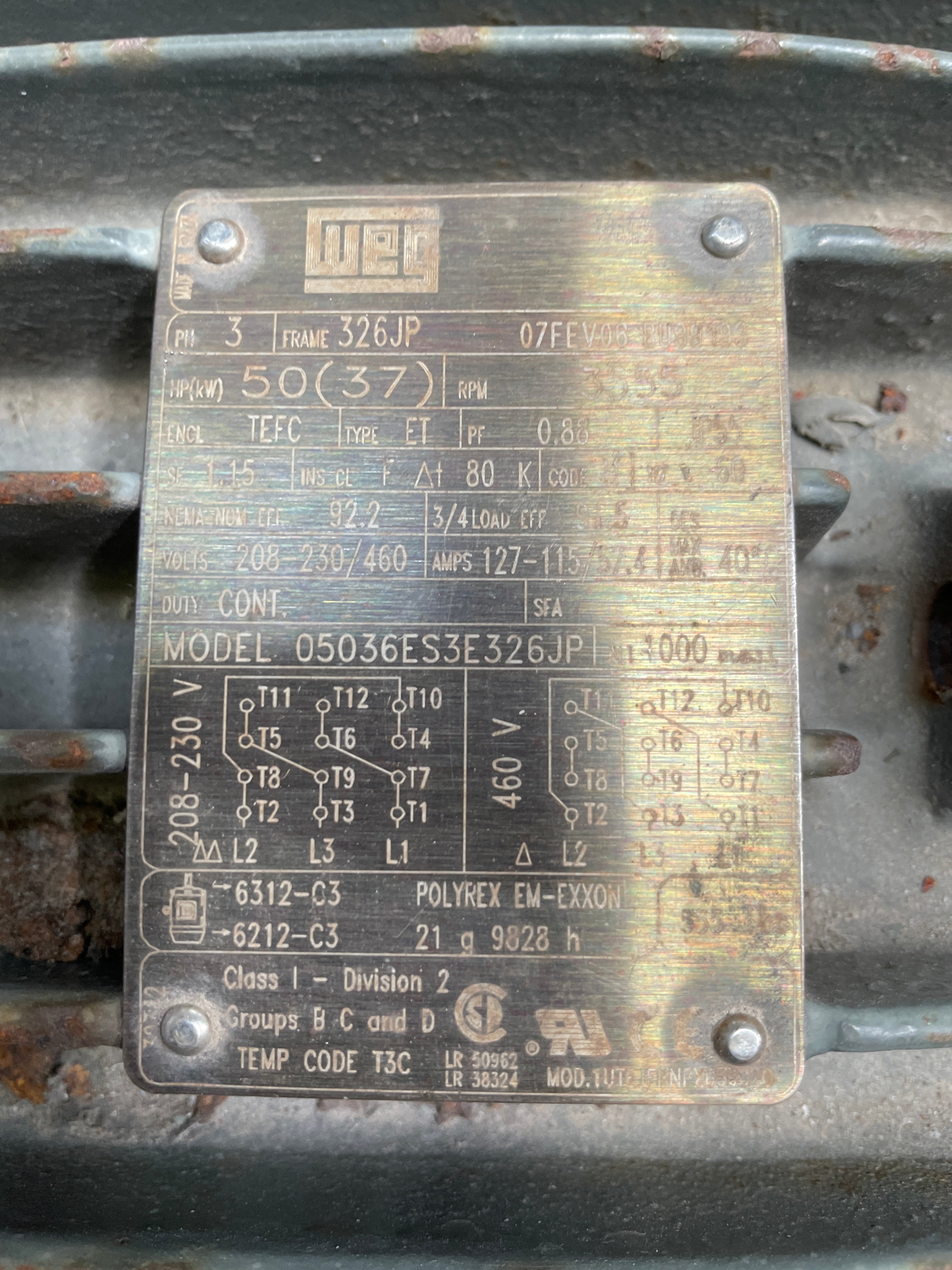

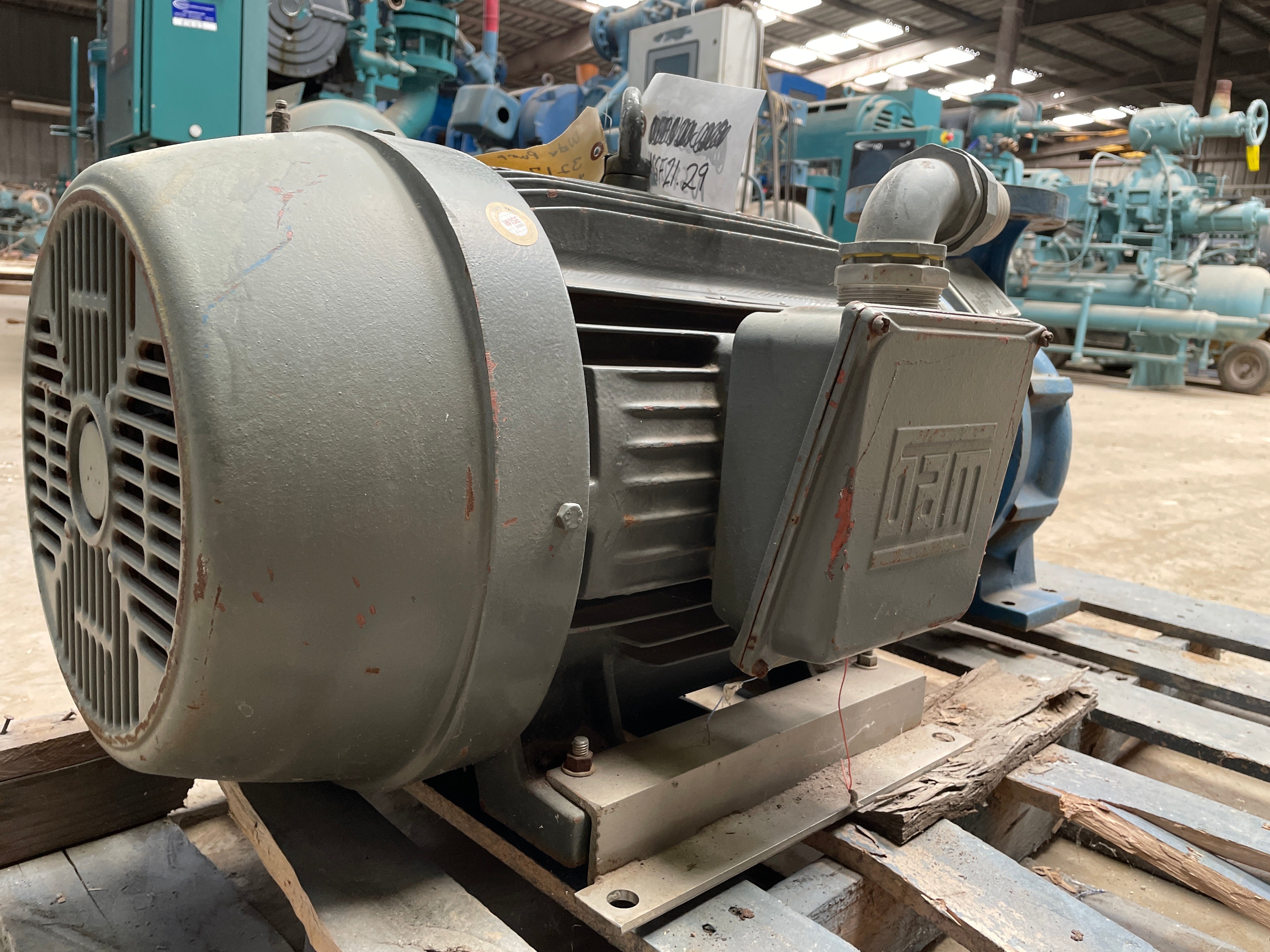

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: WEG
- Motor Horsepower(HP): 50
- Motor RPM: 3555
- Motor Voltage: 208/-230/460
- Motor Amps: 127-115/57.4
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 326JP
Dimensions:
- Length (Inches): 38
- Width (Inches): 19
- Height (Inches): 21
- Weight (LBS): 755
- # of Pieces for Shipping: 1
