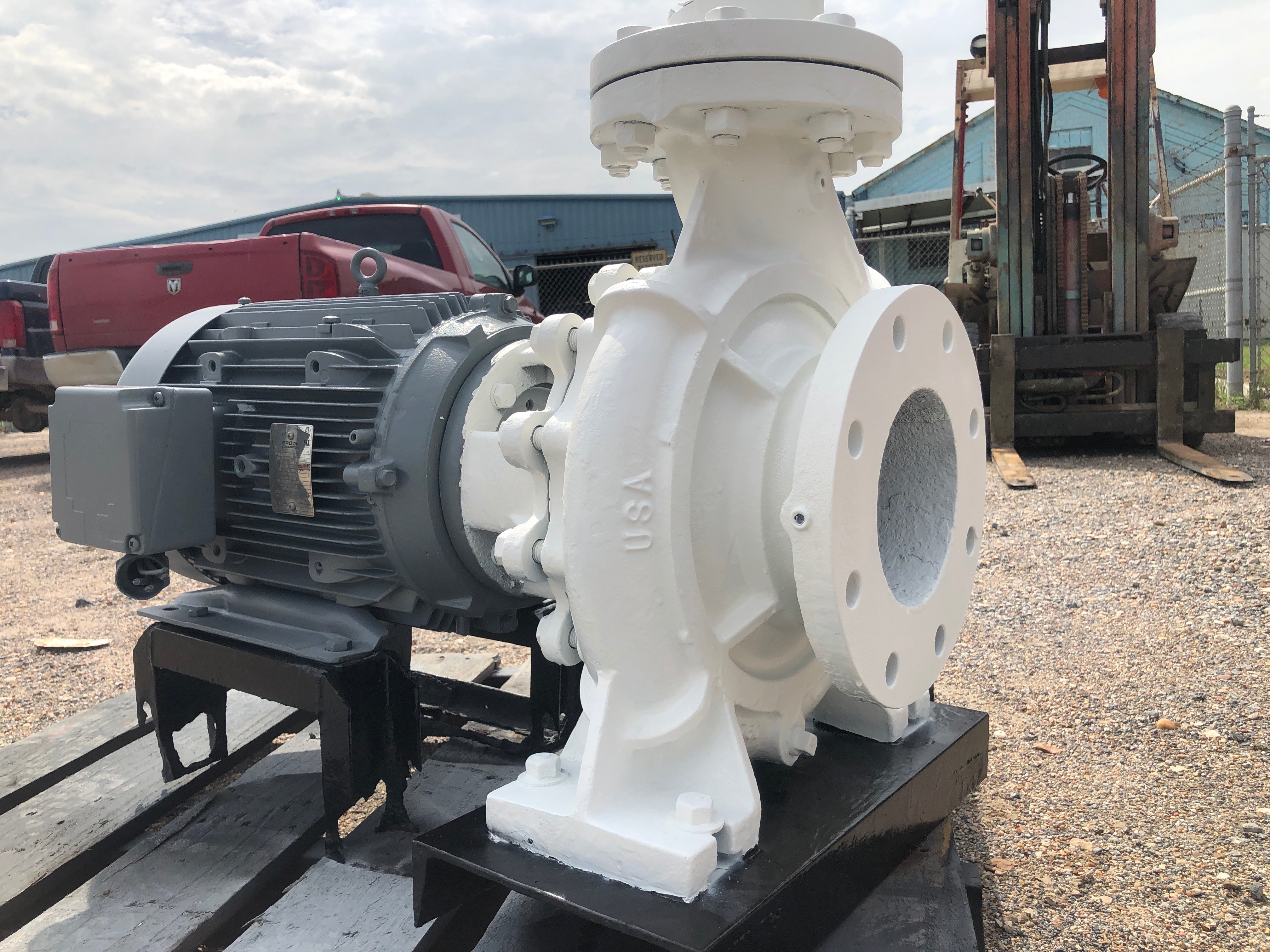

Scot Pump 95JP Centrifugal Pump (15 HP, 1,250 GPM Max)

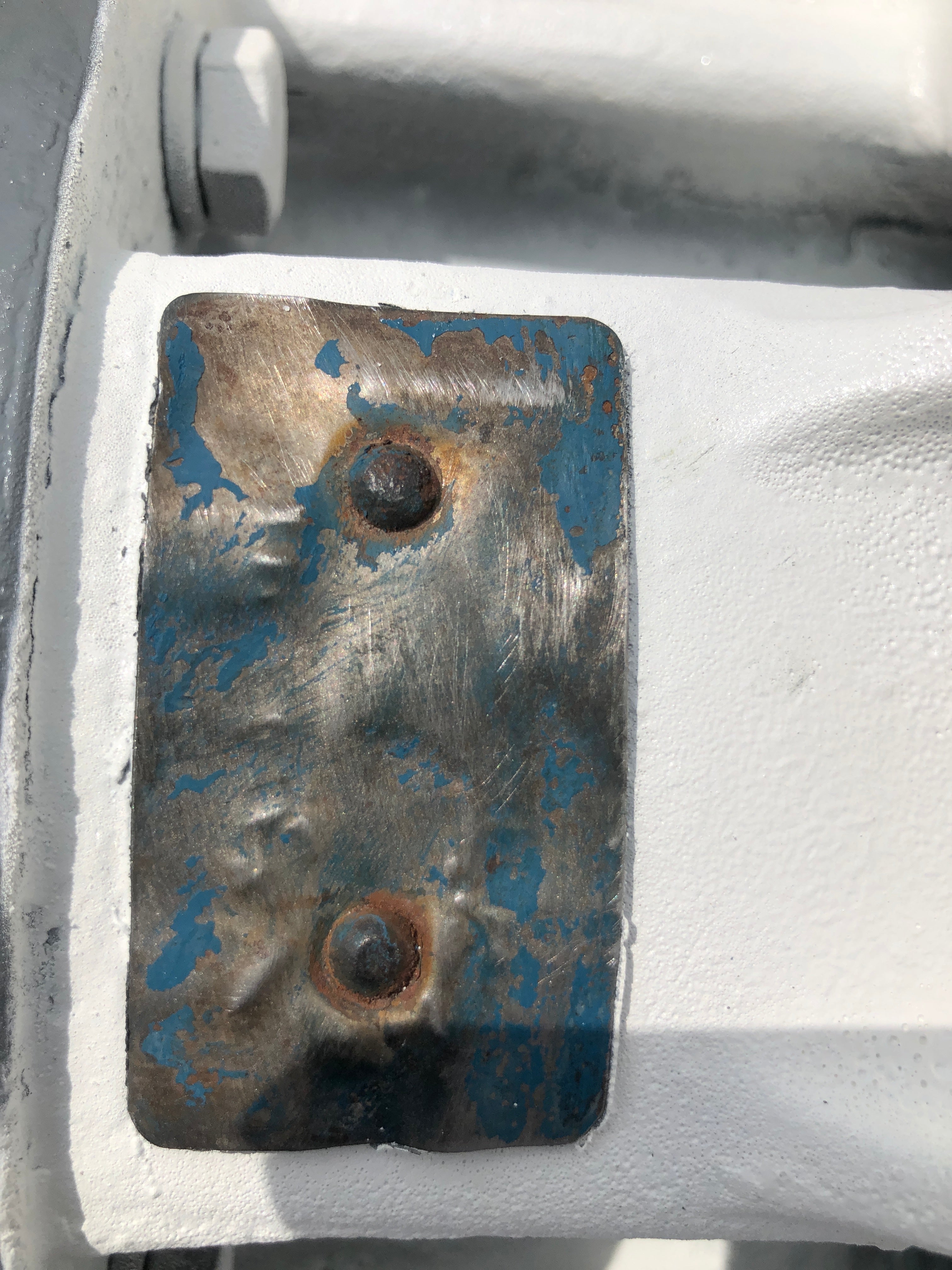

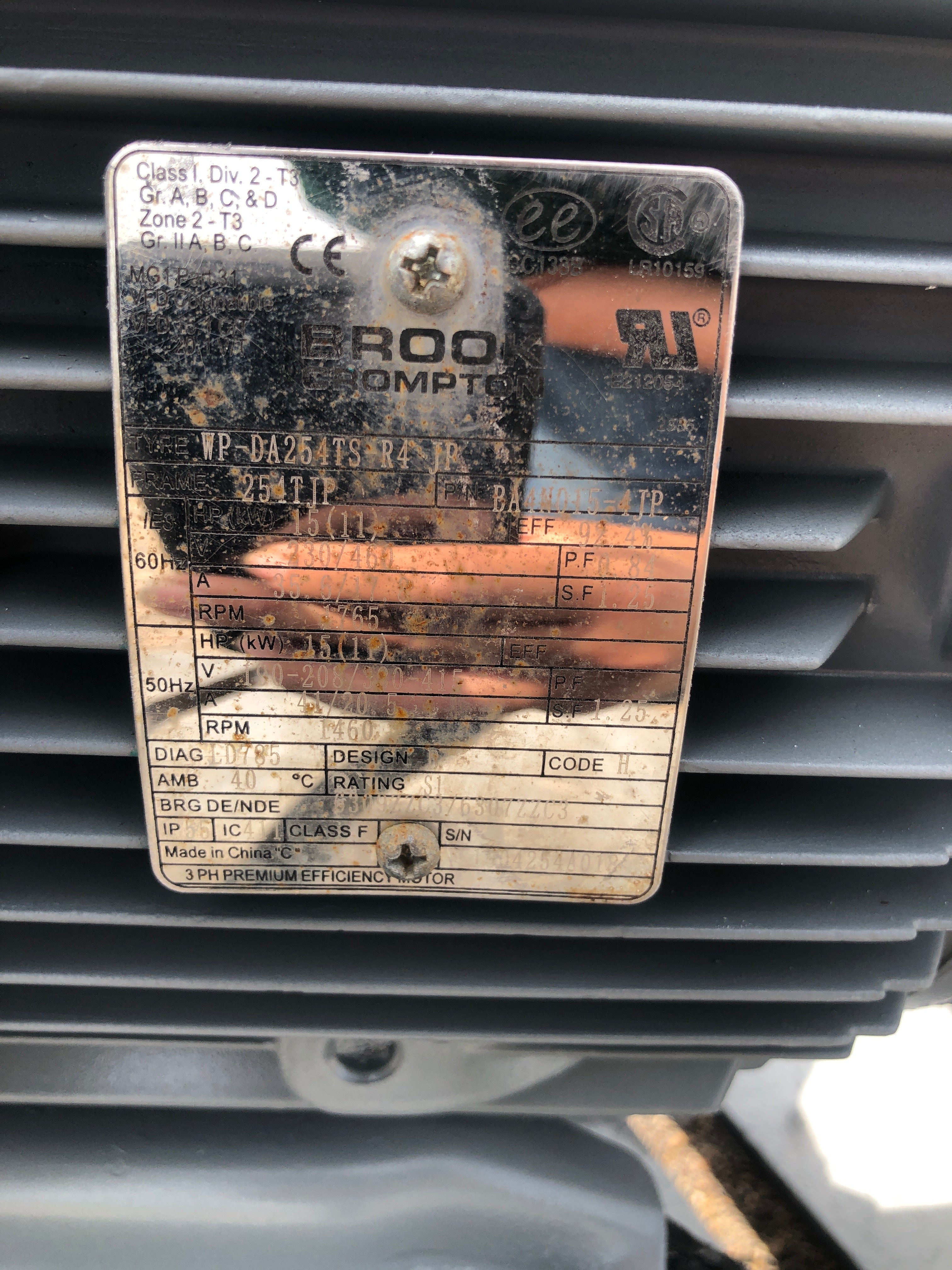

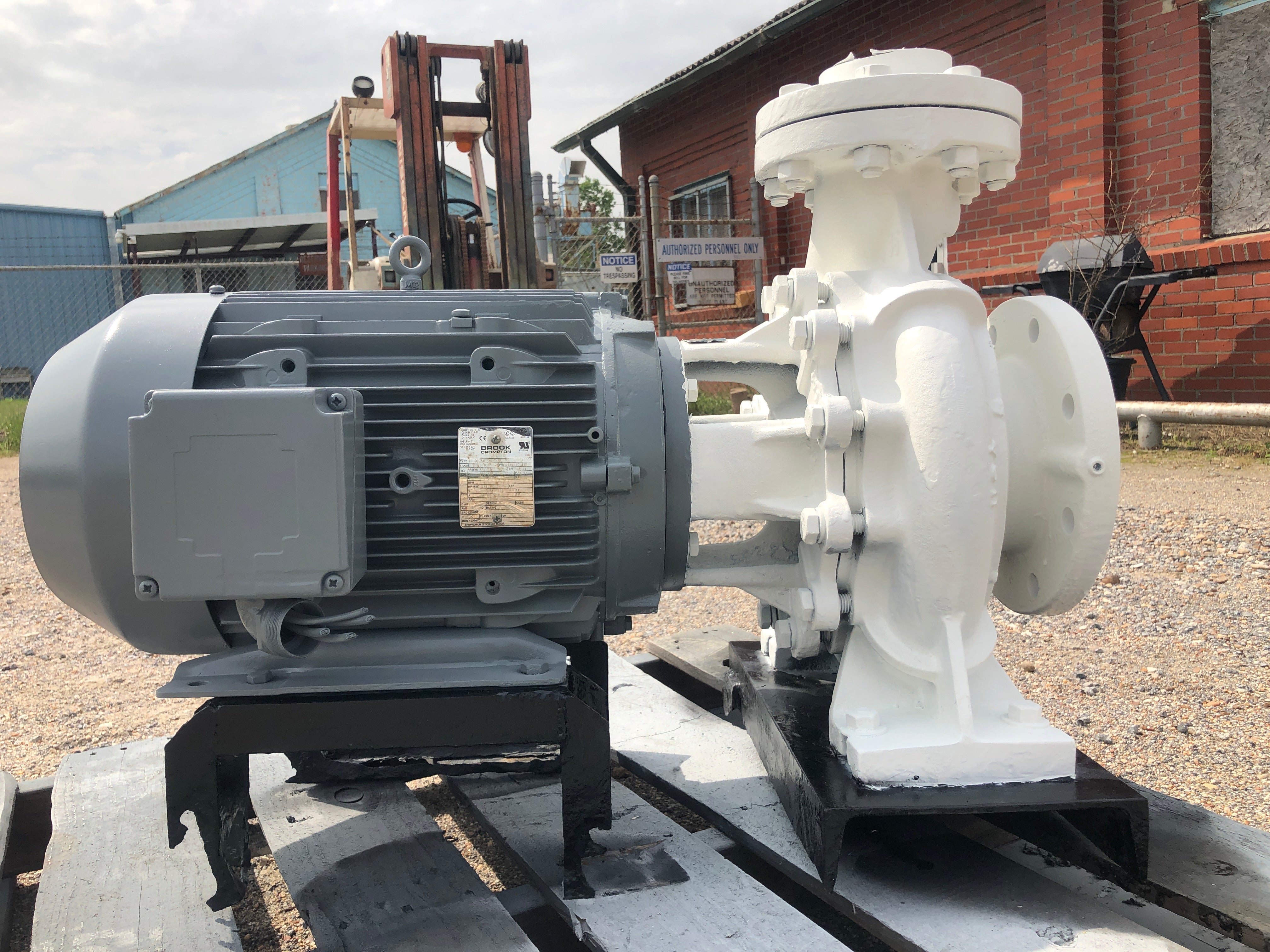

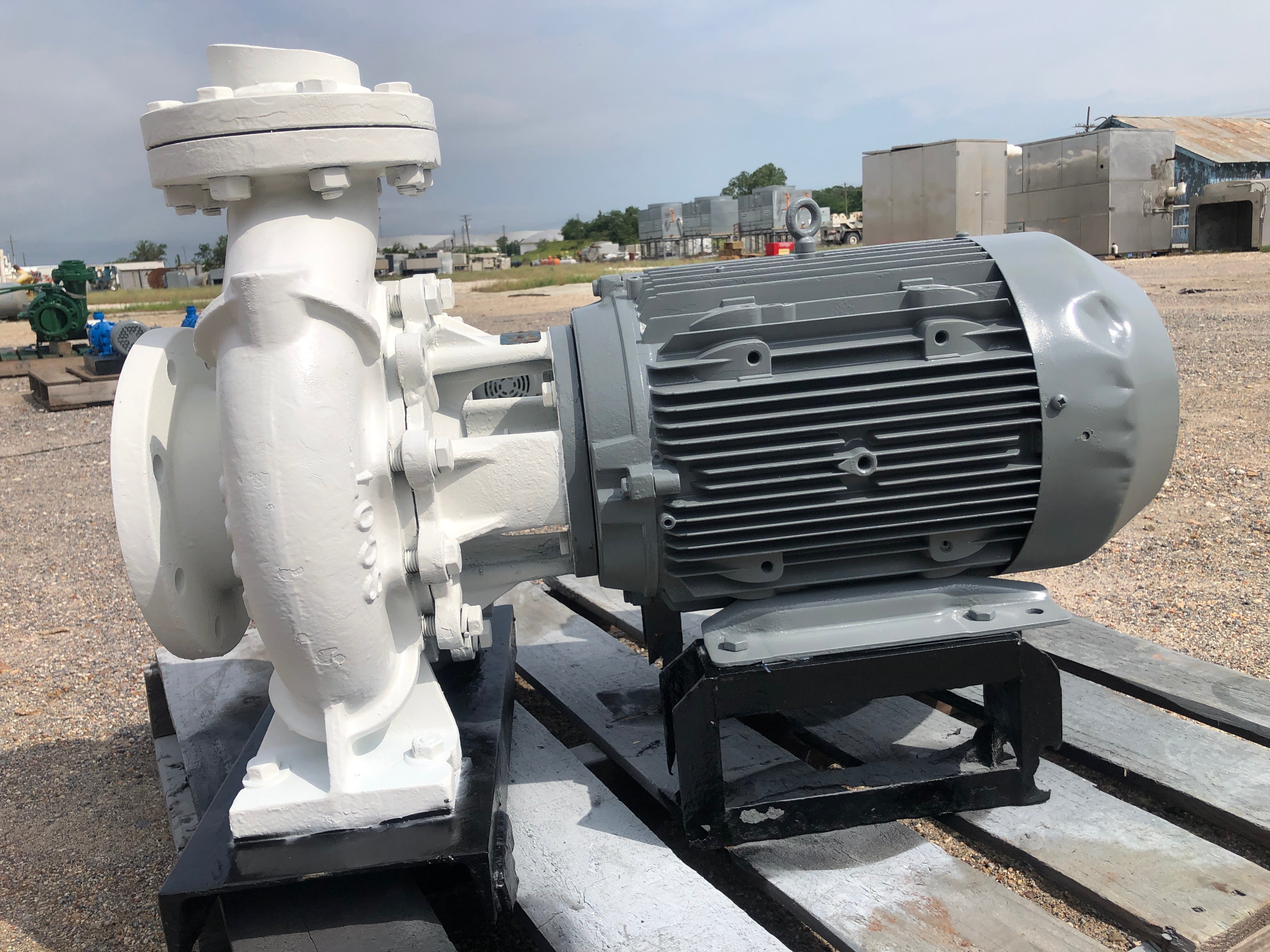

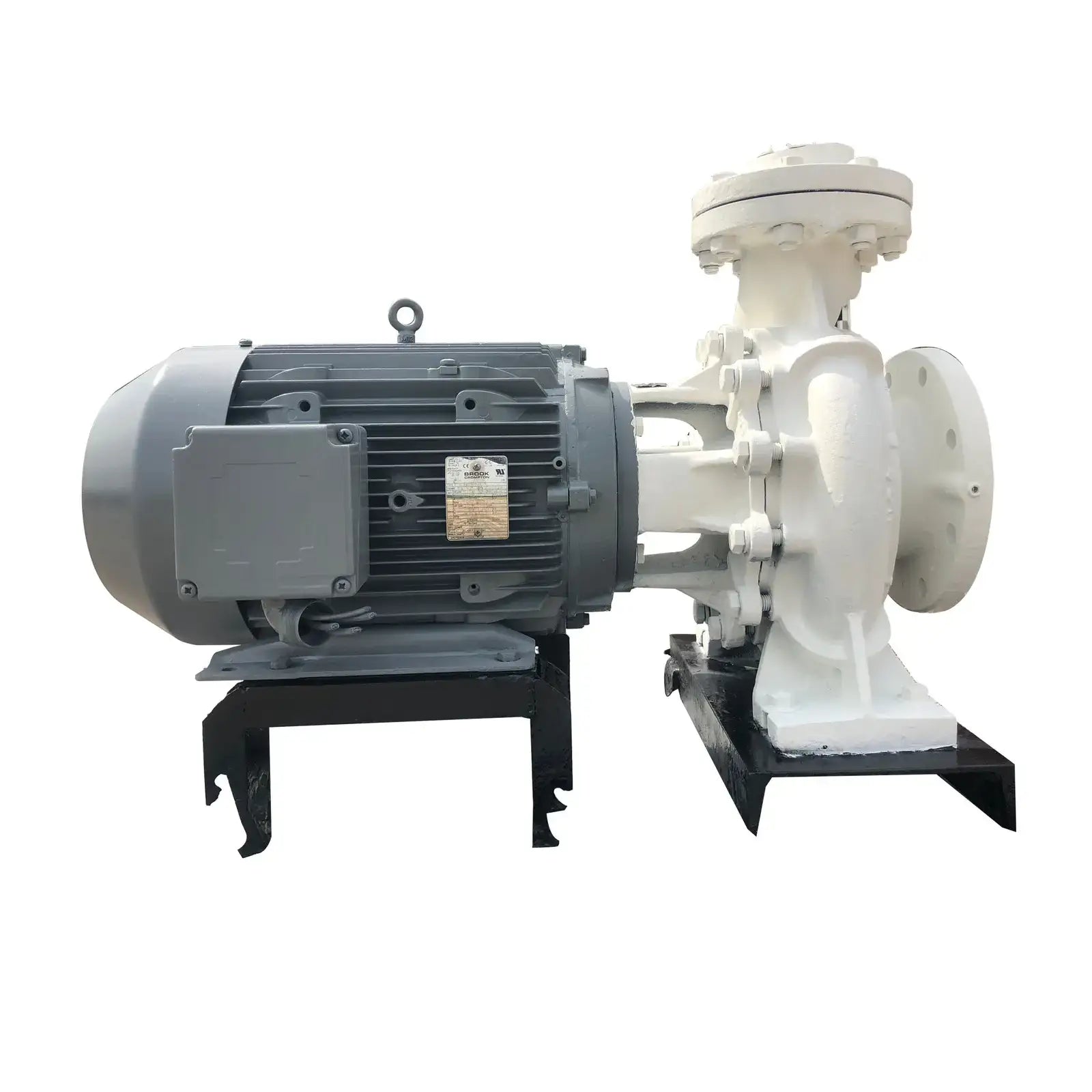

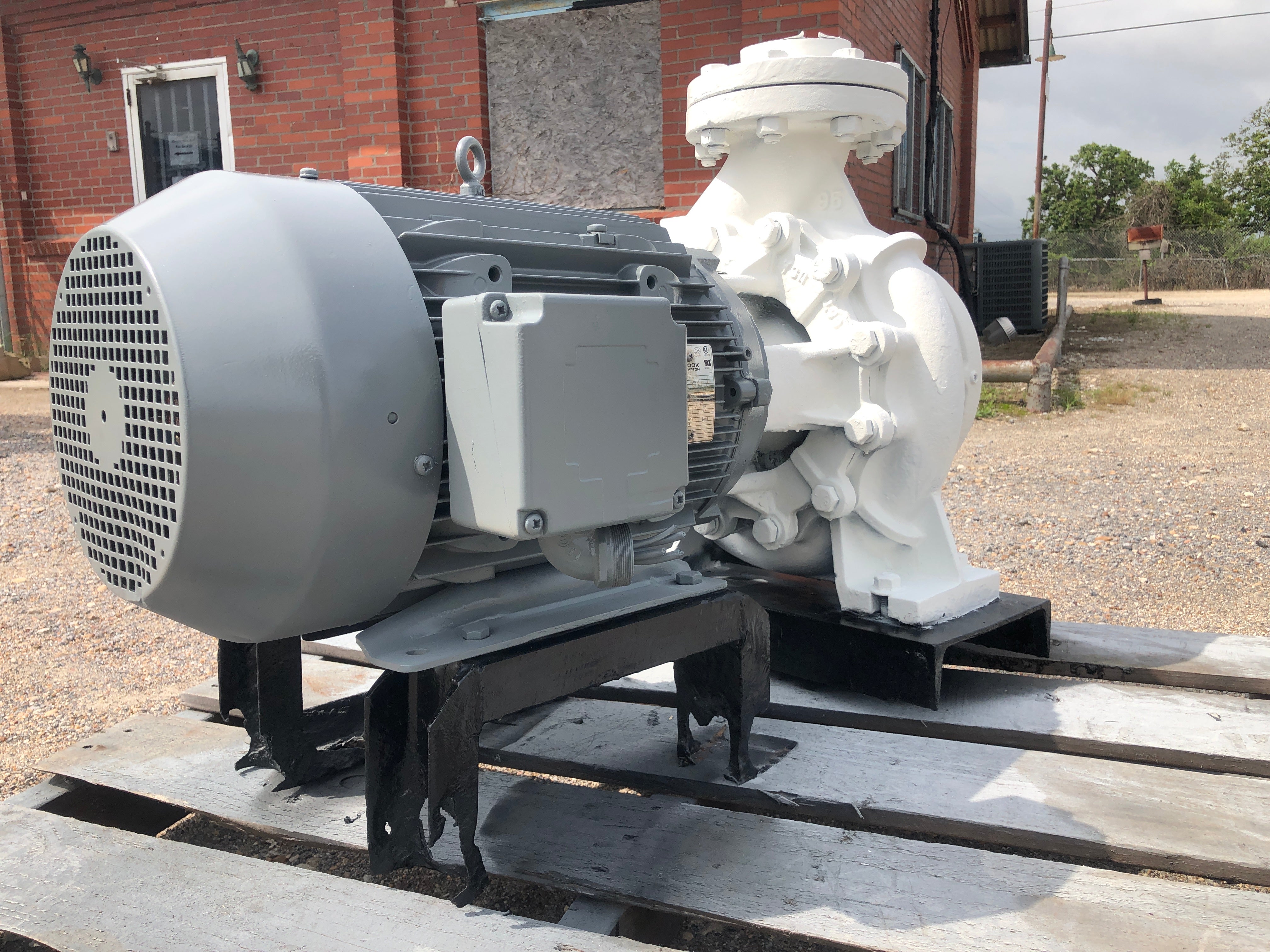

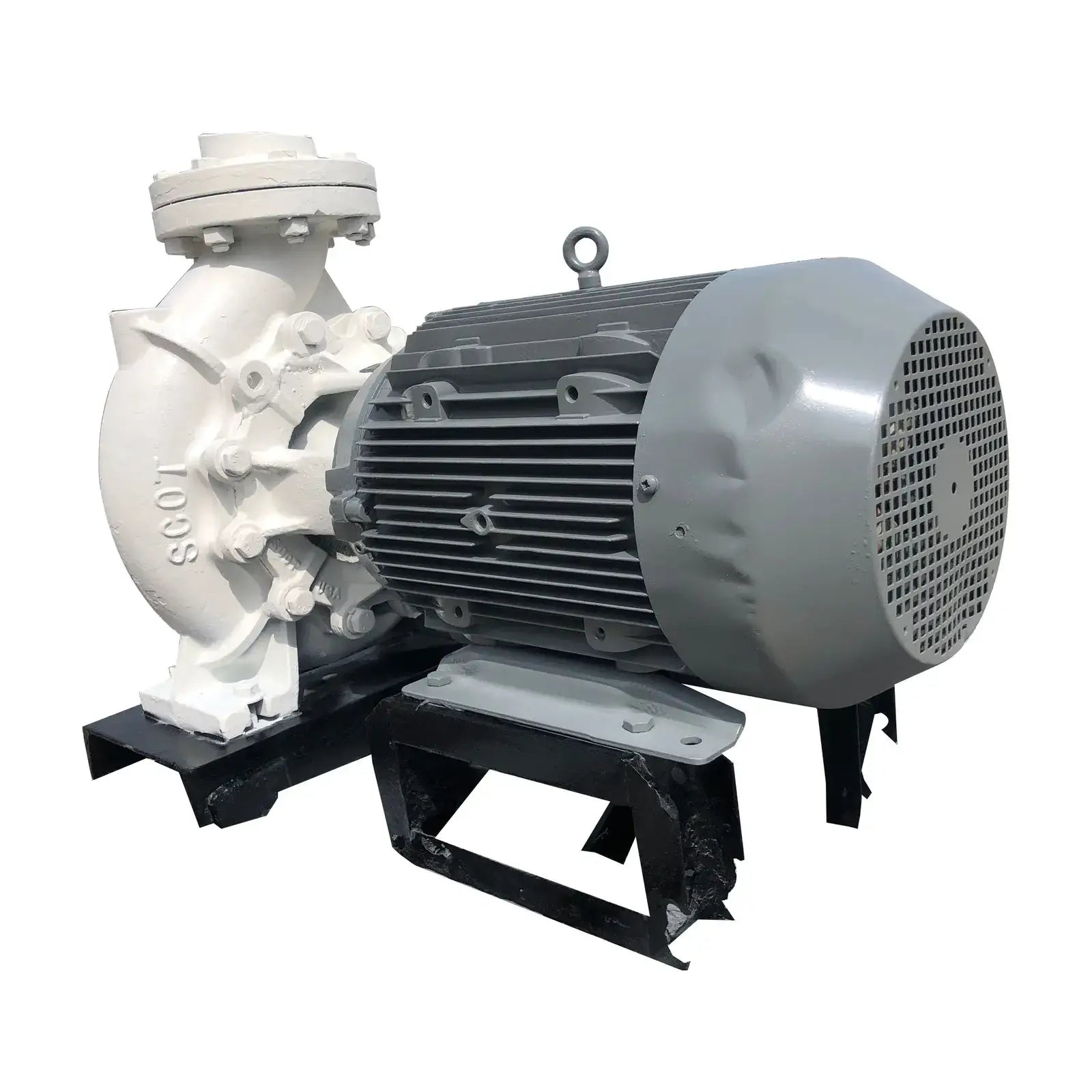

Scot Motorpump 95JP Cir. Model: 95JP. The pump data plate is not readable. The pump has been repainted. Brook Compton Motor - Type: WP-DA254TS R4 JP, S/N: 1904254A018 Frame: 254TJP, P/N: BA4N015-4JP, HP: 15, EFF: 92.4%, V: 230/460, A: 35.6/17, RPM: 1765, P.F: .84, S.F: 1.25, Diag: LD785, Design: B, Code: H, AMB: 40 C, Rating: S1, BRG DE/NDE: 6309ZZC3/6307ZZC3, IP: 55, IC: 411, Class F.
Product Details
- Stock No: NSF21.27
- Manufacturer: Scot Pump
- Model: 95JP
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 1250
- Max Speed RPM: 1750
- Impeller Diameter (inches): 8.9
- # Inlets: 1
- # Outlets: 1
- # Inlets/Outlets: 2

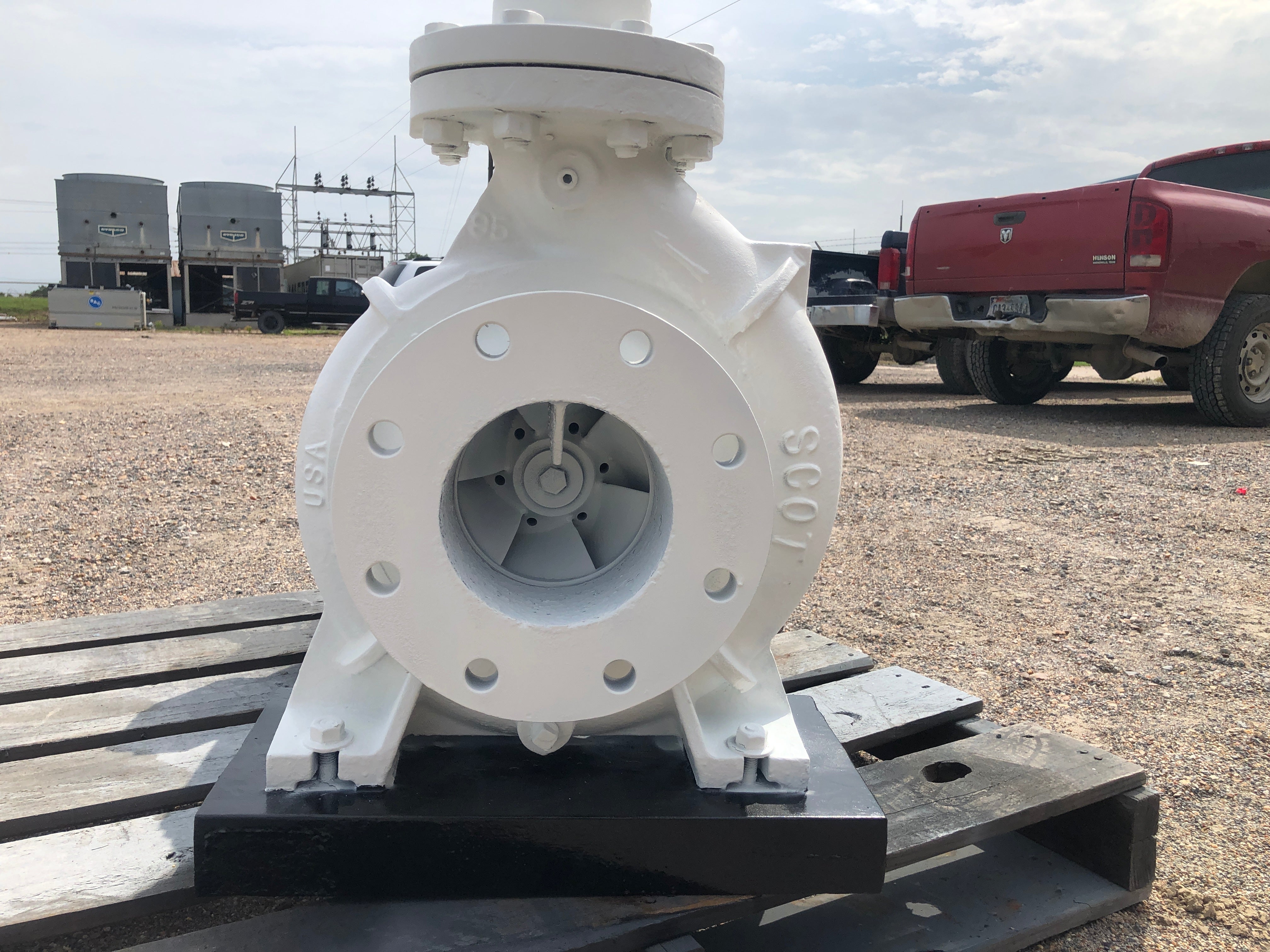

- Inlet/Outlet 1: Inlet

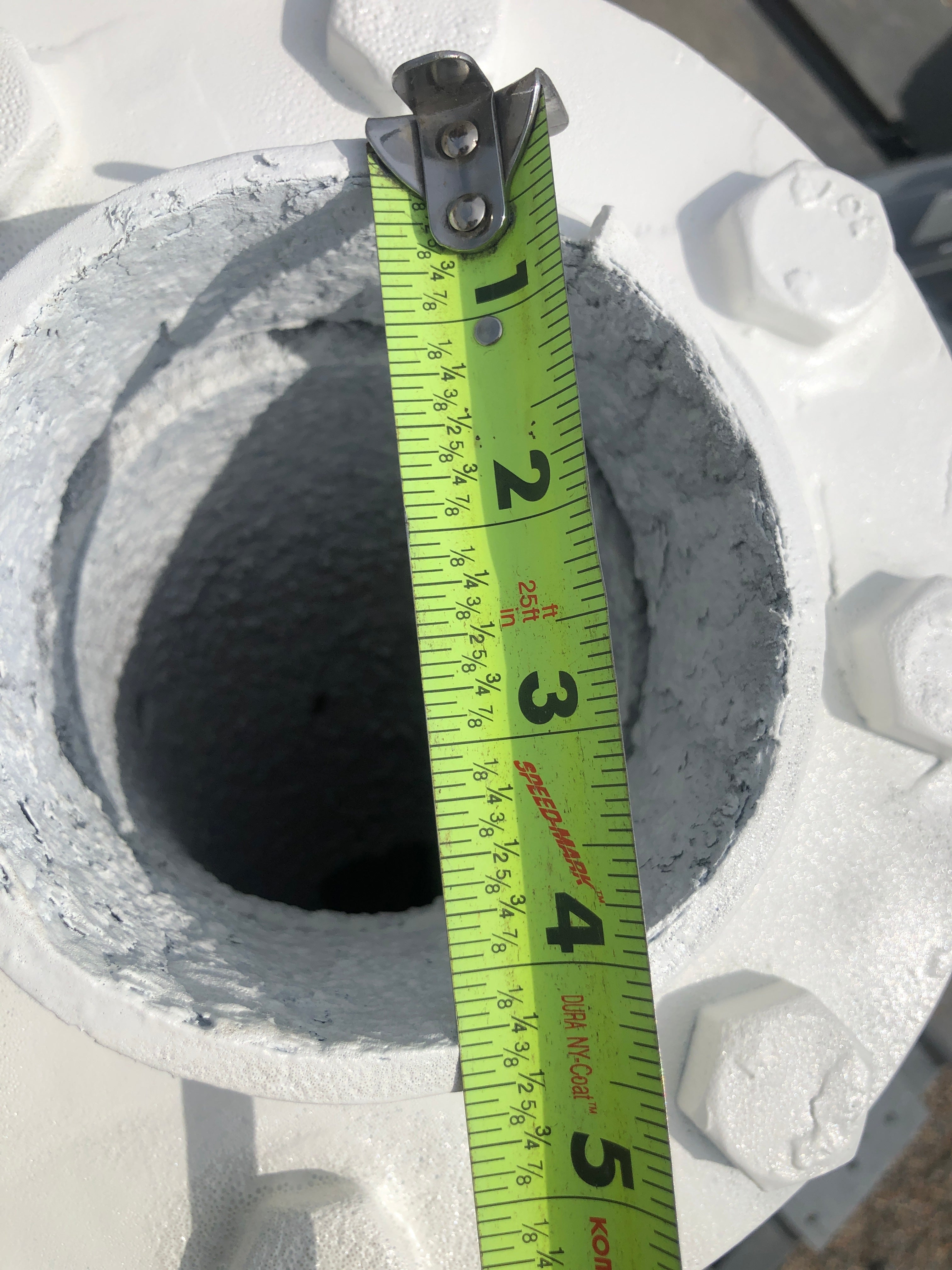

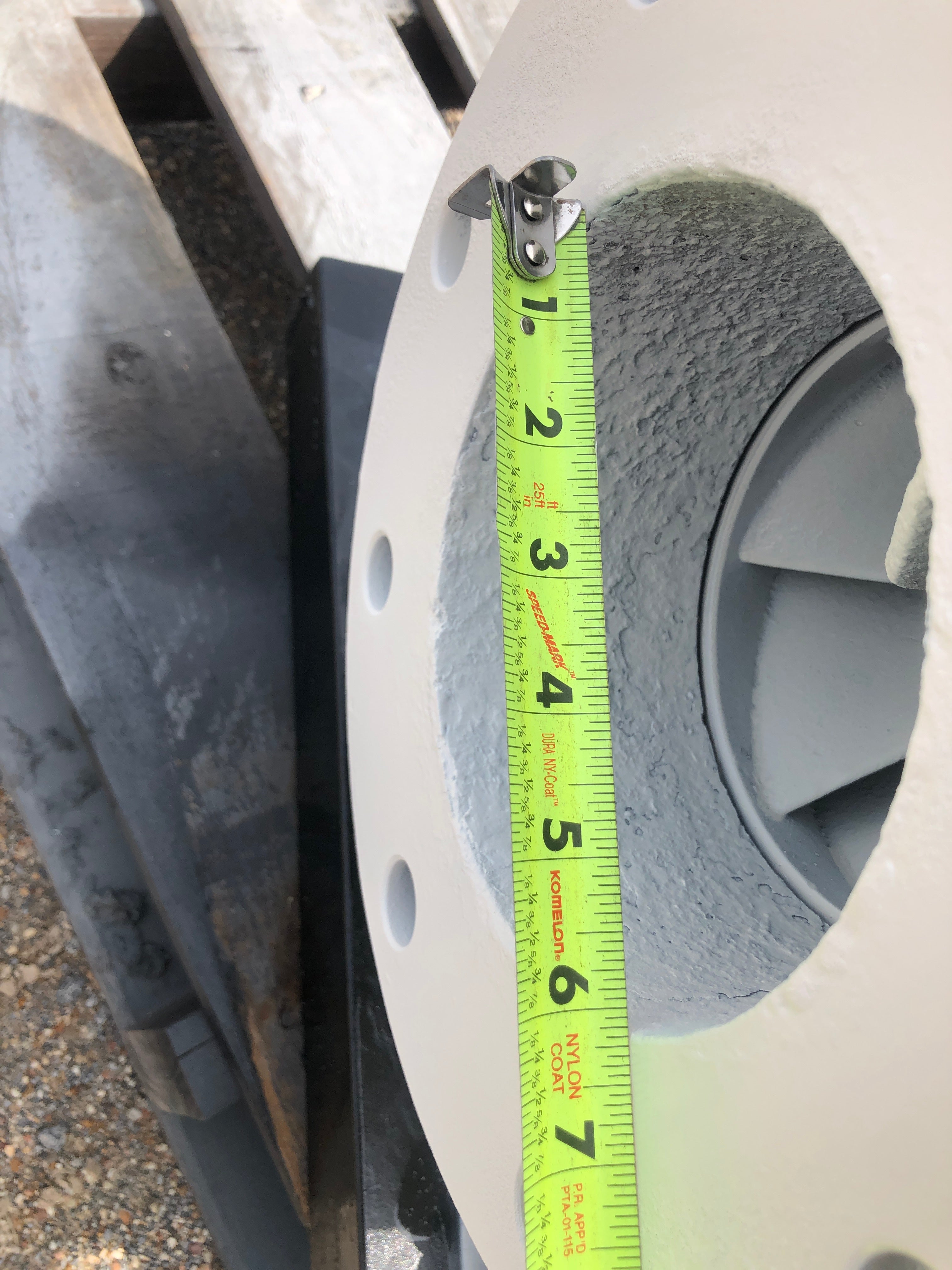

- Inlet/Outlet Size (Inches) 1: 6
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet 1 # Flange Holes: 8
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 5
- Inlet/Outlet Type 2: Flange
- Inlet/Outlet 2 # Flange Holes: 8
Previous Refrigerant

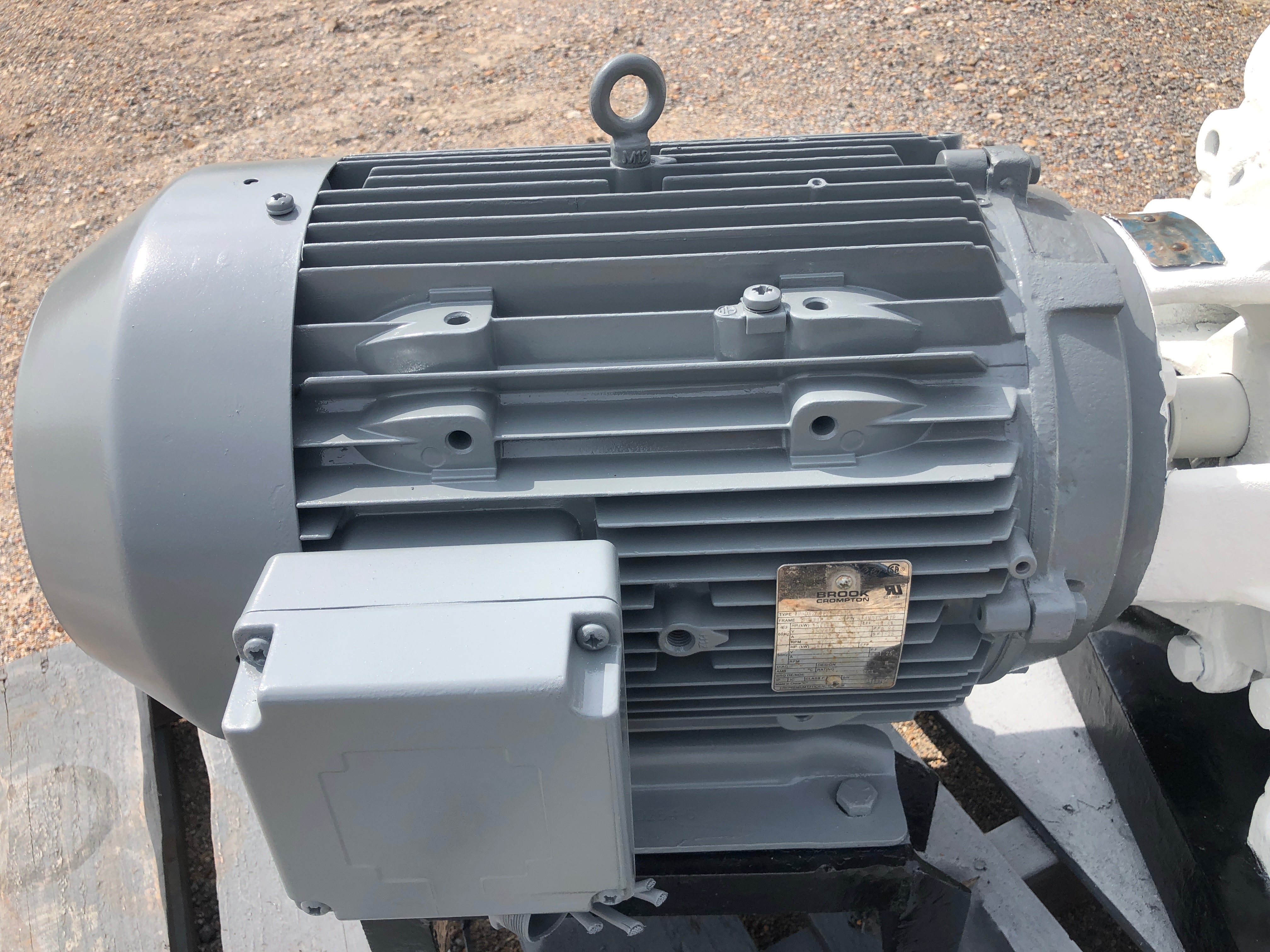

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Brook
- Motor Horsepower(HP): 15
- Motor RPM: 1765
- Motor Voltage: 230/460
- Motor Amps: 35.6/17.8
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 254TJP
Dimensions:
- Length (Inches): 25
- Width (Inches): 15
- Height (Inches): 19
- Weight (LBS): 300
- # of Pieces for Shipping: 1
Additional Product Details

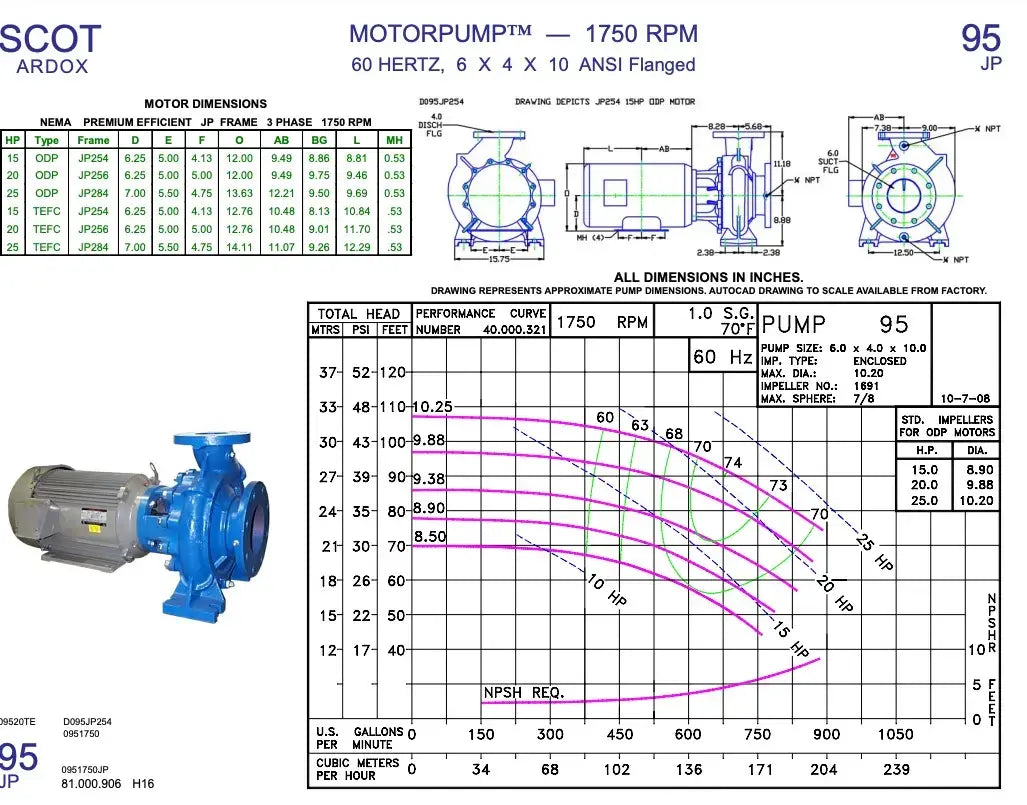

- Spec Sheet Available: Yes
