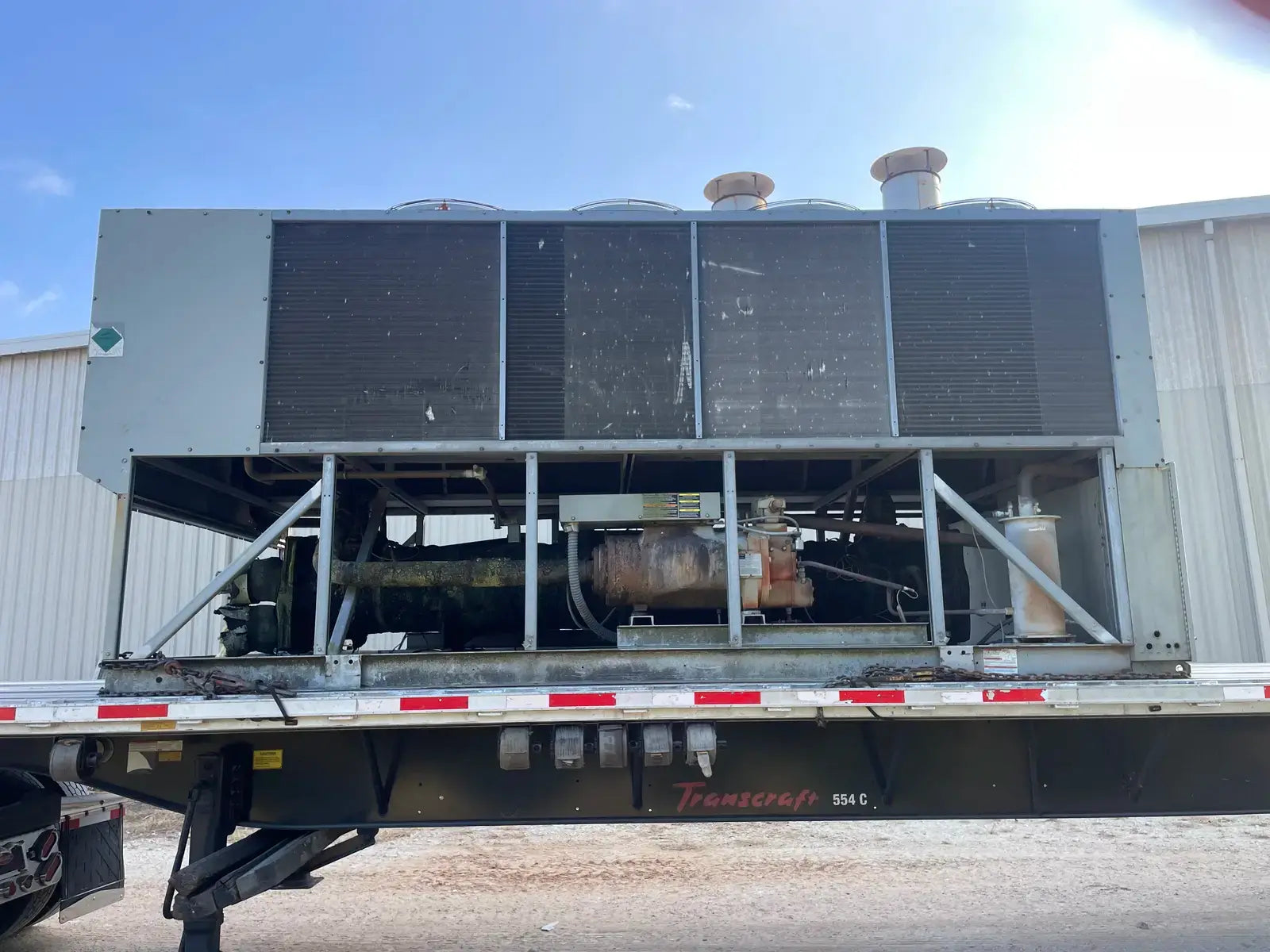

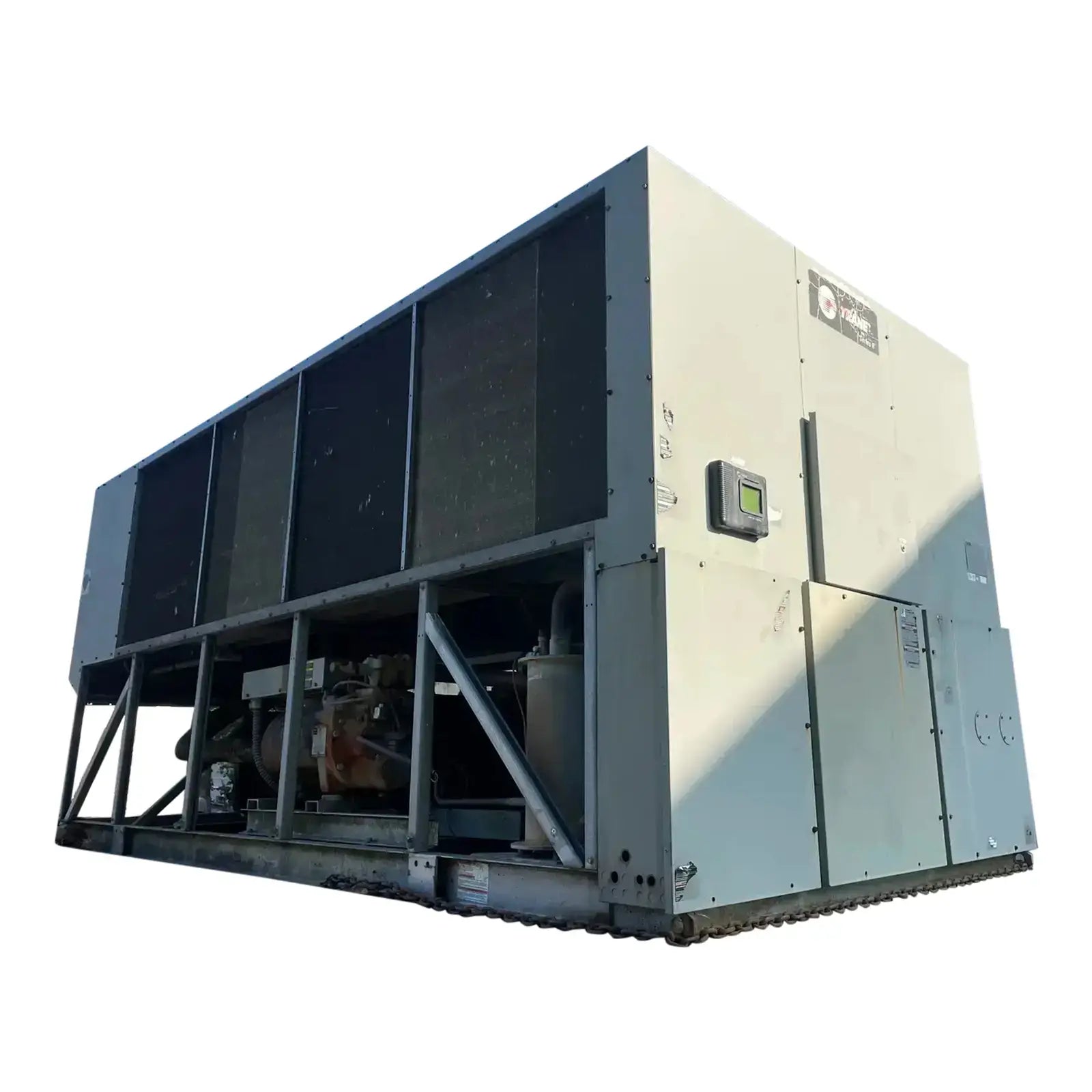

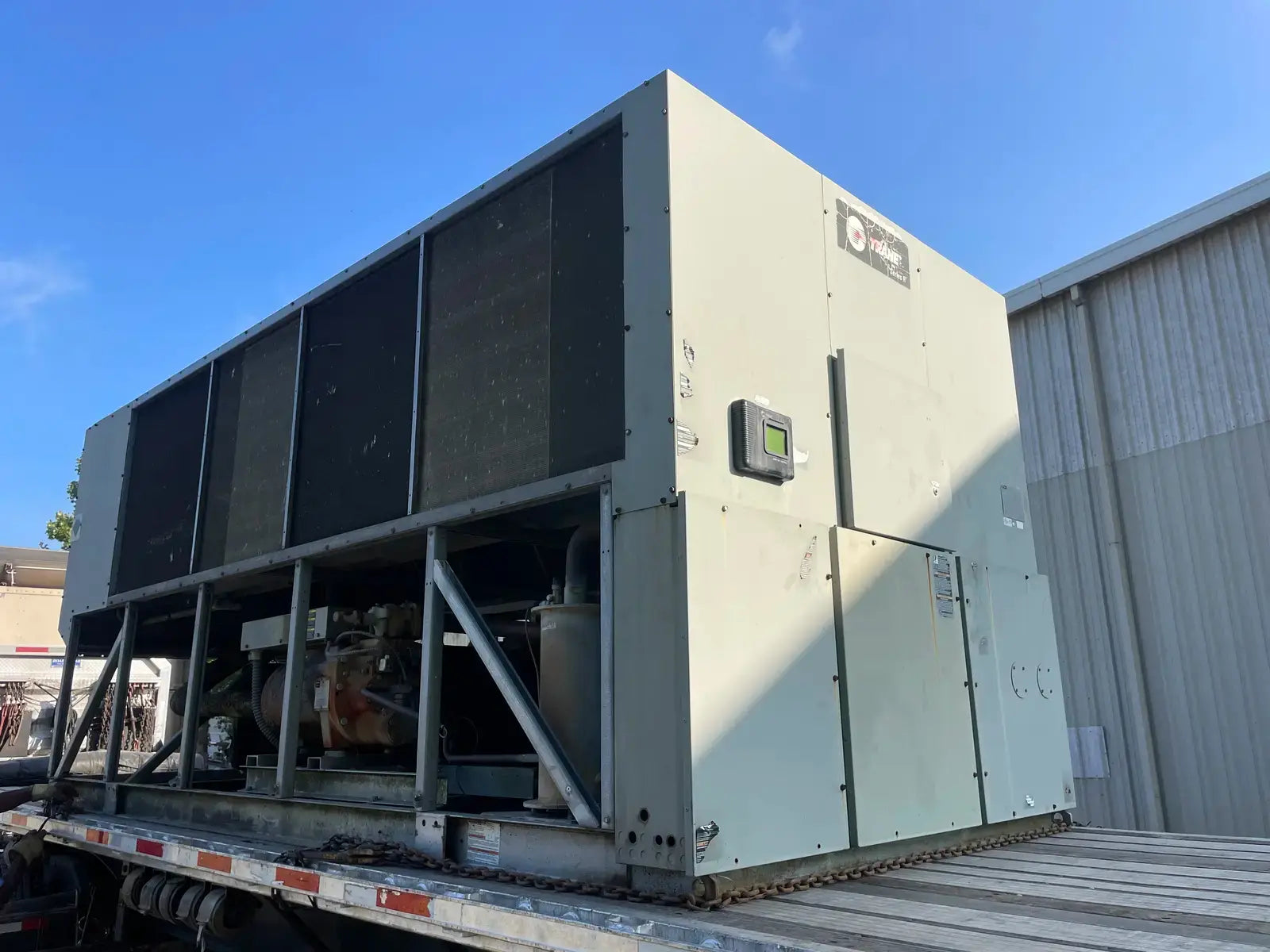

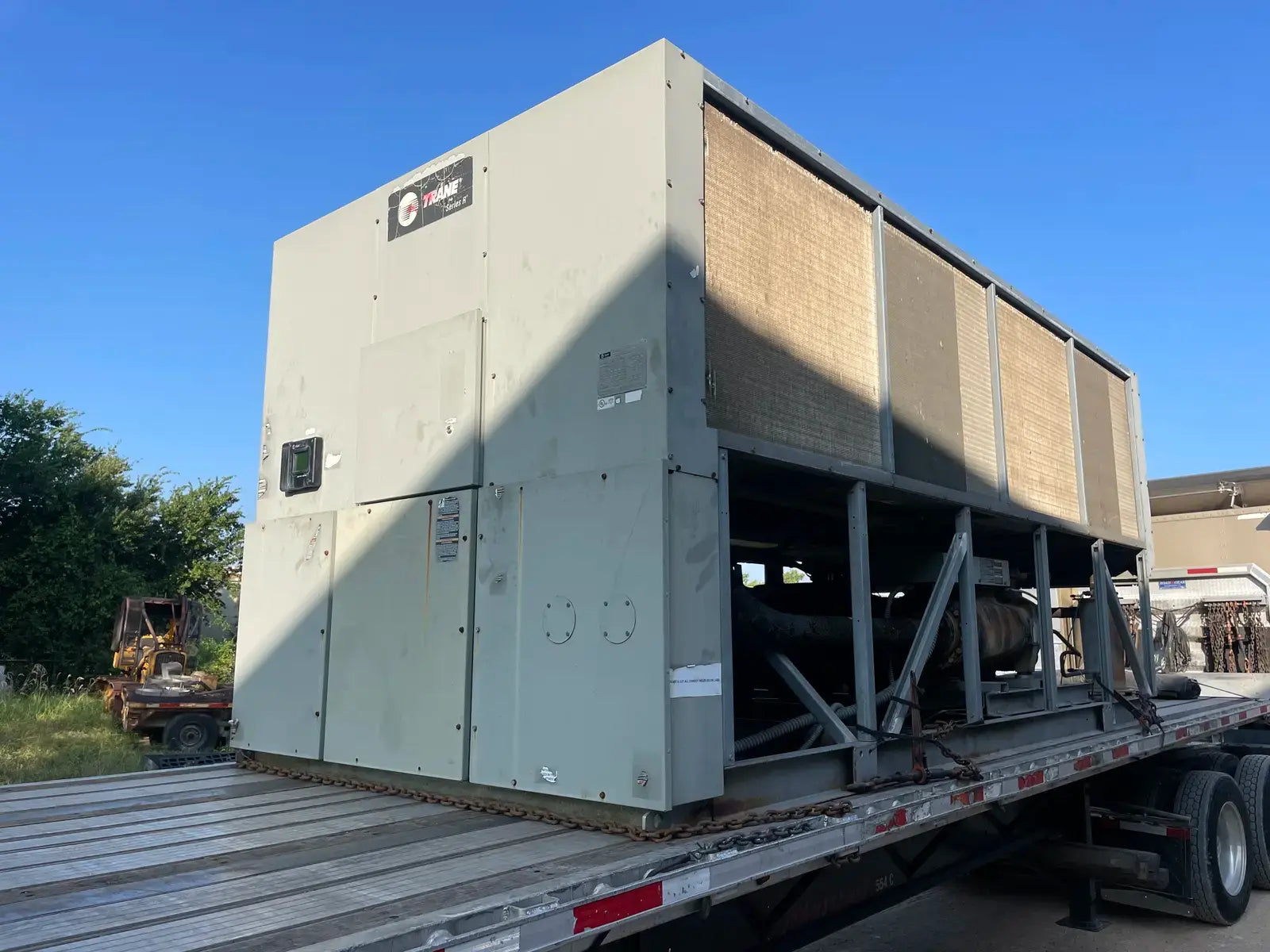

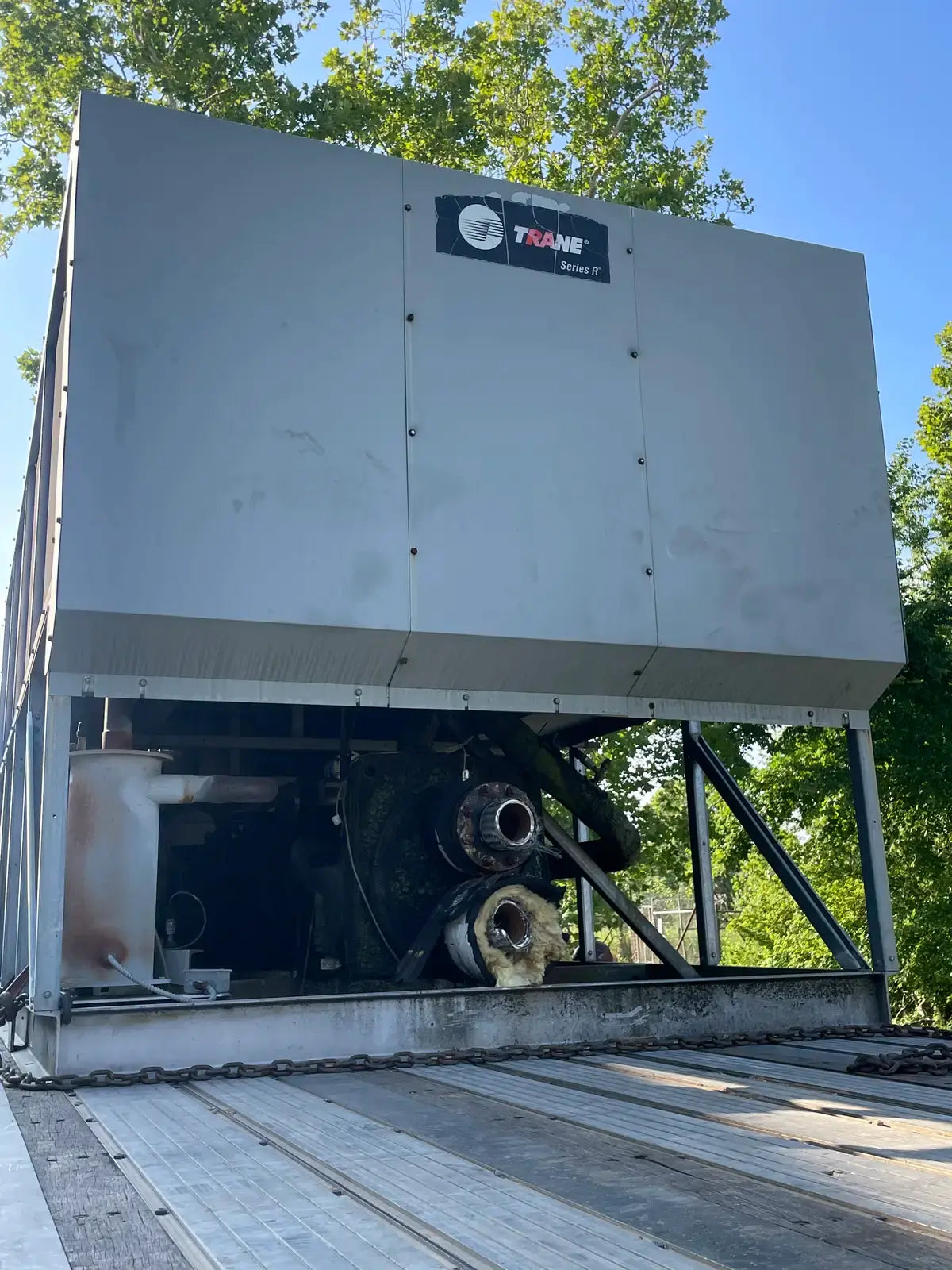

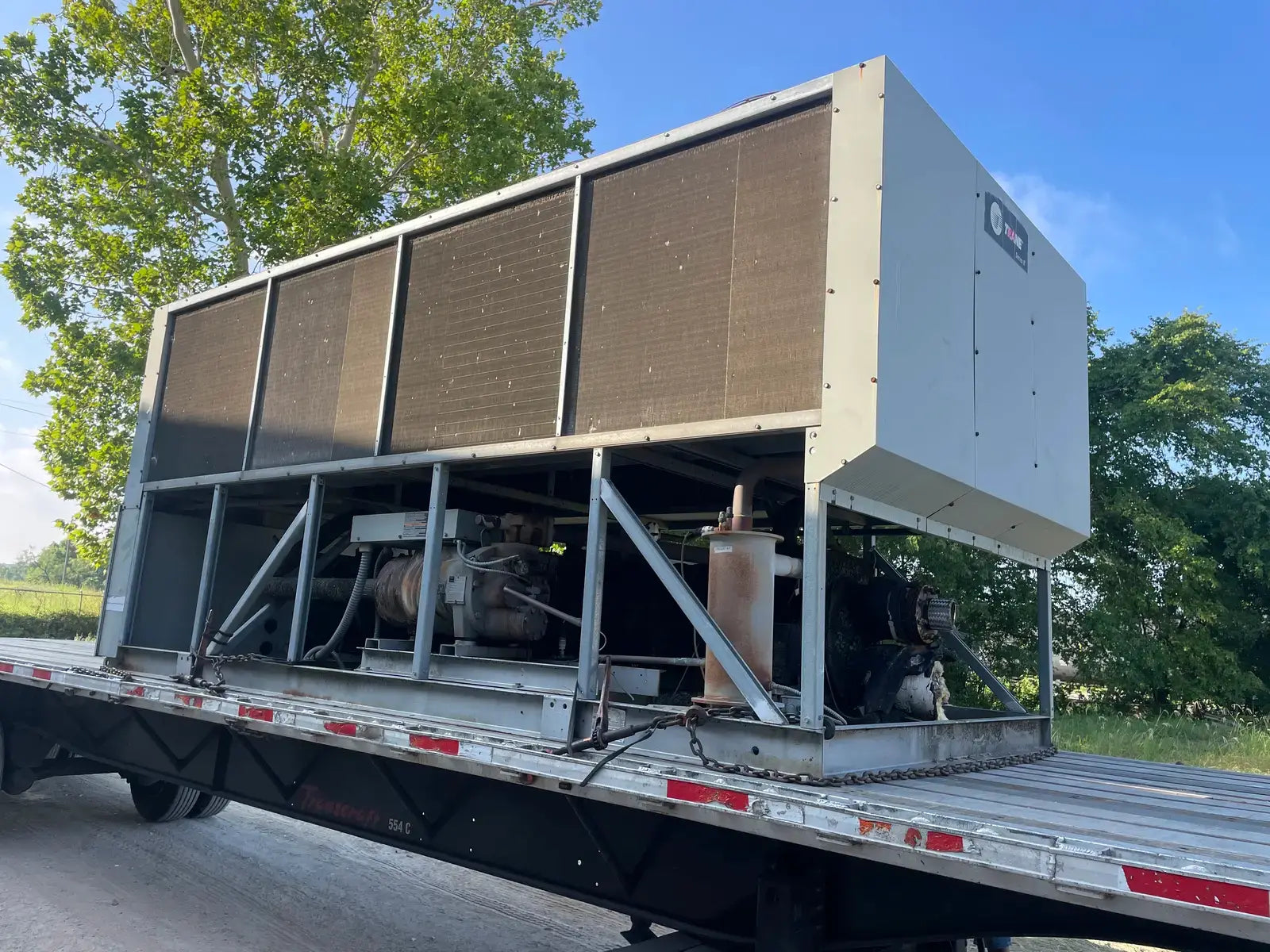

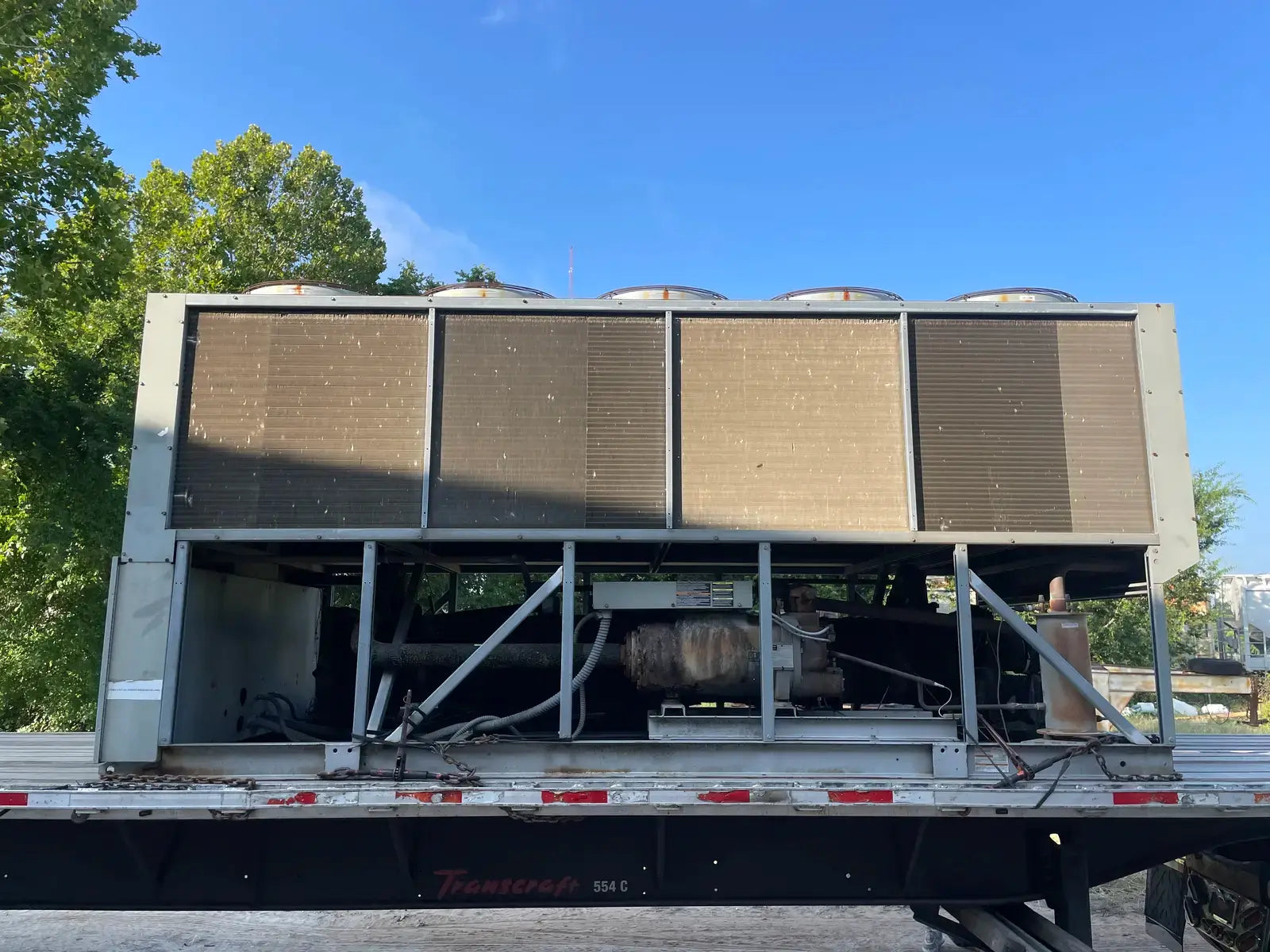

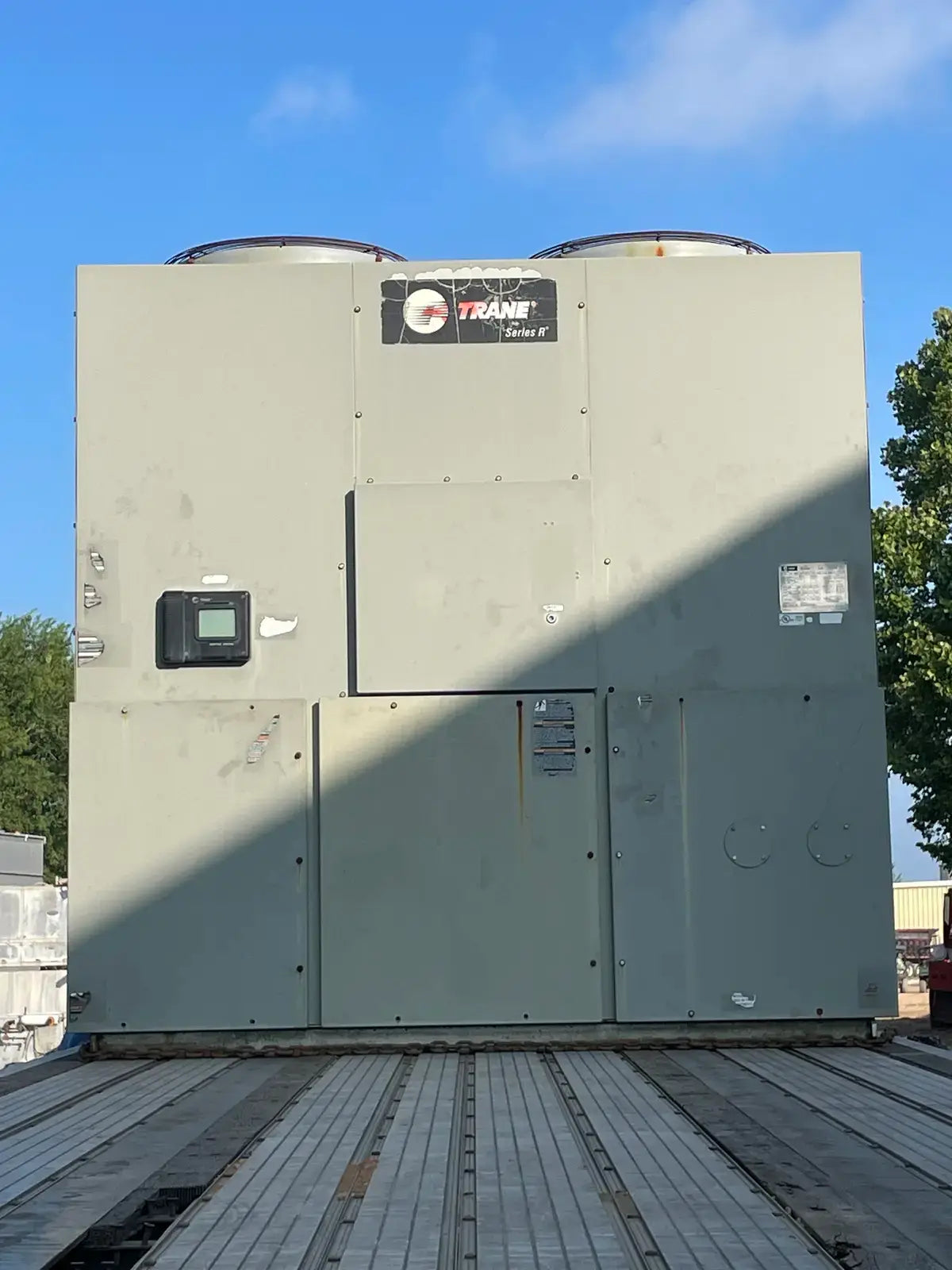

Trane RTAC-1554 Air-Cooled Chiller (155 Tons)

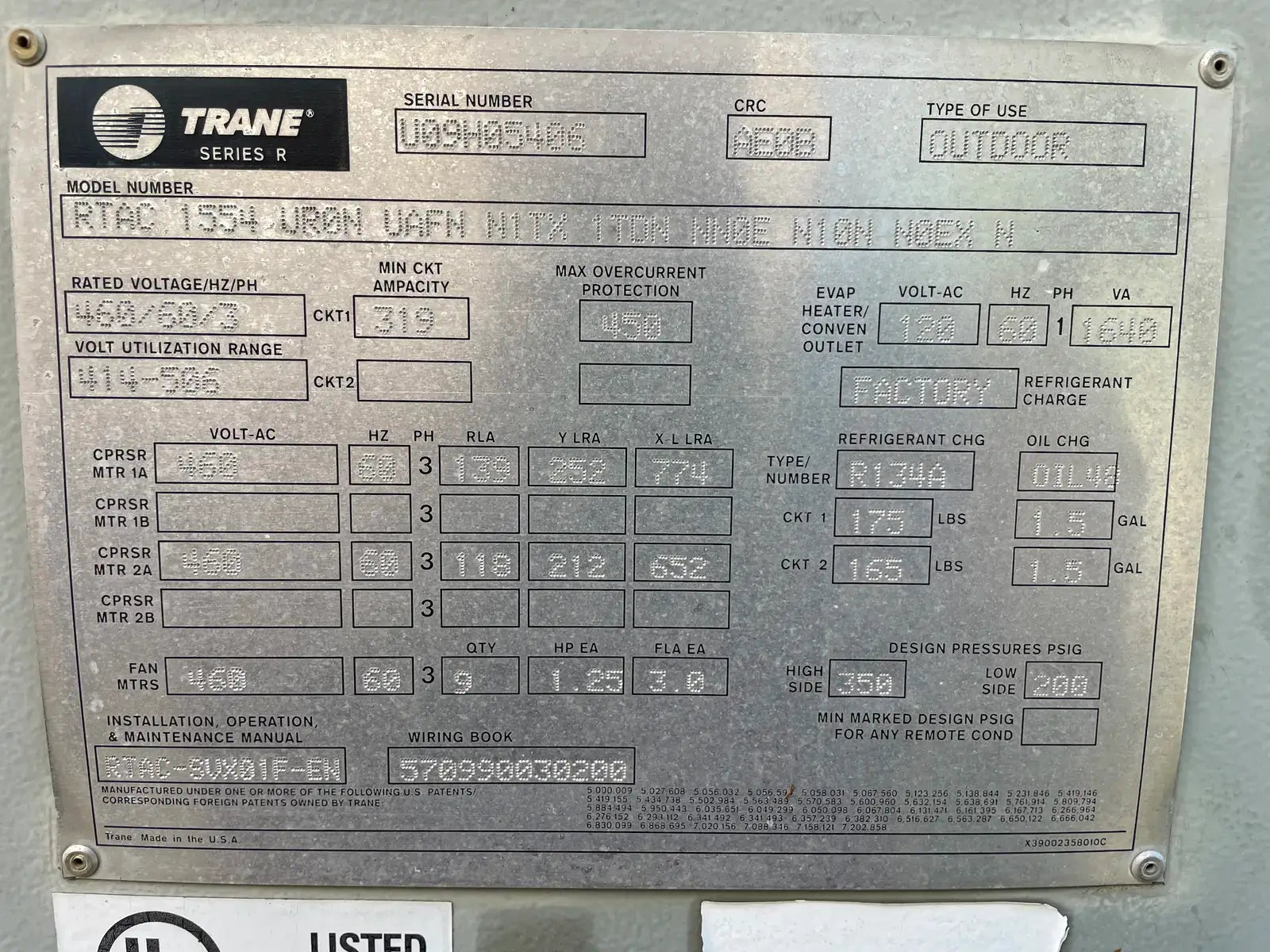

Trane Air-Cooled Series R Chiller. Model: RTAC-1554-UR0N-UAFN-N1TX-1TDN-NN0E-N10N-N0EX-N. Serial No: U09H05406. Type of Use: Outdoor. Design Pressure(PSIG): High Side: 350, Low Side: 200. Refrigerant Type: R134A. Rated Voltage/Hz/Ph: 460 Volts, 60Hz, 3 Ph. Total Tonnage: 155.
Product Details
- Stock No: FSEB01
- Manufacturer: Trane
- Model: RTAC-1554-VR0N-UAFN-N1TX-1TDN-NN0E-N10N-N0EX-N
- Serial Number: U09H
Chiller Details
- Air Cooled or Liquid Cooled: Air Cooled
- Unit Nominal Tons (TR): 155
- Number of Compressors: 2

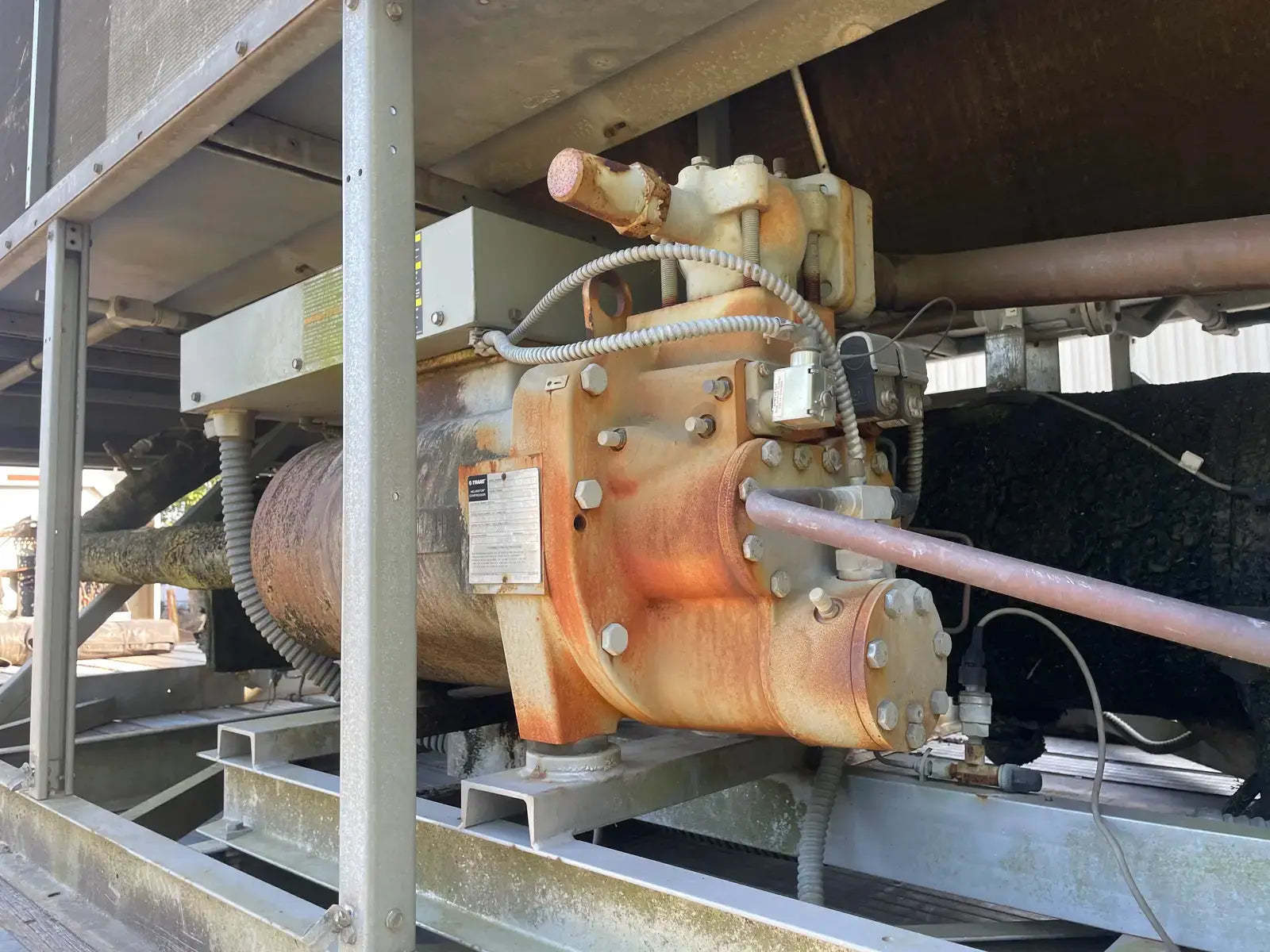

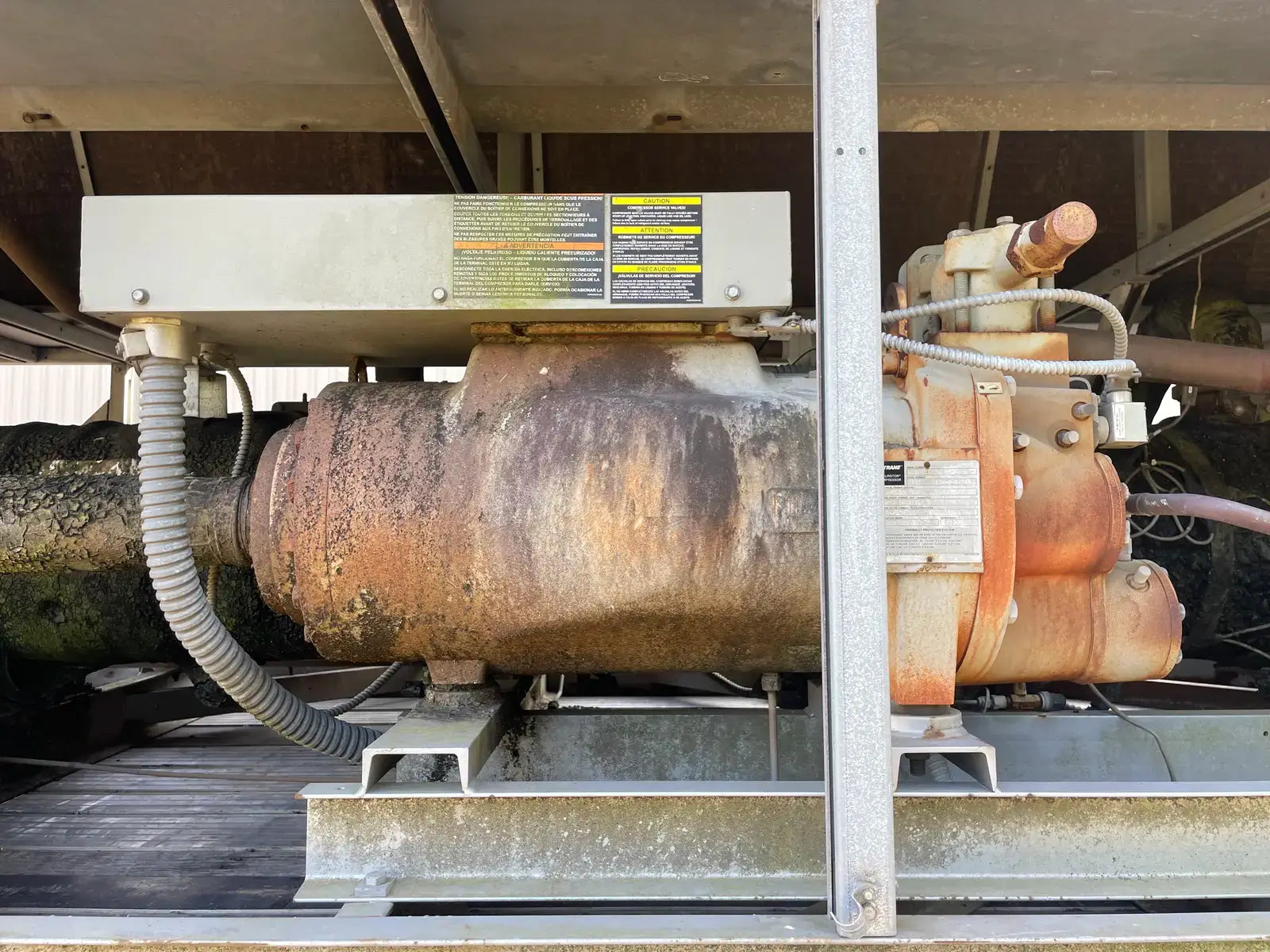

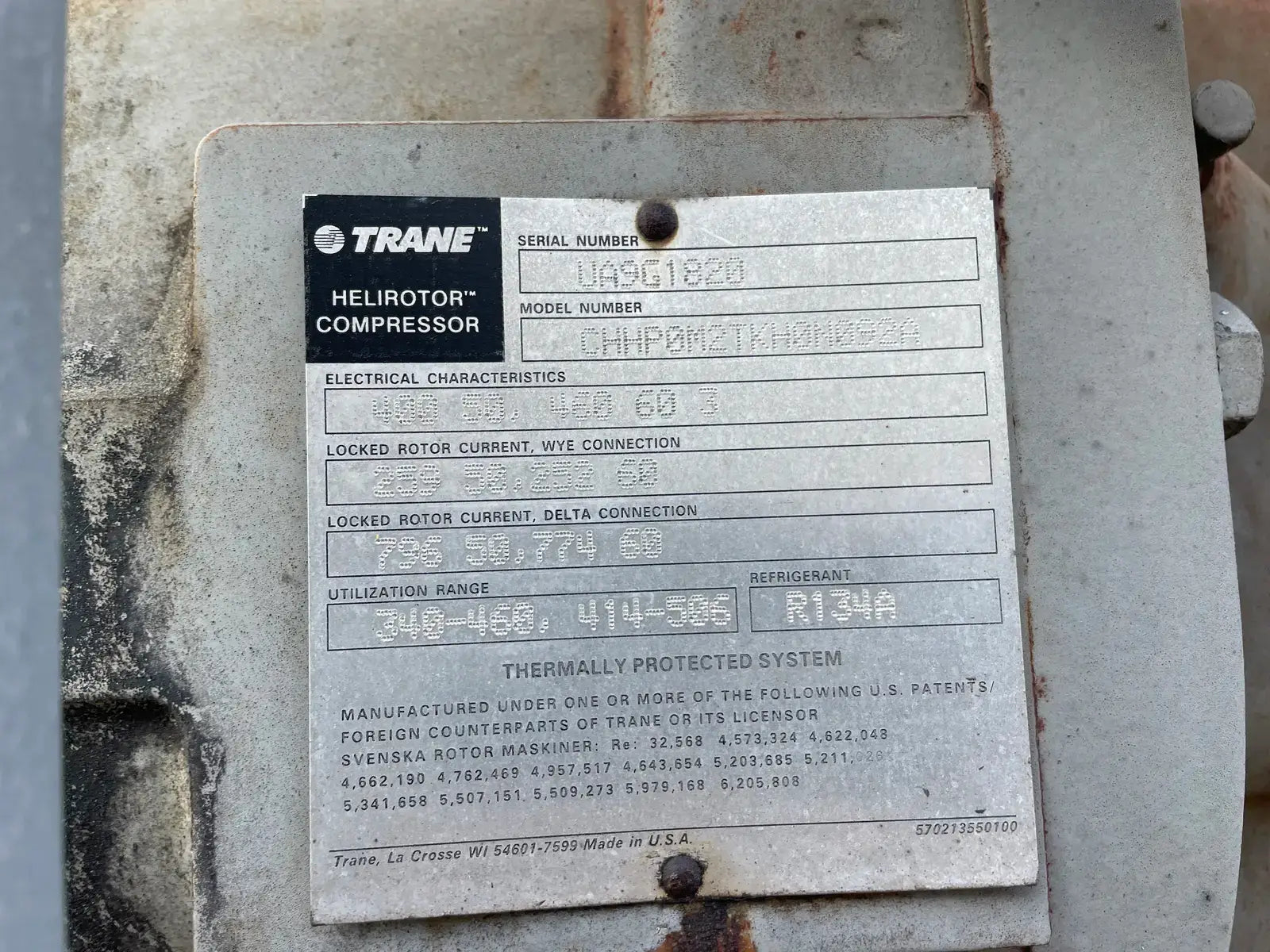

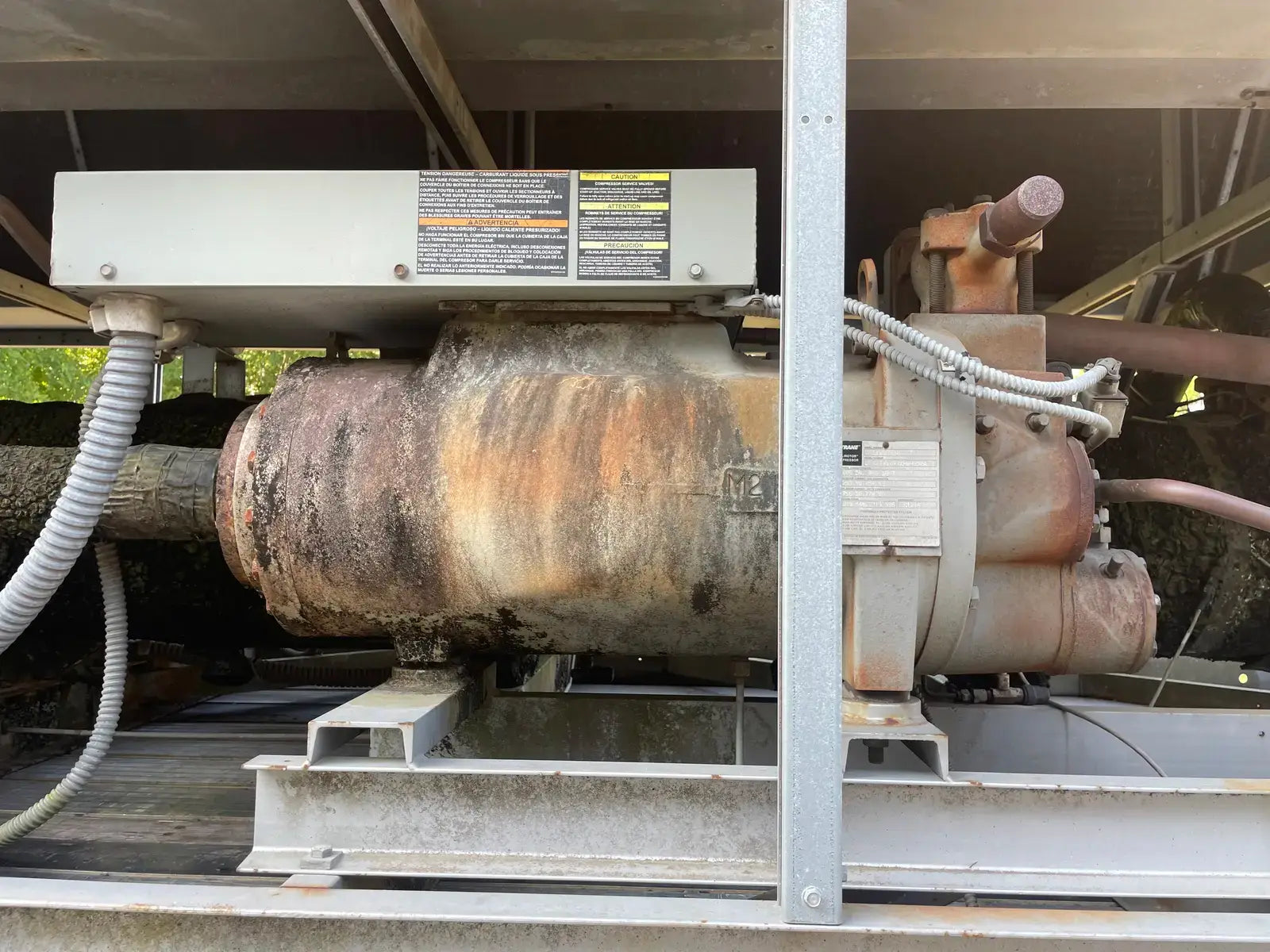

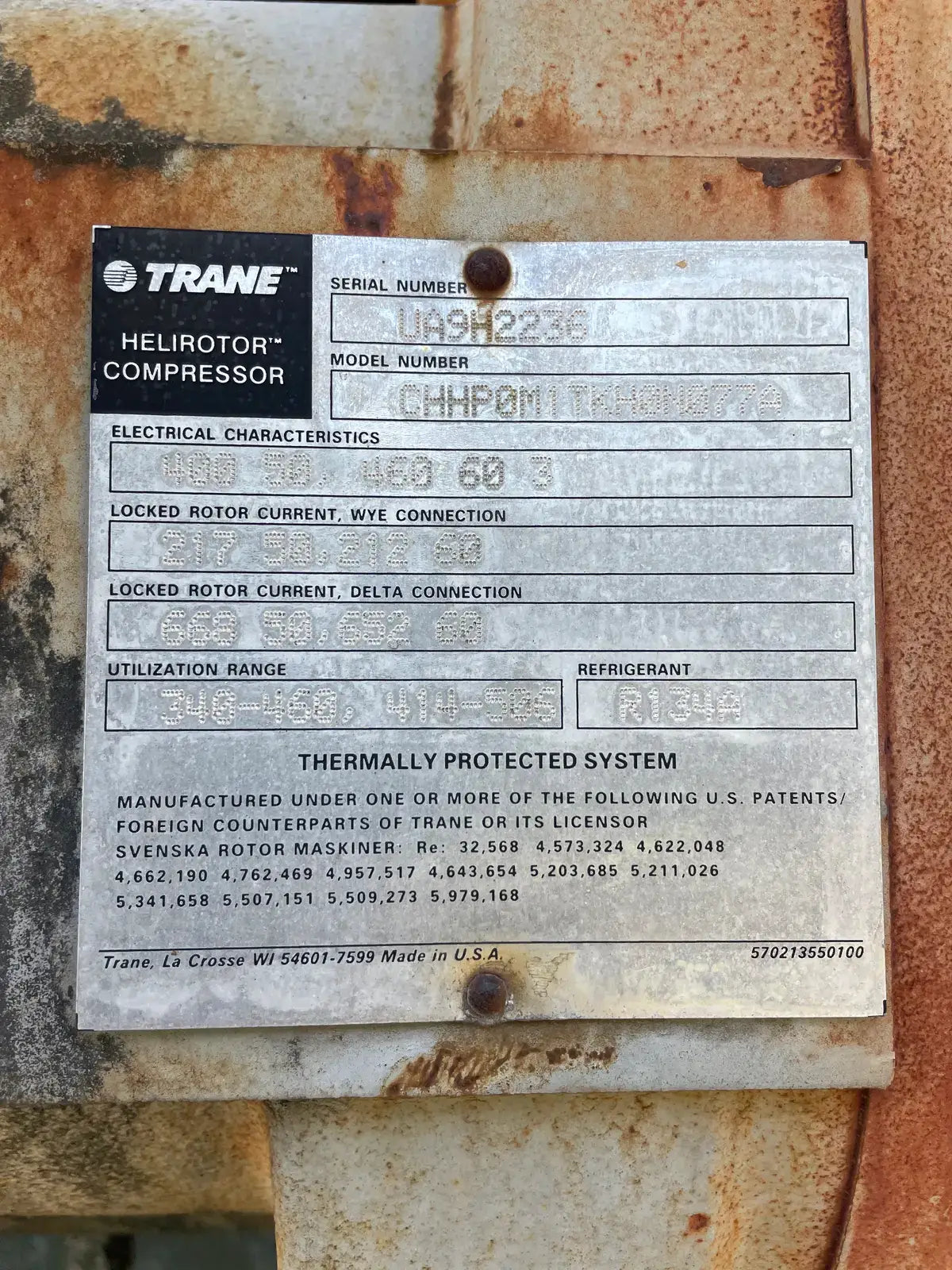

- Compressor Descriptions: (2) Trane Helical Rotary Hermetic Compressor: Model: CHHP0M2TKH0N092A, Serial No: UA9G1820. Capacity: 85 Tons. Motor Voltage: 460v/60Hz/3Ph. Total HP: 123.3/0.92Kw.
- Total Compressor Horsepower: 123.3
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- # Motors: 9

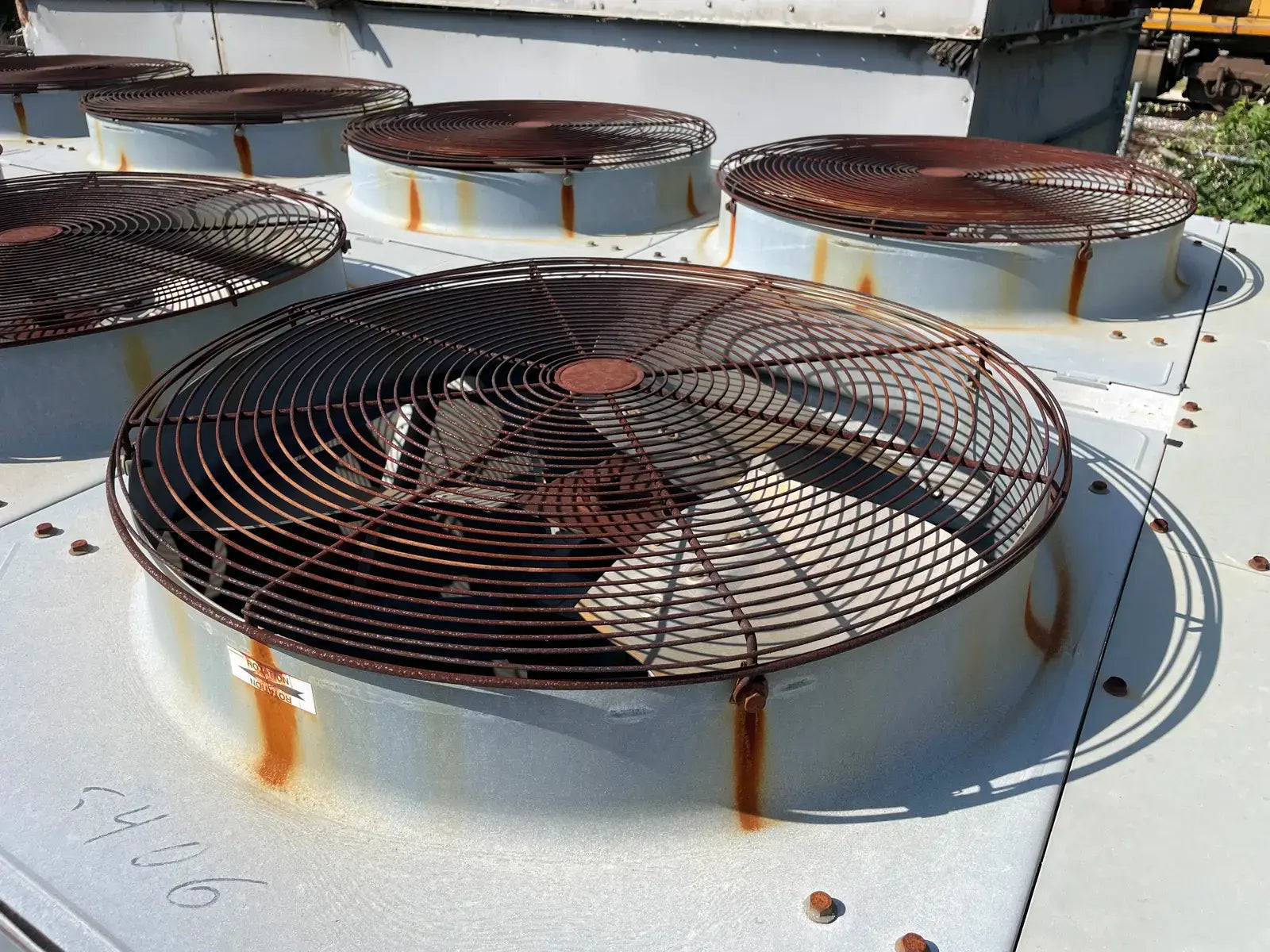

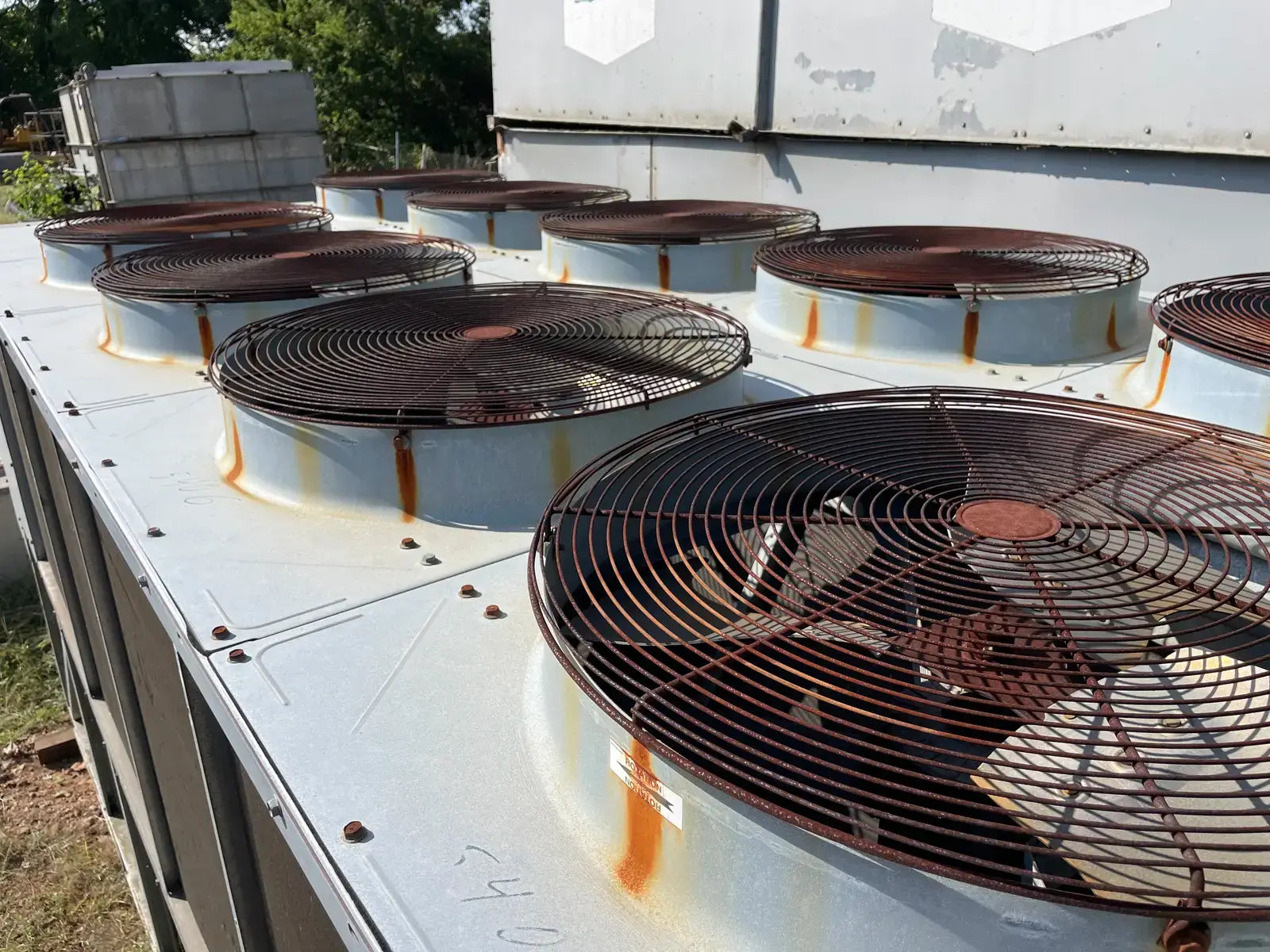

- If Multiple Motors, Motor Descriptions vs specs: (9) Fan Motors: HP: 1.25, Volts: 460, Hz: 60, FLA: 3.0.

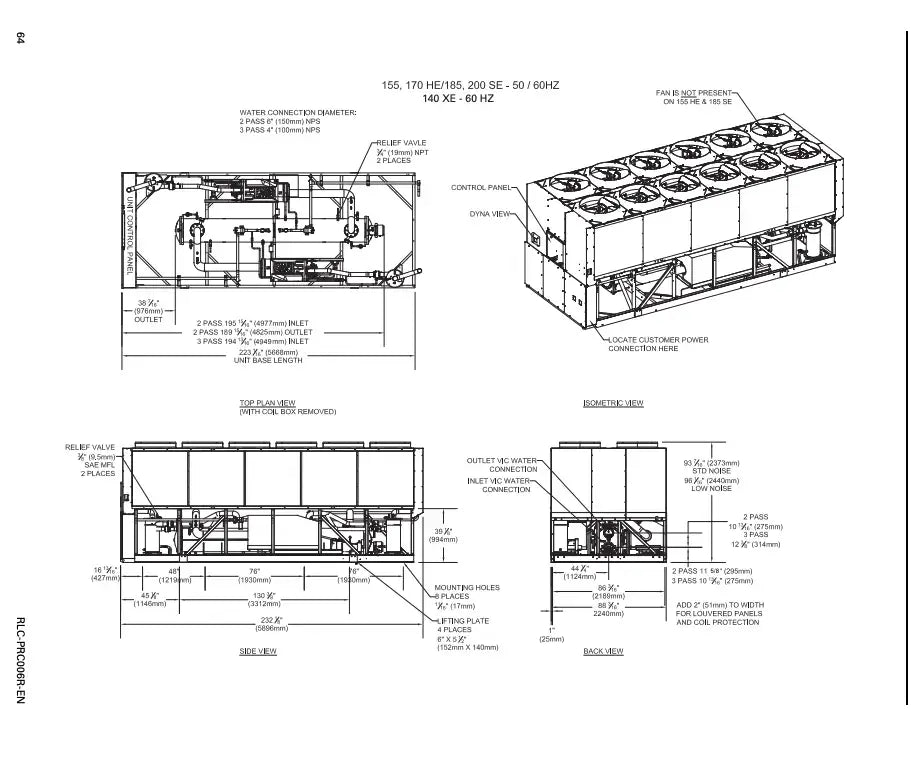

Dimensions:
- Length (Inches): 232
- Width (Inches): 89
- Height (Inches): 96
- Weight (LBS): 11,456
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2009
- Year Removed from Production: 2024
- Spec Sheet Available: Yes
