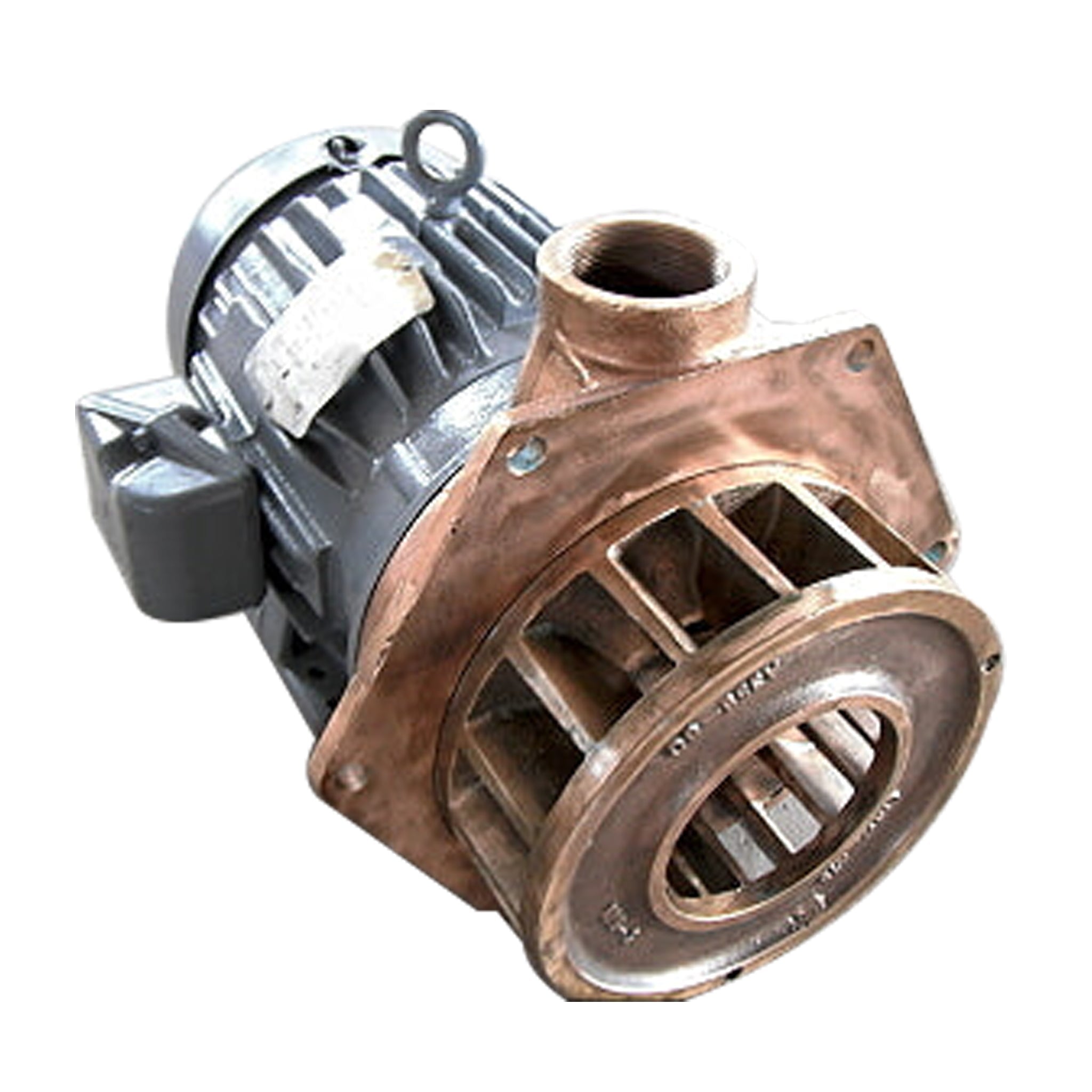

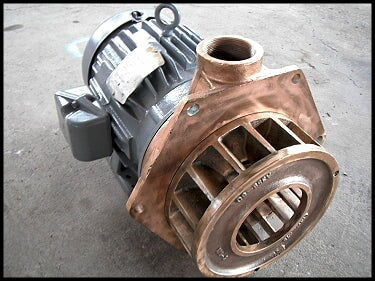

Tuthill Atlantic Fluidics A75 Liquid Ring Vacuum Pump

Tuthill Atlantic Fluidics A75 Liquid Ring Vacuum Pump

Tuthill Atlantic Fluidics Liquid Ring Vacuum Pump. Model: A75. S/N: 25062. Impeller diameter: 9 in. Performance Ratings: 75 ACFM at 20 inches Mercury (Hg), 50 ACFM at 28 inches Hg. This pump features the following FLUID-VAC AXIAL FLOW ADVANTAGES: Flat power curve over entire vacuum range prevents motor overload, Reduced stress on motor shaft and bearings, Increased water handling capability prevents heat build-up, extends life of mechanical seals, Compact, close-coupled design eliminates need for interstage manifold or motor alignment. Baldor Industrial Motor, 5 hp, 1725 rpm, 230/460 V, 13.2/6.8 amps, 60 Hz, 3 phase. Inlets: (1) 2 in. dia. flanged port. Outlets: (1) 2-1/2 in. dia. FNPT fittings. Weight: 180 lbs. Overall dimensions: 1 ft. 8 in. L x 1 ft. W x 1 ft. 1 in. H. (ACN47).

Product Details

  • Product ID: 9030
  • Stock No: NOIP8014
  • Manufacturer: Atlantic Fluidics
  • Model: A75
  • Serial Number: 25062
  • Motor Manufacturer:
  • Motor Horsepower(HP):
  • Motor RPM:
  • Motor Voltage:
  • Motor Amps:
  • Motor Hertz (Hz):
  • Motor Phases:
  • Motor Frame Size:
  • Year of Manufacture:
  • Known Issues or Problems:
  • Previously Used With:
  • Year of Installation:
  • Year Removed from Production:
  • Product Purchased From:
  • Length (Inches):
  • Width (Inches):
  • Height (Inches):
  • Weight (LBS):
  • ACN:

All fields

  • description: Tuthill Atlantic Fluidics Liquid Ring Vacuum Pump. Model: A75. S/N: 25062. Impeller diameter: 9 in. Performance Ratings: 75 ACFM at 20 inches Mercury (Hg), 50 ACFM at 28 inches Hg. This pump features the following FLUID-VAC AXIAL FLOW ADVANTAGES: Flat power curve over entire vacuum range prevents motor overload, Reduced stress on motor shaft and bearings, Increased water handling capability prevents heat build-up, extends life of mechanical seals, Compact, close-coupled design eliminates need for interstage manifold or motor alignment. Baldor Industrial Motor, 5 hp, 1725 rpm, 230/460 V, 13.2/6.8 amps, 60 Hz, 3 phase. Inlets: (1) 2 in. dia. flanged port. Outlets: (1) 2-1/2 in. dia. FNPT fittings. Weight: 180 lbs. Overall dimensions: 1 ft. 8 in. L x 1 ft. W x 1 ft. 1 in. H. (ACN47).
  • manufacturer: Atlantic Fluidics
  • model: A75
  • name: Tuthill Atlantic Fluidics A75 Liquid Ring Vacuum Pump
  • product_id: 9030
  • serial_number: 25062
  • stock_no: NOIP8014

Tuthill Atlantic Fluidics A75 Liquid Ring Vacuum Pump

Save 9%

Price:
$5,000 $5,500
