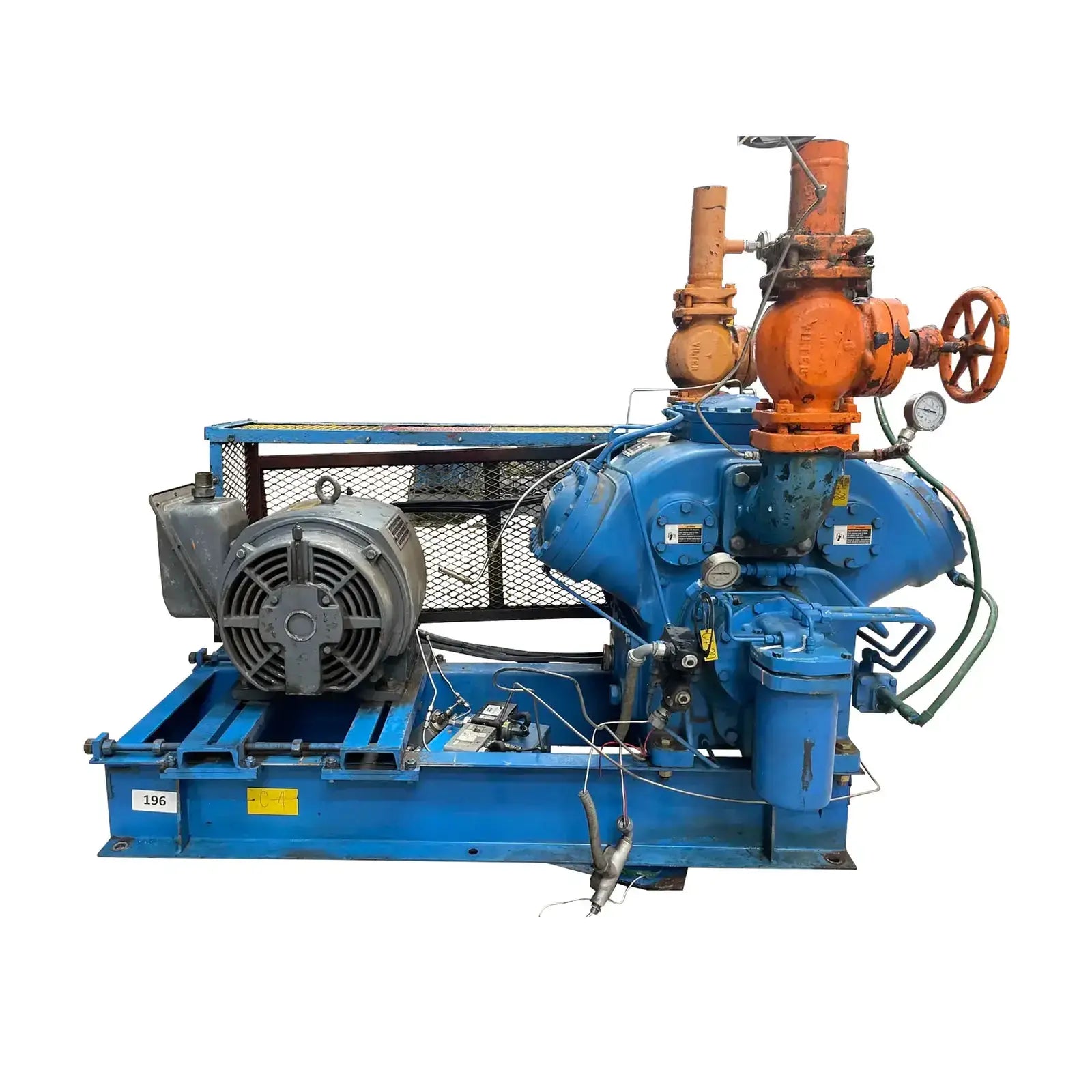

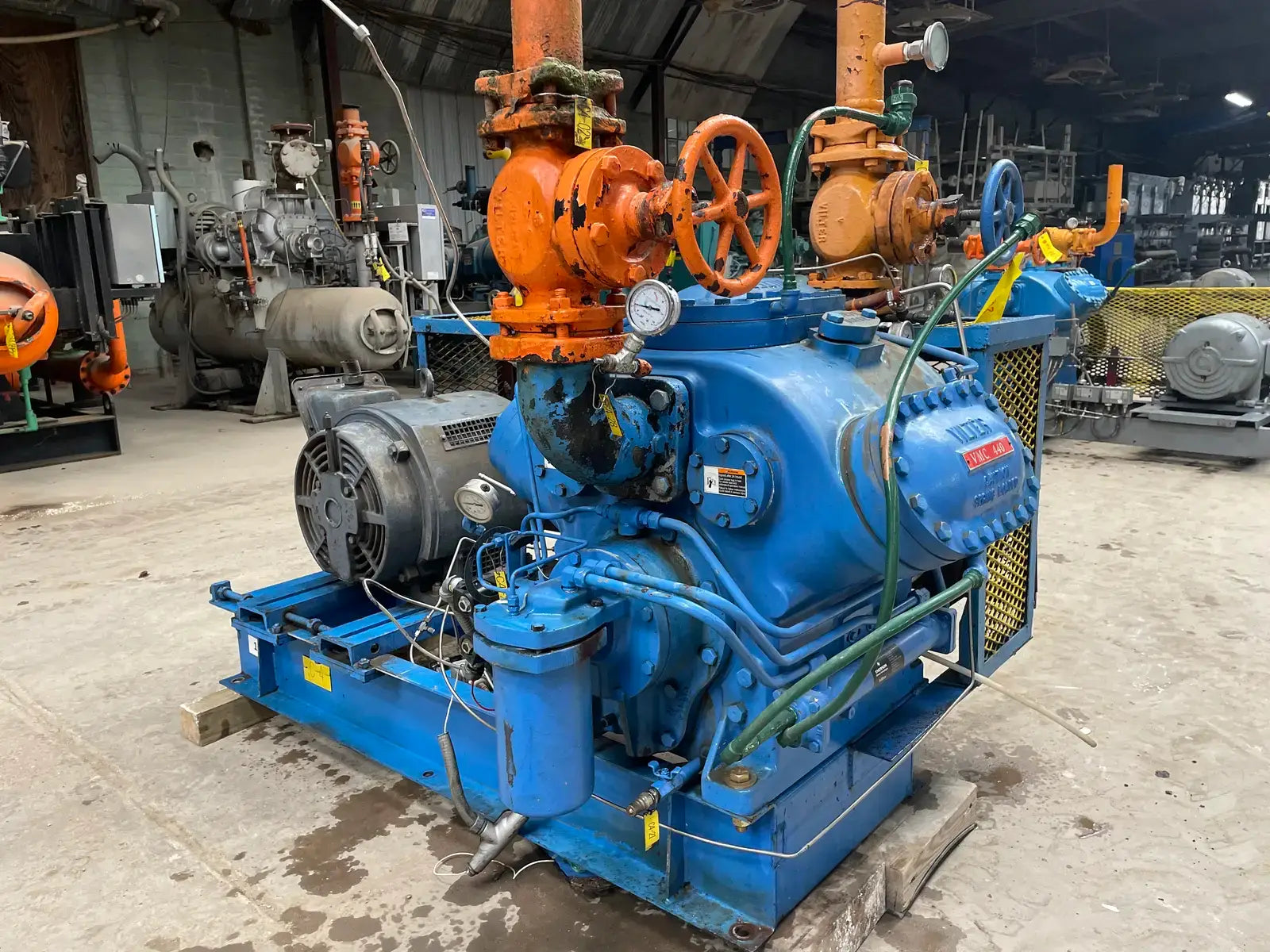

Vilter 446 Reciprocating Compressor Package (60 HP 230/460 V)

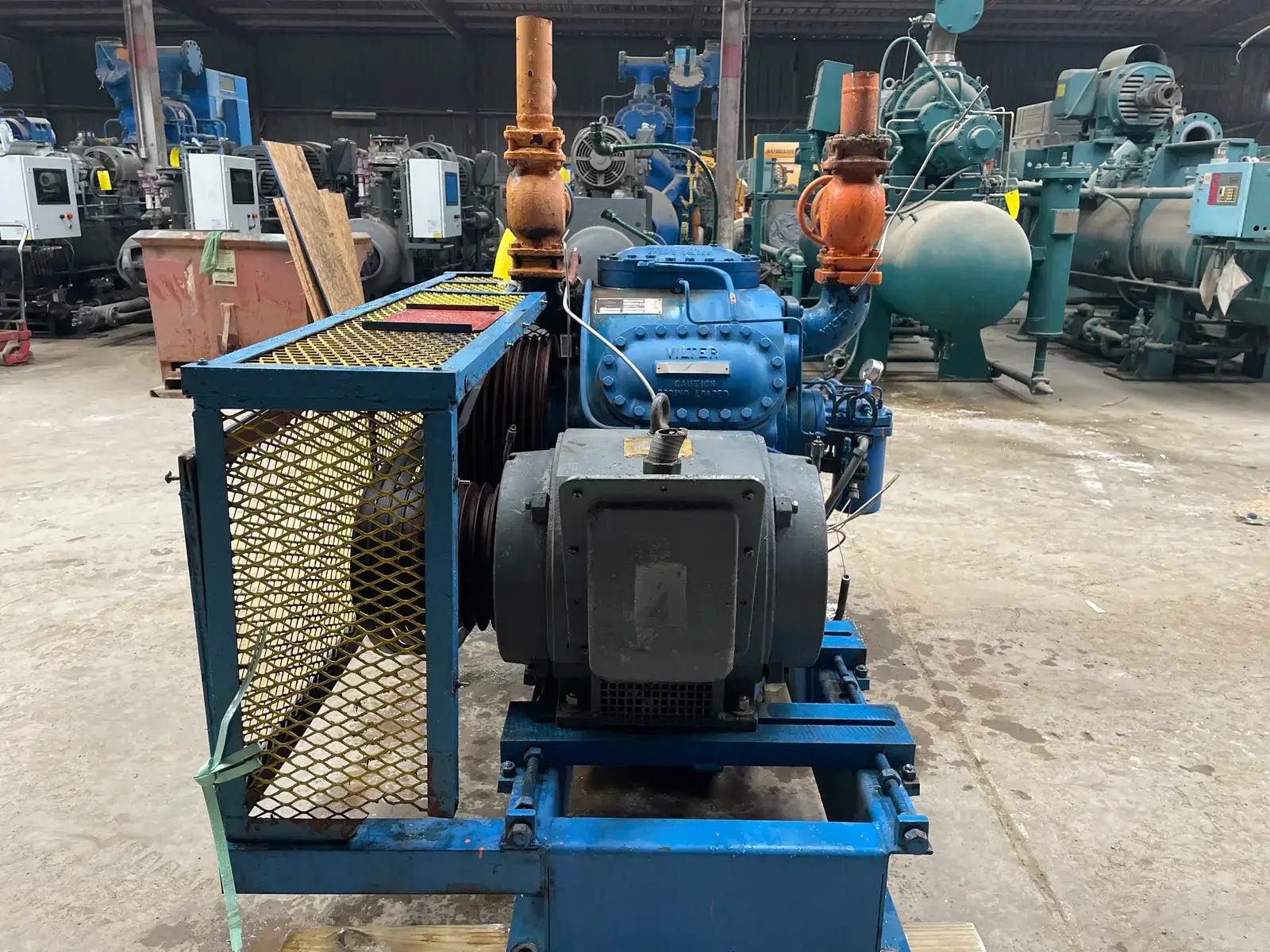

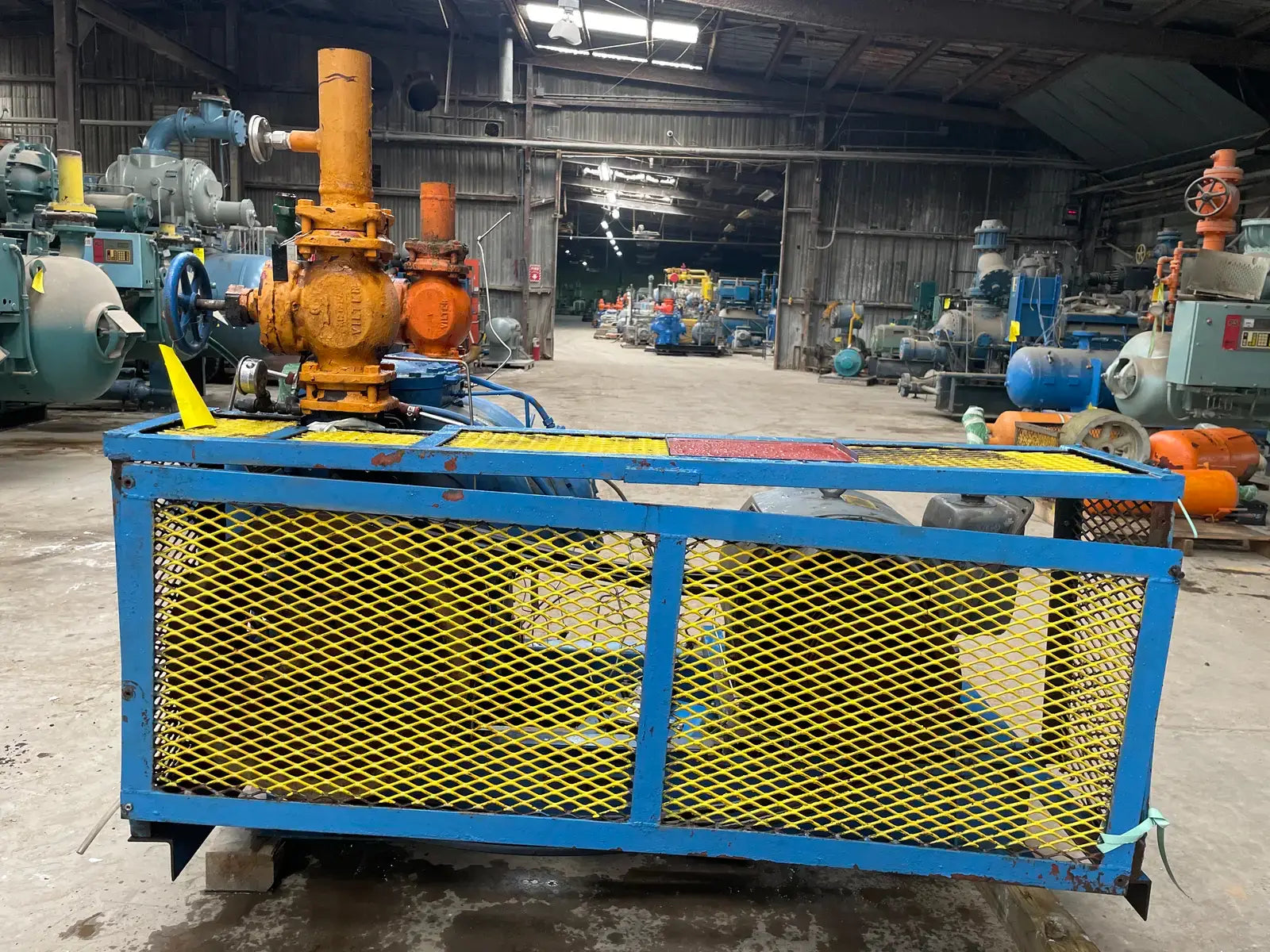

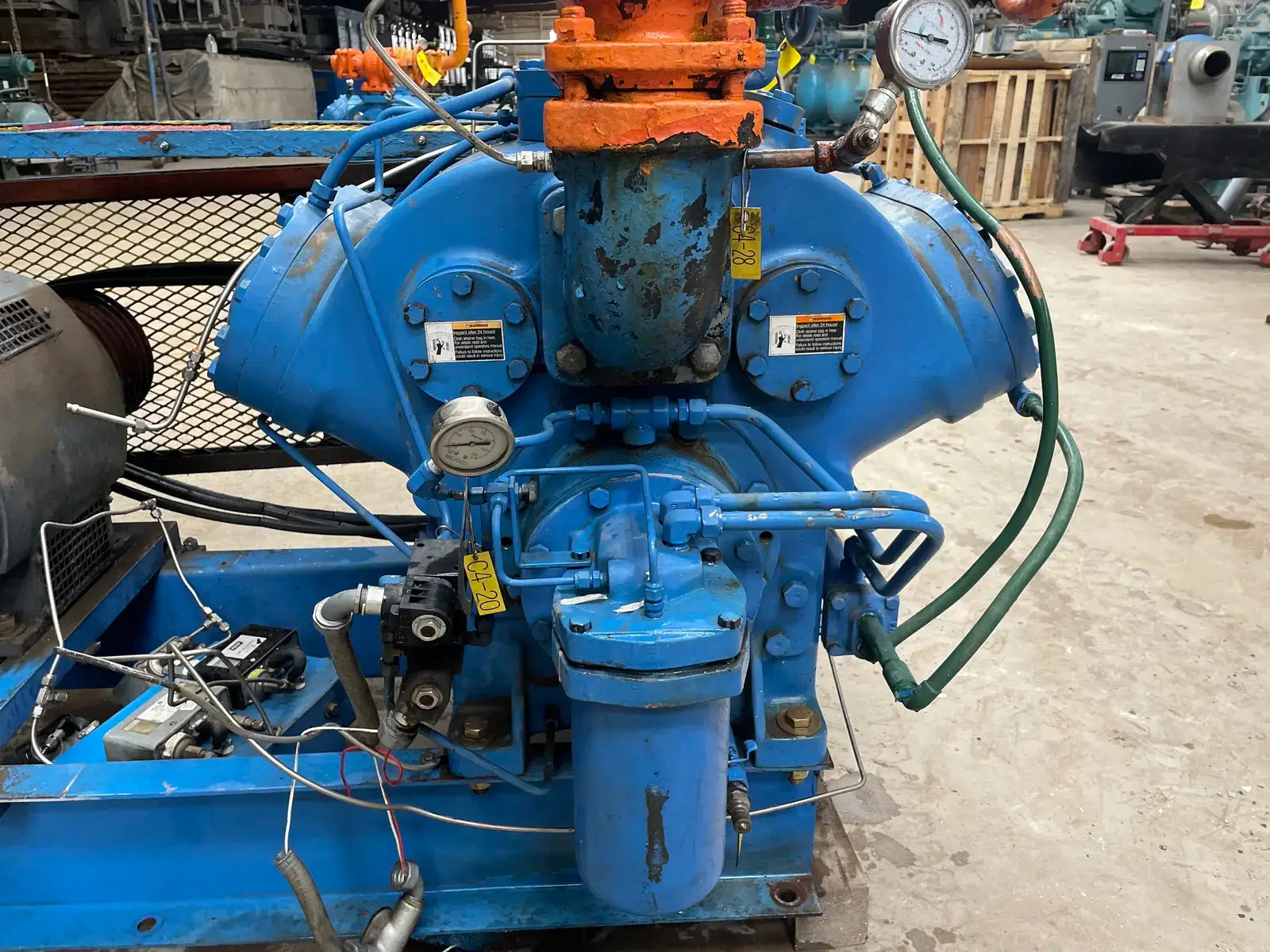

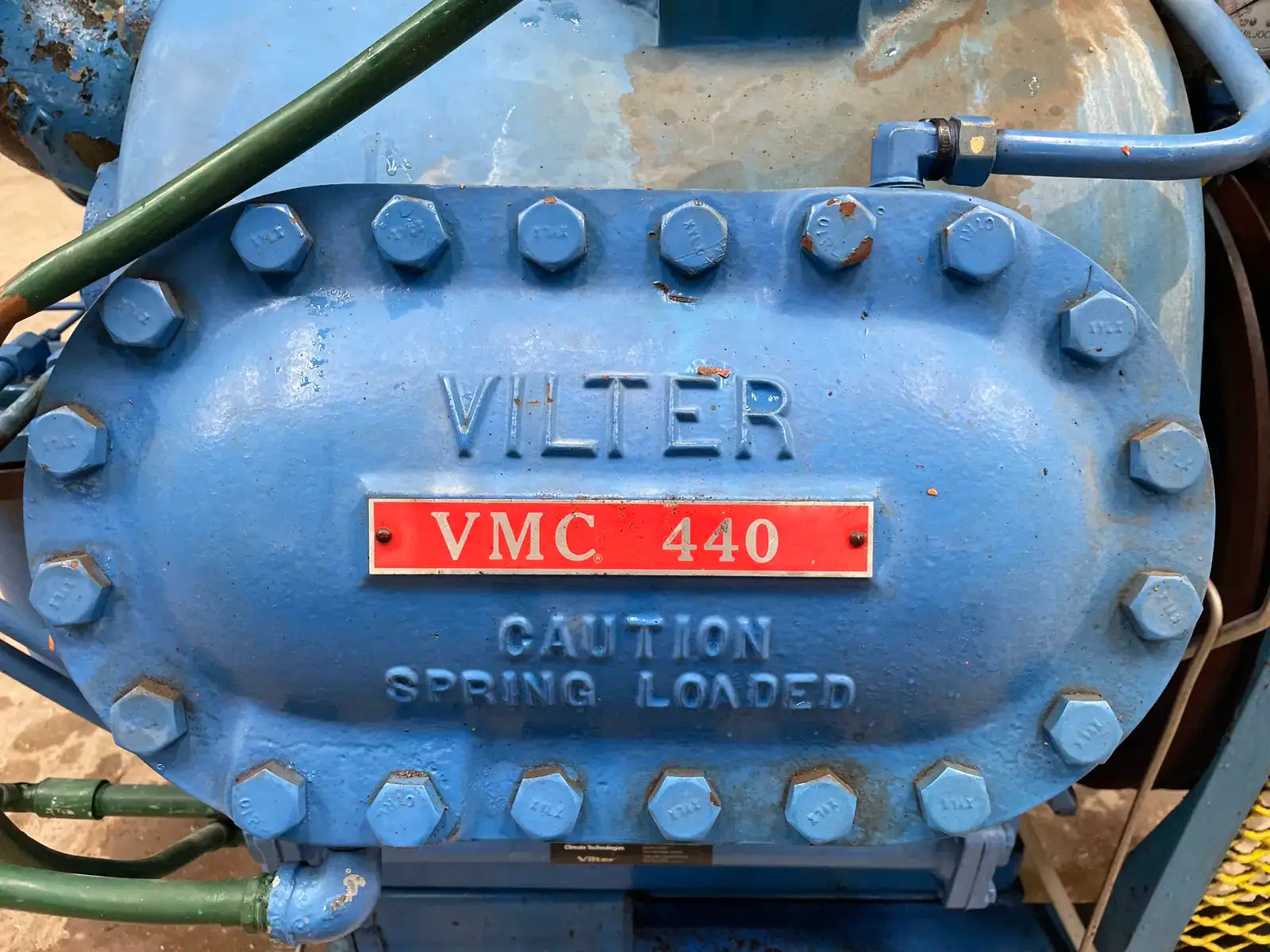

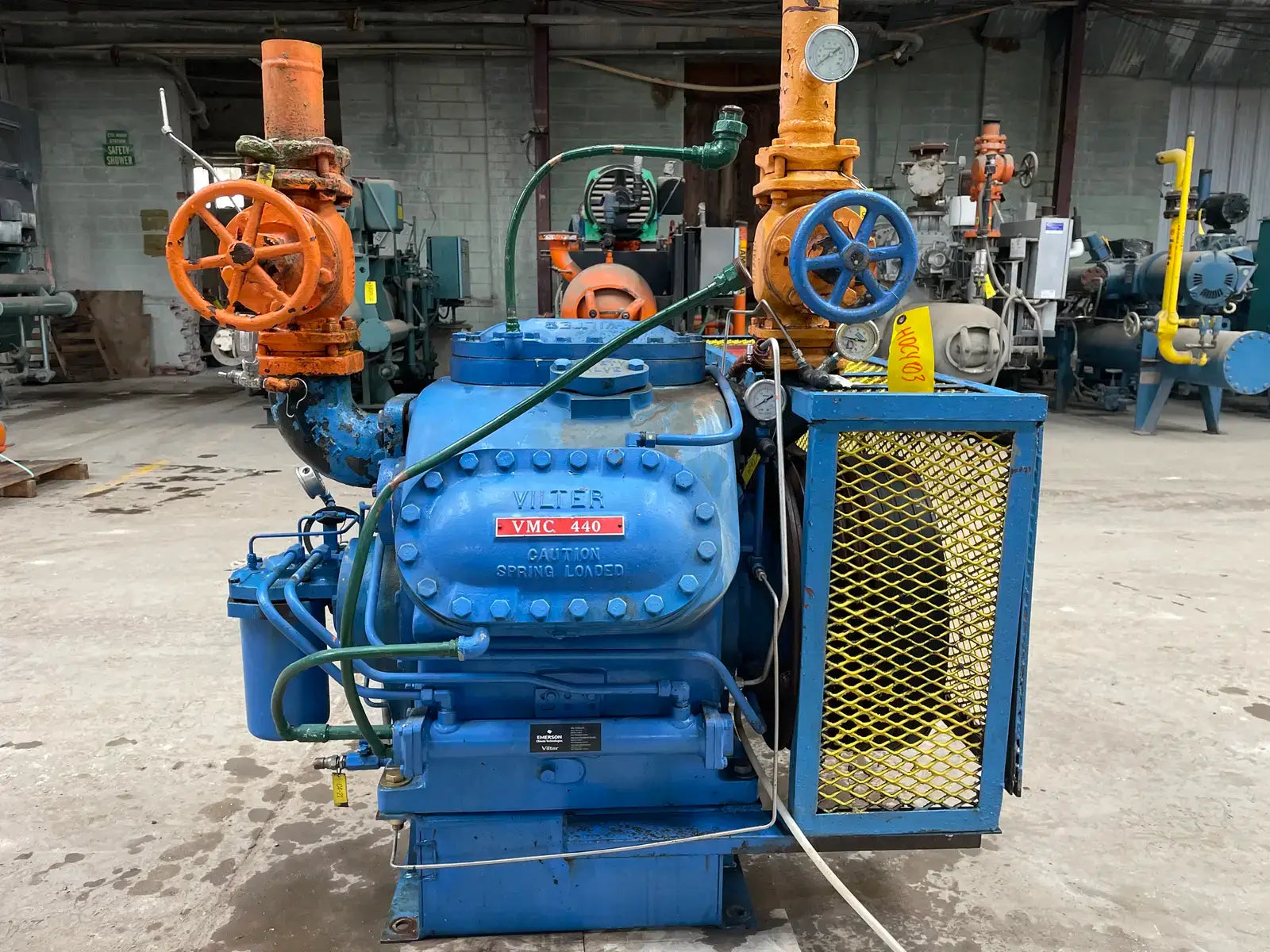

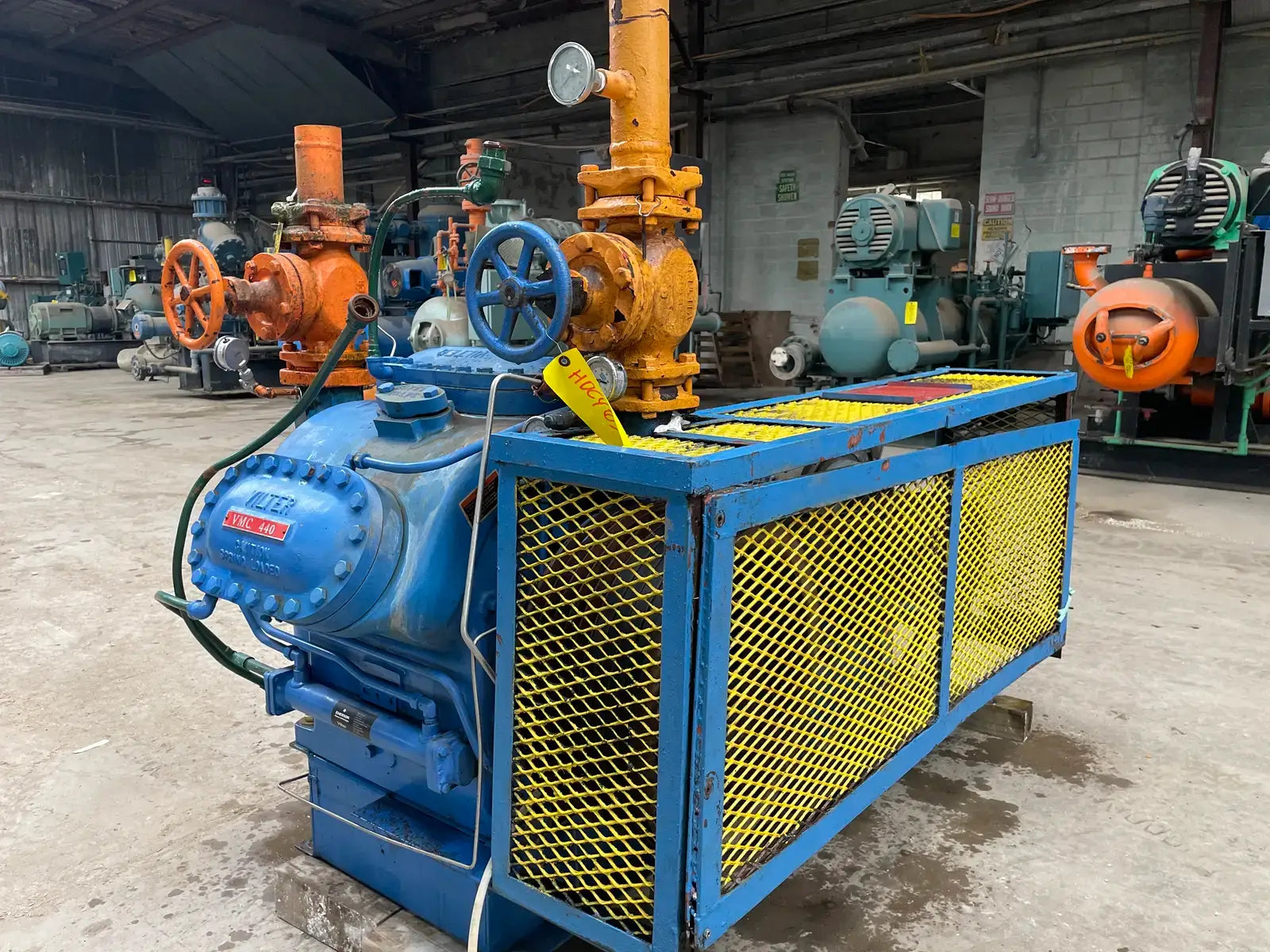

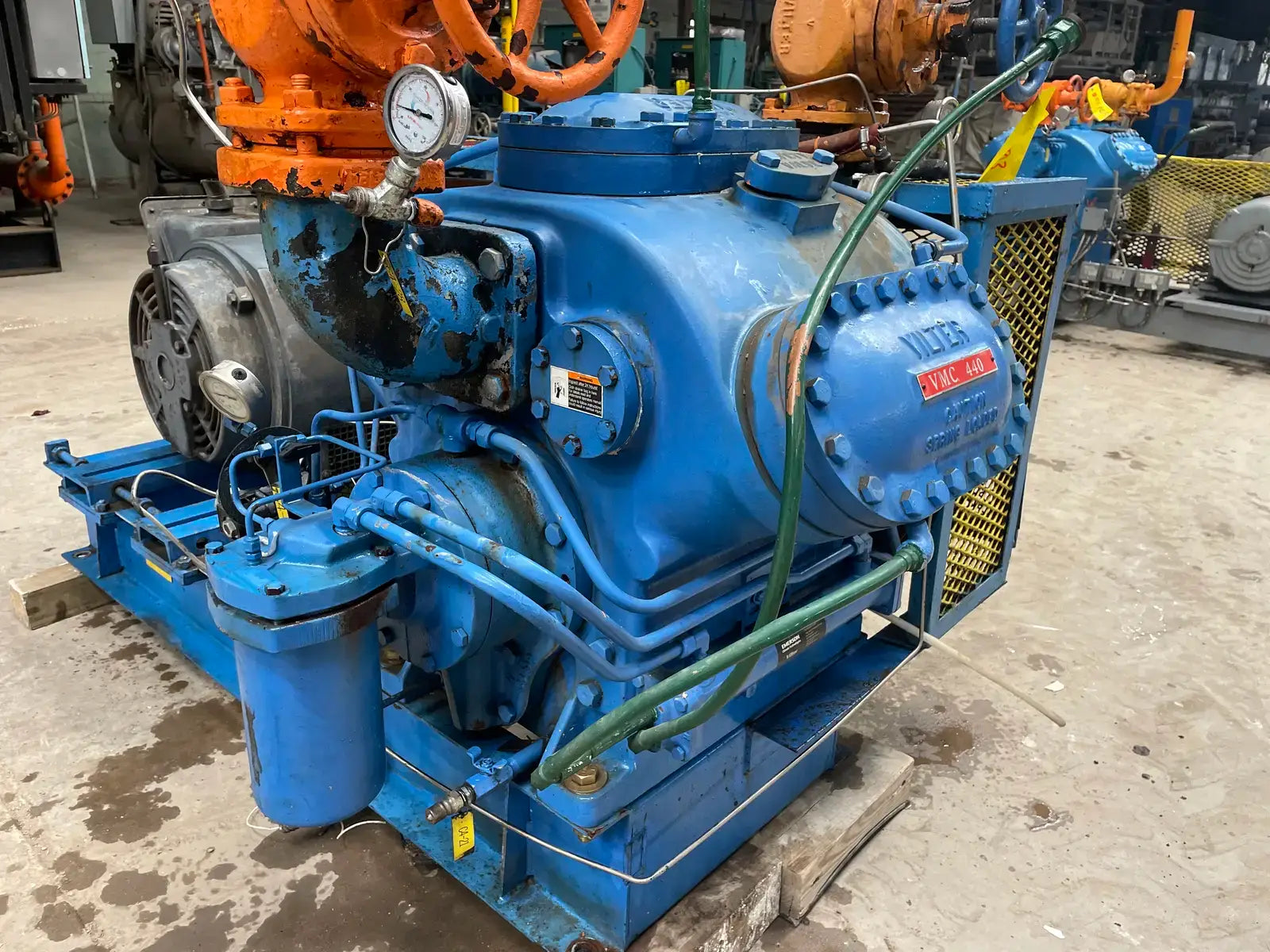

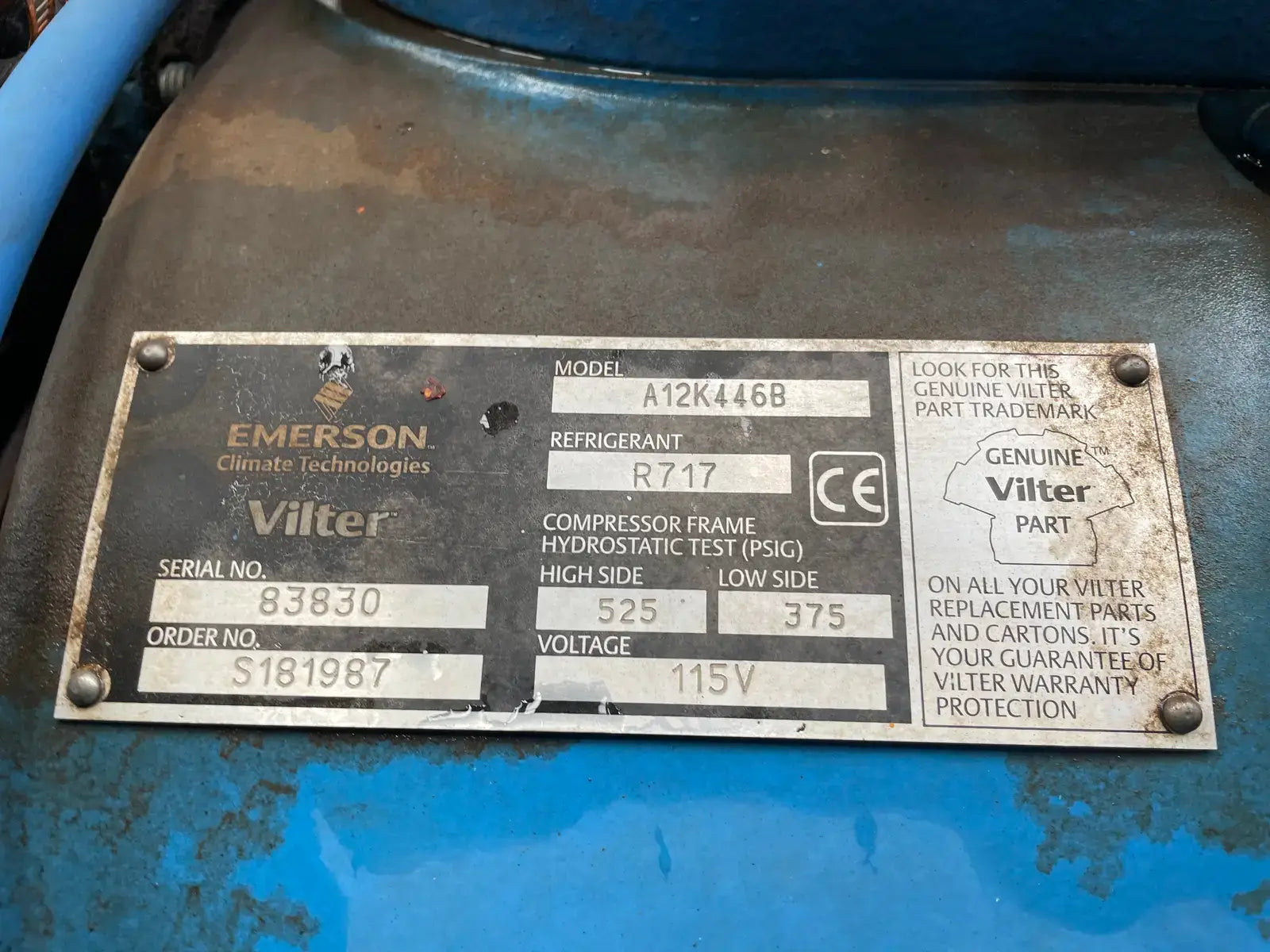

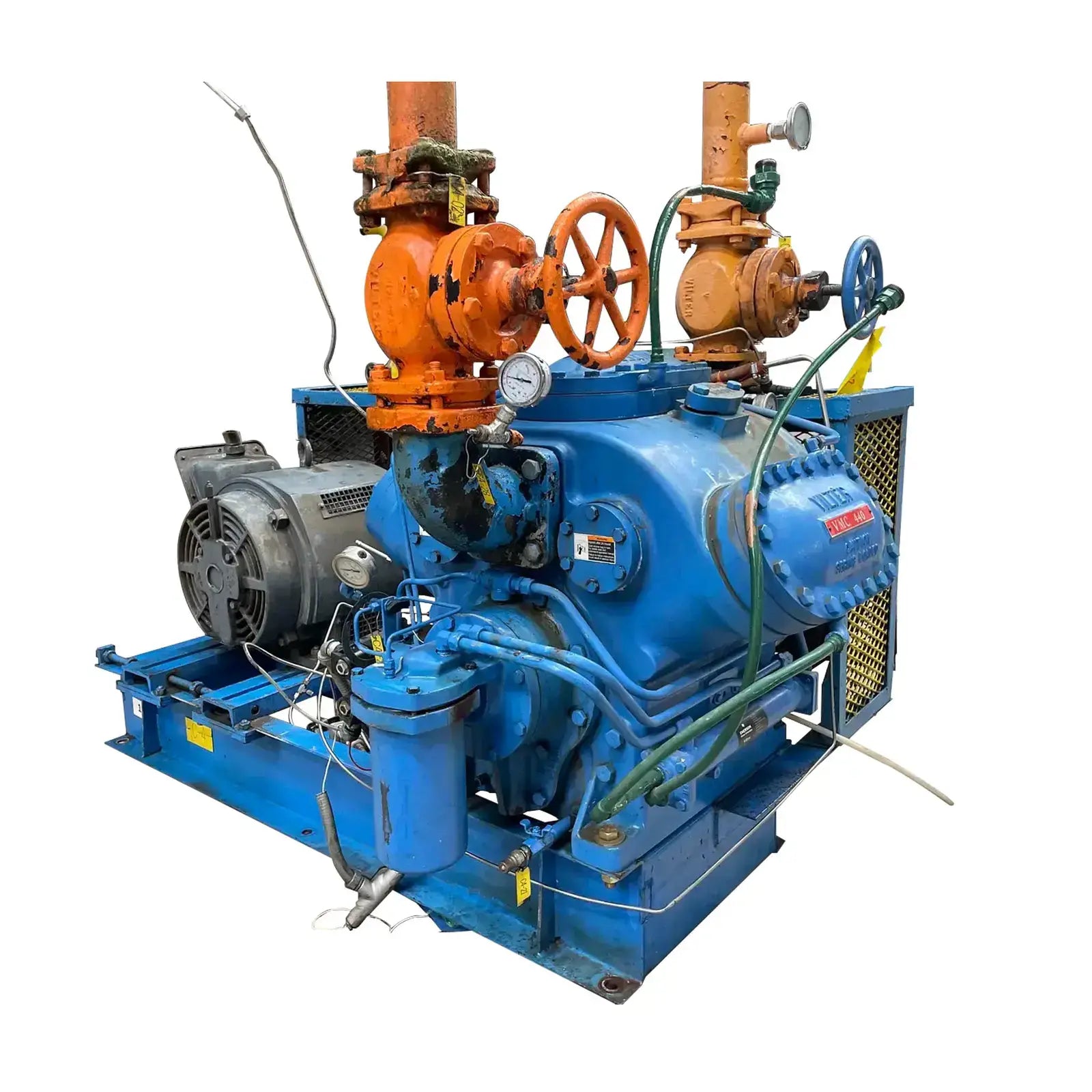

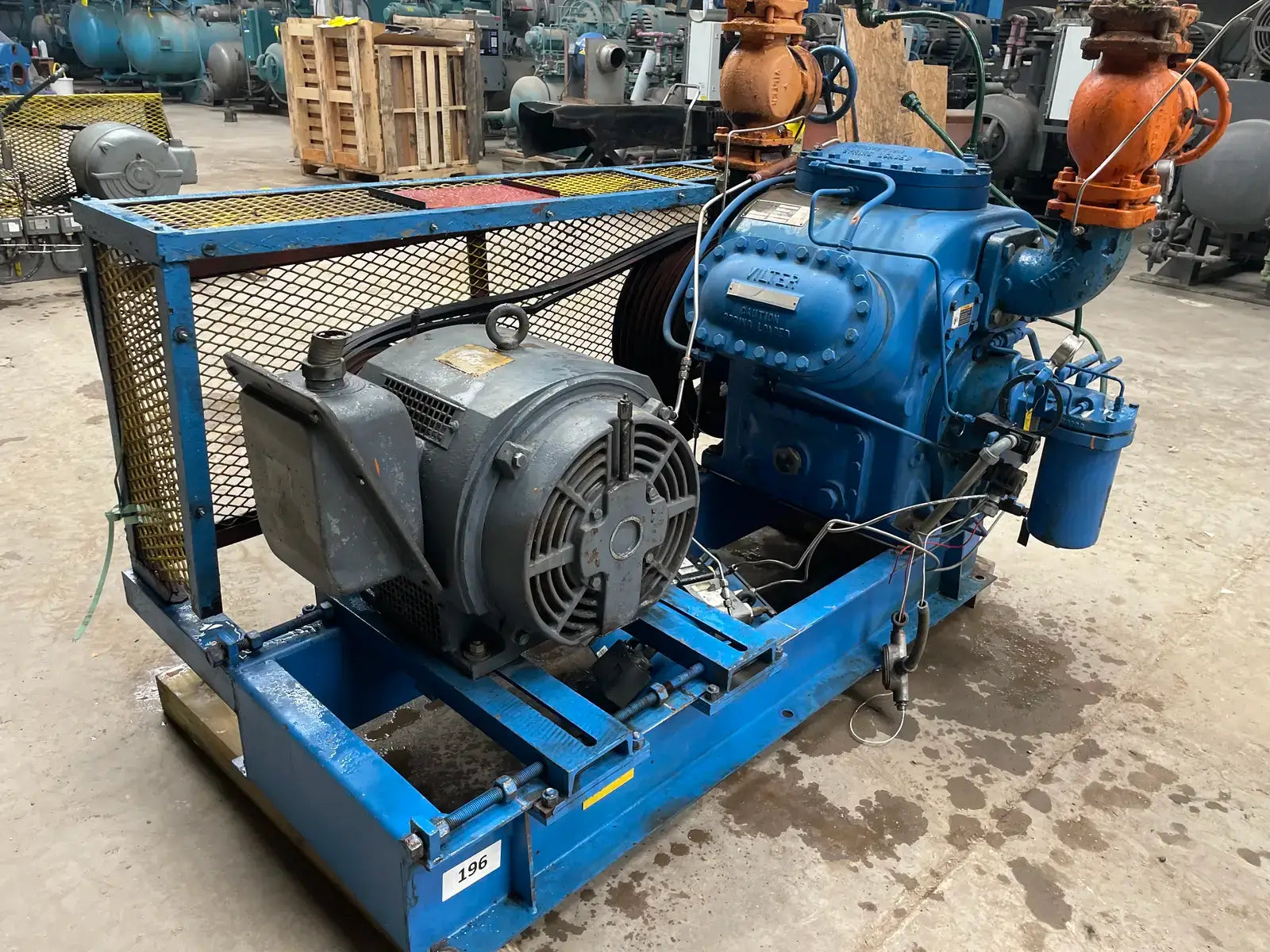

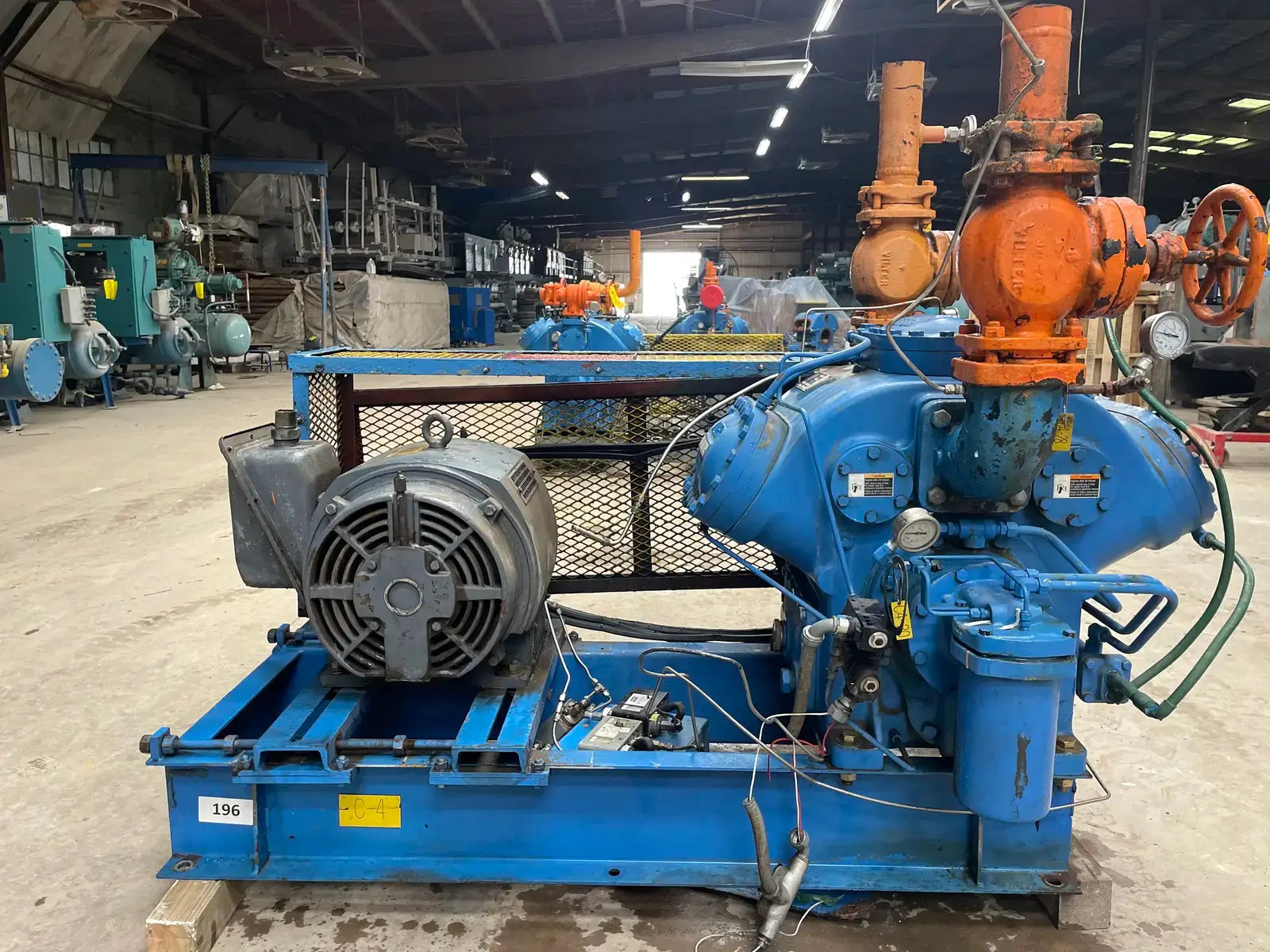

Vilter Reciprocating Compressor Package. Model: A12K446B. Serial No: 83830. Order No: S181987. Refrigerant: R717. Compressor Frame Hydrostatic Test (PSIG)- High Side: 525, Low Side: 375. Voltage: 115V. Number of Cylinders: 6, Displacement @ Max RPM (CFM): 232. Compressor Connections(in): Suction: 4, Discharge: 3. Toshiba Industrial Motor: 60 HP, 230/460 Volts, 1775 RPM. Vilter Oil Separator: National Board: 7721, Serial No: 3-53029-45. Previously used at a Borden Dairy Refrigeration Facility.
Product Details
- Stock No: HDCY03A
- Manufacturer: Vilter
- Model: 446
- Serial Number: 83830
- Compressor Type: Reciprocating
- Package Included? Yes
- Stage Type: High Stage

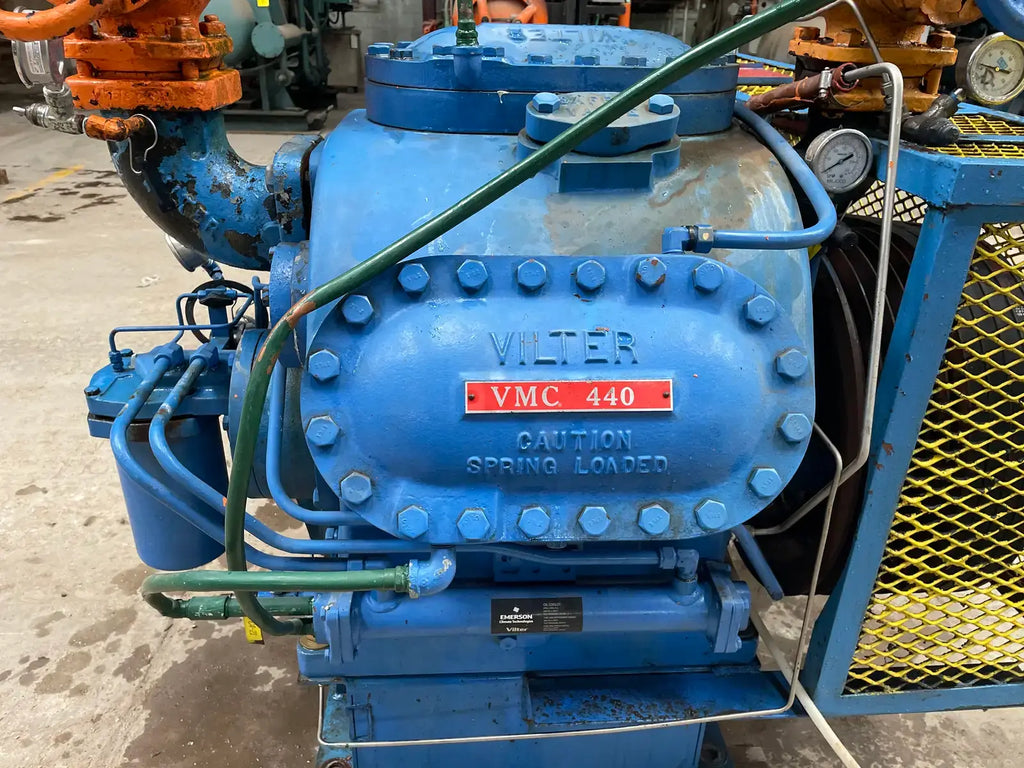

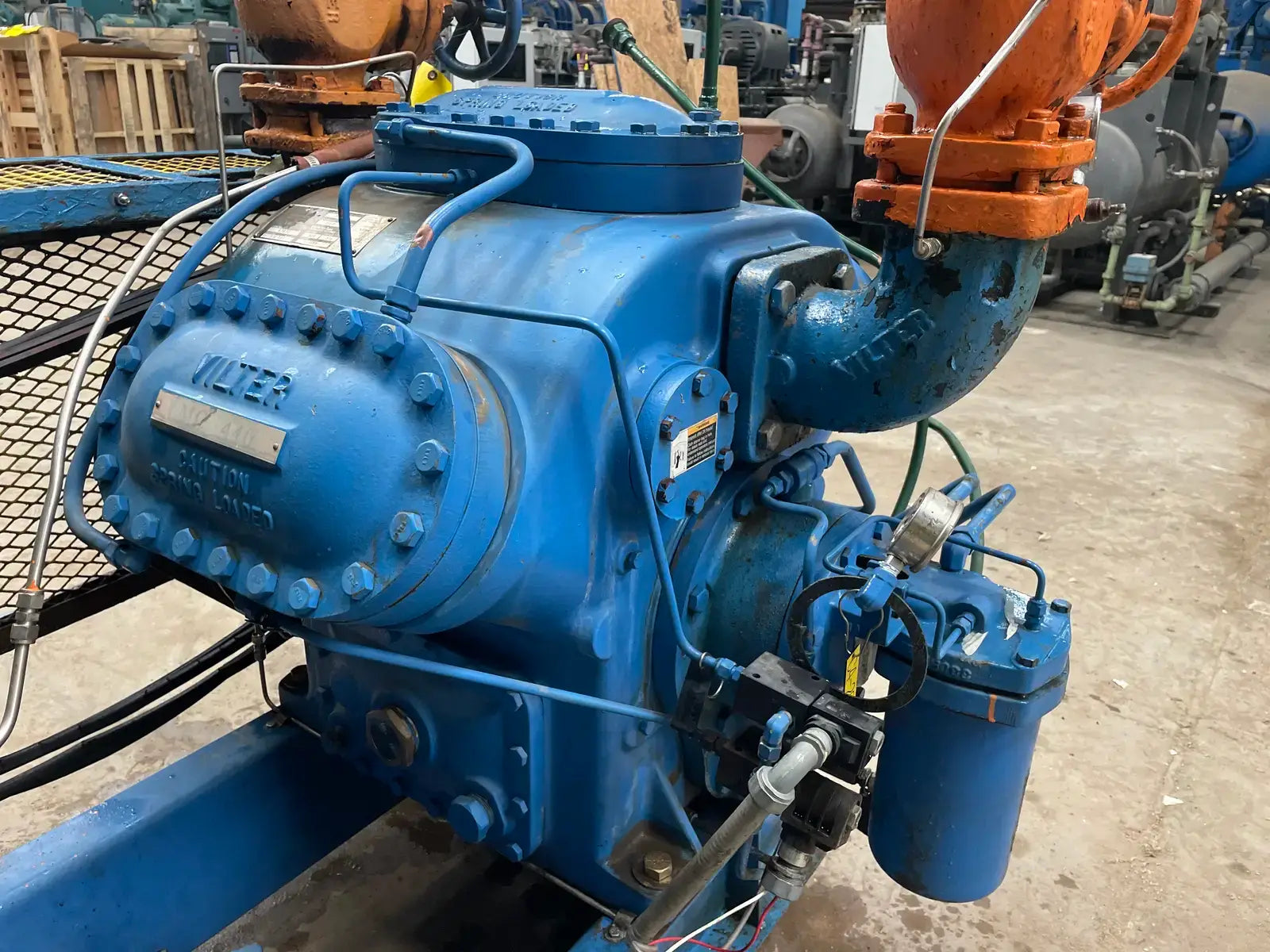

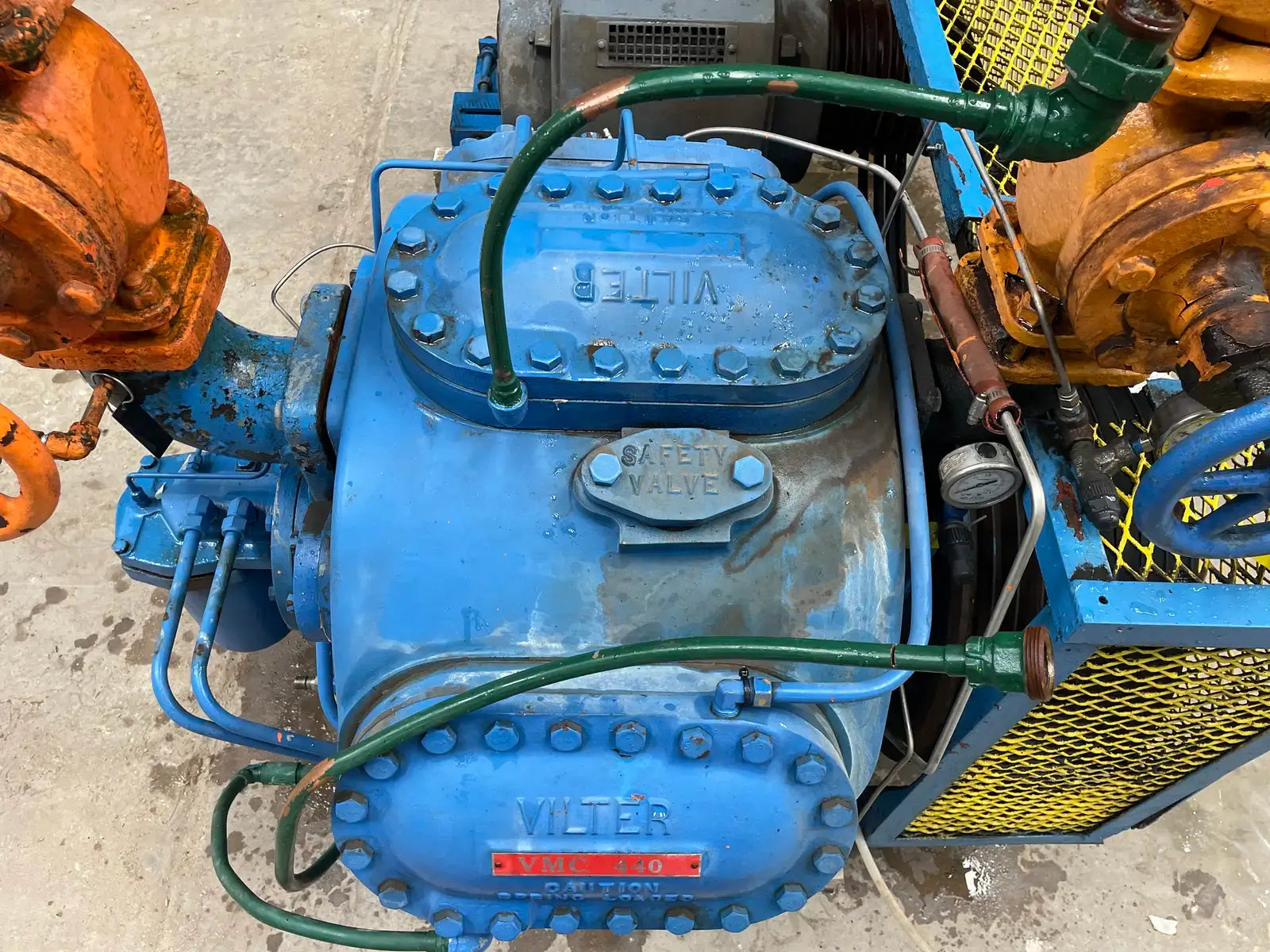

Reciprocating Compressor Details
- Compressor Included? Yes

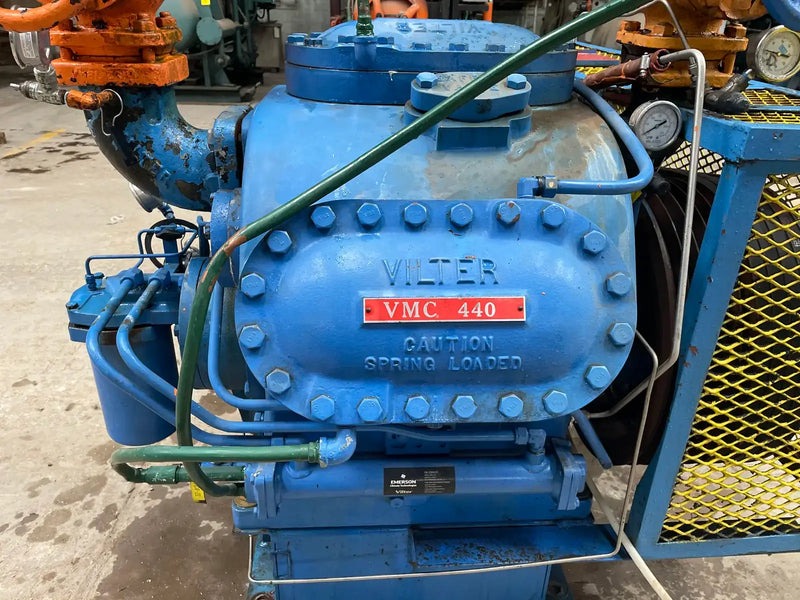

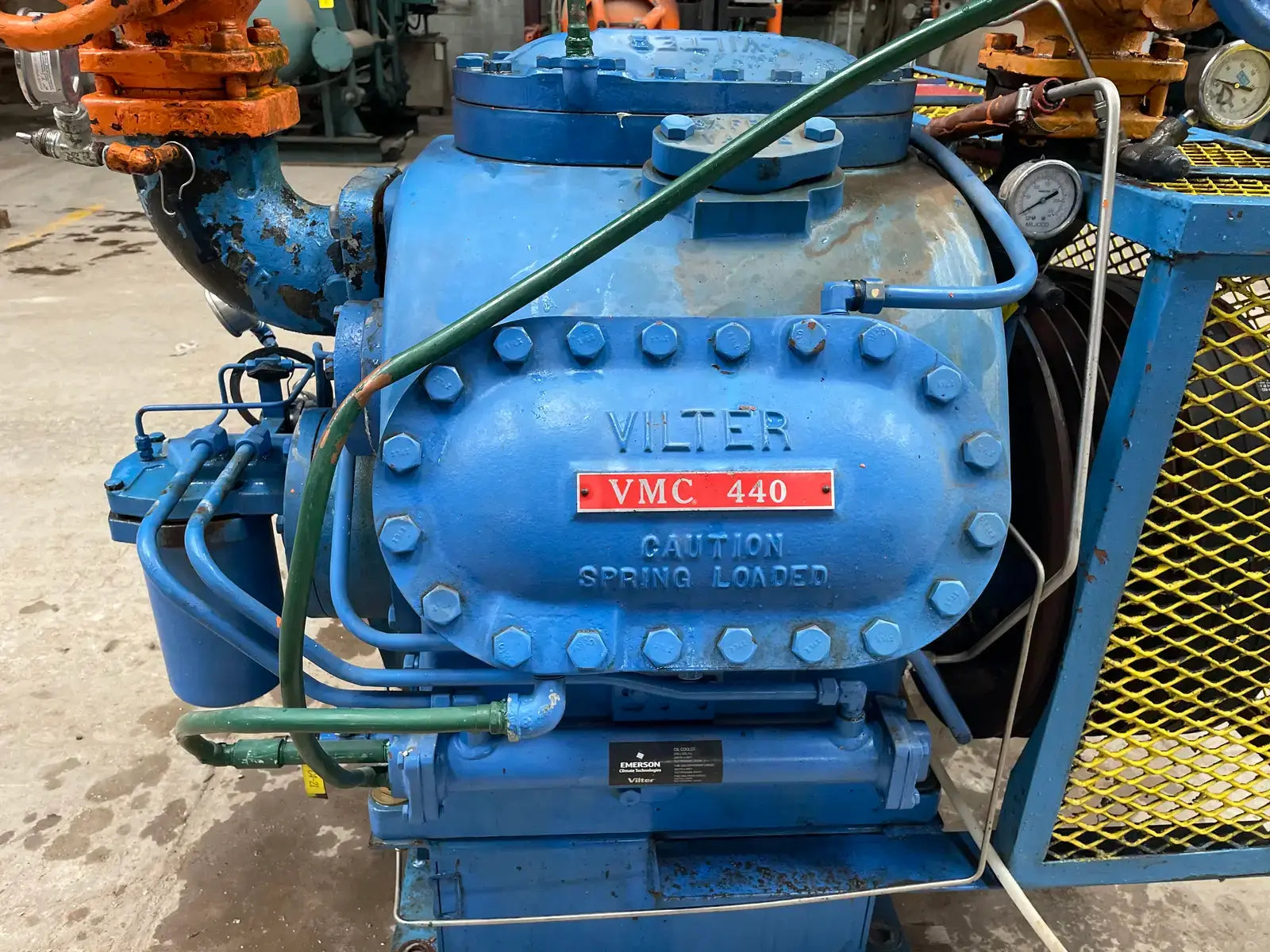

- Compressor Manufacturer: Vilter

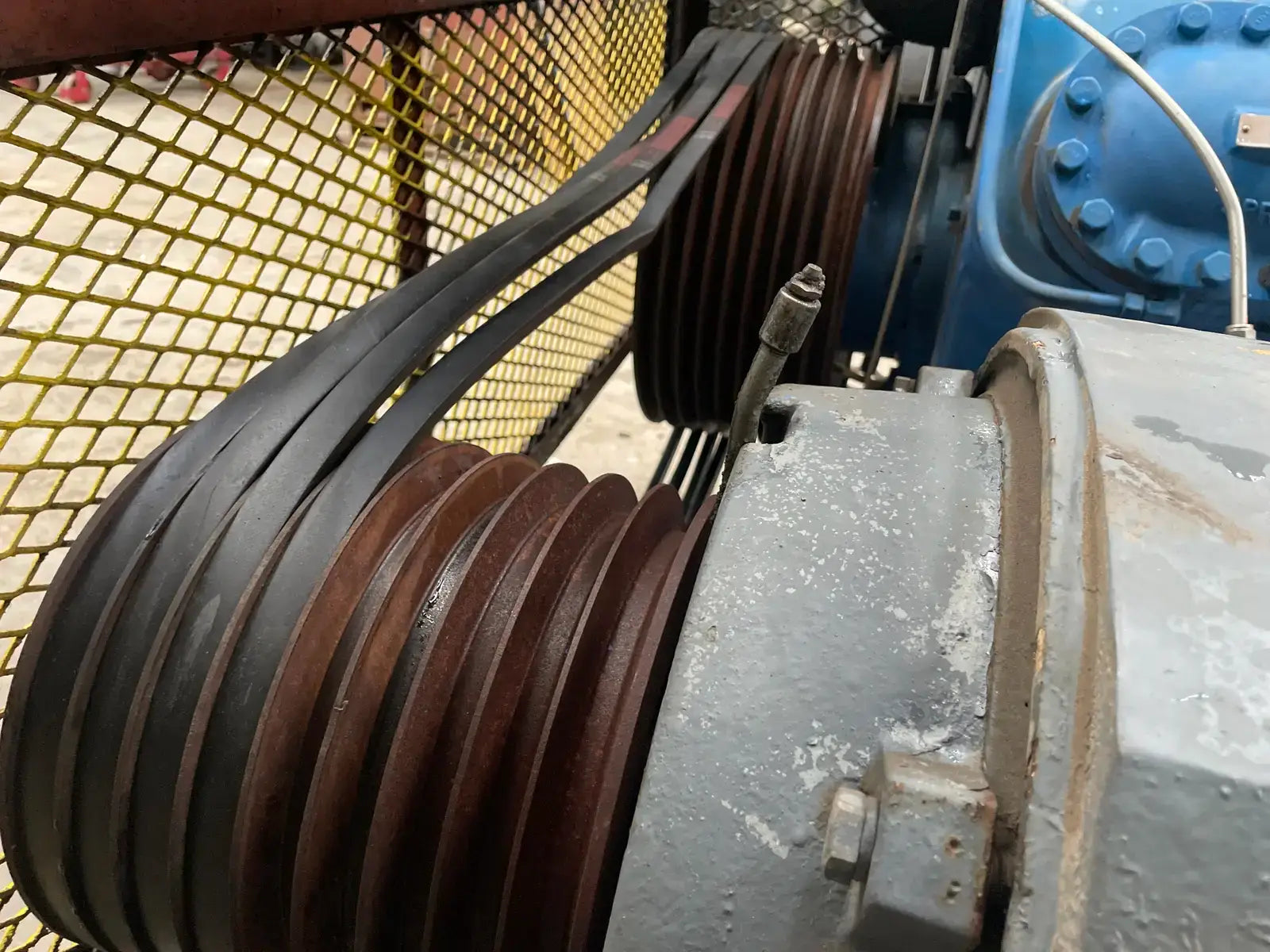

- Reciprocating Type: Belt
- # Compressors in Package: 1
- Compressor Model: A12K446B
- Compressor SN: 83830
- Compressor Max Speed (RPM): 350
- Compressor Design Pressure (PSIG): 525

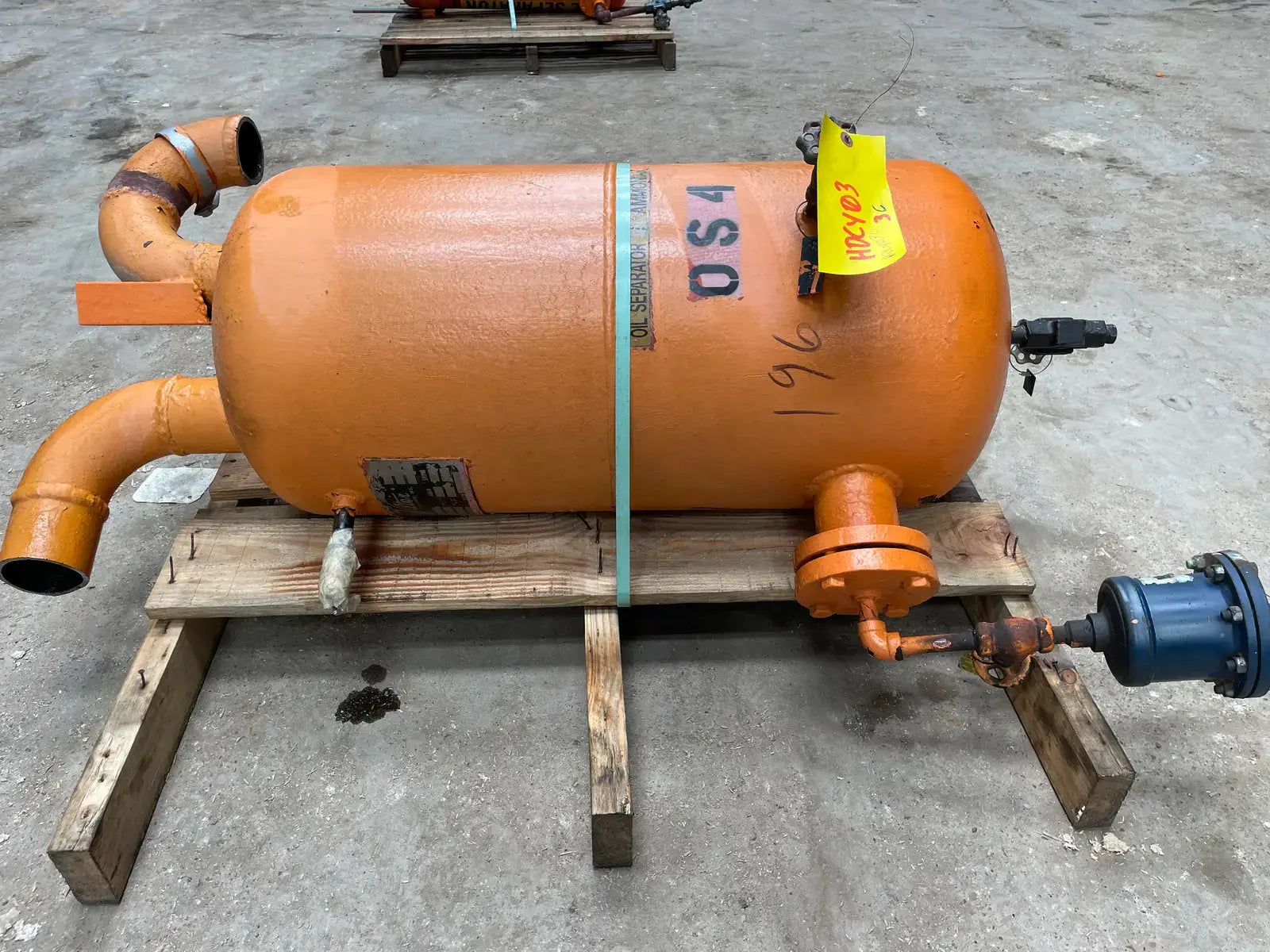

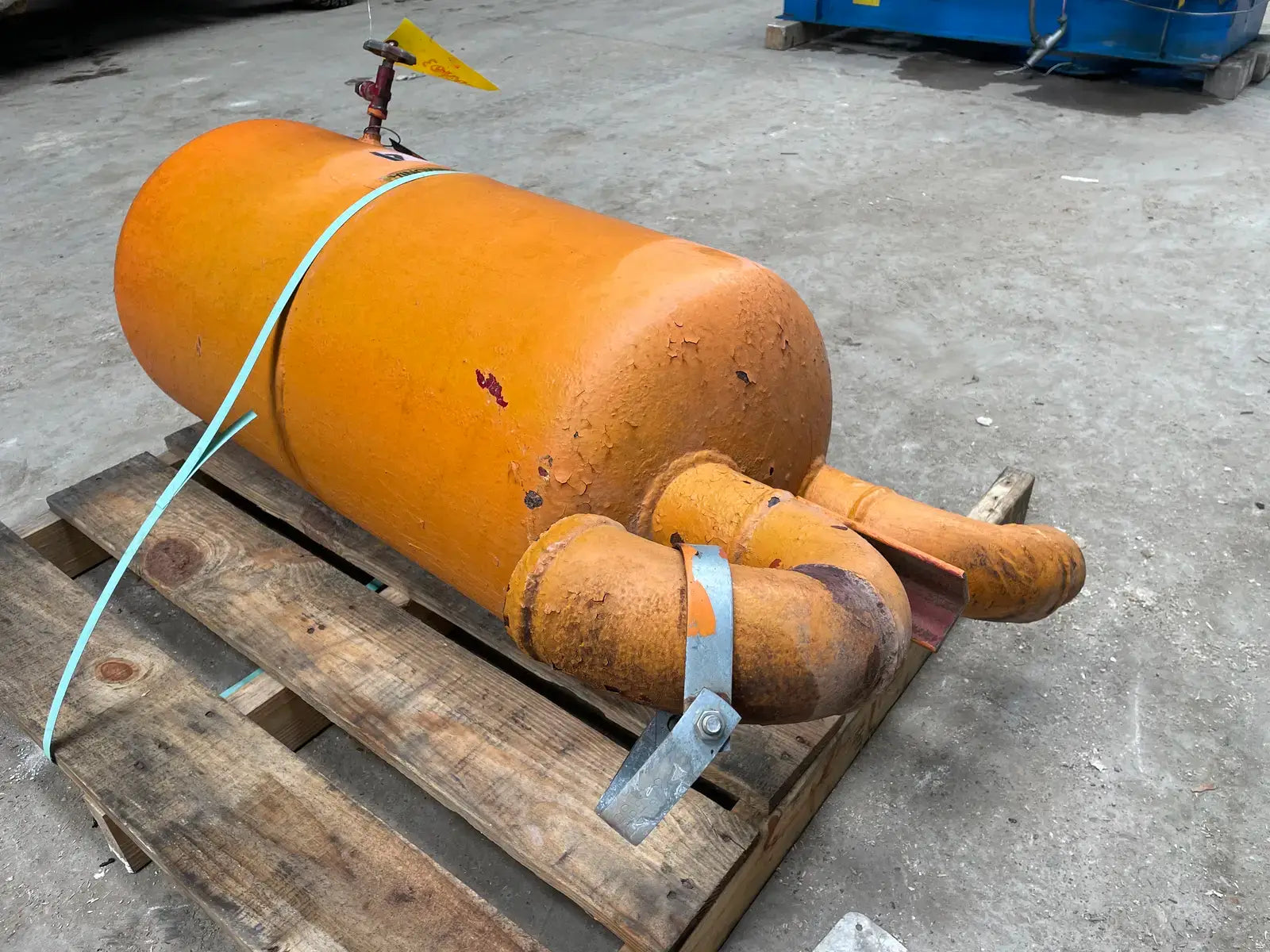

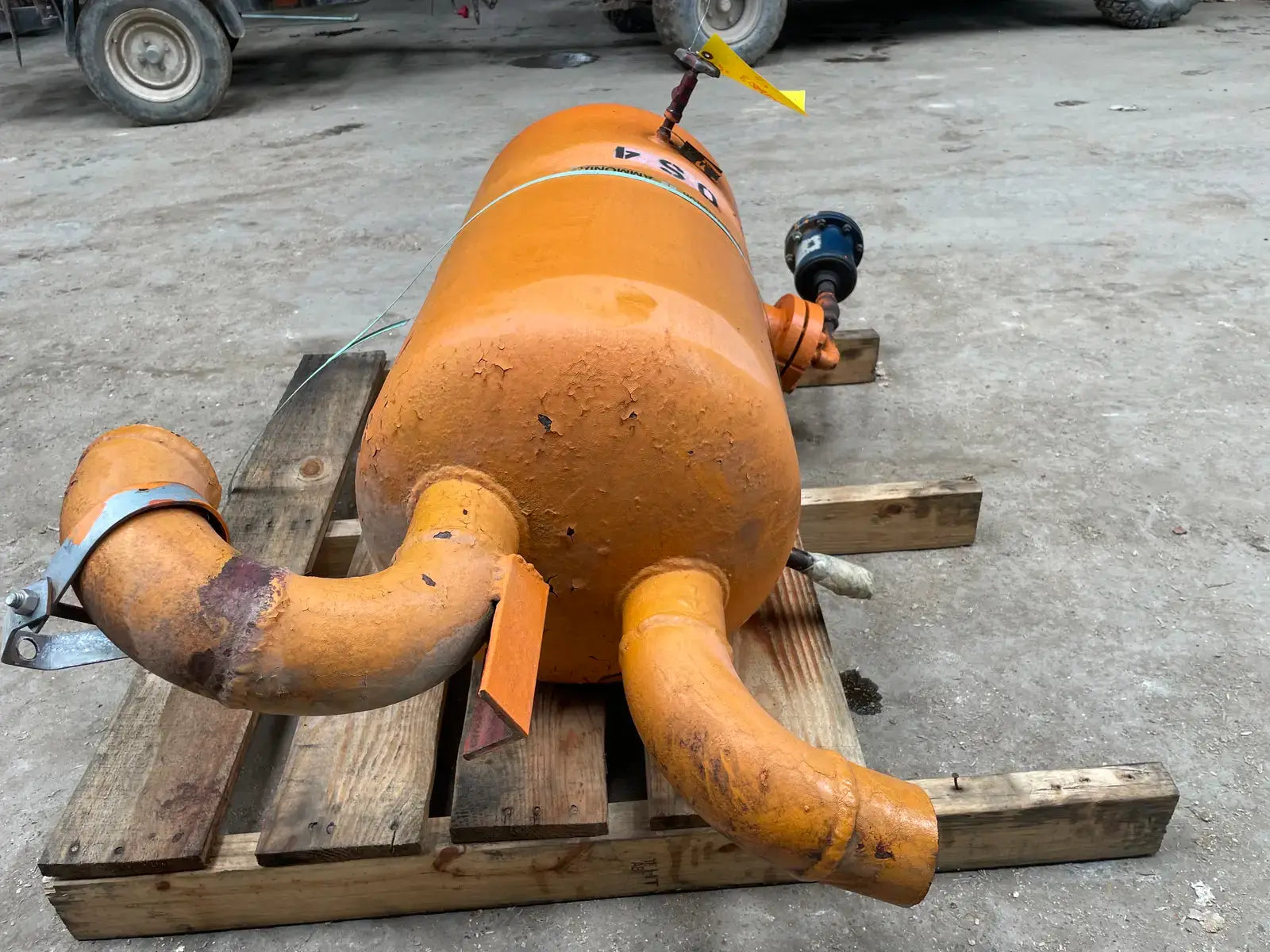

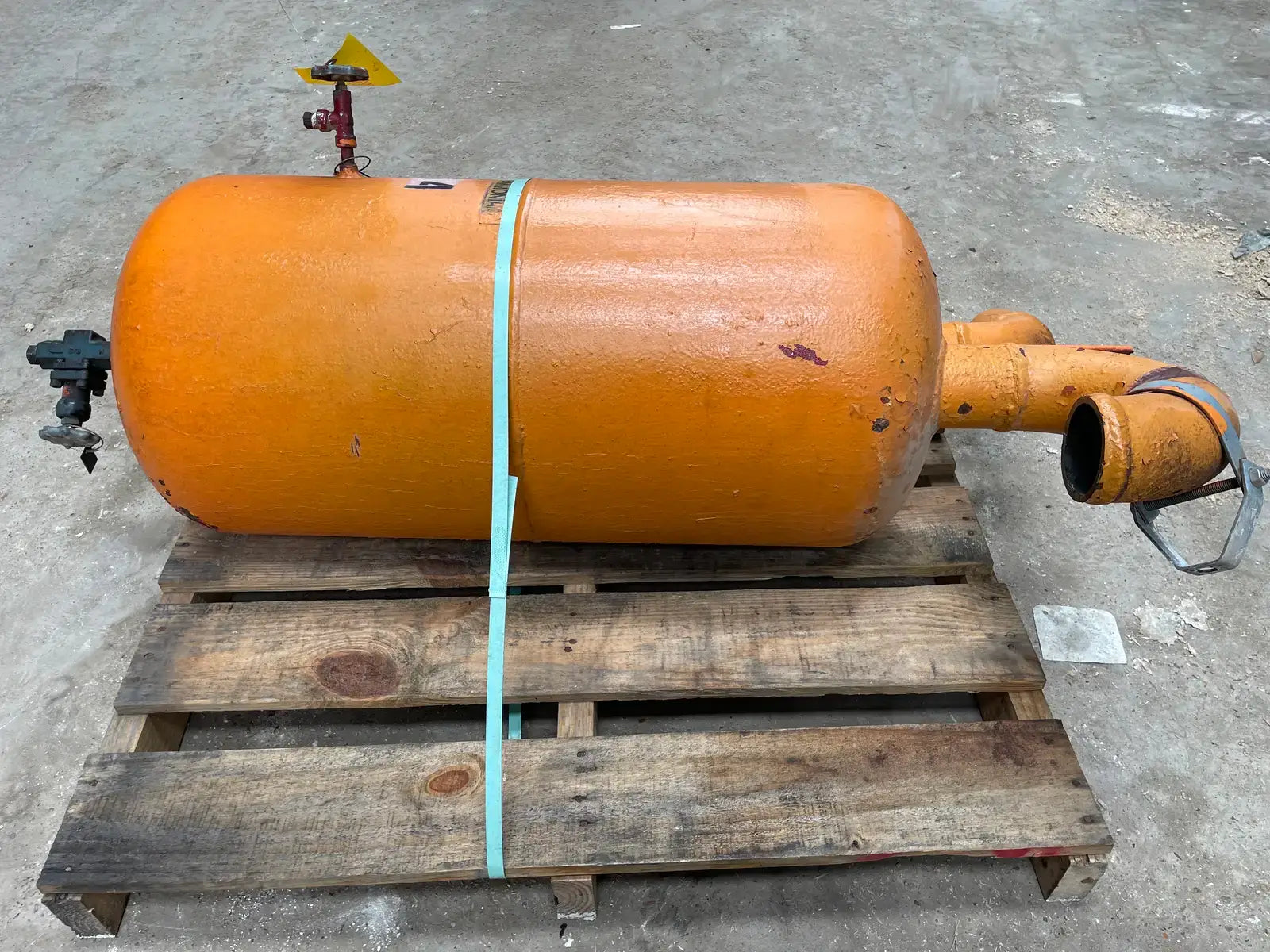

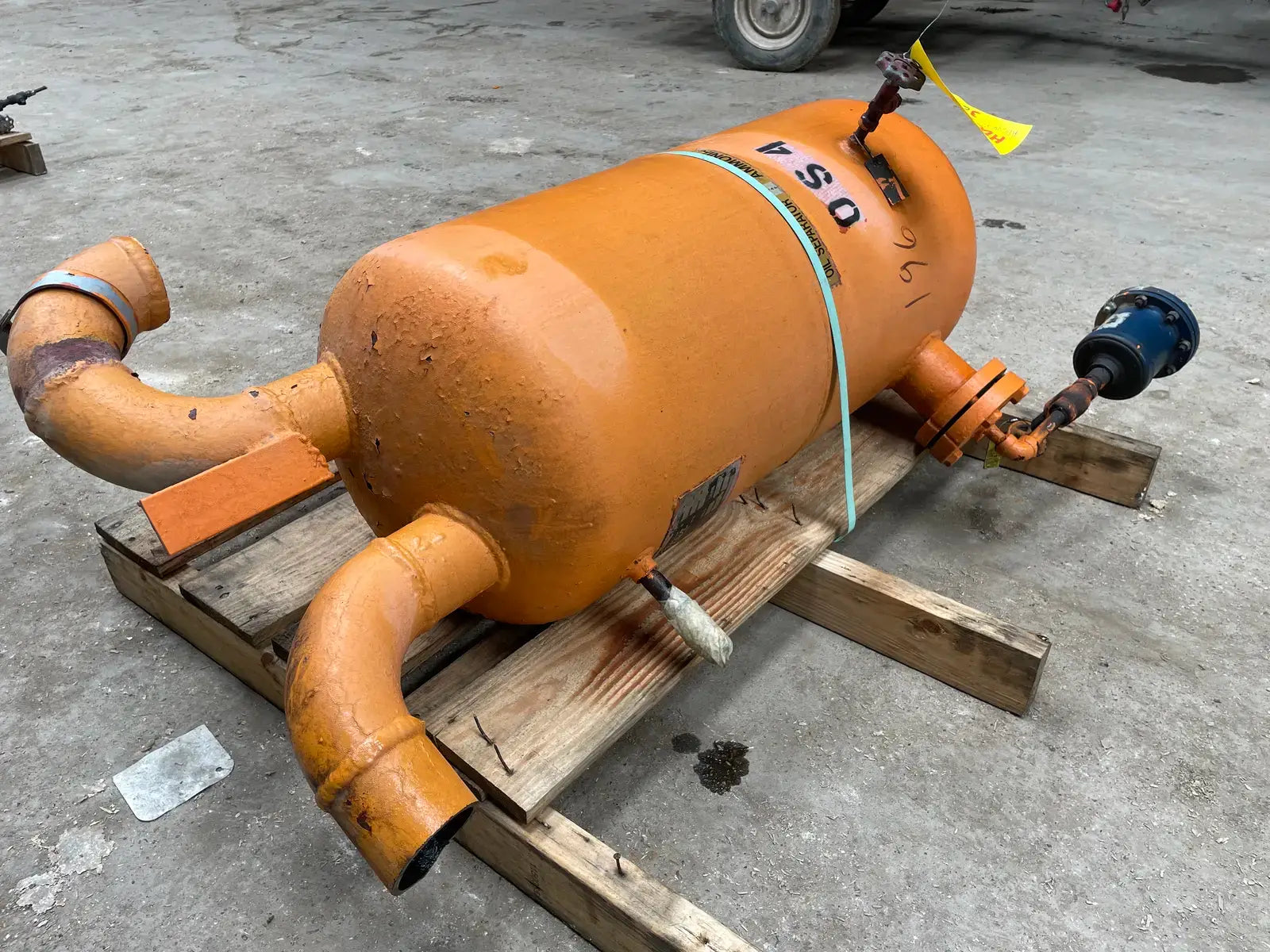

- Oil Separator Included? Yes

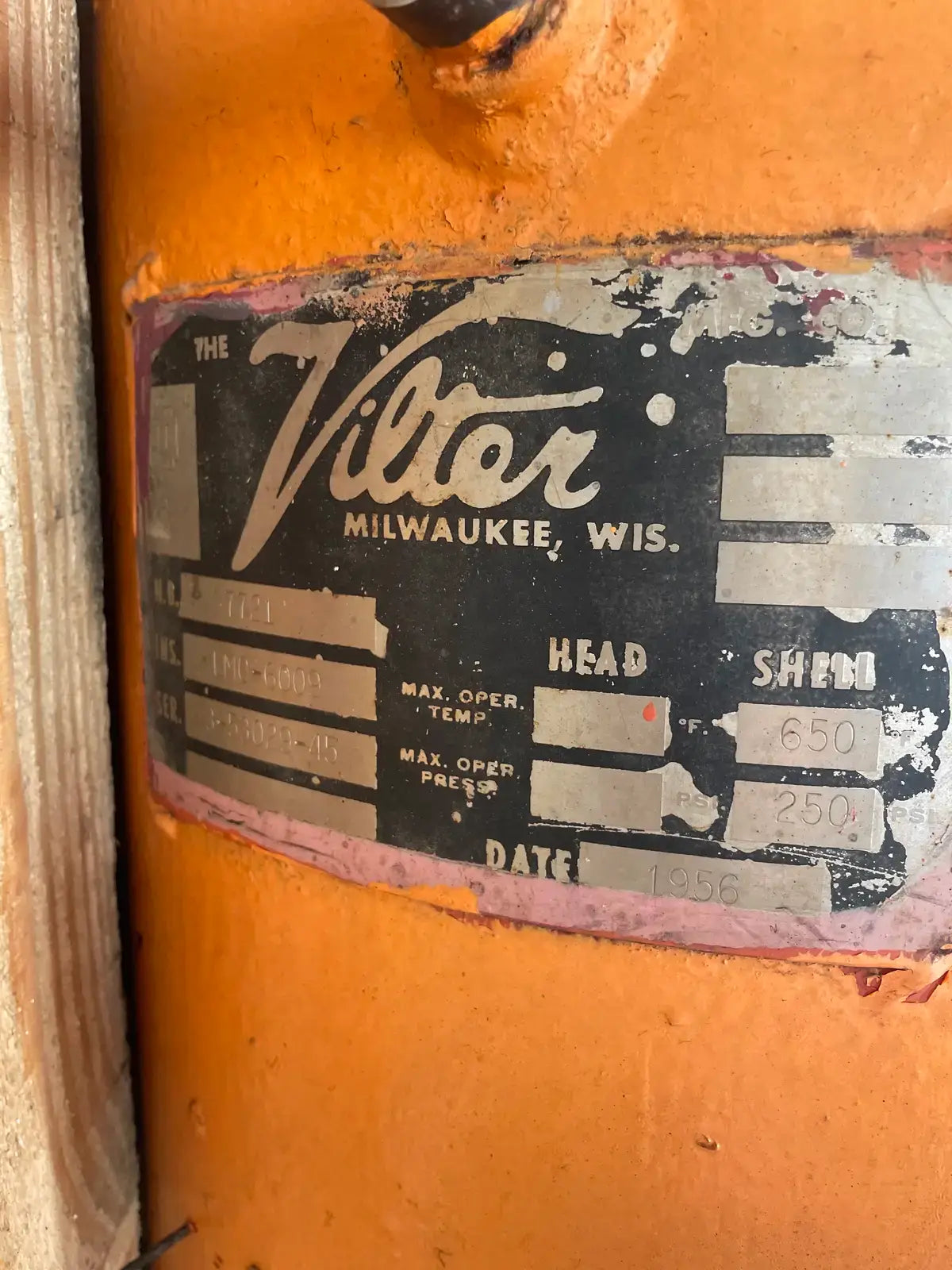

- Oil Separator National Board #: 7721

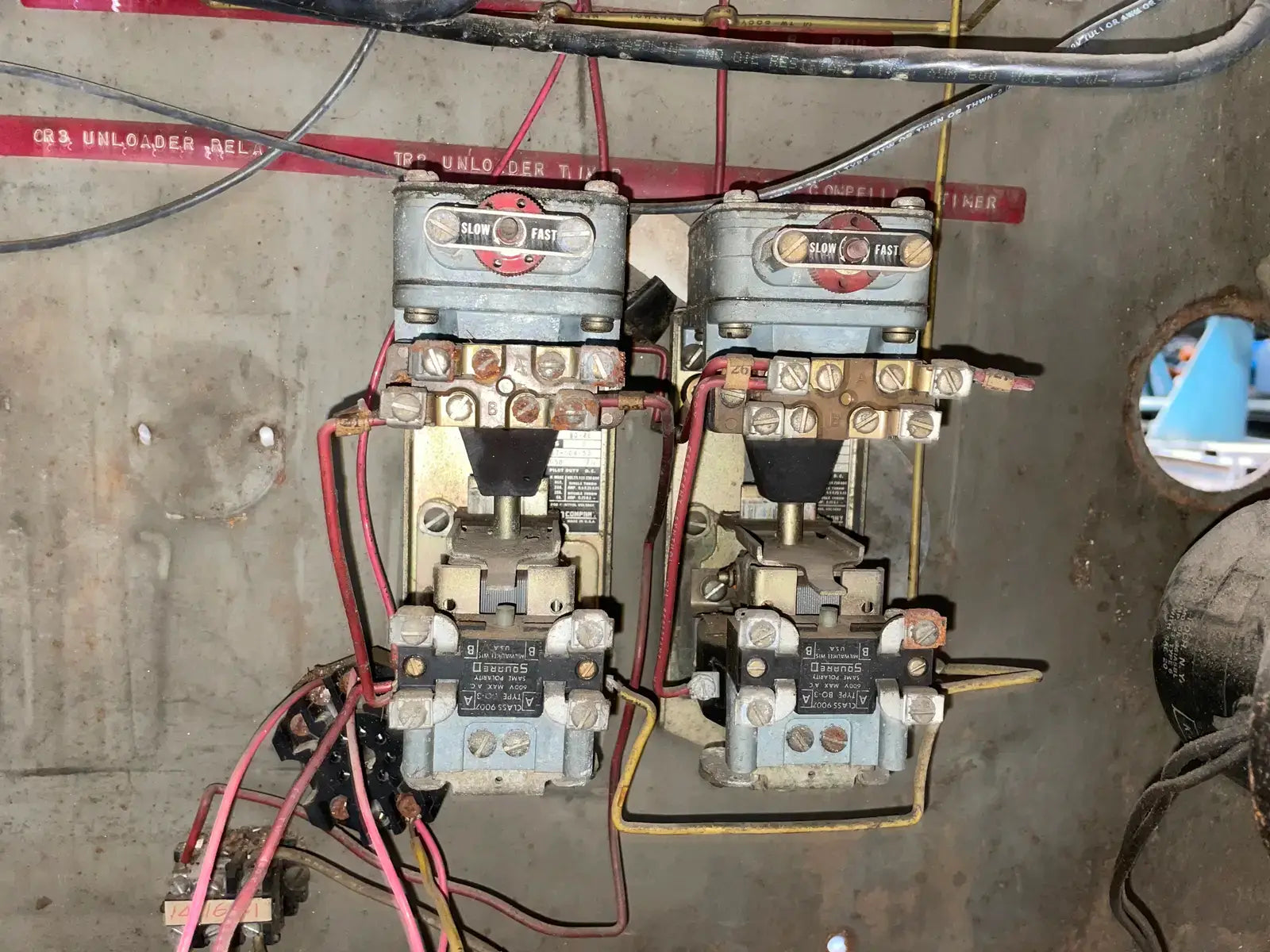

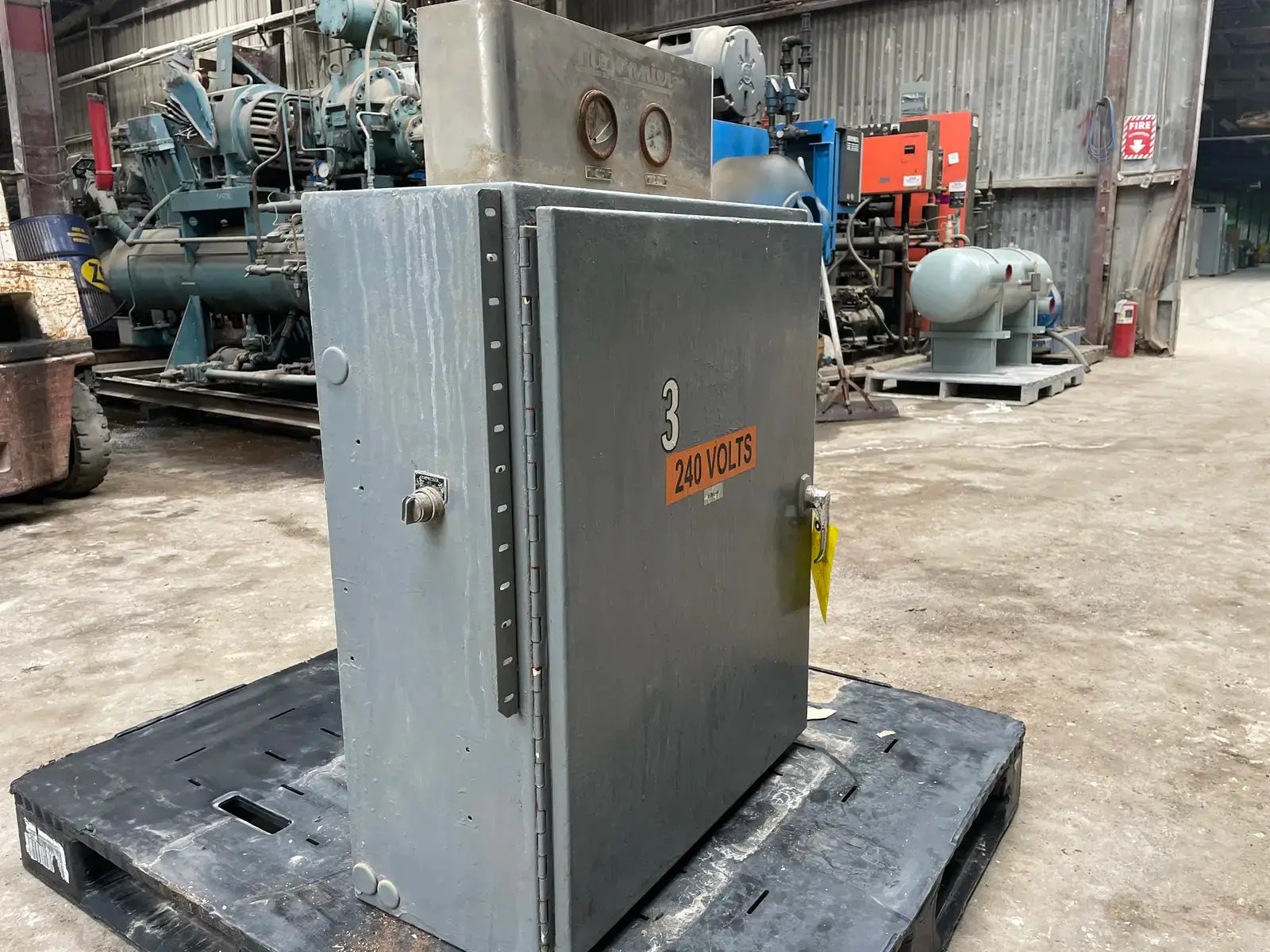

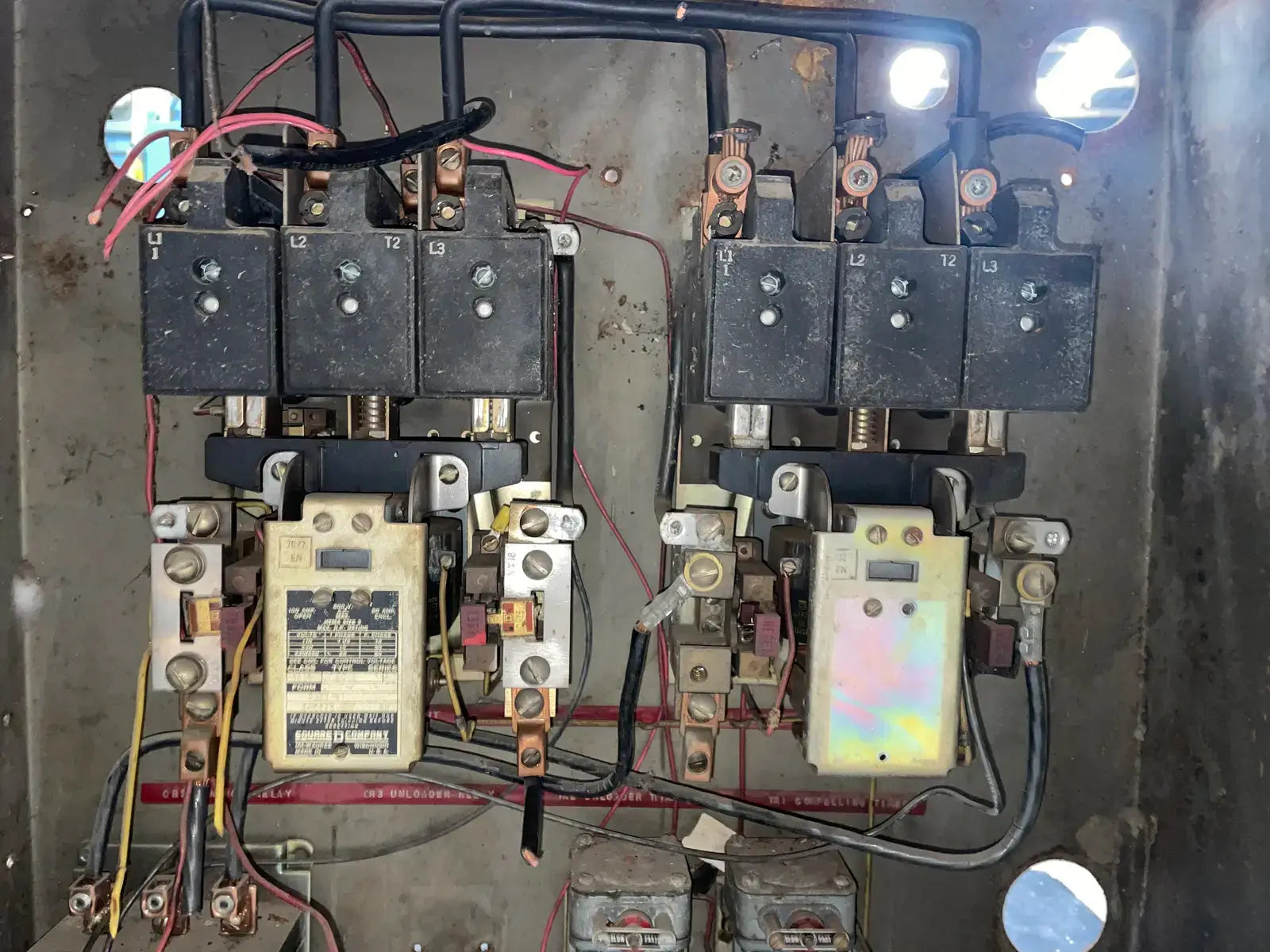

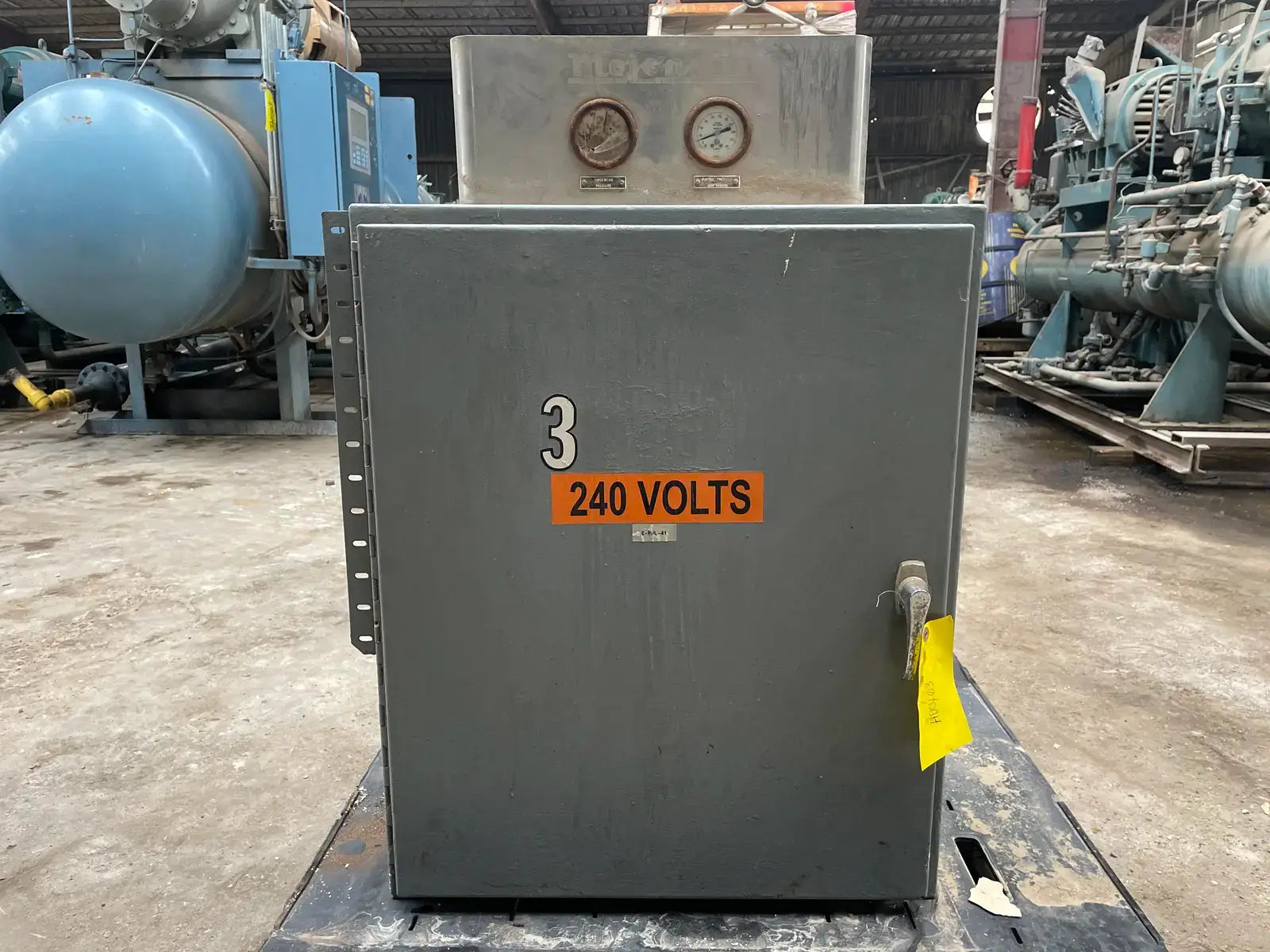

Motor Starter Details
- Motor Starter Included? Yes

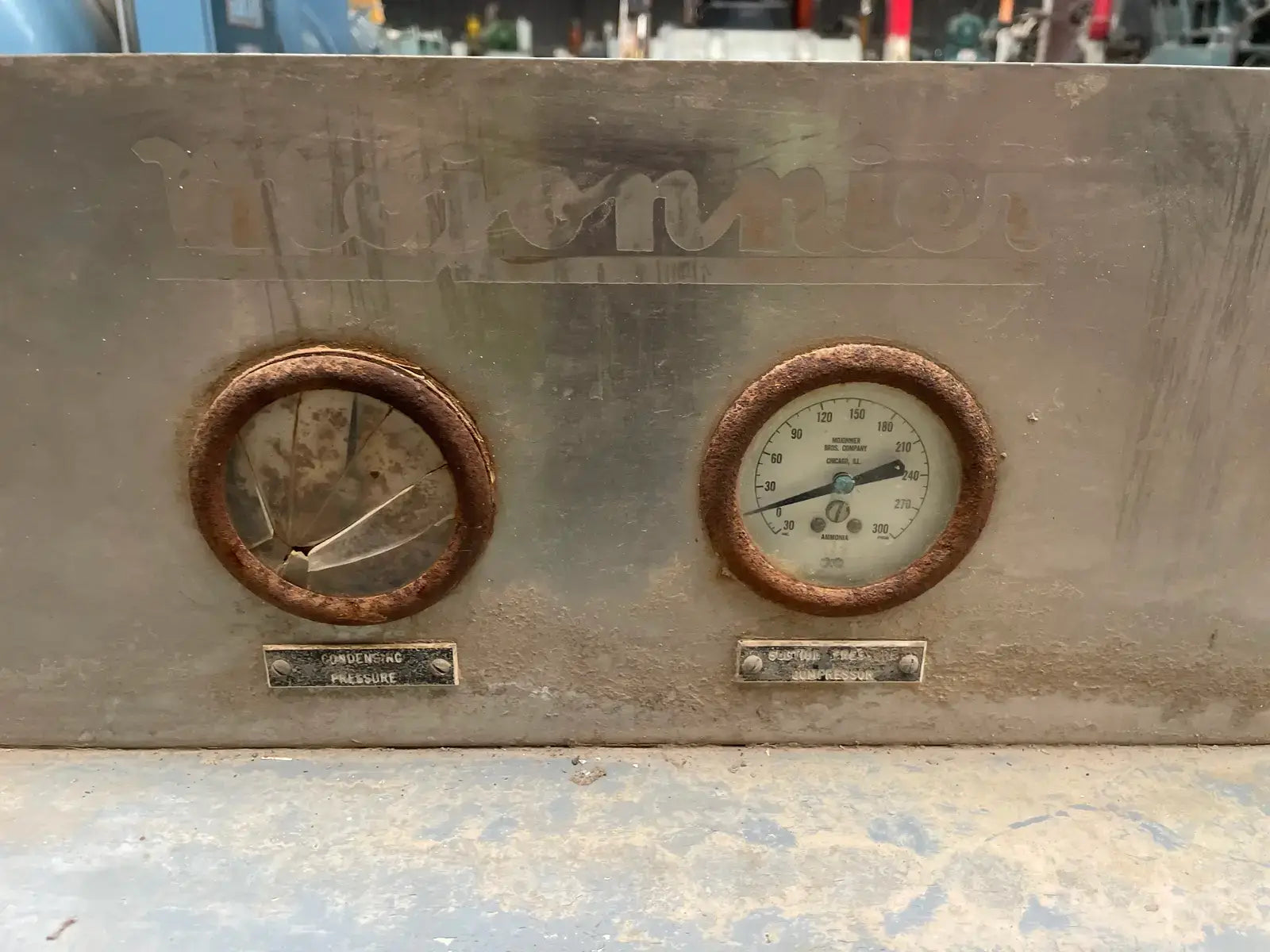

- Motor Starter Manufacturer: Mojonnier Bros
- Motor Starter Type: Soft Starter
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

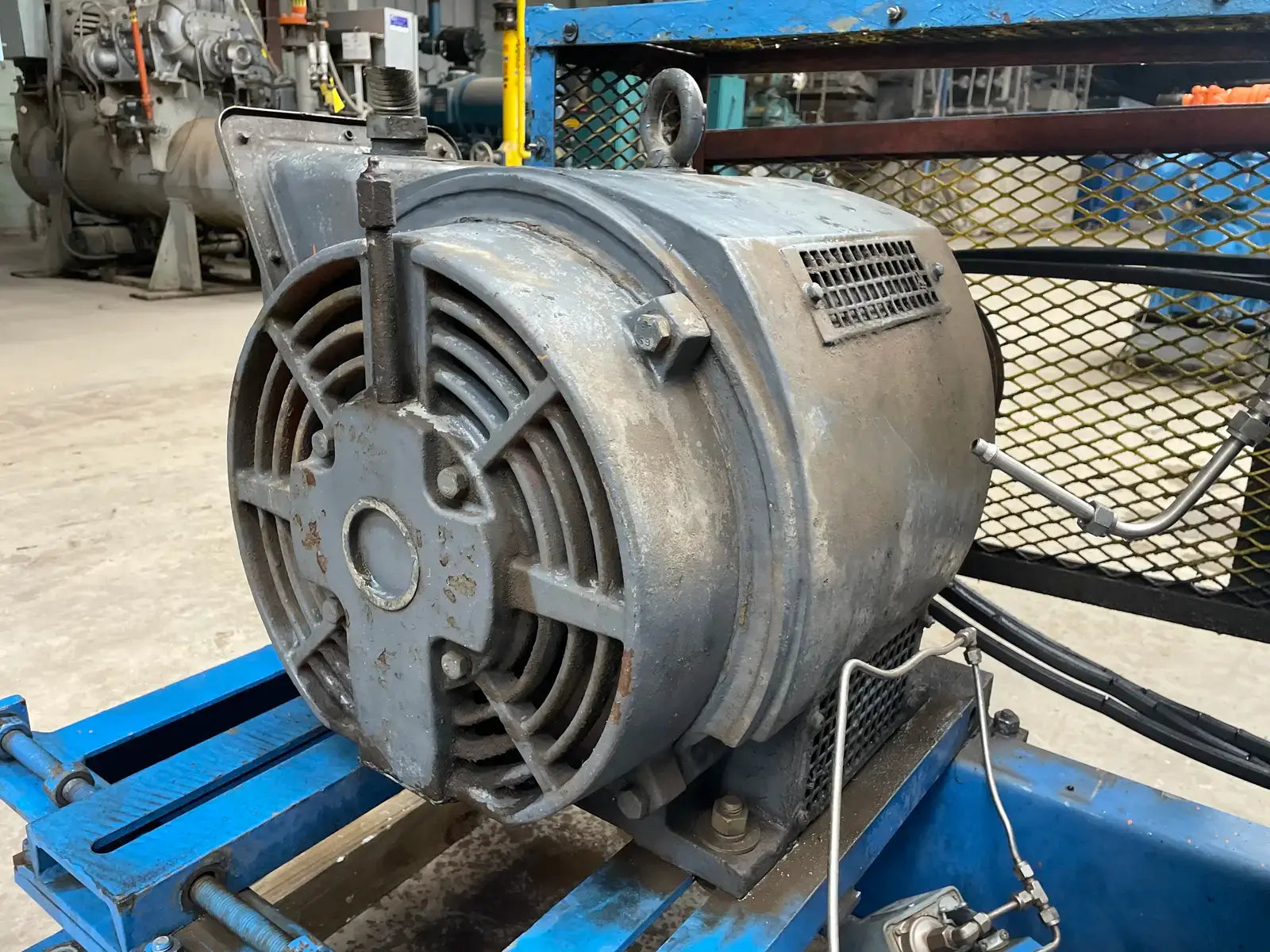

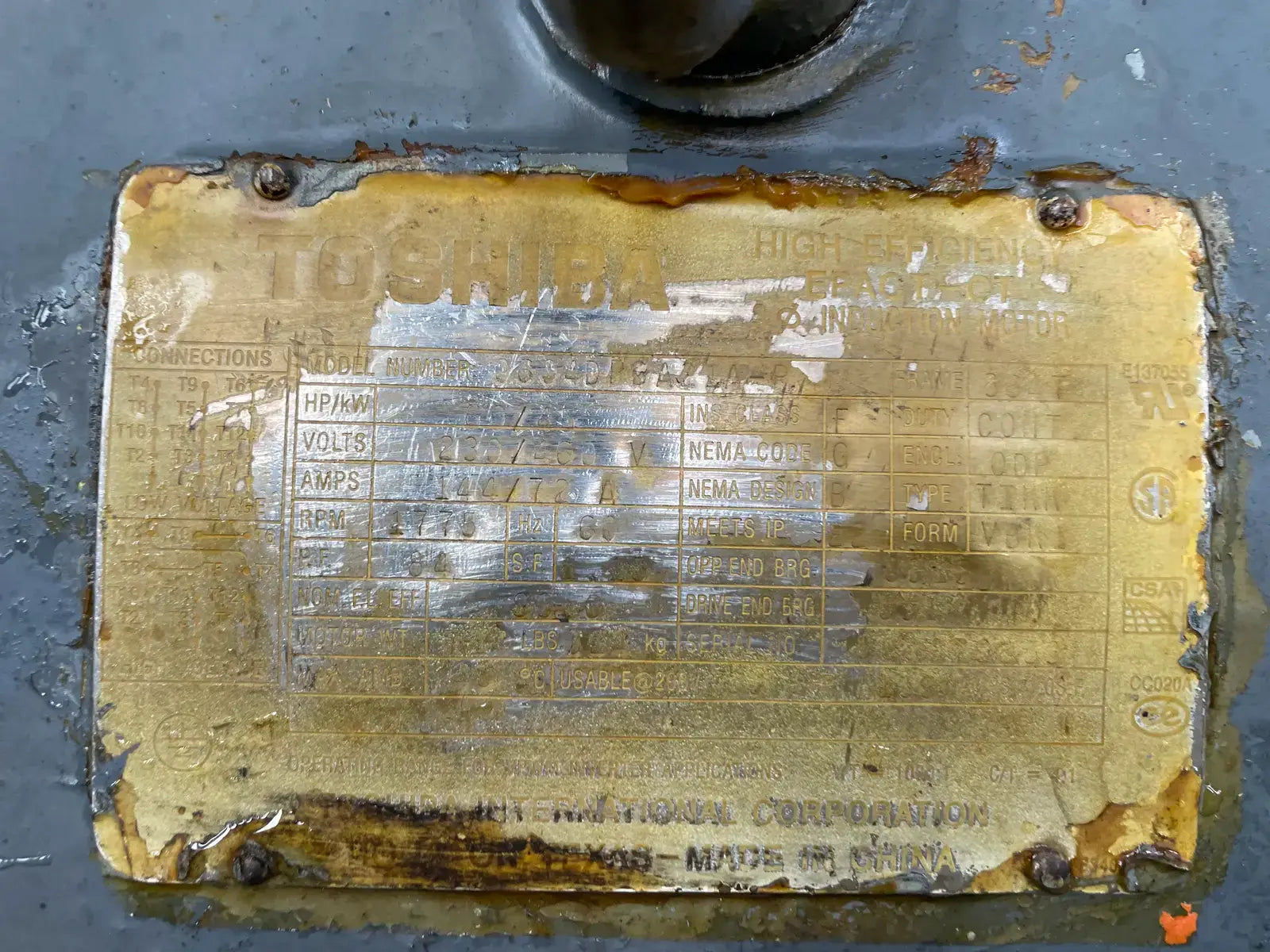

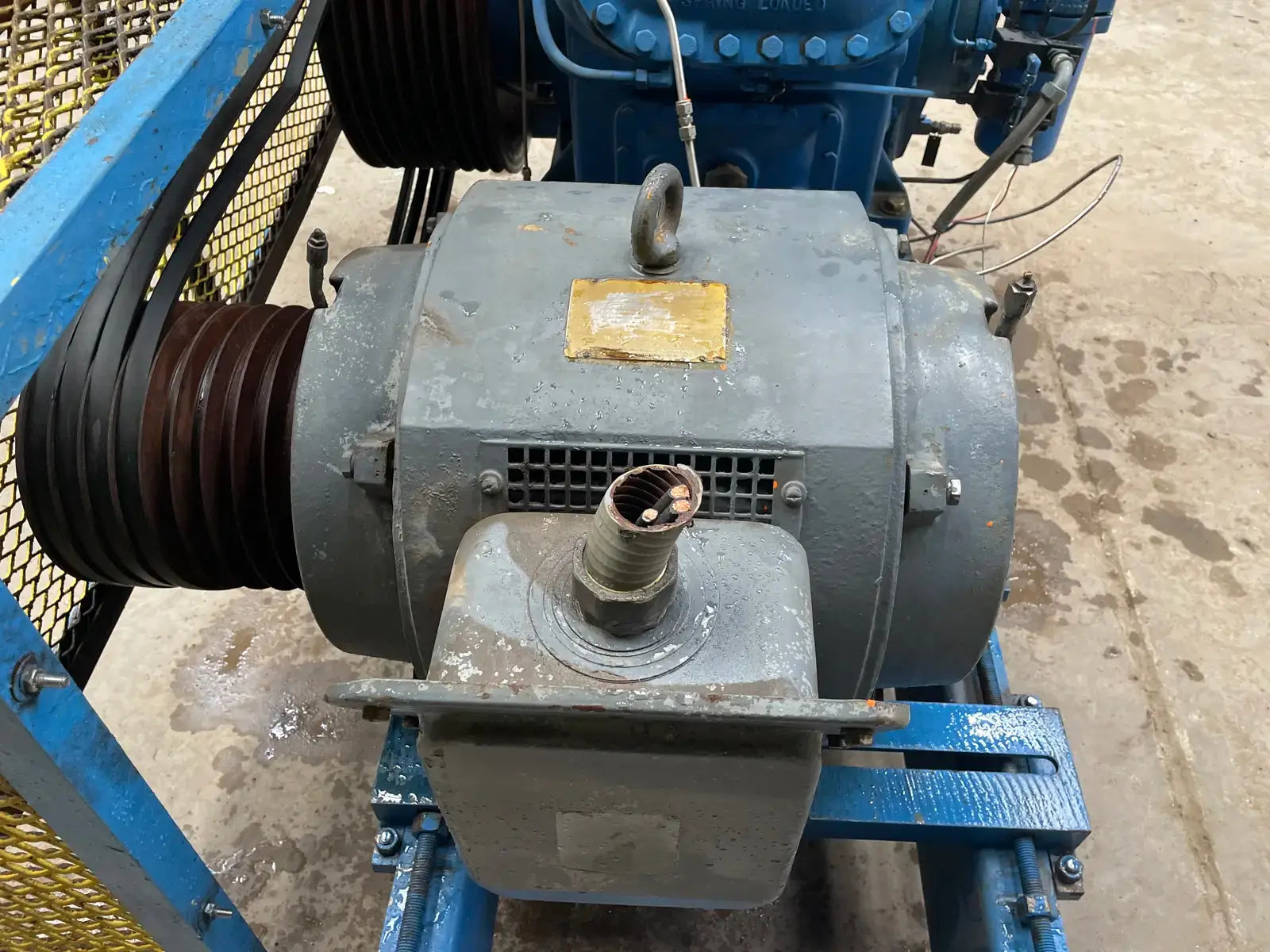

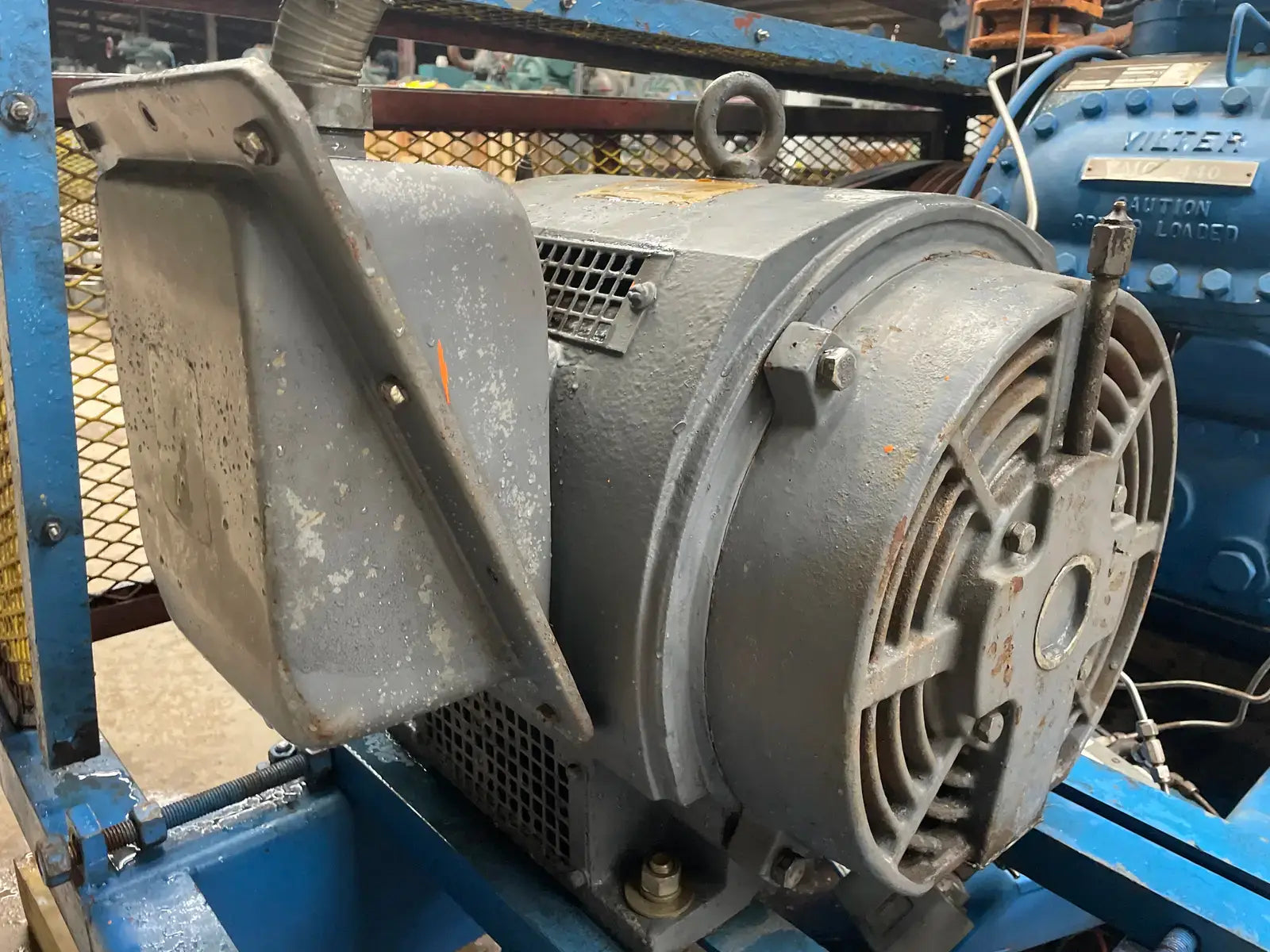

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 60
- Motor RPM: 1,775
- Motor Voltage: 230/460
- Motor Amps: 144/72
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 364T
Dimensions:
- Length (Inches): 80
- Width (Inches): 58
- Height (Inches): 62
- Weight (LBS): 3,599
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 1987
- Spec Sheet Available: Yes
- Previously Used With: Borden Dairy Refrigeration Facility
