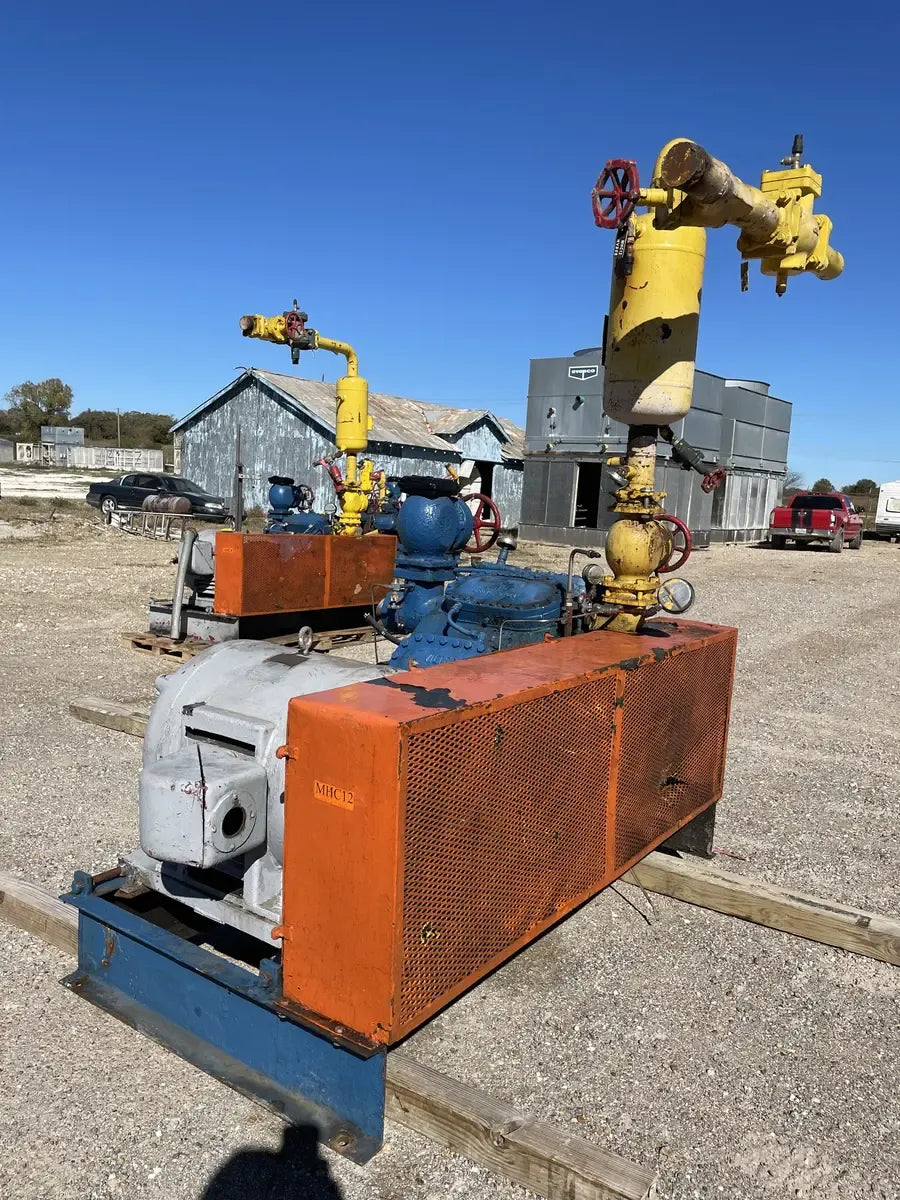

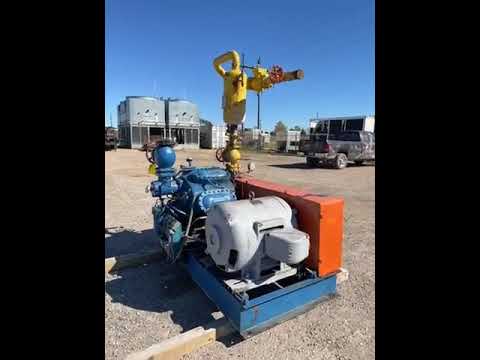

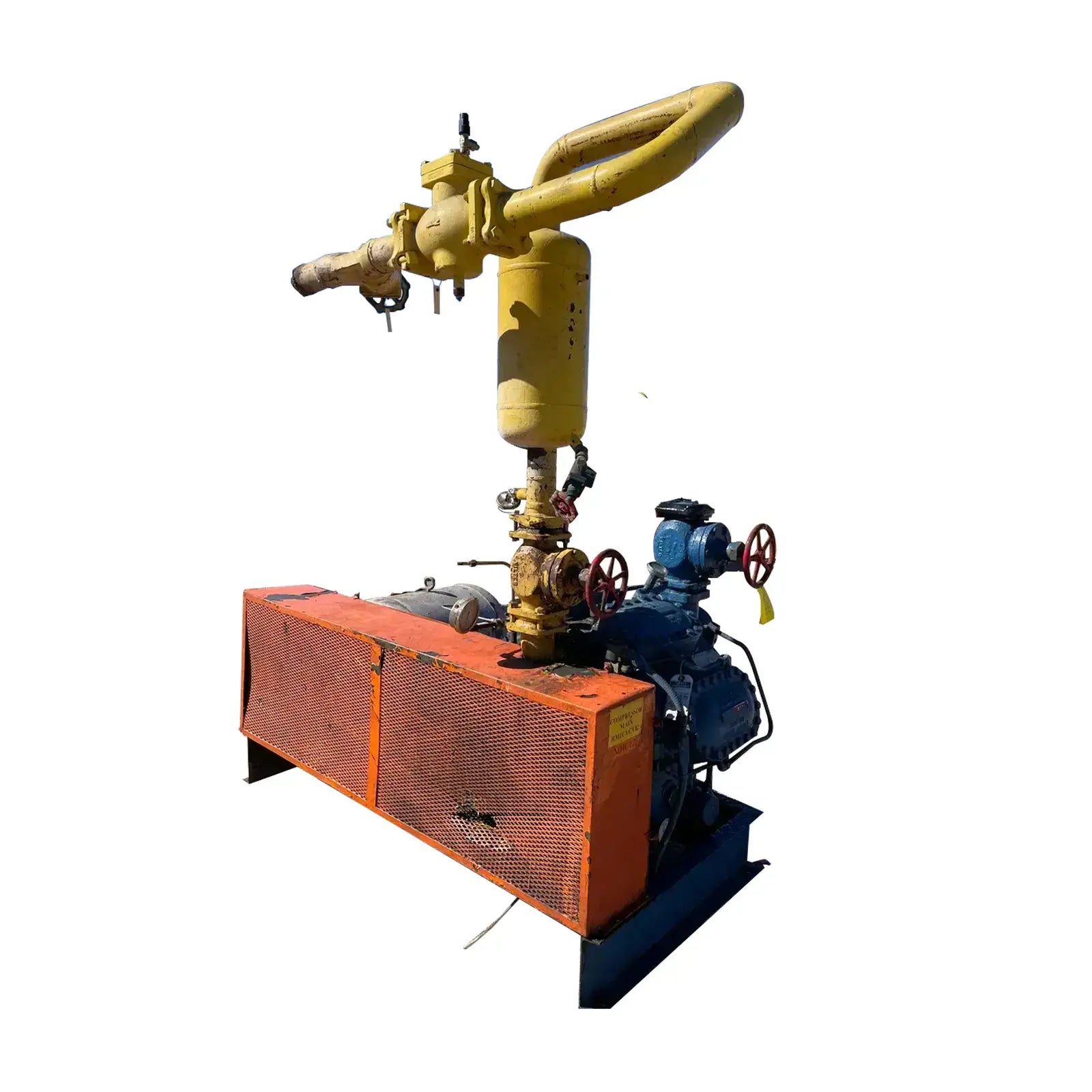

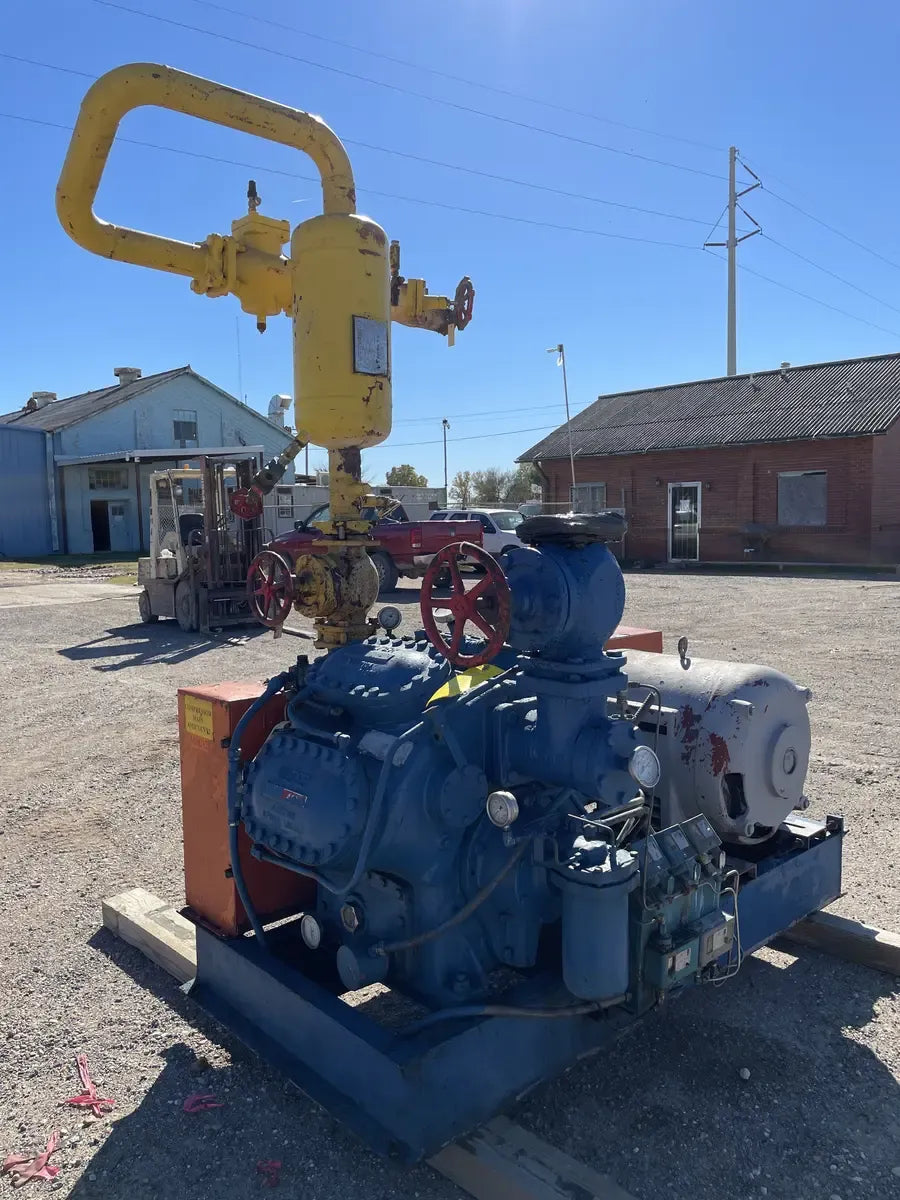

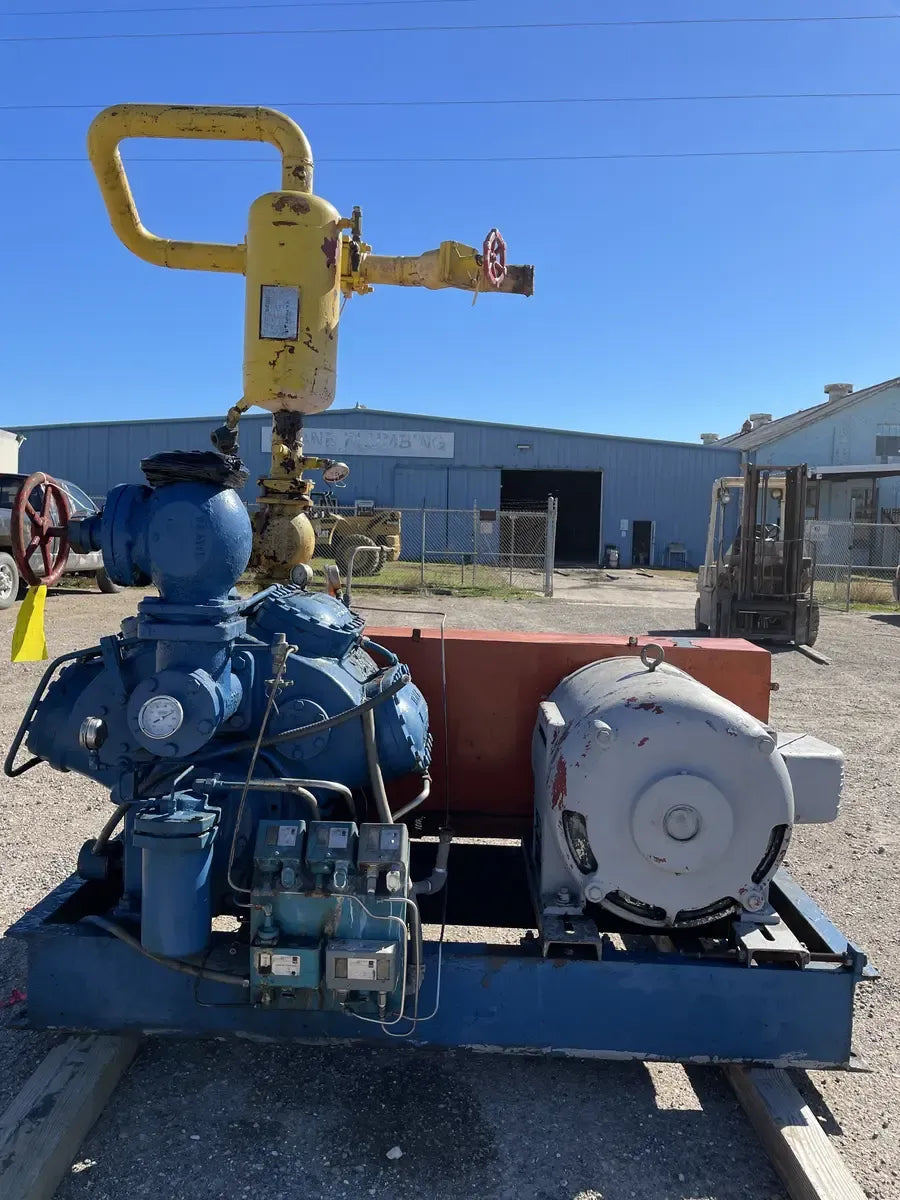

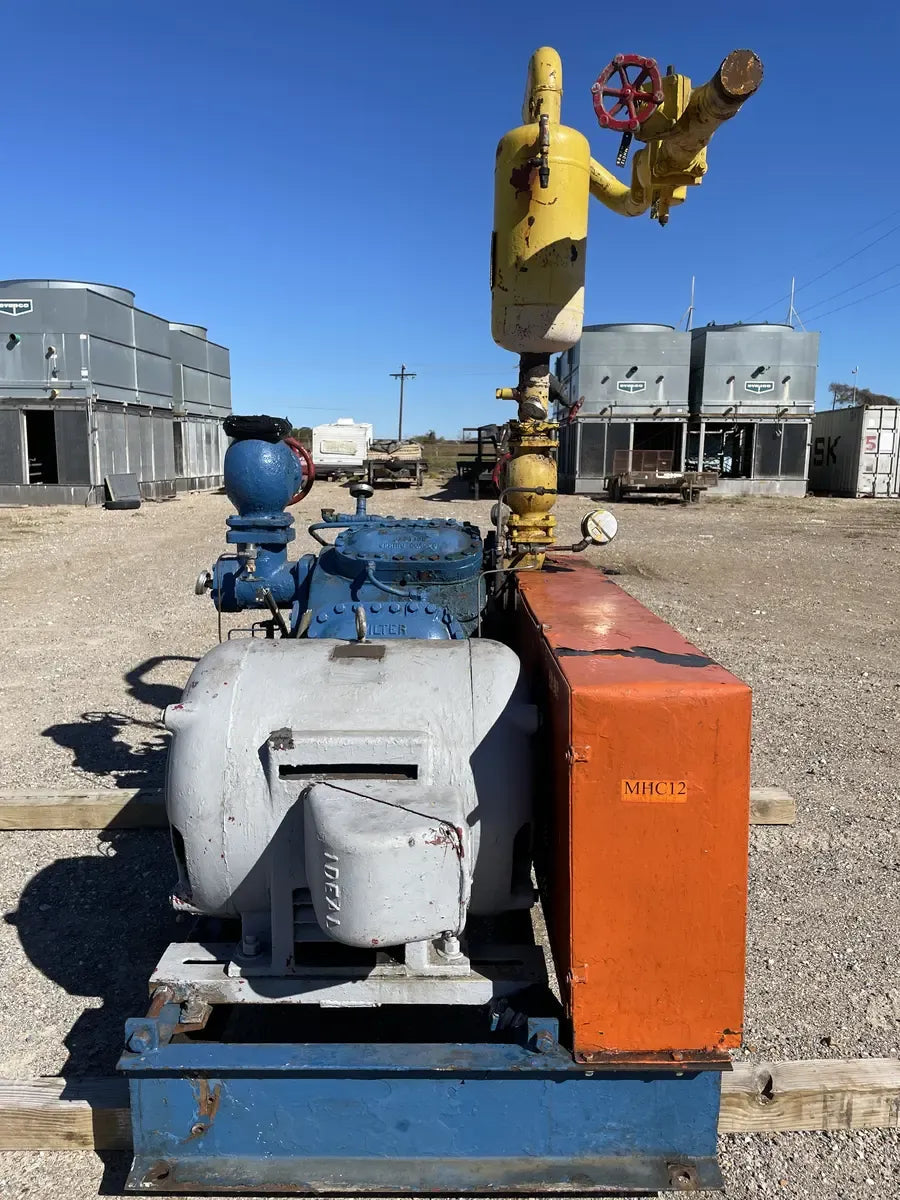

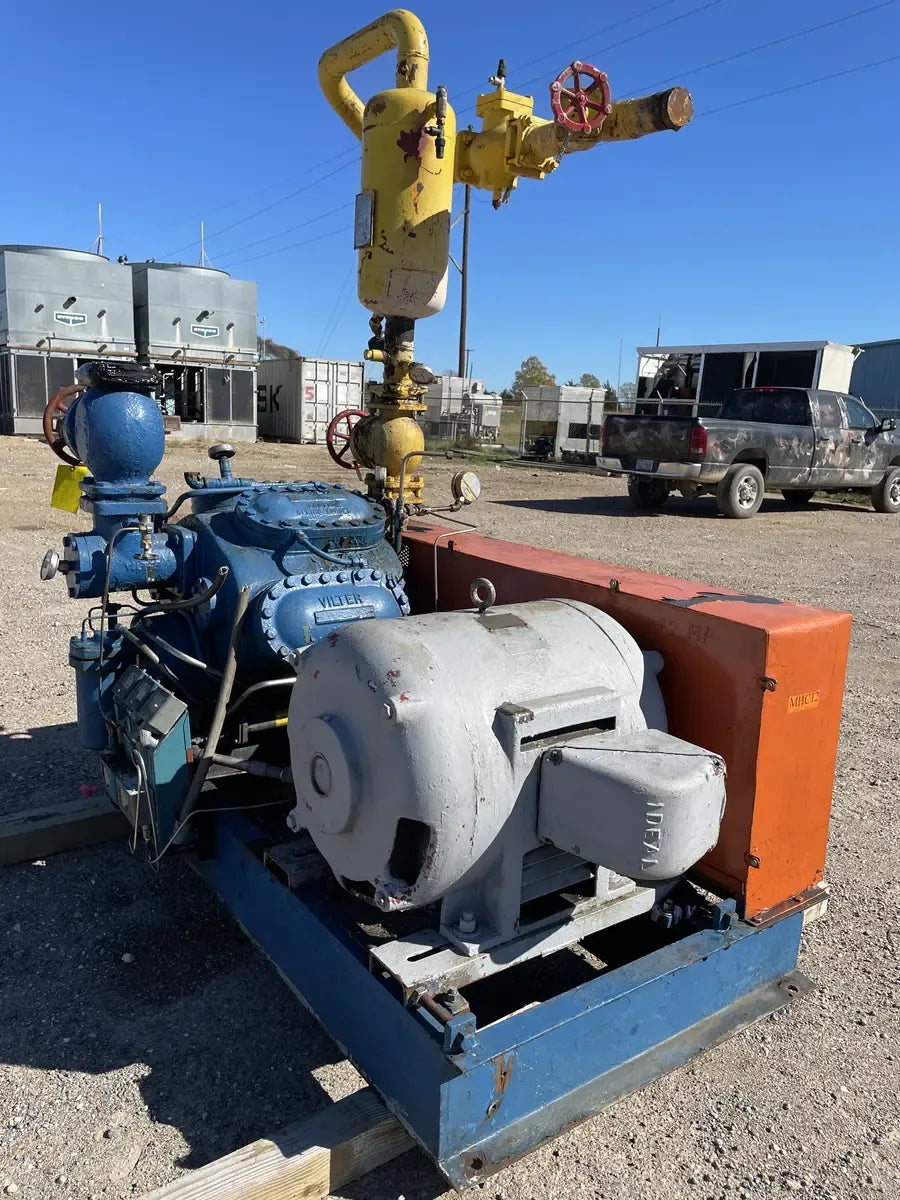

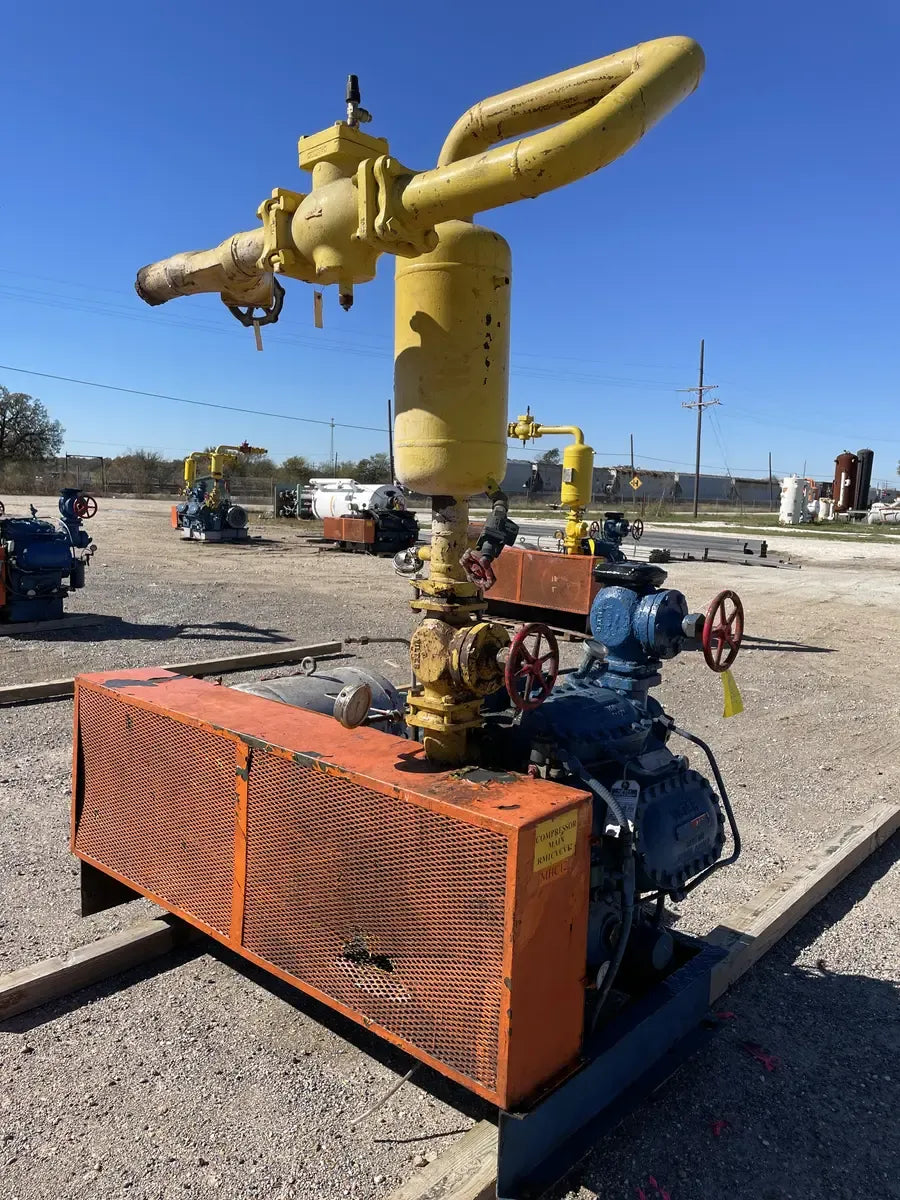

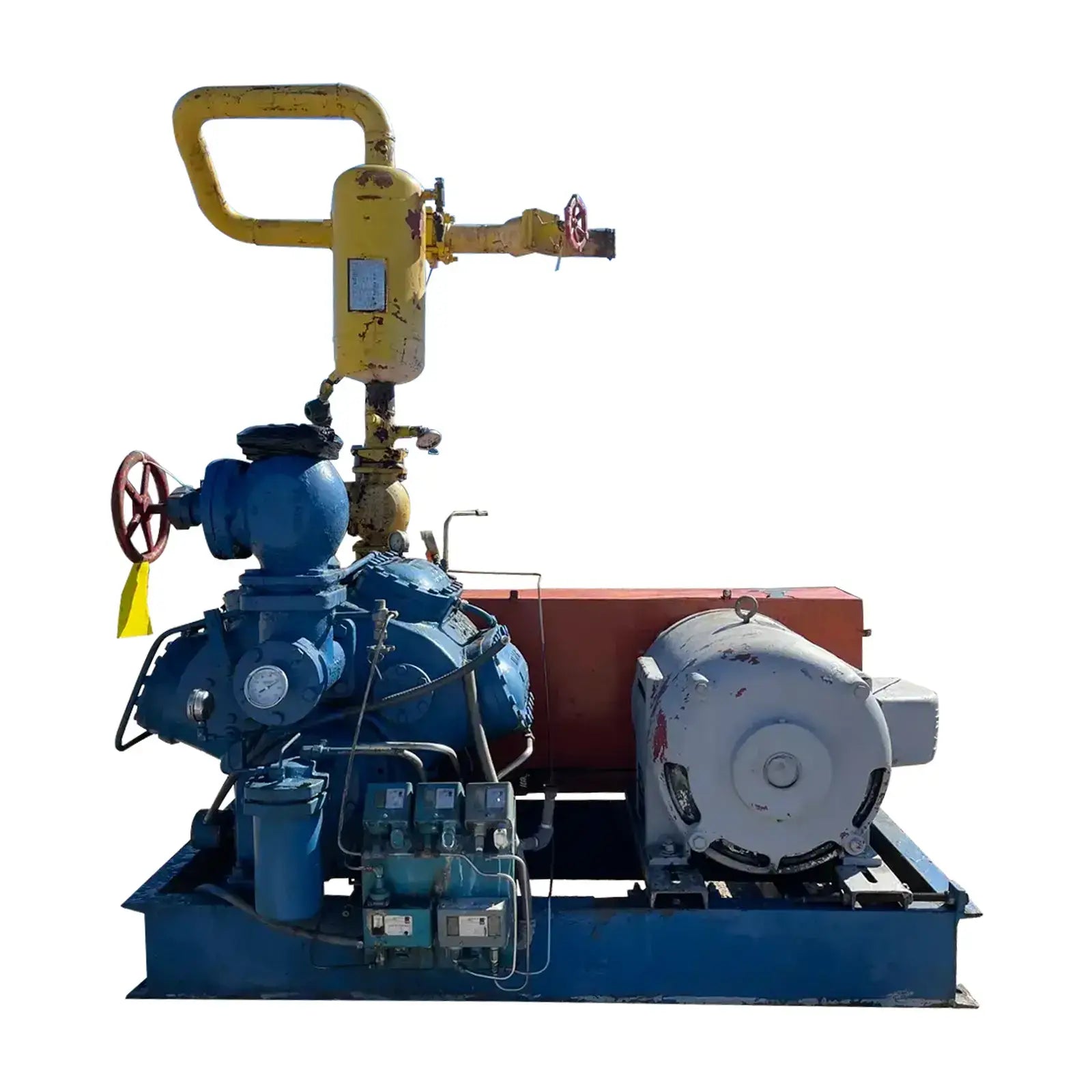

Vilter 448 8-Cylinder Reciprocating Compressor Package (100 HP 208-236/118 V, Belt Driven)

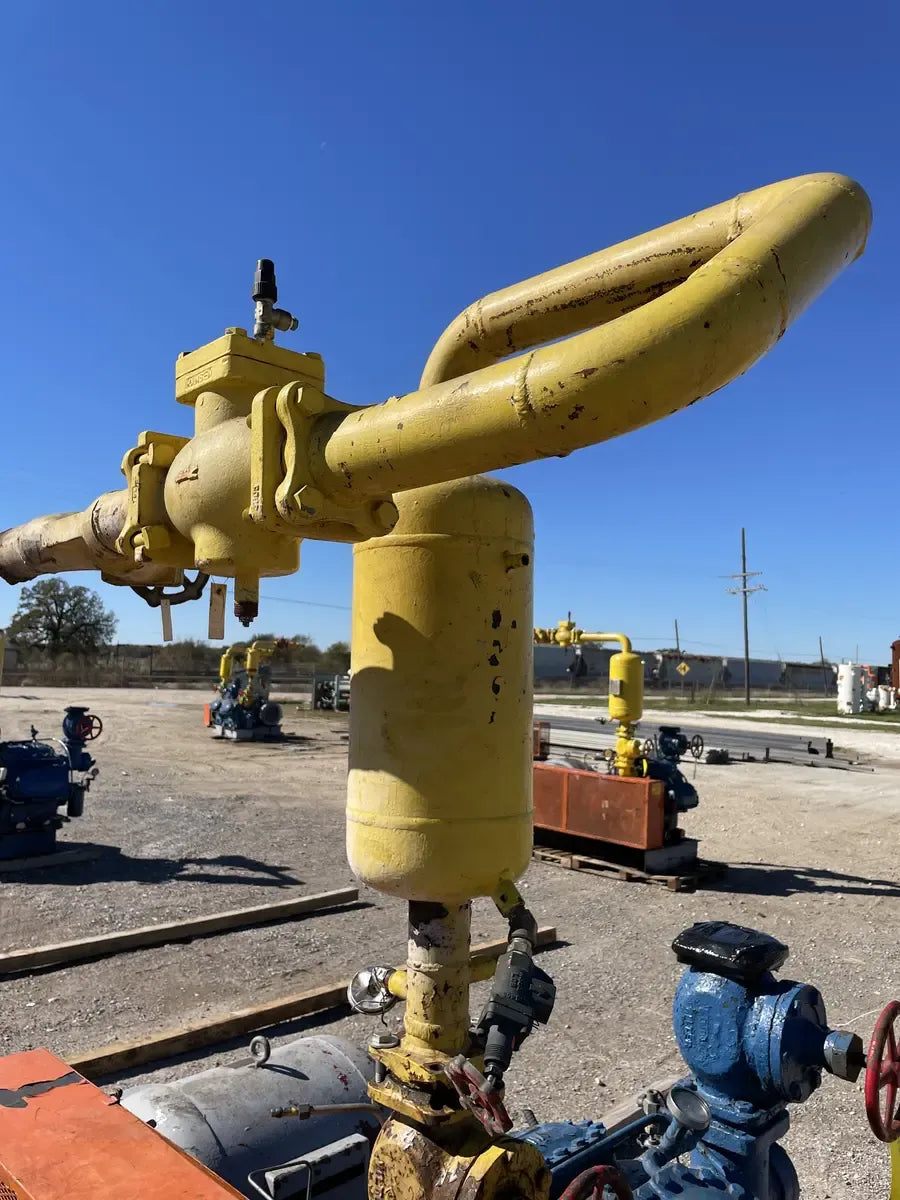

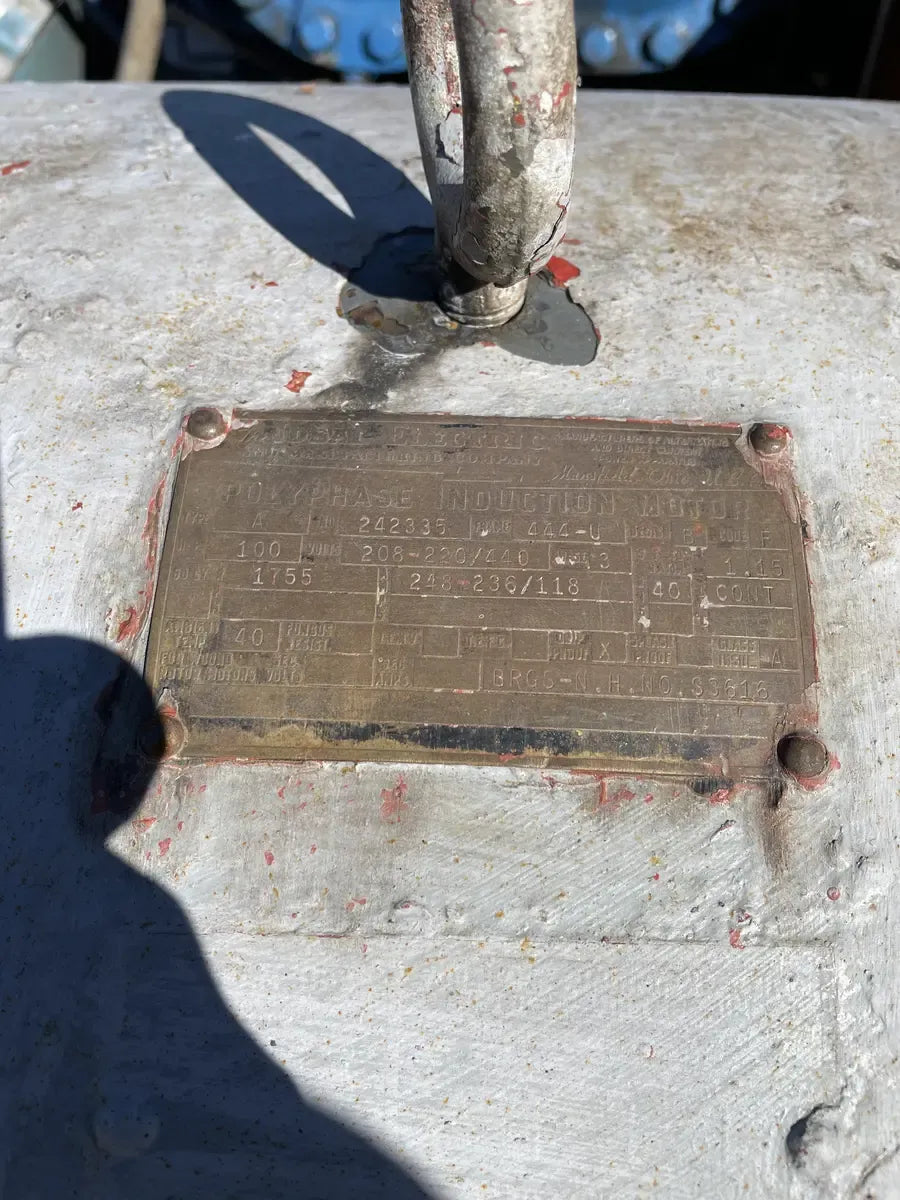

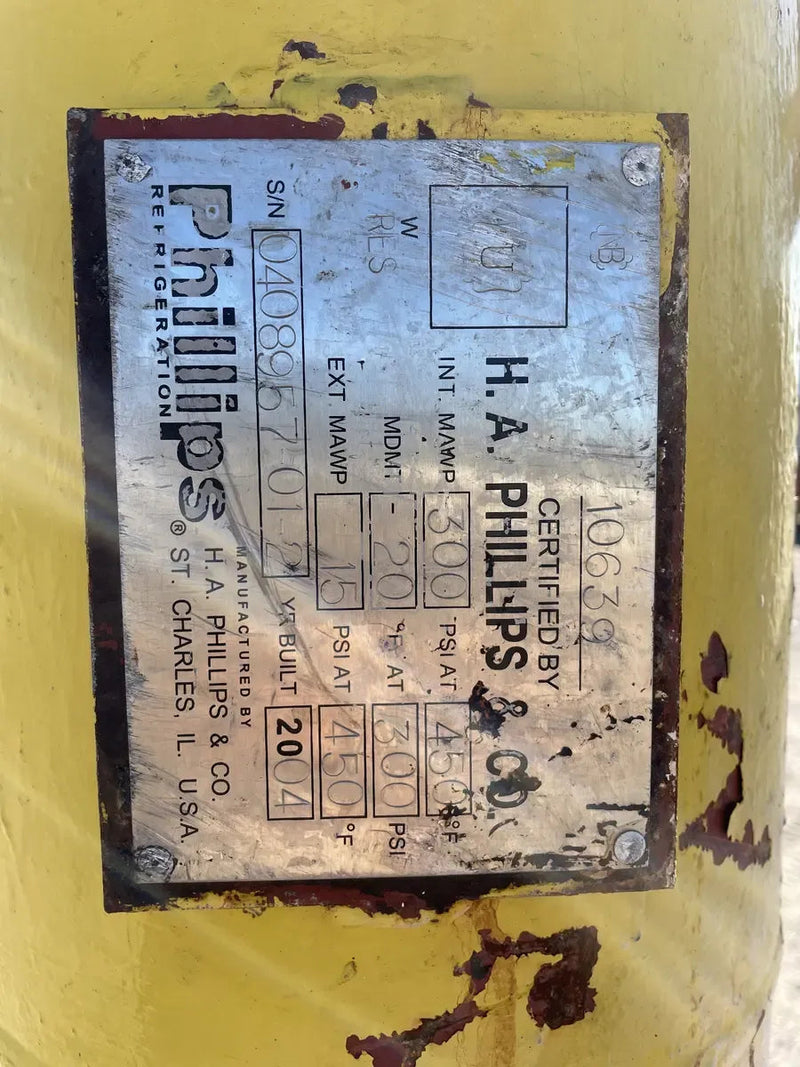

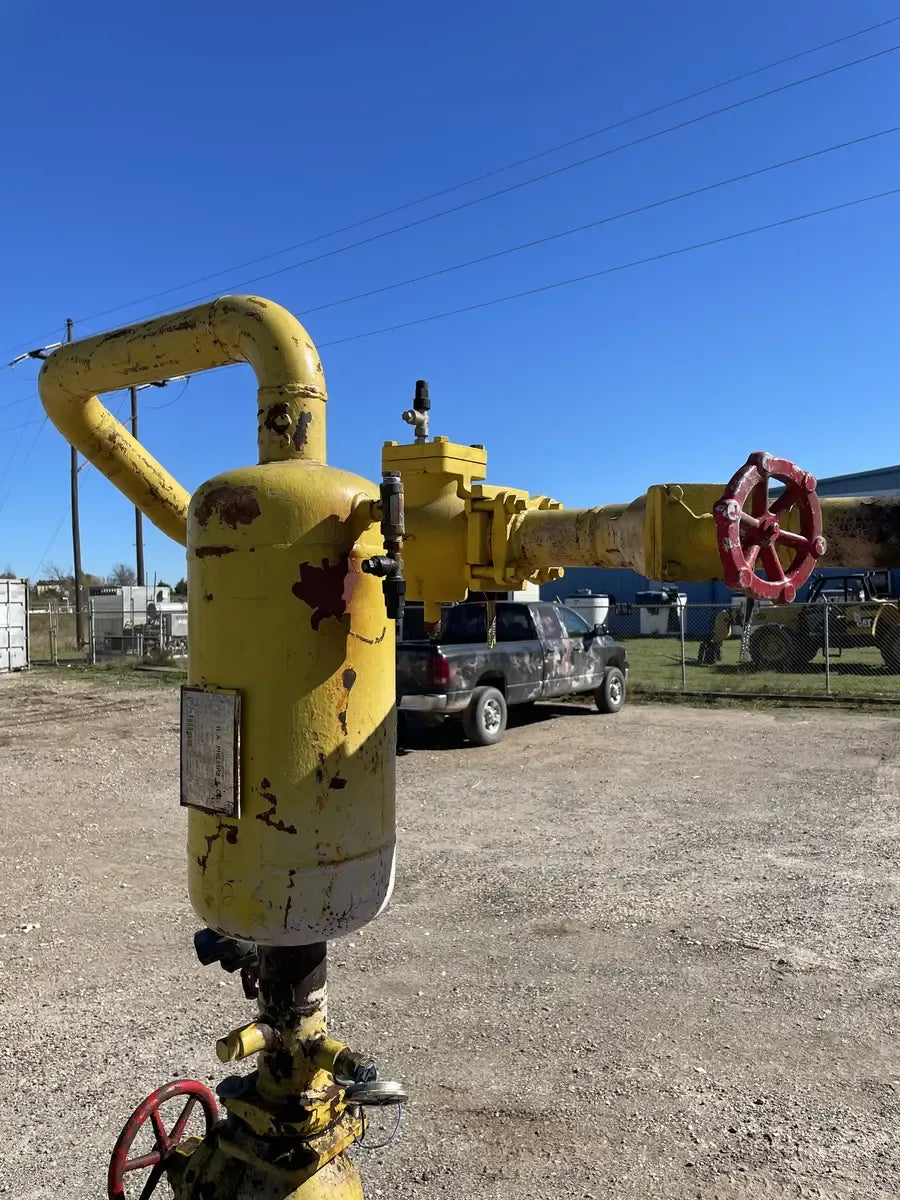

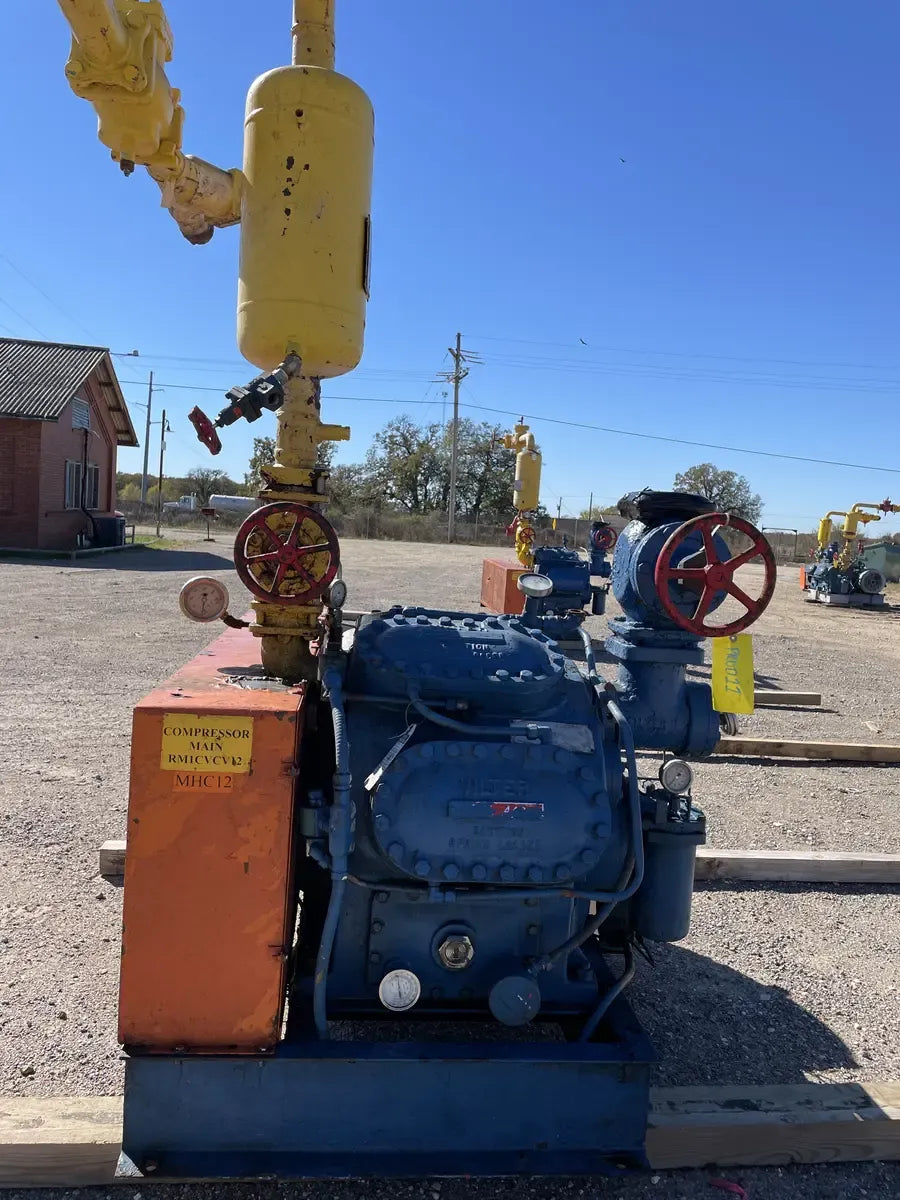

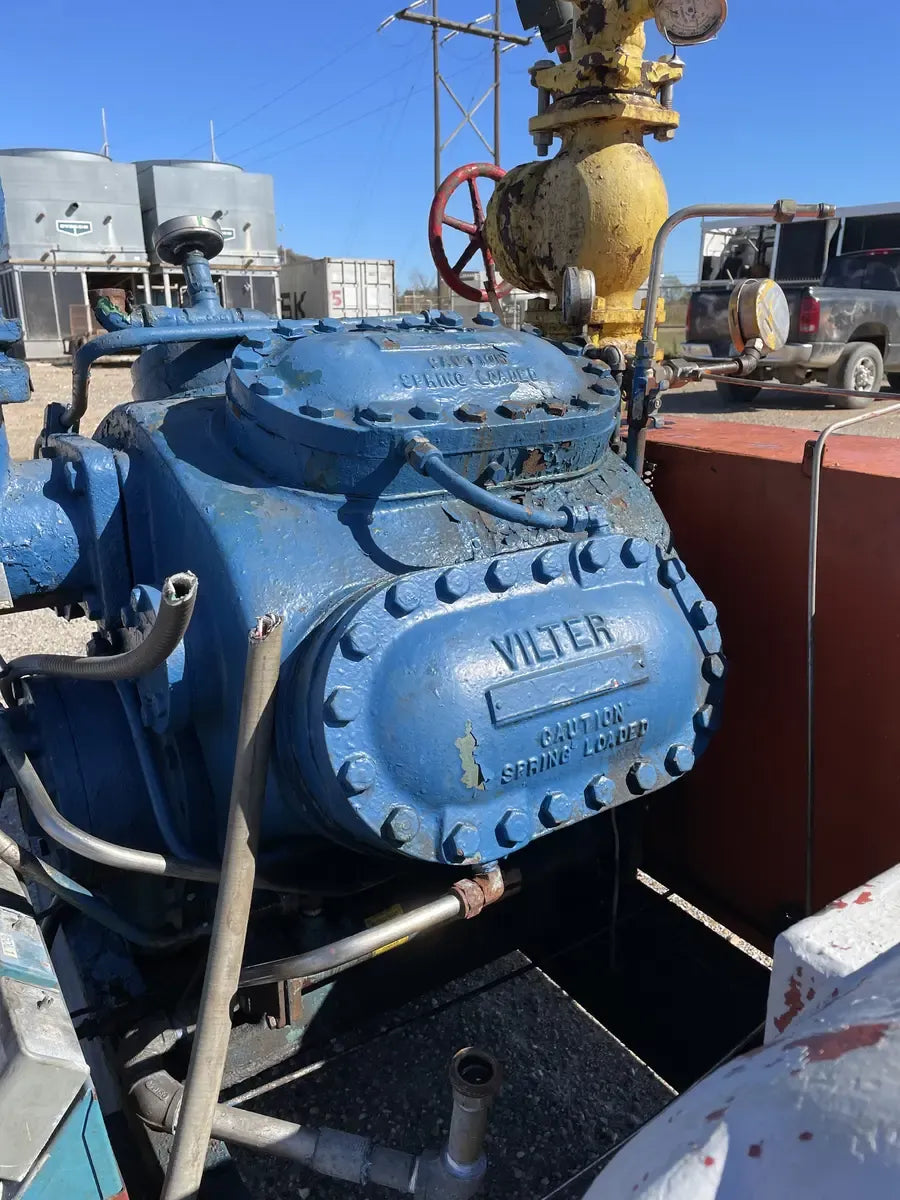

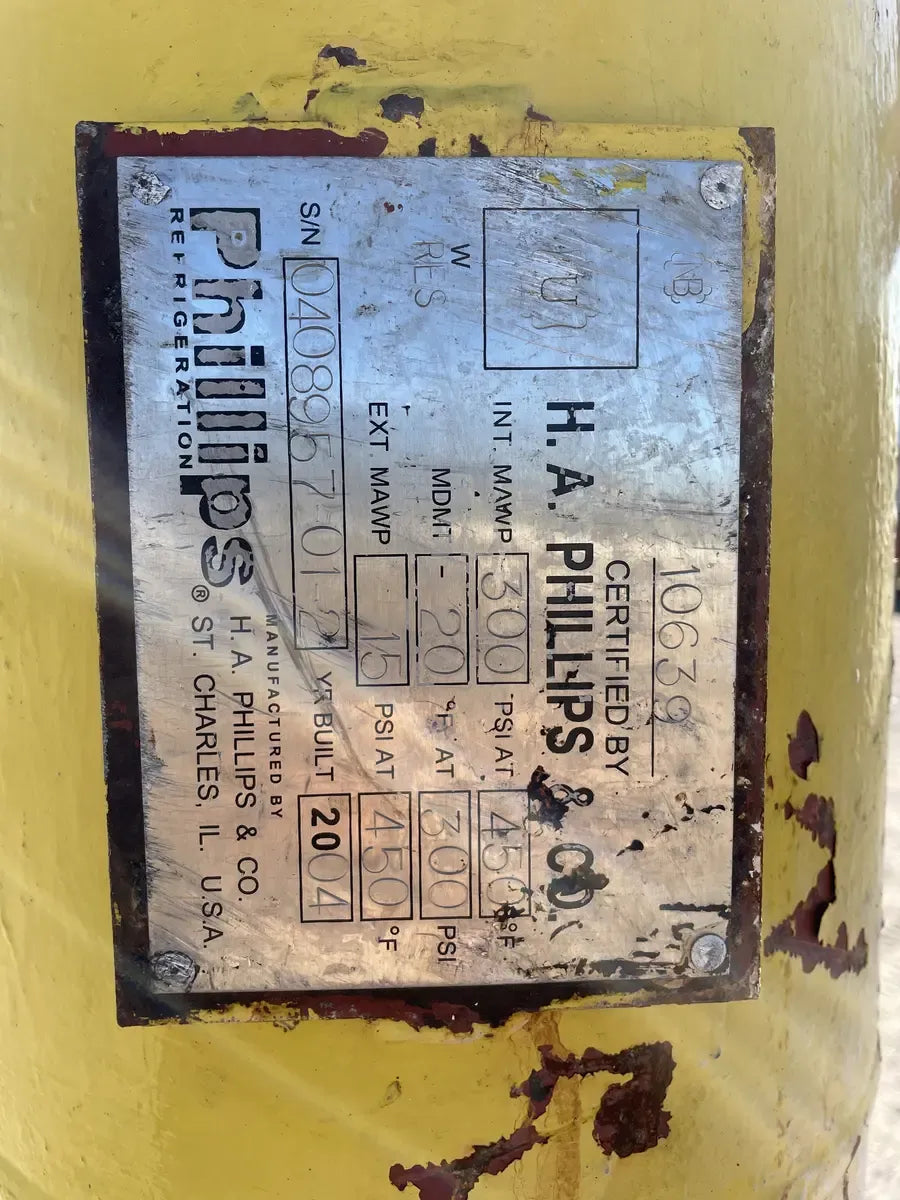

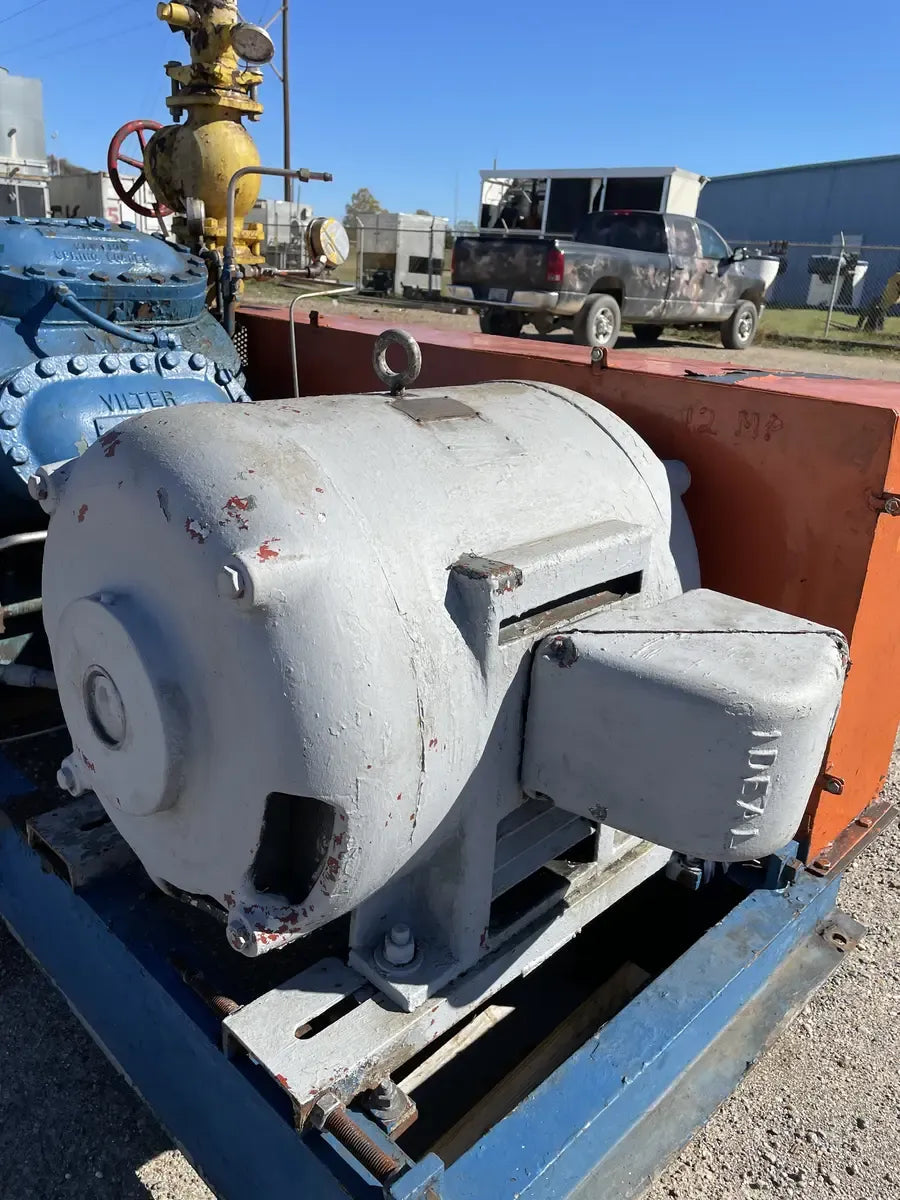

Vilter 448 8-Cylinder Reciprocating Compressor - Model: 448, Serial No: B31365, Mfg Year: 2004, Compressor Cylinder Quantity: 8. Displacement @ Max RPM (CFM): 309, Compressor Connections: Suction(in): 4 (101.6 mm), Discharge(in): 3(76.2 mm), Maximum RPM: 1200, Bore & Stroke-In (mm): 114x89. Ideal Electric Polyphase Induction Motor - Type: A, Serial No: 242335, Frame: 444-U, HP: 100, Volts: 208-236/118, RPM: 1755, Duty: Cont, Ambient Temp: 40, Design: B. Phillips Oil Separator - INT.MAWP: 300 PSI @ 450 F, MDMT: -20 F @ 300 PSI, EXT.MAWP: 15 PSI @ 450F, Serial No: 04089570102, Year Built: 2004, Certified by H.A Phillips & CO.
Product Details
- Stock No: PROD11
- Manufacturer: Vilter
- Model: 448
- Serial Number: B31365
- Compressor Type: Reciprocating
- Package Included? Yes

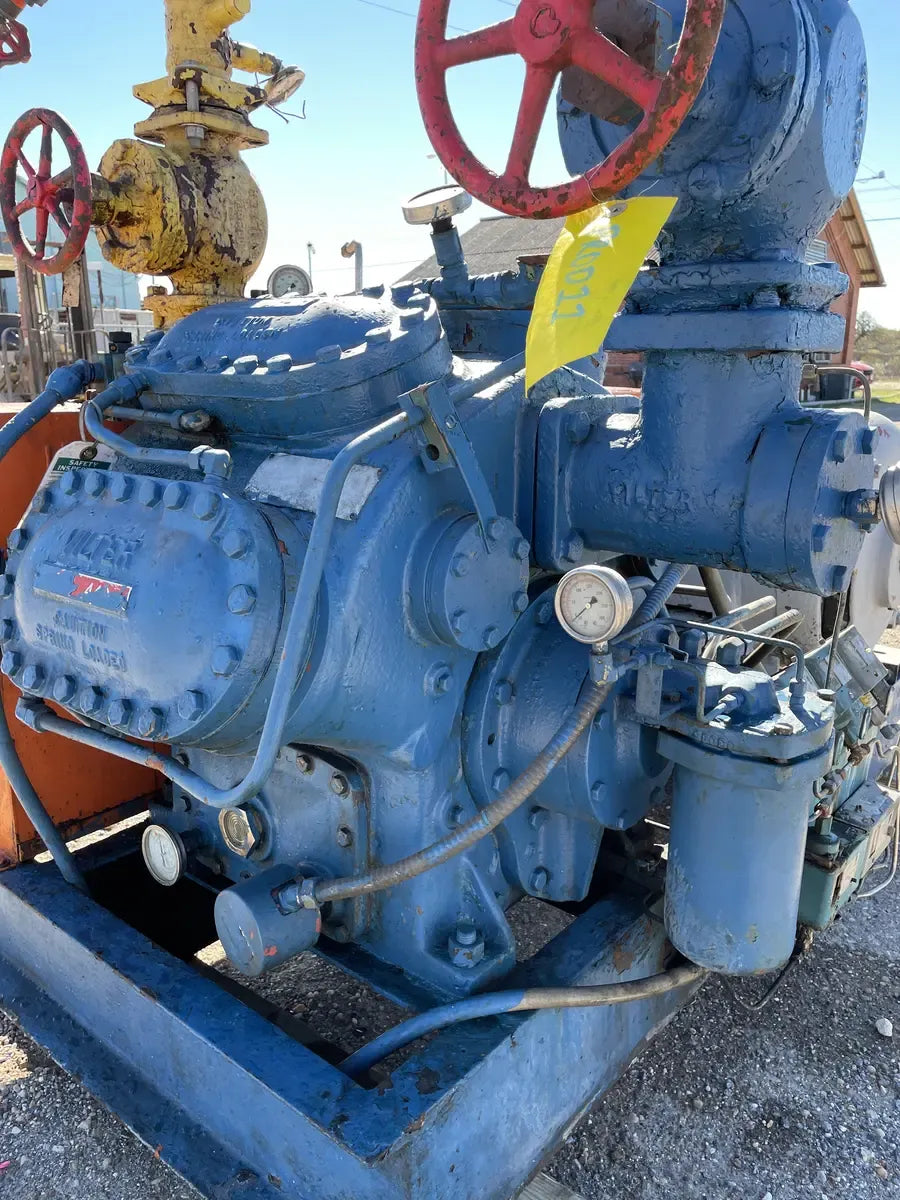

Reciprocating Compressor Details
- Compressor Manufacturer: Vilter
- # Of Reciprocating Cylinders: 8
- Reciprocating Type: Belt
- # Compressors in Package: 1
- Compressor Model: 448
- Compressor SN: B31365
- Compressor Max Speed (RPM): 1,200
- Compressor Design Pressure (PSIG): 309
- Compressor Year Manufactured: 2004
- Compressor Volume Ratio: 12:1

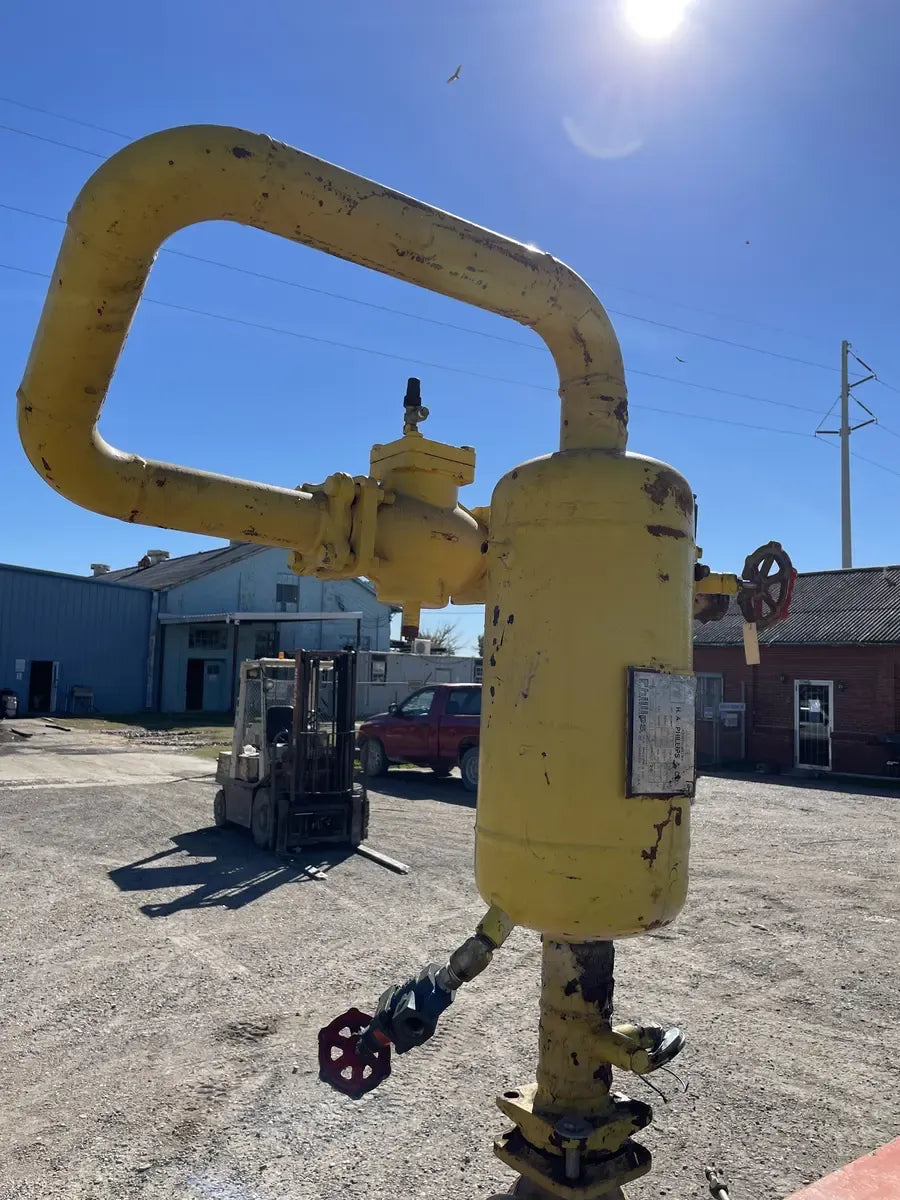

- Oil Separator Included? Yes
- Oil Separator National Board #: 10639
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

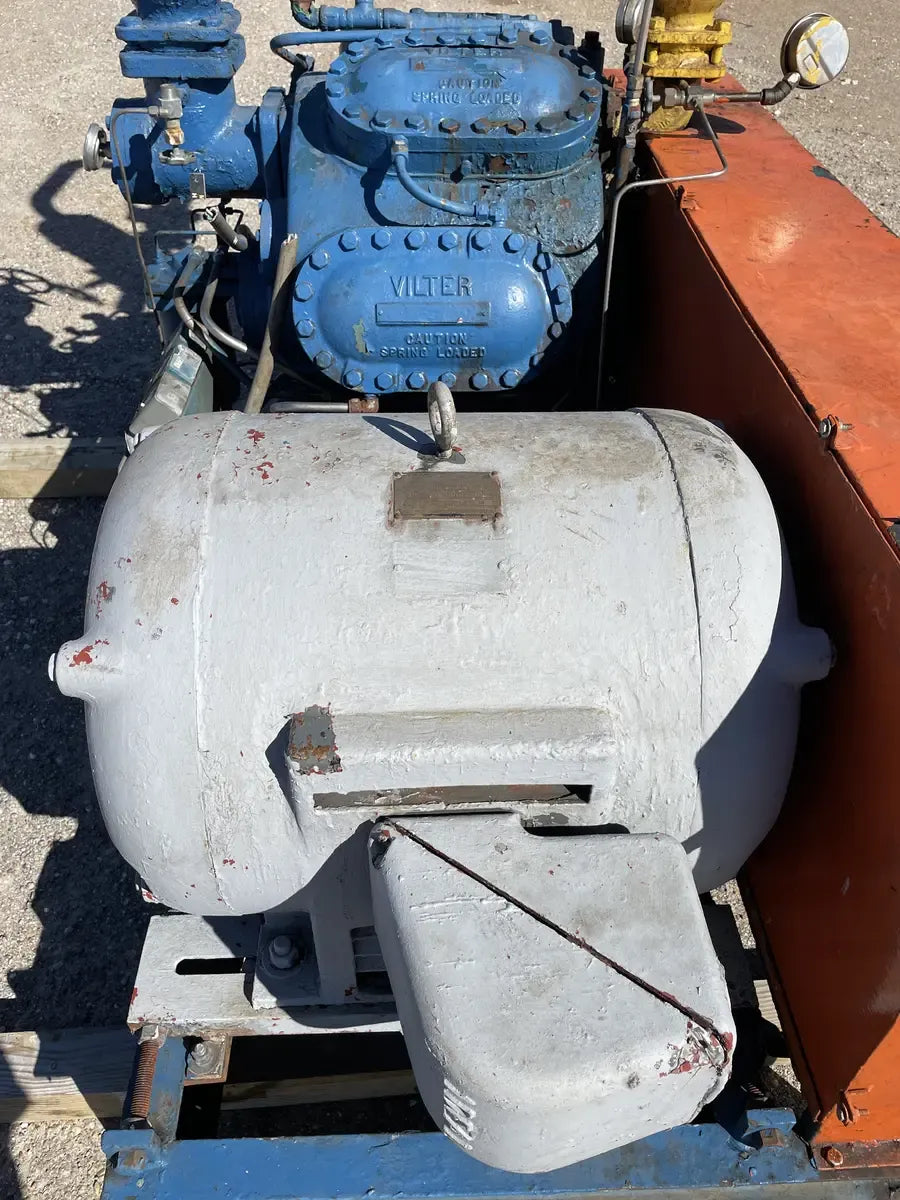

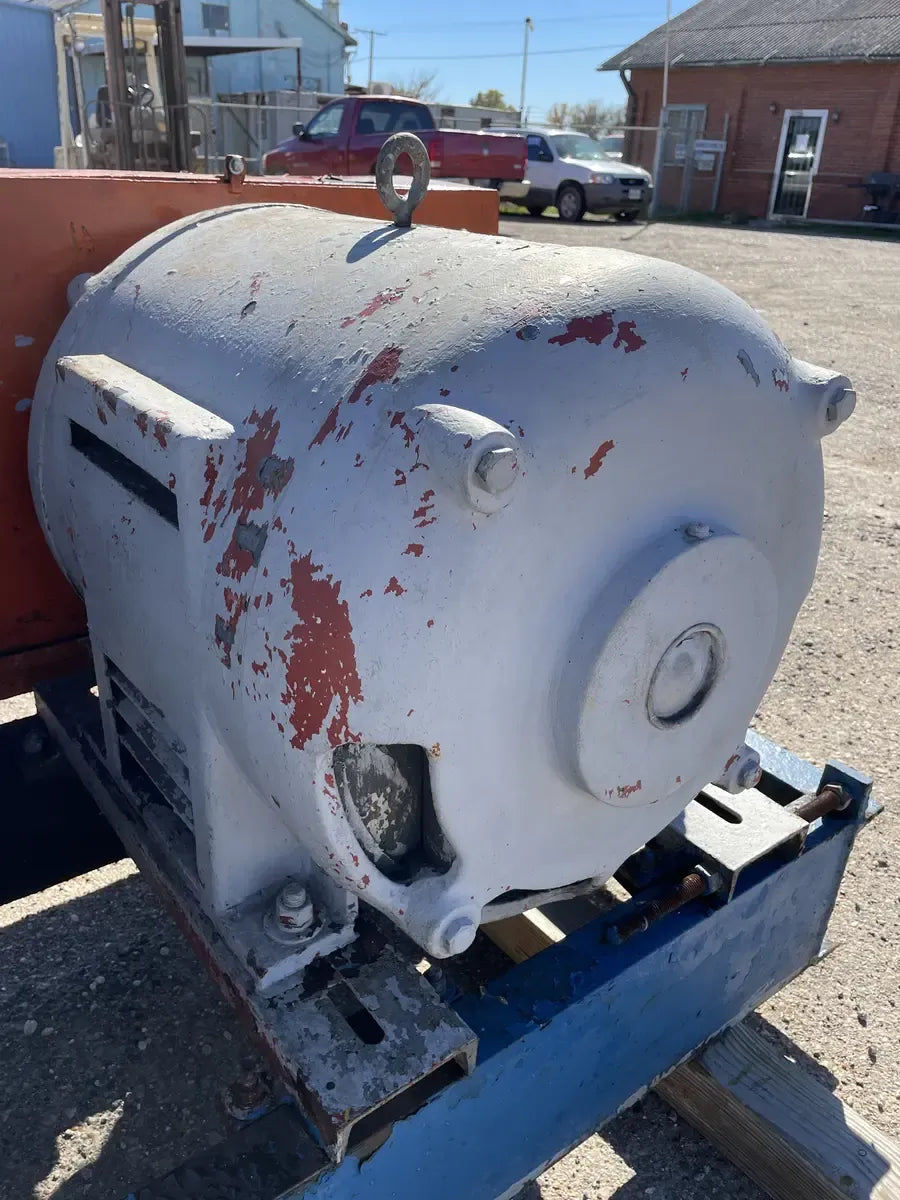

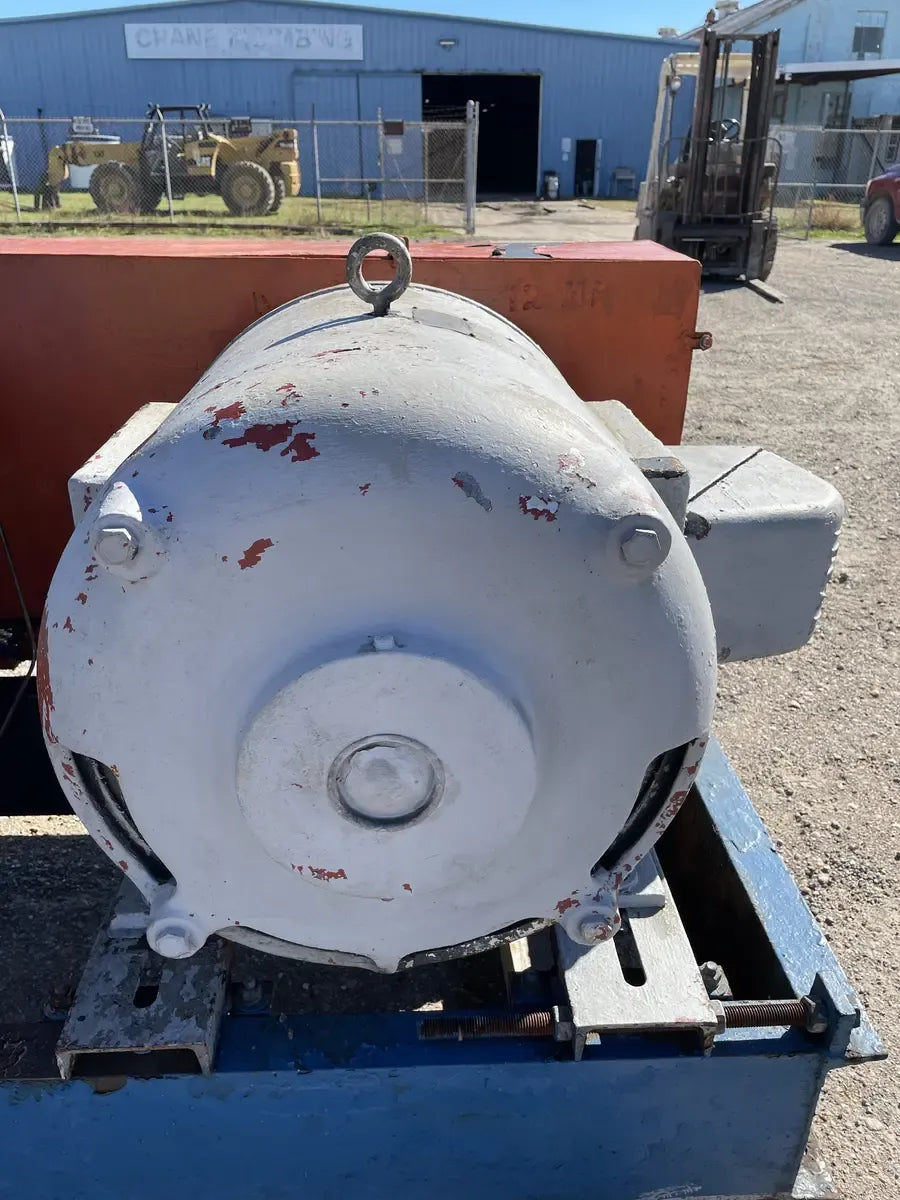

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Ideal
- Motor Horsepower(HP): 100
- Motor RPM: 1,755
- Motor Voltage: 208-236/118
- Motor Amps: 248-238/118
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 444-U
Dimensions:
- Length (Inches): 79
- Width (Inches): 54
- Height (Inches): 97
- Weight (LBS): 3,400
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2004
- Spec Sheet Available: Yes
